The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

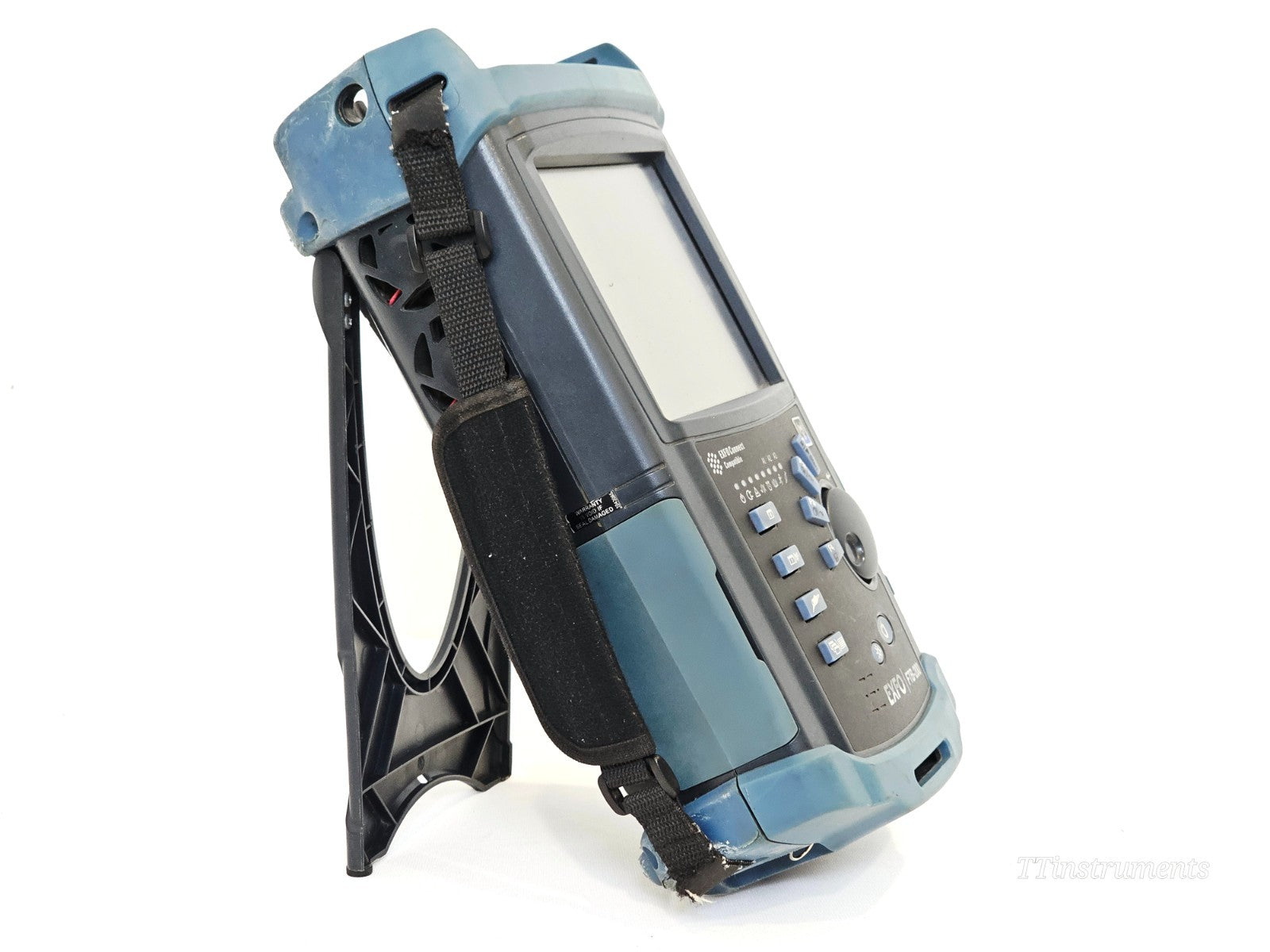

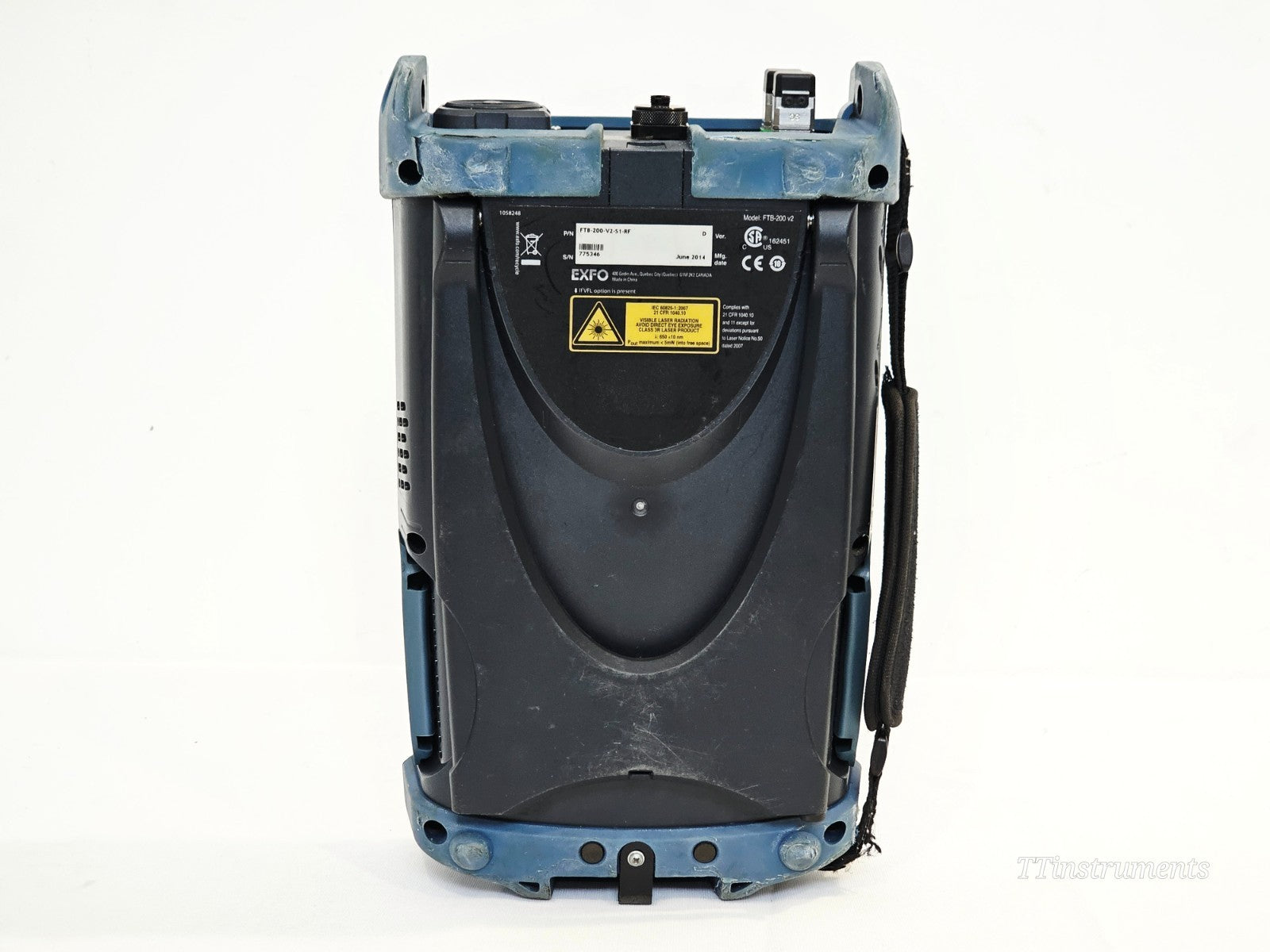

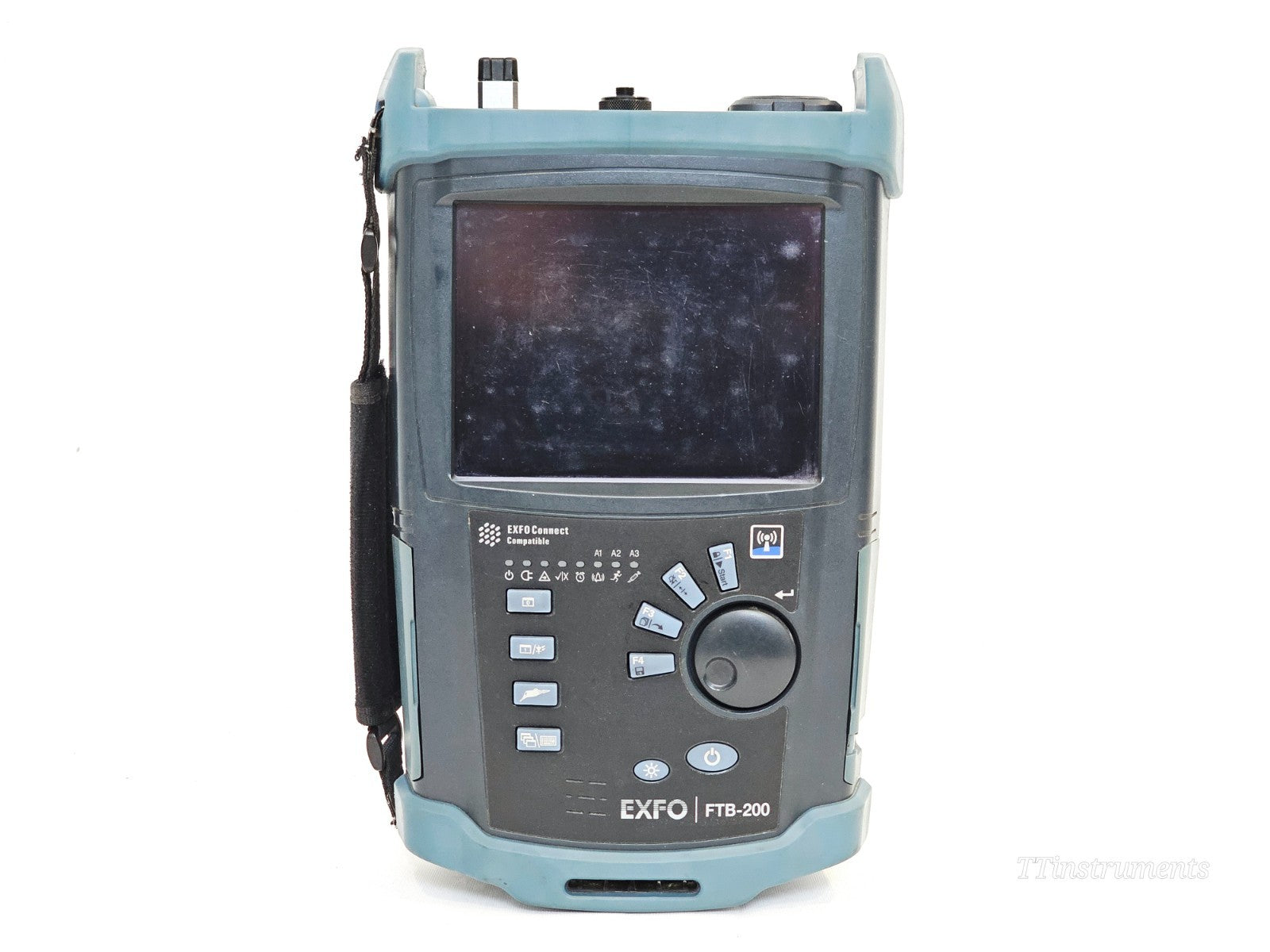

This EXFO FTB-200 V2 (P/N FTB-200-V2-S1-RF) is a used unit in overall good working condition. The screen has light surface scratches which do not affect readability during normal operation. The unit is fully tested and confirmed working within manufacturer specifications.

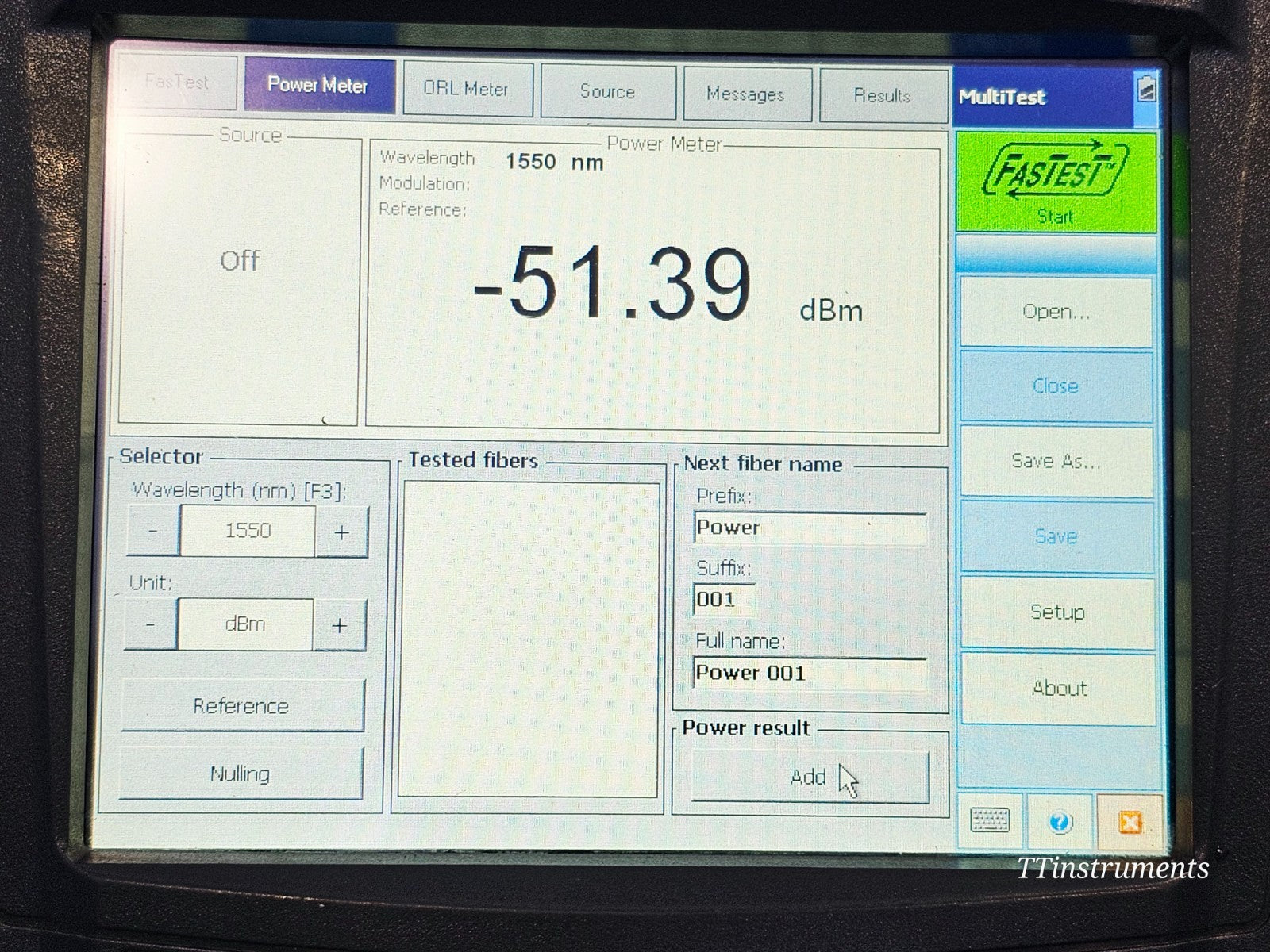

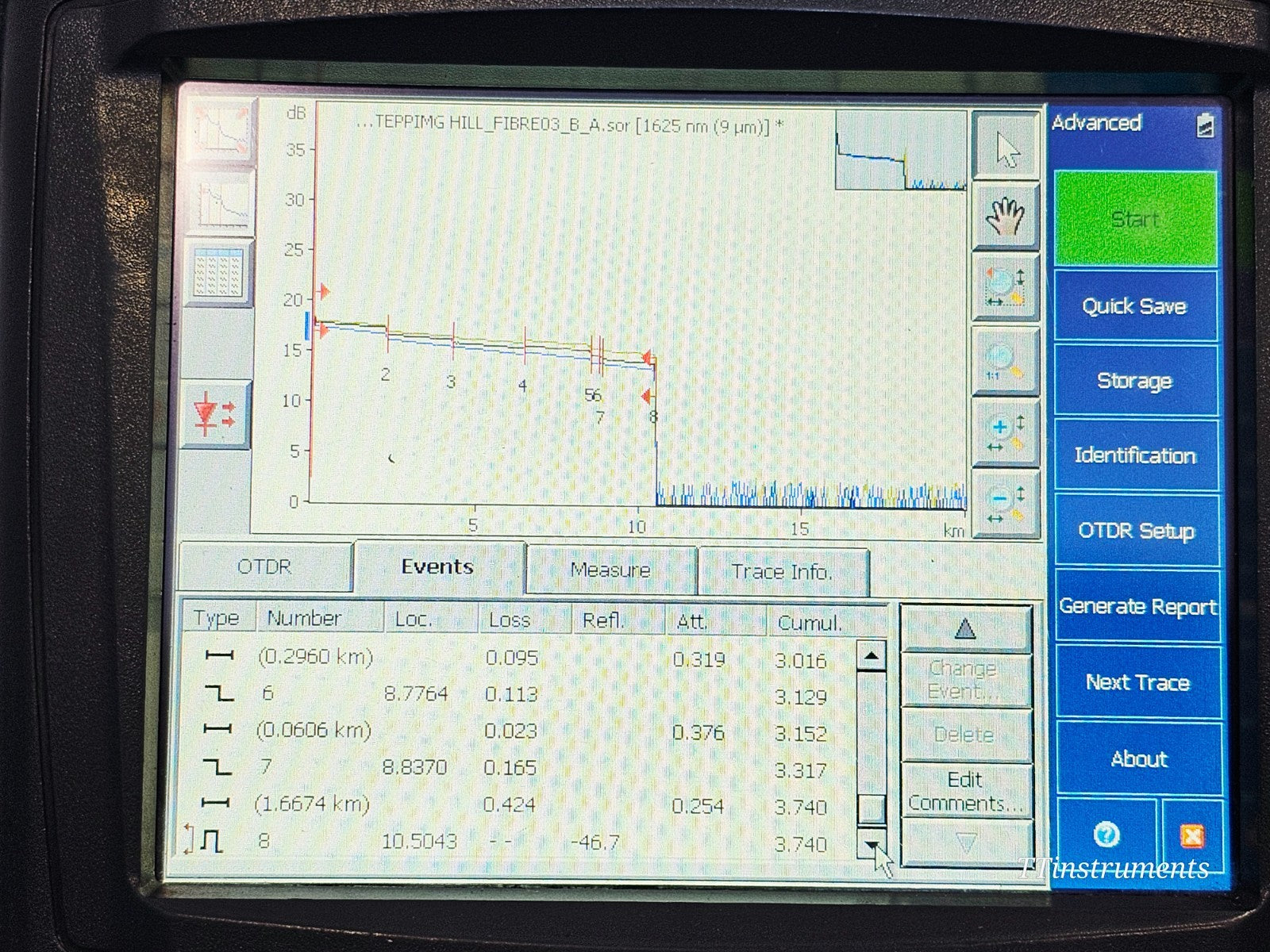

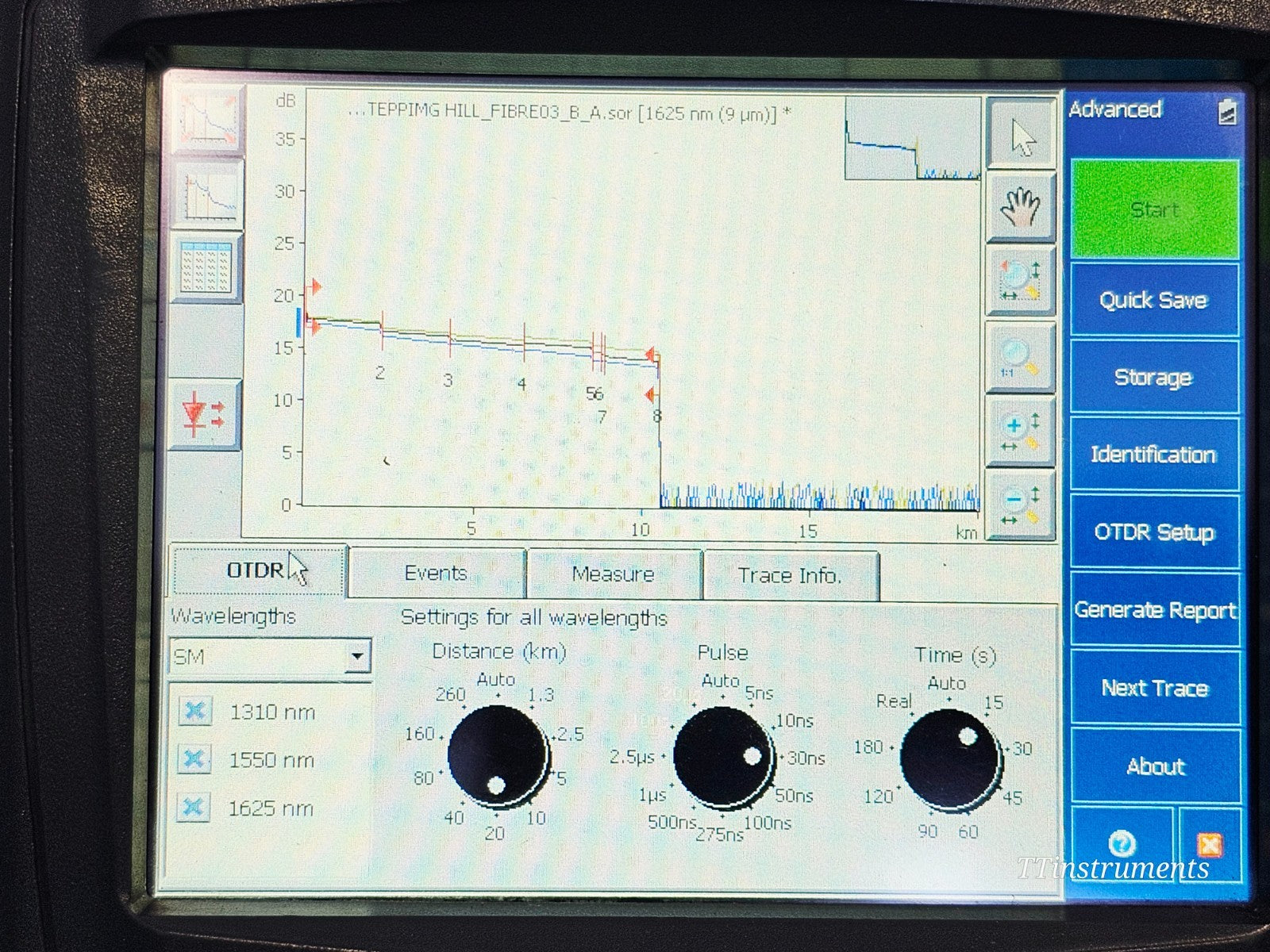

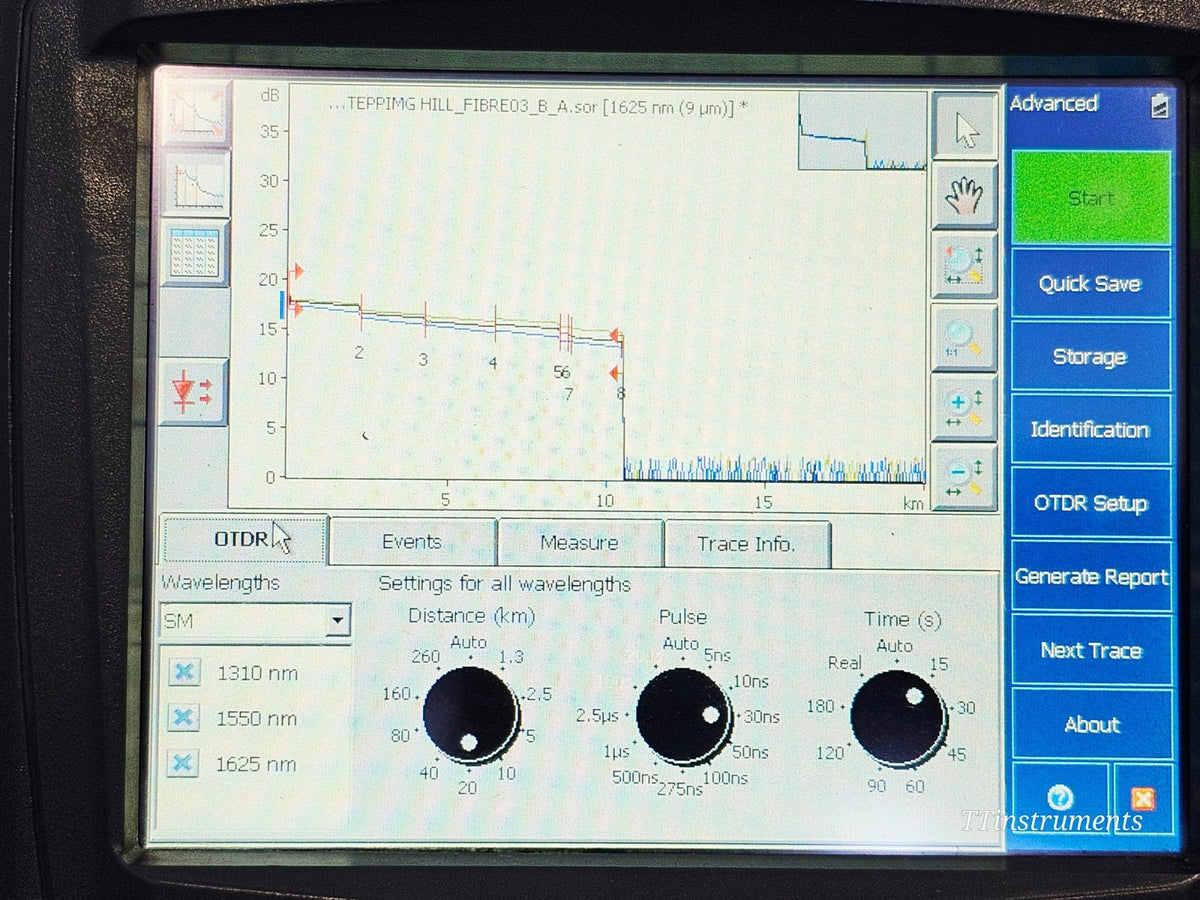

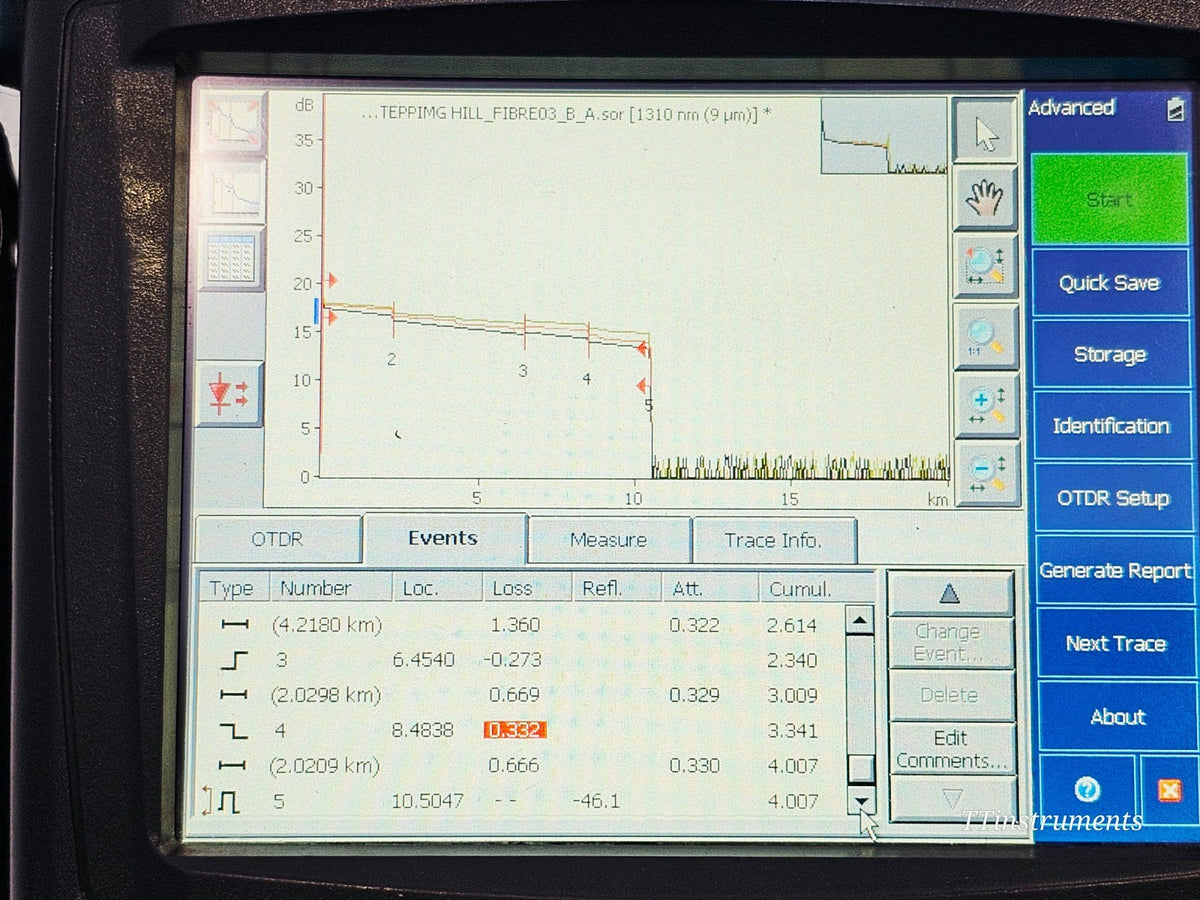

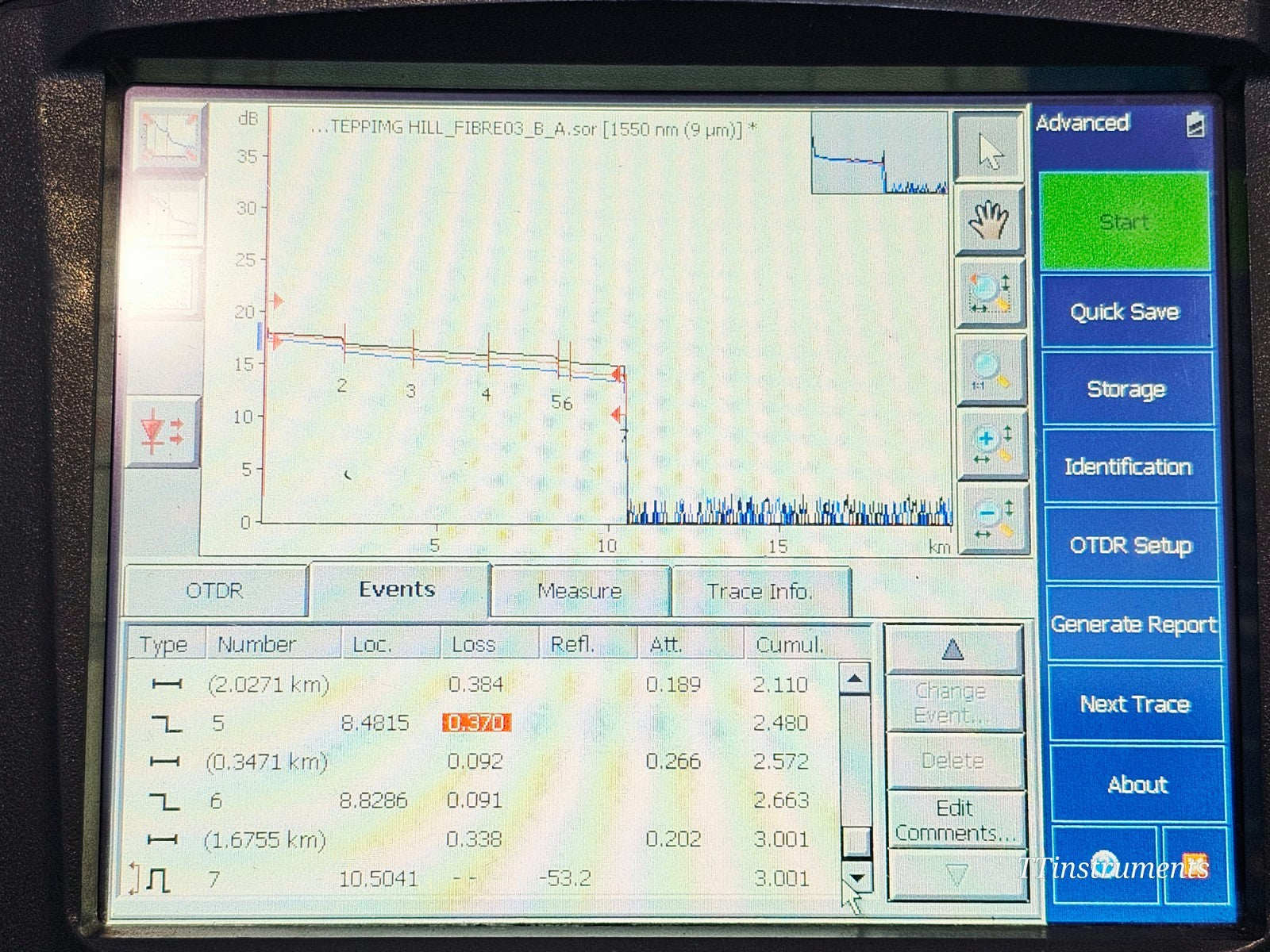

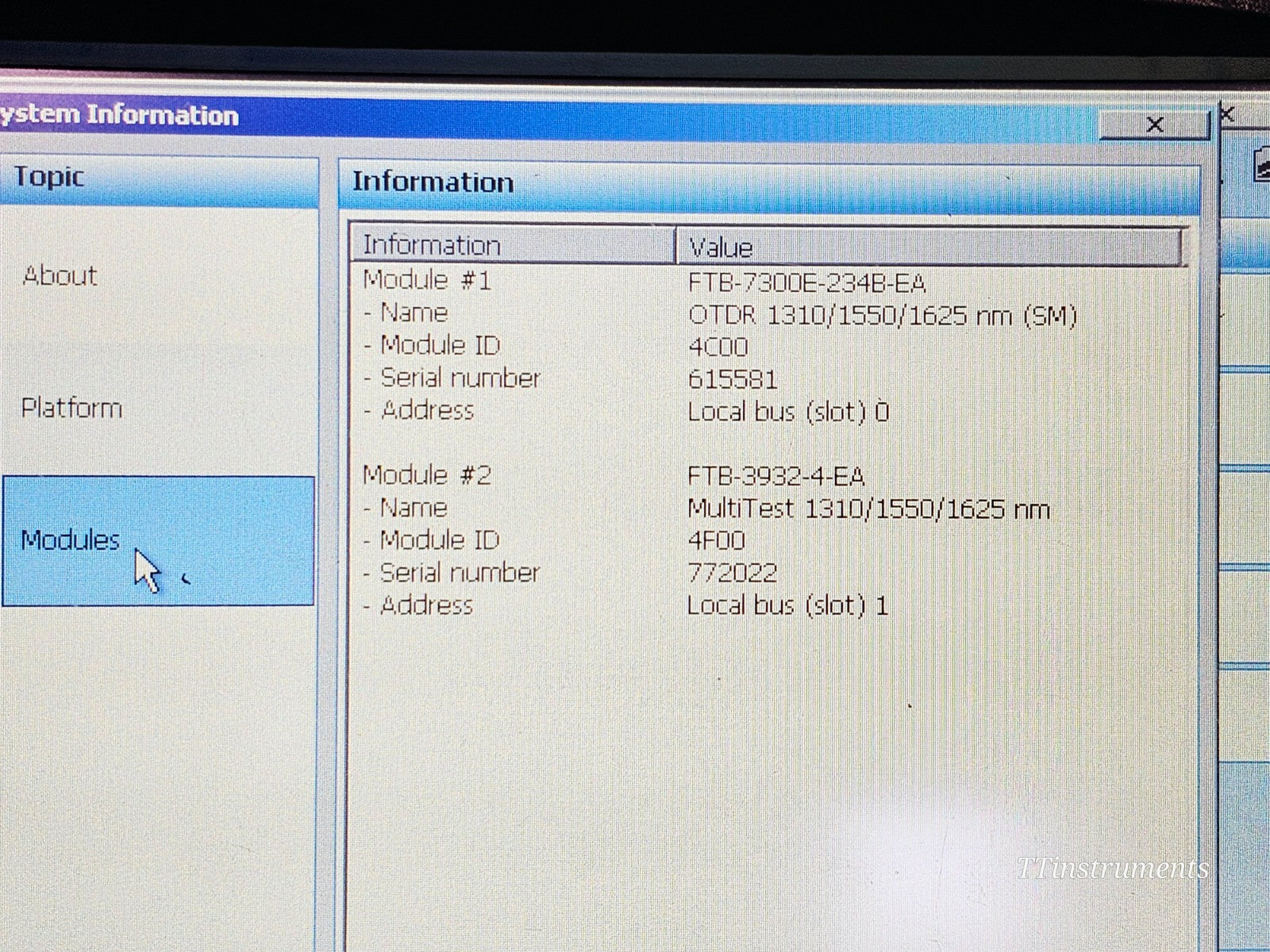

The FTB-7300E-234B-EA SM OTDR module has been tested at all three wavelengths — 1310, 1550 and 1625 nm — with pass results confirmed. The FTB-3932-4-EA MultiTest module is confirmed operational with power meter and FasTesT functions active.

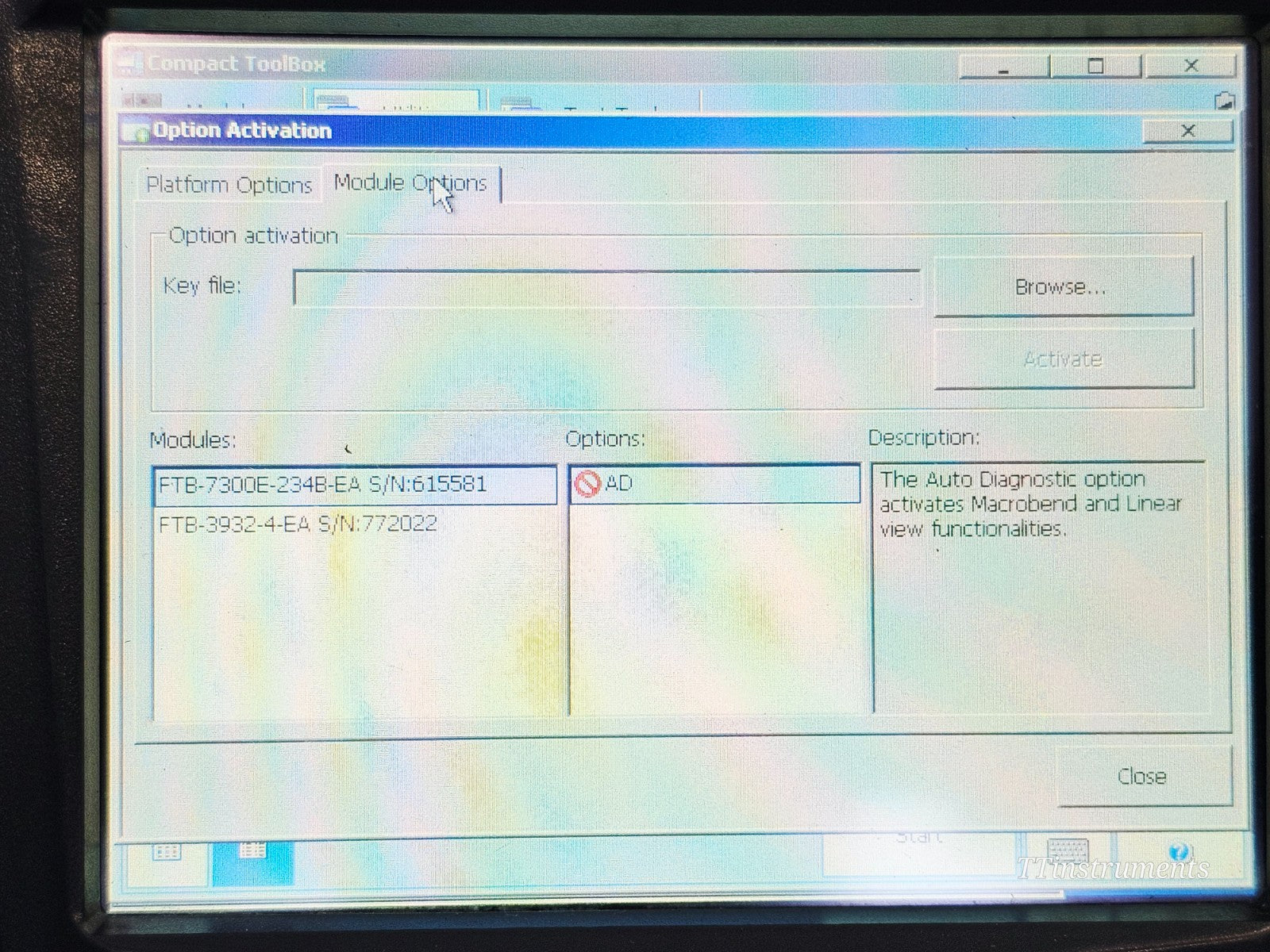

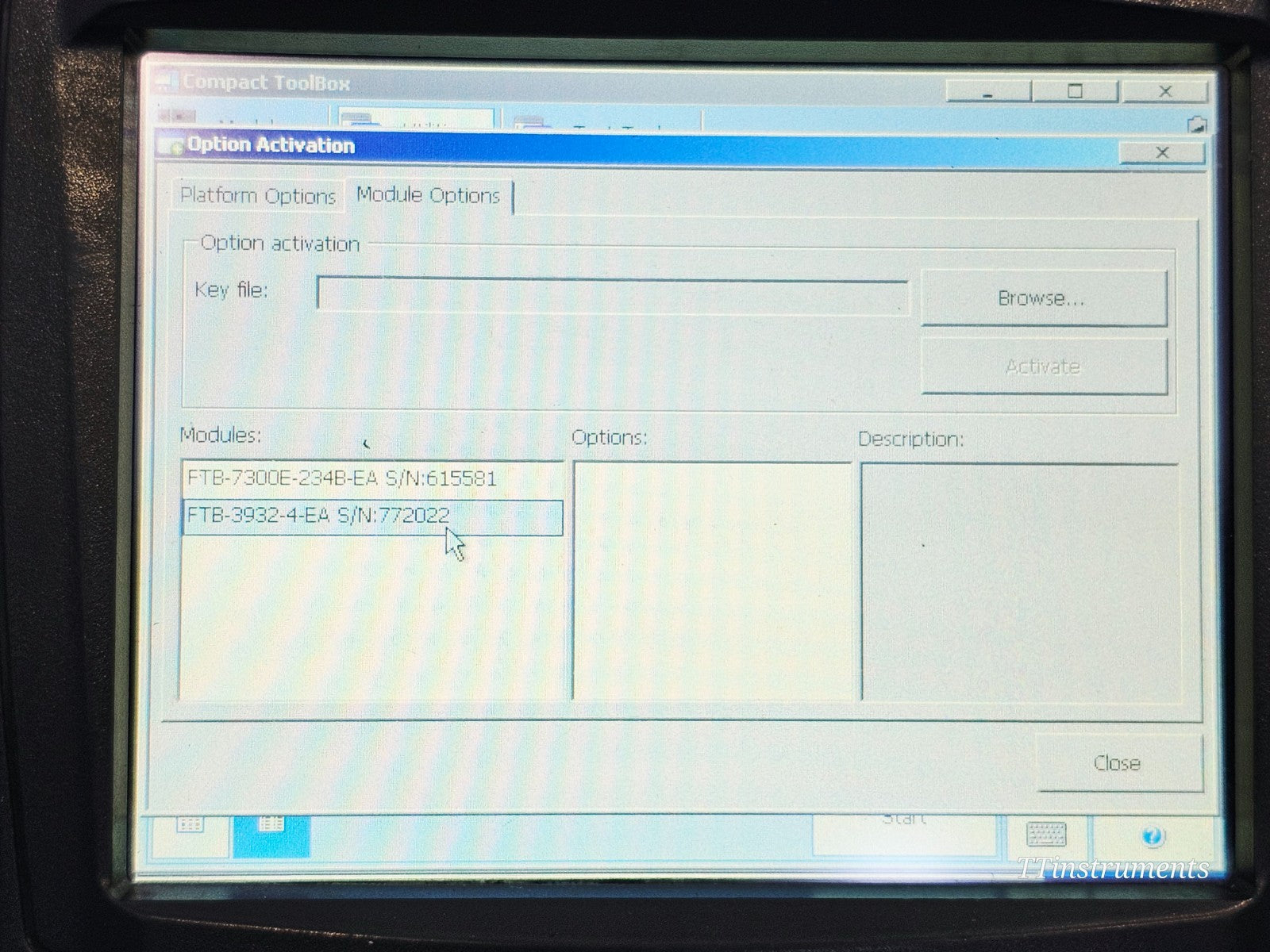

Active licensed options:
• Platform RF option (Wi-Fi and Bluetooth) — active
• FTB-7300E OTDR base software — active
• iOLM — not activated

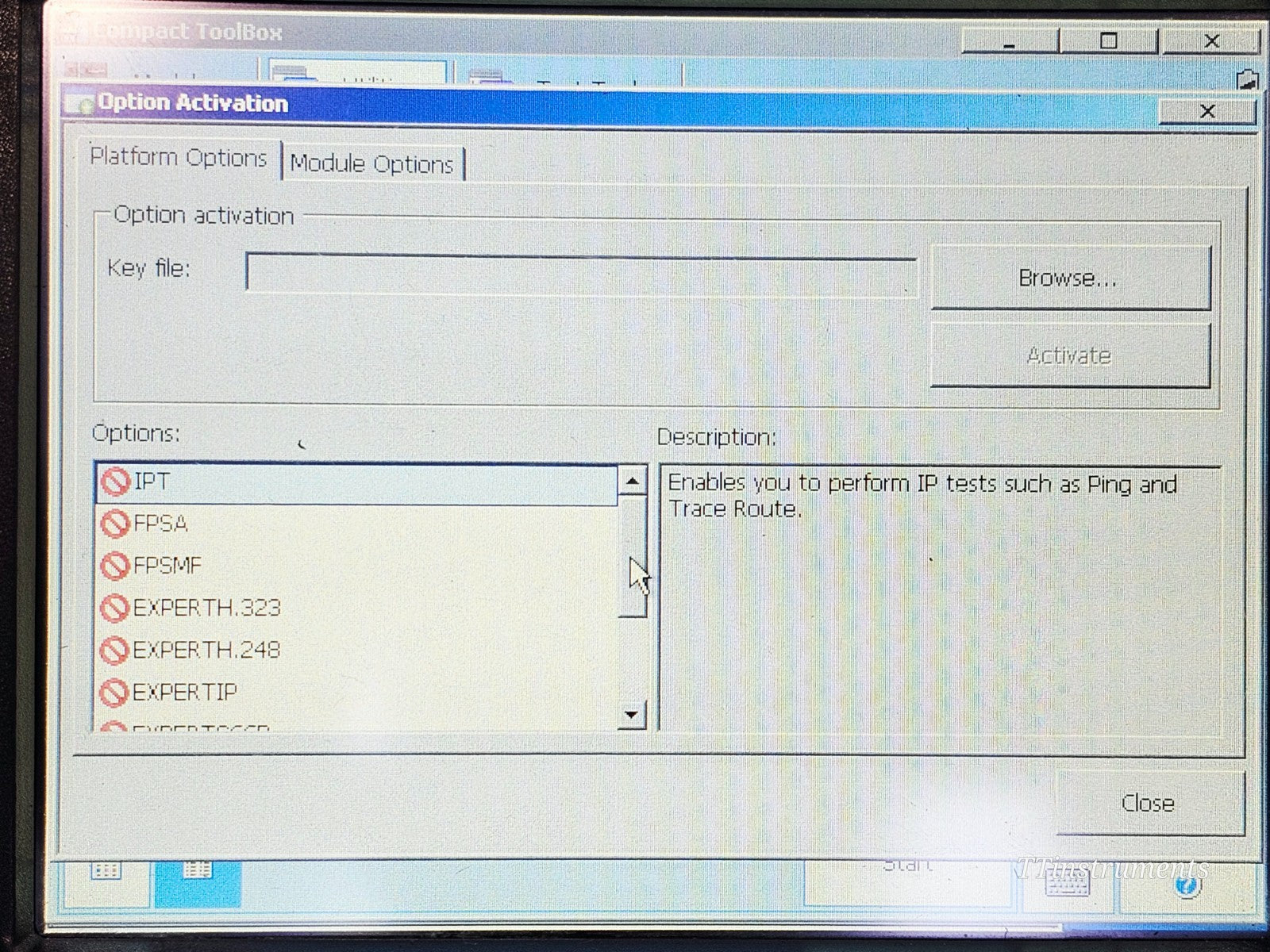

• Platform software options (IPT, FPSA, EXpert tools) — not activated
• AD module option (Macrobend/Linear View) — not activated

Included with this unit:

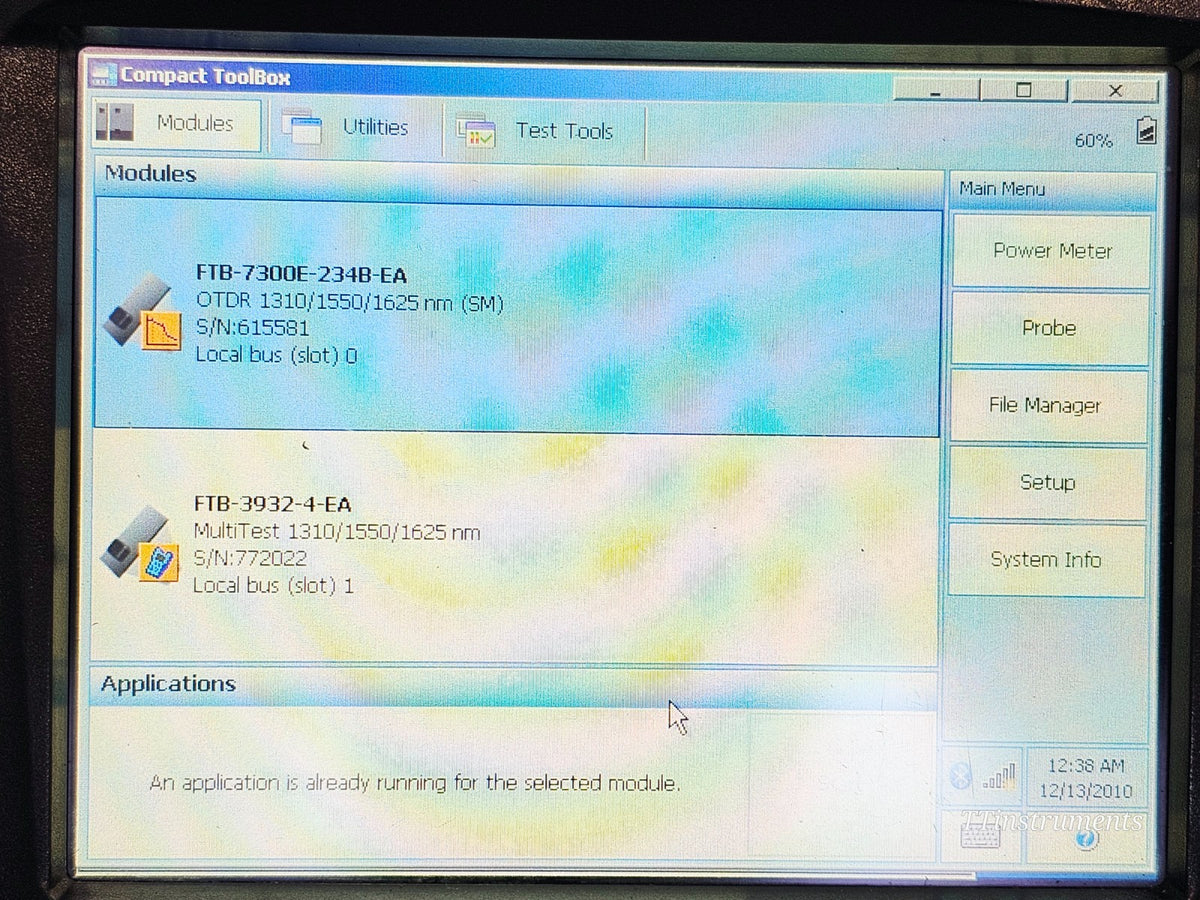

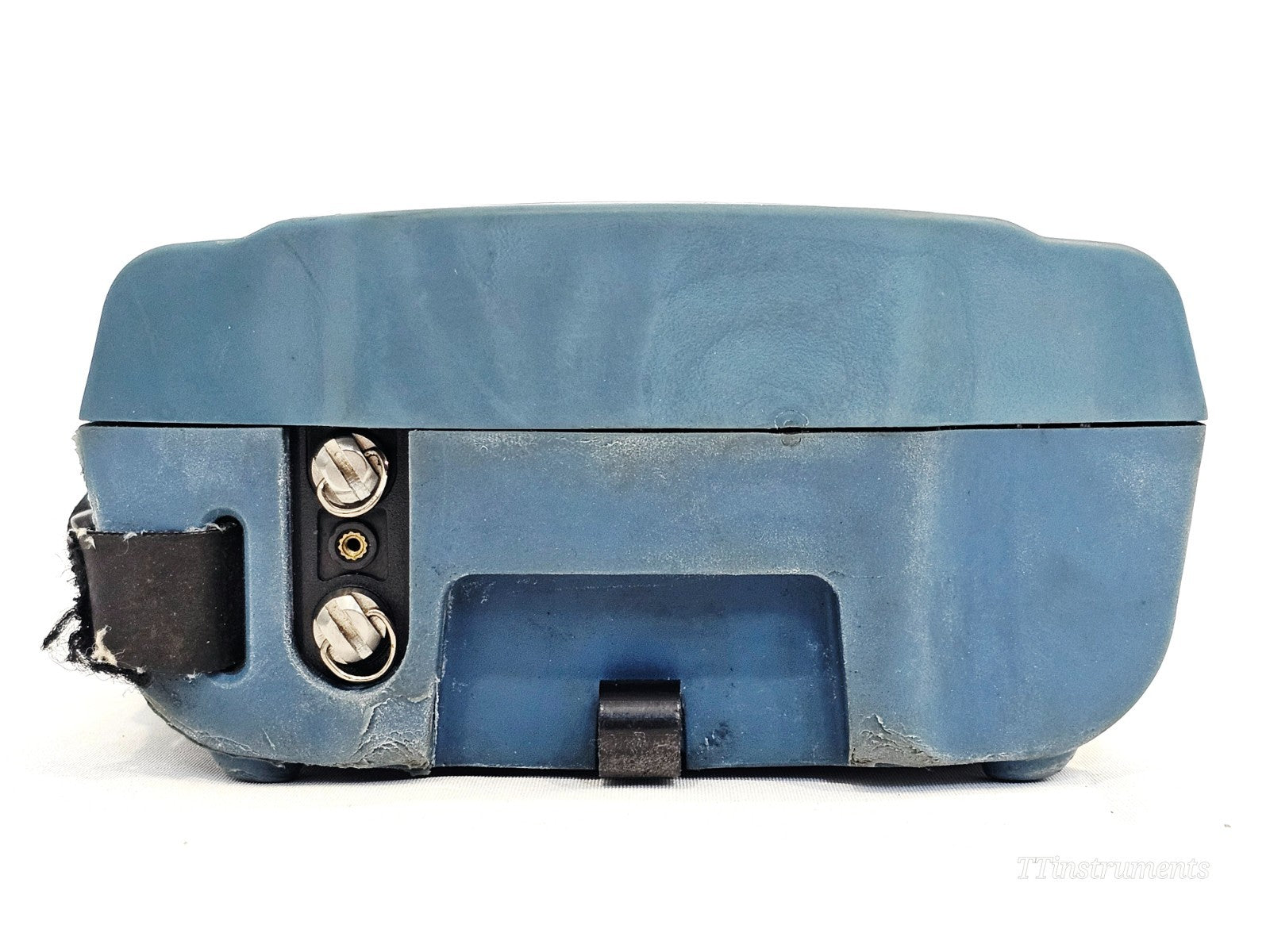

• EXFO FTB-200 V2 mainframe (P/N FTB-200-V2-S1-RF)

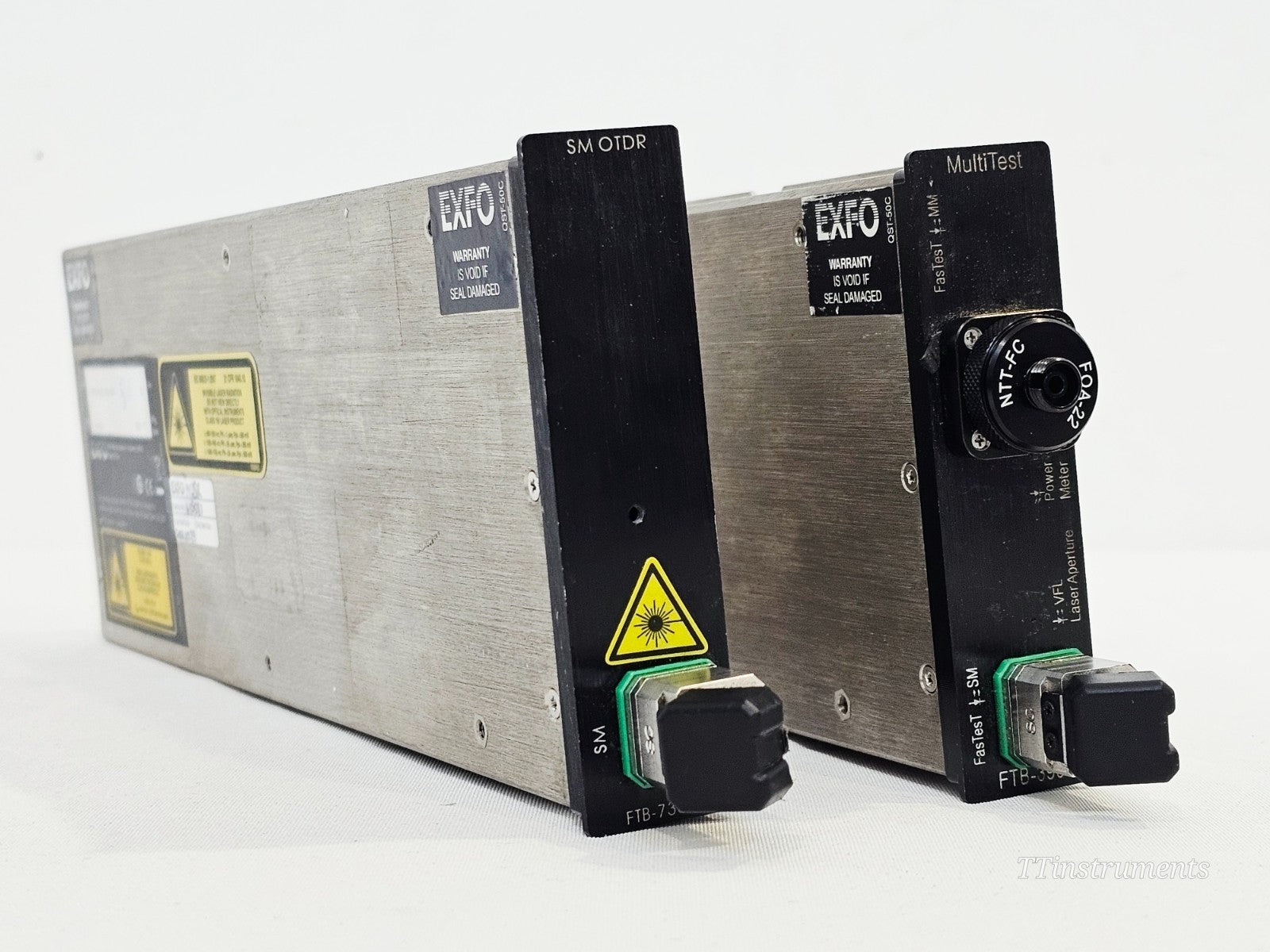

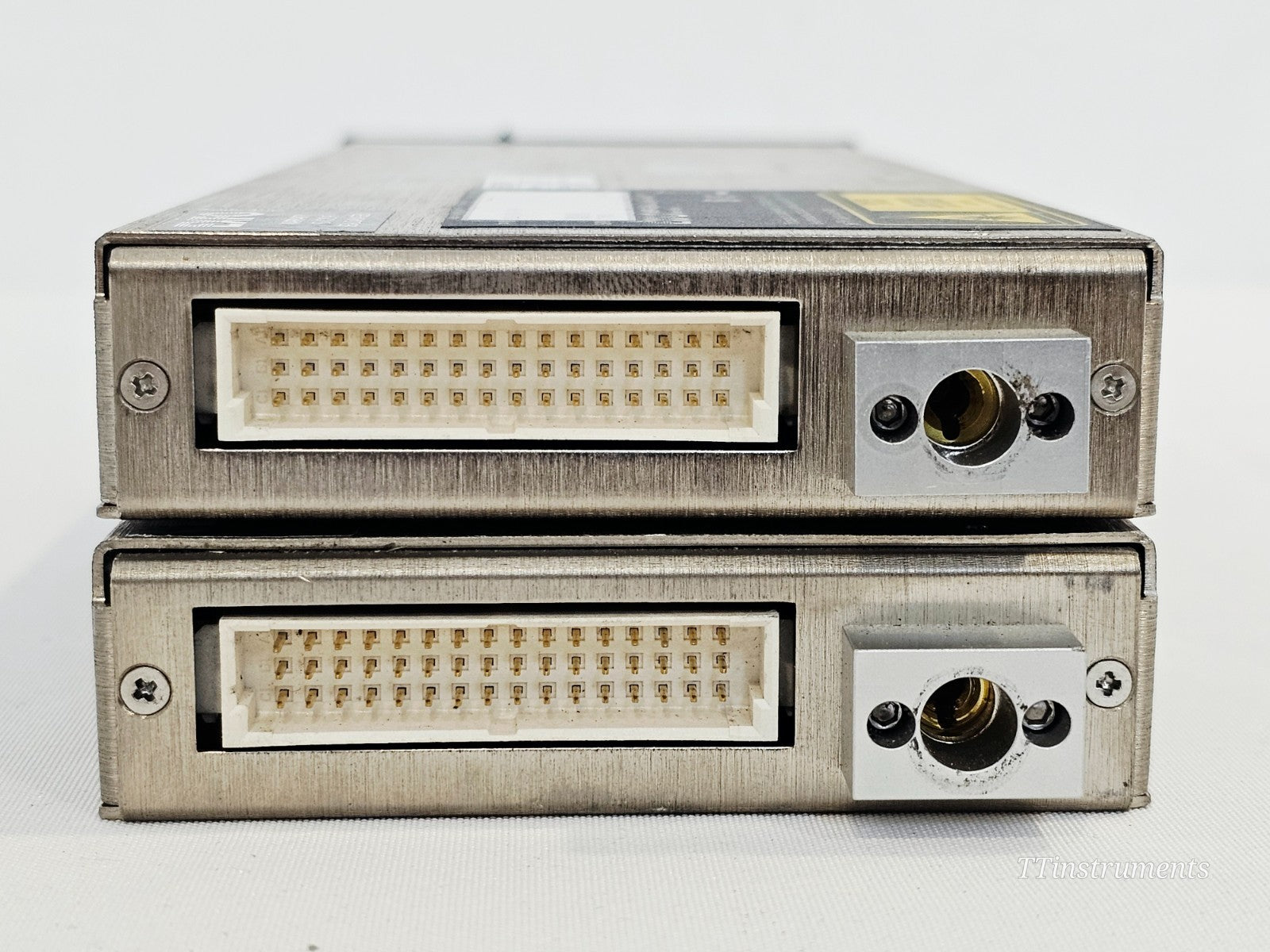

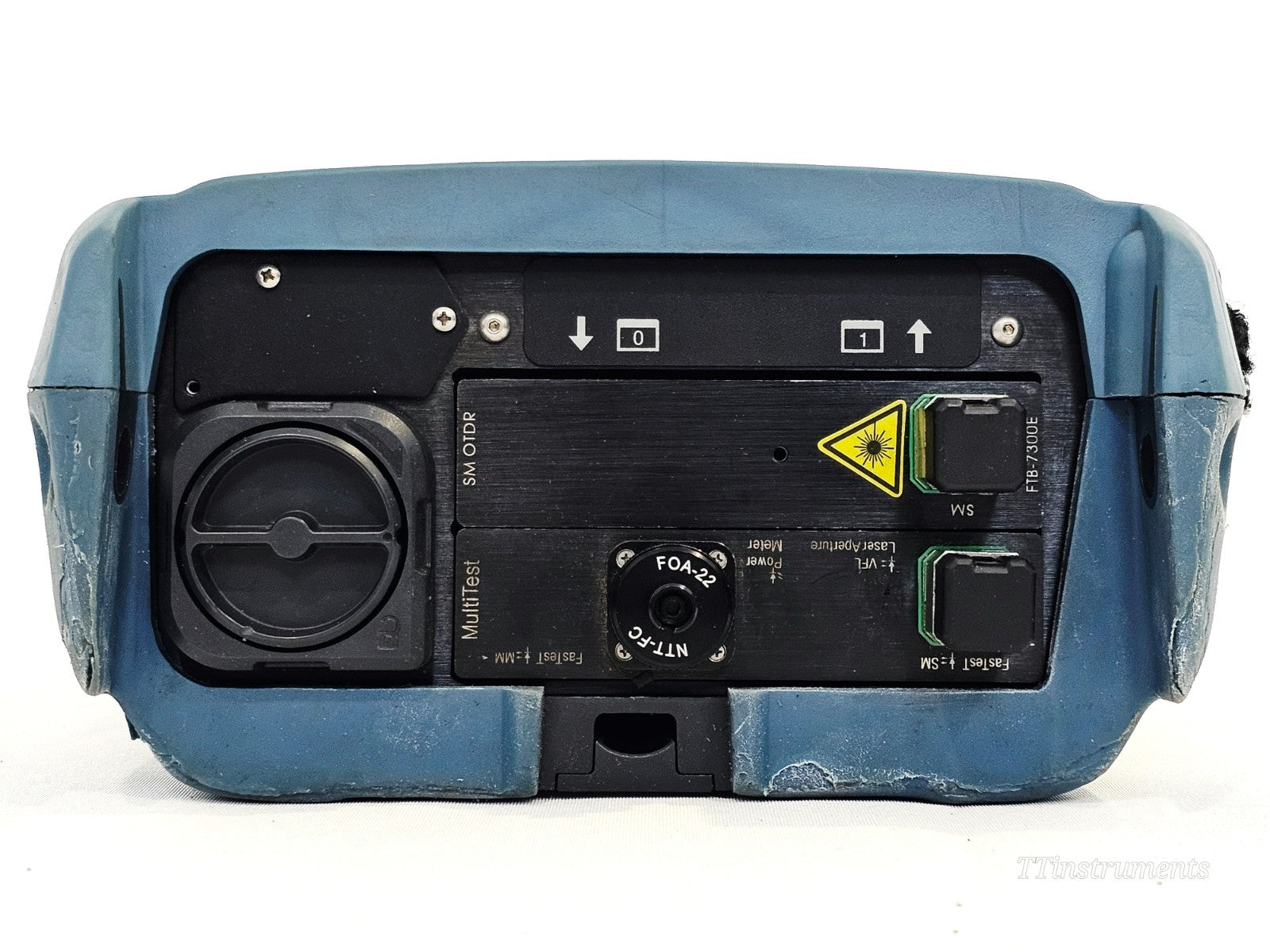

• FTB-7300E-234B-EA SM OTDR module (Slot 0, SC/APC)

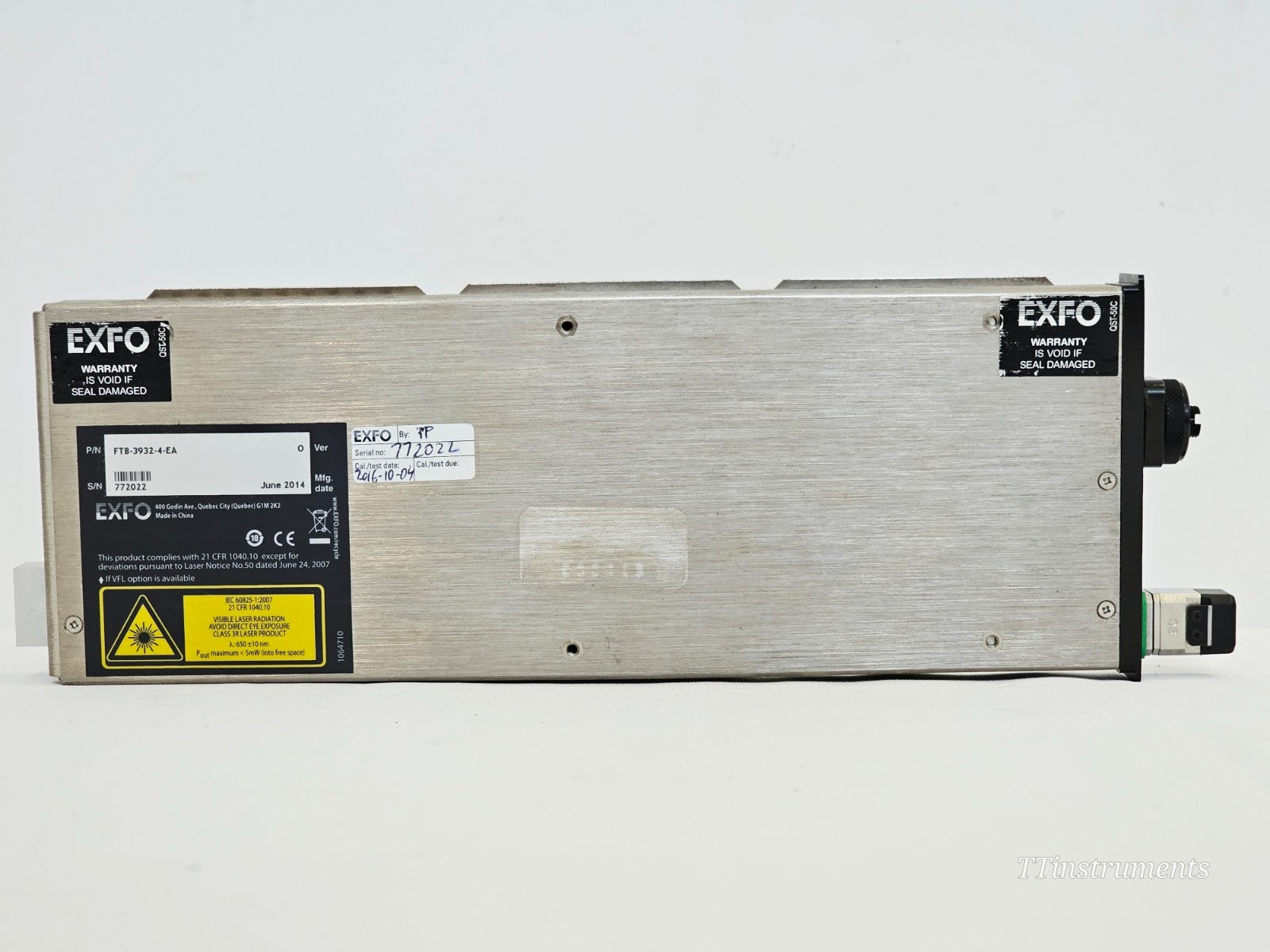

• FTB-3932-4-EA MultiTest module (Slot 1, SC/APC and FOA-22/NTT-FC)
• AC power adapter / mains charger
• Stylus
• Soft carry case with shoulder strap

The EXFO FTB-200 V2 is the most compact multitechnology test platform designed for field technicians working across optical, Ethernet and multiservice network testing applications. Built around an Intel ATOM processor running Windows Embedded Standard, it houses up to two field-interchangeable FTB modules and supports connectivity via USB, Ethernet, Wi-Fi, Bluetooth and optional 3G — making it fully compatible with EXFO Connect for cloud-based asset management and automated data workflows.

The FTB-7300E is a PON/FTTx/MDU OTDR module designed to meet the testing demands of modern fibre access networks. It delivers up to 39 dB dynamic range at 1310 nm, supports testing through high-port-count splitters up to 1×128, and includes a singlemode live port for in-service troubleshooting at 1625 nm without disrupting active traffic.

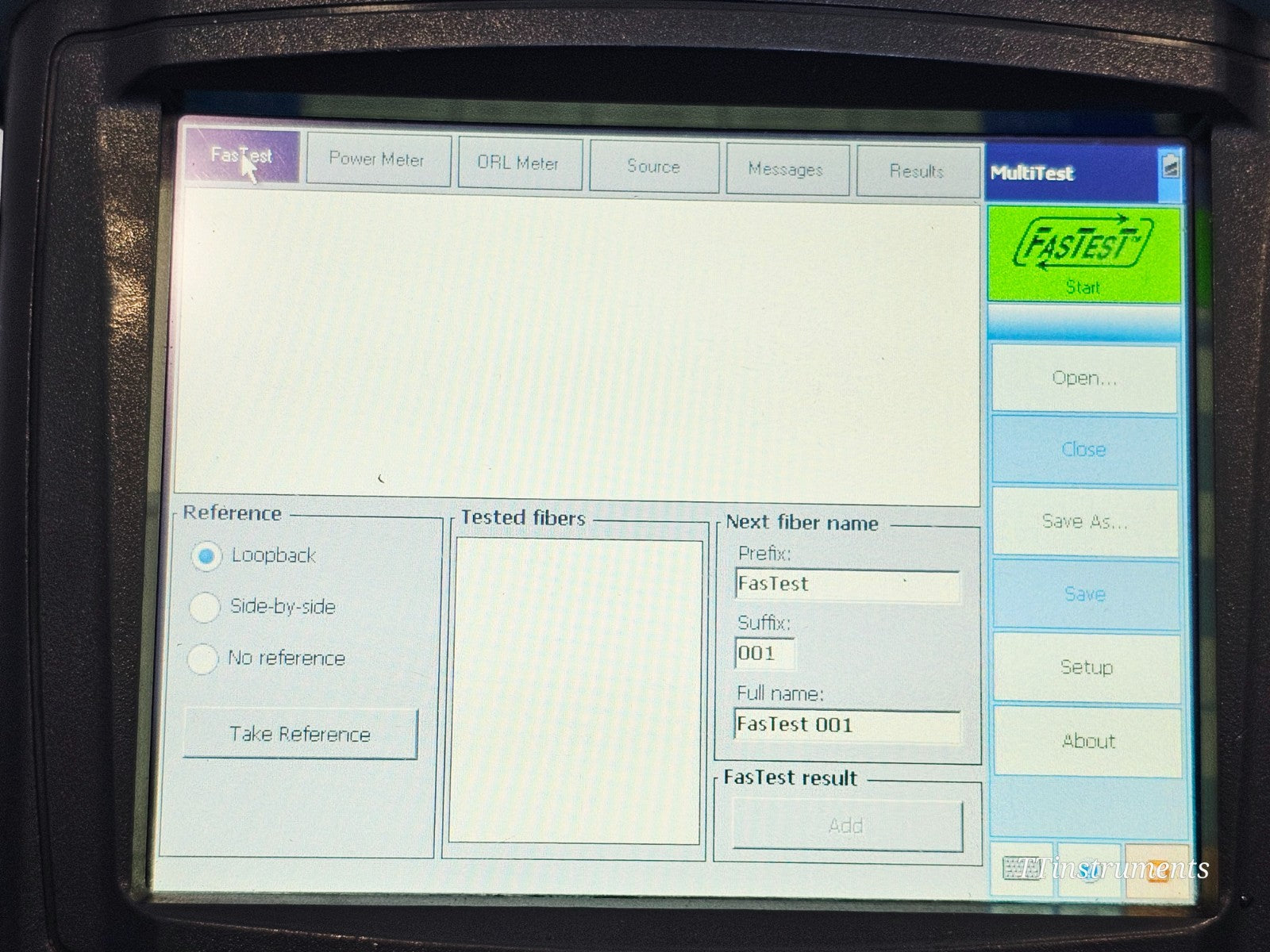

The FTB-3930 MultiTest module provides fully automated bidirectional insertion loss results in under 10 seconds for up to three wavelengths, together with automatic ORL and fibre-length measurement. It combines a power meter, light source, visual fault locator and FasTesT system in a single compact module slot.

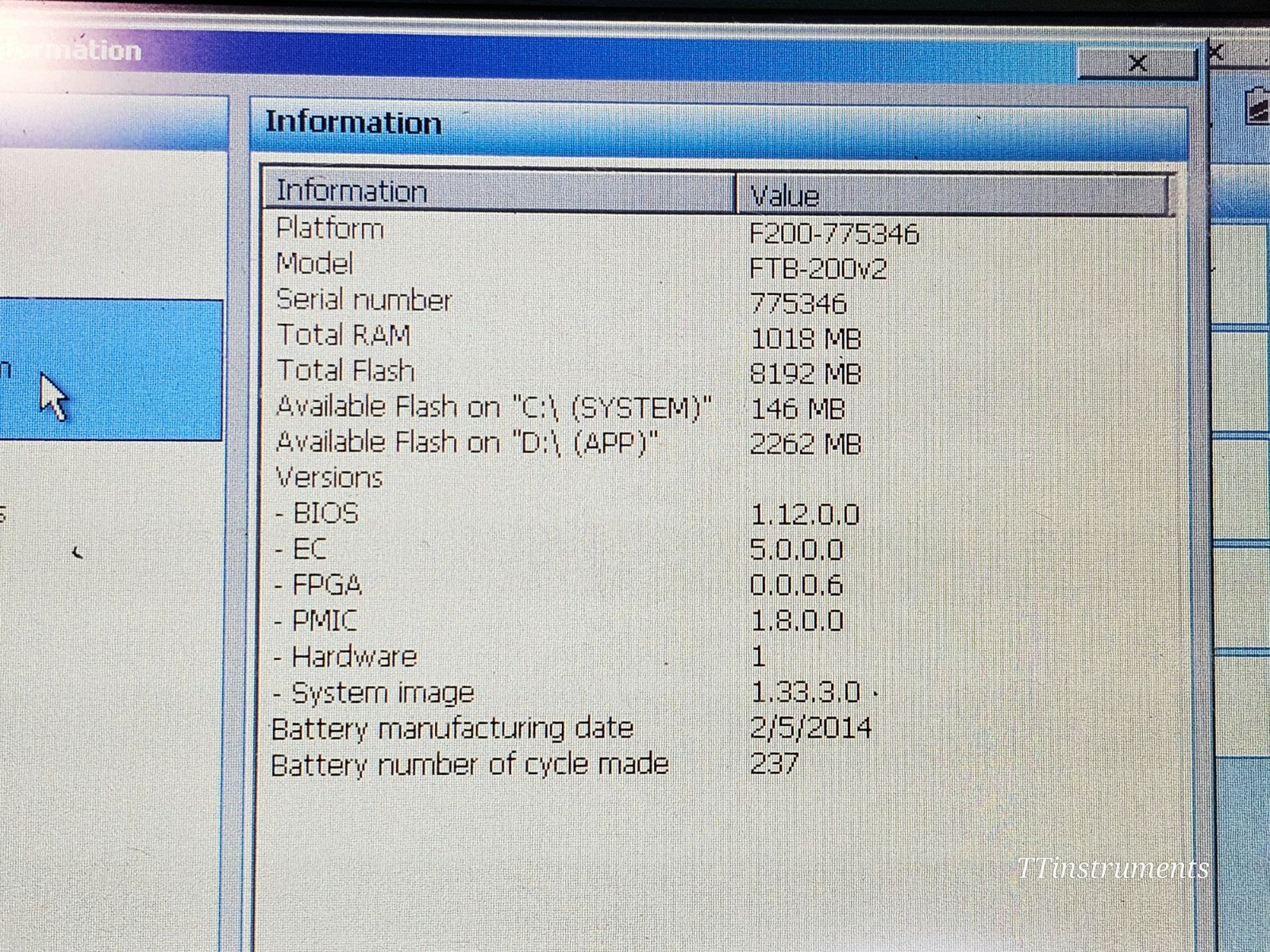

FTB-200 V2 Platform:
Display: Touchscreen, colour, 800 x 480 TFT, 163 mm (6.5 in)
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Internal Storage: 8 GB flash
Interfaces: USB 2.0 (x2), RJ-45 LAN 10/100/1000 Mbit/s, fibre inspection probe port
Battery: Lithium-ion, up to 8 hours operation
Power Supply: 100–240 VAC, 50–60 Hz, 24 VDC 90 W output

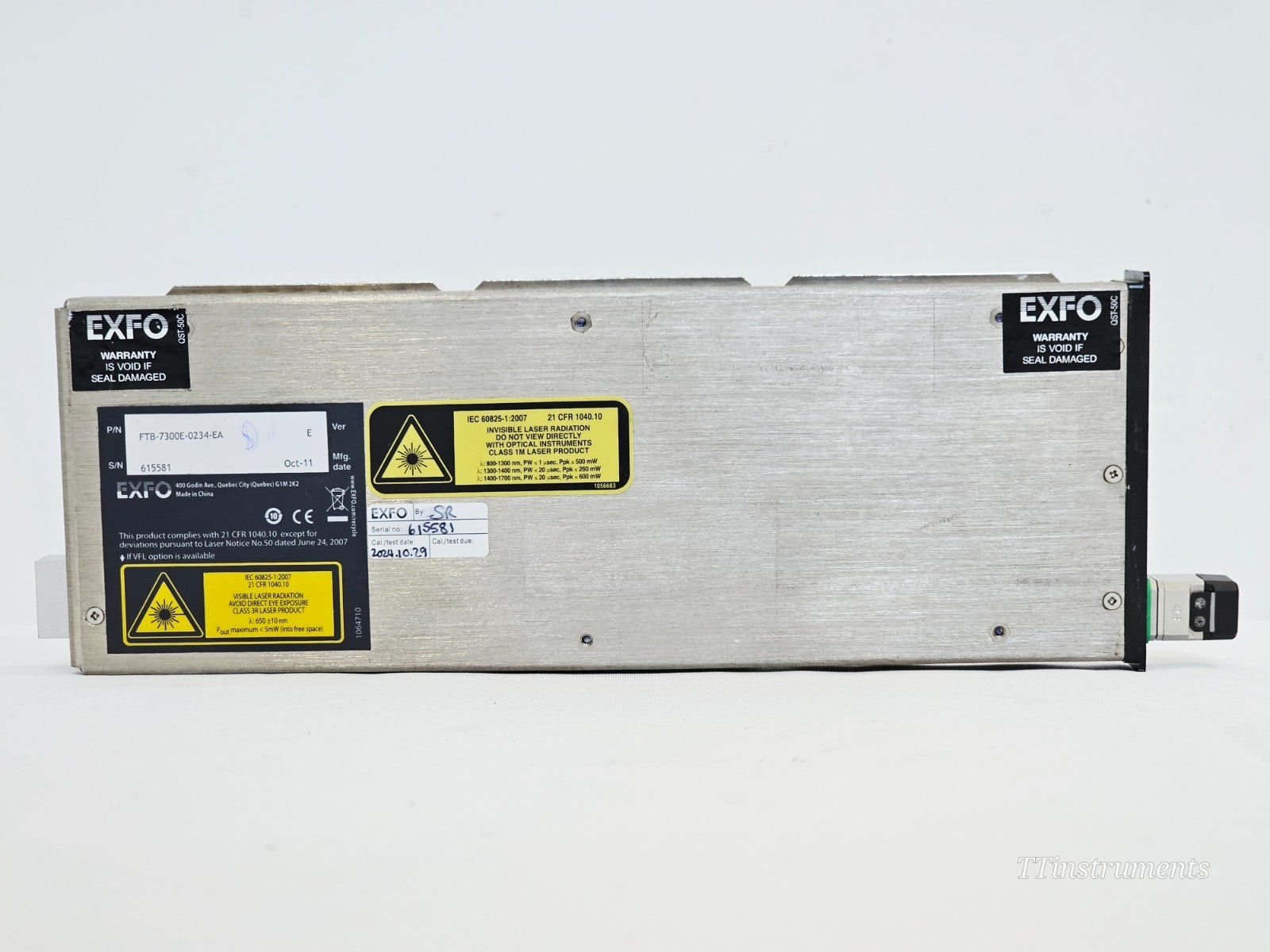

FTB-7300E-234B-EA OTDR Module:
Fibre Type: Singlemode (9/125 µm)
Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range: 39 / 37 / 37 dB
Connector: FC/APC
Max Distance Range: 260 km
Splitter Testing: Up to 1×128

FTB-3932-4-EA MultiTest Module:
Wavelengths: 1310 / 1550 / 1625 nm
Detector: Germanium (Ge)
Functions: Power Meter, Light Source, VFL (650 nm), ORL, FasTesT
FasTesT Speed: Bidirectional 3-wavelength loss and ORL in under 10 seconds

EXFO FTB-200 datasheet: Download PDF
