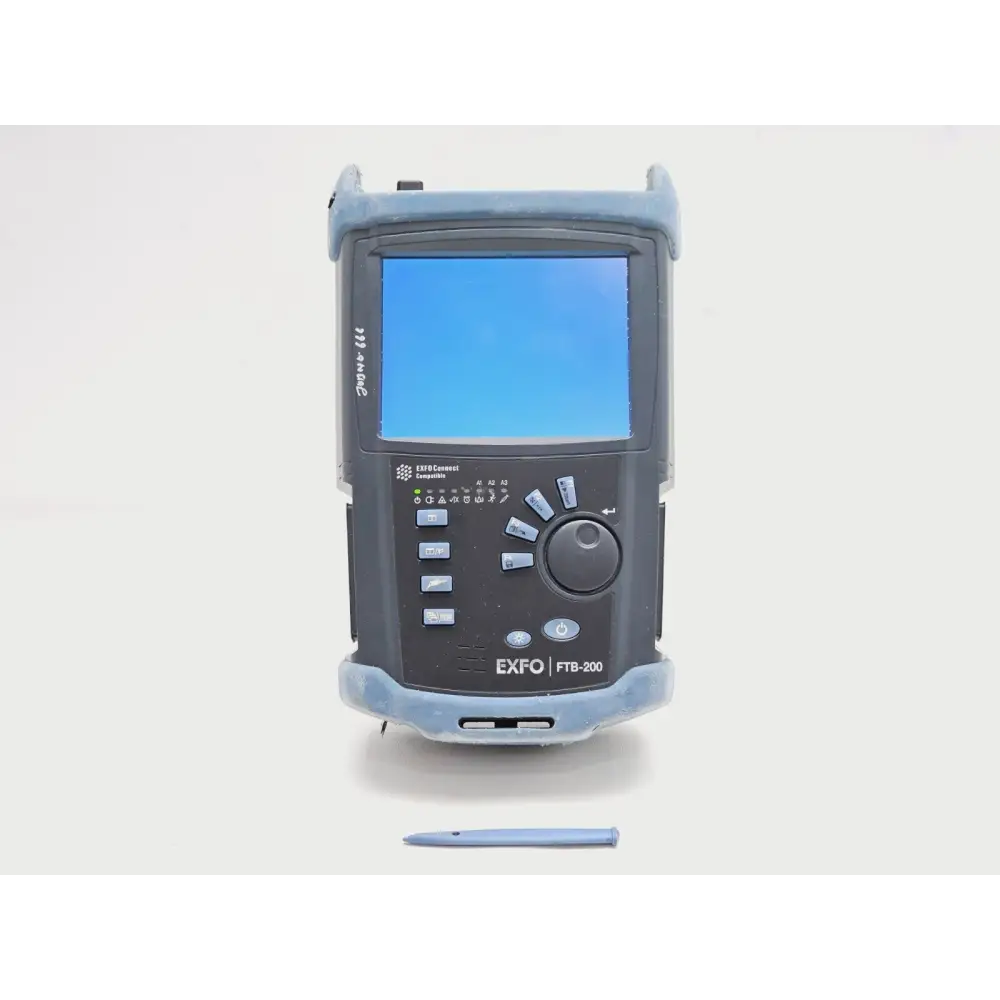

EXFO FTB-200 V2 front panel showing colour touchscreen booting Windows, EXFO Connect keypad and jog dial

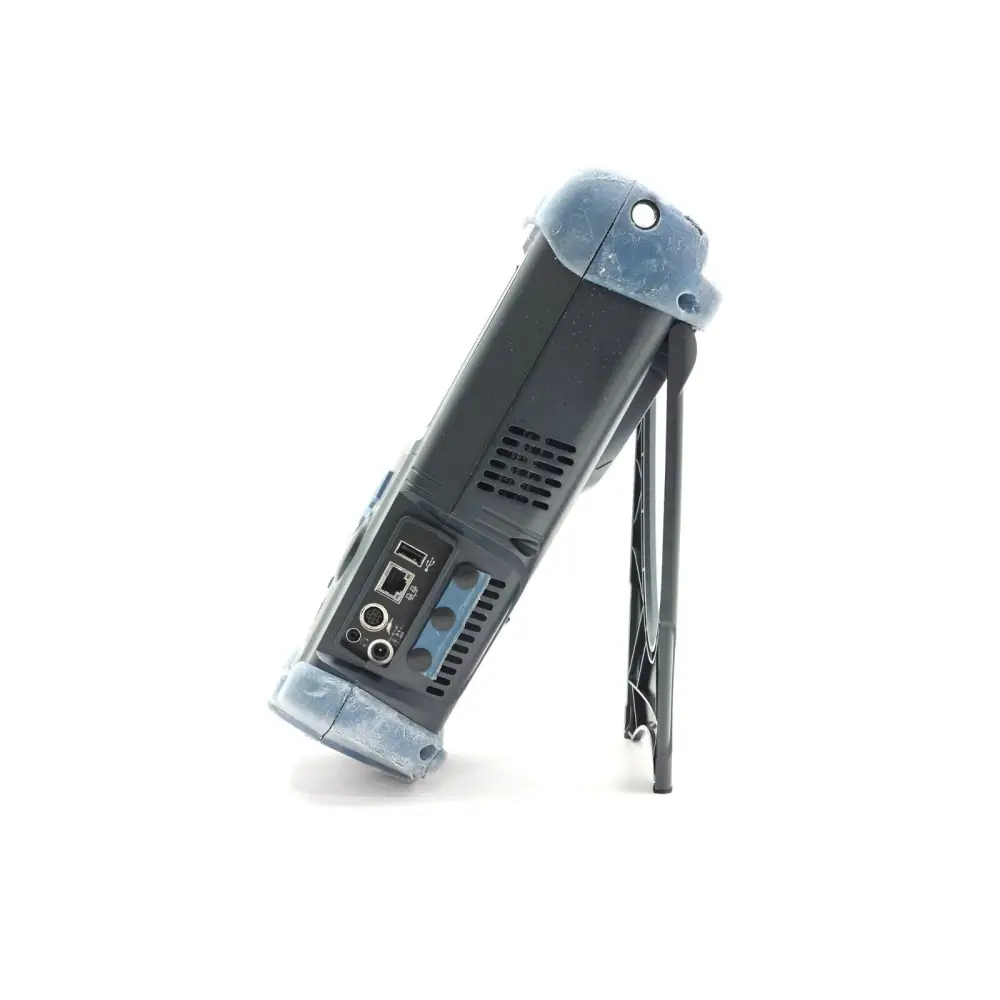

EXFO FTB-200 V2 right side panel showing RJ-45 LAN, USB 2.0 and power ports on kickstand

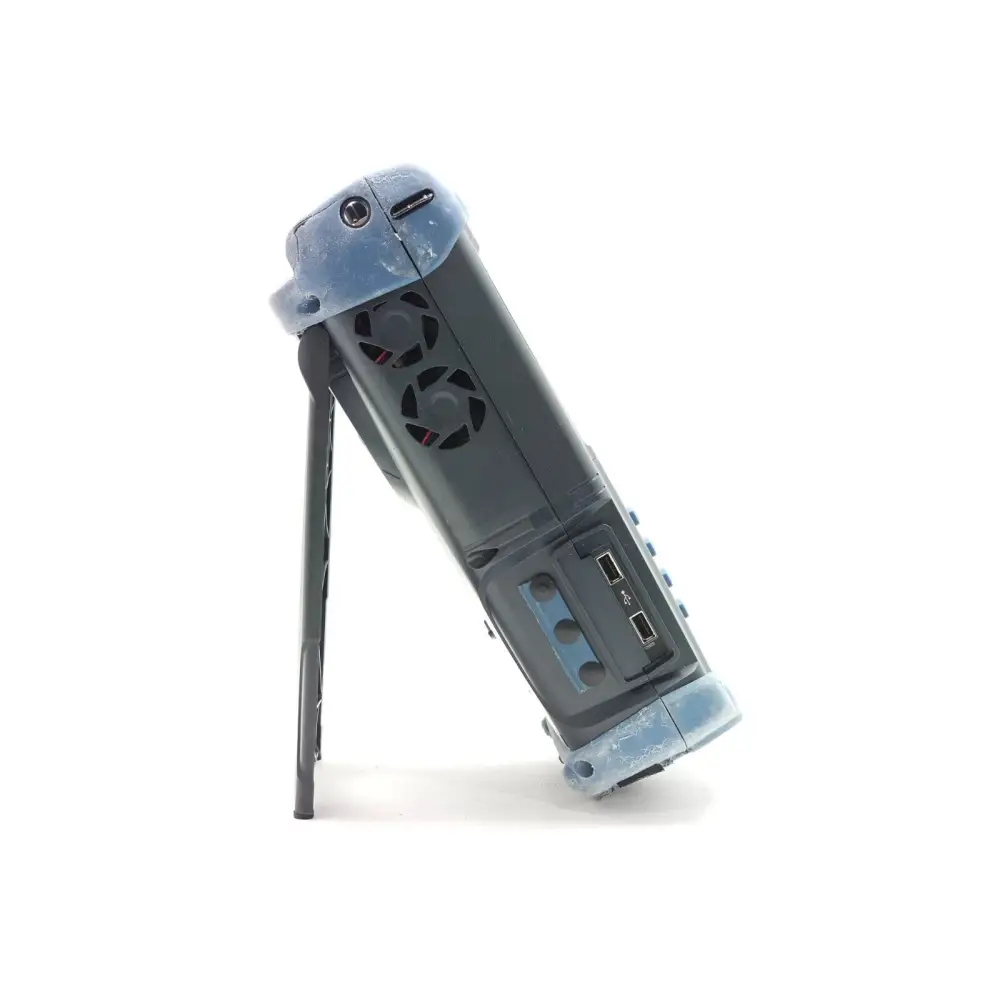

EXFO FTB-200 V2 left side panel showing dual cooling fans and two USB 2.0 host ports on kickstand

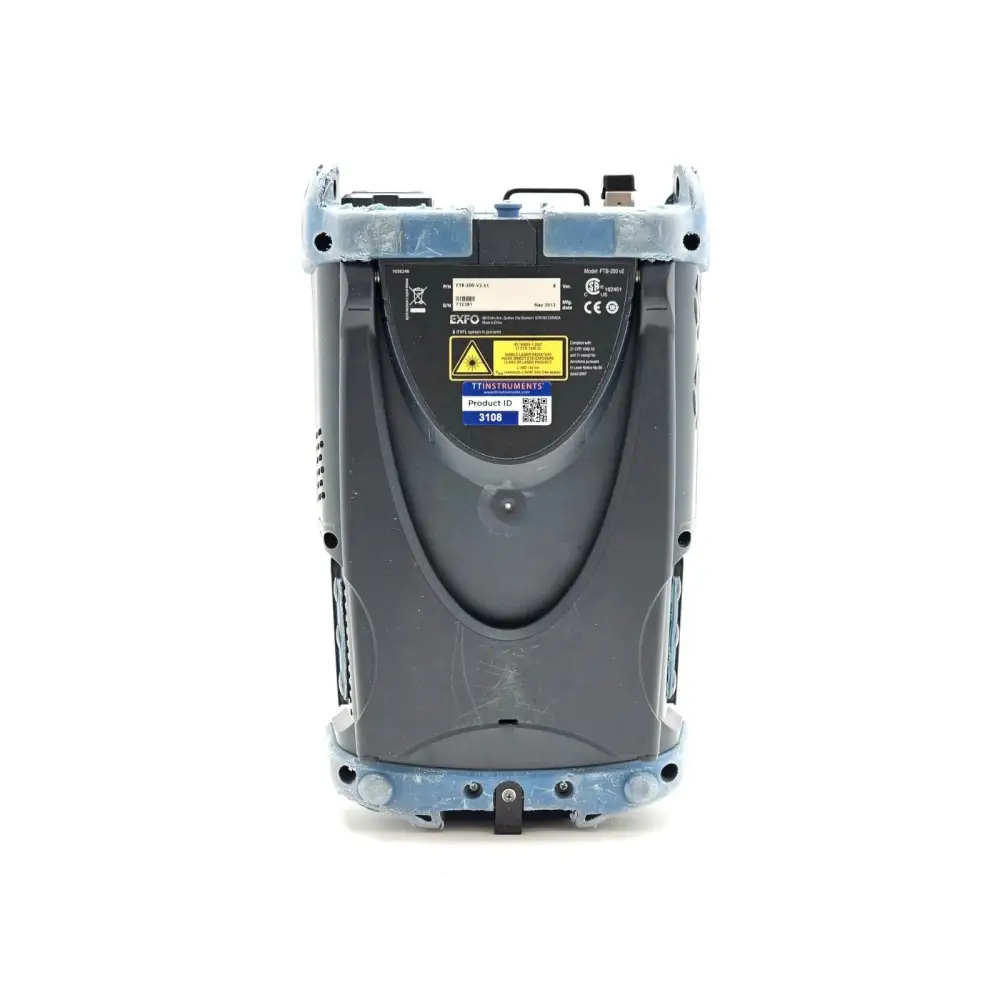

EXFO FTB-200 V2 rear panel with product label showing P/N FTB-200-V2-S1, S/N 712381, Mfg May 2013 and TT Instruments ID 3108

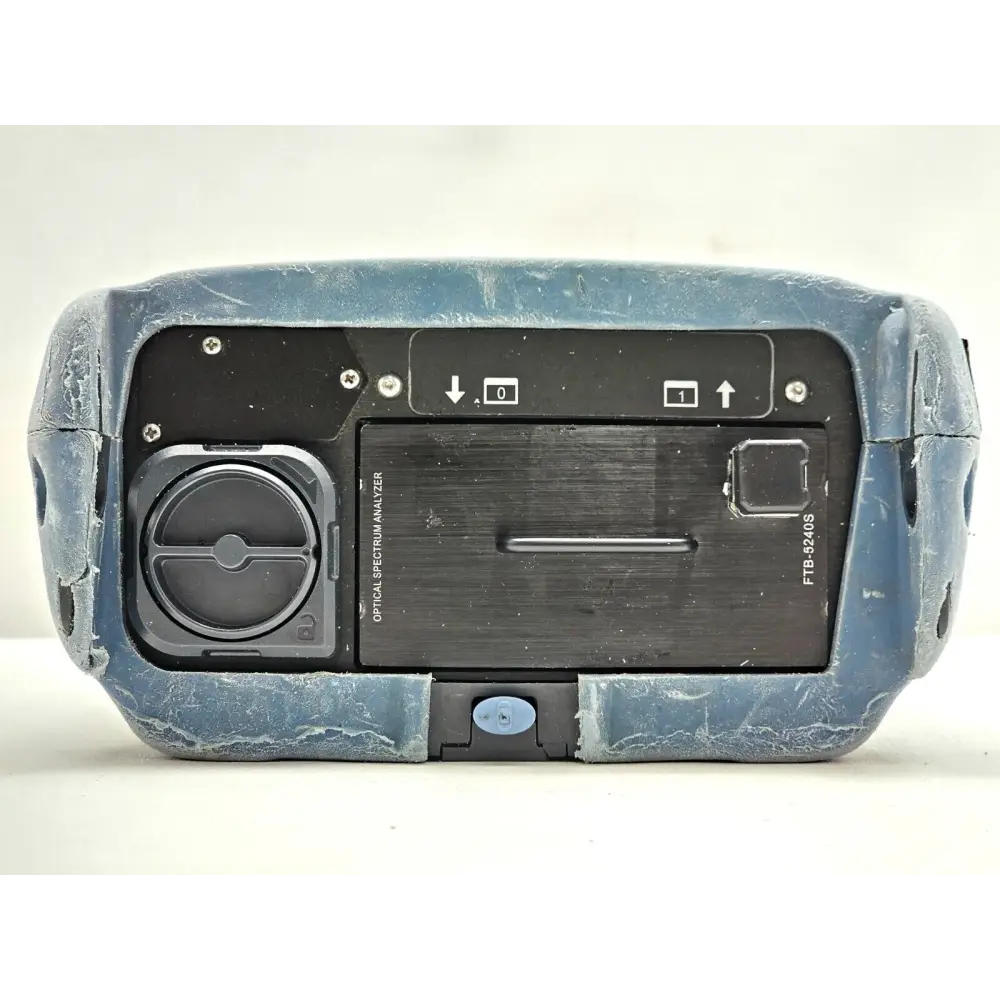

EXFO FTB-200 V2 bottom panel showing FTB-5240S OSA module installed in slot with FC optical port and module eject levers

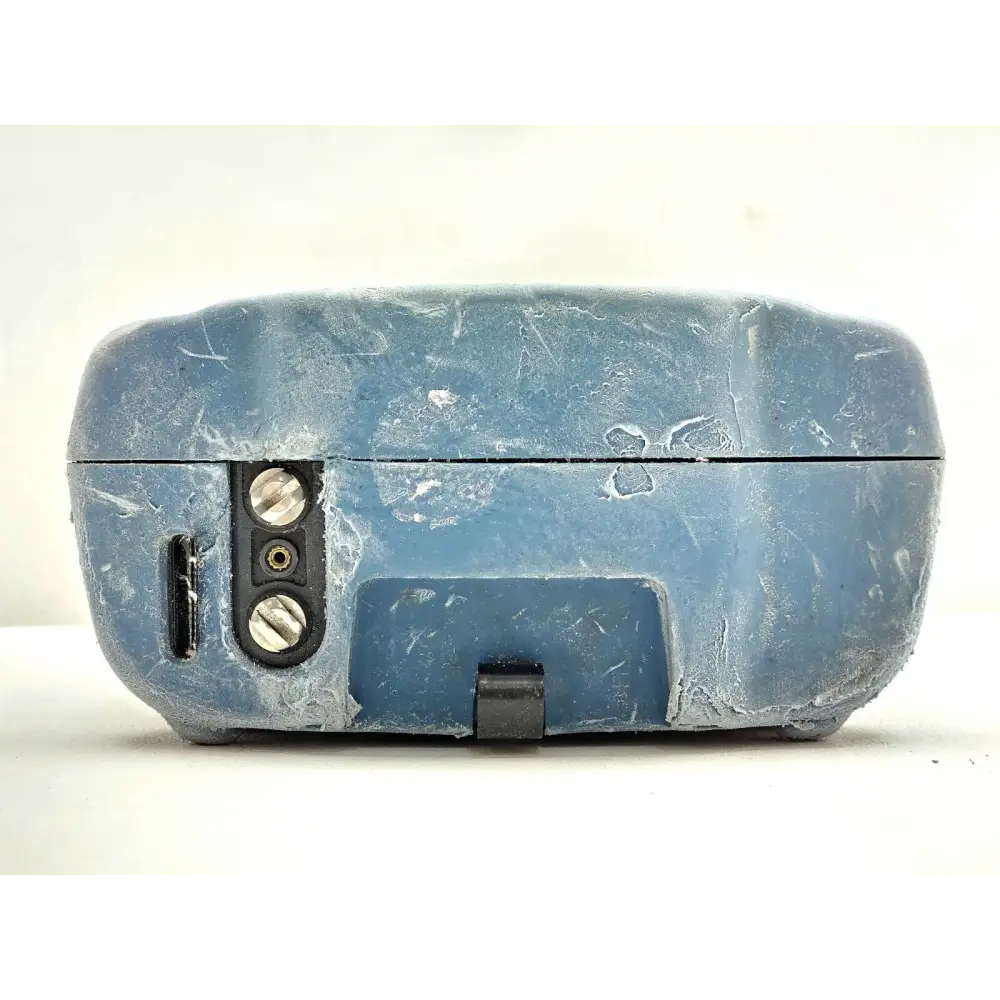

EXFO FTB-200 V2 top panel showing worn blue rubber bumper casing, battery latch and ground terminal

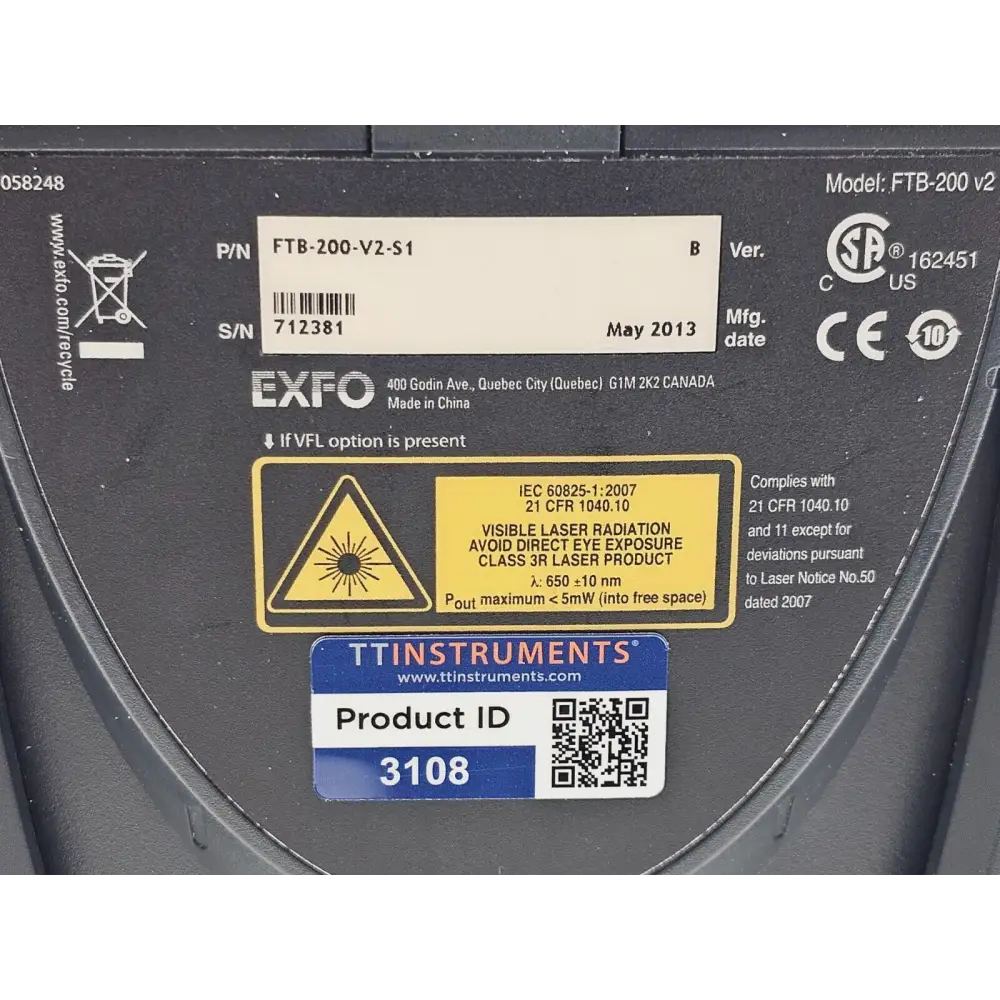

EXFO FTB-200 V2 product label close-up: model FTB-200 v2, P/N FTB-200-V2-S1, S/N 712381, May 2013 with laser safety warning

EXFO FTB-200 V2 Mainframe + FTB-5240S-P OSA INB (in-band OSNR) & ADV Options

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

EXFO FTB-200 V2 Mainframe + FTB-5240S-P OSA INB (in-band OSNR) & ADV Options

Name: EXFO FTB-200 V2 Mainframe + FTB-5240S-P OSA INB (in-band OSNR) & ADV Options
Brand: EXFO
SKU: 3108 3D04 ER45
Price: 1270.75 GBP
Availability: InStock

The EXFO FTB-200 V2 Mainframe with FTB-5240S-P OSA module is a portable, modular optical spectrum analyser delivering lab-quality spectral characterisation of CWDM and DWDM networks in the field.
• Built-in polarisation controller with INB & ADV options — enables in-band OSNR measurement and advanced analysis for 40G/ROADM networks
• Wide 1250–1650 nm wavelength range with >90 dB dynamic range and wavelength accuracy down to 15 pm
• Intel ATOM-powered Windows platform with touchscreen, USB, LAN and optional Wi-Fi/Bluetooth

Manufacturer

EXFO

Model

FTB-200 V2 5240S-P

Condition

Used

In stock

SKU

3108 3D04

£1,270.75

Fiber Optics
OSA
OSA/OCA/CD/PMD Analysers

Make an Offer

EXFO FTB-200 V2 Mainframe + FTB-5240S-P OSA INB (in-band OSNR) & ADV Options

£1,270.75

Condition: Used

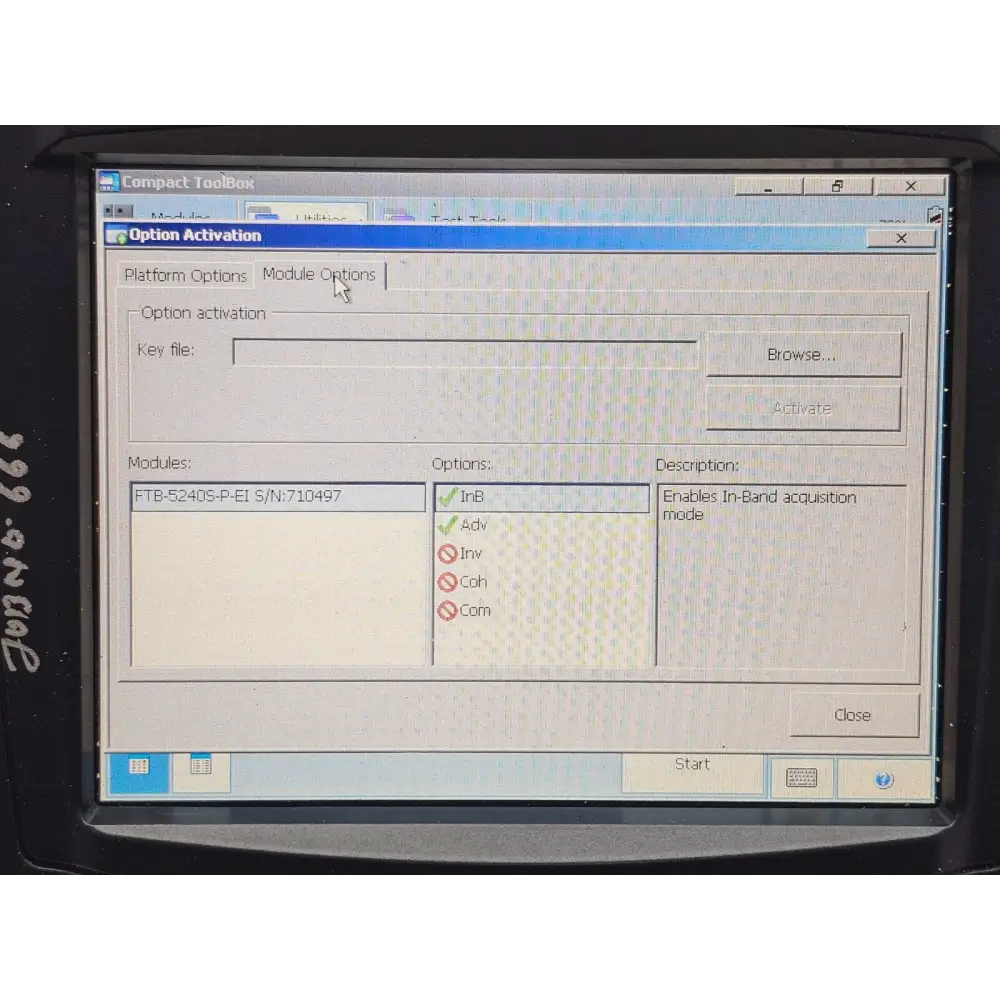

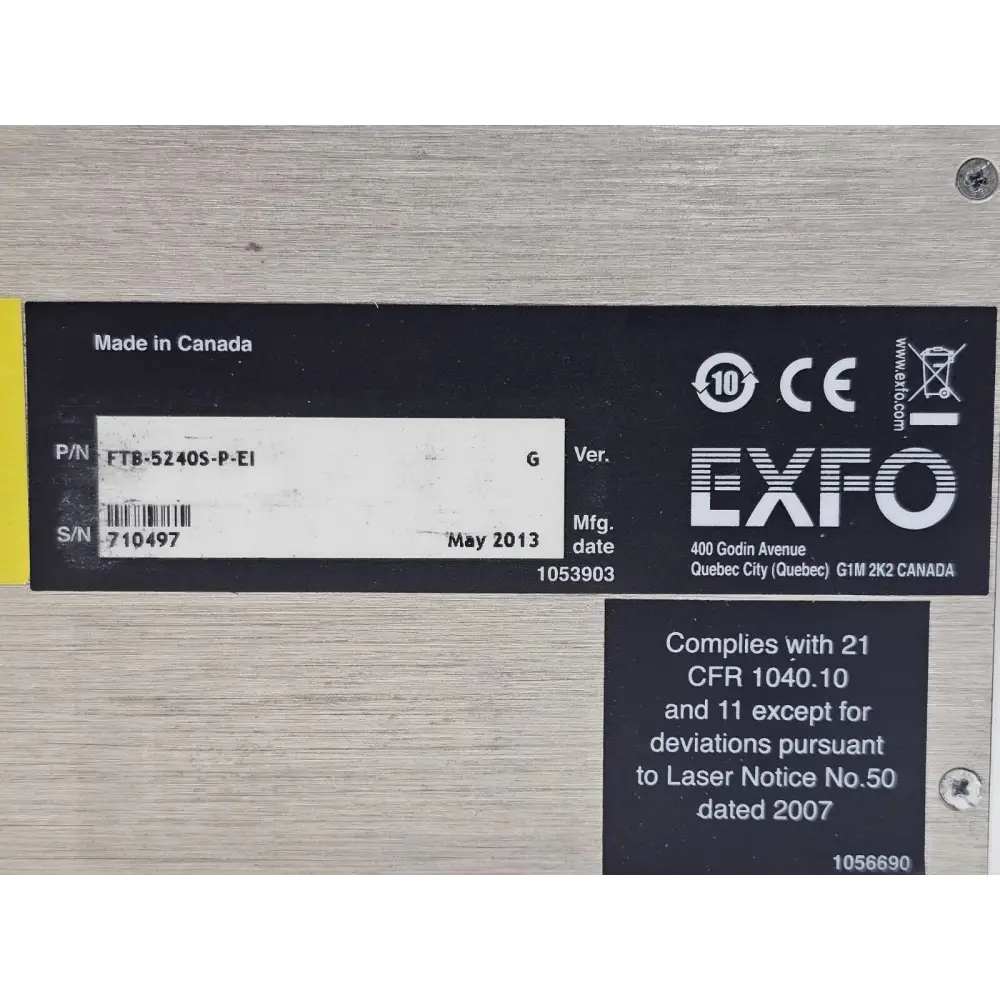

The EXFO FTB-200 V2 (P/N: FTB-200-V2-S1, S/N: 712381, Mfg. May 2013) loaded with the FTB-5240S OSA module (labelled FTB-5240S on the module bay). OSA has been tested and is within specification. The unit is cosmetically worn with significant scuffing to the rubber bumpers and casing, though the touchscreen display is in good condition. Active licensed options on the OSA module are: INB (in-band OSNR measurement) and ADV (advanced measurement mode).

Included in the sale:
• EXFO FTB-200 V2 mainframe

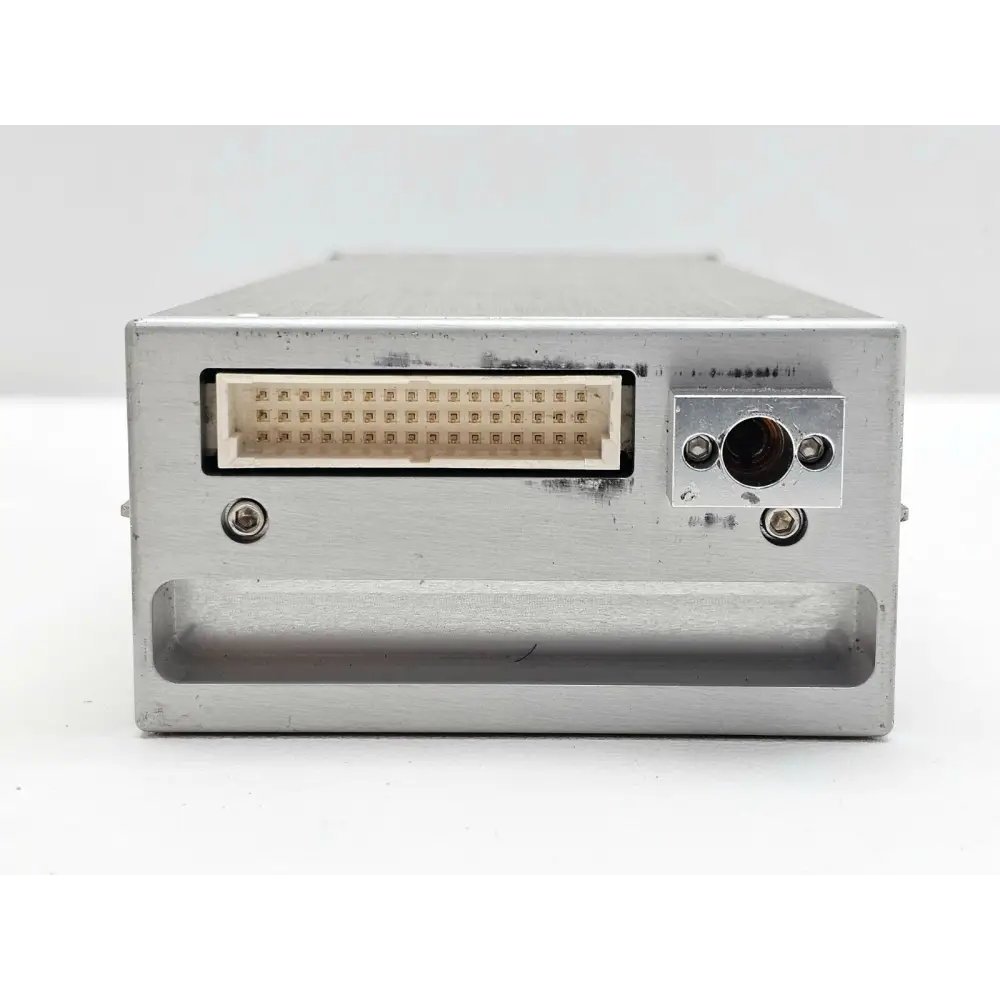

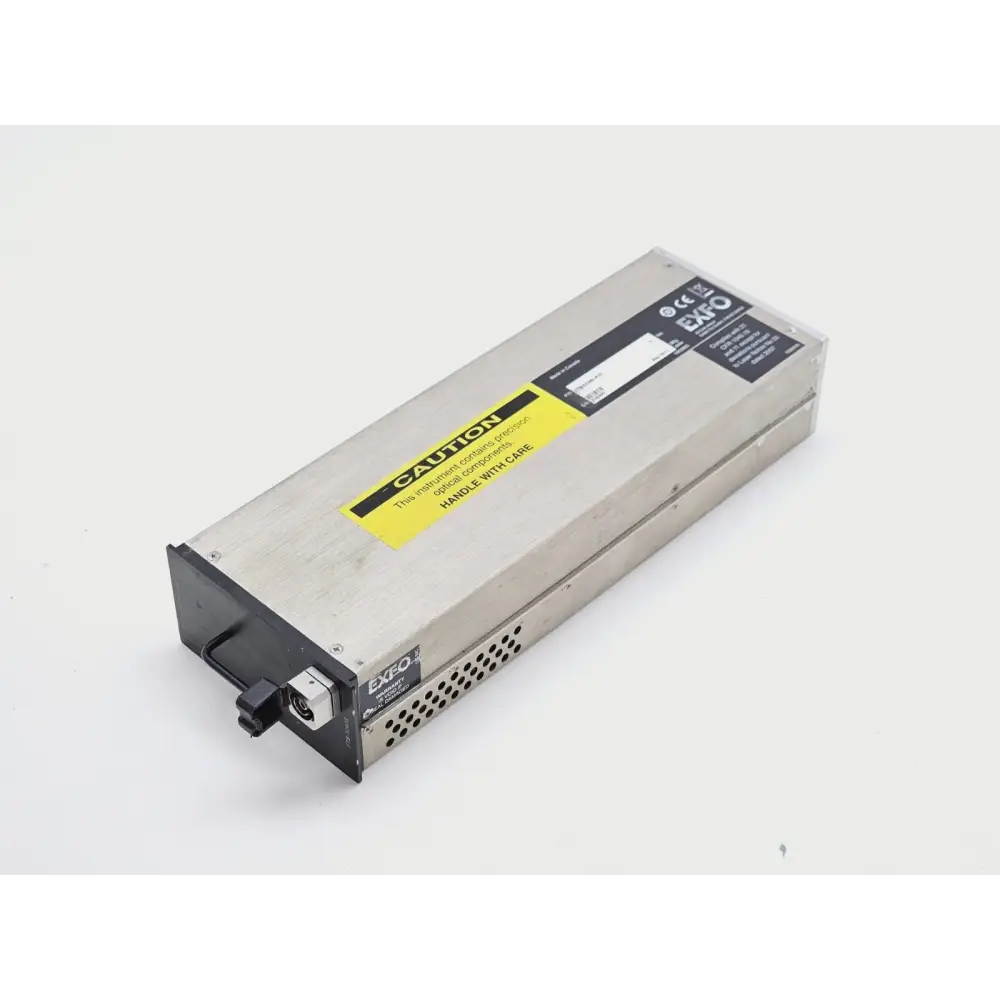

• FTB-5240S-P OSA module (with polarisation controller, FC connector) installed in the mainframe
• Stylus
• Power adapter / AC charger

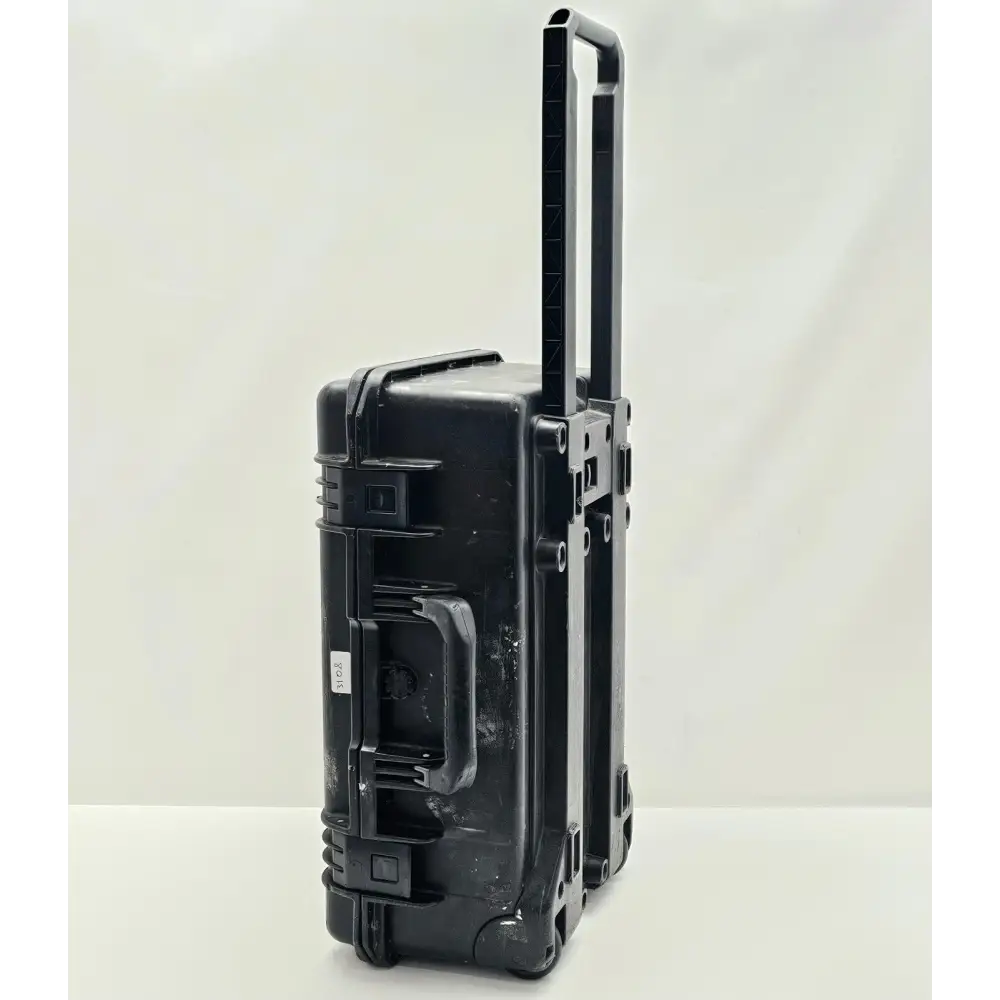

• Hard carry case (wheeled, foam-lined)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

EXFO FTB-200 V2 Compact Modular Platform

The FTB-200 V2 is a compact, handheld, modular test platform designed for multilayer and multimedium field testing of optical, transport and datacom networks. Powered by an Intel ATOM processor running Windows Embedded Standard, it houses up to two field-interchangeable FTB modules to cover a wide range of applications — from OTDRs and optical spectrum analysers to SONET/SDH and Ethernet testers. The platform supports optional built-in Wi-Fi and Bluetooth, and is EXFO Connect compatible for automated asset management.

FTB-200 V2 Mainframe Key Specifications:
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Display: Colour touchscreen TFT
Module Slots: 2 (one- or two-slot modules supported)
Interfaces: RJ-45 LAN (10/100/1000 Mbit/s), USB 2.0 (x3), Fiber inspection probe video port
Connectivity: Optional Wi-Fi and Bluetooth
Operating Temperature: 0 °C to 40 °C (standard modules)
Relative Humidity: 0% to 95% non-condensing

---

EXFO FTB-5240S-P Optical Spectrum Analyser Module

The FTB-5240S-P is a highly accurate, field-portable optical spectrum analyser designed for commissioning, troubleshooting and maintenance of CWDM and DWDM networks. The -P variant includes an integrated polarisation controller, enabling in-band OSNR measurement for 40 Gbit/s and ROADM deployments — a significant advantage over the standard FTB-5240S model. When combined with the FTB-200 V2 platform, it forms the smallest high-performance portable OSA solution available for spectral characterisation of next-generation networks.

FTB-5240S-P OSA Key Specifications:
Wavelength Range: 1250 nm to 1650 nm
Dynamic Range (per channel): -80 dBm to +18 dBm (+23 dBm optional HPW)
Total Dynamic Range: >90 dB
Wavelength Uncertainty: down to ±15 pm (external calibration, C+L band)
Wavelength Uncertainty (internal calibration): ±30 pm (C+L band)
Wavelength Measurement Error: 0.01 to 0.05 nm
Power Measurement Uncertainty: ±0.5 dB
Optical Rejection Ratio (ORR): Up to 50 dBc at 0.2 nm
Channel Spacing Support: 25 GHz DWDM to CWDM
In-Band OSNR: Yes (INB option, via polarisation controller)
Advanced Measurement Mode: Yes (ADV option)
Module Size: 2 slots
Operating Temperature: 0 °C to 40 °C
Relative Humidity: 0% to 95% non-condensing
Connector: FC (EI Universal Interface)
Compatible Platforms: FTB-200, FTB-200 V2, FTB-2, FTB-2 Pro, FTB-4 Pro, FTB-500

Typical Applications:
- DWDM network commissioning and turn-up

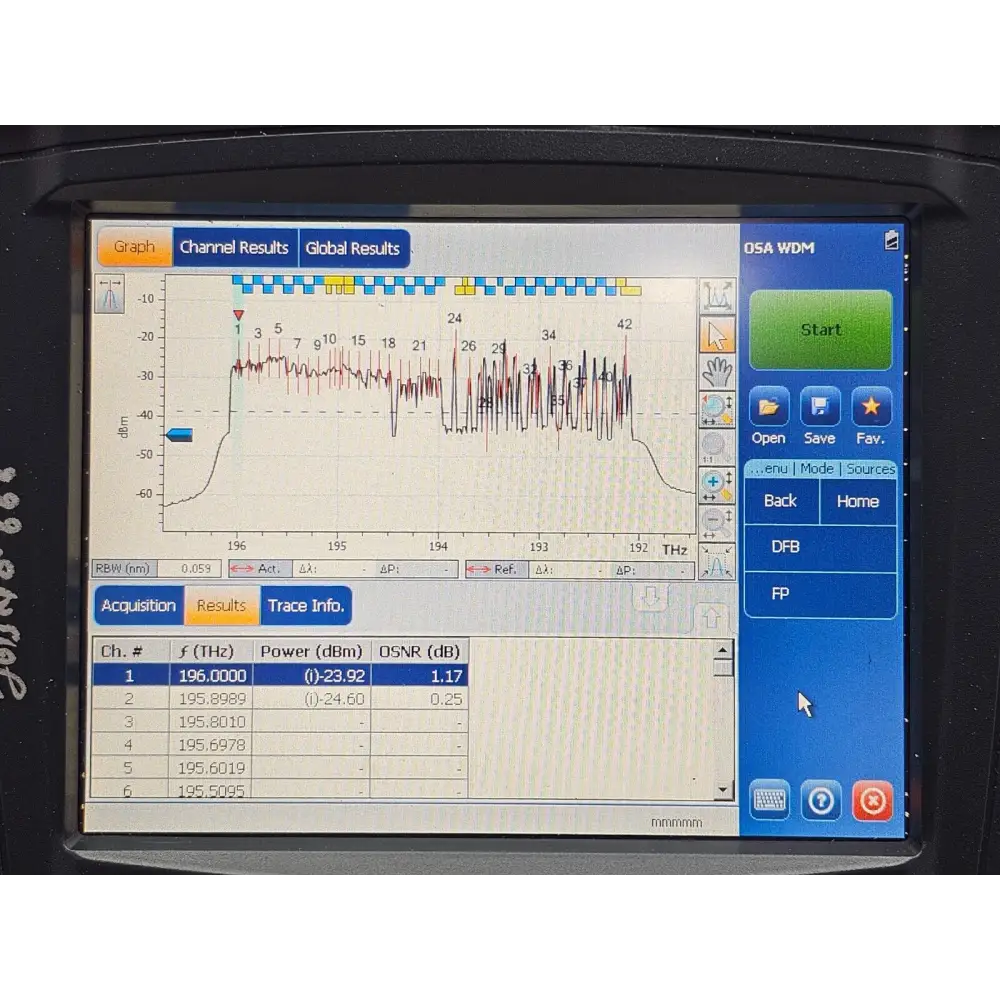

- In-service OSNR and channel power monitoring
- ROADM and 40G/43G system characterisation
- EDFA gain, noise figure and gain flatness analysis
- Wavelength drift and power drift monitoring
- WDM, Fabry-Perot and DFB laser characterisation

Product Overview

Condition: Used

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

EXFO FTB-200 V2 Compact Modular Platform

---

EXFO FTB-5240S-P Optical Spectrum Analyser Module

Resources

EXFO FTB-200 V2 Compact Modular Platform — official user guide (English): Download PDF

EXFO FTB-5240S/5240BP Optical Spectrum Analyser — official user guide for FTB-500 platform (English): Download PDF

EXFO FTB-5240S/BP Optical Spectrum Analyser — discontinued spec sheet v16 (English): Download PDF

EXFO FTB-5240S/BP Optical Spectrum Analyser — spec sheet v15 (English, via Profiber): Download PDF

EXFO FTB-200 Compact Platform — product datasheet PDF (via Accusrc): Download PDF
