Condition: Used

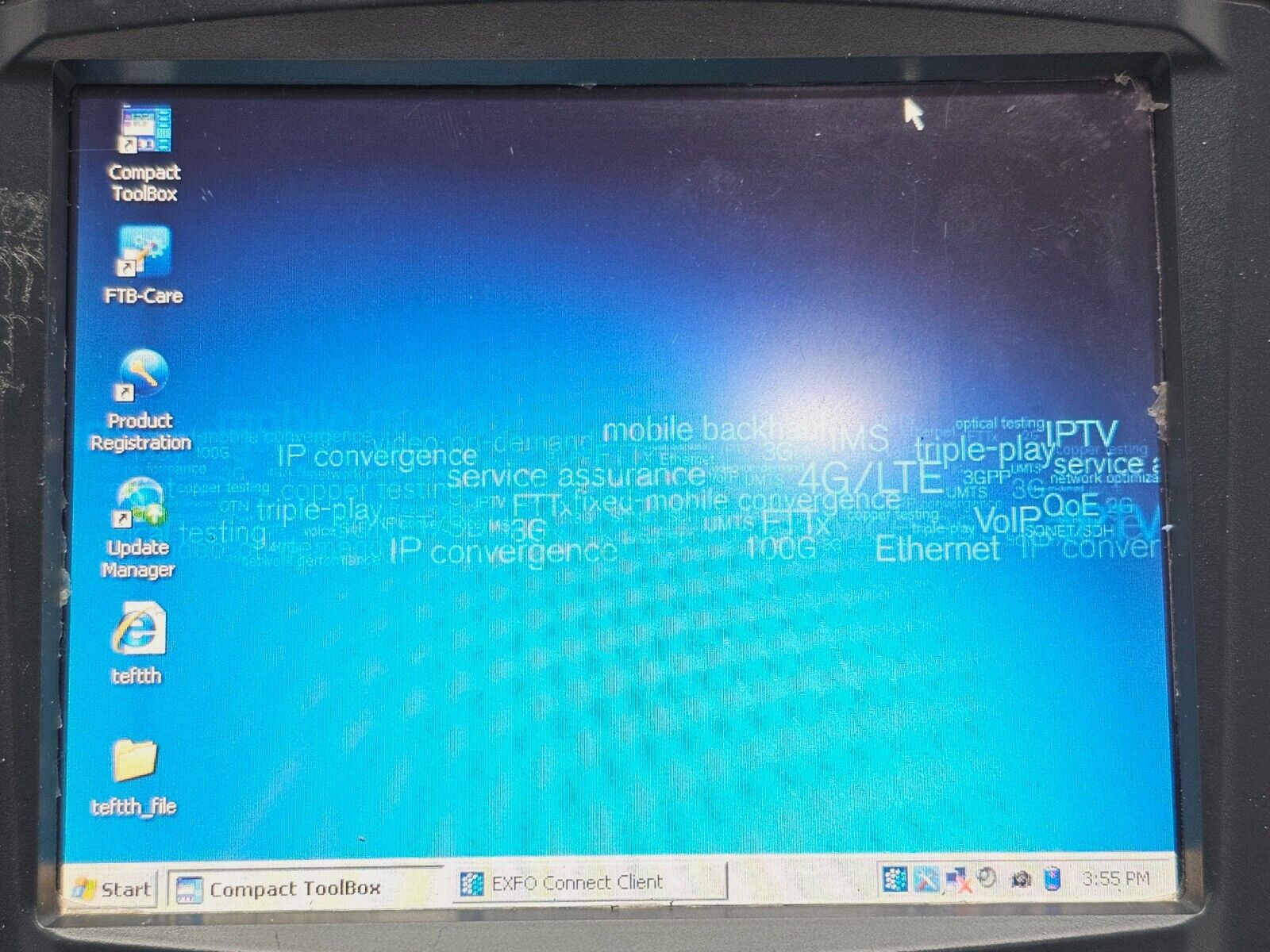

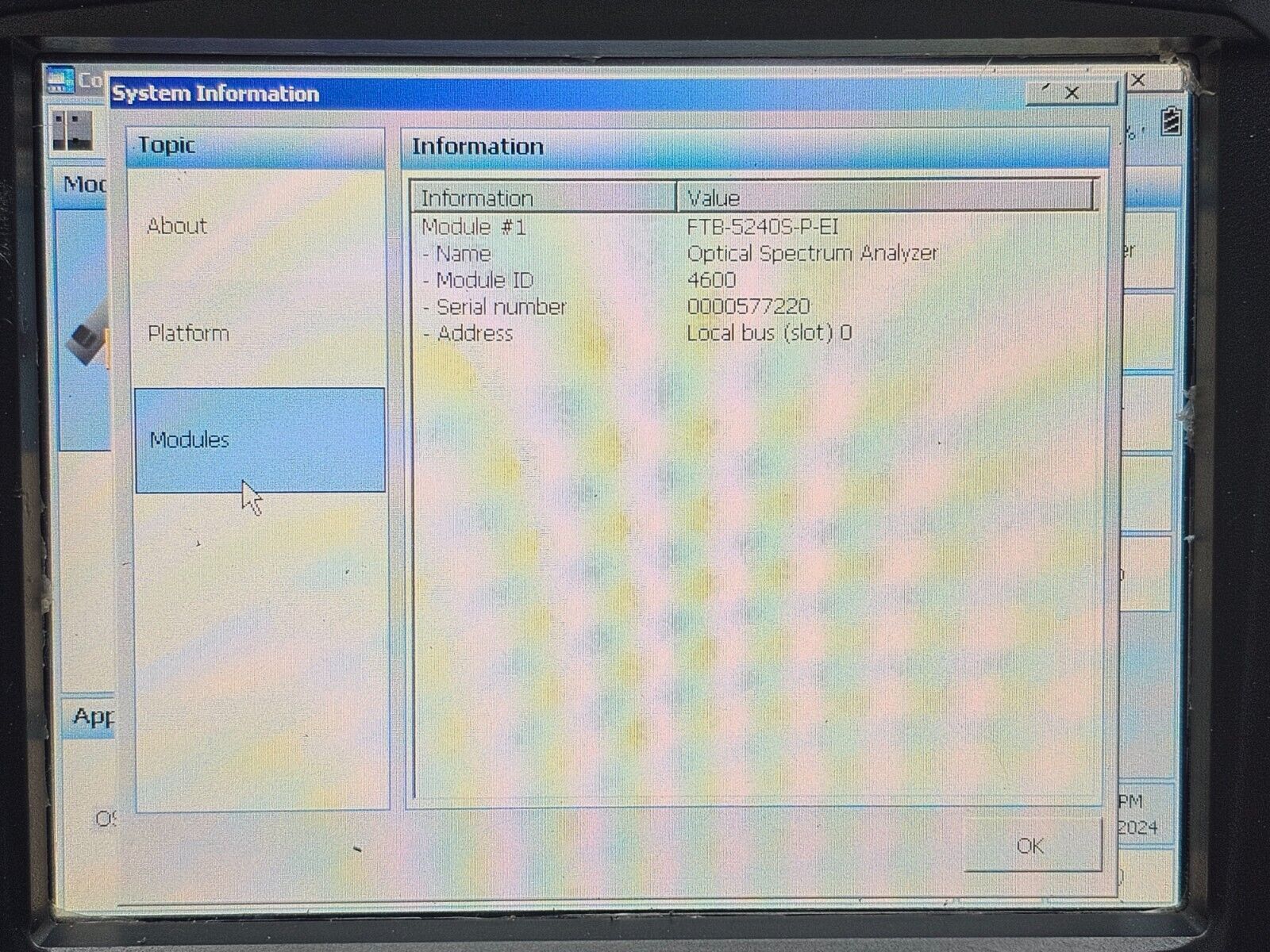

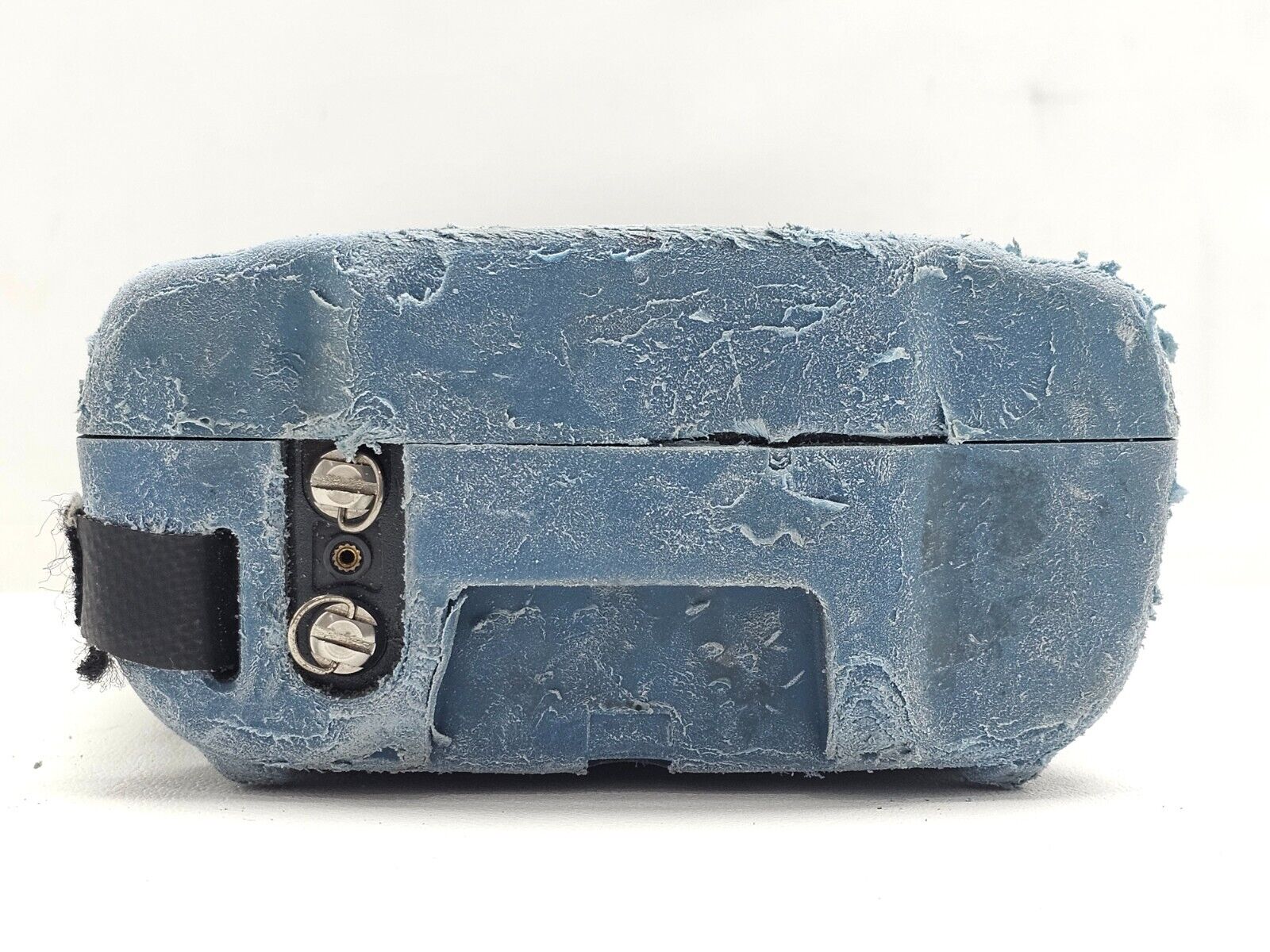

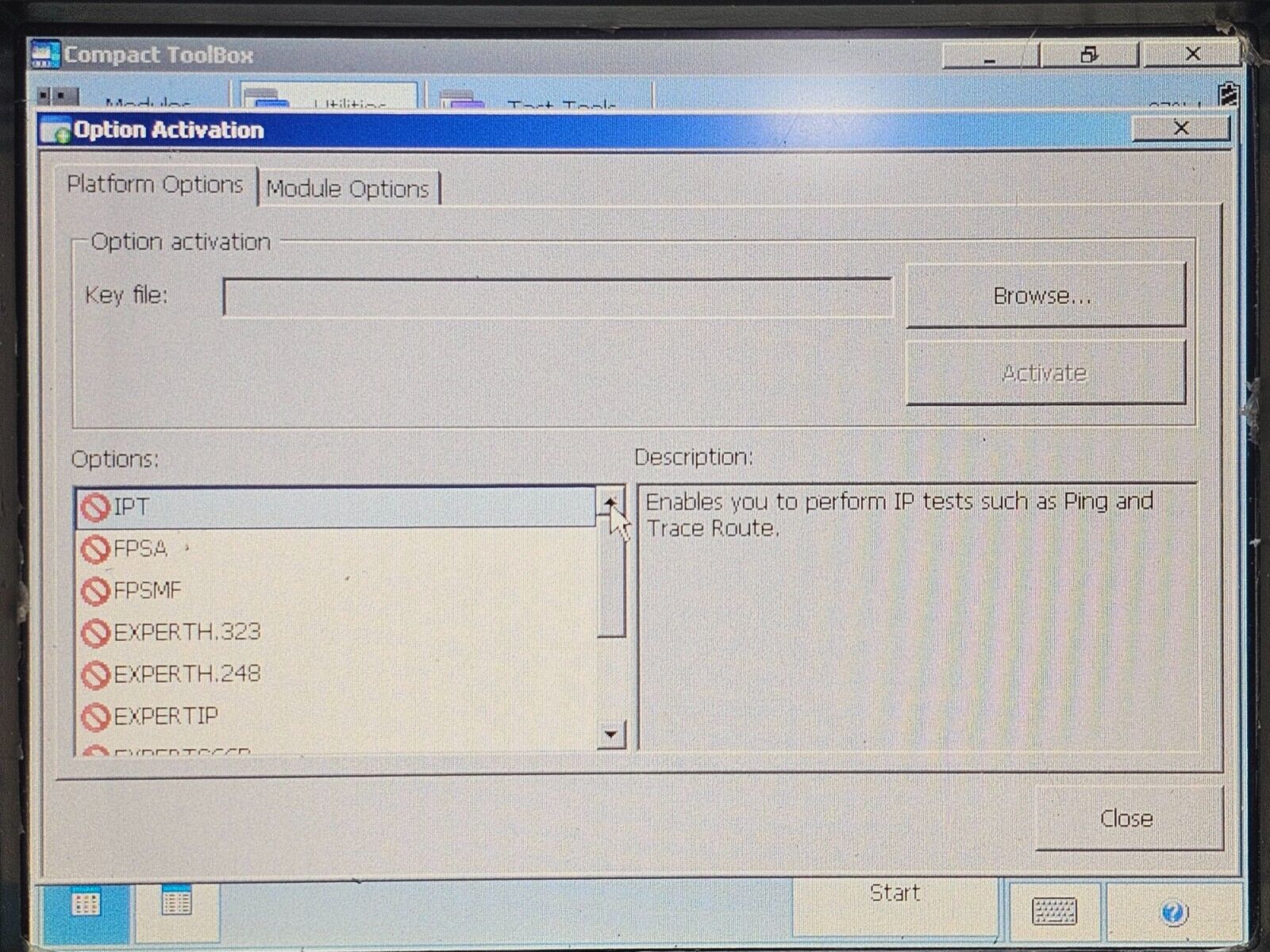

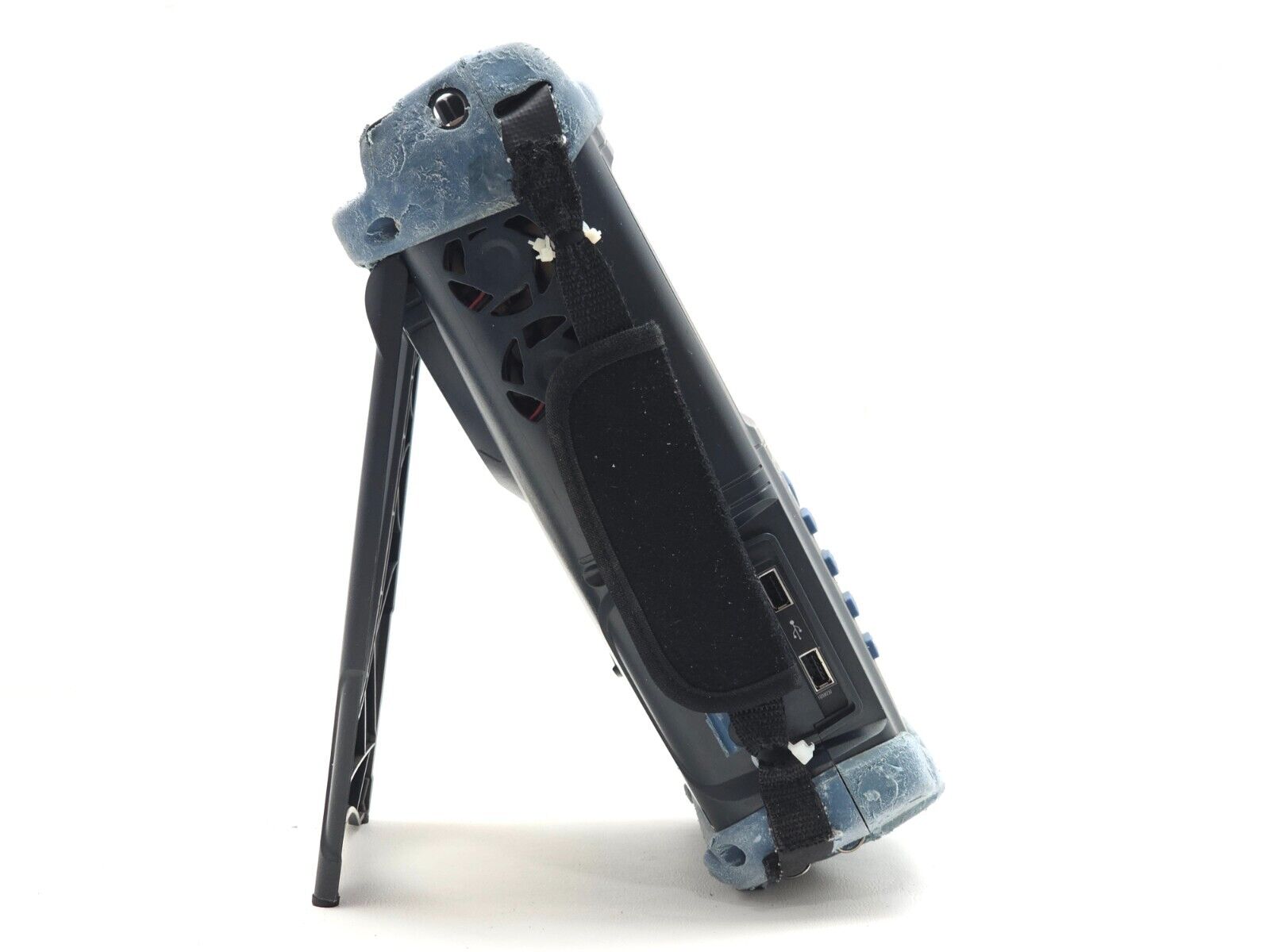

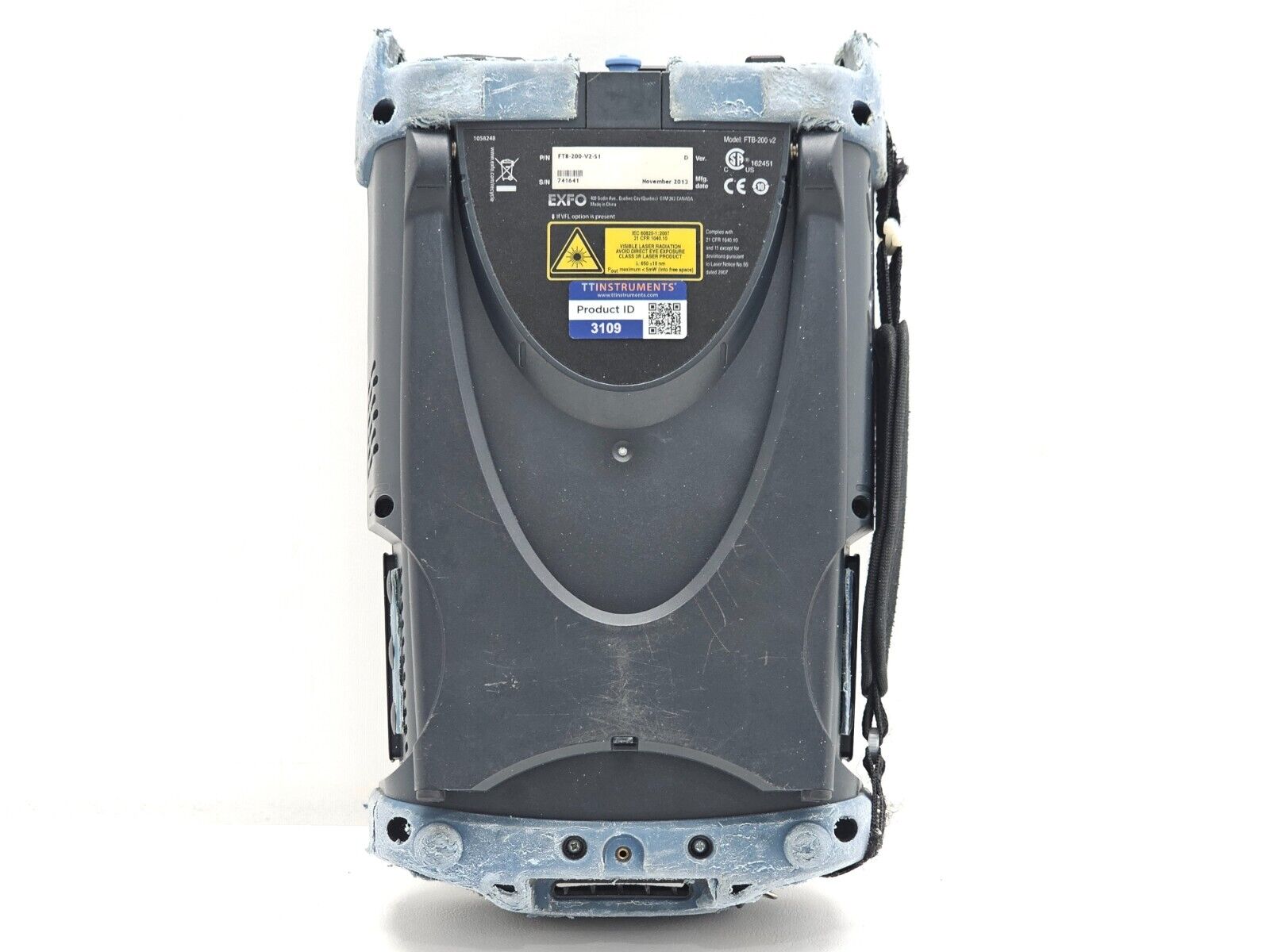

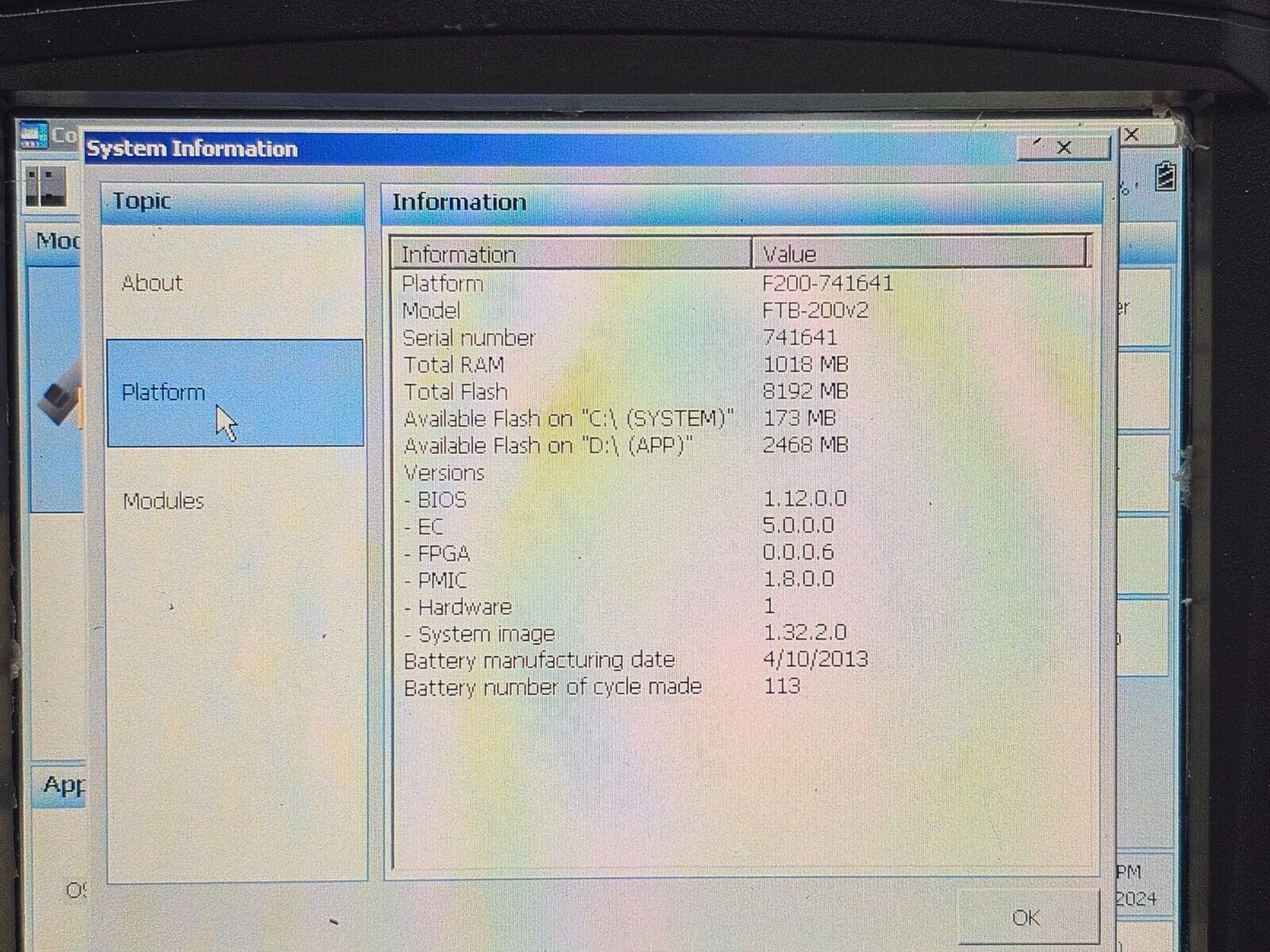

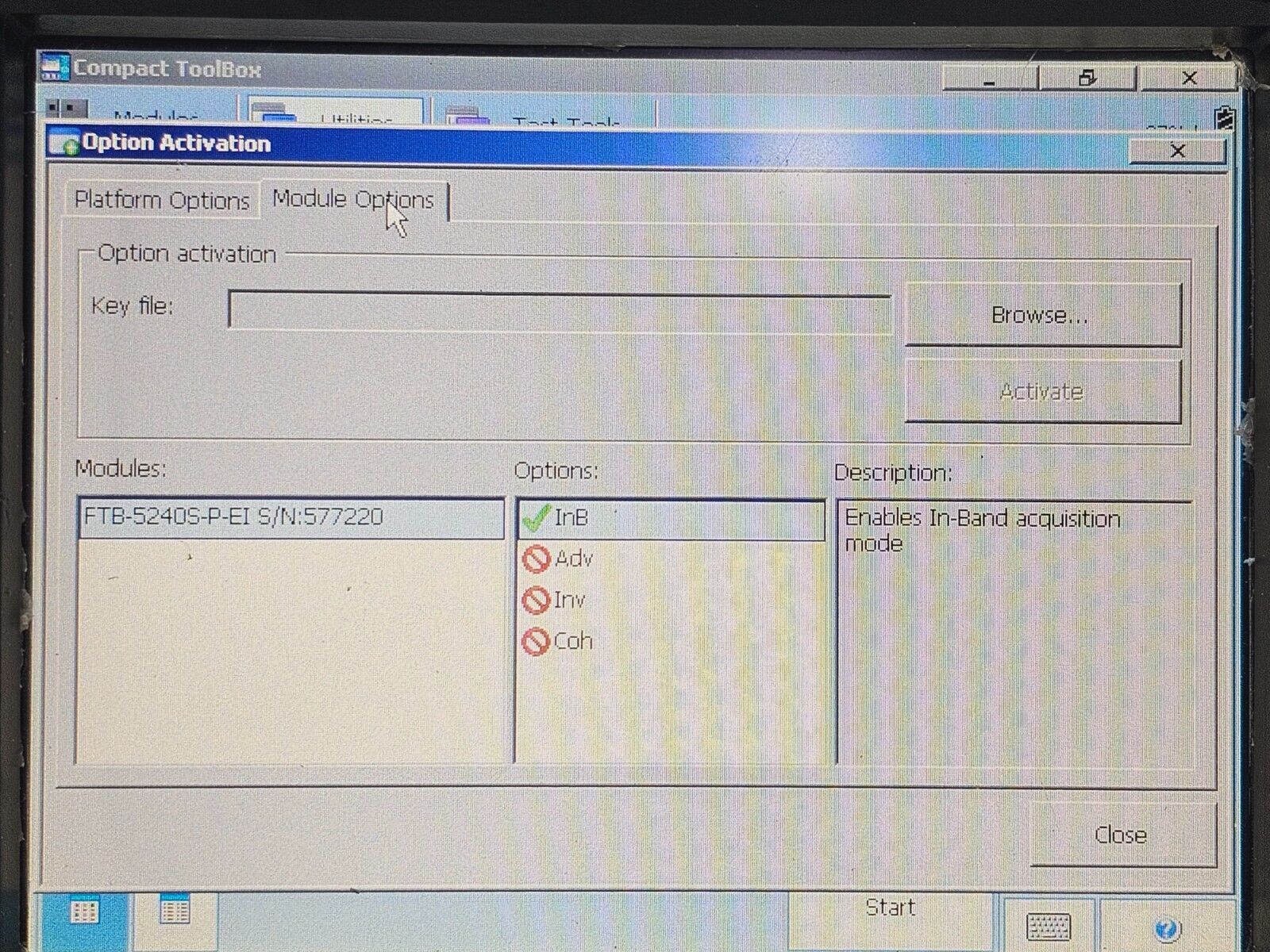

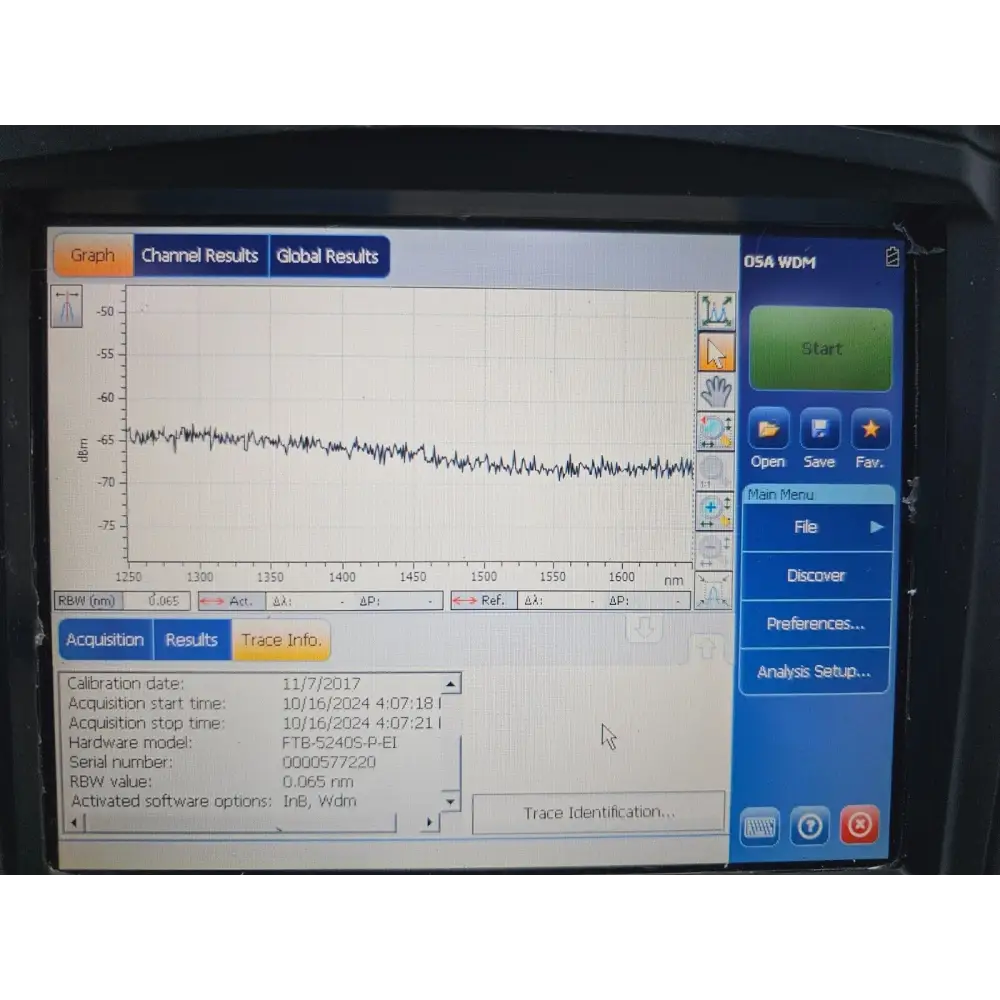

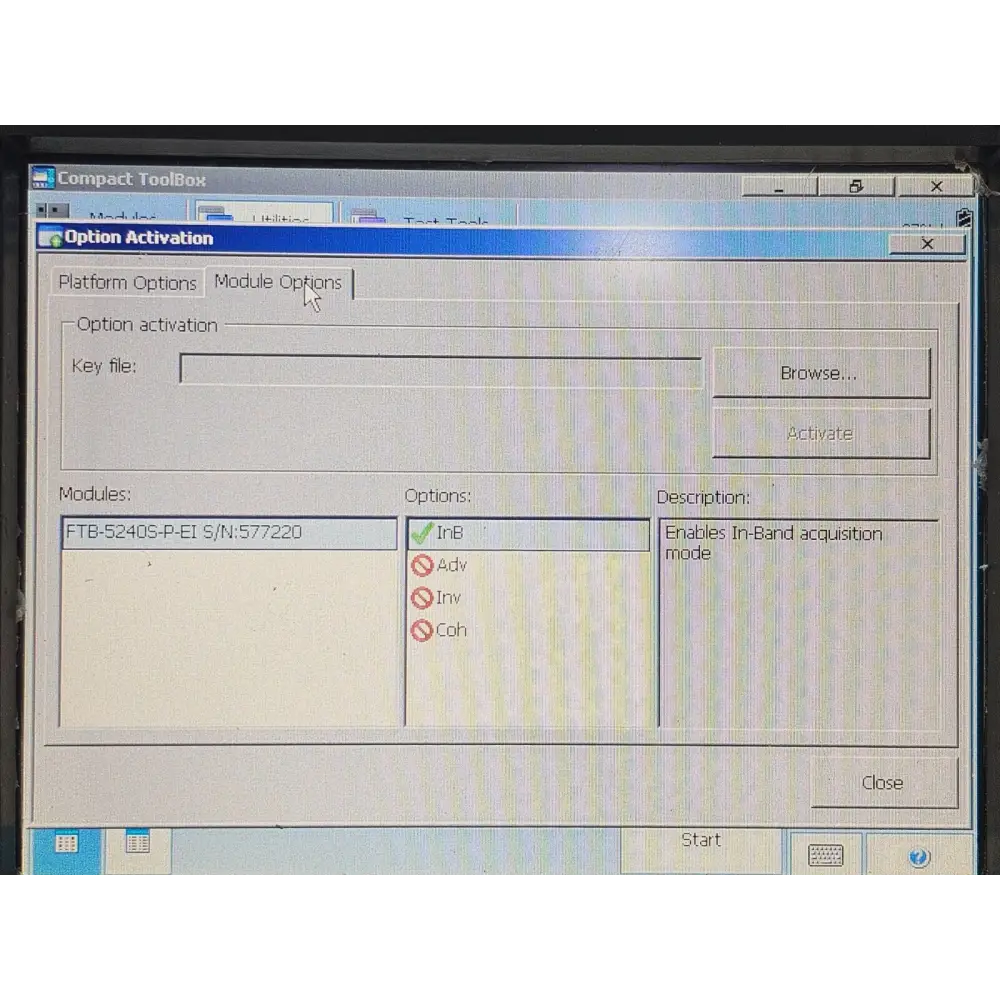

This EXFO FTB-200 V2 platform with FTB-5240S-P OSA module has been tested and confirmed within specification. The platform is cosmetically worn but the screen is in good condition. The OSA module has the INB (In-Band OSNR) option enabled and active.

Supplied with:
• Stylus
• Power adapter

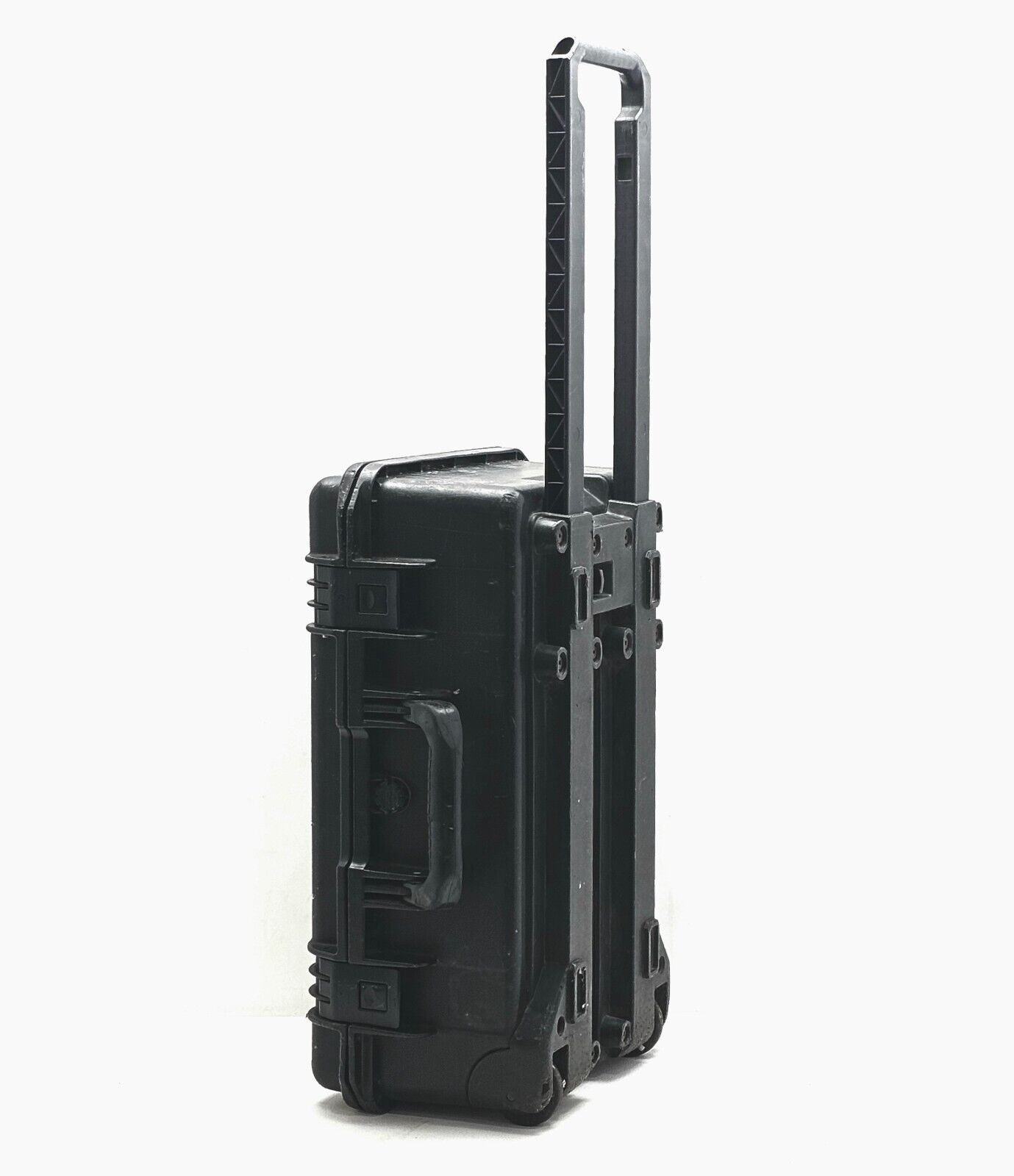

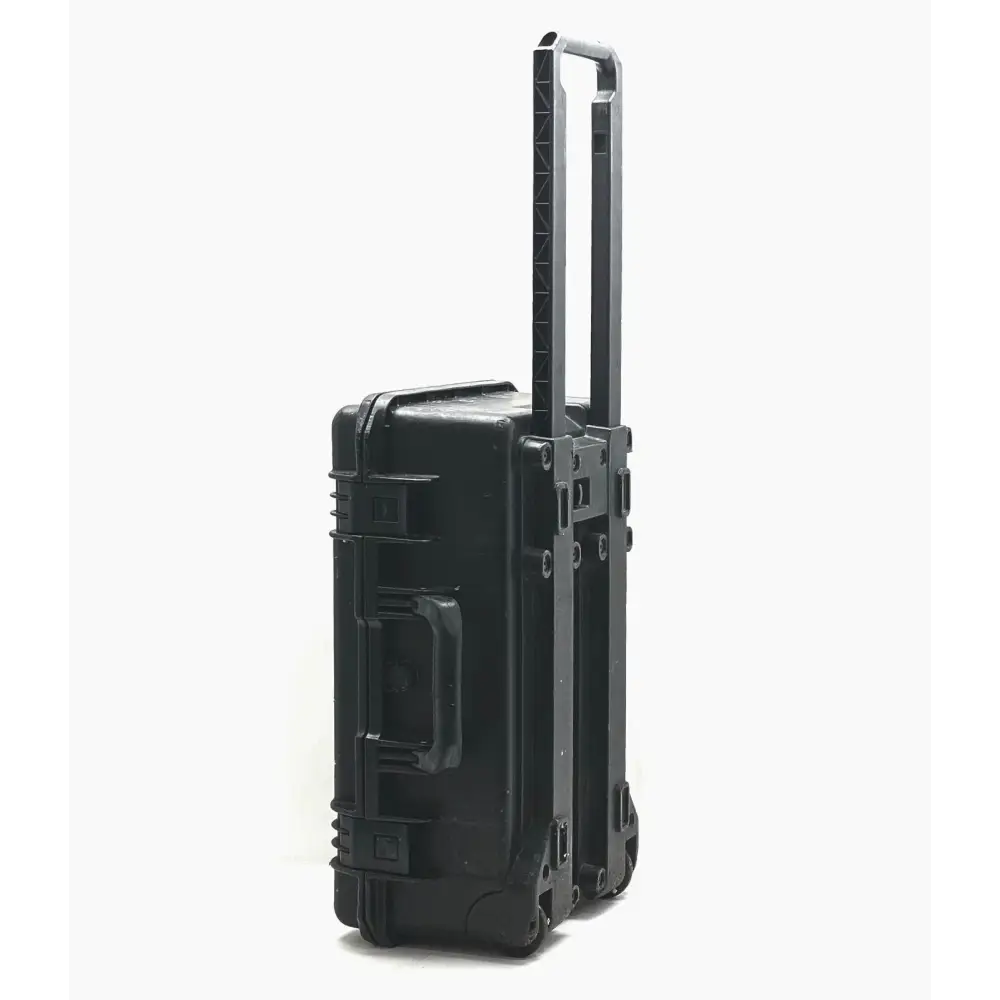

• Hard carry case
• Battery (tested and good)

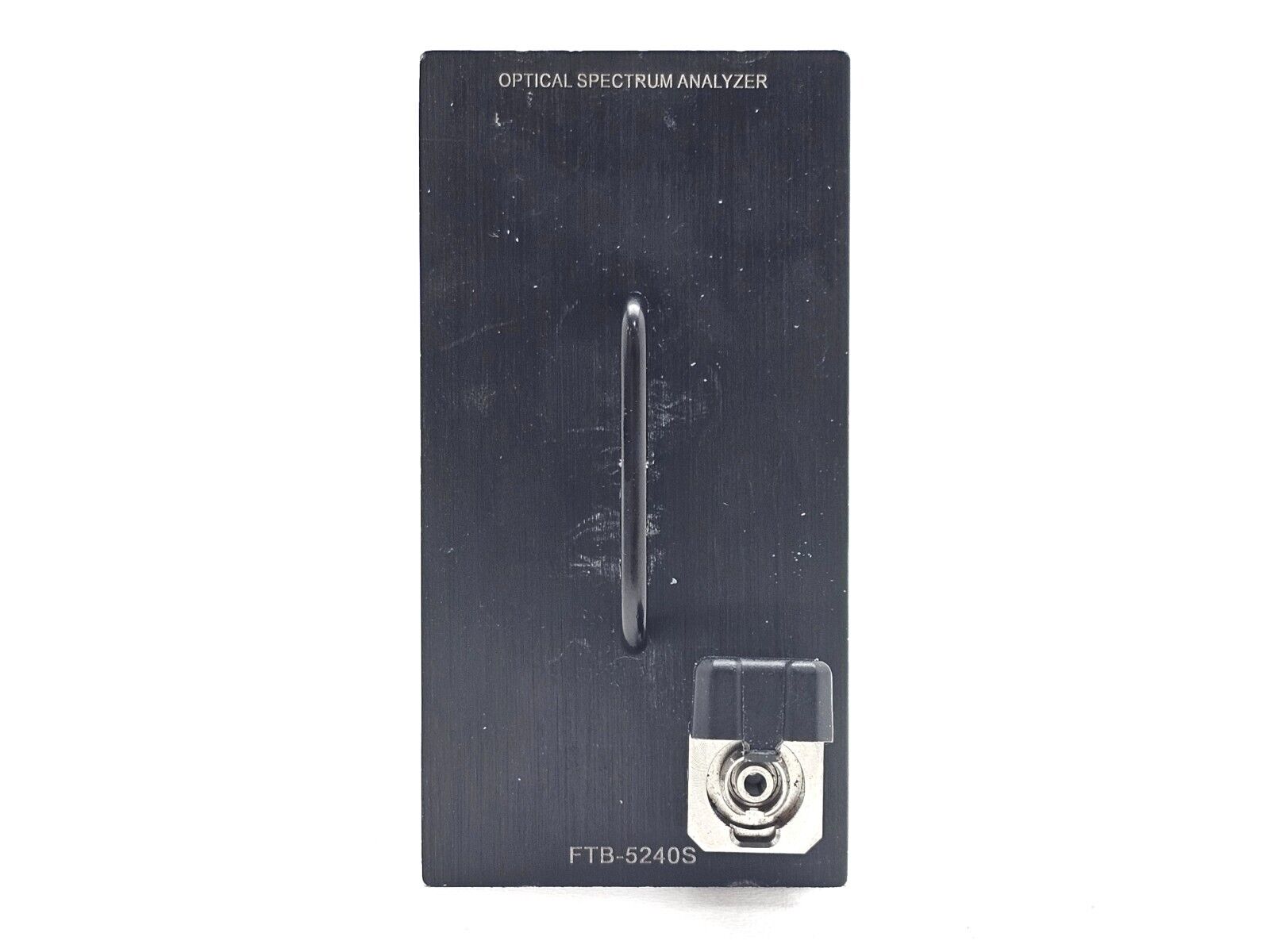

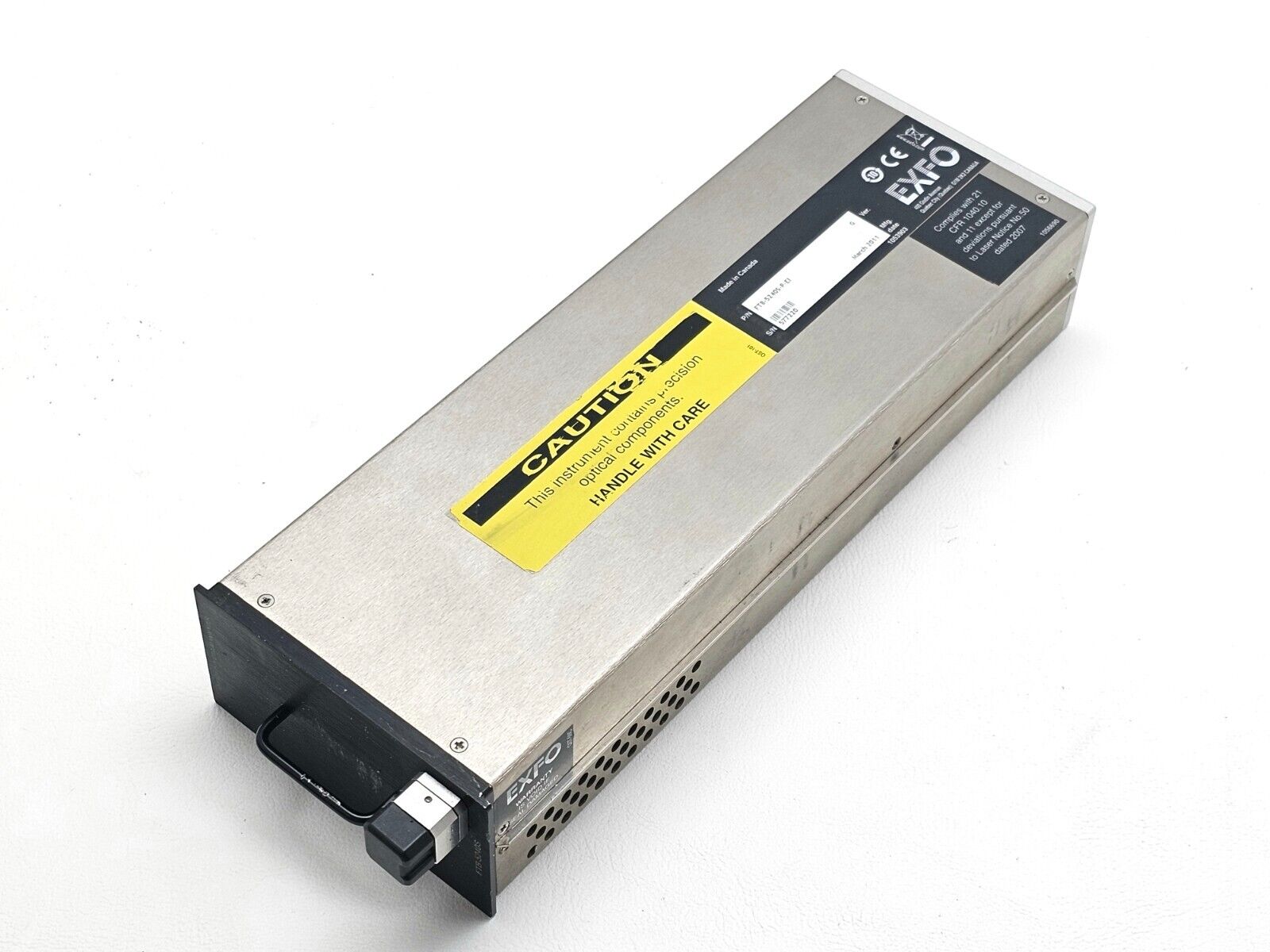

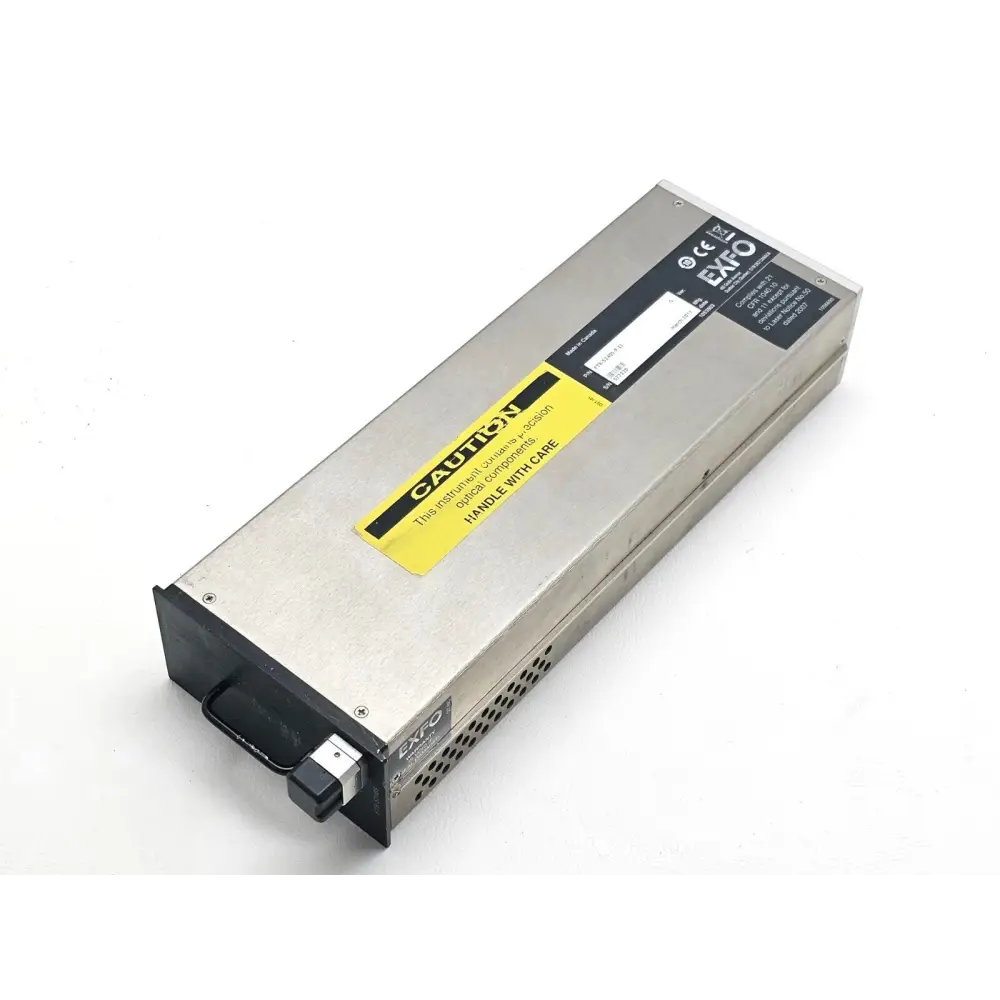

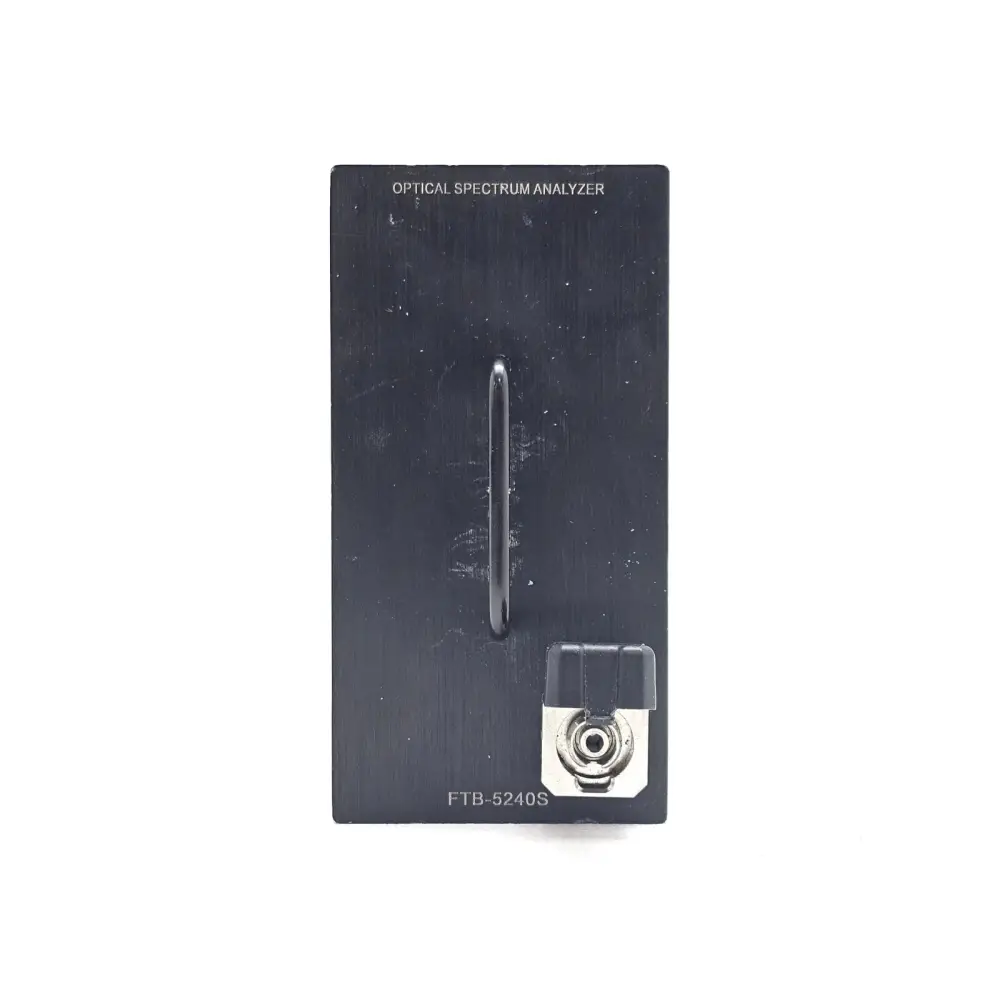

The EXFO FTB-200 V2 is a portable, modular field platform designed to host a range of test modules for optical network characterisation. When equipped with the FTB-5240S-P Optical Spectrum Analyser module, it delivers high-performance spectral analysis with a built-in polarisation controller, making it suitable for testing modern dense wavelength division multiplexed (DWDM) networks including 40G and 100G coherent systems.

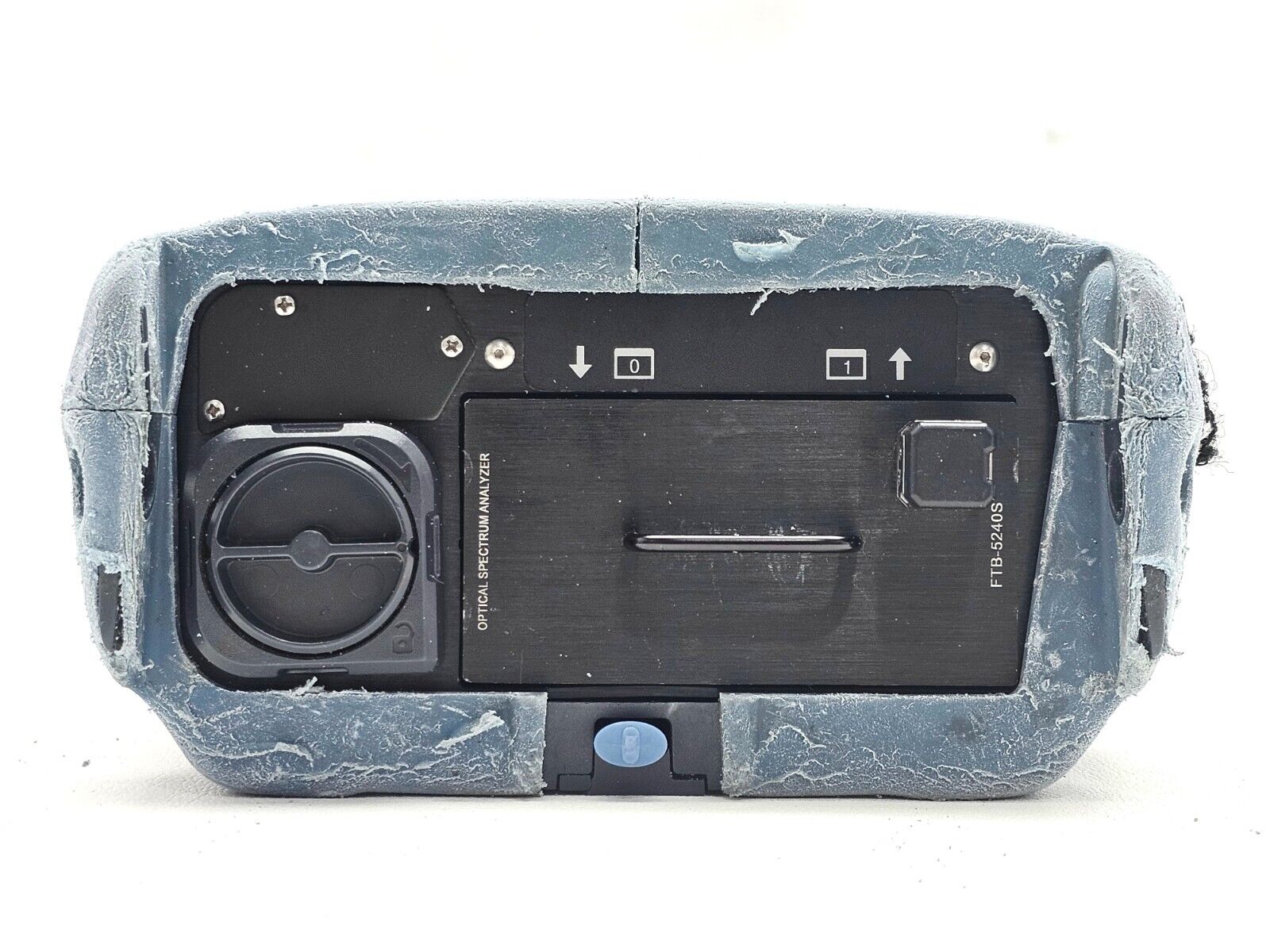

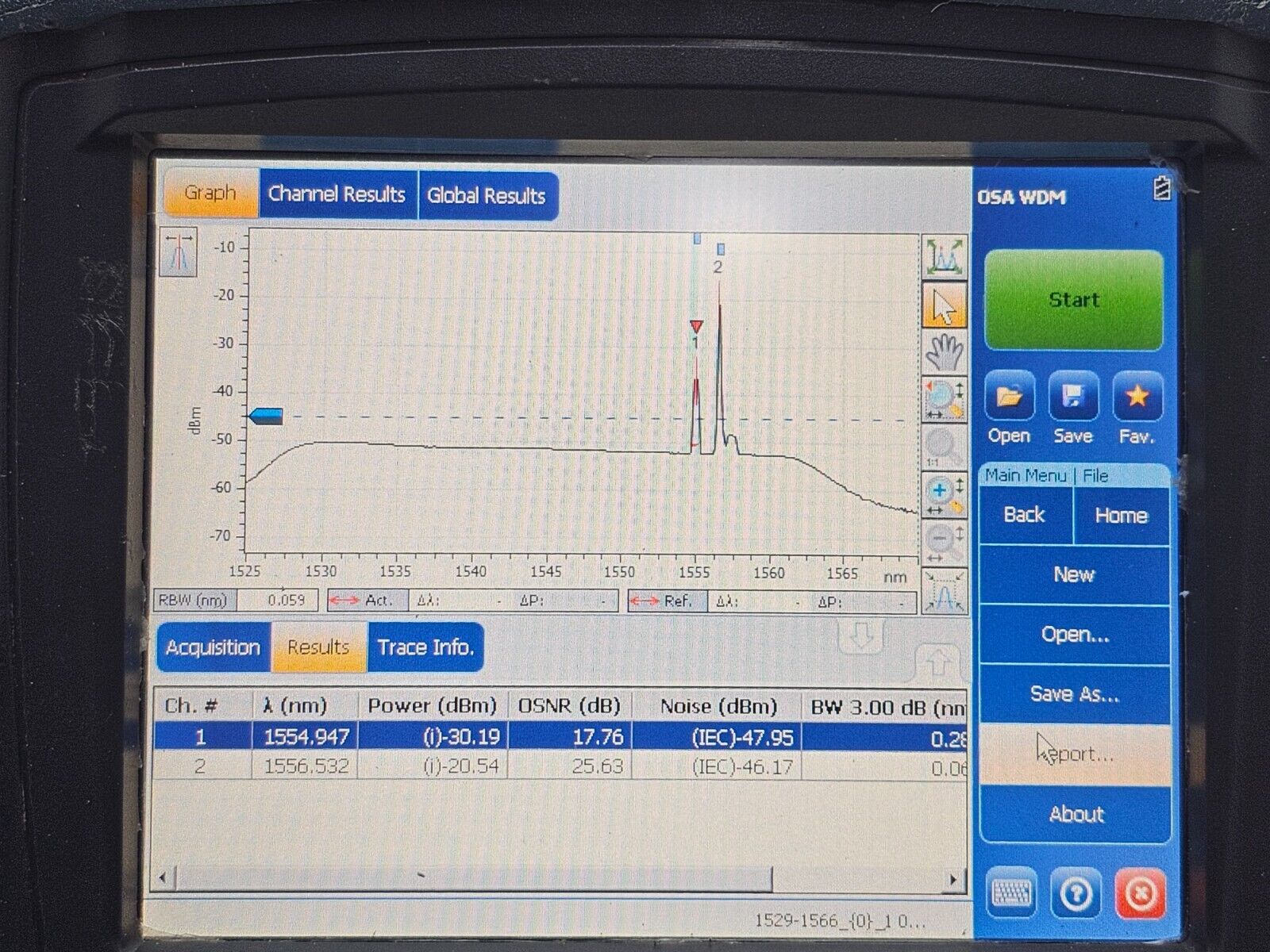

The FTB-5240S-P provides high dynamic range optical spectrum analysis combined with a polarisation controller, enabling accurate in-band optical signal-to-noise ratio (OSNR) measurements — essential for characterising polarisation-multiplexed coherent transceivers where traditional out-of-band OSNR methods are unreliable.

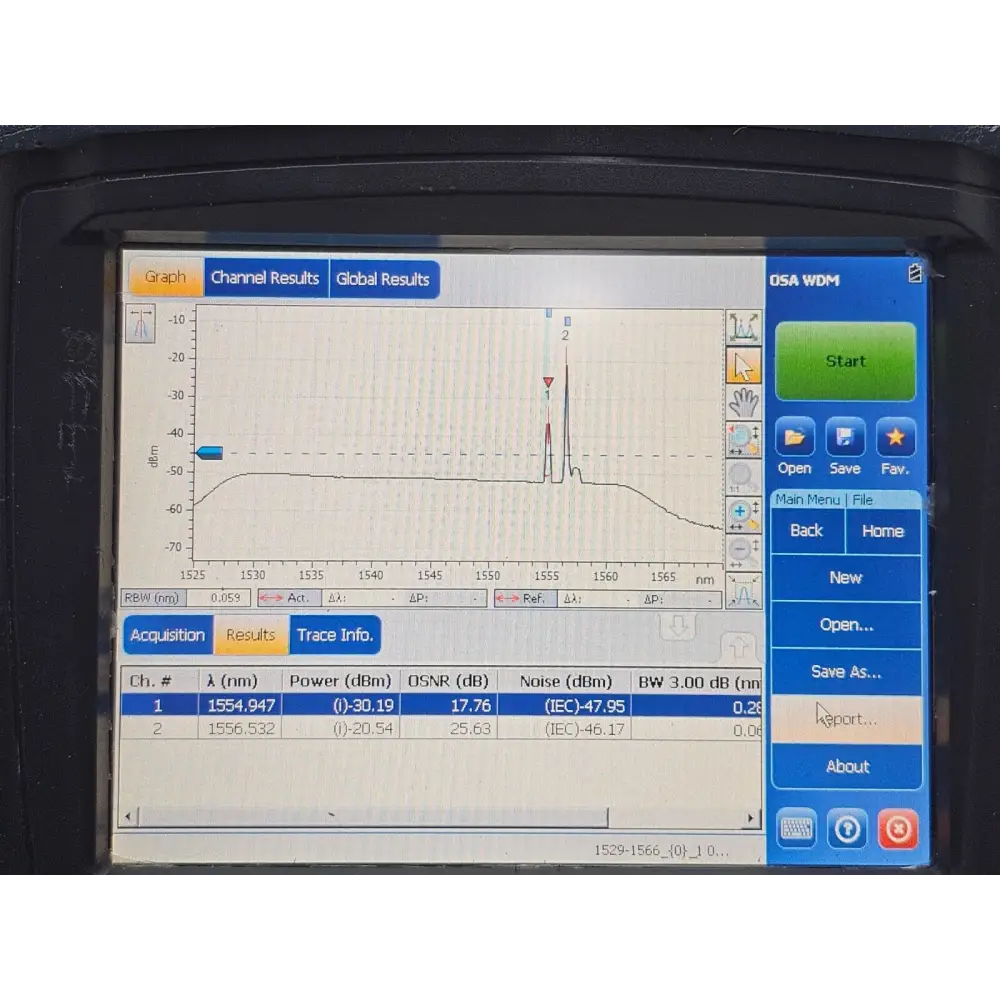

The INB (In-Band OSNR) option enables measurement of OSNR directly within the signal bandwidth, a requirement for accurate characterisation of PM-QPSK and other coherent modulation formats used in 100G and beyond deployments.

Key Features:
- High-resolution optical spectrum analysis
- Integrated polarisation controller
- In-band OSNR measurement (INB option)
- DWDM channel analysis and pass/fail testing

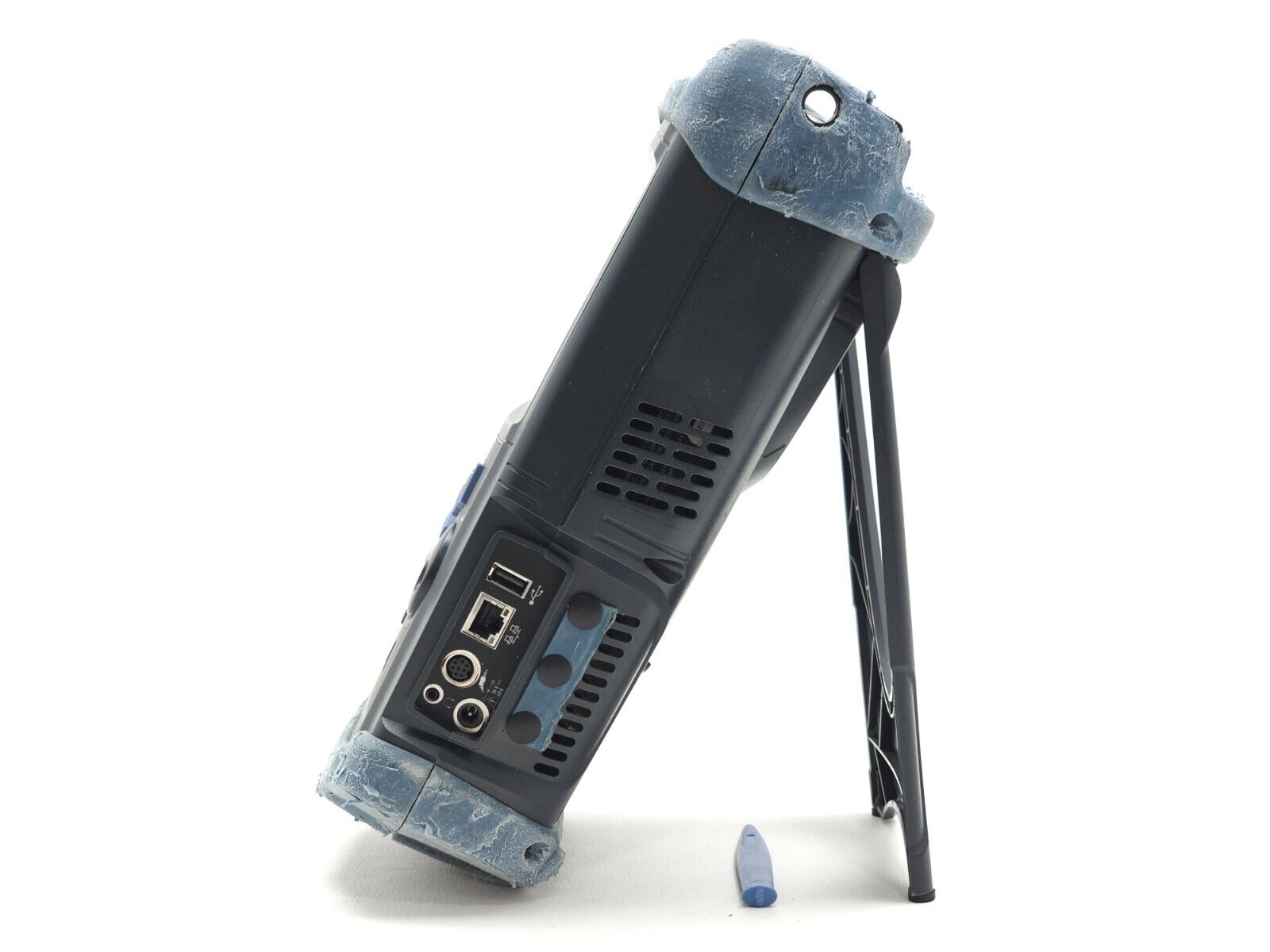

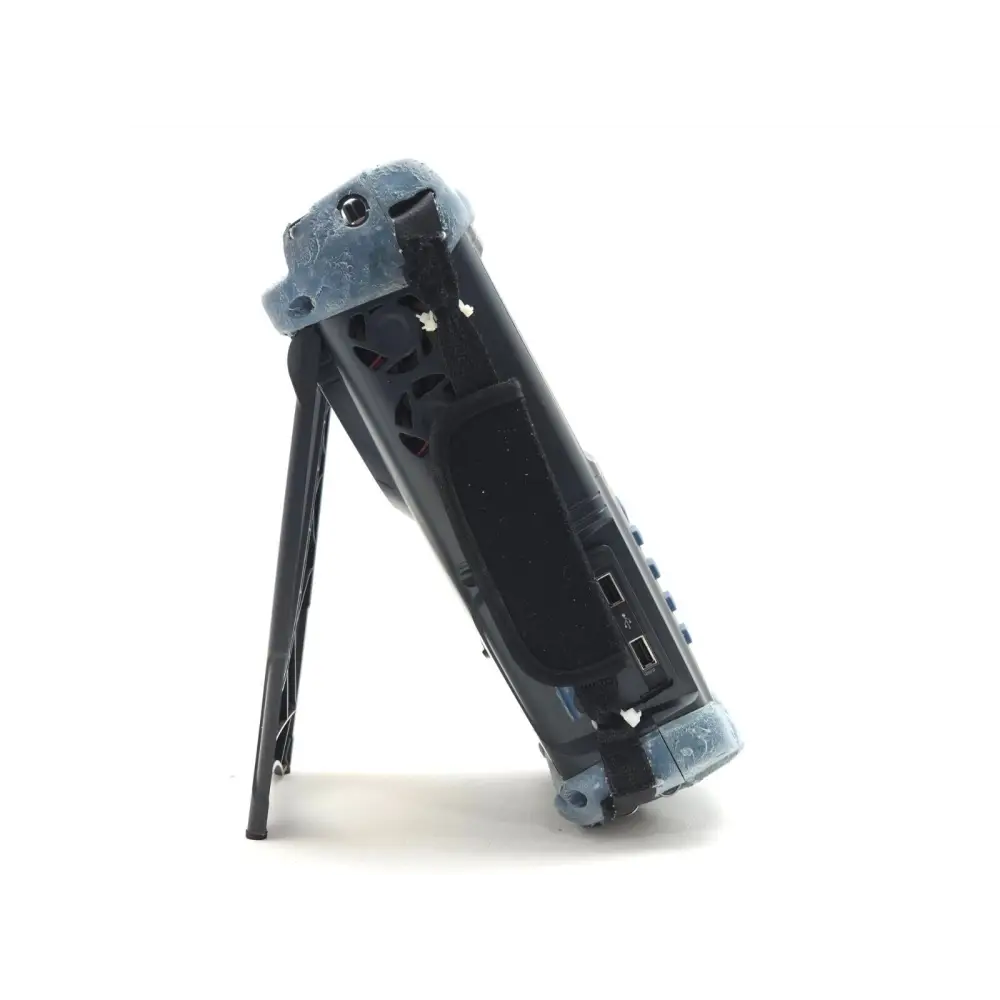

- Compact, rugged field-portable FTB-200 V2 platform
- Touchscreen interface with intuitive GUI
- USB and Ethernet connectivity

Typical Specifications (FTB-5240S-P):
Wavelength Range: 1250 nm to 1650 nm
Wavelength Accuracy: ±0.02 nm
Dynamic Range: >50 dB
Power Range: +20 dBm to -90 dBm (typical)
Resolution Bandwidth: 0.07 nm (typical)
Channel Spacing Support: 12.5 GHz, 25 GHz, 50 GHz, 100 GHz
Platform: EXFO FTB-200 V2
Display: Colour touchscreen
Battery: Rechargeable Li-Ion

Please refer to the EXFO website for full and current specifications.

EXFO FTB-5240S OSA module datasheet (PDF): Download PDF
