EXFO FTB-200 V2 FTB-200-V2-S1 + FTB-5240S-P OSA INB (in-band OSNR) & ADV Options

Condition: Used

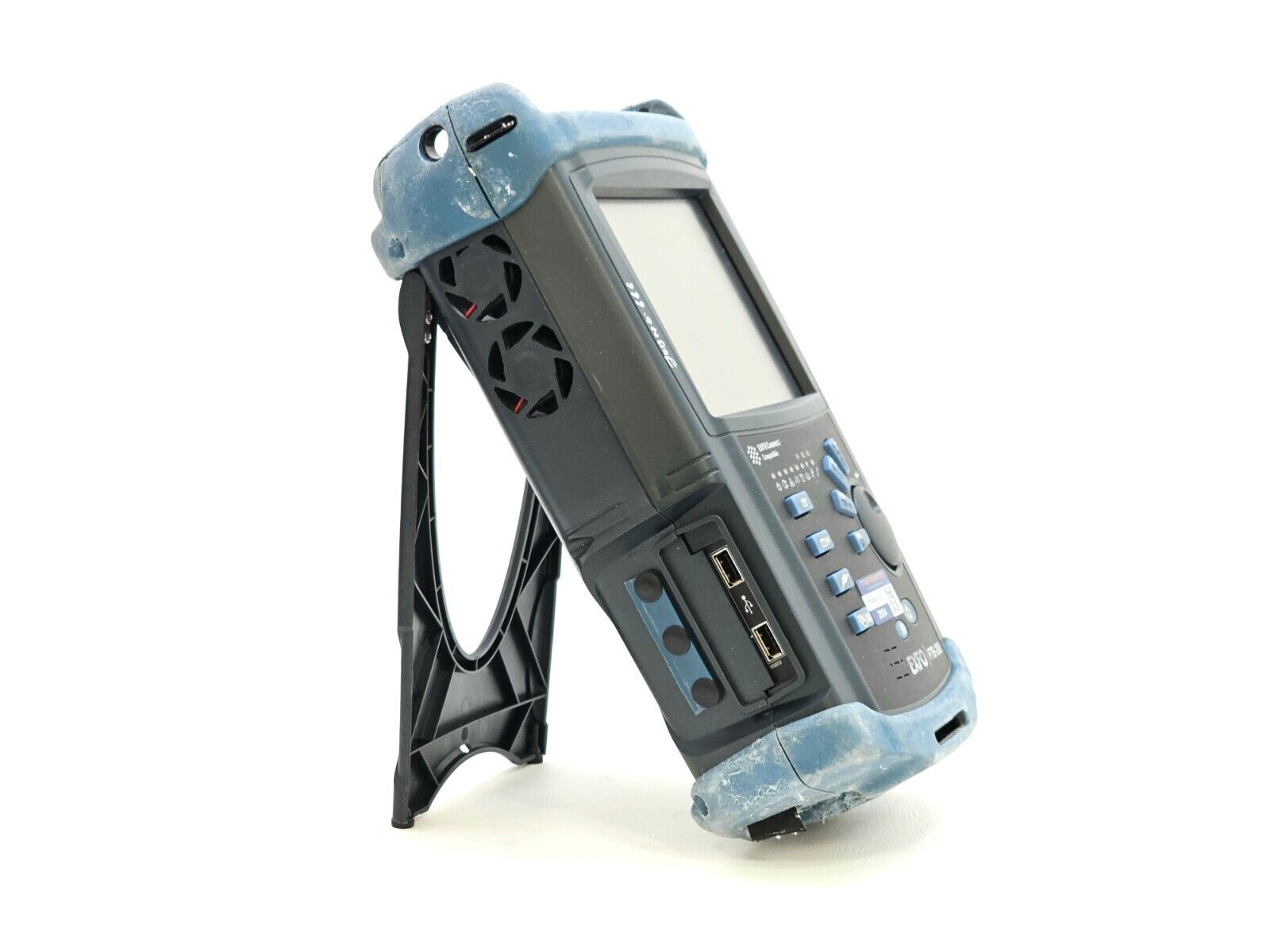

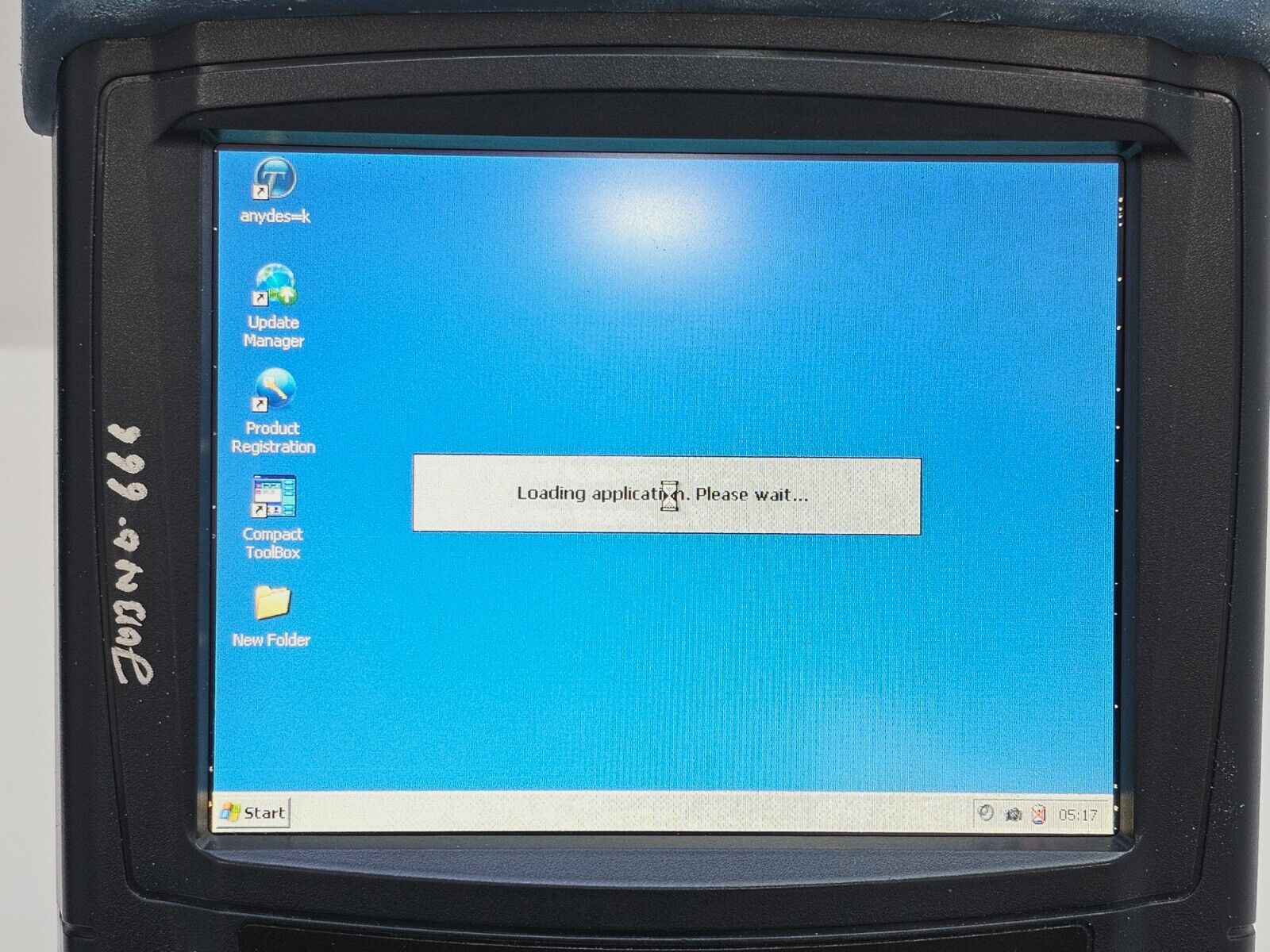

This EXFO FTB-200 V2 unit houses the FTB-5240S-P optical spectrum analyser module and is activated with both the INB (in-band OSNR) and ADV (Advanced) options. The OSA has been tested and confirmed within specification. Cosmetically the unit shows signs of use but the screen is in good condition. Supplied as pictured.

Included items:
• Stylus
• Power adapter
• Carry case
• Battery (tested and confirmed good)

The EXFO FTB-5240S-P is a high-performance optical spectrum analyser module designed for the EXFO FTB-200 V2 portable platform. It provides comprehensive DWDM network testing and characterisation capabilities, combining wide wavelength coverage with high dynamic range and resolution suitable for both lab and field environments.

The FTB-5240S-P supports passive and active DWDM network testing, including channel power, wavelength, OSNR, and in-band OSNR (INB) measurements on modulated signals — a critical requirement for 40G and 100G coherent networks where traditional out-of-band OSNR methods are insufficient.

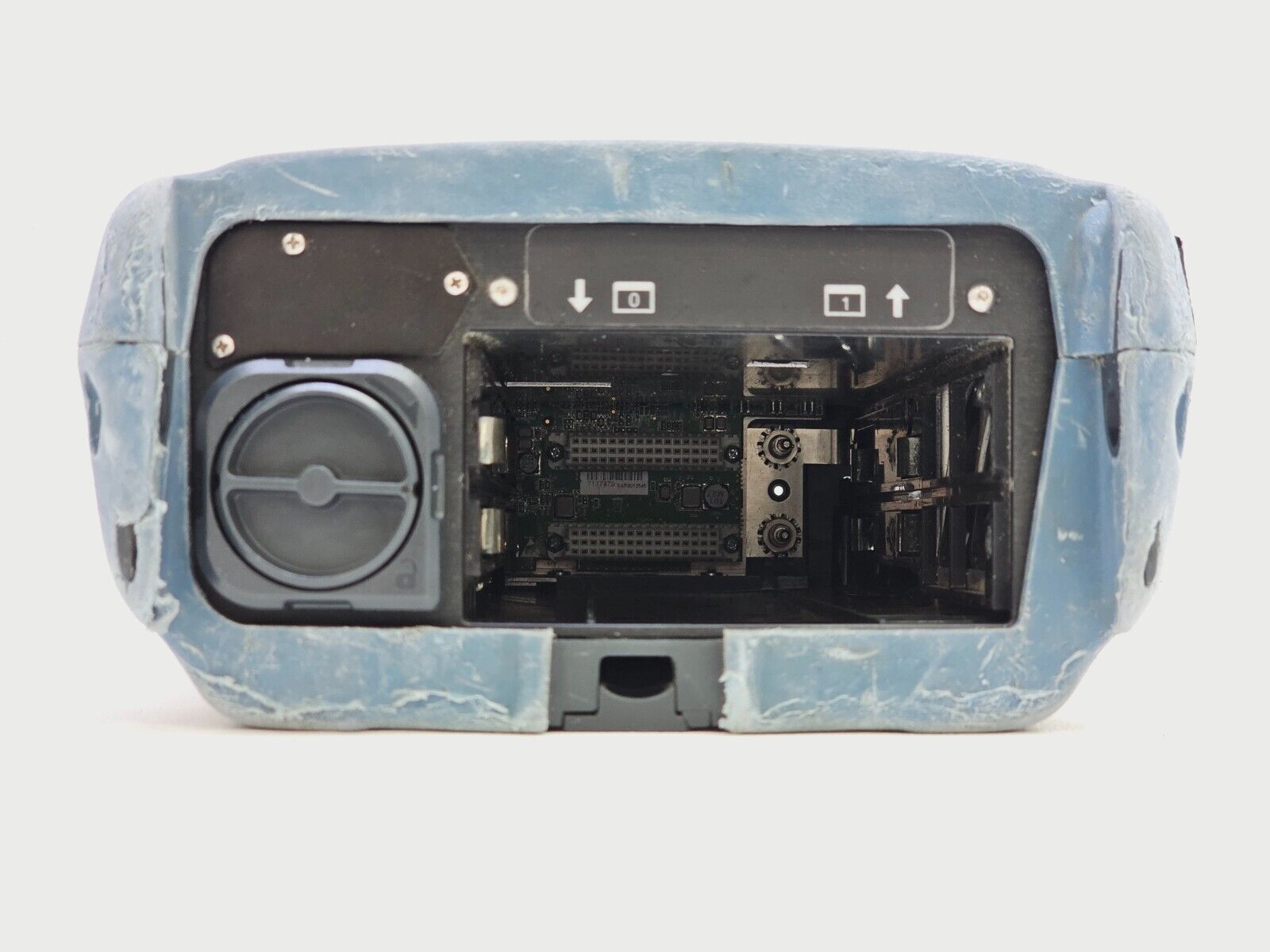

The FTB-200 V2 platform is a rugged, modular field tester that accepts a range of EXFO test modules. It features a high-visibility colour touchscreen, long battery life, and a lightweight chassis designed for outside plant and central office deployment.

Key Features:
- In-band OSNR measurement on live modulated channels (INB option)
- Advanced OSA analysis functions including DFB source support and filter analysis (ADV option)
- High wavelength accuracy and channel detection for DWDM networks
- Compact, battery-operated field platform
- Modular architecture compatible with the FTB-200 V2 mainframe

Typical Specifications (FTB-5240S-P):
Wavelength Range: 1250 nm to 1650 nm
Wavelength Accuracy: ±0.02 nm
Dynamic Range: >50 dB
Wavelength Resolution: 0.07 nm (typical)
Power Range: +20 dBm to -90 dBm (typical)
Platform: EXFO FTB-200 V2
Display: Colour touchscreen
Power: AC adapter / rechargeable battery

Note: Specifications may vary by firmware version and activated options. Please refer to the EXFO website or datasheet for full details.

EXFO FTB-5240S Optical Spectrum Analyser Datasheet: Download PDF

EXFO FTB-200 v2 Platform Datasheet: Download PDF
