Condition: Used

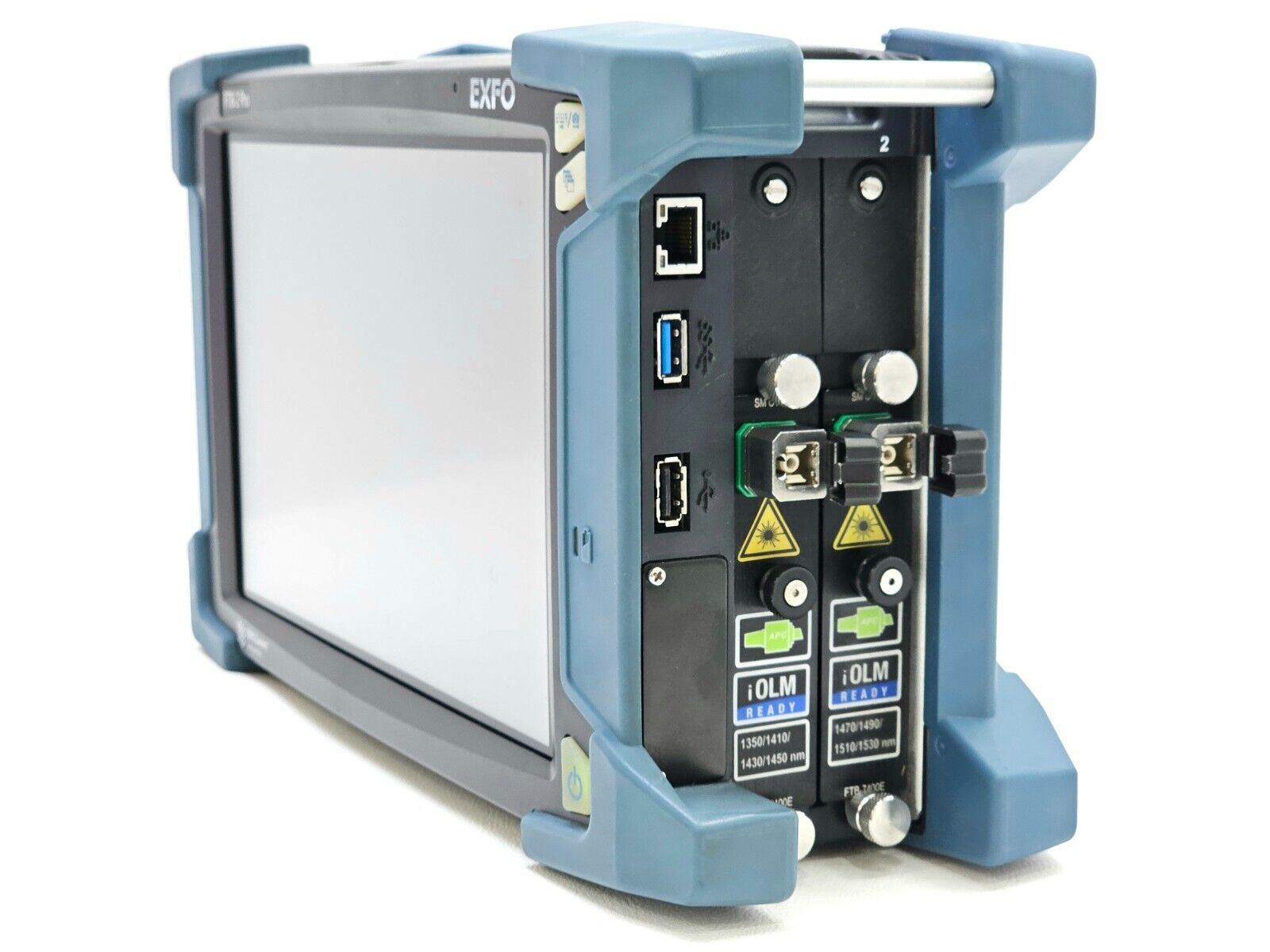

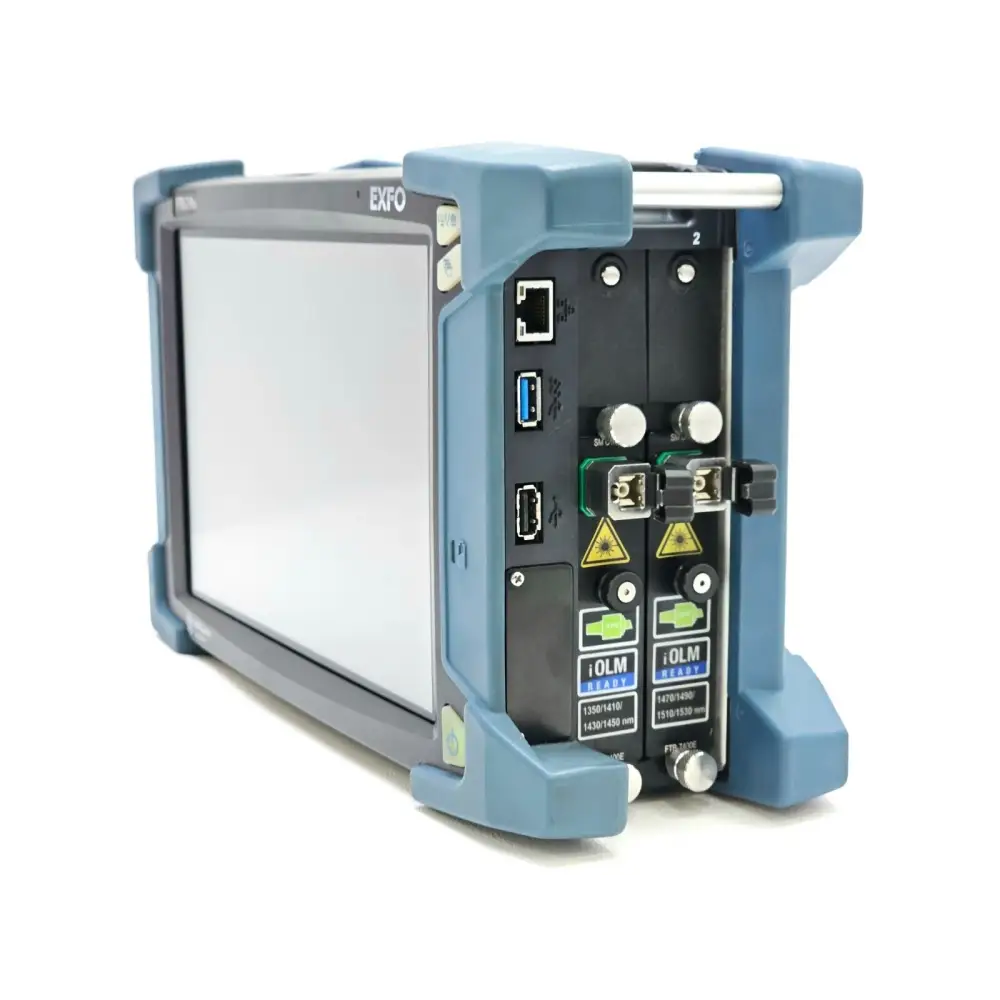

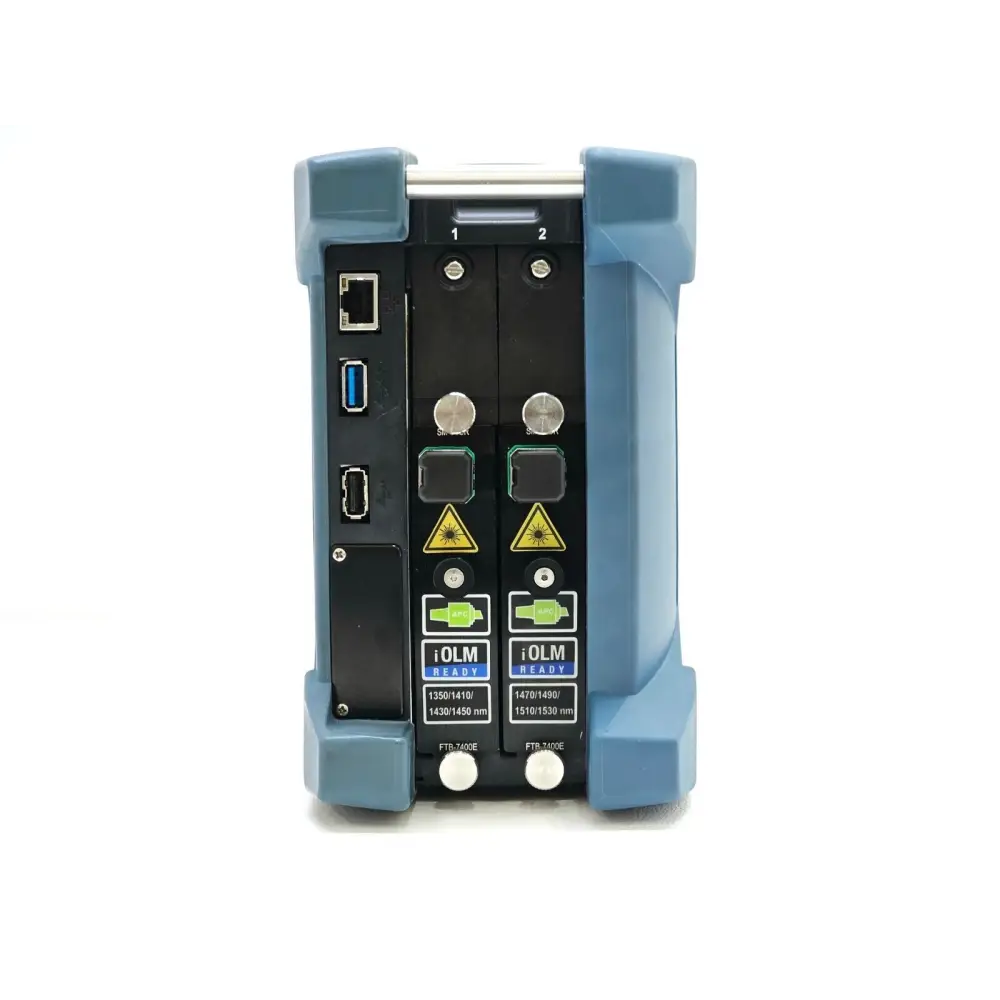

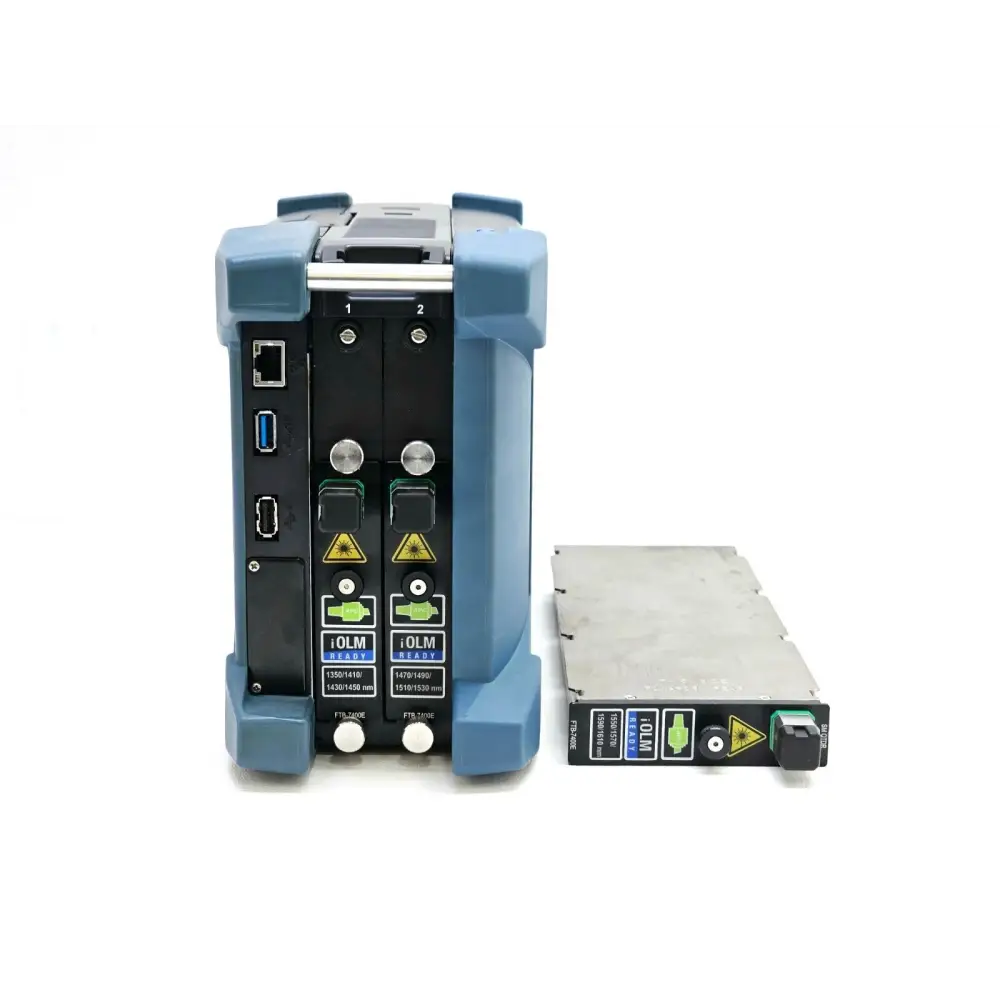

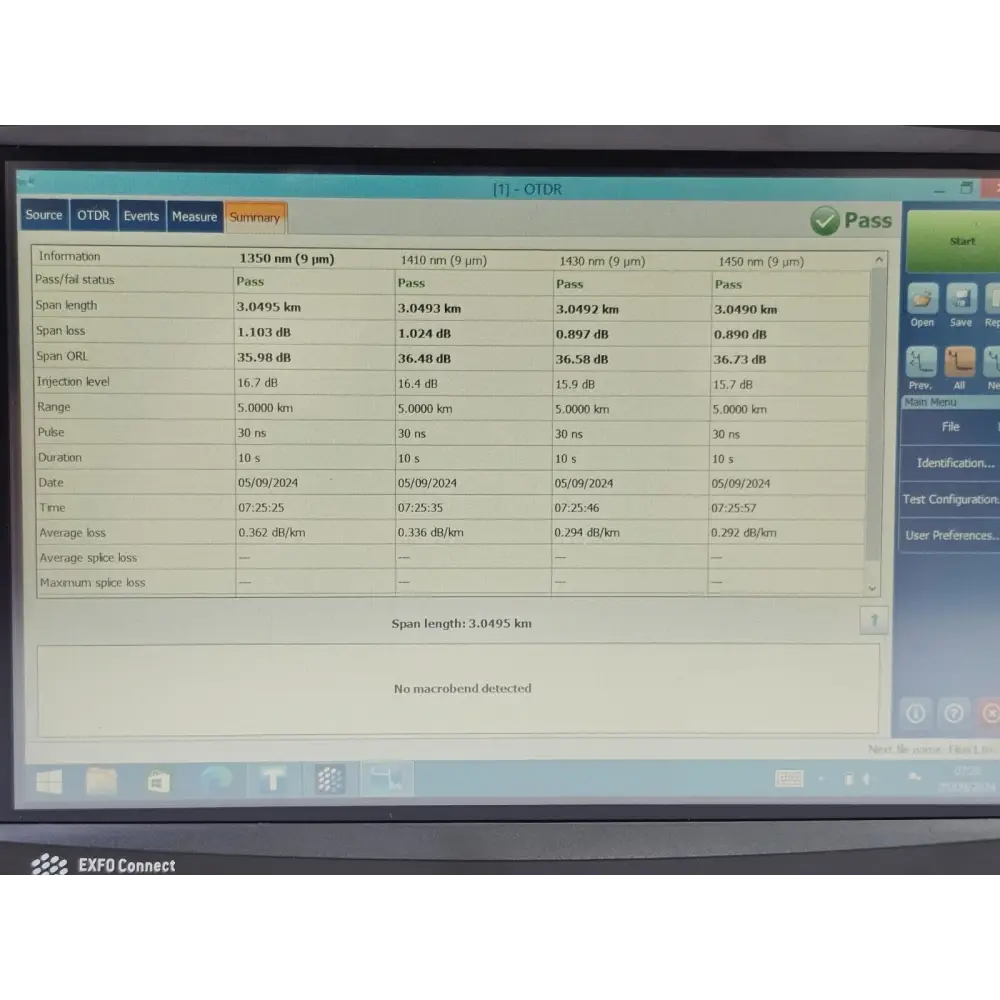

In very good condition, tested and working. This FTB-2 Pro dual-module mainframe comes equipped with three FTB-7400E CW OTDR modules spanning 1350 to 1610 nm, all licensed for OTDR and iOLM operation with APC-SC connectors fitted.

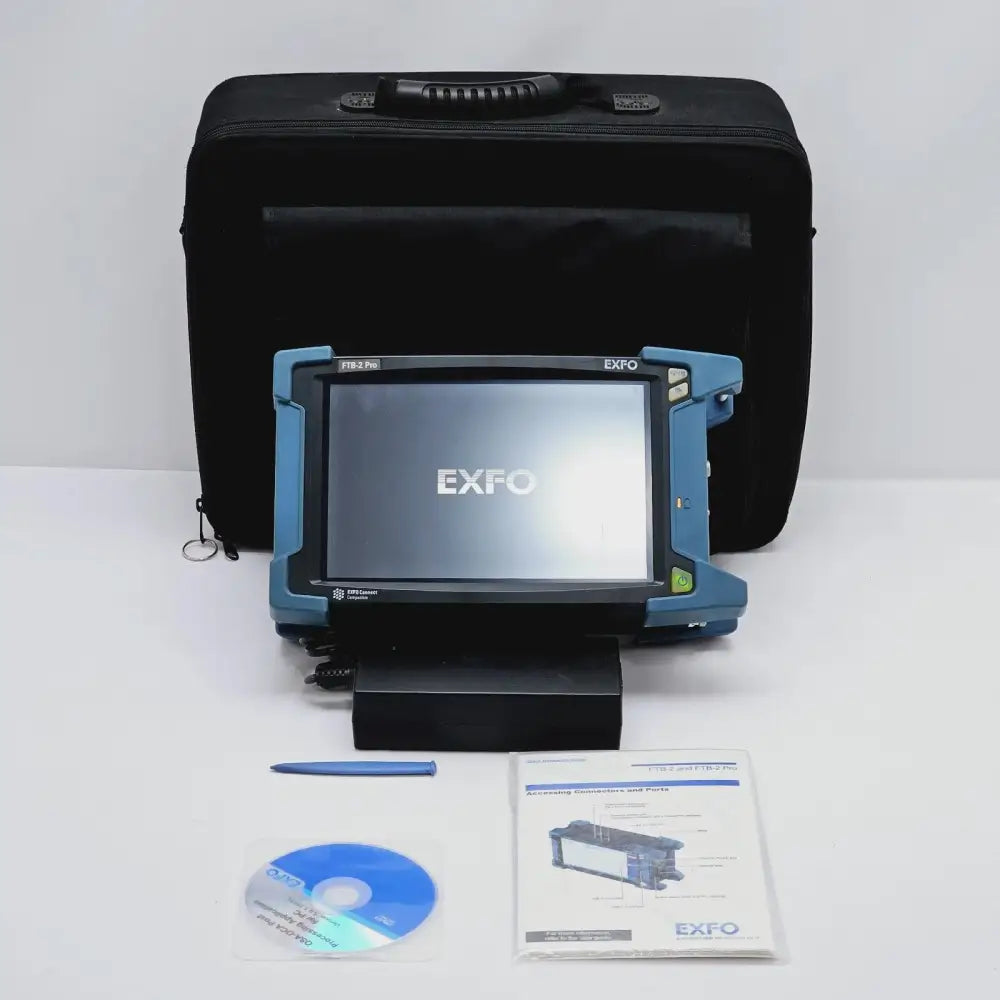

Included in the sale:

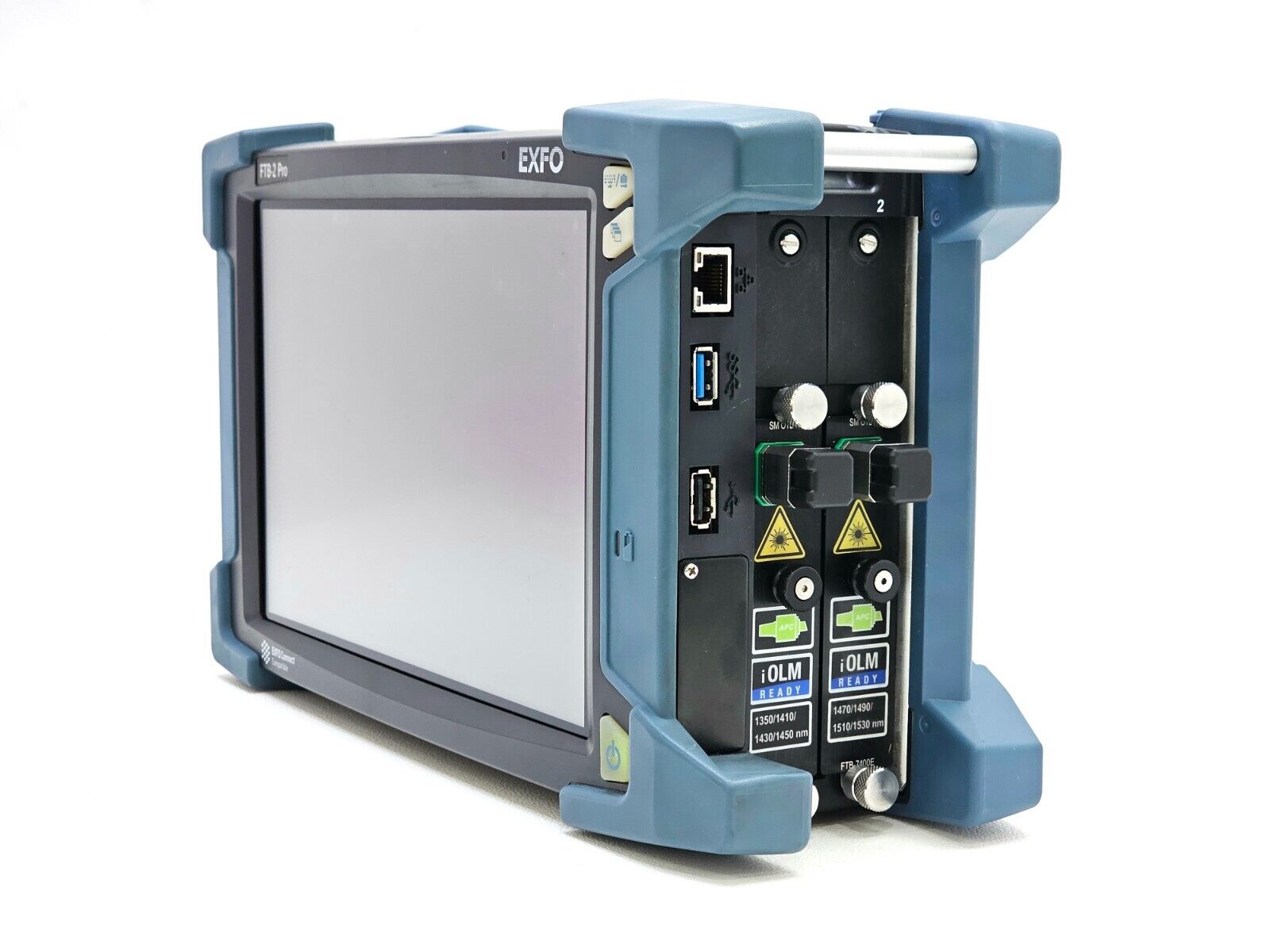

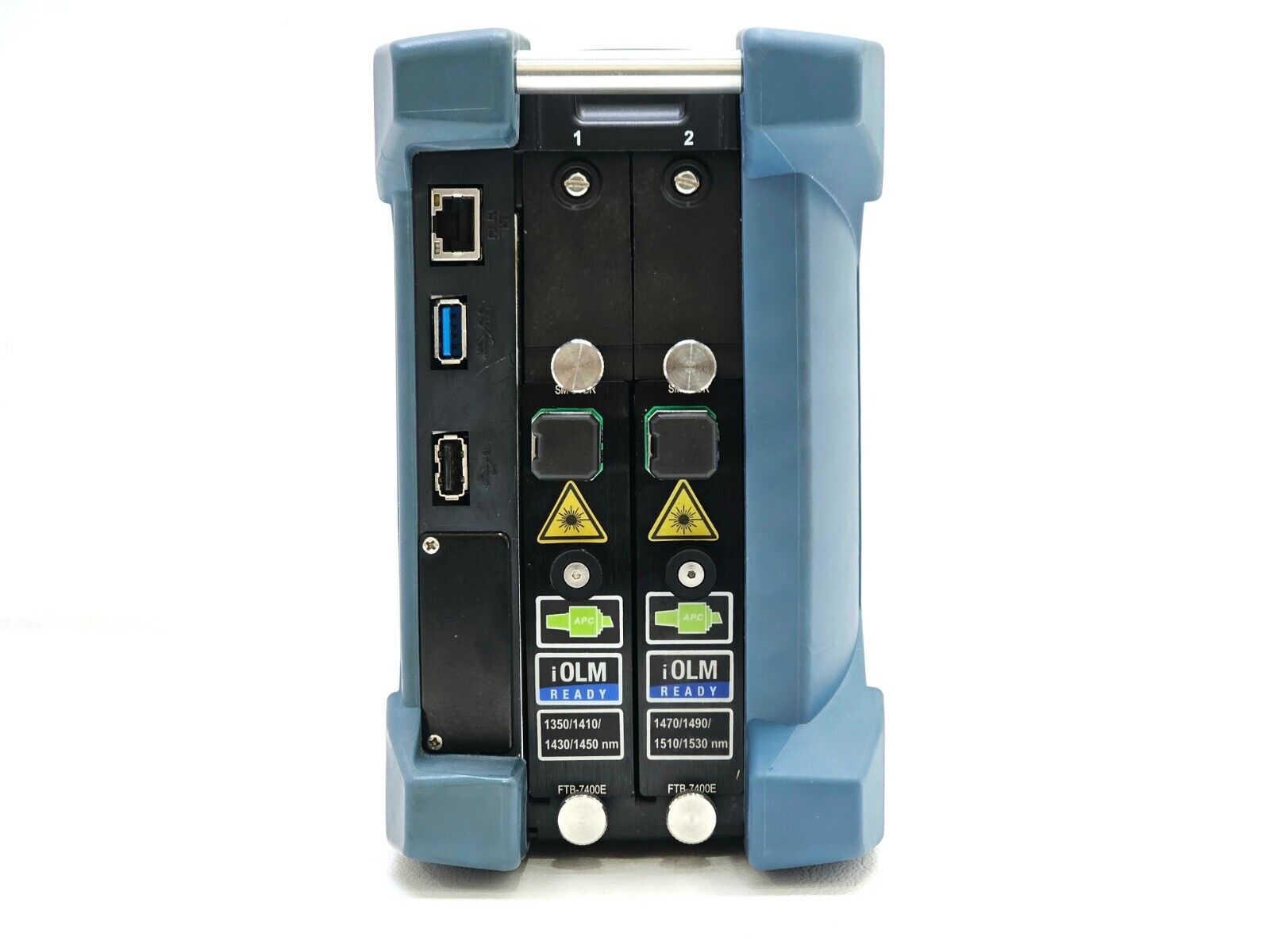

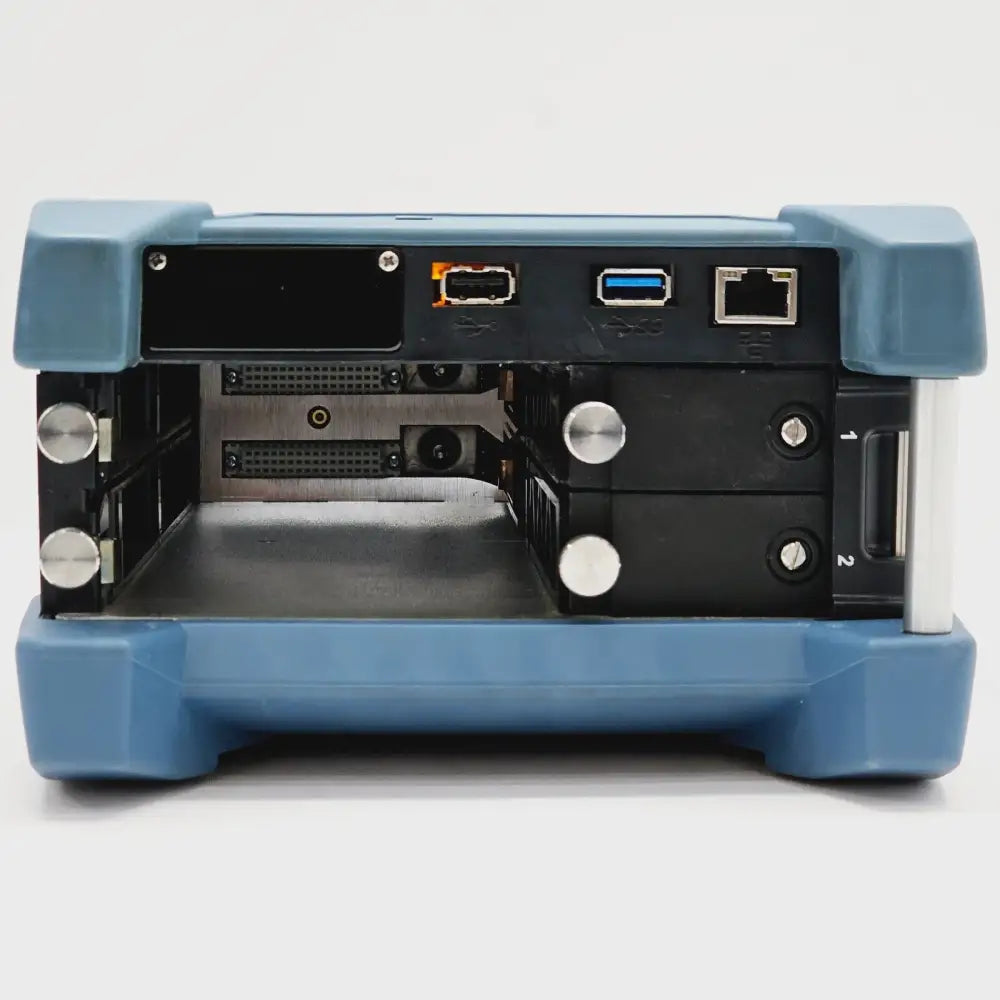

• FTB-2 Pro Mainframe (dual module carrier)

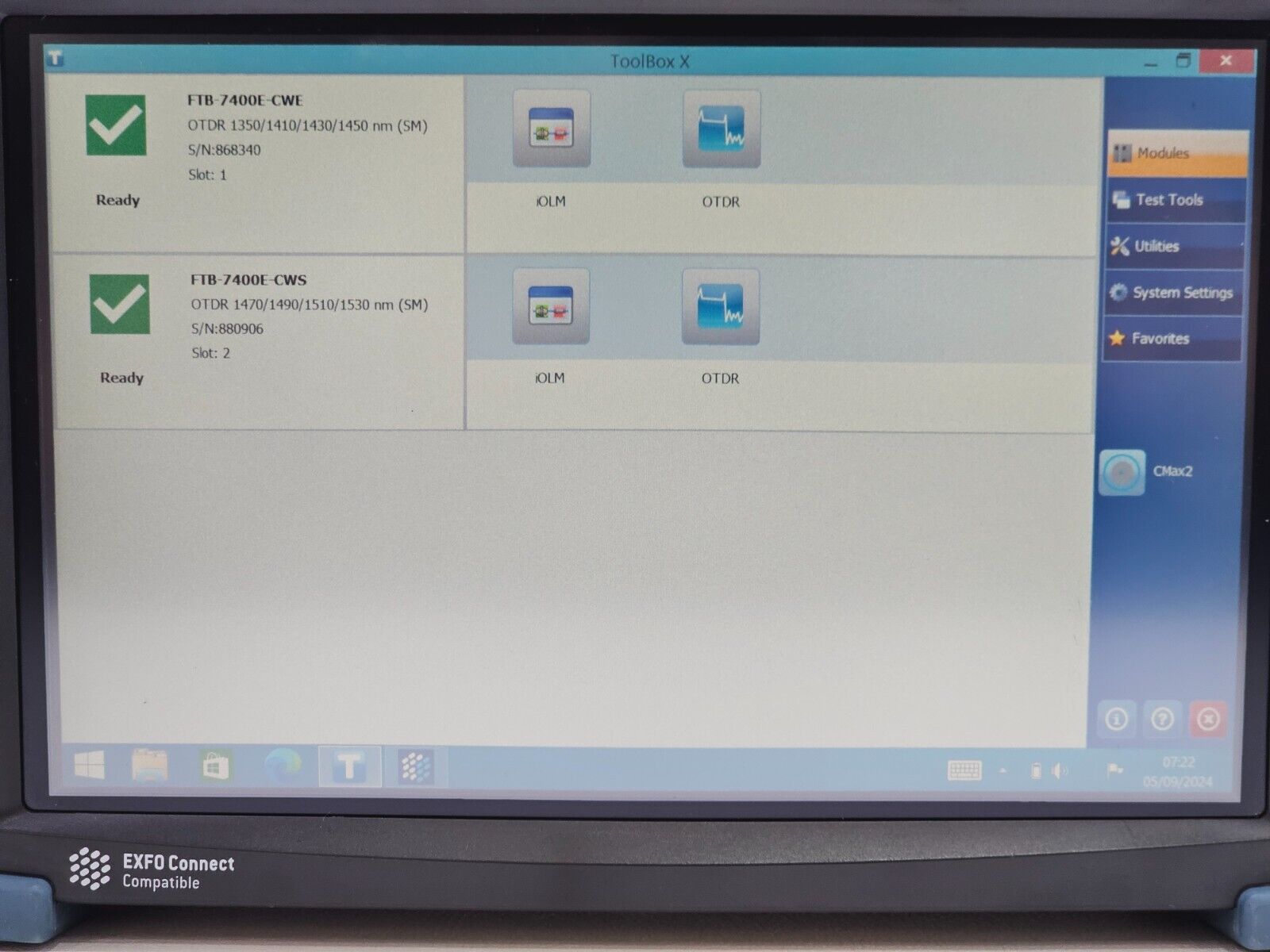

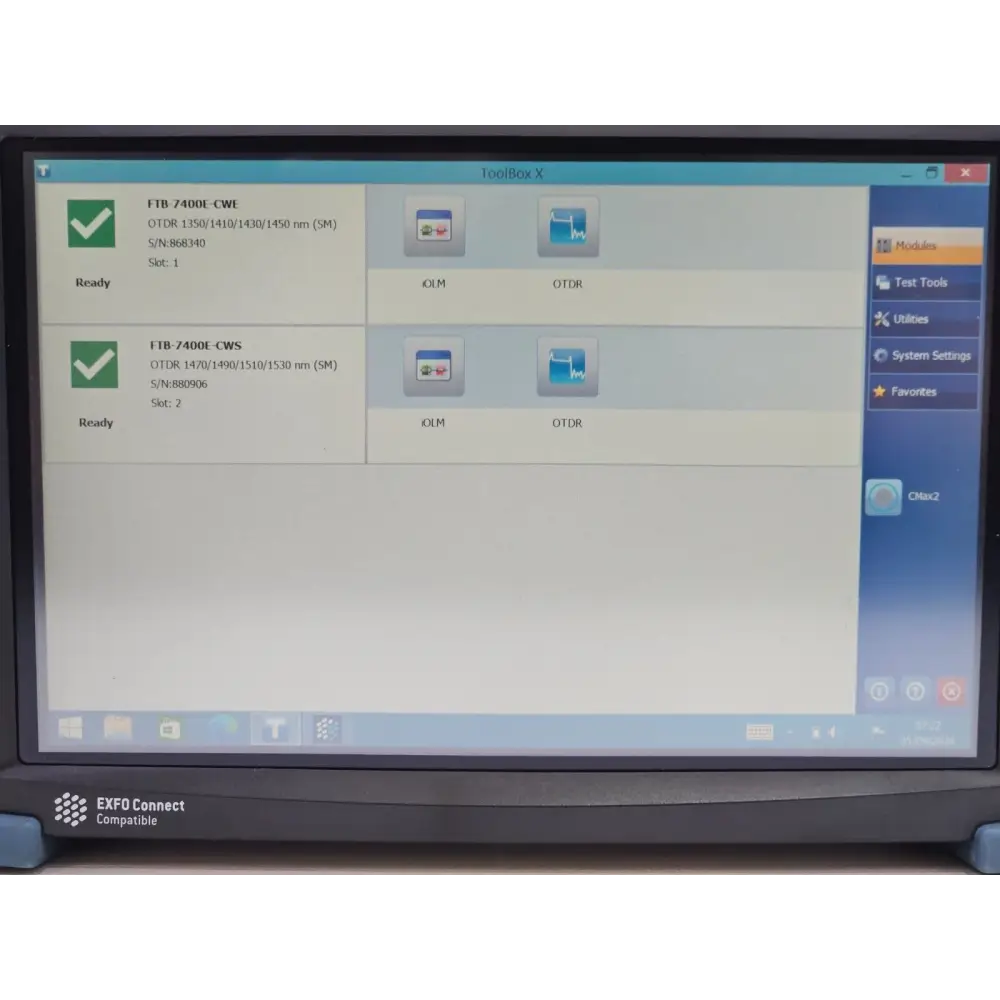

• FTB-7400E-CWE module — 1350/1410/1430/1450 nm, dynamic range: 41/41/41/41 dB (OTDR + iOLM licences, APC-SC)
• FTB-7400E-CWS module — 1470/1490/1510/1530 nm, dynamic range: 41/41/41/41 dB (OTDR + iOLM licences, APC-SC)
• FTB-7400E-CWCL module — 1550/1570/1590/1610 nm, dynamic range: 41/41/40/40 dB (OTDR + iOLM licences, APC-SC)

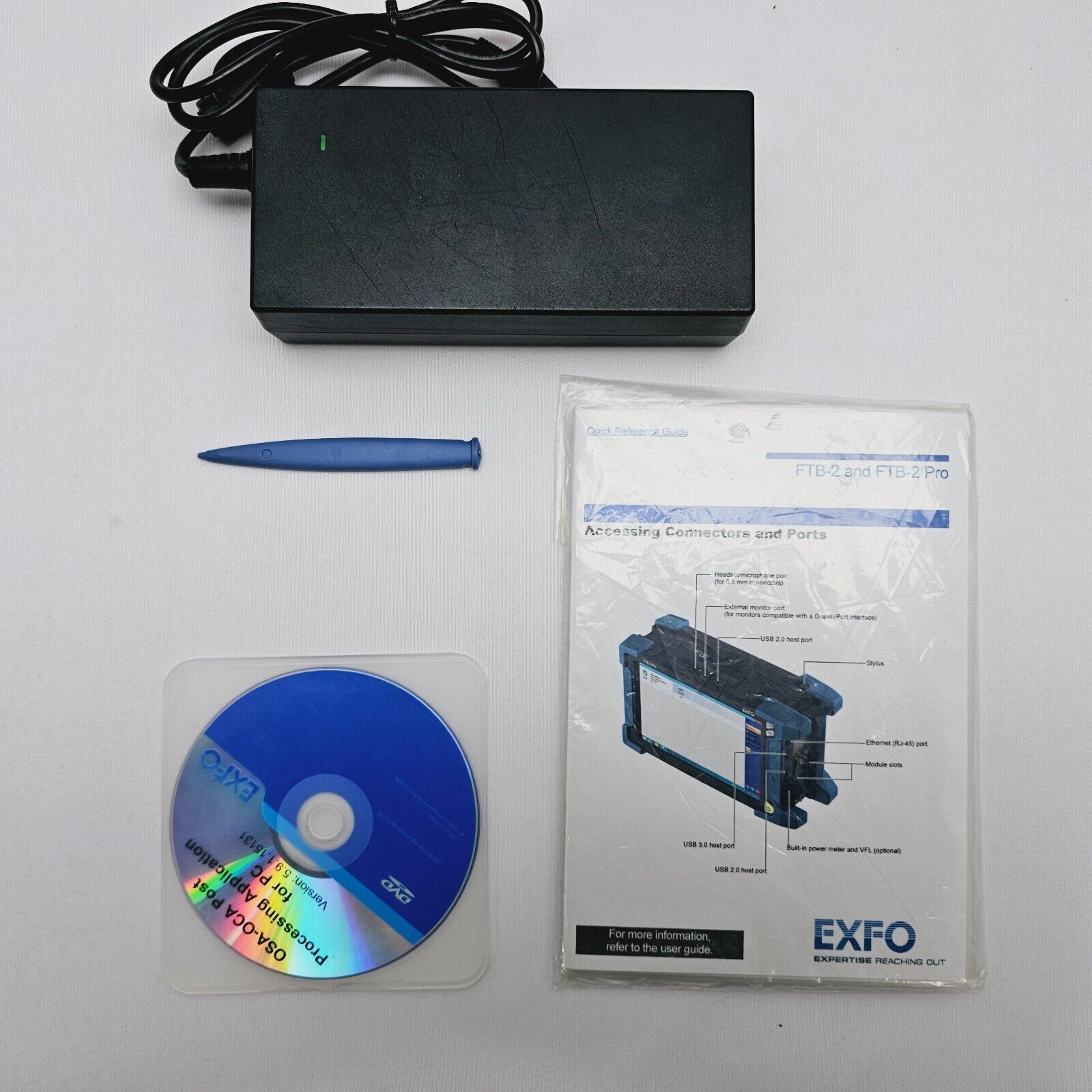

• Stylus
• Battery
• Power Adapter
• Carry Bag

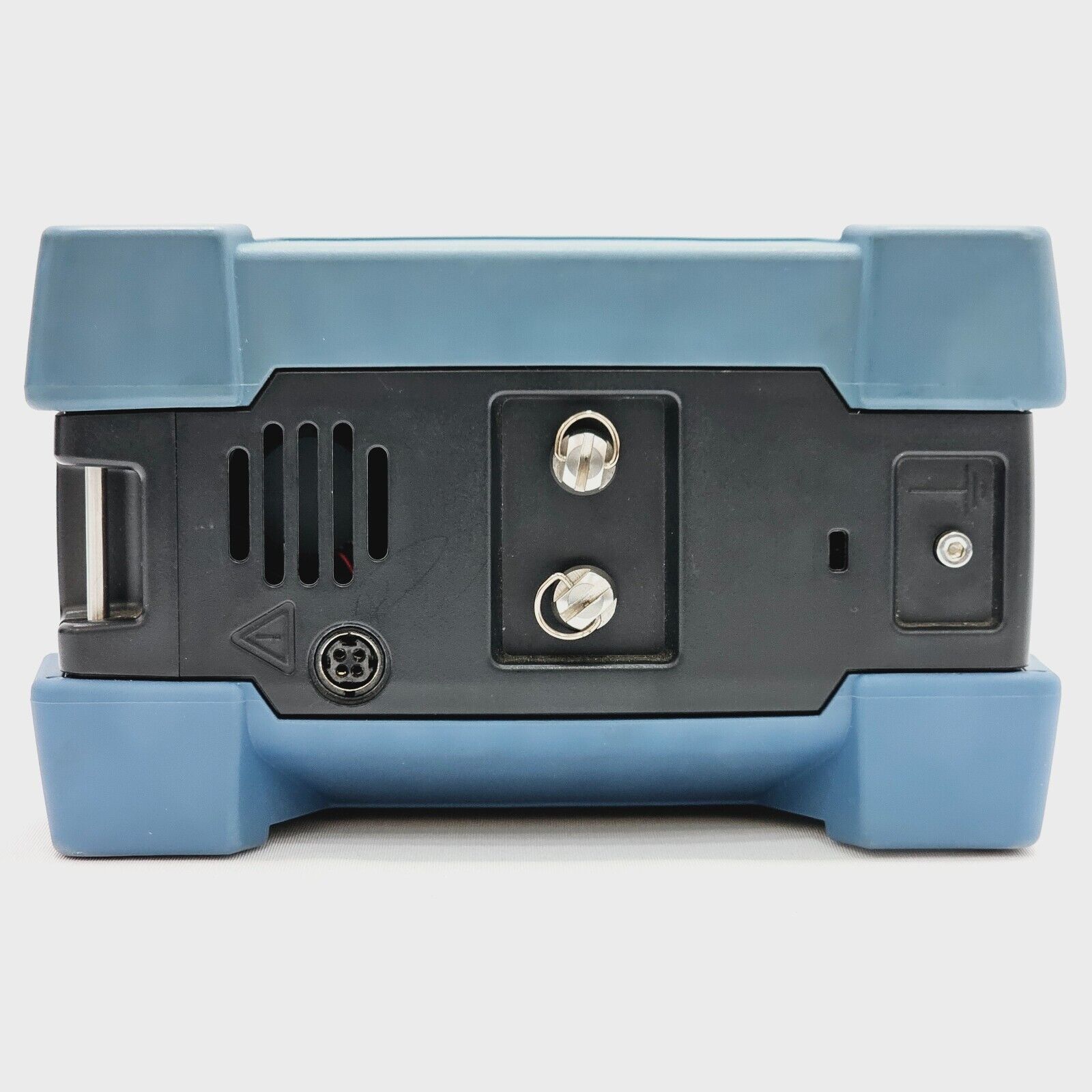

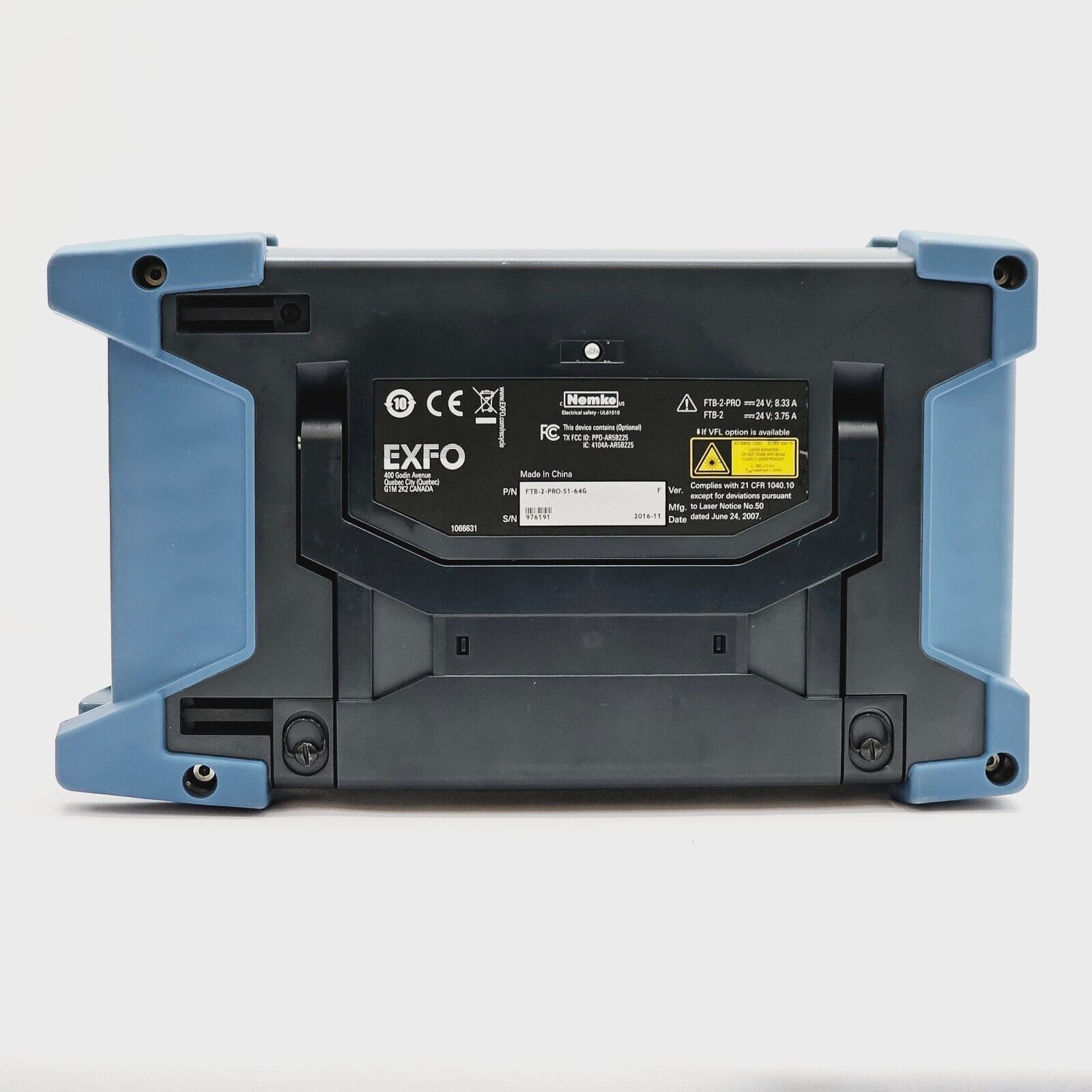

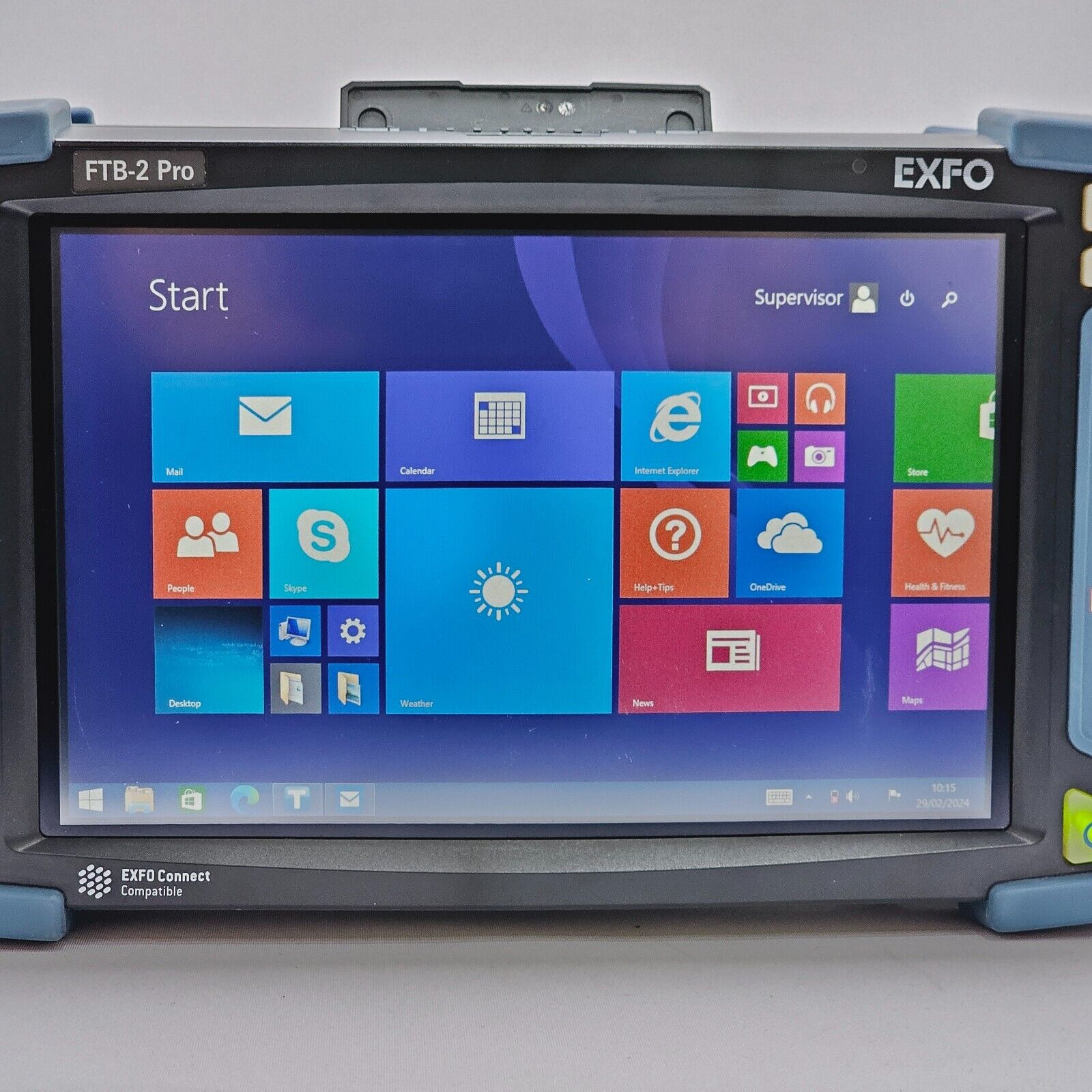

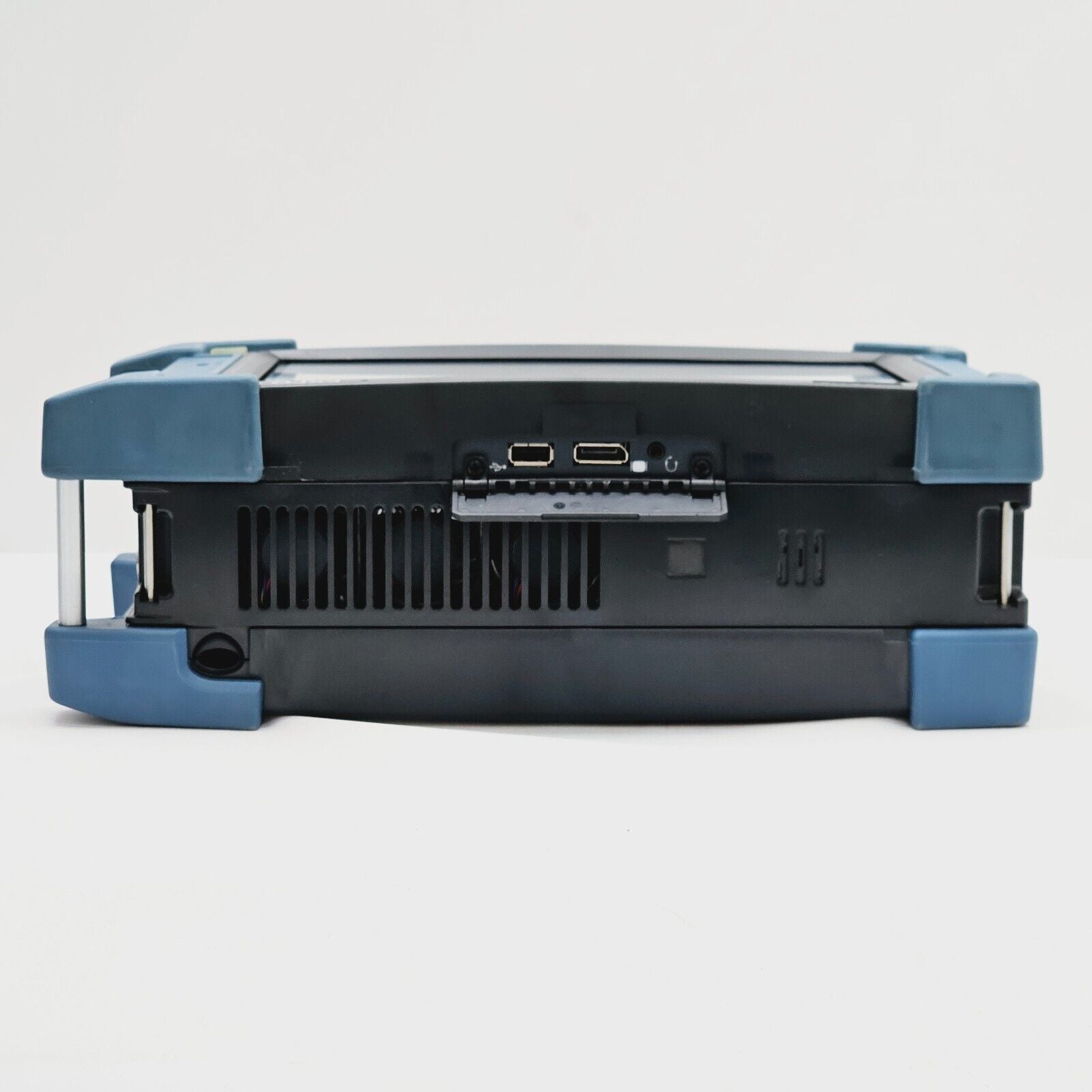

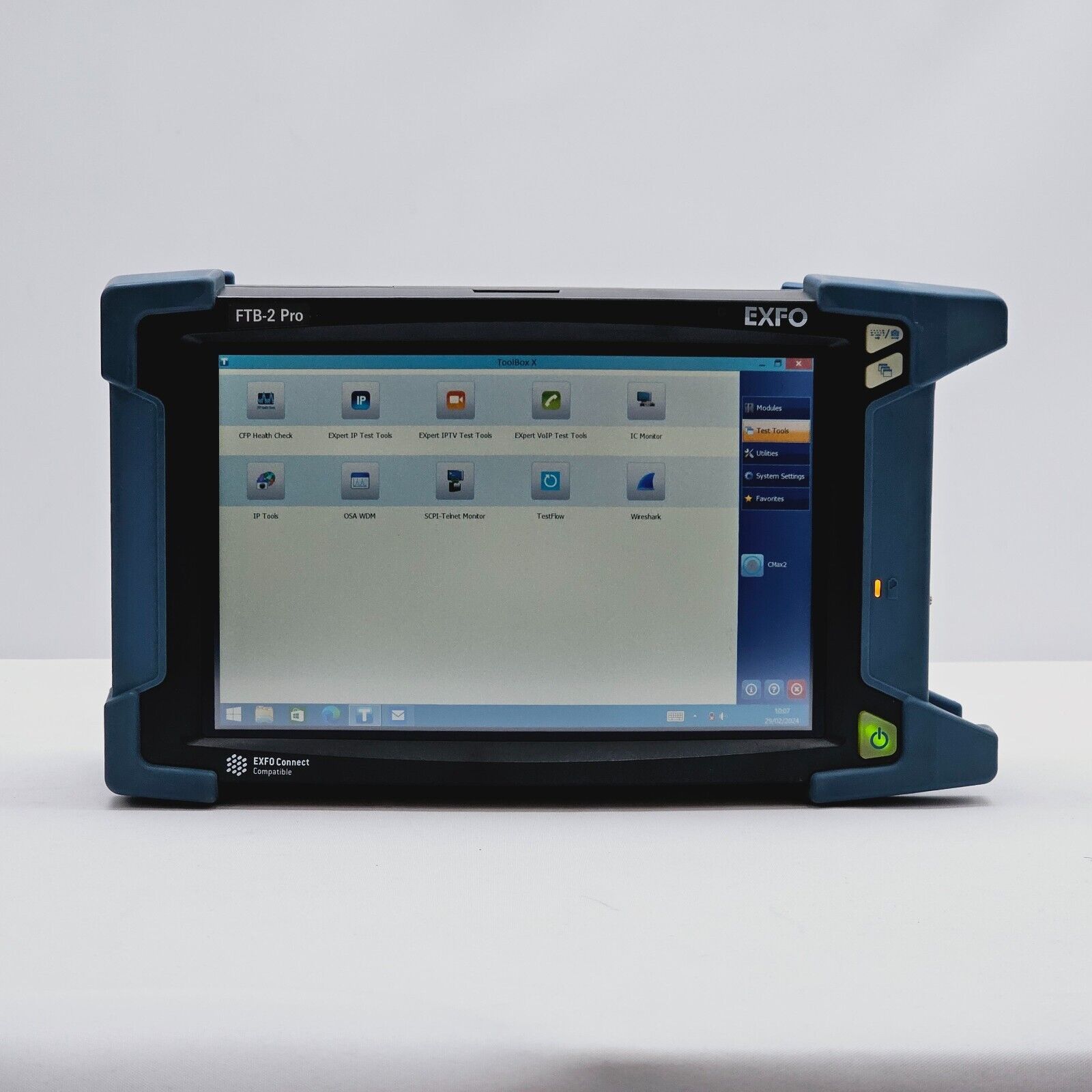

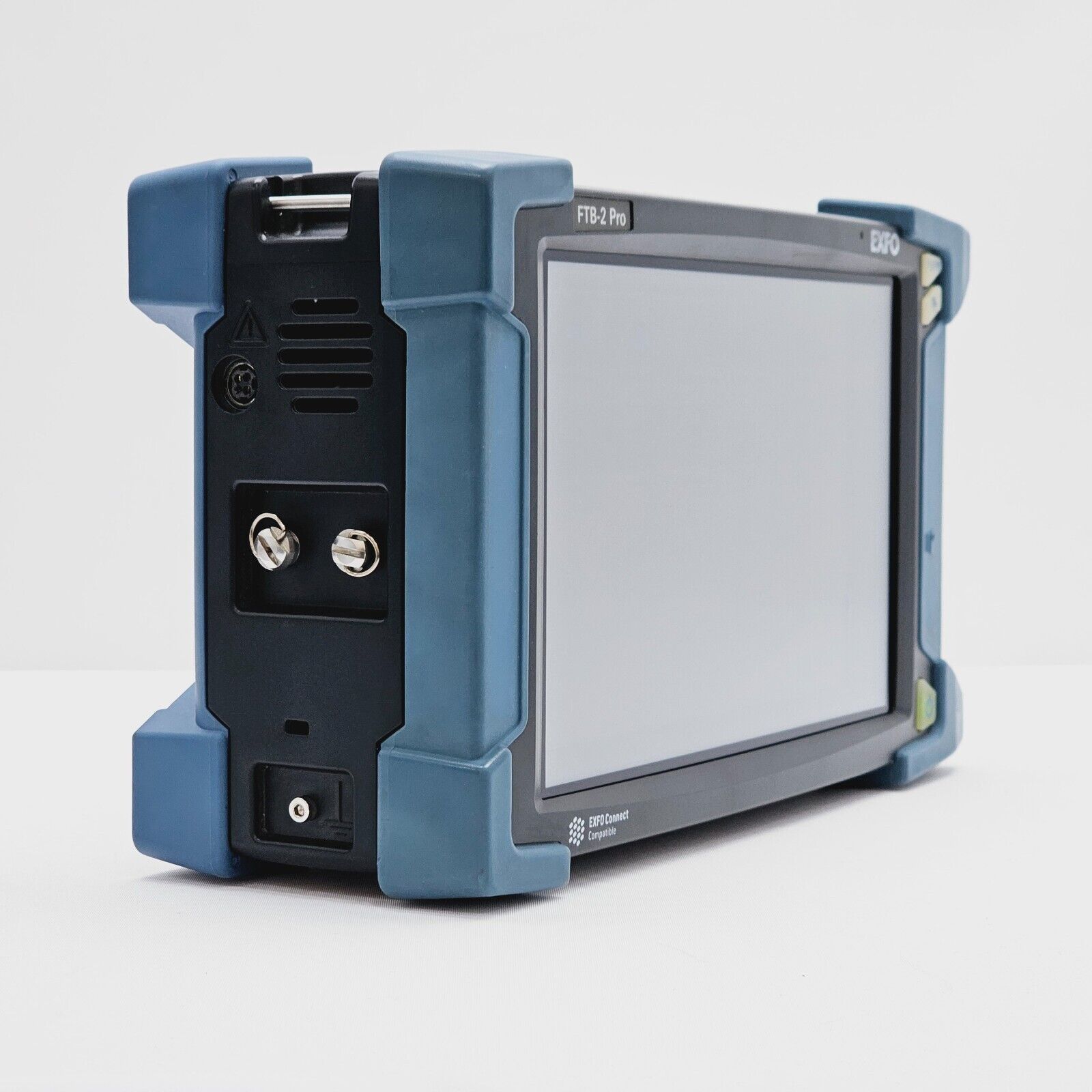

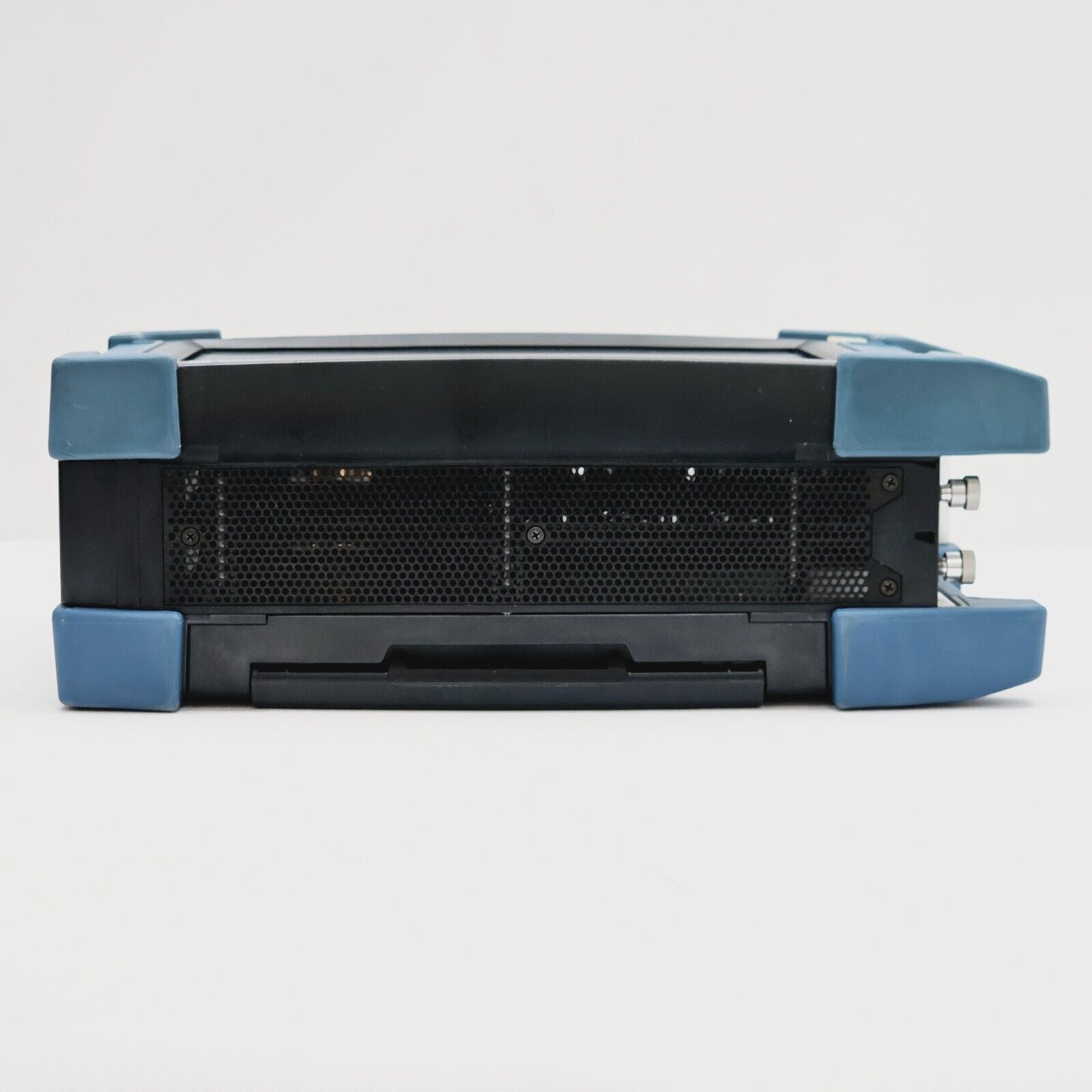

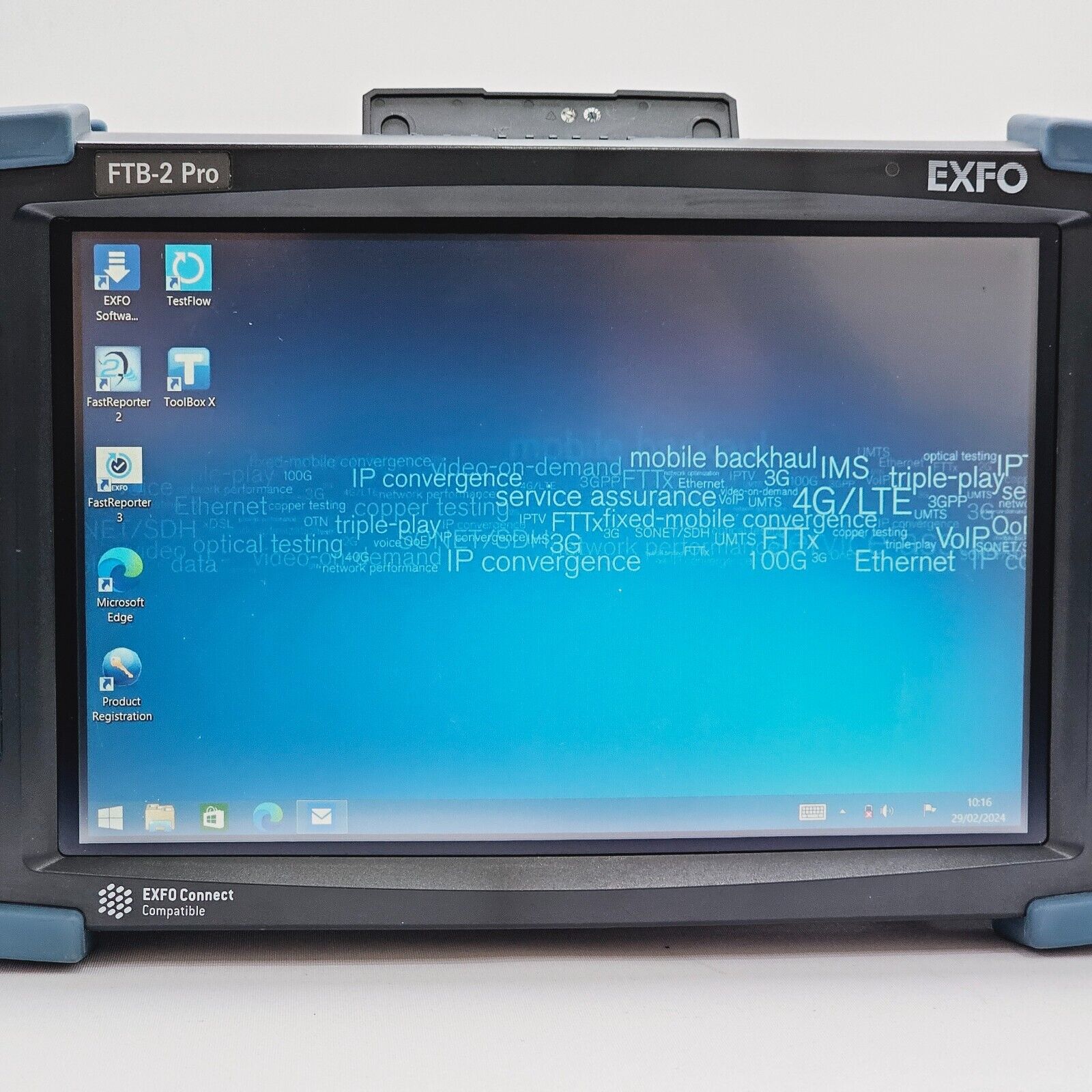

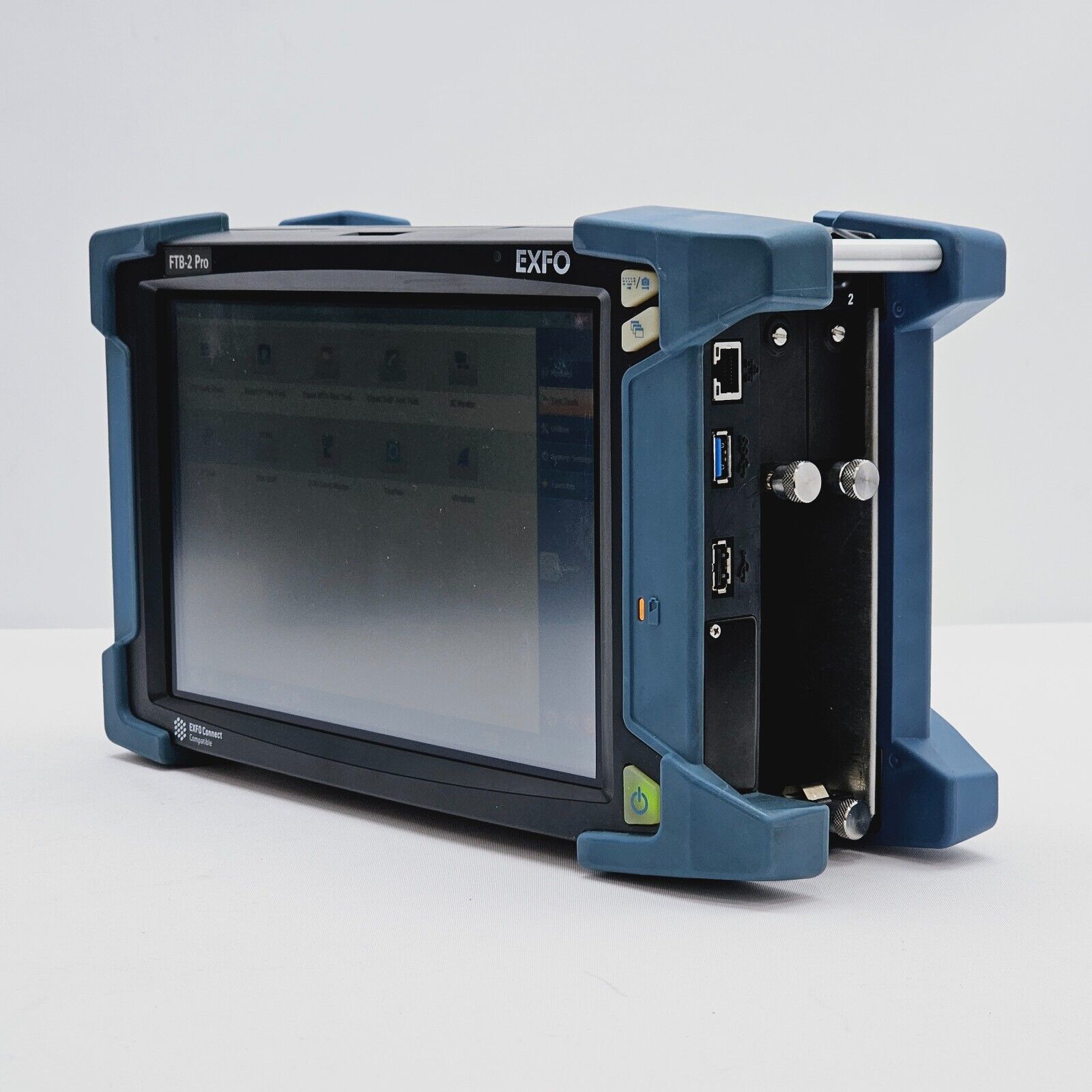

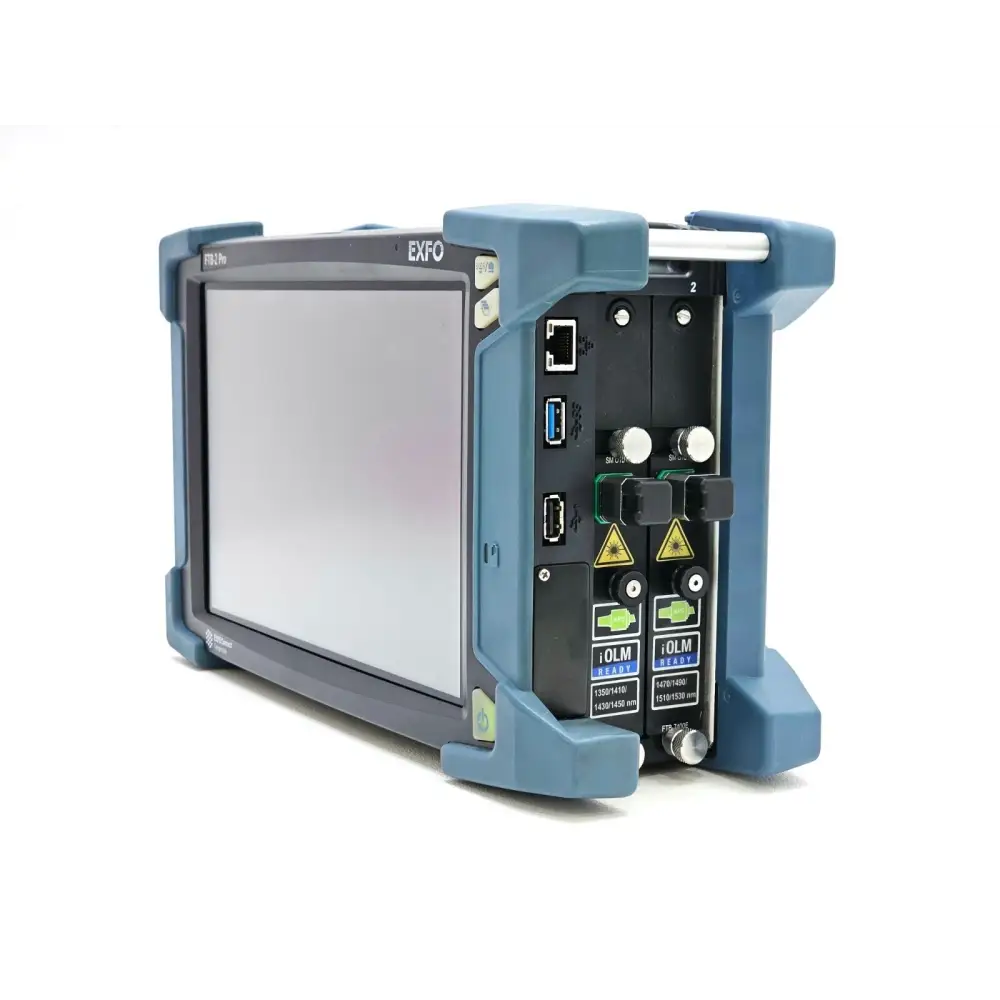

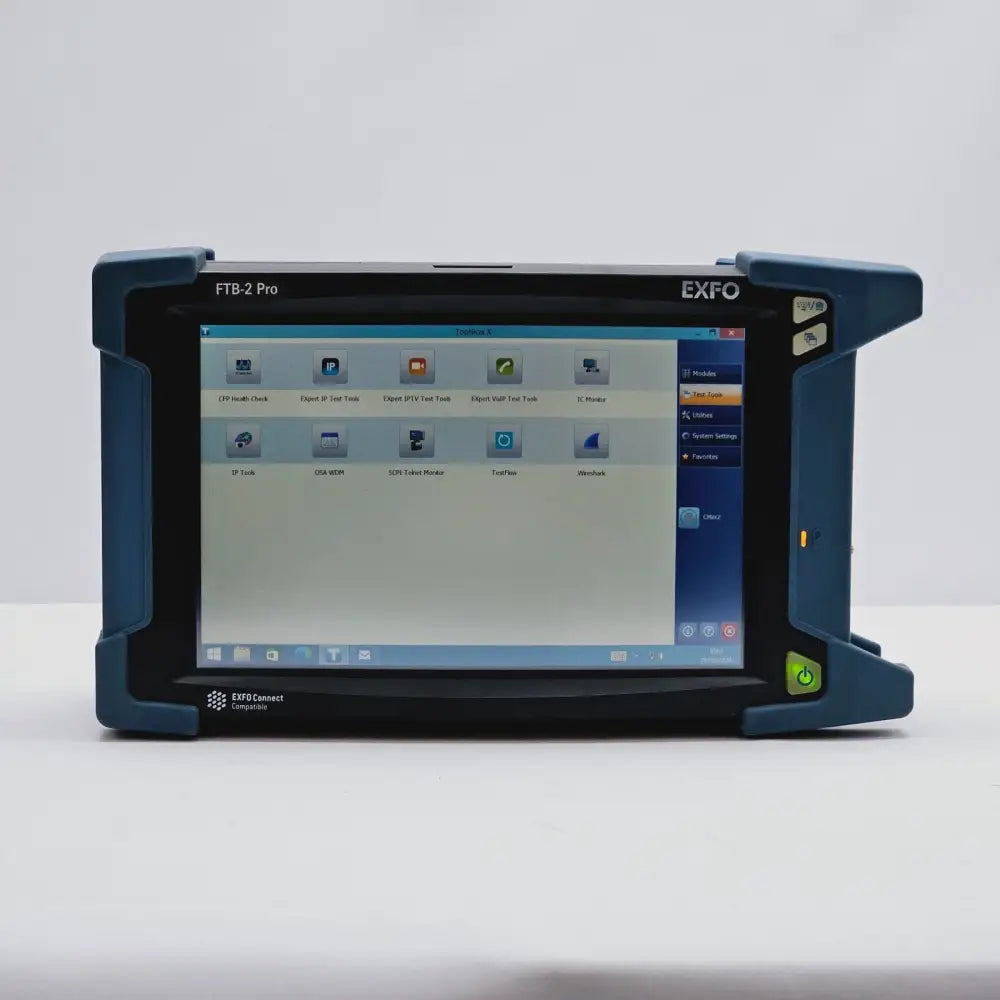

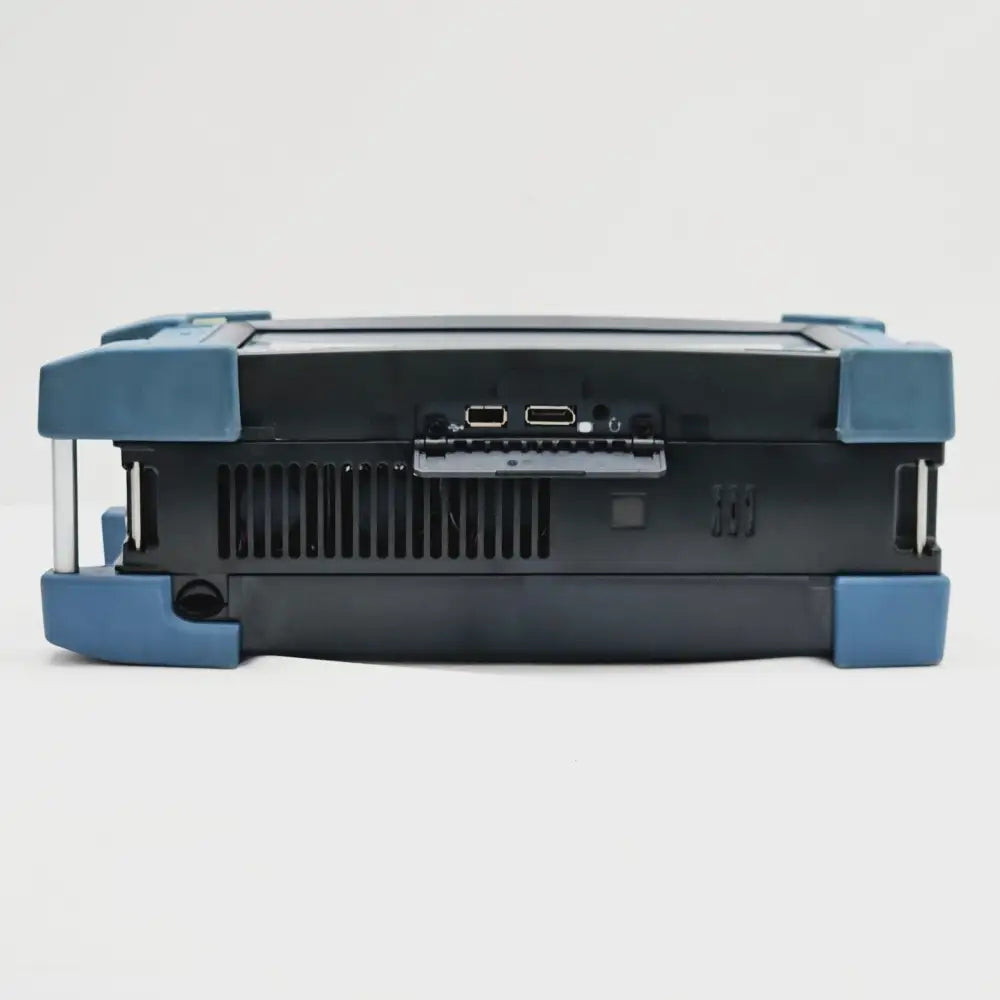

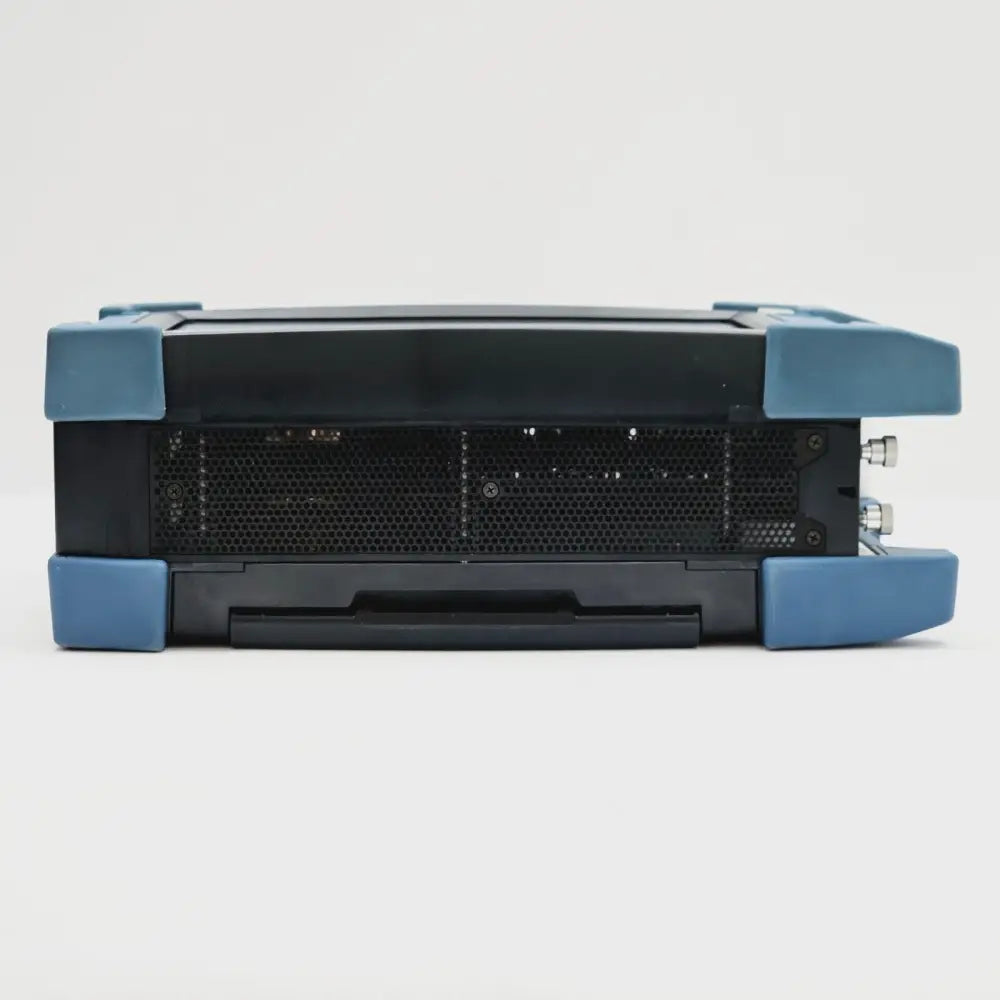

The EXFO FTB-2 Pro is a ruggedised, portable modular test mainframe designed for field technicians and network engineers requiring multi-service and multi-rate testing capabilities. It accepts EXFO FTB plug-in test modules, enabling a wide range of optical, Ethernet, and transport network measurements from a single compact platform.

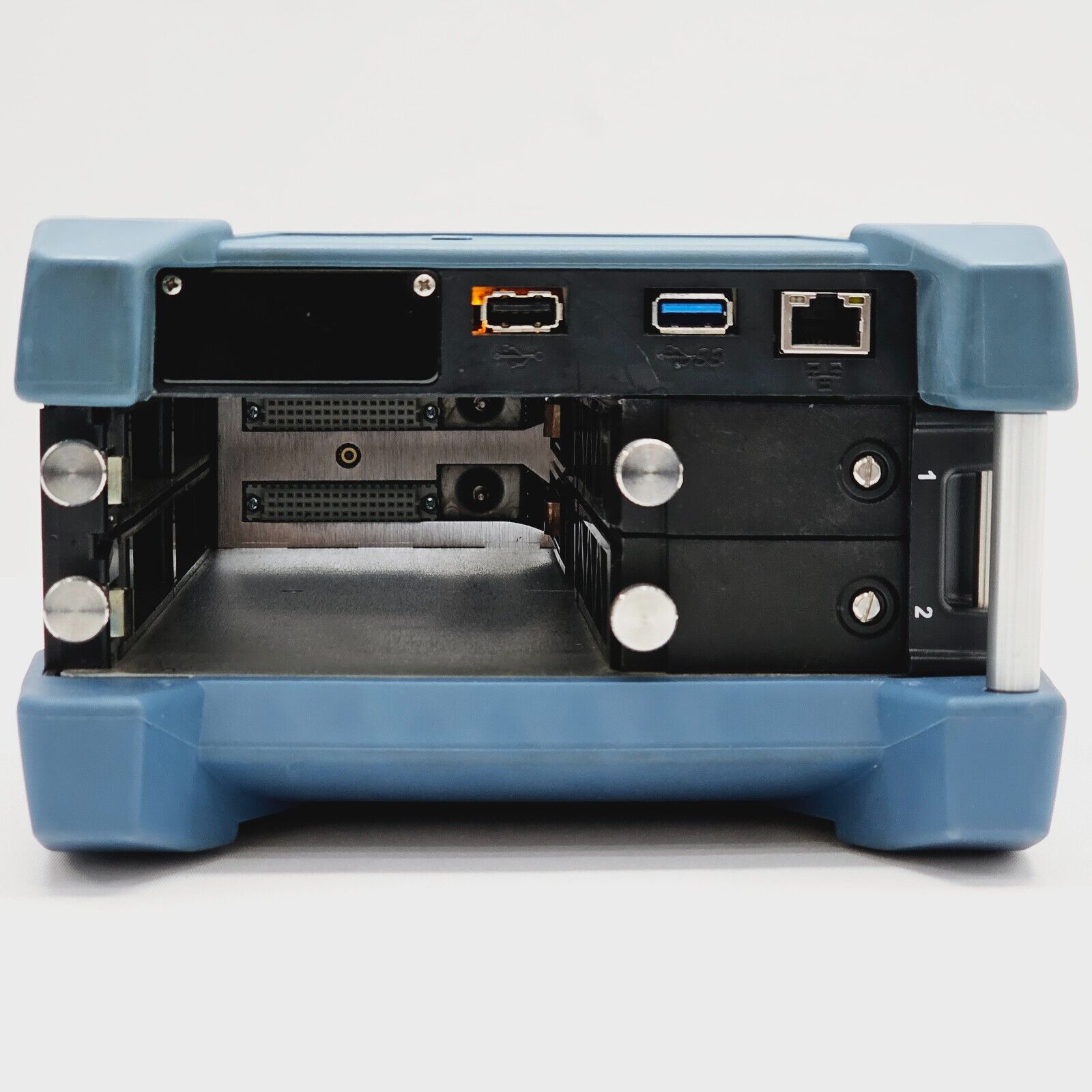

The FTB-2 Pro is described by EXFO as the most compact solution on the market for multirate, multitechnology, multiservice testing, delivering the power of a high-end platform in a conveniently sized, go-anywhere field-testing tool. The dual-module carrier bay allows technicians to combine multiple test modules for comprehensive fibre and network characterisation in a single session.

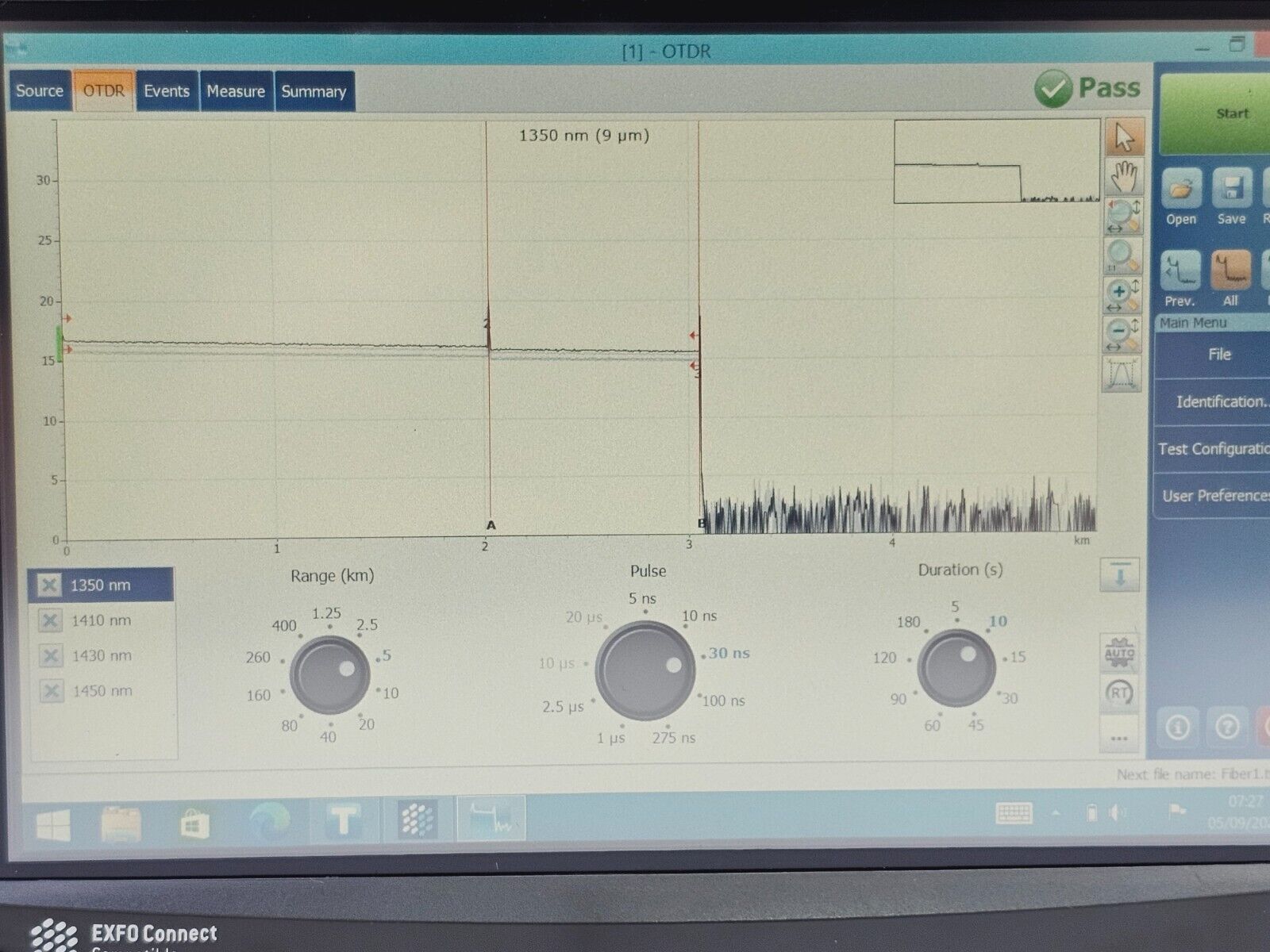

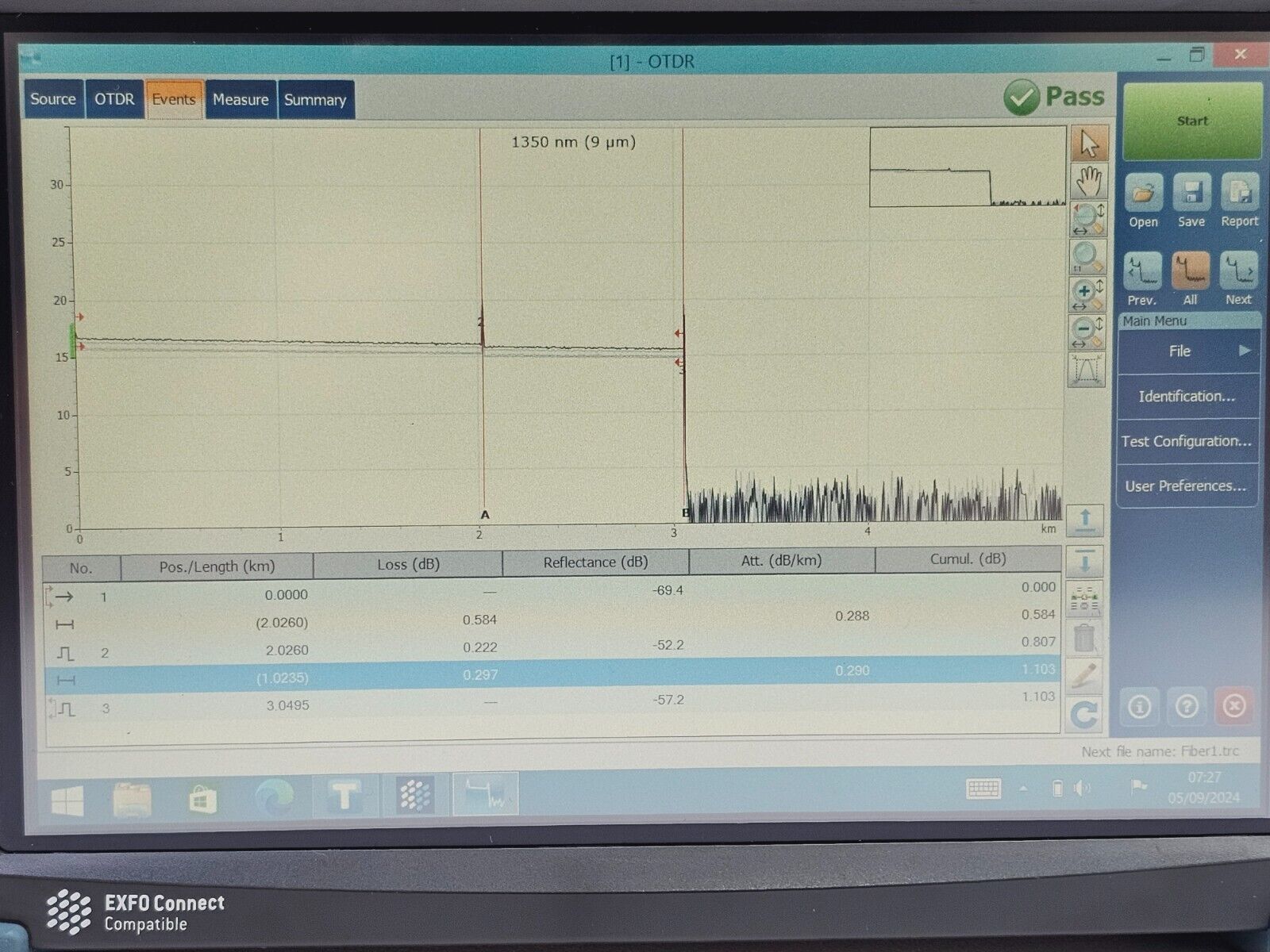

The FTB-7400E is a Multi-Wavelength OTDR module designed specifically for CWDM and PON network testing. Available in multiple sub-variants covering the full C-band and extended L-band wavelength range, it provides accurate trace acquisition and event analysis across all active CWDM channels simultaneously.

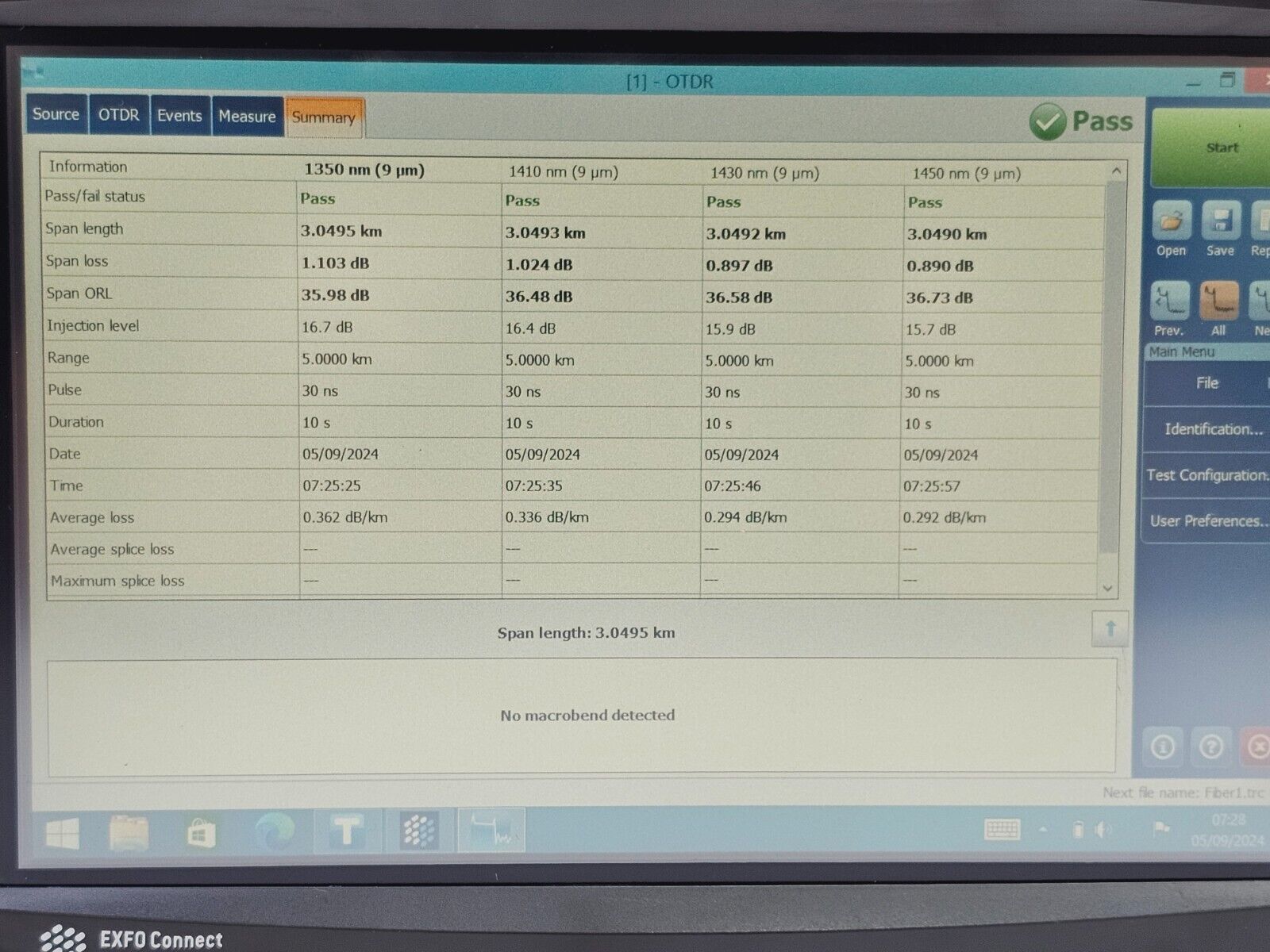

The iOLM (Intelligent Optical Link Mapper) licence transforms raw OTDR traces into an intuitive, pass/fail link map, greatly simplifying fault localisation and acceptance testing for both experienced engineers and field technicians.

Typical applications include:
• CWDM network commissioning and maintenance
• PON infrastructure testing
• Fibre characterisation and loss measurement
• ROADM commissioning
• Multi-wavelength acceptance testing

FTB-7400E Key Specifications:
Wavelength Coverage (CWE): 1350 / 1410 / 1430 / 1450 nm
Wavelength Coverage (CWS): 1470 / 1490 / 1510 / 1530 nm
Wavelength Coverage (CWCL): 1550 / 1570 / 1590 / 1610 nm
Dynamic Range (CWE): 41 / 41 / 41 / 41 dB
Dynamic Range (CWS): 41 / 41 / 41 / 41 dB
Dynamic Range (CWCL): 41 / 41 / 40 / 40 dB
Connector Type: APC-SC
Licences: OTDR, iOLM
Platform: EXFO FTB-2 Pro (dual module carrier)
Form Factor: Portable handheld field platform

EXFO FTB-7400E Multi-Wavelength OTDR module datasheet (PDF): Download PDF

EXFO FTB-2 Pro modular platform datasheet (PDF): Download PDF
