EXFO FTB-1 with FTB-730-234B-EI SM OTDR 1310/1550/1625 nm FTB-730 SC PC
Model: FTB-1 with FTB-730-234B-EI
Condition: Used
In stock: 0
SKU: 2877 4C04
- 1310nm
- 1550nm
- 1625nm
- 39/37/39 dB
- Fiber Optics
- OTDR
- SC-PC
Choose options
Condition: Used

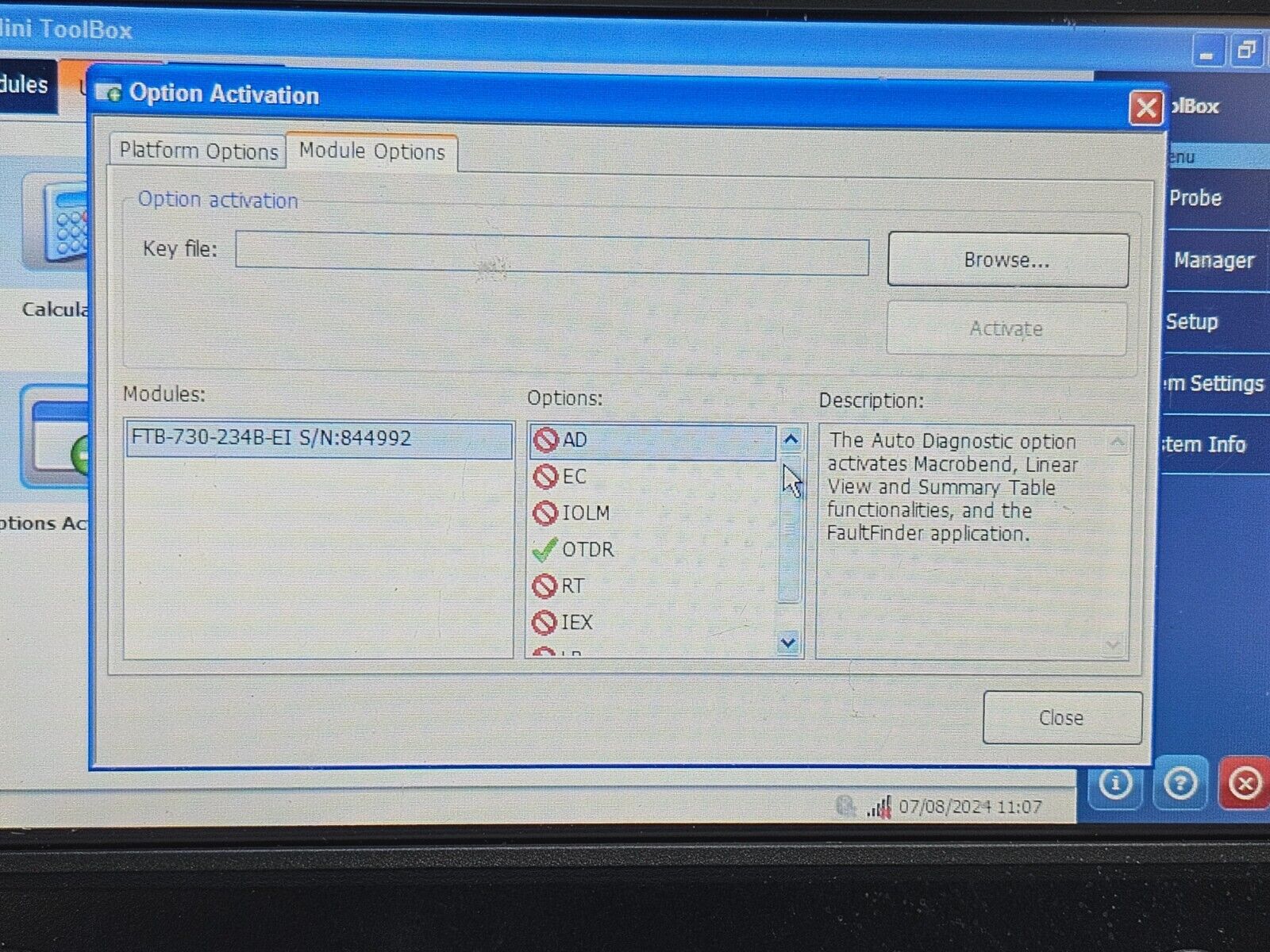

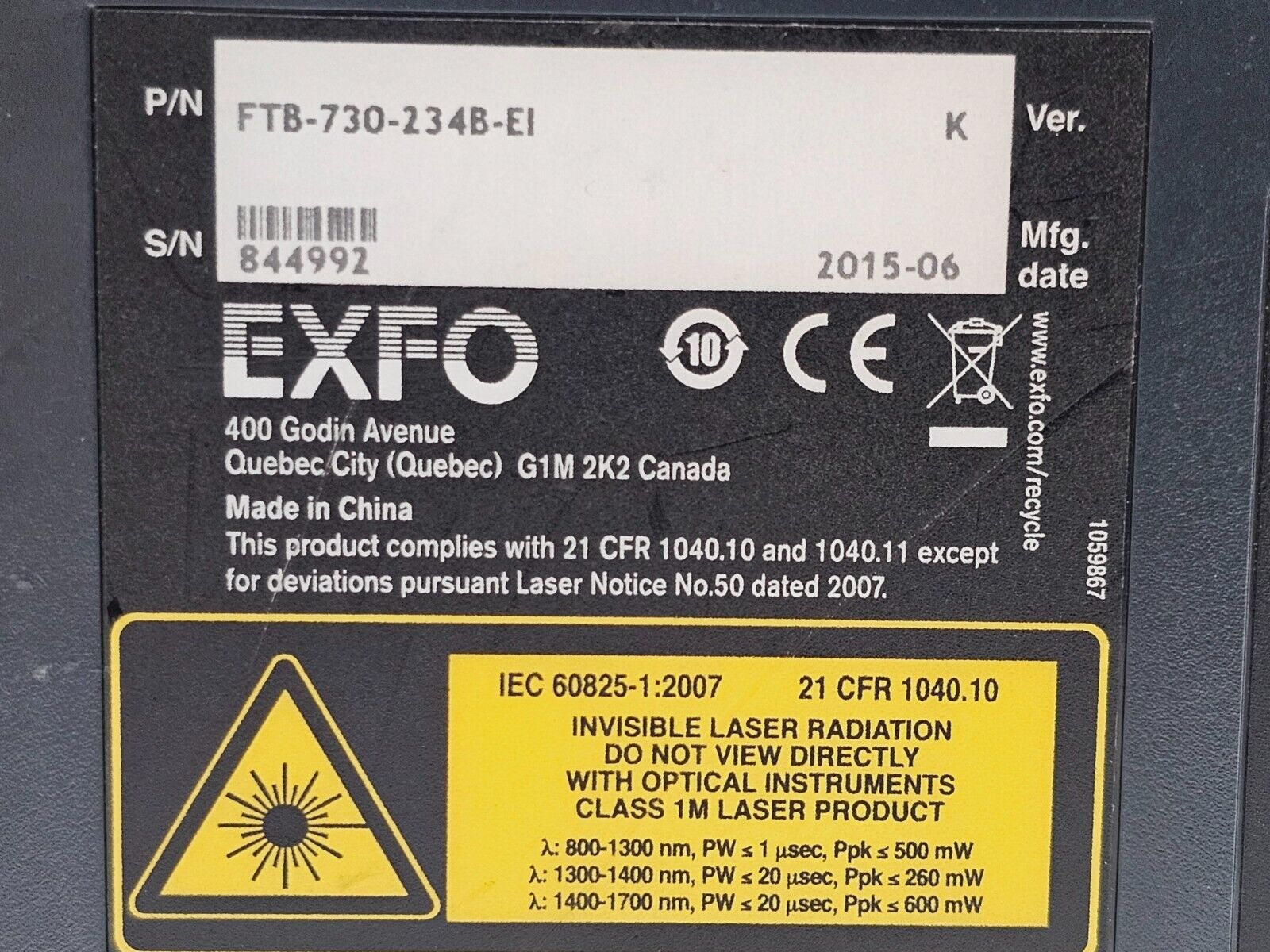

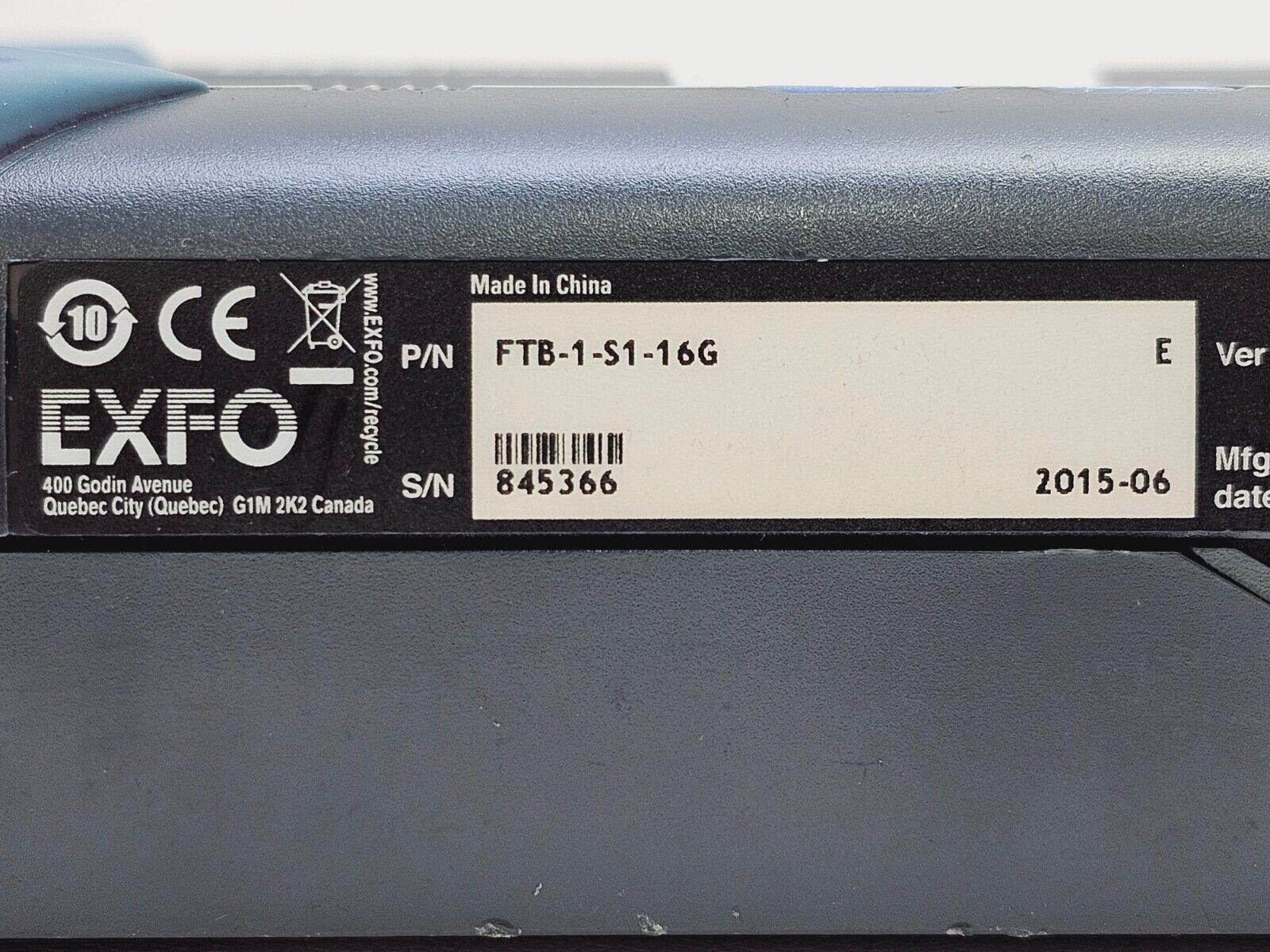

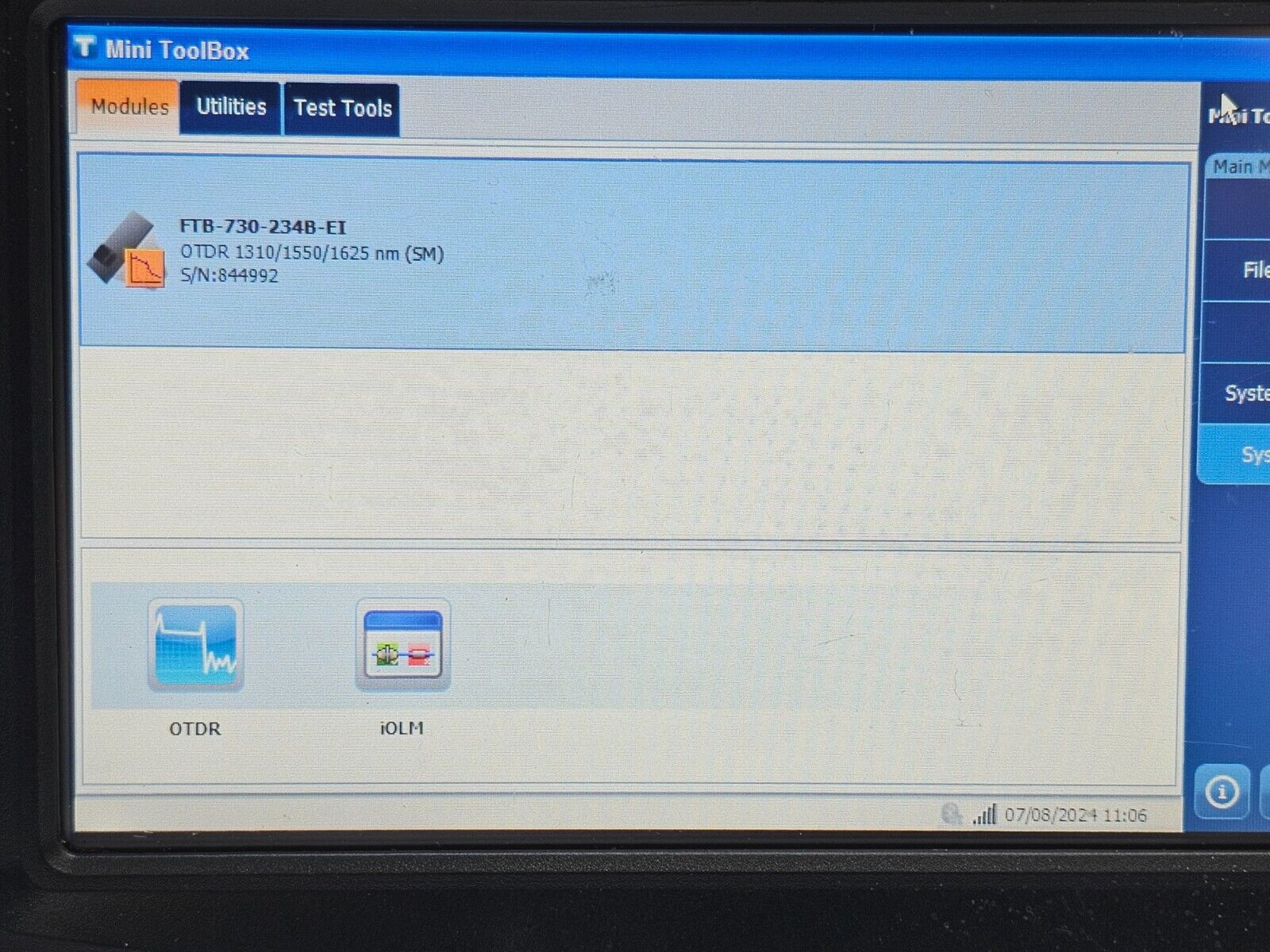

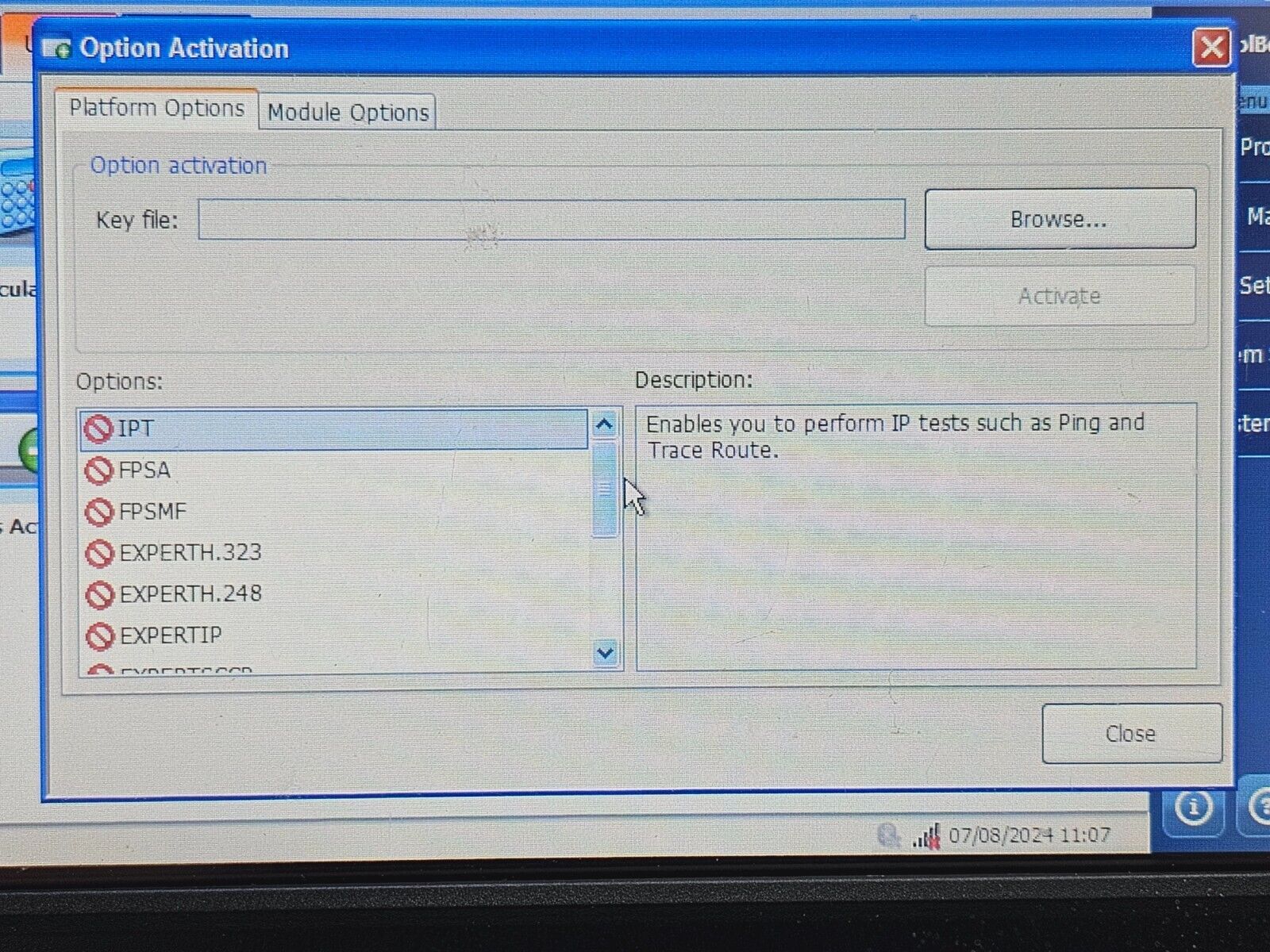

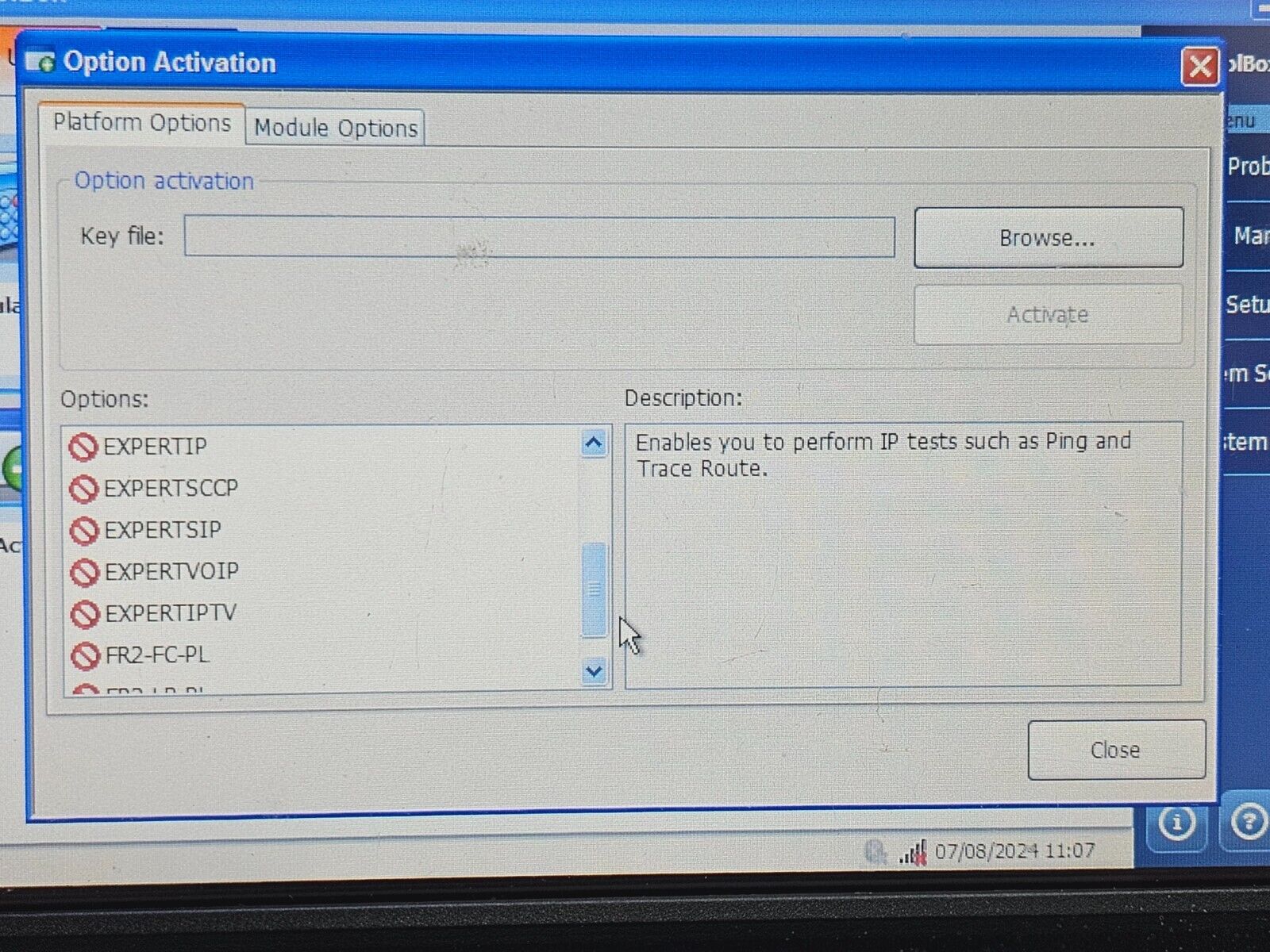

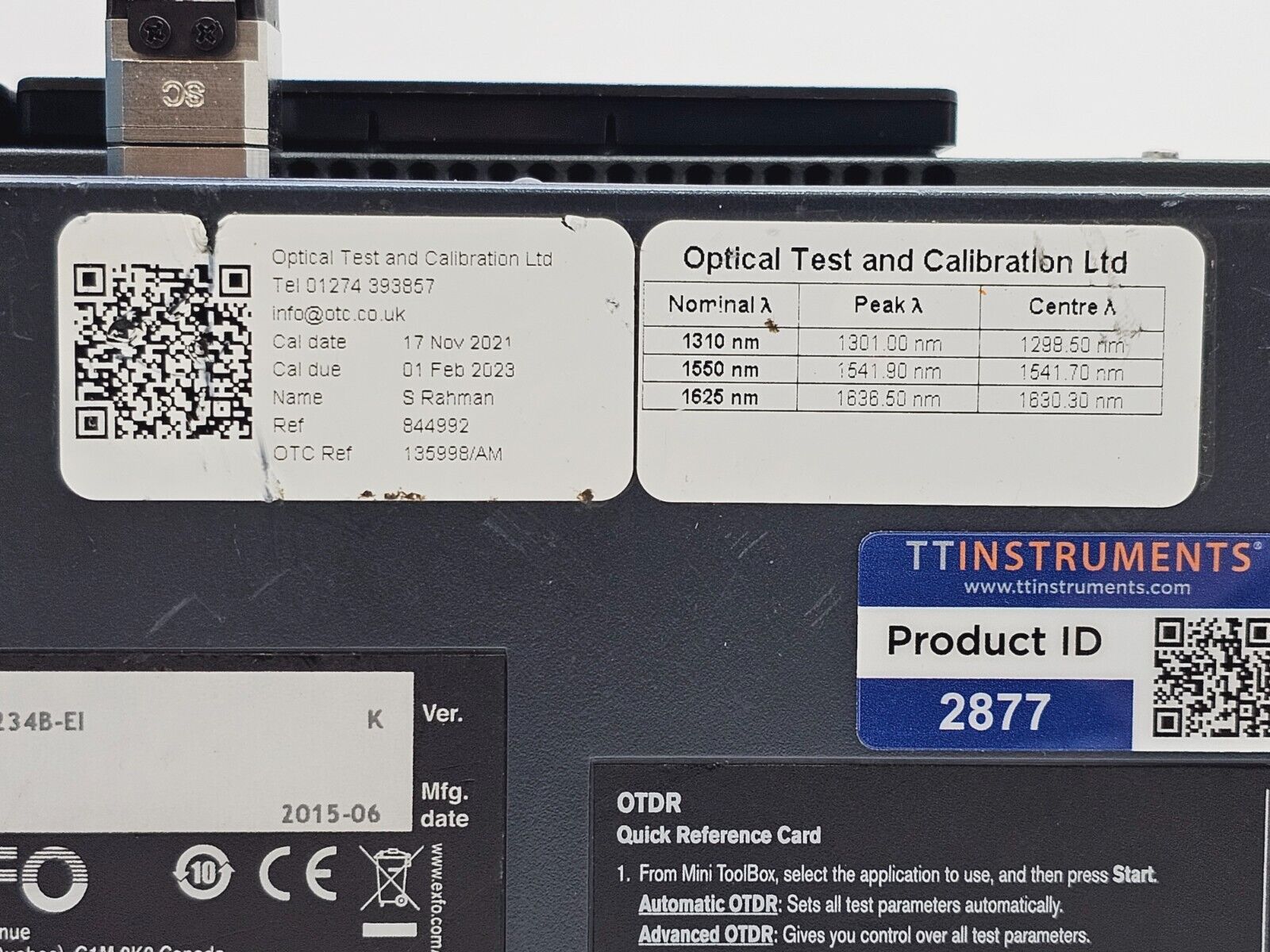

The EXFO FTB-1 fitted with FTB-730-234B-EI tri-band singlemode OTDR module, manufactured in 2015. Calibration expired February 2023. The screen carries minor cosmetic scratches that do not affect visibility during operation. OTDR software is licensed; iOLM is not active on this unit.
Included with this product:

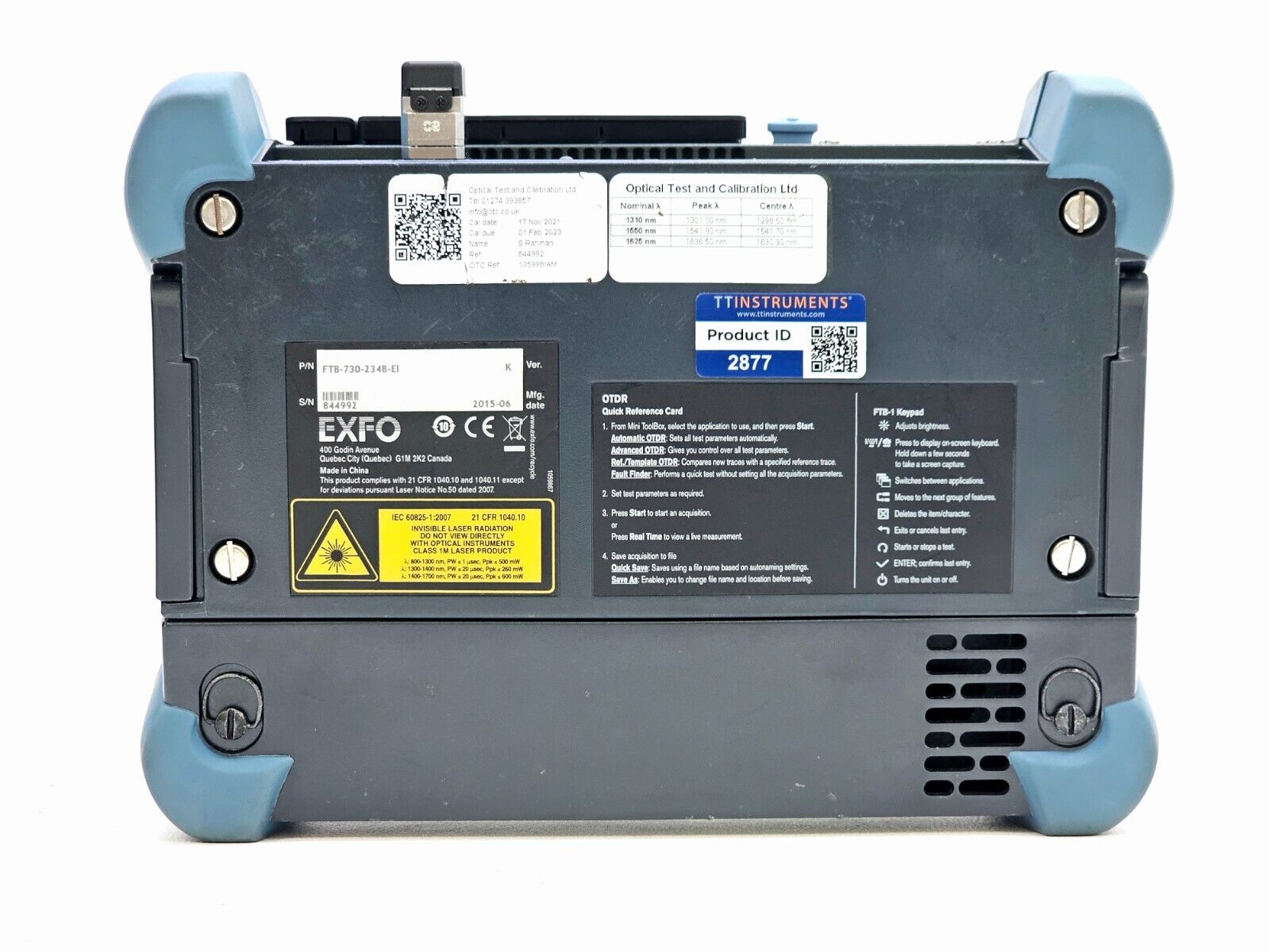

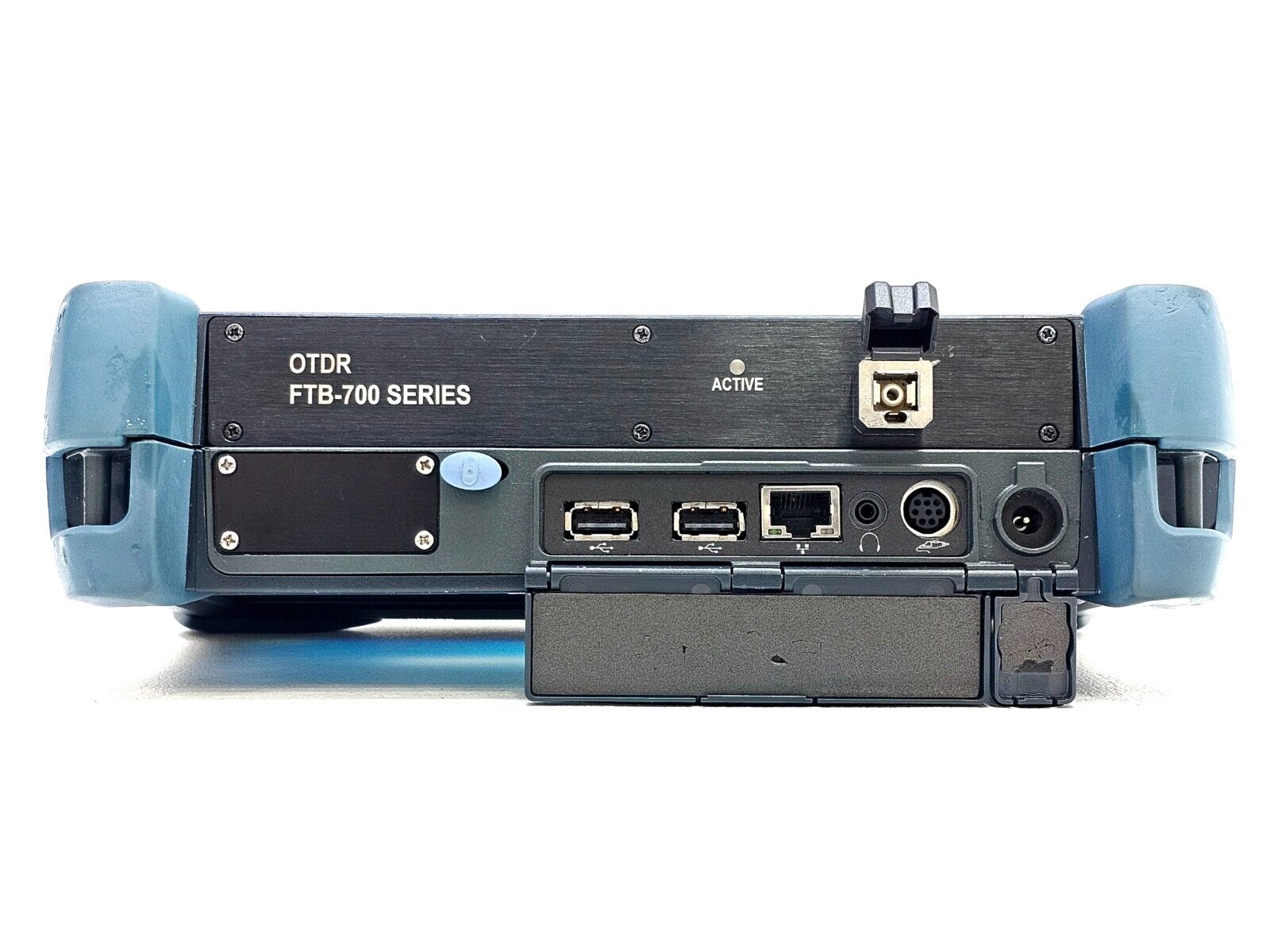

• FTB-1 mainframe with FTB-730 OTDR module (1310/1550/1625 nm, SC/PC connector)
• Power adapter
• Stylus
• Carry bag

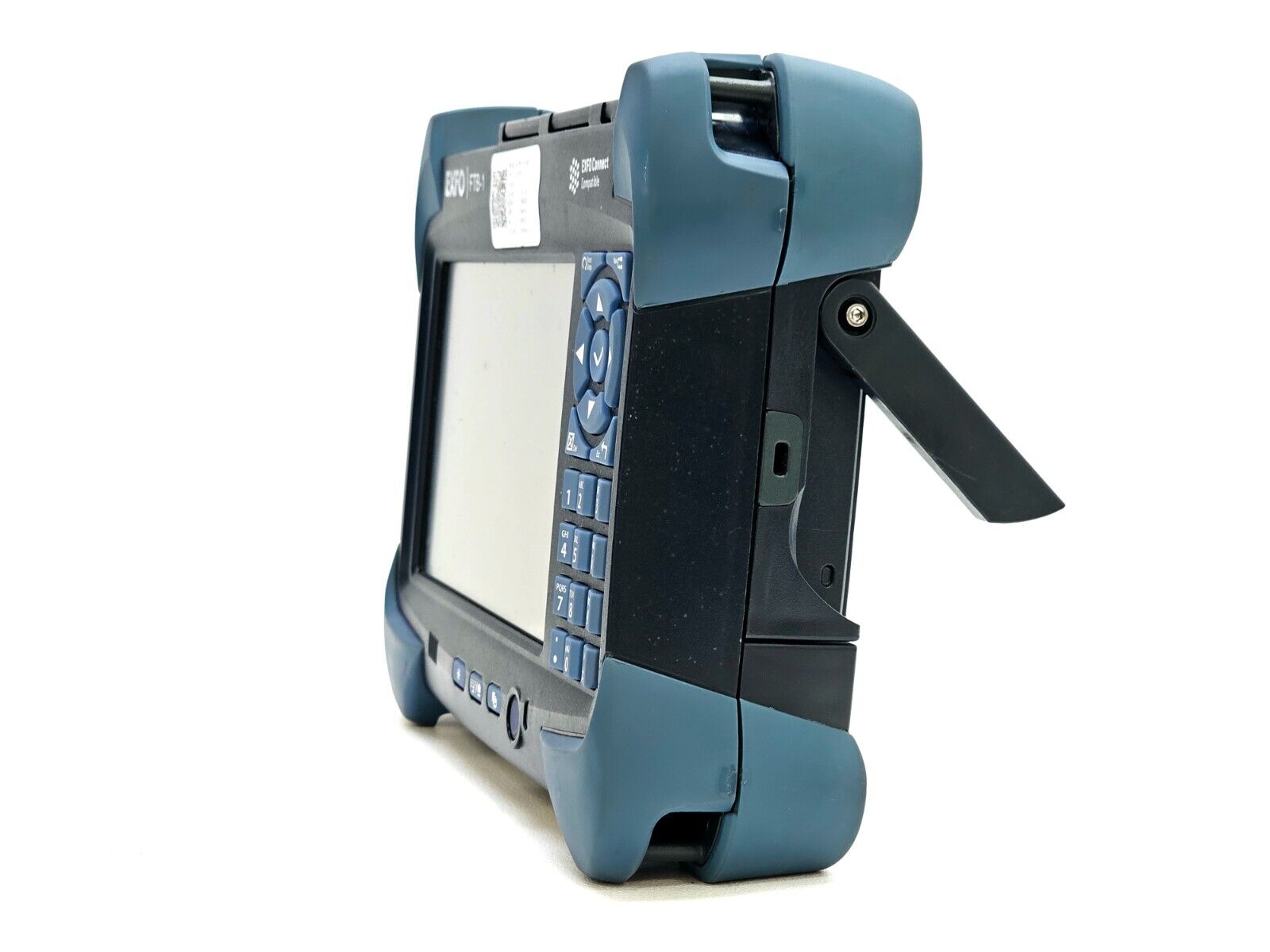

The EXFO FTB-1 is a portable modular test platform designed for fast and powerful field testing of optical networks. The mainframe features a multitouch widescreen colour TFT display, a Windows operating system, and comprehensive connectivity options including Wi-Fi, Bluetooth, USB, and Gigabit Ethernet. Its modular architecture allows technicians to combine different test modules into a single rugged handheld unit suited to outside plant and central office environments.
The FTB-730 is a singlemode OTDR module for the FTB-1 platform, designed for installation, maintenance, and troubleshooting of singlemode optical fibres. The -234B-EI variant provides tri-band capability covering the O-band, C-band, and L-band wavelengths, making it suitable for characterising standard DWDM and PON infrastructures as well as live-fibre monitoring using the 1625 nm out-of-service wavelength.
Key features of the FTB-730 OTDR module:
• Three test wavelengths: 1310 nm, 1550 nm, and 1625 nm
• High dynamic range enabling measurement of long-haul and high-loss optical links
• Live fibre detection at 1625 nm for safe testing without disrupting live traffic
• Intelligent OTDR (iOLM) capability available via software licence
• Fast acquisition and automatic event detection and analysis
• Compatible with EXFO FastReporter software for post-processing and reporting
Typical Specifications (FTB-730-234B-EI SM OTDR):
Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range: 39 / 37 / 39 dB (typical)
Connector Interface: SC/PC
Fibre Type: Singlemode
Platform: EXFO FTB-1 modular mainframe
Display: Multitouch colour TFT widescreen
Operating System: Windows
Connectivity: Wi-Fi, Bluetooth, USB, Gigabit Ethernet
Please refer to the EXFO website for full and current specifications.
EXFO FTB-730 OTDR Module Datasheet (English): Download PDF
EXFO FTB-1 Platform Datasheet (English): Download PDF
Product Overview
Condition: Used
The EXFO FTB-1 fitted with FTB-730-234B-EI tri-band singlemode OTDR module, manufactured in 2015. Calibration expired February 2023. The screen carries minor cosmetic scratches that do not affect visibility during operation. OTDR software is licensed; iOLM is not active on this unit.
Included with this product:
• FTB-1 mainframe with FTB-730 OTDR module (1310/1550/1625 nm, SC/PC connector)
• Power adapter
• Stylus
• Carry bag
Manufacturer's Description
The EXFO FTB-1 is a portable modular test platform designed for fast and powerful field testing of optical networks. The mainframe features a multitouch widescreen colour TFT display, a Windows operating system, and comprehensive connectivity options including Wi-Fi, Bluetooth, USB, and Gigabit Ethernet. Its modular architecture allows technicians to combine different test modules into a single rugged handheld unit suited to outside plant and central office environments.
The FTB-730 is a singlemode OTDR module for the FTB-1 platform, designed for installation, maintenance, and troubleshooting of singlemode optical fibres. The -234B-EI variant provides tri-band capability covering the O-band, C-band, and L-band wavelengths, making it suitable for characterising standard DWDM and PON infrastructures as well as live-fibre monitoring using the 1625 nm out-of-service wavelength.
Key features of the FTB-730 OTDR module:
• Three test wavelengths: 1310 nm, 1550 nm, and 1625 nm
• High dynamic range enabling measurement of long-haul and high-loss optical links
• Live fibre detection at 1625 nm for safe testing without disrupting live traffic
• Intelligent OTDR (iOLM) capability available via software licence
• Fast acquisition and automatic event detection and analysis
• Compatible with EXFO FastReporter software for post-processing and reporting
Typical Specifications (FTB-730-234B-EI SM OTDR):
Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range: 39 / 37 / 39 dB (typical)
Connector Interface: SC/PC
Fibre Type: Singlemode
Platform: EXFO FTB-1 modular mainframe
Display: Multitouch colour TFT widescreen
Operating System: Windows
Connectivity: Wi-Fi, Bluetooth, USB, Gigabit Ethernet
Please refer to the EXFO website for full and current specifications.
Resources
EXFO FTB-730 OTDR Module Datasheet (English): Download PDF
EXFO FTB-1 Platform Datasheet (English): Download PDF
