EXFO FTB-1 with FTB-730-234B-EI SM OTDR 1310/155/1625 nm FTB-730 FC PC
Model: FTB-1 with FTB-730-234B-EI
Condition: Used
In stock: 0
SKU: 2878 5B02
- 1310nm
- 1550nm
- 1625nm
- 39/37/39 dB
- Fiber Optics
- FTTx
- MDU
- OTDR
- P2P
- PC Connector
- POL
- PON
- SC-PC
- SingleMode
Choose options
Condition: Used

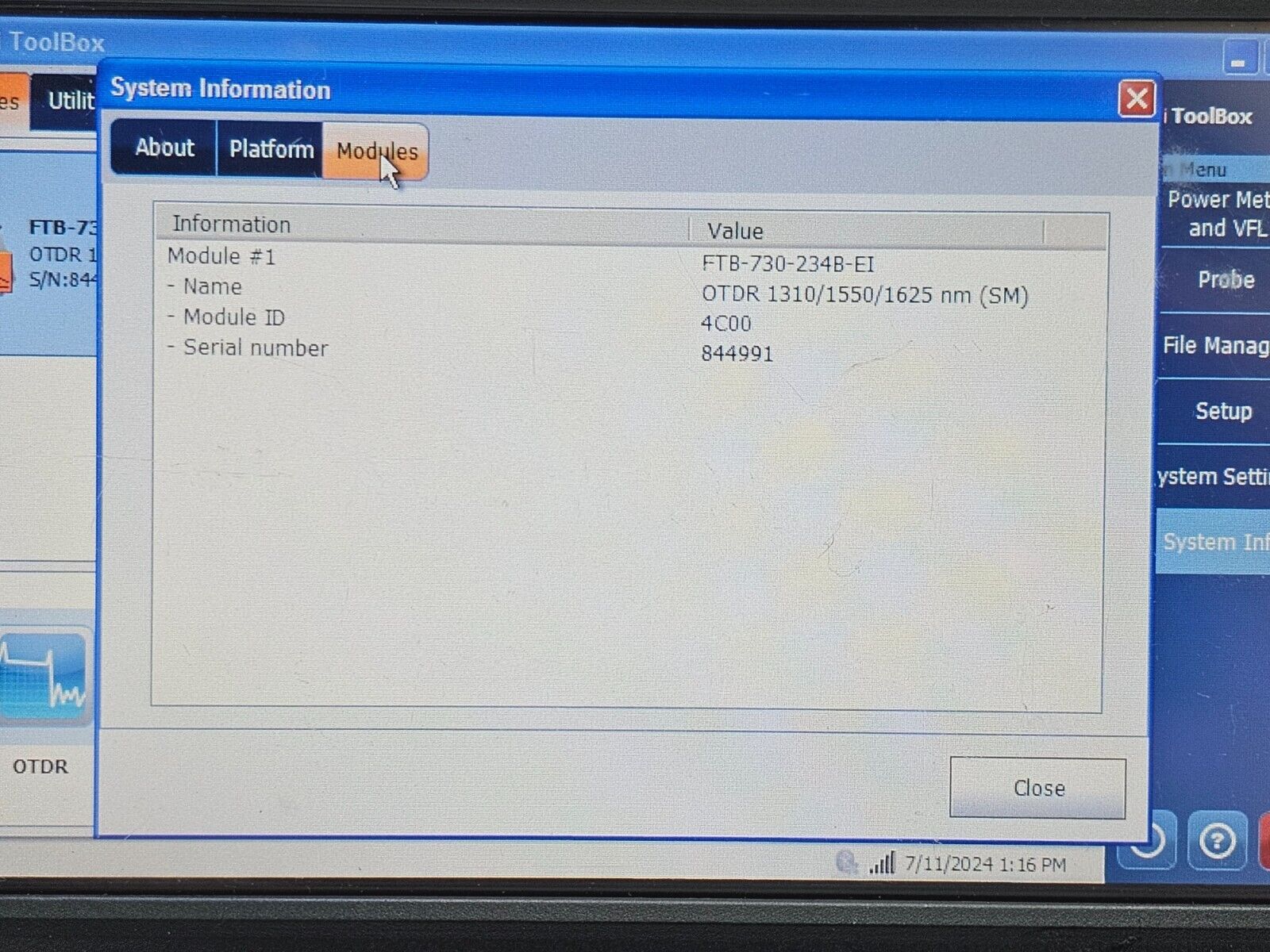

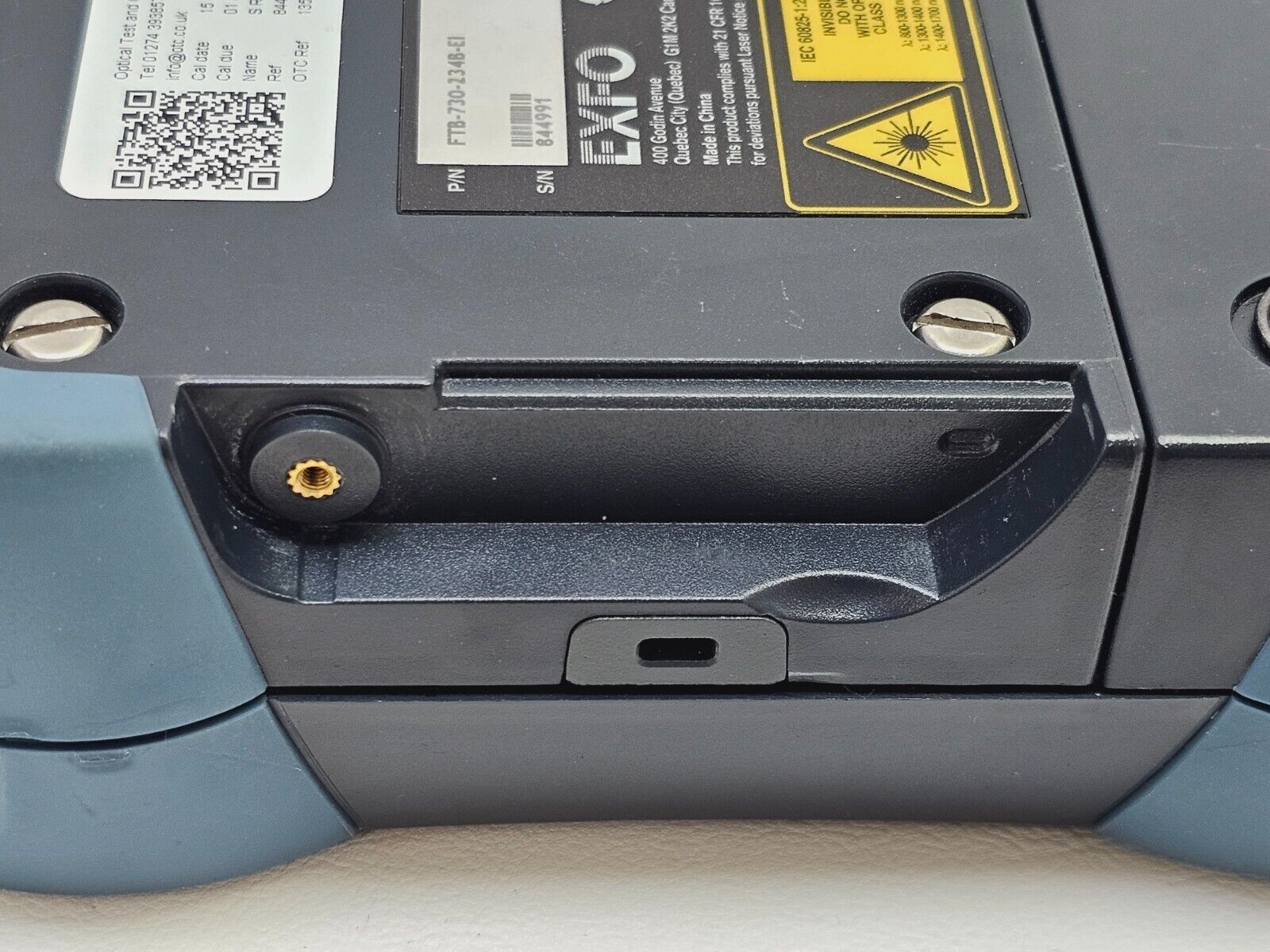

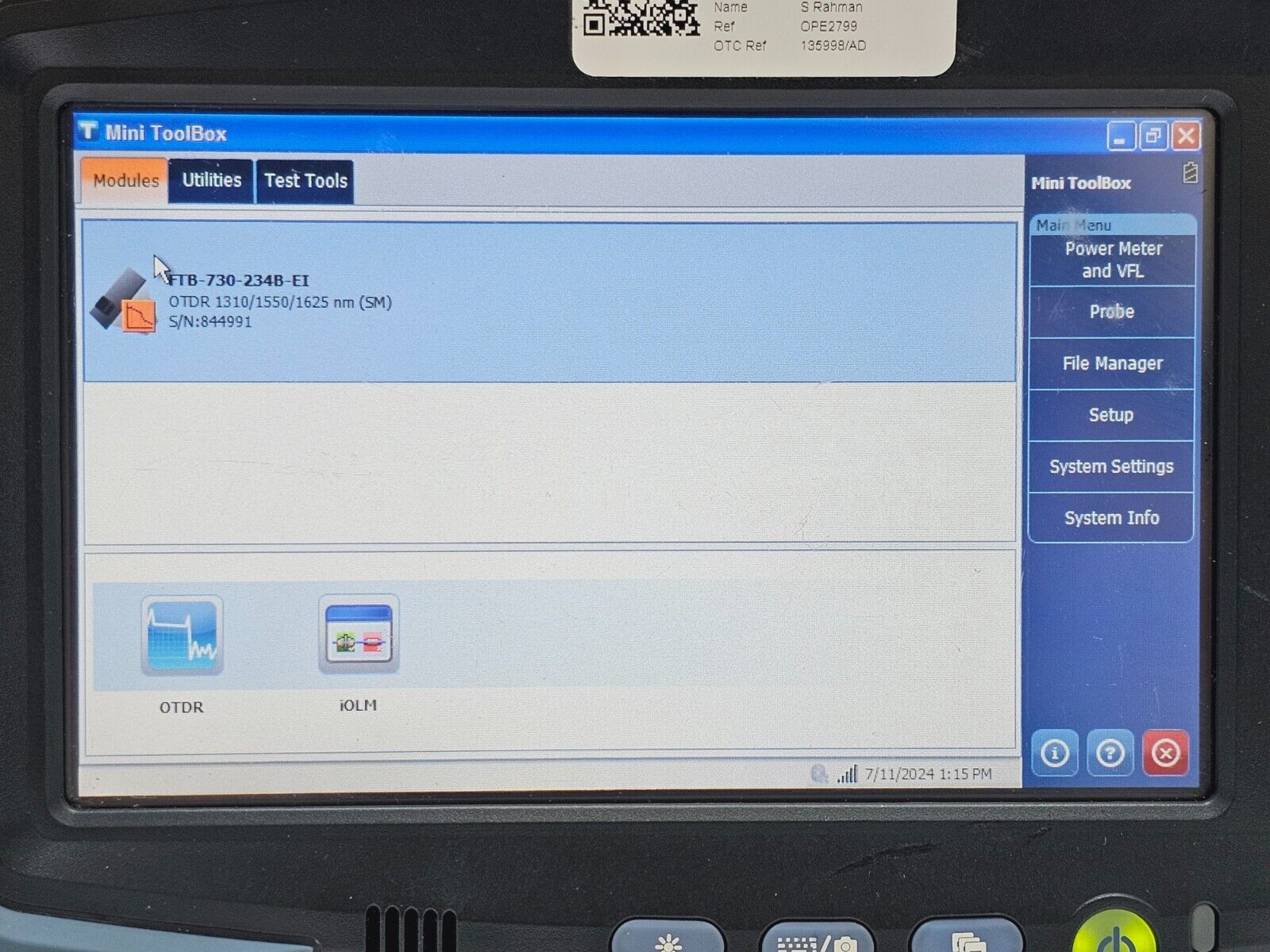

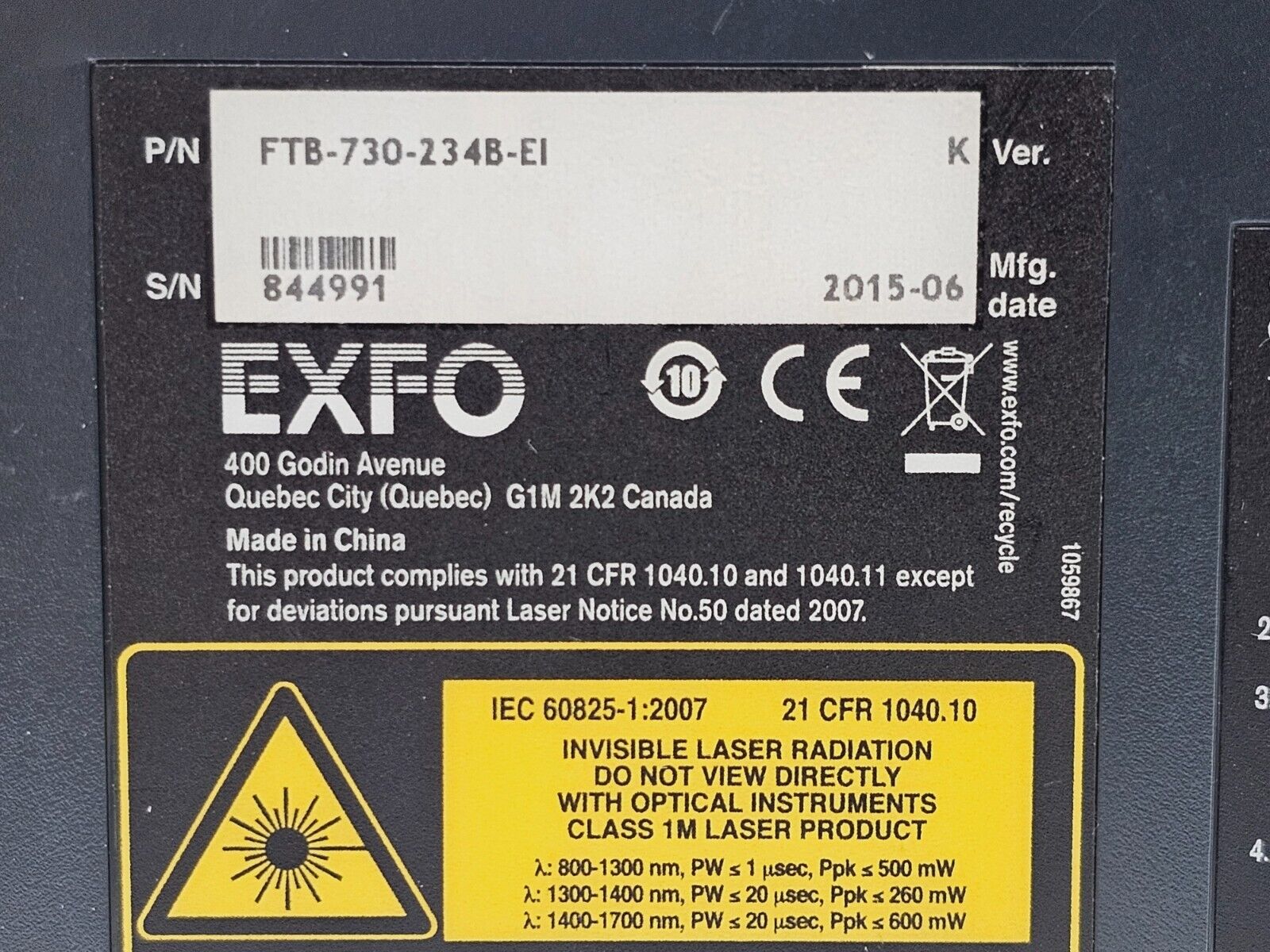

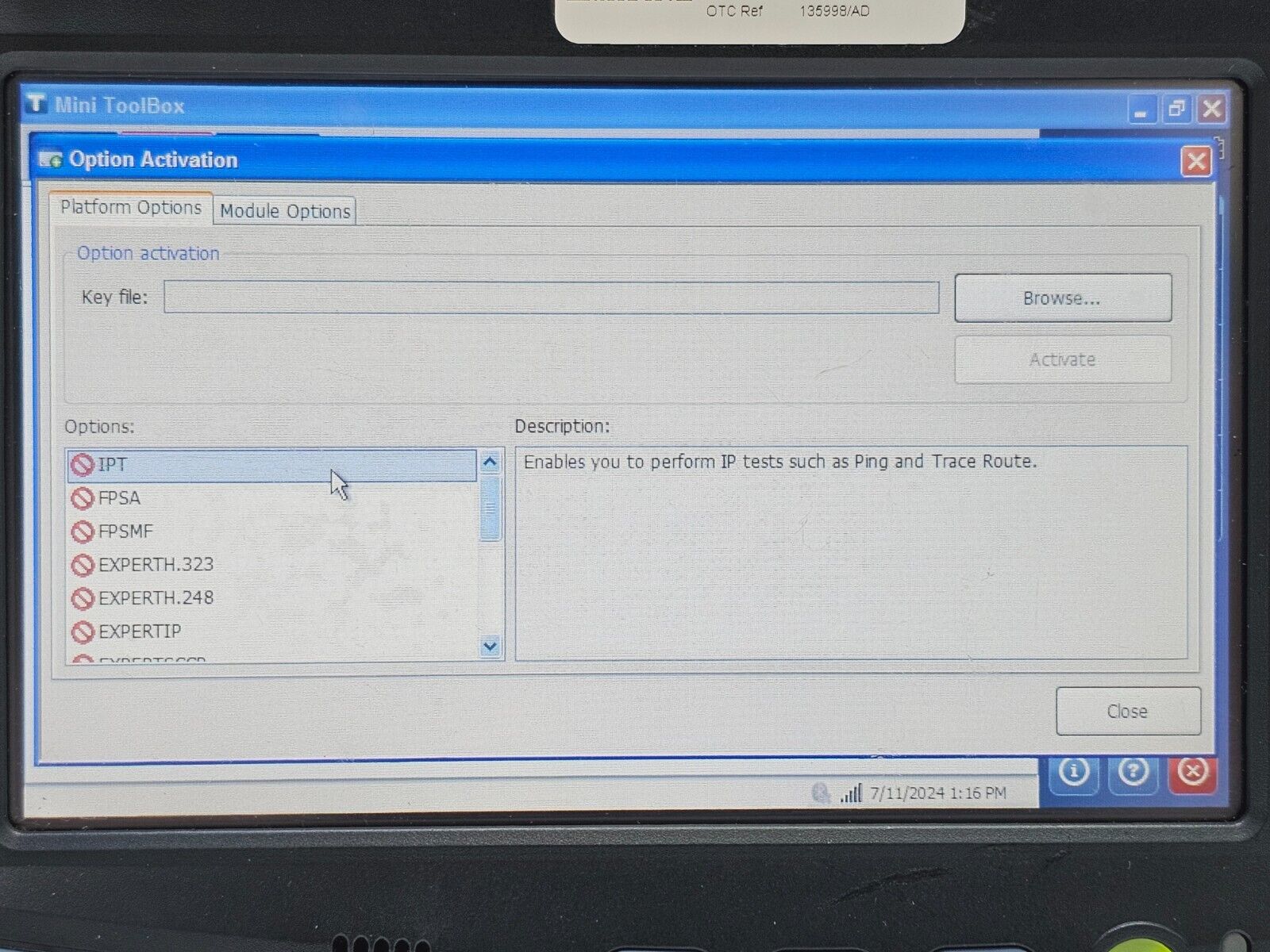

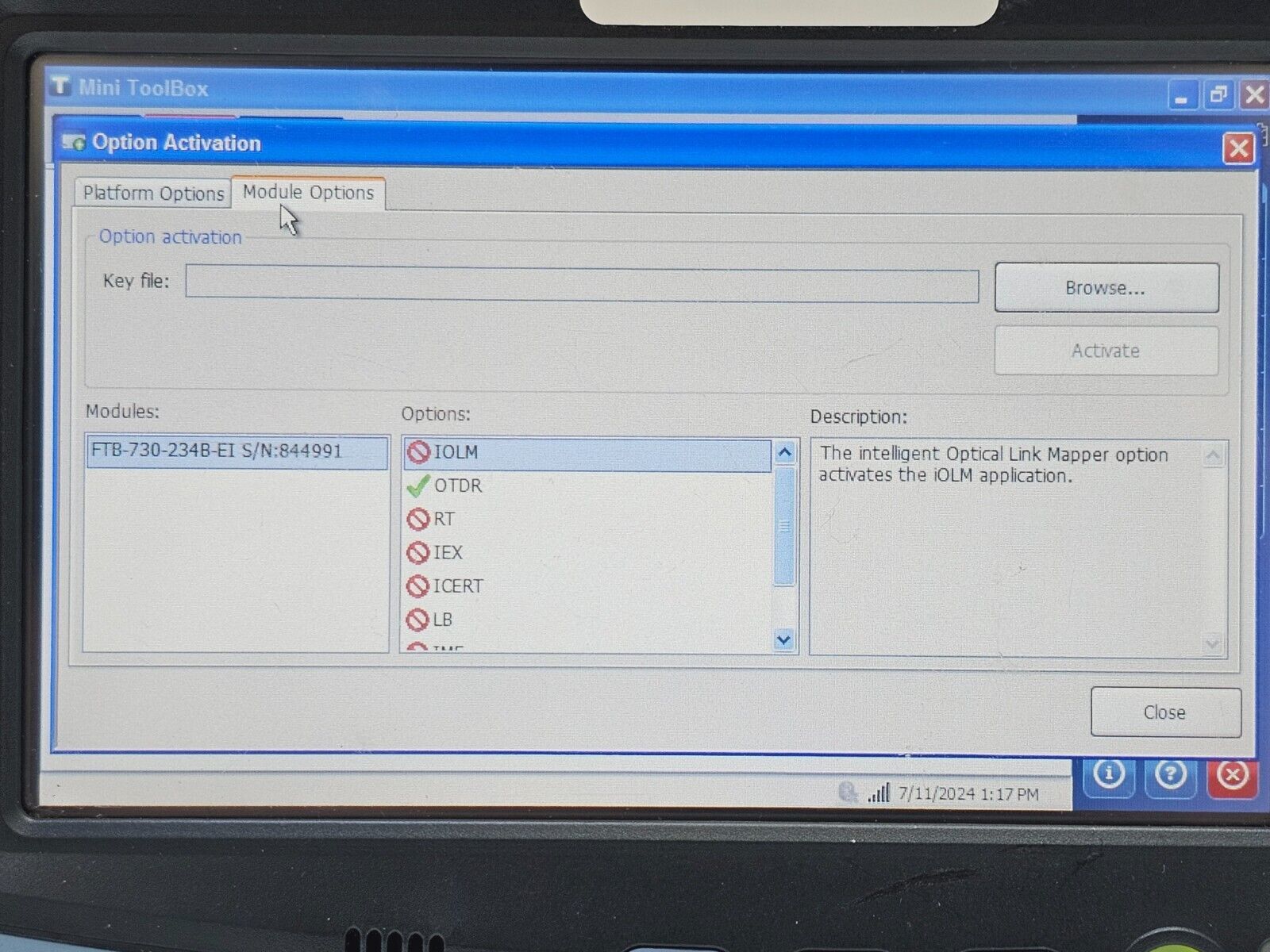

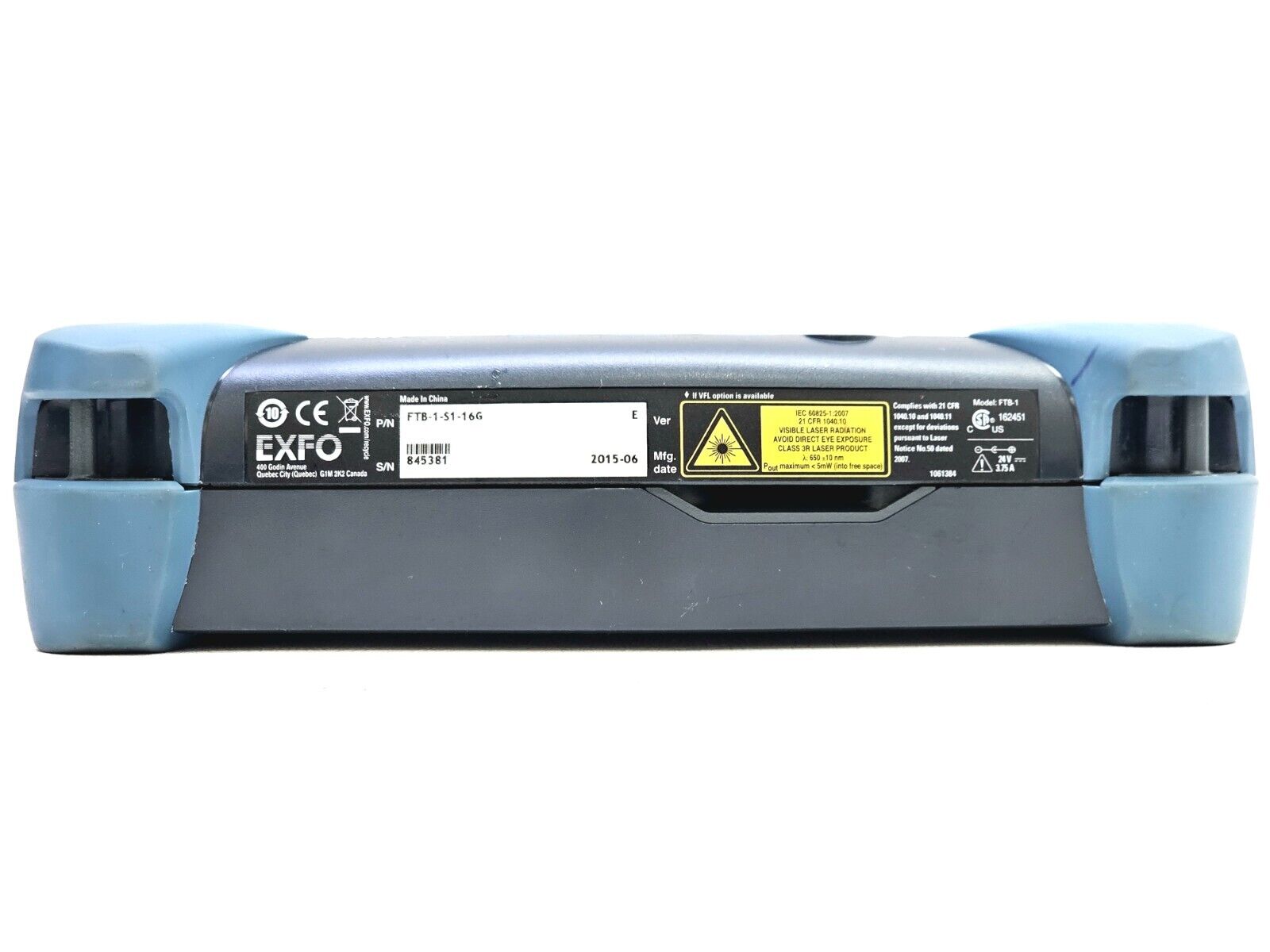

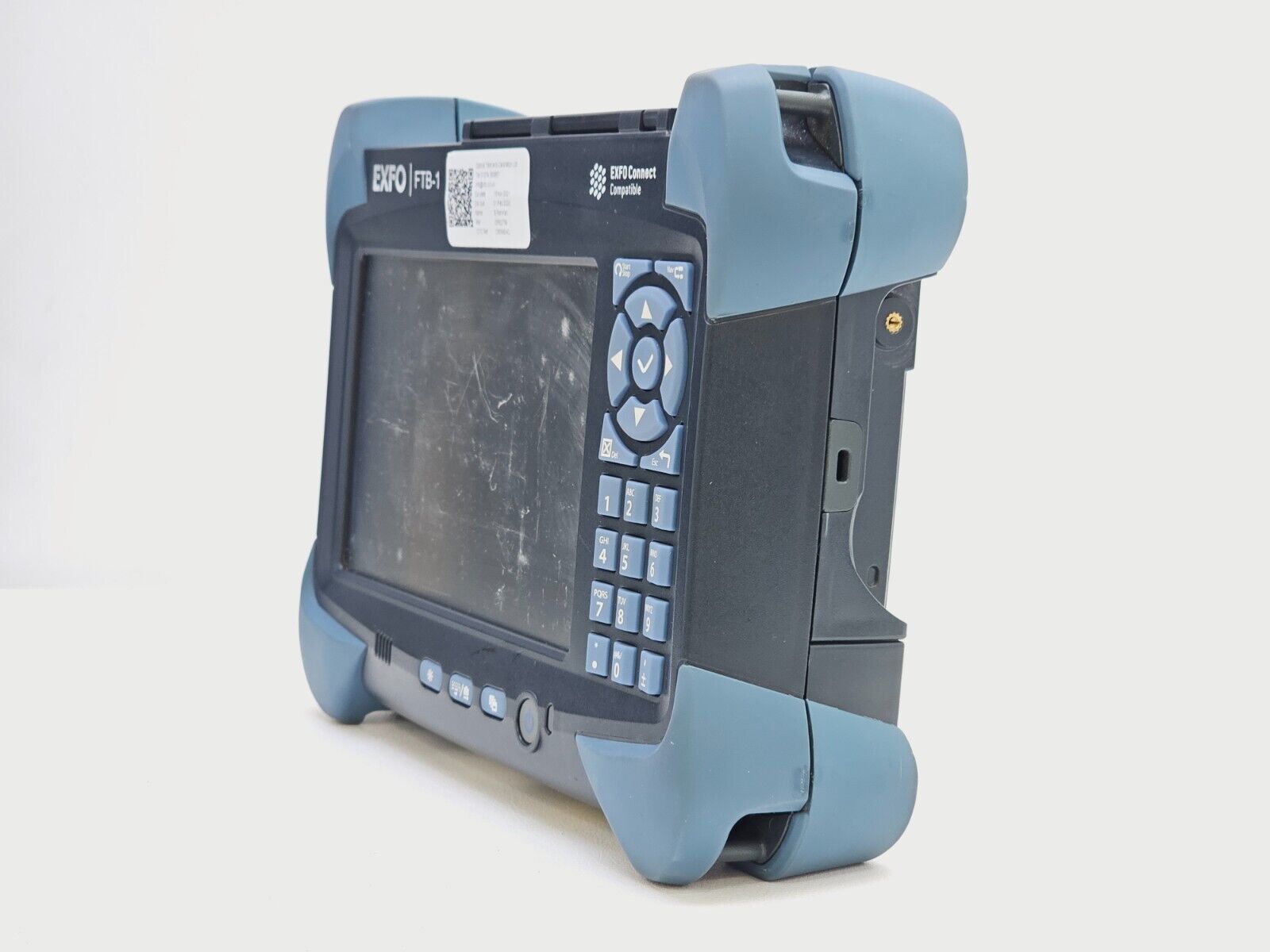

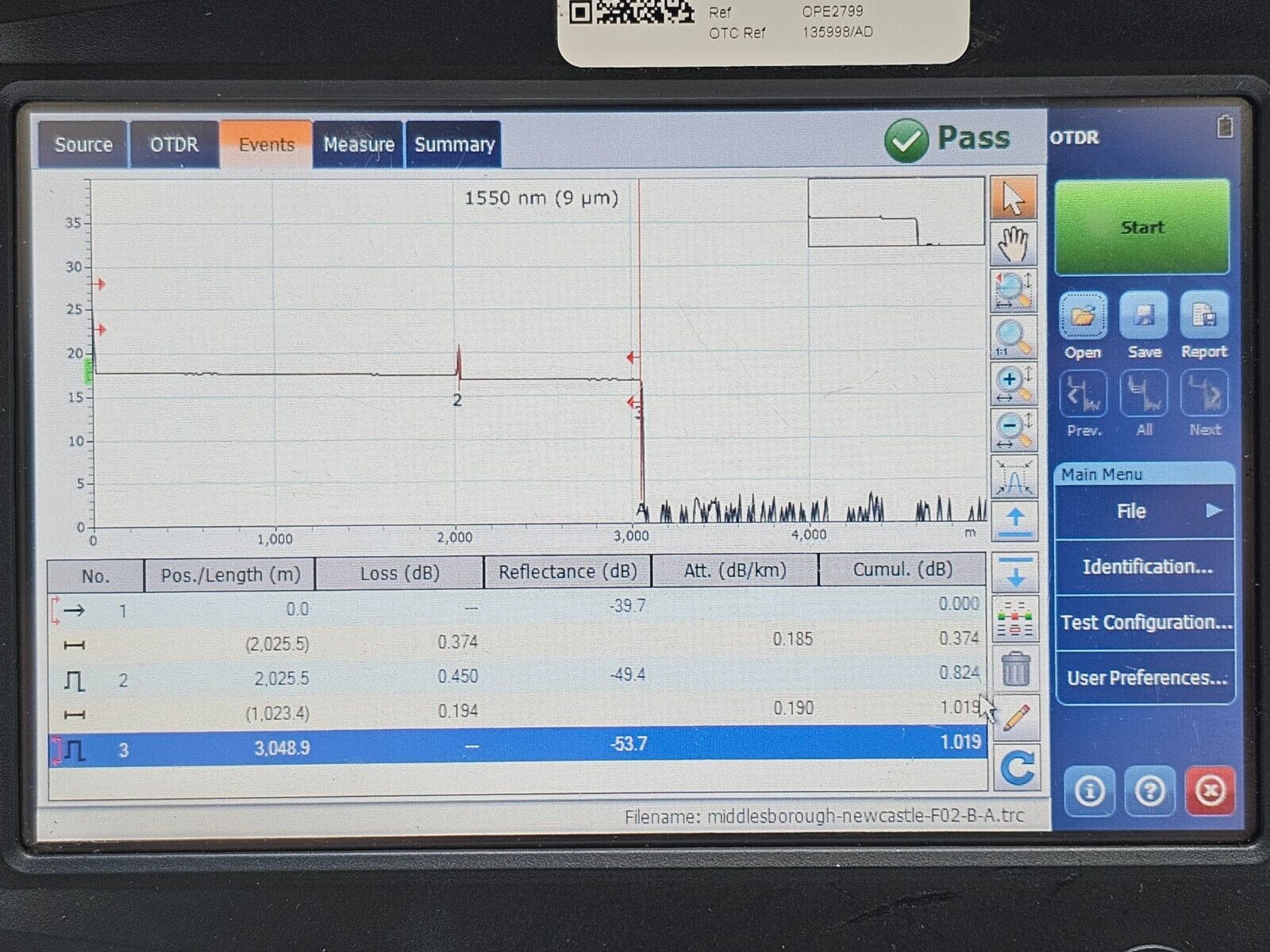

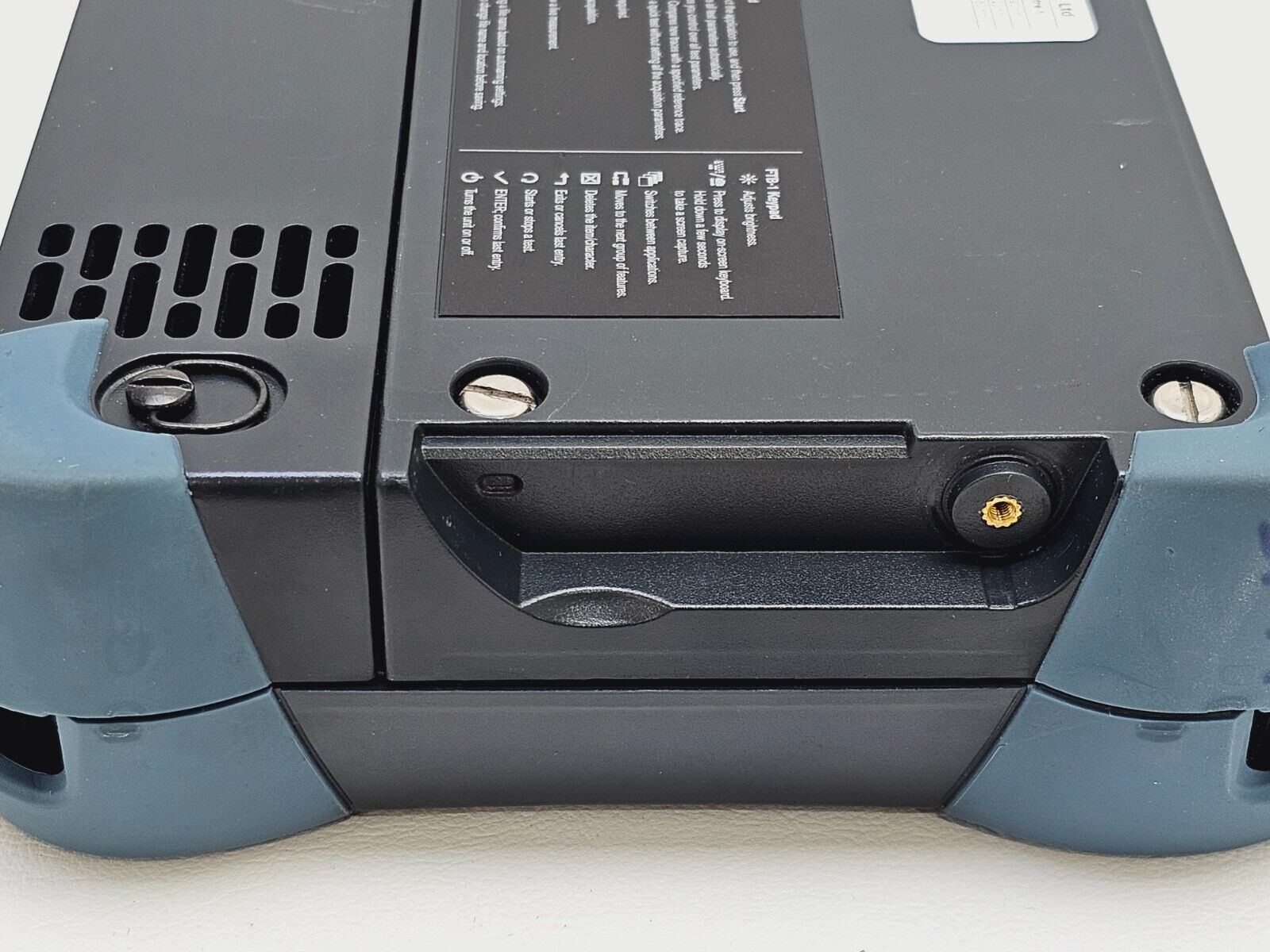

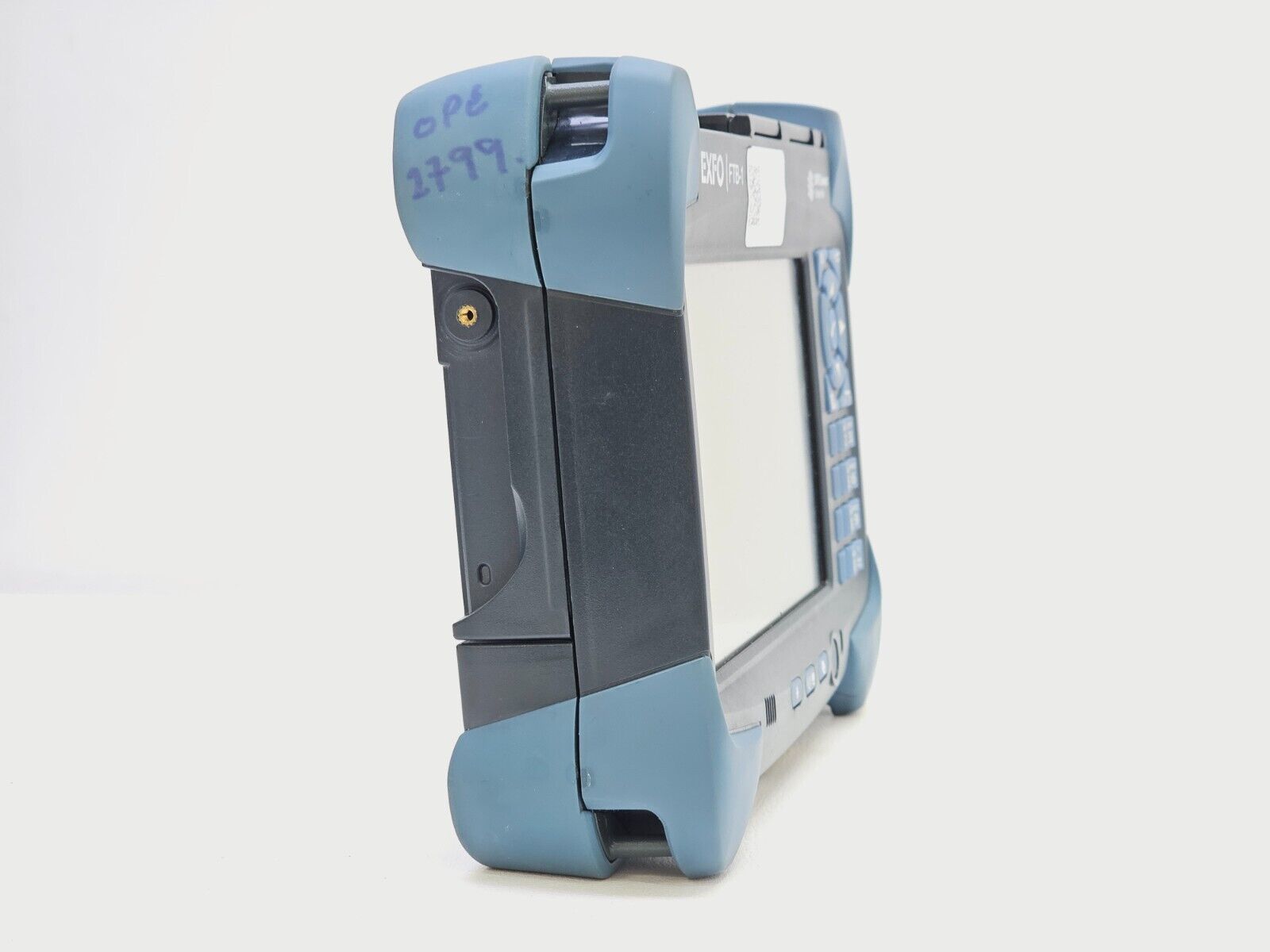

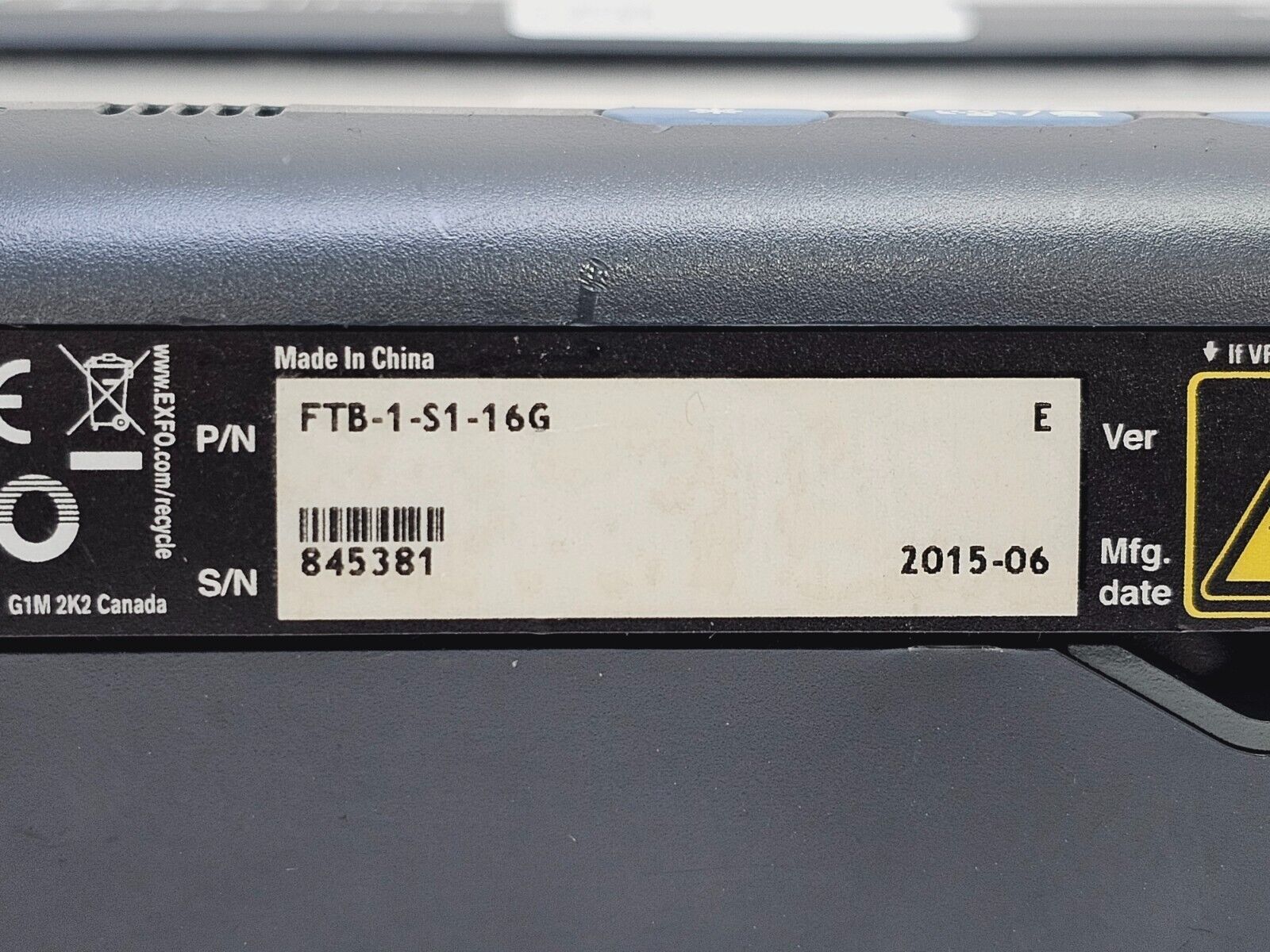

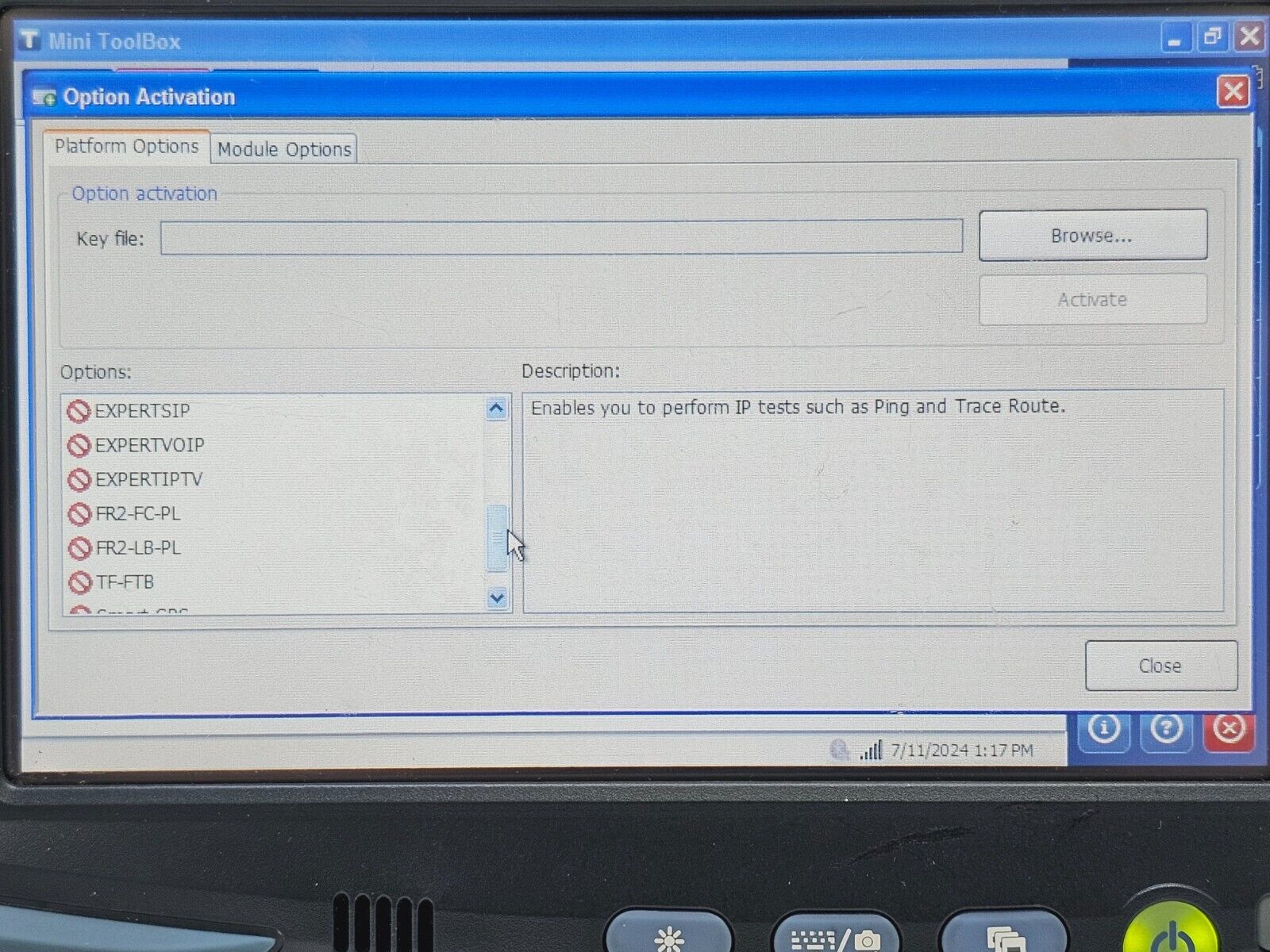

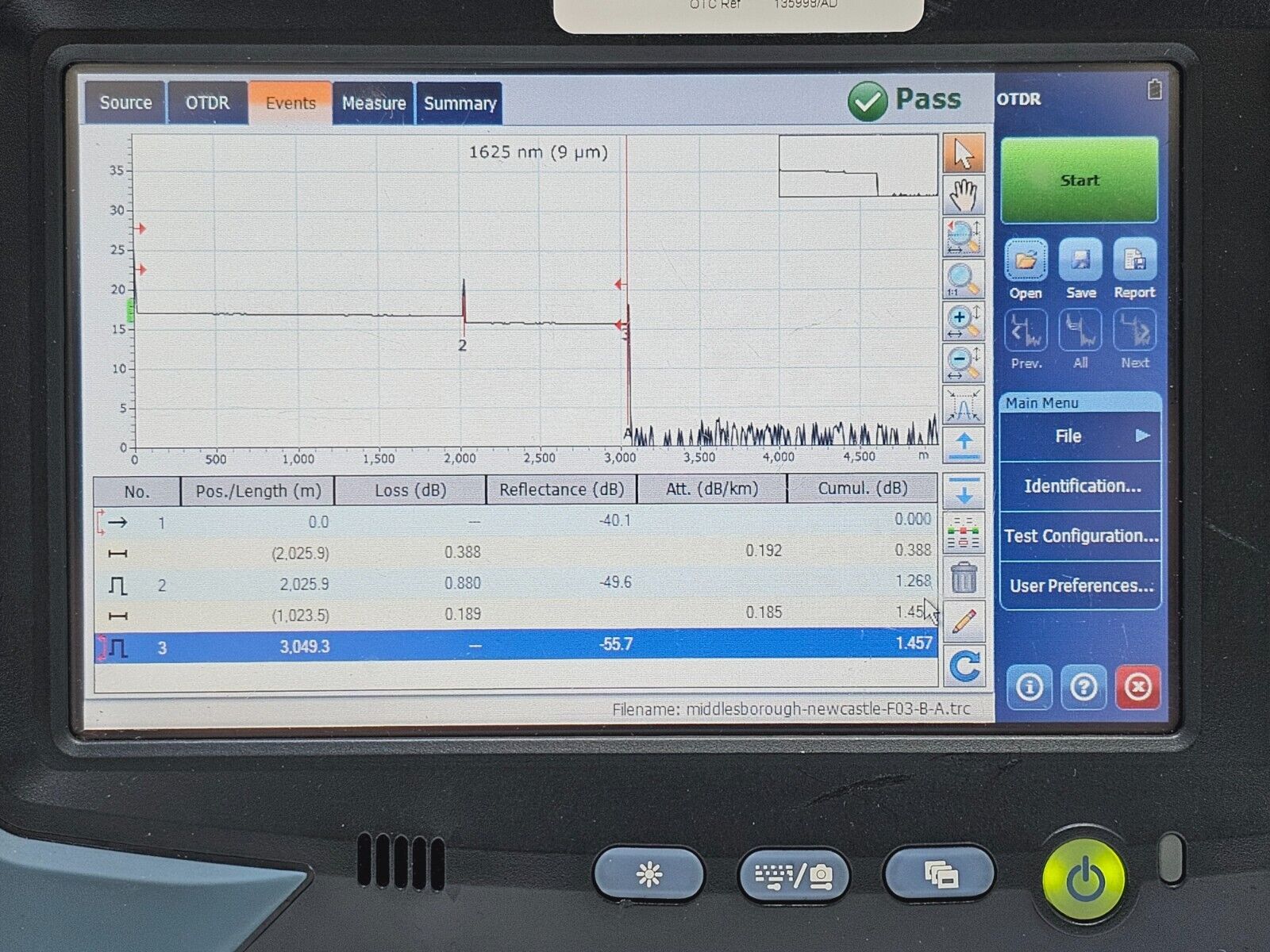

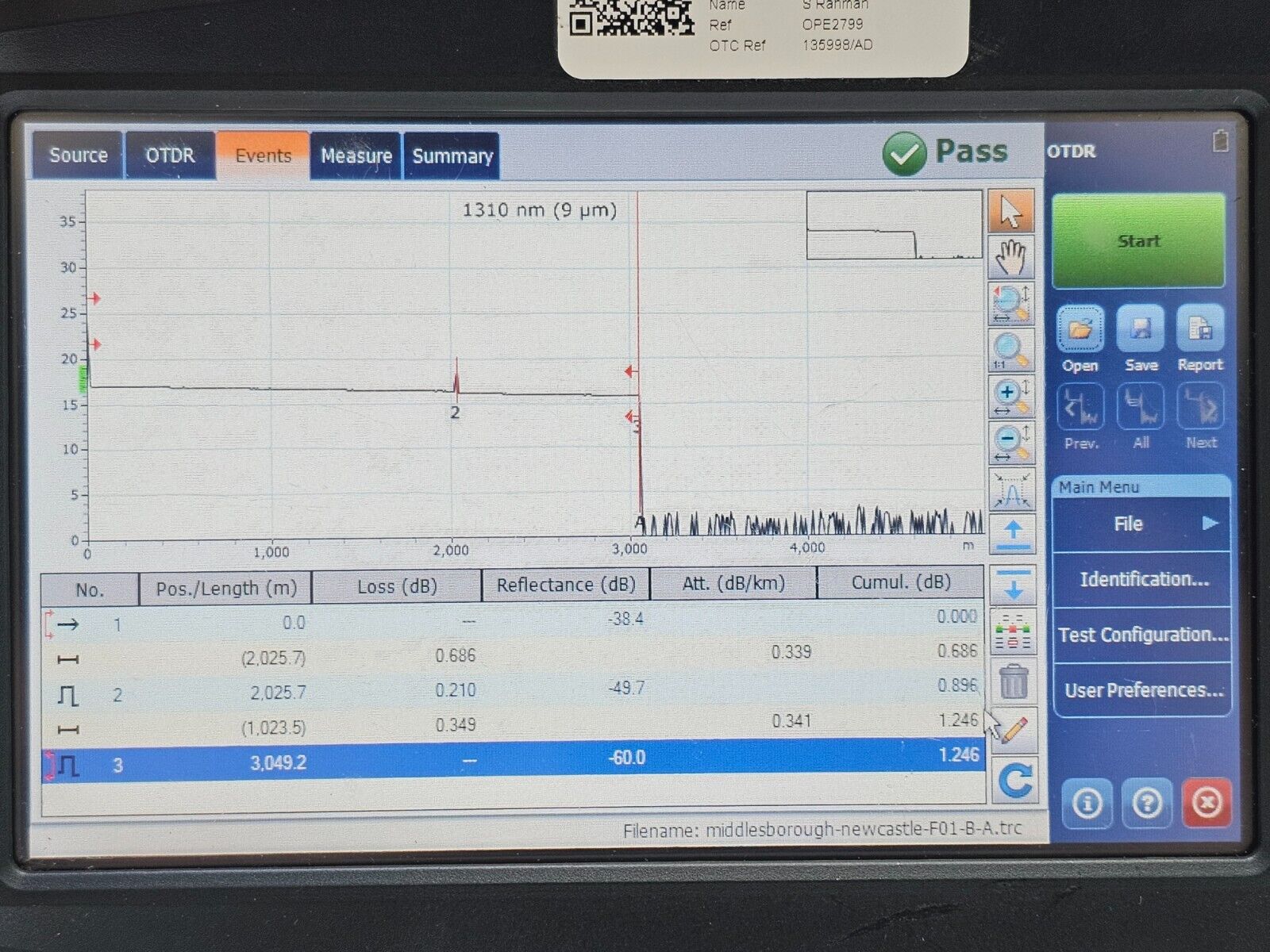

This EXFO FTB-1 mainframe with FTB-730-234B-EI tri-band singlemode OTDR module was manufactured in 2015 and is in good working condition. Calibration expired March 2023. The resting legs are missing and the screen carries visible scratches, though display visibility is unaffected when powered on. OTDR software is active; iOLM is not licensed.
Included:
• FTB-1 mainframe with FTB-730-234B-EI OTDR module (1310/1550/1625 nm, FC/PC connector)
• Power adapter
• Stylus
• Carry bag

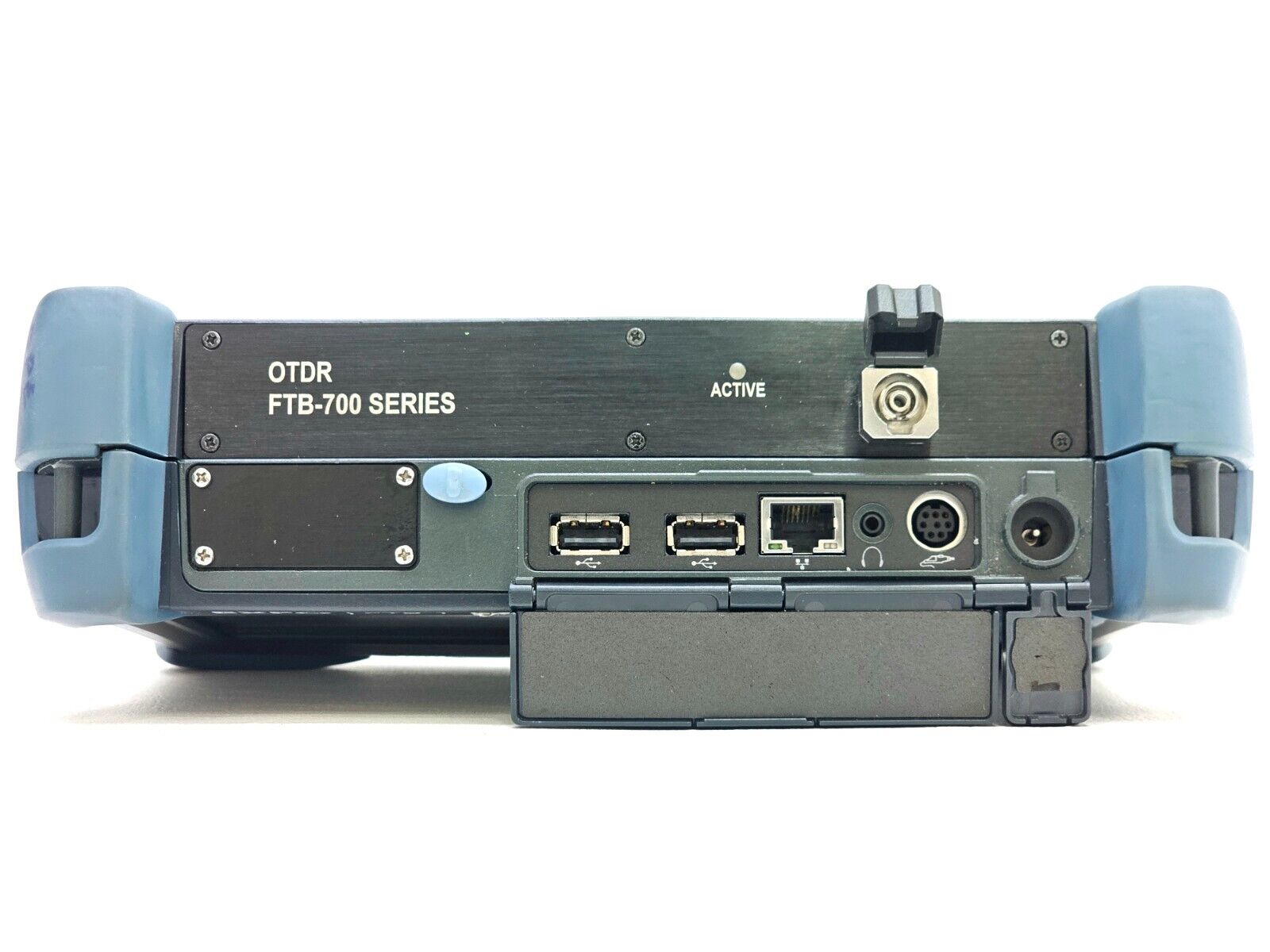

The EXFO FTB-1 is a portable modular test platform designed for fast and powerful field testing across optical and multiservice applications. Built for field technicians and network engineers, the mainframe features a multitouch widescreen colour TFT display, a Windows-based operating system, and comprehensive connectivity including Wi-Fi, Bluetooth, USB, and Gigabit Ethernet. Its modular architecture accepts a range of plug-in test modules covering OTDR, optical light source, power meter, and multiservice testing.

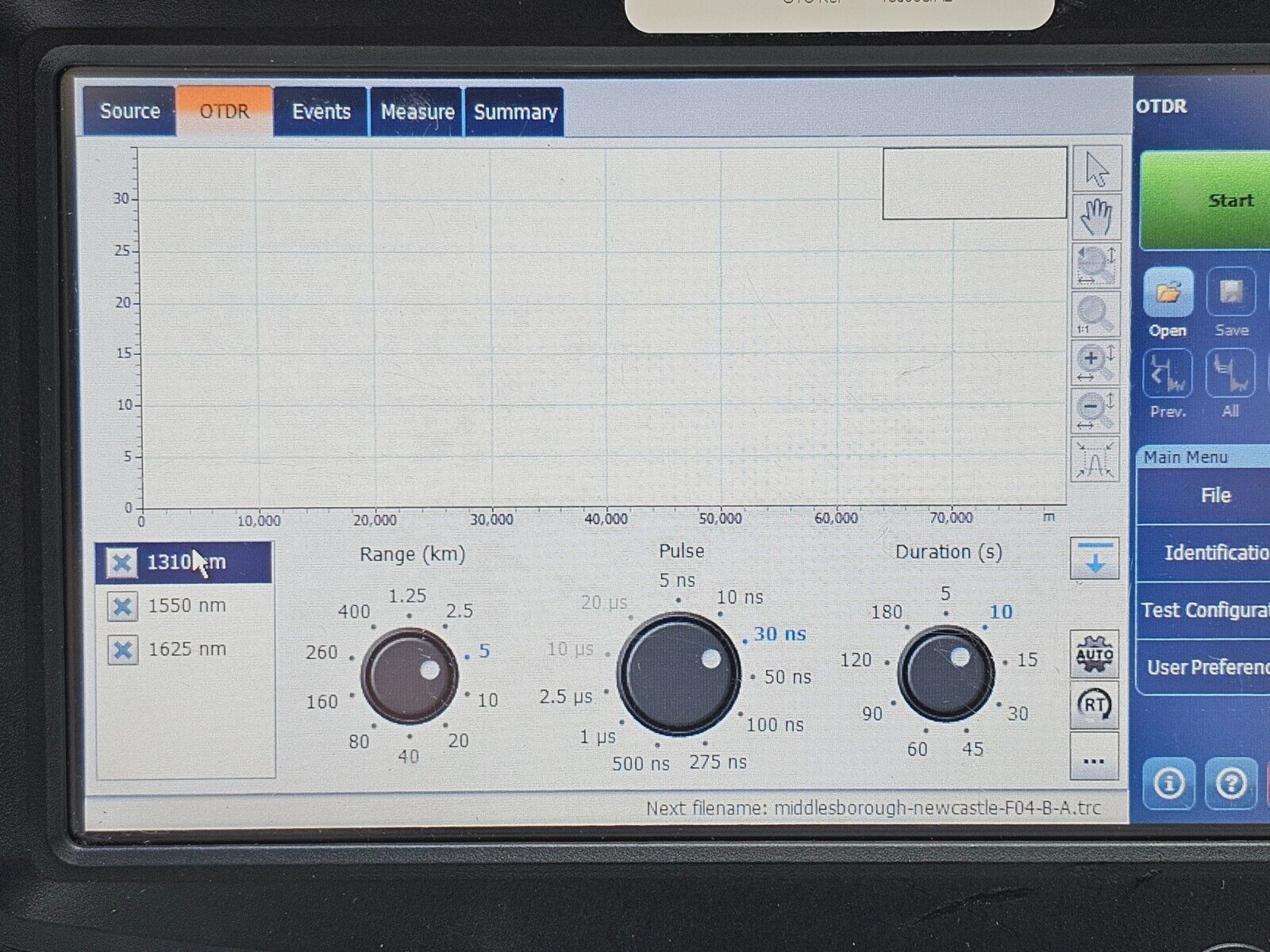

The FTB-730 is a singlemode OTDR module for the FTB-1 platform, designed for the characterisation, installation, and maintenance of singlemode optical fibre networks. The 234B-EI variant provides tri-band operation at 1310, 1550, and 1625 nm, enabling standard OTDR testing alongside dedicated 1625 nm out-of-band monitoring for live-fibre inspection without service disruption.
Typical applications include fibre acceptance testing, fault location, splice and connector loss measurement, and in-service fibre monitoring on FTTH, metro, and long-haul networks.
Key features:
• Tri-band singlemode OTDR: 1310 / 1550 / 1625 nm
• Dynamic range: 39 / 37 / 39 dB
• FC/PC optical interface
• Compatible with iOLM (Intelligent Optical Link Mapper) when licensed
• Modular plug-in design for the FTB-1 platform
• Rugged construction for field deployment
• Windows OS with multitouch TFT display
• Wireless connectivity: Wi-Fi and Bluetooth
Specifications (FTB-730-234B-EI):
Wavelengths: 1310 / 1550 / 1625 nm
Fibre Type: Singlemode (SM)
Dynamic Range: 39 / 37 / 39 dB
Optical Connector: FC/PC
Platform: EXFO FTB-1
Live-Fibre Monitoring: 1625 nm out-of-band
Operating System: Windows
Display: Multitouch colour TFT
EXFO FTB-730 OTDR module datasheet (English): Download PDF
EXFO FTB-1 platform datasheet (English): Download PDF
Product Overview
Condition: Used
This EXFO FTB-1 mainframe with FTB-730-234B-EI tri-band singlemode OTDR module was manufactured in 2015 and is in good working condition. Calibration expired March 2023. The resting legs are missing and the screen carries visible scratches, though display visibility is unaffected when powered on. OTDR software is active; iOLM is not licensed.
Included:
• FTB-1 mainframe with FTB-730-234B-EI OTDR module (1310/1550/1625 nm, FC/PC connector)
• Power adapter
• Stylus
• Carry bag
Manufacturer's Description
The EXFO FTB-1 is a portable modular test platform designed for fast and powerful field testing across optical and multiservice applications. Built for field technicians and network engineers, the mainframe features a multitouch widescreen colour TFT display, a Windows-based operating system, and comprehensive connectivity including Wi-Fi, Bluetooth, USB, and Gigabit Ethernet. Its modular architecture accepts a range of plug-in test modules covering OTDR, optical light source, power meter, and multiservice testing.
The FTB-730 is a singlemode OTDR module for the FTB-1 platform, designed for the characterisation, installation, and maintenance of singlemode optical fibre networks. The 234B-EI variant provides tri-band operation at 1310, 1550, and 1625 nm, enabling standard OTDR testing alongside dedicated 1625 nm out-of-band monitoring for live-fibre inspection without service disruption.
Typical applications include fibre acceptance testing, fault location, splice and connector loss measurement, and in-service fibre monitoring on FTTH, metro, and long-haul networks.
Key features:
• Tri-band singlemode OTDR: 1310 / 1550 / 1625 nm
• Dynamic range: 39 / 37 / 39 dB
• FC/PC optical interface
• Compatible with iOLM (Intelligent Optical Link Mapper) when licensed
• Modular plug-in design for the FTB-1 platform
• Rugged construction for field deployment
• Windows OS with multitouch TFT display
• Wireless connectivity: Wi-Fi and Bluetooth
Specifications (FTB-730-234B-EI):
Wavelengths: 1310 / 1550 / 1625 nm
Fibre Type: Singlemode (SM)
Dynamic Range: 39 / 37 / 39 dB
Optical Connector: FC/PC
Platform: EXFO FTB-1
Live-Fibre Monitoring: 1625 nm out-of-band
Operating System: Windows
Display: Multitouch colour TFT
Resources
EXFO FTB-730 OTDR module datasheet (English): Download PDF
EXFO FTB-1 platform datasheet (English): Download PDF
