Condition: Used

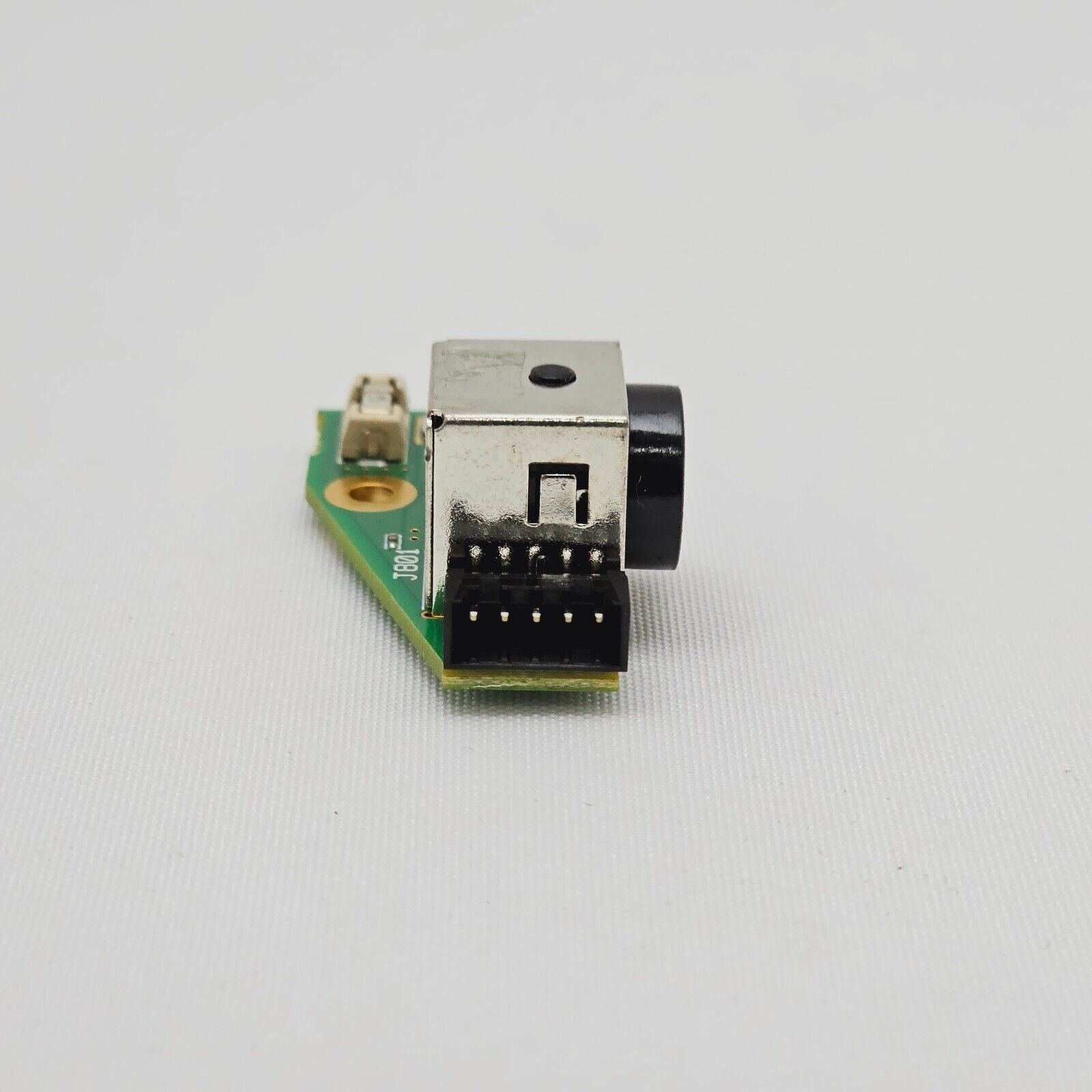

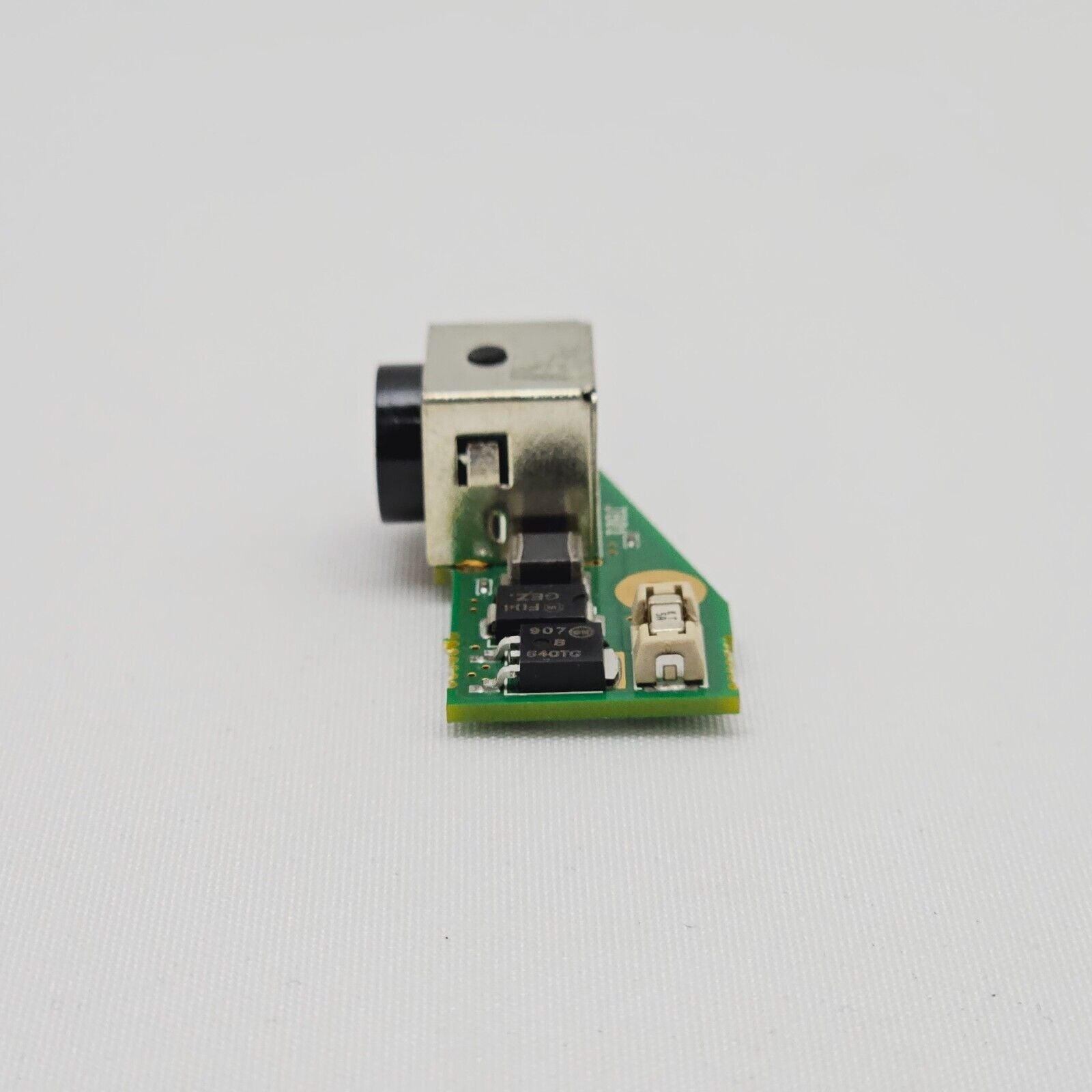

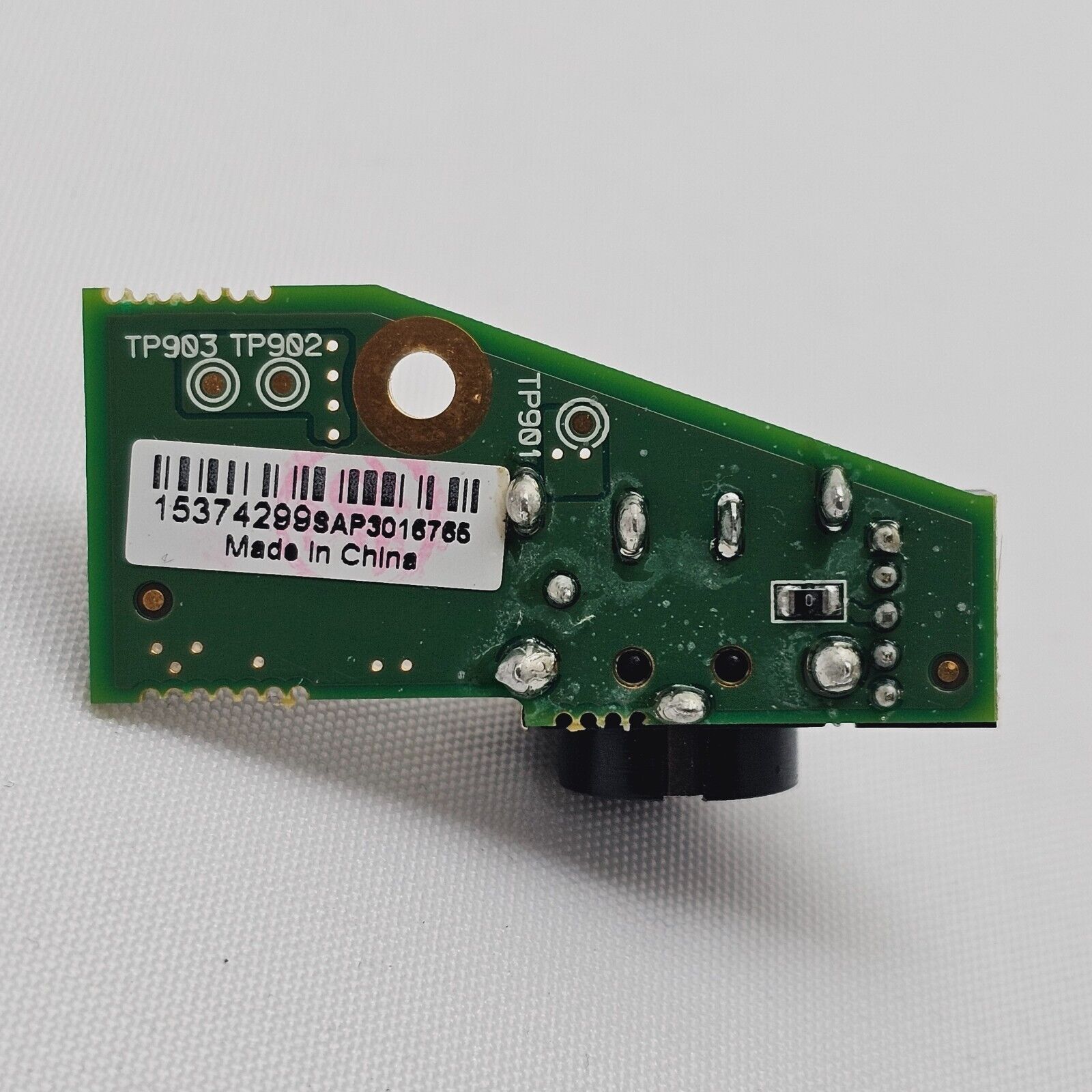

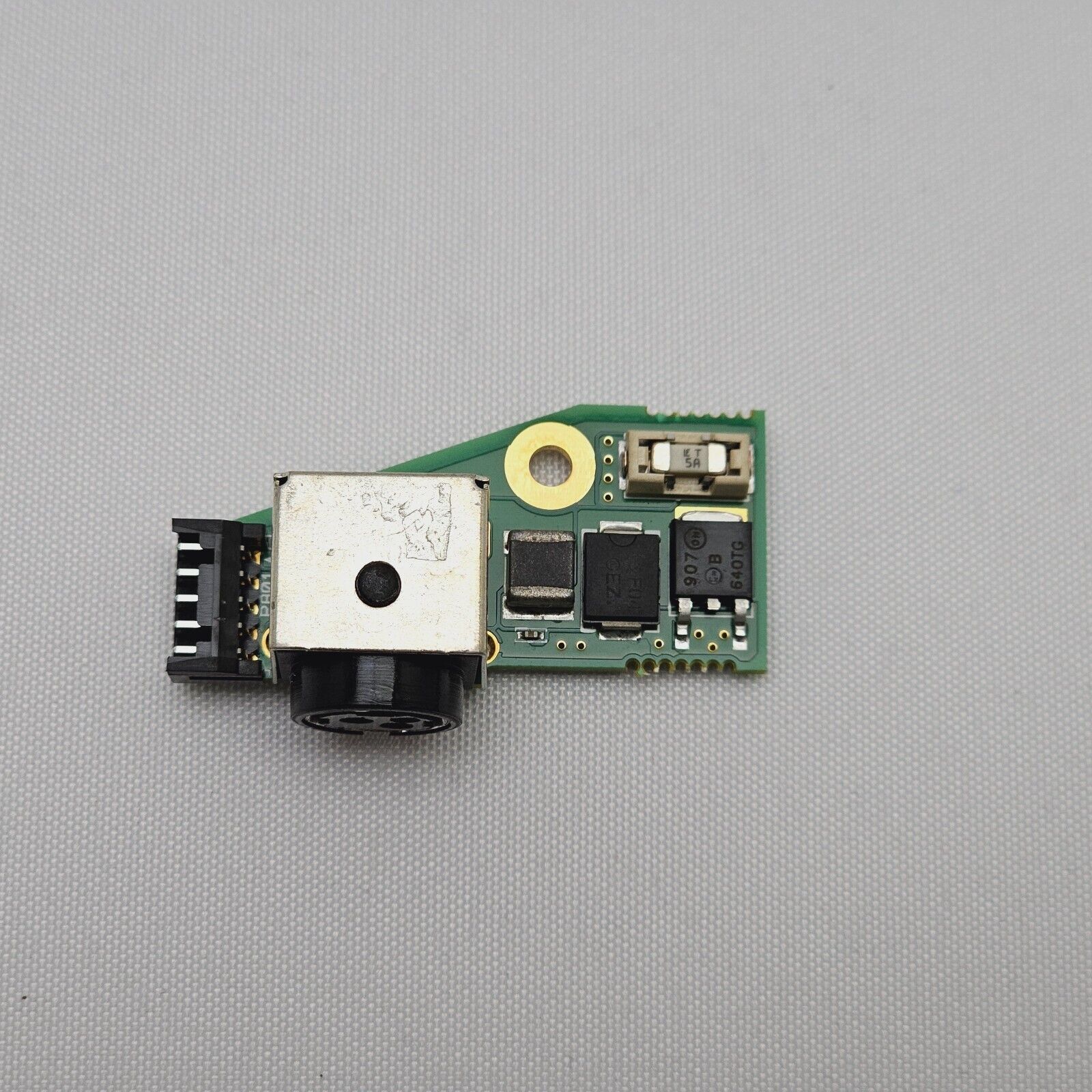

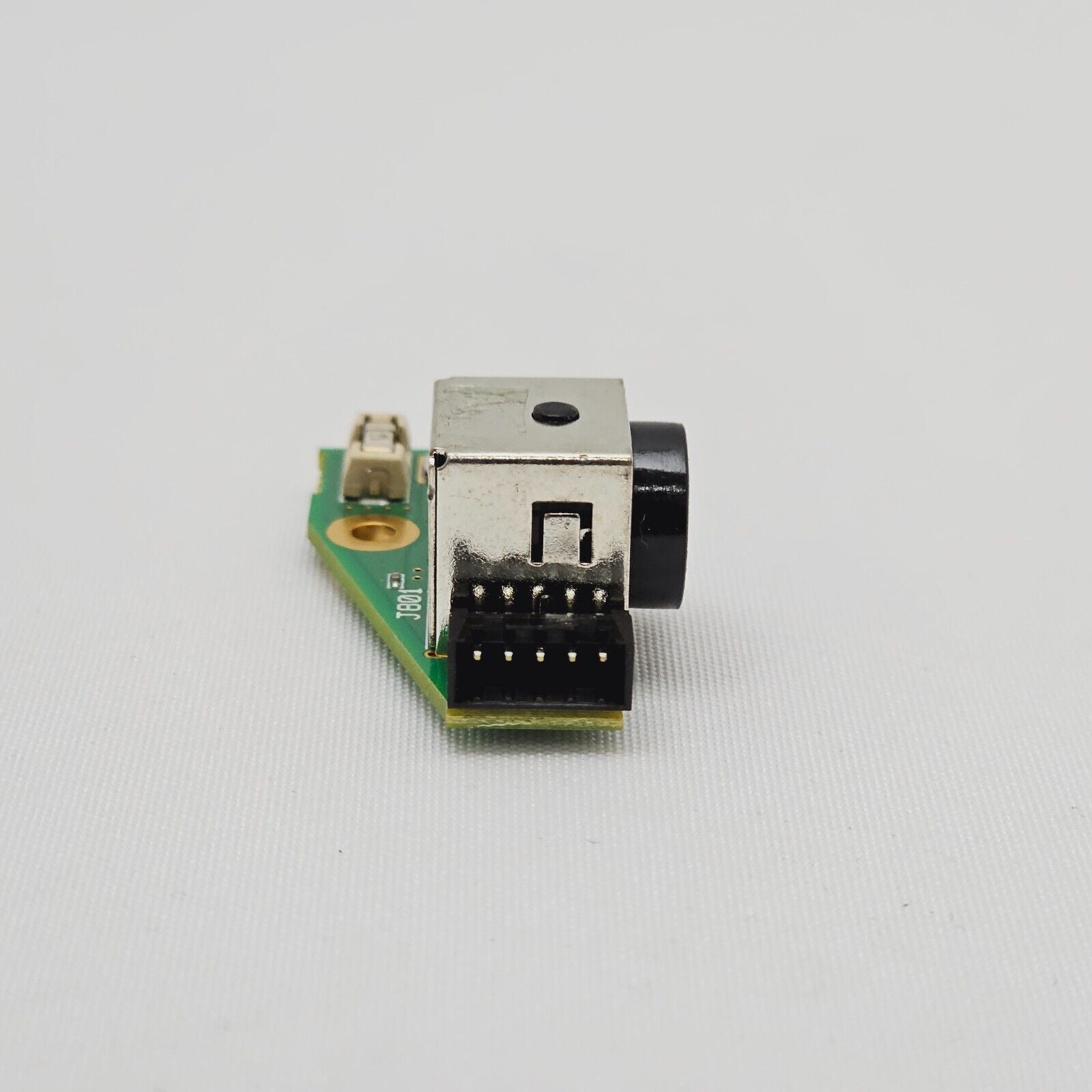

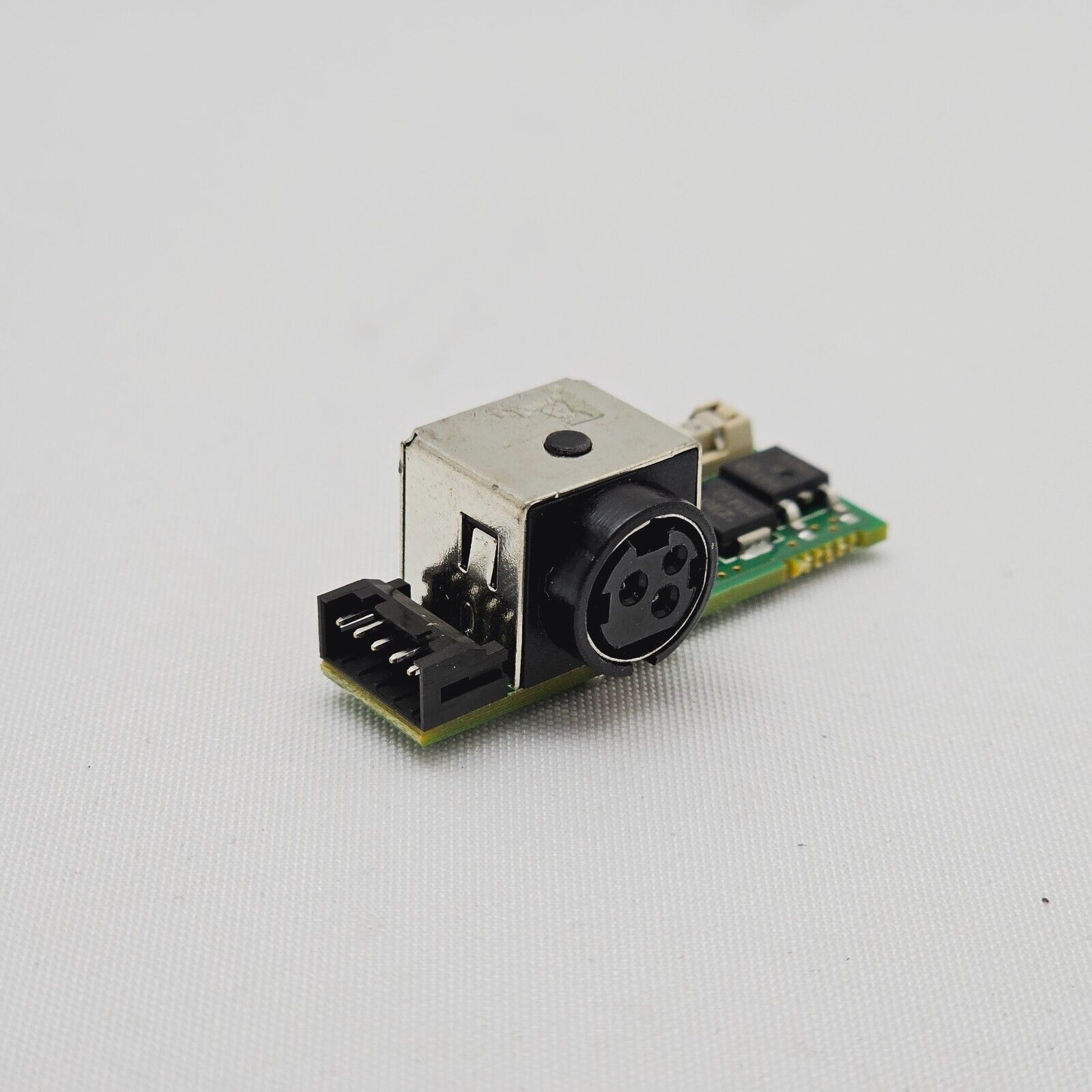

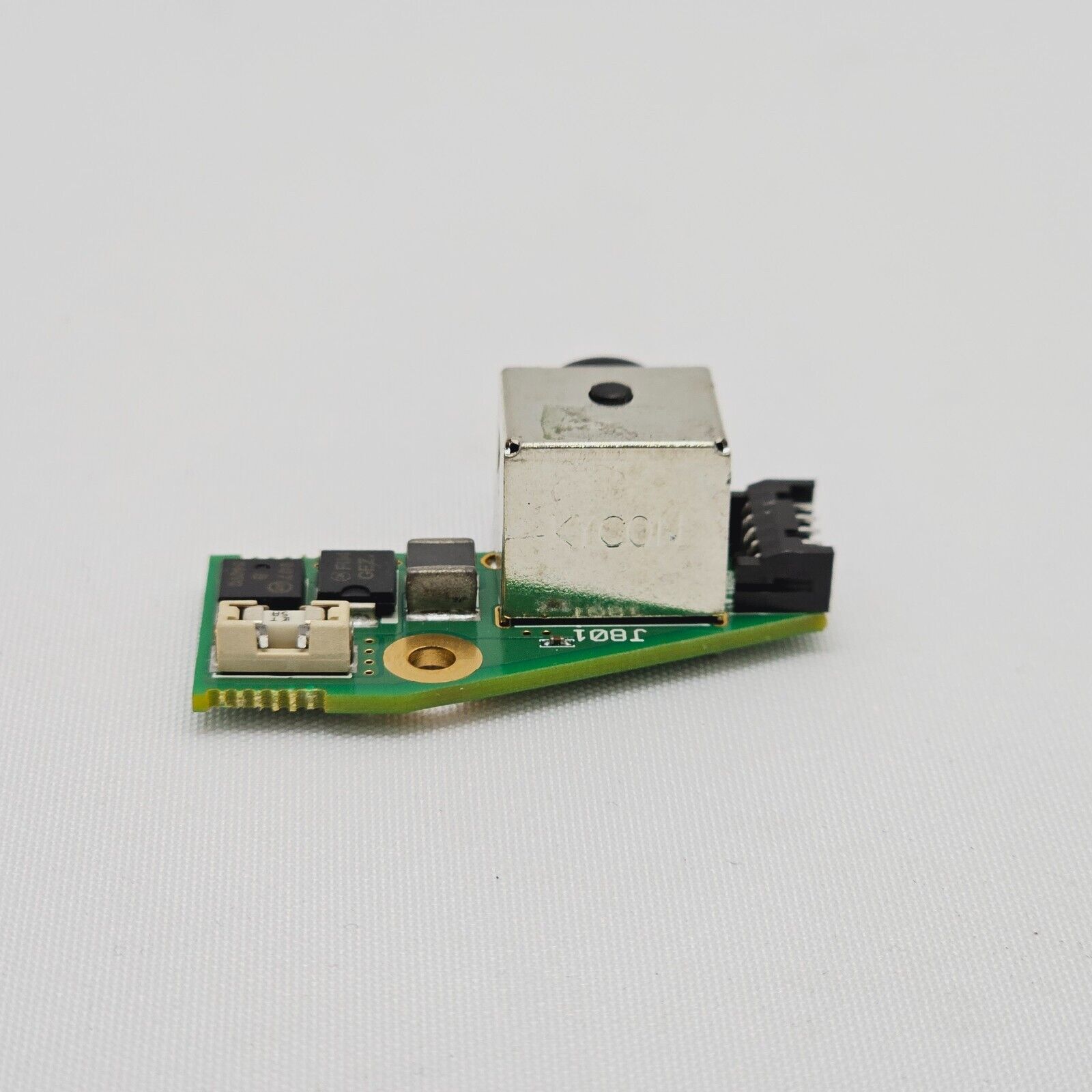

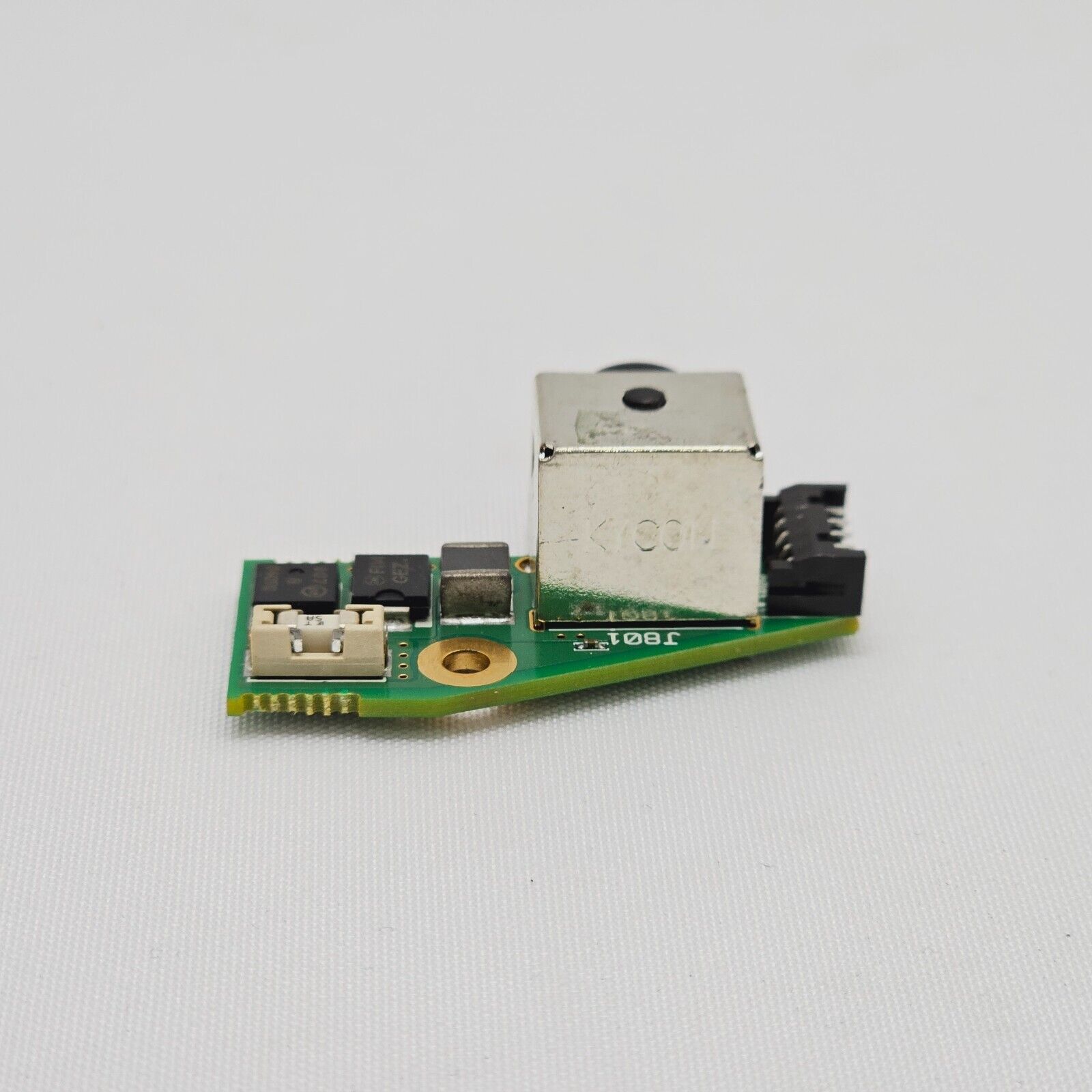

This is a used charging port power board removed from an EXFO FTB-1 Pro v2 portable test platform. The board is responsible for regulating the charge and power being received into the unit from the external AC adapter, managing power delivery to the platform's internal systems and battery.

Typically includes:
• Charging port power board (as removed from FTB-1 Pro v2)

The EXFO FTB-1v2 Pro (also referred to as the FTB-1 Pro) is a compact, portable modular test platform designed for optical, Ethernet, time-division multiplexing (TDM), and multiservice field testing applications. It accepts plug-in FTBx test modules and supports both single- and dual-carrier configurations, enabling testing from legacy 64K networks up to 100G and beyond.

The platform features a quad-core processor running Windows 10 IoT Enterprise, a 20.3 cm (8-inch) multitouch display at 1280 x 800 resolution, and extensive connectivity including USB 2.0, USB 3.0, Ethernet (RJ-45), Wi-Fi, Bluetooth, and MicroSD slot. Power is supplied via a 24 V DC / 3.75 A external AC adapter (90 W), with a 3-pin DIN connector interface. The charging port power board internally manages AC power input and battery charge regulation.

Key Specifications (FTB-1v2 Pro Platform):
Processor: Quad-core
Operating System: Windows 10 IoT Enterprise (or Windows 8.1 Pro on earlier units)
Display: 20.3 cm (8 in) multitouch, 1280 x 800 resolution
External Power Input: 24 V DC, 3.75 A, 90 W (3-pin DIN connector)
Battery Chemistry: Lithium-ion, 14.4 V
Storage Temperature: -20 °C to 60 °C (with battery); -20 °C to 45 °C long-term
Connectivity: USB 2.0 (×2), USB 3.0 (×1), Ethernet RJ-45 (10/100/1000 Base-T), Wi-Fi (optional), Bluetooth (optional), MicroSD slot, Headset/microphone port (3.5 mm)
Module Slots: Single or dual FTBx module carrier configuration
Supported Test Technologies: Optical (OTDR, OLS, iOLM), Ethernet, OTN, SONET/SDH, CPRI/OBSAI, Fibre Channel, SyncE/1588 PTP
Max Supported Test Speed: Up to 111.81 Gbps (with compatible modules)
Compliance: ISO 9001, RoHS, CE
Manufacturer: EXFO Inc., Quebec, Canada

EXFO FTB-1v2 Pro Platform Spec Sheet (official datasheet PDF): Download PDF

EXFO FTB-1v2 / FTB-1v2 Pro User Guide (official PDF): Download PDF

EXFO FTB-1v2 / FTB-1v2 Pro Quick Reference Guide (official PDF): Download PDF

EXFO FTB-1v2 / FTB-1 Pro Platform Spec Sheet (alternate version PDF): Download PDF
