Condition: Used

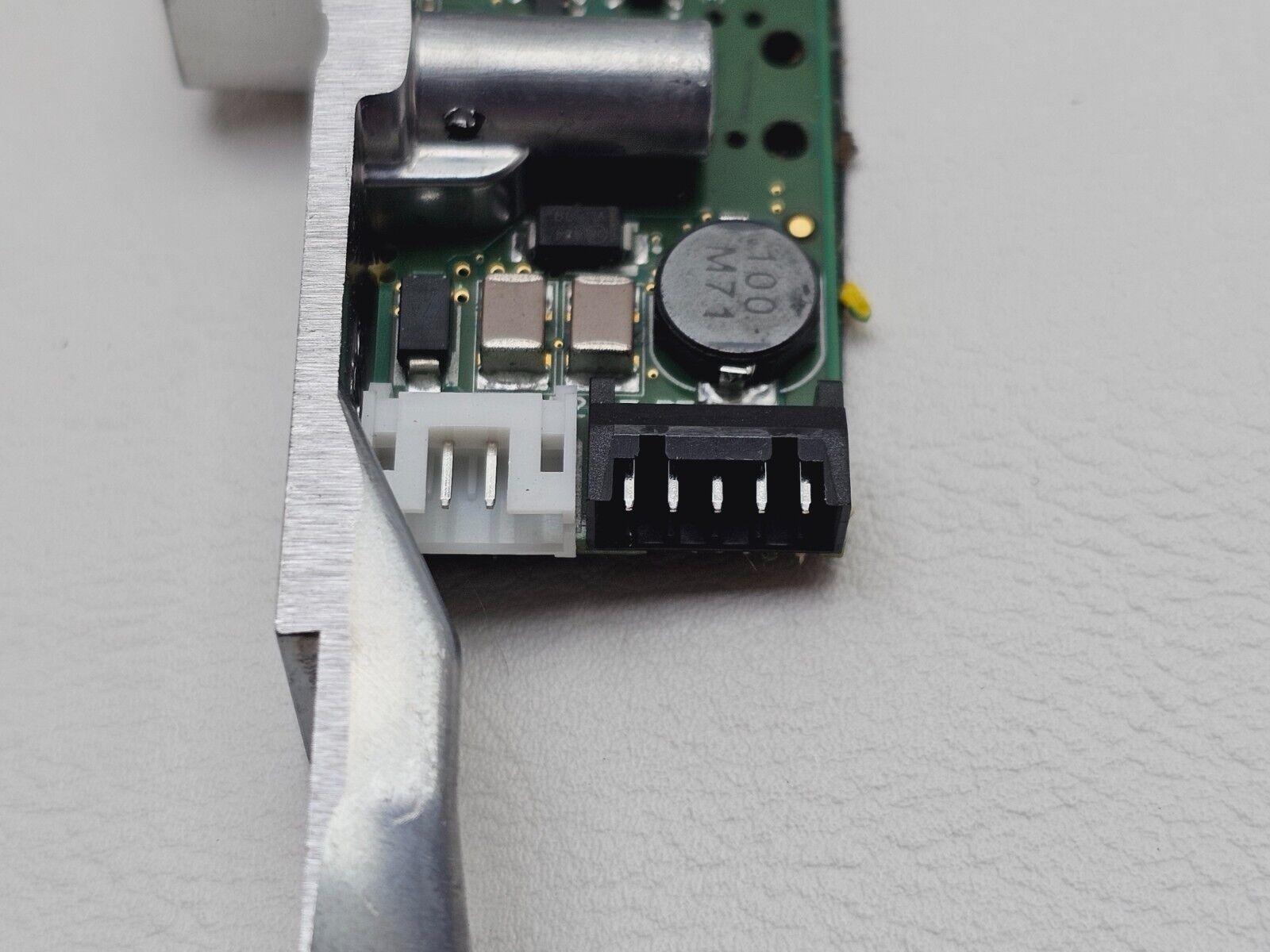

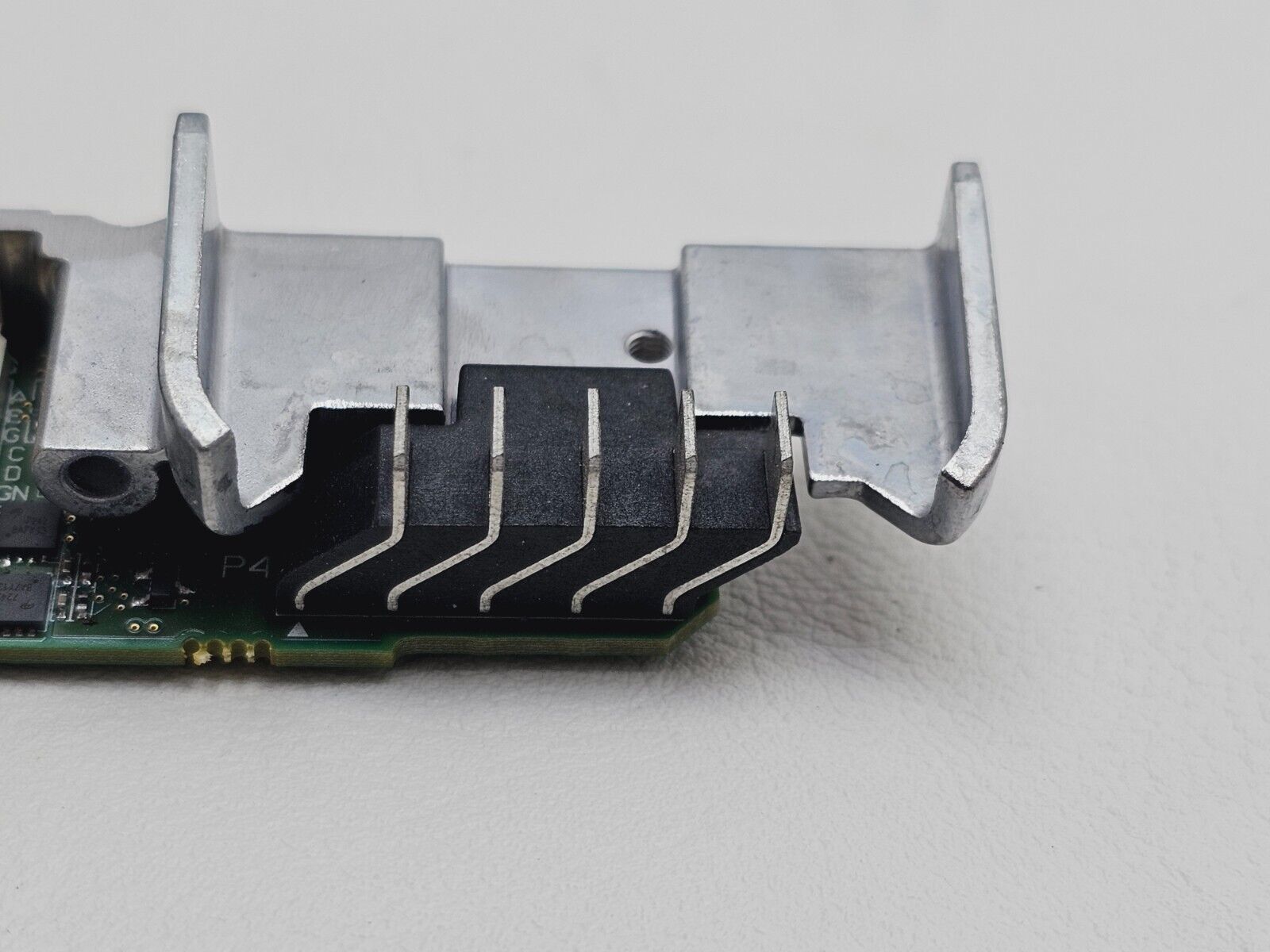

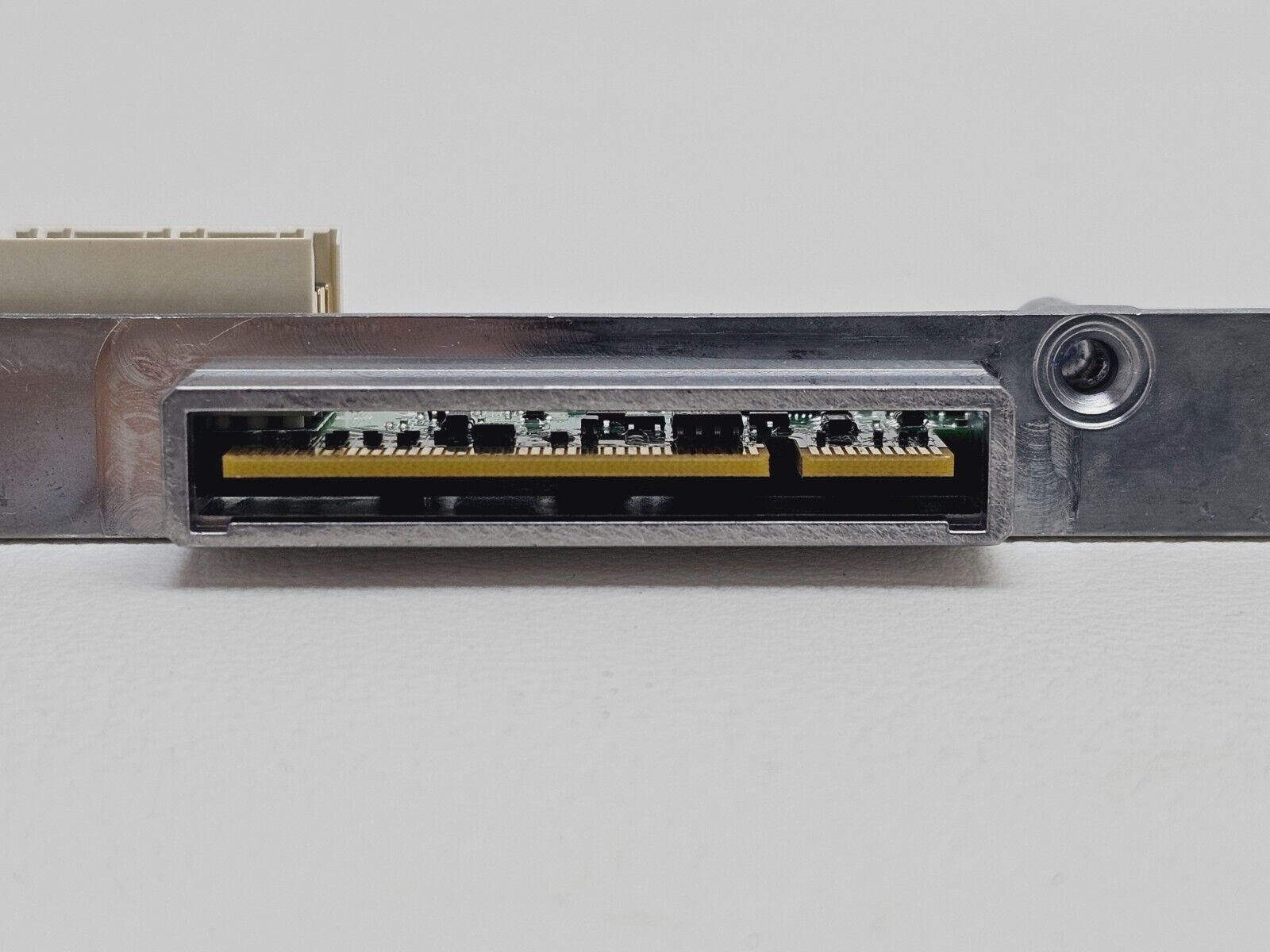

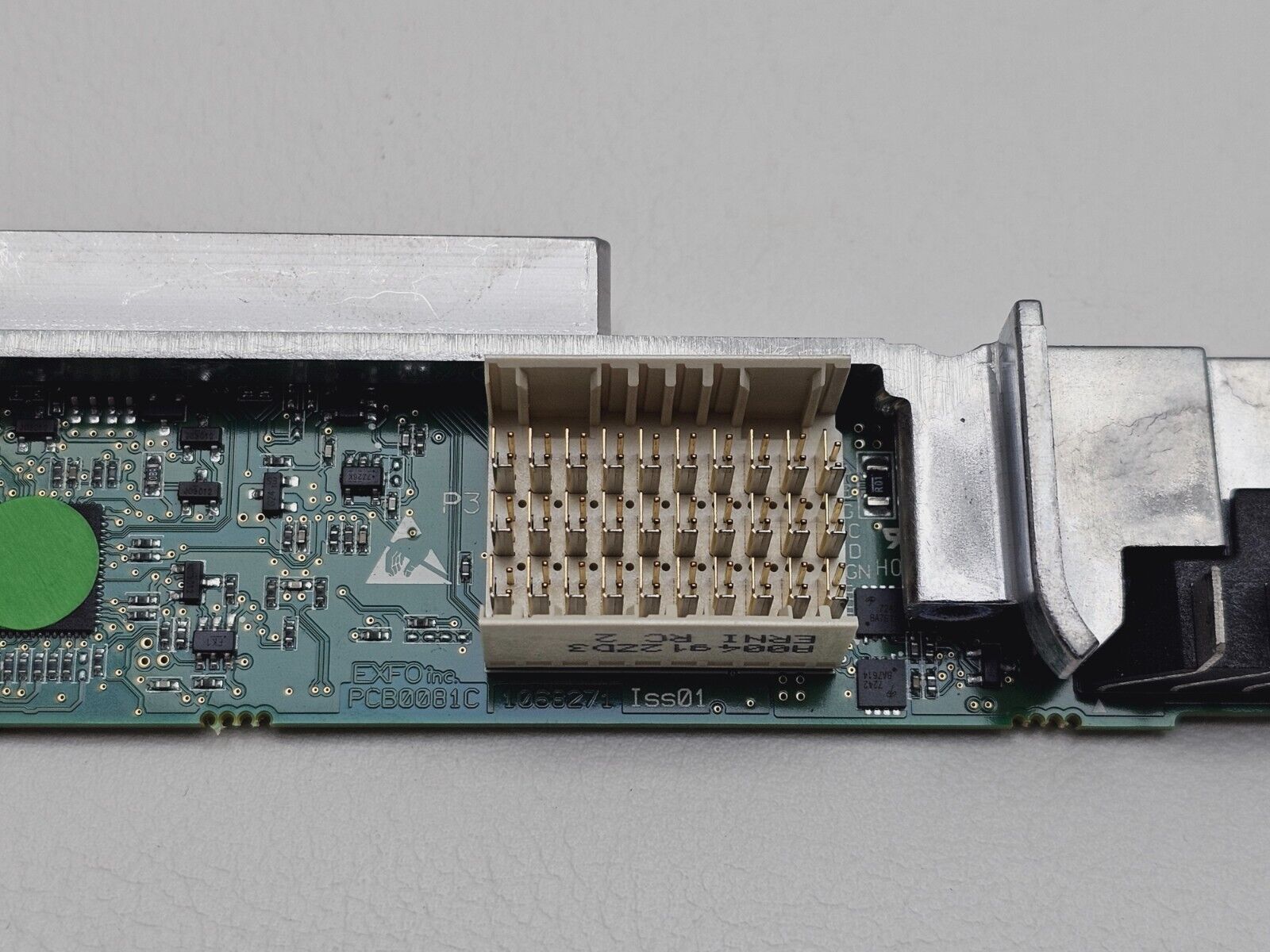

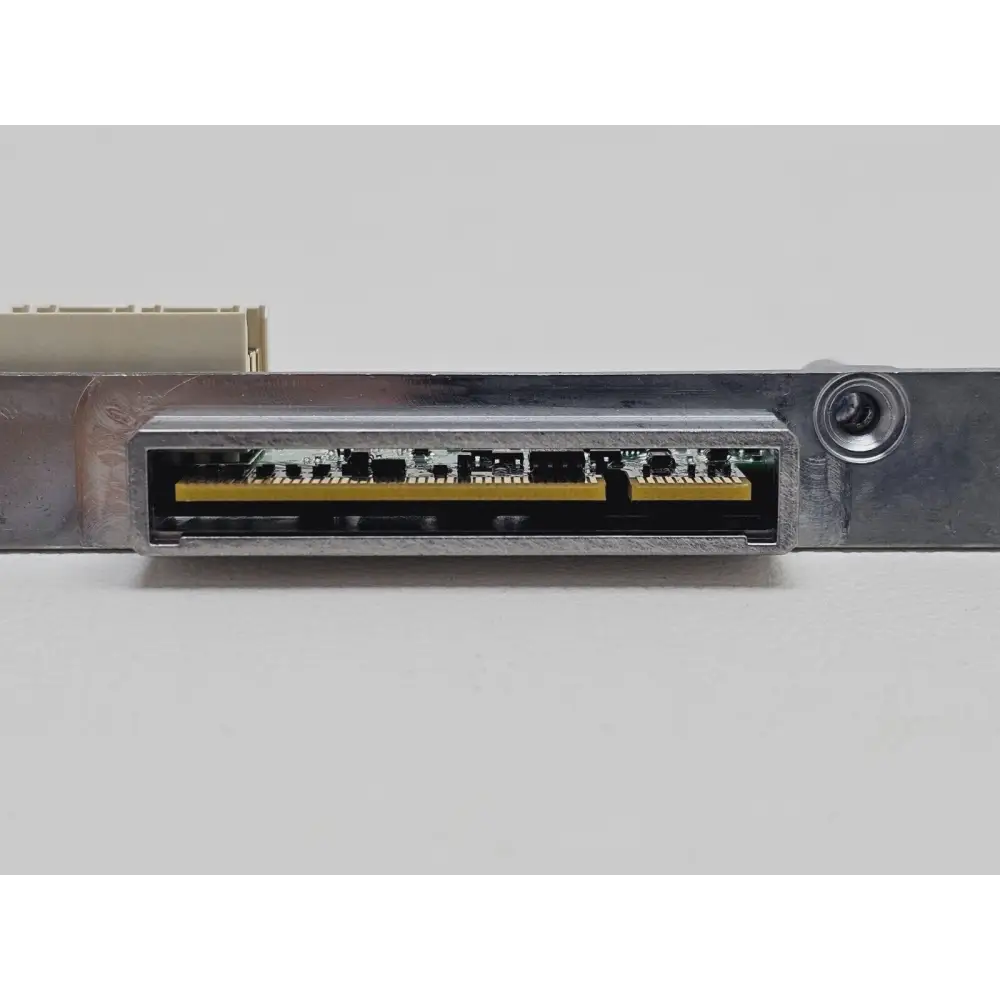

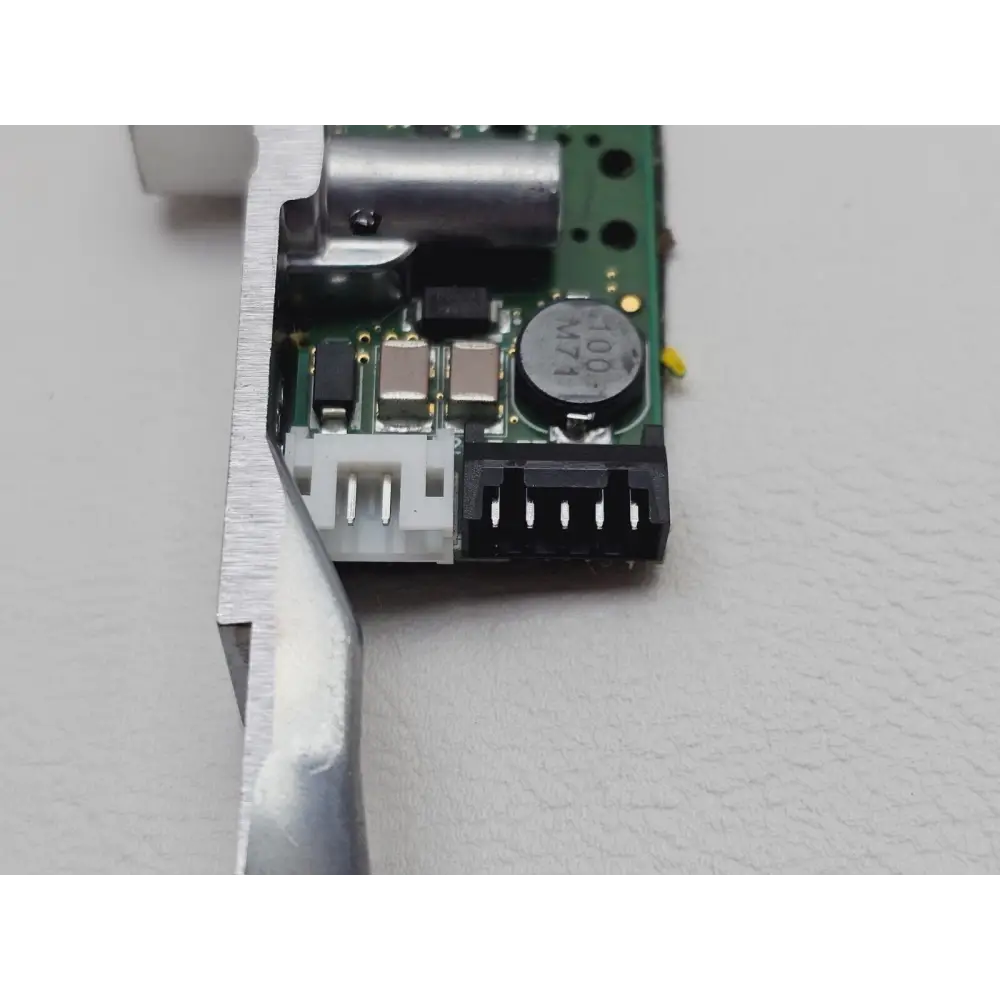

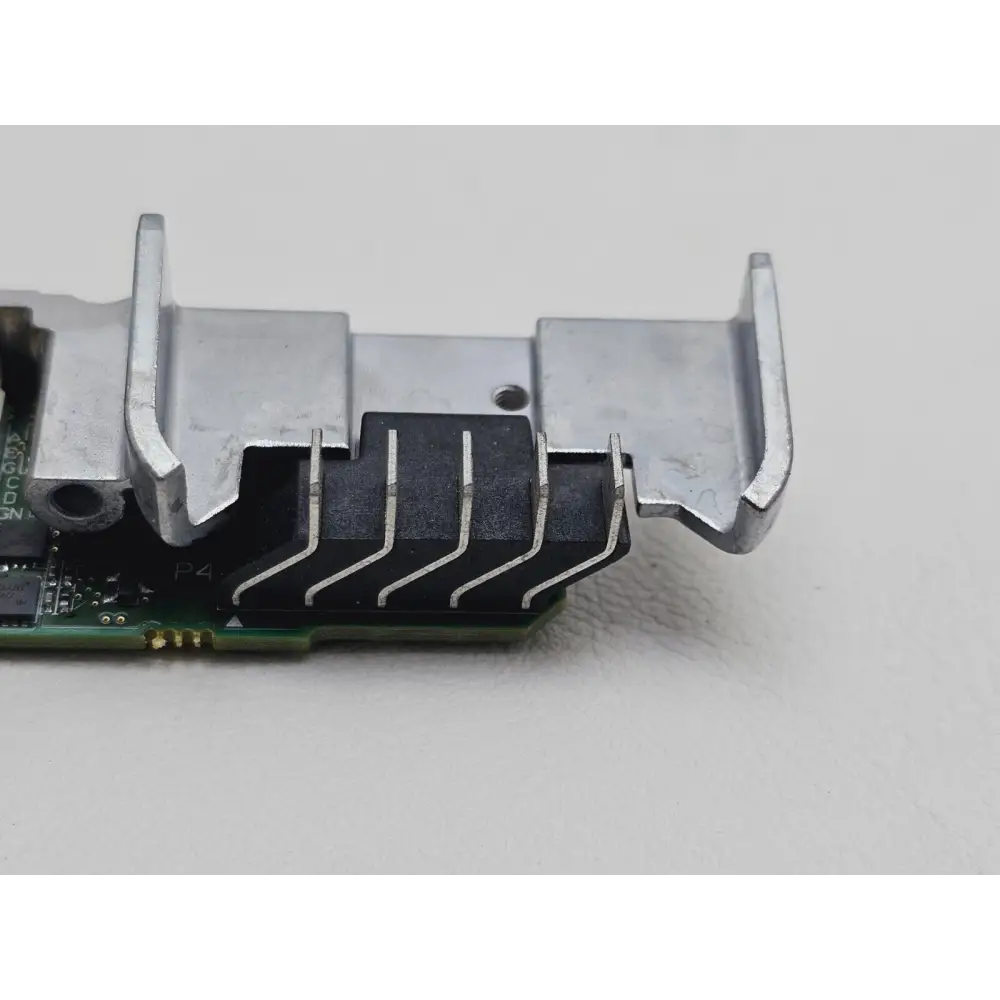

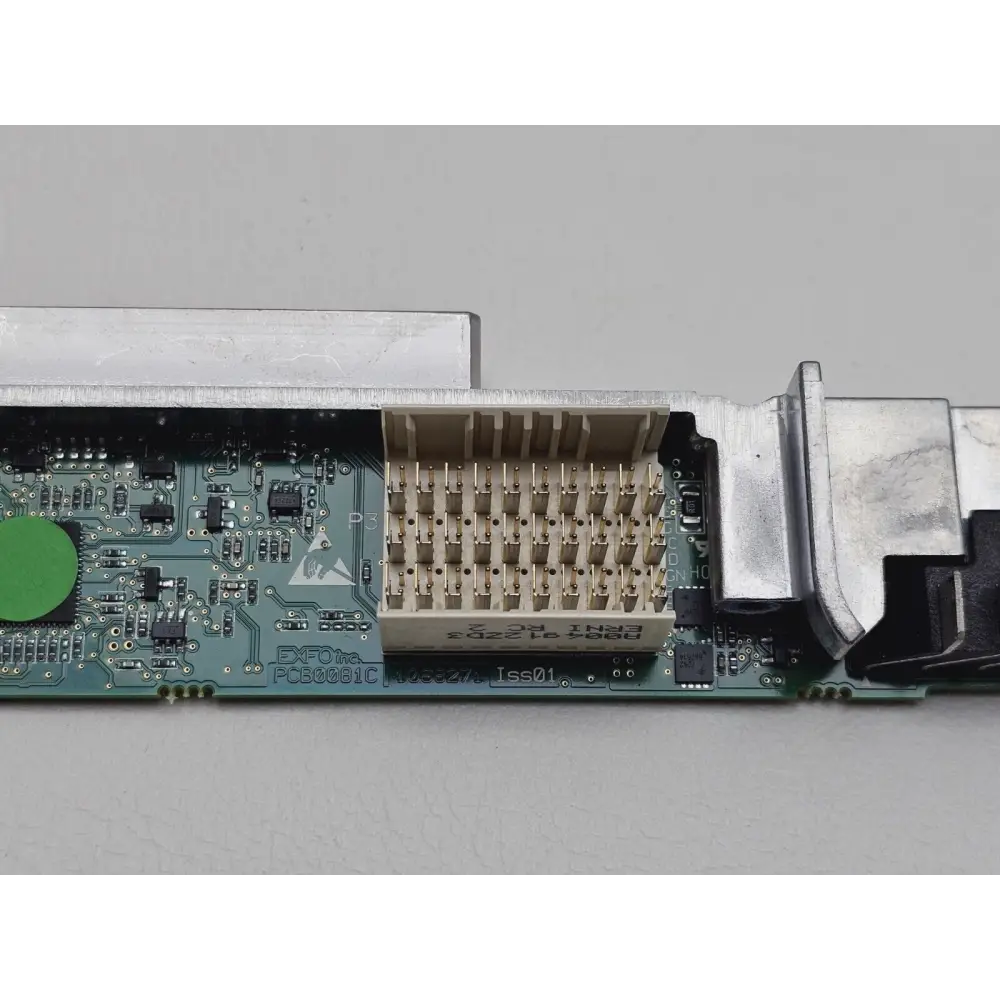

This is a genuine EXFO internal battery and module connector board removed from an FTB-880V2 / FTB-1 Pro mainframe. The PCB (marked EXFO Inc. PCB00B1C, Iss01) bridges the battery supply and module interface connectors within the chassis and is intended for use as a spare or repair part.

Included in the sale:
• EXFO FTB-880V2 / FTB-1 Pro battery and module connector PCB assembly
• Metal chassis guide rails/brackets as fitted

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

EXFO FTB-1 Platform with FTB-860 NetBlazer Ethernet Tester

The EXFO FTB-1 is a compact, modular handheld test platform optimised for fast and powerful FTTH, Ethernet and multiservice test applications in the field. Powered by an Intel ATOM processor running Windows Embedded Standard OS, it combines a hybrid touchscreen and keypad interface with a wide 7-inch TFT colour display (800 x 480 resolution) and up to 8 hours of battery life. The platform is EXFO Connect compatible, enabling automated cloud-based asset management, remote test triggering, and centralised test data reporting.

When fitted with the FTB-860 NetBlazer module, the platform becomes a comprehensive Ethernet service tester covering 10 Mbit/s through to 1 Gbit/s (optical and electrical), with full EtherSAM (ITU-T Y.1564) and RFC 2544 test capabilities for service turn-up, SLA validation, and troubleshooting. The FTB-860 supports dual electrical RJ-45 ports (10/100/1000 Mbit/s) and dual SFP optical ports (100/1000 Mbit/s), along with Smart Loopback, Through Mode, Traffic Generation and cable testing functions.

FTB-1 Platform Specifications:
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Display: 7-inch widescreen TFT colour touchscreen, 800 x 480 resolution
Interfaces: RJ-45 LAN (1 Gbit/s), 2 x USB 2.0, Wi-Fi (optional), Bluetooth (optional)
Battery Life: Up to 8 hours
Weight (with battery): 1.5 kg
Dimensions (H x W x D): 190 x 250 x 66 mm
Power Supply: AC/DC adapter, input 100–240 V, 50/60 Hz; output 24 V, 3.75 A
Connectivity: EXFO Connect compatible

FTB-860 Module Specifications:
Ethernet Interfaces: 2 x RJ-45 electrical (10/100/1000Base-T), 2 x SFP optical (100/1000 Mbit/s)
Test Speed Range: 10 Mbit/s to 1 Gbit/s
Test Standards: RFC 2544 (Throughput, Back-to-Back, Frame Loss, Latency), EtherSAM (ITU-T Y.1564)
Test Applications: EtherSAM, RFC 2544, EtherBERT, Traffic Gen & Mon, Smart Loopback, Through Mode, Cable Test
Optional Software: 100optical, GigE Optical+Electrical, ETH-THRU, Traffic Gen, Cable Test
Layer Support: IPv4 and IPv6
Loopback Modes: 5 distinct Smart Loopback modes including Transparent Loopback
SFP Port Type: Duplex or Simplex LC connector
External Clock: BNC EXT CLK port
Additional I/O: 2 x USB, FireWire, RJ-45 management LAN, headphone/mic, PS/2
Laser Class: Class 1 (IEC 60825-1, 21 CFR 1040.10)
Compliance: CE, FCC

EXFO FTB-1 Platform spec sheet — technical specifications and key features: Download PDF

EXFO FTB-1 Platform spec sheet (alternate hosted copy) — technical specifications: Download PDF

EXFO FTB-1 User Guide — full platform user manual (English): Download PDF

EXFO FTB-700G/800 Series NetBlazer User Guide for FTB-1 — covers FTB-860 module operation: Download PDF

EXFO FTB-860 NetBlazer Series spec sheet — Ethernet tester specifications: Download PDF

EXFO FTB-1 and FTB-860 combined spec sheet — platform and module specifications: Download PDF
