EXFO FTB-1 Pro FTB-880v2 10G / 1G LAN WAN Ethernet Bert Tester RFC 2544 & 6349
Model: FTB-880v2 FTB-1 Pro
Condition: Used
In stock: 0
SKU: 3244 2D02
- 10G testers
- Network Testers
Choose options
Condition: Used

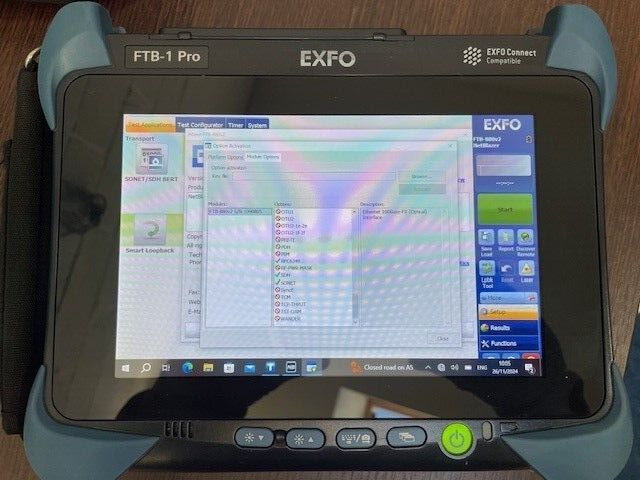

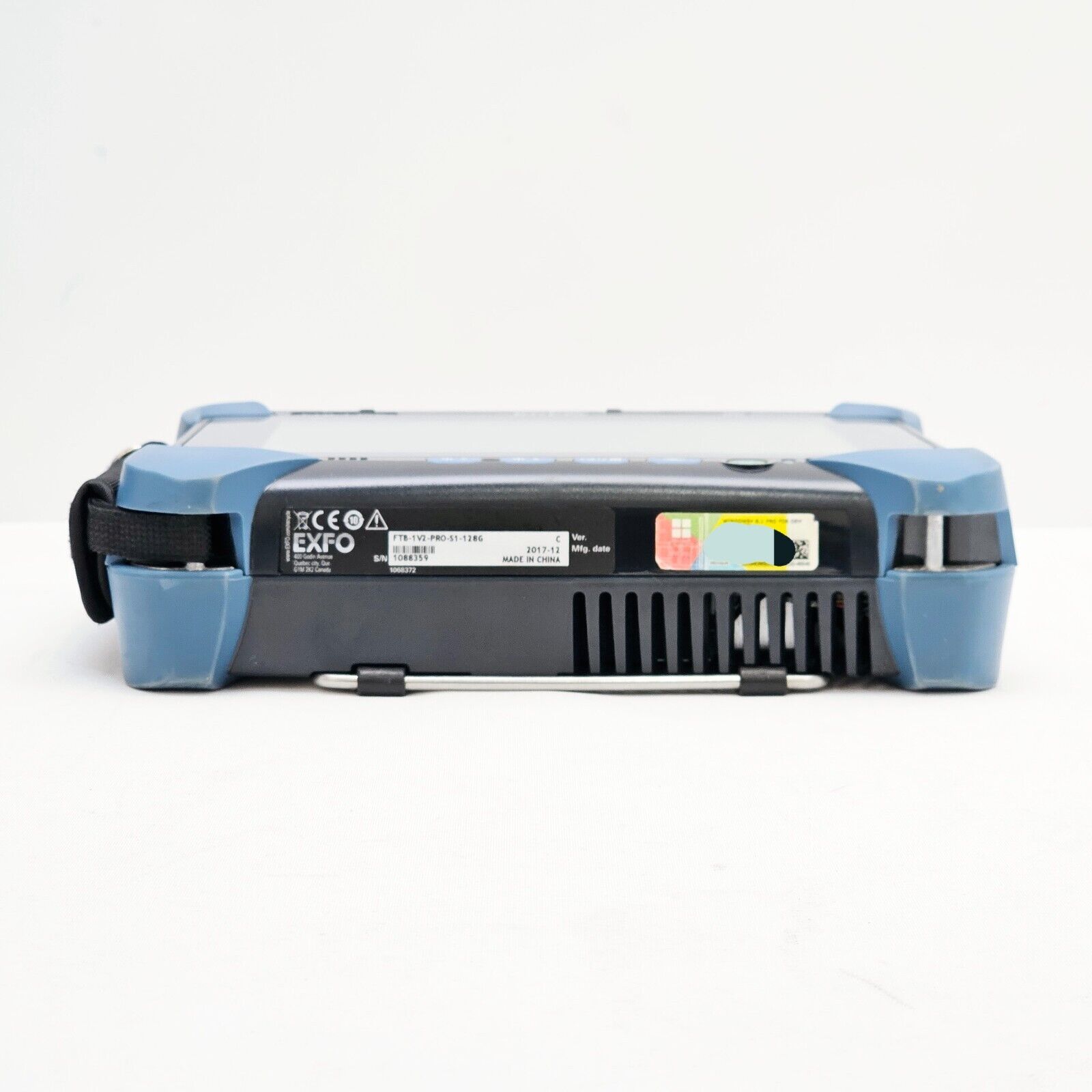

This EXFO FTB-1 Pro mainframe (FTB-1V2PRO-S1-128G) with FTB-880v2 NetBlazer module is in good condition and fully tested. The unit features built-in Wi-Fi and Bluetooth, and is equipped with a comprehensive set of licensed test options for multi-service Ethernet and SONET/SDH field testing.

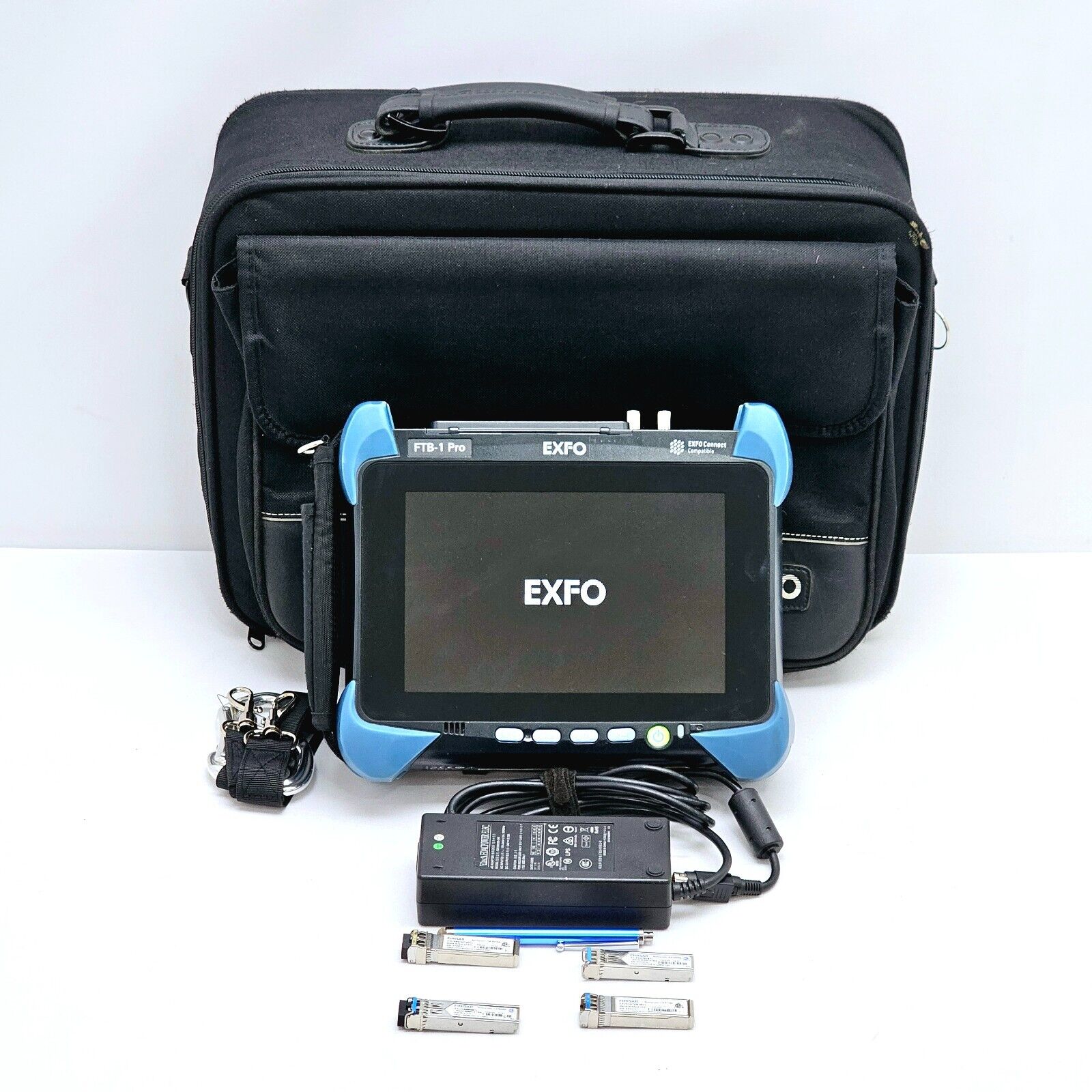

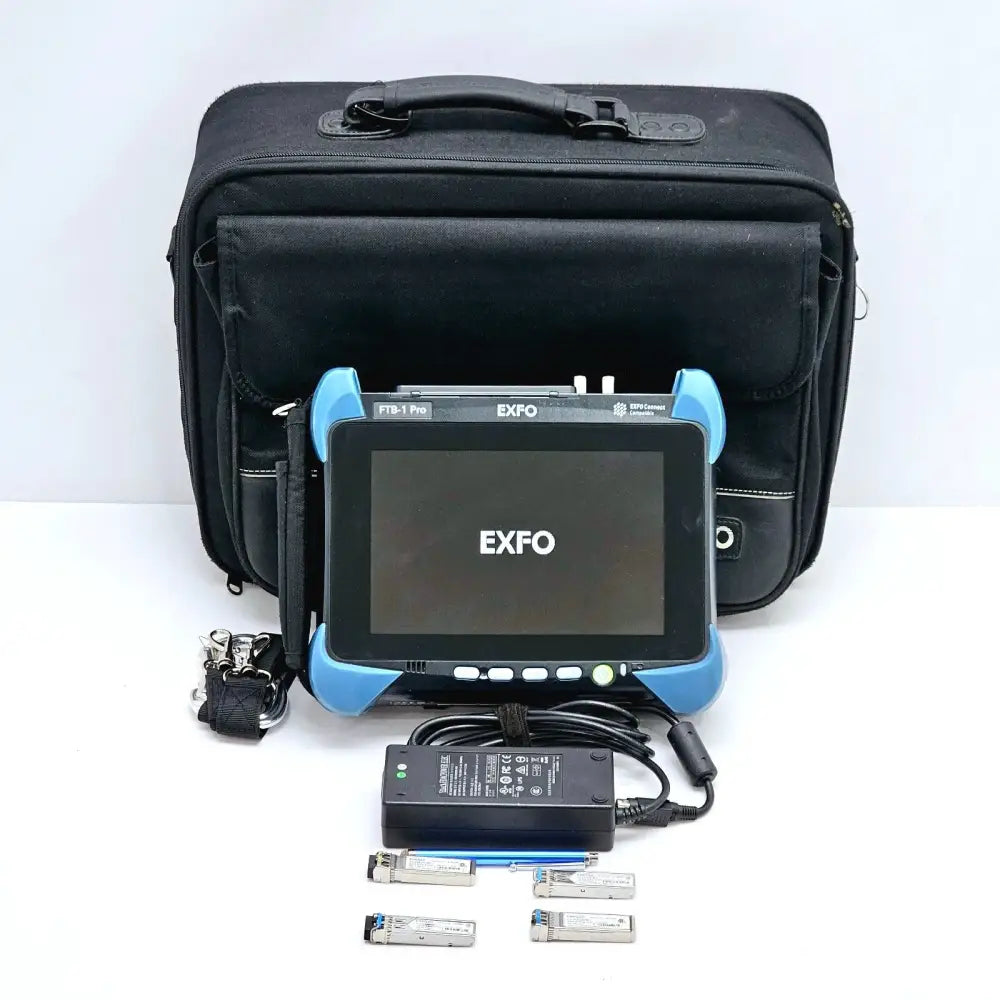

Included with this product:

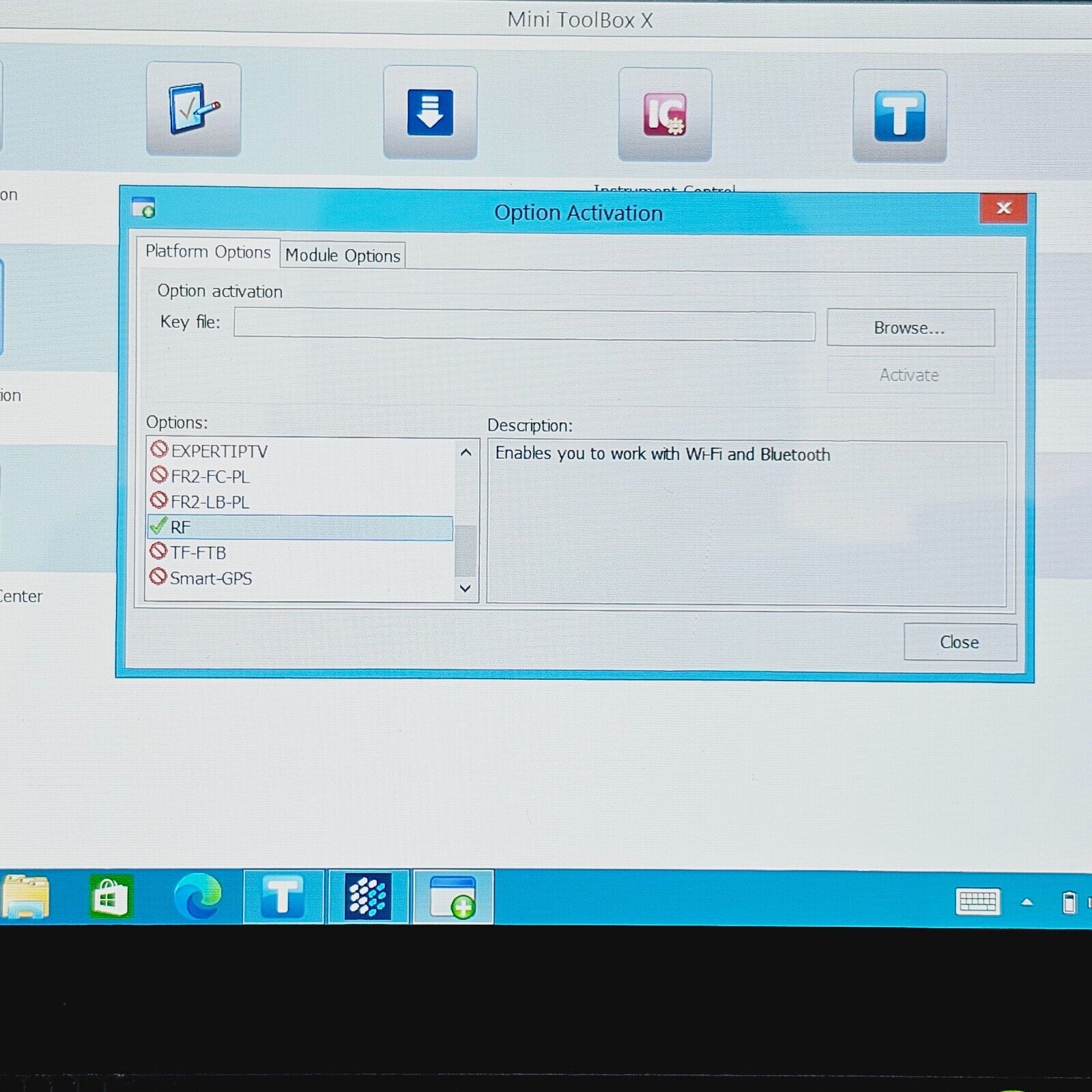

• FTB-1 Pro Mainframe (FTB-1V2PRO-S1-128G) with built-in Wi-Fi and Bluetooth
• FTB-880v2 NetBlazer Module
• Carry Bag

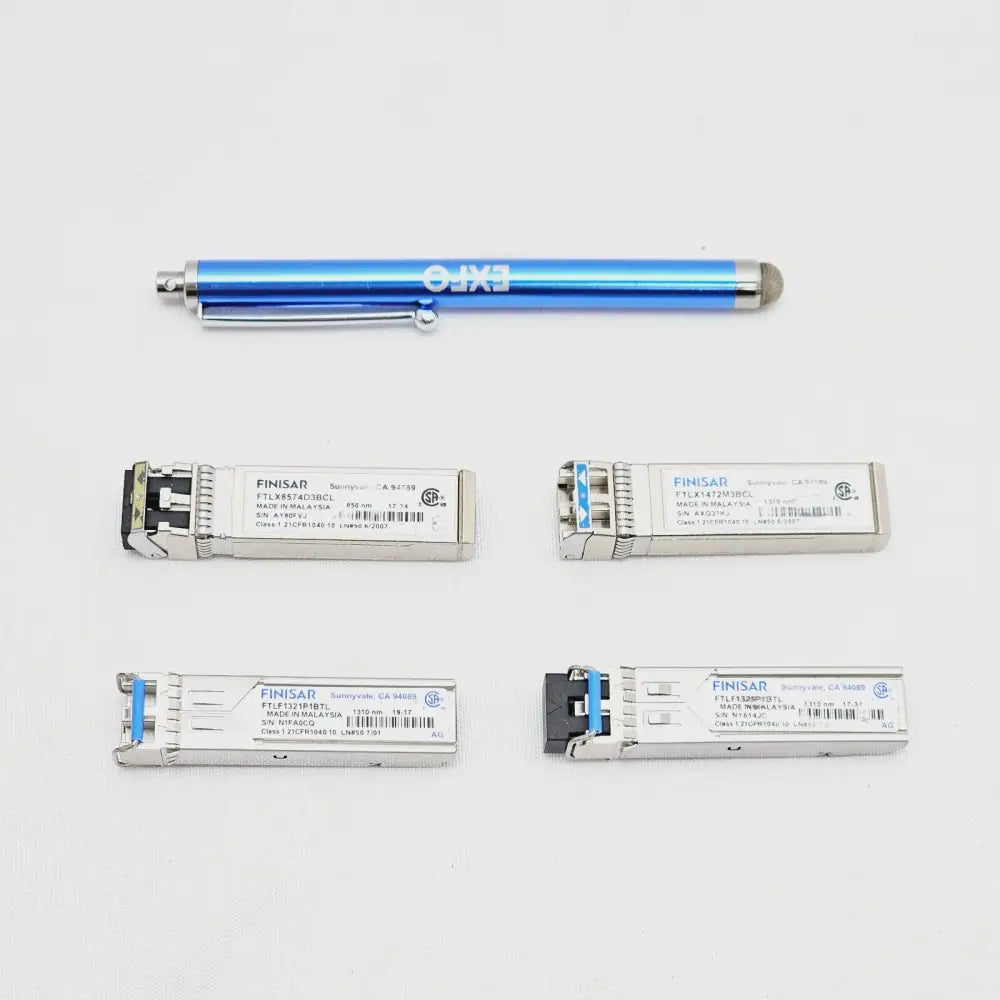

• Stylus
• 4x SFPs
• Power Adapter

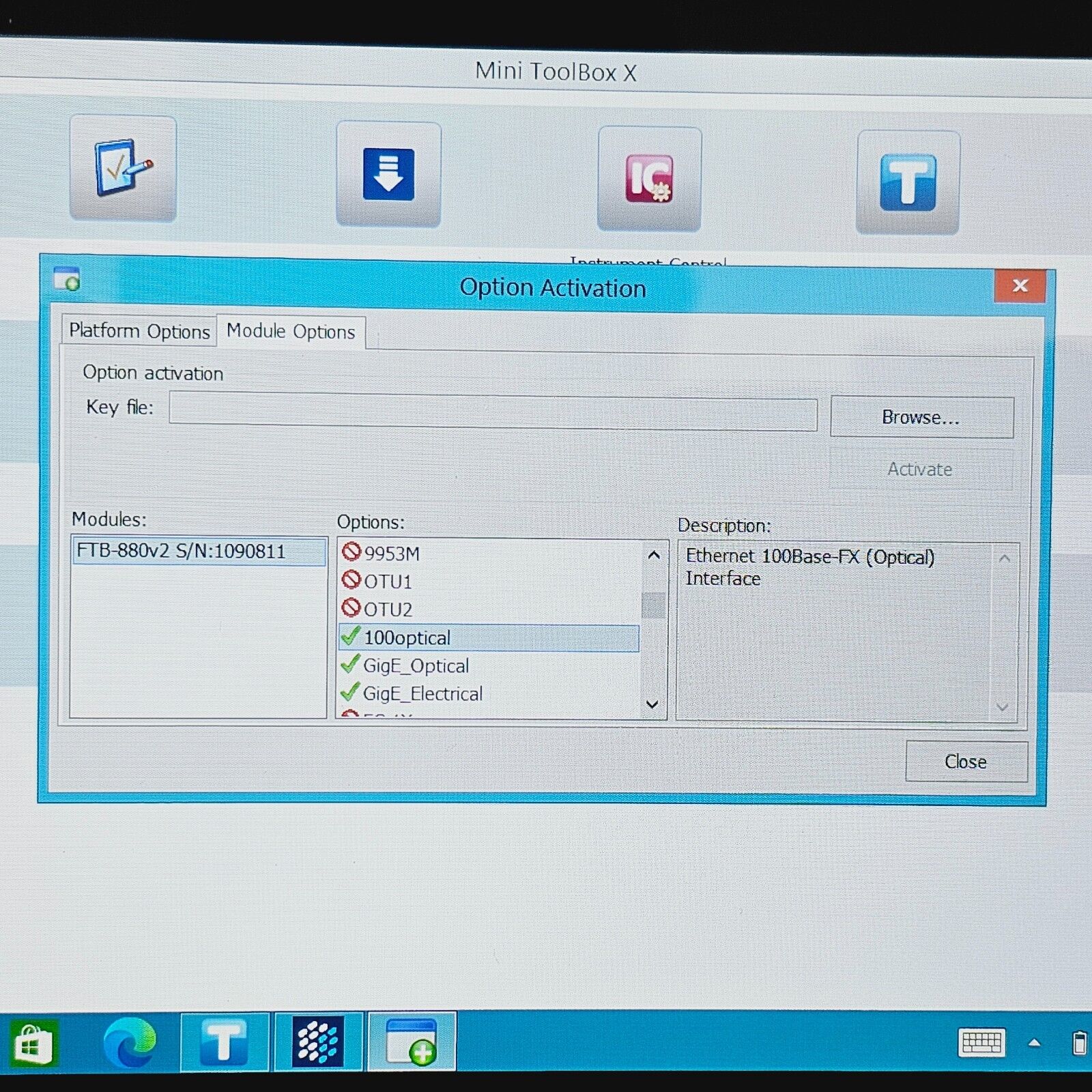

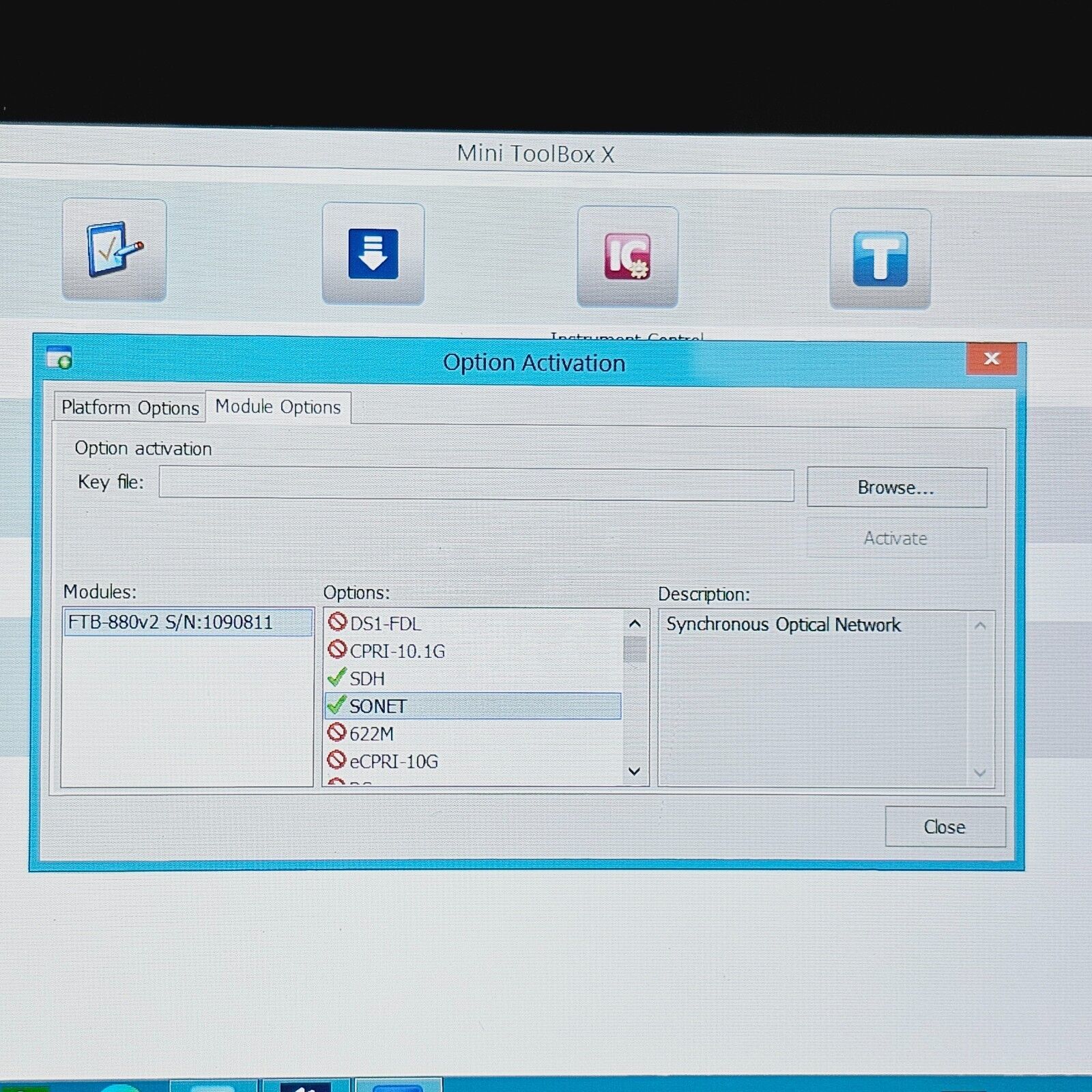

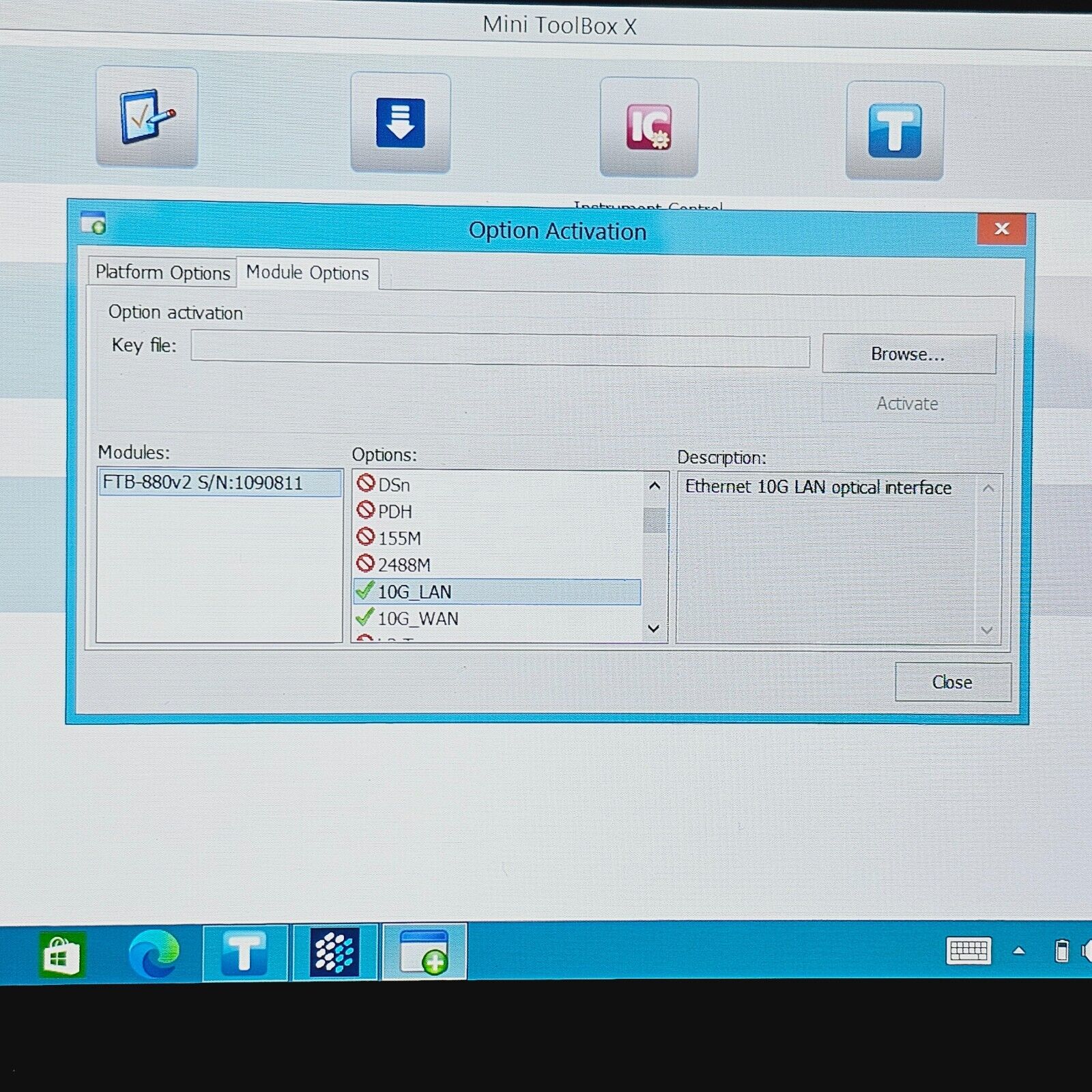

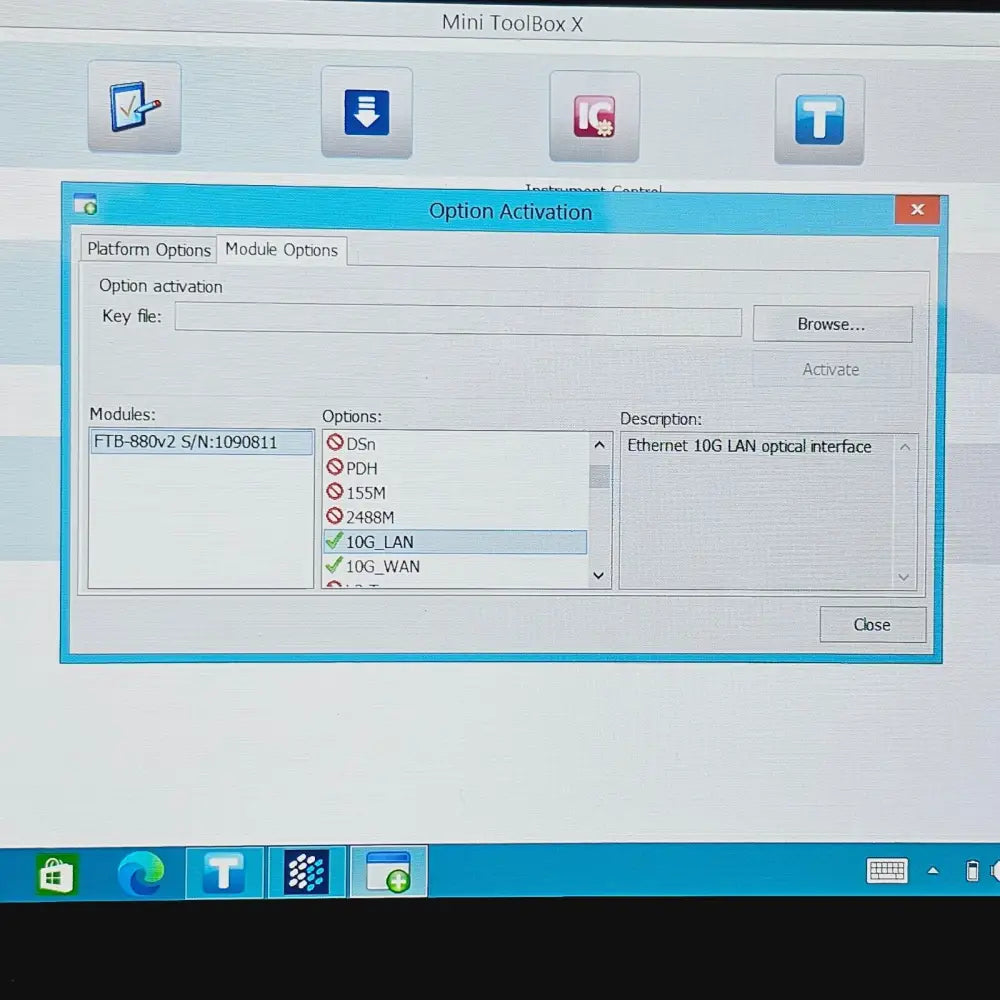

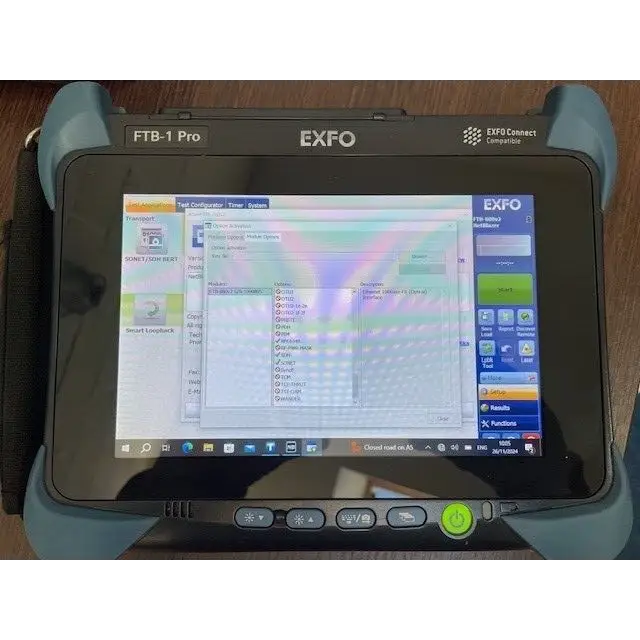

Installed/Licensed Options:

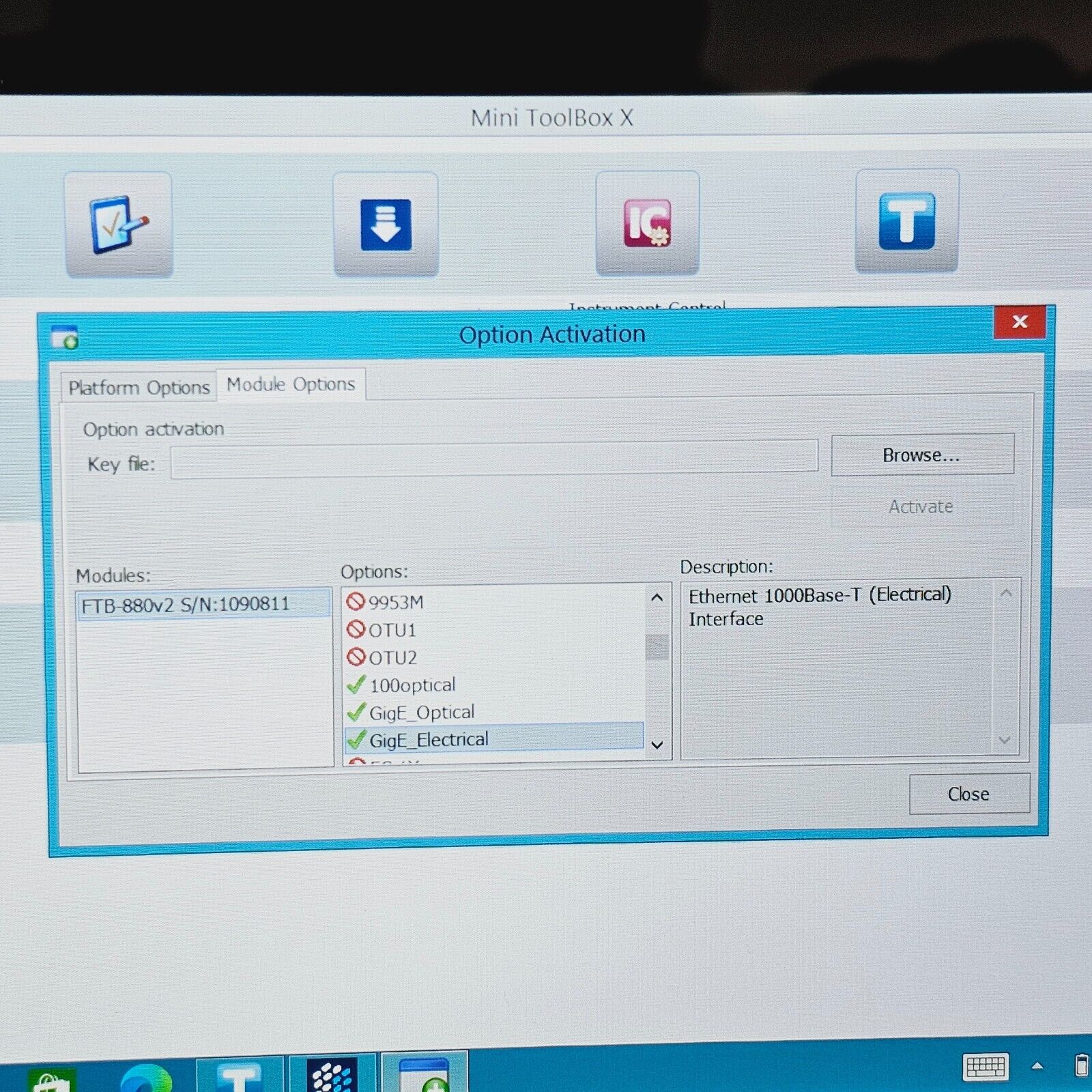

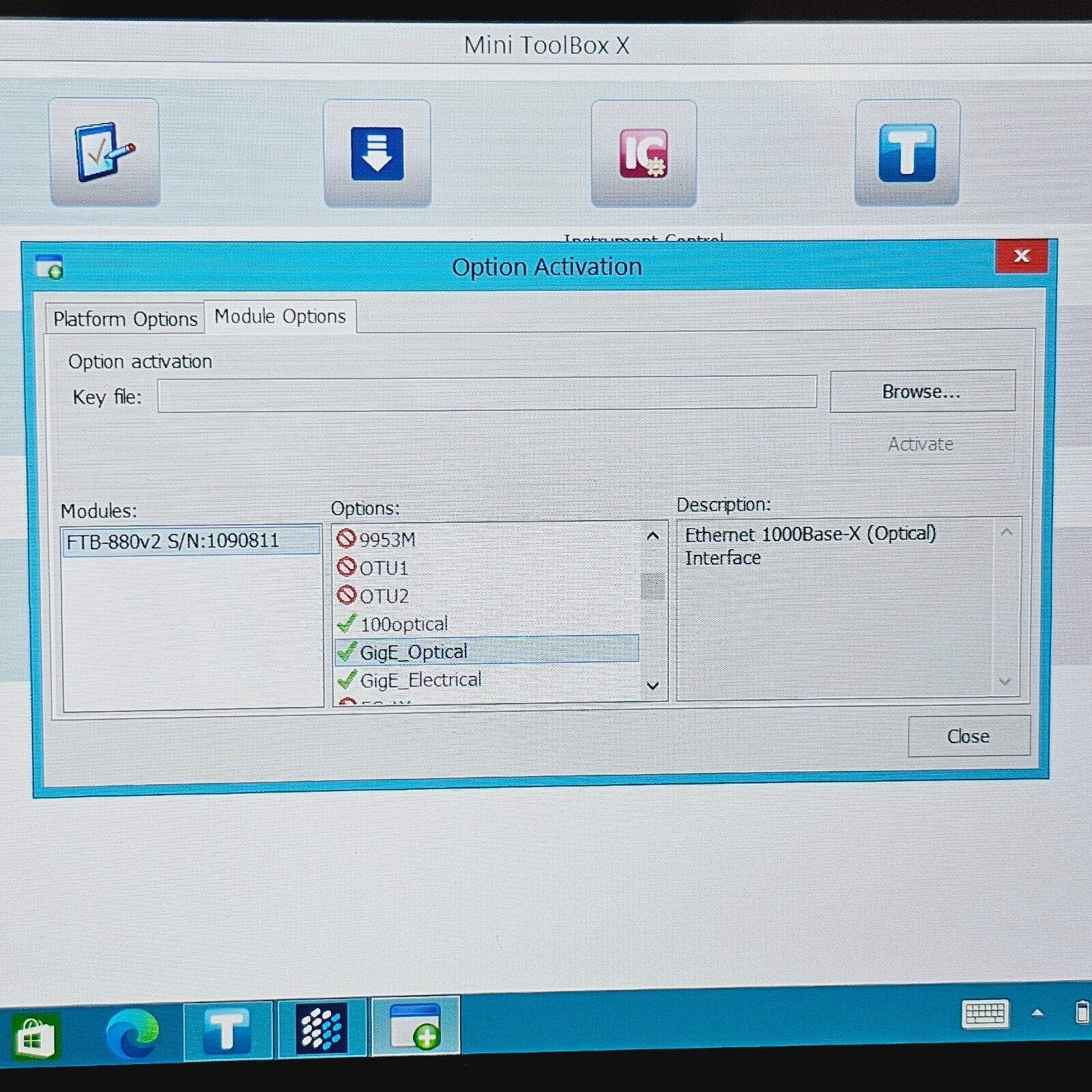

• GigE Optical / Electrical — enables support for 1000Base-X and 1000Base-T
• 100 Optical Ethernet — 100BASE-FX

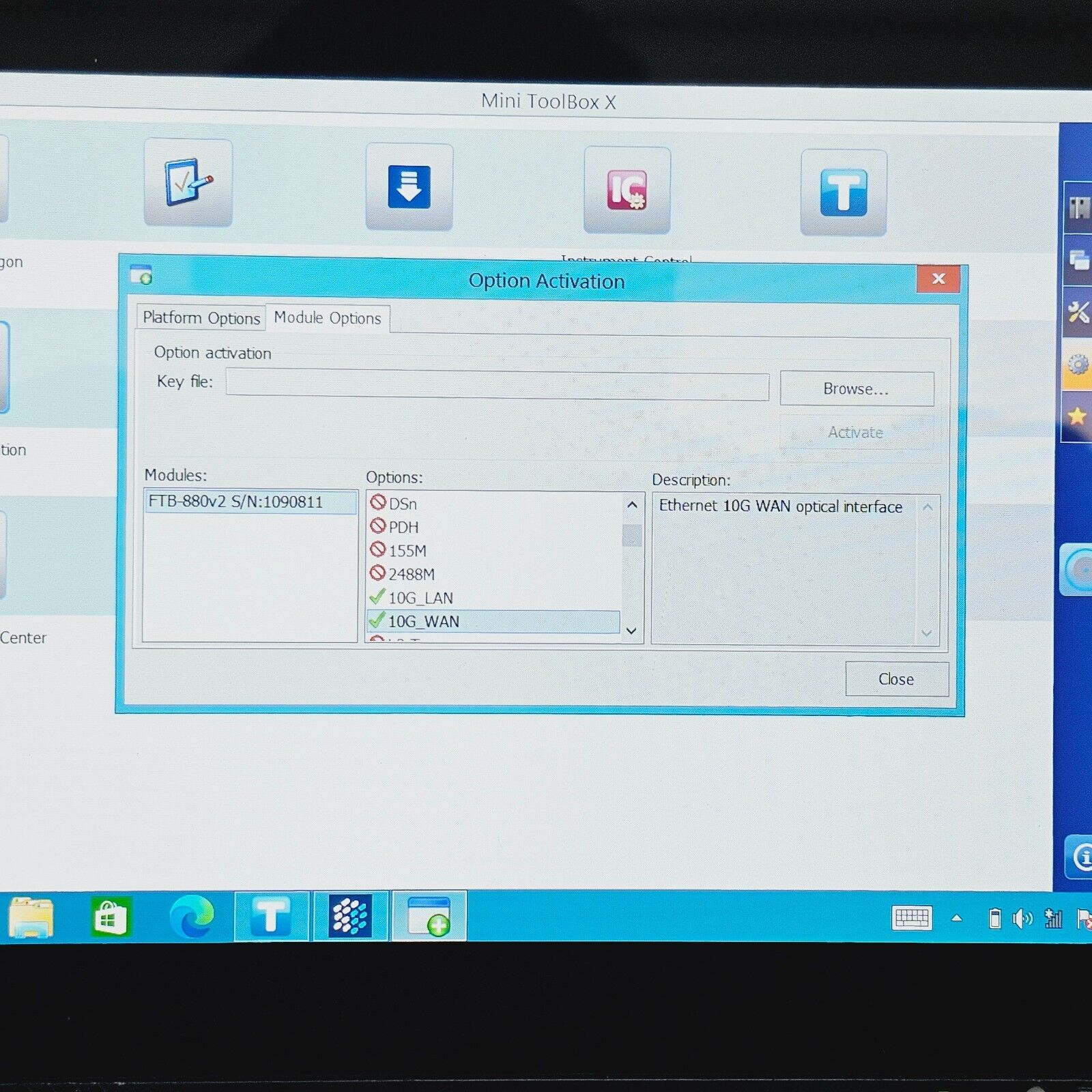

• 10G LAN / WAN — enables EtherBERT, RFC 2544 with Smart Loopback, EtherSAM (Y.1564)

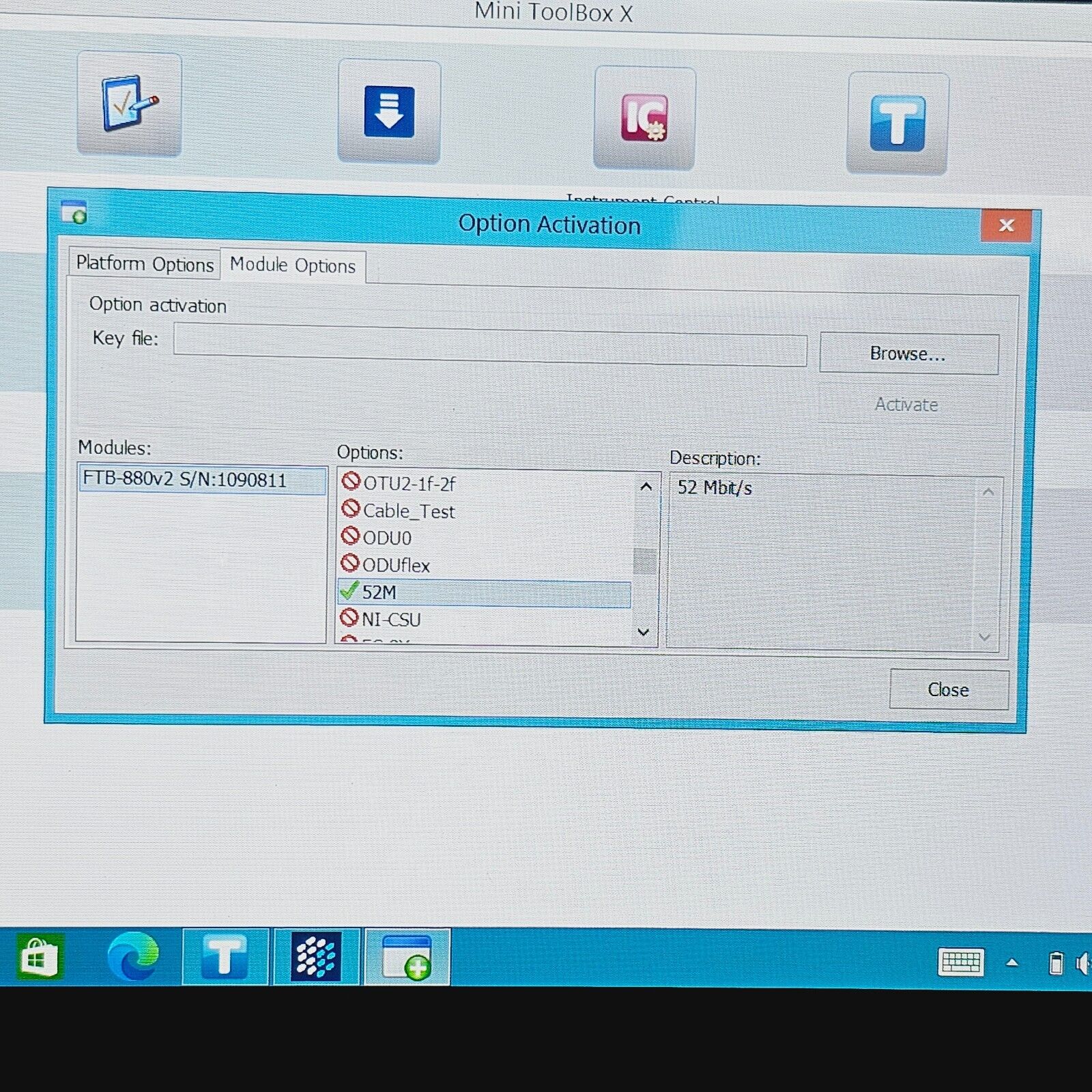

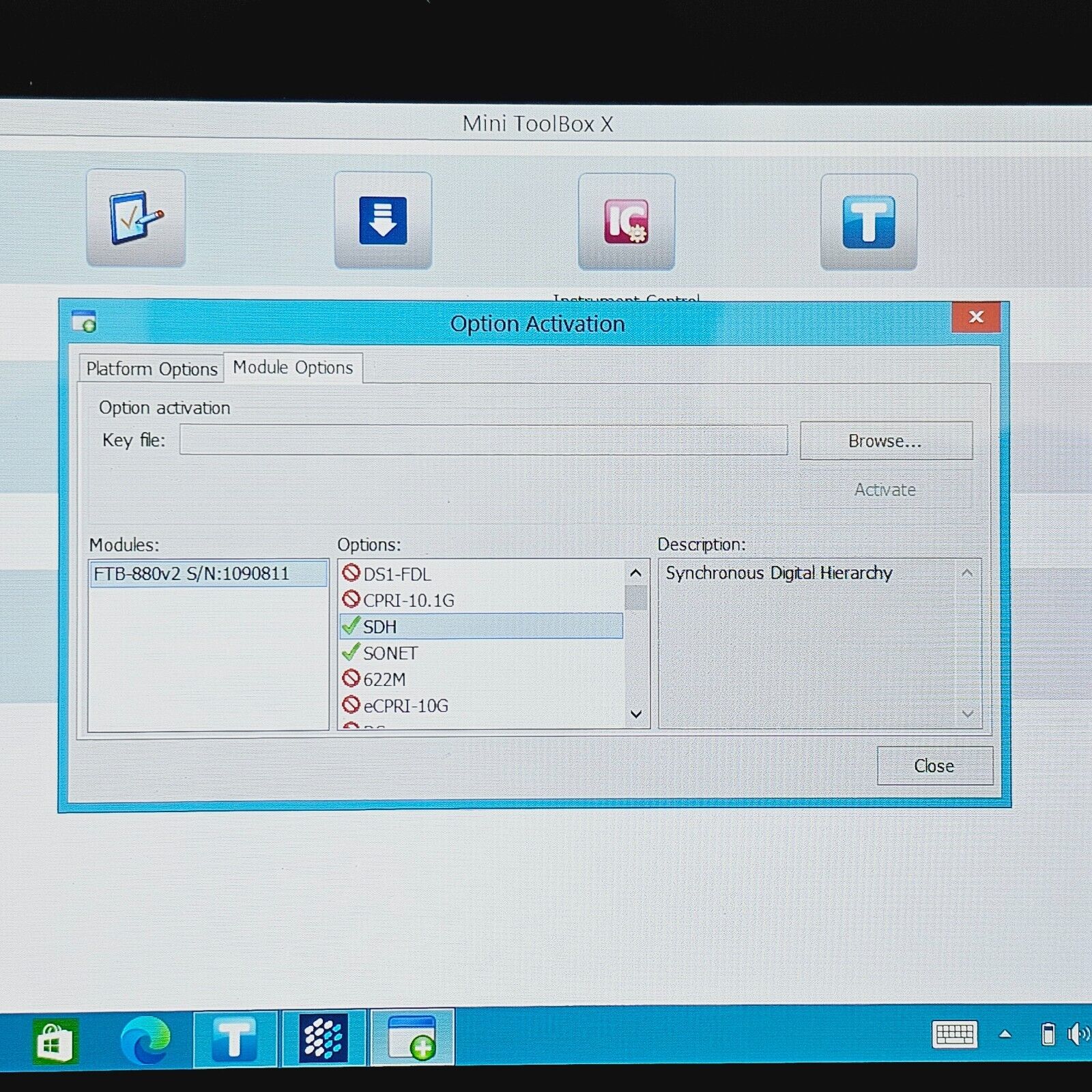

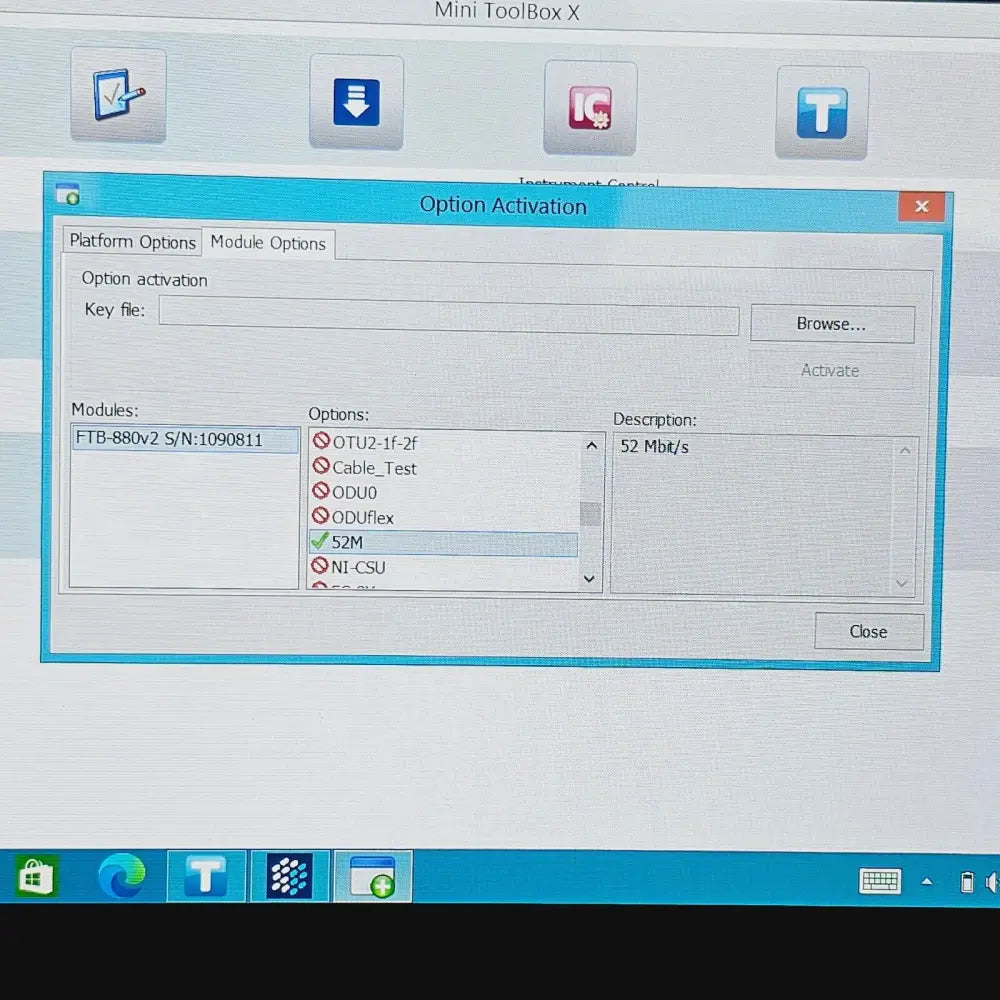

• SONET / SDH Base Software 52M — enables 52 Mbit/s optical rate interface
• RFC 6349 TCP throughput testing

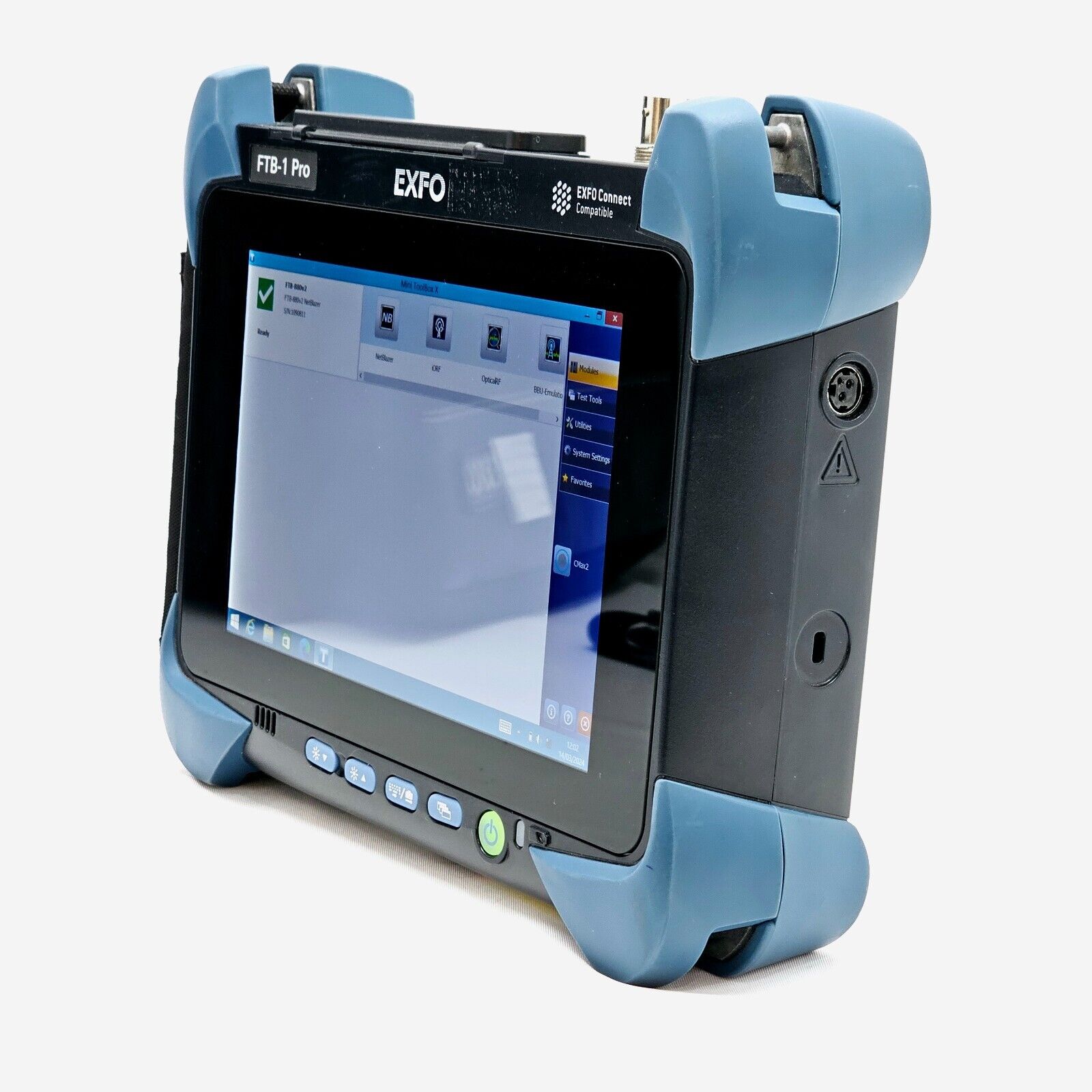

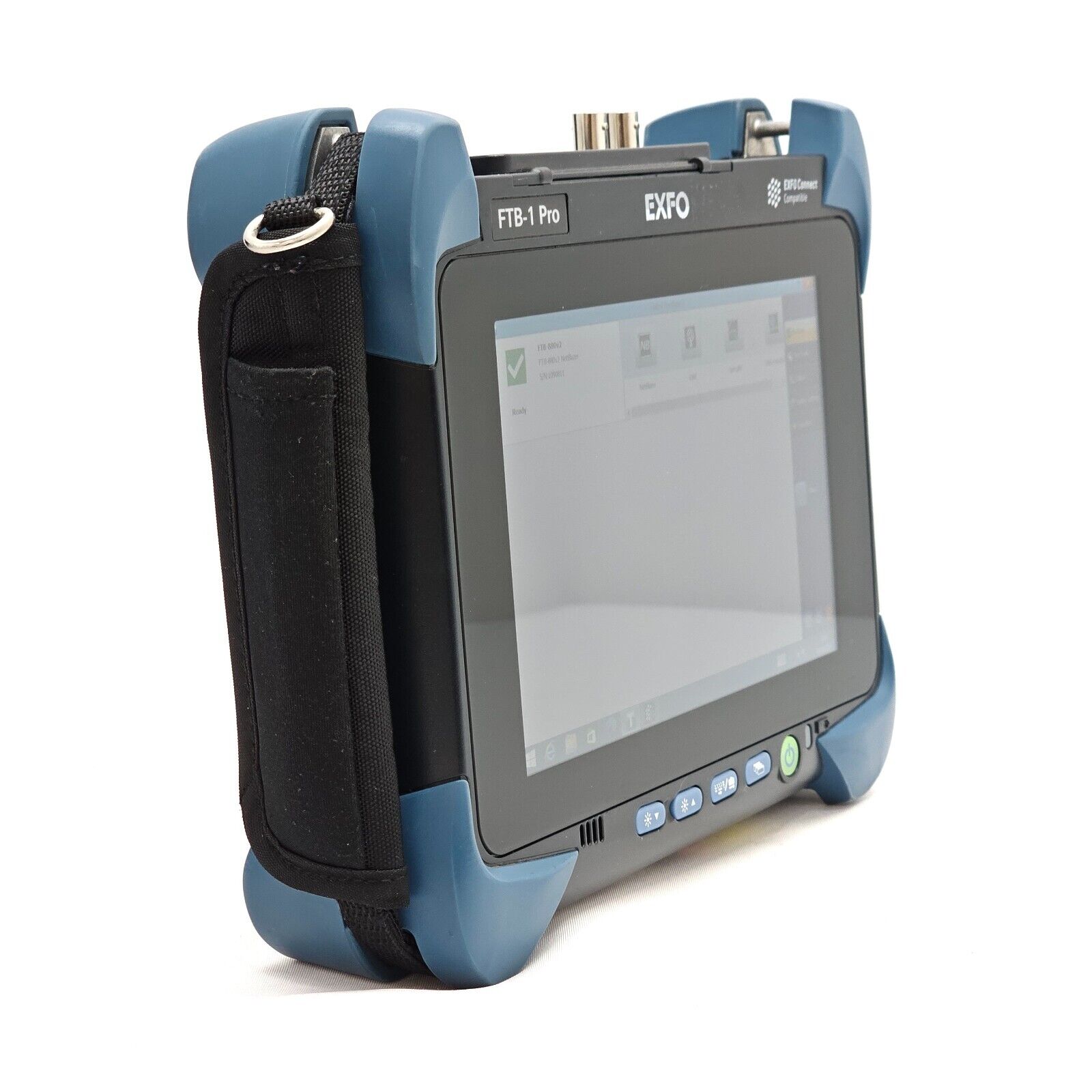

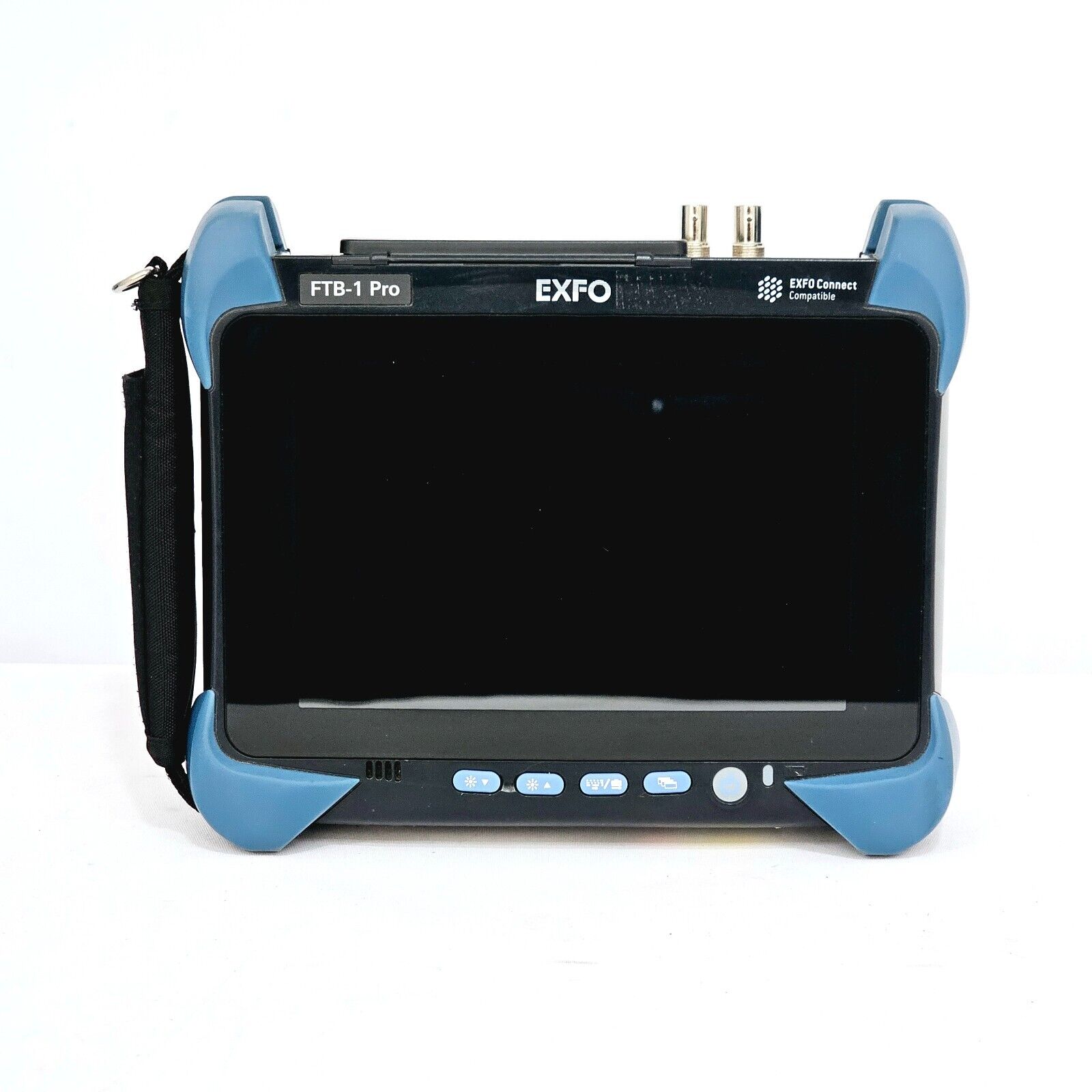

The EXFO FTB-1 Pro (FTB-1v2 Pro) is a compact, portable modular test platform designed for optical, Ethernet, TDM, and multiservice field testing. It accepts plug-in test modules such as the FTB-880v2 NetBlazer and supports testing from legacy networks up to 10G and beyond.
The FTB-880v2 NetBlazer module provides comprehensive Ethernet service activation and troubleshooting capabilities, supporting 10G and 1G LAN/WAN interfaces. It enables EtherBERT pattern testing, RFC 2544 benchmarking with Smart Loopback, EtherSAM per ITU-T Y.1564 for service turn-up, and RFC 6349 TCP layer throughput testing — making it suitable for carrier Ethernet, enterprise, and data centre network commissioning.

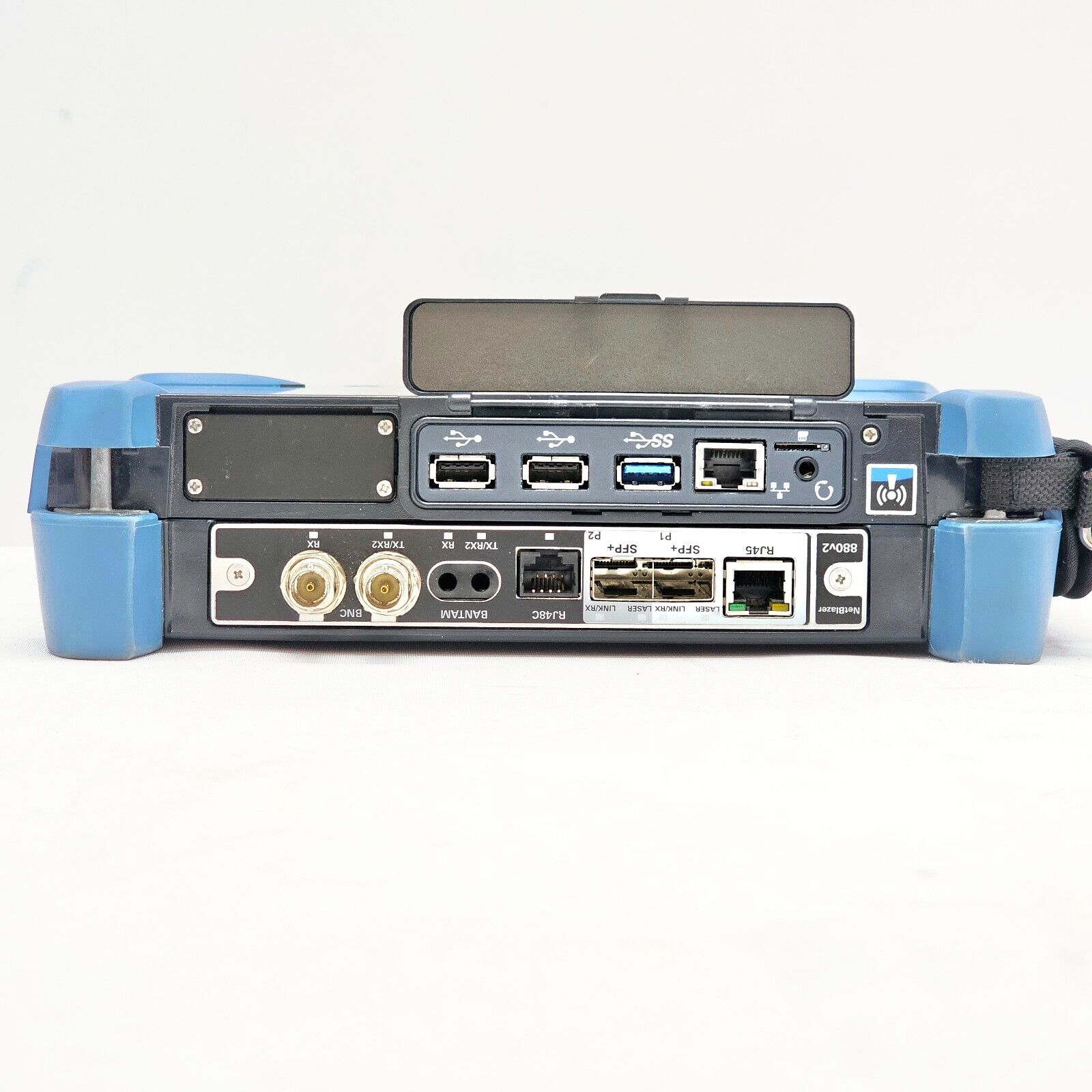

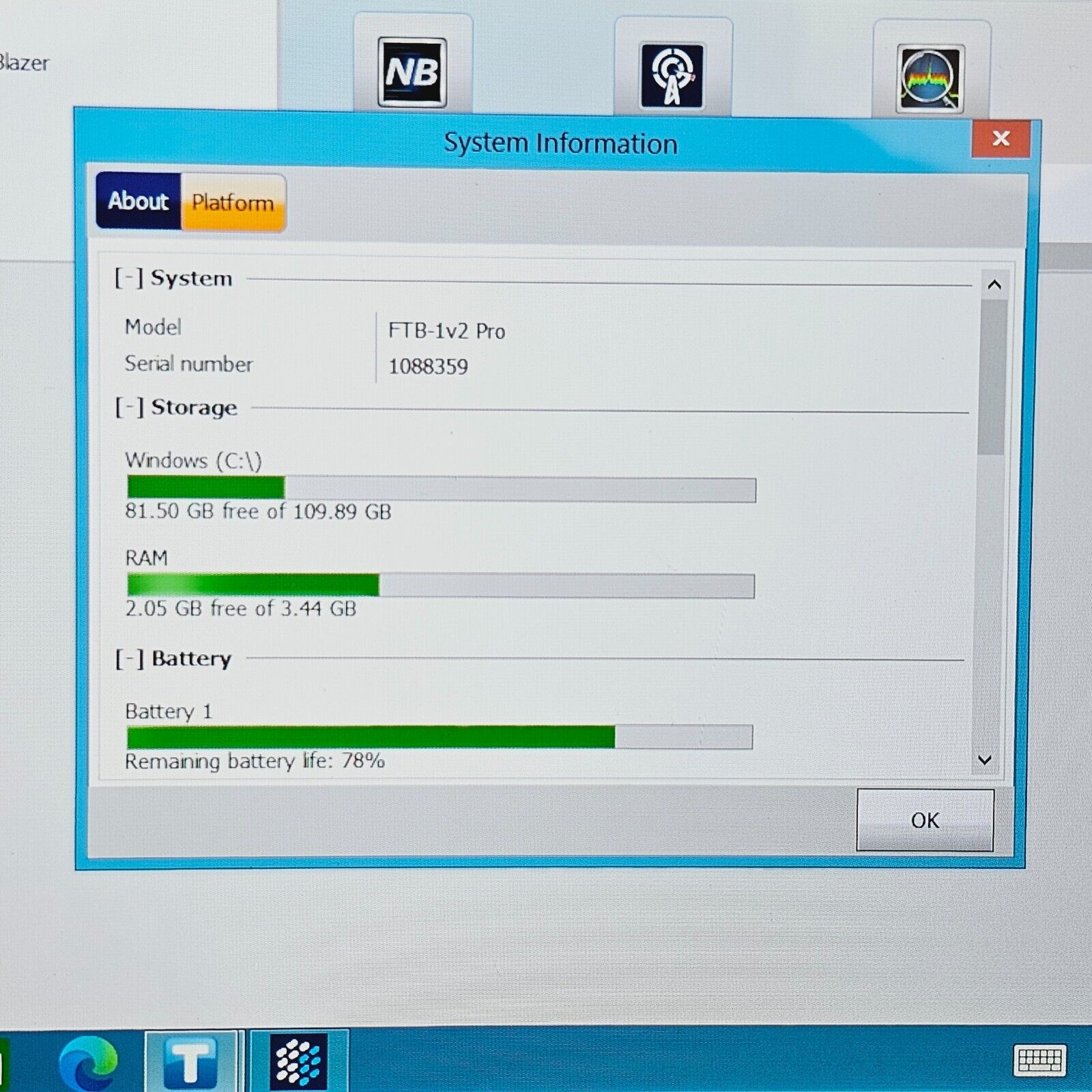

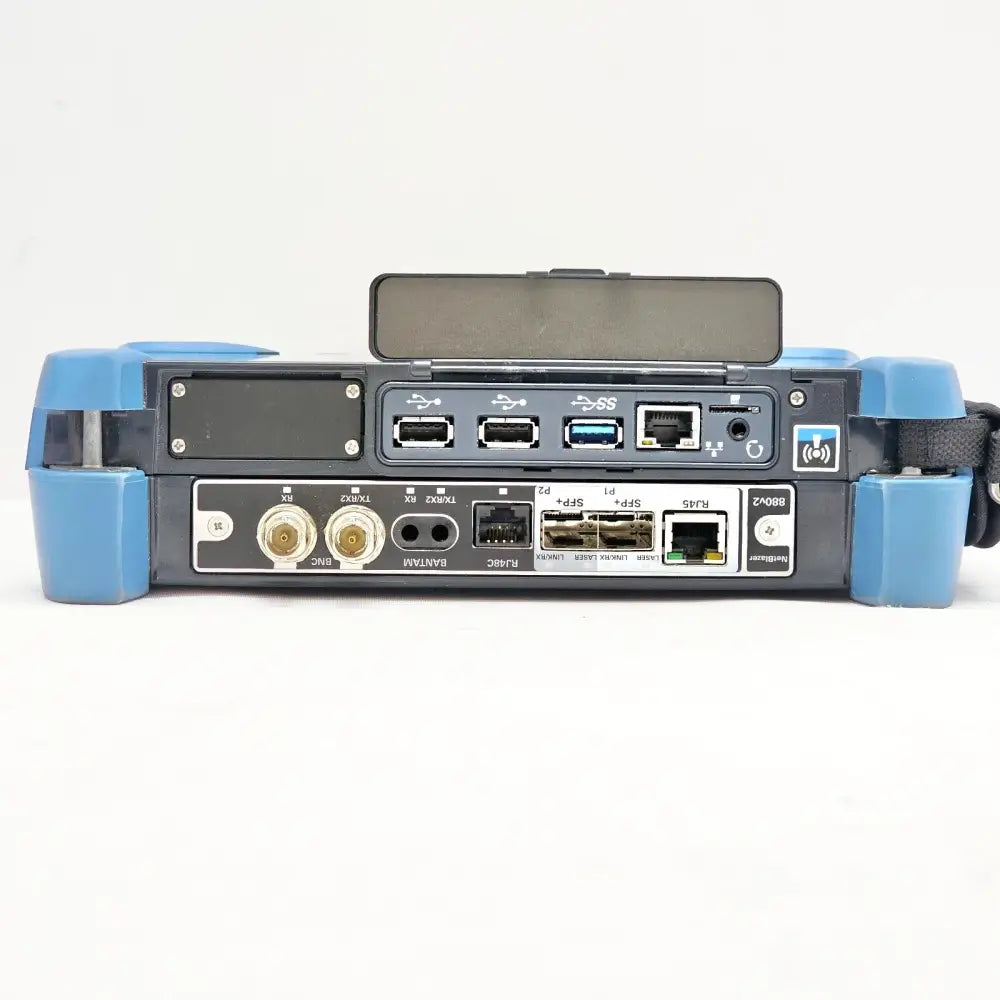

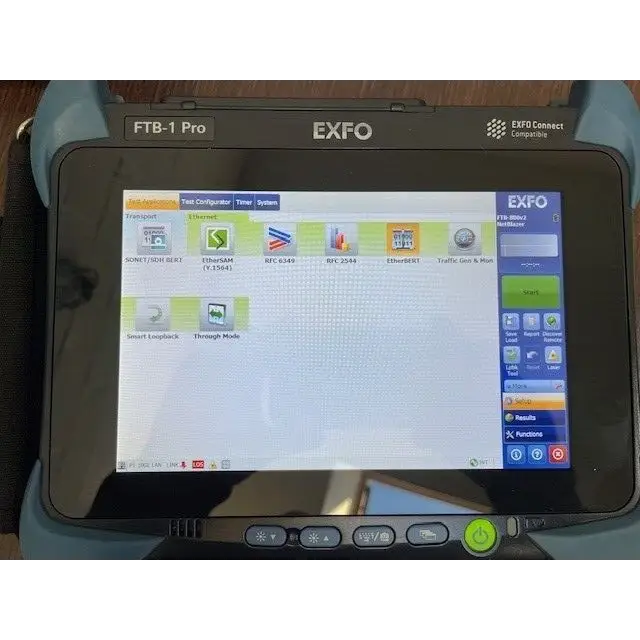

The FTB-1 Pro platform features a quad-core processor running Windows 10 IoT Enterprise, an 8-inch (20.3 cm) multitouch display at 1280 x 800 resolution, and extensive connectivity including USB 2.0, USB 3.0, RJ-45 Ethernet, Wi-Fi, Bluetooth, and MicroSD. Power is supplied via a 24 V DC / 3.75 A external AC adapter.
Key Specifications:
Platform: EXFO FTB-1 Pro (FTB-1v2 Pro)
Module: FTB-880v2 NetBlazer
Interface Rates: 10G LAN/WAN, 1G (1000Base-X, 1000Base-T), 100BASE-FX, 52 Mbit/s SONET/SDH

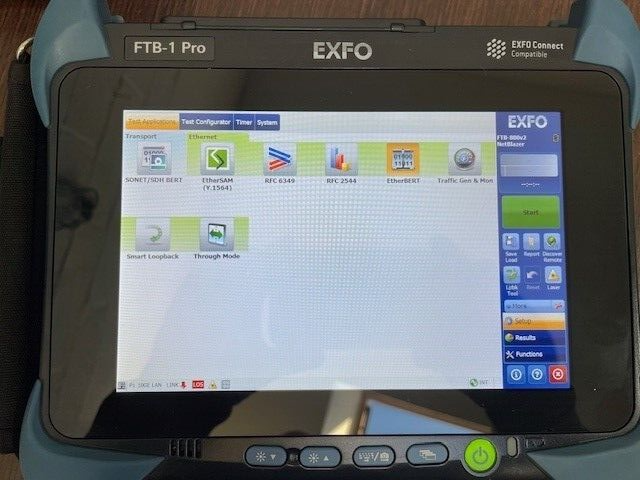

Test Protocols: EtherBERT, RFC 2544, EtherSAM (ITU-T Y.1564), RFC 6349
Smart Loopback: Yes (RFC 2544)
Display: 8-inch multitouch, 1280 x 800
Operating System: Windows 10 IoT Enterprise
Connectivity: Wi-Fi, Bluetooth, USB 2.0, USB 3.0, RJ-45, MicroSD
Power Input: 24 V DC / 3.75 A (90 W AC adapter)
Form Factor: Portable handheld/field unit
EXFO FTB-1v2 Pro Platform Specification Sheet (PDF): Download PDF
EXFO FTB-880v2 NetBlazer Module Datasheet (PDF): Download PDF
Product Overview
Condition: Used
This EXFO FTB-1 Pro mainframe (FTB-1V2PRO-S1-128G) with FTB-880v2 NetBlazer module is in good condition and fully tested. The unit features built-in Wi-Fi and Bluetooth, and is equipped with a comprehensive set of licensed test options for multi-service Ethernet and SONET/SDH field testing.
Included with this product:
• FTB-1 Pro Mainframe (FTB-1V2PRO-S1-128G) with built-in Wi-Fi and Bluetooth
• FTB-880v2 NetBlazer Module
• Carry Bag
• Stylus
• 4x SFPs
• Power Adapter
Installed/Licensed Options:
• GigE Optical / Electrical — enables support for 1000Base-X and 1000Base-T
• 100 Optical Ethernet — 100BASE-FX
• 10G LAN / WAN — enables EtherBERT, RFC 2544 with Smart Loopback, EtherSAM (Y.1564)
• SONET / SDH Base Software 52M — enables 52 Mbit/s optical rate interface
• RFC 6349 TCP throughput testing
Manufacturer's Description
The EXFO FTB-1 Pro (FTB-1v2 Pro) is a compact, portable modular test platform designed for optical, Ethernet, TDM, and multiservice field testing. It accepts plug-in test modules such as the FTB-880v2 NetBlazer and supports testing from legacy networks up to 10G and beyond.
The FTB-880v2 NetBlazer module provides comprehensive Ethernet service activation and troubleshooting capabilities, supporting 10G and 1G LAN/WAN interfaces. It enables EtherBERT pattern testing, RFC 2544 benchmarking with Smart Loopback, EtherSAM per ITU-T Y.1564 for service turn-up, and RFC 6349 TCP layer throughput testing — making it suitable for carrier Ethernet, enterprise, and data centre network commissioning.
The FTB-1 Pro platform features a quad-core processor running Windows 10 IoT Enterprise, an 8-inch (20.3 cm) multitouch display at 1280 x 800 resolution, and extensive connectivity including USB 2.0, USB 3.0, RJ-45 Ethernet, Wi-Fi, Bluetooth, and MicroSD. Power is supplied via a 24 V DC / 3.75 A external AC adapter.
Key Specifications:
Platform: EXFO FTB-1 Pro (FTB-1v2 Pro)
Module: FTB-880v2 NetBlazer
Interface Rates: 10G LAN/WAN, 1G (1000Base-X, 1000Base-T), 100BASE-FX, 52 Mbit/s SONET/SDH
Test Protocols: EtherBERT, RFC 2544, EtherSAM (ITU-T Y.1564), RFC 6349
Smart Loopback: Yes (RFC 2544)
Display: 8-inch multitouch, 1280 x 800
Operating System: Windows 10 IoT Enterprise
Connectivity: Wi-Fi, Bluetooth, USB 2.0, USB 3.0, RJ-45, MicroSD
Power Input: 24 V DC / 3.75 A (90 W AC adapter)
Form Factor: Portable handheld/field unit
Resources
EXFO FTB-1v2 Pro Platform Specification Sheet (PDF): Download PDF
EXFO FTB-880v2 NetBlazer Module Datasheet (PDF): Download PDF
