EXFO FTB-1 Pro FTB-730Gv2-SM8-OPM 1310/1550 & 1650 Live iOLM APC FTB-730 SM8
Model: FTB-730Gv2-SM8-OPM
Condition: Used
In stock: 0
SKU: 3104 3B03
- 1310nm
- 1550nm
- 1650nm
- Fiber Optics
- Filtered/Live
- iOLM
- OTDR
- SM8
Choose options
Condition: Used

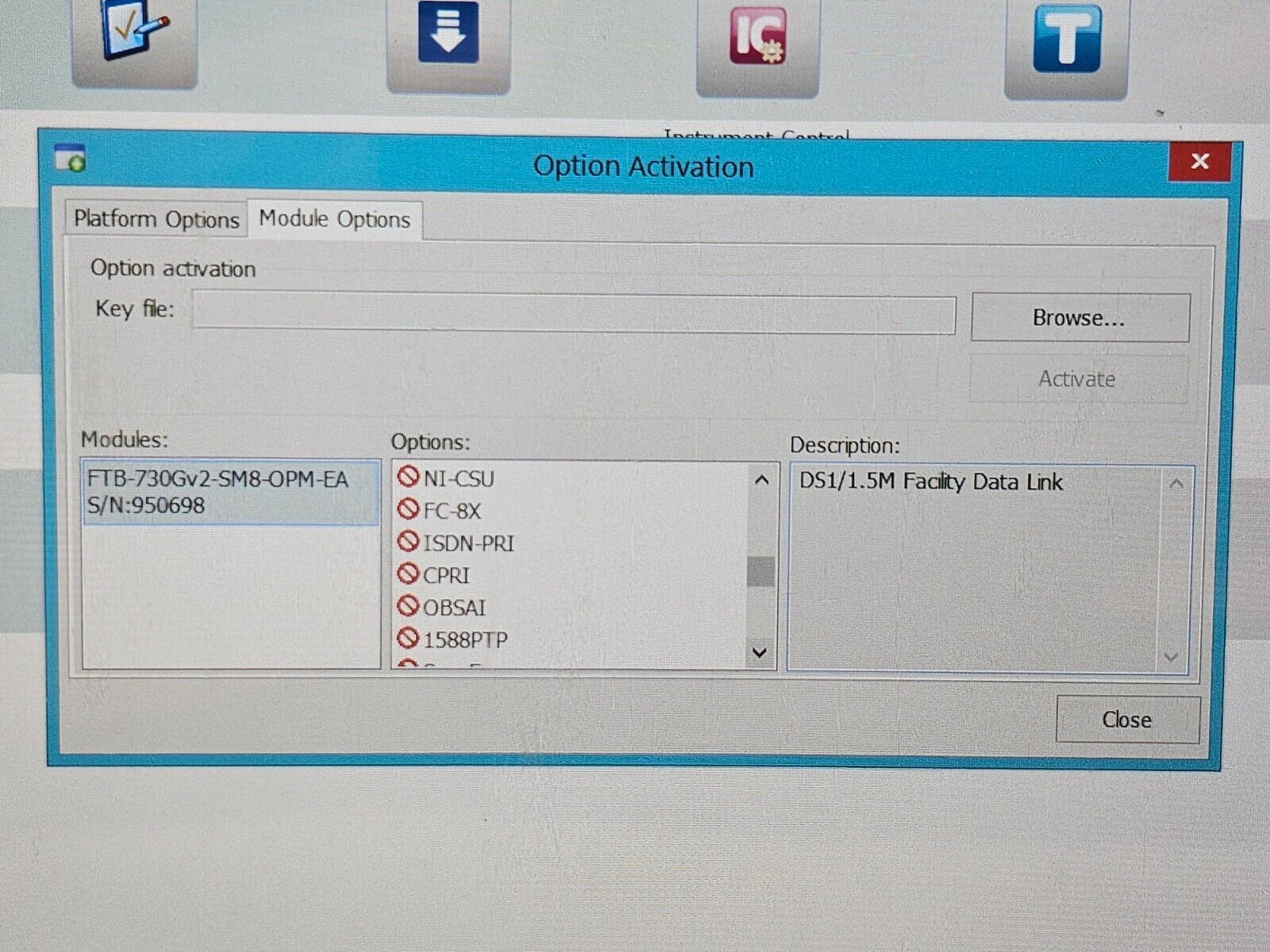

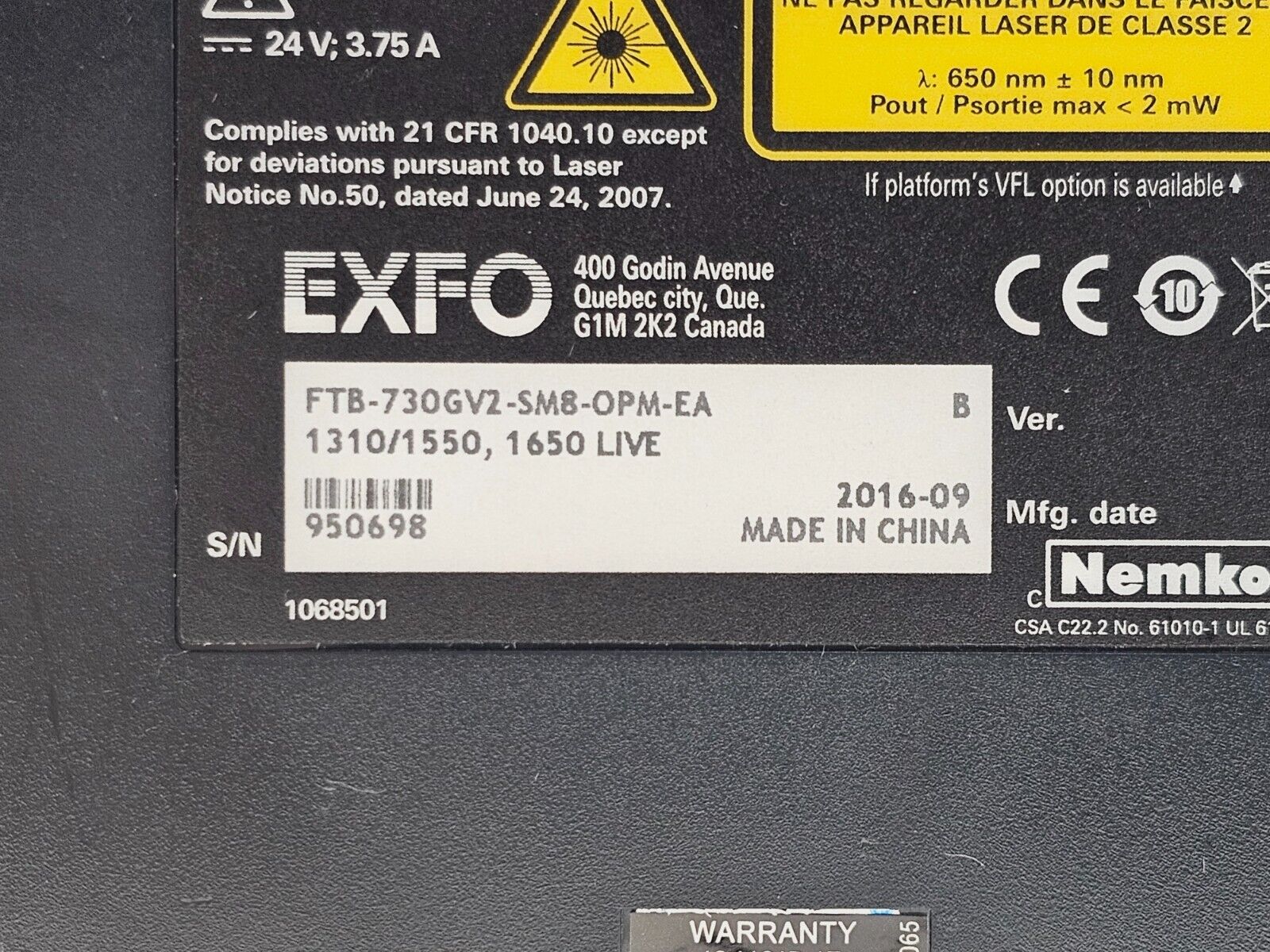

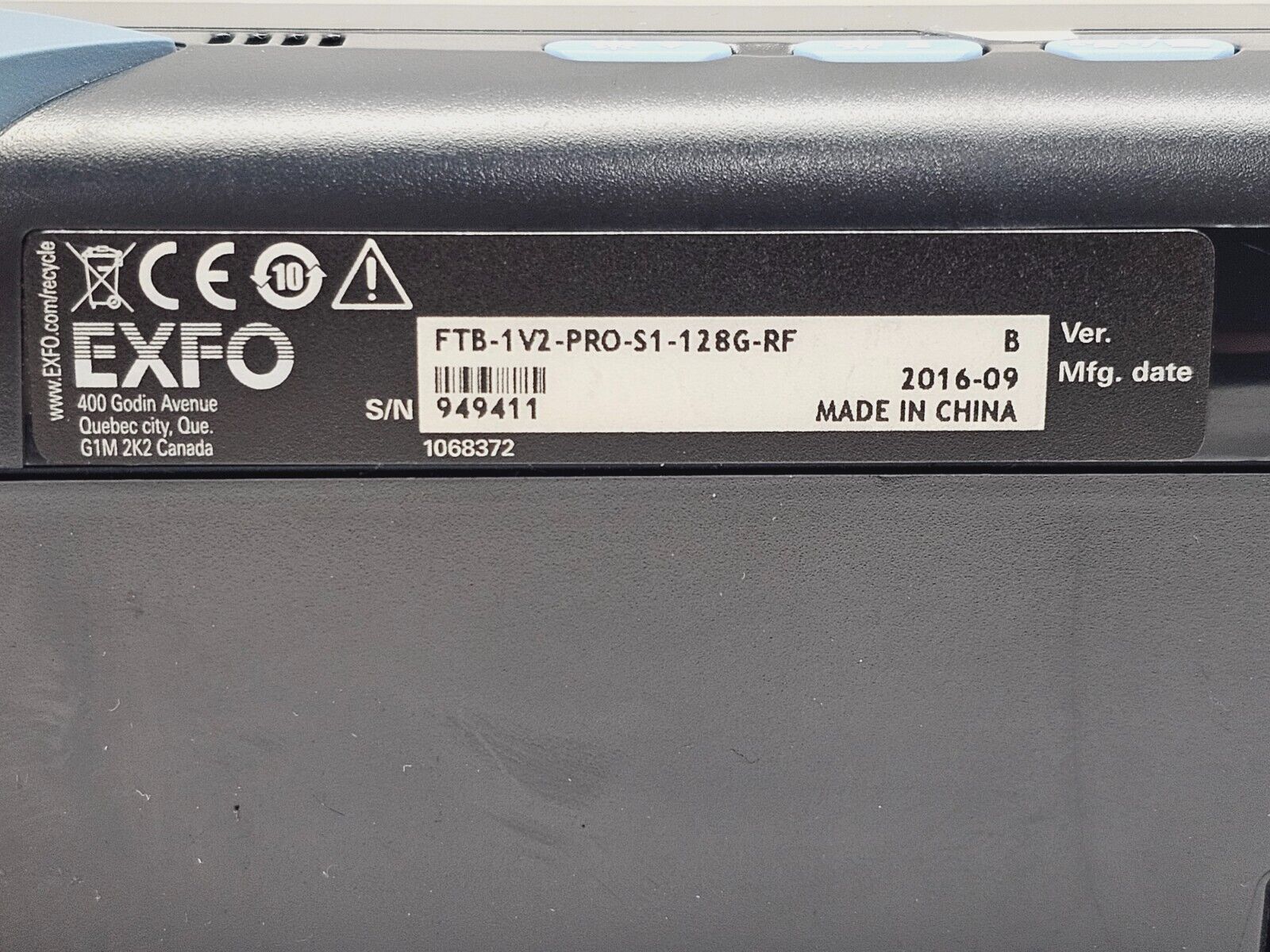

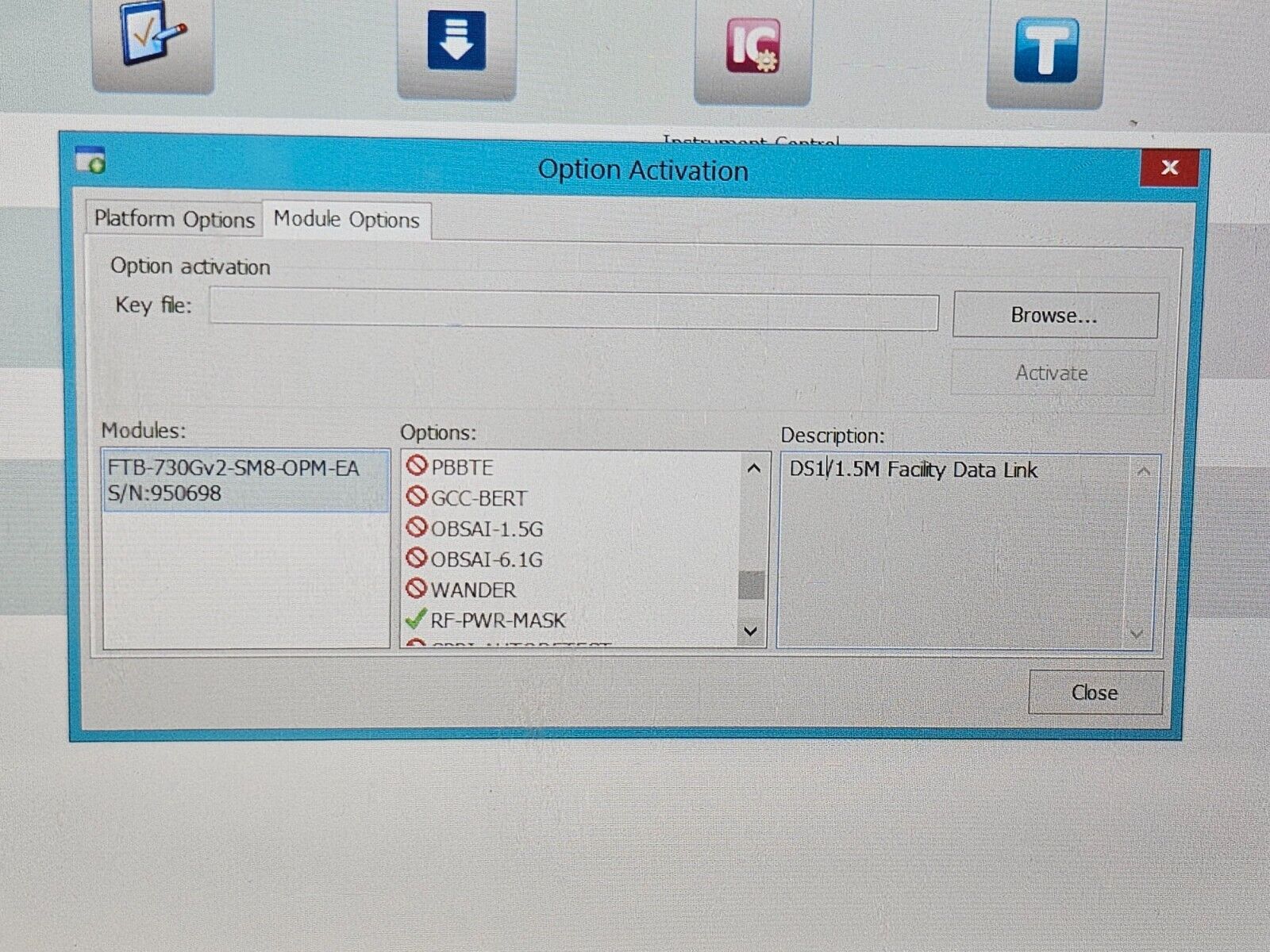

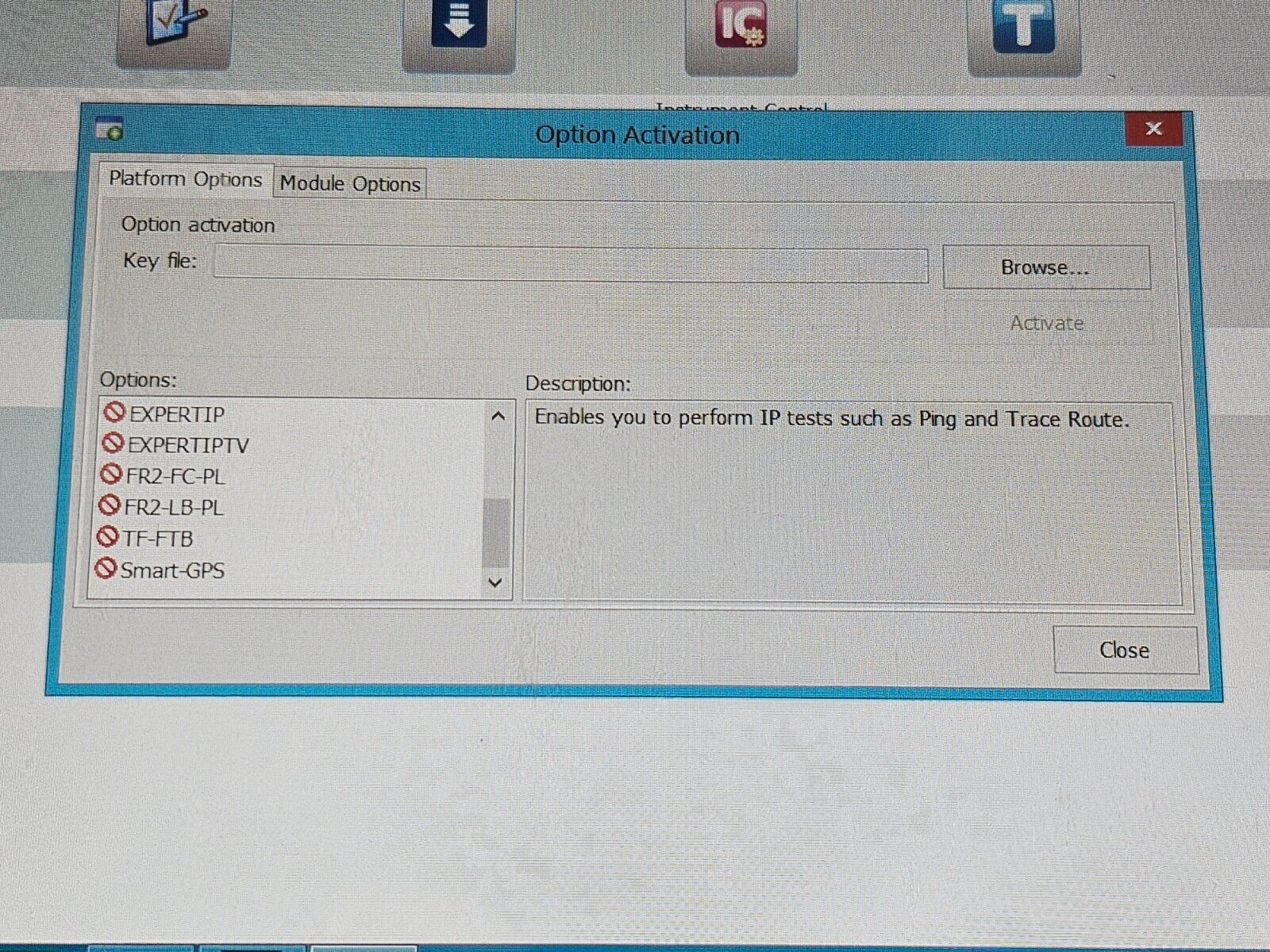

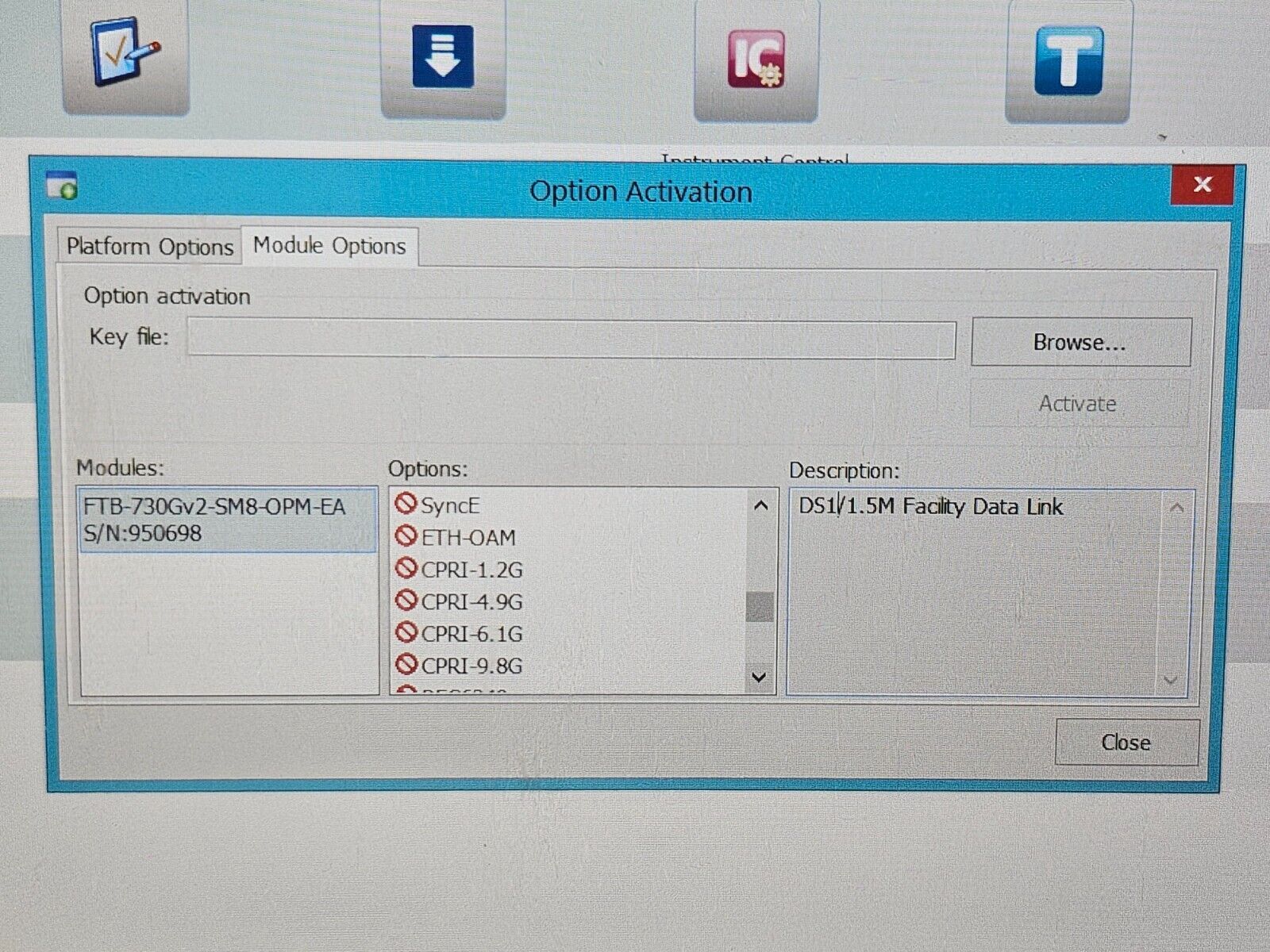

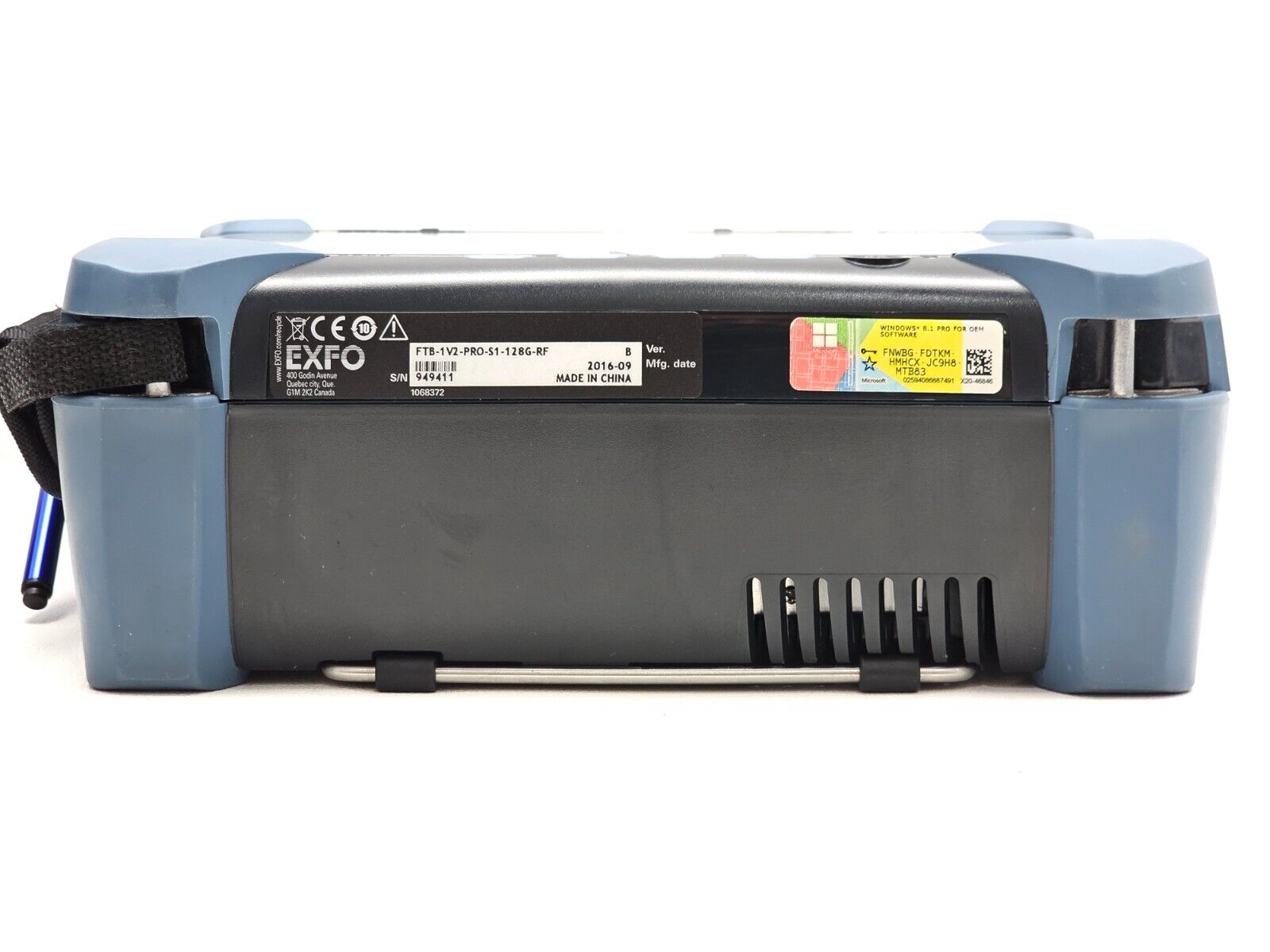

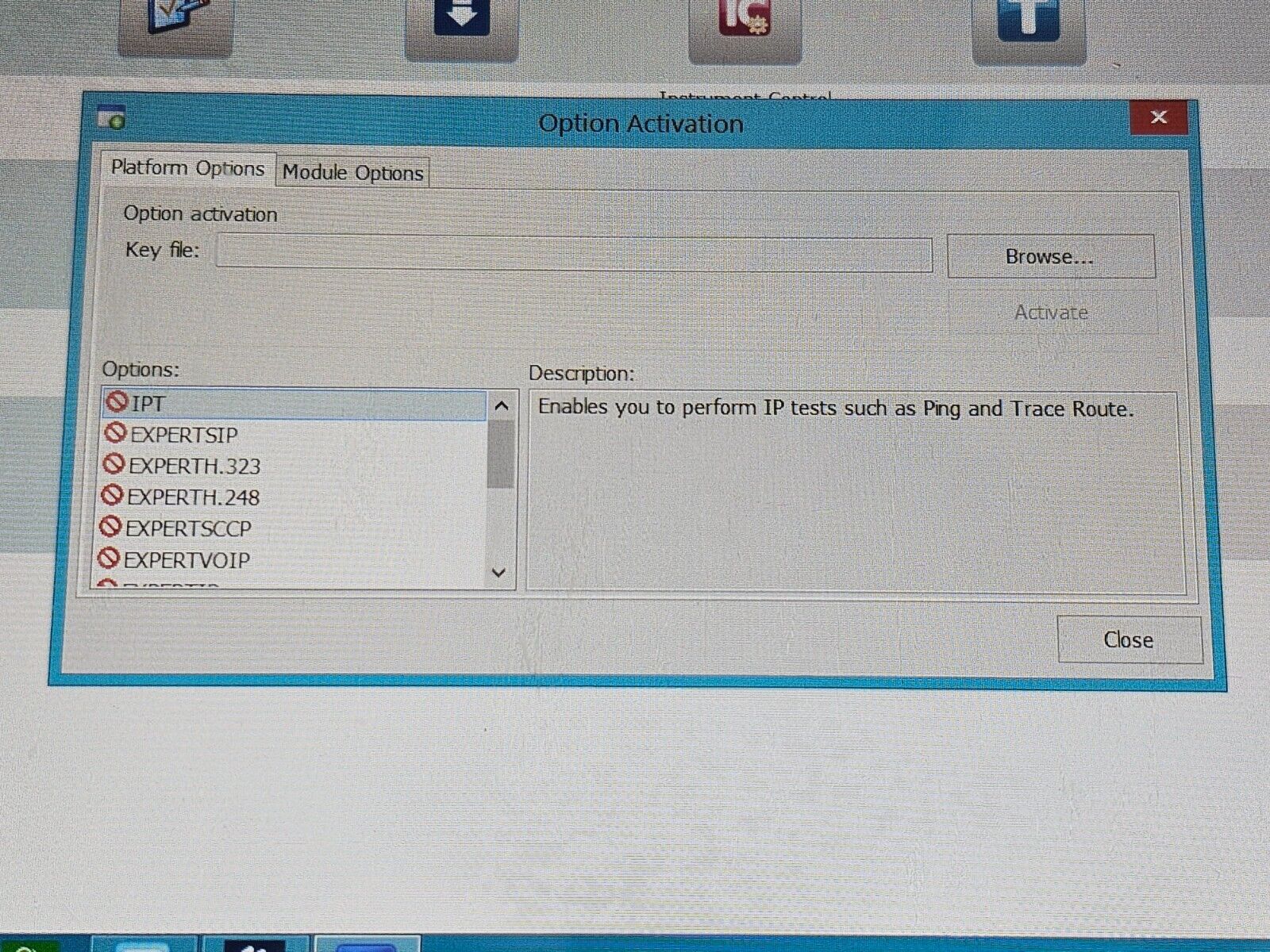

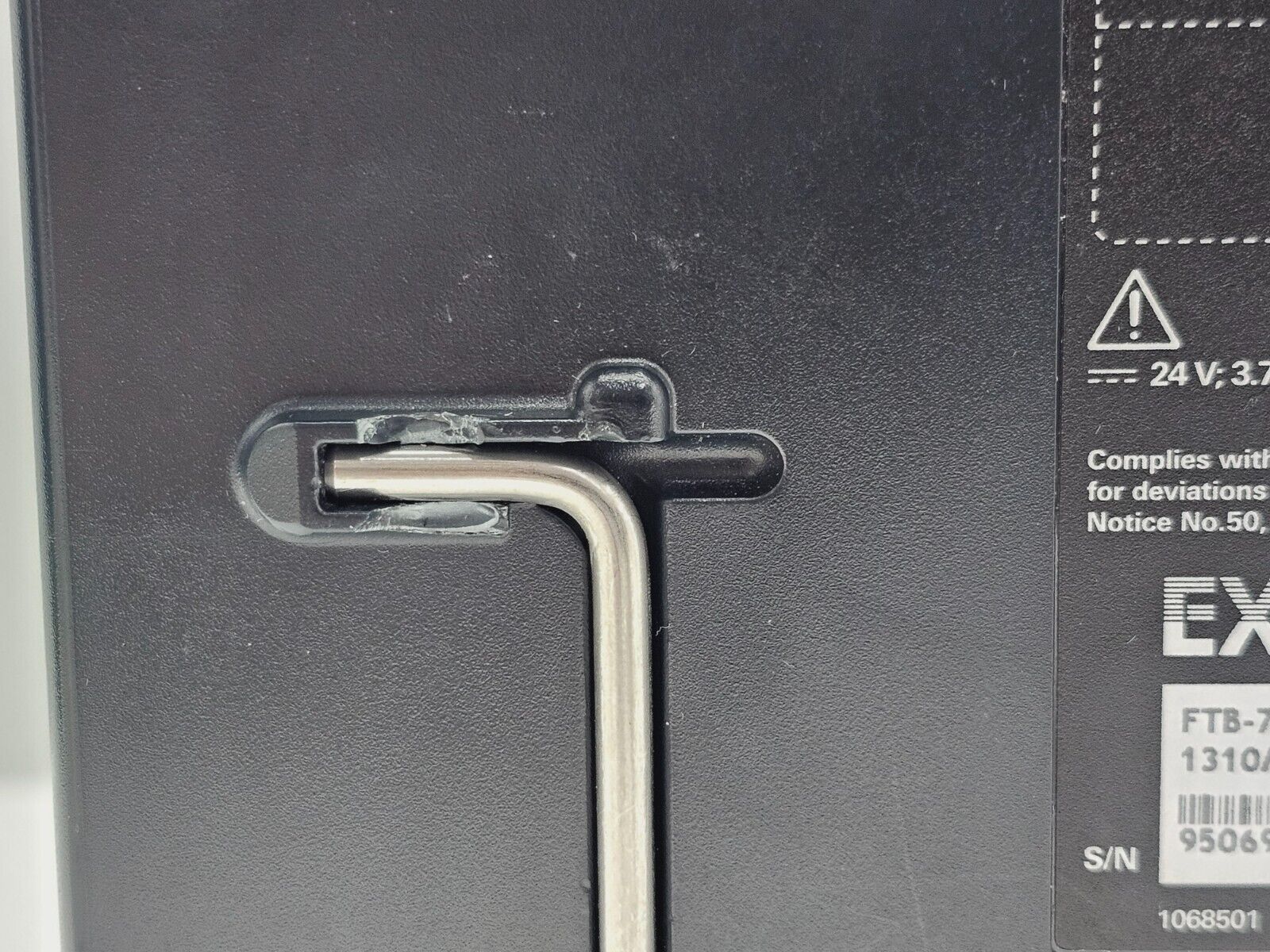

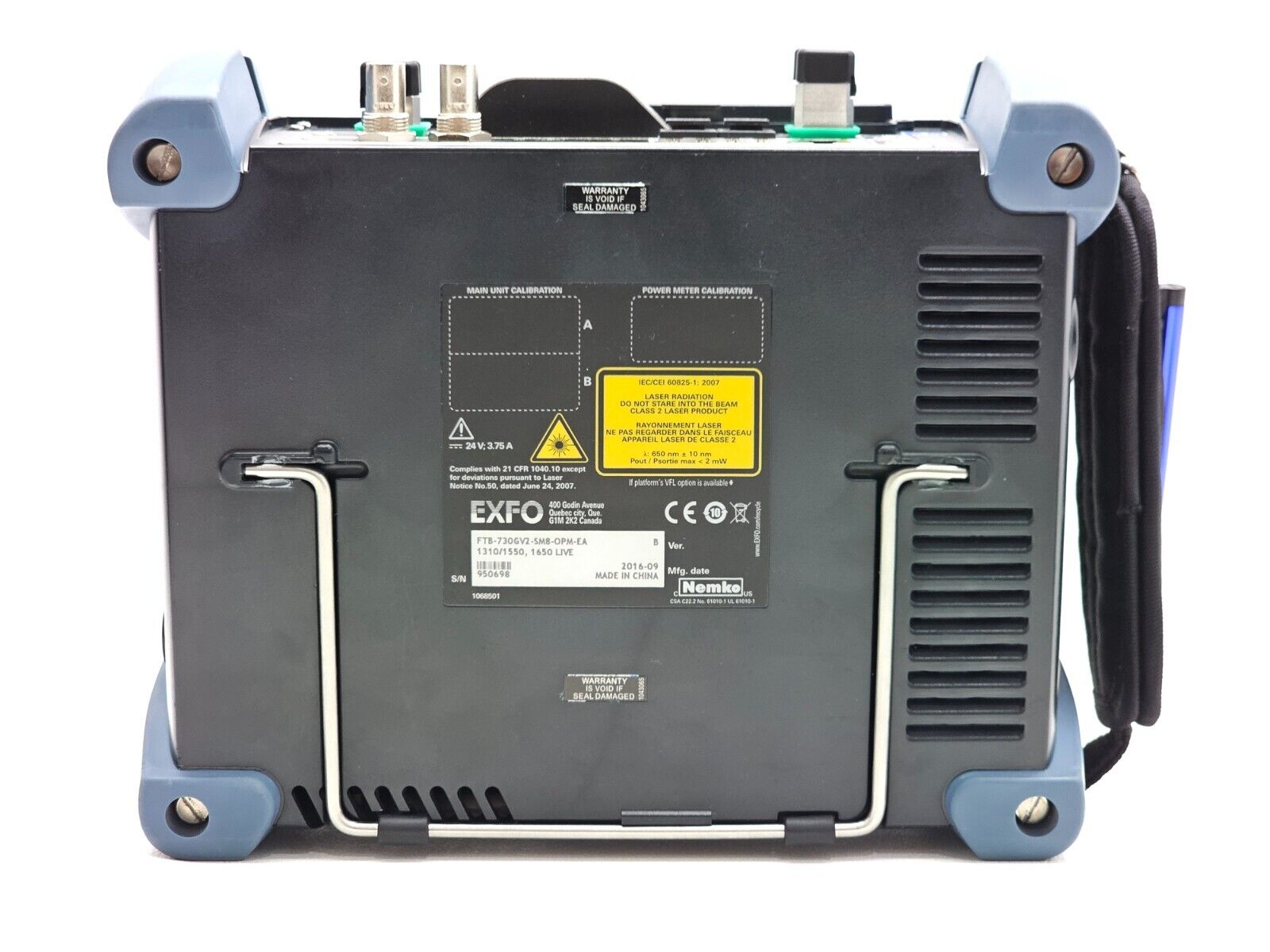

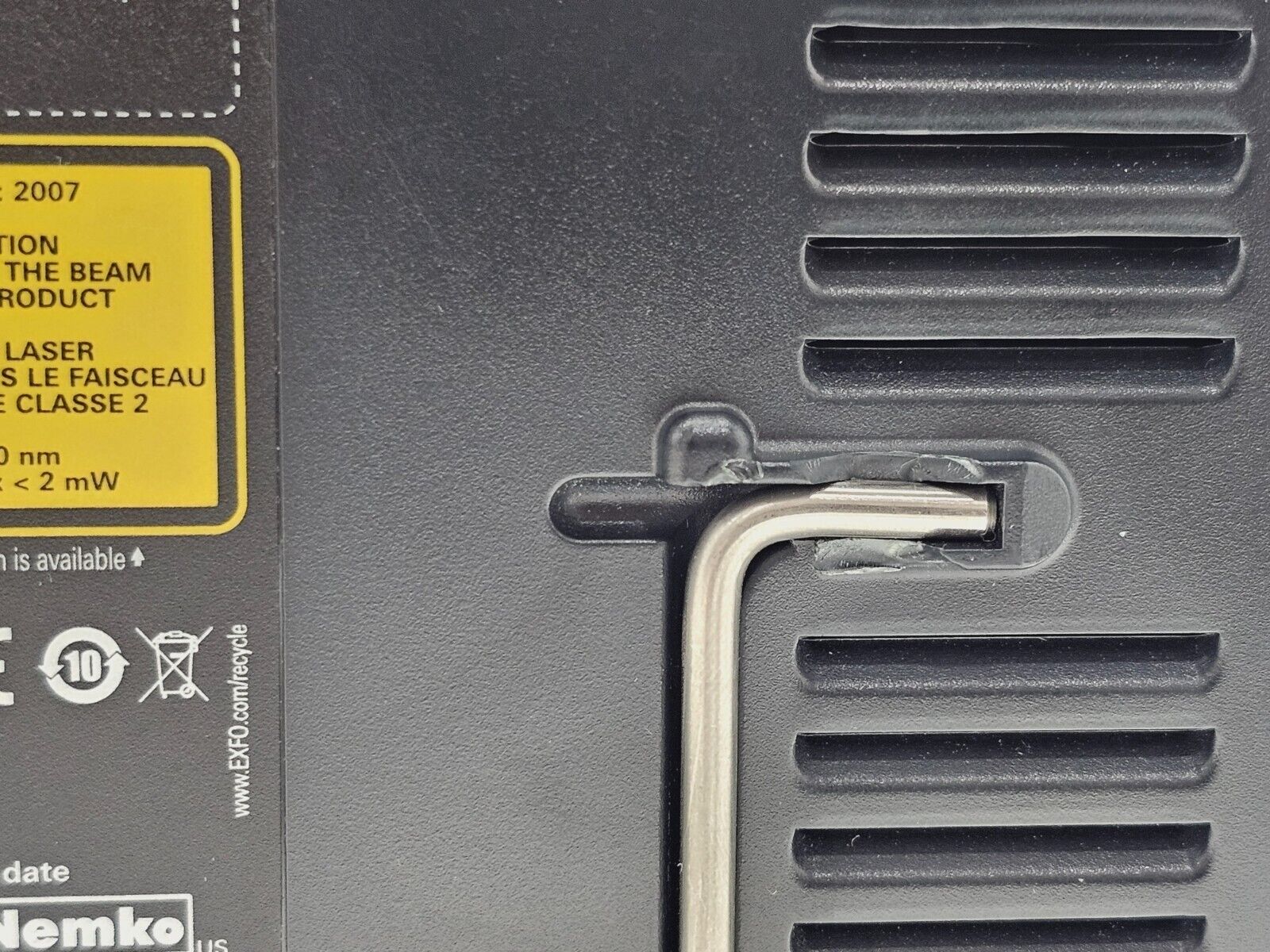

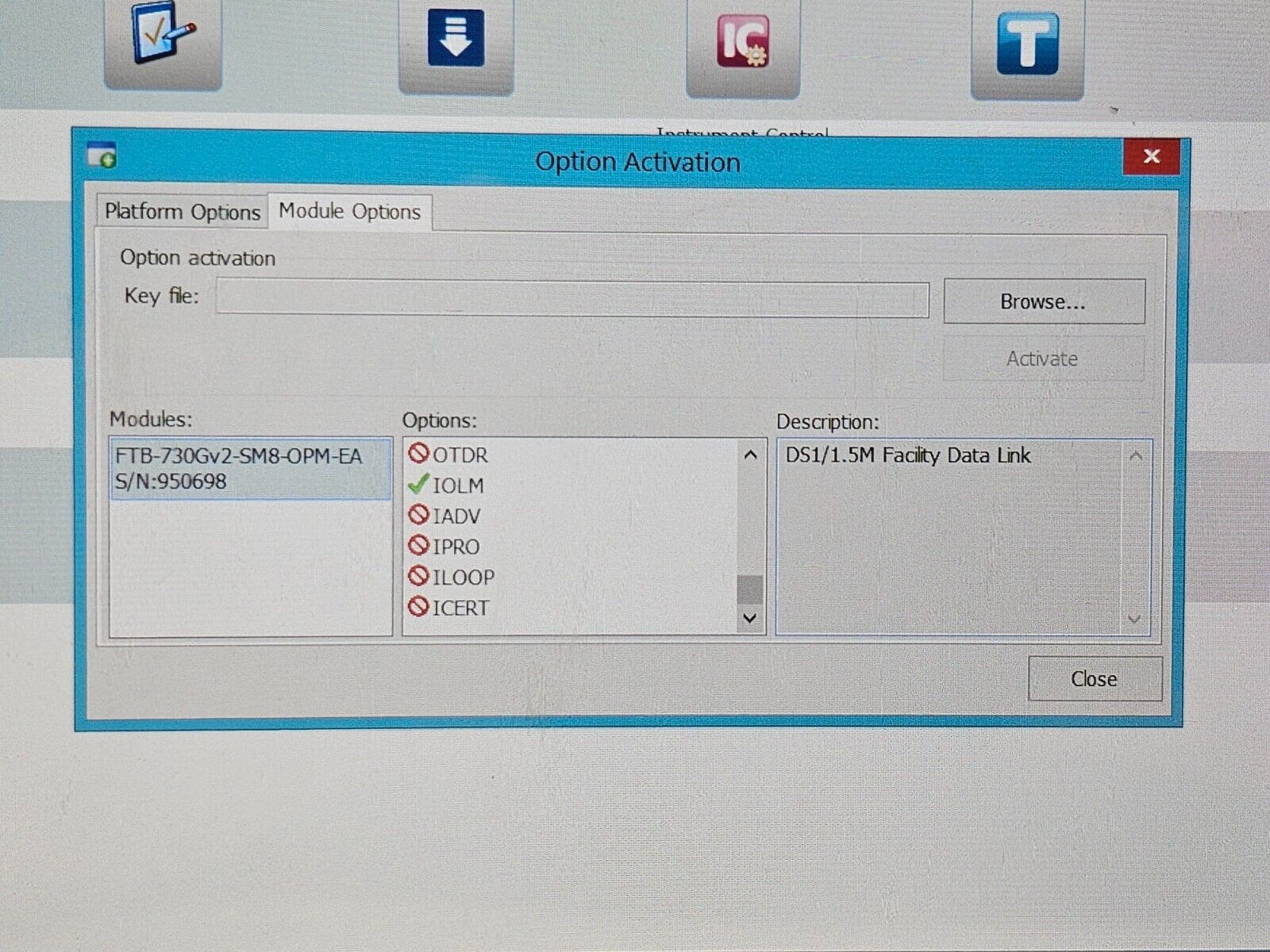

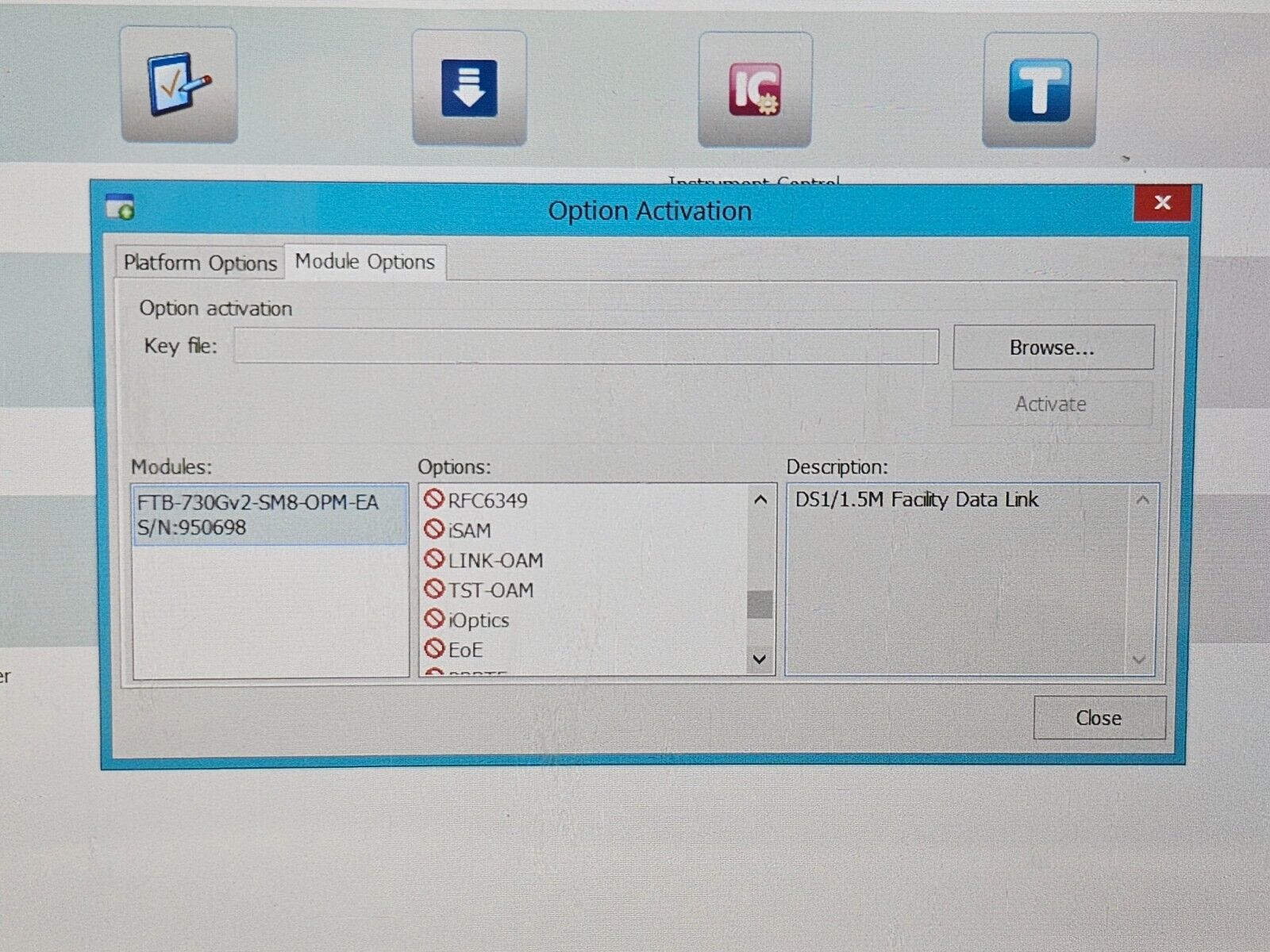

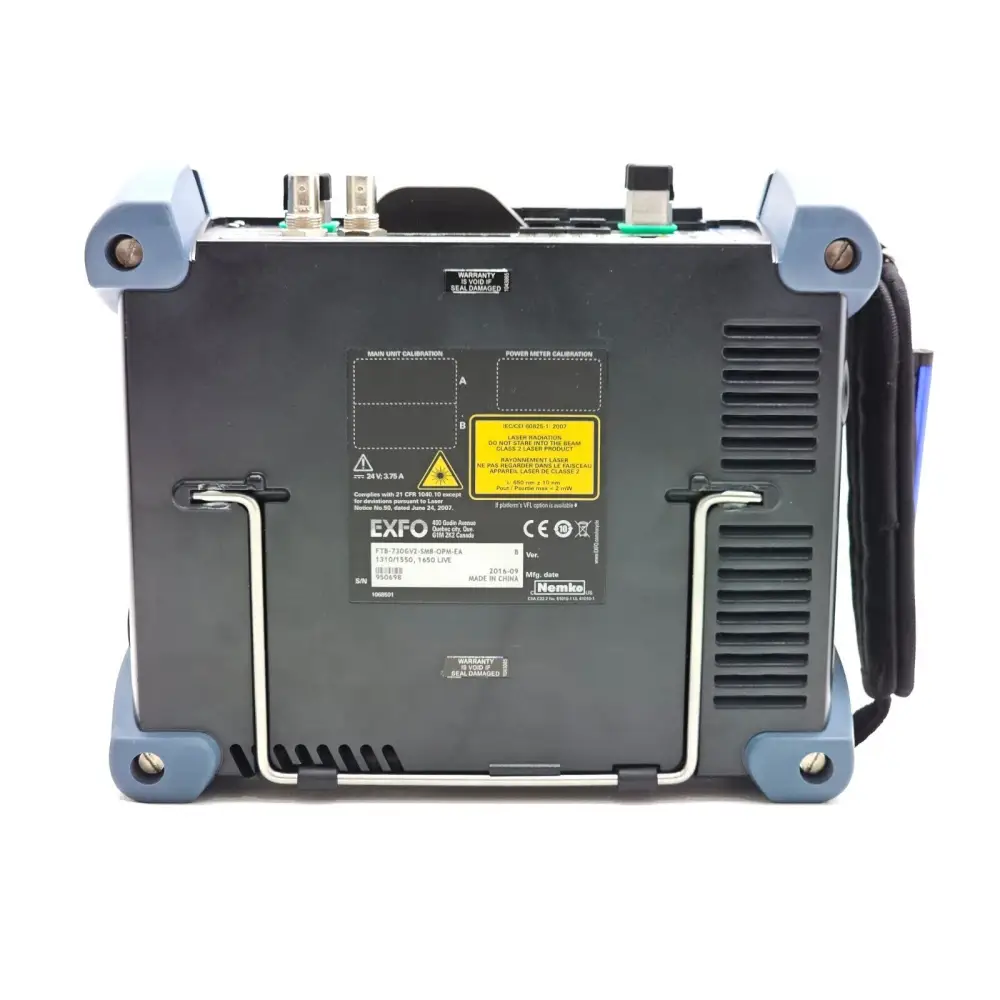

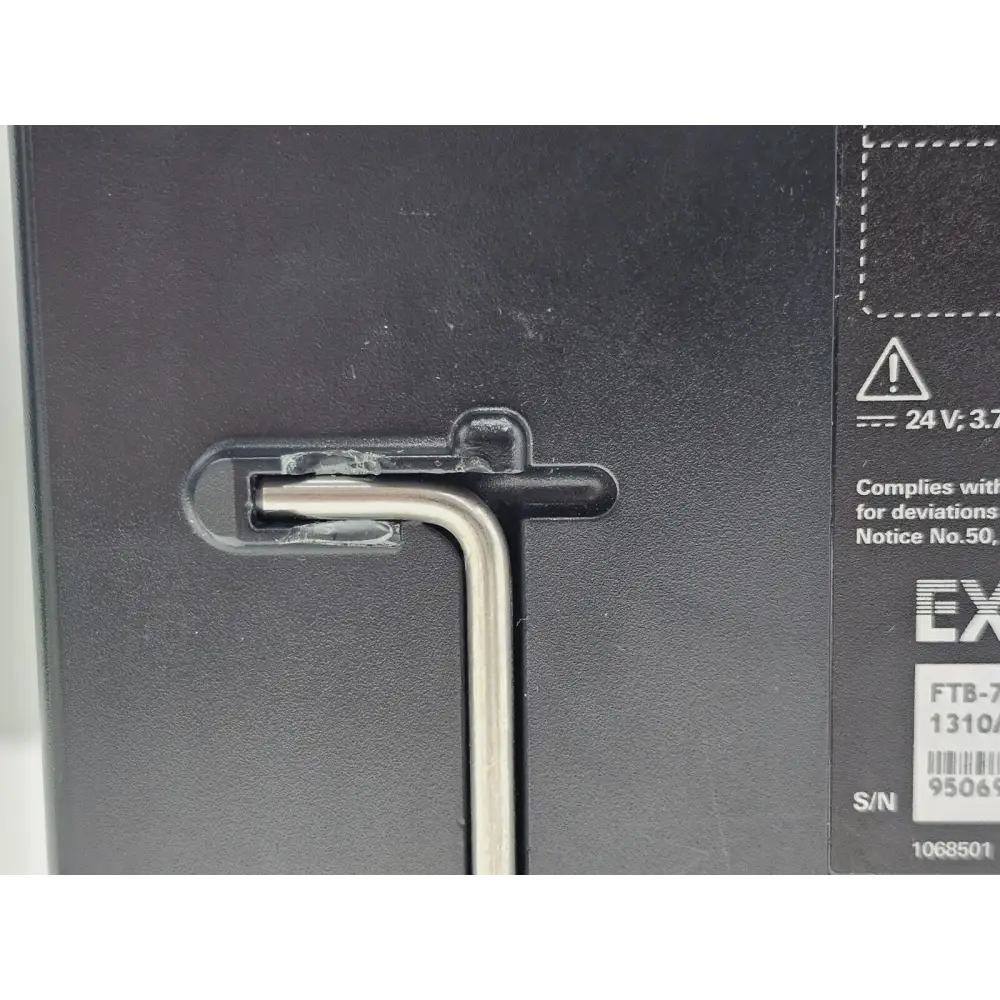

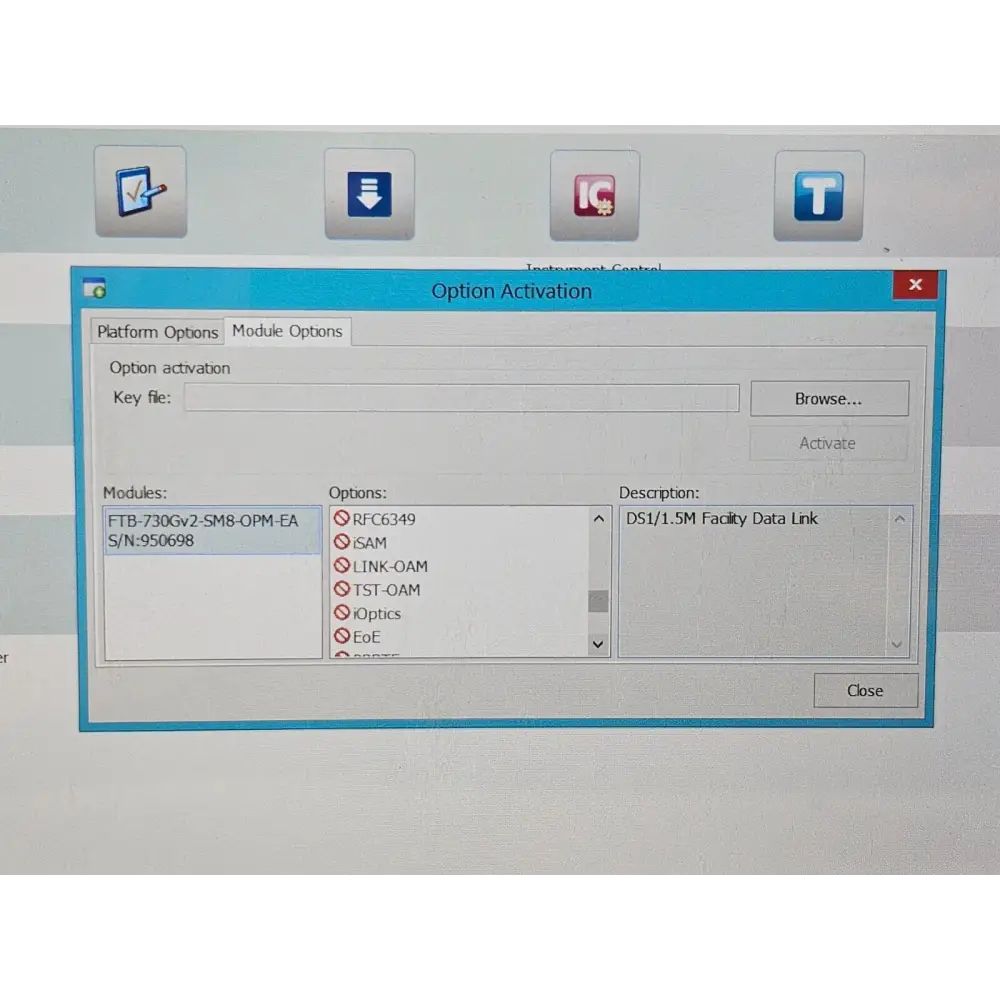

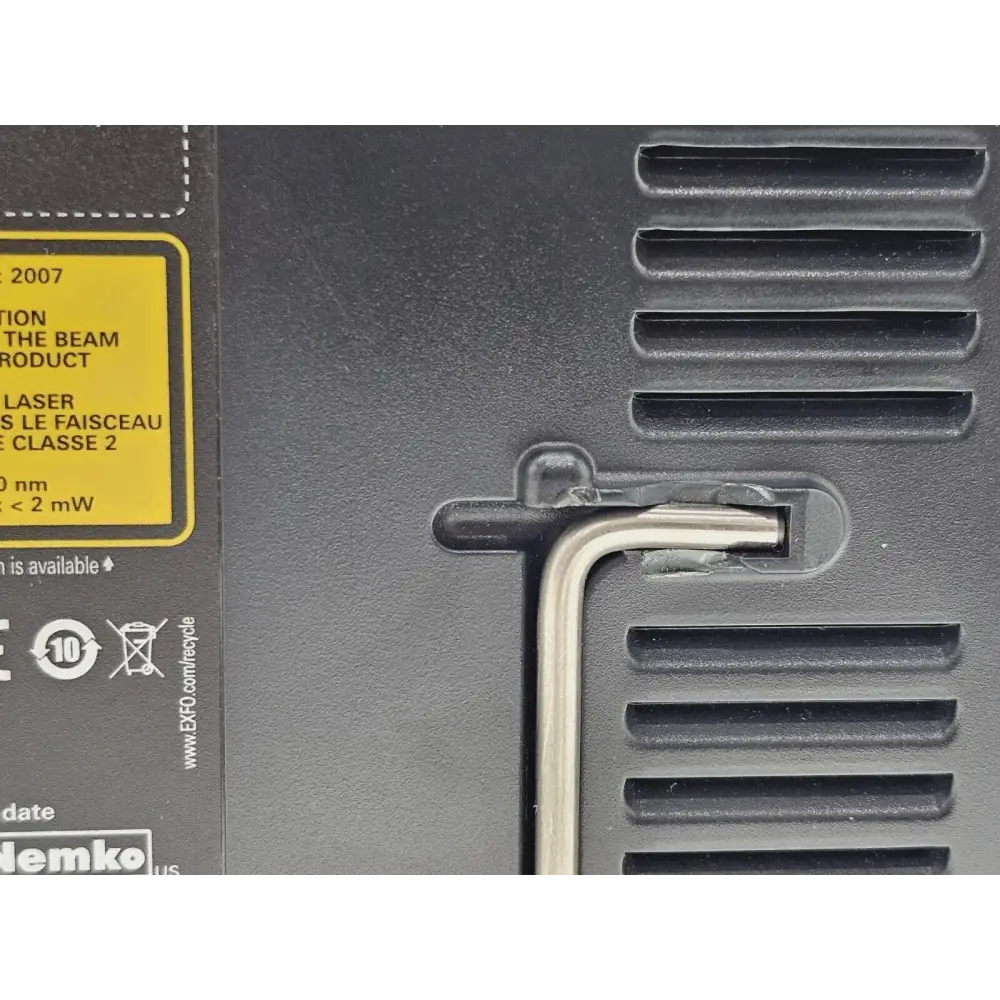

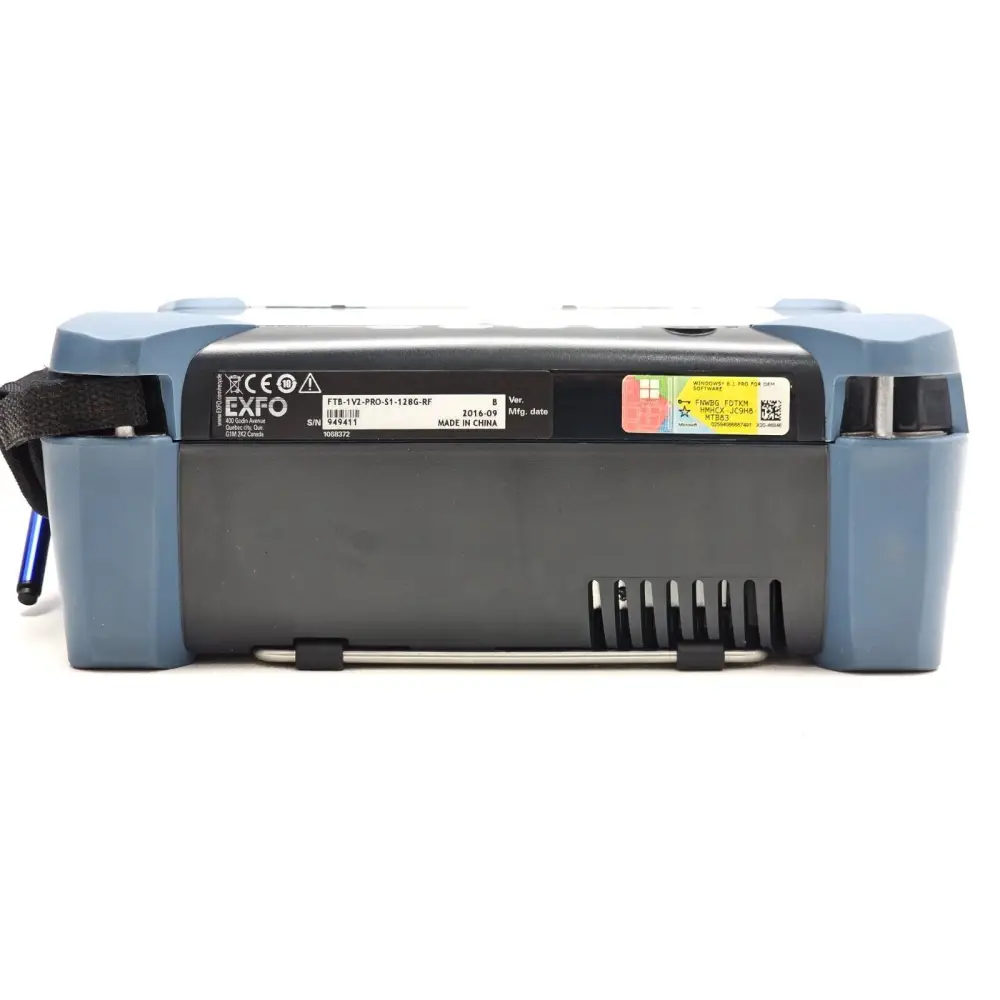

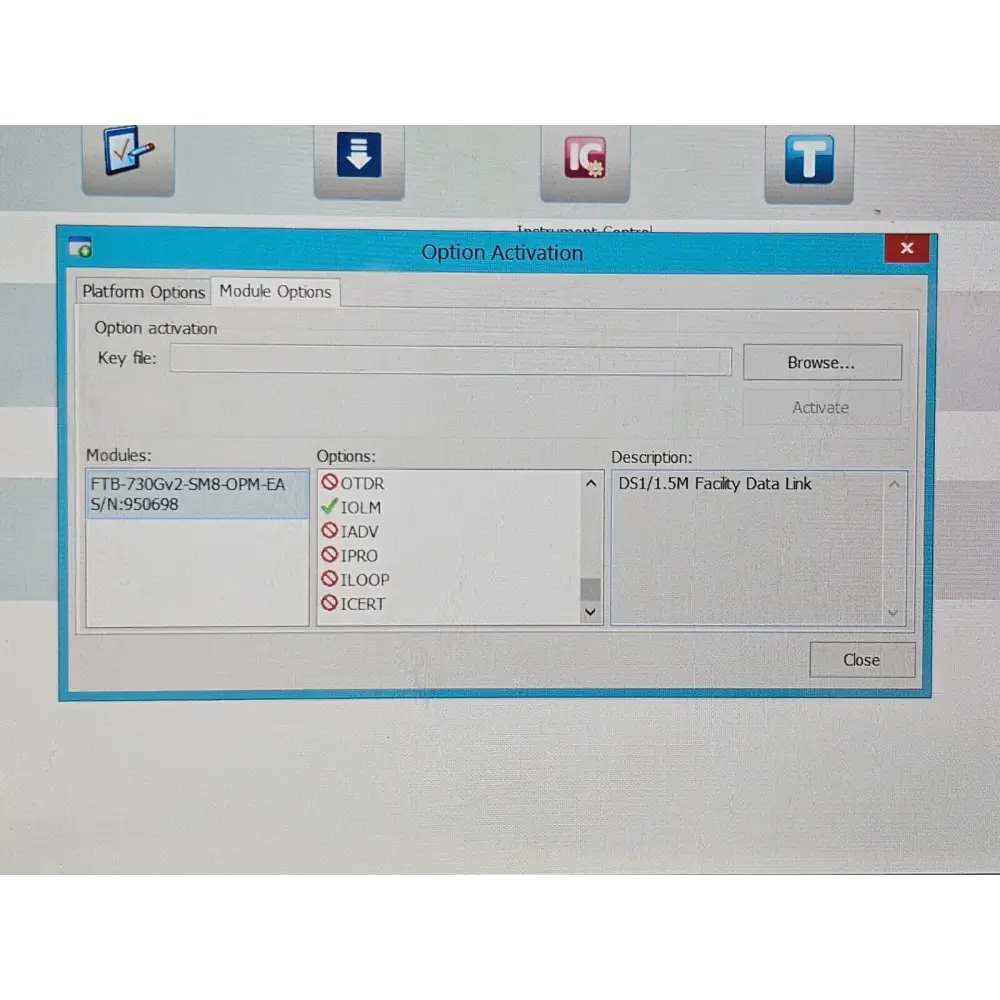

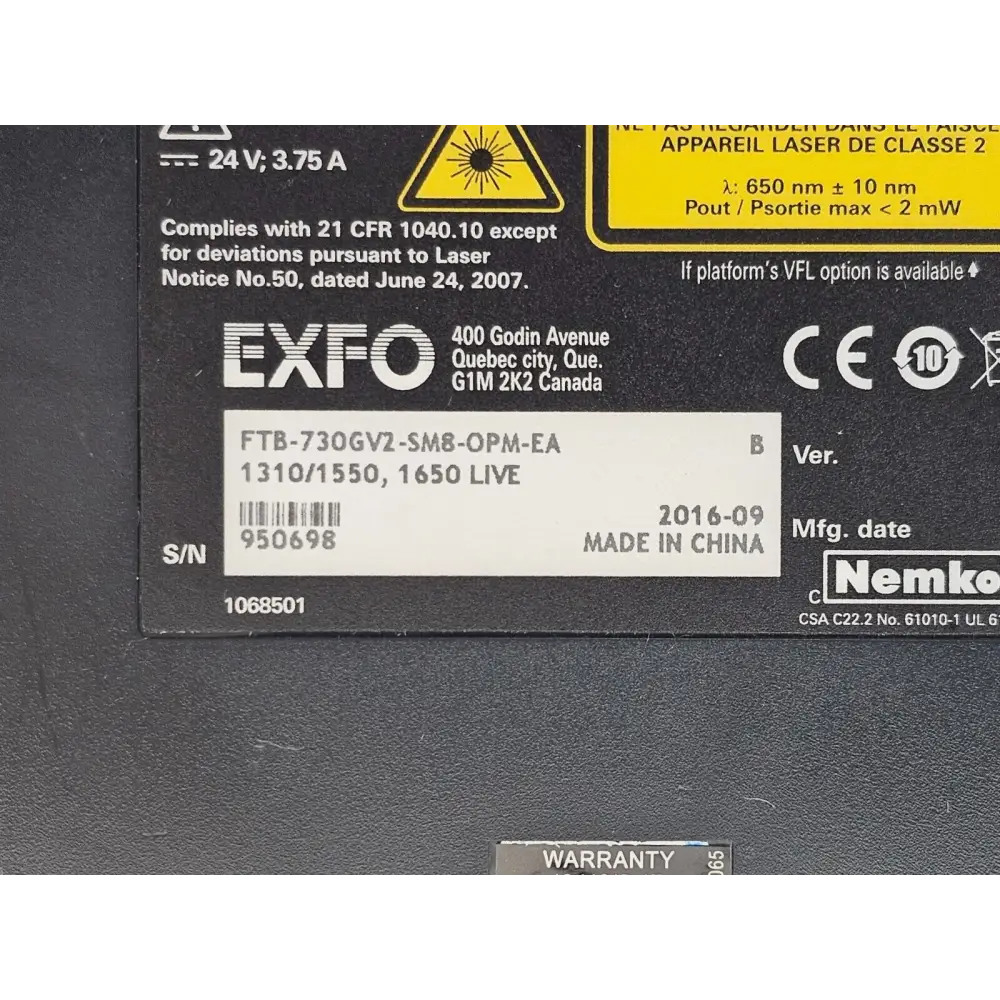

The EXFO FTB-1 Pro fitted with the FTB-730Gv2-SM8-OPM module, supporting 1310/1550 nm and 1650 nm live iOLM testing. Unit is in good condition, tested and within specification. MFD 2016. Note: plastic around the standing legs is broken. Only iOLM is active.

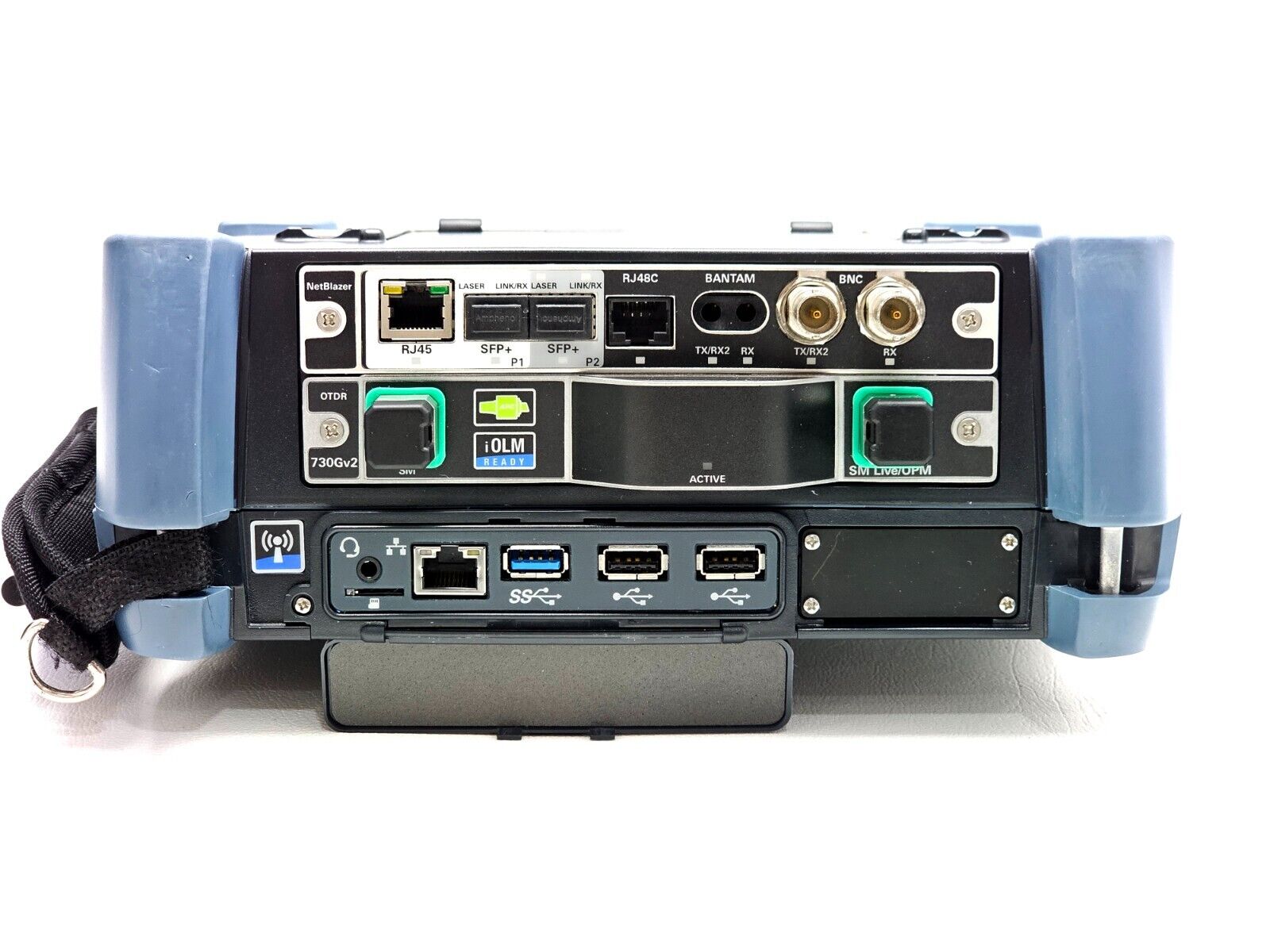

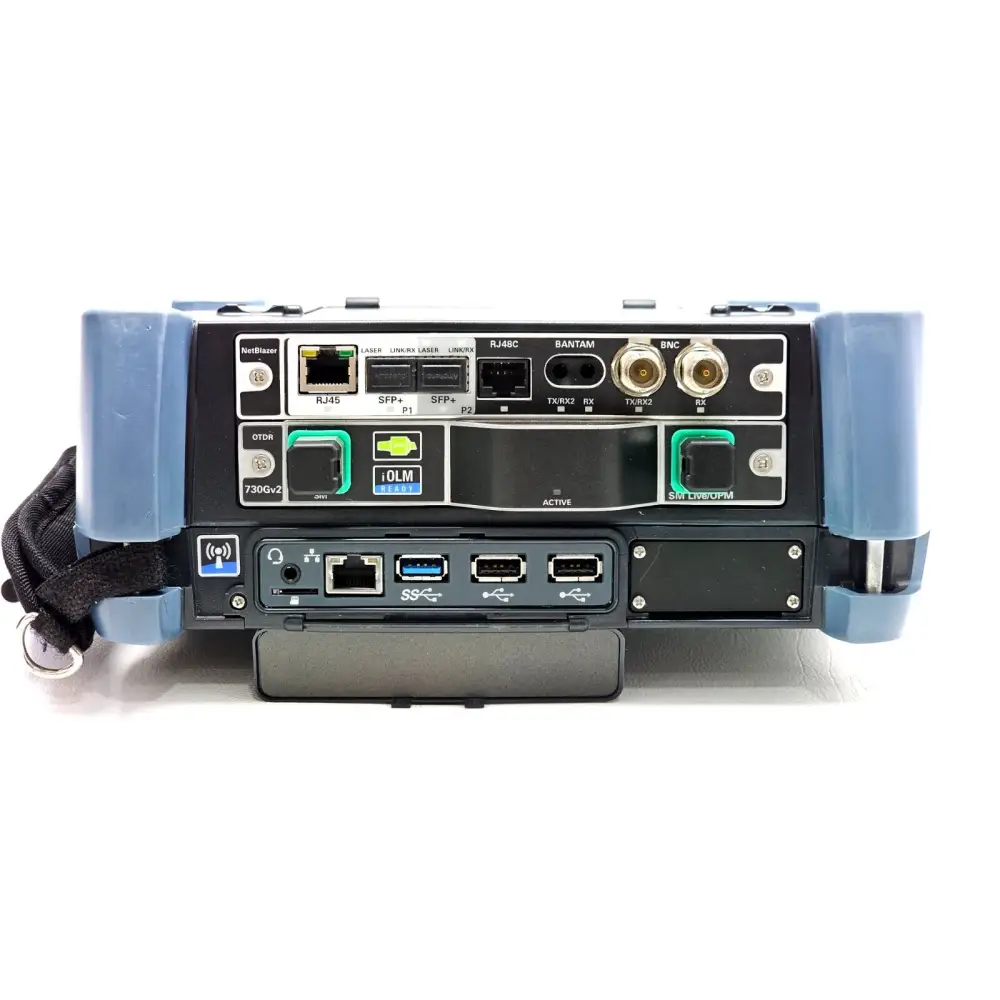

Connector ports: APC-SC (1650 nm live port) and FC (1310/1550 nm non-live port) — adapters are interchangeable by unscrewing.

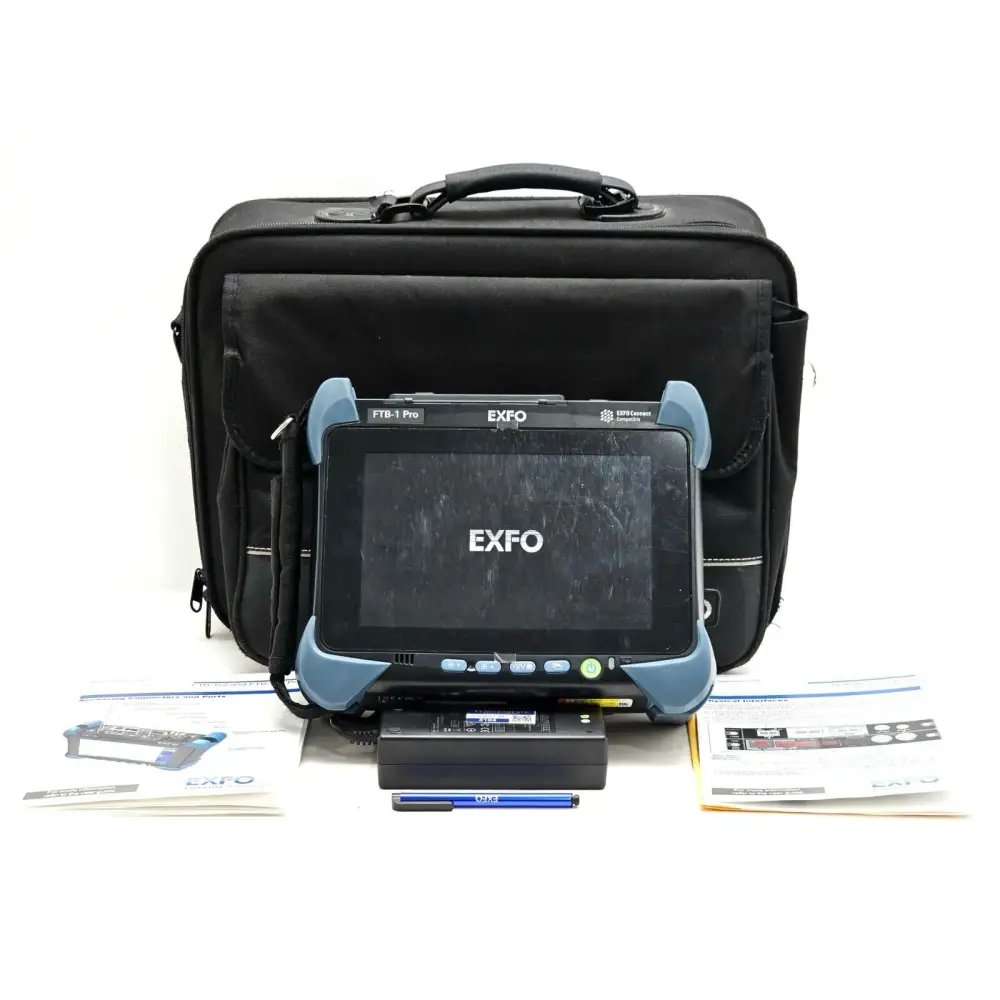

Included items:

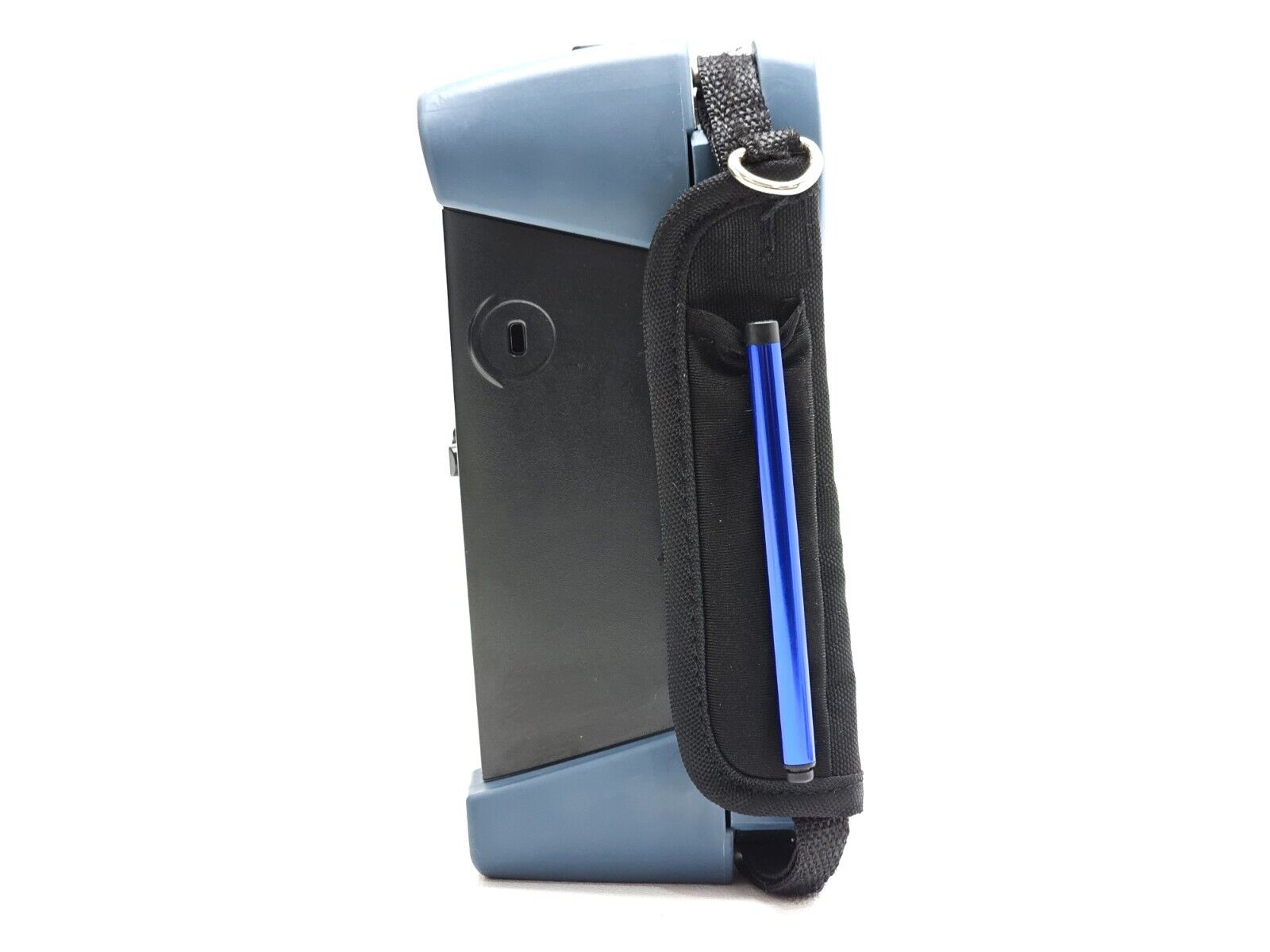

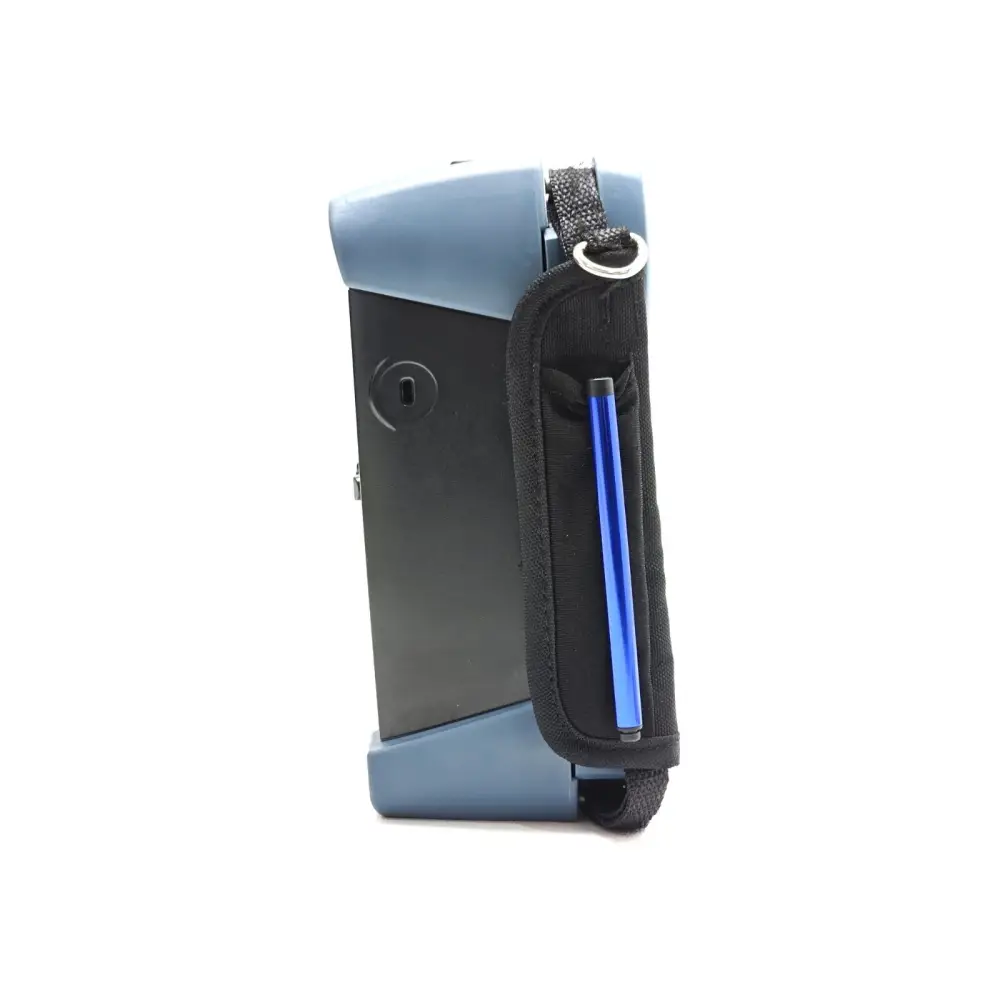

• Stylus
• Carry bag
• Power adapter
The EXFO FTB-1 Pro is a compact, portable modular test platform designed for optical field testing applications. It accepts plug-in FTB-series test modules and provides a powerful, ergonomic solution for outside plant and in-building fibre characterisation.

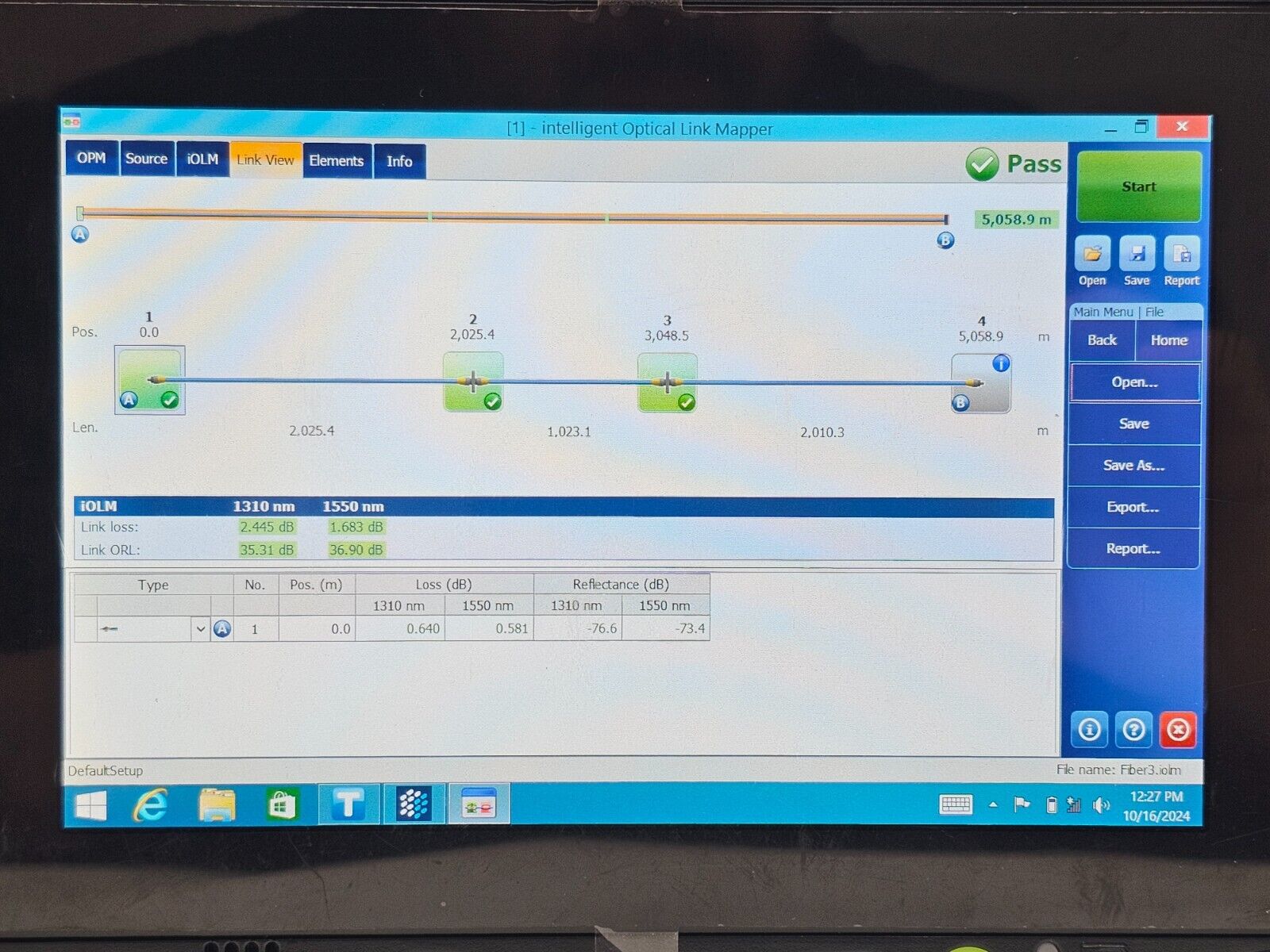

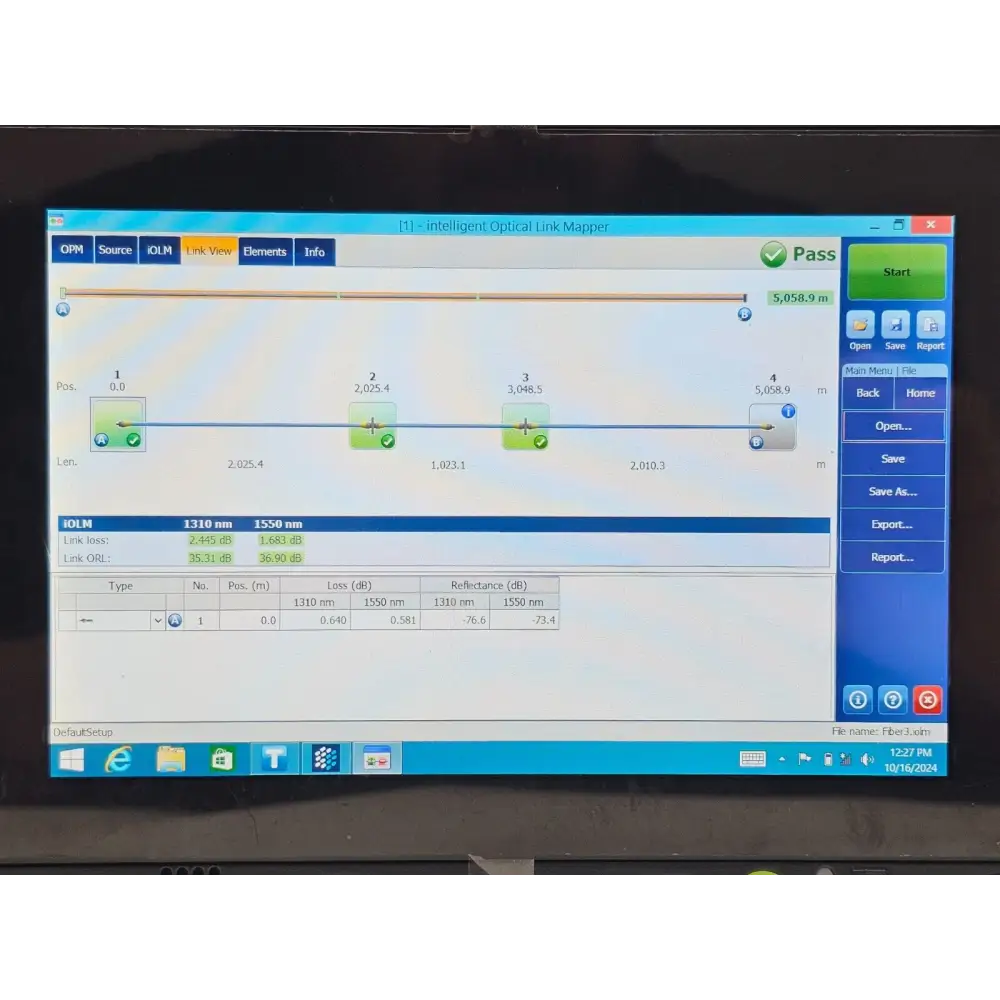

The FTB-730Gv2 single-mode OTDR module with integrated optical power meter (OPM) is designed for testing single-mode fibres at 1310 nm, 1550 nm, and 1650 nm. The 1650 nm wavelength enables live fibre testing (iOLM on active networks) without disrupting service. The iOLM (interactive Optical Link Mapper) software application automates the acquisition and event analysis process, intelligently characterising all events along the fibre link and presenting results in a simplified, easy-to-read map format suitable for both expert and non-expert technicians.
Key features:
• Single-mode OTDR with 1310/1550 nm and 1650 nm live wavelengths
• Integrated optical power meter (OPM)
• iOLM application for automated link characterisation
• Interchangeable fibre adapter interface
• Compact FTB-1 Pro modular platform with multitouch display
• Windows-based OS with extensive connectivity (USB, Wi-Fi, Bluetooth, Ethernet)
Typical specifications (FTB-730Gv2-SM8):
Wavelengths: 1310 nm, 1550 nm, 1650 nm
Fibre Type: Single-mode (SM)
Integrated OPM: Yes
Live Fibre Testing: Yes (1650 nm)
Display Platform: EXFO FTB-1 Pro (8-inch multitouch, 1280 x 800)
Operating System: Windows IoT Enterprise
Power Input: 24 V DC / 3.75 A external AC adapter
Please refer to the EXFO website for full and current specifications.
EXFO FTB-1v2 Pro Platform Spec Sheet (applicable to FTB-1 Pro platform): Download PDF
EXFO FTB-730G OTDR Module Datasheet: Download PDF
Product Overview
Condition: Used
The EXFO FTB-1 Pro fitted with the FTB-730Gv2-SM8-OPM module, supporting 1310/1550 nm and 1650 nm live iOLM testing. Unit is in good condition, tested and within specification. MFD 2016. Note: plastic around the standing legs is broken. Only iOLM is active.
Connector ports: APC-SC (1650 nm live port) and FC (1310/1550 nm non-live port) — adapters are interchangeable by unscrewing.
Included items:
• Stylus
• Carry bag
• Power adapter
Manufacturer's Description
The EXFO FTB-1 Pro is a compact, portable modular test platform designed for optical field testing applications. It accepts plug-in FTB-series test modules and provides a powerful, ergonomic solution for outside plant and in-building fibre characterisation.
The FTB-730Gv2 single-mode OTDR module with integrated optical power meter (OPM) is designed for testing single-mode fibres at 1310 nm, 1550 nm, and 1650 nm. The 1650 nm wavelength enables live fibre testing (iOLM on active networks) without disrupting service. The iOLM (interactive Optical Link Mapper) software application automates the acquisition and event analysis process, intelligently characterising all events along the fibre link and presenting results in a simplified, easy-to-read map format suitable for both expert and non-expert technicians.
Key features:
• Single-mode OTDR with 1310/1550 nm and 1650 nm live wavelengths
• Integrated optical power meter (OPM)
• iOLM application for automated link characterisation
• Interchangeable fibre adapter interface
• Compact FTB-1 Pro modular platform with multitouch display
• Windows-based OS with extensive connectivity (USB, Wi-Fi, Bluetooth, Ethernet)
Typical specifications (FTB-730Gv2-SM8):
Wavelengths: 1310 nm, 1550 nm, 1650 nm
Fibre Type: Single-mode (SM)
Integrated OPM: Yes
Live Fibre Testing: Yes (1650 nm)
Display Platform: EXFO FTB-1 Pro (8-inch multitouch, 1280 x 800)
Operating System: Windows IoT Enterprise
Power Input: 24 V DC / 3.75 A external AC adapter
Please refer to the EXFO website for full and current specifications.
Resources
EXFO FTB-1v2 Pro Platform Spec Sheet (applicable to FTB-1 Pro platform): Download PDF
EXFO FTB-730G OTDR Module Datasheet: Download PDF
