Condition: Used

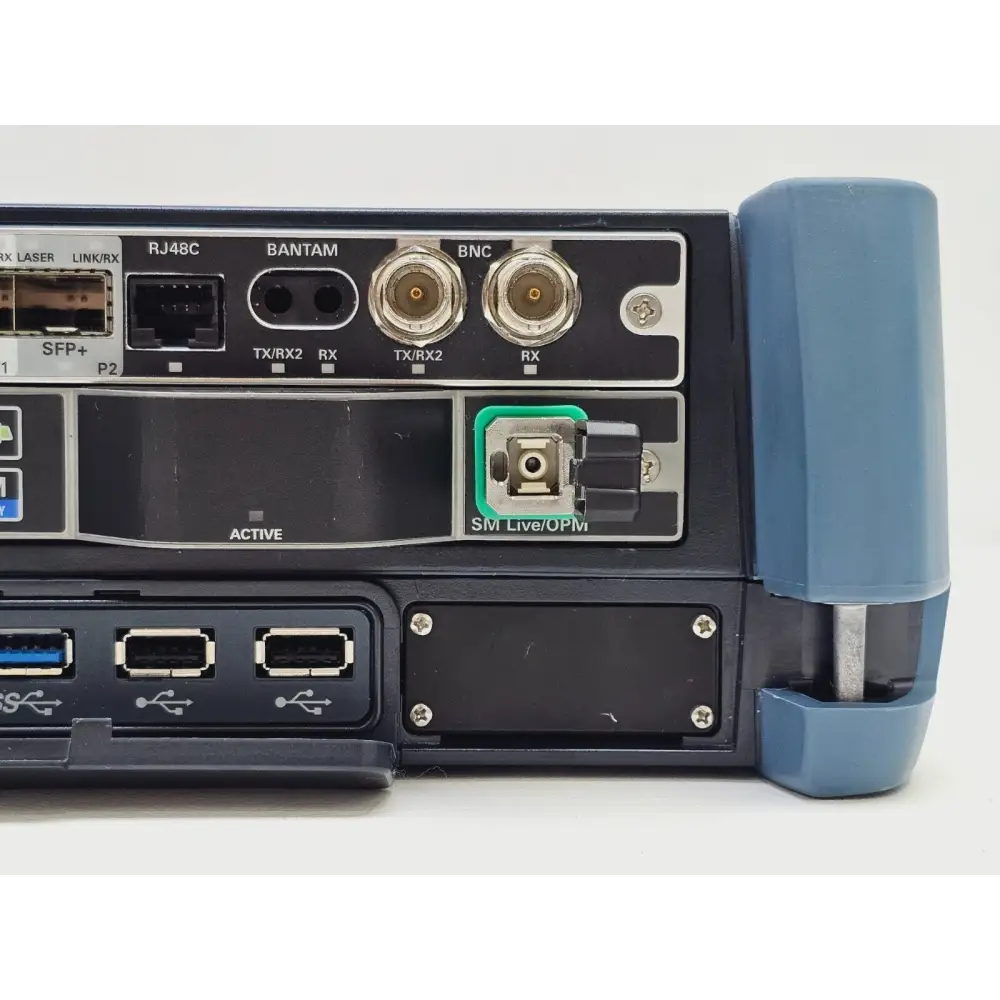

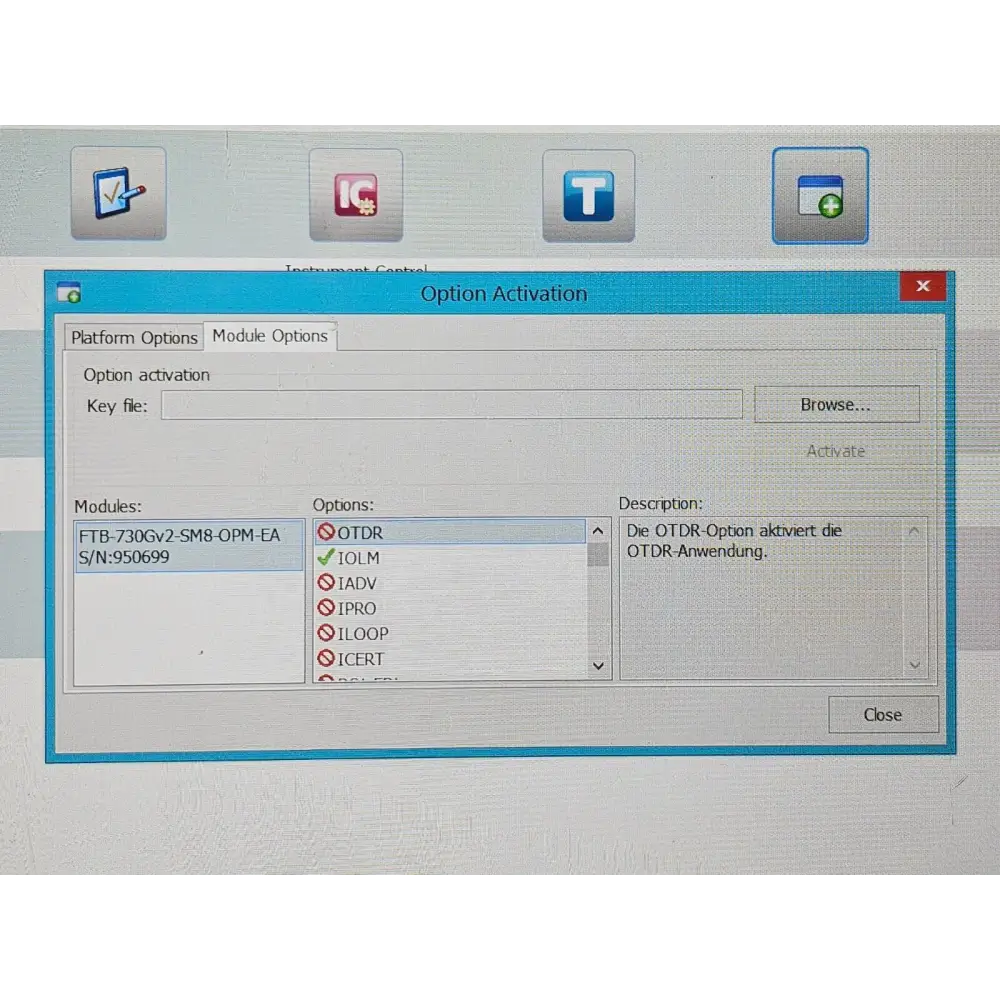

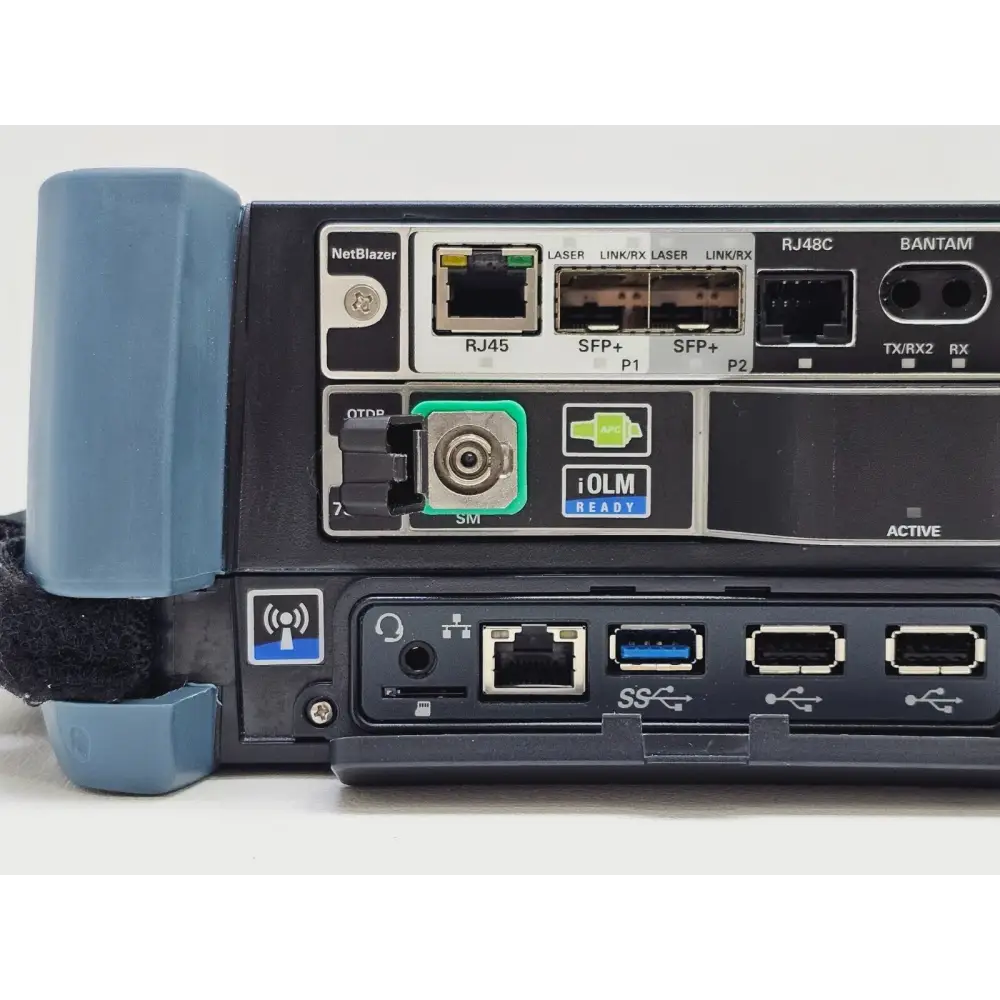

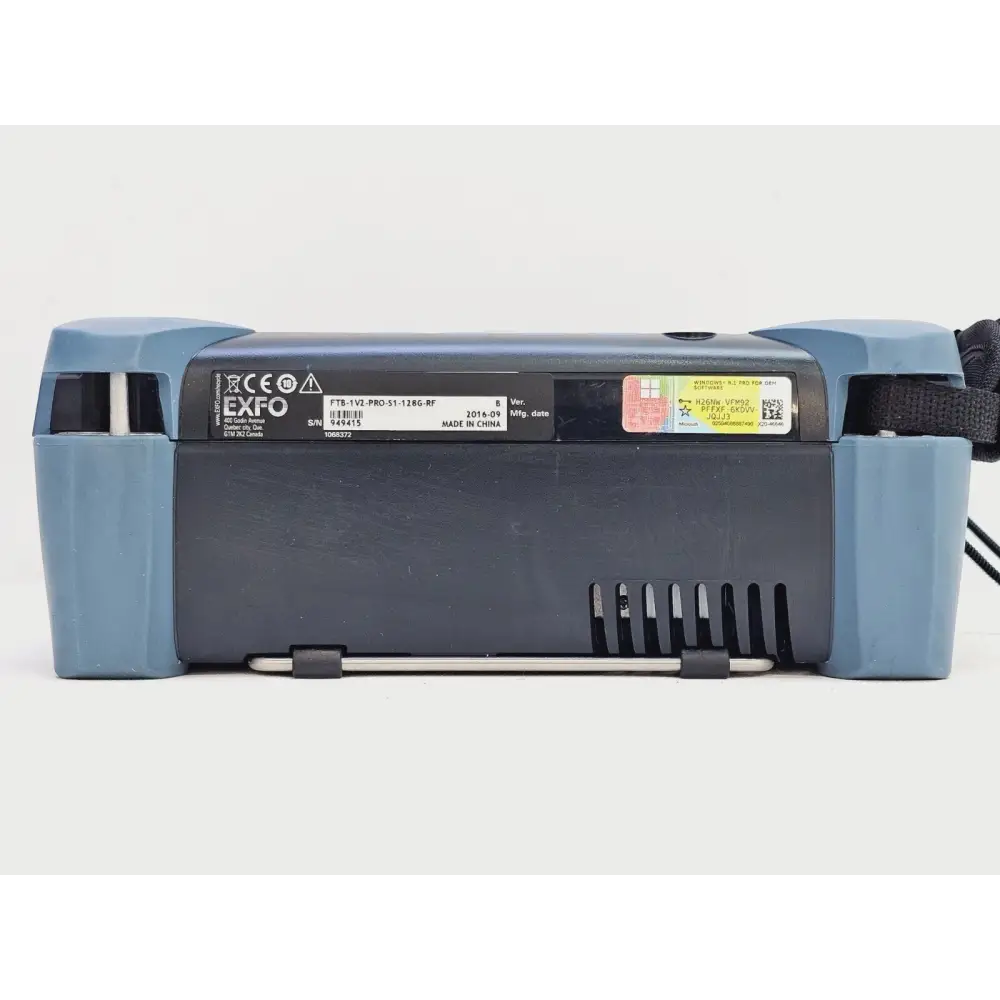

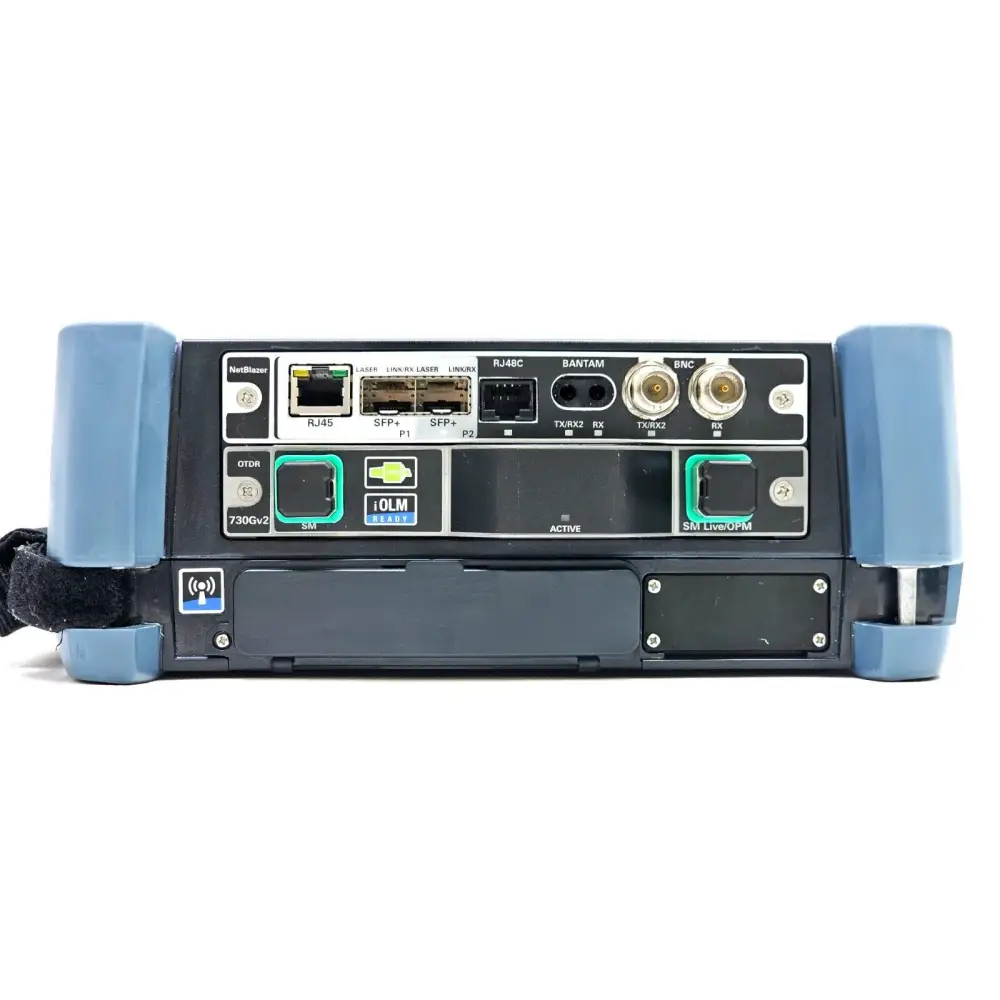

Used EXFO FTB-1 Pro mainframe fitted with the FTB-730Gv2-SM8-OPM module. Manufactured in 2016. In good condition with screen protector fitted, tested and within specification. Only the iOLM application is licensed and active. The SM8 module features an APC-SC connector on the 1650 nm live port and an FC connector on the 1310/1550 nm non-live port; both adapters are field-replaceable by unscrewing.

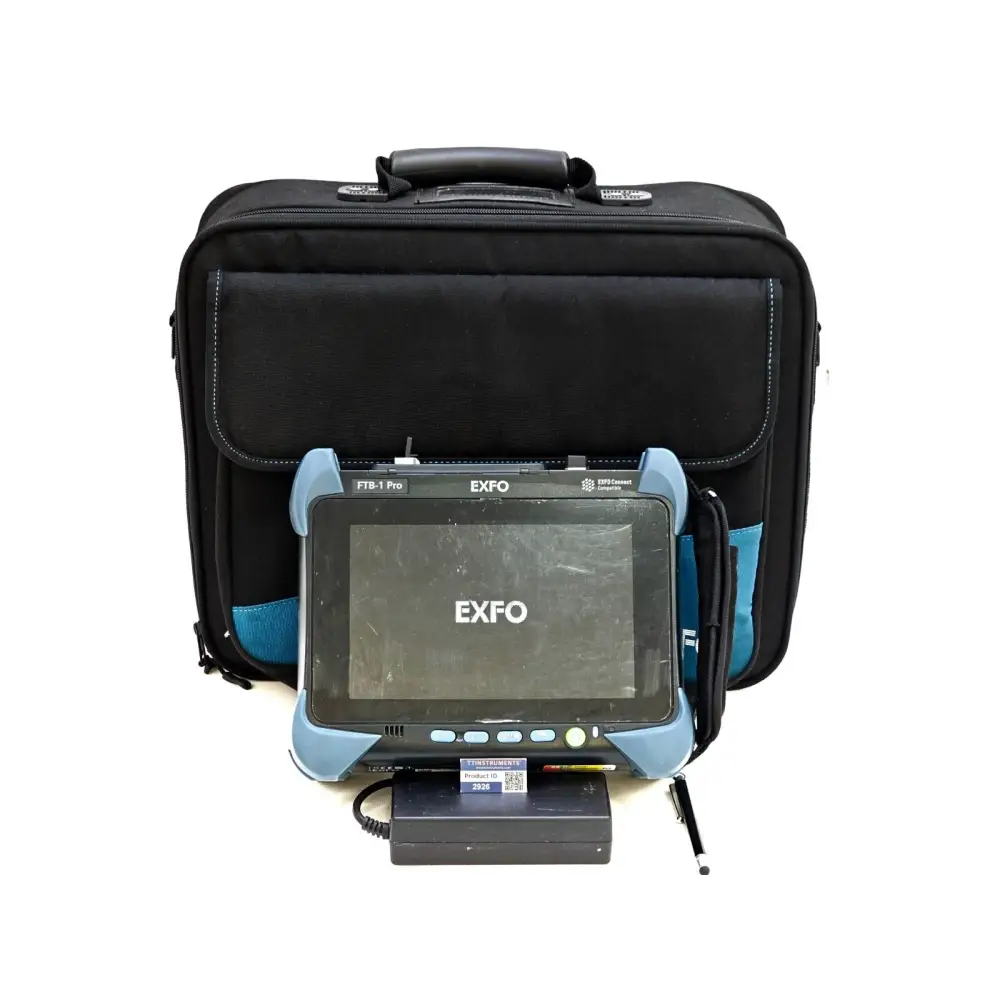

What is included:

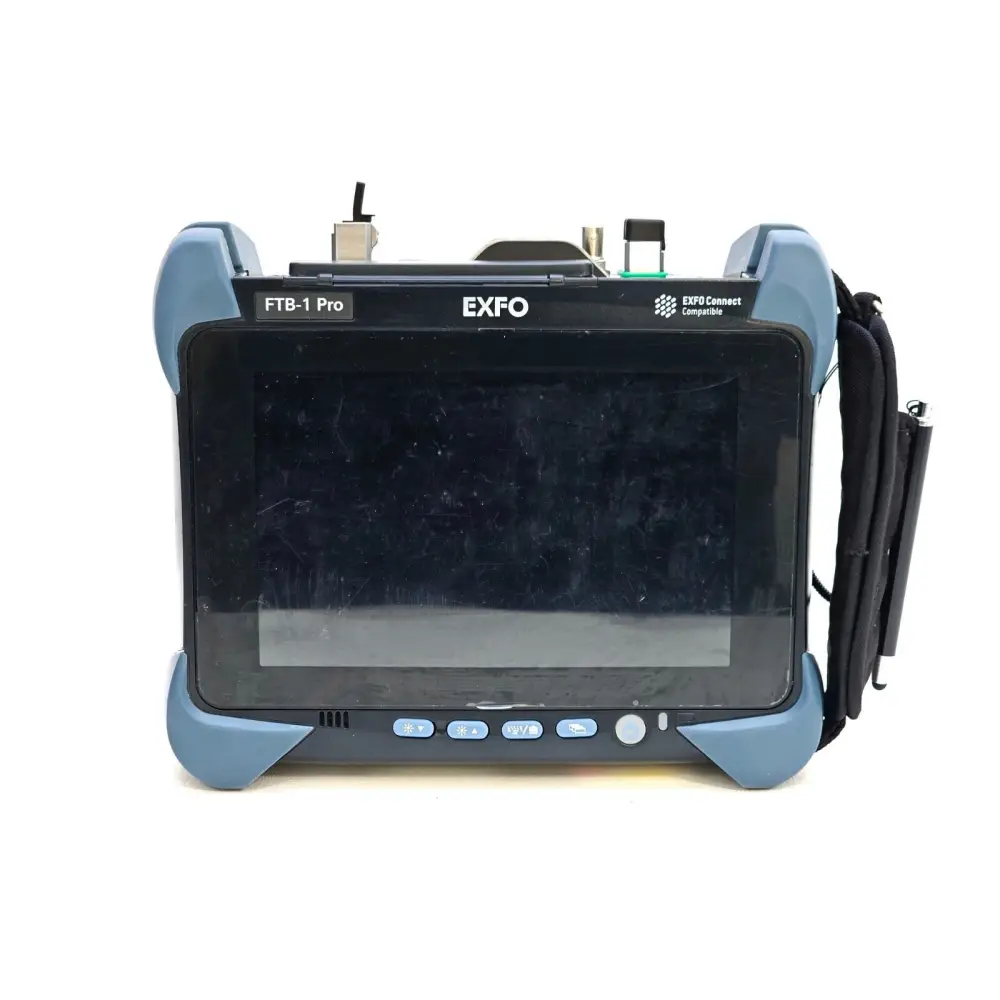

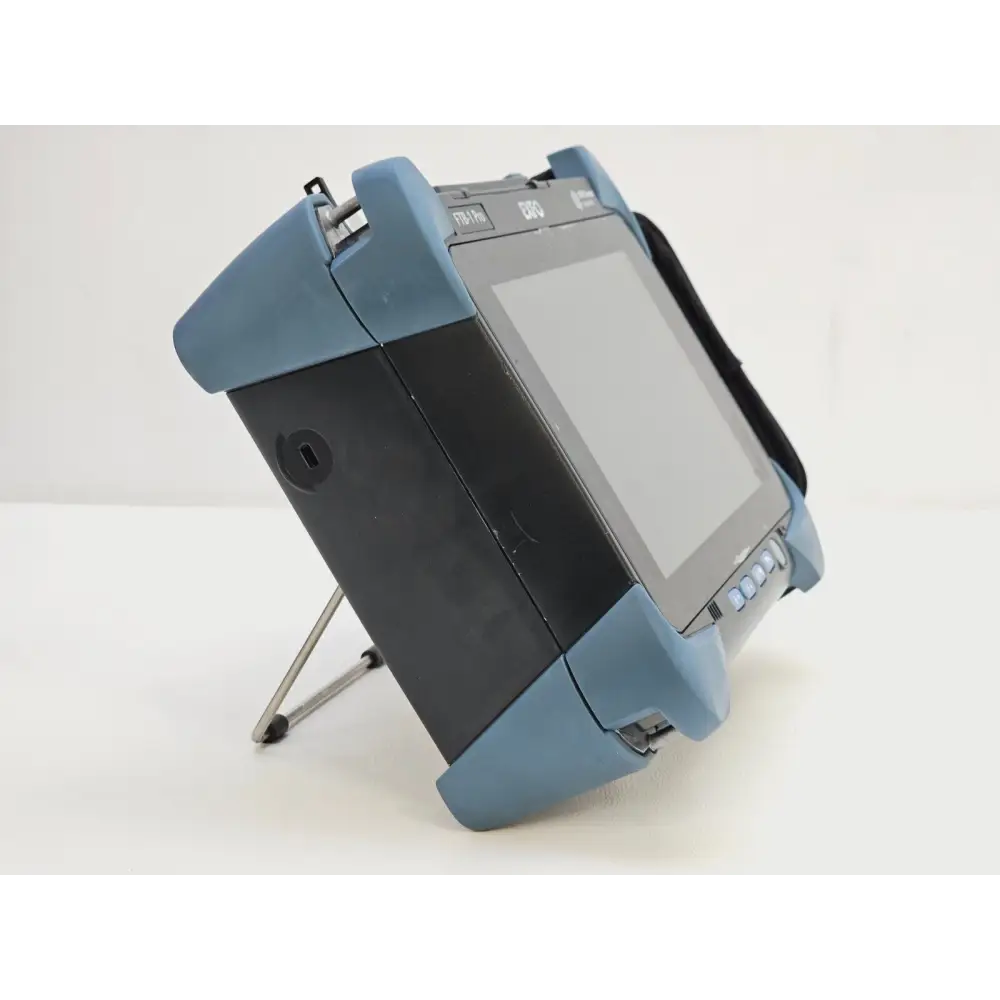

• EXFO FTB-1 Pro mainframe with FTB-730Gv2-SM8-OPM module

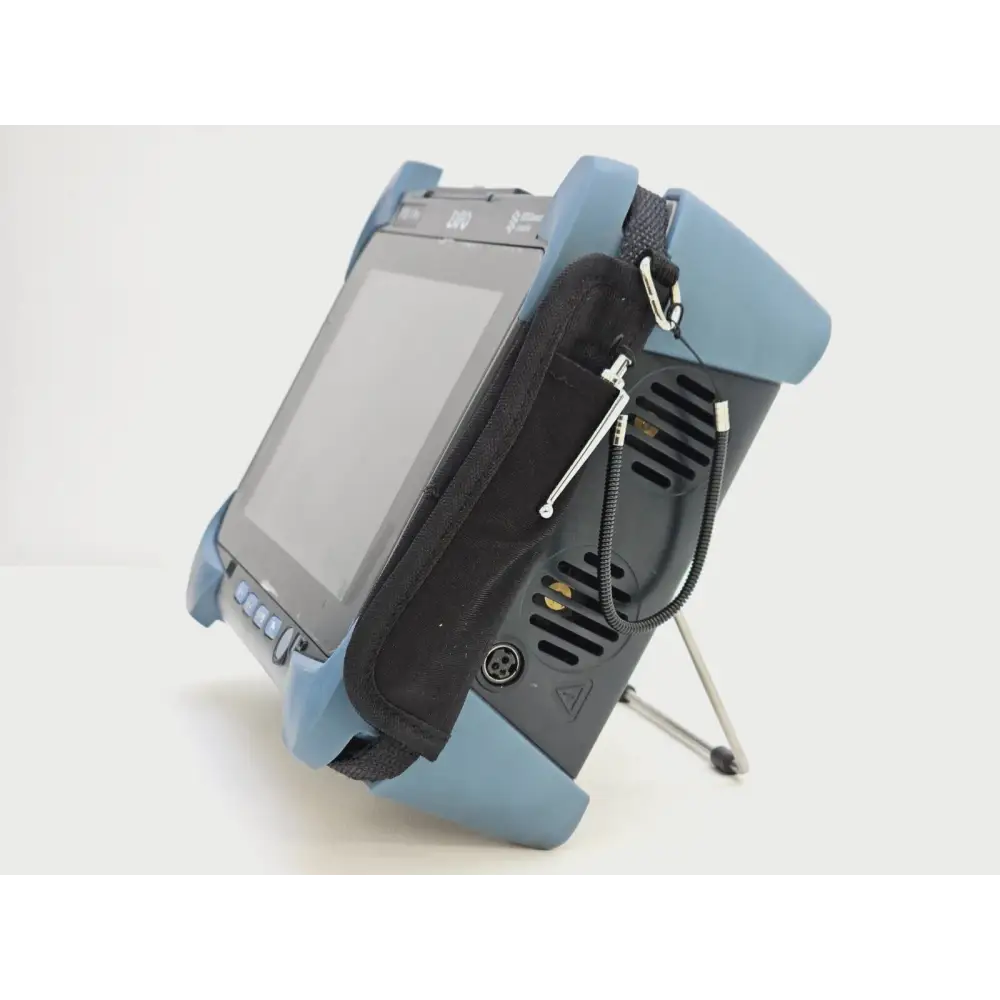

• Stylus
• Carry bag
• Power adapter

The EXFO FTB-730Gv2-SM8-OPM is a singlemode PON FTTx/MDU OTDR module for the FTB-1 Pro platform, belonging to the FTB-700G V2 series — an all-in-one optical, Ethernet and multiservice test solution. The SM8 optical configuration provides a standard 1310/1550 nm OTDR port plus a dedicated 1650 nm out-of-band live-fibre port, enabling in-service troubleshooting of active networks without disrupting live traffic. The integrated broadband in-line optical power meter (OPM) allows simultaneous power measurements on the same port. The module supports the iOLM (intelligent Optical Link Mapper) application, which uses a patented automated multi-pulse, multi-wavelength acquisition approach to deliver expert-level link characterisation without the need to manually configure OTDR parameters or interpret complex traces.

The FTB-1 Pro platform is a compact, modular, Windows-based field tester with a large colour touchscreen, designed for dedicated optical, Ethernet and multiservice test applications. It supports EXFO Connect for cloud-based automated asset management and centralised test data reporting.

Key Specifications (FTB-730Gv2 SM8 module):
Optical Configuration: SM8 — SM OTDR 1310/1550 nm and 1650 nm live (dual port)
Wavelengths (OTDR port): 1310 nm / 1550 nm
Wavelength (Live port): 1650 nm (out-of-band, in-service)
Dynamic Range: Up to 39 dB
Max Link Distance: Up to 132 km point-to-point (P2P)
Splitter Support: Up to 1×128 port-count PON splitters

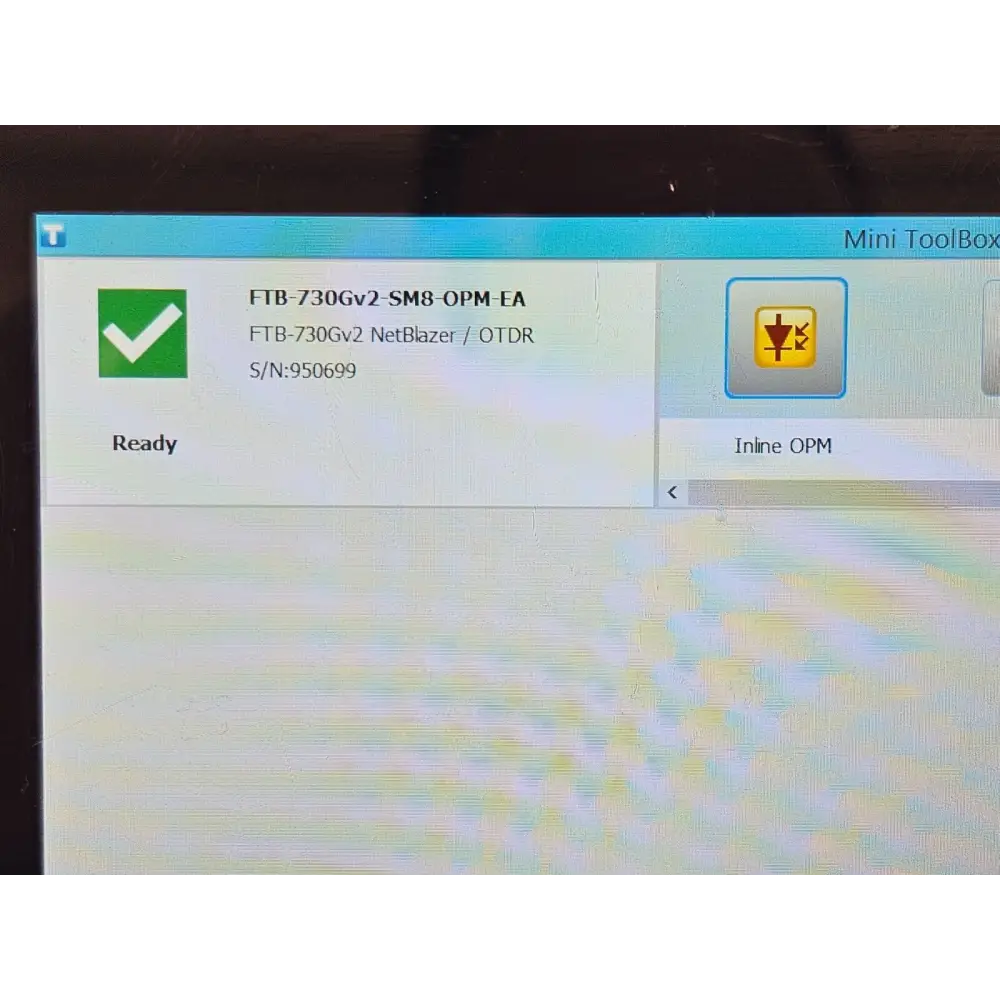

In-line OPM: Broadband, single channel
Active Software: iOLM (intelligent Optical Link Mapper)
Connector (Live Port): APC/SC (EUI, field-changeable)
Connector (OTDR Port): FC (EUI, field-changeable)
Fibre Type: Singlemode (9/125 µm)
Platform: EXFO FTB-1 Pro
Platform Display: Colour touchscreen, 1280 × 800, 203 mm (8 in)
Platform OS: Windows (embedded)

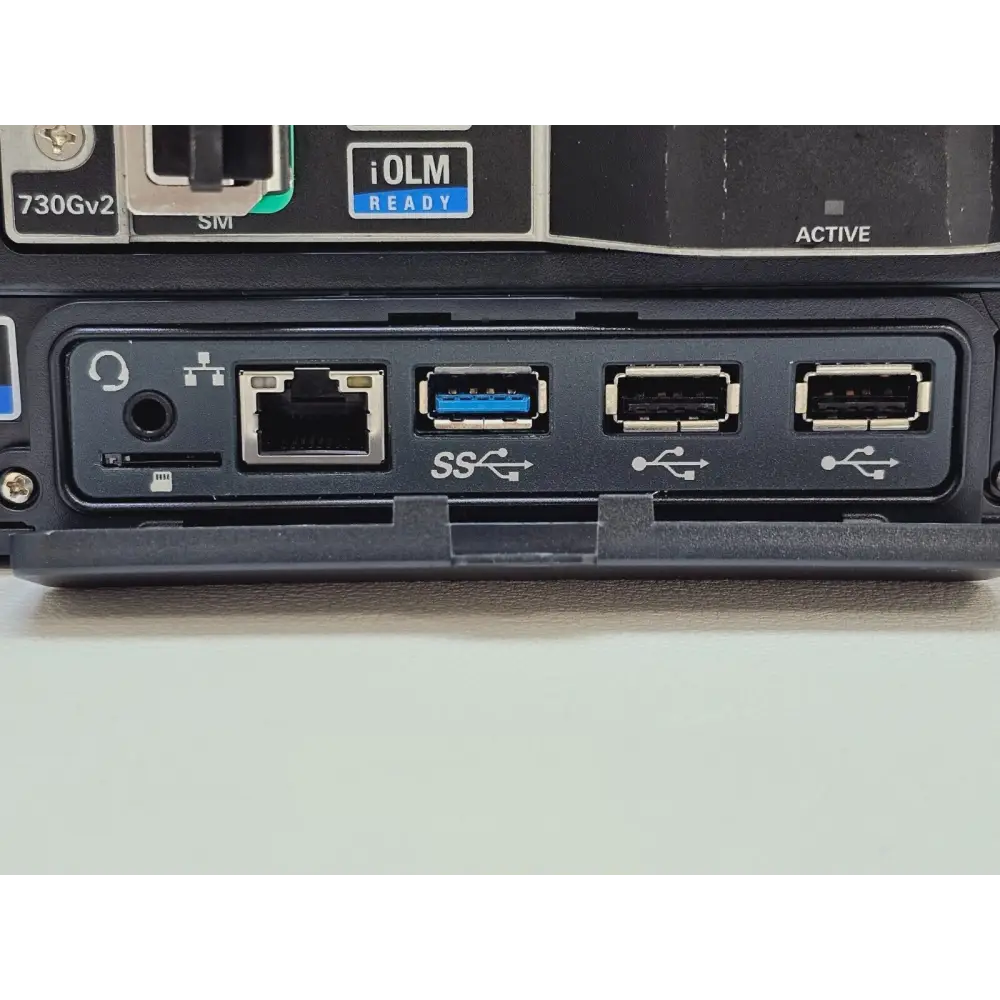

Connectivity: USB, Wi-Fi, Bluetooth, RJ-45 LAN
Storage Temperature: –40 °C to 70 °C
Compliance: EXFO Connect-ready; ISO 9001 certified manufacturing

Typical Applications:
- PON FTTx and FTTH network construction and commissioning
- In-service troubleshooting of live fibres at 1650 nm without signal disruption
- MDU (multiple dwelling unit) fibre characterisation
- Metro and point-to-point singlemode link testing
- Splice, connector, and event loss measurement and fault location

EXFO FTB-700G V2 Series spec sheet (English) — covers FTB-730Gv2 module specifications: Download PDF

EXFO FTB-1v2 Pro platform spec sheet (English) — mainframe specifications: Download PDF

EXFO FTB-700G/800 Series user guide for FTB-1 (English): Download PDF

EXFO OTDR user guide — covers FTB-730 and FTB-700G series (English): Download PDF

EXFO iOLM user guide for FTB-1 (intelligent Optical Link Mapper, English): Download PDF

EXFO FTB-1 platform user guide (English): Download PDF
