Condition: Used

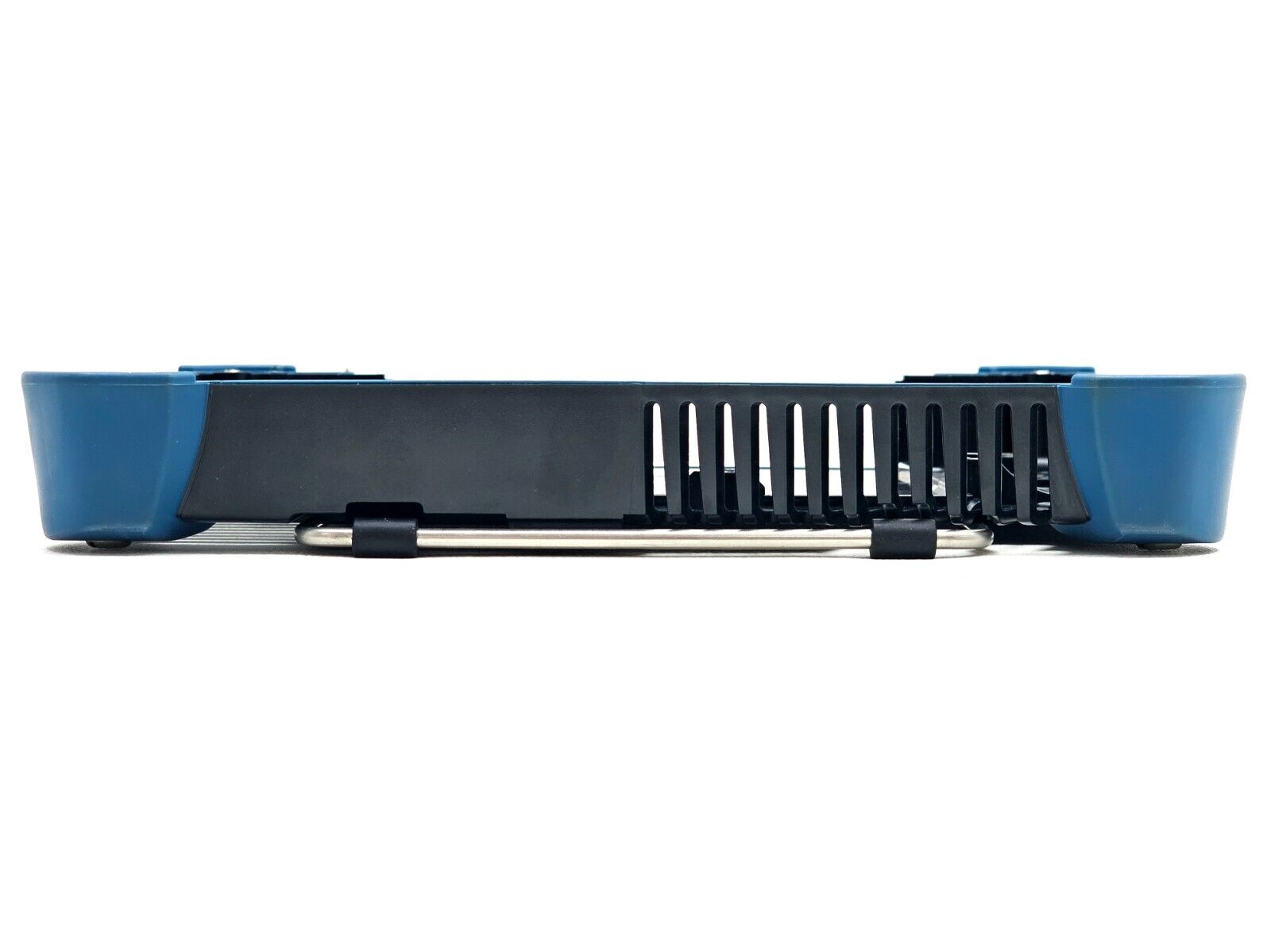

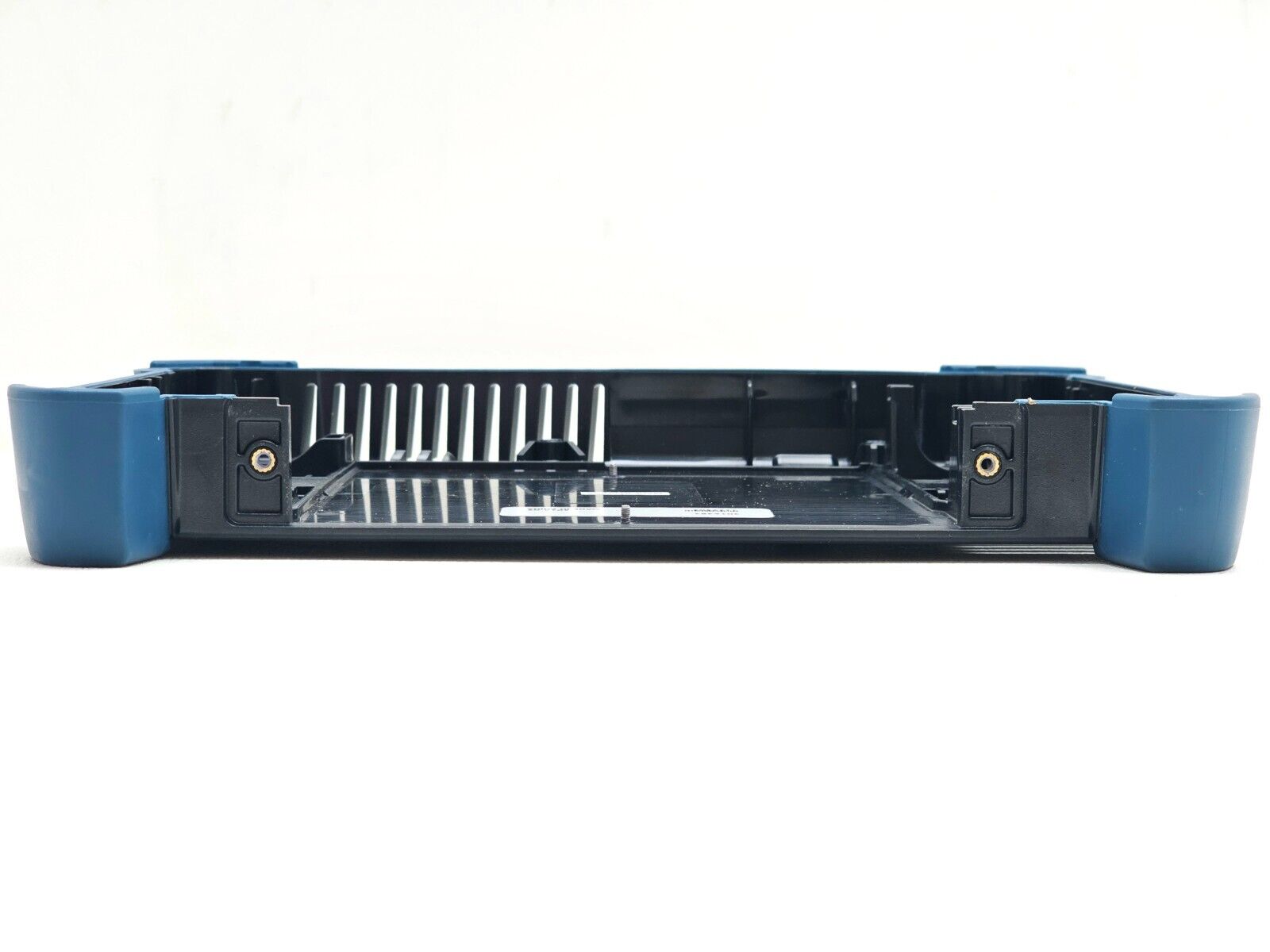

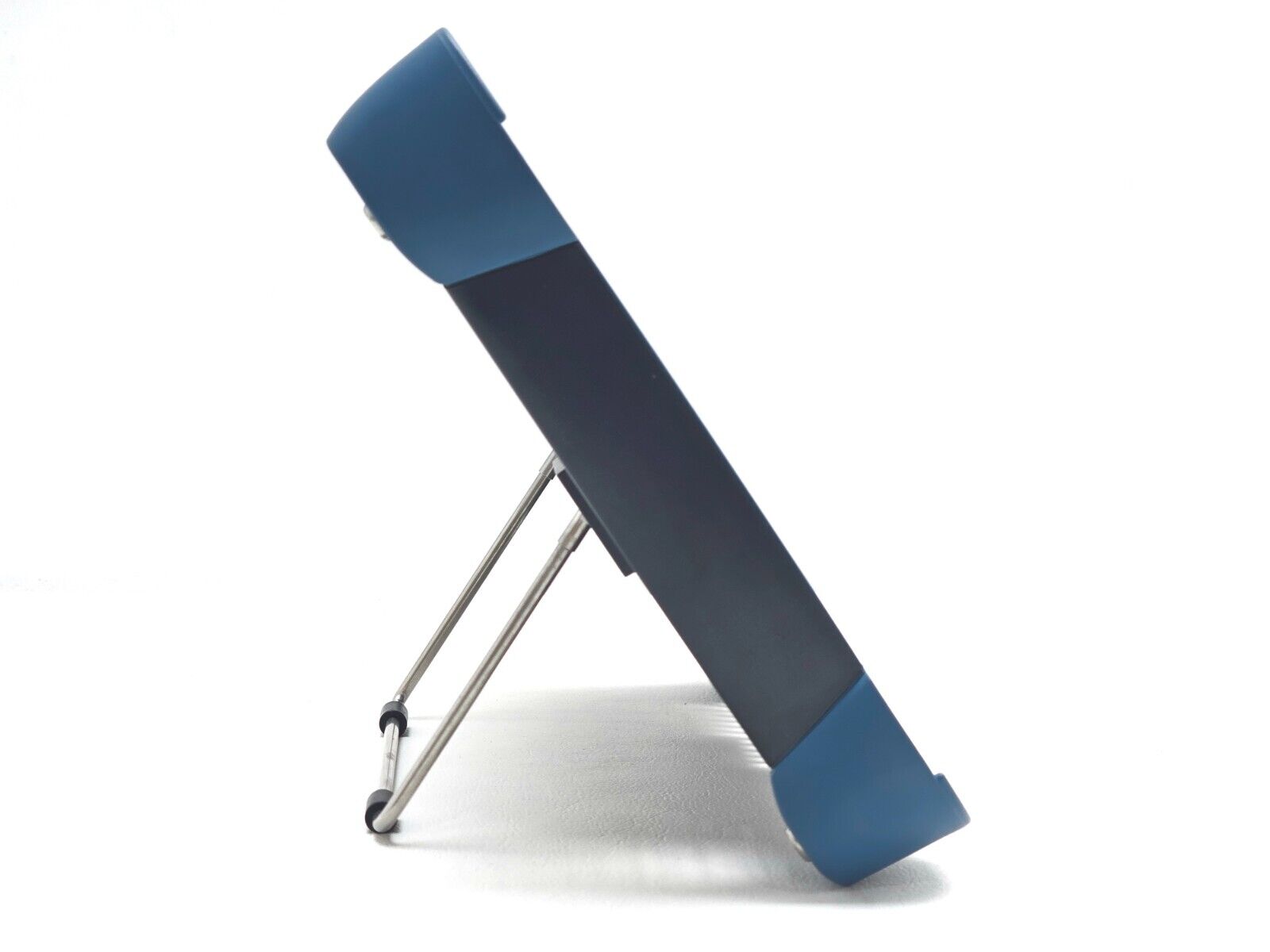

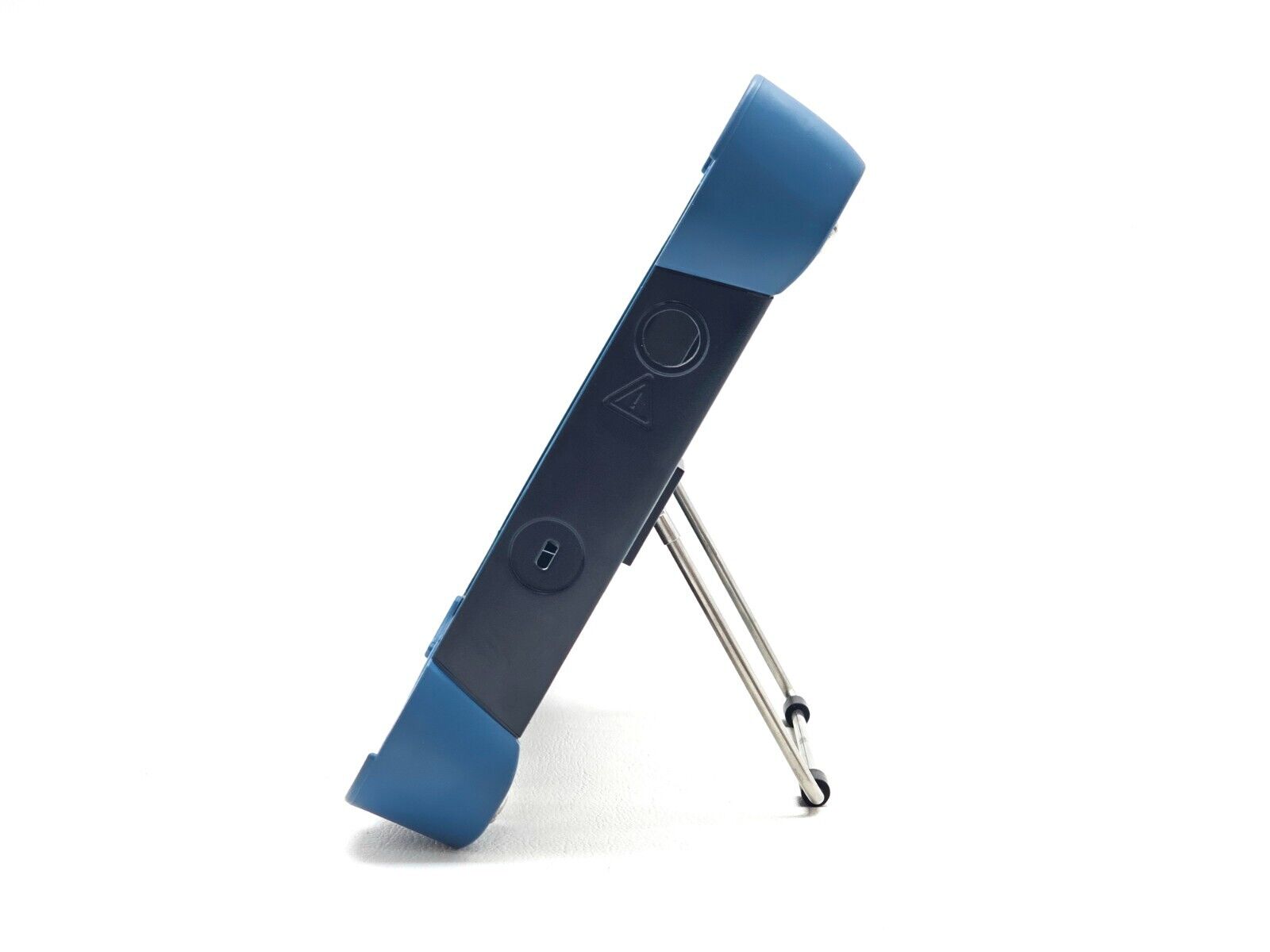

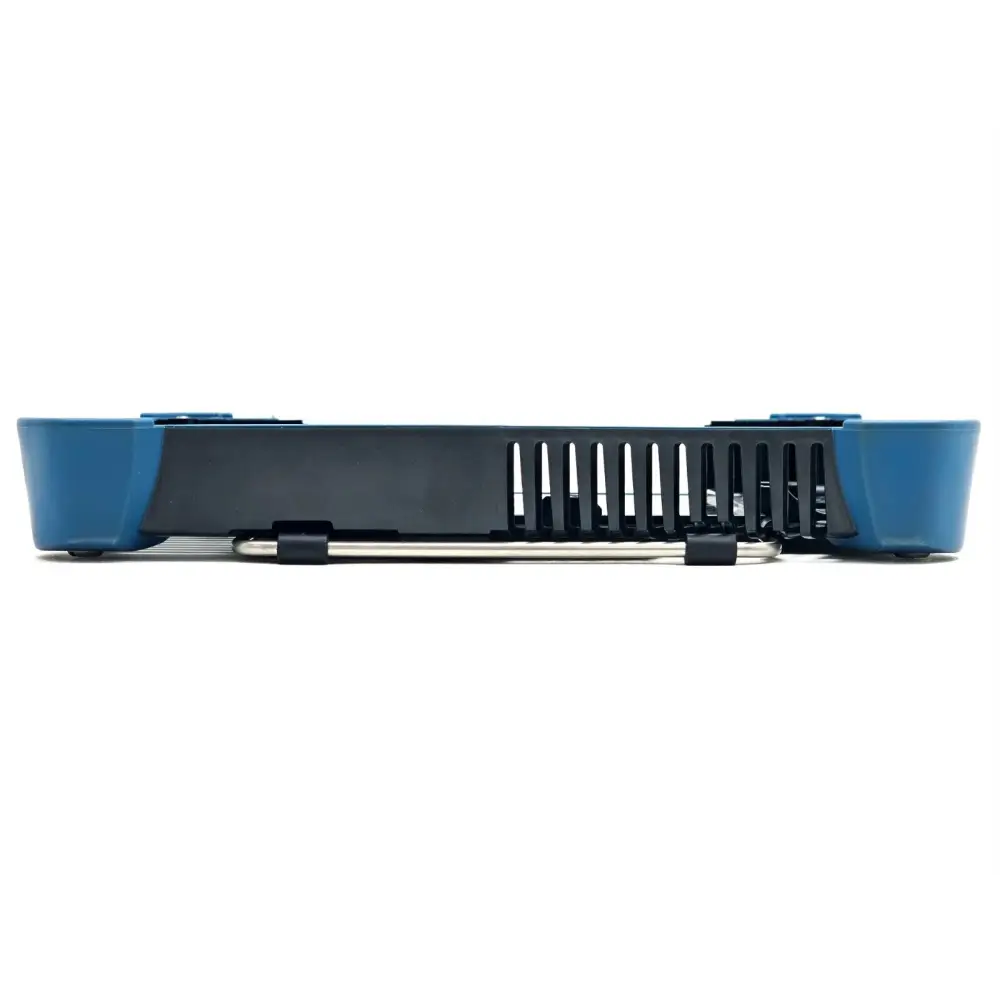

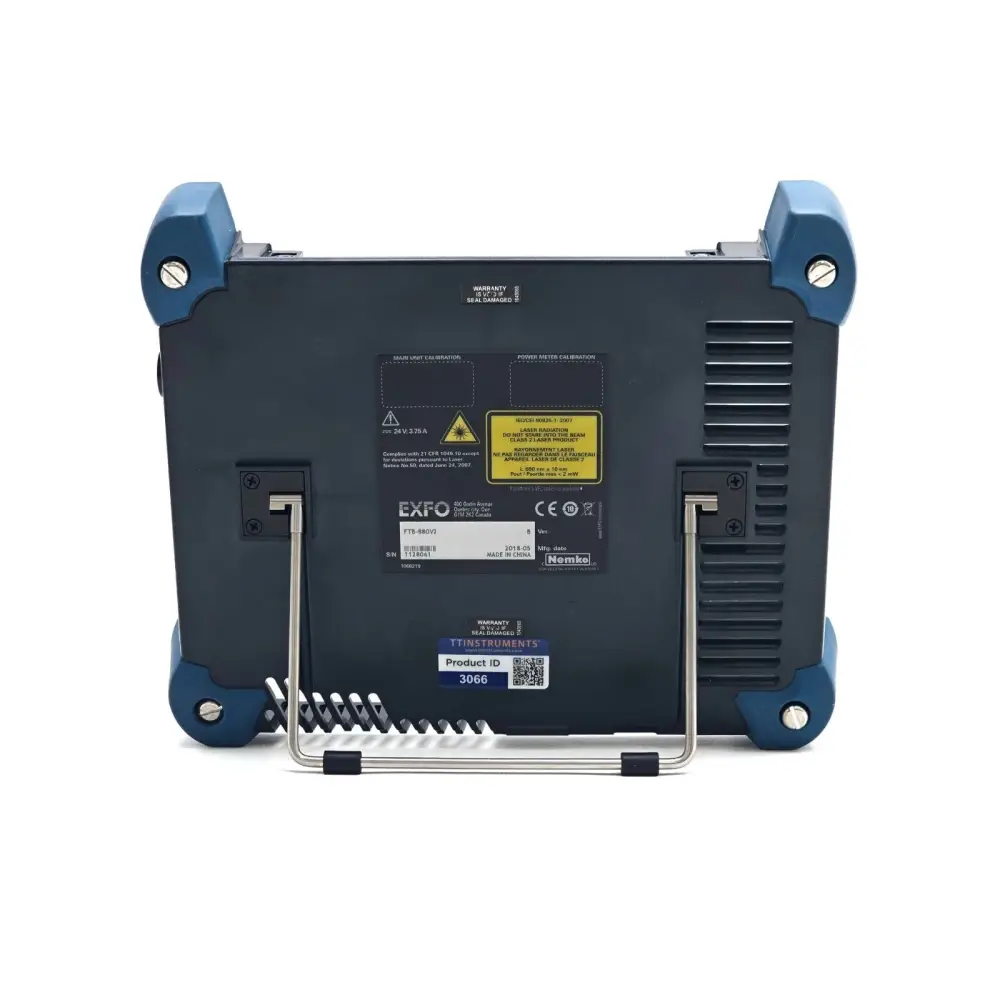

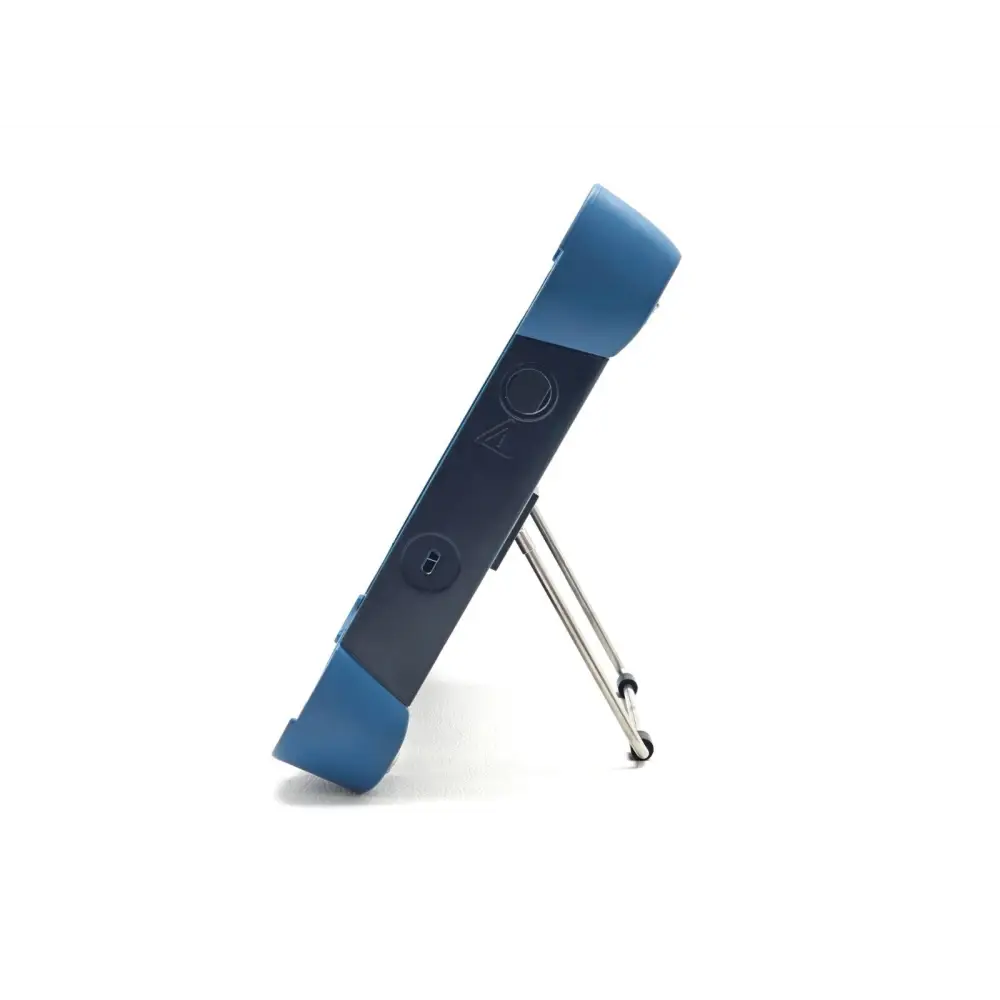

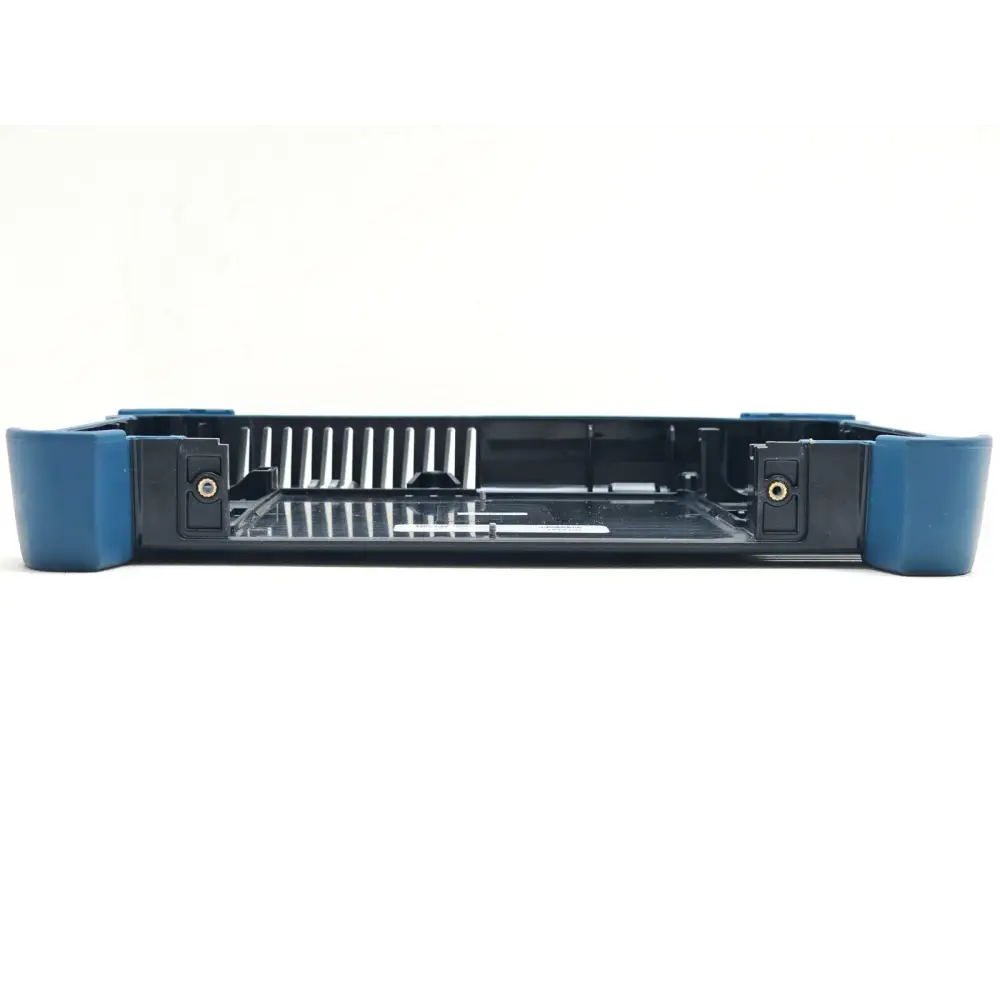

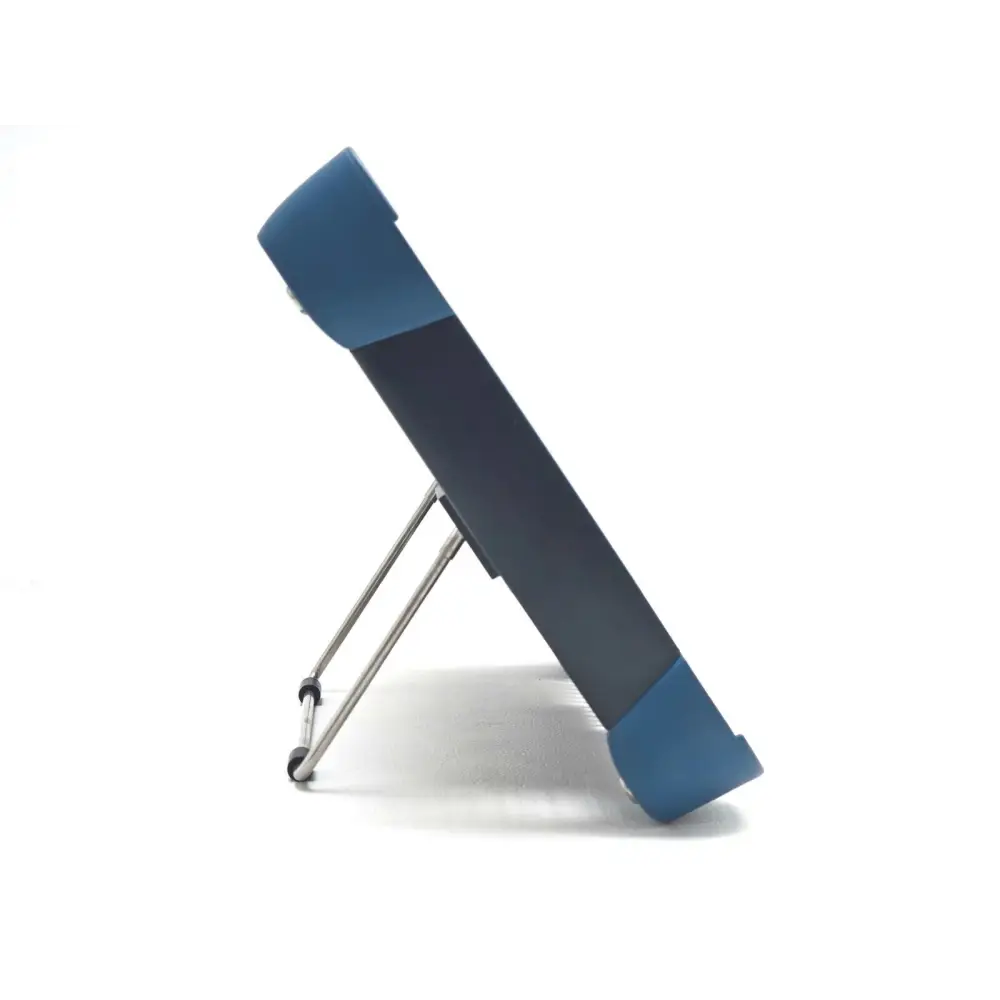

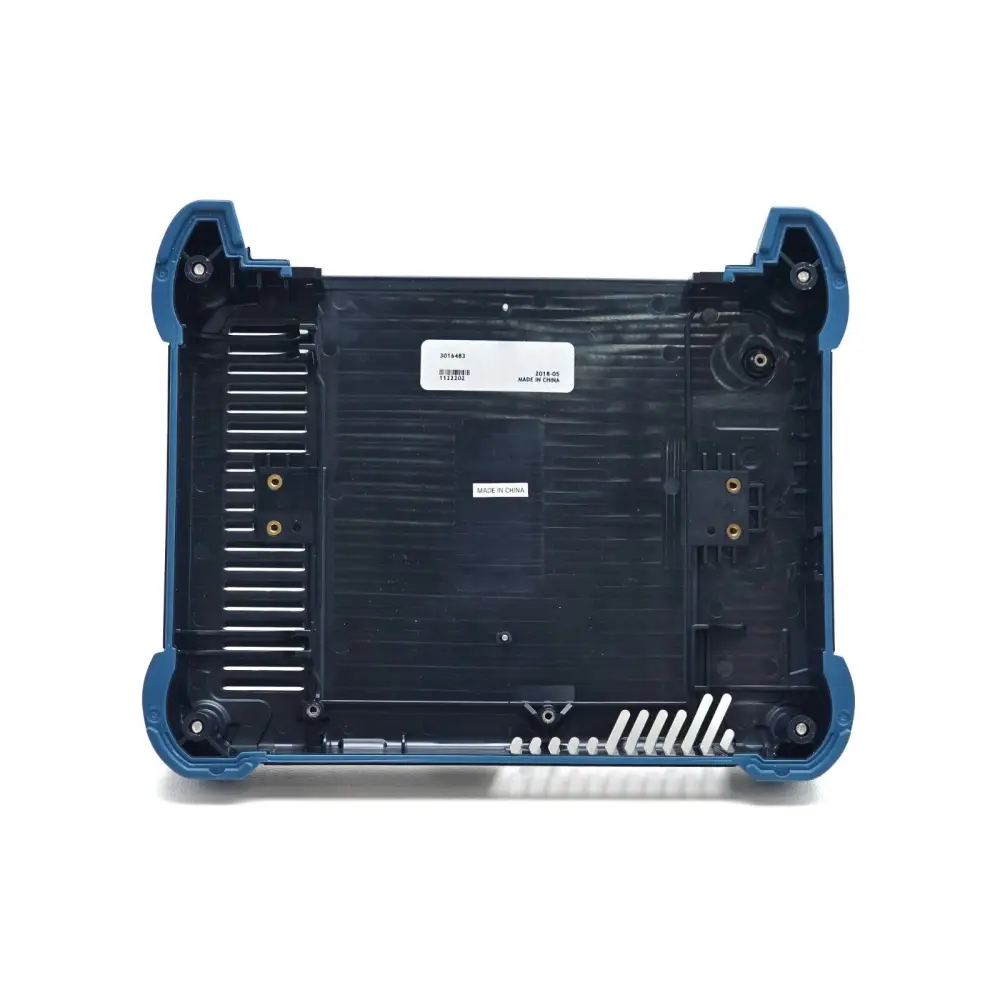

This is a genuine EXFO FTB-1 Pro back panel with an integrated FTB-880V2 module, removed from a working FTB-1 Pro mainframe. The module within is fixed and non-removable — this is not an X Module (hot-swap) carrier. Intended as a spare part for repairing another FTB-1 Pro mainframe.

What is included:
• FTB-1 Pro back panel with integrated FTB-880V2 module (fixed, non-removable)

Note: No additional accessories, cables, or documentation are included.

The EXFO FTB-1 Pro (also referenced as FTB-1v2 Pro) is a portable, modular multiservice test platform designed for optical, Ethernet, TDM, and multiservice field applications. The mainframe accepts single- or double-depth test modules via a rear back panel carrier, enabling a wide range of network testing capabilities. The FTB-880V2 is a 10G NetBlazer multiservice module from the EXFO NetBlazer V2 Series, designed for comprehensive field testing at speeds up to 10 Gbit/s.

FTB-1 Pro Mainframe Specifications:
Processor: Quad-core
Operating System: Windows 10 IoT Enterprise LTSC 2021 (later units) / Windows 8.1 Pro (earlier units)
Display: Multi-touch colour touchscreen, 1280 x 800 TFT, 203 mm (8 in)
RAM: 4–8 GB
Storage: 128 GB internal flash memory
LAN Interface: RJ45 10/100/1000 Mbit/s
USB: 2x USB 2.0, 1x USB 3.0
Memory Slot: Micro SD card
Audio: 3.5 mm headset/microphone port
Battery: Rechargeable Li-ion smart battery
Power Supply: AC/DC adapter, input 100–240 V, 50/60 Hz
Connectivity: Wi-Fi, Bluetooth (optional), USB, VPN-compatible
Module Configuration: Single- or dual-carrier (back panel) for FTBx test modules

FTB-880V2 NetBlazer Module Specifications:
Max Test Speed: 10 Gbit/s
Ethernet Testing: GigE and 10 GigE dual ports, iSAM, RFC 6349, RFC 2544, ITU-T Y.1564 (EtherSAM)
Transport Protocols: OTN (OTU1/OTU2), SONET/SDH (up to 10G), DSn/PDH (DS1/E1, DS3/E3/E4), ISDN PRI
Fibre Channel: 1x, 2x, 4x, 8x, 10x
Synchronisation: IEEE 1588 PTP, SyncE
Other: CPRI (1.2G to 9.8G), Carrier Ethernet OAM, FTTA support
Interfaces: SFP+ ports (P1/P2), RJ45, RJ48C, BNC (EXT CLK)
Form Factor: Single-depth back panel module; fixed (non-X-Module) configuration also available
Standards: ISO 9001 certified manufacturing; EU WEEE directive compliant

EXFO FTB-1v2 / FTB-1 Pro Platform Spec Sheet (PDF): Download PDF

EXFO FTB-1v2 and FTB-1v2 Pro User Guide (PDF): Download PDF

EXFO FTB-1v2 and FTB-1v2 Pro Quick Reference Guide (PDF): Download PDF

EXFO FTB-1 Original User Guide (PDF): Download PDF

EXFO NetBlazer V2 Series (FTB-880V2) Spec Sheet (PDF): Download PDF

EXFO NetBlazer V2 Series User Guide for FTB-1v2 Pro (PDF): Download PDF

EXFO FTB-700G/800 Series NetBlazer User Guide for FTB-1 (PDF): Download PDF
