Condition: Used

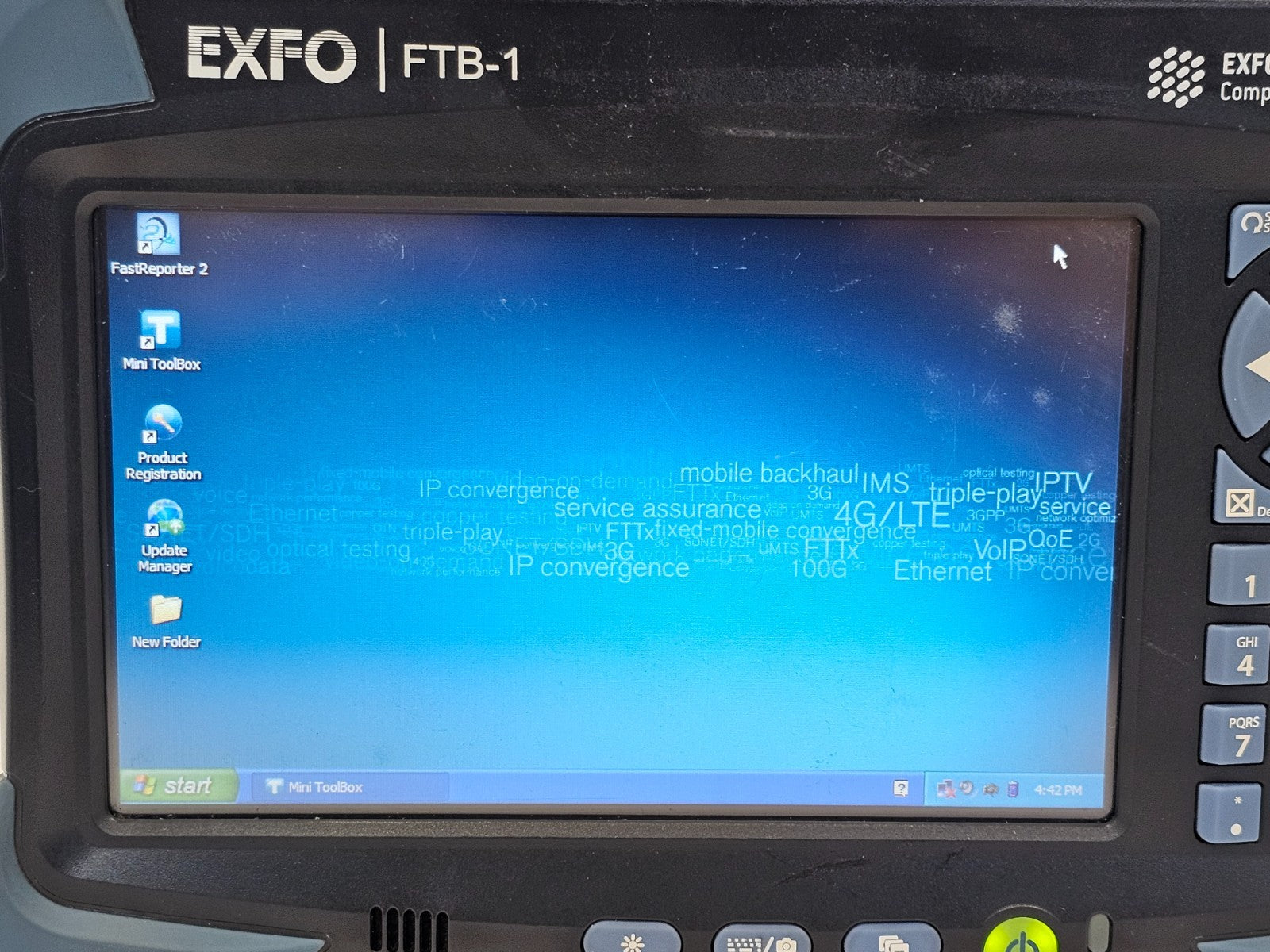

Used EXFO FTB-1-S1-16G modular mainframe platform in good working condition, tested with an Ethernet 860/880 series module. Features 16 GB internal storage and is compatible with both OTDR and Ethernet plug-in test modules.

Included with this unit:
• Power adapter
• Carry bag
• Stylus

The EXFO FTB-1 Platform is a modular system for fast and powerful FTTx (FTTH and FTTN), Ethernet, TDM and multiservice field testing applications. Designed as an open testing solution for network infrastructure construction and troubleshooting, the FTB-1 combines a compact, lightweight form factor with a highly intuitive interface to allow frontline technicians to carry out dedicated test applications simply and efficiently.

The platform accepts a single plug-in test module, with compatibility spanning OTDR modules (FTB-700 series), Ethernet/NetBlazer modules (FTB-800 series including FTB-860 and FTB-880), and combined OTDR/Ethernet modules (FTB-700G series). This modular approach means the FTB-1 can be adapted for fibre characterisation, Ethernet service turn-up and validation, SONET/SDH testing, and multiservice applications.

Key Features:
• Portable single-slot modular mainframe for field technicians
• Wide 7" TFT colour touchscreen (800 x 480 resolution) optimised for outdoor use
• Hybrid touch and physical keypad interface
• Intel ATOM processor running Windows Embedded Standard operating system
• Internal storage: 8 GB standard (16 GB optional, as -16G suffix)

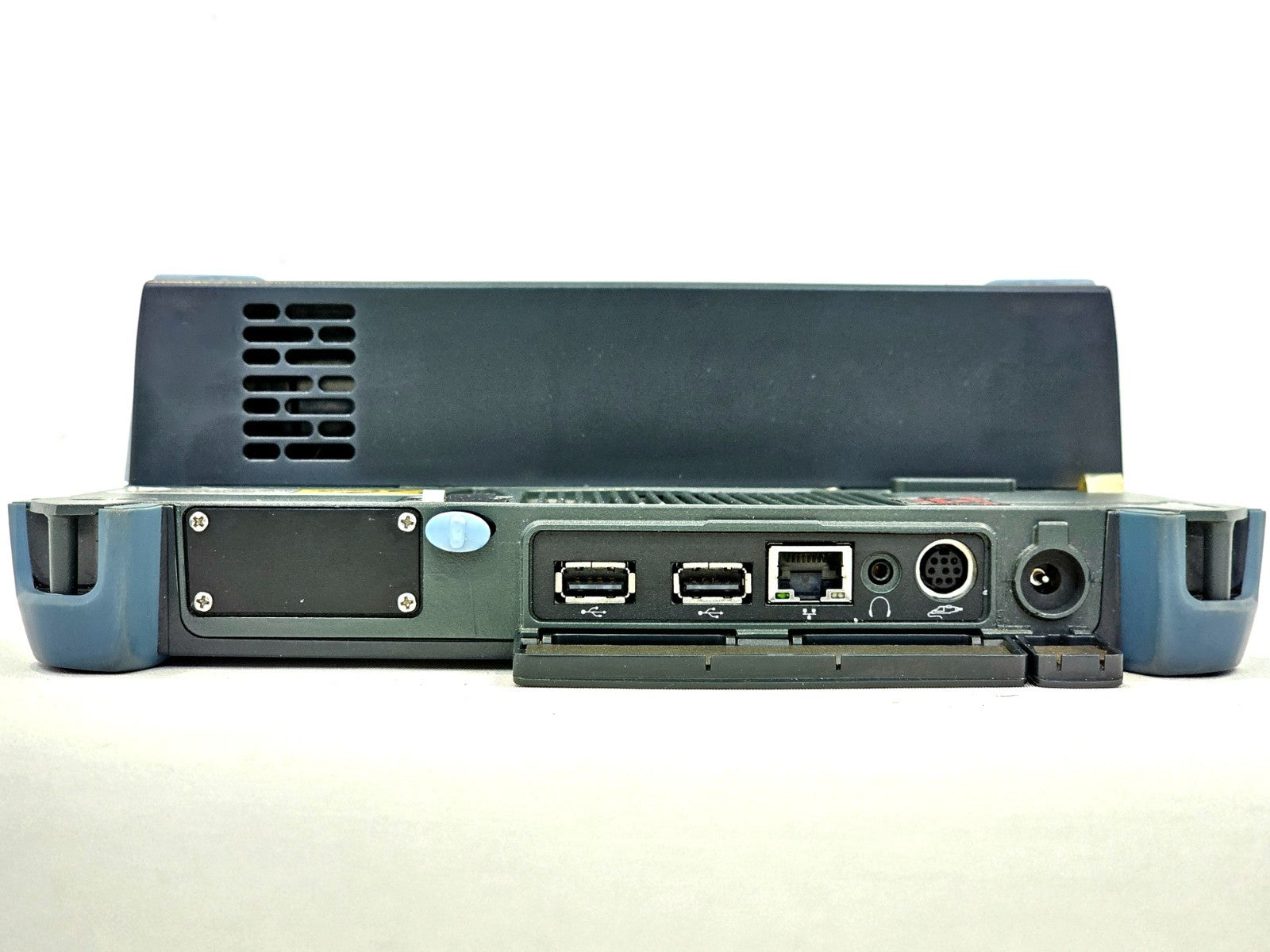

• Two USB 2.0 host ports
• RJ-45 Ethernet port (10/100/1000 Base-T)
• Optional internal Wi-Fi and Bluetooth
• Optional 3G USB modem key support for mobile connectivity
• VPN capability and Windows Remote Assistance/Remote Desktop support
• EXFO Fiber Inspection Probe (FIP) video connector interface
• Optional built-in power meter and Visual Fault Locator (VFL)
• EXFO Connect compatible for cloud-based asset management and centralised reporting
• Rechargeable lithium-ion battery — up to 8 hours operation

Technical Specifications:
Display: 7" colour TFT touchscreen, 800 x 480 resolution
Processor: Intel ATOM
Operating System: Windows Embedded Standard

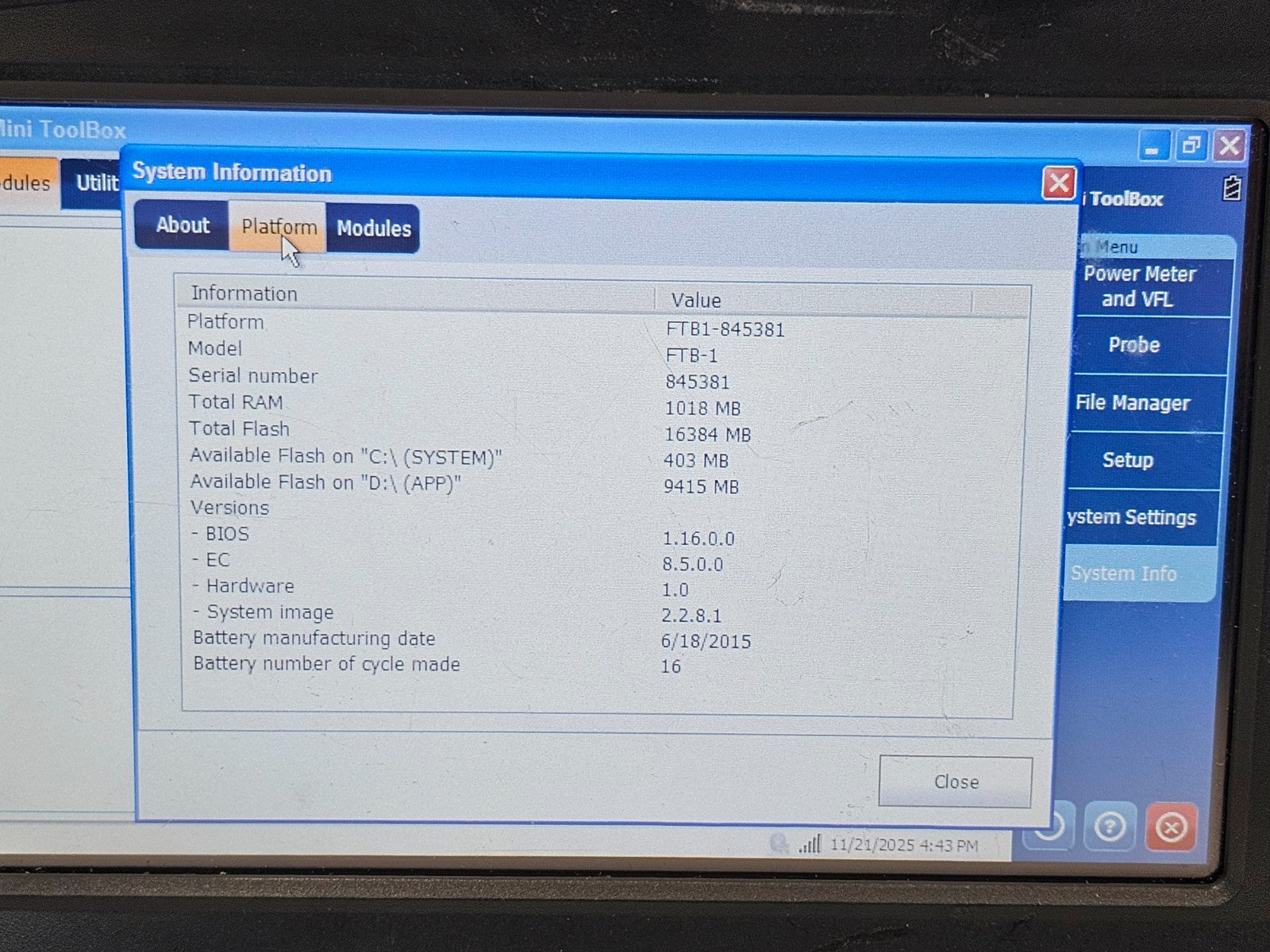

Internal Storage: 16 GB (FTB-1-S1-16G)
USB Interfaces: 2 x USB 2.0 (host)
Ethernet Interface: RJ-45, 10/100/1000 Mbit/s
Wireless: Optional Wi-Fi and Bluetooth
Battery Life: Up to 8 hours (rechargeable lithium-ion)
Weight (with battery): Approximately 1.5 kg
Dimensions: Approximately 190 x 250 x 66 mm
Operating Temperature: 0 °C to +50 °C
Storage Temperature: –20 °C to +60 °C (with battery)
Compliance: ISO 9001, CE, WEEE directive

Compatible Modules include: FTB-720, FTB-730, FTB-750 (OTDR series); FTB-810x, FTB-860, FTB-870, FTB-880 (NetBlazer Ethernet series); FTB-720G, FTB-730G (combined OTDR/Ethernet).

Note: The FTB-1 is a discontinued product. The recommended replacement is the EXFO FTB-1 Pro / FTB-1v2 platform.

EXFO FTB-1 Platform Specification Sheet (PDF): Download PDF

EXFO FTB-1 Platform Specification Sheet — alternate hosted version (PDF): Download PDF

EXFO FTB-1 User Guide — English (PDF): Download PDF

EXFO FTB-1 User Guide — English, updated version (PDF): Download PDF

EXFO FTB-700G/800 Series NetBlazer User Guide for FTB-1 (PDF): Download PDF

EXFO FTB-1 Platform Specification Sheet — FiberInstrumentSales hosted (PDF): Download PDF
