Condition: Used

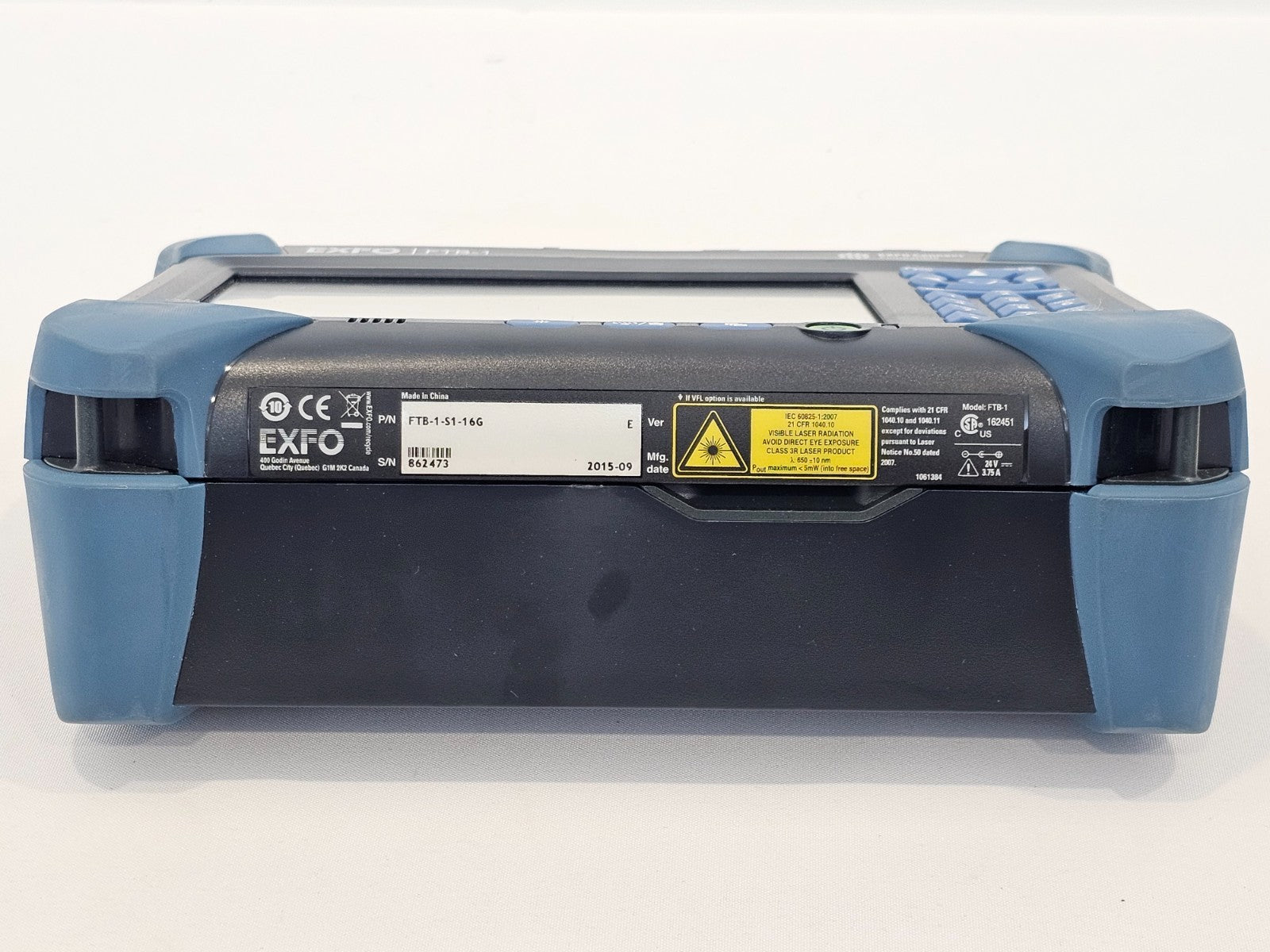

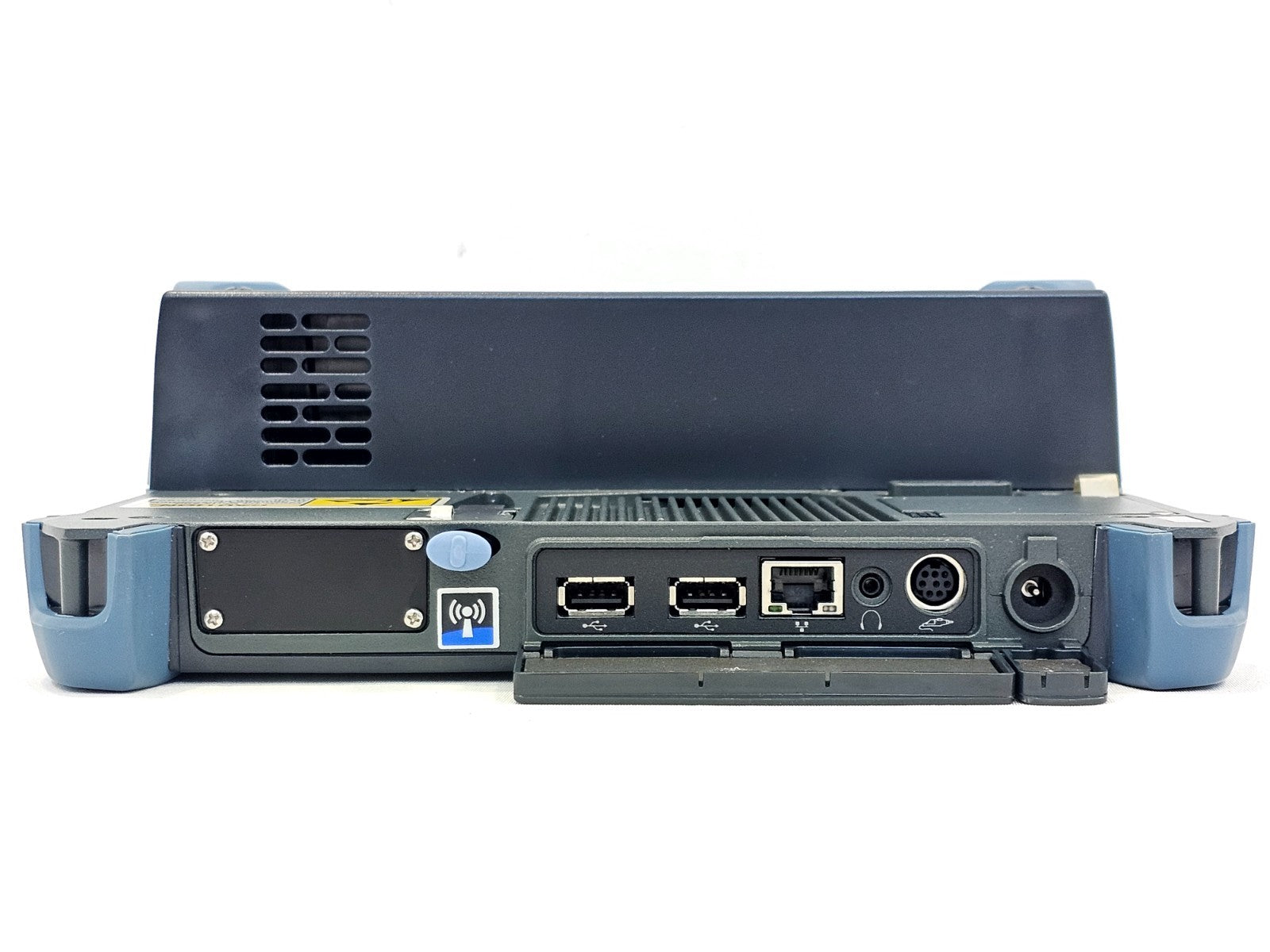

Used EXFO FTB-1-S1-16G modular mainframe platform in good condition, tested with an Ethernet 860/880 series module. Features 16 GB internal storage. Compatible with both OTDR and Ethernet test modules. Multiple units held in stock; cosmetic appearance may vary slightly between units.

Typically supplied with:
• Power adapter
• Carry bag
• Stylus

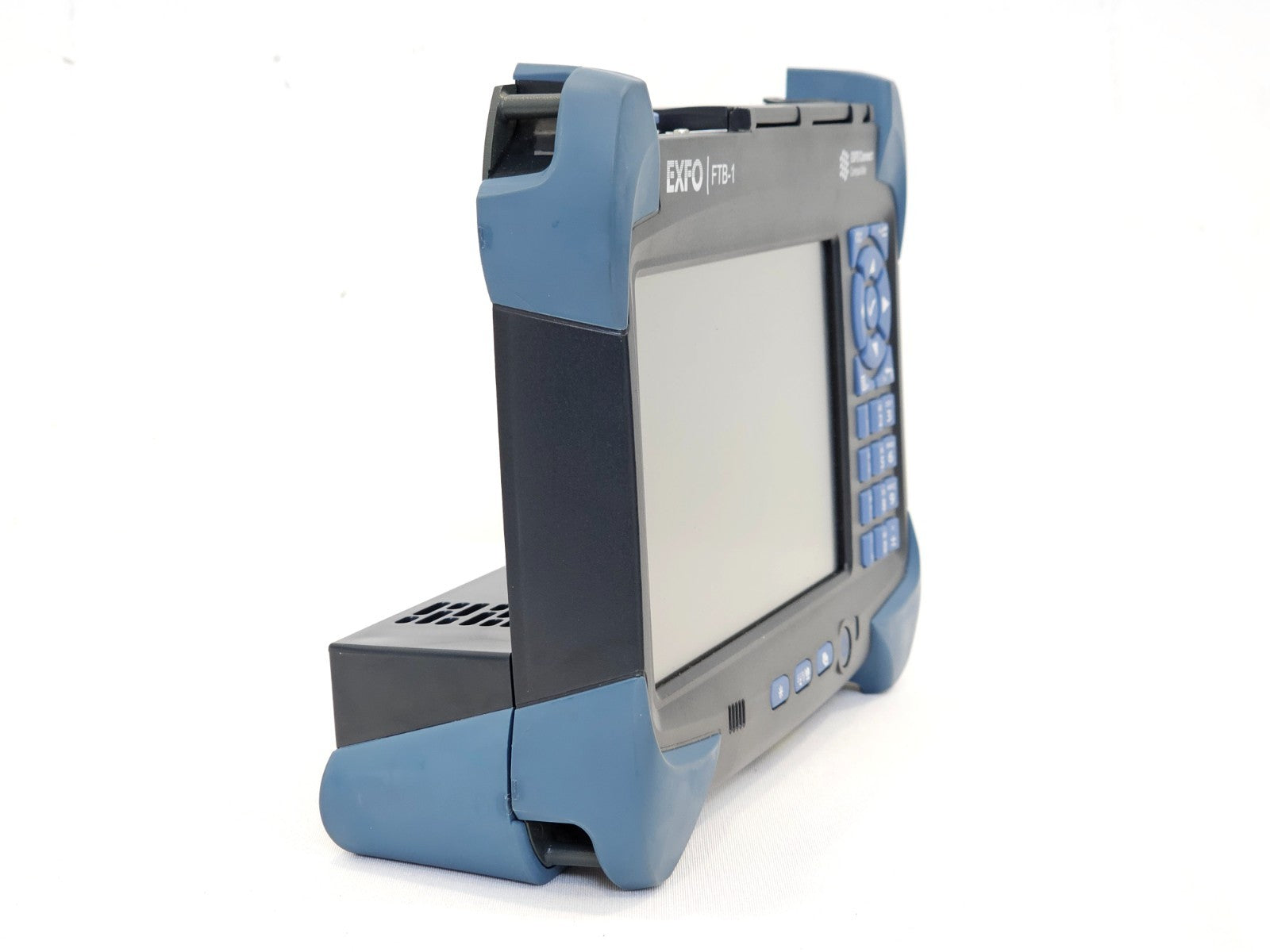

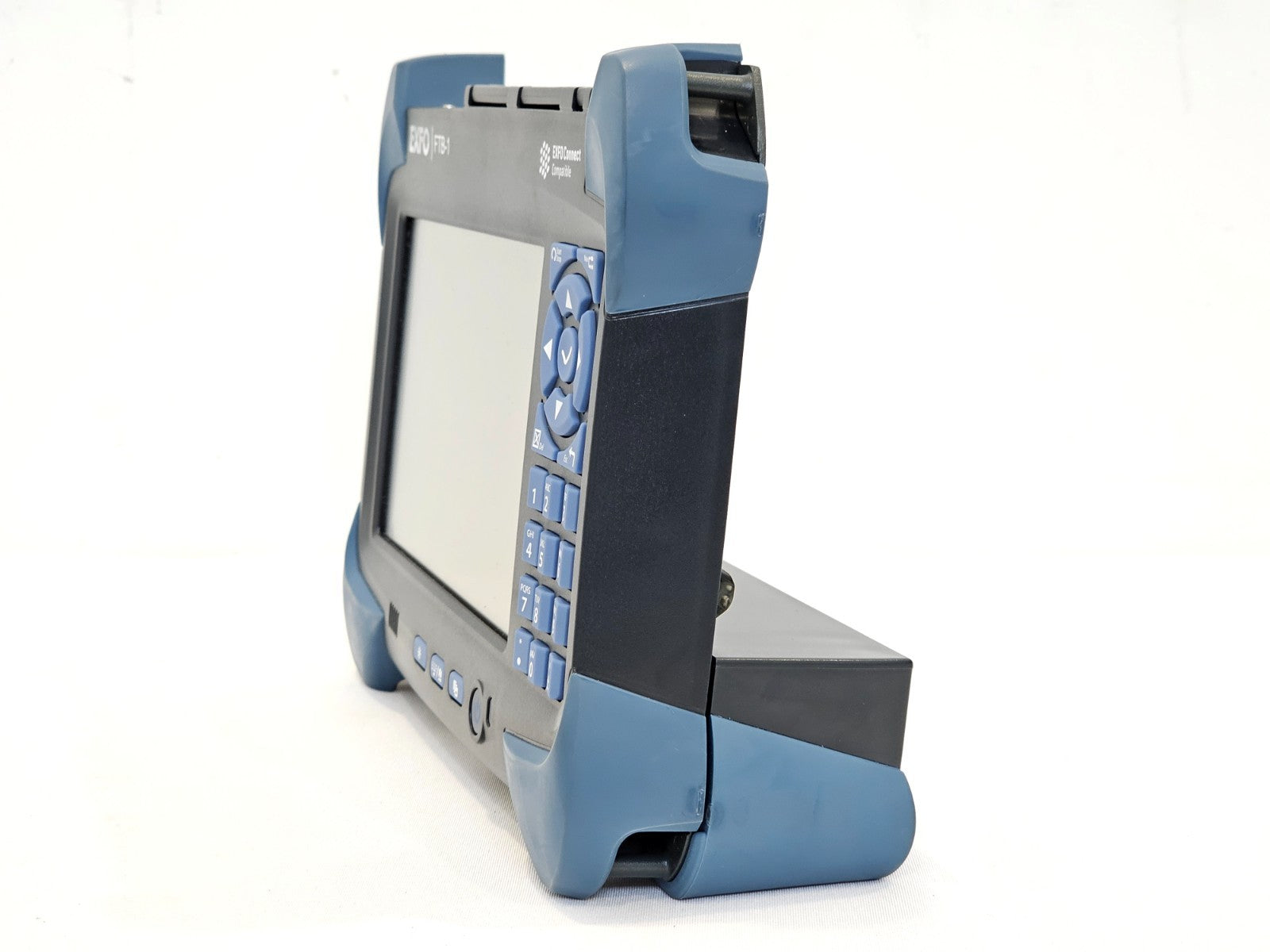

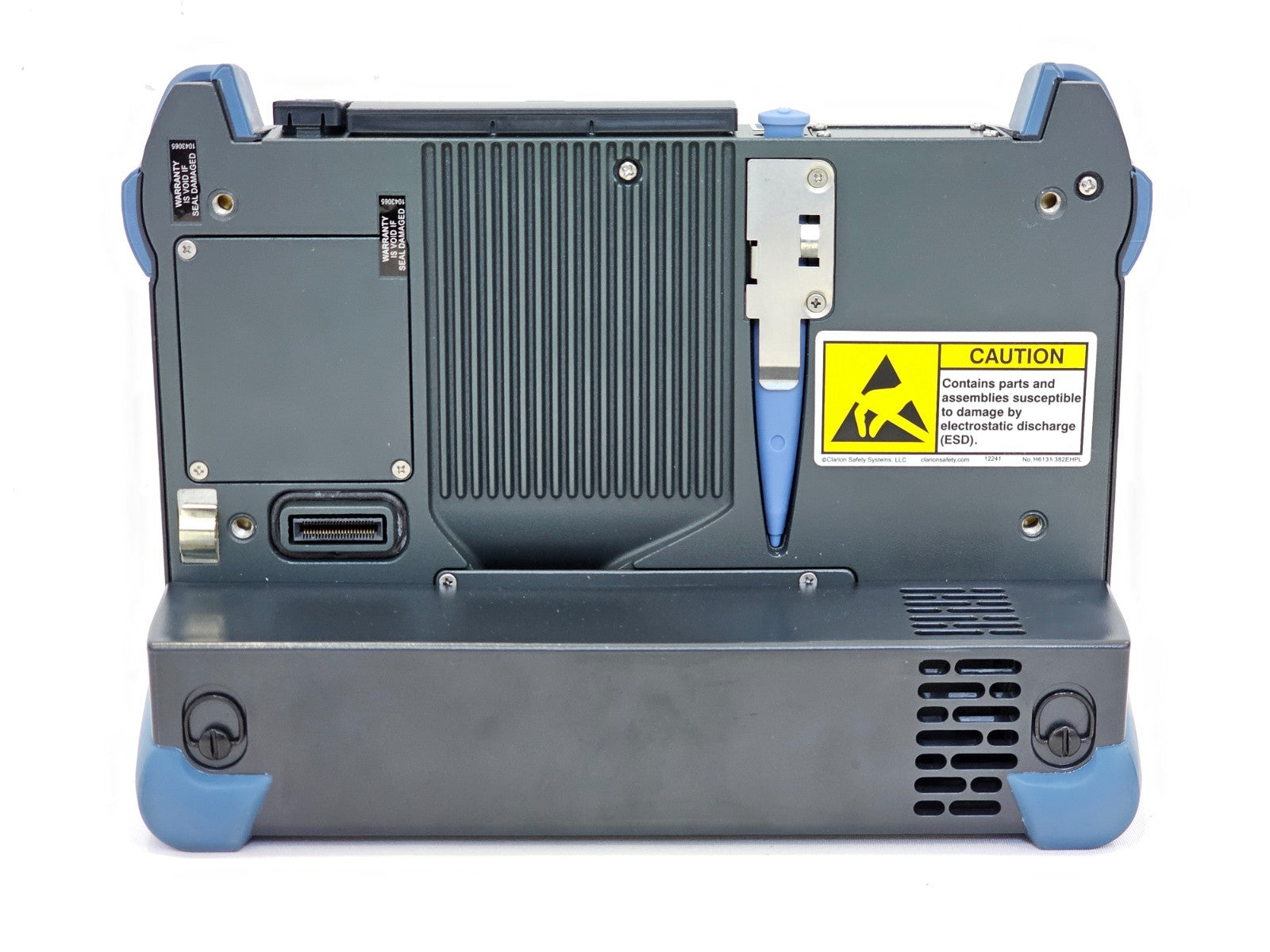

The EXFO FTB-1 is a compact, single-slot portable modular test platform designed for fast and powerful field testing of FTTx (FTTH and FTTN), Ethernet, TDM, and multiservice network applications. As an open testing solution for network infrastructure construction and troubleshooting, the FTB-1 empowers frontline technicians to carry out dedicated test applications simply and efficiently in the field.

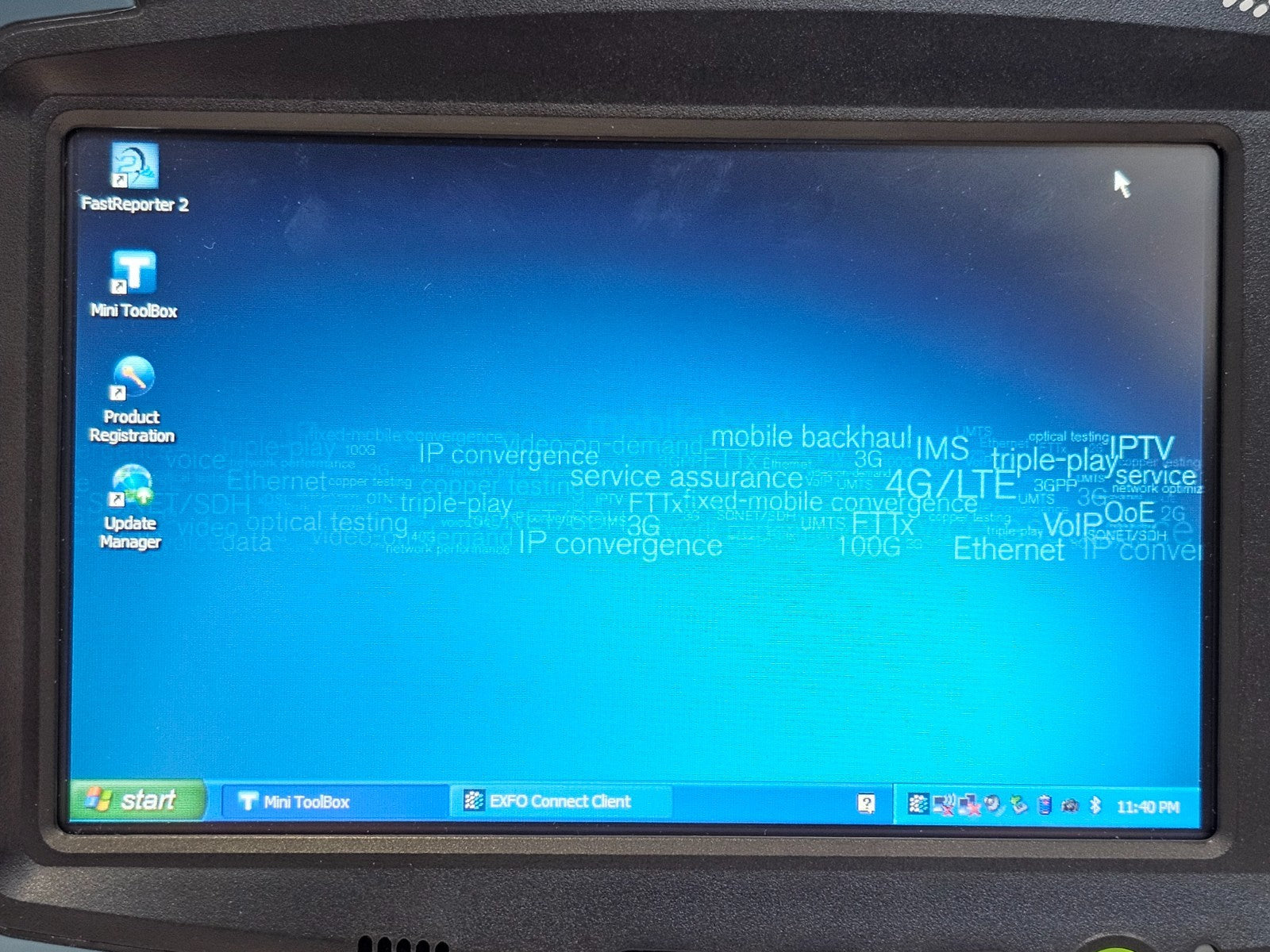

The platform is PC-oriented, running an Intel ATOM processor with Windows Embedded Standard operating system, allowing installation of third-party applications and support for a wide range of USB devices. It is compatible with the EXFO Connect environment for end-to-end operational visibility, centralised reporting, and automated asset management via the cloud.

Key Features:
• Wide 7" TFT colour touchscreen display (800 x 480 resolution)
• Hybrid touch and physical keypad interface
• Intel ATOM processor with Windows Embedded Standard OS
• Internal storage: 8 GB standard (16 GB optional)
• RJ-45 LAN 10/100/1000 Mbit/s built-in Ethernet interface
• Two USB 2.0 ports
• Optional built-in Wi-Fi and Bluetooth connectivity
• Optional 3G mobile connectivity via USB modem
• Optional EXFO Fiber Inspection Probe video connector interface
• Rechargeable lithium-ion battery (up to 8 hours operation)
• Compatible with OTDR modules (FTB-700 series) and Ethernet/transport test modules (FTB-800/860/880 series)
• EXFO Connect-ready for cloud-based test data management and remote assistance
• Wireshark packet-capture utility included as standard

Technical Specifications:
Display: 7" colour TFT touchscreen, 800 x 480 resolution
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Internal Storage: 8 GB (16 GB optional)
LAN Interface: RJ-45 10/100/1000 Mbit/s
USB: 2 x USB 2.0
Wireless: Optional Wi-Fi, Bluetooth, 3G USB modem
Battery Life: Up to 8 hours (rechargeable lithium-ion)
Dimensions: 190 x 250 x 66 mm (approx.)
Weight: Approx. 1.5 kg (with battery)
Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20 °C to +60 °C (with battery)
Module Slots: 1 (single-slot)
Compatible Modules: FTB-700 series OTDRs, FTB-800/860/880 series Ethernet/transport modules
Compliance: ISO 9001 certified; EU WEEE directive compliant

EXFO FTB-1 User Guide (English) — official EXFO platform user manual PDF: Download PDF

EXFO FTB-1 Platform Specification Sheet — technical specs and features overview PDF: Download PDF

EXFO FTB-1 Platform Spec Sheet v16 — detailed modular platform specifications PDF: Download PDF

EXFO FTB-1 Platform Datasheet — alternate specification sheet from Fiber Instrument Sales PDF: Download PDF
