Condition: Used

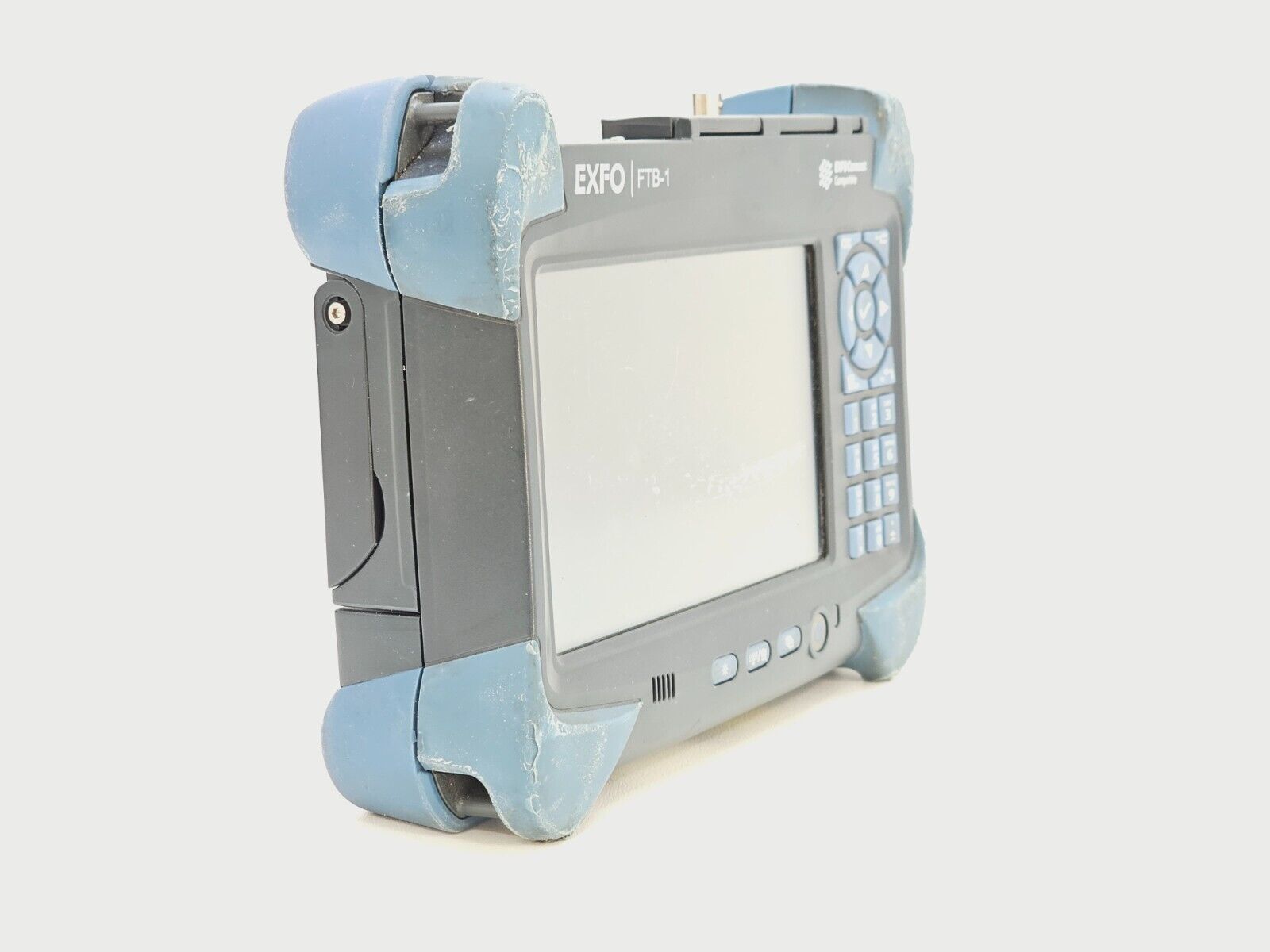

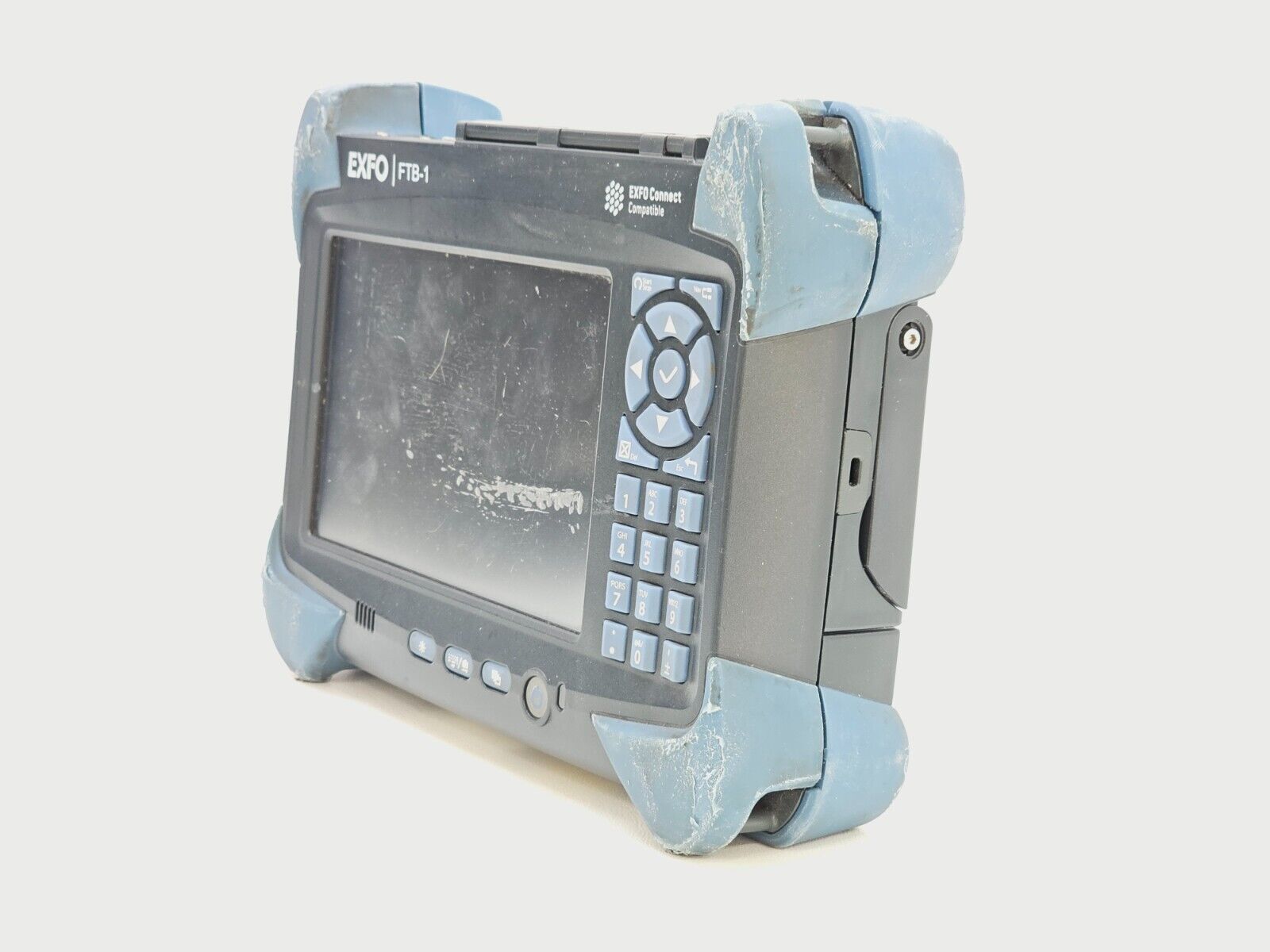

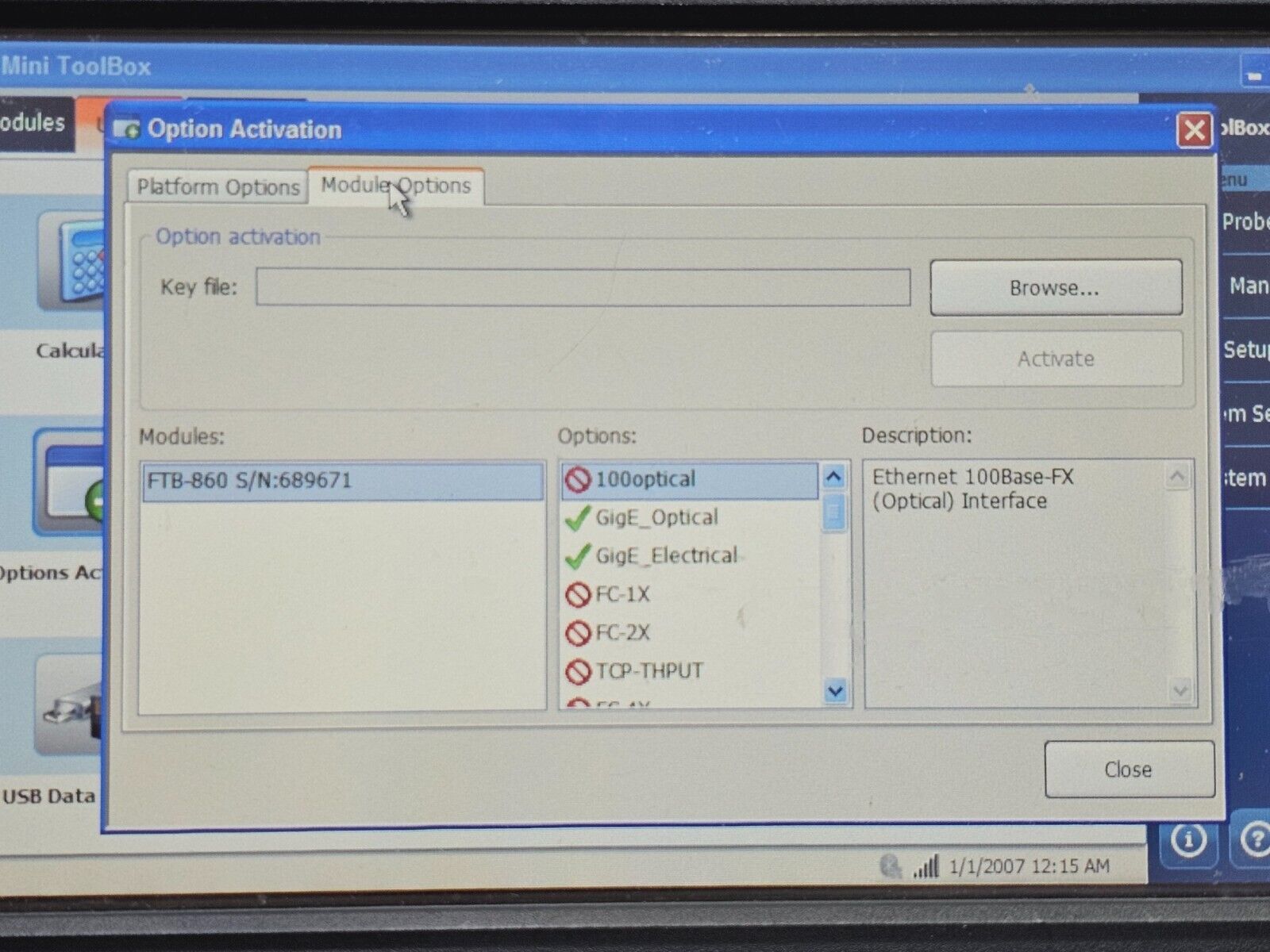

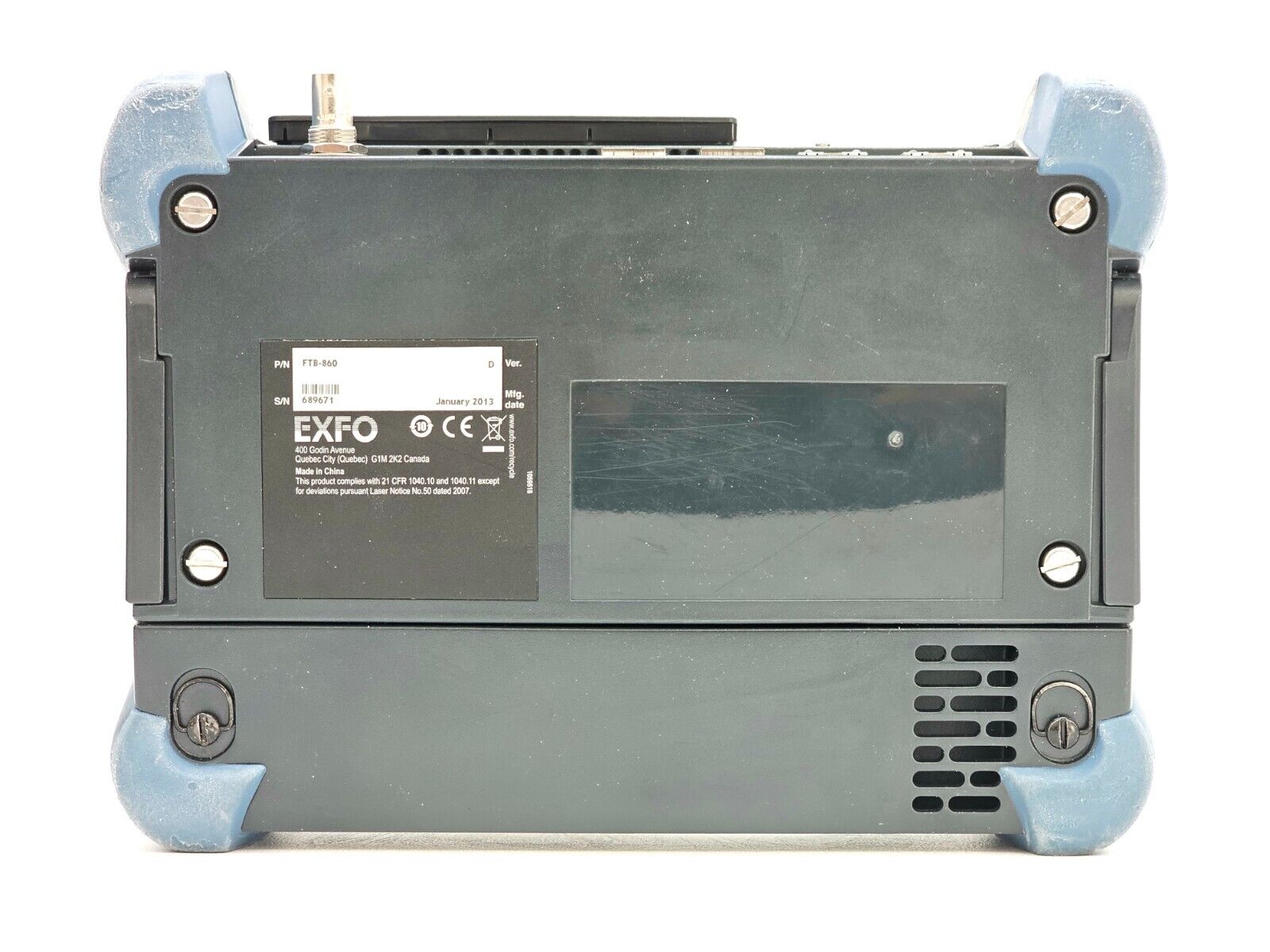

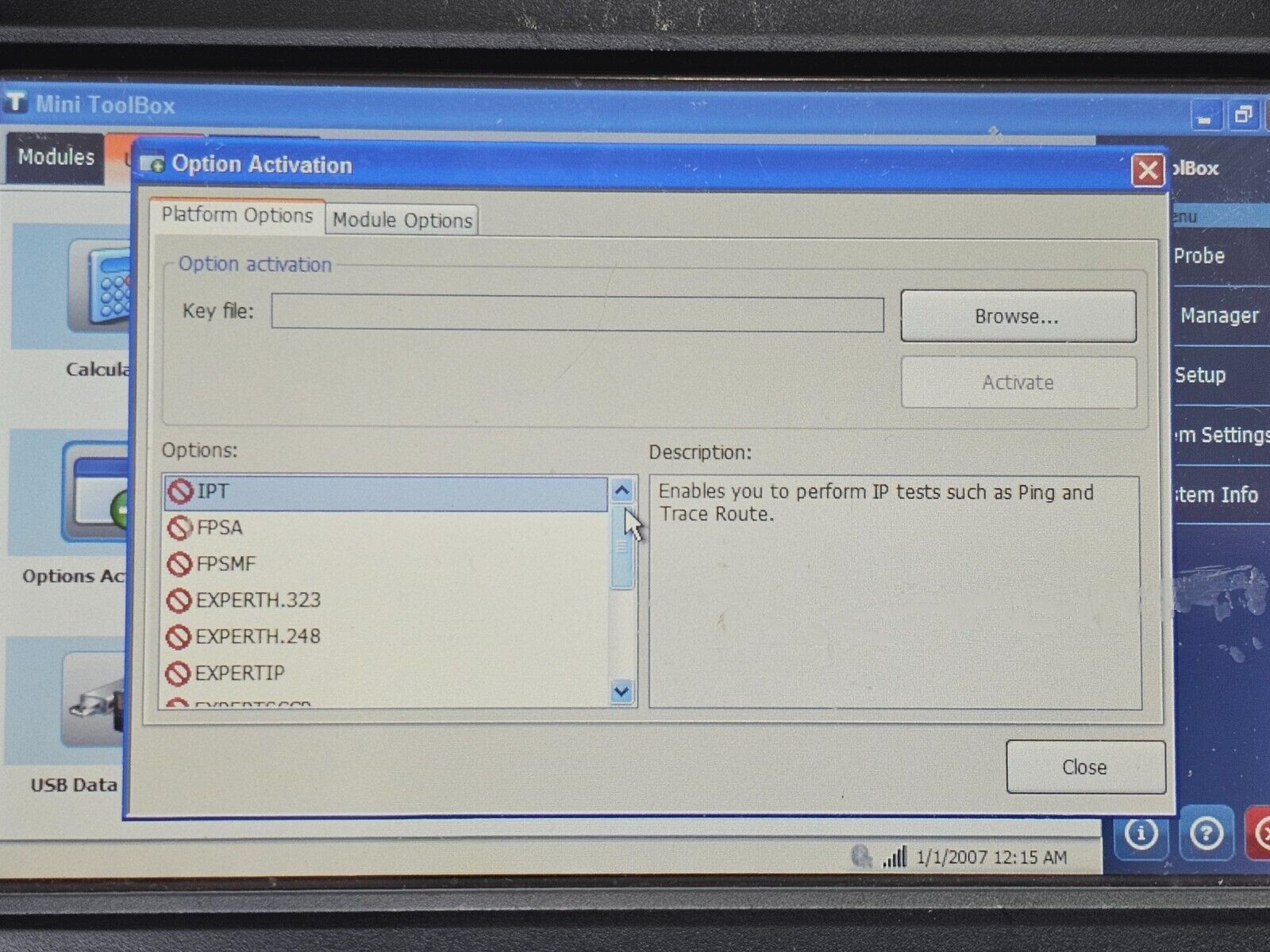

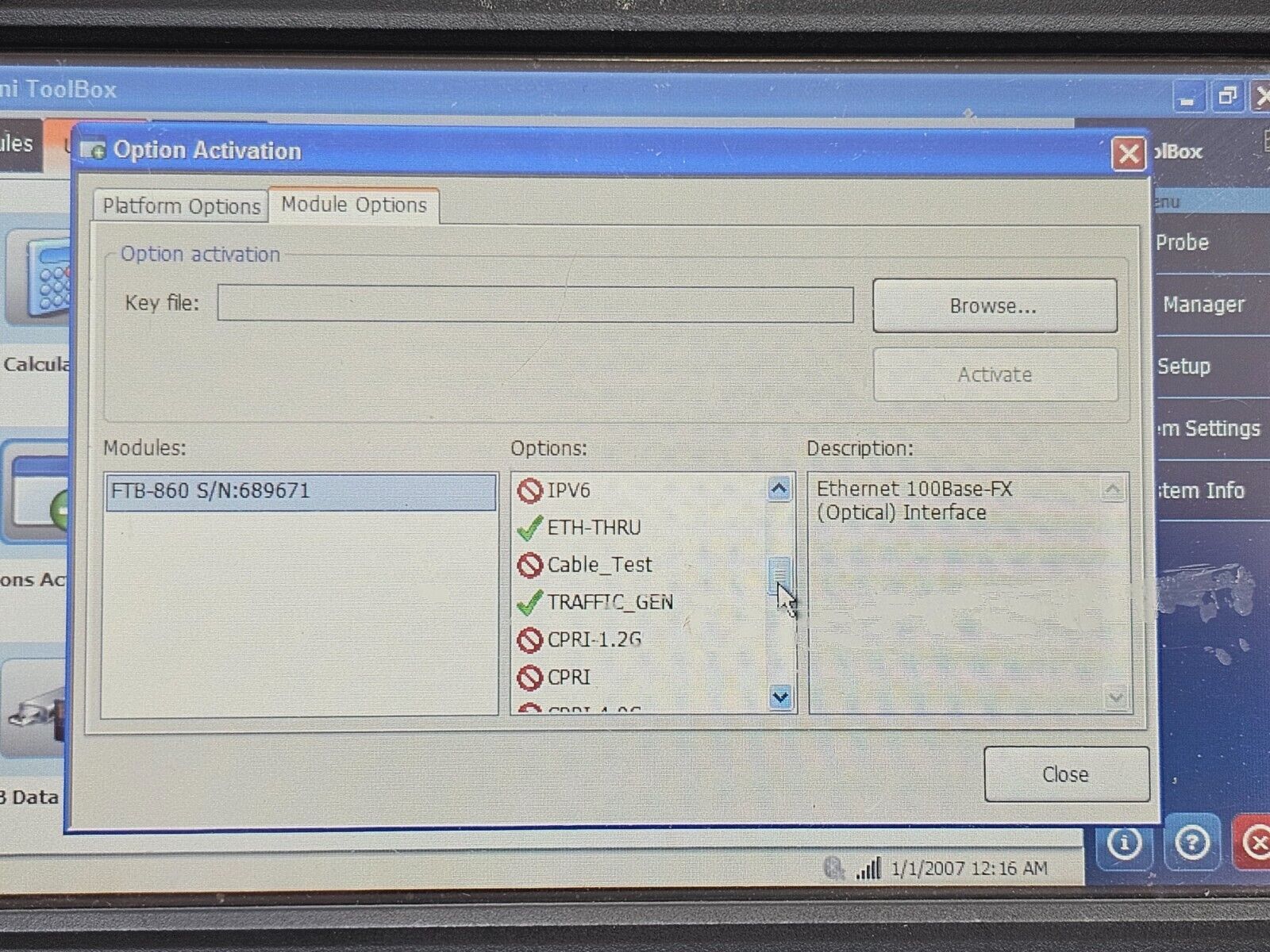

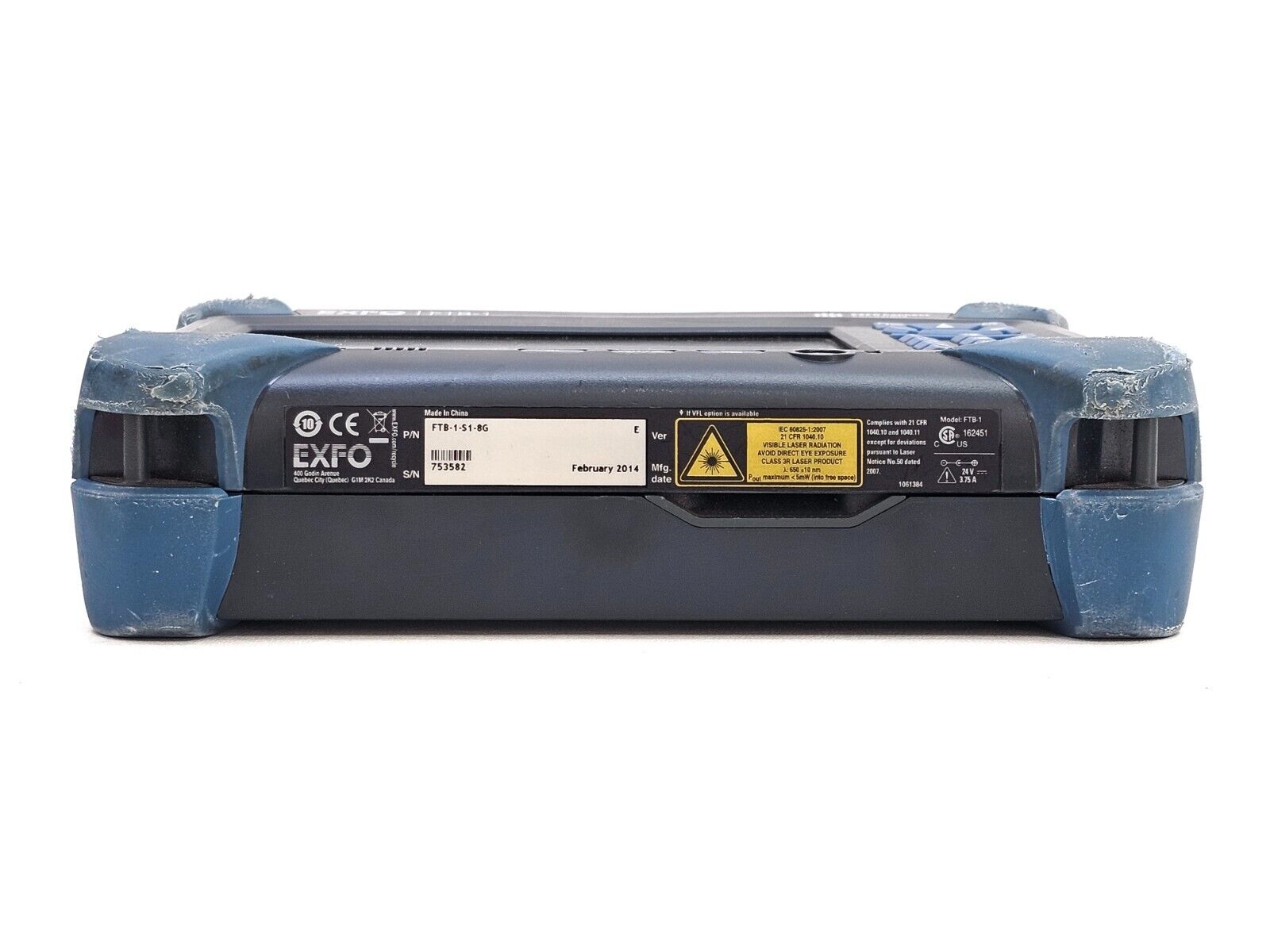

Used EXFO FTB-1 mainframe fitted with an FTB-860 NetBlazer 1G Gigabit Ethernet module. The unit is in poor cosmetic condition with a heavily scratched screen; the battery holds charge. Active licensed options include GigE_Optical, GigE_Electrical, ETH-THRU and TRAFFIC_GEN.

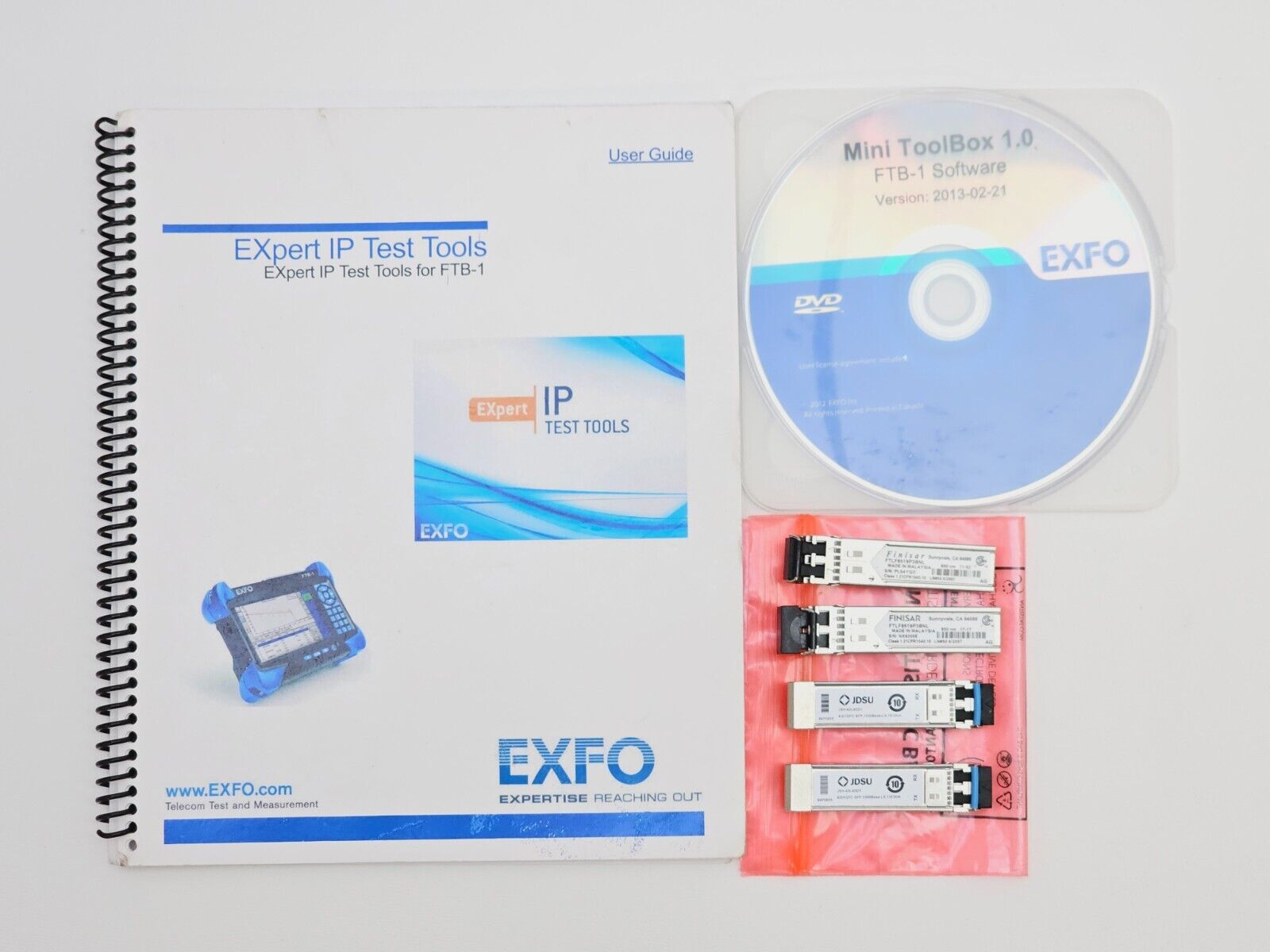

Supplied with:
• Carry case
• Stylus
• SFPs
• Charger

The EXFO FTB-860 NetBlazer is a fully integrated, portable Ethernet test module housed in the FTB-1 handheld platform, designed for field technicians to turn up, validate and troubleshoot Ethernet and Fibre Channel services from 10 Mbit/s to 1 Gbit/s (optical and electrical). The FTB-860 supports bidirectional EtherSAM (ITU-T Y.1564) and RFC 2544 test suites, multistream traffic generation and monitoring, Smart Loopback, Through Mode in-service testing, BER testing, and SyncE/1588 PTP packet synchronisation validation.

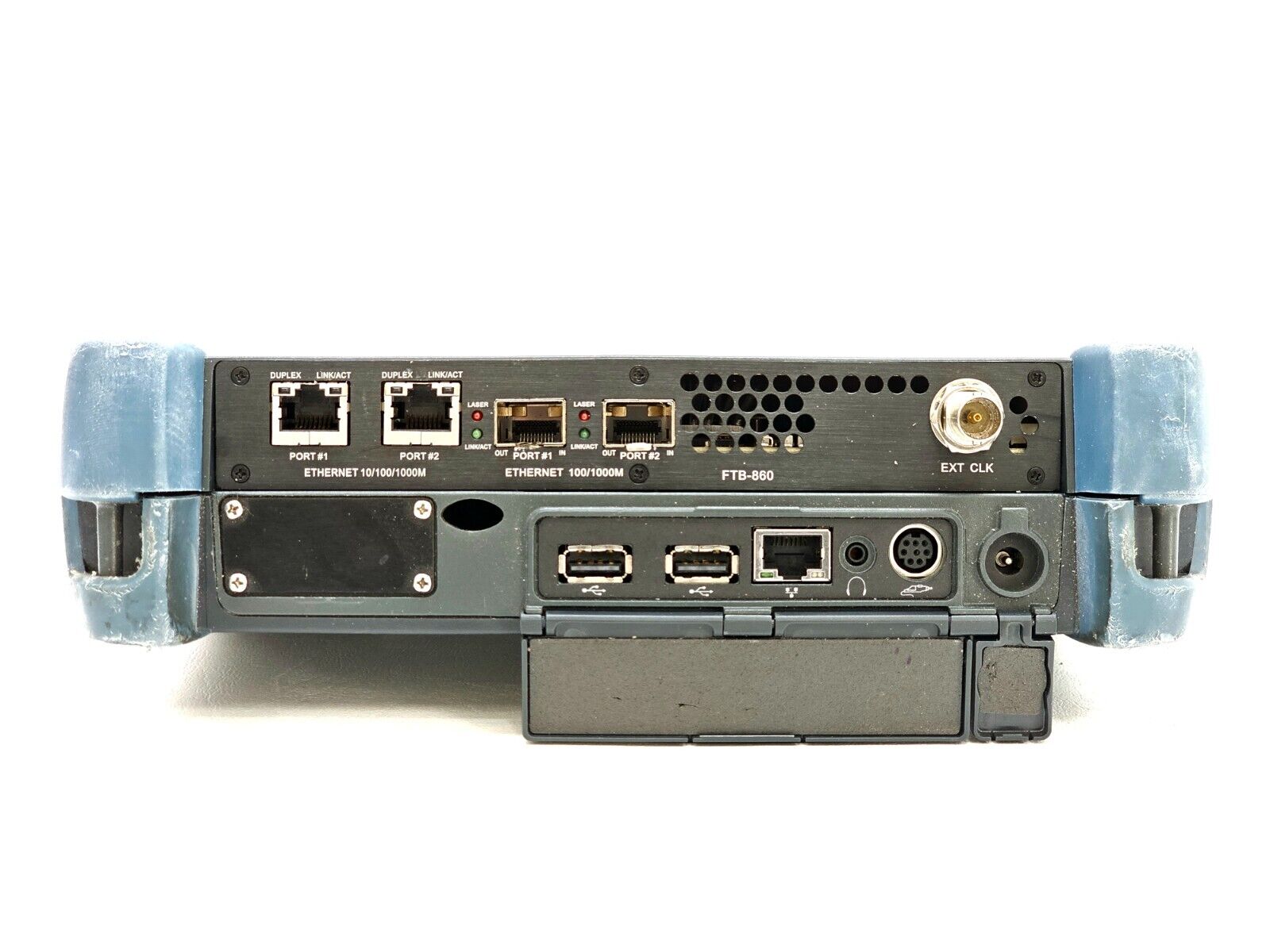

The module provides two RJ-45 electrical ports (10Base-T / 100Base-TX / 1000Base-T) and SFP optical slot(s) supporting 100/1000 Mbit/s optical interfaces via interchangeable SFP transceivers. An intelligent GUI with hybrid touchscreen and keypad navigation, autodiscovery of remote EXFO testers, and dedicated quick-action buttons for report generation and error injection are standard.

FTB-1 Mainframe Specifications:
Display: Touchscreen, colour, 800 x 480 TFT, 178 mm (7 in)
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Storage: 8 GB internal flash memory
Interfaces: Two USB 2.0 ports, RJ-45 LAN 10/100/1000 Mbit/s, Fibre Inspection Probe video connector

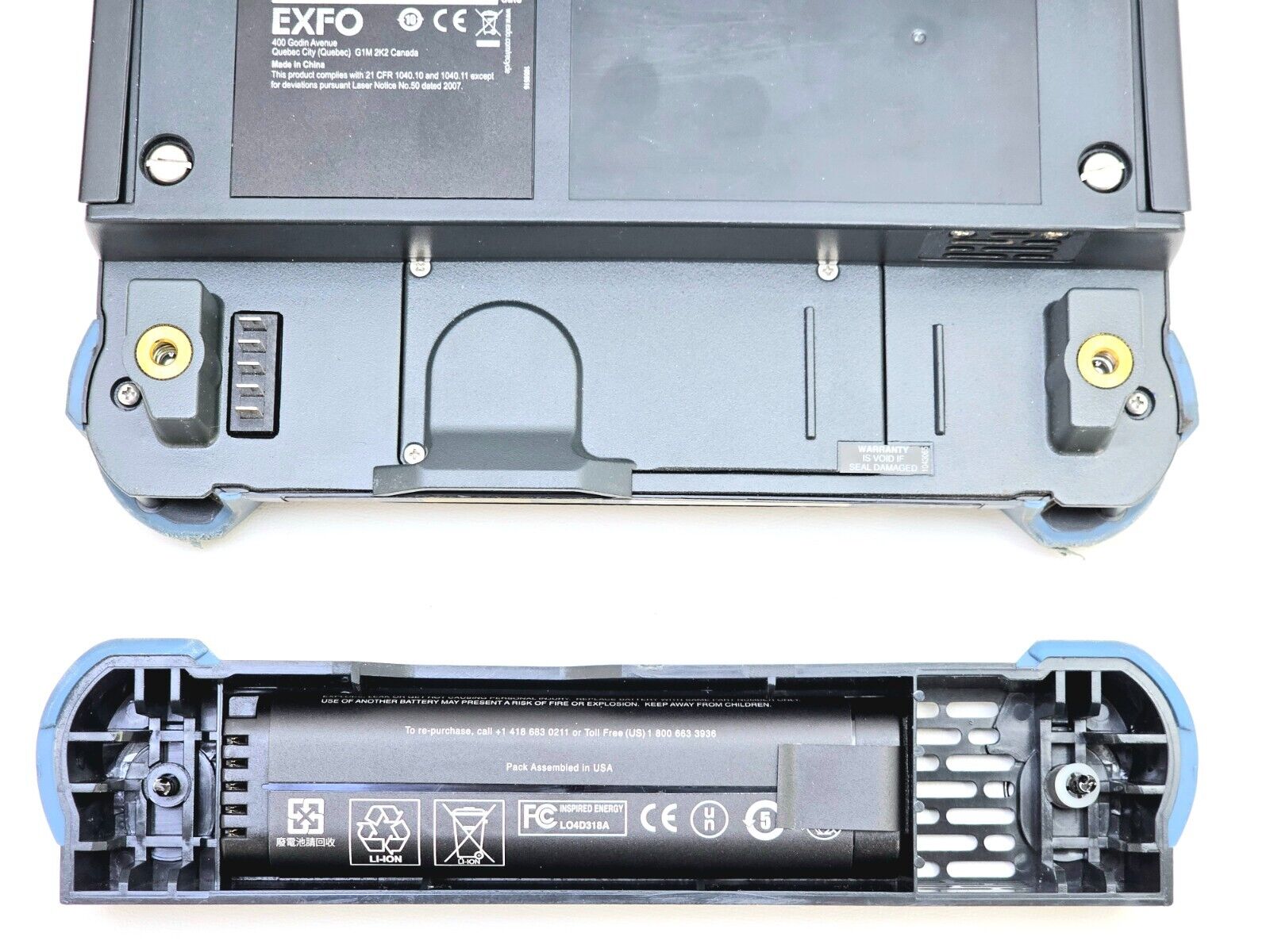

Battery: Rechargeable lithium-ion, up to 8 hours operation
Power Supply: AC/DC adapter, input 100–240 VAC, 50–60 Hz, 2 A max; output 24 VDC, 90 W
Dimensions (H x W x D): 190 mm x 252 mm x 66 mm
Weight (with battery): 1.5 kg
Operating Temperature: 0 °C to 50 °C
Storage Temperature: –40 °C to 70 °C (without battery)
Relative Humidity: 0 % to 95 % non-condensing

FTB-860 Module Key Options:
GigE_Optical: 1000Base-T and GigE optical interfaces
GigE_Electrical: 1000Base-T electrical interfaces
ETH-THRU: Through Mode — allows live traffic to pass through dual ports for in-service troubleshooting
TRAFFIC_GEN: Traffic Generation and Monitoring test application for Ethernet/IP network performance qualification

Typical Applications:
Carrier Ethernet service activation and performance assessment
Installation and maintenance of metro and access Ethernet networks
Deployment of active Ethernet point-to-point access services
In-service troubleshooting without service interruption via Through Mode
SyncE and 1588 PTP packet synchronisation validation

EXFO FTB-700G/800 Series NetBlazer for FTB-1 — Official User Guide (English, PDF): Download PDF

EXFO FTB-700G/800 Series NetBlazer for FTB-1 — Updated User Guide (English, PDF): Download PDF

EXFO FTB-860 NetBlazer Series — Spec Sheet / Datasheet (PDF via TestMart): Download PDF

EXFO NetBlazer Series Multiservice Tester — Flyer (PDF via EXFO): Download PDF
