Condition: Used

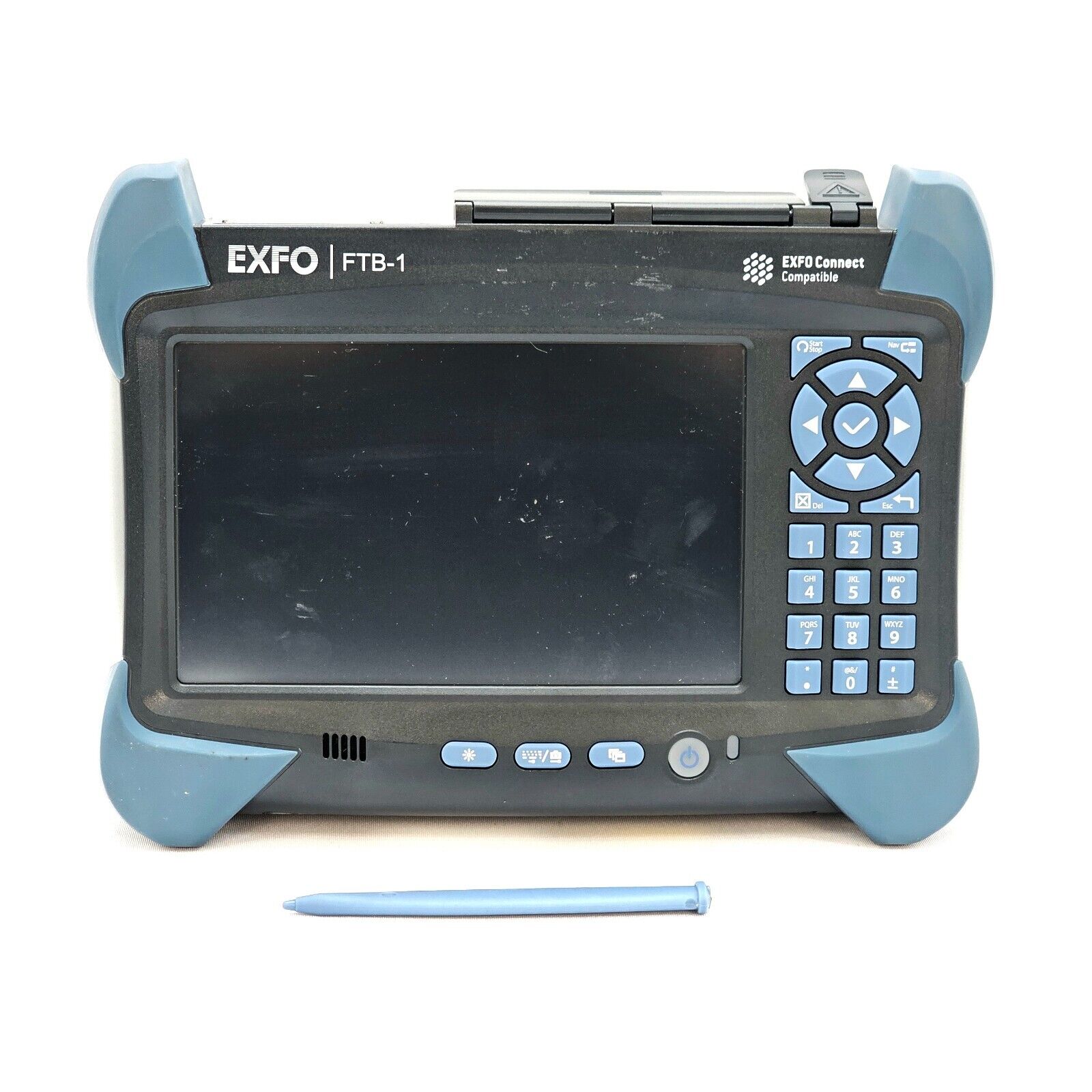

Used EXFO FTB-1 Modular Mainframe Platform in good condition. A portable, Windows-based field test platform accepting a range of EXFO FTBx plug-in modules for optical, Ethernet, and multiservice testing. Multiple units available; cosmetic appearance may vary.

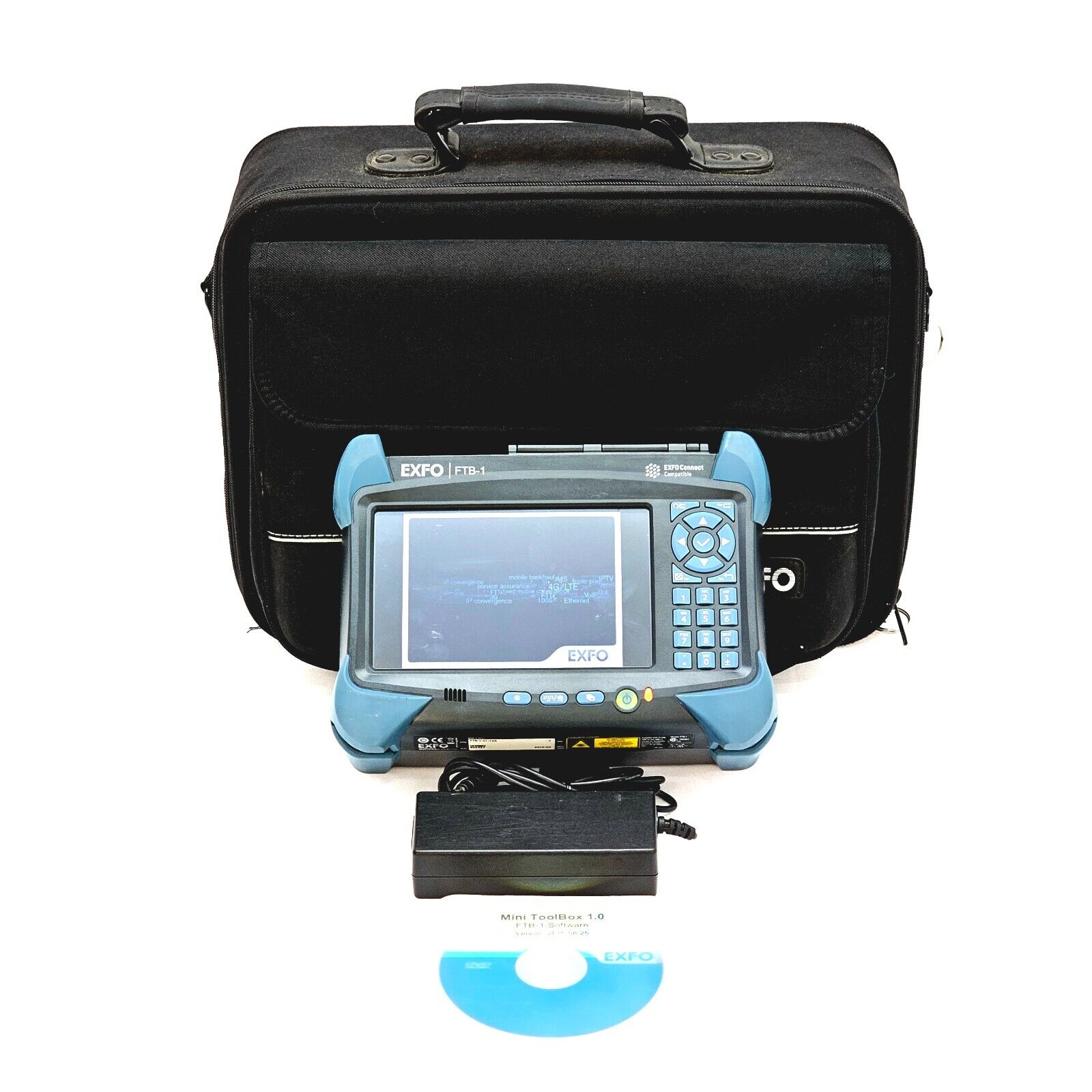

Included with this unit:
• Carry case
• Stylus
• Charger

The EXFO FTB-1 is a portable modular mainframe platform optimised for fast and powerful optical, Ethernet, FTTx, TDM, and multiservice field test applications. Designed to empower frontline technicians, the FTB-1 accepts interchangeable plug-in test modules — including OTDR, NetBlazer Ethernet, and multiservice modules — making it a highly flexible solution for network infrastructure construction, activation, and troubleshooting.

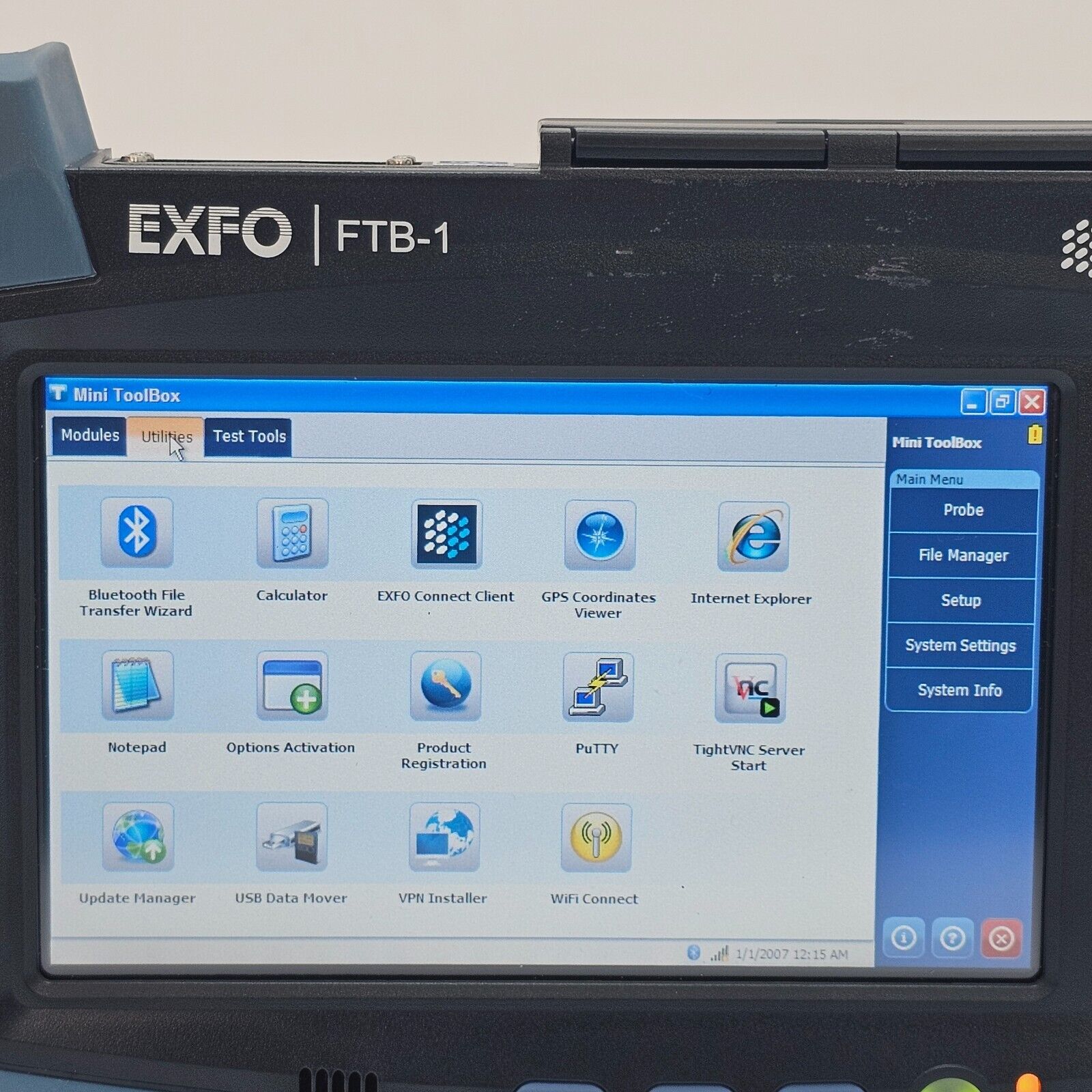

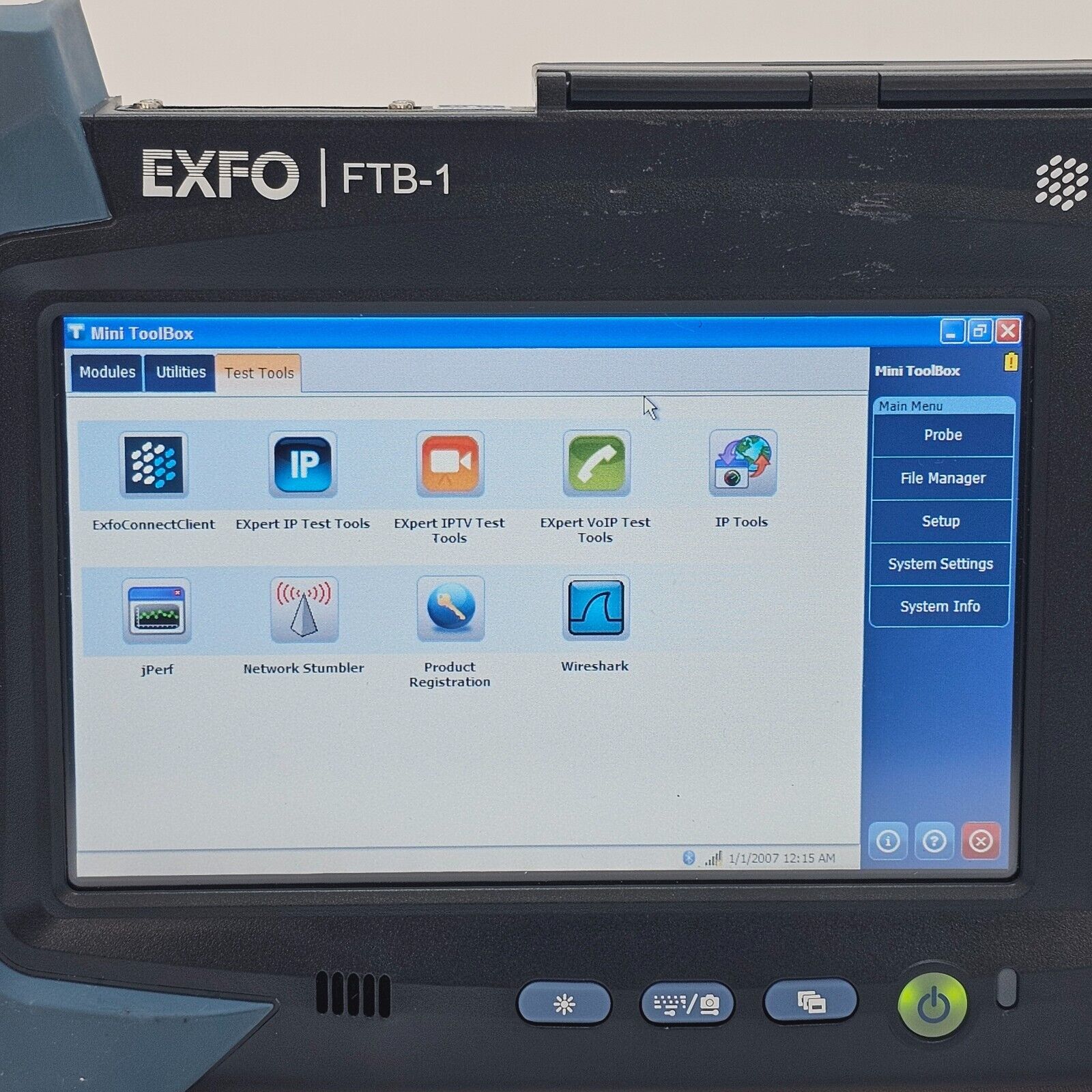

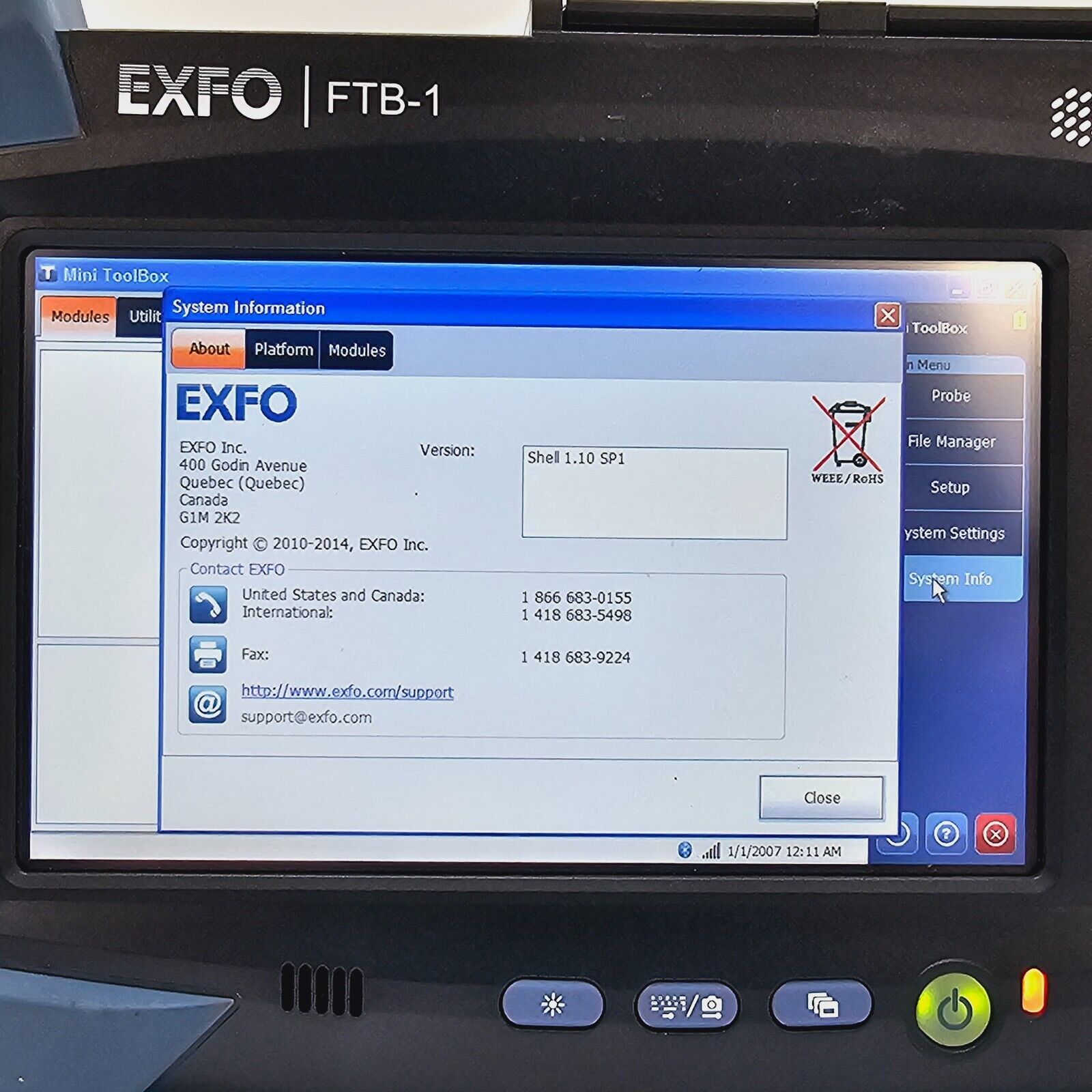

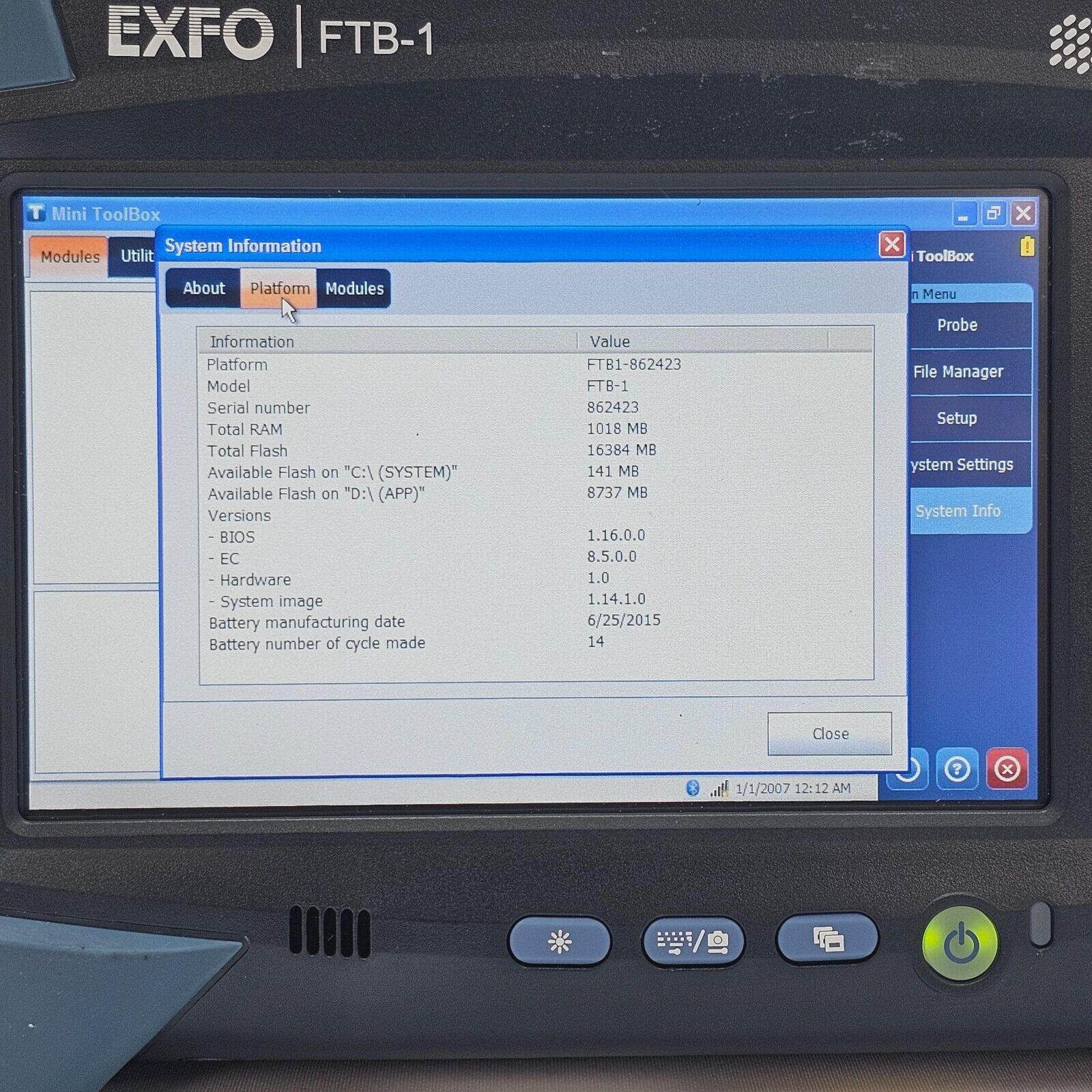

The platform runs a Windows-based operating system on an Intel ATOM processor, providing full PC-like functionality in the field, including support for third-party applications such as Wireshark, JPerf, and Network Stumbler. EXFO Connect integration enables automated asset management and cloud-based test data reporting across the entire instrument pool.

Technical Specifications (FTB-1 Mainframe):
Display: Colour 7" touchscreen TFT, 800 x 480 resolution (178 mm)
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Internal Storage: 8 GB (16 GB optional)
RAM: 4 GB

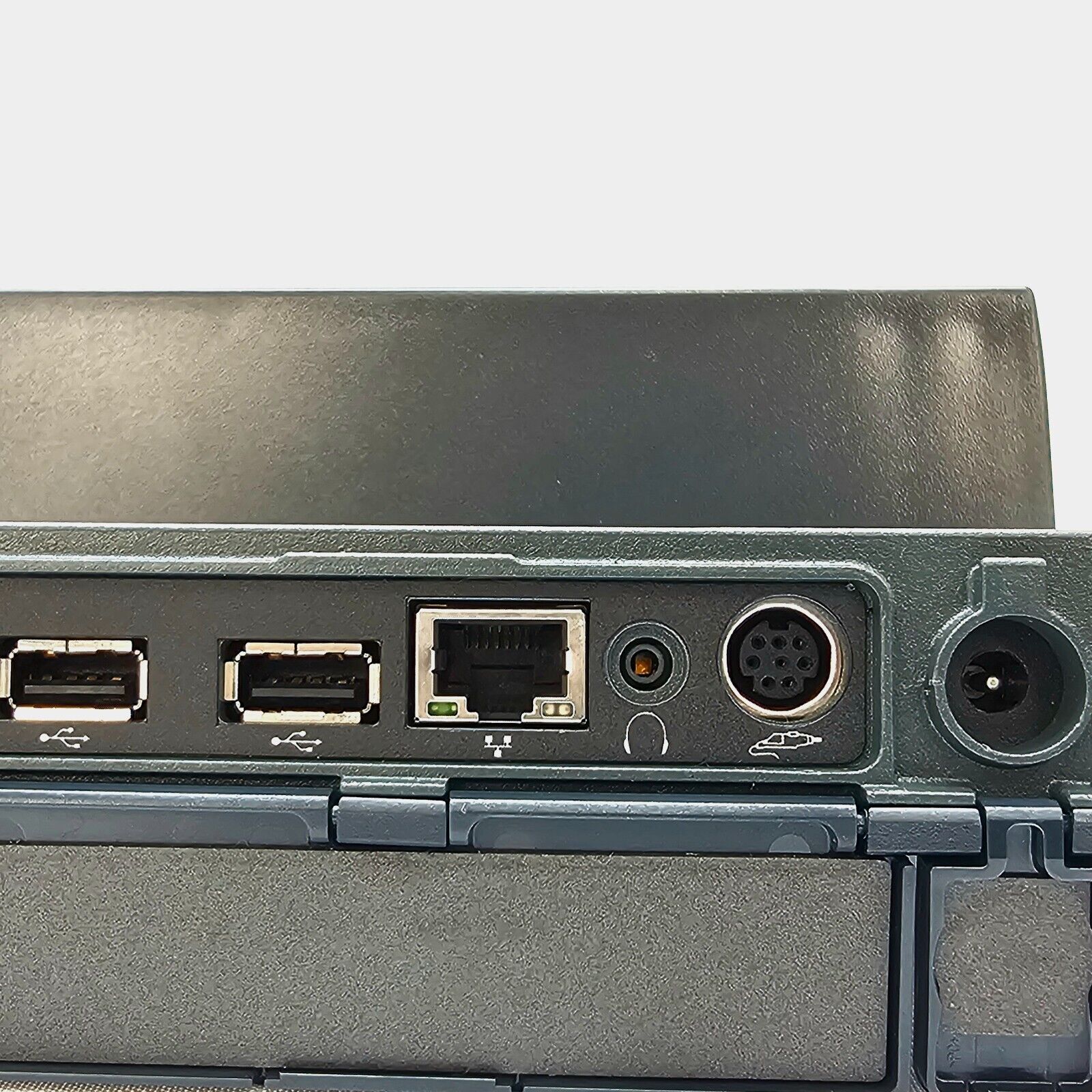

Interfaces: Two USB 2.0 ports, RJ-45 LAN 10/100/1000 Mbit/s, EXFO Fiber Inspection Probe video connector
Connectivity Options: Wi-Fi, Bluetooth, 3G USB modem (optional)
Battery: Rechargeable lithium-ion, up to 8 hours operation
Weight (with battery): 1.5 kg
Dimensions: 190 x 250 x 66 mm (single-depth module)
Operating Temperature: 0 °C to 50 °C
Storage Temperature: –20 °C to 60 °C
Module Slot: One plug-in module slot (single or double depth)
Compatible Modules: FTB-720 (OTDR), FTB-730 (PON FTTx OTDR), FTB-860/860G (NetBlazer Ethernet), FTB-810x, FIP-400 (Fiber Inspection Probe)
Certification: ISO 9001

Key Use Cases:
- Access network OTDR testing (FTTx, PON, FTTH, FTTN)
- Ethernet and multiservice testing (10 Mbps to 10 Gbps)
- Fiber inspection and connector qualification
- Fronthaul/backhaul and mobile network testing
- VoIP, IPTV, and IP network field verification

EXFO FTB-1 Platform Official User Guide (English) — direct PDF from EXFO documents server: Download PDF

EXFO FTB-1 Platform Specification Sheet (v16) — direct PDF from ProFiber: Download PDF

EXFO FTB-1 / FTB-720C Technical Specification Sheet — direct PDF from AAA Testers: Download PDF

EXFO FTB-1 Platform Specification Sheet — direct PDF from Fiber Instrument Sales: Download PDF

EXFO FTB-1v2 / FTB-1 Pro Platform Specification Sheet (v8) — direct PDF from Somerset T&M: Download PDF

EXFO FTB-1v2 Pro Platform Specification Sheet (v13) — direct PDF from EXFO: Download PDF
