Condition: Used

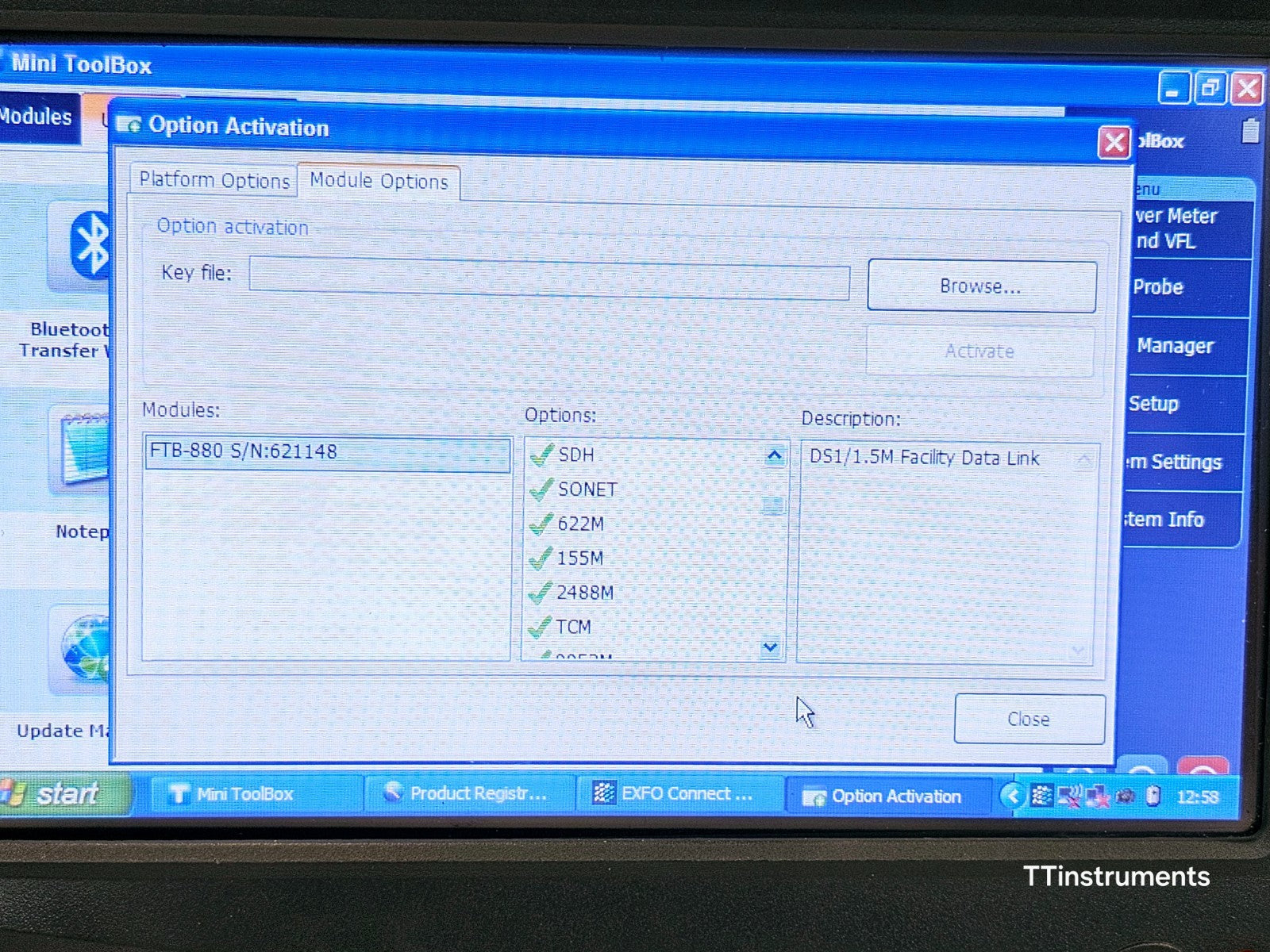

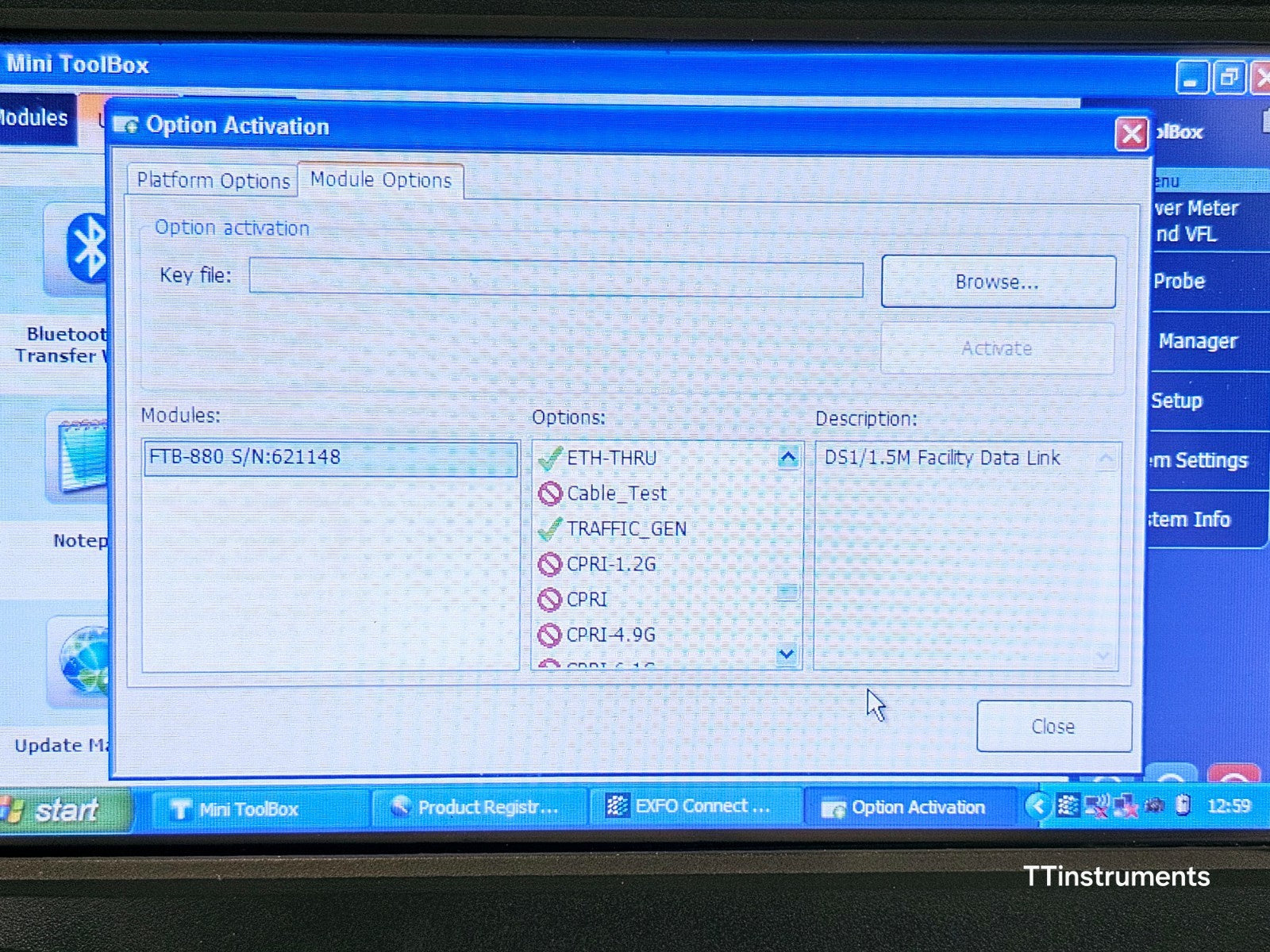

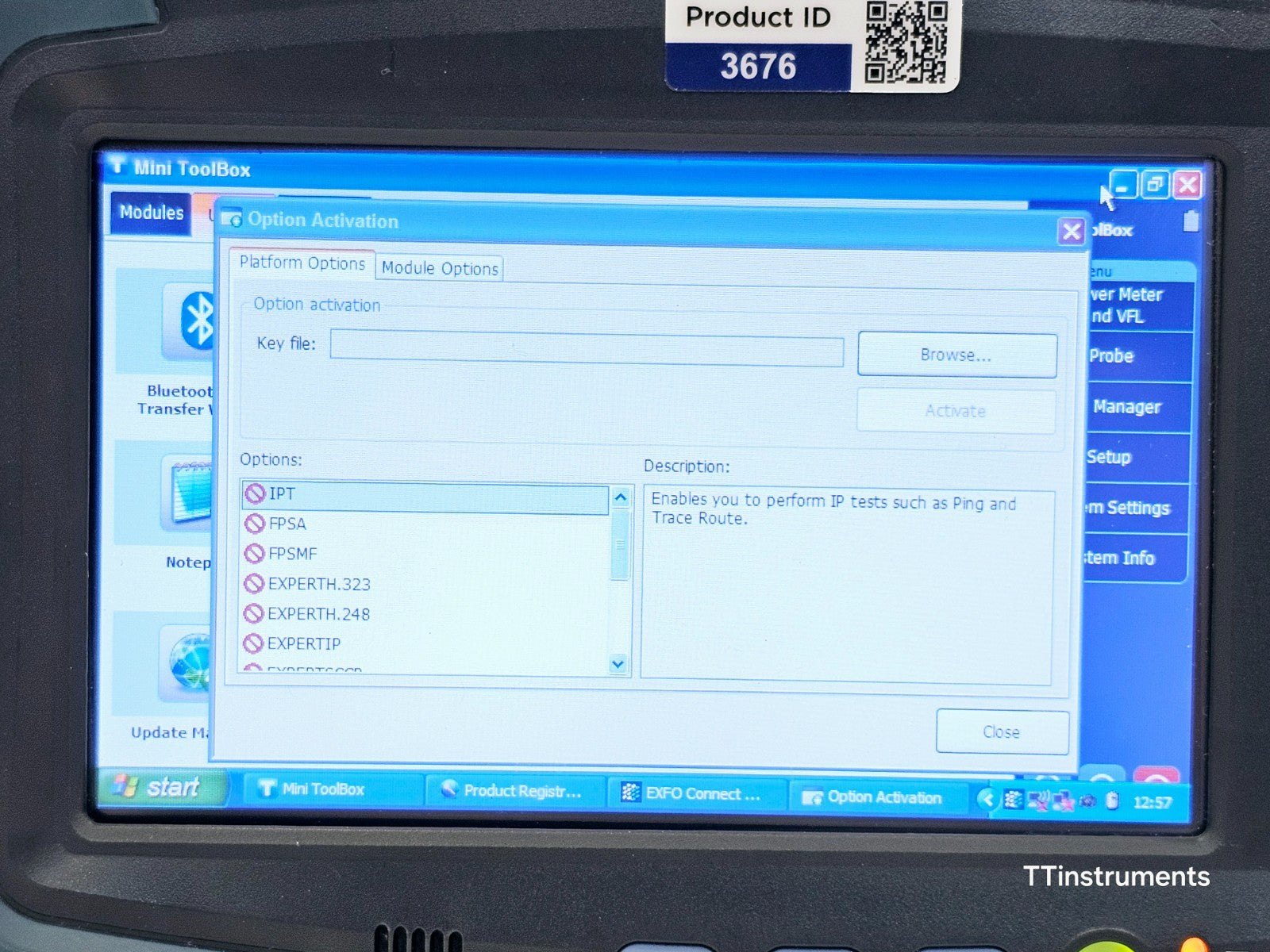

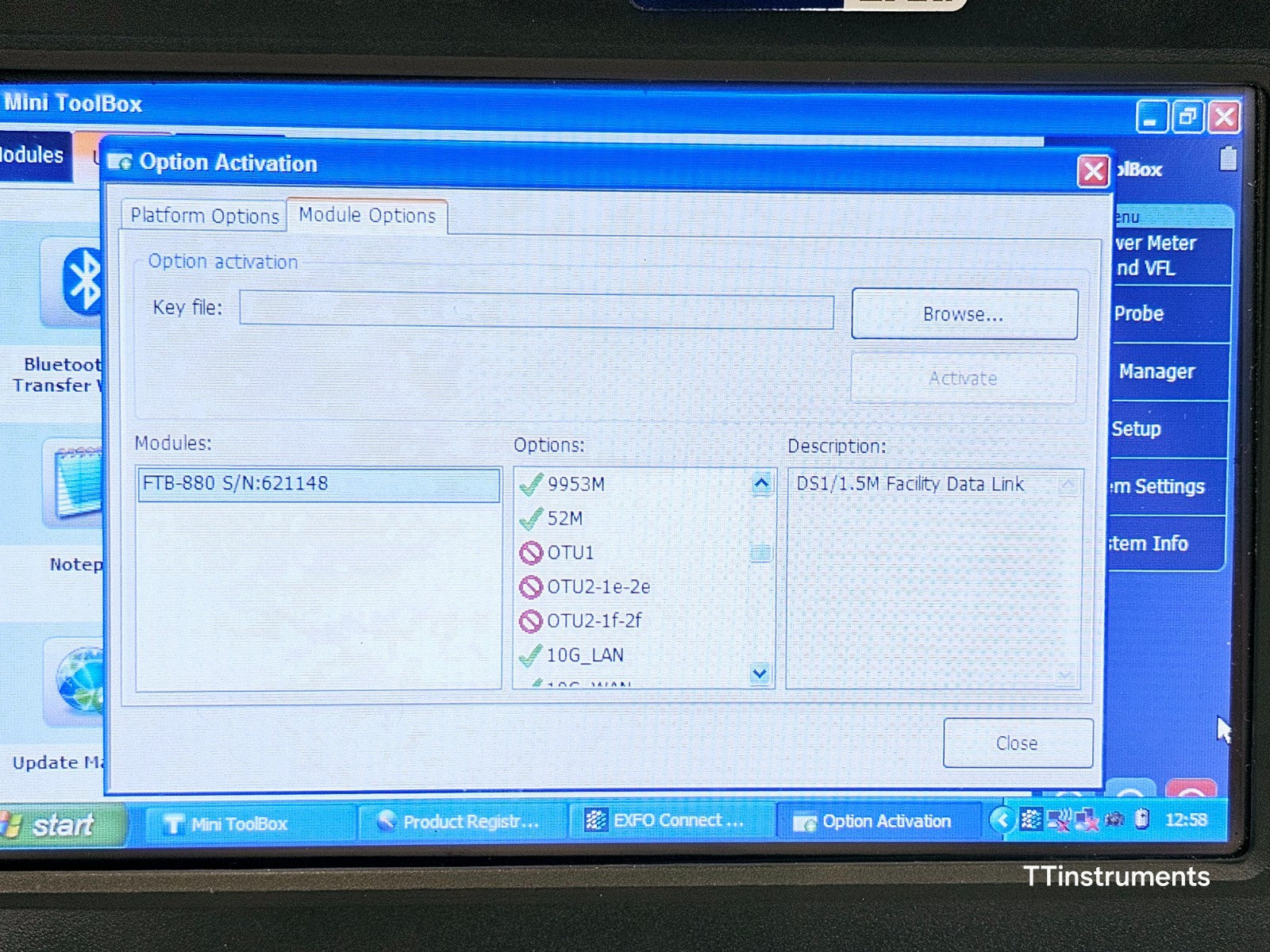

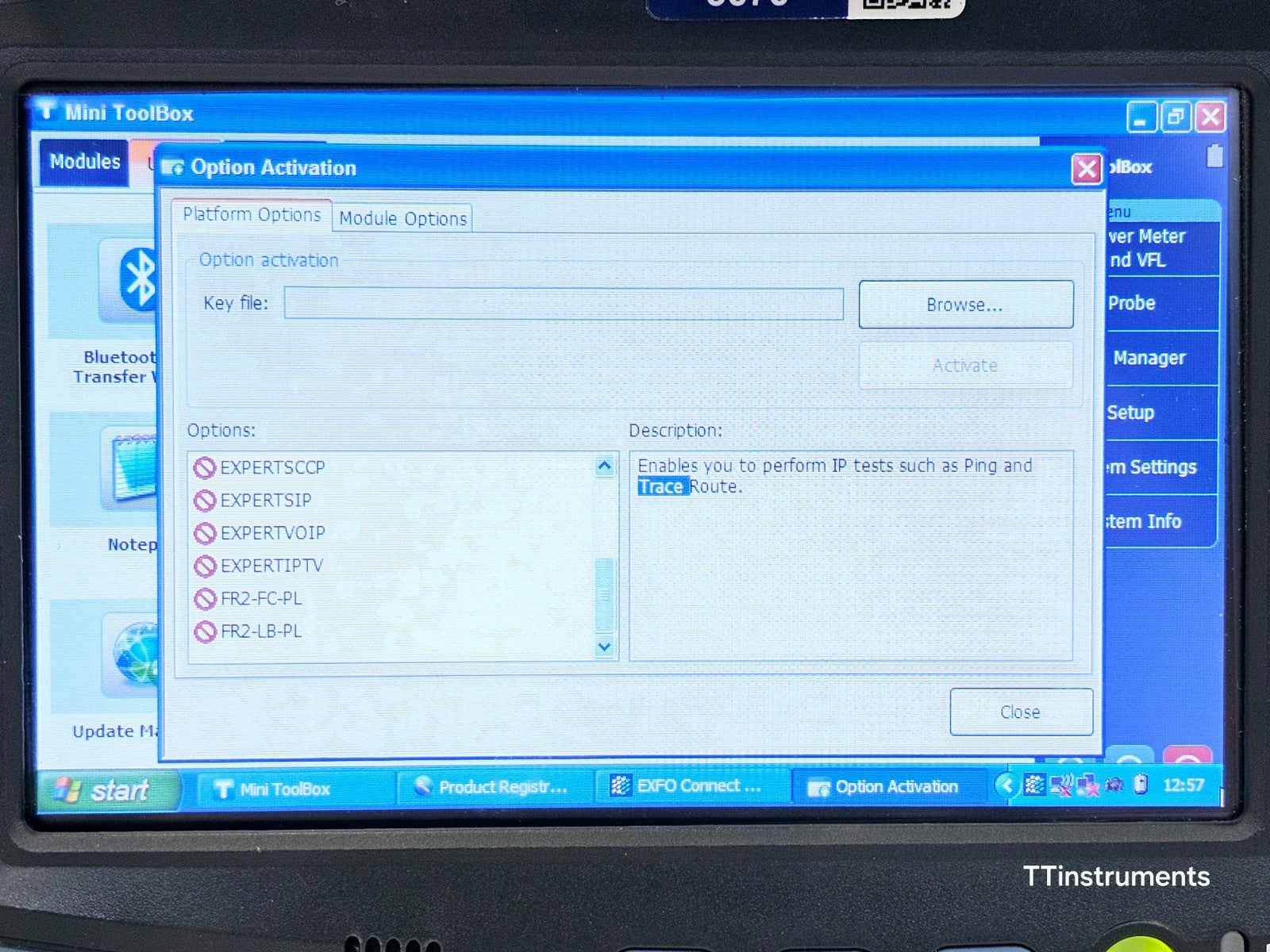

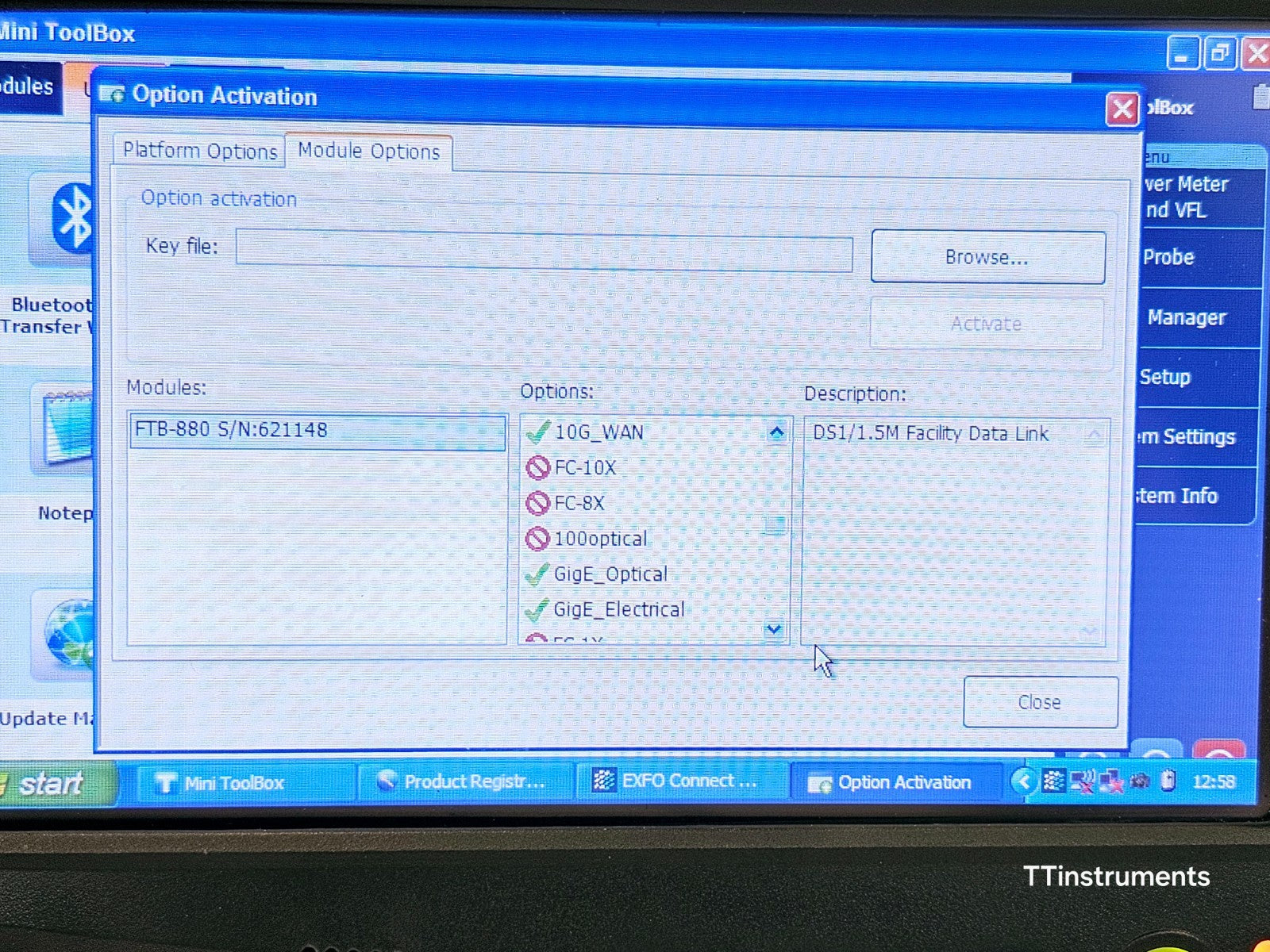

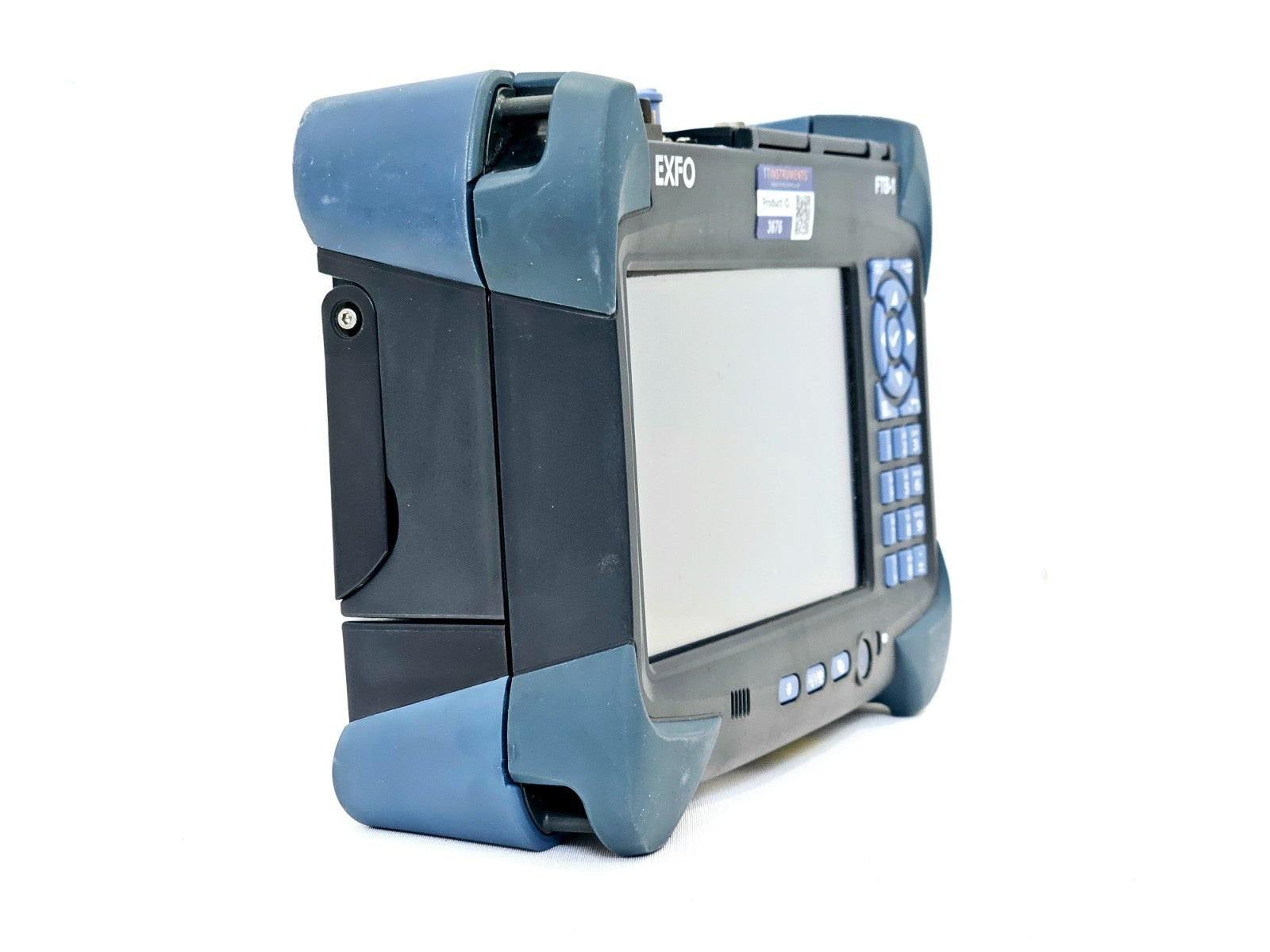

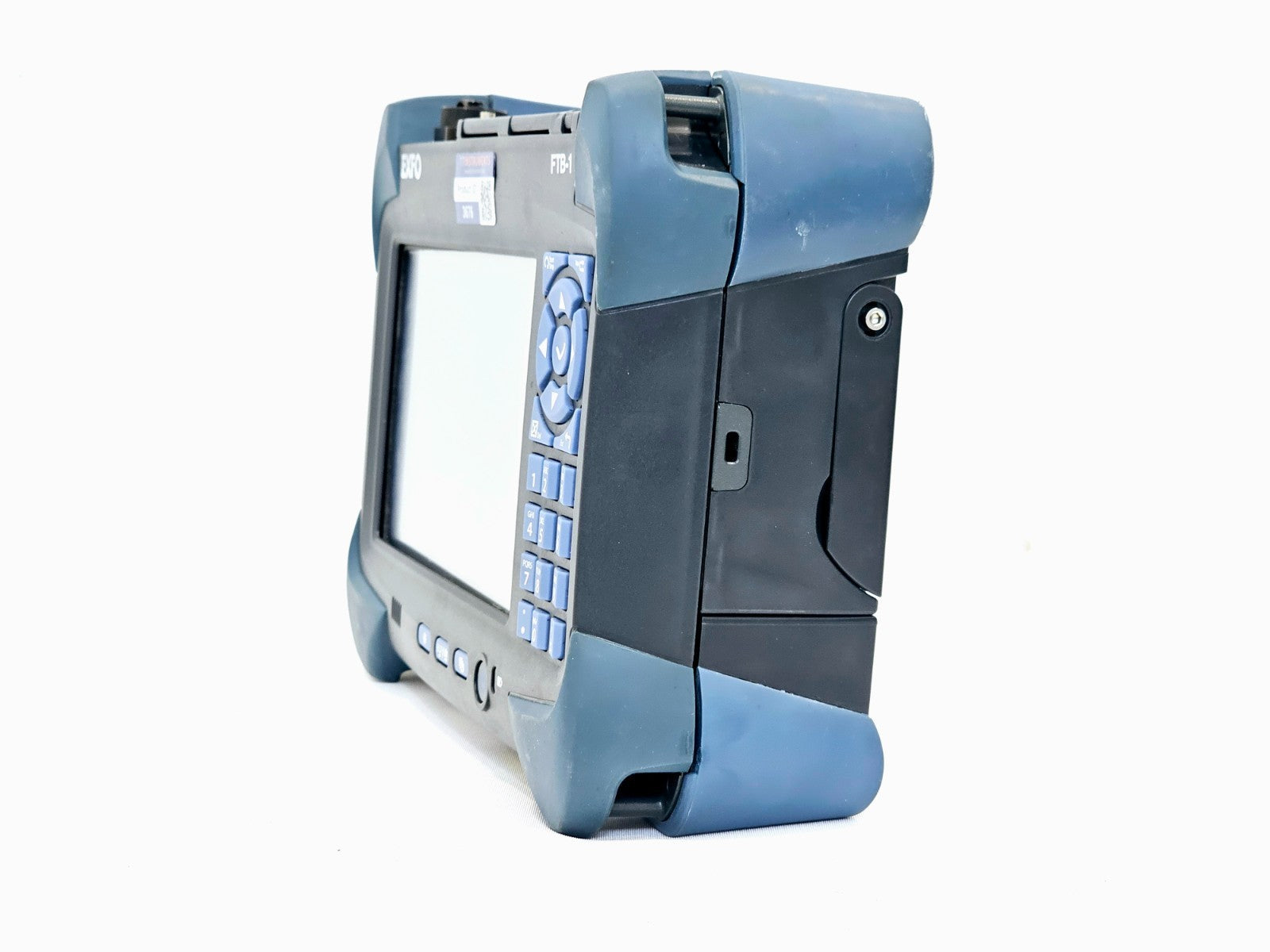

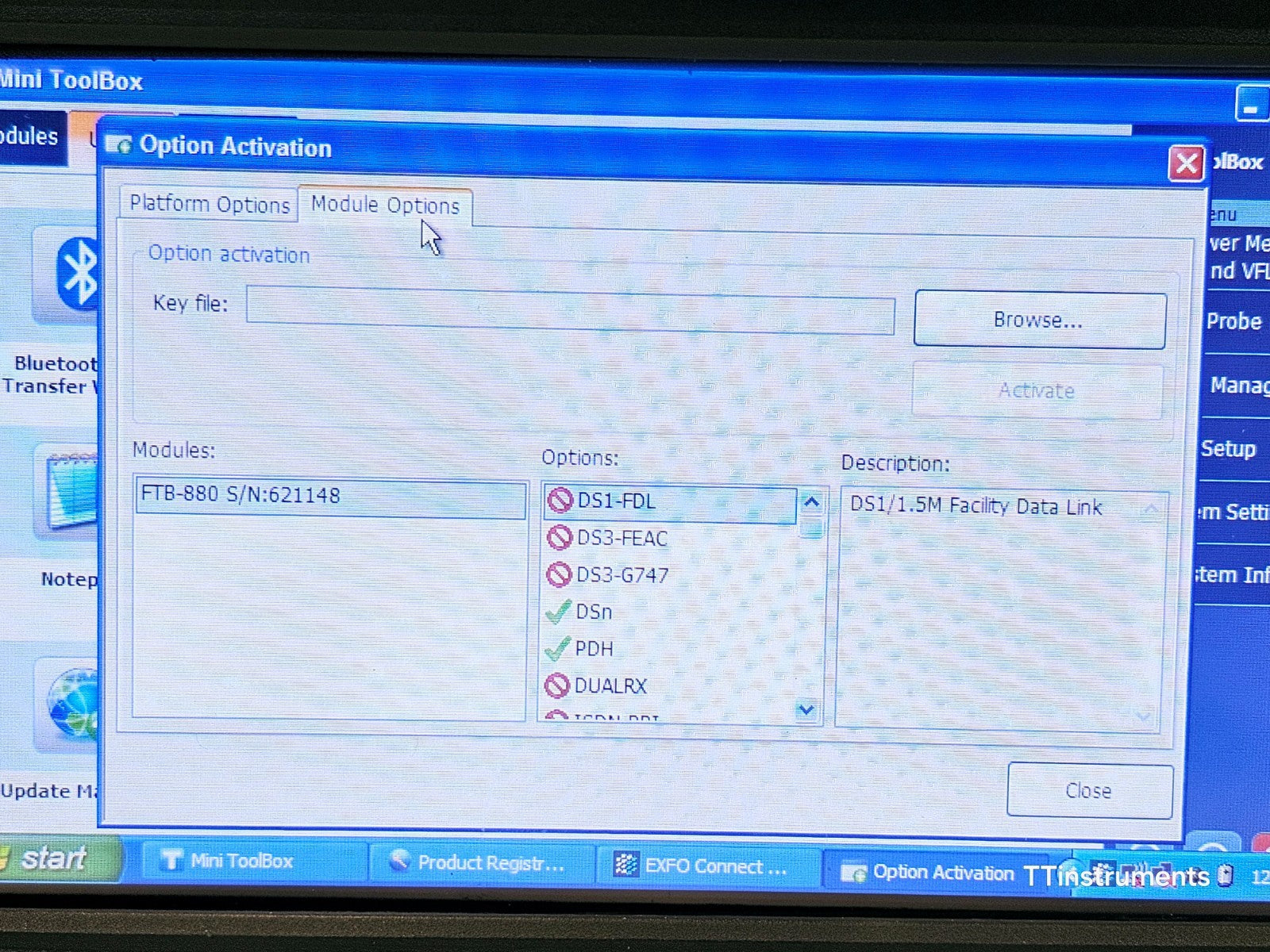

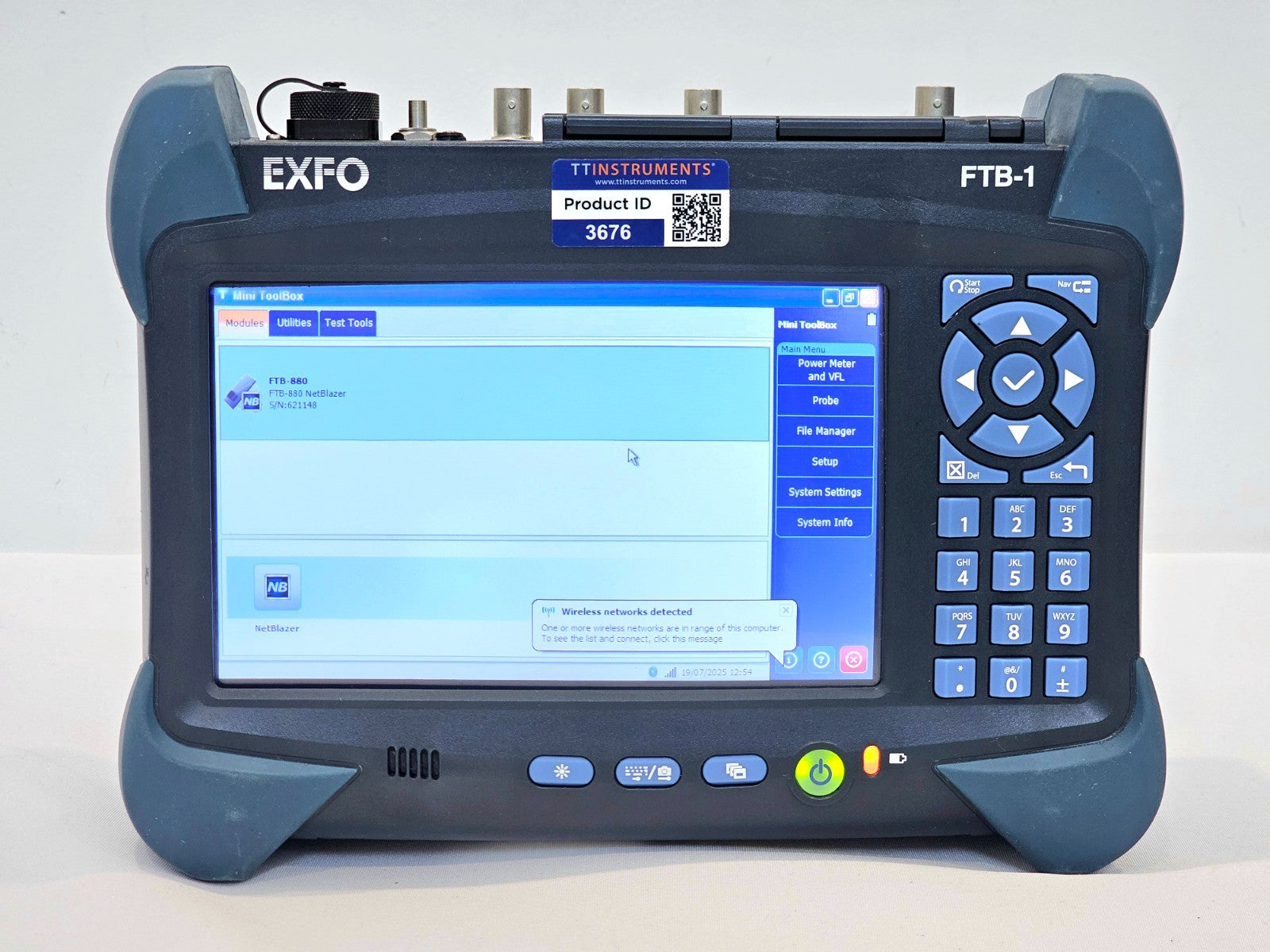

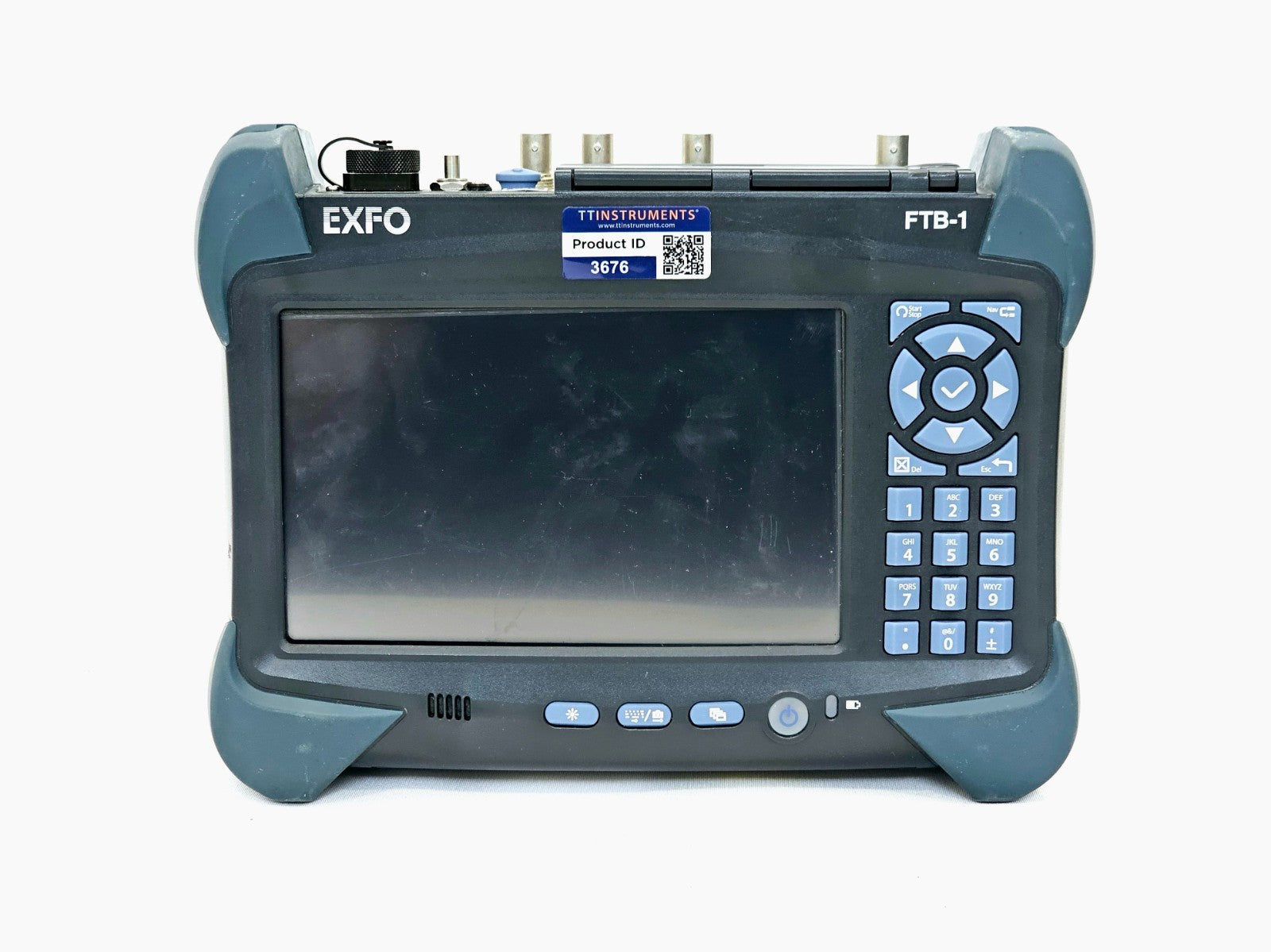

This EXFO FTB-1 mainframe houses the FTB-880 NetBlazer multiservice module and comes equipped with multiple active options. The mainframe includes the built-in optical power meter and Visual Fault Locator (VFL). Active licences confirmed include 1G and 10G Ethernet (LAN/WAN). Additional enabled module licences are as pictured on the device licence screens.

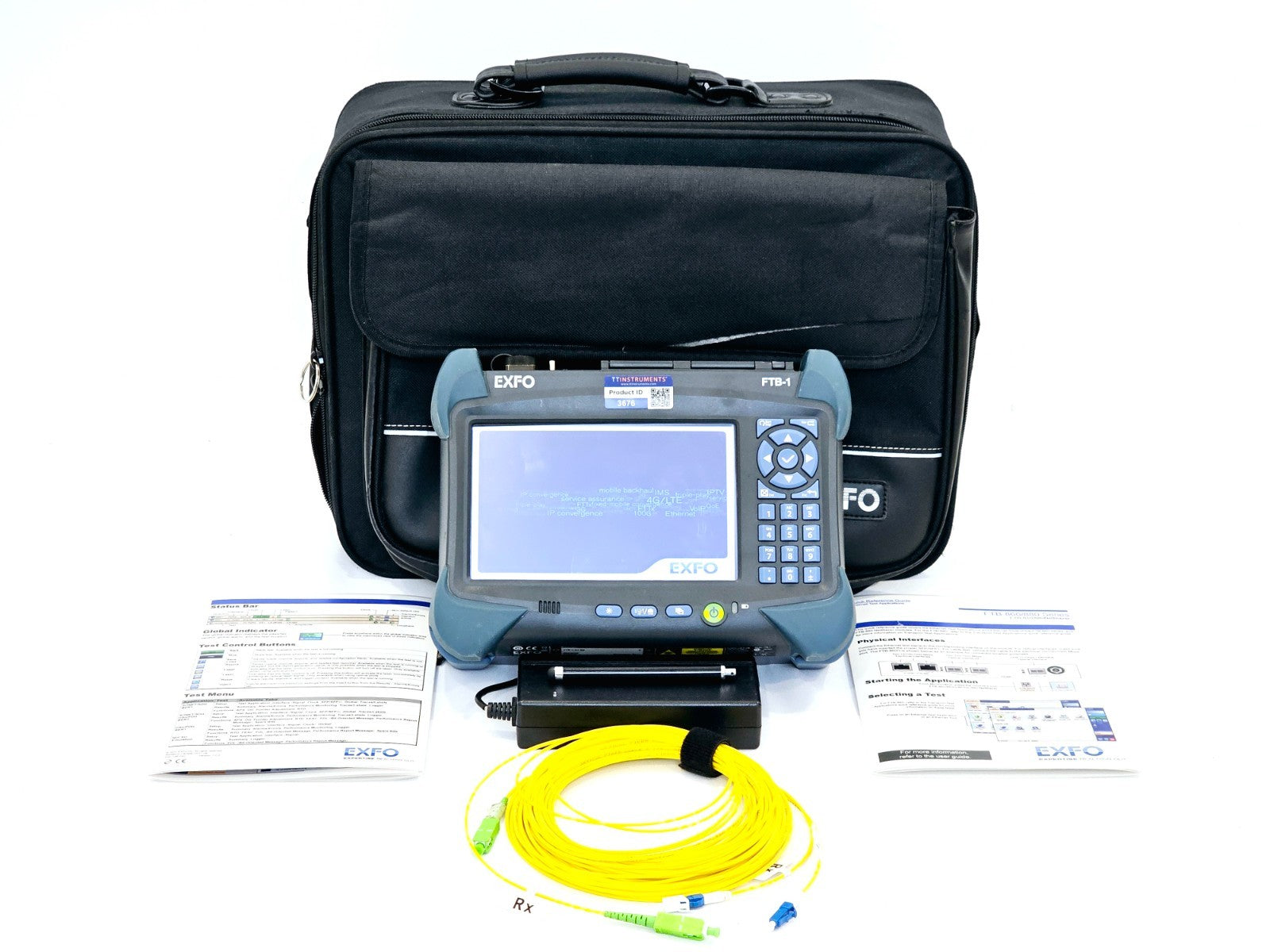

Included with this unit:
• EXFO FTB-1 Mainframe

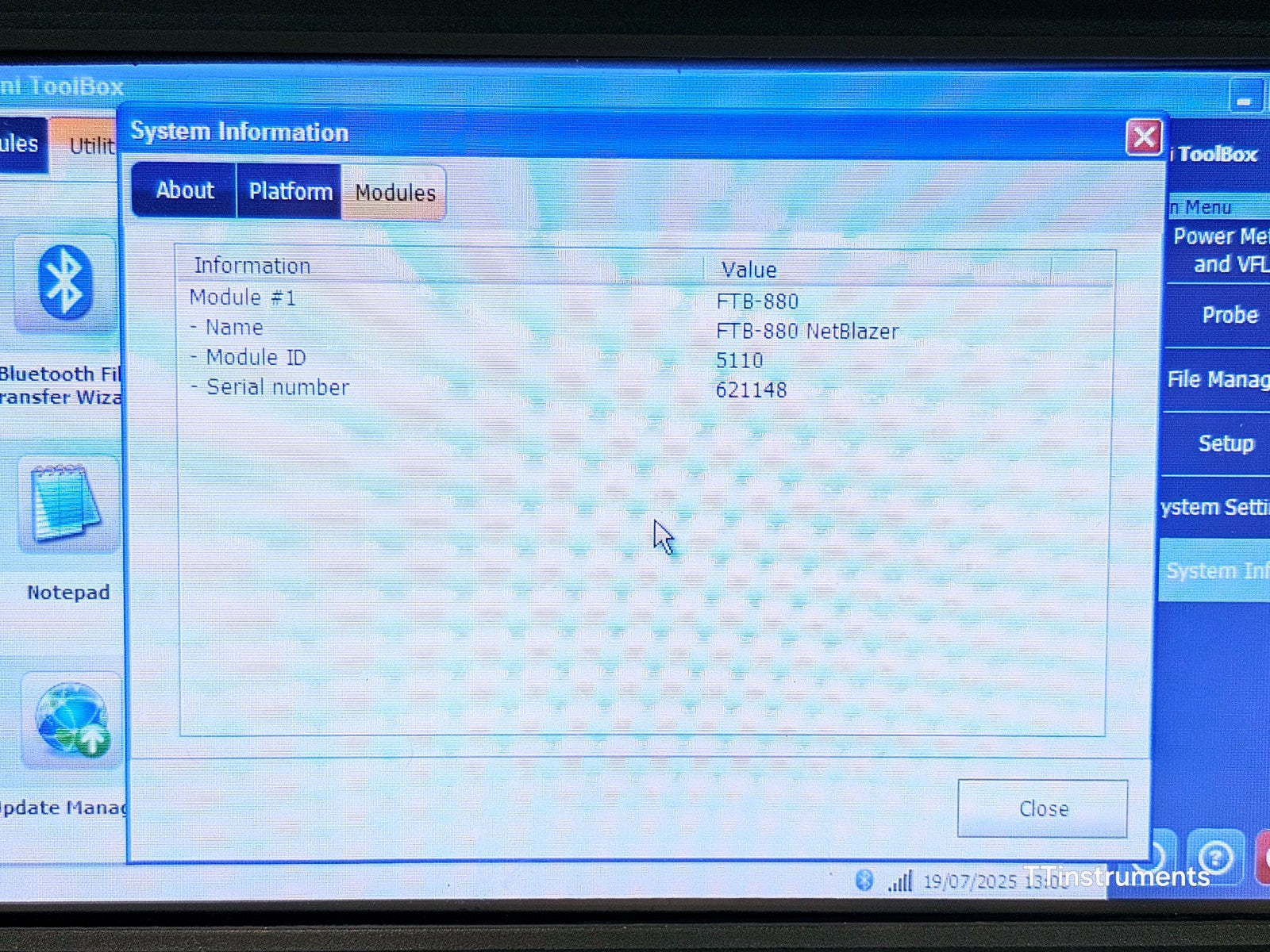

• FTB-880 NetBlazer 10G LAN/WAN module

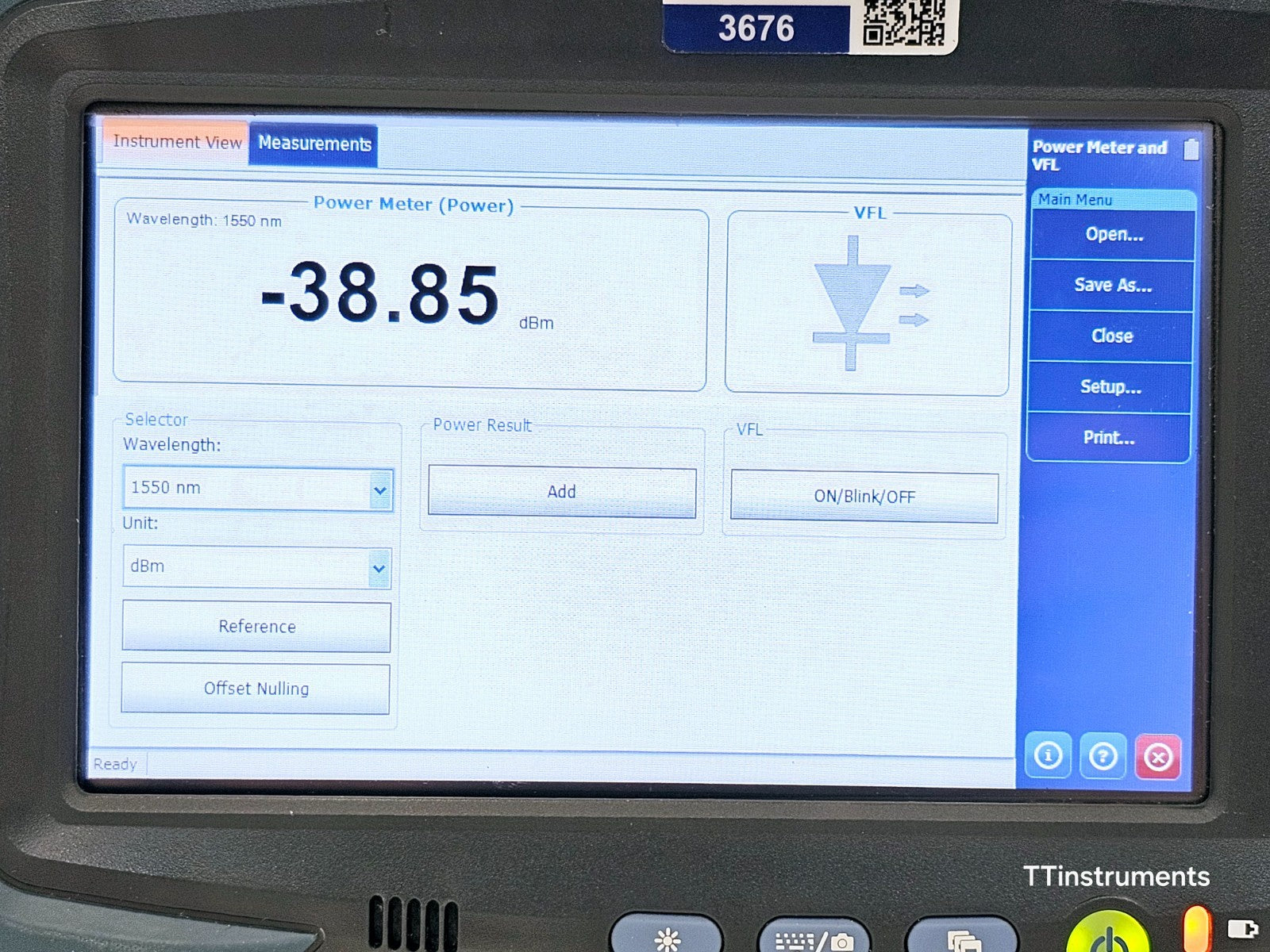

• Built-in power meter (FC adapter)
• Built-in Visual Fault Locator (VFL)
• Active 1G Ethernet licence
• Active 10G Ethernet (LAN/WAN) licence

The EXFO FTB-1 is a portable modular test platform designed for fast and powerful optical, Ethernet, TDM and multiservice field applications. It accepts compatible FTBx test modules and features a multitouch widescreen colour TFT display, Windows operating system, and comprehensive connectivity options including Wi-Fi, Bluetooth, USB and Gigabit Ethernet. An optional built-in optical power meter and Visual Fault Locator (VFL) can be integrated directly into the mainframe chassis.

The FTB-880 NetBlazer is a fully integrated multiservice test module housed within the FTB-1 platform, designed for installation, commissioning, and maintenance of access and metro networks. It supports comprehensive testing up to 10 Gbit/s across DSn/PDH, ISDN, SONET/SDH, OTN, Fibre Channel and Ethernet interfaces.

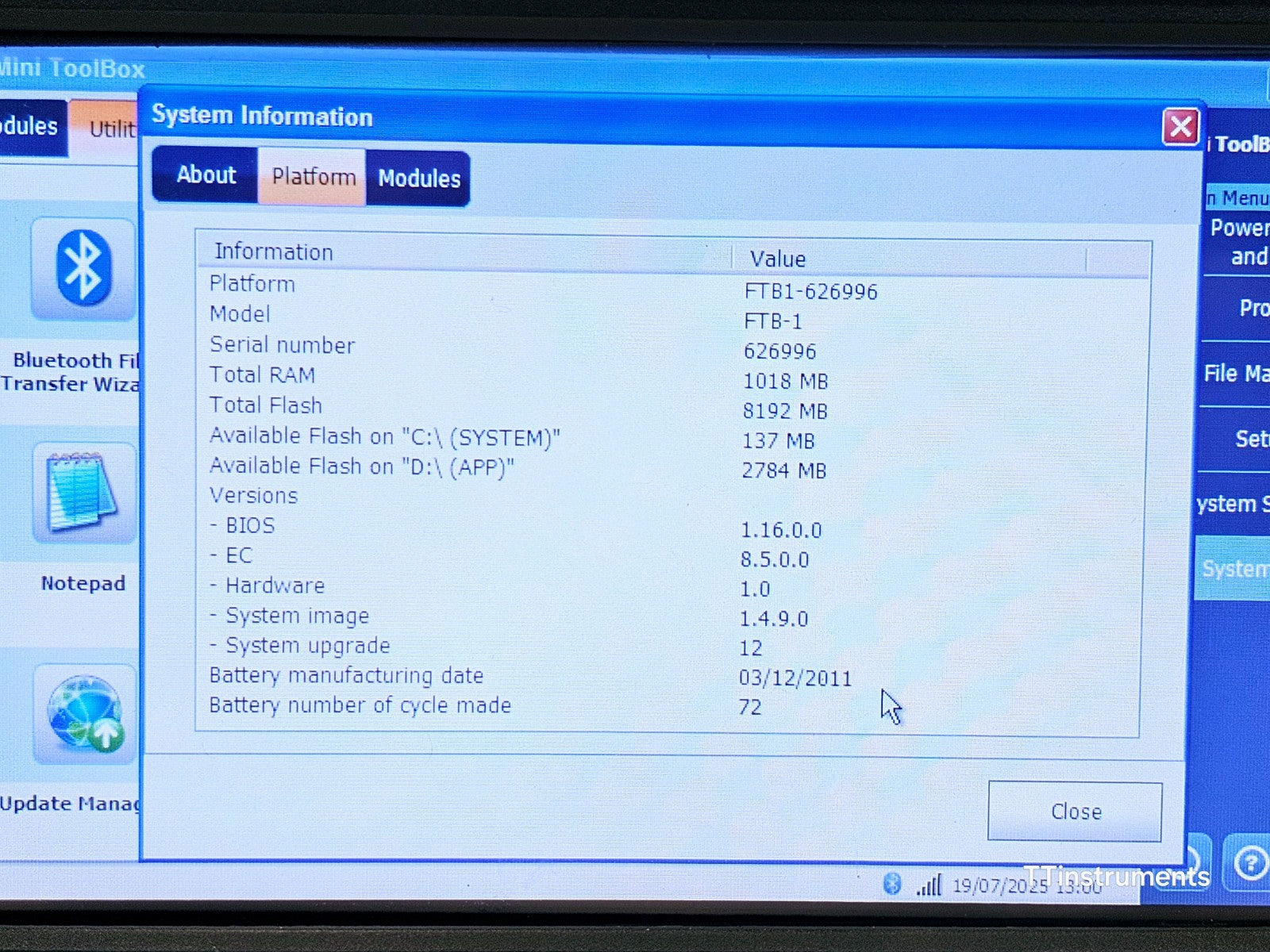

FTB-1 Mainframe Specifications:
Processor: Intel ATOM (FTB-1) / Dual or Quad-core (FTB-1v2/Pro)
Operating System: Windows Embedded Standard / Windows 10
Display: Multitouch colour TFT, 1280 x 800, 203 mm (8 in)
RAM: 4 GB
Storage: 64 GB (FTB-1v2) / 128 GB (FTB-1 Pro) internal flash
LAN Interface: RJ45 10/100/1000 Mbit/s
USB: 2x USB 2.0, 1x USB 3.0
Additional Interfaces: Micro SD card slot, 3.5 mm headset/microphone port
Wireless: Wi-Fi and Bluetooth (optional)
Battery: Rechargeable Li-ion smart battery
Power Supply: AC/DC adapter, 100–240 V; 50/60 Hz; 2.5 A max; output 24 V 3.75 A
Optional Built-in: Optical power meter and Visual Fault Locator (VFL) up to 5 km fault detection

FTB-880 NetBlazer Module Specifications:
Max Test Rate: 10 Gbit/s

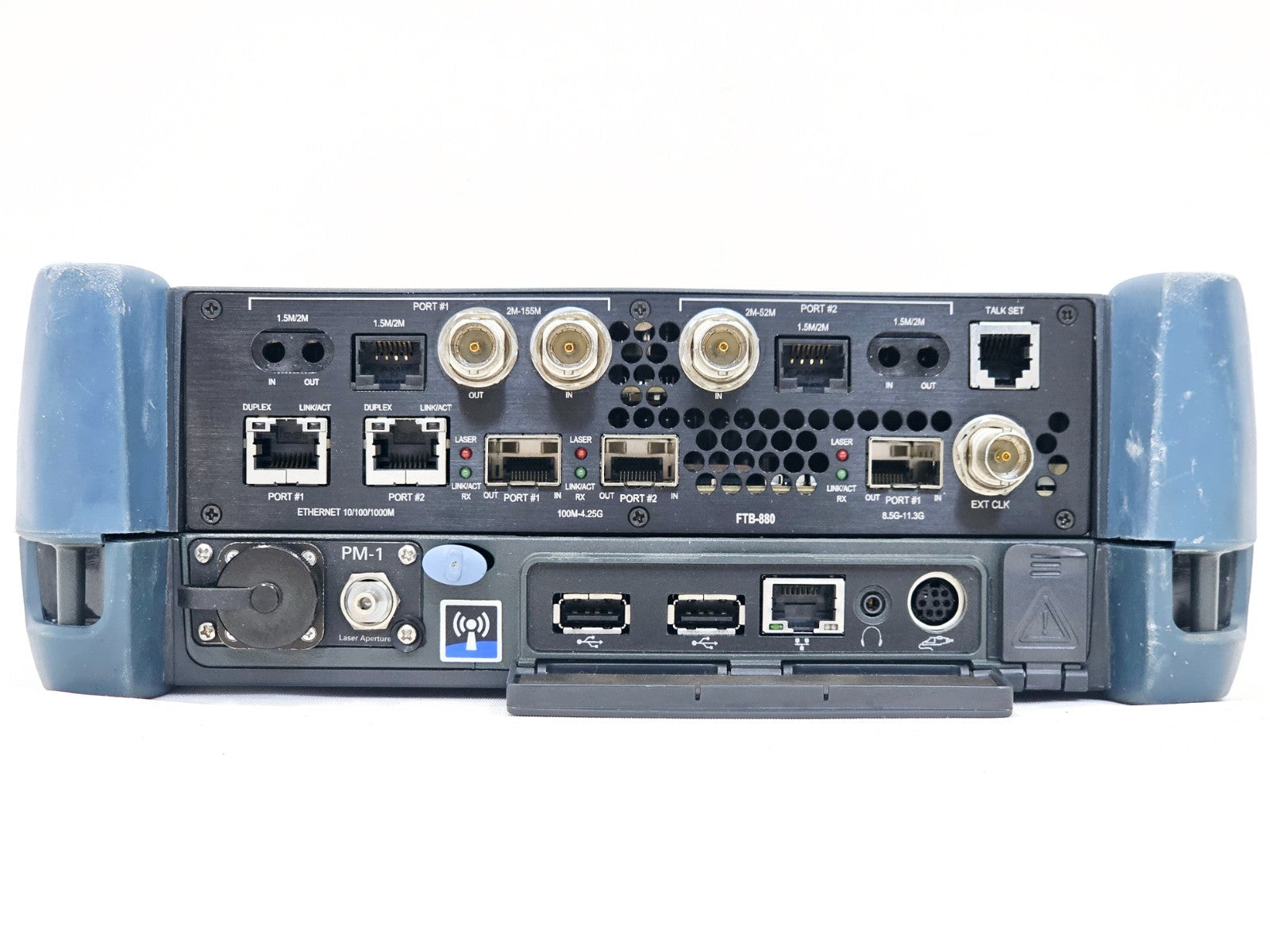

Test Interfaces: SFP+ (10G Port #1), SFP/RJ45 (1G/100M Port #1/#2)
Test Rates (Port #1): 8.5G–11.3G (10G/SONET/SDH/FC); 155M–2.5G; 10G Ethernet LAN/WAN
Test Rates (Port #1/#2): 100M–4.25G Ethernet/Fibre Channel
Ethernet Standards: 10/100/1000BASE-T, 1000BASE-X, 10GBASE-R, 10GBASE-W
Protocols Supported: DSn/PDH, ISDN PRI, SONET/SDH, OTN (OTU1/OTU2), Fibre Channel (1x/2x/4x/8x/10x), Ethernet, CPRI, SyncE, IEEE 1588 PTP

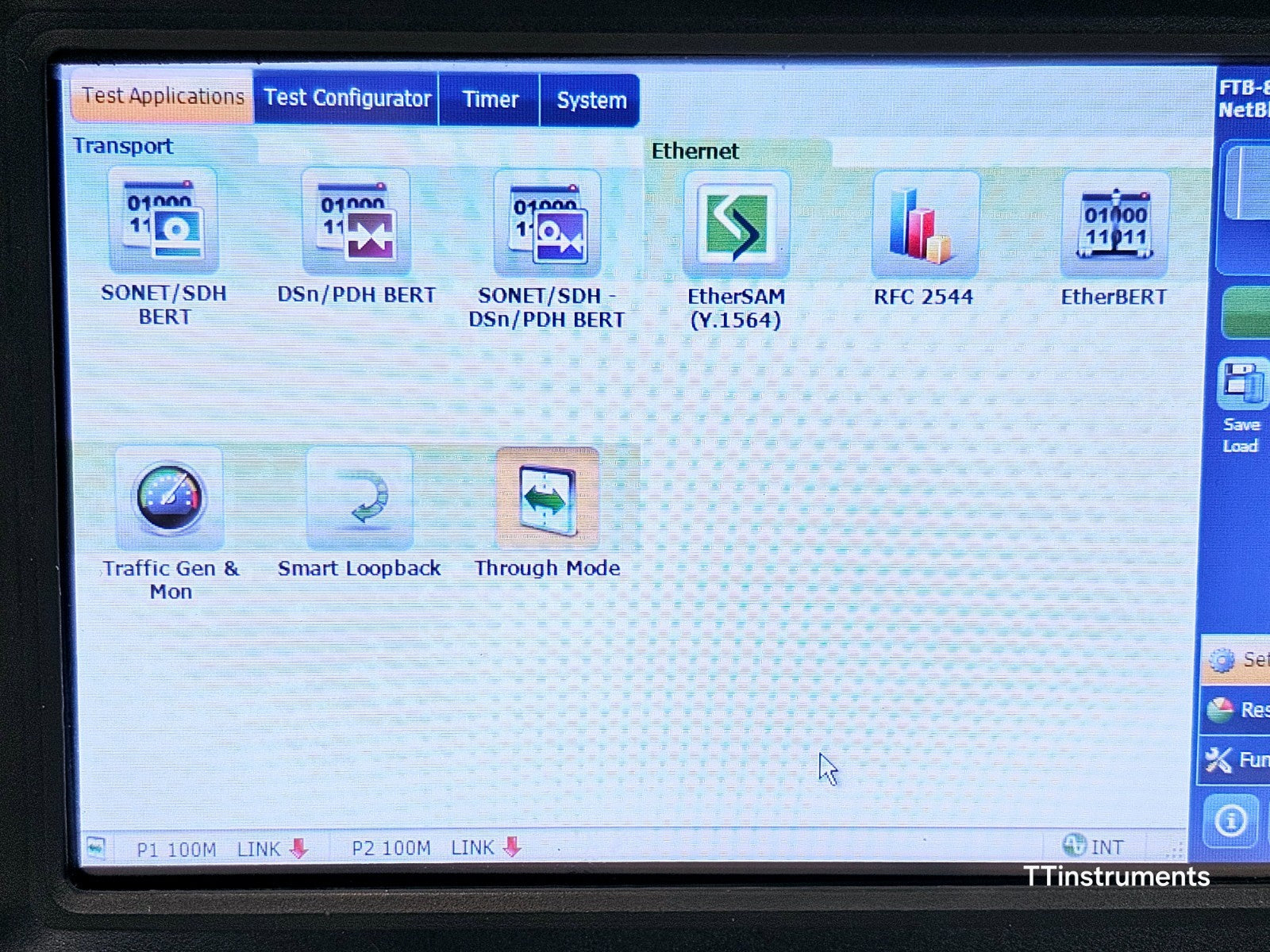

Ethernet Test Applications: RFC 2544, ITU-T Y.1564 (EtherSAM/iSAM), RFC 6349, EtherBERT, Traffic Generation & Monitoring, Smart Loopback, Through Mode
OTN Test Applications: OTN BERT (framed/unframed)
Additional Features: Intelligent autodiscovery of remote EXFO testers, dual-port bidirectional EtherSAM, BER threshold pass/fail, error/alarm injection and monitoring, overhead manipulation, performance monitoring, VLAN/Q-in-Q/MPLS support, Wireshark packet capture, JPerf TCP throughput, EXFO Connect cloud management
GUI: 7-inch (FTB-1) / 8-inch (FTB-1v2) colour TFT touchscreen, hybrid touchscreen/keypad navigation
Connectivity: Wi-Fi, Bluetooth, Gigabit Ethernet, USB

EXFO FTB-700G/800 Series NetBlazer for FTB-1 User Guide (English): Download PDF

EXFO FTB-700G/800 Series NetBlazer for FTB-1 User Guide – alternate version (English): Download PDF

EXFO NetBlazer V2 Series (FTB-8XX) Spec Sheet – High-Speed Portable Field Testers: Download PDF

EXFO FTB-1v2 Pro Platform Spec Sheet (includes FTB-1 Pro specifications): Download PDF

EXFO NetBlazer V2 Series Quick Reference Guide for FTB-1v2 Pro (English): Download PDF

EXFO 7xx/8xx/88xx Modules NetBlazer Series User Guide for FTB-1v2 Pro (English): Download PDF

EXFO FTB-1 Platform Spec Sheet: Download PDF
