Condition: Used

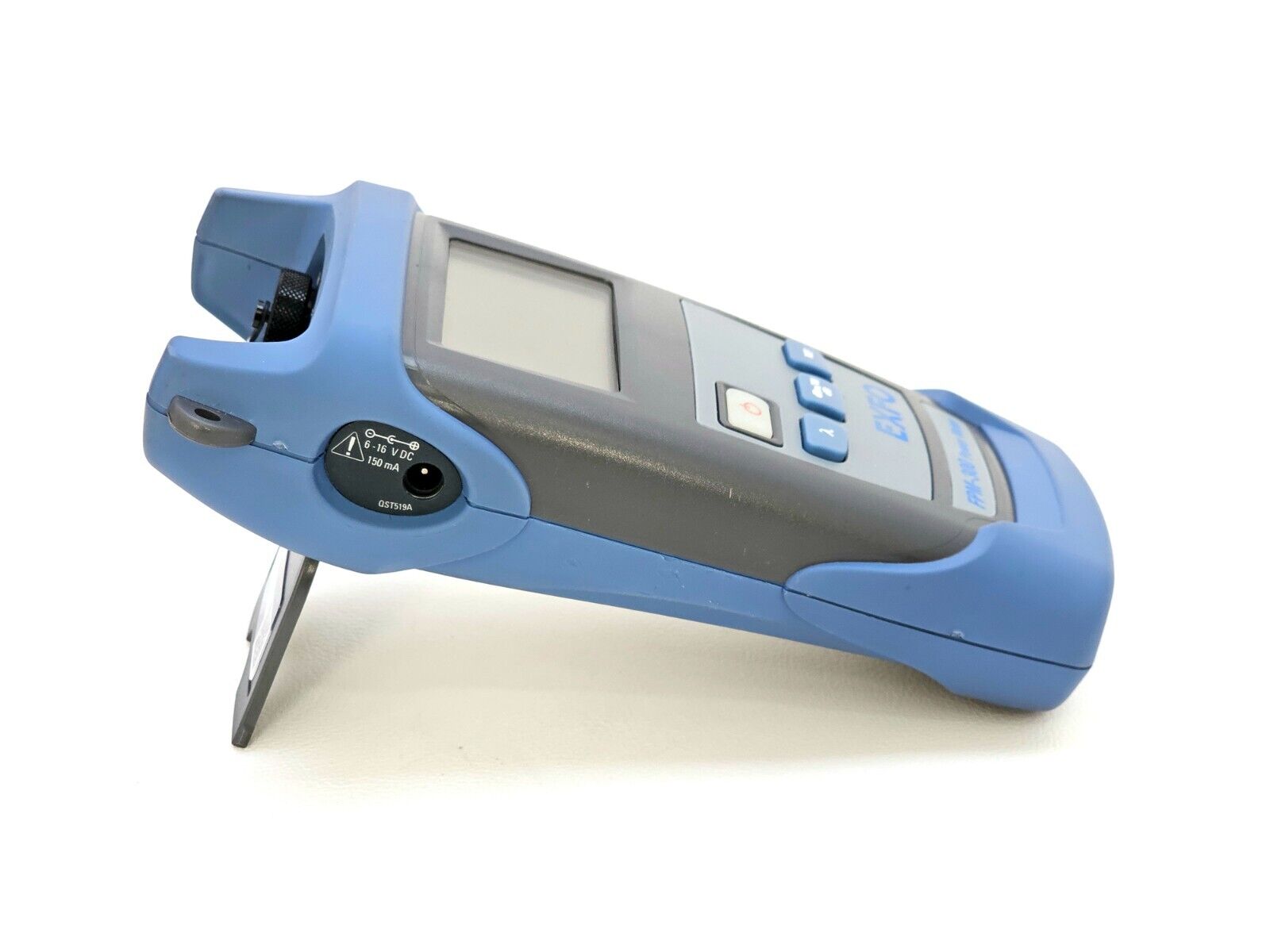

The EXFO FPM-300 FPM-302X is a used PON optical power meter in good working condition. It features the high-power GeX detector variant, covering 1310/1490/1550 nm wavelengths. Supplied with an SC adapter.

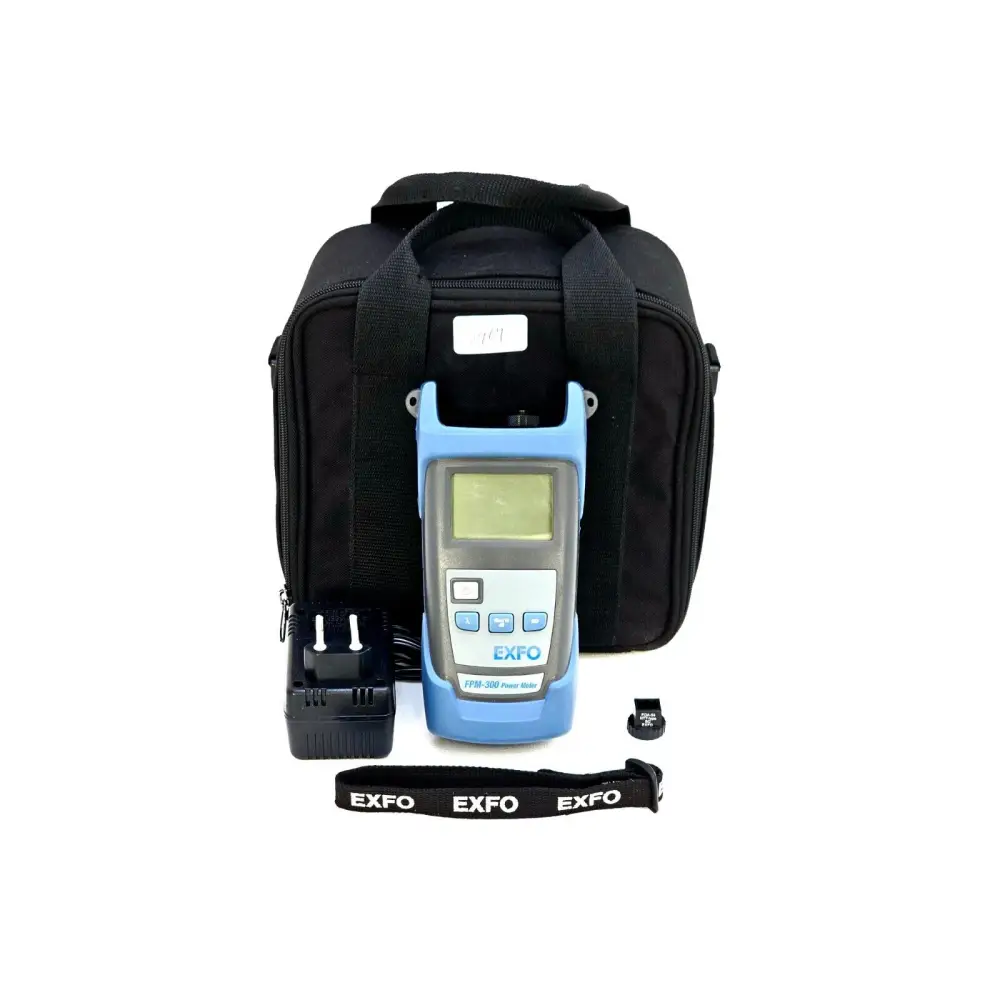

Included with this unit:

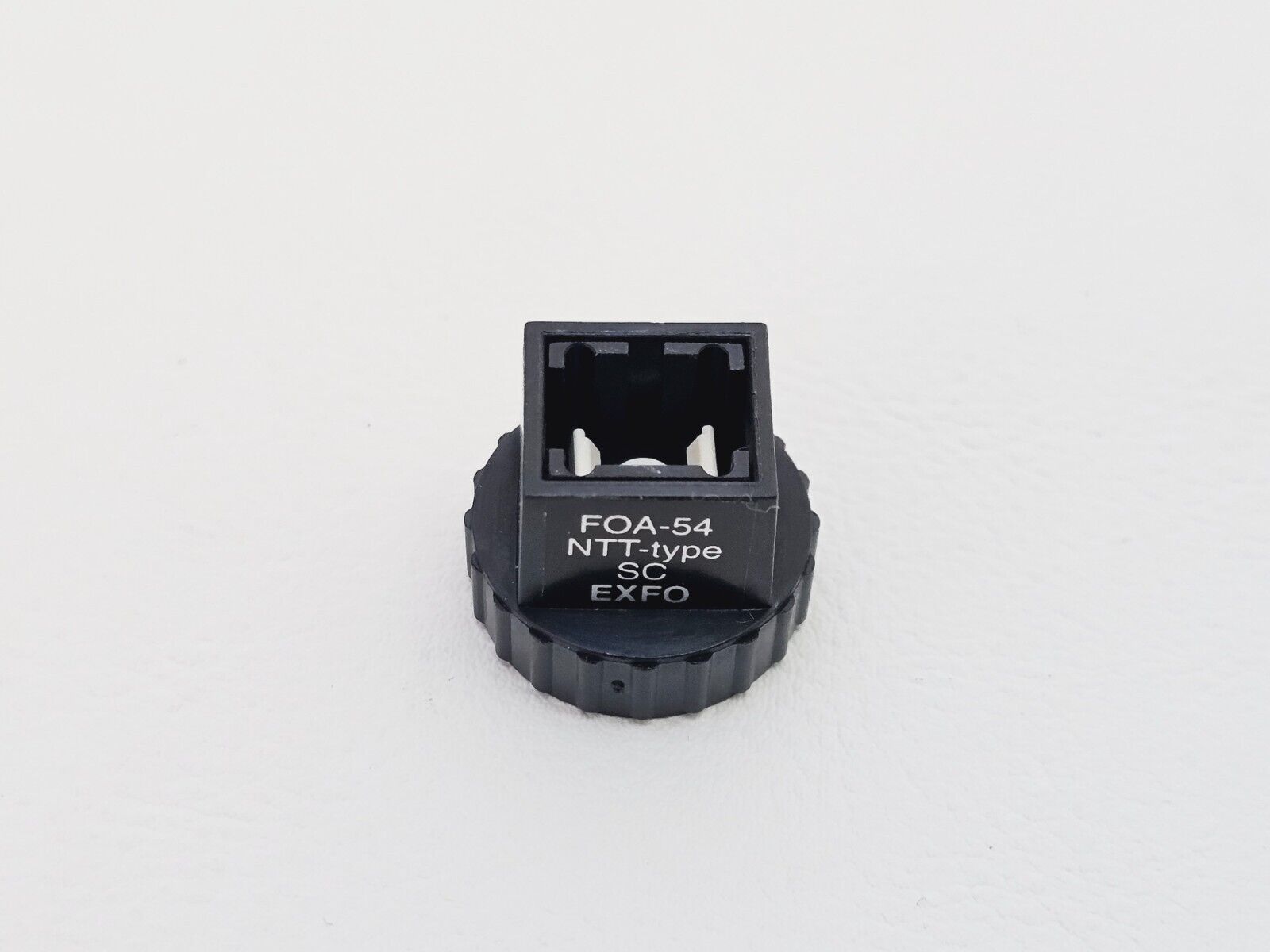

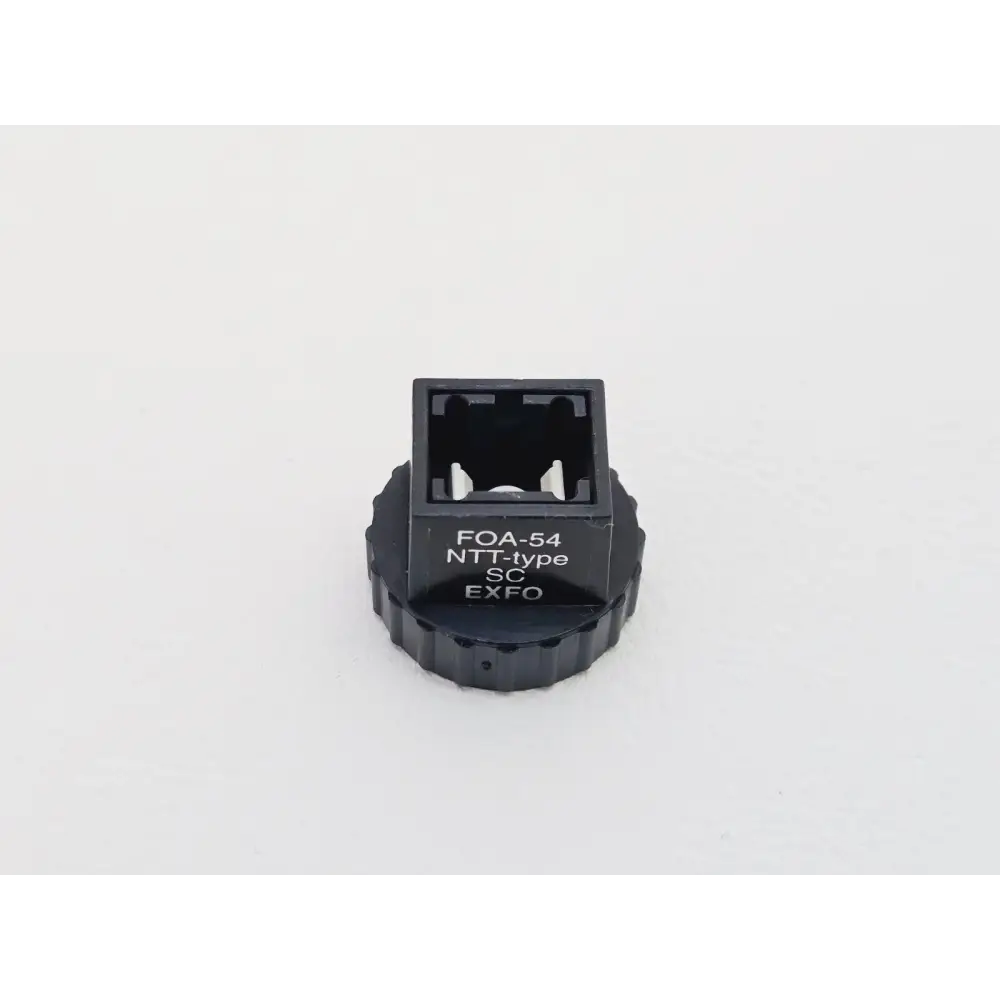

• SC adapter

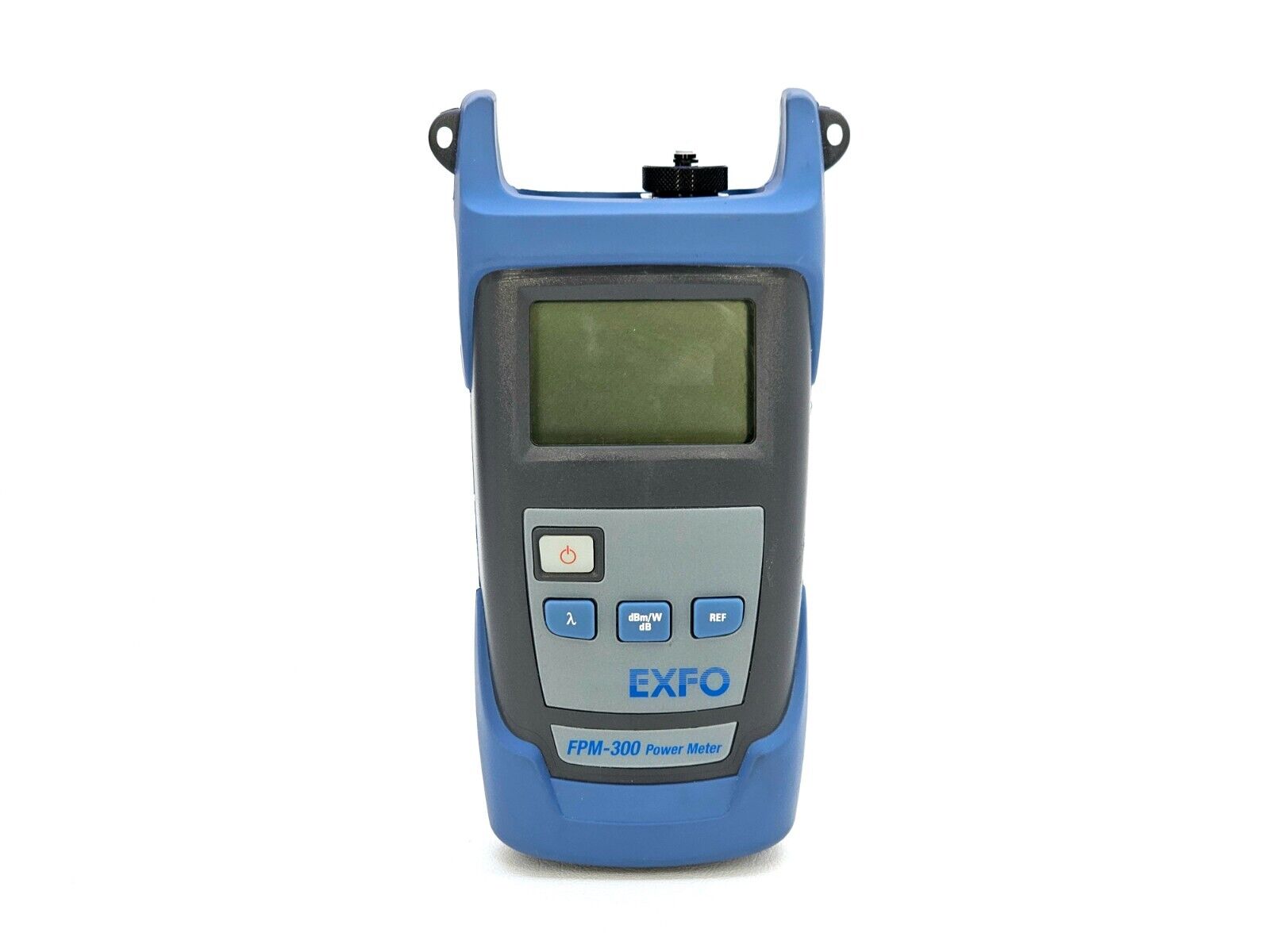

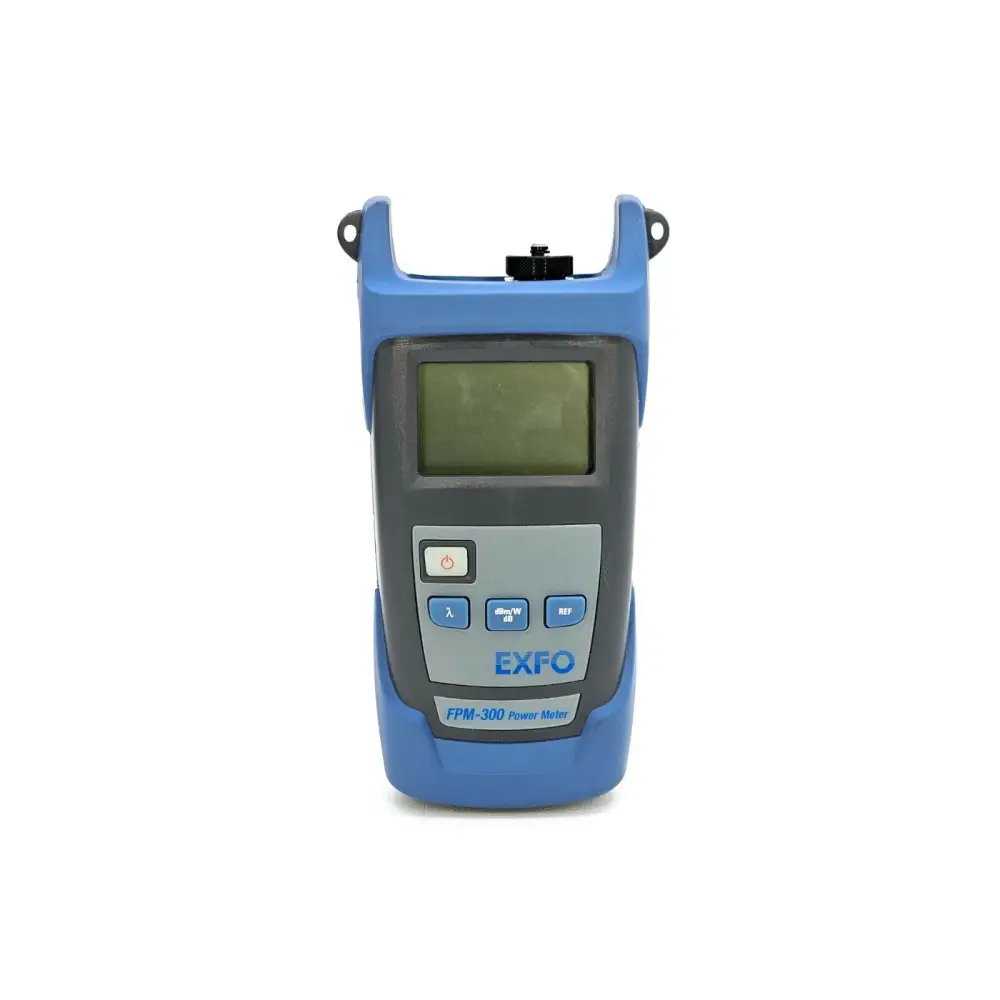

The EXFO FPM-300 is a handheld optical power meter purpose-built for testing passive optical networks (PONs). It supports the three wavelengths recommended by the ITU-T (G.983.3) standard — 1310 nm, 1490 nm, and 1550 nm — making it an ideal tool for FTTx and next-generation network assessment. It is part of EXFO's handheld test family alongside the FLS-300 light source and FOT-300 optical loss test set.

The FPM-302X variant uses a high-power Germanium (GeX) detector for extended dynamic range, and supports automatic wavelength recognition when paired with compatible EXFO sources using a digital encrypted protocol. This eliminates communication errors between field technicians and enables efficient distant referencing.

Key Features:
- FTTx/PON-ready: tests at 1310 nm, 1490 nm, and 1550 nm per ITU-T G.983.3
- Auto-wavelength recognition with compatible EXFO FLS-300 or FOT-300 sources
- No offset nulling required — reduces measurement time in typical field scenarios
- Tone detection at 270 Hz, 1 kHz, and 2 kHz
- Zero warm-up time
- Battery life exceeding 300 hours (typical)
- 3-year recommended calibration interval
- ISO 9001 certified manufacturing

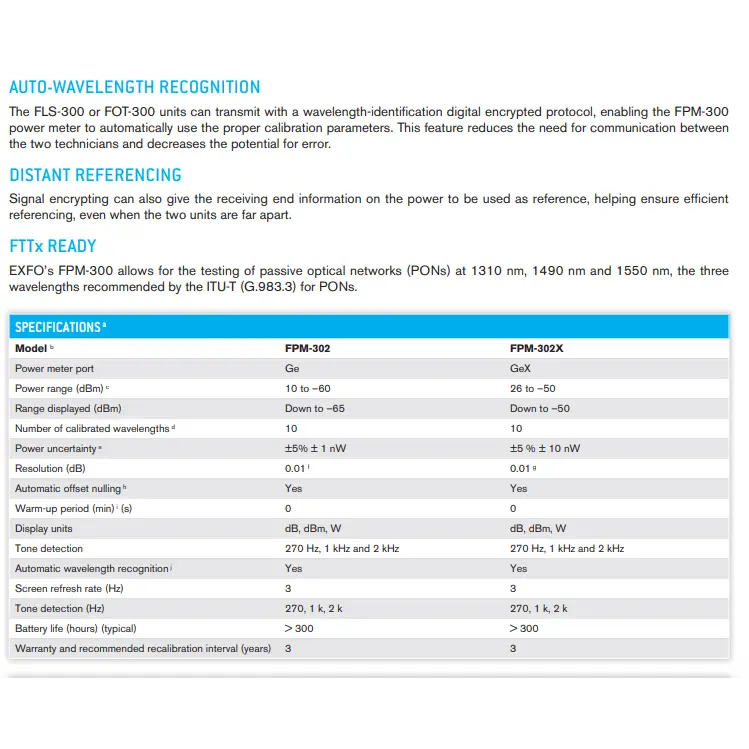

Specifications (FPM-302X):
Detector Type: High-power Germanium (GeX)
Power Range: +26 to –50 dBm
Range Displayed: Down to –50 dBm
Number of Calibrated Wavelengths: 10

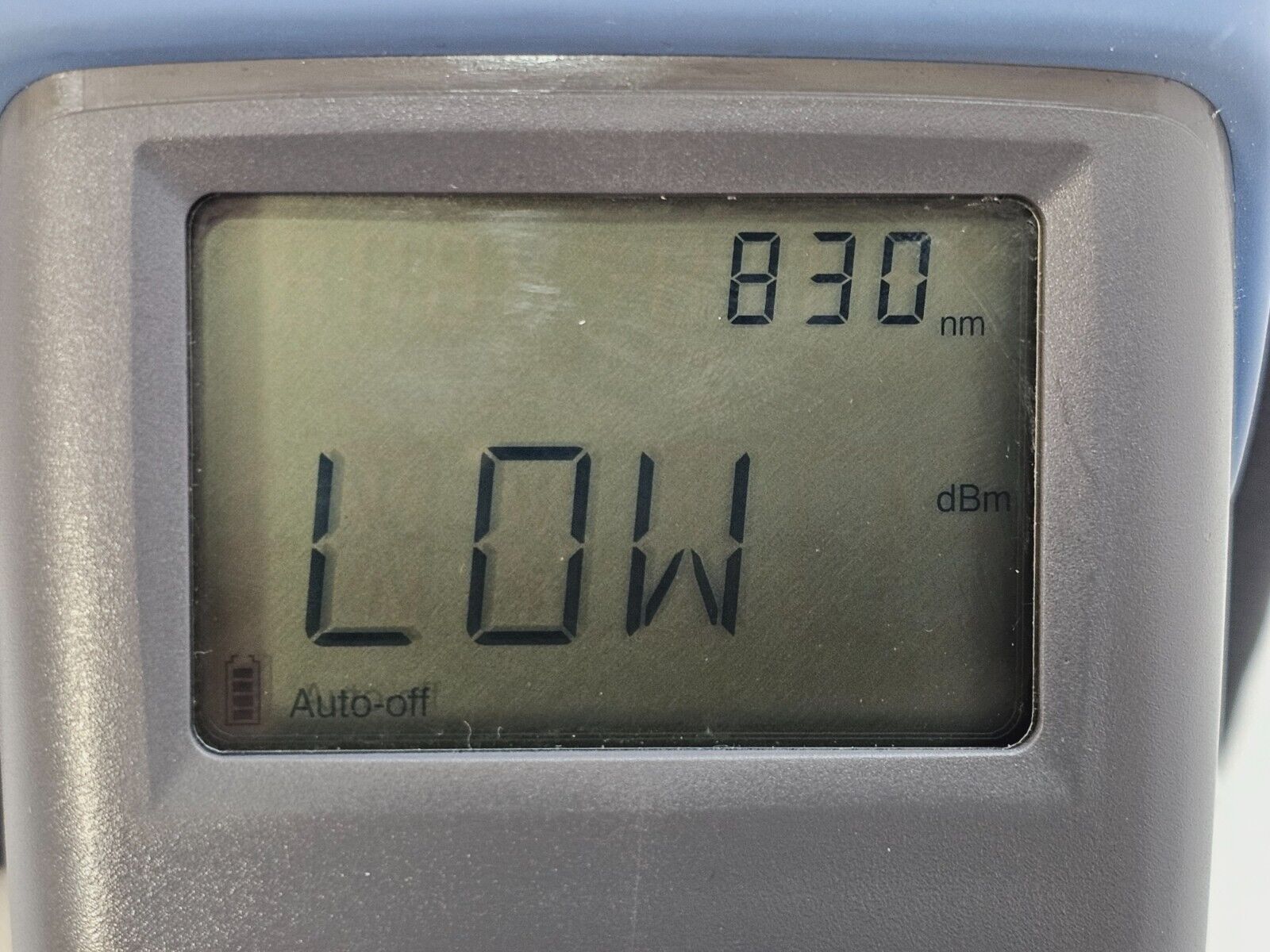

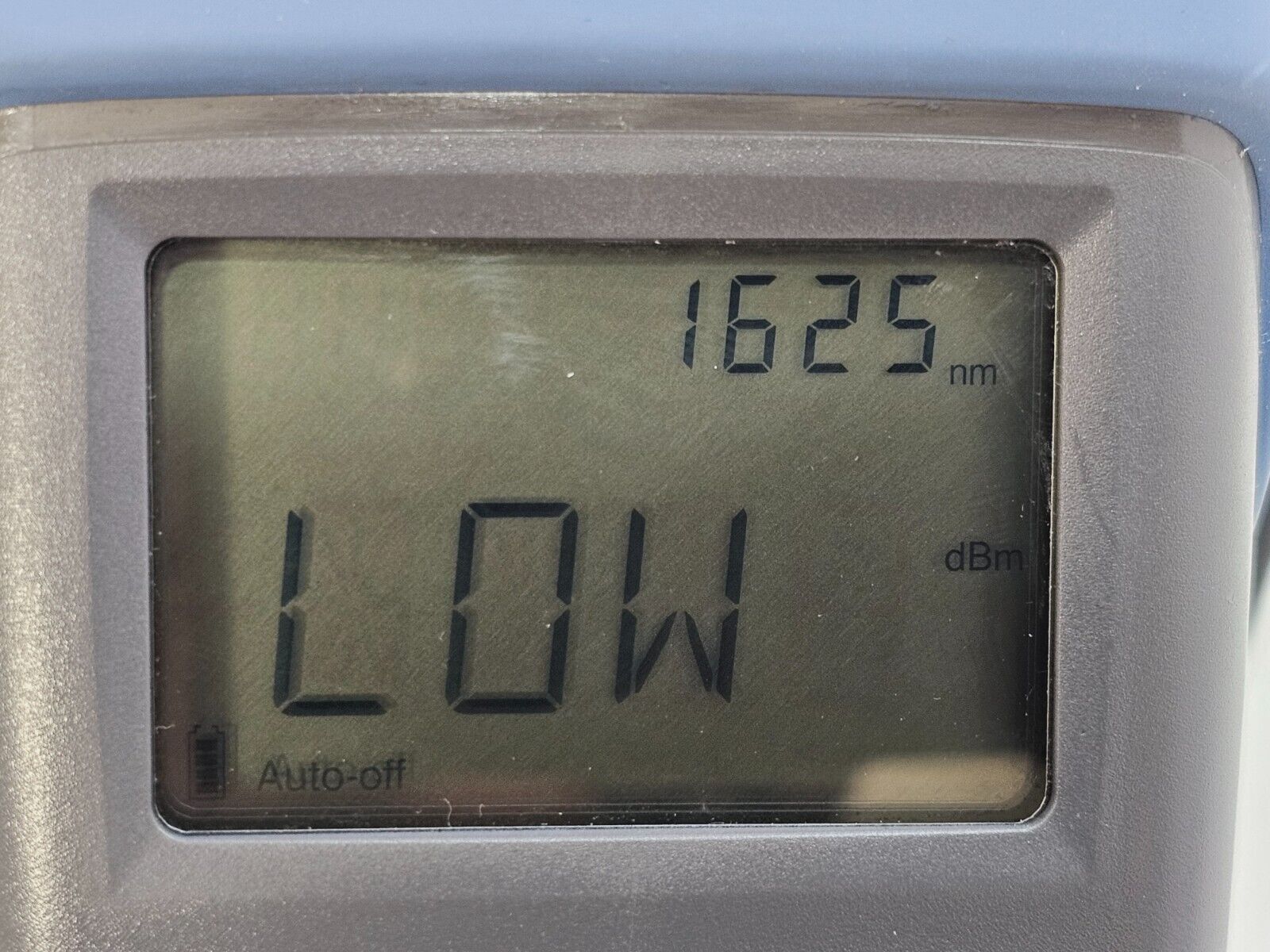

Calibrated Wavelengths: 830 nm, 850 nm, 980 nm, 1300 nm, 1310 nm, 1450 nm, 1490 nm, 1550 nm, 1590 nm, 1625 nm
Power Uncertainty: ±5% ±10 nW
Resolution: 0.01 dB
Automatic Offset Nulling: Yes
Warm-up Time: 0 seconds
Display Units: dB, dBm, W
Tone Detection: 270 Hz, 1 kHz, 2 kHz
Automatic Wavelength Recognition: Yes
Screen Refresh Rate: 3 Hz
Battery Life: >300 hours (typical)

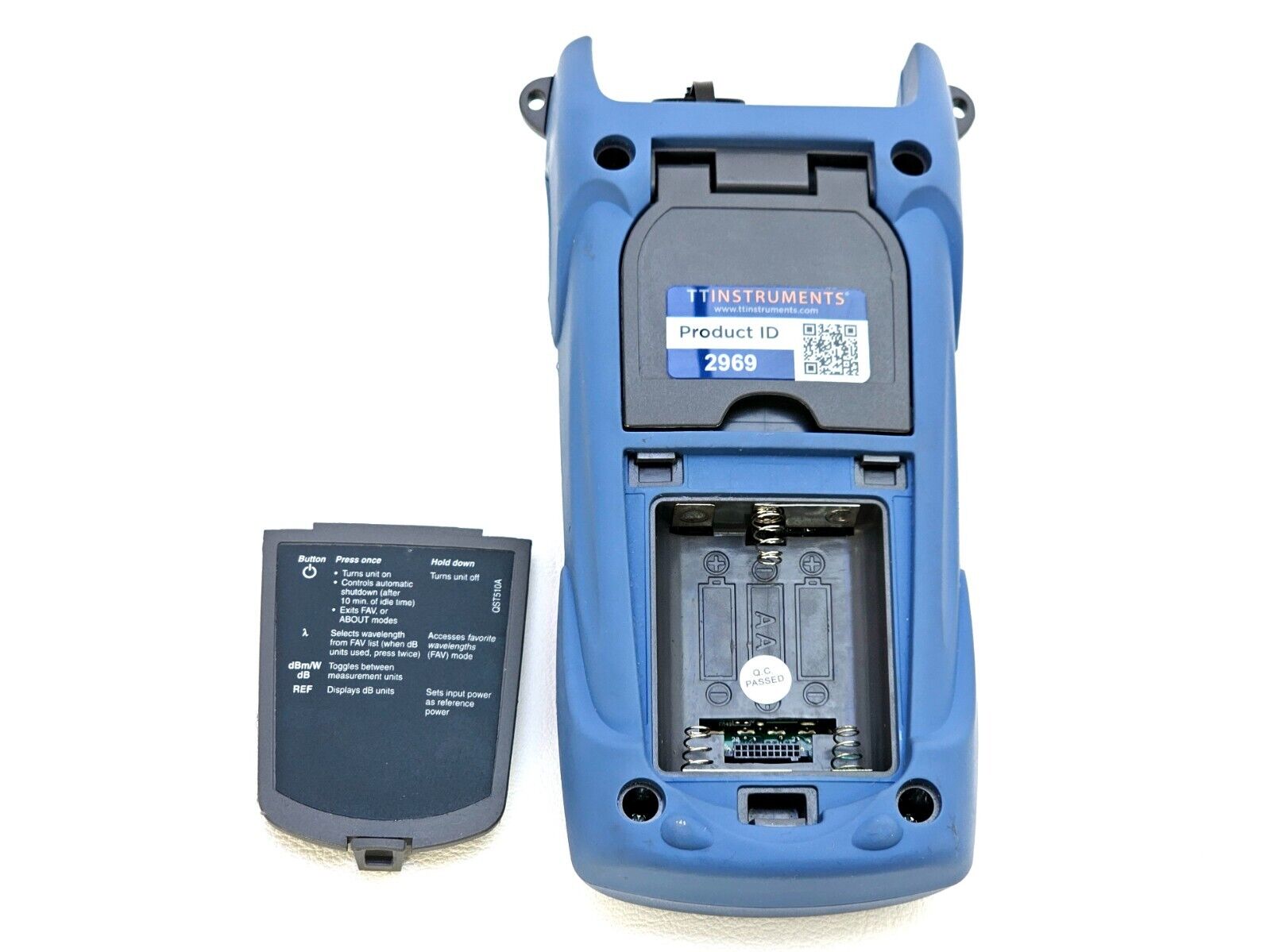

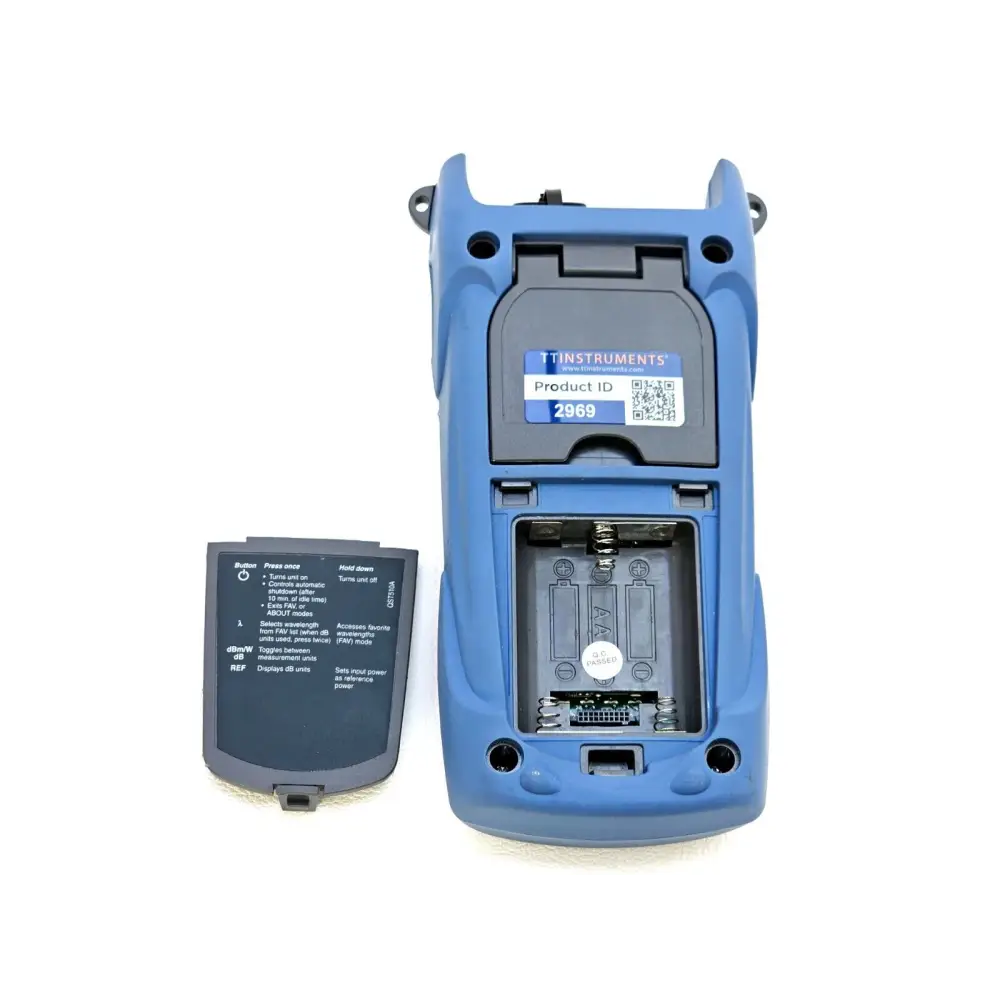

Power Sources: 3 x AA alkaline batteries or AC adapter
Calibration Interval: 3 years (recommended)

EXFO FPM-300 Official Specification Sheet (PDF): Download PDF

EXFO FPM-300 Datasheet — accusrc.com mirror (PDF): Download PDF

EXFO FPM-300 / FLS-300 User Guide (PDF): Download PDF

EXFO FPM-300 Specification Sheet — testequipment.center mirror (PDF): Download PDF
