Condition: Used

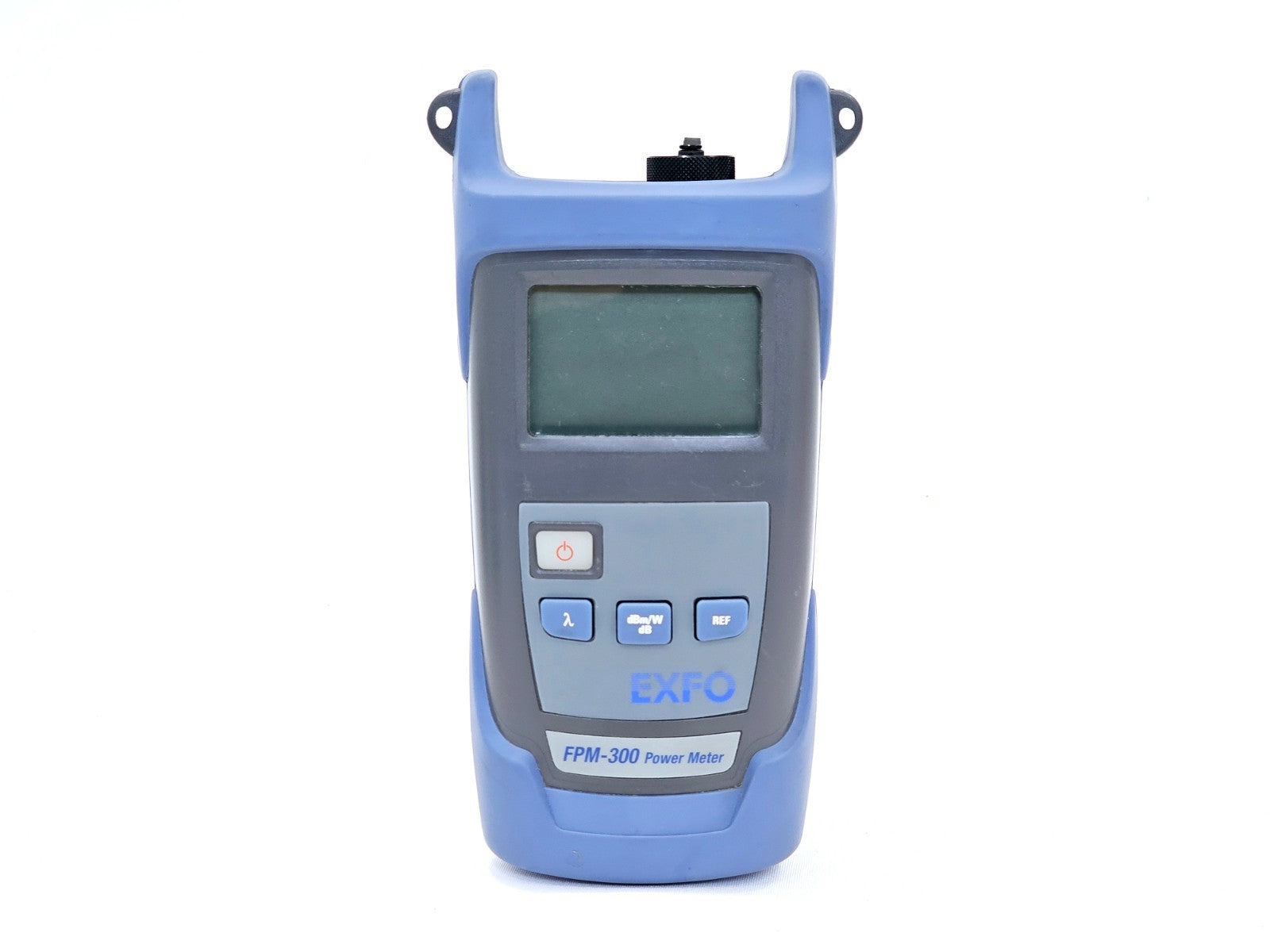

The EXFO FPM-300 PON Power Meter in FPM-302 configuration features a Germanium (Ge) detector and is supplied with both SC and FC connector adapters, making it ready for a wide range of fibre optic measurement tasks straight from the case.

Included with this unit:

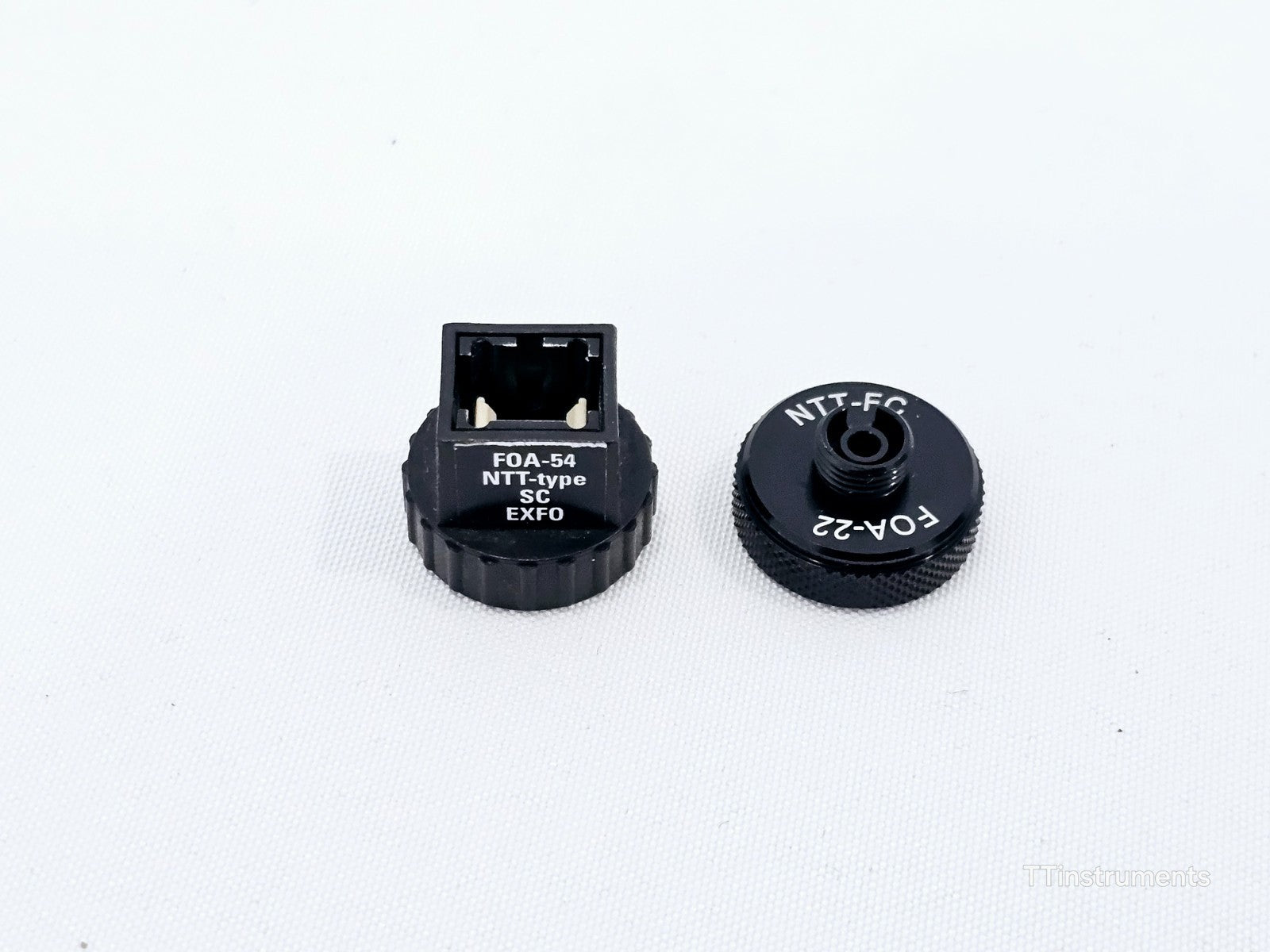

• SC connector adapter
• FC connector adapter

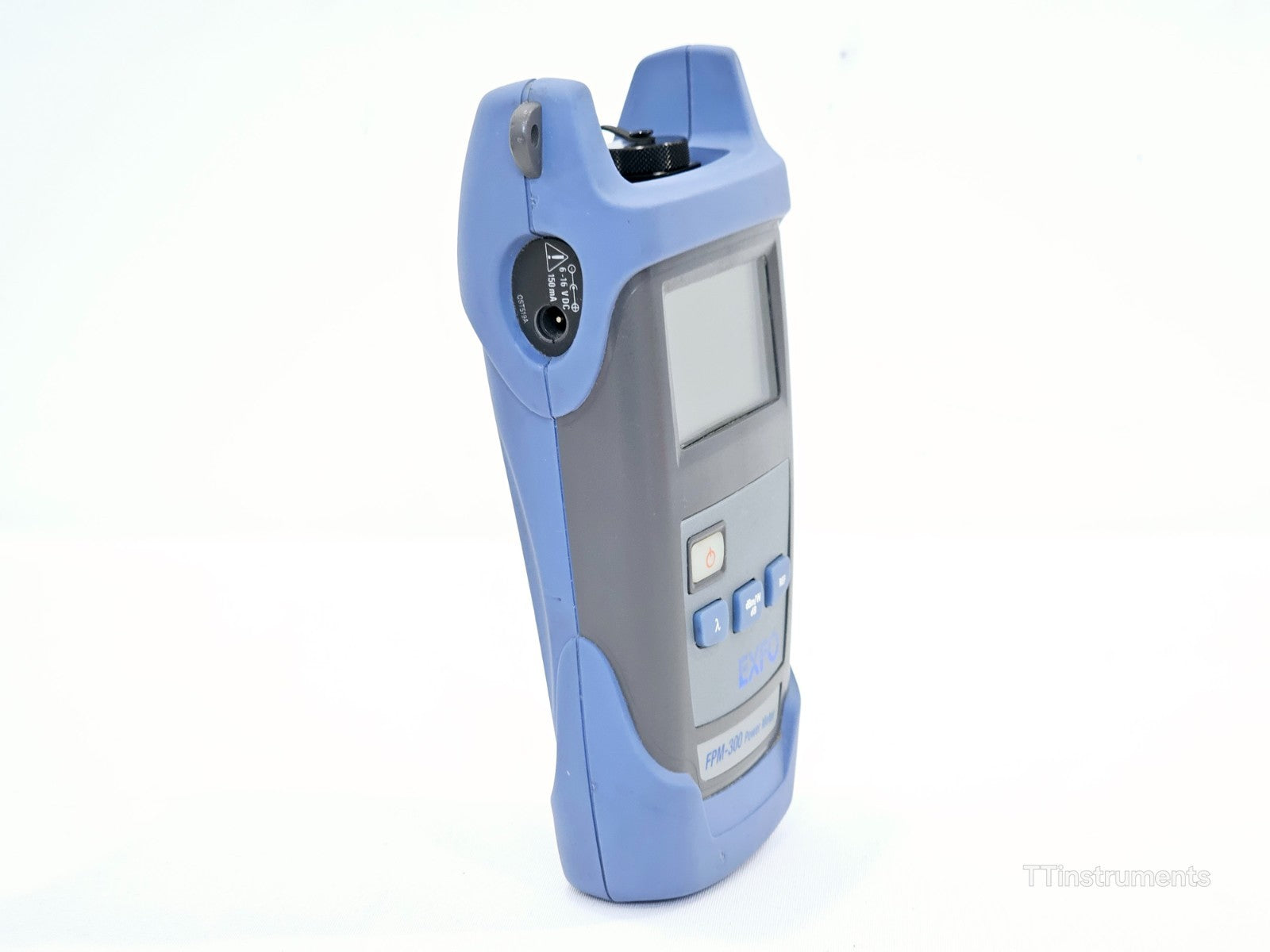

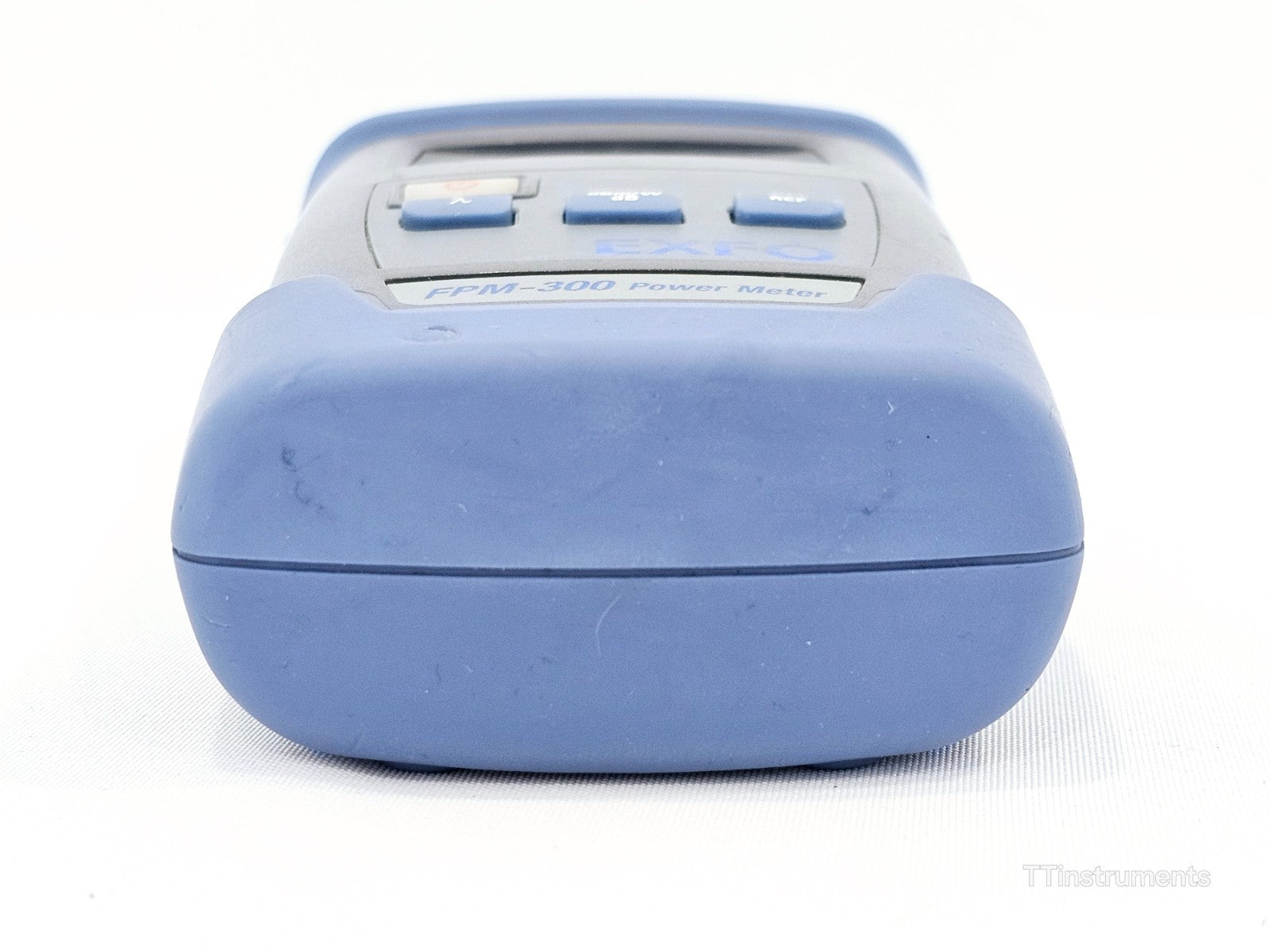

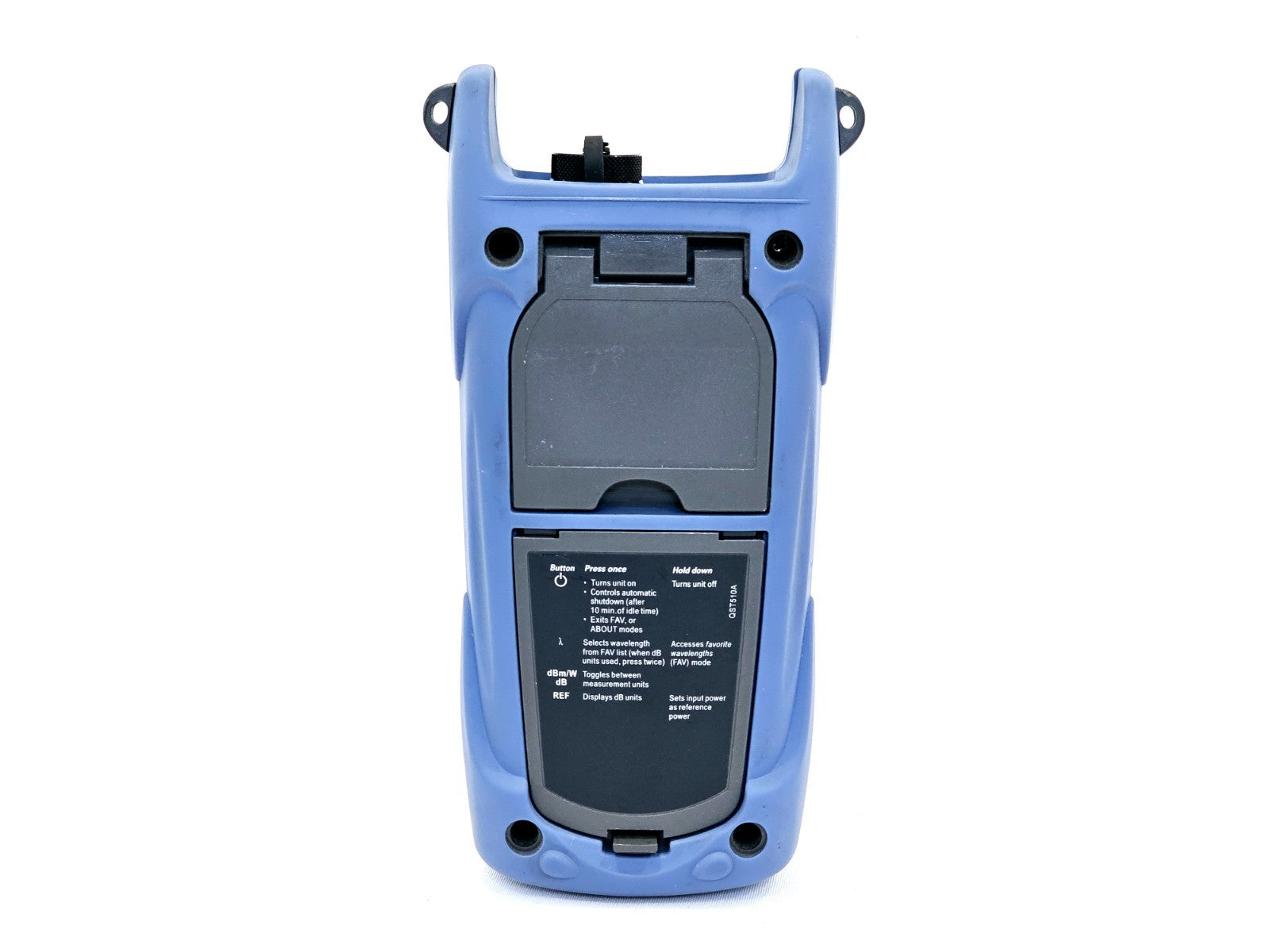

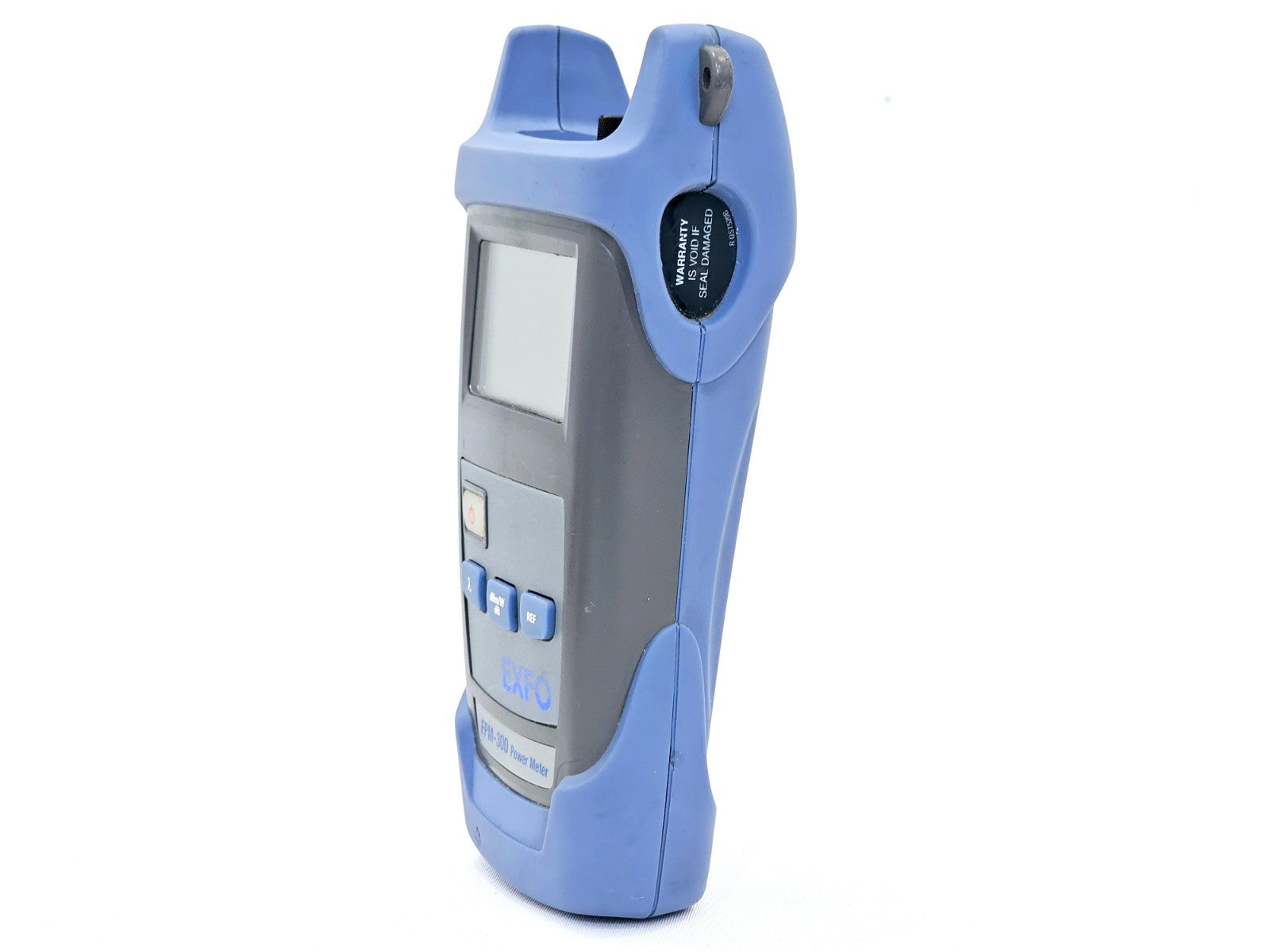

The EXFO FPM-300 is a handheld optical power meter and part of EXFO's FTTx-ready field test instrument family, which also includes the FLS-300 Light Source and the FOT-300 Optical Loss Test Set. It is designed to test passive optical networks (PONs) at the three ITU-T G.983.3 recommended wavelengths of 1310 nm, 1490 nm and 1550 nm, making it well suited to FTTx/GPON deployment and maintenance work.

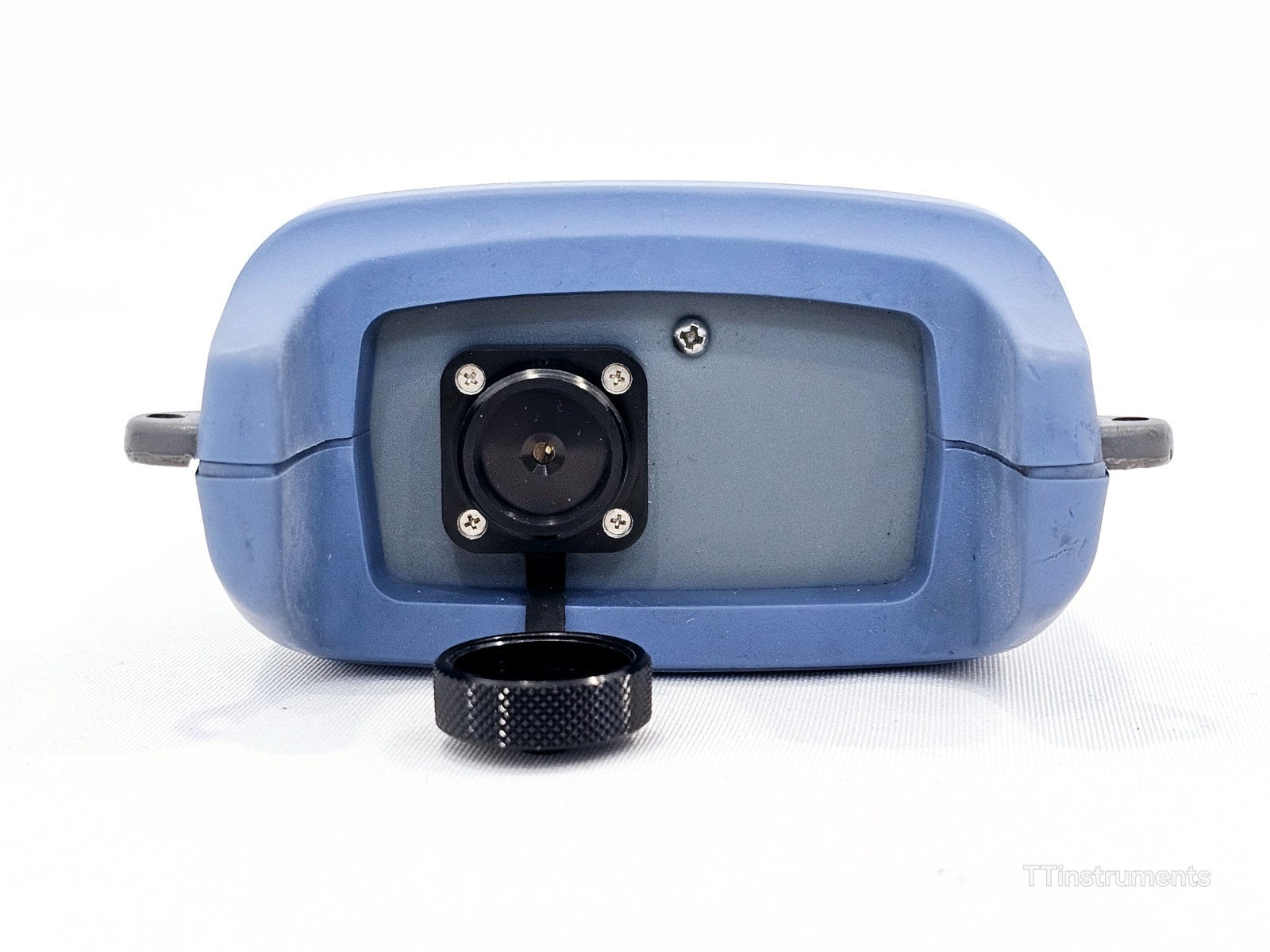

The FPM-302 variant uses a Germanium (Ge) detector port and delivers a power measurement range of +10 to –60 dBm with a displayed range down to –65 dBm. With 10 factory-calibrated wavelengths and a power uncertainty of ±5% ±1 nW, it provides reliable, traceable measurements in the field. The instrument features automatic wavelength recognition when used alongside compatible EXFO sources (FLS-300 / FOT-300), which transmit a digital encrypted wavelength-identification protocol, eliminating the need for manual coordination between technicians. Signal encryption also supports distant referencing, allowing reference power levels to be communicated between instruments even when they are far apart. The instrument's unique design removes the requirement for offset nulling, reducing measurement time in typical field scenarios.

Specifications (FPM-302):
Detector Type: Germanium (Ge)
Power Range: +10 to –60 dBm
Range Displayed: Down to –65 dBm
Number of Calibrated Wavelengths: 10
Power Uncertainty: ±5% ±1 nW
Resolution: 0.01 dB
Automatic Offset Nulling: Yes
Warm-up Time: 0 s
Display Units: dB / dBm / W
Automatic Wavelength Recognition: Yes
Screen Refresh Rate: 3 Hz
Tone Detection: 270 Hz, 1 kHz, 2 kHz
Battery Life (typical): >300 hours

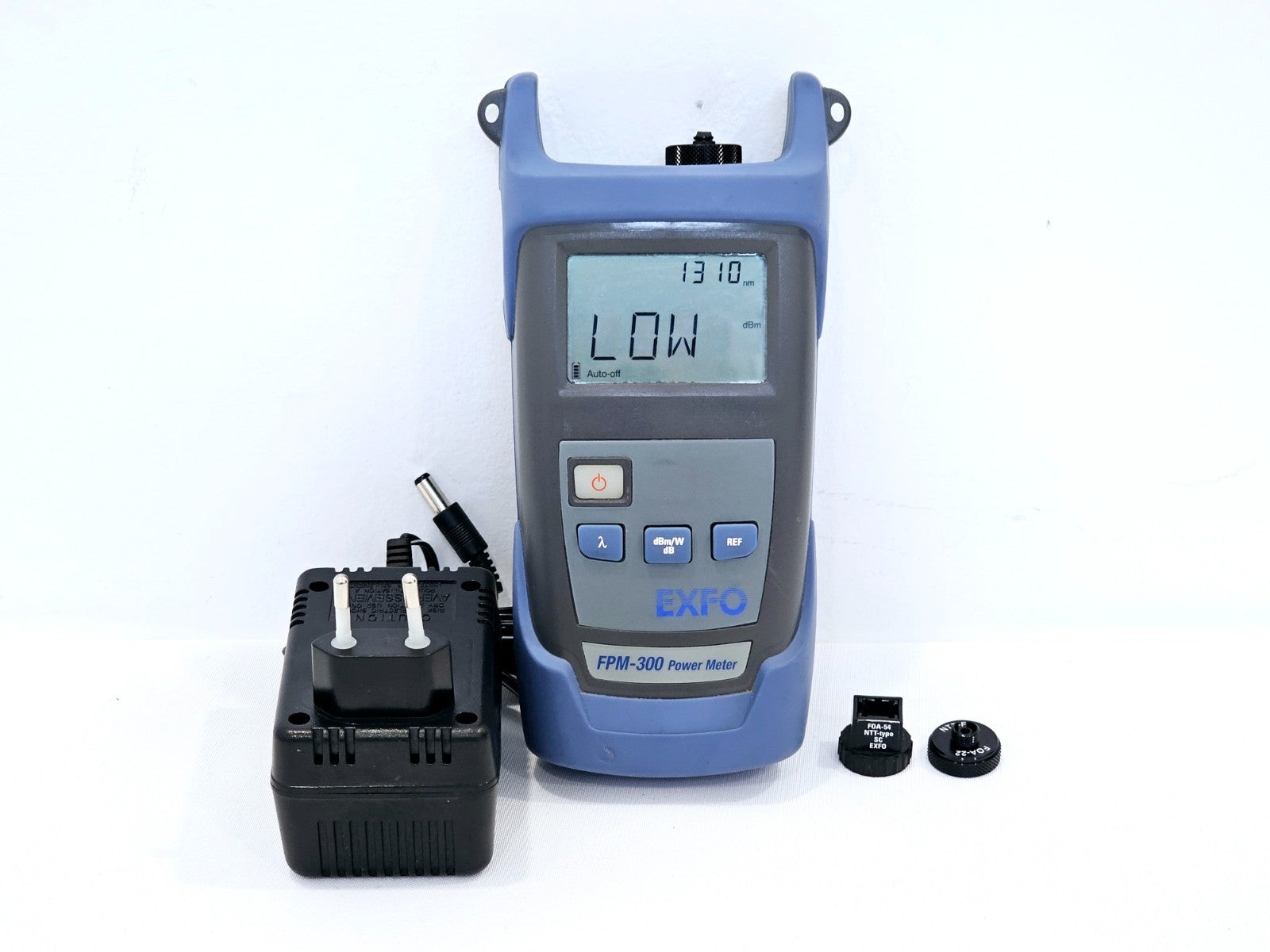

Power Source: Three AA alkaline batteries or AC adapter
Size (H x W x D): 185 mm x 100 mm x 55 mm
Weight: 0.4 kg (0.9 lb)
Operating Temperature: –10 °C to 50 °C
Storage Temperature: –40 °C to 70 °C
Relative Humidity: 0% to 95% non-condensing
Warranty / Recommended Calibration Interval: 3 years

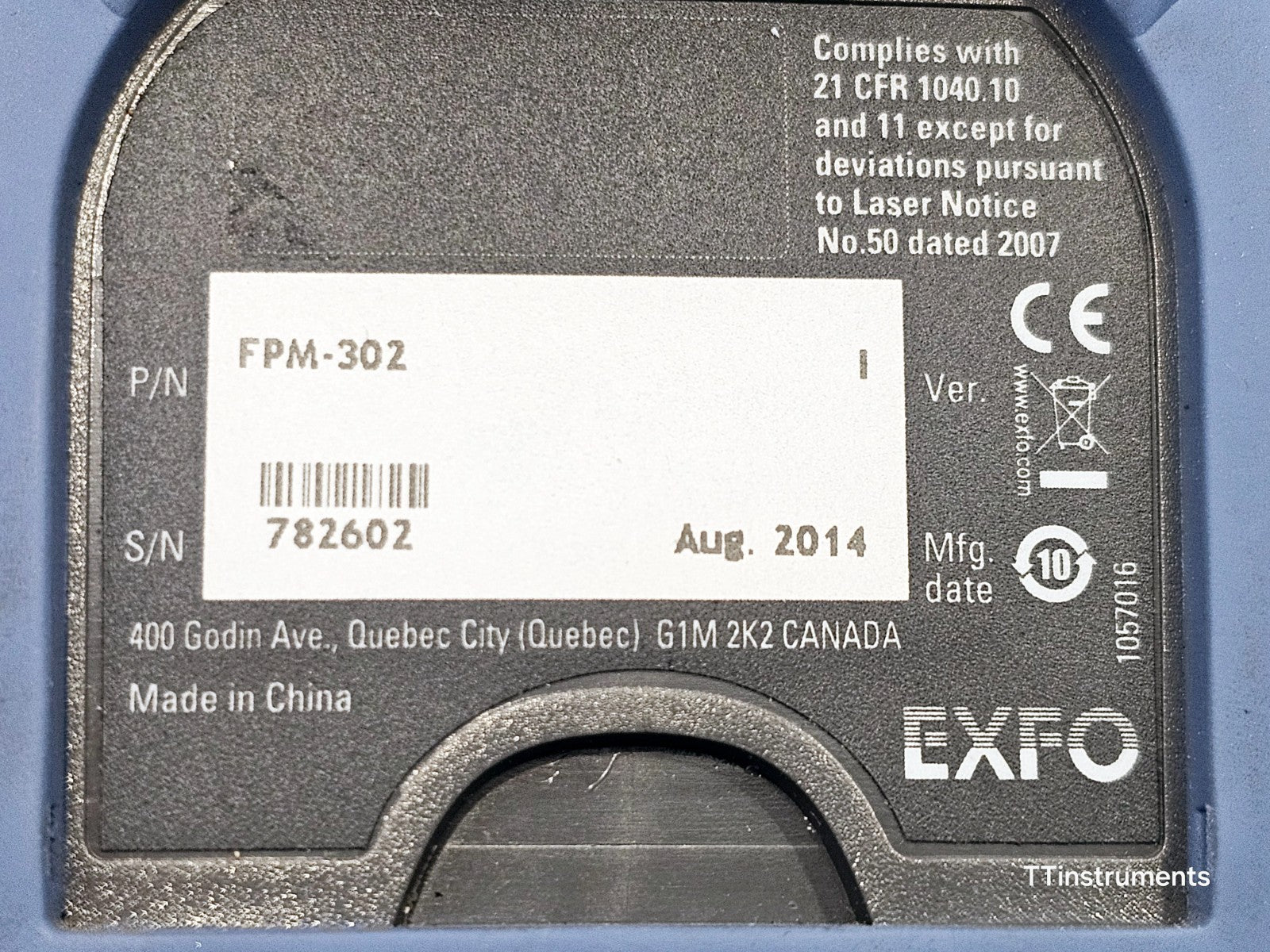

Certification: ISO 9001, FCC Part 15, WEEE compliant

EXFO FPM-300 Official Specifications Sheet (PDF) — full technical specifications for FPM-302 and FPM-302X models: Download PDF

EXFO FPM-300 Datasheet (PDF) — product overview and specifications hosted by fs.com: Download PDF

EXFO FPM-300 / FLS-300 / FOT-300 User Guide (PDF) — full operating and safety instructions: Download PDF

EXFO FPM-300 Specifications Sheet v5 (PDF) — latest revision spec sheet from ProFiber: Download PDF
