Condition: Used

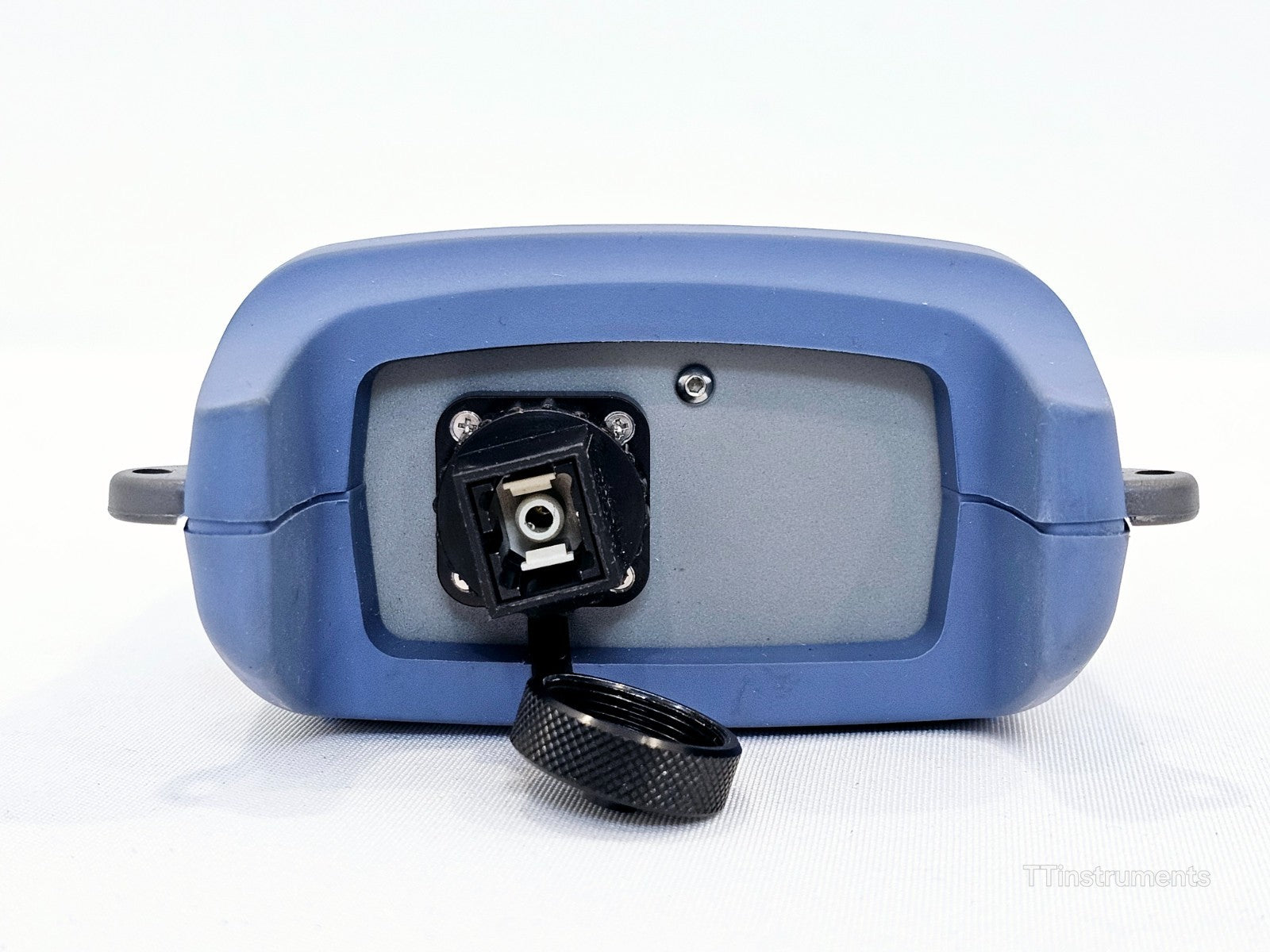

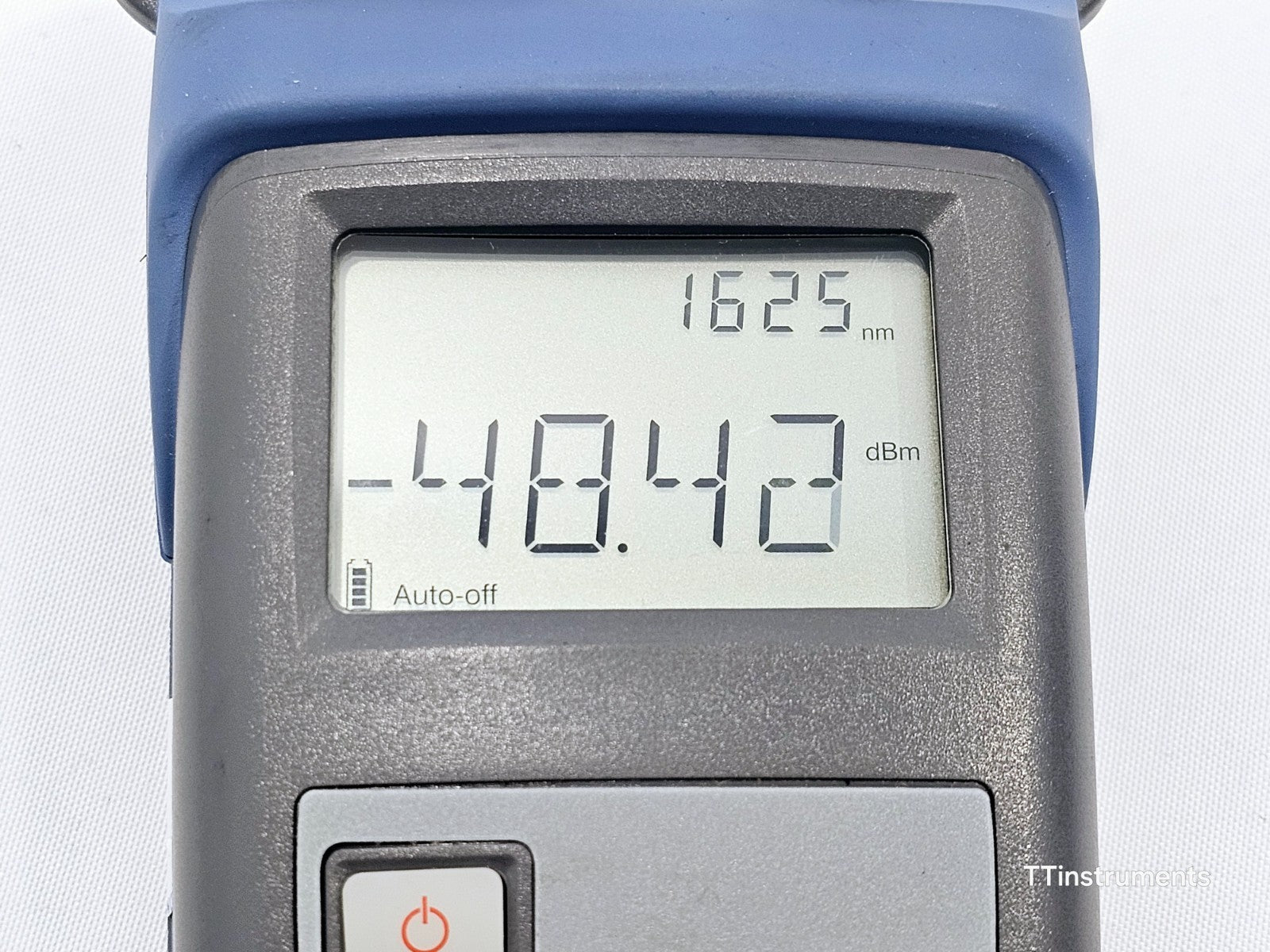

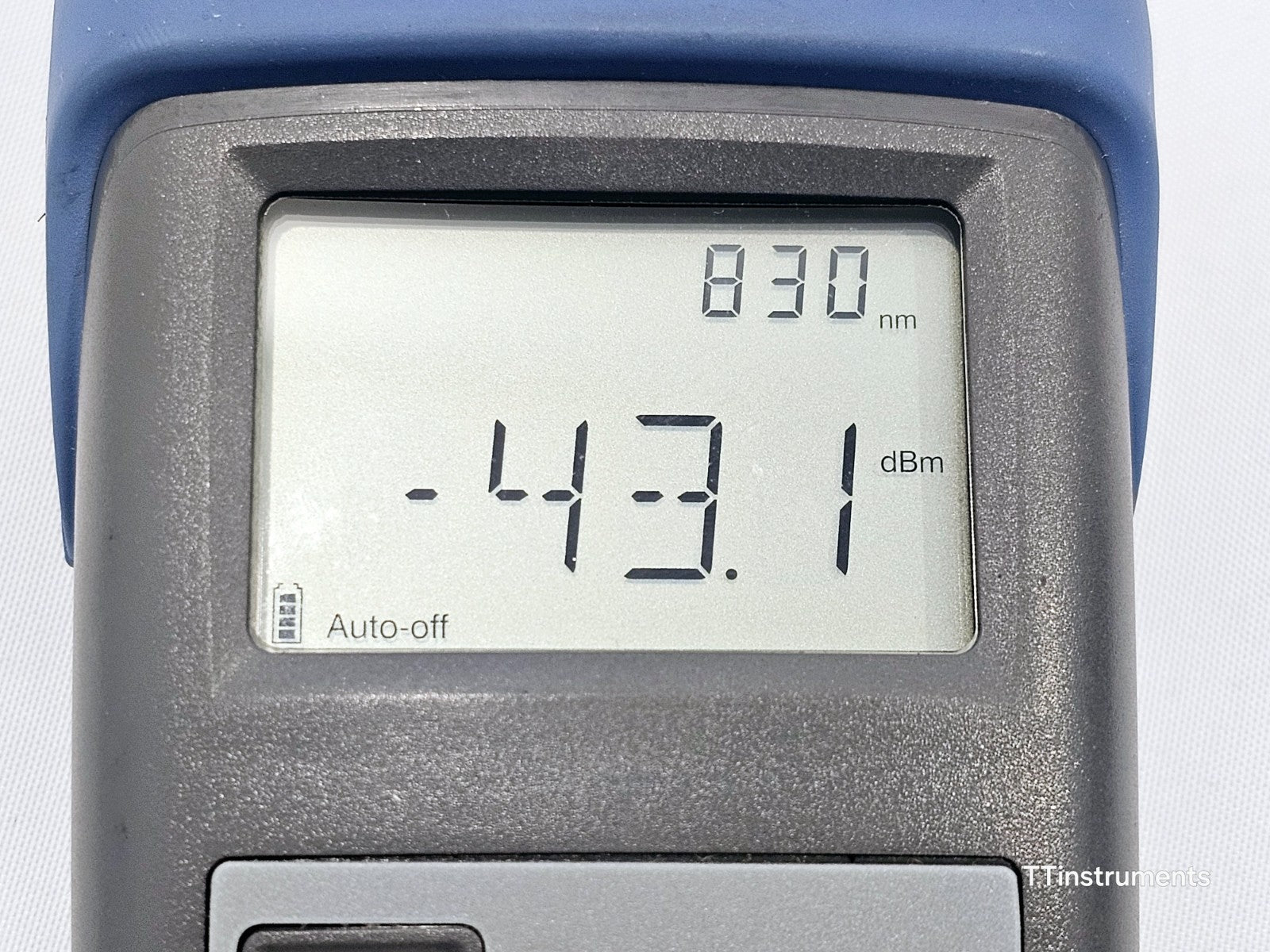

The EXFO FPM-300 FPM-302 PON Power Meter is supplied in good working condition with an SC adapter fitted. The unit features a Germanium (Ge) detector and is ready for PON and FTTx fibre optic loss testing.

Included with this unit:
• SC connector adapter

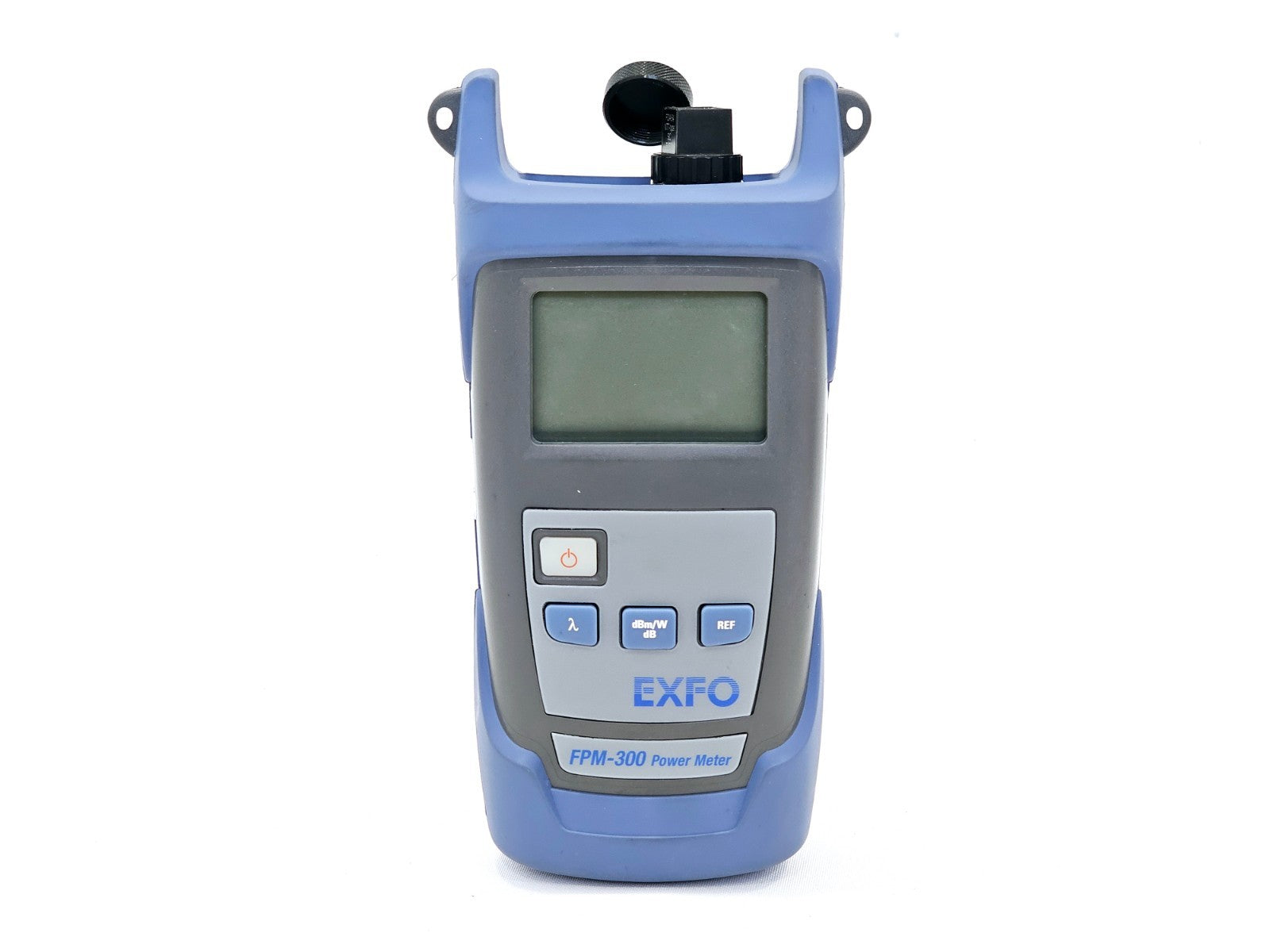

The EXFO FPM-300 is a handheld optical power meter designed for testing passive optical networks (PONs) and general fibre optic installations. The FPM-302 variant features a standard Germanium (Ge) detector port and is FTTx ready, supporting measurements at 1310 nm, 1490 nm and 1550 nm — the three wavelengths recommended by the ITU-T (G.983.3) for PON deployments.

The FPM-300 is part of EXFO's handheld test family, which also includes the FLS-300 Light Source and the FOT-300 Optical Loss Test Set. When paired with these units, it supports auto-wavelength recognition via a digital encrypted protocol, allowing the power meter to automatically select the correct calibration parameters without manual communication between technicians. Signal encryption also enables distant referencing, transmitting reference power information to the receiving end across long distances.

Thanks to its unique design, the FPM-300 eliminates the need for offset nulling in typical measurement scenarios, reducing test time in the field.

Key Features:
- FTTx/PON ready at 1310 nm, 1490 nm and 1550 nm
- Auto-wavelength recognition with compatible EXFO sources
- Distant referencing via encrypted signal
- No offset nulling required
- Zero warm-up time
- Up to 300 hours battery life (typical)
- 3-year recommended calibration interval
- ISO 9001 certified manufacturing

Specifications (FPM-302):
Detector Type: Germanium (Ge)
Power Range: +10 to –60 dBm
Range Displayed: Down to –65 dBm
Number of Calibrated Wavelengths: 10
Calibrated Wavelengths: 830 nm, 850 nm, 980 nm, 1300 nm, 1310 nm, 1450 nm, 1490 nm, 1550 nm, 1590 nm, 1625 nm
Power Uncertainty: ±5% ±1 nW
Resolution: 0.01 dB
Display Units: dB / dBm / W
Automatic Offset Nulling: Yes
Warm-up Time: 0 s
Automatic Wavelength Recognition: Yes
Screen Refresh Rate: 3 Hz
Tone Detection: 270 Hz, 1 kHz, 2 kHz
Battery Life (typical): >300 hours
Power Sources: AC adapter or 3 x AA alkaline batteries
Warranty and Recommended Calibration Interval: 3 years
Connector Interface: EXFO Universal Interface (EUI) — interchangeable adapters
Compliance: FCC Part 15, EU WEEE Directive, ISO 9001

EXFO FPM-300 Official Specifications Sheet (SPFPM300.5AN) — full technical specifications: Download PDF

EXFO FPM-300 / FLS-300 User Guide — operation manual for power meter and light source: Download PDF

EXFO FPM-300 Datasheet — product overview and key features: Download PDF

EXFO FPM-300 Specifications Sheet (accusrc mirror) — detailed spec sheet PDF: Download PDF

EXFO FPM-300 Spec Sheet v5 — latest revision specification sheet PDF: Download PDF
