Condition: Seller refurbished

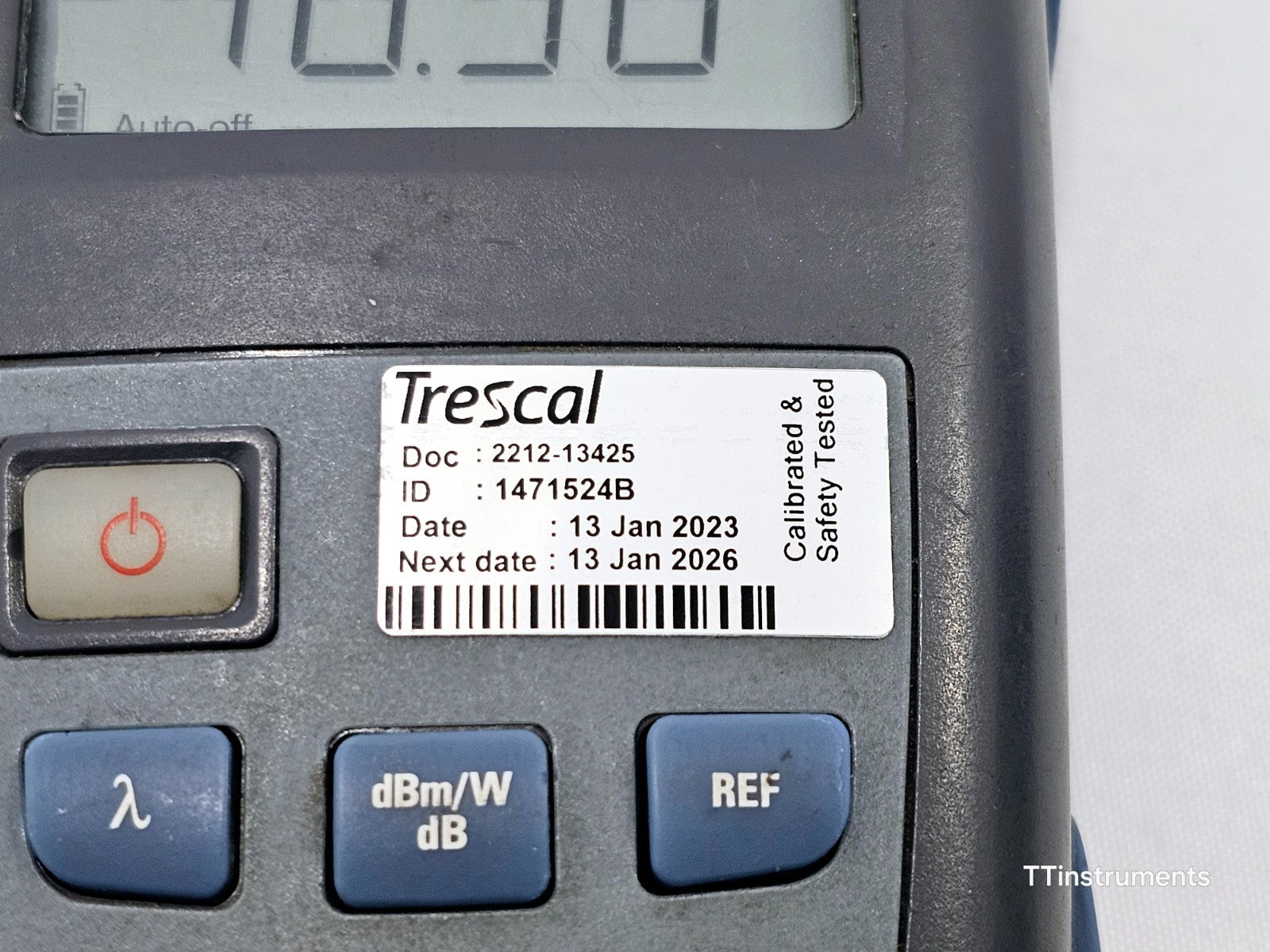

The EXFO FPM-300 FPM-302 PON Power Meter is in good working condition. Calibration expired January 2026. Supplied with an SC adapter. No batteries are included.

Included with this unit:

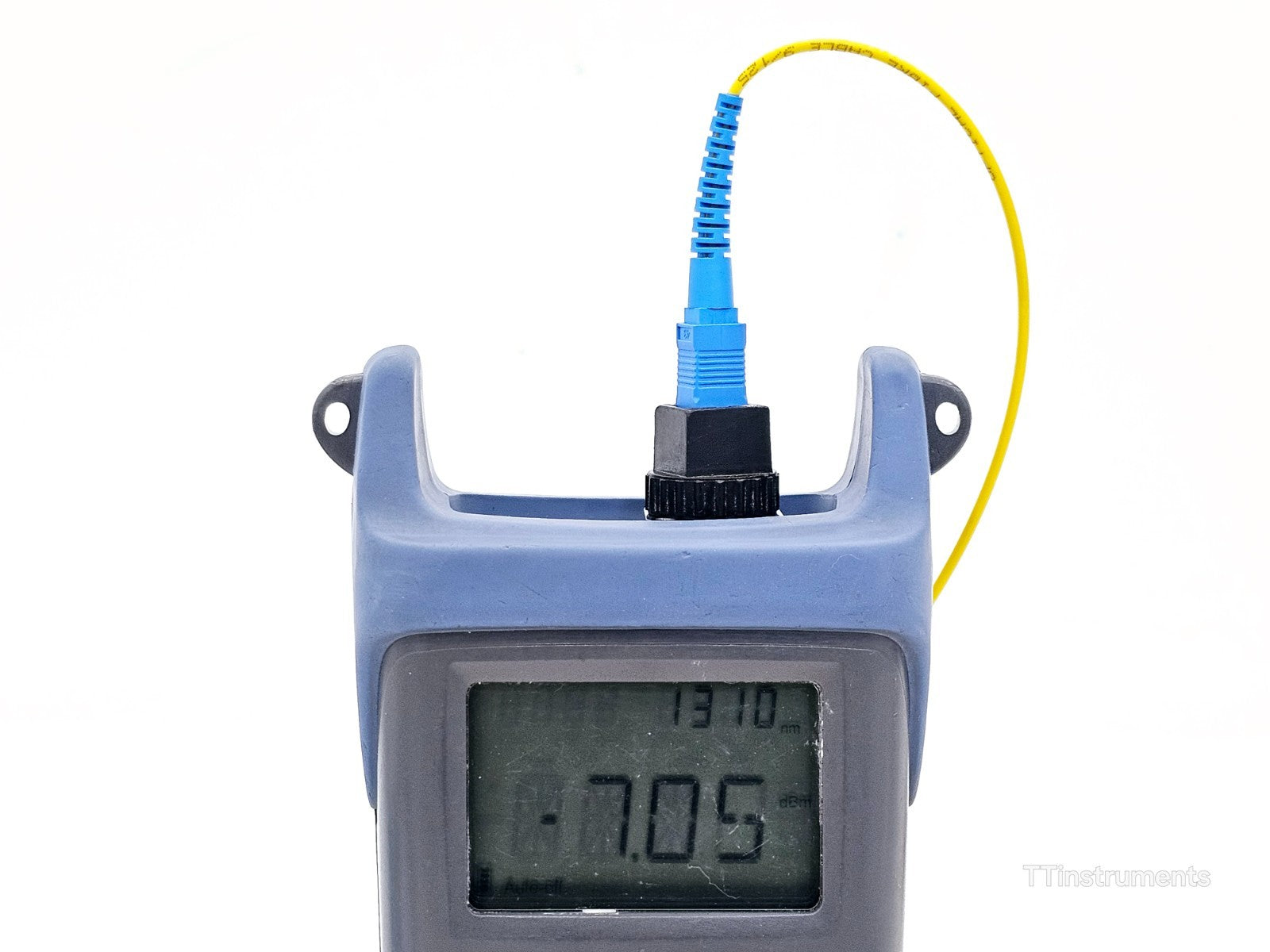

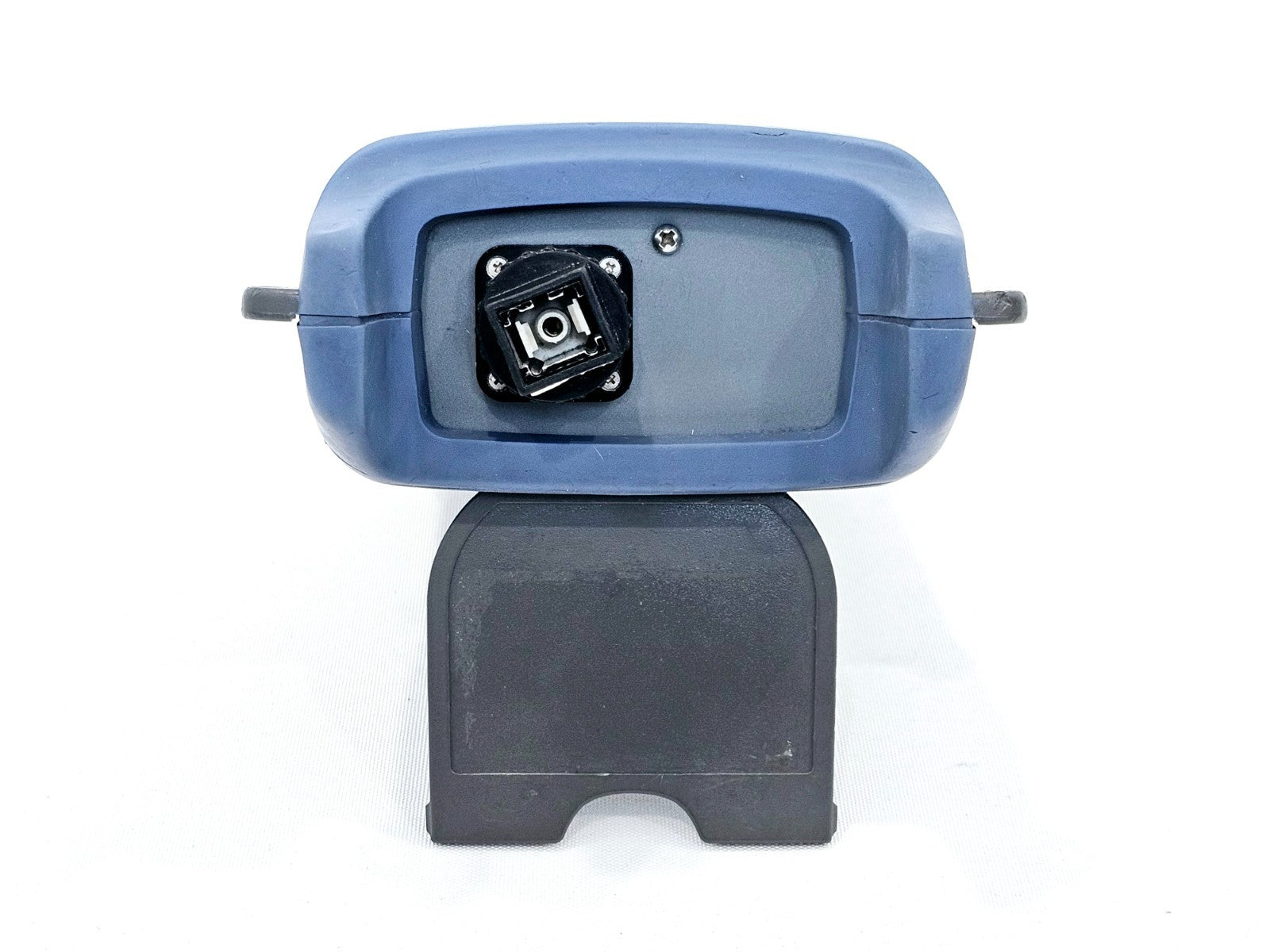

• SC connector adapter

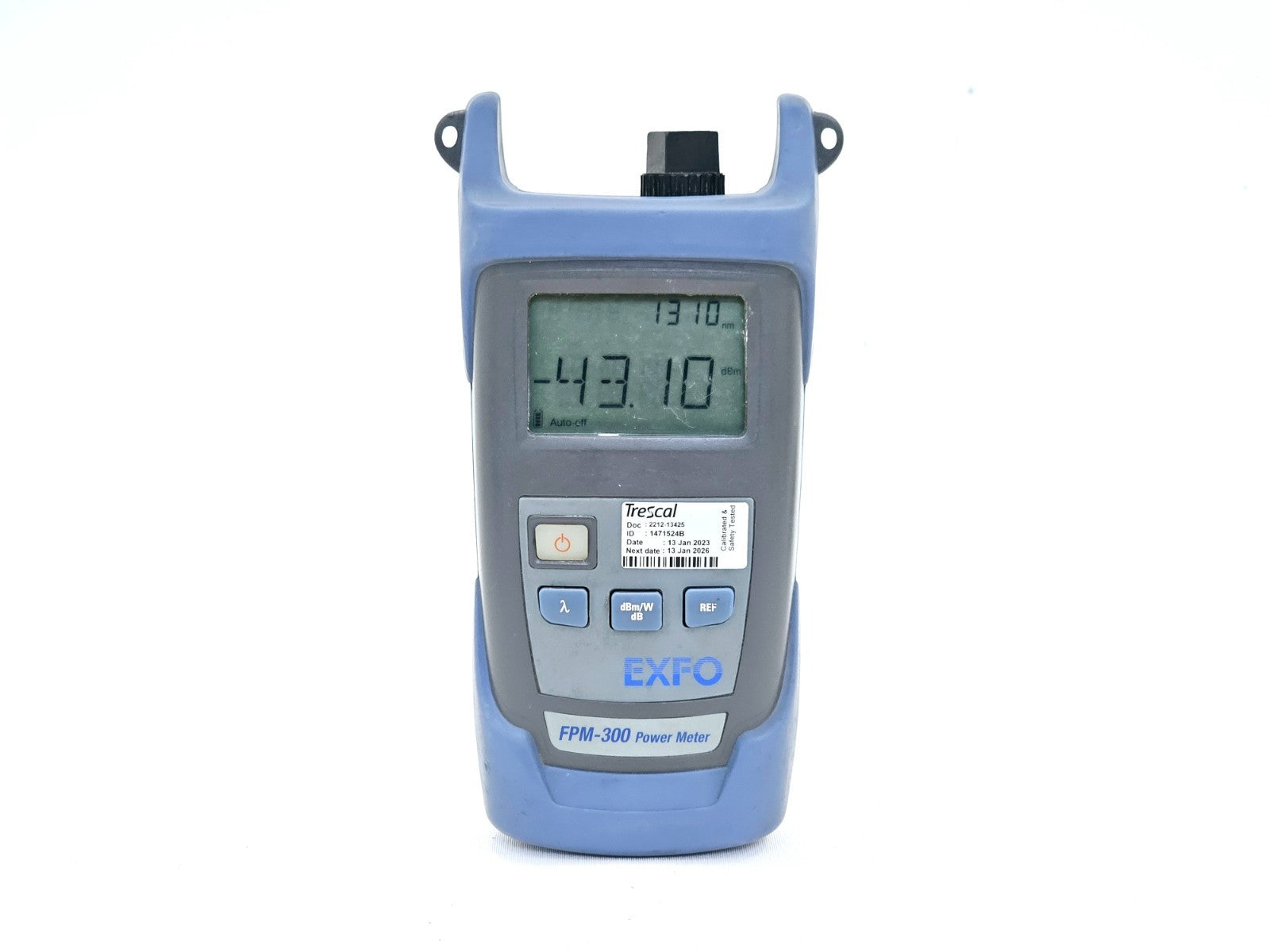

The EXFO FPM-300 is a handheld fibre optic power meter purpose-built for passive optical network (PON) testing and general optical loss measurement. The FPM-302 variant features a Germanium (Ge) detector and is part of EXFO's FPM-300/FLS-300/FOT-300 test platform, enabling auto-wavelength recognition via encrypted digital protocol when paired with compatible EXFO light sources. This eliminates inter-technician communication requirements and reduces measurement error. The no-offset-nulling design speeds up measurement workflows in typical field conditions.

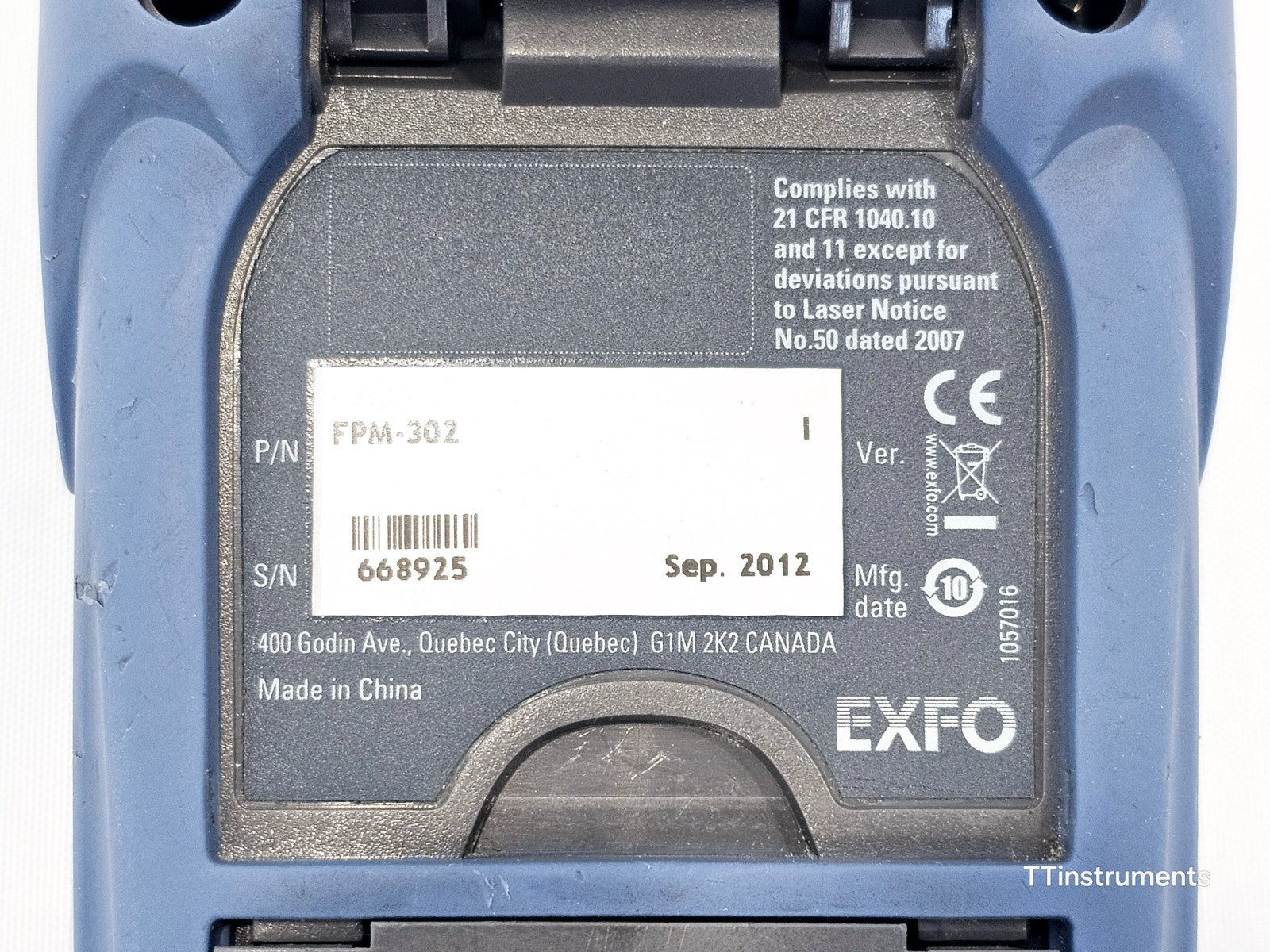

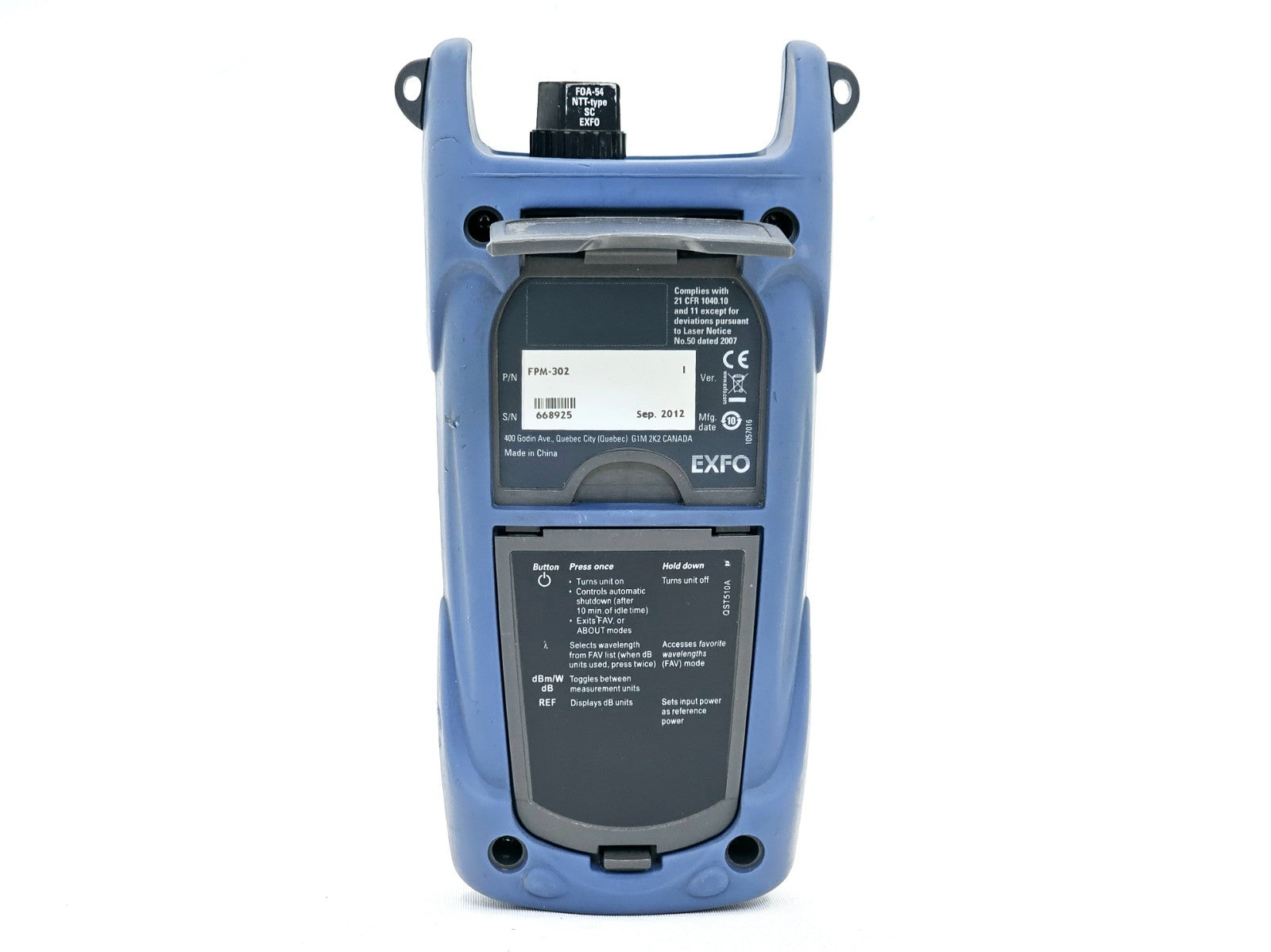

Model: FPM-302
Detector Type: Germanium (Ge)
Power Range: +10 to –60 dBm
Displayed Range: Down to –65 dBm
Number of Calibrated Wavelengths: 10
PON Wavelengths Supported: 1310 nm, 1490 nm, 1550 nm (ITU-T G.983.3)
Full Calibrated Wavelengths: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm (and others)
Power Uncertainty: ±5% ±1 nW
Resolution: 0.01 dB
Automatic Offset Nulling: Yes
Warmup Time: 0 s
Display Units: dB / dBm / W
Automatic Wavelength Recognition: Yes
Screen Refresh Rate: 3 Hz
Tone Detection: 270 Hz, 1 kHz, 2 kHz

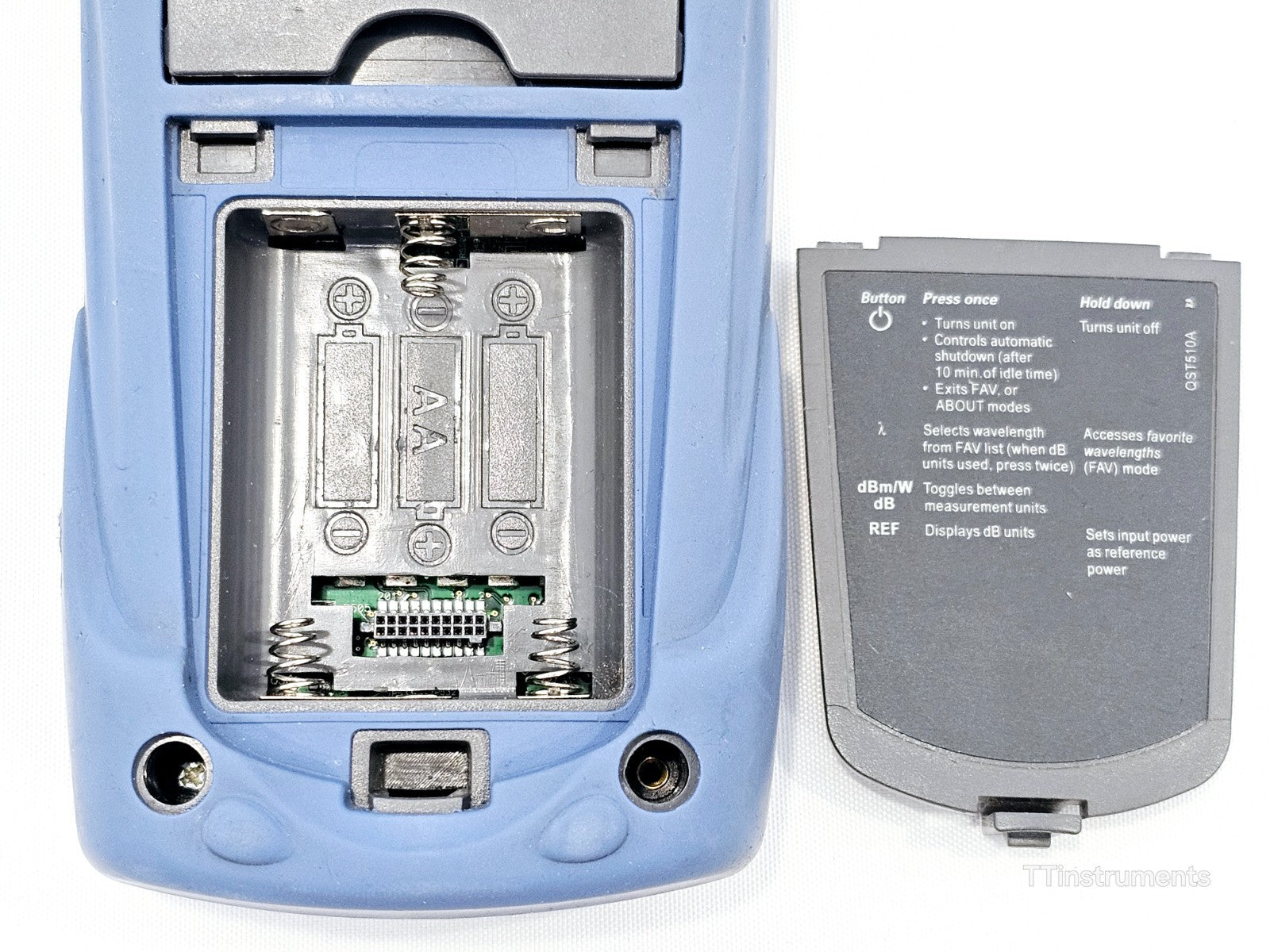

Battery Life (typical): >300 hours (3 × AA)
Recommended Calibration Interval: 3 years
Size (H × W × D): 18.5 cm × 10.0 cm × 5.5 cm
Weight: 0.4 kg
Operating Temperature: –10 °C to 50 °C
Storage Temperature: –40 °C to 70 °C
Relative Humidity: 0% to 95% non-condensing
Certification: ISO 9001, WEEE compliant
Standard Accessories (new): User guide, certificate of calibration, connector adapter, AC adapter, three AA batteries, wrist strap

EXFO FPM-300 Official Specification Sheet (PDF): Download PDF

EXFO FPM-300 Datasheet — fs.com hosted PDF: Download PDF

EXFO FPM-300 / FLS-300 User Guide (PDF): Download PDF

EXFO FPM-300 Specification Sheet — profiber.eu hosted PDF: Download PDF

EXFO FPM-300 Specification Sheet — dfcco.com hosted PDF: Download PDF
