Condition: Used

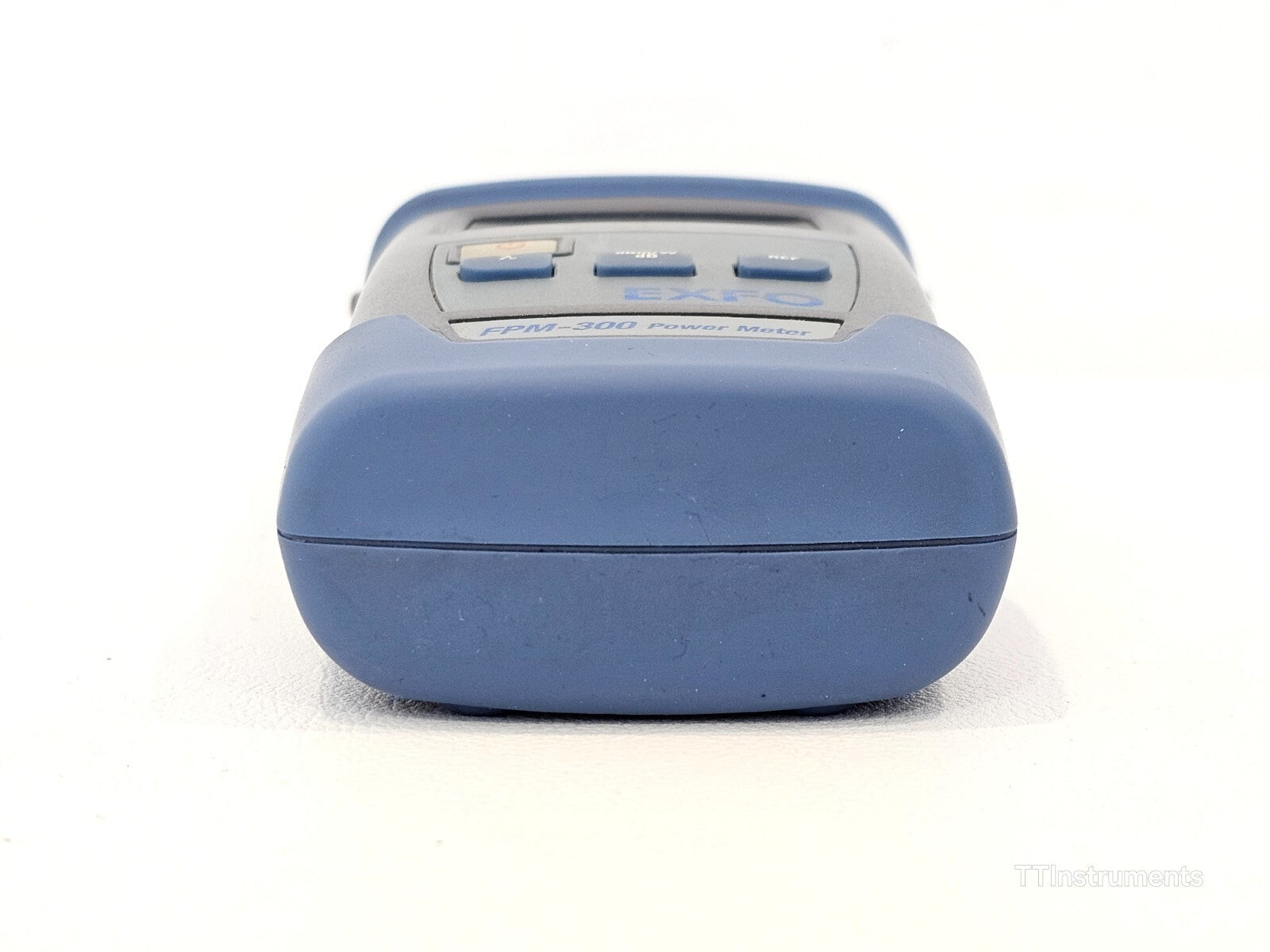

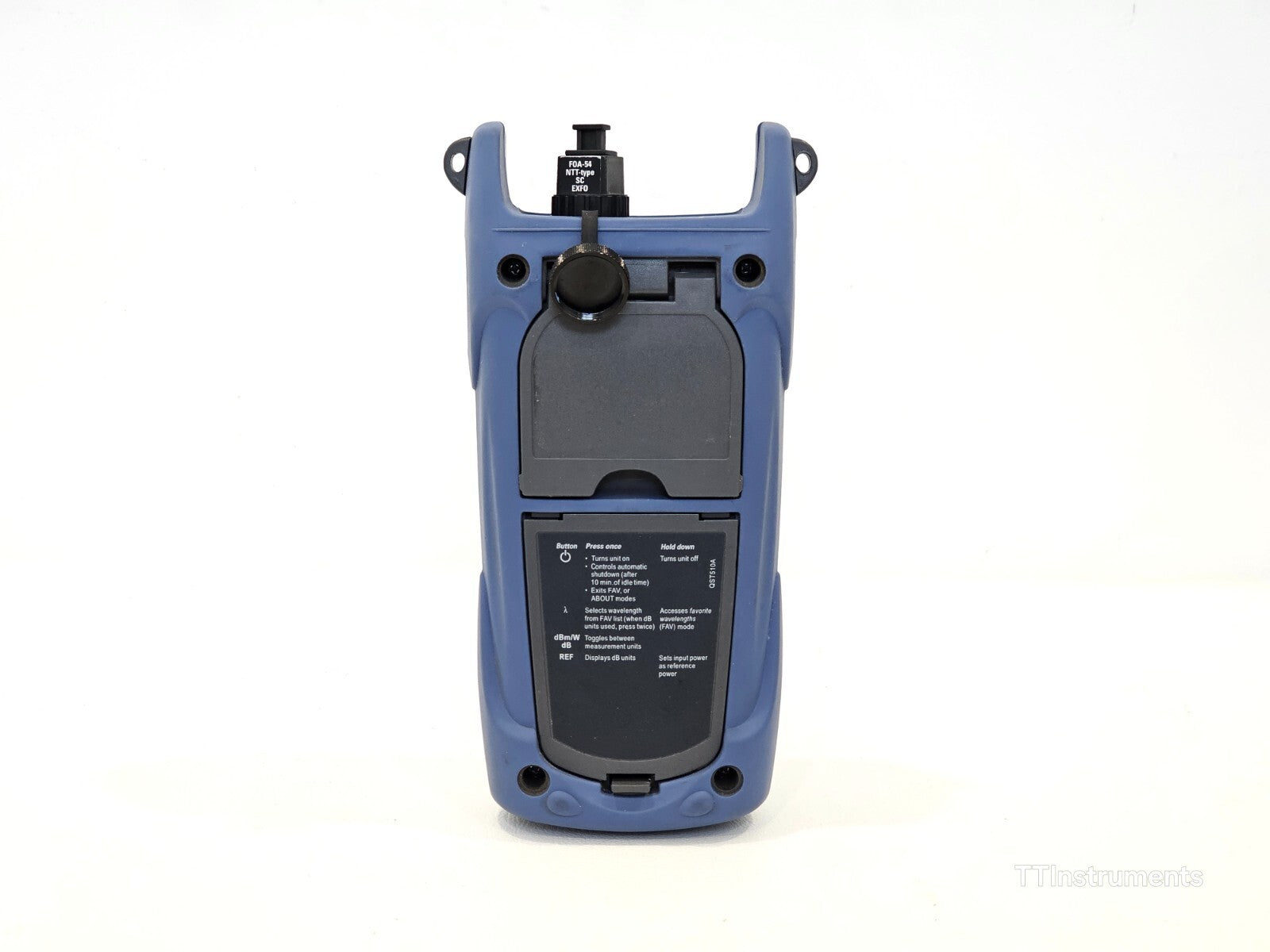

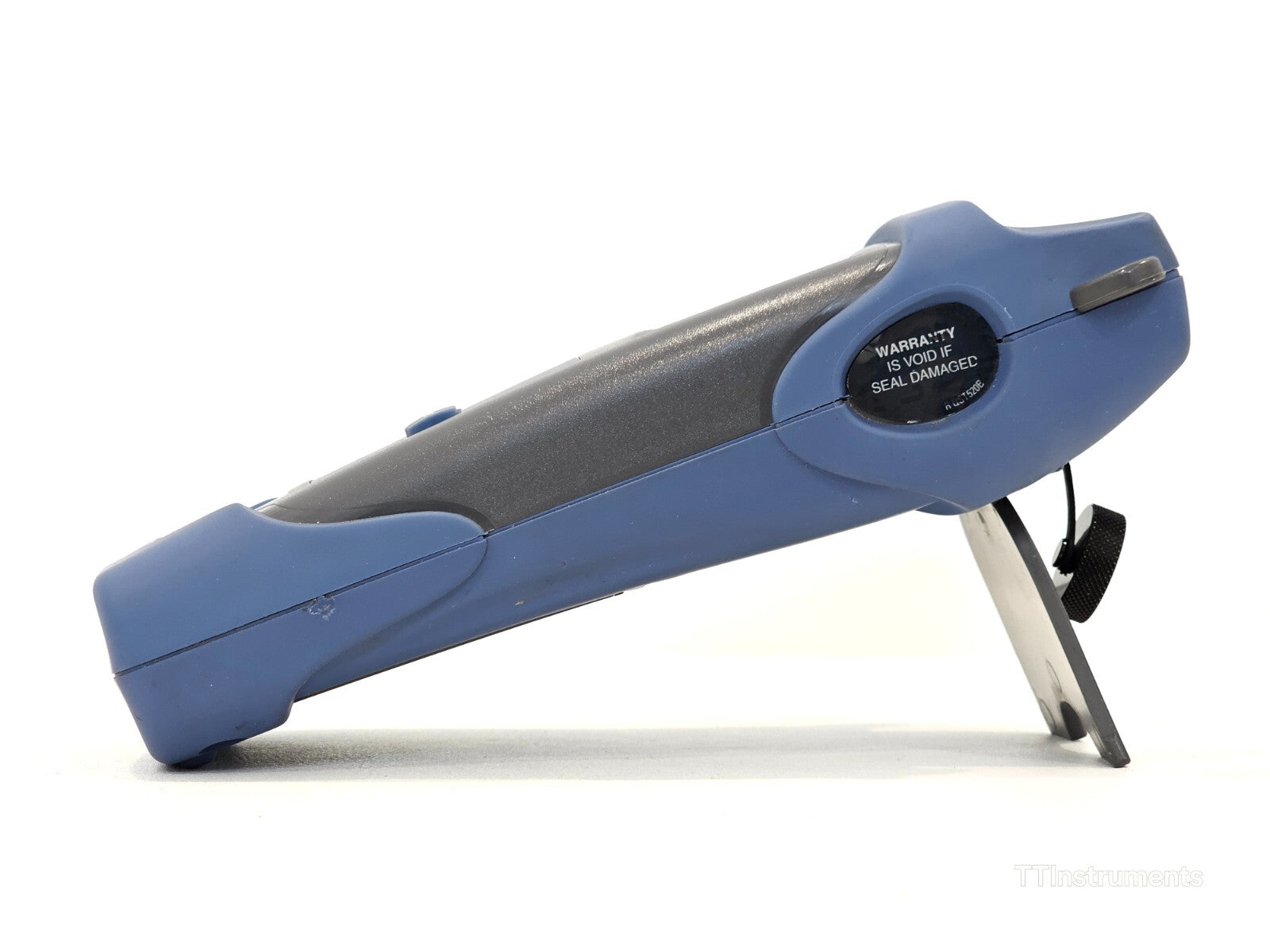

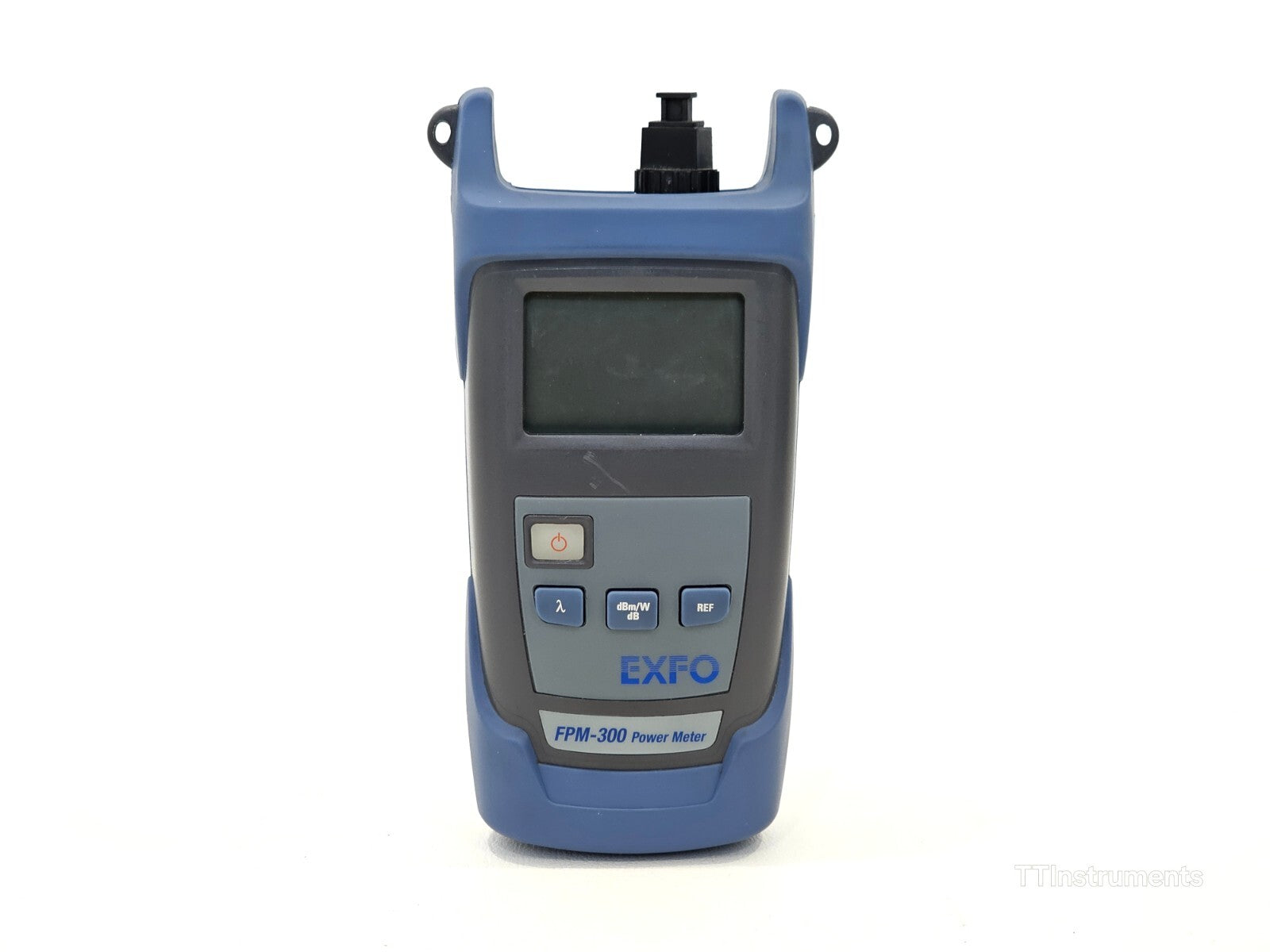

The EXFO FPM-300 PON Power Meter (model FPM-302, Ge detector) is in good working condition. Supplied with both an SC adapter and an FC adapter, plus a power adapter. No carry bag or batteries included (takes 3 x AA).

Included with this unit:

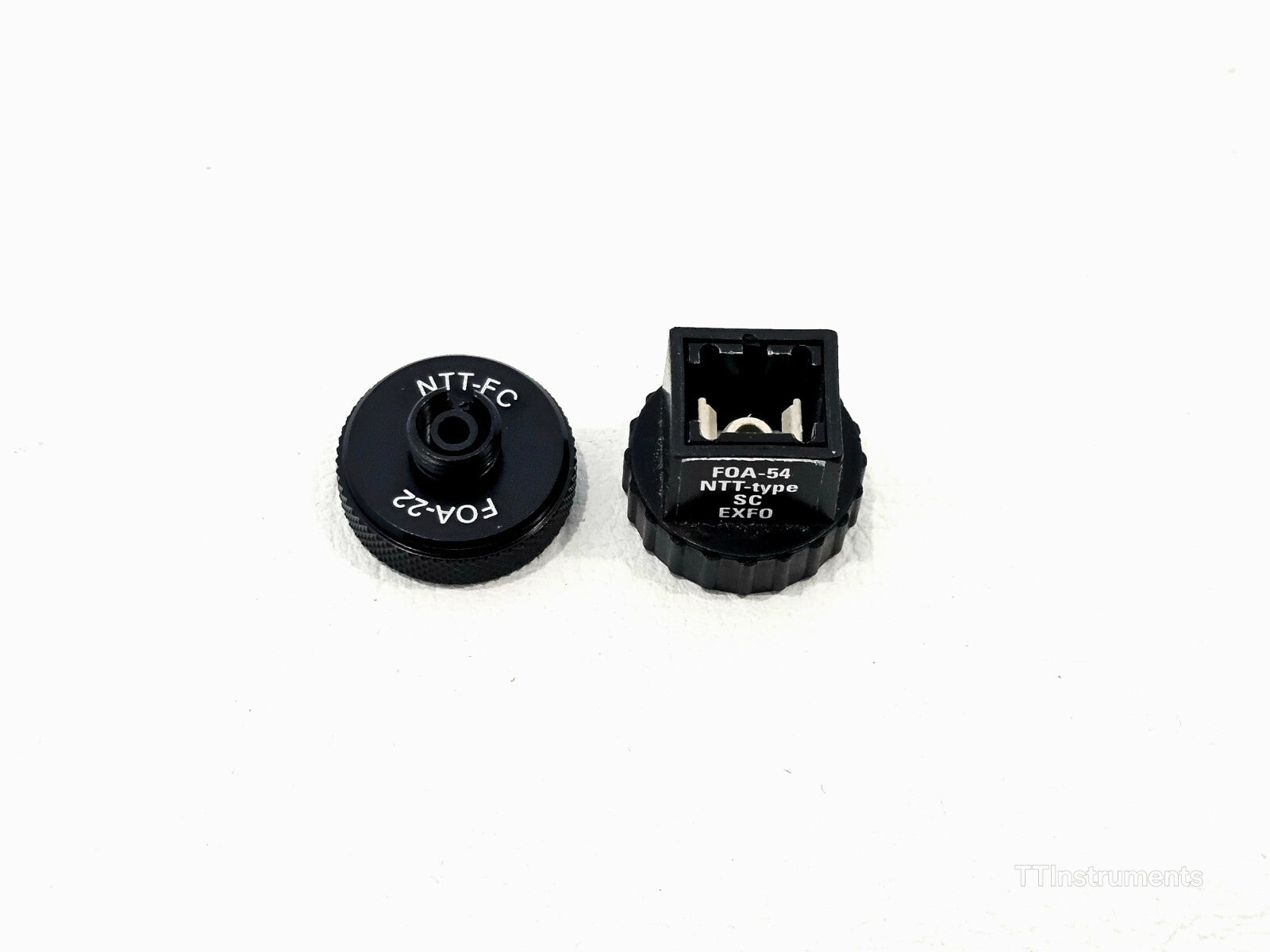

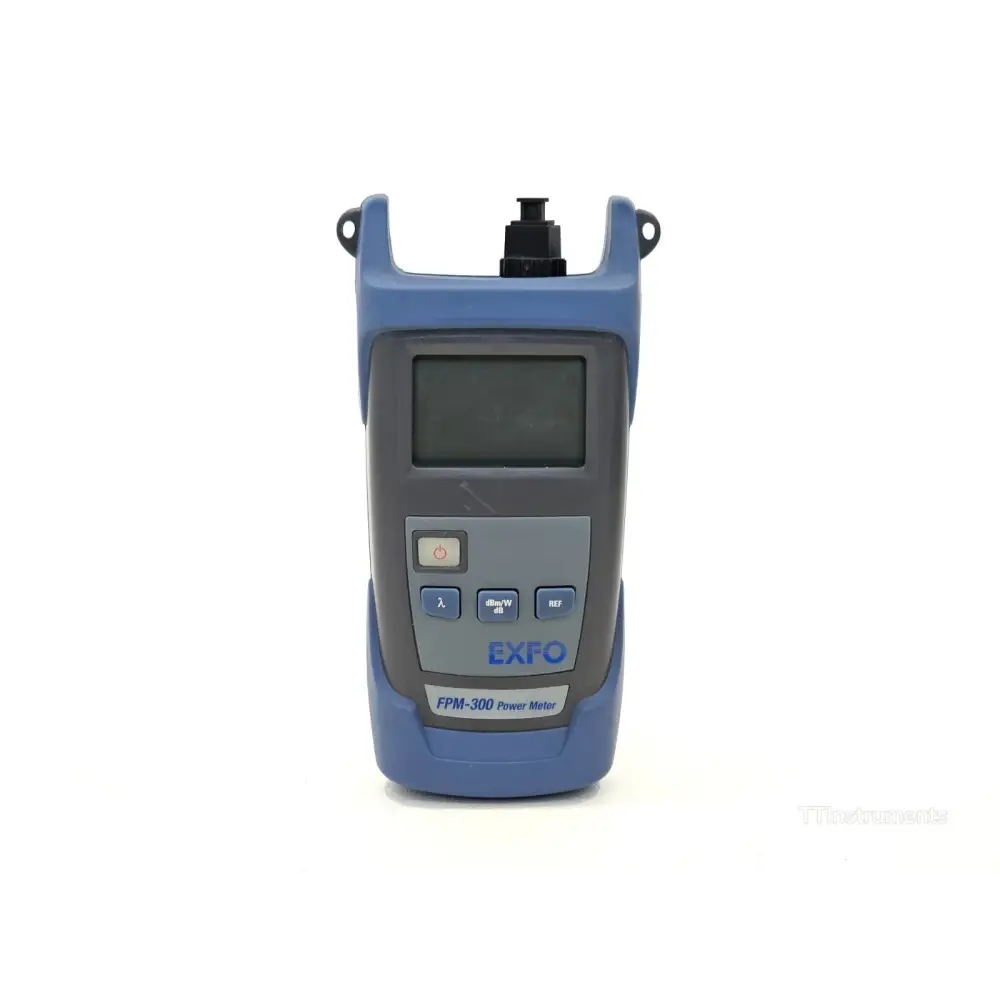

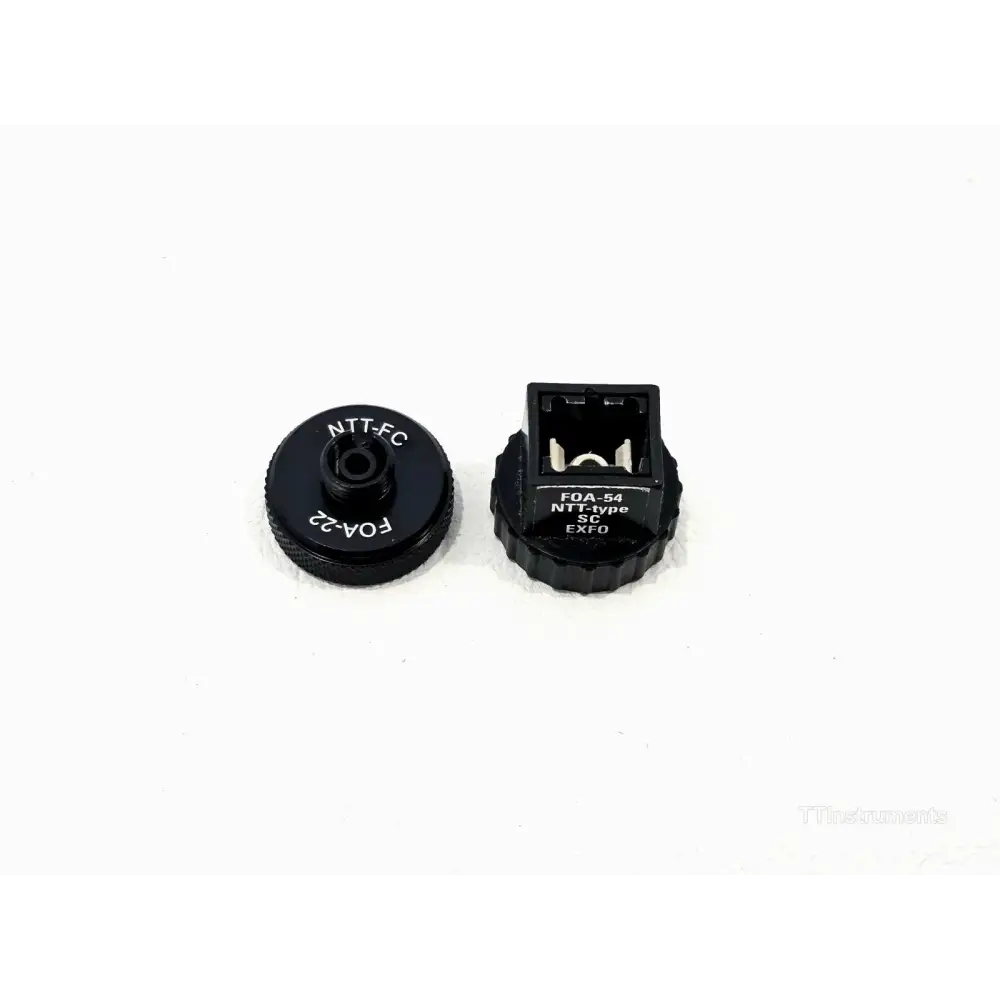

• SC adapter

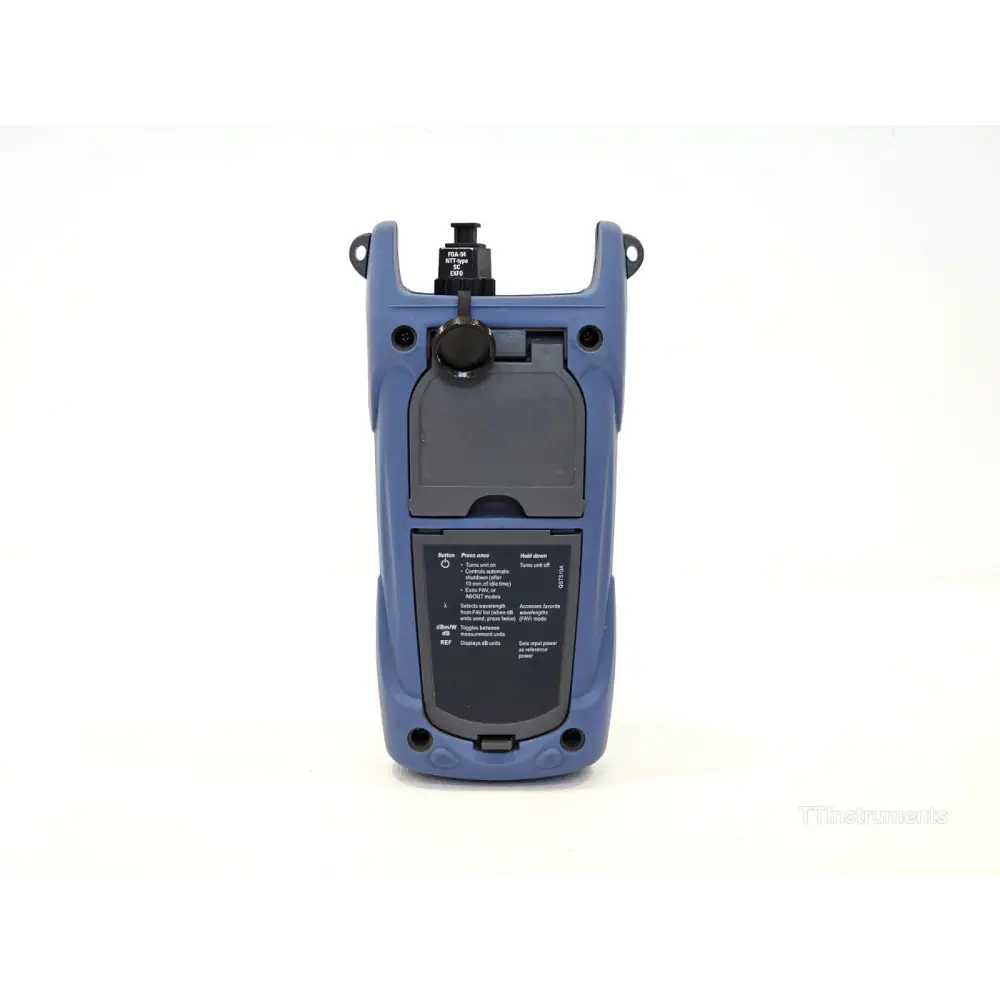

• FC adapter
• Power adapter (AC adapter)

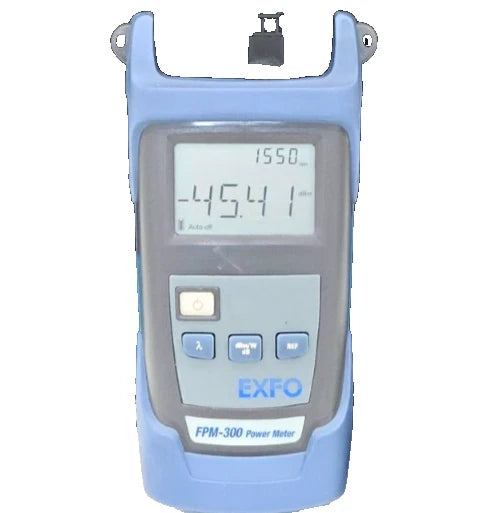

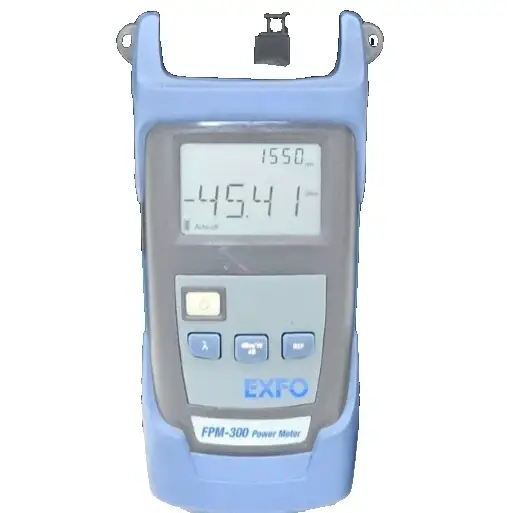

The EXFO FPM-300 is a handheld optical power meter optimised for passive optical network (PON) testing, forming part of EXFO's portable fibre optic test equipment range alongside the FLS-300 Light Source and FOT-300 Optical Loss Test Set. It supports the three wavelengths specified by ITU-T G.983.3 for PON deployments — 1310 nm, 1490 nm, and 1550 nm — making it well suited to FTTx installation, commissioning, and maintenance work.

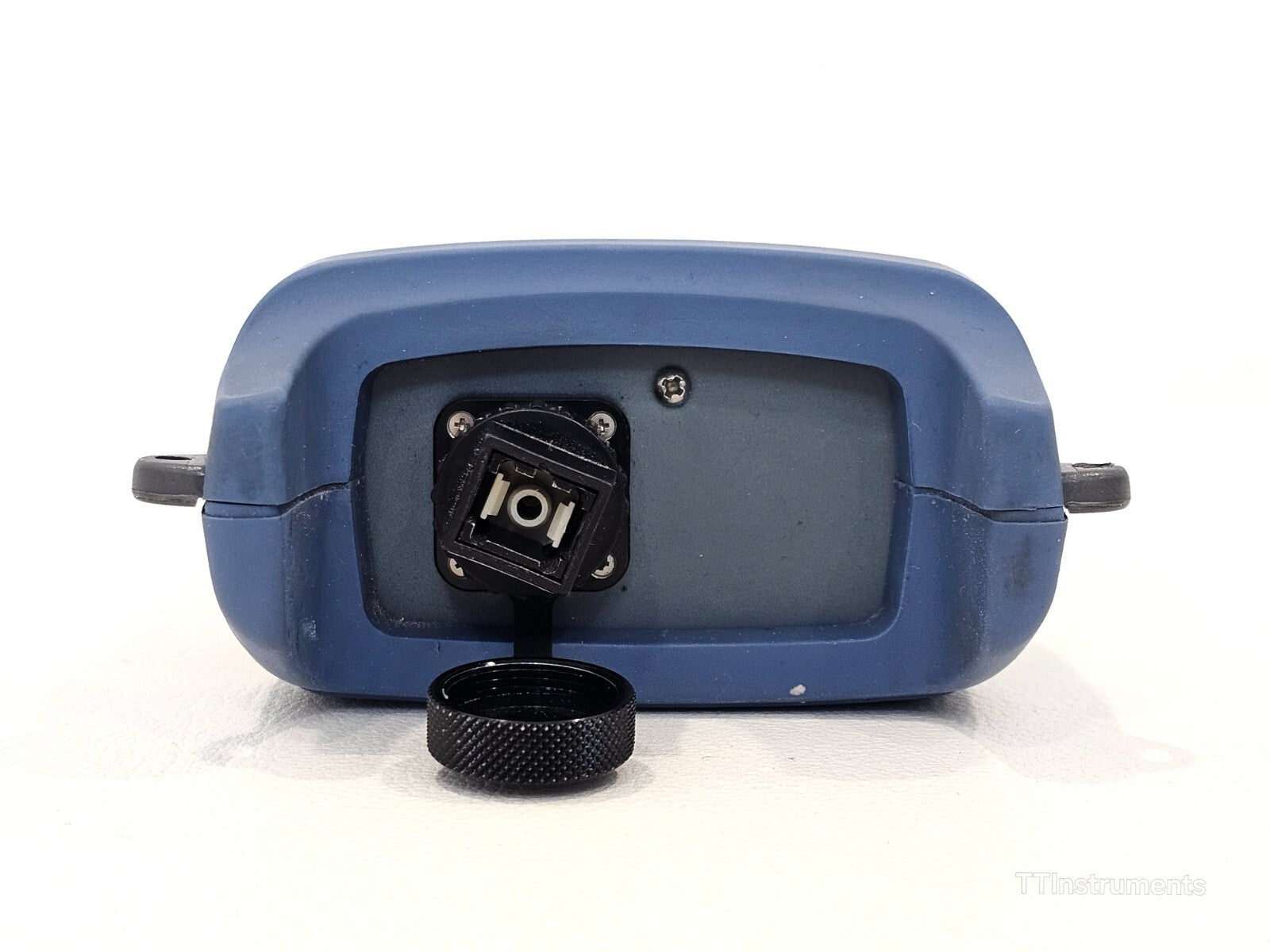

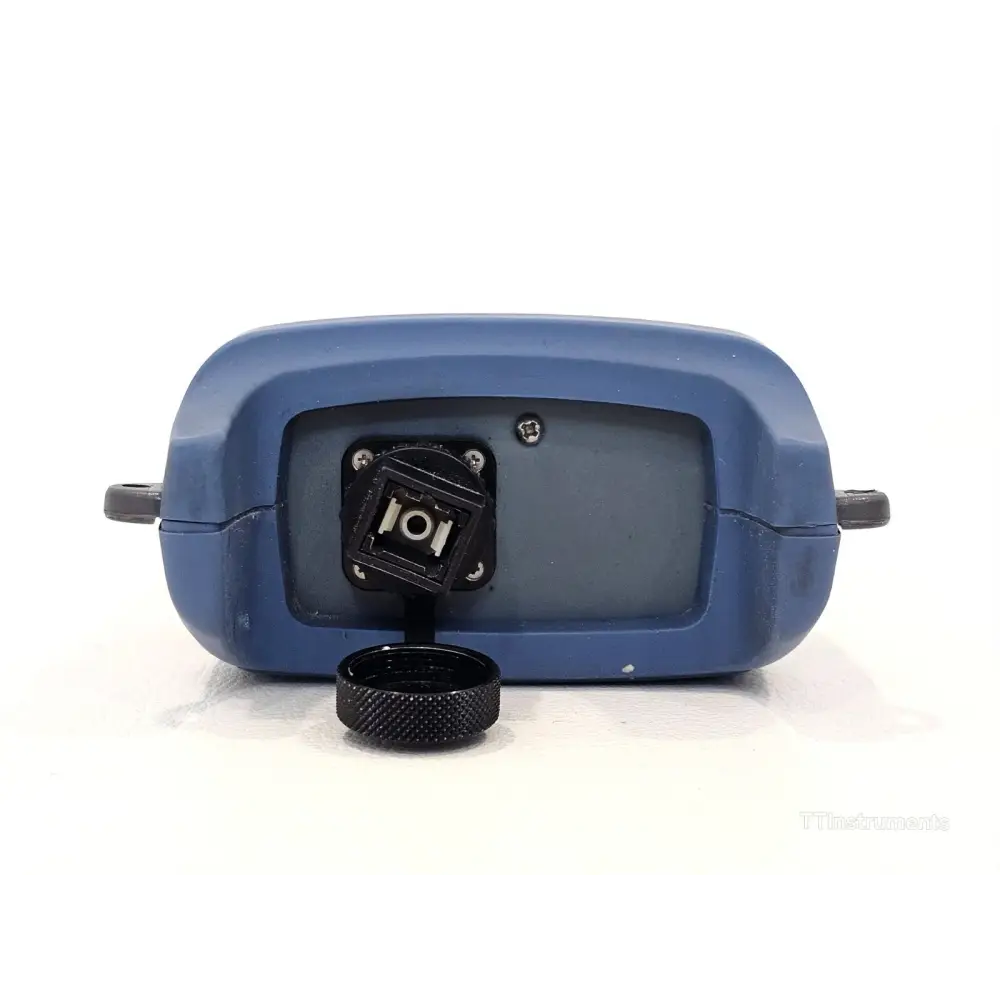

The FPM-302 variant features a Germanium (Ge) detector port and eliminates the need for an offset nulling procedure, reducing measurement time in the field. When used with the compatible FLS-300 or FOT-300 sources, the FPM-300 supports automatic wavelength recognition via an encrypted digital protocol, allowing the meter to select the correct calibration parameters without technician communication. Signal encrypting also enables distant referencing, transmitting reference power information to the receiving end.

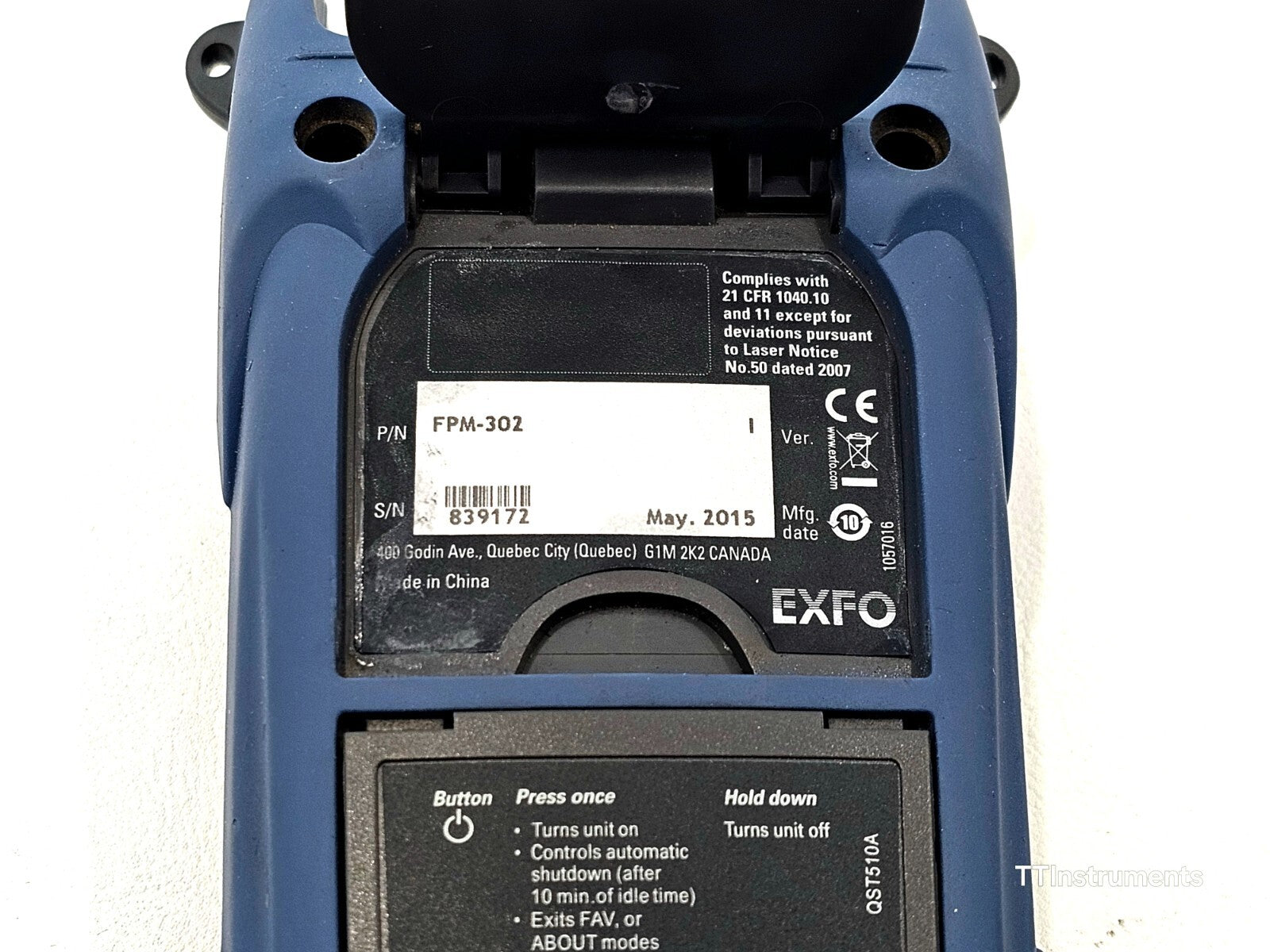

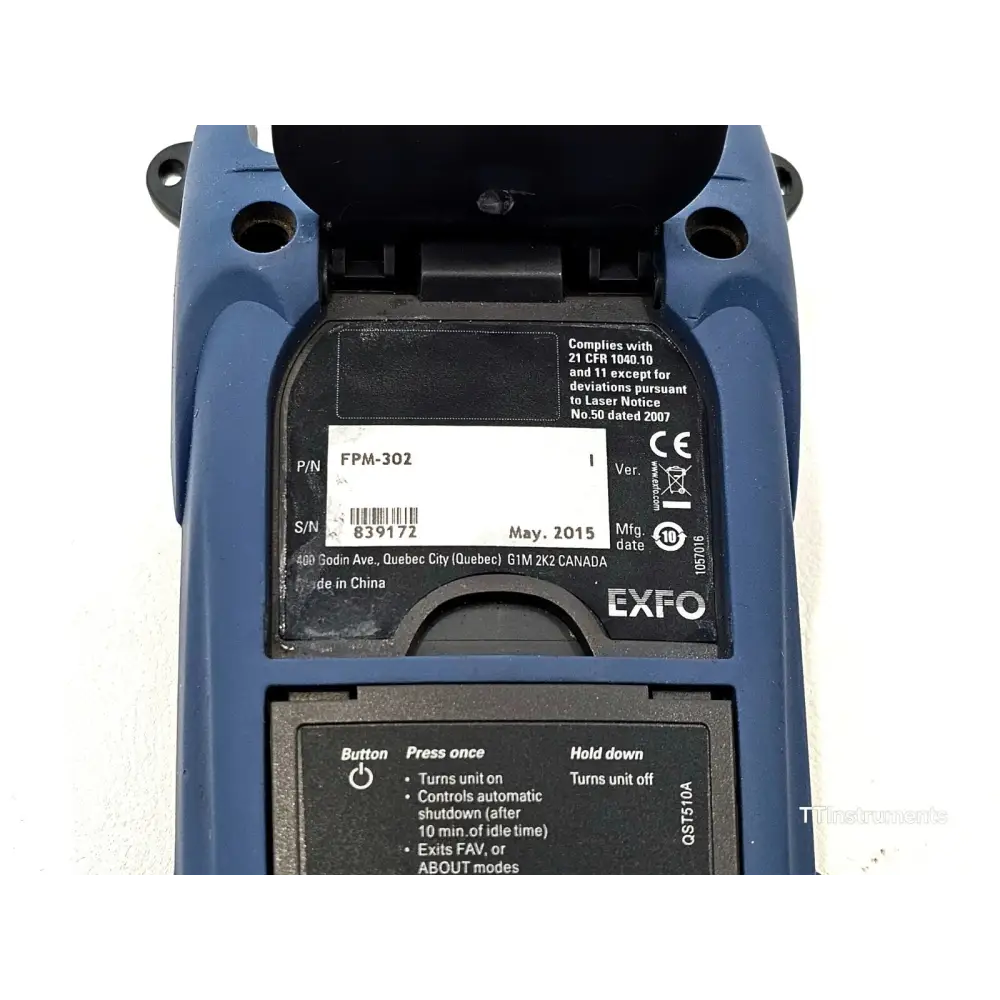

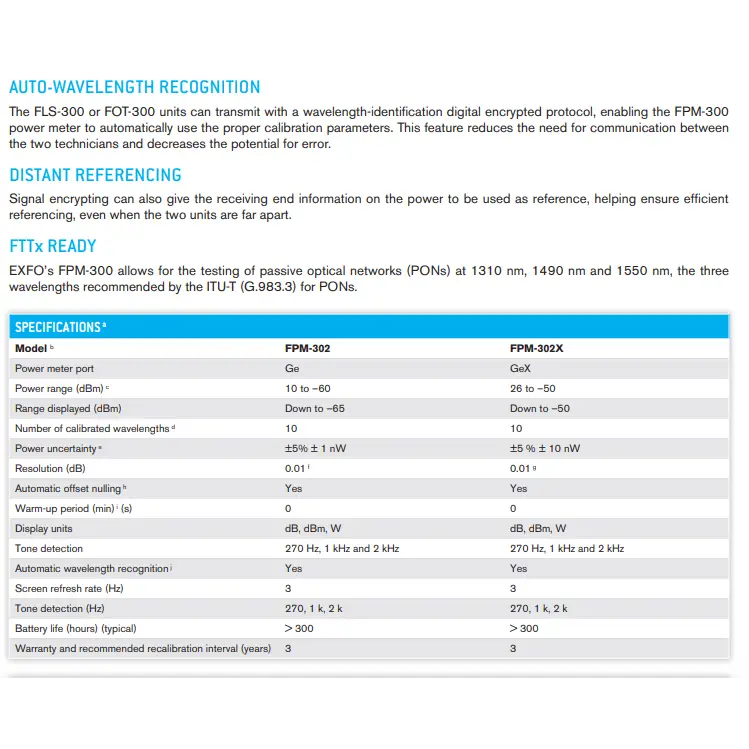

Model: FPM-302
Detector Type: Germanium (Ge)
PON Wavelengths: 1310 nm, 1490 nm, 1550 nm
Calibrated Wavelengths: 10 (830 nm, 850 nm, 980 nm, 1300 nm, 1310 nm, 1450 nm, 1490 nm, 1550 nm, 1590 nm, 1625 nm)
Power Range: +10 to –60 dBm
Displayed Range: Down to –65 dBm
Power Uncertainty: ±5% ±1 nW
Resolution: 0.01 dB
Display Units: dB, dBm, W
Automatic Offset Nulling: Yes
Automatic Wavelength Recognition: Yes
Screen Refresh Rate: 3 Hz
Tone Detection: 270 Hz, 1 kHz, 2 kHz
Warm-up Period: 0 seconds
Battery Life: >300 hours (typical)

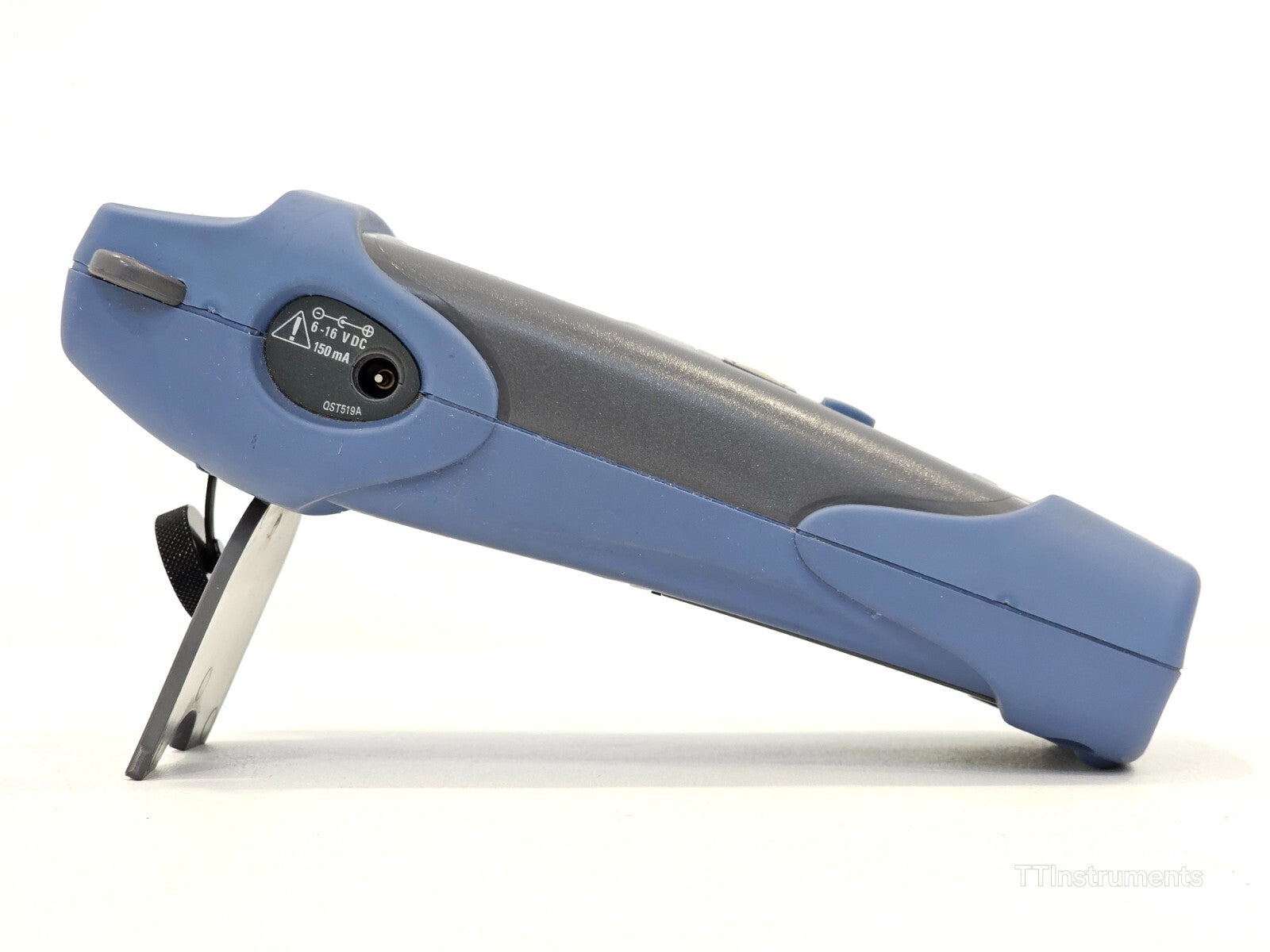

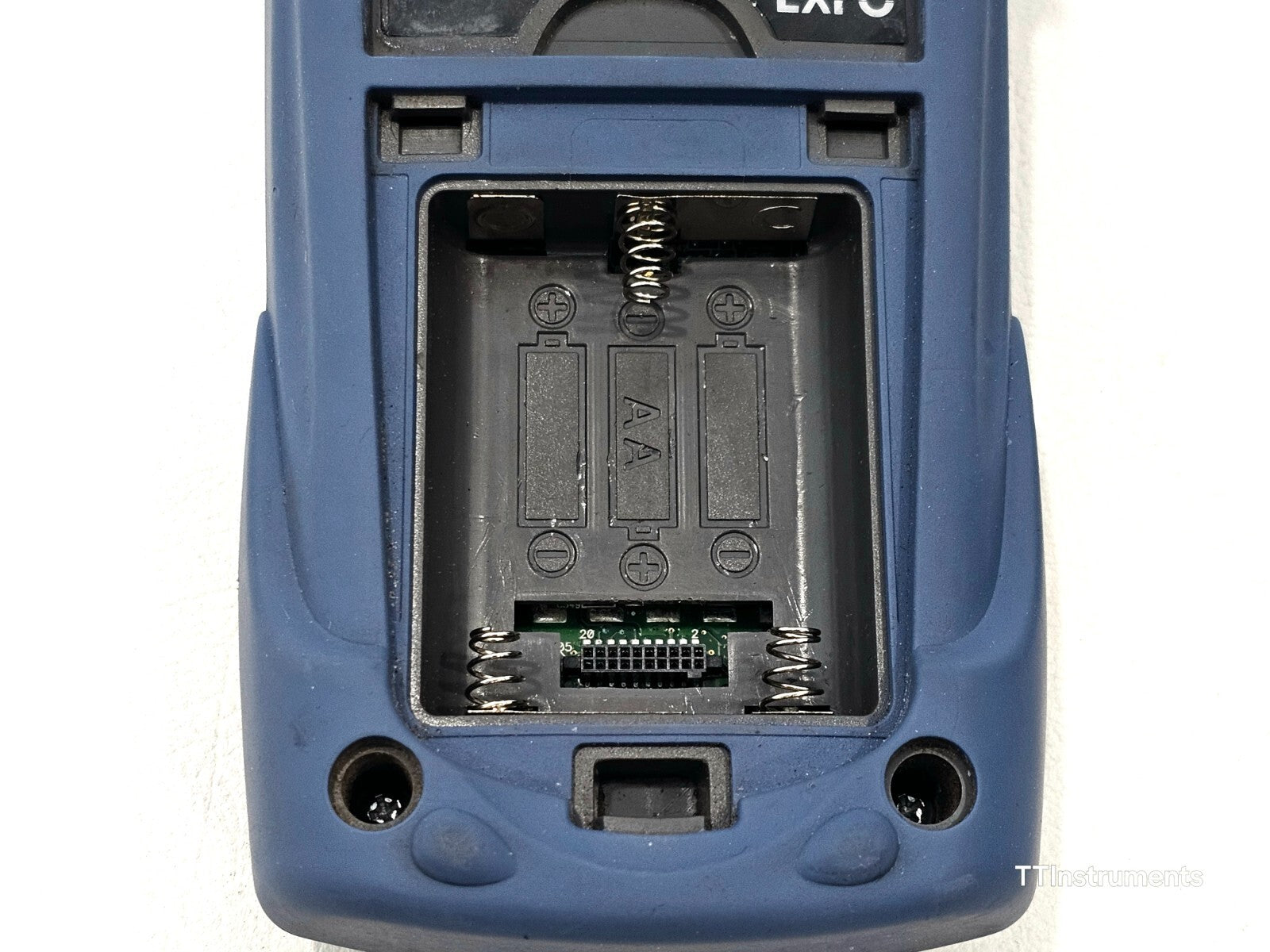

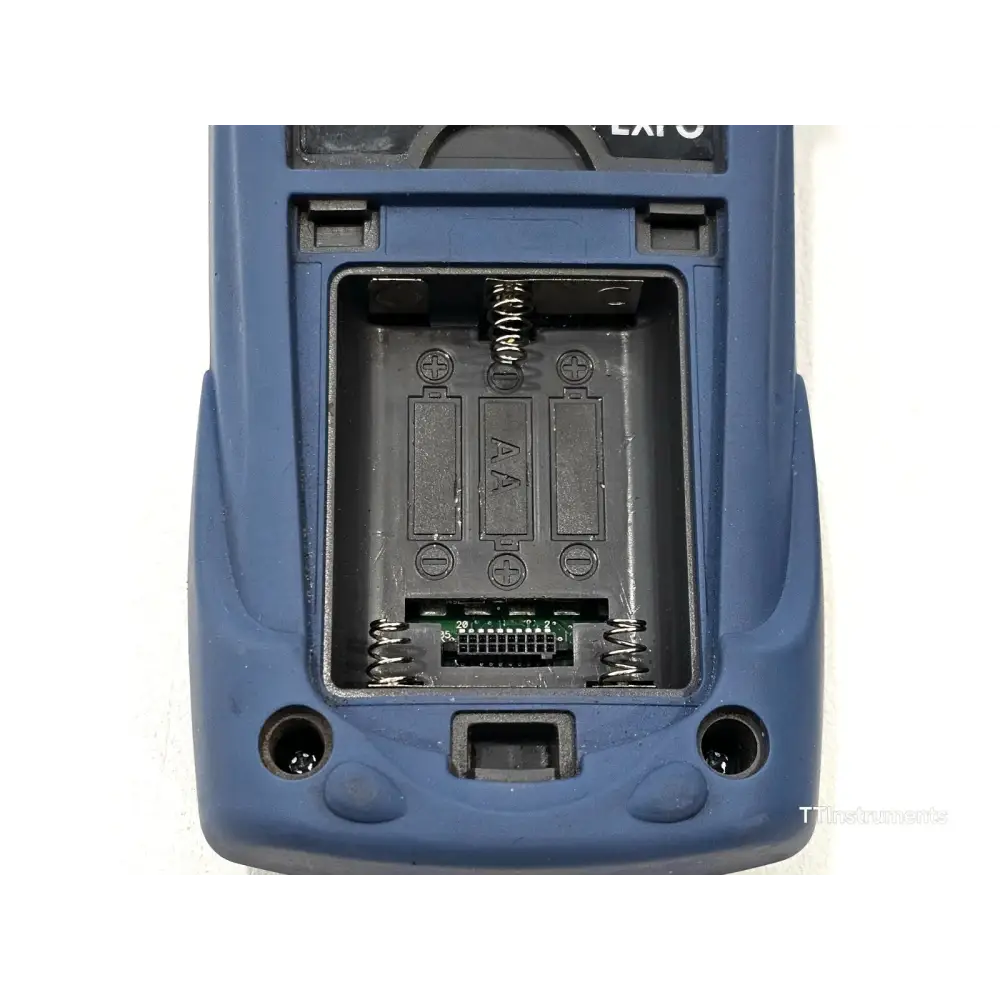

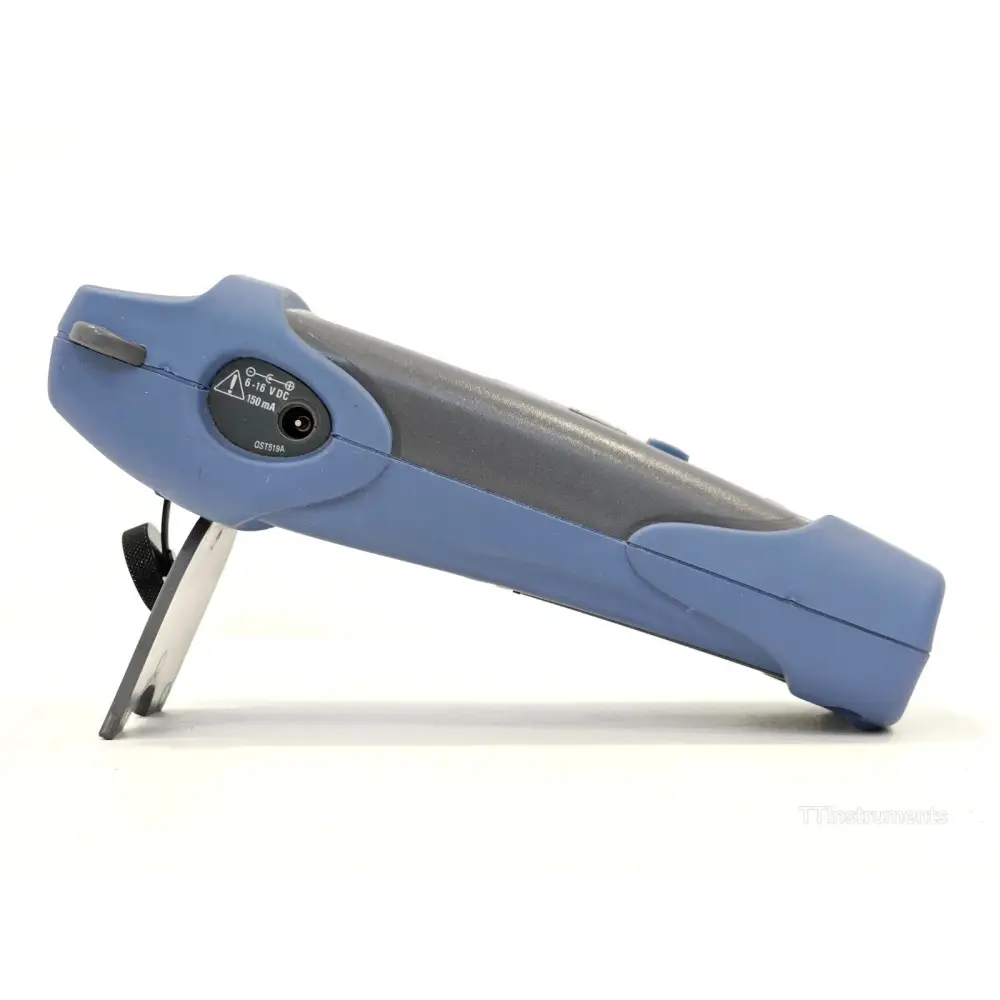

Power Sources: 3 x AA alkaline batteries or AC adapter
Calibration Interval: 3 years (recommended)
Certification: ISO 9001
Compliance: EU WEEE directive, FCC Part 15

EXFO FPM-300 Specification Sheet (accusrc.com hosted PDF): Download PDF

EXFO FPM-300 Specification Sheet (fs.com hosted PDF): Download PDF

EXFO FPM-300 Specification Sheet (dfcco.com hosted PDF): Download PDF

EXFO FPM-300 / FLS-300 User Guide (fs.com hosted PDF): Download PDF

EXFO FPM-300 Specification Sheet (testequipment.center hosted PDF): Download PDF
