Condition: Used

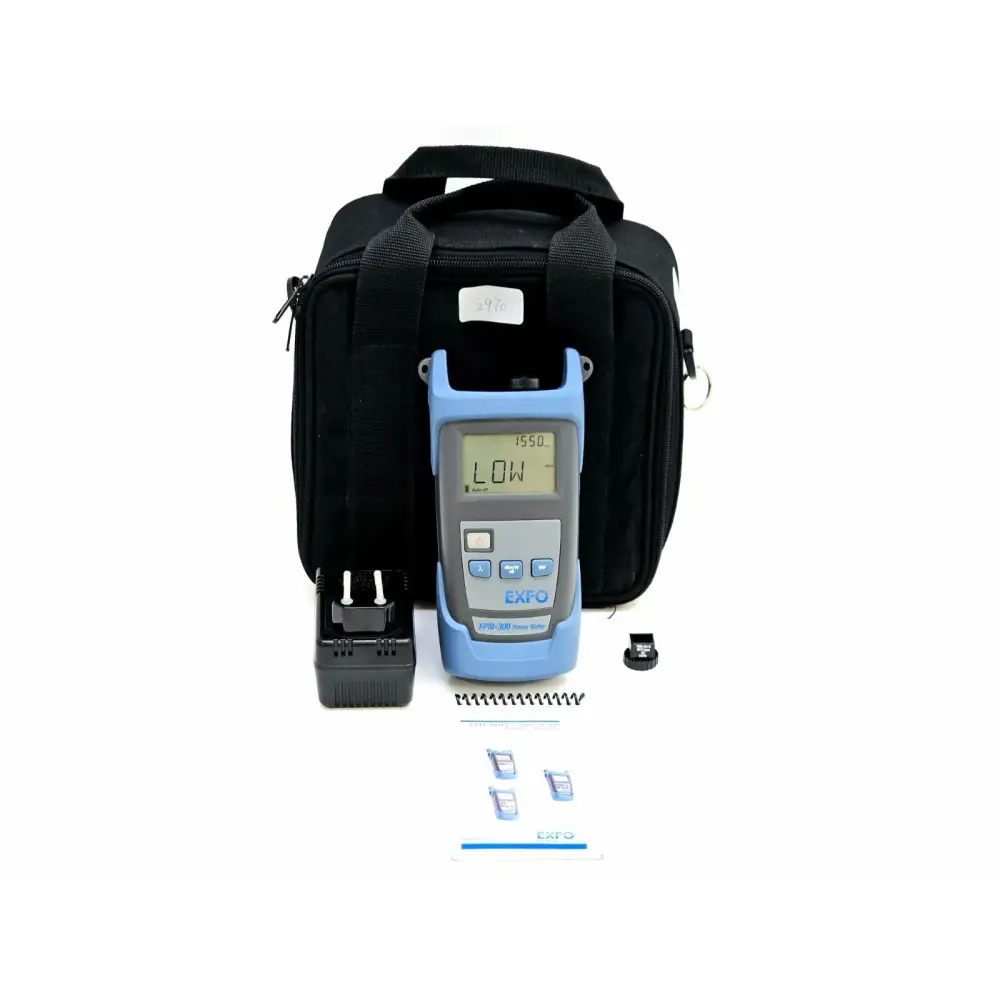

The EXFO FPM-300 FPM-302 PON power meter is in good working condition. Supplied with an SC adapter.

Included:

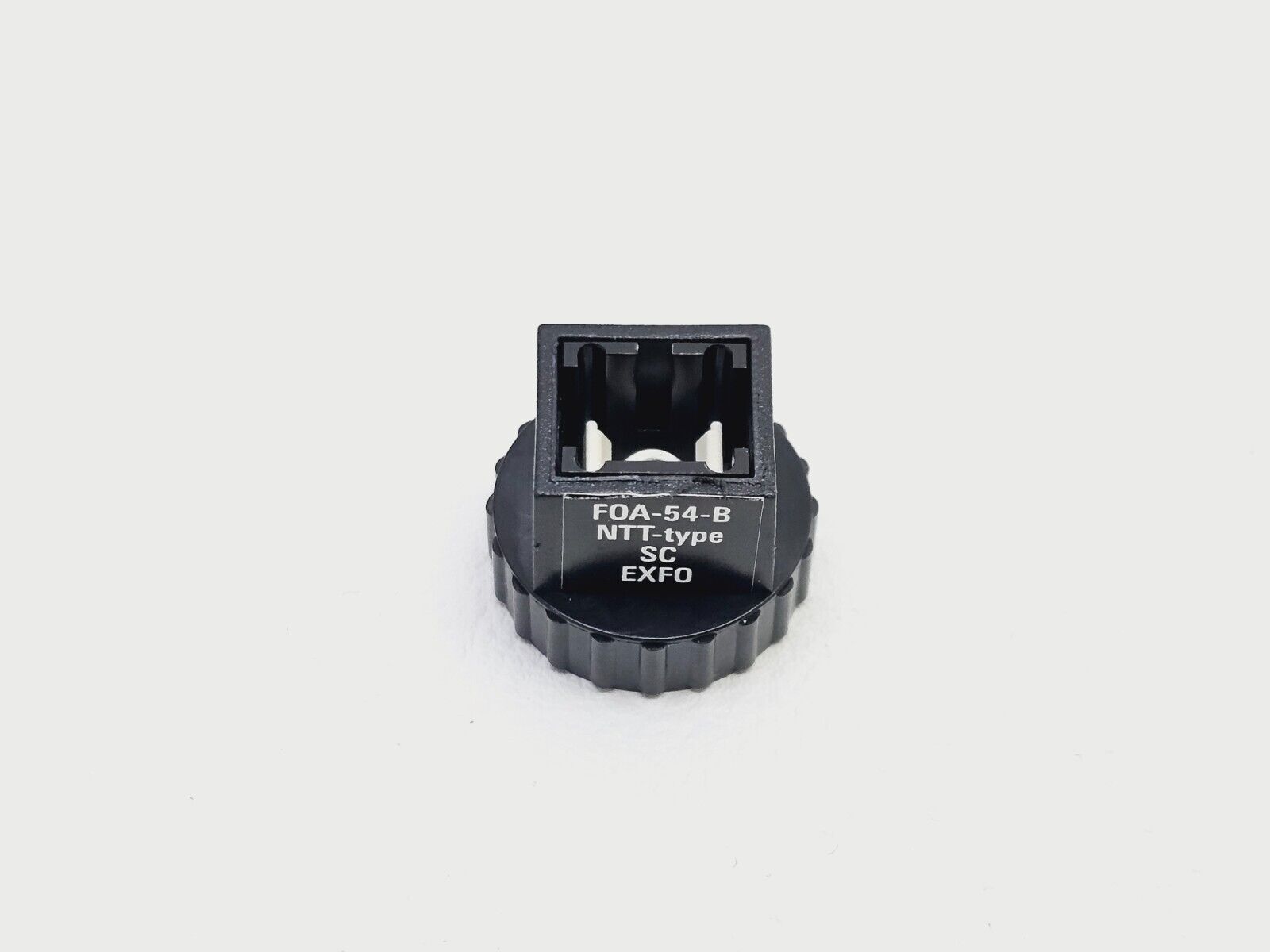

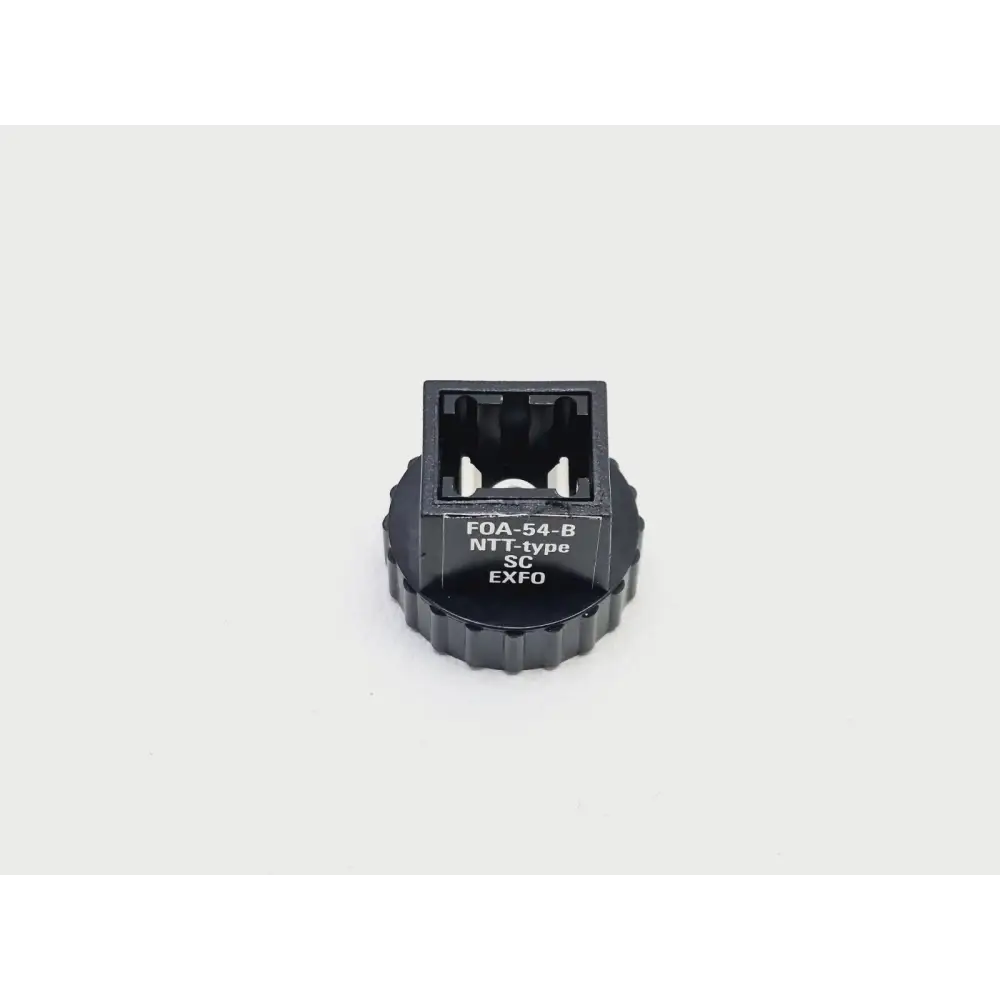

• SC adapter

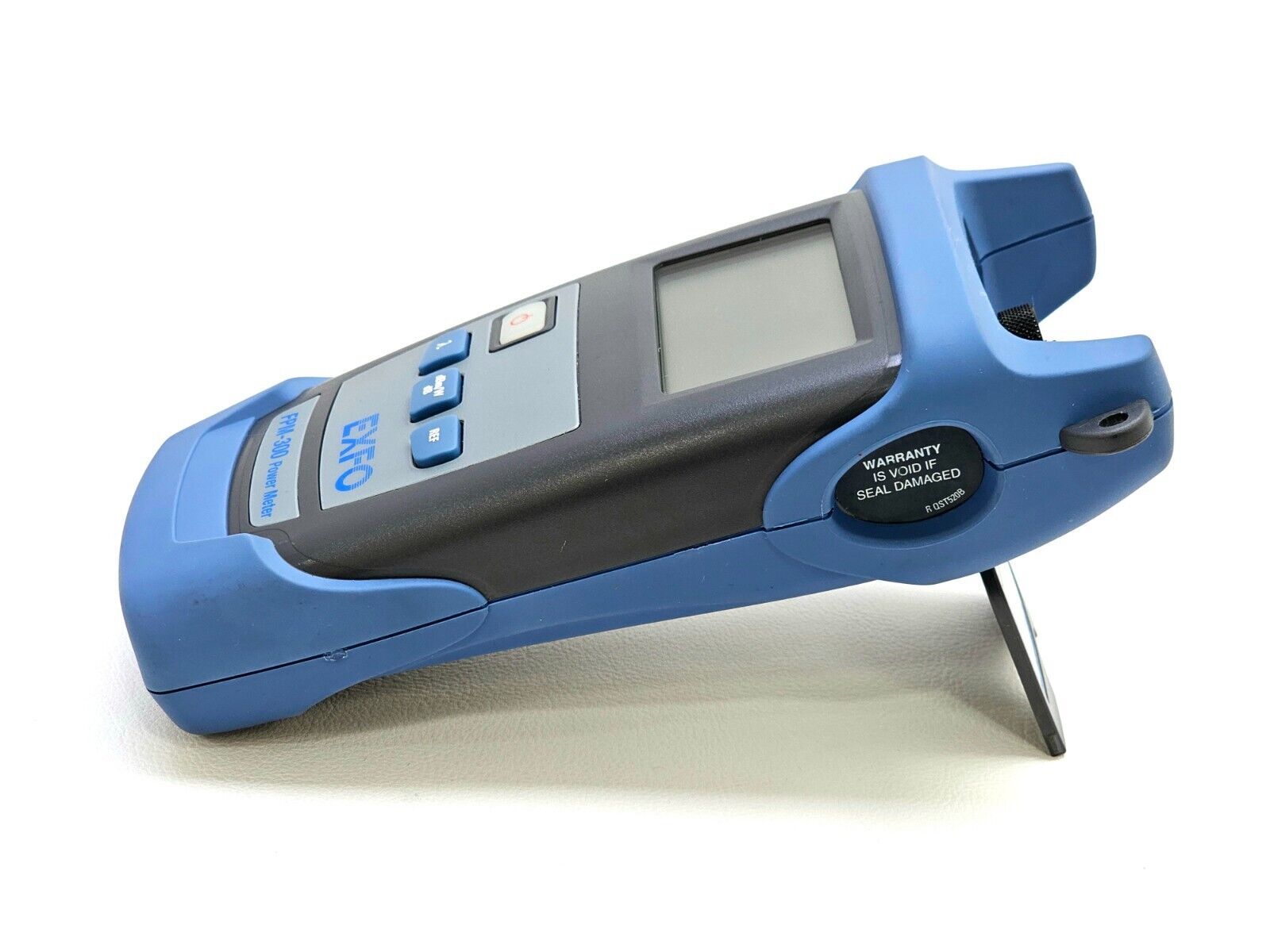

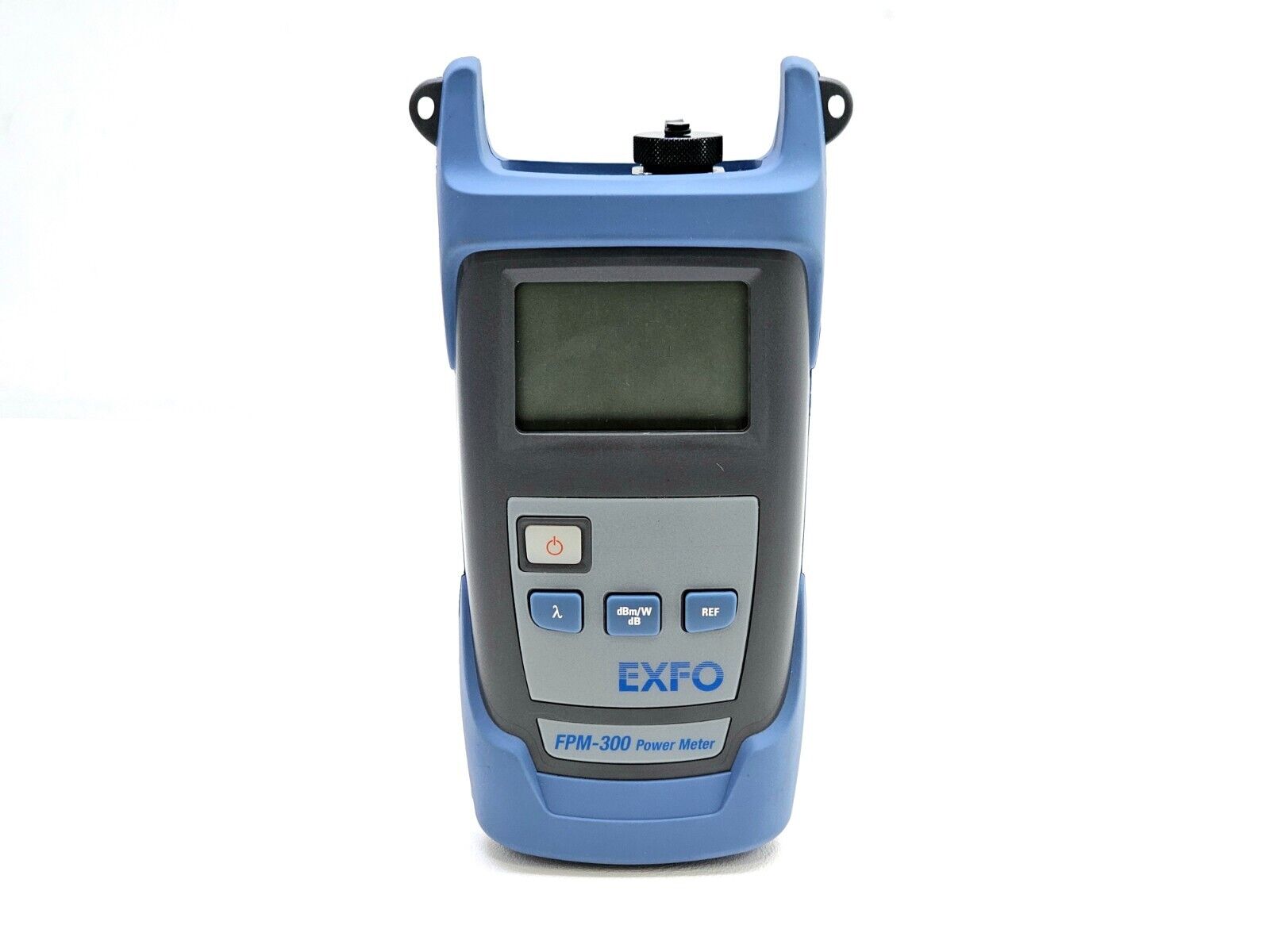

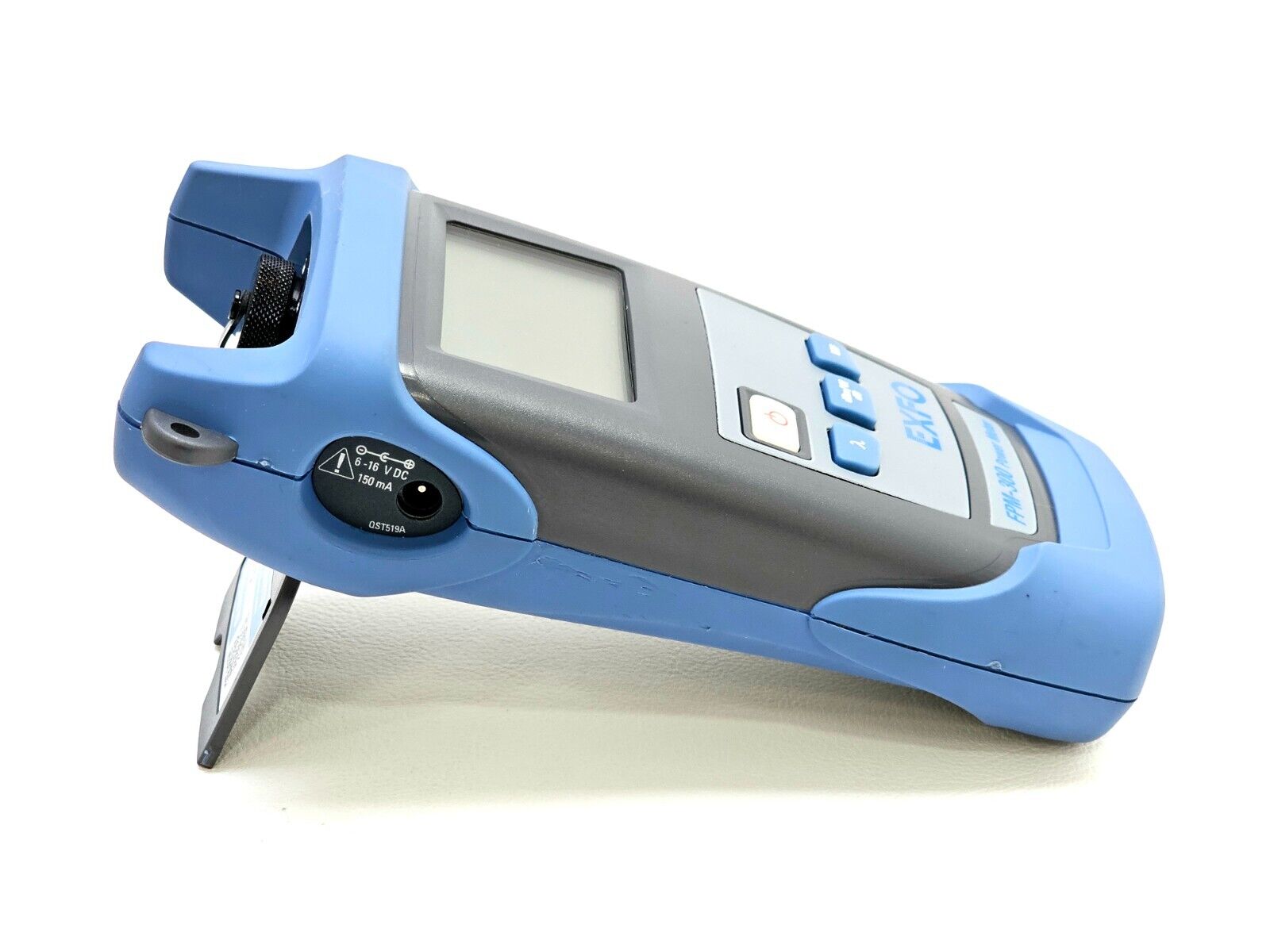

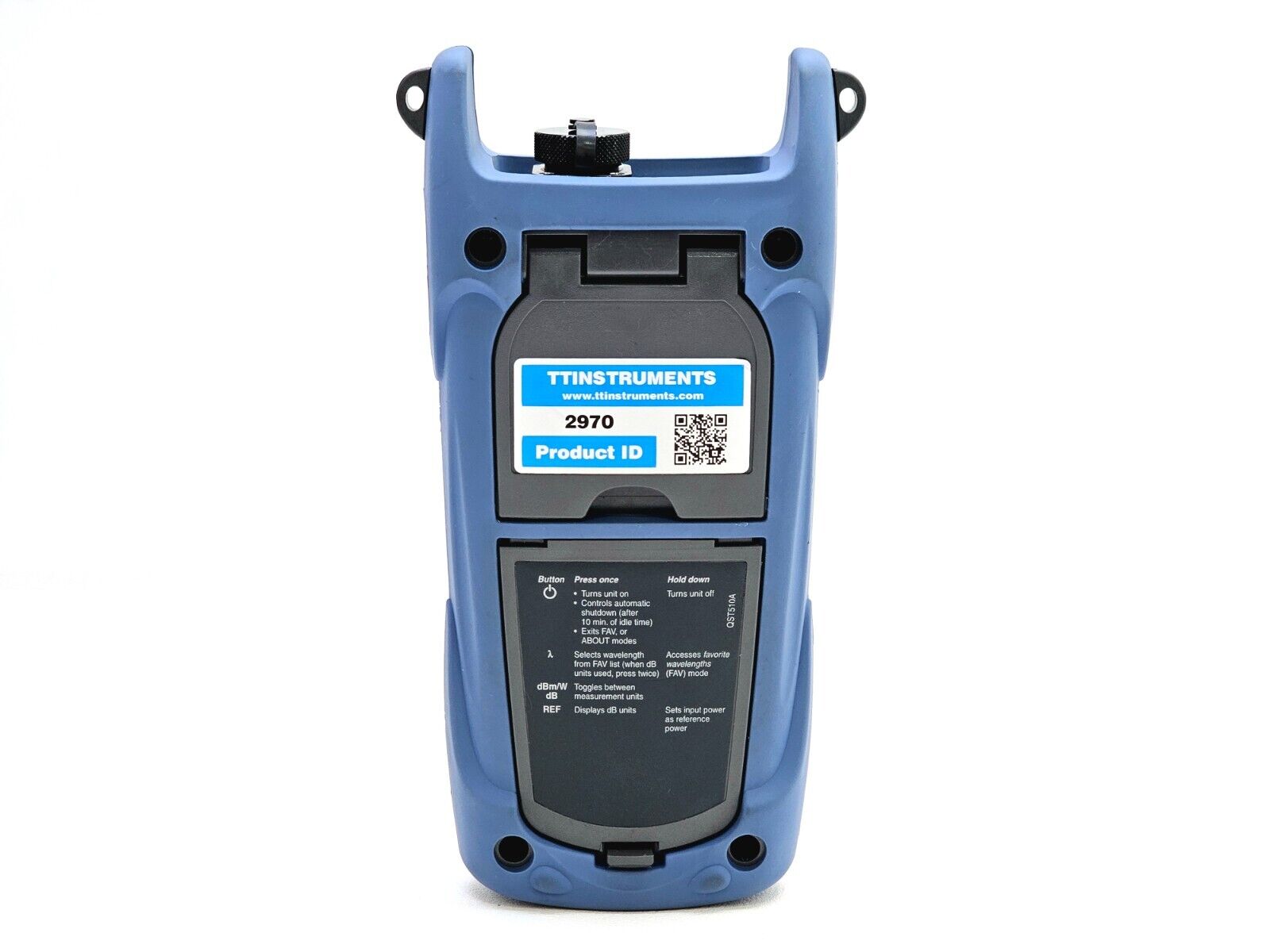

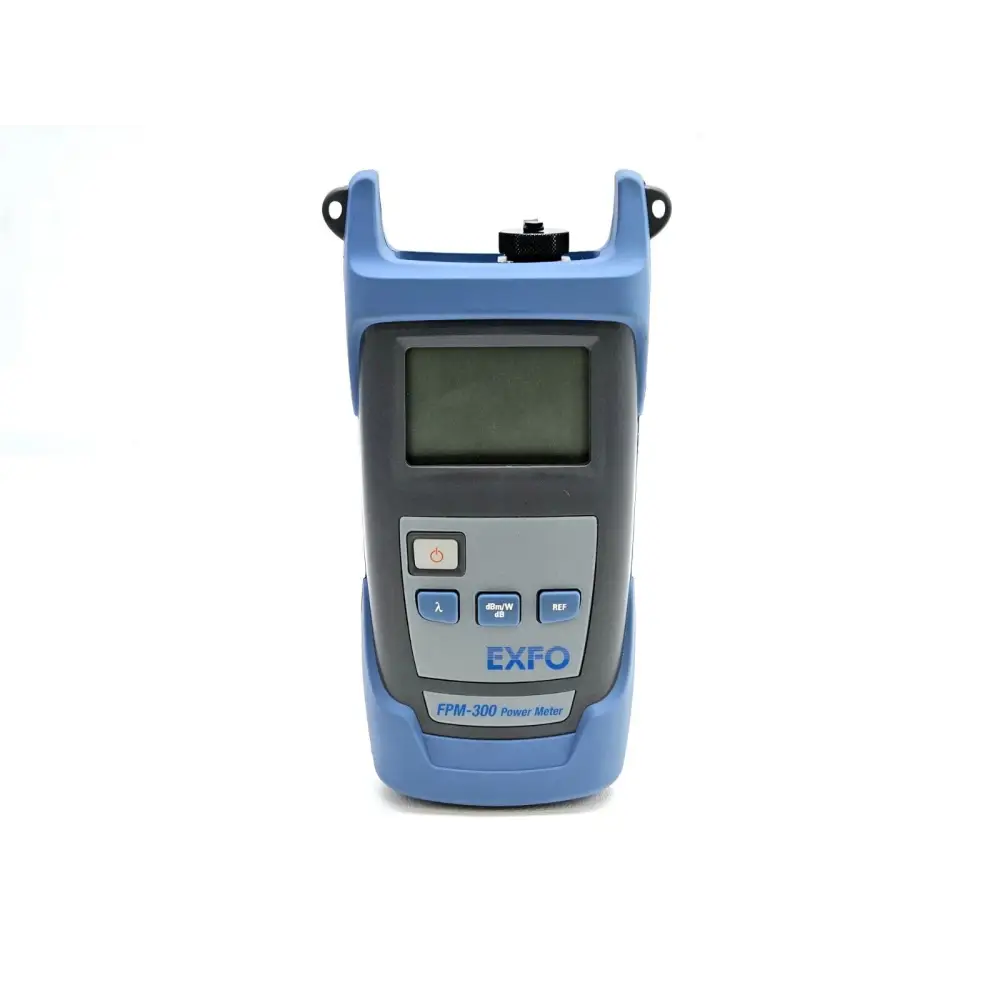

The EXFO FPM-300 is a handheld optical power meter purpose-built for testing passive optical networks (PONs). It supports measurement at 1310 nm, 1490 nm and 1550 nm — the three wavelengths recommended by the ITU-T (G.983.3) for PON deployments — making it an ideal tool for FTTx network installation and maintenance. The FPM-302 variant uses a Germanium (Ge) detector and is part of EXFO's FPM/FLS-300 product family, which also includes the FLS-300 light source and the FOT-300 optical loss test set.

Key Features:
- FTTx/PON Ready: Tests at all three ITU-T G.983.3 recommended PON wavelengths
- Auto-Wavelength Recognition: Compatible with EXFO FLS-300 and FOT-300 units using a digital encrypted wavelength-identification protocol, automatically selecting the correct calibration parameters
- Distant Referencing: Signal encryption communicates reference power levels between remote units, enabling efficient referencing without verbal coordination
- No Offset Nulling Required: Unique design eliminates the need for offset nulling in typical measurement scenarios, reducing measurement time
- Tone Detection: Identifies modulated signals at 270 Hz, 1 kHz and 2 kHz

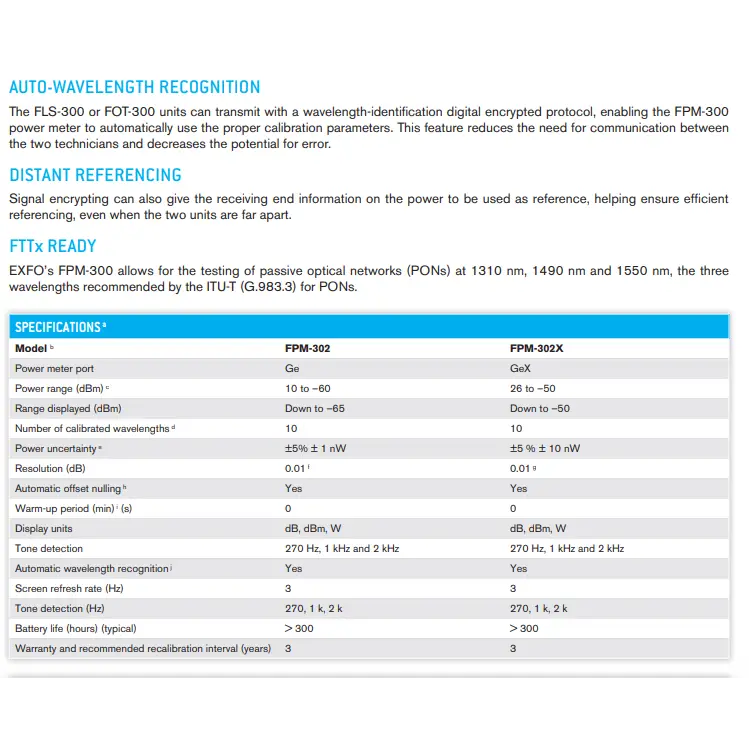

Specifications (FPM-302):
Detector Type: Germanium (Ge)
Power Range: +10 to –60 dBm
Range Displayed: Down to –65 dBm
Number of Calibrated Wavelengths: 10
Calibrated Wavelengths: 830 nm, 850 nm, 980 nm, 1300 nm, 1310 nm, 1450 nm, 1490 nm, 1550 nm, 1590 nm, 1625 nm
Power Uncertainty: ±5% ±1 nW
Resolution: 0.01 dB
Automatic Offset Nulling: Yes
Warm-up Time: 0 seconds

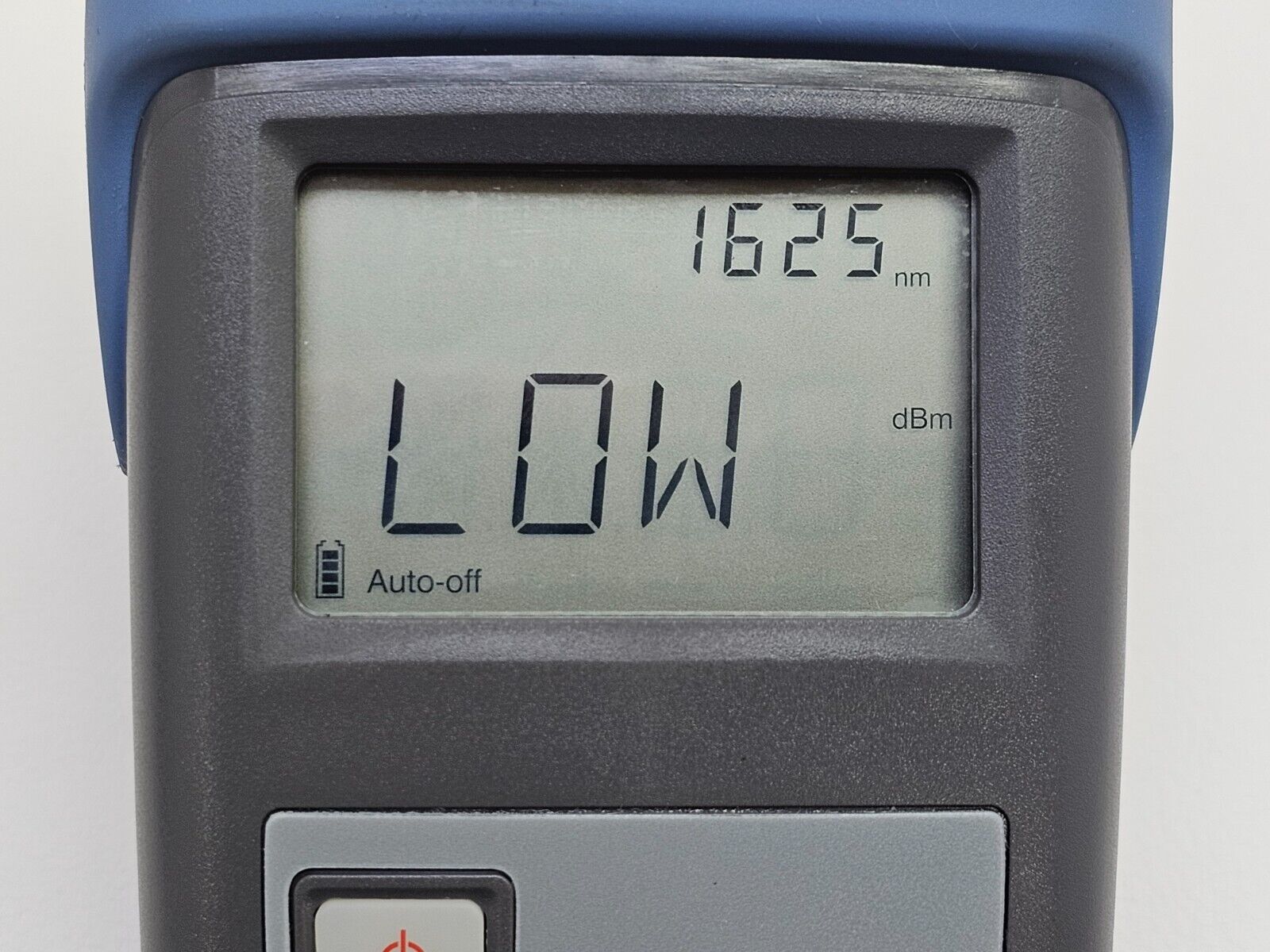

Display Units: dB, dBm, W
Automatic Wavelength Recognition: Yes
Screen Refresh Rate: 3 Hz
Tone Detection: 270 Hz, 1 kHz, 2 kHz

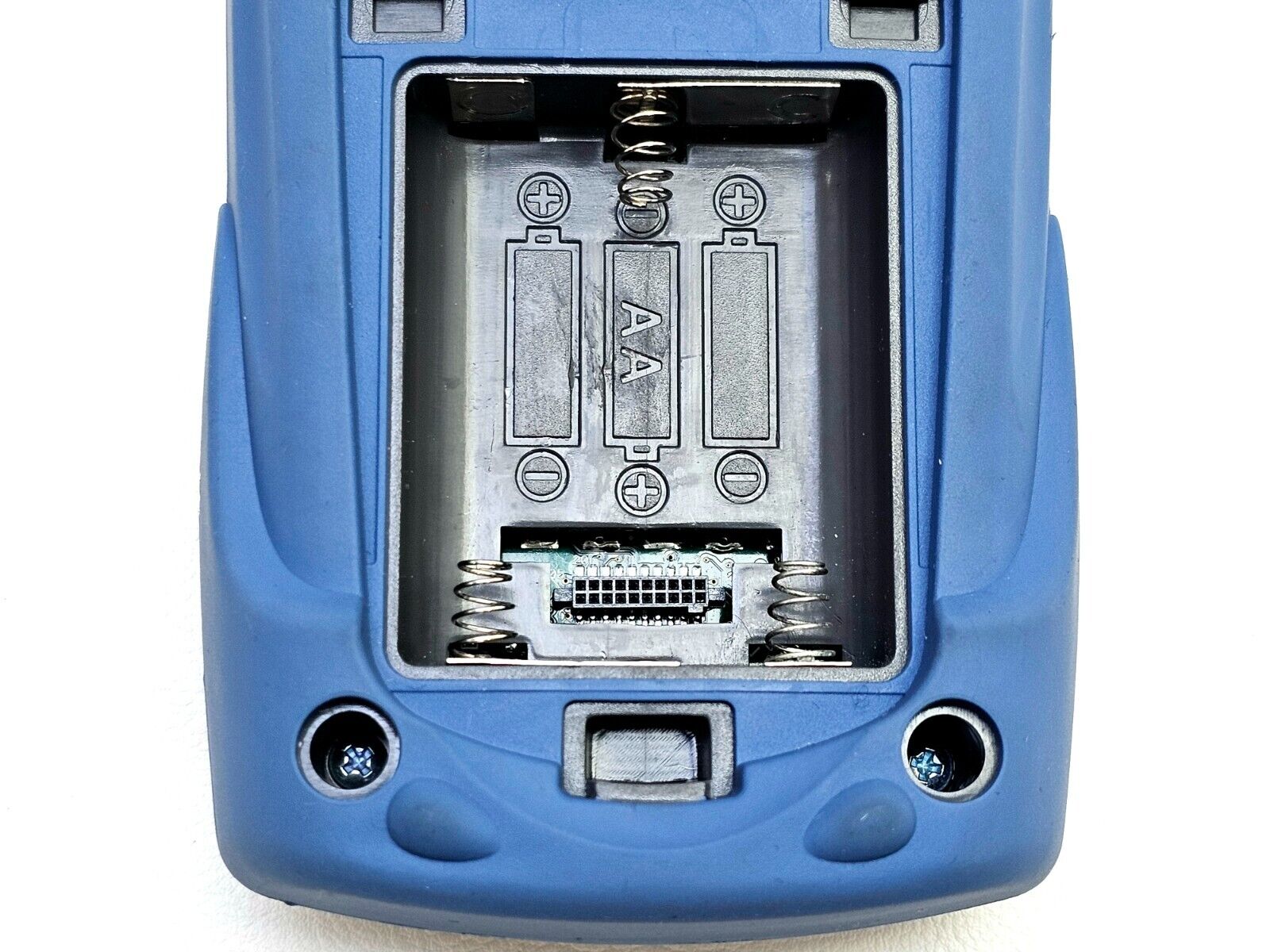

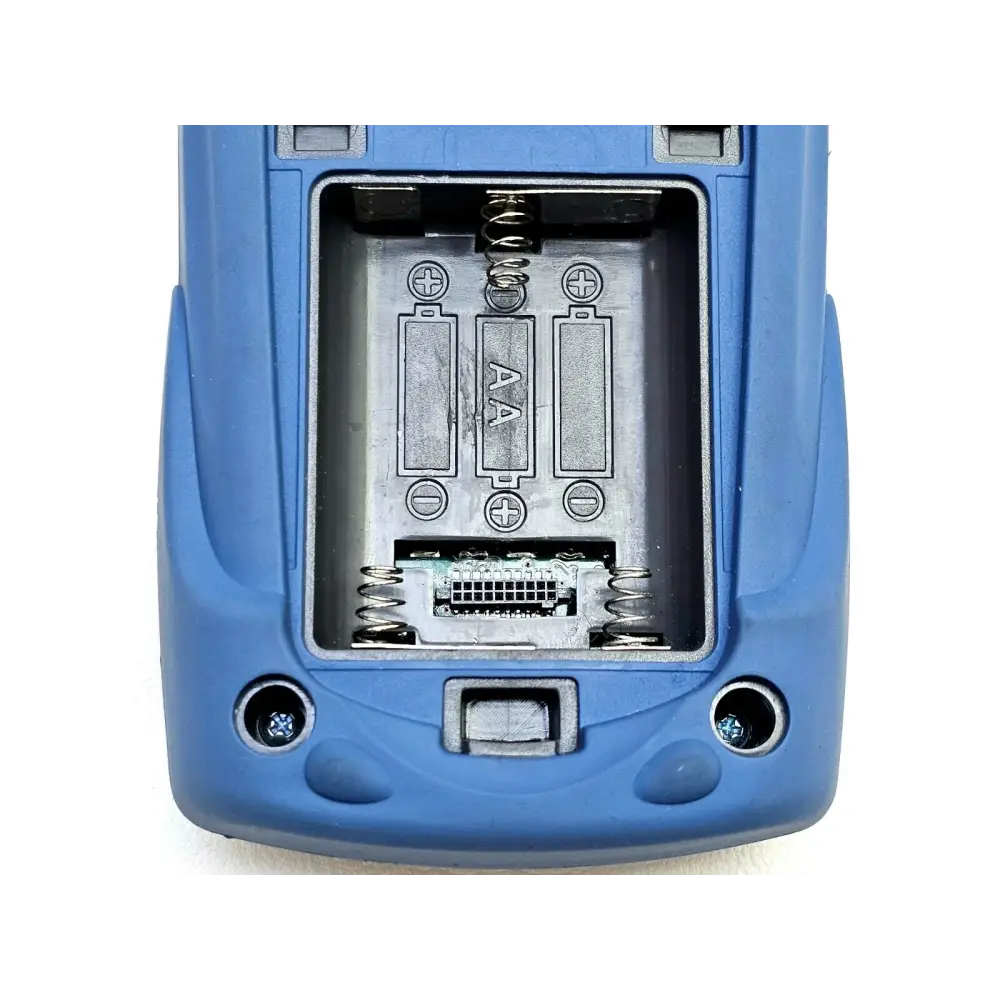

Battery Life (typical): >300 hours
Certification: ISO 9001, WEEE compliant

EXFO FPM-300 Power Meter Official Specification Sheet (PDF): Download PDF

EXFO FPM-300 / FLS-300 User Guide (PDF): Download PDF

EXFO FPM-300 Datasheet — FS.com mirror (PDF): Download PDF

EXFO FPM-300 Specification Sheet — AccuSrc mirror (PDF): Download PDF
