Please note that we have multiple units of this item in stock. The item you receive may differ slightly in cosmetic appearance from the one shown, but will be in a similar overall condition.

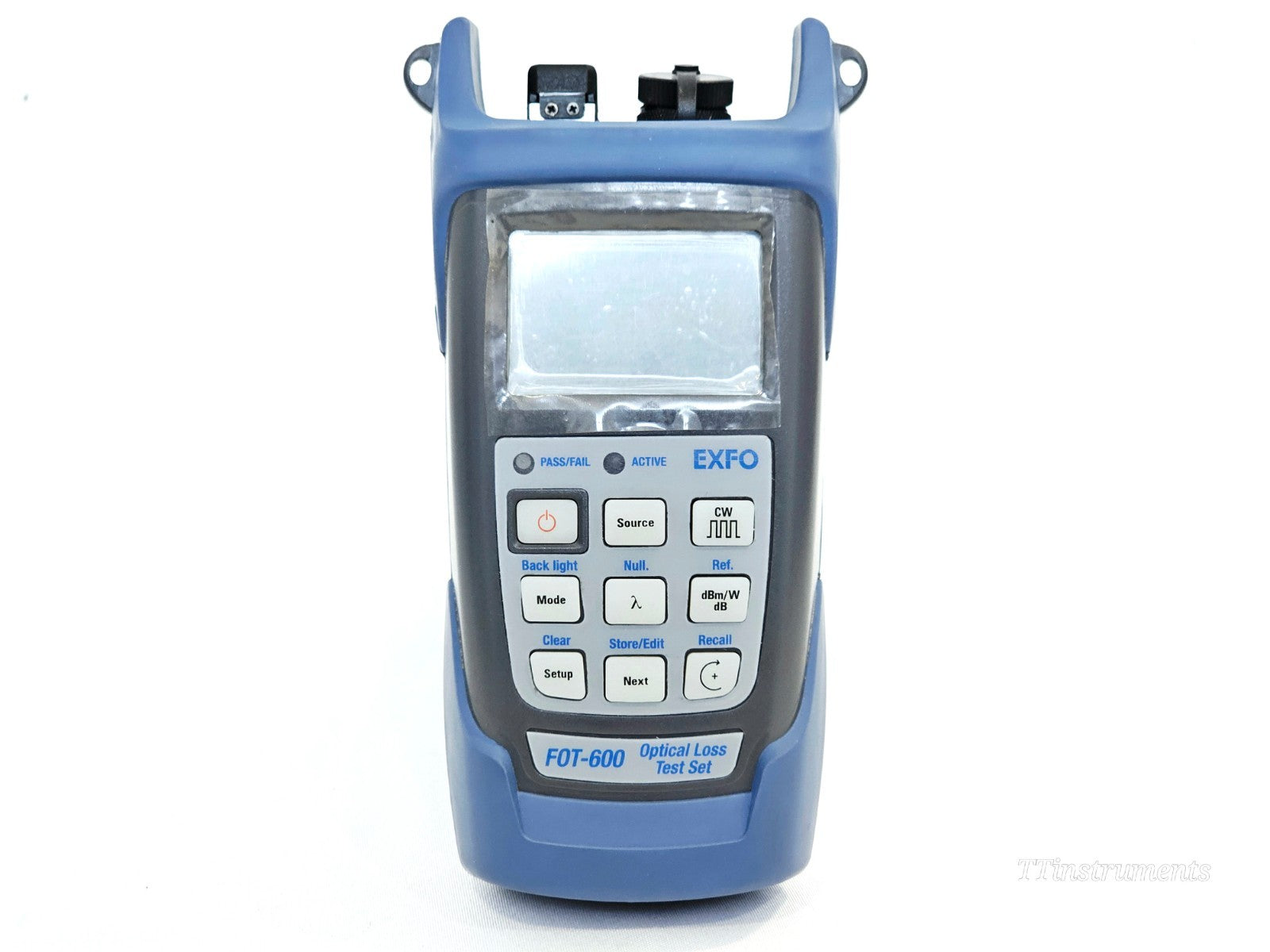

These EXFO FOT-600 optical loss test sets are in excellent used condition, tested and confirmed working within manufacturer specifications.

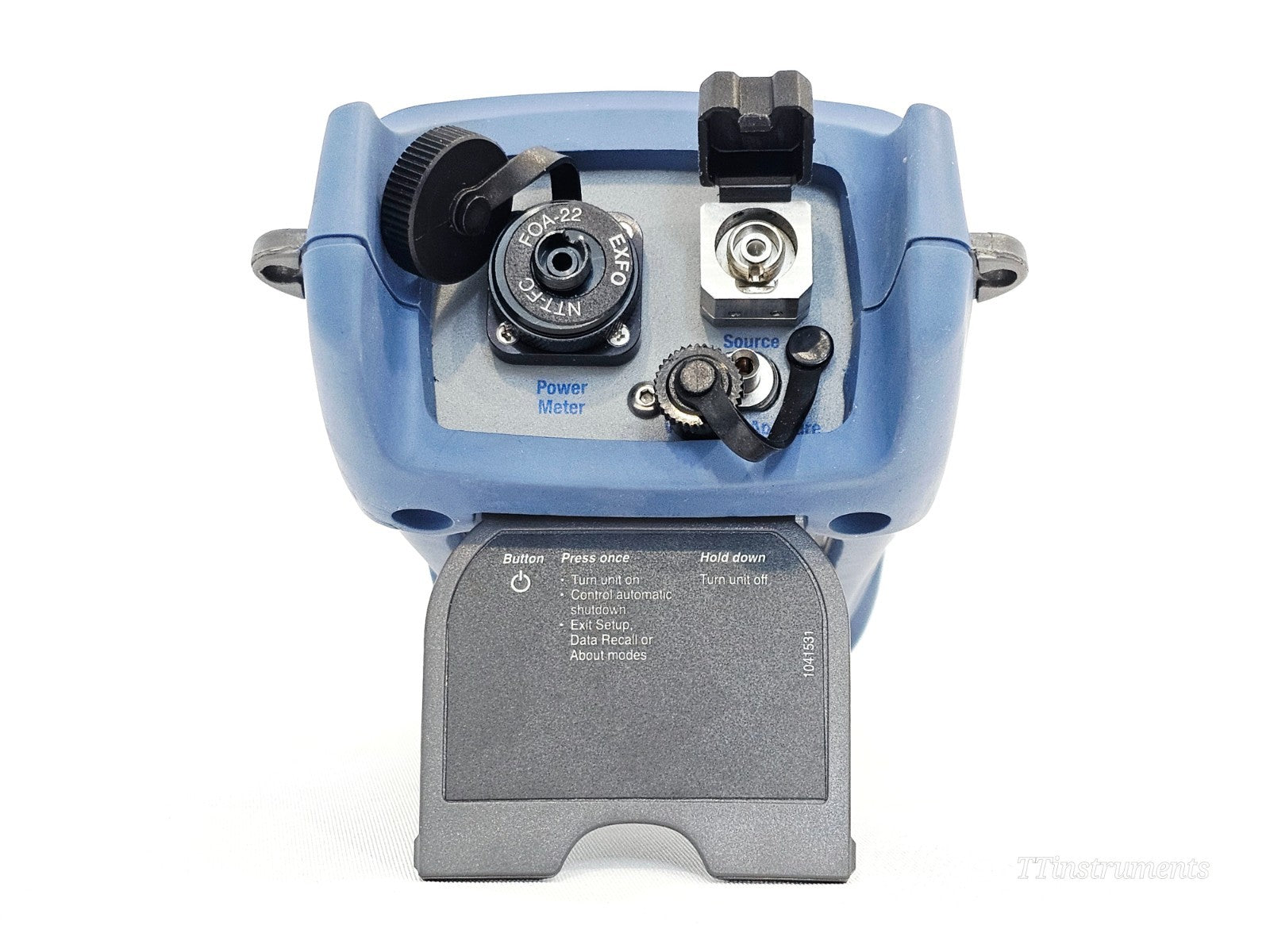

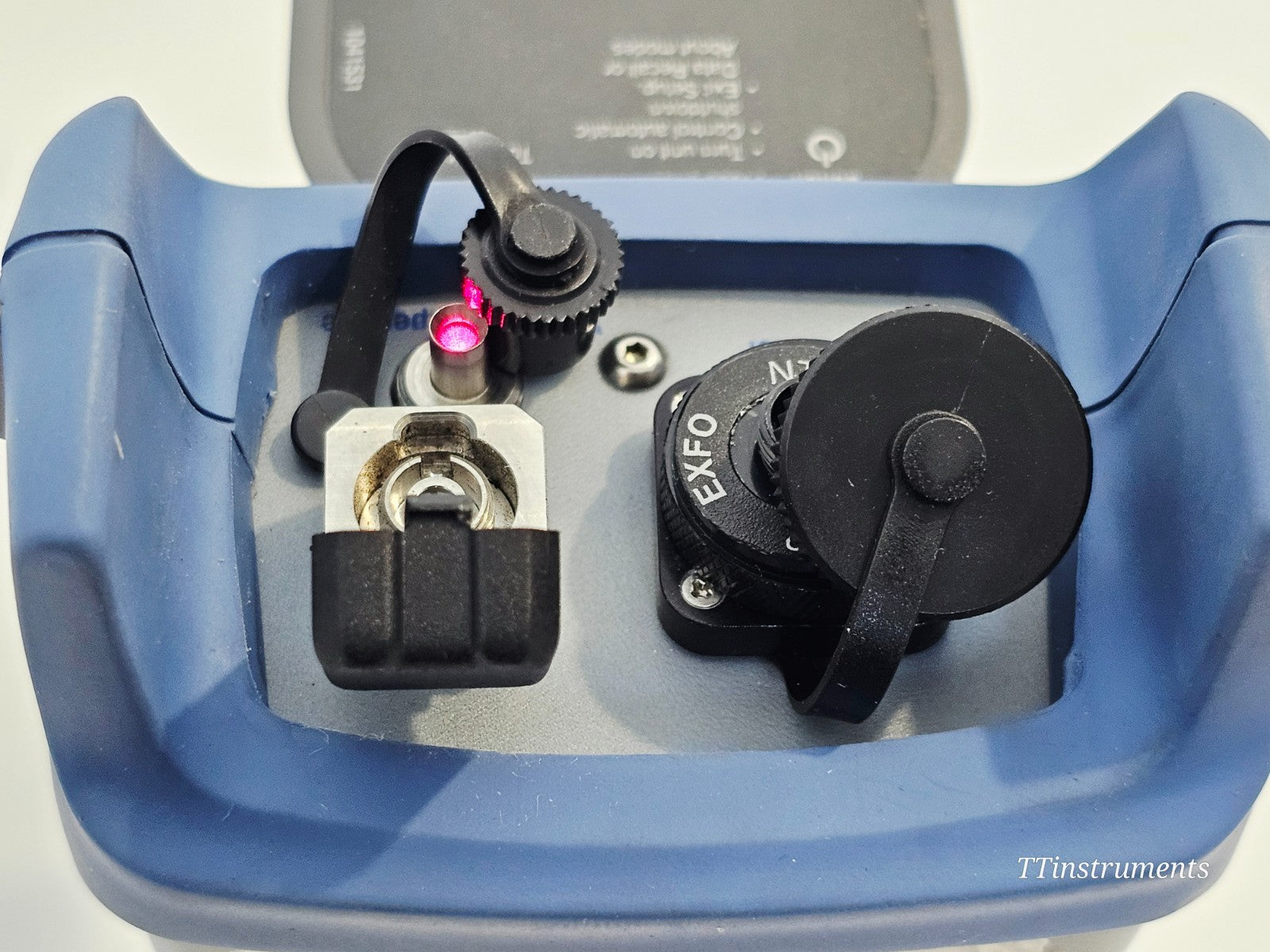

Each unit is the FOT-602X-234BL-EI-VFL configuration, which features a high-power Germanium detector, a three-wavelength single-mode laser source (1310 nm, 1550 nm and 1625 nm), and an integrated 650 nm Visual Fault Locator (VFL). The power meter port uses an FOA-22 FC-style adapter. USB connectivity enables data transfer to PC using the included EXFO ToolBox software.

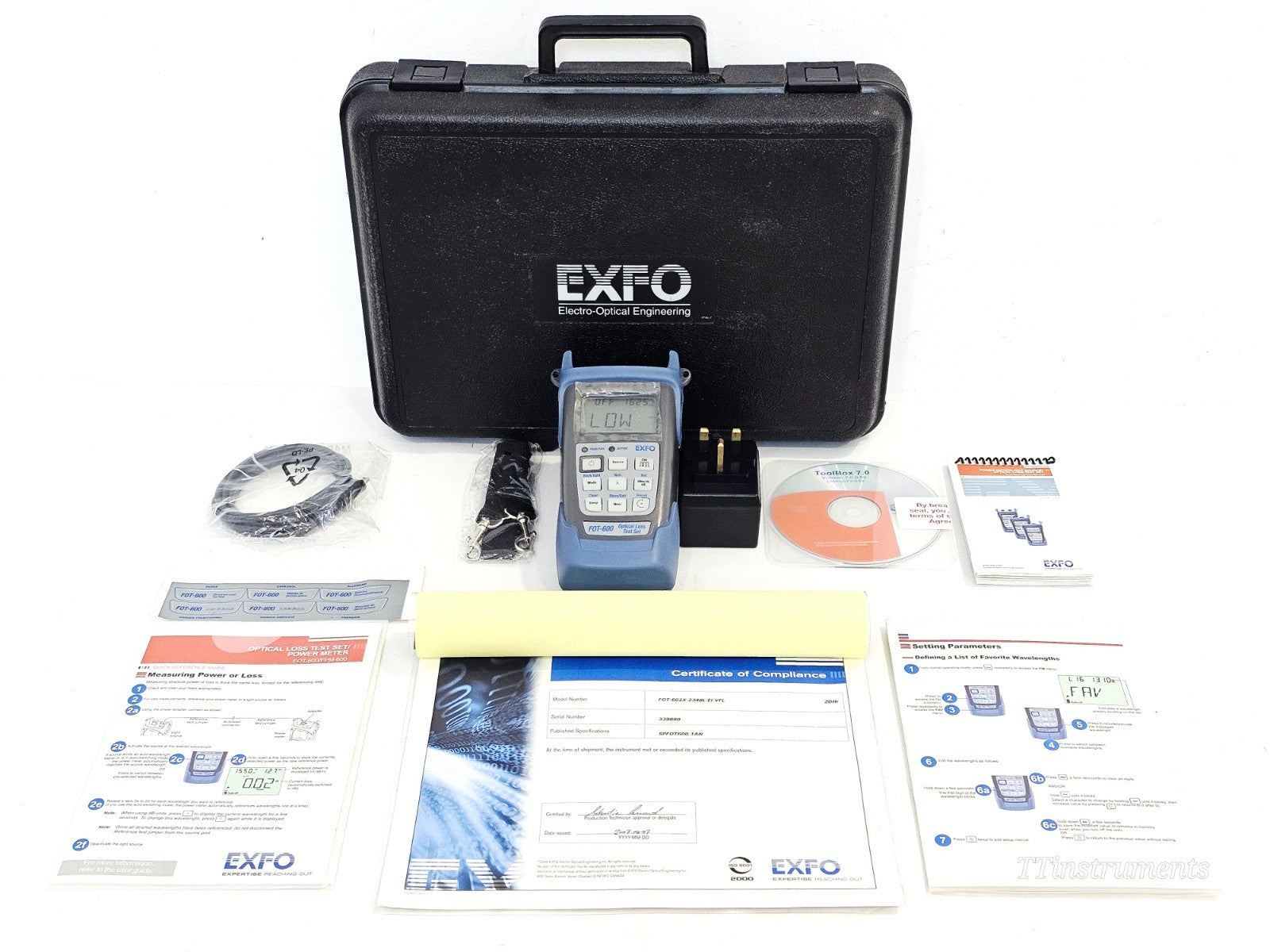

Each unit includes:
• EXFO FOT-600 (FOT-602X-234BL-EI-VFL) optical loss test set
• Mains power adapter/charger (UK 3-pin plug)
• Carrying strap / lanyard
• EXFO ToolBox 7.0 software CD
• Certificate of Compliance
• Quick reference card and user documentation

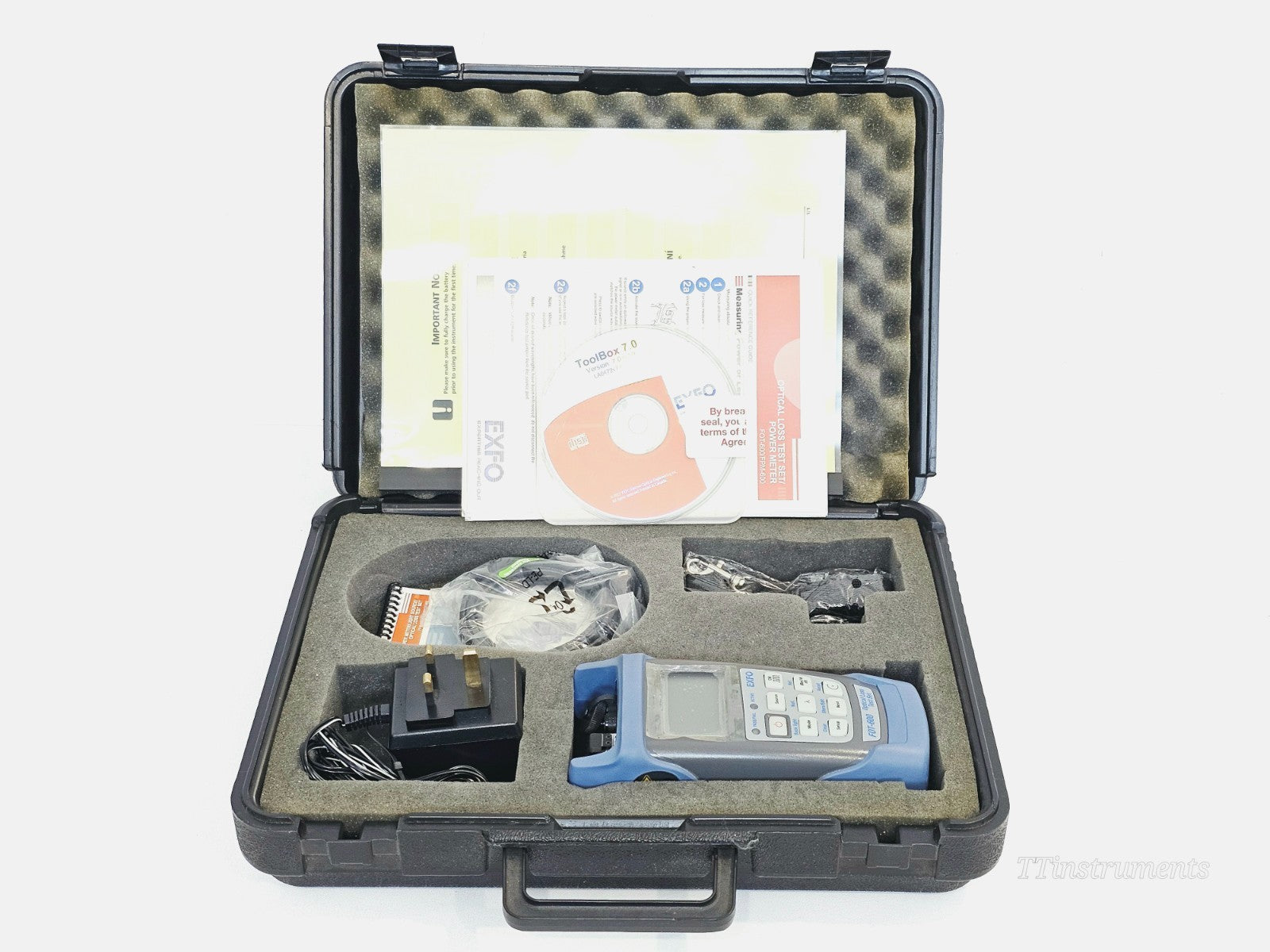

• EXFO hard carry case

The EXFO FOT-600 Optical Loss Test Set is part of EXFO's 600 handheld series and is designed as the ideal tool for network-link qualification, combining a power meter and light source in a single portable unit.

The FOT-602X-234BL-EI-VFL variant features a high-power Germanium detector with measurement capability up to +26 dBm, a three-wavelength single-mode laser source at 1310 nm, 1550 nm and 1625 nm, and an integrated 650 nm Visual Fault Locator. In Auto-Switching mode, the light source automatically toggles between available wavelengths and the power meter automatically recognises the wavelength in use and switches to the correct calibration parameter — eliminating offset nulling and reducing measurement errors. Over 40 calibrated wavelengths including all CWDM wavelengths are supported, and the Hold Min/Max Power function enables measurement of power bursts and fluctuations. With 1000-result memory and USB PC transfer via EXFO ToolBox software, complete pass/fail test reports can be generated and certified. The unit is PON-ready, supporting testing at 1310 nm, 1490 nm and 1550 nm per ITU-T G.983.3.

Instrument type: Optical Loss Test Set (OLTS) — combined power meter and light source
Source wavelengths: 1310 nm, 1550 nm, 1625 nm
Fibre type: Single-mode, 9/125 µm
Detector type: High-power Germanium (FOT-602X)
Power measurement range: Up to +26 dBm
Calibrated wavelengths: Over 40, including all CWDM

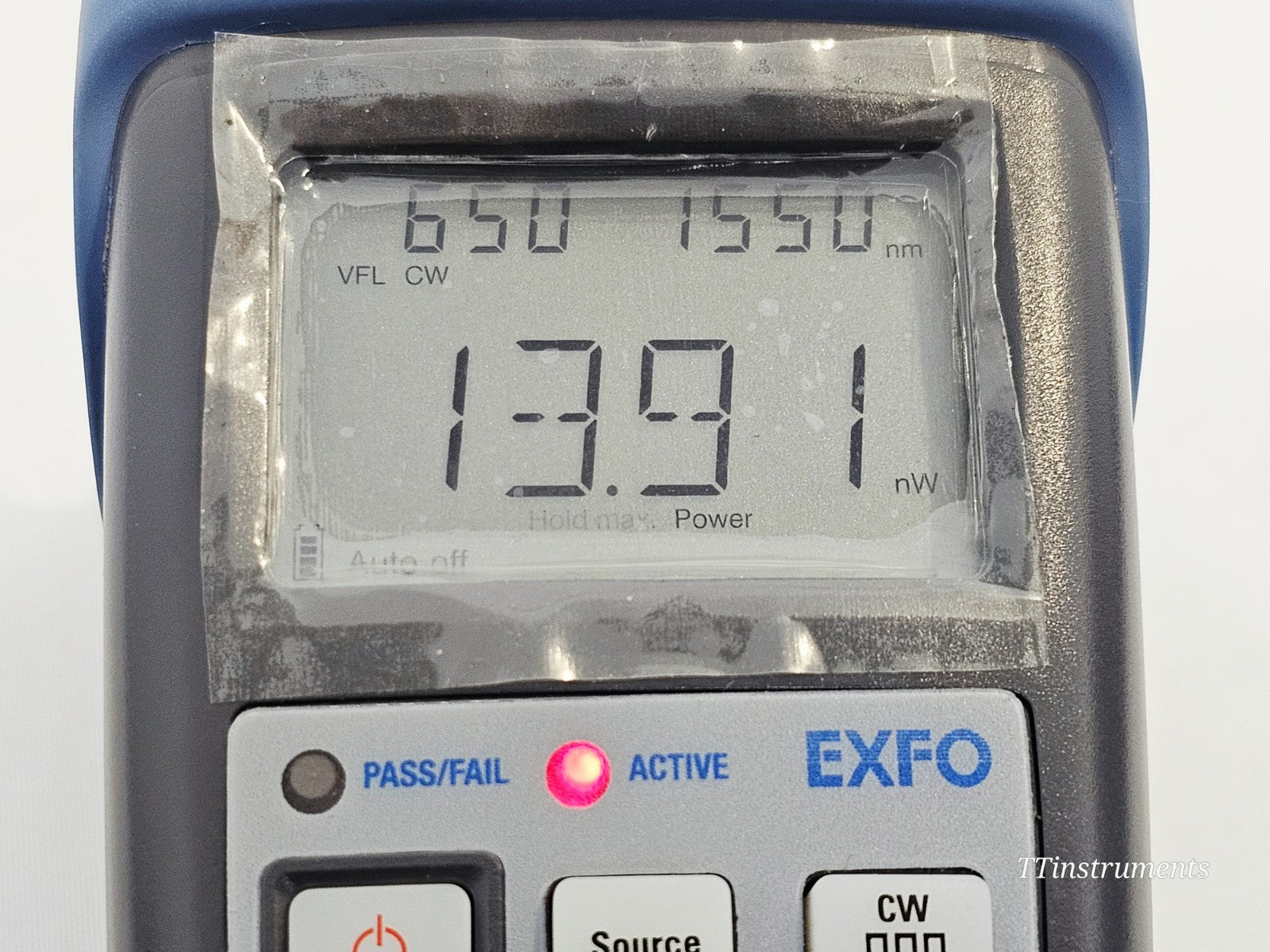

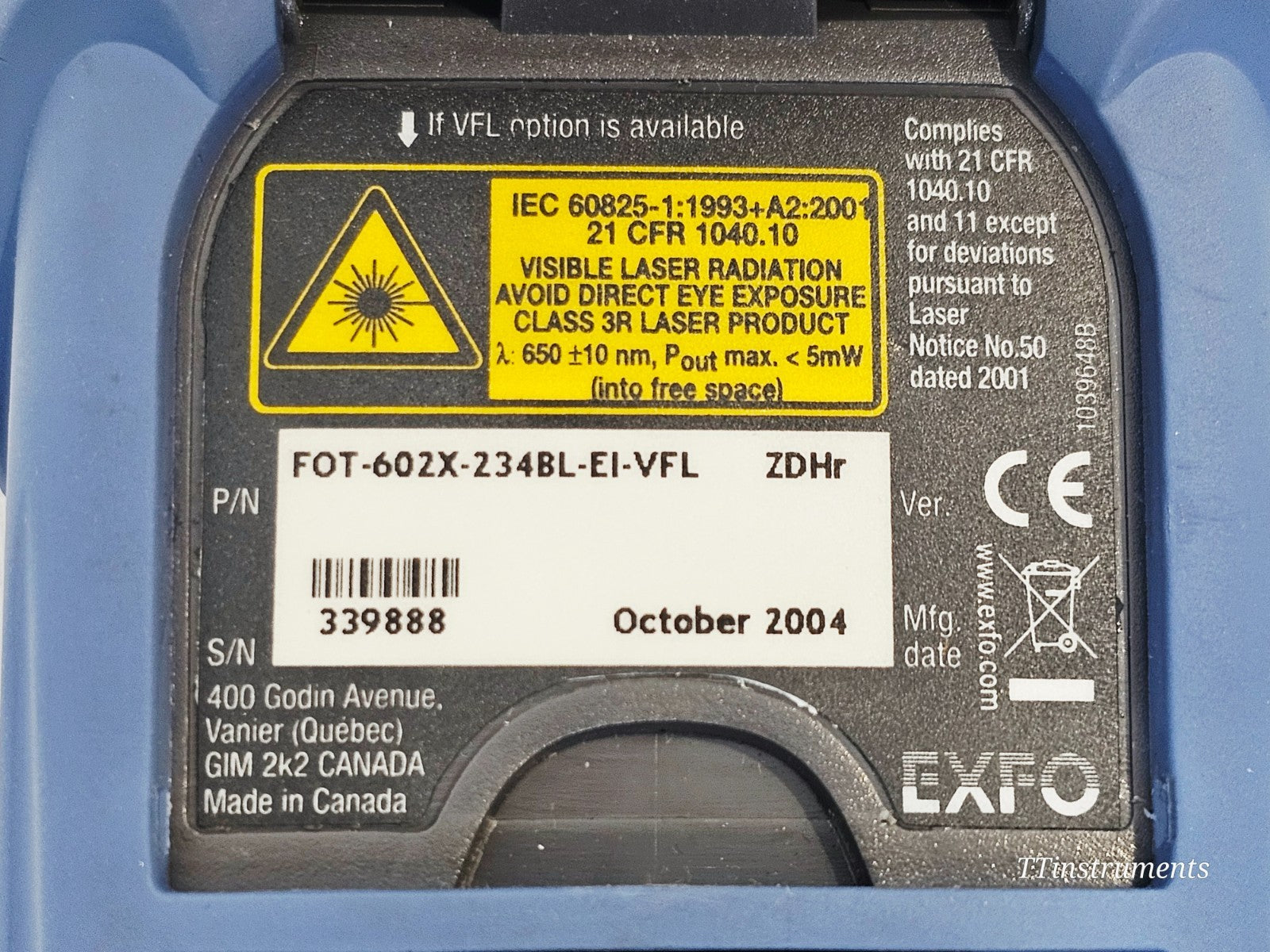

VFL wavelength: 650 nm ±10 nm, Class 3R, <5 mW
Source modulation: CW and modulated modes
Data memory: 1000 results

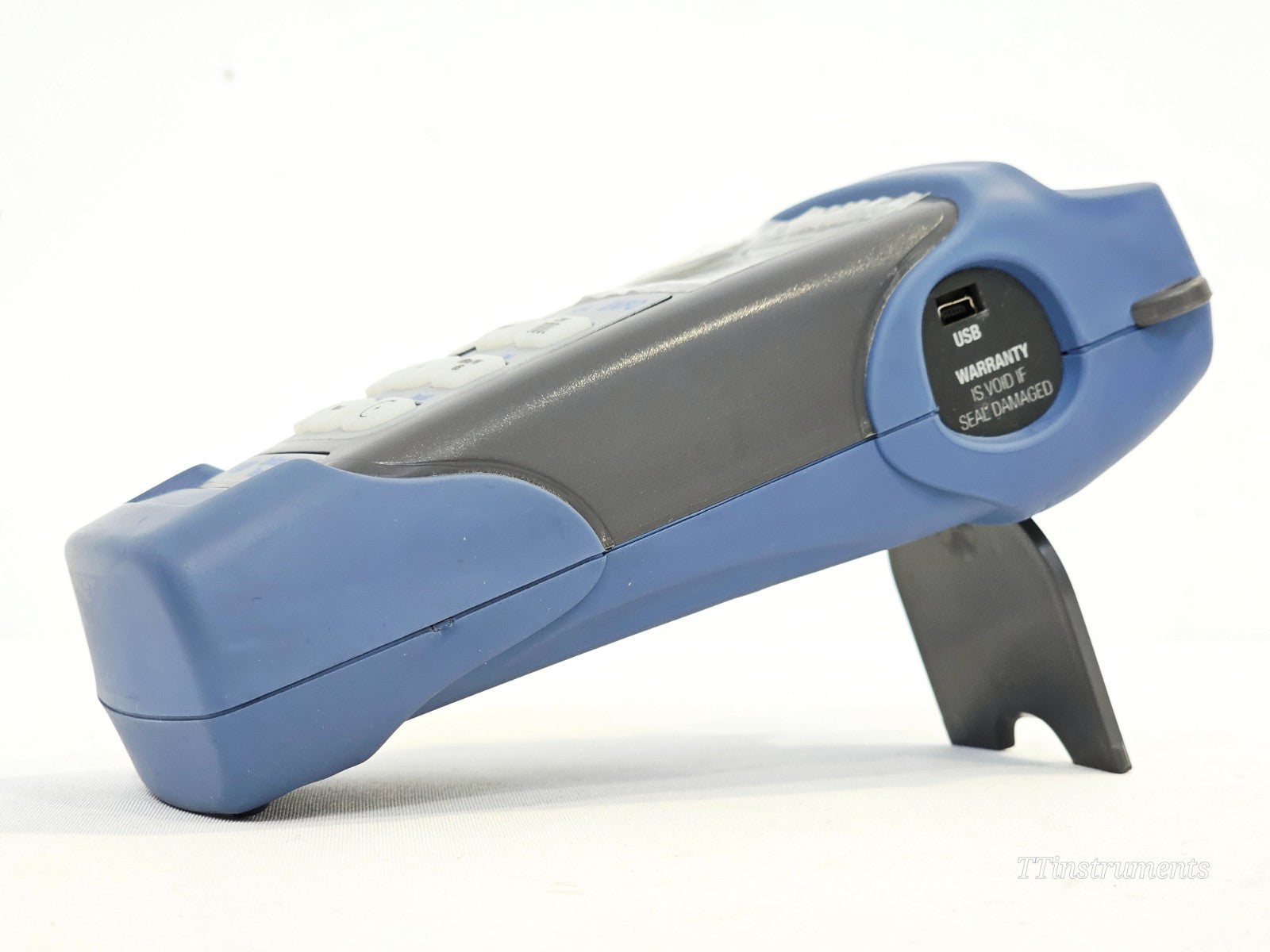

PC interface: USB (mini-USB)

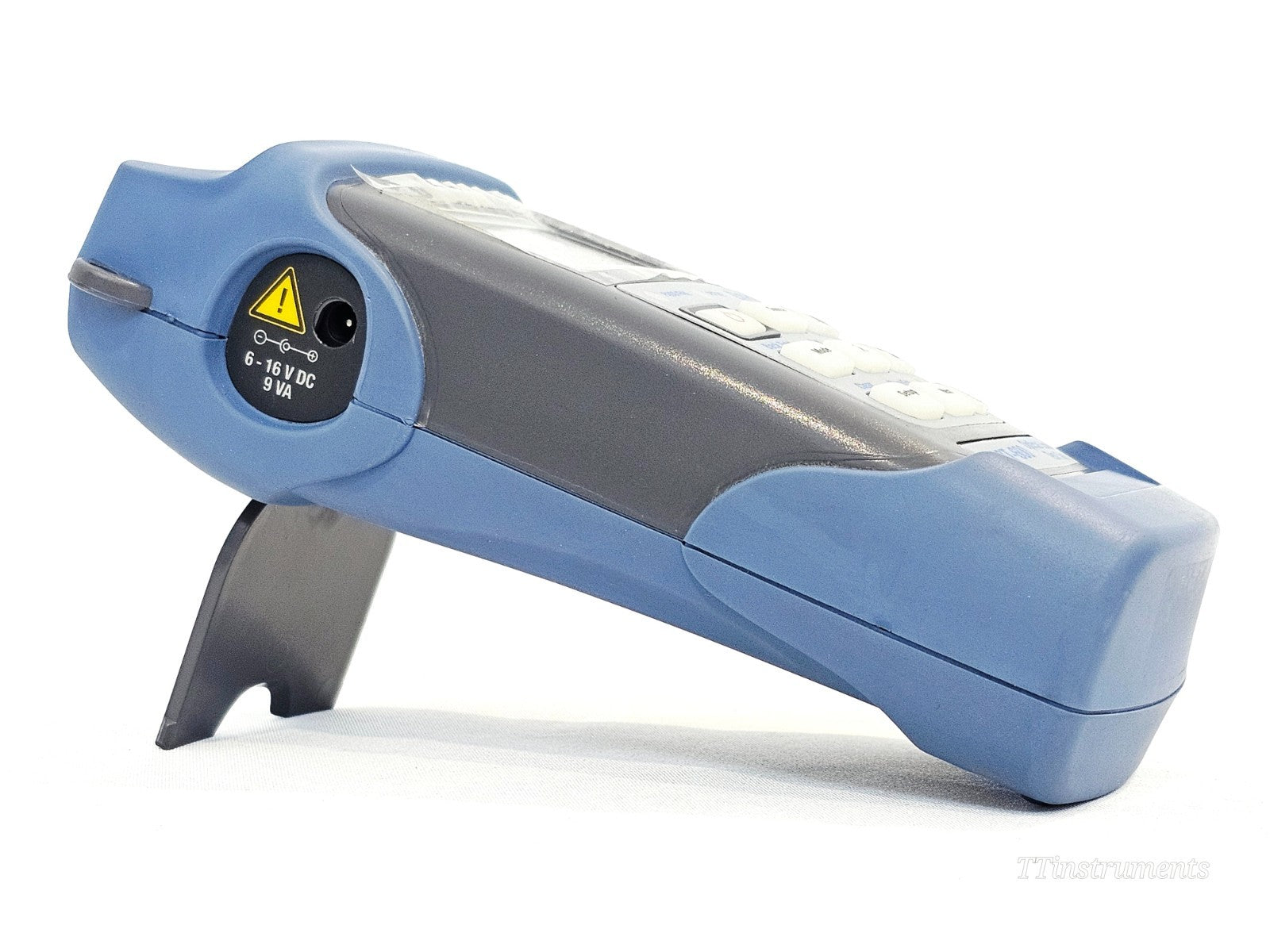

Power input: 6–16 V DC, 9 VA
Operating temperature: –10 °C to +50 °C
Dimensions: 190 mm × 100 mm × 62 mm
Weight: 0.48 kg

EXFO FOT-600 datasheet: Download PDF
