Condition: Used

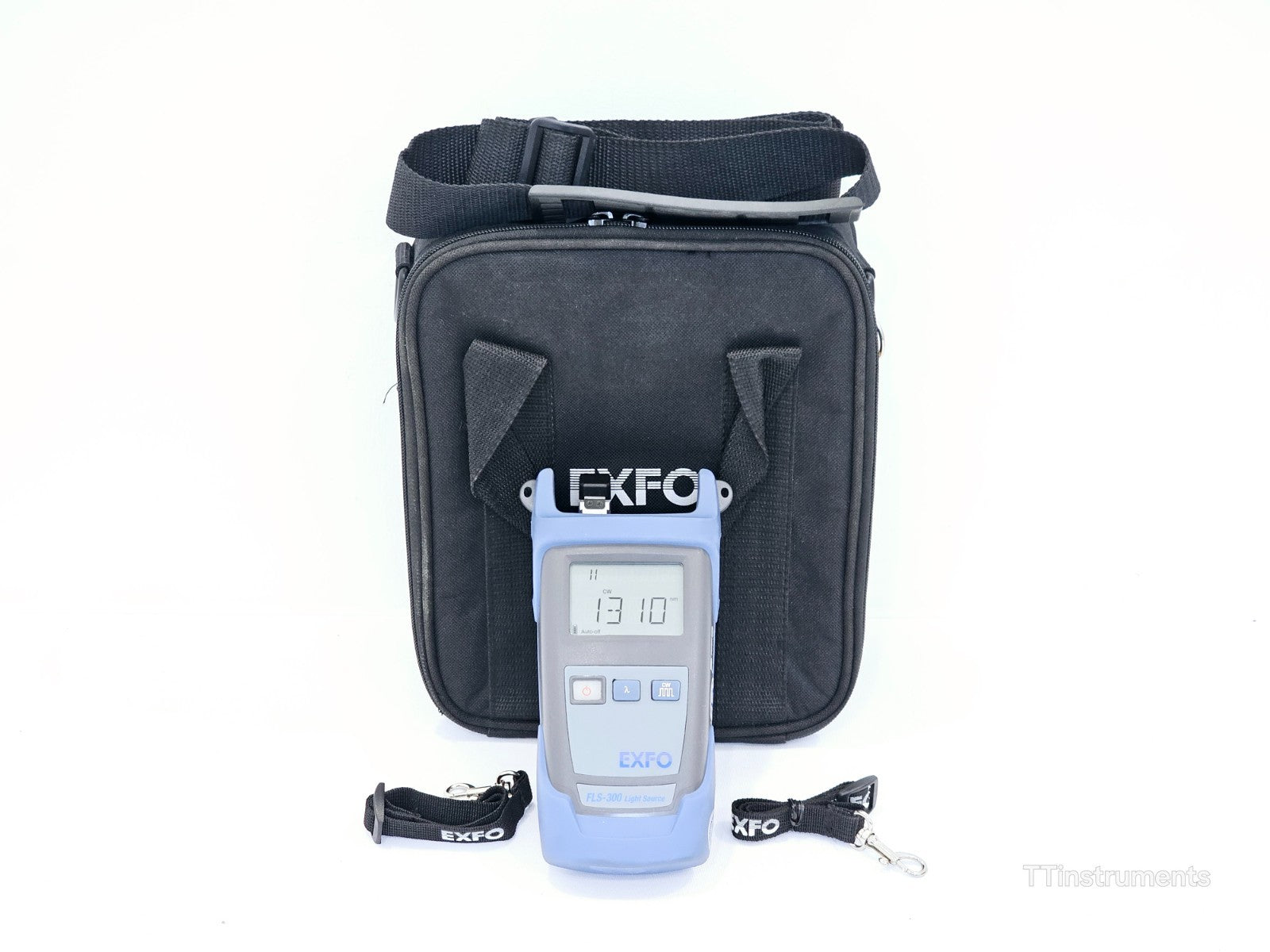

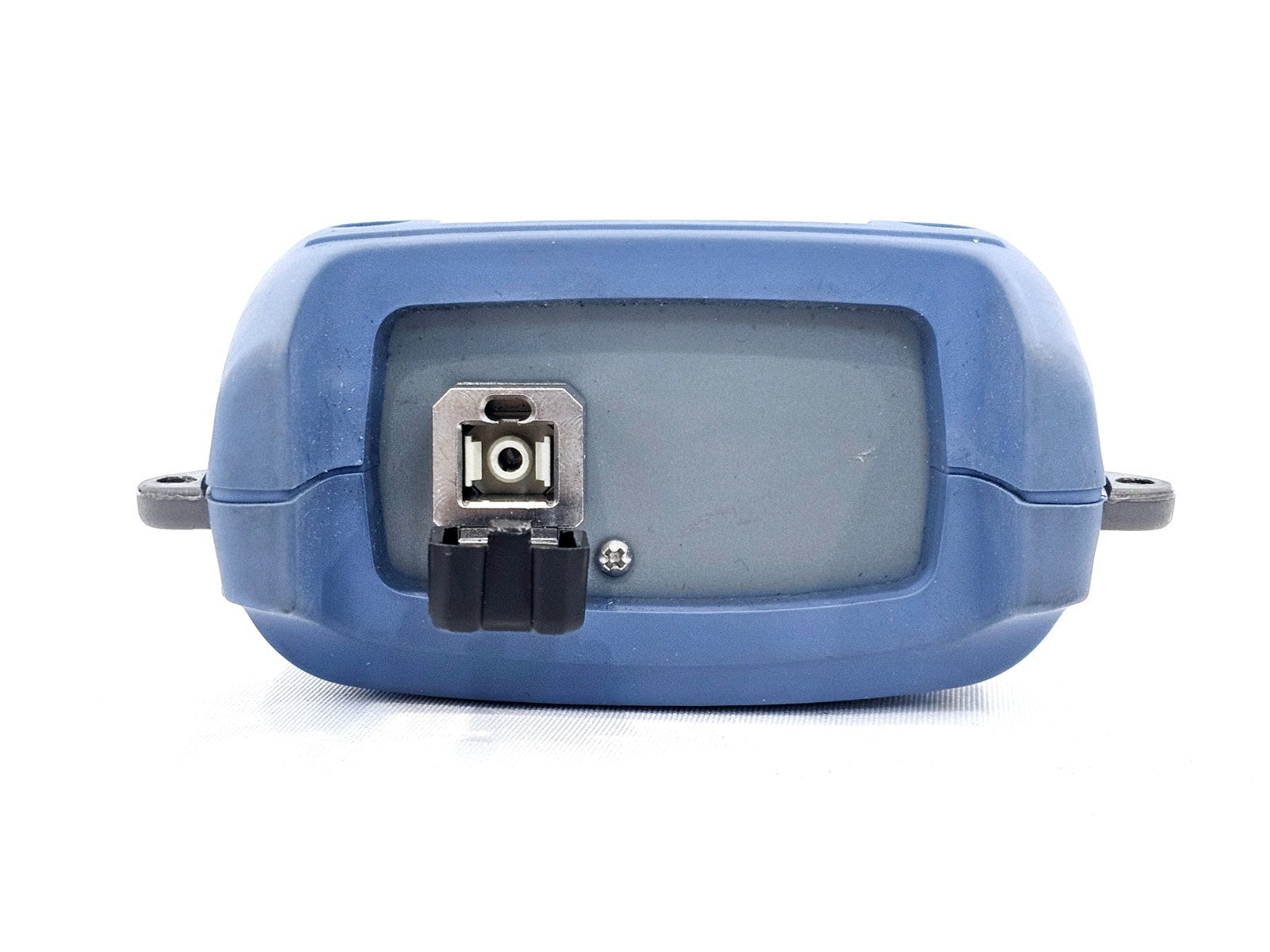

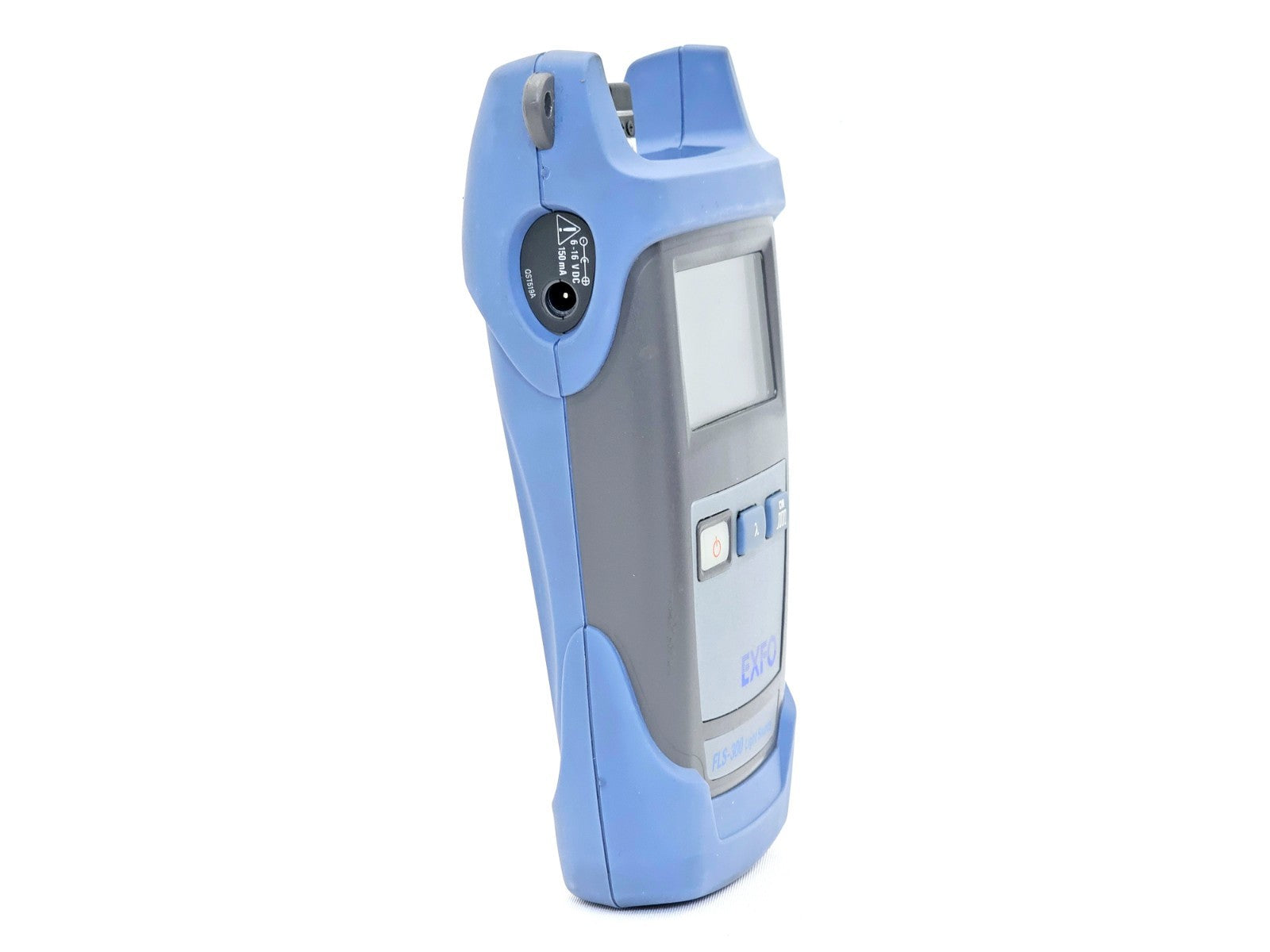

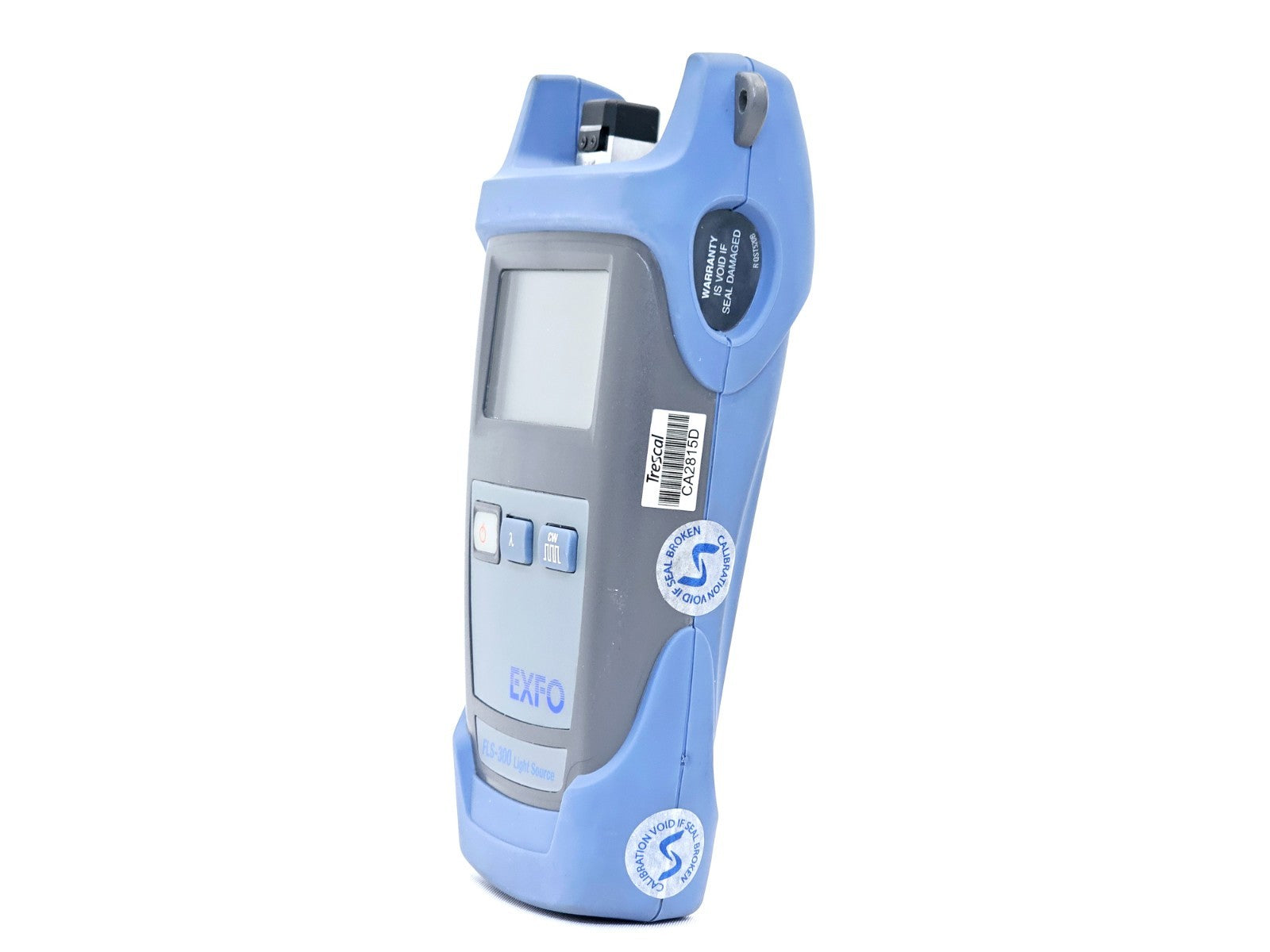

The EXFO FLS-300-23BL-EI is a used singlemode fibre optic light source in good working condition. Configured for 1310 nm and 1550 nm laser output on a 9/125 µm singlemode fibre, it is supplied with an SC adapter fitted.

Supplied with:
• SC adapter

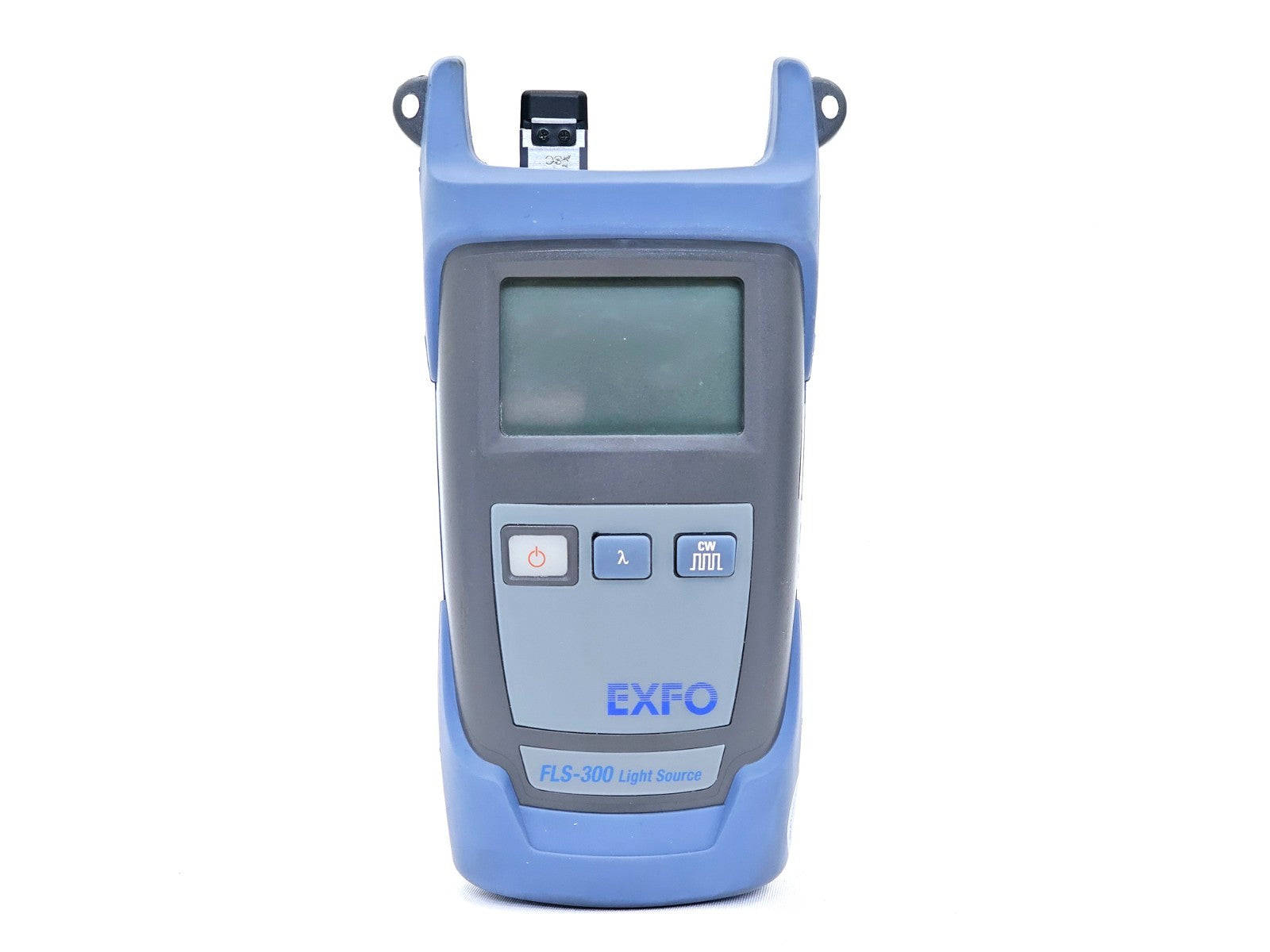

The EXFO FLS-300 is a handheld fibre optic light source forming part of EXFO's FPM-300/FLS-300/FOT-300 test platform. The model FLS-300-23BL is configured for dual singlemode wavelengths (1310/1550 nm) and is designed for insertion loss, optical return loss, and passive optical network (PON) testing in FTTx, FTTH, and FTTP environments.

The instrument transmits using a wavelength-identification digital encrypted protocol, enabling any compatible unit — including the FPM-300 Power Meter and FOT-300 Optical Loss Test Set — to automatically apply correct calibration parameters. Signal encrypting also supports distant referencing, allowing power reference values to be communicated between technicians at remote locations. The FLS-300 supports PON testing at 1310 nm, 1490 nm, and 1550 nm in compliance with ITU-T G.983 and G.984 recommendation series and IEEE 802.3ah.

SPECIFICATIONS (Model 23BL):

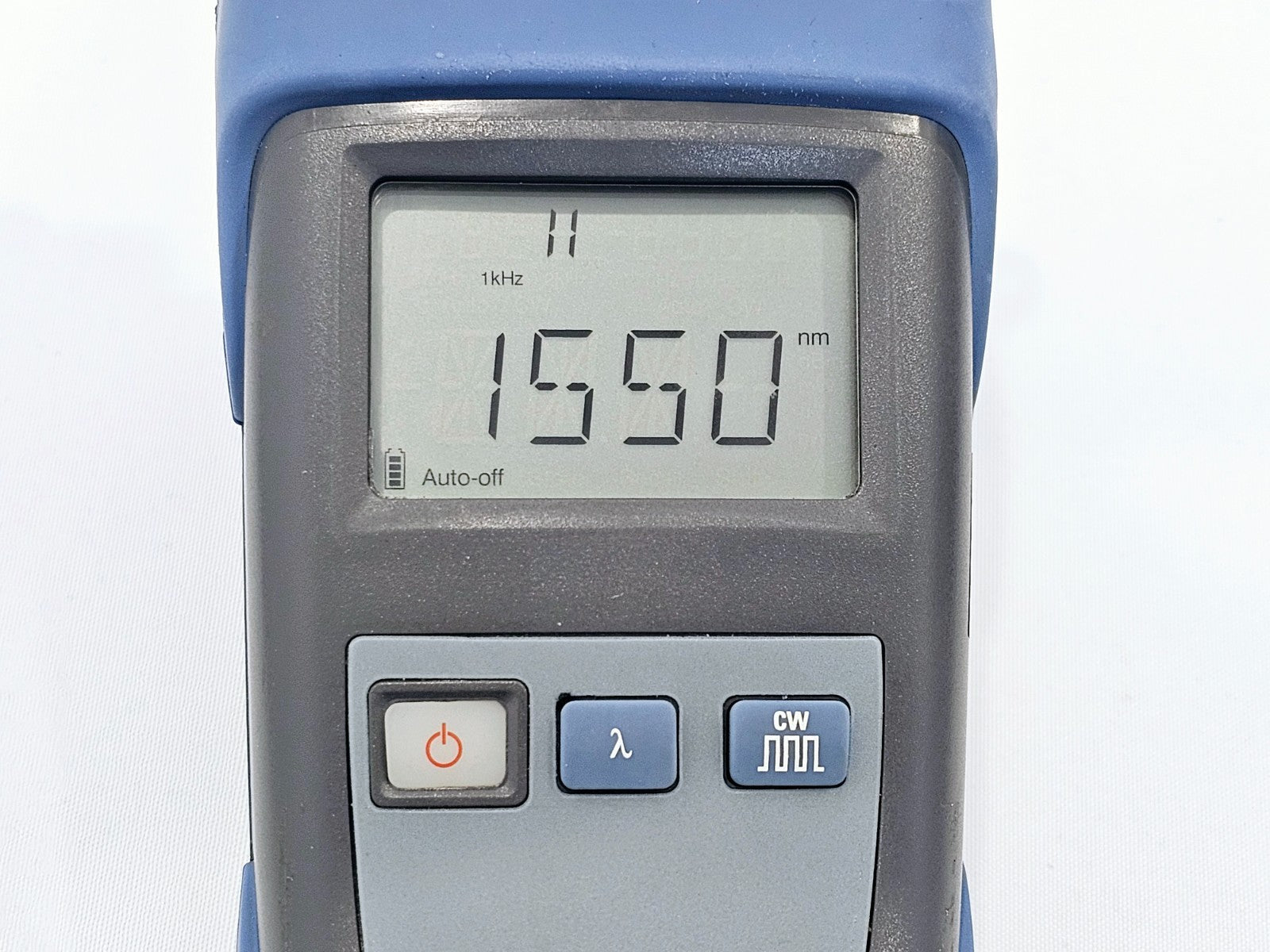

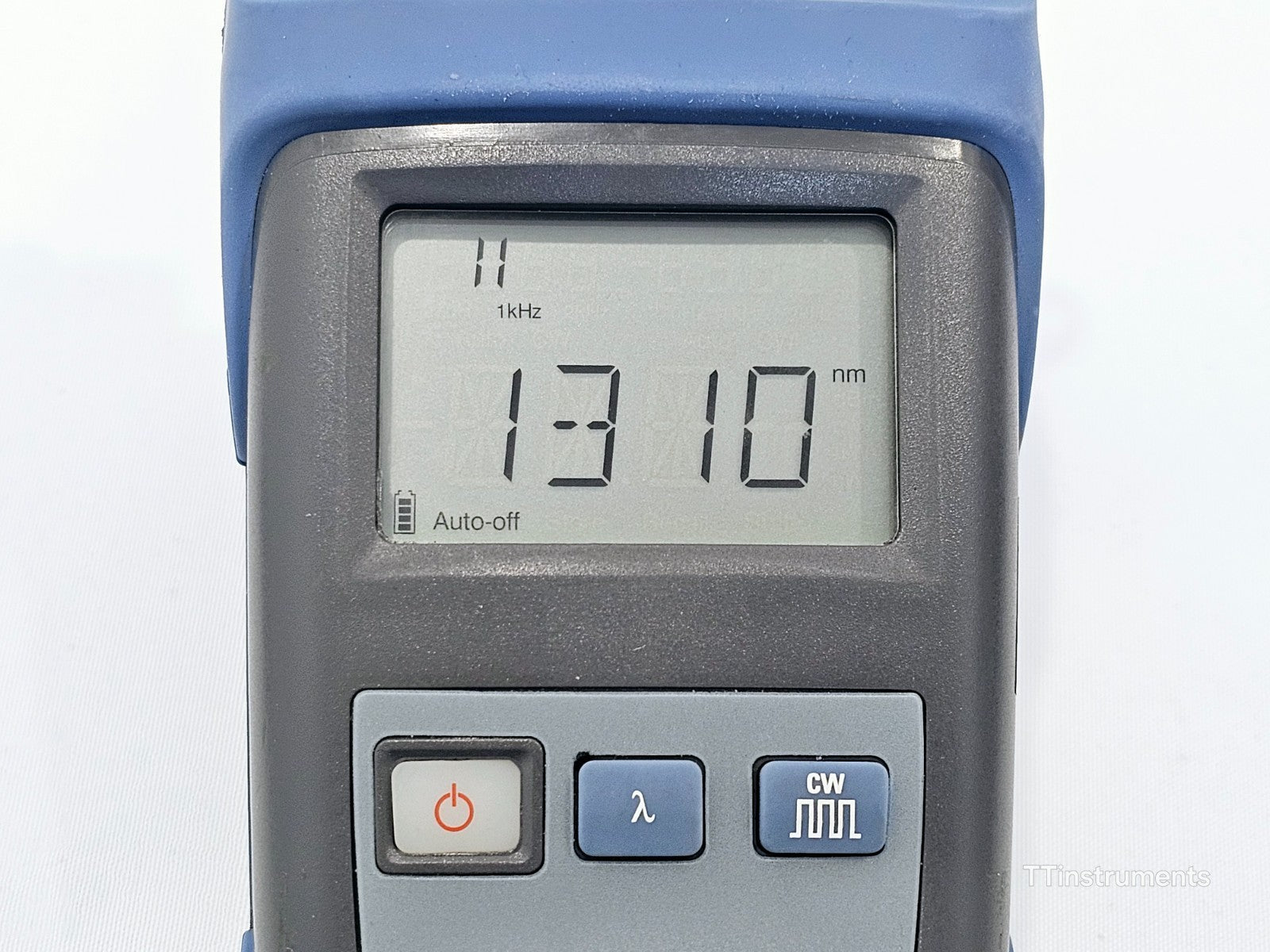

Central Wavelengths: 1310 ± 20 nm / 1550 ± 20 nm
Fibre Type: Singlemode 9/125 µm
Spectral Width: ≤5 nm
Output Power: ≥1 dBm / ≥1 dBm
Power Stability (8 hours): ±0.10 dB
Tone Generation: 270 Hz, 1 kHz, 2 kHz
Auto-Wavelength Recognition: Yes
Battery Life: 120 hours (3 × AA alkaline batteries)
Connector System: EXFO Universal Interface (EUI) — twist-on adapter
Operating Temperature: –10 °C to +50 °C
Storage Temperature: –40 °C to +70 °C
Relative Humidity: 0% to 95% non-condensing
Dimensions (H × W × D): 18.5 cm × 10.0 cm × 5.5 cm
Weight: 0.4 kg
Warranty / Calibration Interval: 3 years

EXFO FLS-300 Light Source Spec Sheet (official EXFO PDF): Download PDF

EXFO FLS-300 Light Source Spec Sheet v12 (ProFiber hosted PDF): Download PDF

EXFO FPM-300 / FLS-300 User Guide (PDF via fs.com): Download PDF

EXFO FLS-300 Datasheet (PDF via fs.com): Download PDF
