EXFO FLS-110 Optical Polarized Light Source - Ideal 4 PMD Measurements 1550 nm
Model: FLS-110
Condition: Used
In stock: 0
SKU: 2488 7C01
- Fiber Optics
- Light Sources
- Loss Testers & Fault Locators
Choose options
Condition: Used

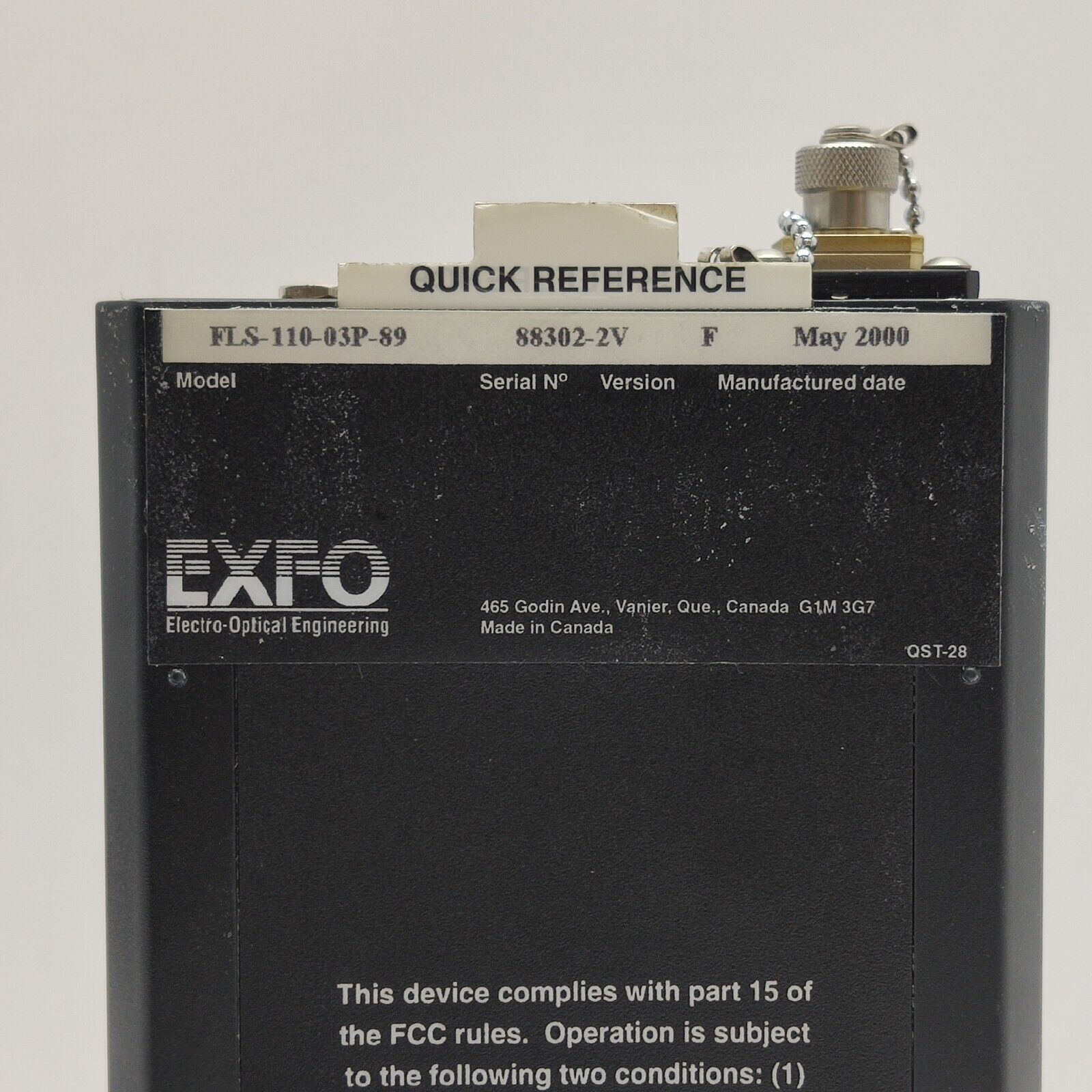

The EXFO FLS-110-03P is a 1550 nm polarized optical light source configured for field PMD measurements. This is the C-band model (03P), especially suited to use alongside the EXFO FTB-5500B PMD Analyzer.
What is typically included with this product:
• FLS-110-03P optical polarized source (1550 nm C-band)

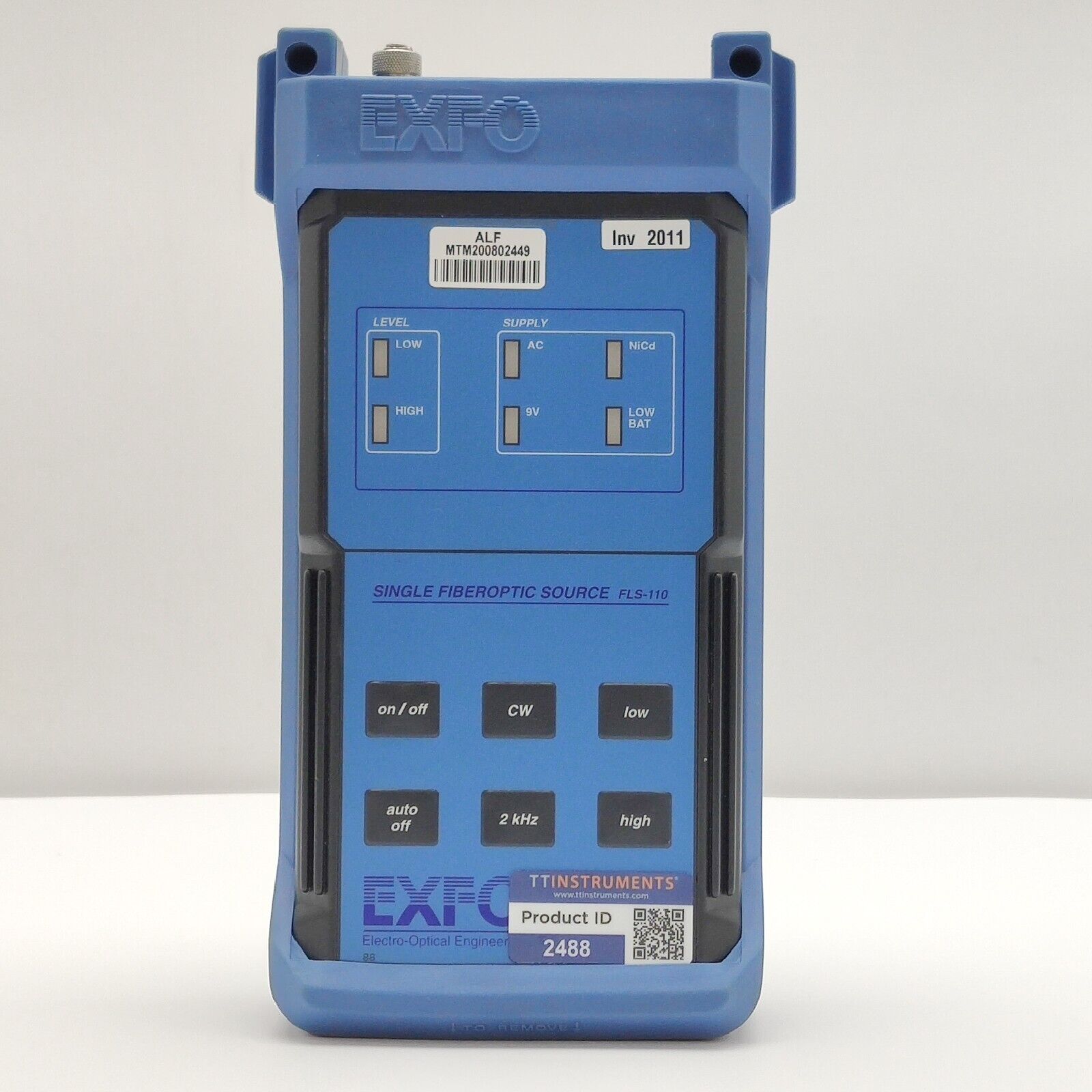

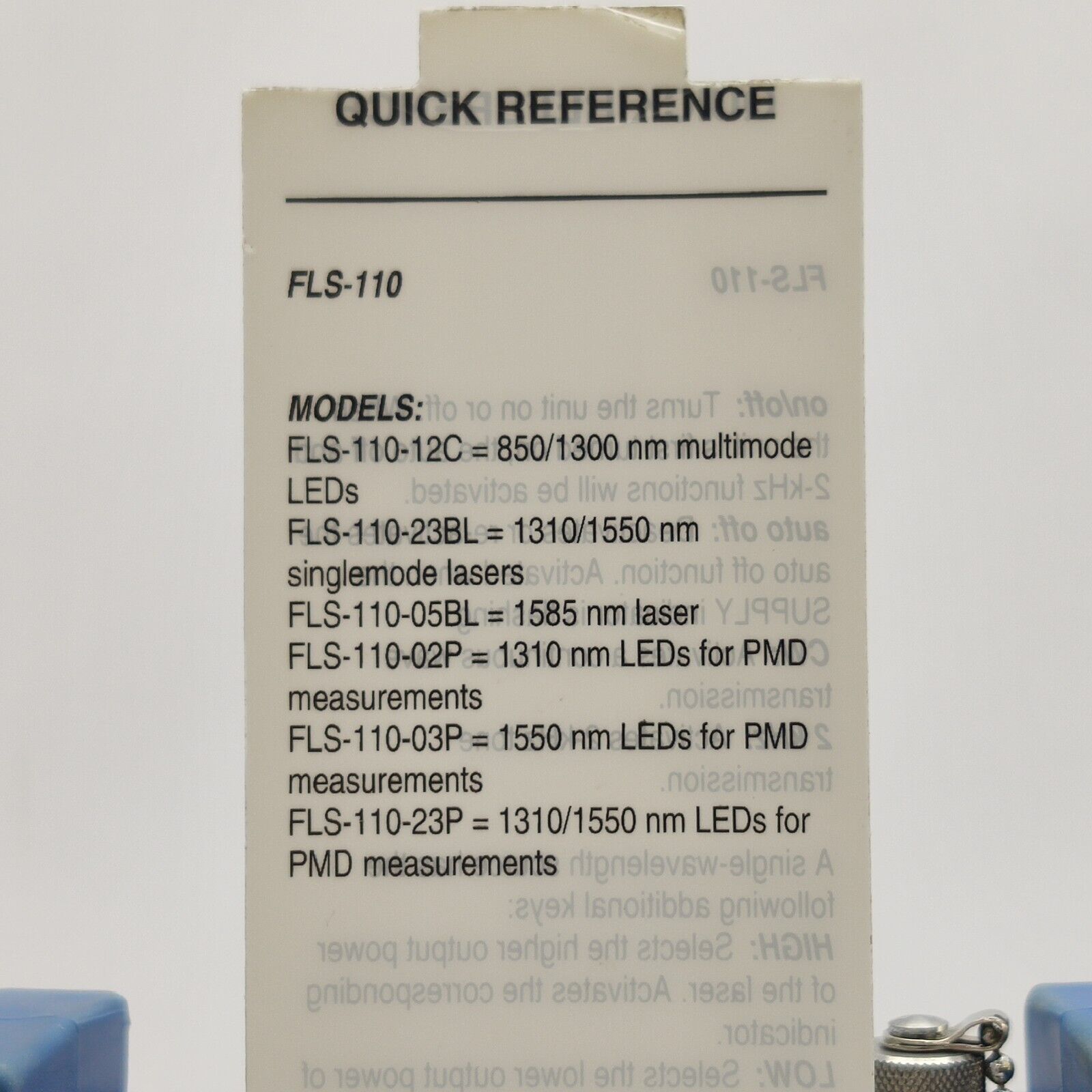

The EXFO FLS-110 Optical Polarized Source is a handheld instrument designed for field polarization mode dispersion (PMD) measurements. It is a wide-spectrum polarized LED/SLED source available in two wavelength models — O band (1310 nm, model -02P) and C band (1550 nm, model -03P) — and is especially suited for use with the EXFO FTB-5500B PMD Analyzer.

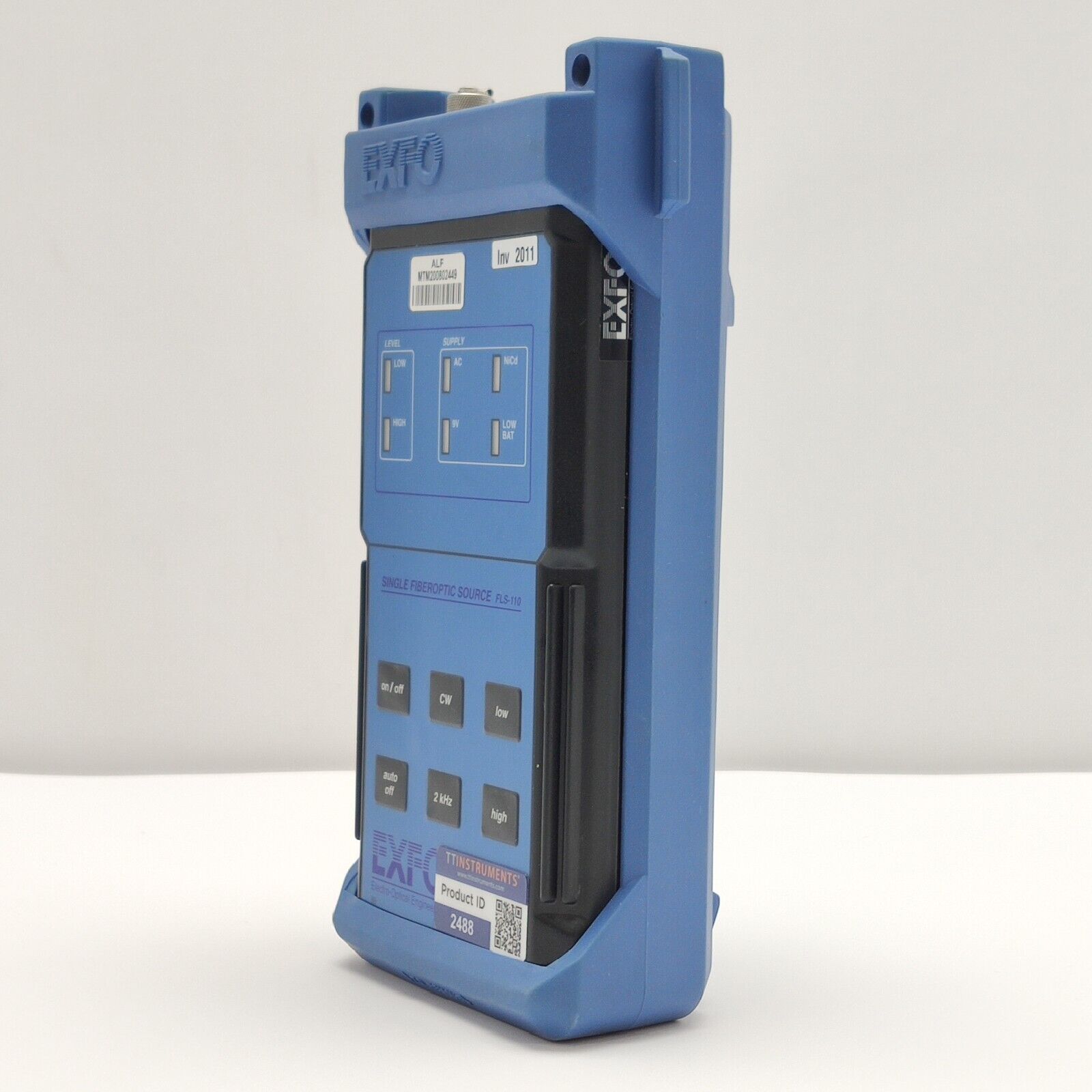

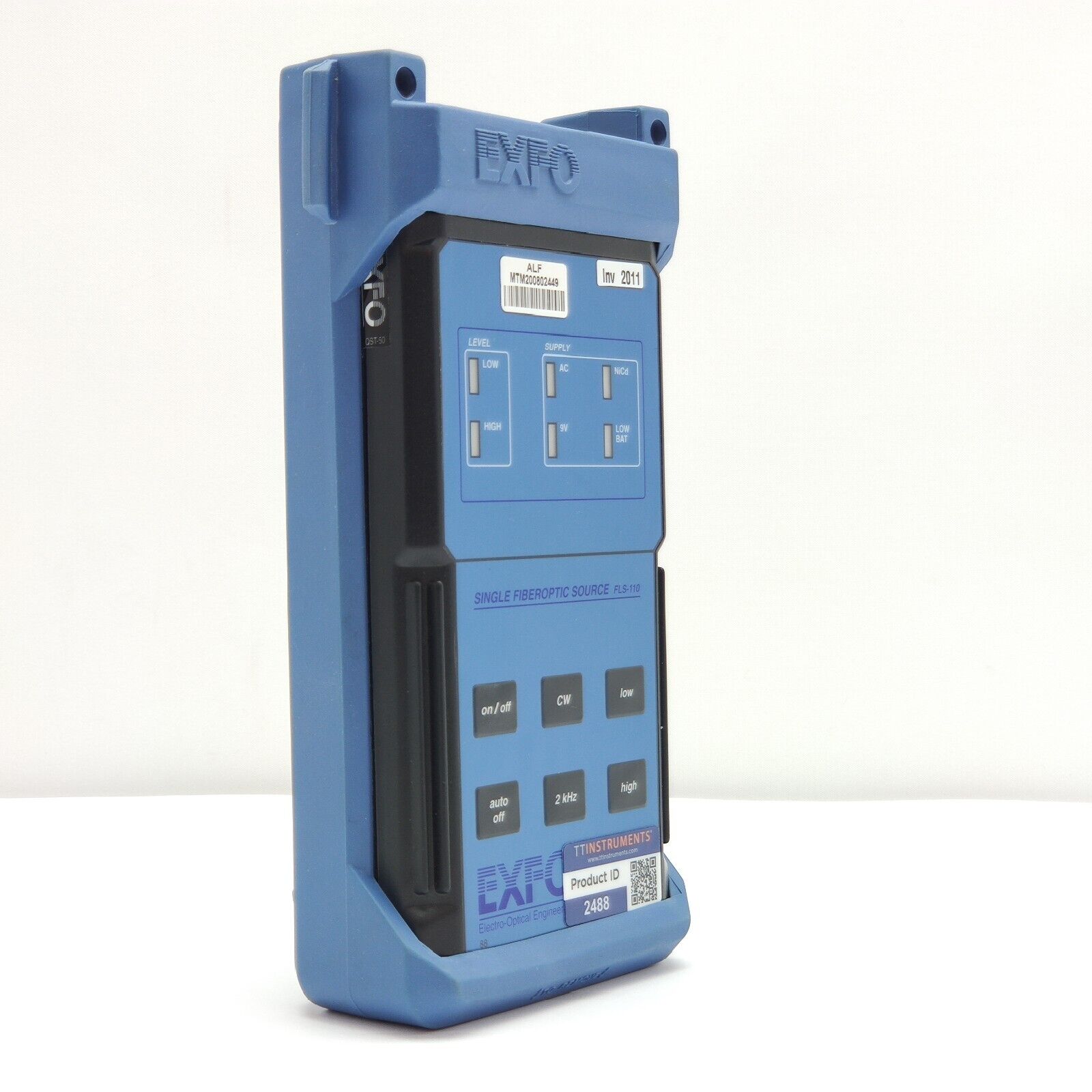

The instrument offers both CW and 2 kHz modulation modes, enabling it to double as a fibre identification source. It features complete status indicators, a low-battery indicator, and an Auto-Off function to conserve power. High and low power output levels are selectable to maximise battery life.

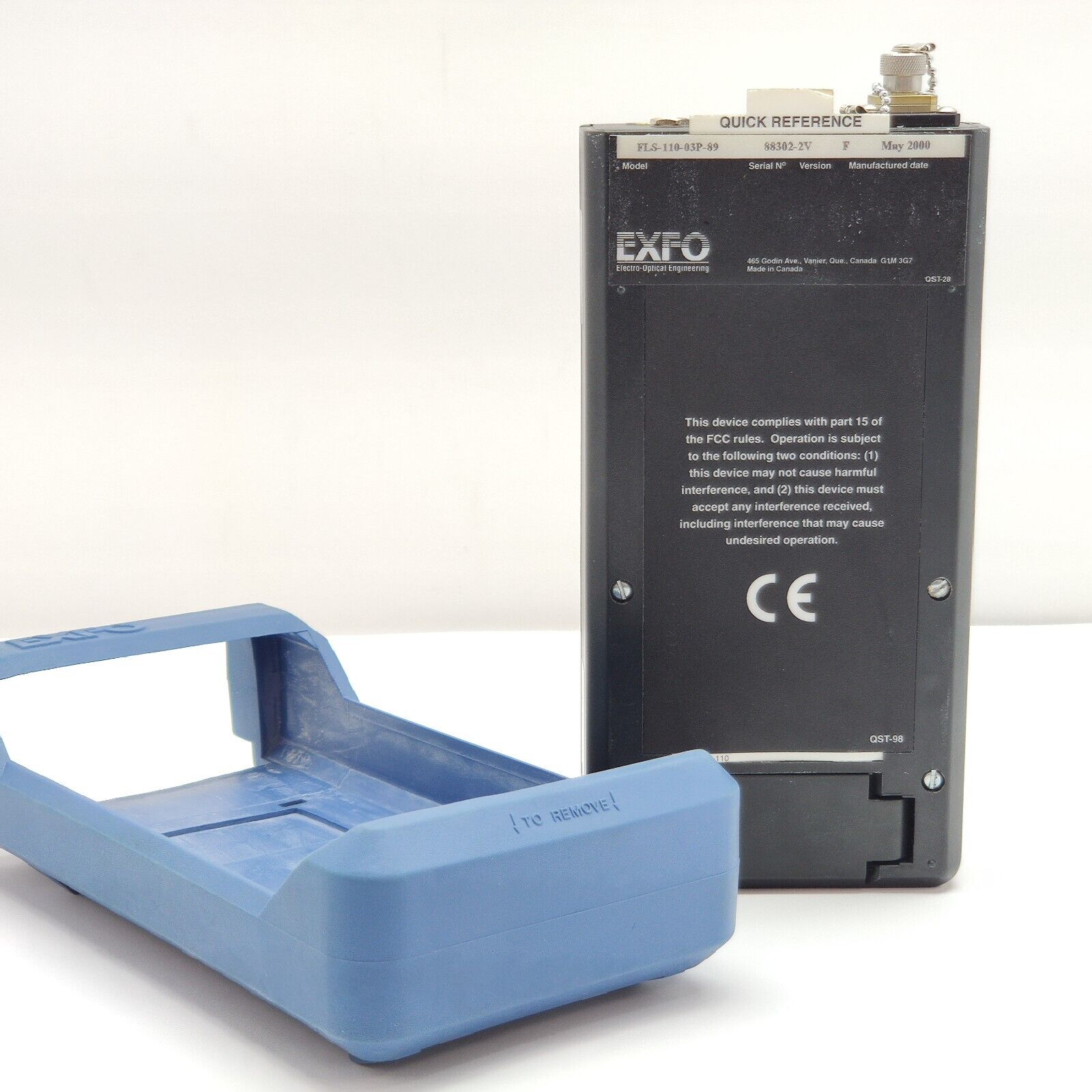

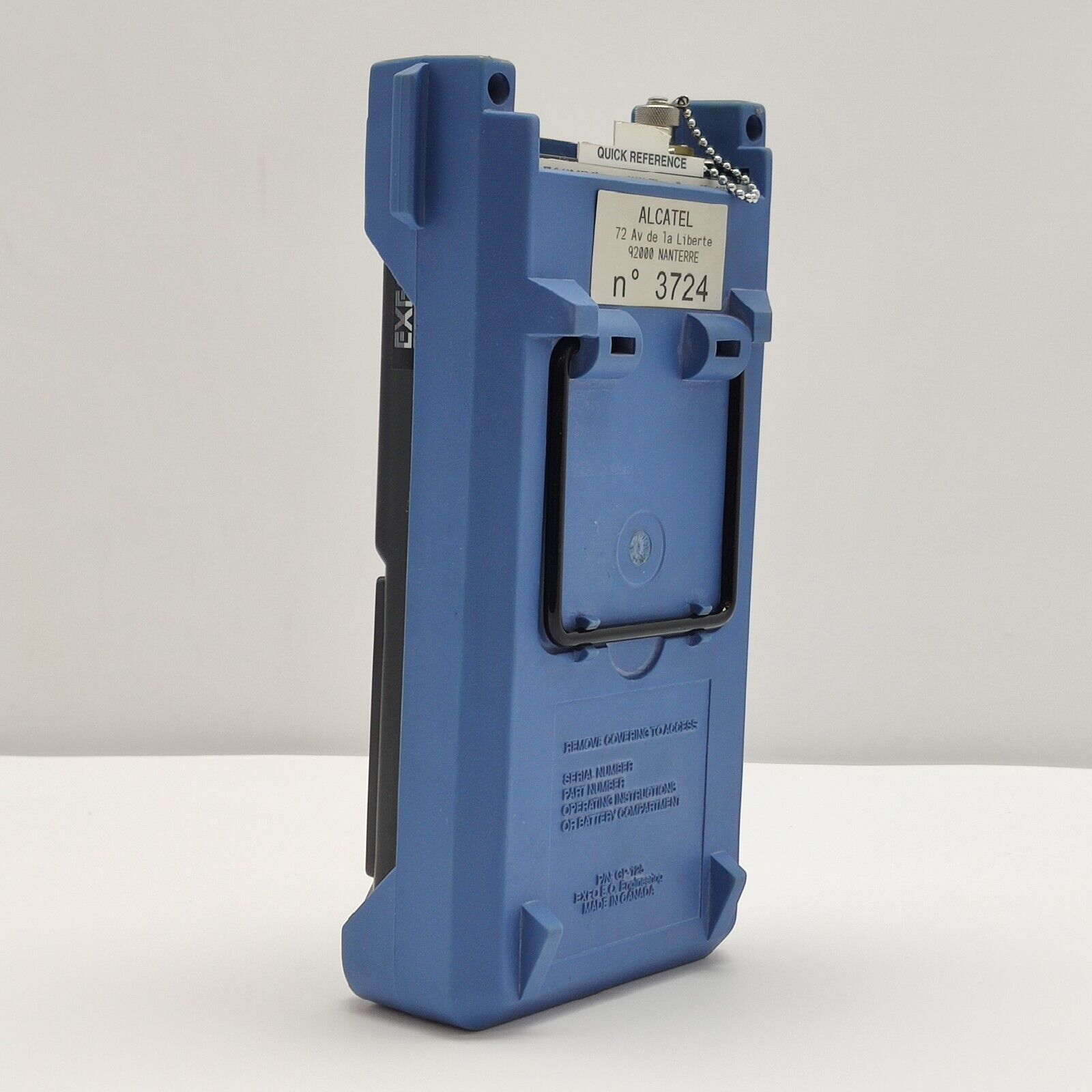

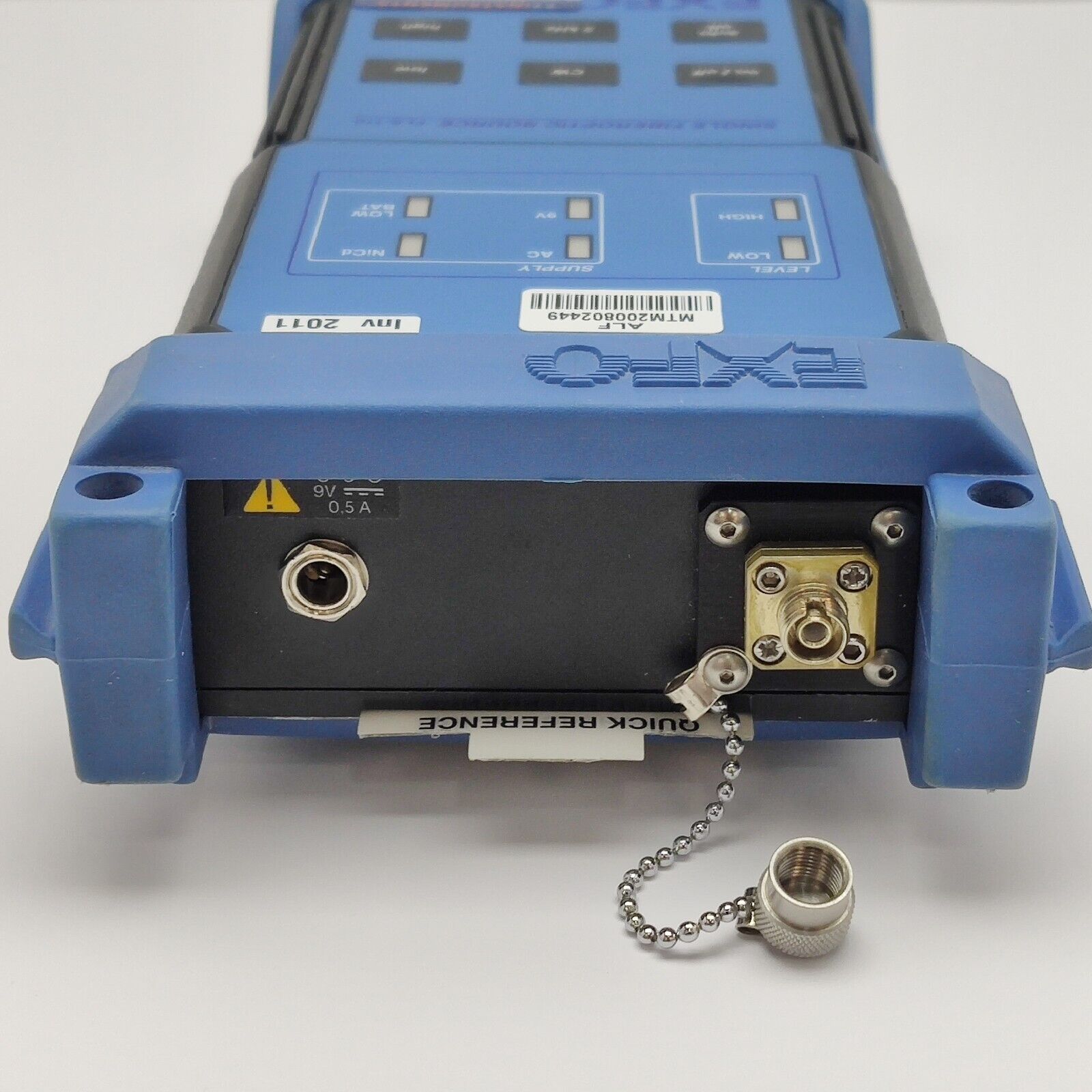

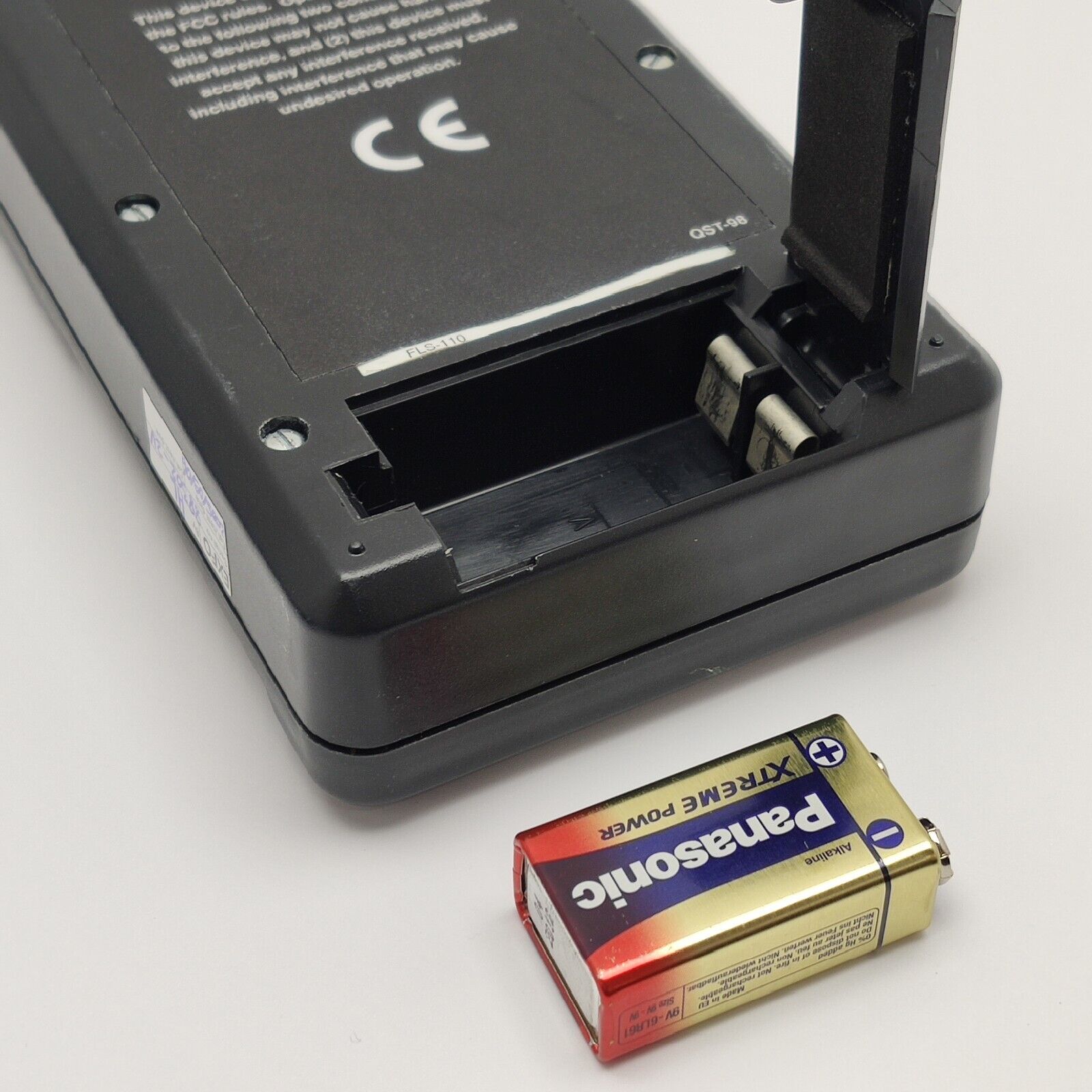

The FLS-110 provides three complementary power sources: a built-in rechargeable NiCd battery pack, a 9 V alkaline battery backup (automatically engaged when the NiCd pack runs low), and an AC adapter/charger for continuous mains-powered operation. The instrument is housed in a rugged, waterproof enclosure surrounded by a shock-absorbing holster, making it suitable for demanding field environments.
POLARIZED SOURCE SPECIFICATIONS (–03P / C band model):
Nominal Wavelength: 1550 nm (C band)
Spectral Width: ≥37 nm (newer spec sheet) / ≥65 nm (earlier spec sheet)
Emitter Type: SLED (newer) / LED (earlier)
Typical Output Power (9/125 µm): –13 dBm (newer) / –20 dBm (earlier)
Modulation: CW and 2 kHz
Power Sources: Built-in NiCd rechargeable, 9 V alkaline backup, AC adapter/charger
Battery Life: ~14 hours typical
Power Levels: High and low selectable
Housing: Waterproof case with shock-absorbing holster
Safety Classification: Class 1 LED Product
Compliance: 21 CFR 1040.10, IEC 60825-1
STANDARD ACCESSORIES:

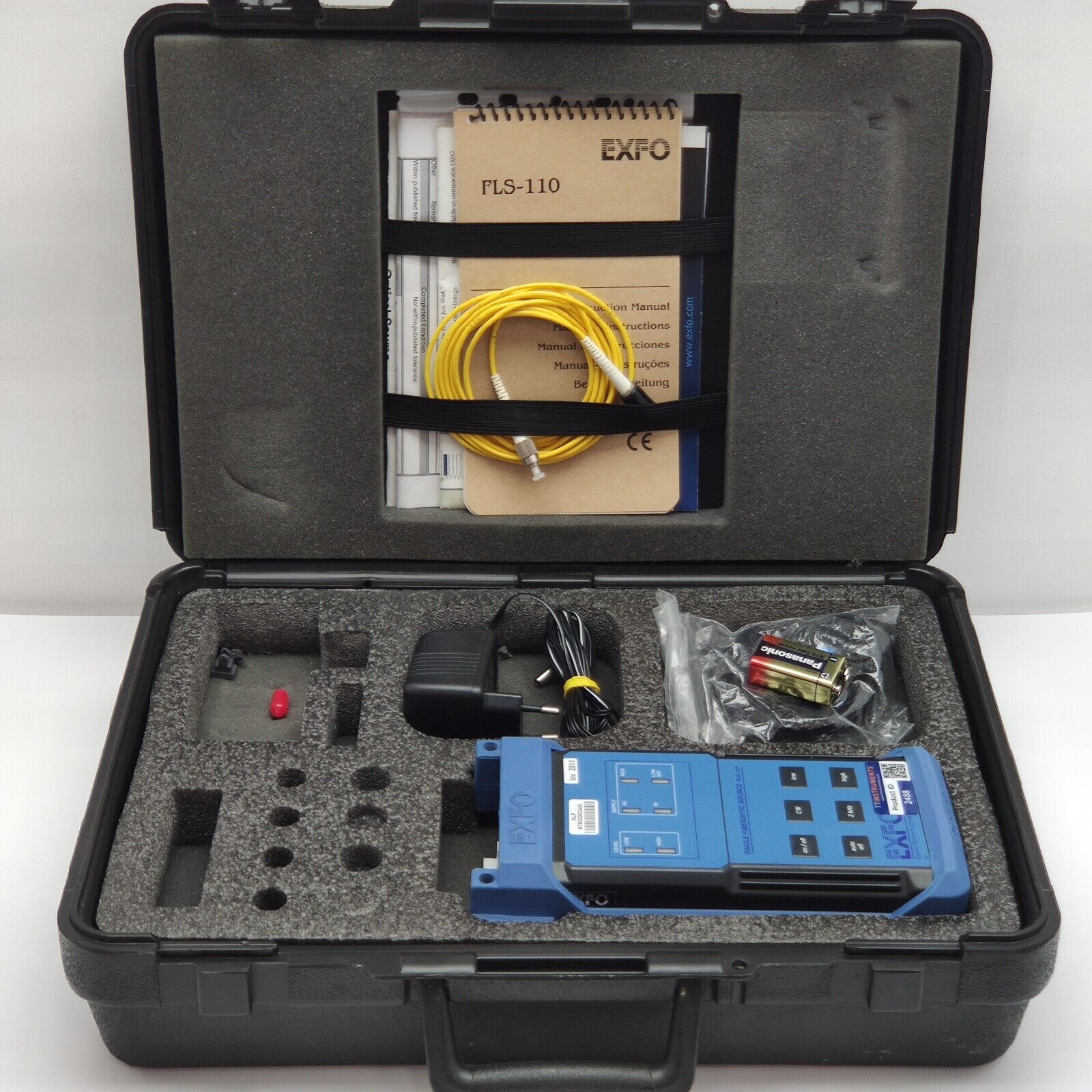

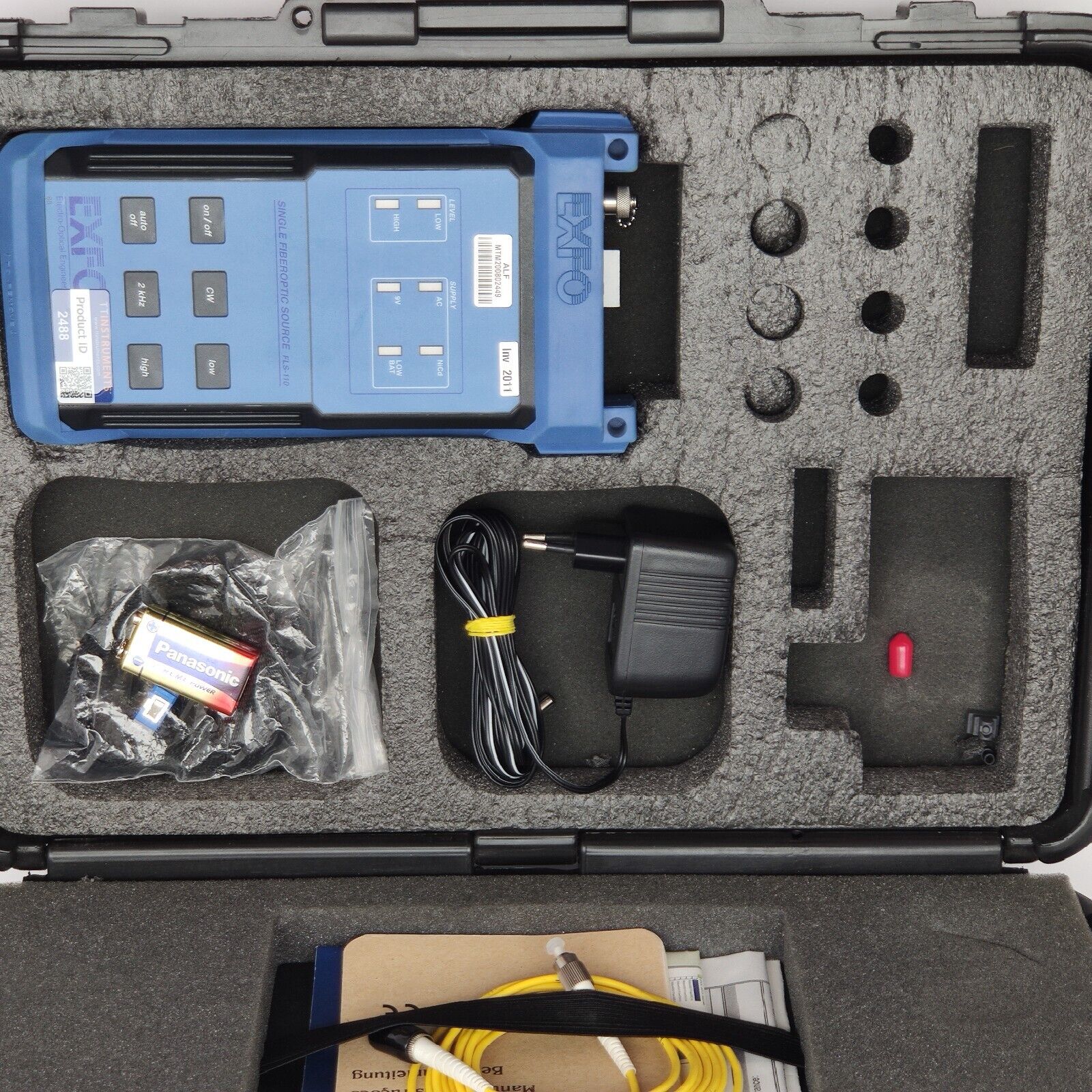

User guide, AC adapter/charger, built-in NiCd batteries, 9 V alkaline battery, carrying case, protective holster, shoulder strap, certificate of compliance.
EXFO FLS-110 Optical Polarized Source — Official Spec Sheet (PDF): Download PDF
EXFO FLS-110 User Guide (P/N 1049824) — Official User Manual (PDF): Download PDF
EXFO FLS-110 User Guide — Alternate hosted copy (PDF): Download PDF
EXFO FLS-110 Optical Polarized Source Spec Sheet — Earlier version (PDF): Download PDF
EXFO FLS-110 Part Number Guide — Wavelength and Connector Reference (PDF): Download PDF
Product Overview
Condition: Used
The EXFO FLS-110-03P is a 1550 nm polarized optical light source configured for field PMD measurements. This is the C-band model (03P), especially suited to use alongside the EXFO FTB-5500B PMD Analyzer.
What is typically included with this product:
• FLS-110-03P optical polarized source (1550 nm C-band)
Manufacturer's Description
The EXFO FLS-110 Optical Polarized Source is a handheld instrument designed for field polarization mode dispersion (PMD) measurements. It is a wide-spectrum polarized LED/SLED source available in two wavelength models — O band (1310 nm, model -02P) and C band (1550 nm, model -03P) — and is especially suited for use with the EXFO FTB-5500B PMD Analyzer.
The instrument offers both CW and 2 kHz modulation modes, enabling it to double as a fibre identification source. It features complete status indicators, a low-battery indicator, and an Auto-Off function to conserve power. High and low power output levels are selectable to maximise battery life.
The FLS-110 provides three complementary power sources: a built-in rechargeable NiCd battery pack, a 9 V alkaline battery backup (automatically engaged when the NiCd pack runs low), and an AC adapter/charger for continuous mains-powered operation. The instrument is housed in a rugged, waterproof enclosure surrounded by a shock-absorbing holster, making it suitable for demanding field environments.
POLARIZED SOURCE SPECIFICATIONS (–03P / C band model):
Nominal Wavelength: 1550 nm (C band)
Spectral Width: ≥37 nm (newer spec sheet) / ≥65 nm (earlier spec sheet)
Emitter Type: SLED (newer) / LED (earlier)
Typical Output Power (9/125 µm): –13 dBm (newer) / –20 dBm (earlier)
Modulation: CW and 2 kHz
Power Sources: Built-in NiCd rechargeable, 9 V alkaline backup, AC adapter/charger
Battery Life: ~14 hours typical
Power Levels: High and low selectable
Housing: Waterproof case with shock-absorbing holster
Safety Classification: Class 1 LED Product
Compliance: 21 CFR 1040.10, IEC 60825-1
STANDARD ACCESSORIES:
User guide, AC adapter/charger, built-in NiCd batteries, 9 V alkaline battery, carrying case, protective holster, shoulder strap, certificate of compliance.
Resources
EXFO FLS-110 Optical Polarized Source — Official Spec Sheet (PDF): Download PDF
EXFO FLS-110 User Guide (P/N 1049824) — Official User Manual (PDF): Download PDF
EXFO FLS-110 User Guide — Alternate hosted copy (PDF): Download PDF
EXFO FLS-110 Optical Polarized Source Spec Sheet — Earlier version (PDF): Download PDF
EXFO FLS-110 Part Number Guide — Wavelength and Connector Reference (PDF): Download PDF
