Condition: Used

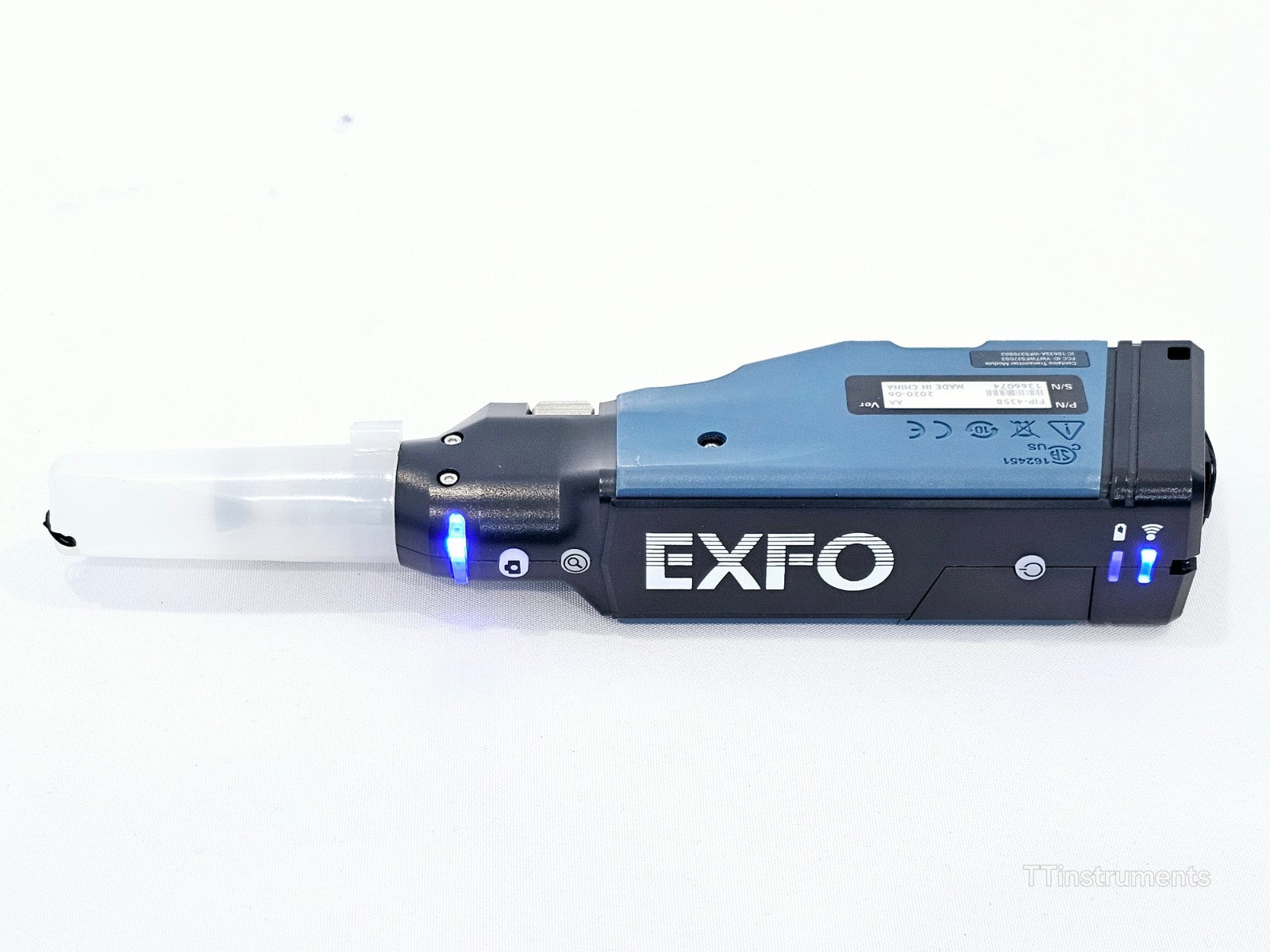

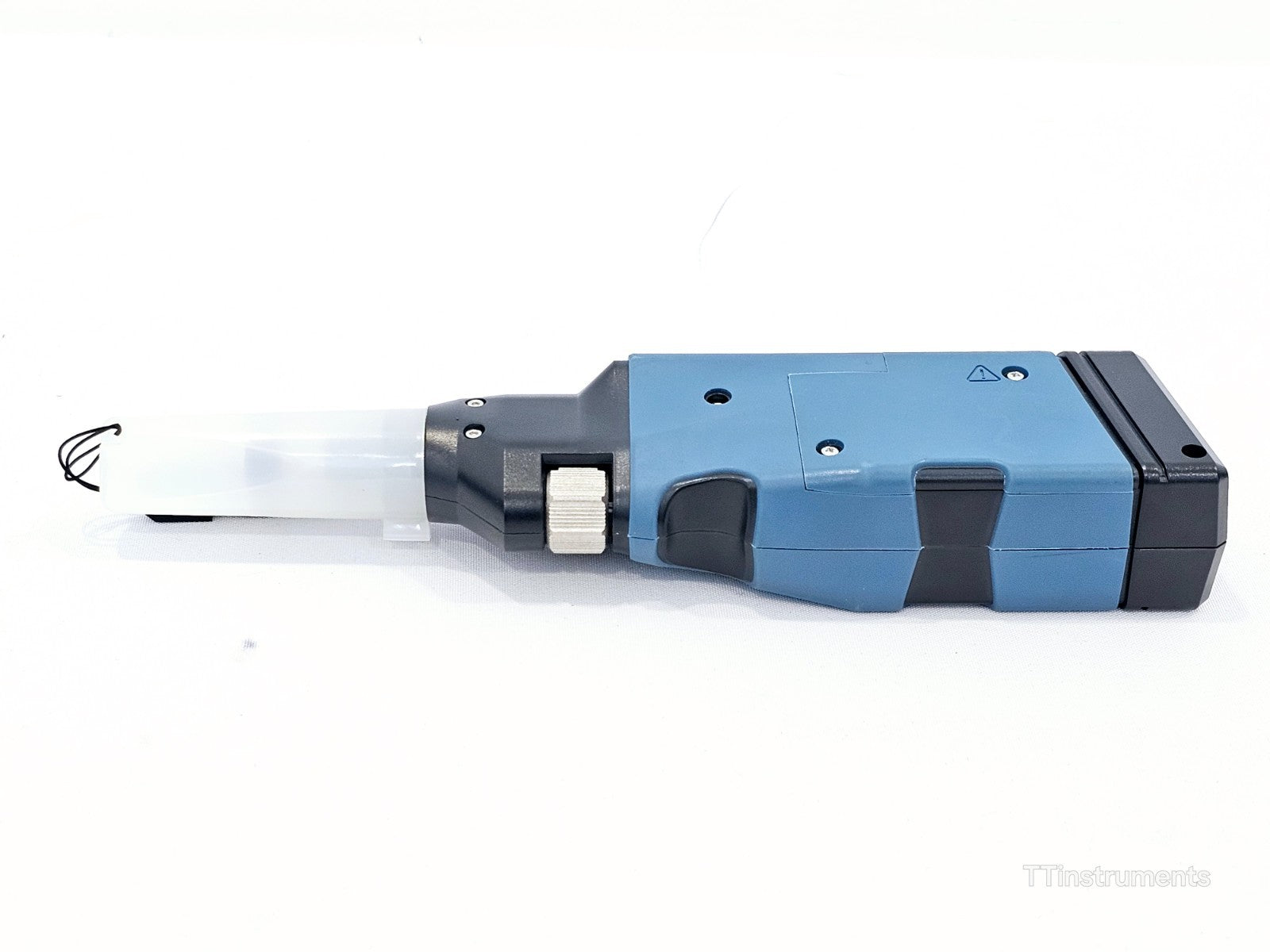

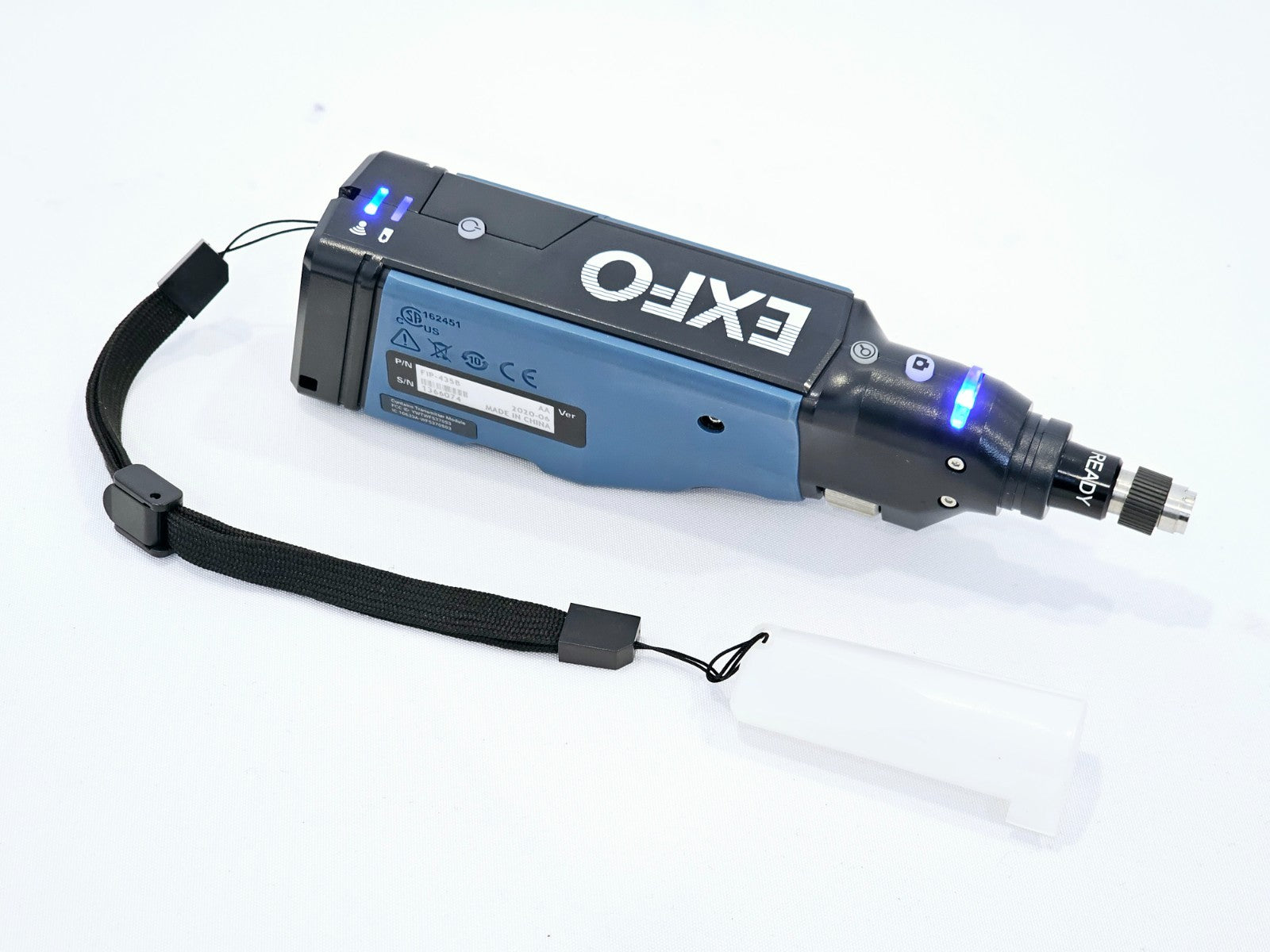

This EXFO FIP-435B is in excellent working condition. Please note that no inspection tips are included with this unit; a selection of compatible tips is available separately.

What's included:
• FIP-435B wireless fibre inspection probe (no tips)

The EXFO FIP-435B is a fully automated wireless fibre inspection probe from the FIP-400B Series, designed to turn any Android or iOS smart device into a professional fibre connector certification tool. Live video is streamed via Wi-Fi — no wired connection is required between the probe and the smart device, eliminating the risk of cable damage and delivering unrestricted freedom of movement in the field.

The FIP-435B features a unique automatic focus-adjustment system that automates every step of the inspection sequence — auto-centering the image, optimising focus, capturing the endface, and applying IEC, IPC or custom pass/fail standards — all in a single one-step process accessible to technicians of any skill level. A built-in focus protection feature prevents image capture if focus is not properly achieved, avoiding false-positive results.

A pass/fail LED indicator on the probe body allows screenless operation: users receive an immediate analysis result without needing to look at the smart device, enabling true single-handed use. The probe is self-powered by an onboard rechargeable battery and does not draw power from the connected smart device.

The FIP-400B Series features the only probes in the industry offering three magnification levels, and a unique 912 µm x 912 µm field of view that facilitates visual MPO/MTP connector inspection. The ConnectorMax2 Mobile application (Android and iOS) provides live video display, screen rotation, zoom, results review, and documentation and reporting features including cloud sync.

Key Specifications:
Connectivity: Wi-Fi (2.4 GHz, 2400.0–2483.5 MHz); also USB to EXFO FTB, MaxTester platforms and Windows PC
Smartdevice Compatibility: Android and iOS
Magnification: Triple magnification levels
Field of View: 912 µm x 912 µm (MPO/MTP series)
Focus System: Automatic focus adjustment with focus protection
Analysis Standards: IEC, IPC, or custom pass/fail certification
Connector Types Supported: FC, SC, LC, ST (UPC and APC), MPO/MTP, FTTH/FTTA and more (via interchangeable tips)

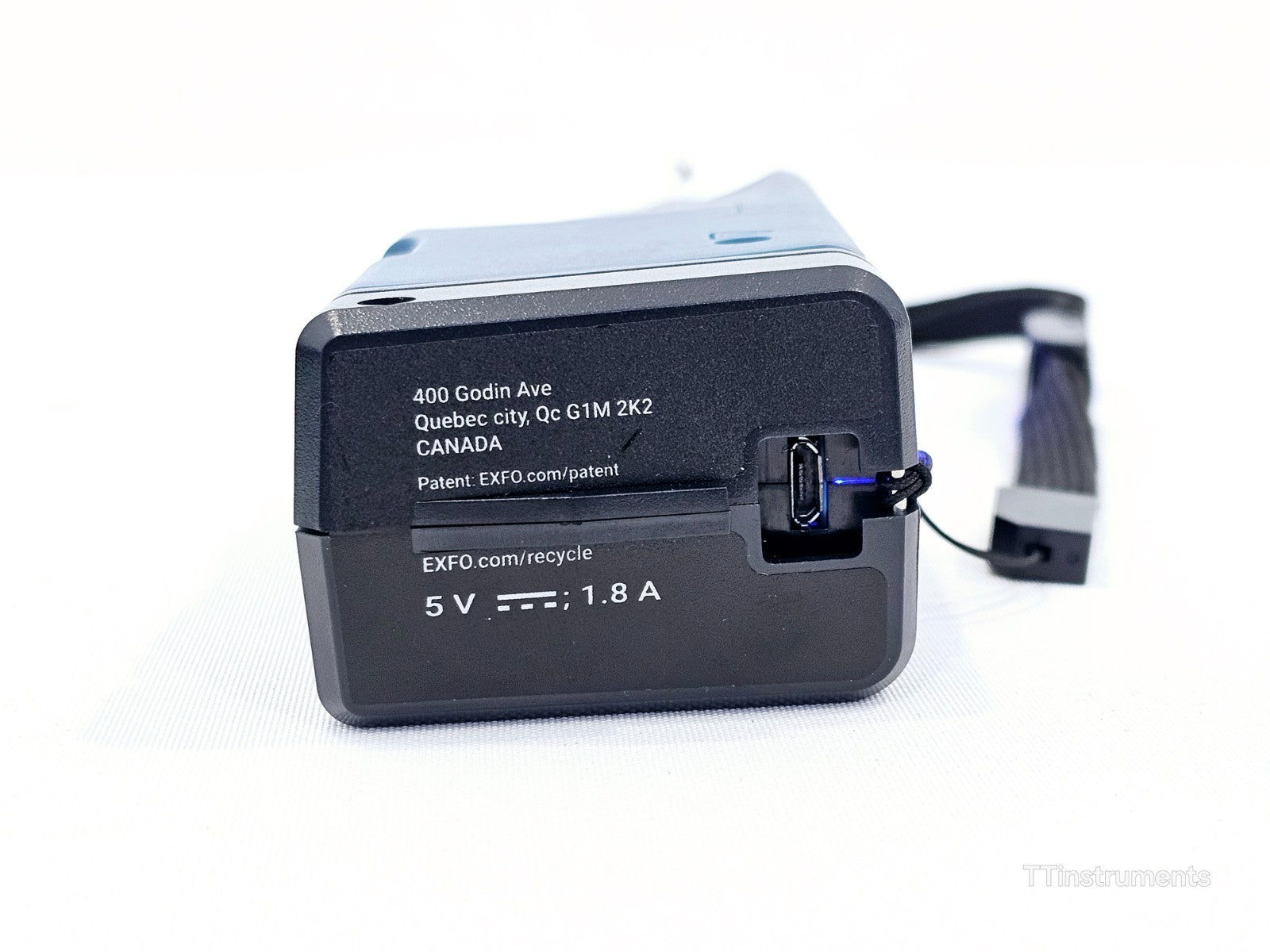

Battery: Onboard rechargeable lithium-ion; up to 6 hours continuous operation
Battery Recharge: Via USB cable to standard AC outlet
Wi-Fi Frequency: 2.4 GHz; maximum output power 15 dBm
Software: ConnectorMax2 Mobile (Android/iOS); ConnectorMax2 (Windows PC)
Platform Compatibility: EXFO FTB ecosystem, MaxTester 700B OTDR Series, MaxTester 940/945 OLTS, MAX-FIP display, LTB platforms, PCs and laptops

Typical Applications:
Fibre-to-the-Antenna (FTTA) and Remote Radio Head (RRH)
FTTx and hybrid networks
Distributed Antenna Systems (DAS) and fibre-fed small cells
Data centres
Campus and private networks
Central offices
Laboratories and manufacturing operations

EXFO FIP-400B Series Spec Sheet (v11) — official EXFO datasheet covering FIP-435B specifications and features: Download PDF

EXFO FIP-400B Series Spec Sheet — hosted by DigiComm, covering FIP-435B wireless probe technical details: Download PDF

EXFO FIP-435B Spec Sheet — hosted by AAA Testers: Download PDF

EXFO FIP-425B/435B Fiber Inspection Probe and ConnectorMax2 Mobile User Guide (PDF): Download PDF

EXFO FIP-400B Series Datasheet — hosted by Fiber Instrument Sales: Download PDF
