Condition: Used

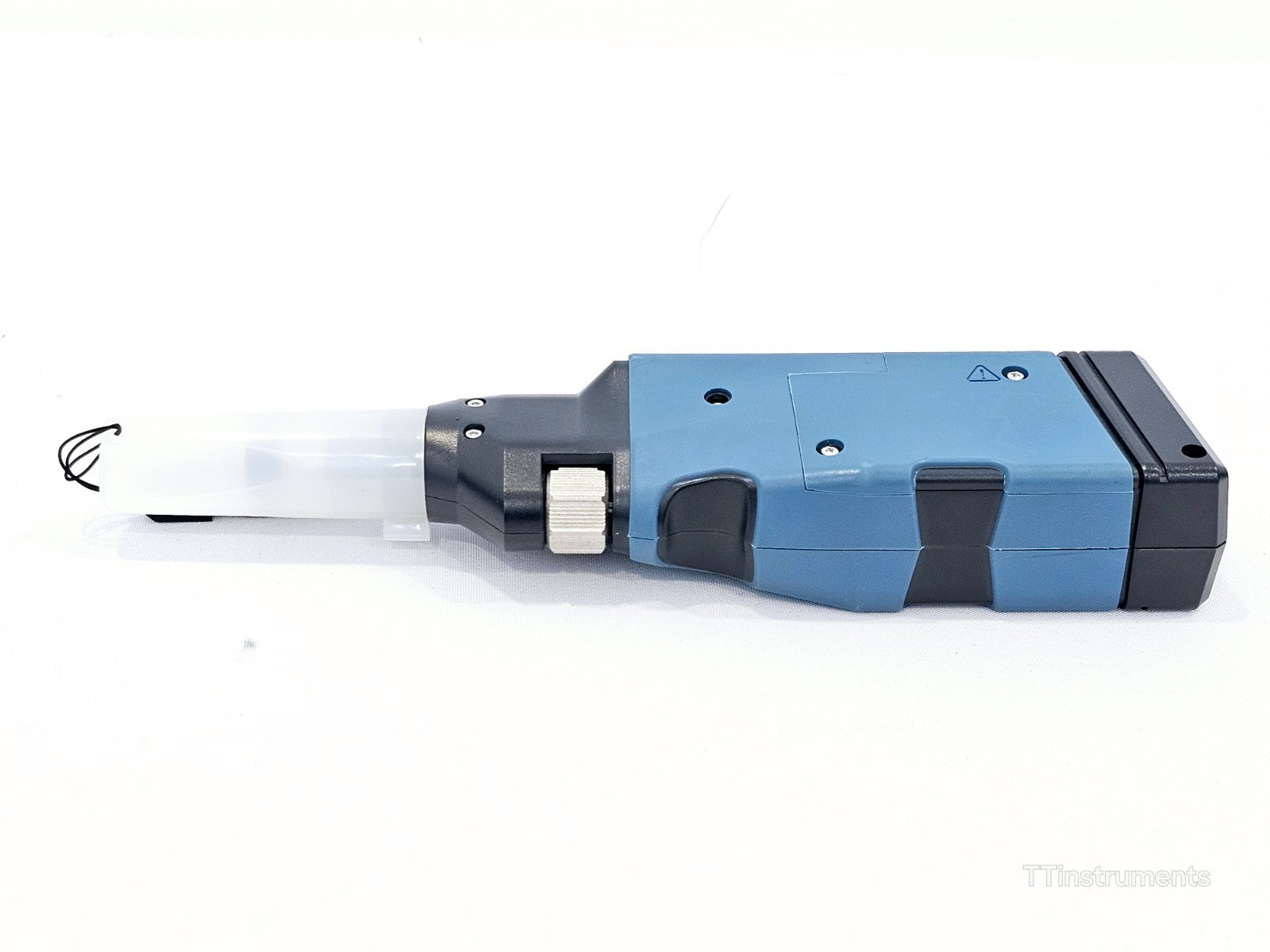

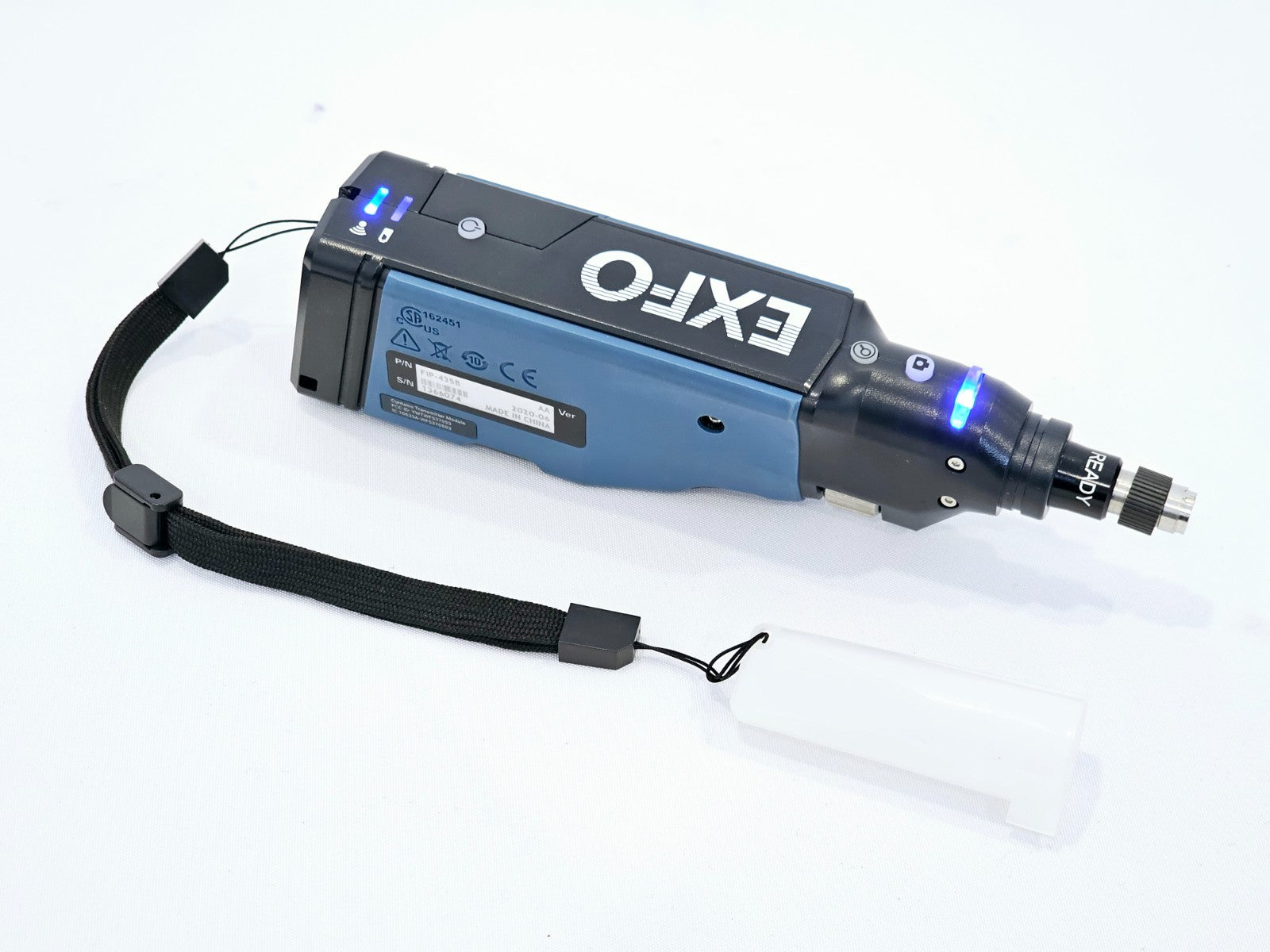

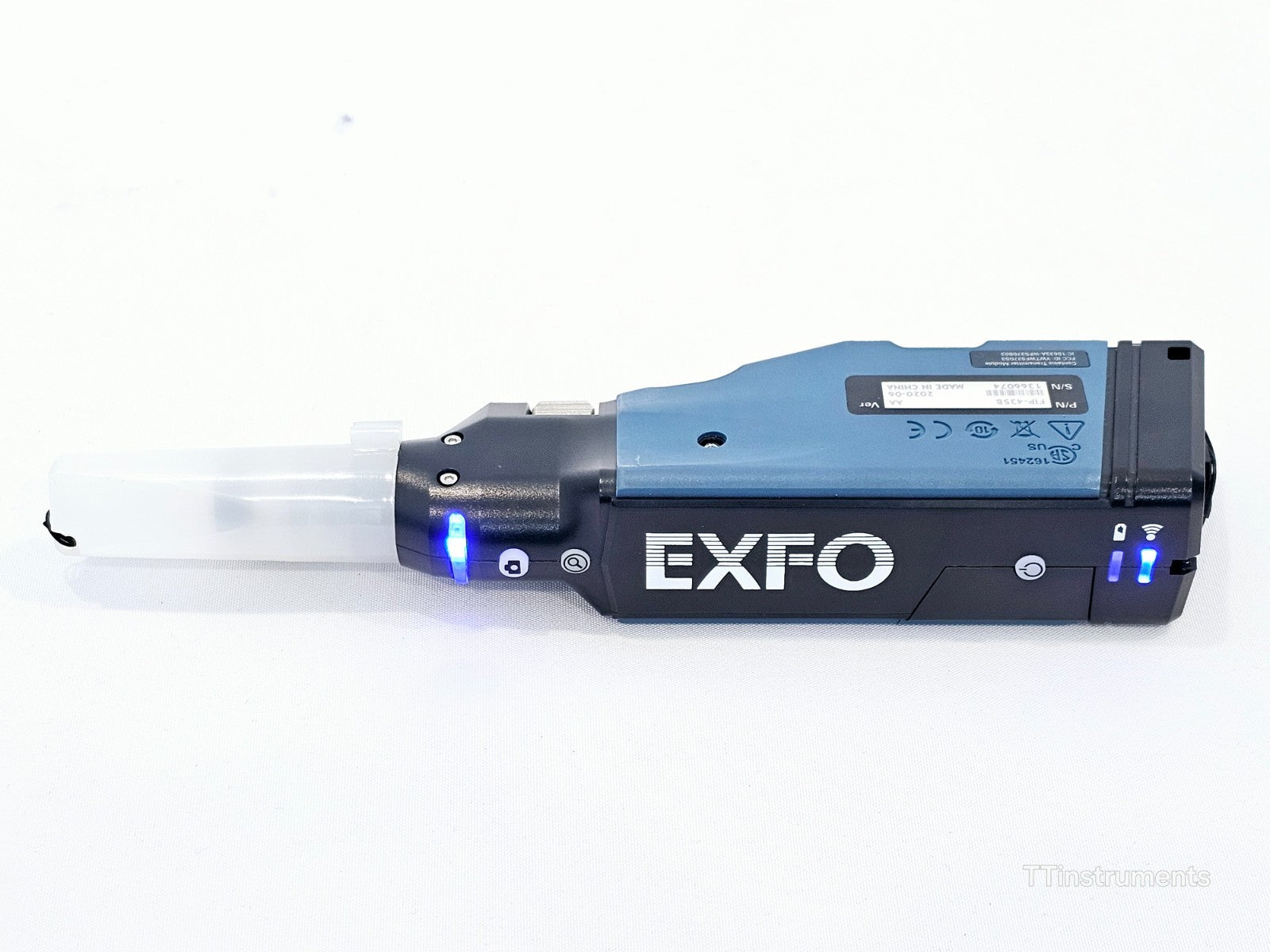

The EXFO FIP-435B is offered in excellent working condition with no inspection tips included. A selection of compatible tips is available separately. The probe operates fully wirelessly via Wi-Fi and is ready for use with the EXFO ConnectorMax2 Mobile application on Android or iOS devices.

What is included:
• FIP-435B wireless fibre inspection probe (probe body only)
• No tips included — a selection of tips is available separately

The EXFO FIP-435B is a fully automated wireless fibre inspection probe and part of the FIP-400B Series. It streams live video via Wi-Fi to Android or iOS smart devices running the ConnectorMax2 Mobile application, with no wired connection required between the probe and the device. The probe is self-powered by an onboard rechargeable battery, eliminating the need for cumbersome external battery packs and preventing smart device battery drain.

The FIP-435B features a 100% automated test sequence including automatic image centring, automatic focus adjustment, automatic capture, and automatic connector endface pass/fail analysis compliant with IEC 61300-3-35, IPC, or custom standards. A focus protection feature prevents image capture in the event of improper focus, ensuring no defects are missed and false-positive results are avoided. A pass/fail LED indicator allows screenless, single-handed operation without needing to look back at the smart device.

The probe is also compatible with EXFO FTB and MaxTester platforms via USB or Wi-Fi, and with ConnectorMax2 software on Windows-based PCs.

Key Specifications:
Connectivity: Wi-Fi (2.4 GHz, 2400.0–2483.5 MHz) and USB
Wi-Fi Output Power: 15 dBm (maximum)
Compatibility: iOS, Android, EXFO FTB, MaxTester, Windows PC (ConnectorMax2)
Magnification Levels: Triple (3 levels)
Field of View (MPO/MTP): 912 µm x 912 µm
Resolution: Theoretical < 2 µm; detection capability < 1 µm
Analysis Standards: IEC 61300-3-35, IPC, custom
Automation: Auto-focus, auto-centre, auto-capture, auto-analysis, pass/fail LED
Battery Life: Up to 6 hours continuous use (full day typical)

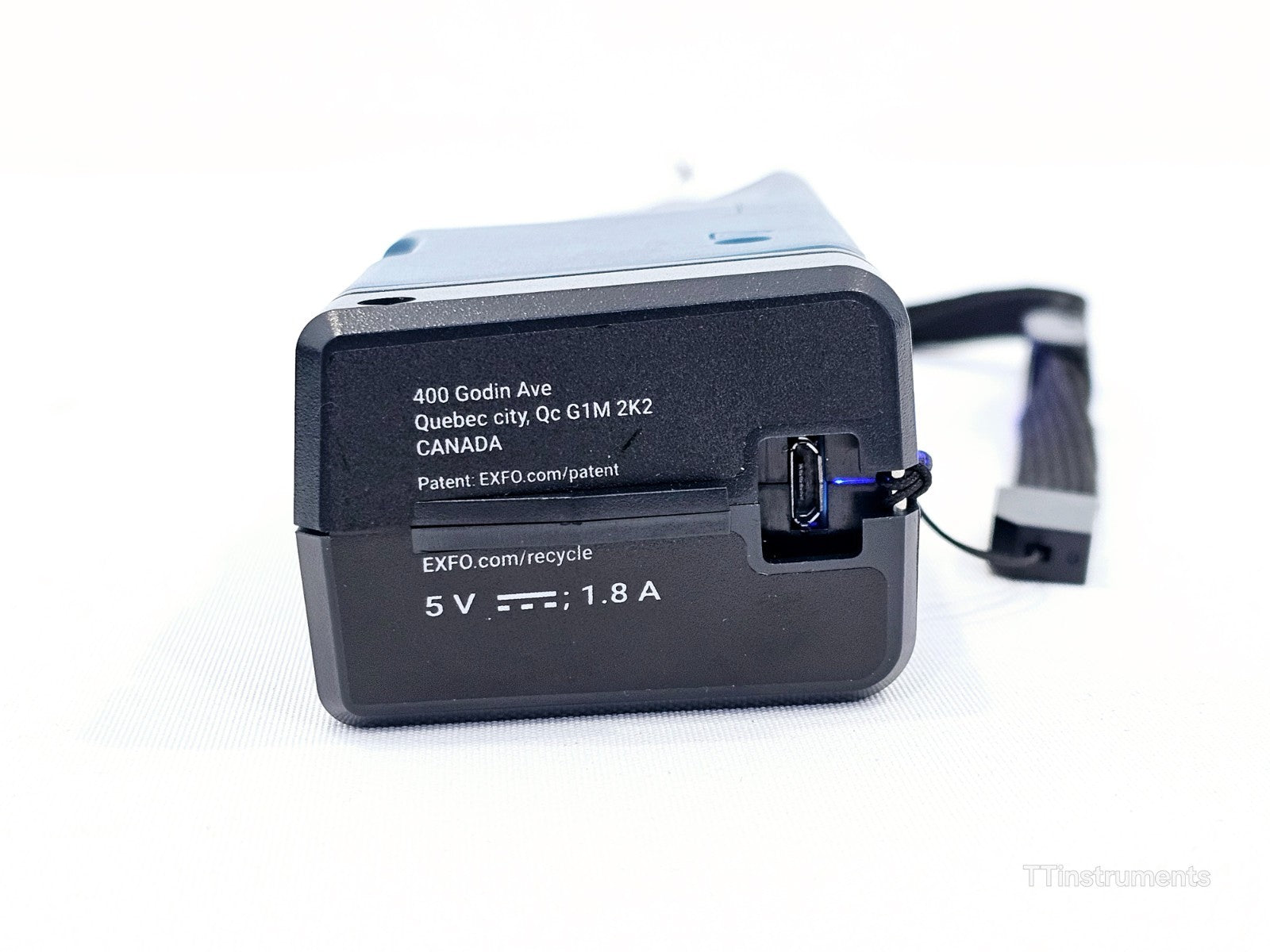

Battery Charging: Via USB cable to standard AC outlet
Size (without tip cap): 38 mm x 32 mm x 170 mm
Size (with tip cap): 38 mm x 32 mm x 200 mm
Weight: 0.2 kg (0.44 lb)

Typical Applications:
- Fibre-to-the-Antenna (FTTA) and Remote Radio Head (RRH)
- FTTx and hybrid networks
- DAS and fibre-fed small cells
- Data centres
- Campus and private networks
- Central office
- Laboratories and manufacturing operations

Software: EXFO ConnectorMax2 Mobile (Android/iOS) — provides live video display, screen rotation, zoom, results review, documentation, and reporting features.

EXFO FIP-435B Specification Sheet (PDF) — via aaatesters.com mirror: Download PDF

EXFO FIP-400B Series Spec Sheet including FIP-435B — via accusrc.com: Download PDF

EXFO FIP-400B Series User Guide / ConnectorMax2 Mobile User Manual (PDF): Download PDF
