EXFO FIP-430B MF-Ready Automated Fiber Inspection Probe + 4 APC Tips

The EXFO FIP-430B is a fully automated USB digital fibre inspection probe for certifying fibre connector endfaces to IEC standards in the field or lab.

• 100% automated one-step inspection — autofocus, auto-centre, auto pass/fail analysis via on-board LED
• MF-Ready: compatible with single-fibre and multifibre (MPO/MTP) tip adapters
• Works standalone via LED indicator or with ConnectorMax2 on PC and EXFO test platforms
Manufacturer
EXFO
Model
FIP-430B
Condition
Refurbished
In stock
0
SKU
8460 7F03
Sale price £637.50
  • Fiber Inspection Scopes
  • Fiber Optics
  • Newly-Listed
Product Overview

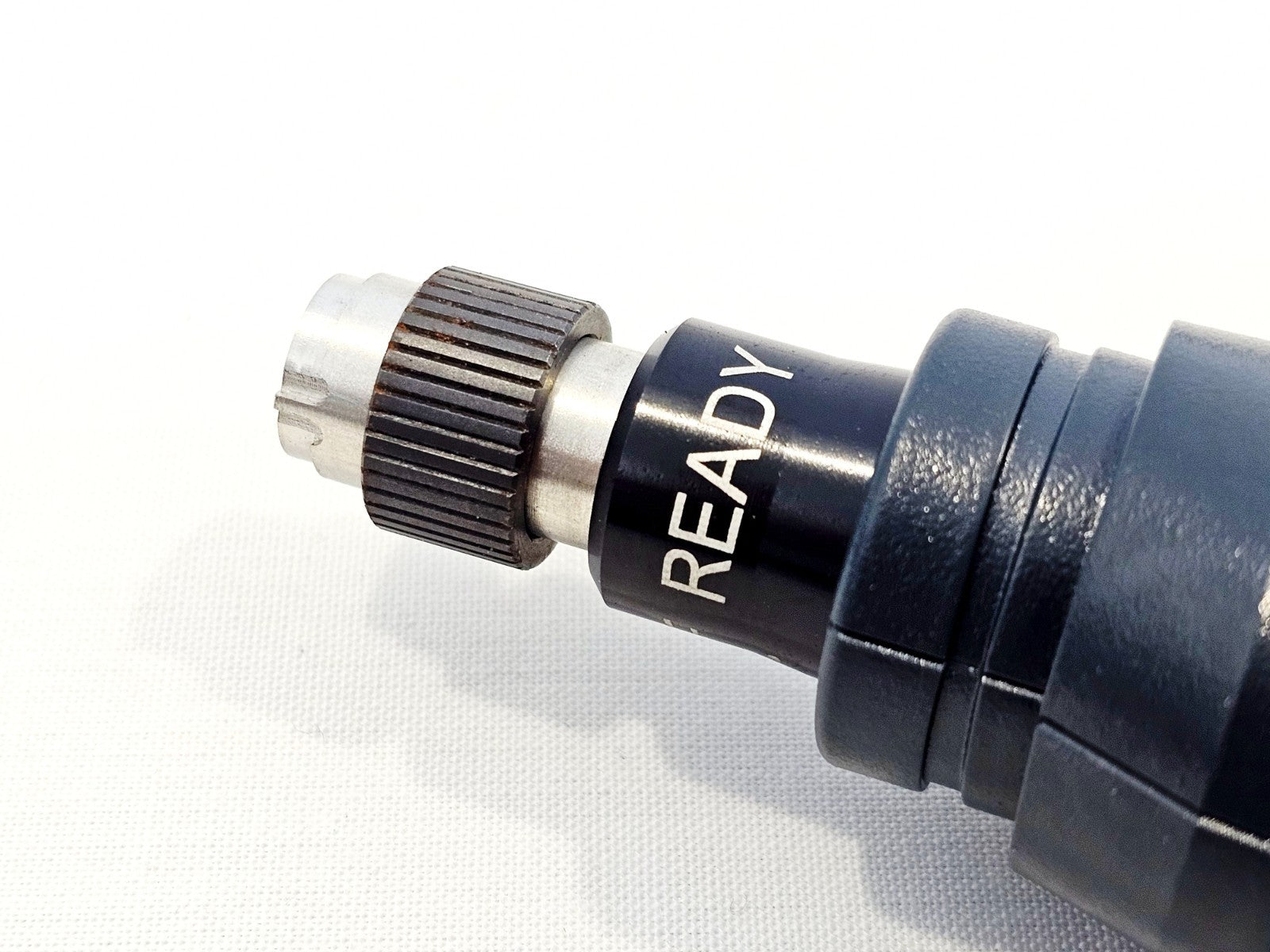

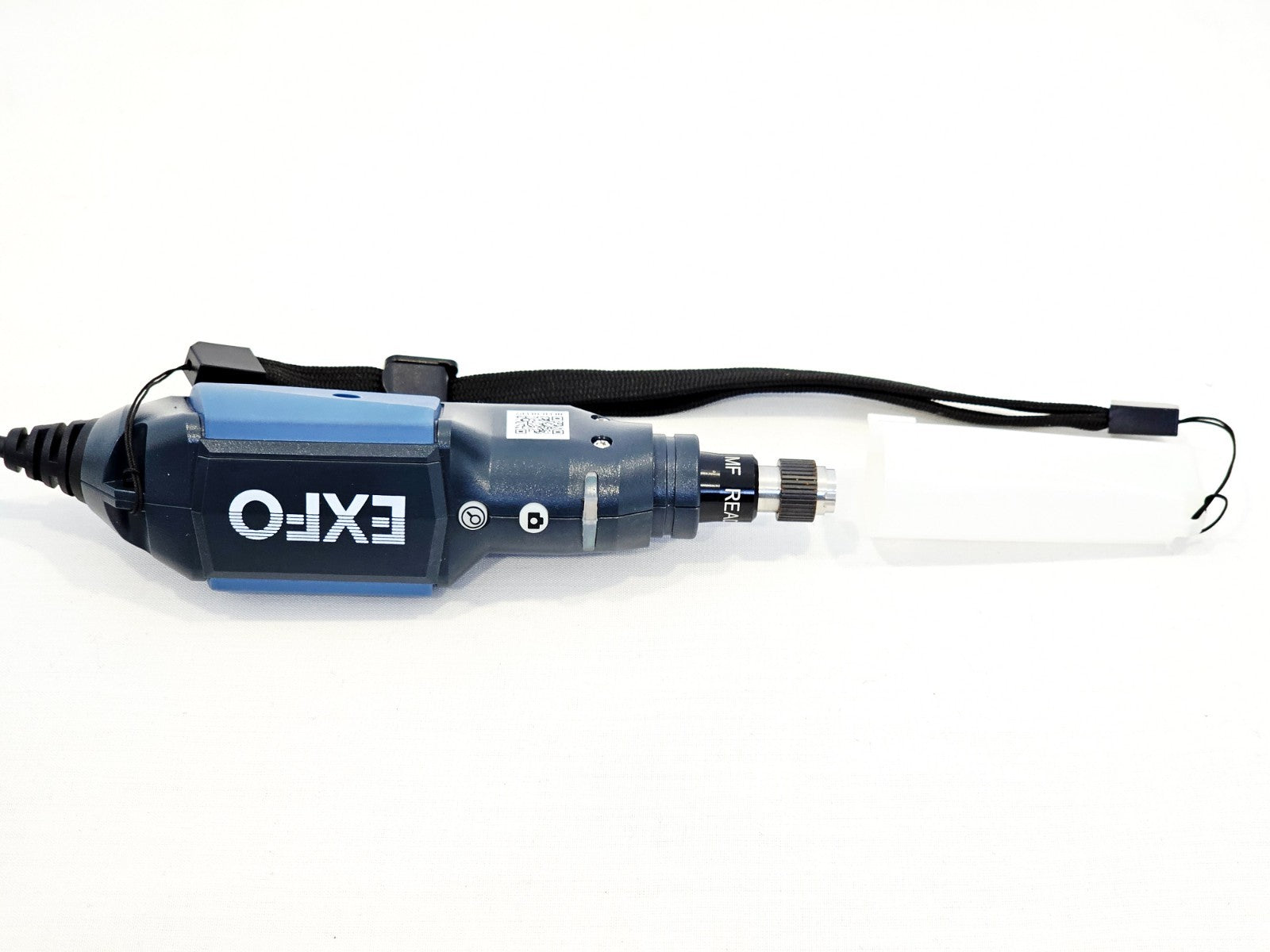

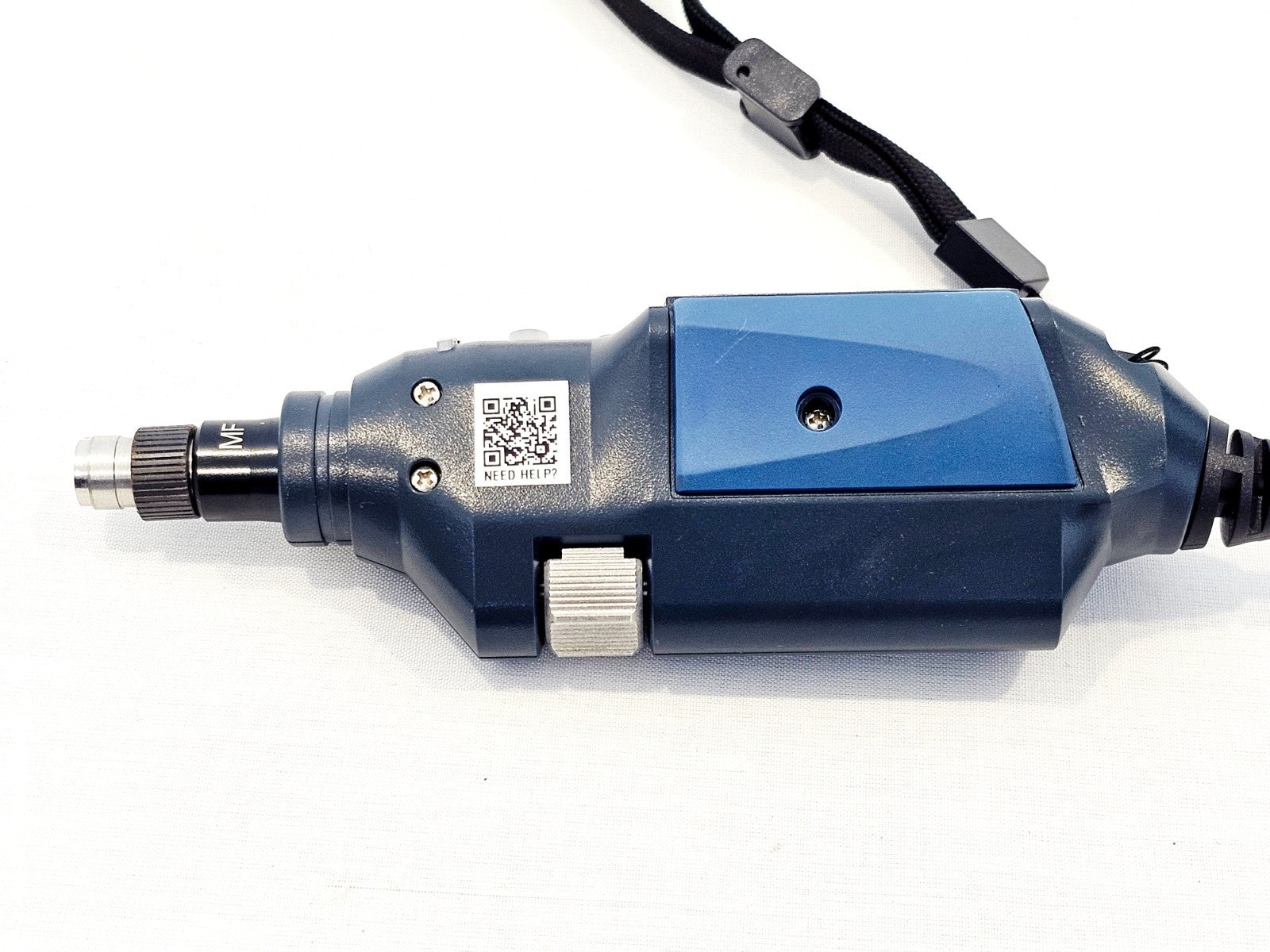

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This EXFO FIP-430B Fibre Inspection Probe is in very good cosmetic condition and has been tested and confirmed in excellent working order.

The FIP-430B is a fully automated, MF-Ready USB digital video inspection probe. It performs the complete connector endface certification sequence automatically — detecting the connection, centring the fibre image, adjusting focus, running pass/fail analysis to IEC or custom standards, and indicating the result via a high-visibility LED — all in a single step. It connects via USB to Windows PCs running ConnectorMax2 software, or directly to EXFO FTB and MaxTester platforms.

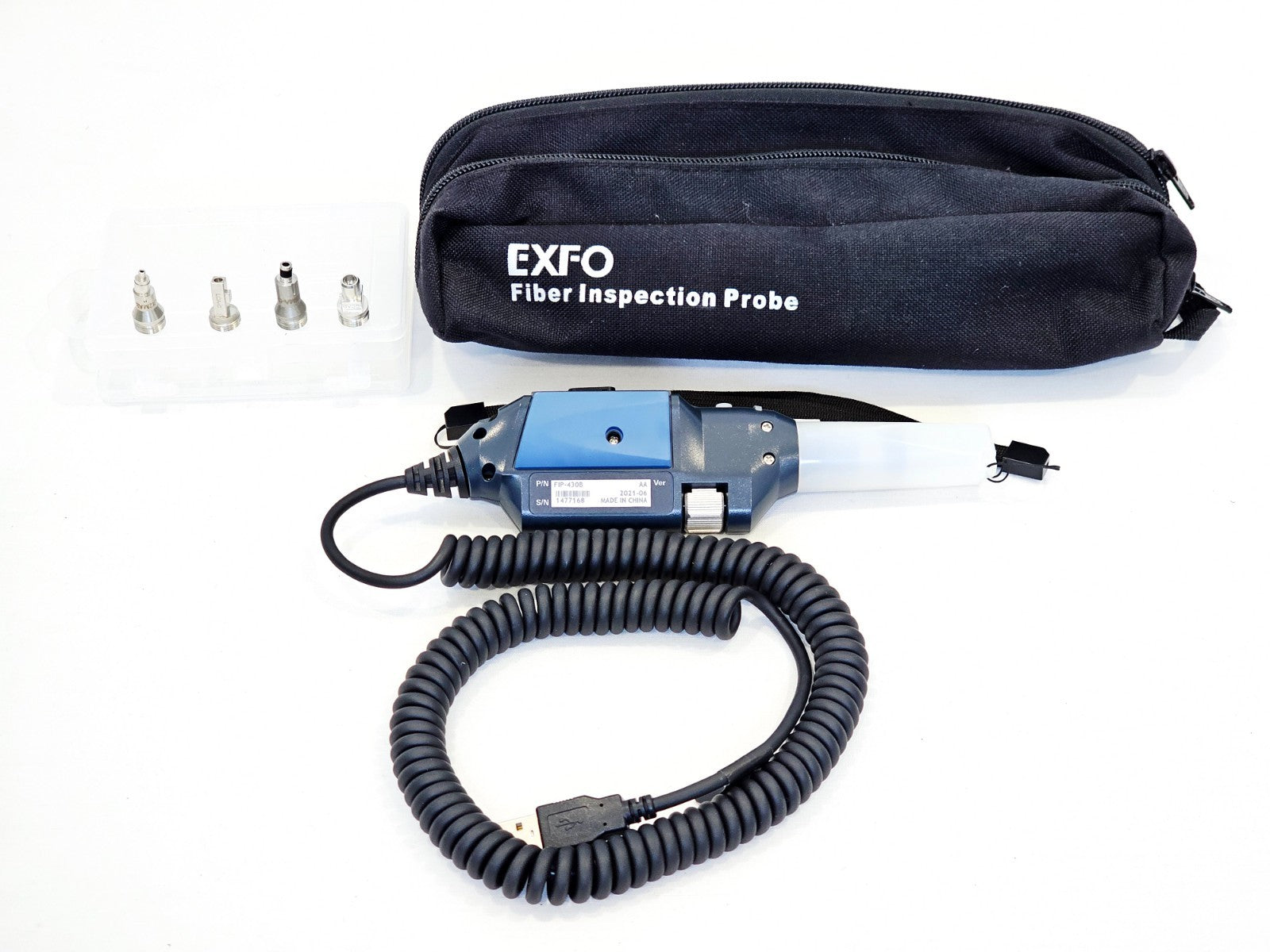

This unit is supplied with the following:

• EXFO FIP-430B probe with USB coiled cable

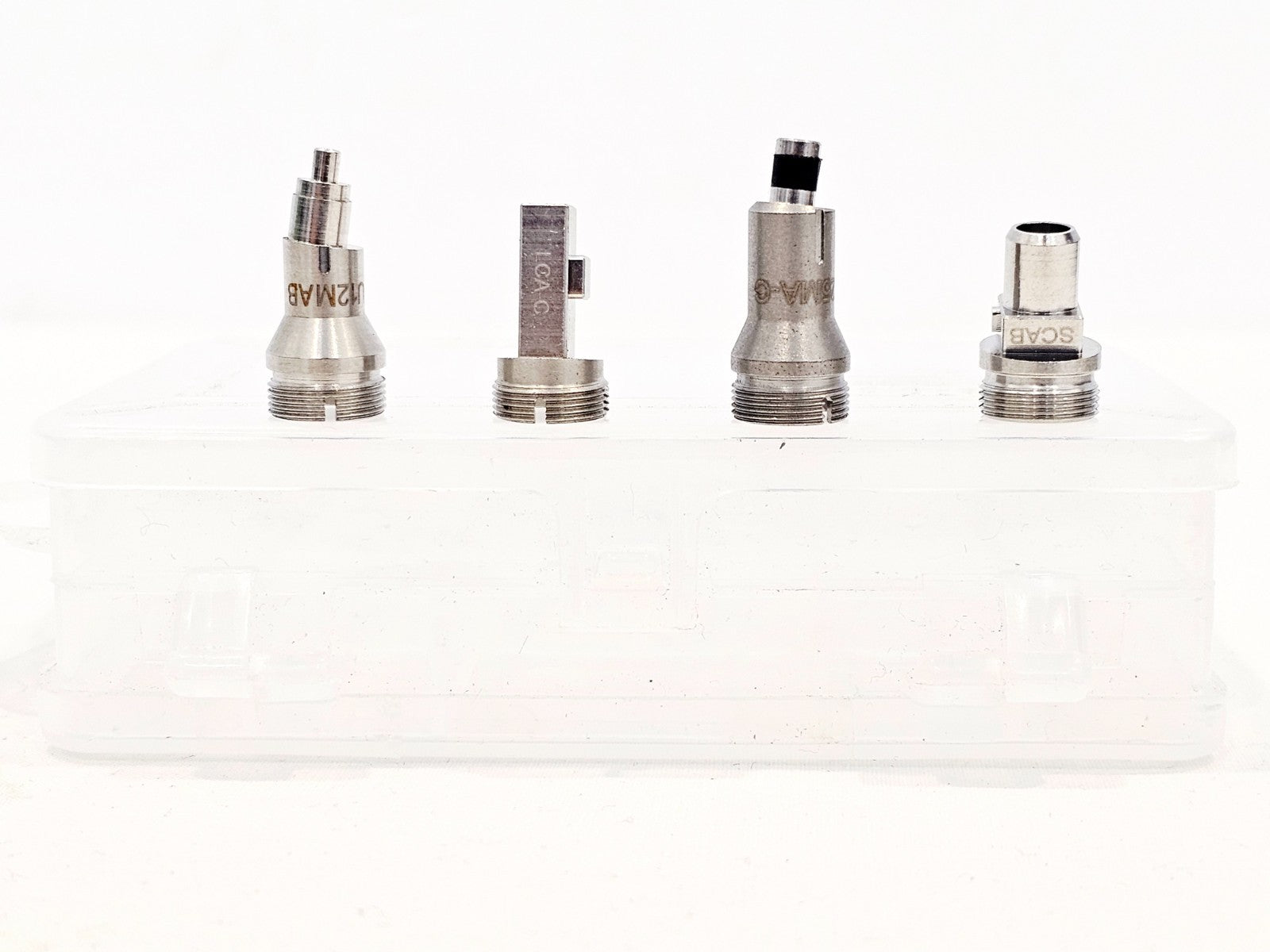

• Tip adapter: U12MAB (universal patchcord, 1.25 mm APC ferrules)
• Tip adapter: LCA-C (LC APC bulkhead)
• Tip adapter: U25MA-C (universal patchcord, 2.5 mm APC ferrules)
• Tip adapter: SCAB (SC APC bulkhead adapter)
• Compartmented plastic tip storage box
• EXFO branded soft carry pouch
