Condition: Seller refurbished

This EXFO FIP-430B kit is in excellent working condition and is supplied with 7 tips covering a broad range of connector types, making it a versatile solution for field and lab fiber inspection. The MAX-FIP viewer runs ConnectorMax2 for fast, automated connector certification with full reporting.

Included in the sale:

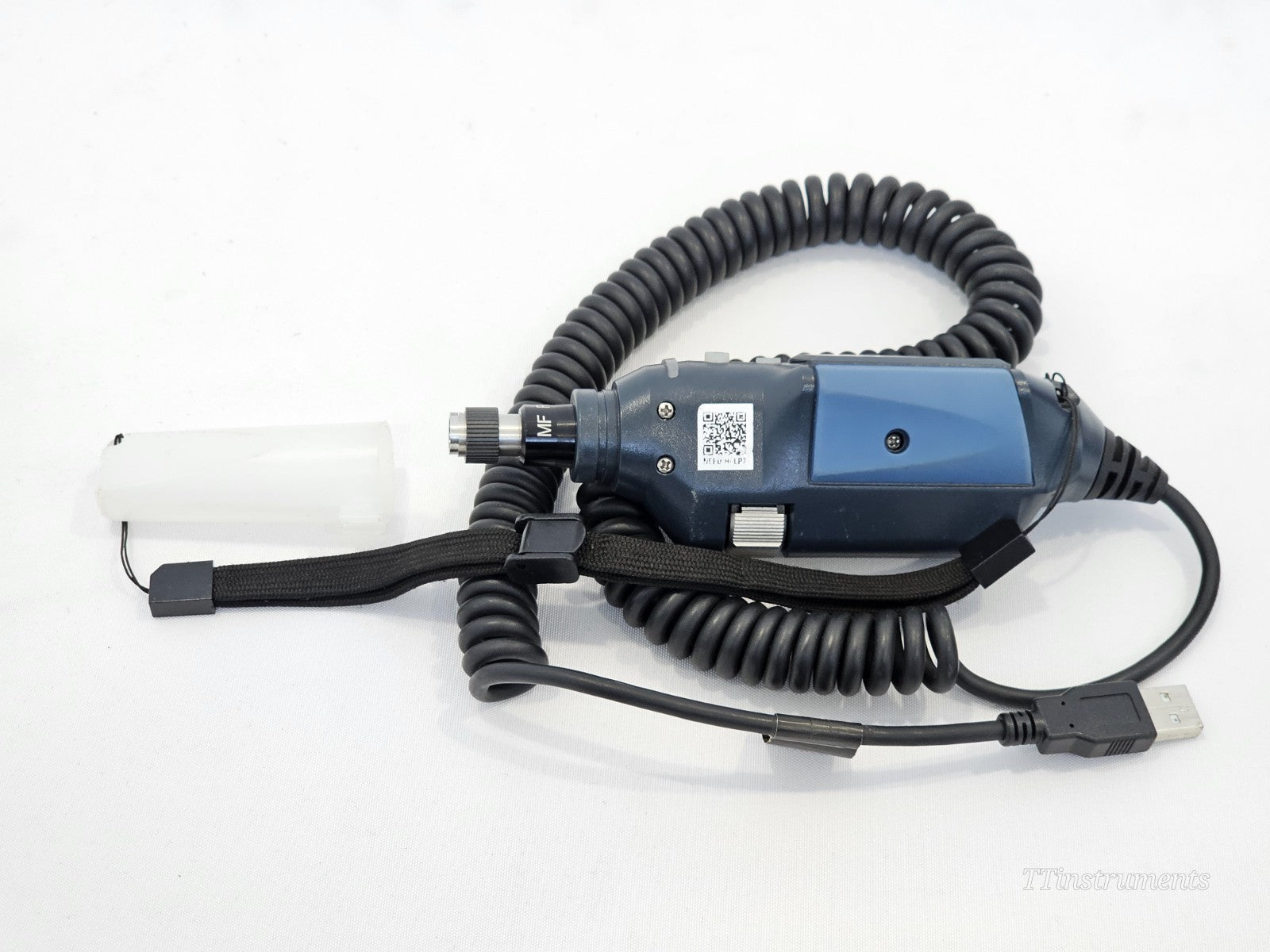

• FIP-430B fiber inspection scope

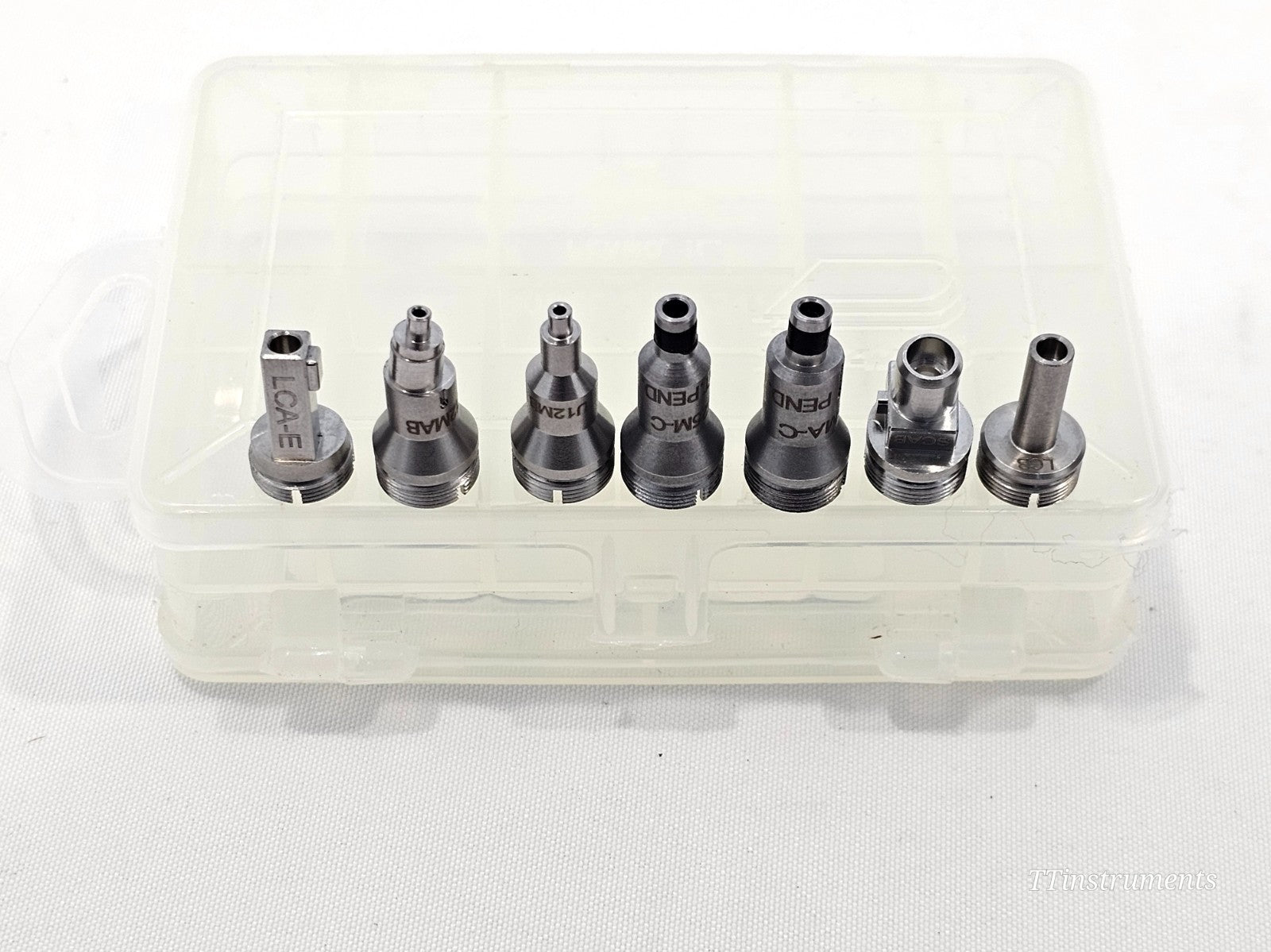

• 7 tips — Patchcord 1.25 mm PC and APC (U12) + 2.5 mm PC and APC (U25), Bulkhead LC-PC and LC-APC + SC-APC
• MAX-FIP viewer with stylus and power adapter
• Carry bag

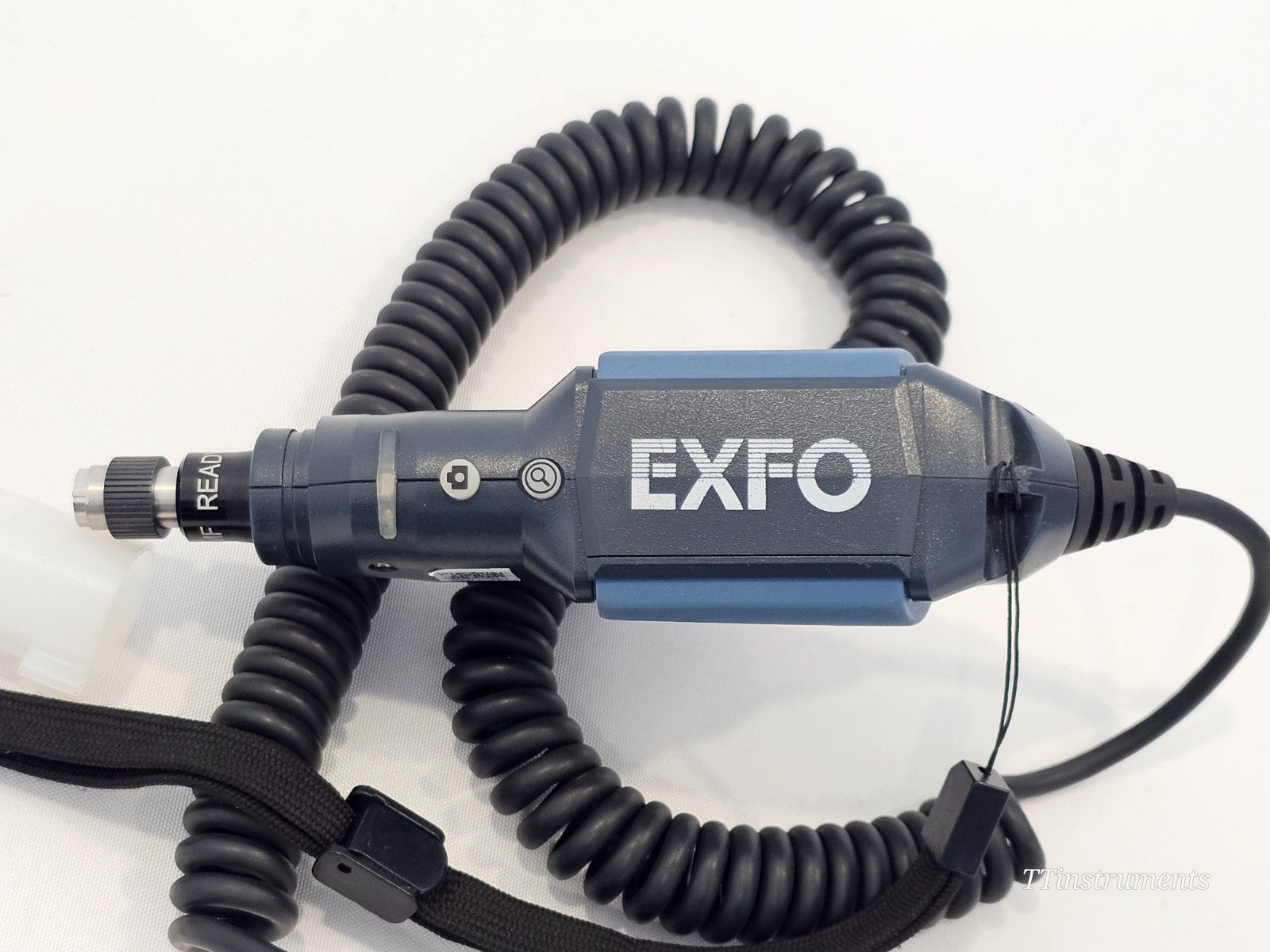

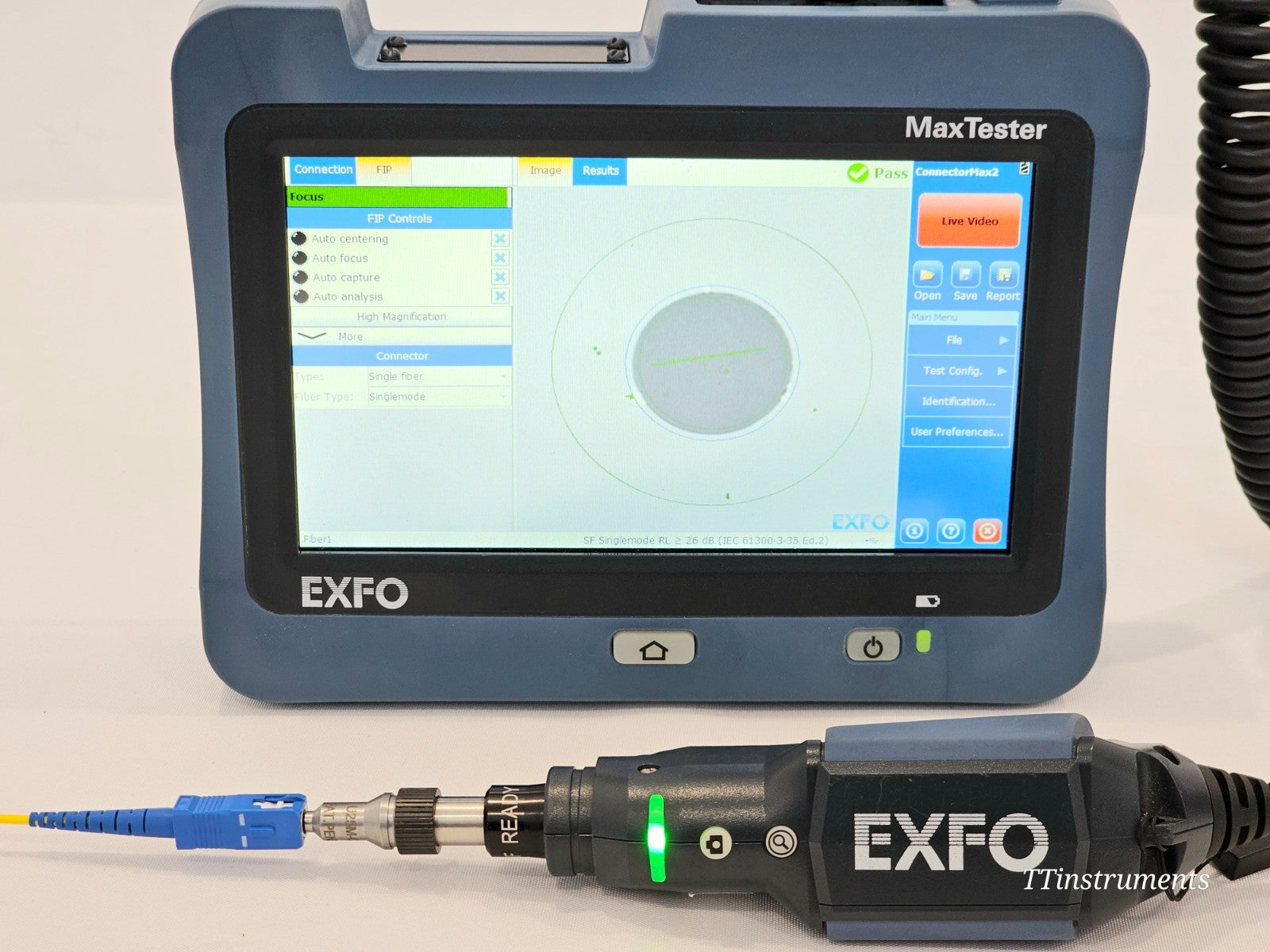

EXFO FIP-430B — Automated Analysis Digital Fiber Inspection Probe

The EXFO FIP-430B is a fully automated digital video inspection probe designed for fast, consistent, and accurate fiber connector endface certification. Part of the FIP-400B Series, it automates every step in the inspection sequence — from fiber connection detection and image centering through to focus adjustment, image capture, pass/fail analysis, and result saving — making it a true one-step inspection process accessible to technicians of any skill level.

Key Features:
• Fully automated one-step inspection process
• Automatic fiber-connection detection
• Automatic image centering
• Automatic focus adjustment and optimisation
• Automatic image capture
• On-board connector endface pass/fail analysis (IEC, IPC or custom standards)
• High-visibility pass/fail LED indicator for screenless operation
• Five-megapixel CMOS capturing device
• Triple magnification modes
• 912 µm x 912 µm field of view for MPO/MTP multifiber connector inspection
• MF-ready: compatible with single-fiber and automated multifiber tips
• Compatible with EXFO FTB ecosystem, MaxTester 700B OTDR Series, MaxTester 940/945 OLTS, MAX-FIP display, LTB platforms, PCs and laptops
• USB wired connectivity
• Rugged rubber casing designed for intense field operation
• ConnectorMax2 software for automated pass/fail assessment, image archiving, and full reporting

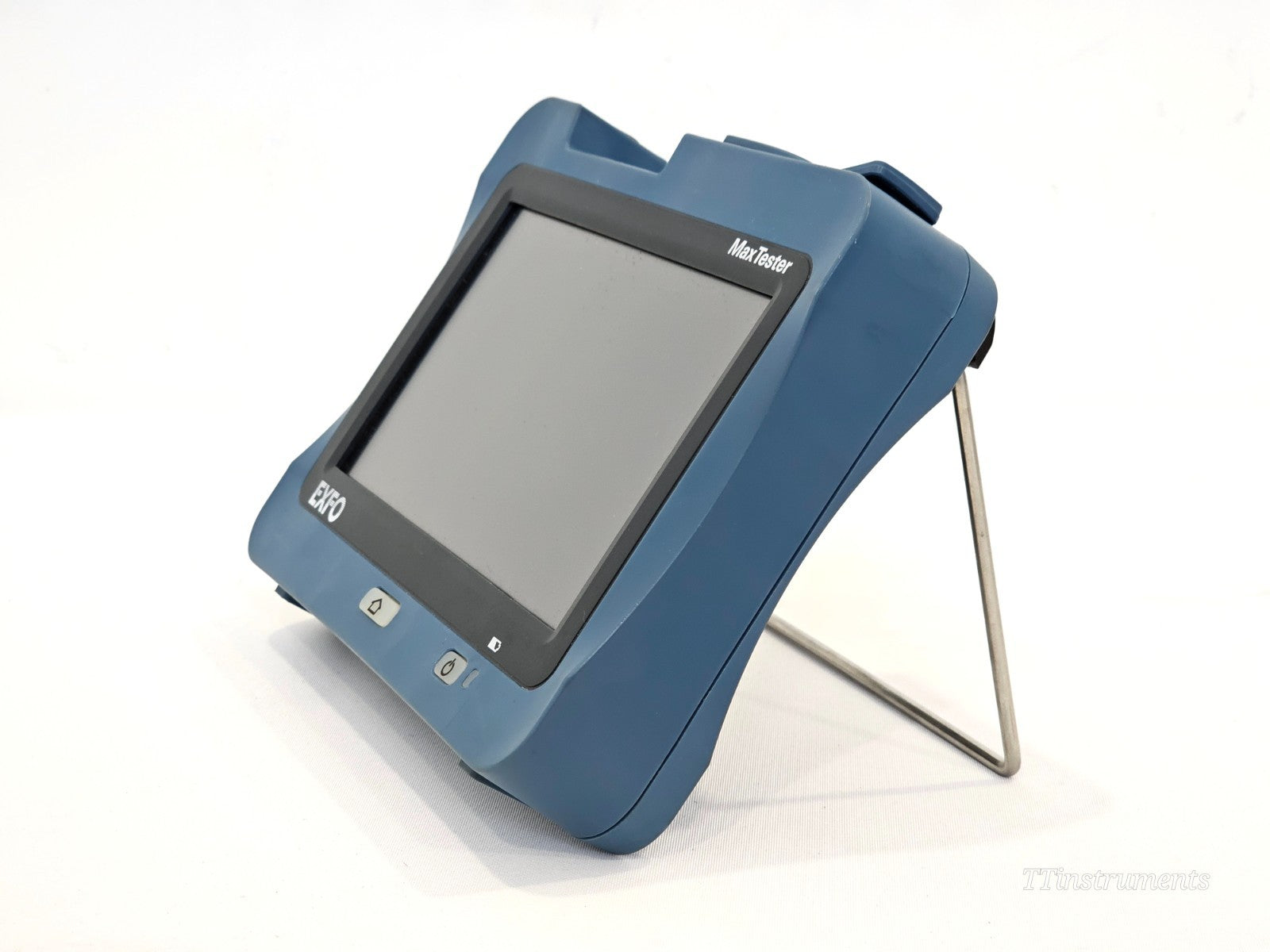

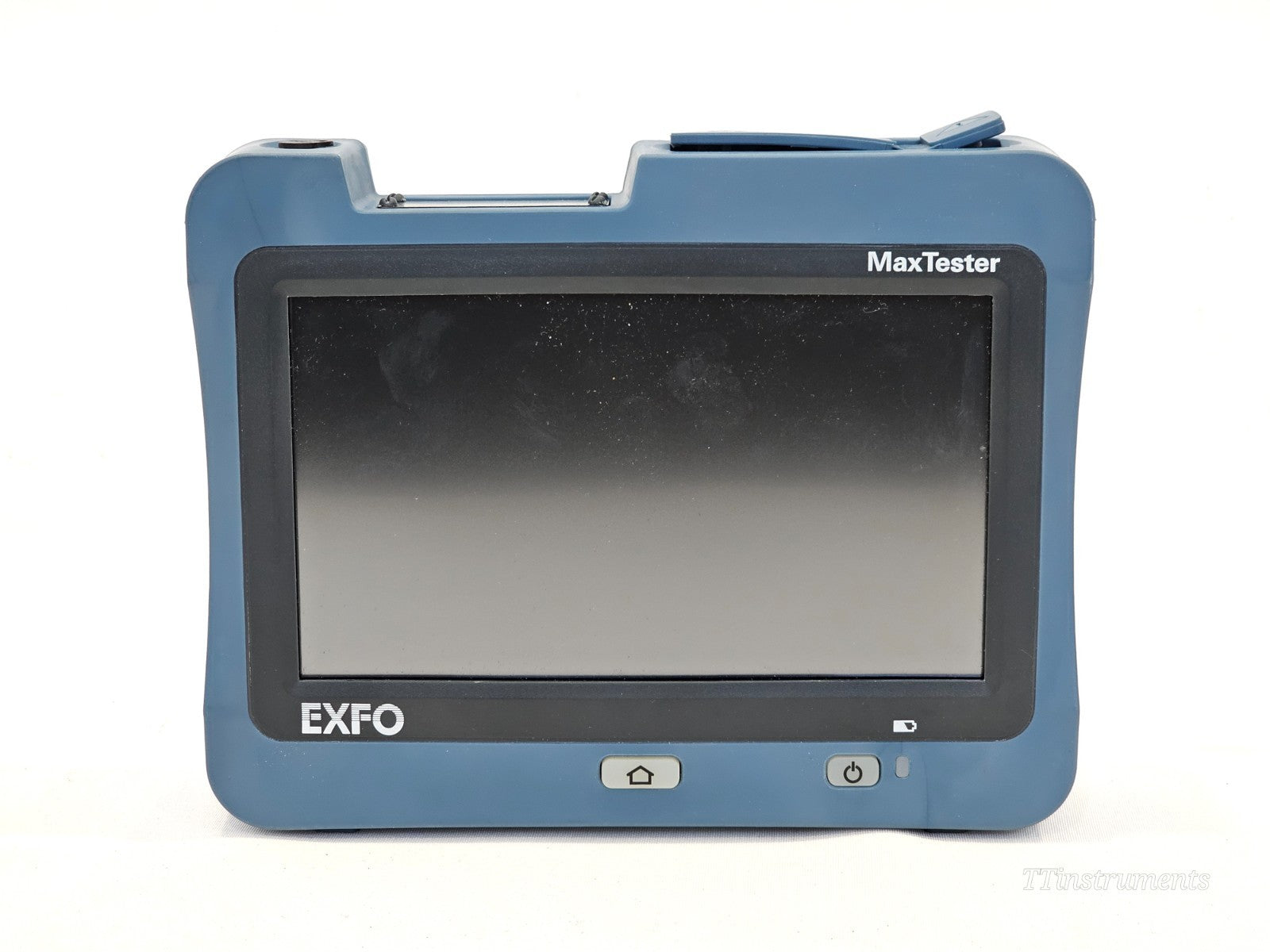

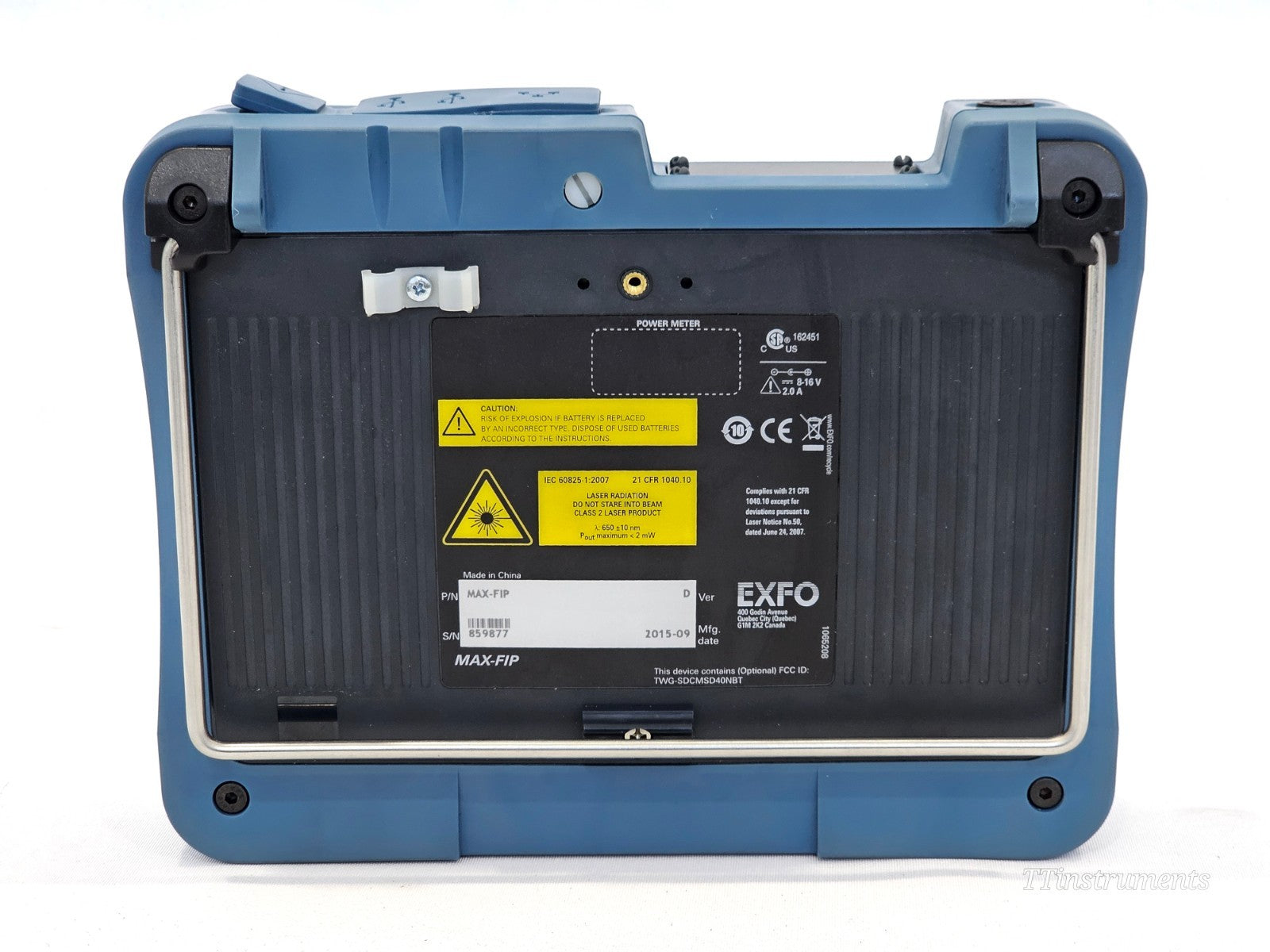

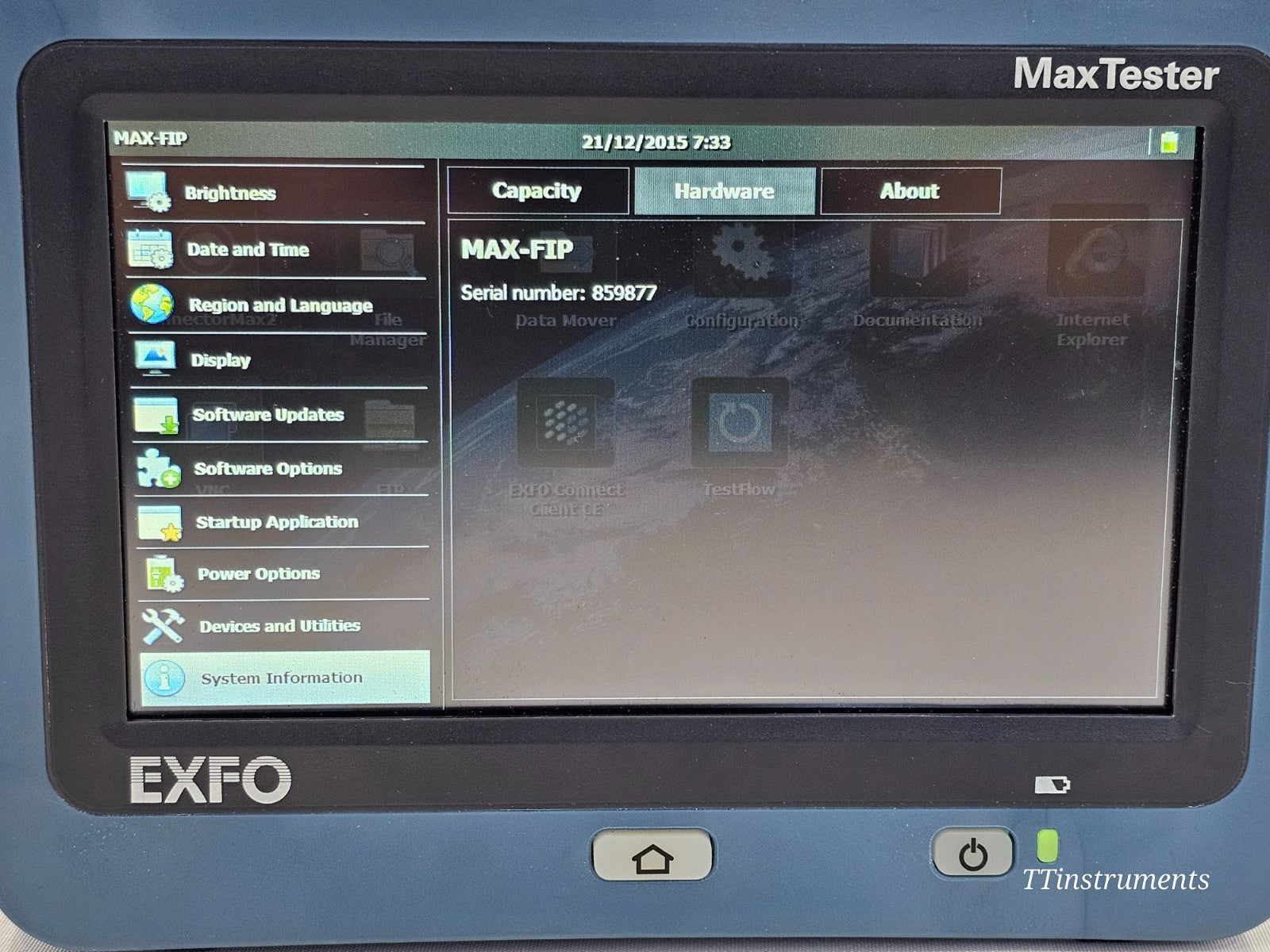

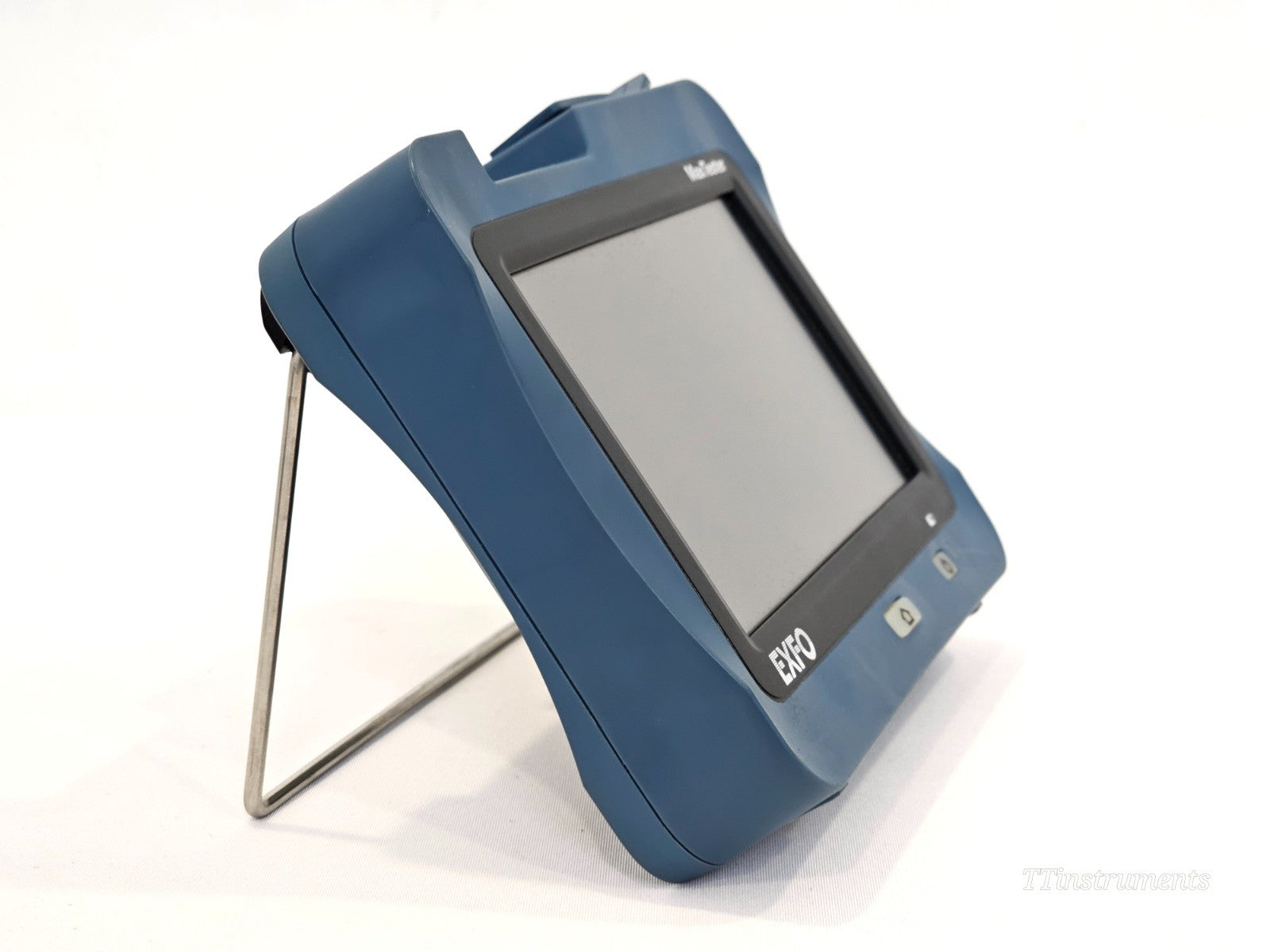

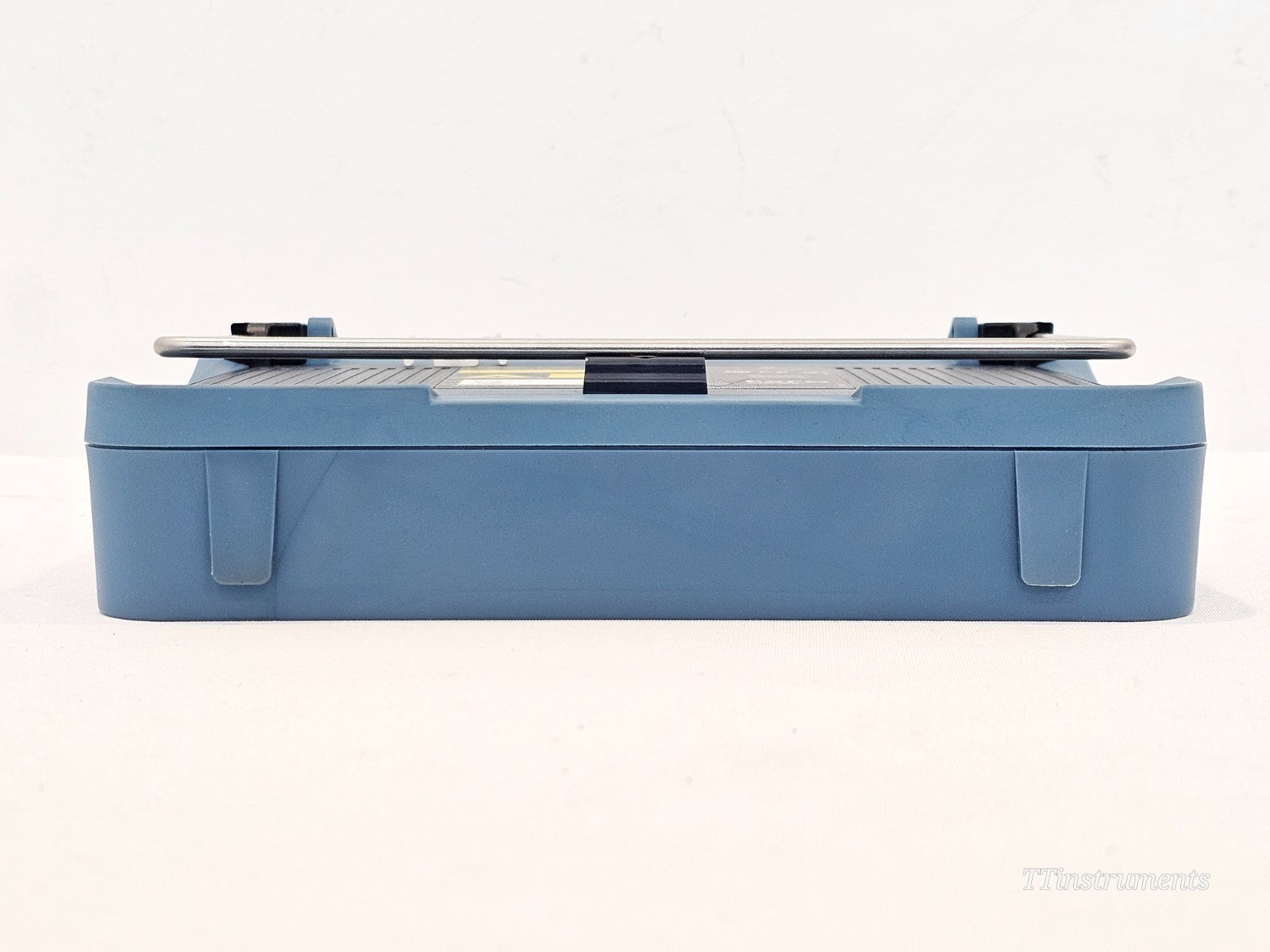

MAX-FIP — Intelligent Connector and Fiber Certifier

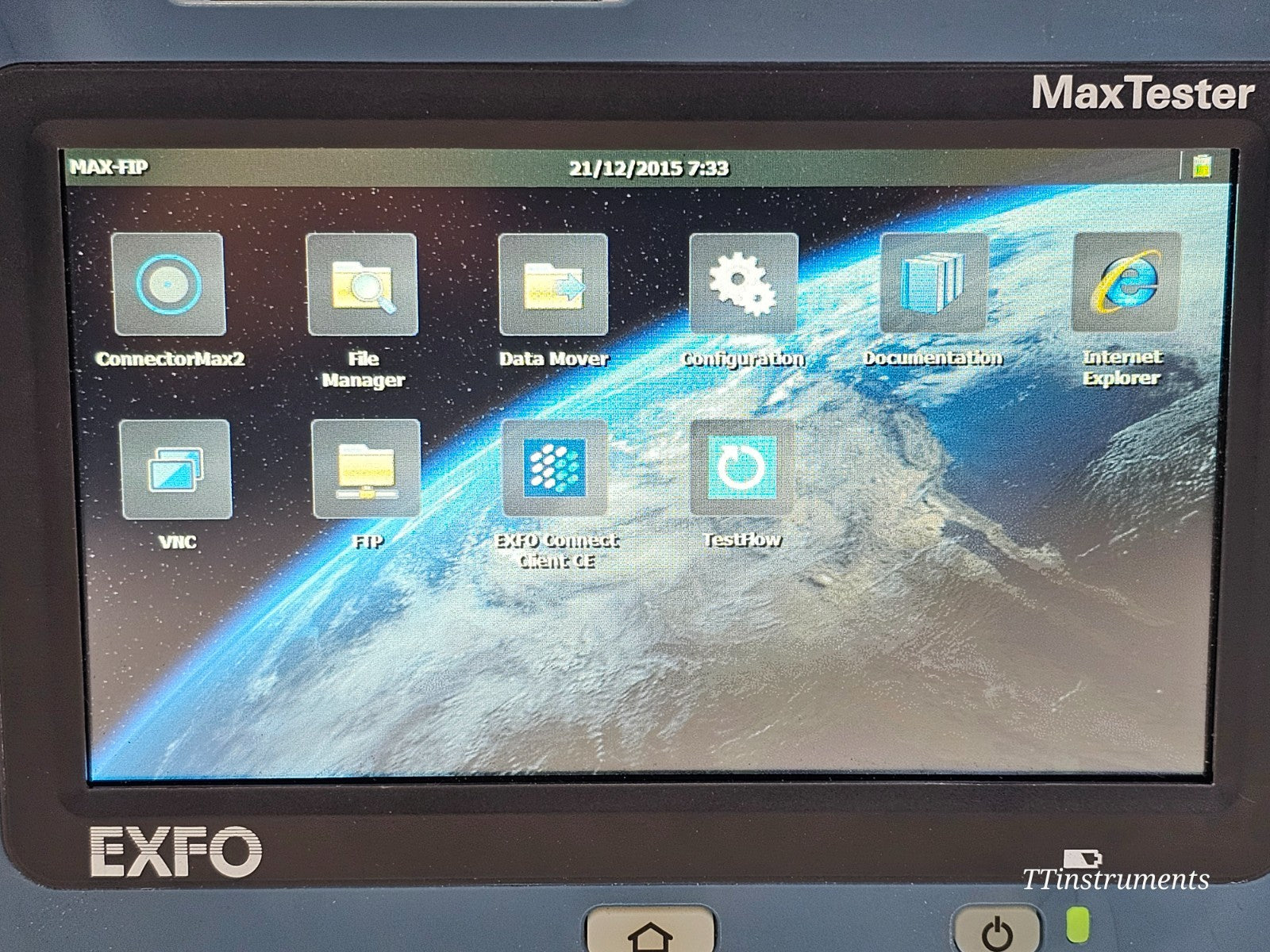

The MAX-FIP is a rugged, tablet-inspired display platform designed specifically for use with EXFO fiber inspection probes and the ConnectorMax2 application.

Key Specifications:
Display: 7-inch colour touchscreen TFT

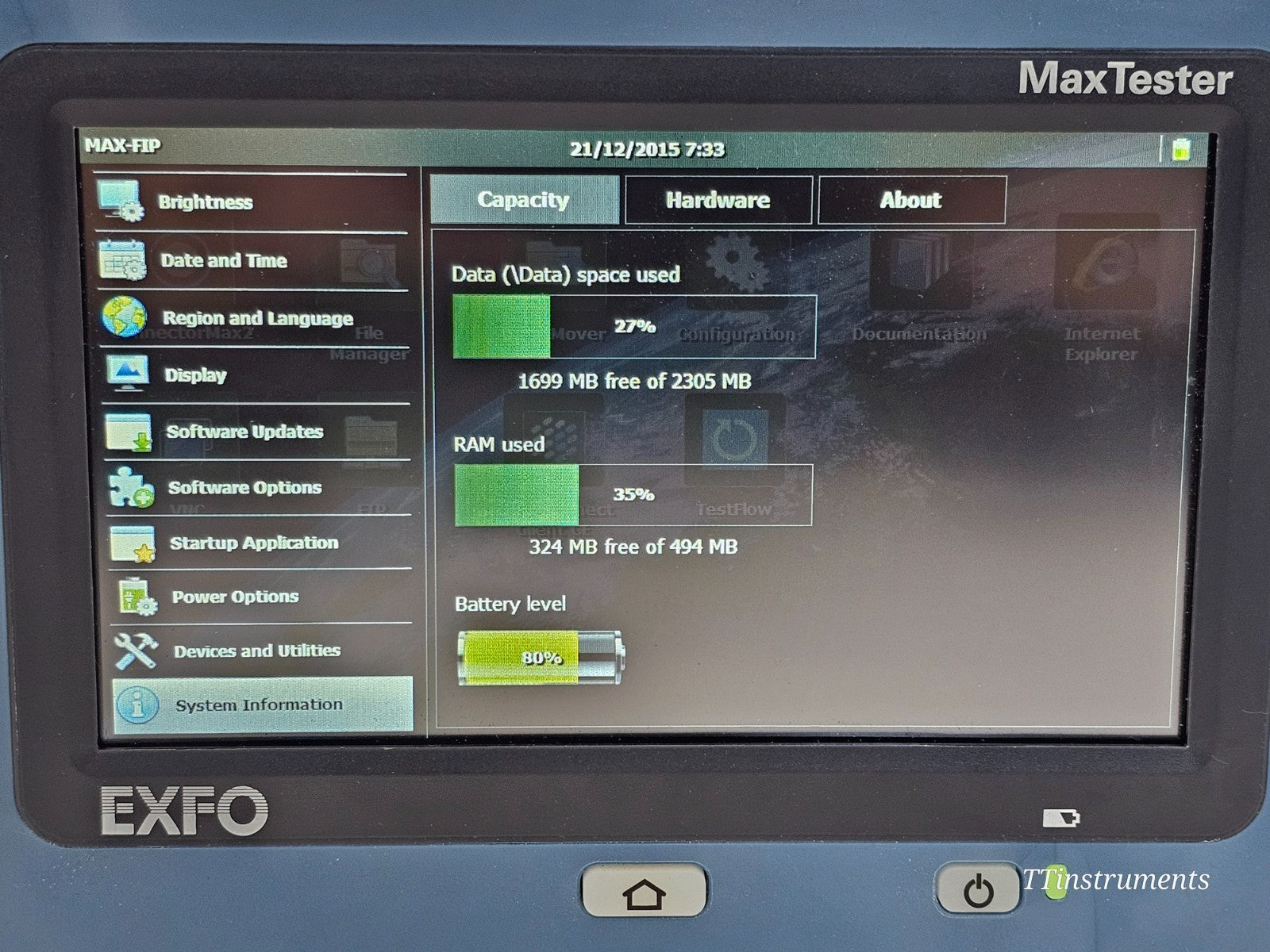

Memory: 2 GB internal (stores up to 4,000 fiber certification results)

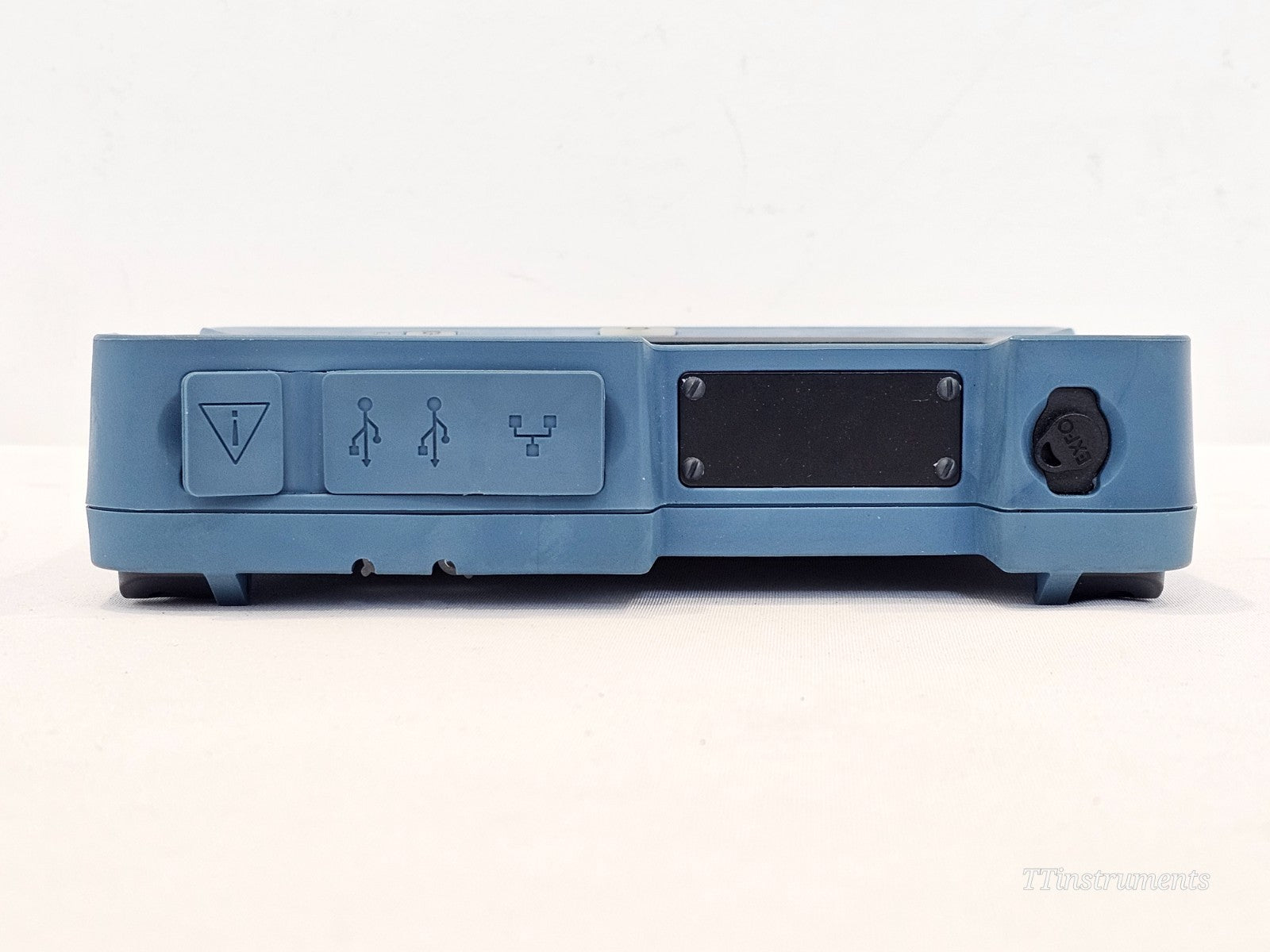

Connectivity: USB 2.0, up to 1 Gig RJ-45 built-in interface, Wi-Fi and Bluetooth
Battery: Up to 8 hours continuous operation
Software: ConnectorMax2
Compatibility: FIP-400B Series probes, FTB ecosystem, MaxTester platforms

Typical Applications:
• FTTH/FTTx cabinet and outside plant installation and maintenance
• Data centre patch panel inspection
• Central office connector certification
• Fronthaul/backhaul and antenna fibre inspection
• Cable manufacturing and laboratory connector quality control

EXFO FIP-400B Series Fiber Inspection Scope Spec Sheet (v11) — official manufacturer datasheet covering FIP-410B, FIP-420B, FIP-430B and FIP-435B: Download PDF

EXFO FIP-400B Series Spec Sheet (v9) — alternative version hosted by Digicomm with full technical specifications: Download PDF

EXFO FIP-400B Series Spec Sheet (v11) — hosted by Digicomm, November 2024 edition: Download PDF

EXFO MAX-FIP Intelligent Connector and Fiber Certifier Spec Sheet — hosted by Fiber Instrument Sales: Download PDF
