Condition: Used

The EXFO FIP-430B is in excellent working condition and is supplied with a comprehensive set of 7 inspection tips covering both patchcord and bulkhead connector types, making it ready for a wide range of field and lab fibre inspection tasks.

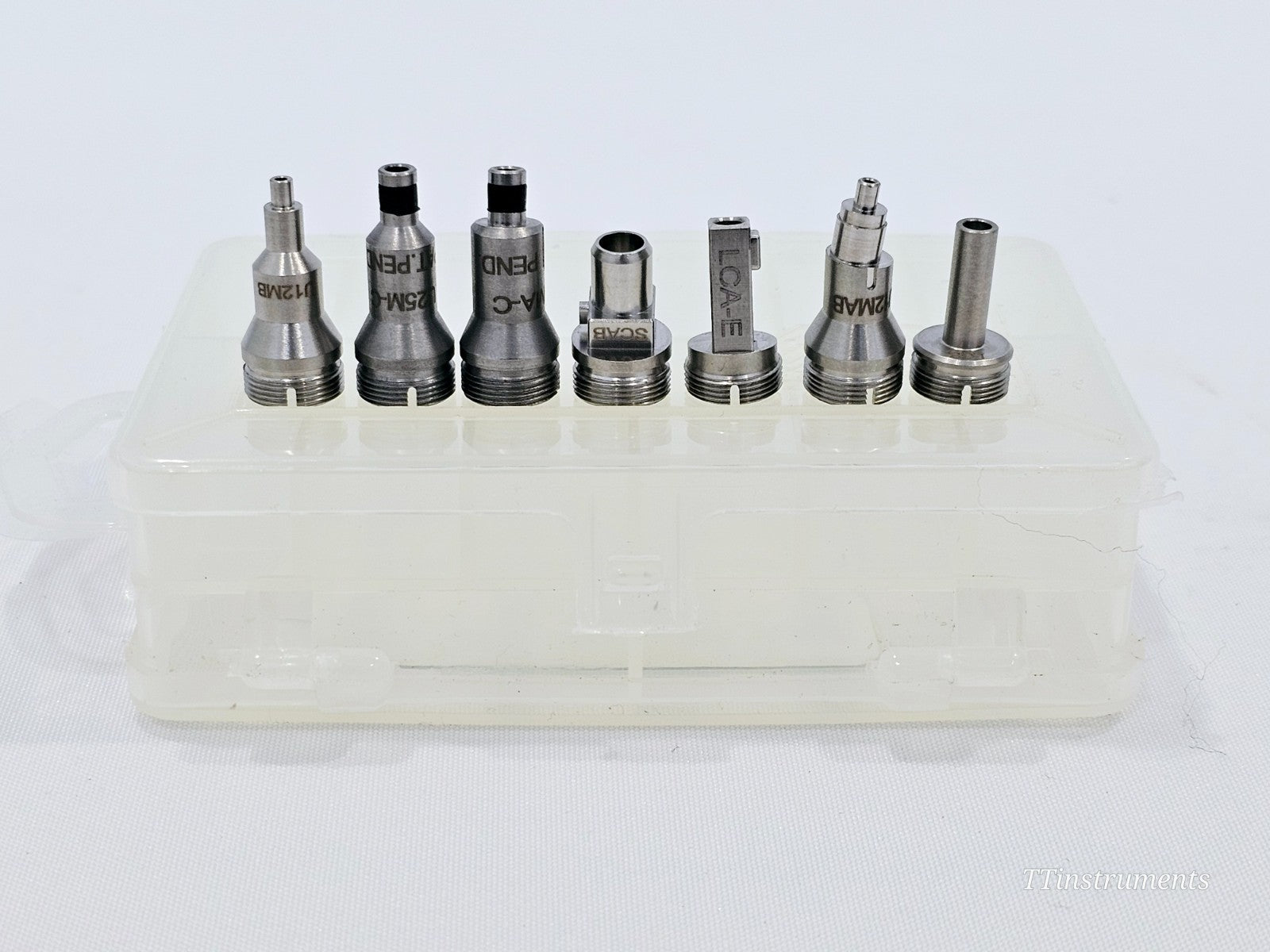

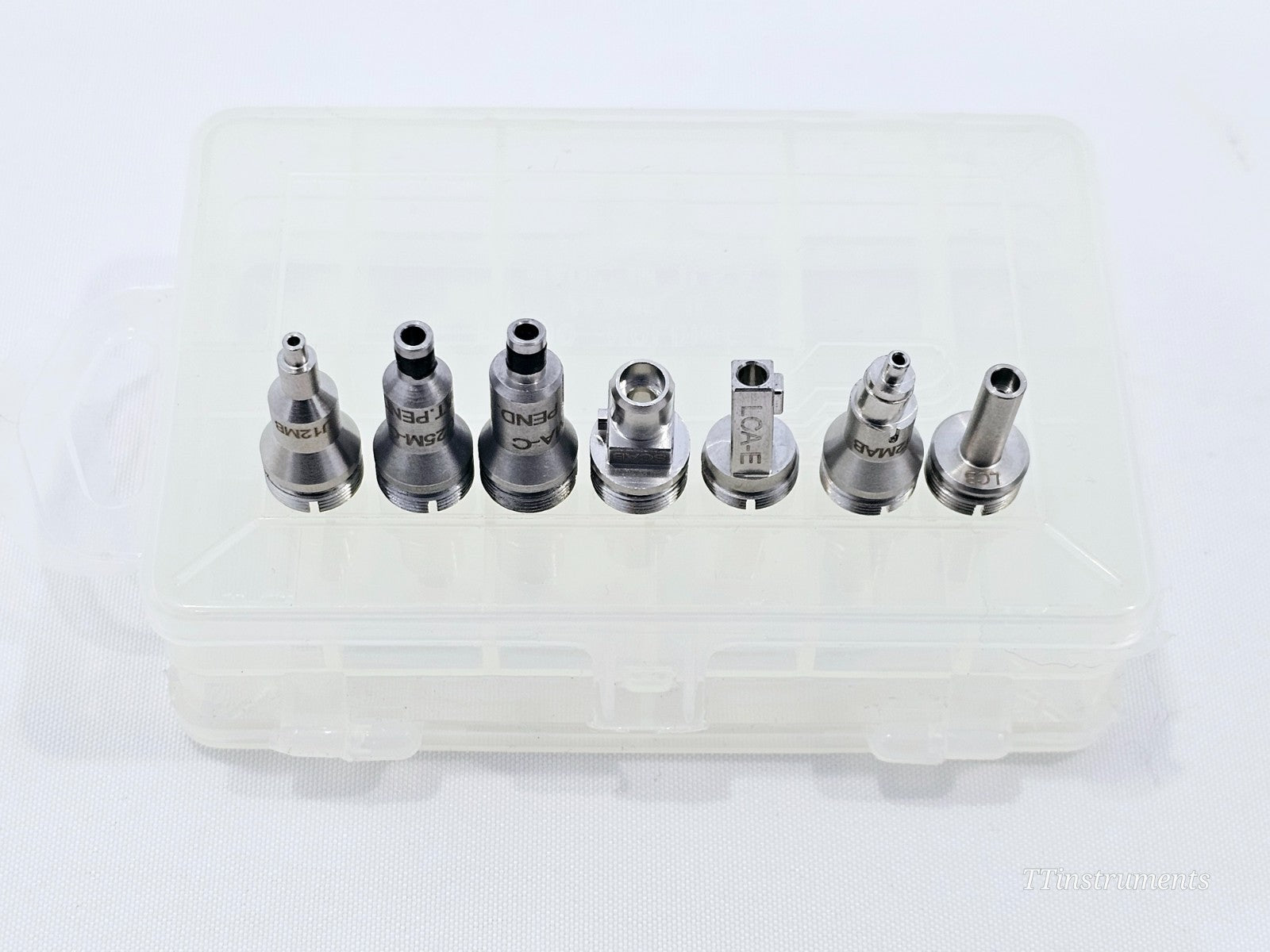

Included tips:
• U12 — Universal patchcord tip for 1.25 mm PC ferrules
• U12 APC — Universal patchcord tip for 1.25 mm APC ferrules
• U25 — Universal patchcord tip for 2.5 mm PC ferrules
• U25 APC — Universal patchcord tip for 2.5 mm APC ferrules
• Bulkhead LC PC tip
• Bulkhead LC APC tip
• Bulkhead SC/APC tip

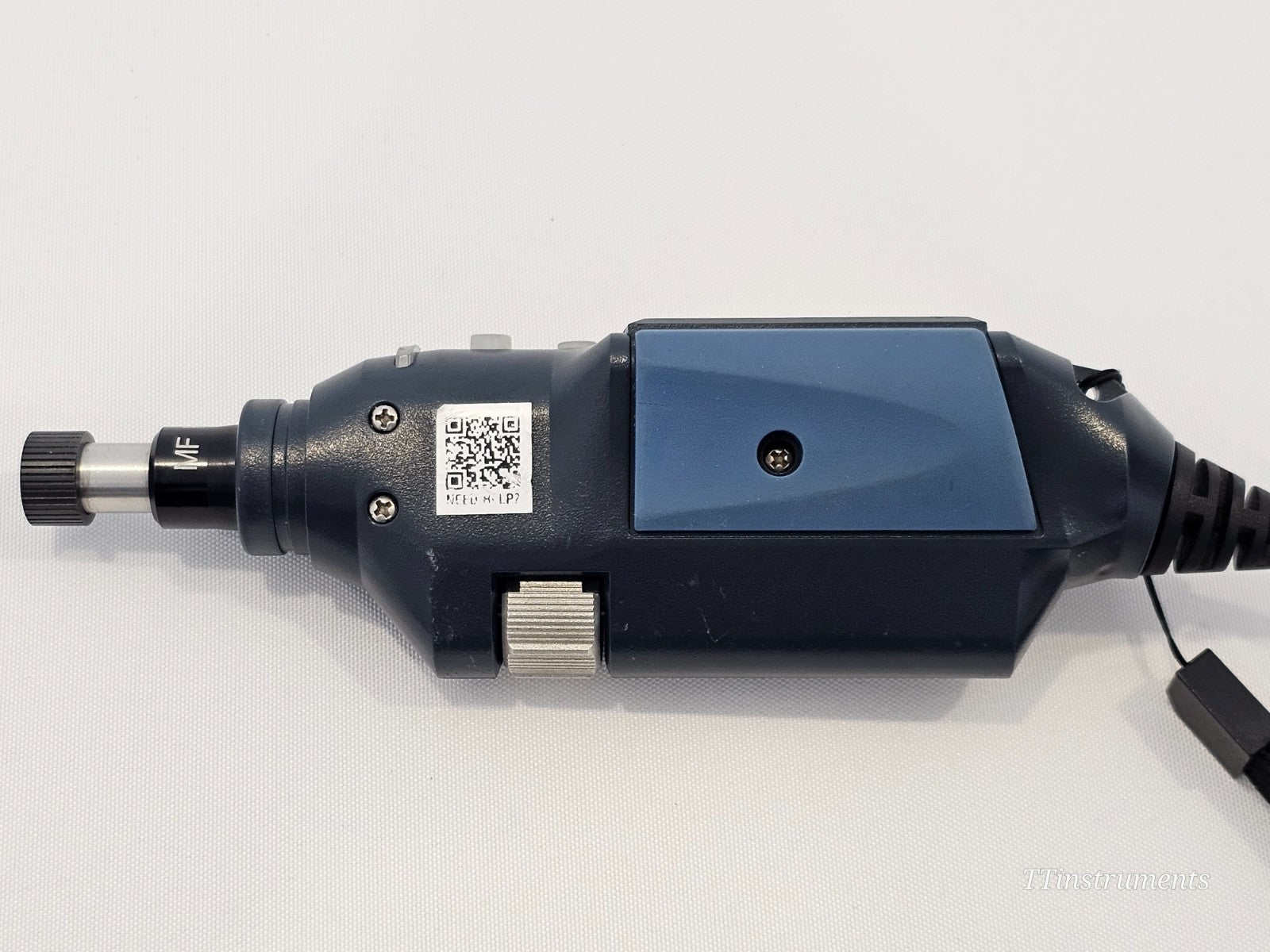

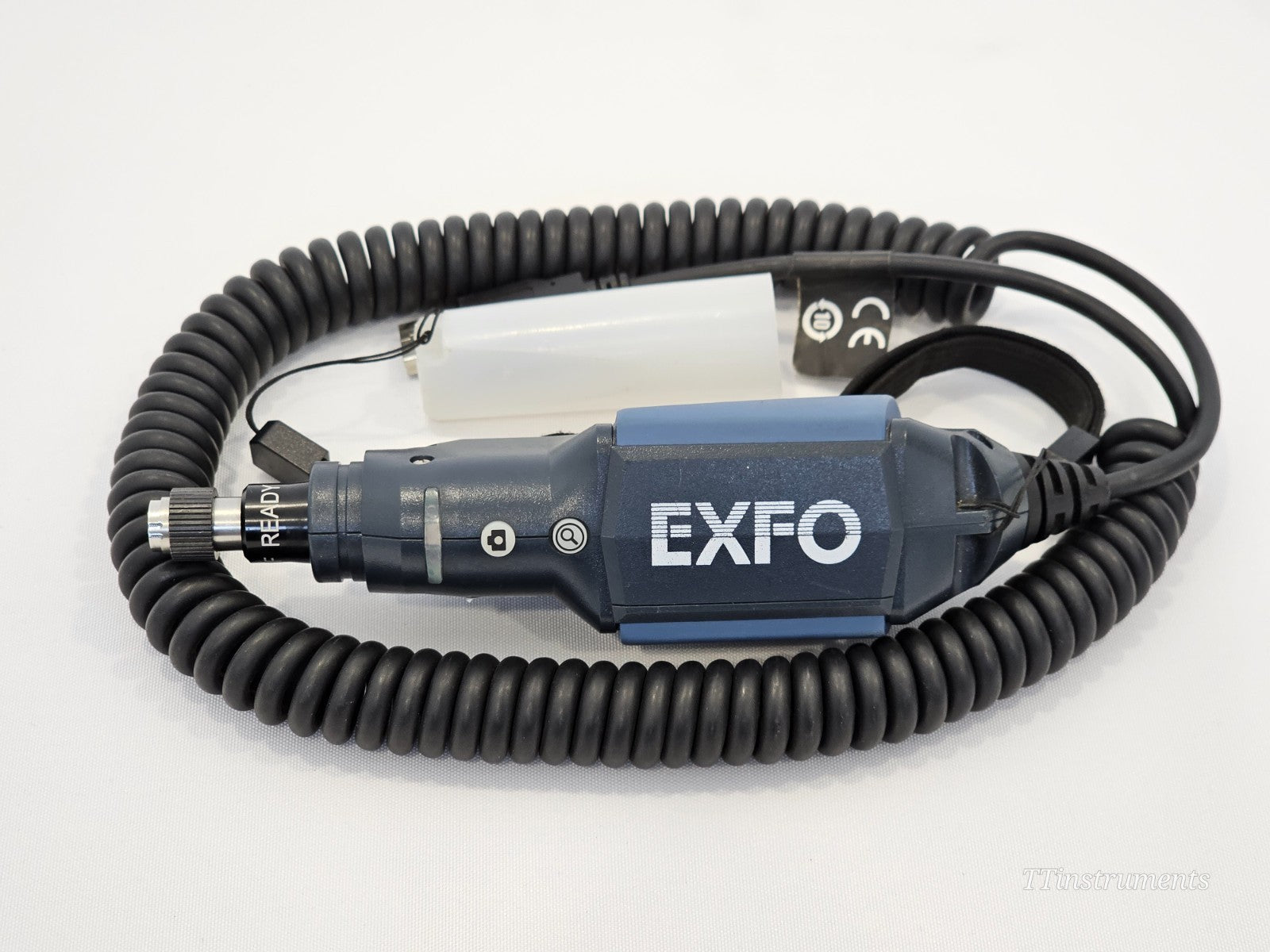

The EXFO FIP-430B is a USB-wired automated analysis digital video fiber inspection probe, part of the FIP-400B Series. It is designed to simplify and accelerate connector endface certification by automating every step of the inspection sequence — from fiber-connection detection and image centering through to focus adjustment, image capture, pass/fail analysis, and results reporting.

The FIP-430B uses a unique automatic focus adjustment system that ensures each connector image is captured at maximum optical quality, preventing false-positive results by guaranteeing that no performance-affecting defects are missed. Users simply connect the probe to the port under test; the instrument handles the rest automatically.

Key Features:
• 100% automated one-step inspection process for single-fibre connectors
• Automatic fibre-connection detection
• Automatic image centering
• Automatic focus adjustment and optimisation
• Automatic image capture
• On-board connector endface analysis to IEC, IPC or custom standards
• Pass/fail LED indicator for screenless operation
• Triple magnification levels — industry-exclusive for the FIP-400B series
• 5-megapixel CMOS imaging sensor
• 912 µm x 912 µm field of view for MPO/multifiber connector inspection
• MF-ready: compatible with single-fibre and automated multifibre tips
• ConnectorMax2 software compatibility (Windows PC, Android, iOS)
• Full reporting capabilities on mobile devices and EXFO test platforms
• REST API available for manufacturing automation

Connectivity & Compatibility:
Interface: USB (wired)
Compatible platforms: EXFO FTB ecosystem, MaxTester 700B OTDR Series, MaxTester 940/945 OLTS, MAX-FIP display, LTB platforms, PCs and laptops
Software: ConnectorMax2 (Windows, Android, iOS)

Connector Type Coverage:
Patchcord tips: 1.25 mm (LC) and 2.5 mm (SC, FC, ST) — PC and APC
Bulkhead adapters: FC, SC, LC, ST — PC and APC variants
Multifibre: MPO/MTP single- and dual-row connectors (with FIPT-400-MF tip)

Design:
Casing: Rubber-overmoulded for field ruggedness
Optics: Triple magnification
Image sensor: 5-megapixel CMOS
LED indicator: High-visibility pass/fail status LED
Power: Via USB connection

Applications:
FTTx and hybrid network deployment
Mobile fronthaul (FTTA) and backhaul
DAS and fibre-fed small cells
Data centre fibre certification
Campus and private networks
Laboratory and cable manufacturing

Standards: IEC 61300-3-35 and IPC-8497-1 connector inspection criteria supported (or custom standards via ConnectorMax2)

EXFO FIP-400B Series Fiber Inspection Scope Spec Sheet (official EXFO PDF): Download PDF

EXFO FIP-400B Series Fiber Inspection Scope Series Spec Sheet (mirror via Digicomm): Download PDF

EXFO FIP-400B Series User Guide — Fiber Inspection Probe and ConnectorMax2 (FIP-435B/430B/420B/410B): Download PDF
