Condition: Refurbished

This EXFO FIP-410B kit is in excellent working condition and is supplied with 6 interchangeable tips covering both patchcord and bulkhead inspection across common connector types. The MAX-FIP viewer is included complete with stylus and power adapter, making this a ready-to-use field inspection solution.

Included in the sale:
• FIP-410B digital fiber inspection probe

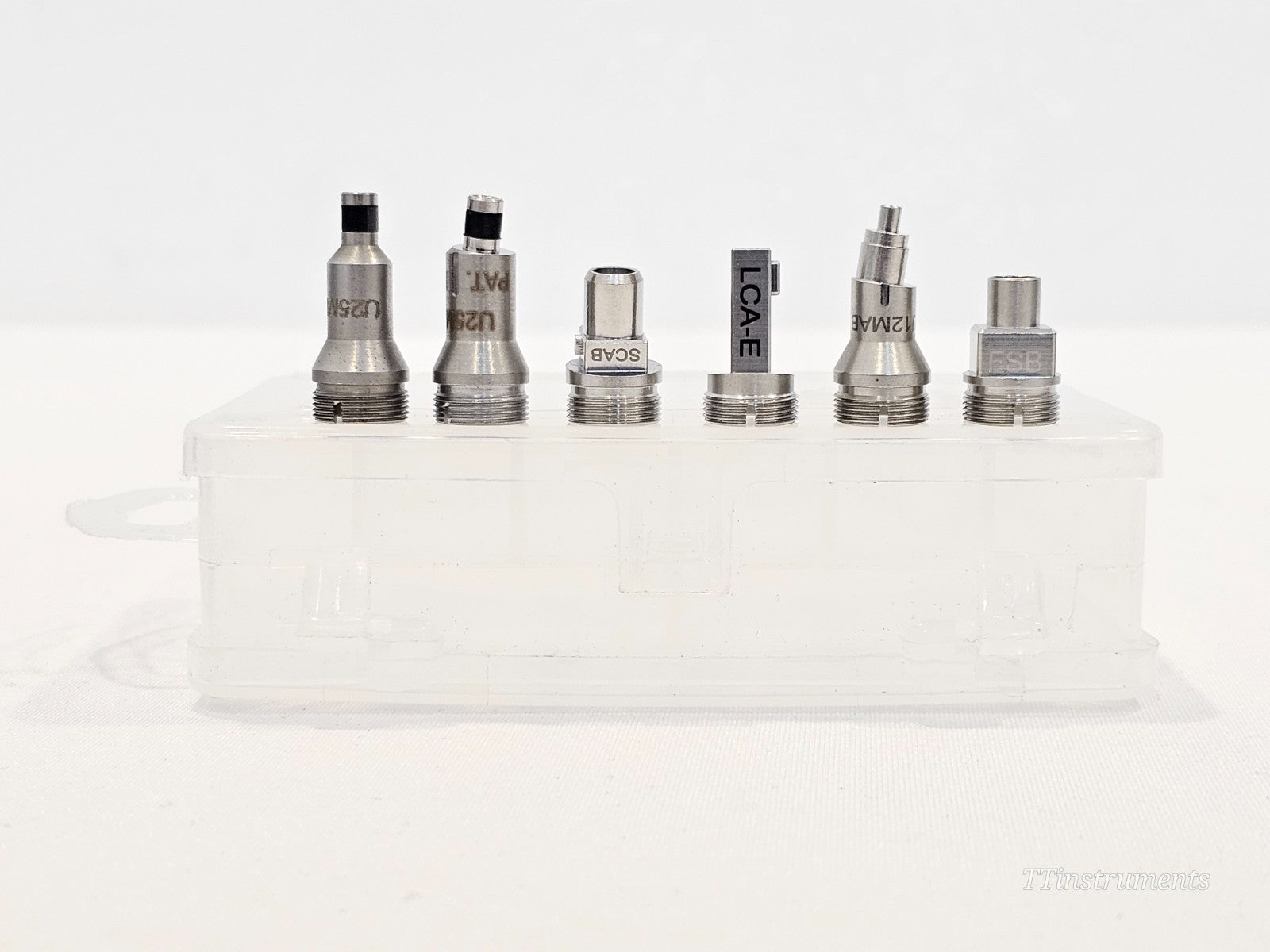

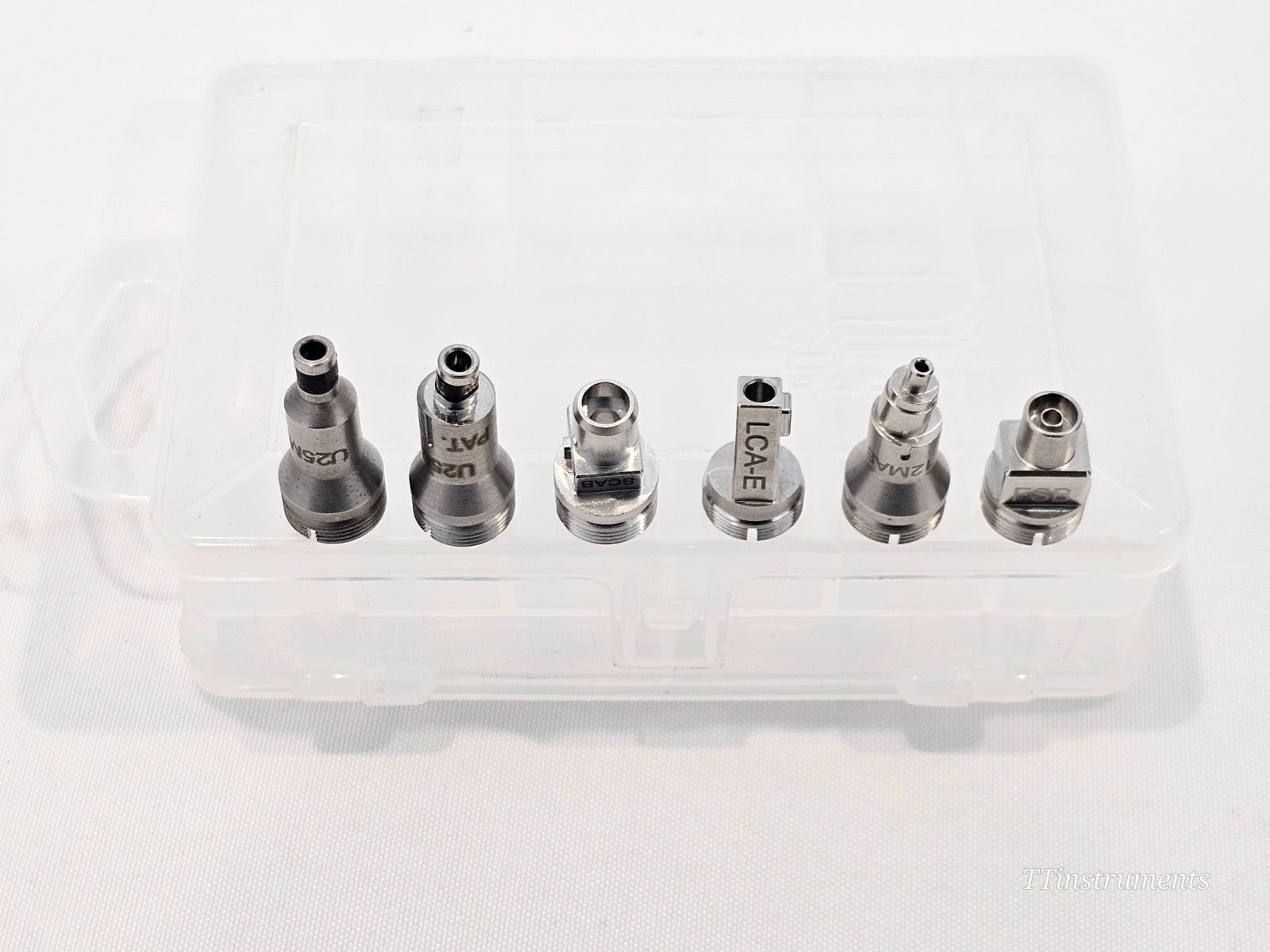

• 6 tips — patchcord tips: U25 PC+APC (2.5 mm); U12 APC (1.25 mm); bulkhead tips: LC-APC, FC/SC-PC, SC-APC

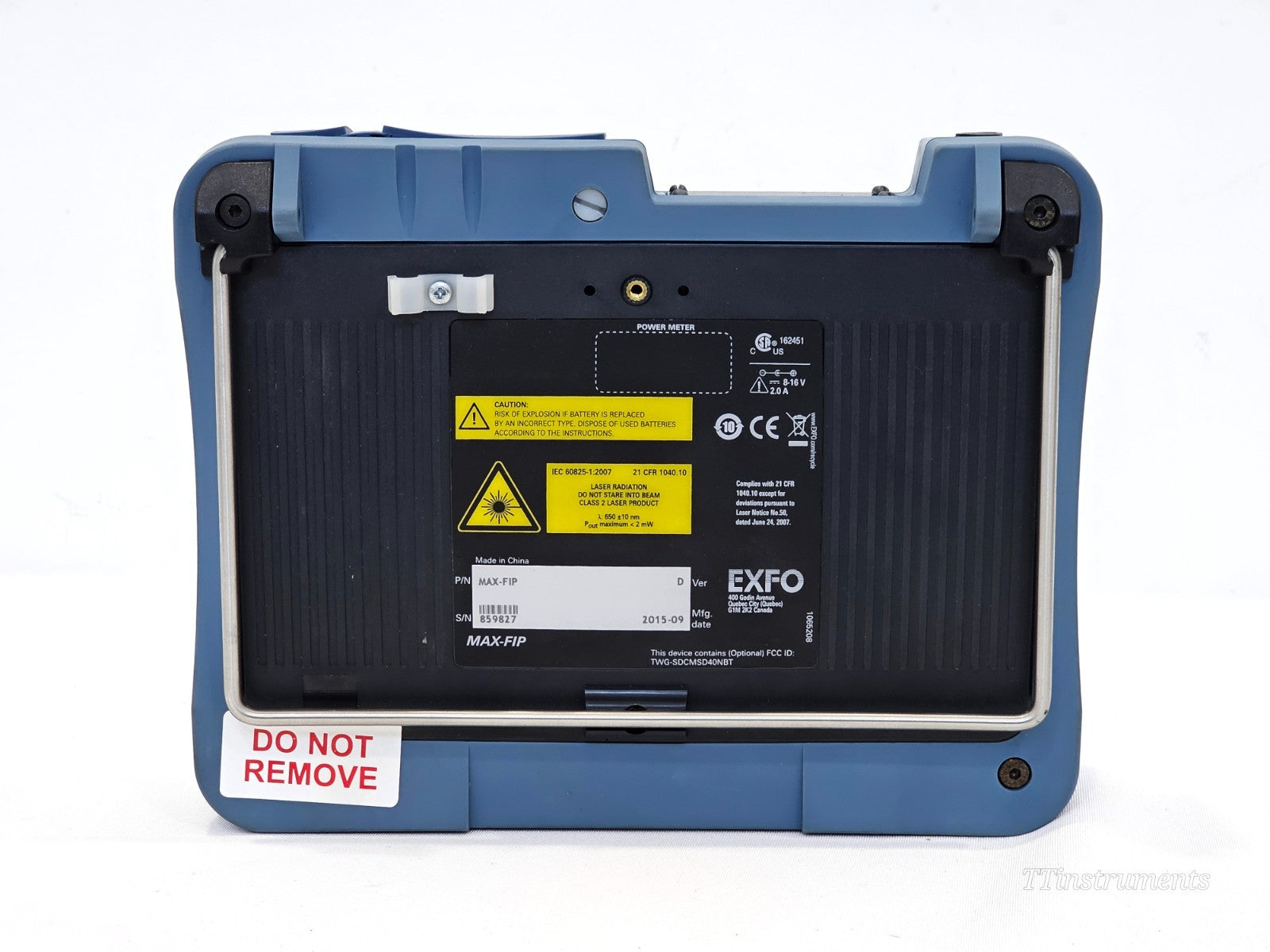

• MAX-FIP intelligent connector and fiber certifier viewer with stylus and power adapter
• Carry bag

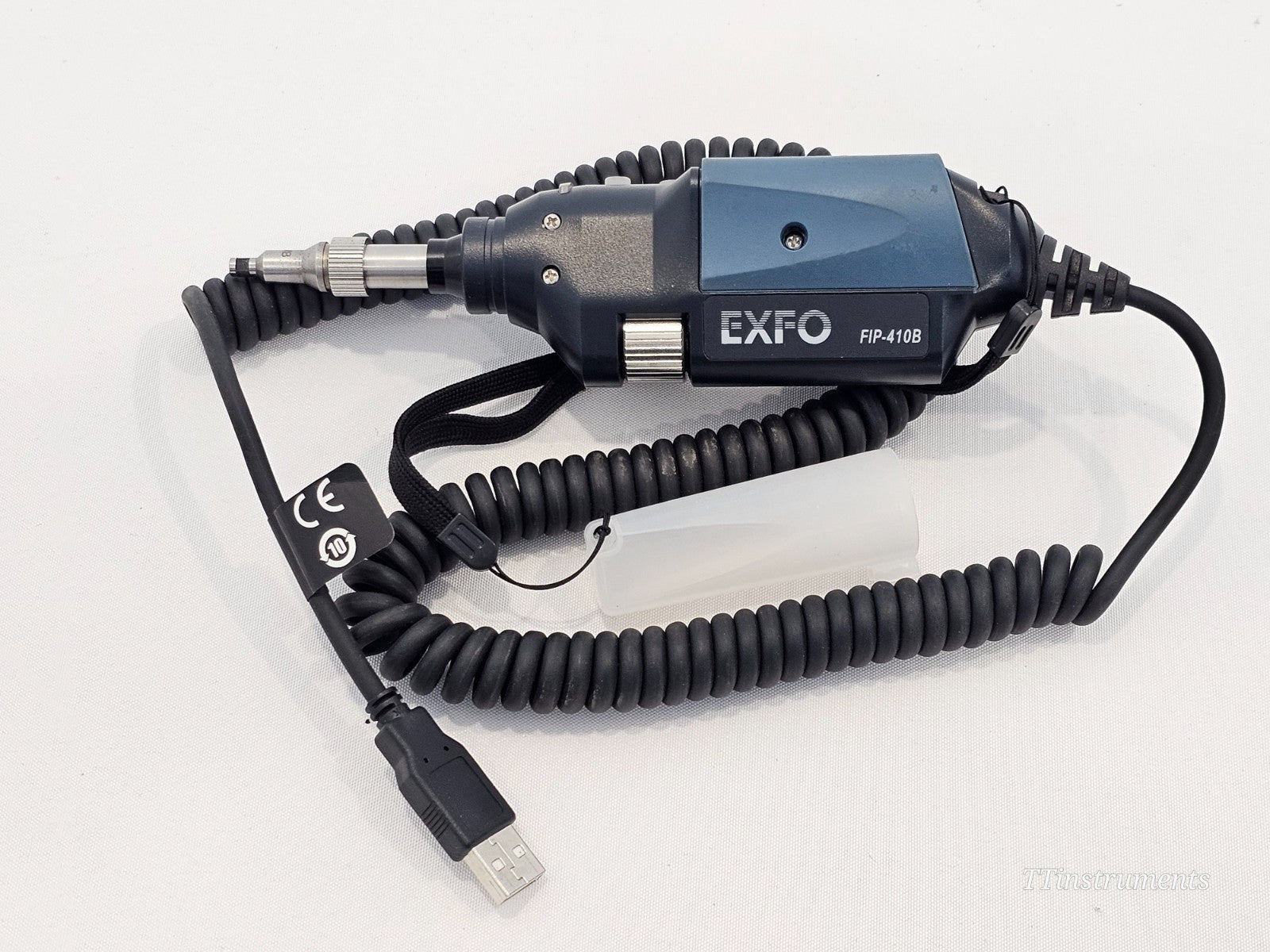

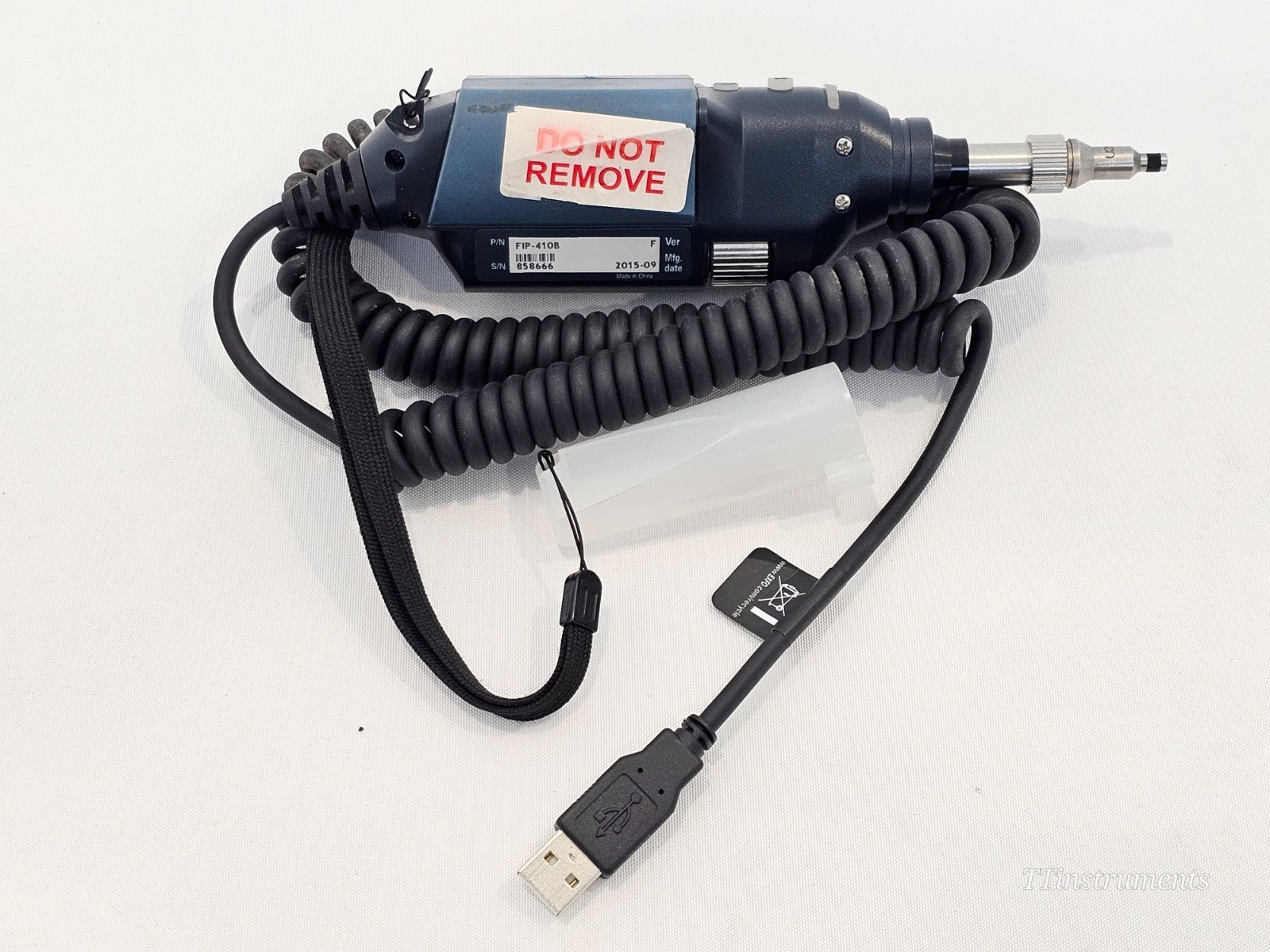

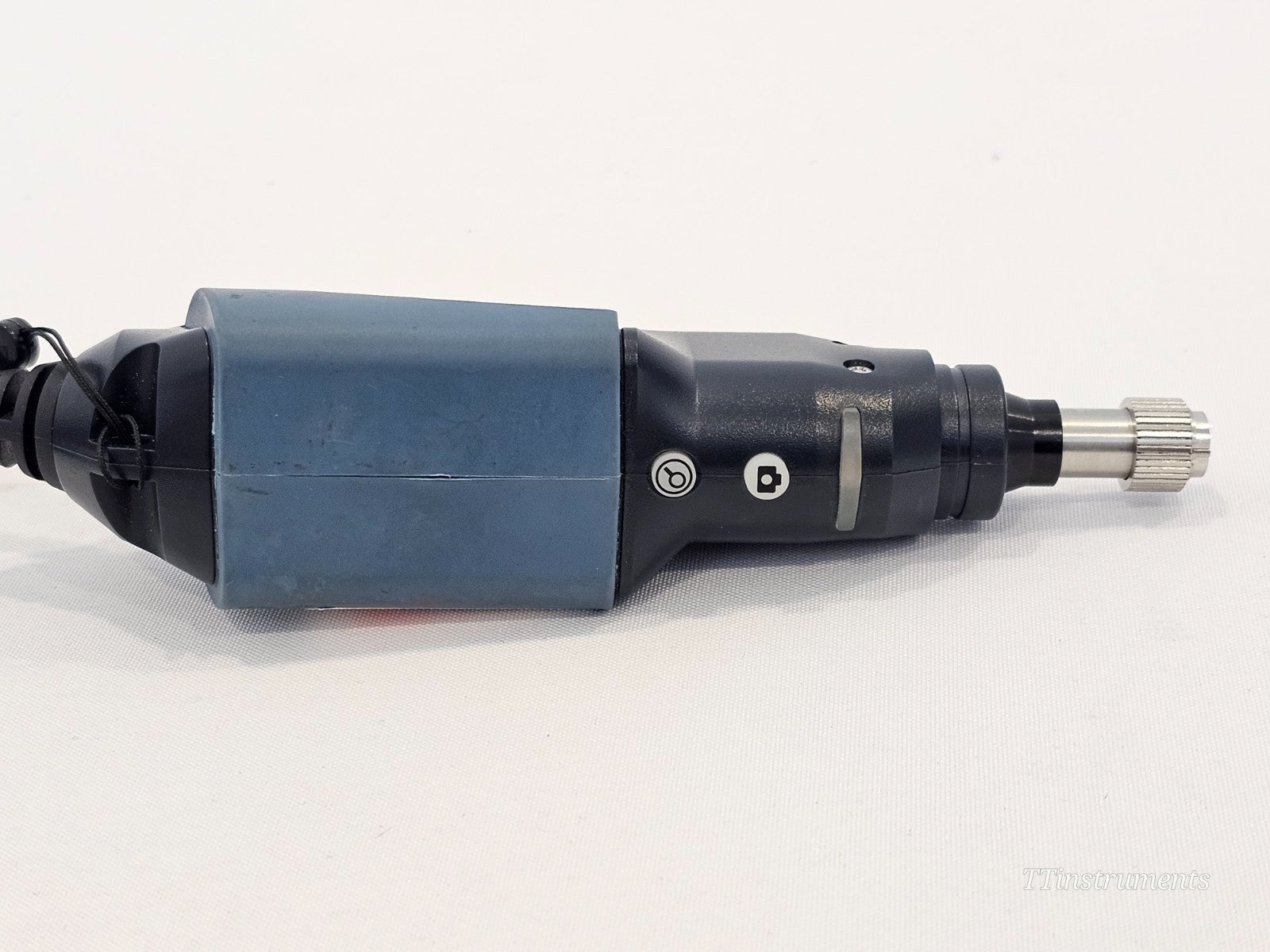

The EXFO FIP-410B is a USB-wired digital fiber inspection probe forming part of the FIP-400B series. It is designed to provide high optical performance for manual connector endface inspection in the field, making it the entry-level model in the FIP-400B range for users who require reliable imaging without fully automated certification.

The FIP-410B connects via USB to a wide range of platforms including the EXFO FTB ecosystem, MaxTester 700B OTDR series, MaxTester 940/945 OLTS, MAX-FIP display, LTB platforms, and Windows-based PCs and laptops. ConnectorMax2 software is included for image viewing and results capture.

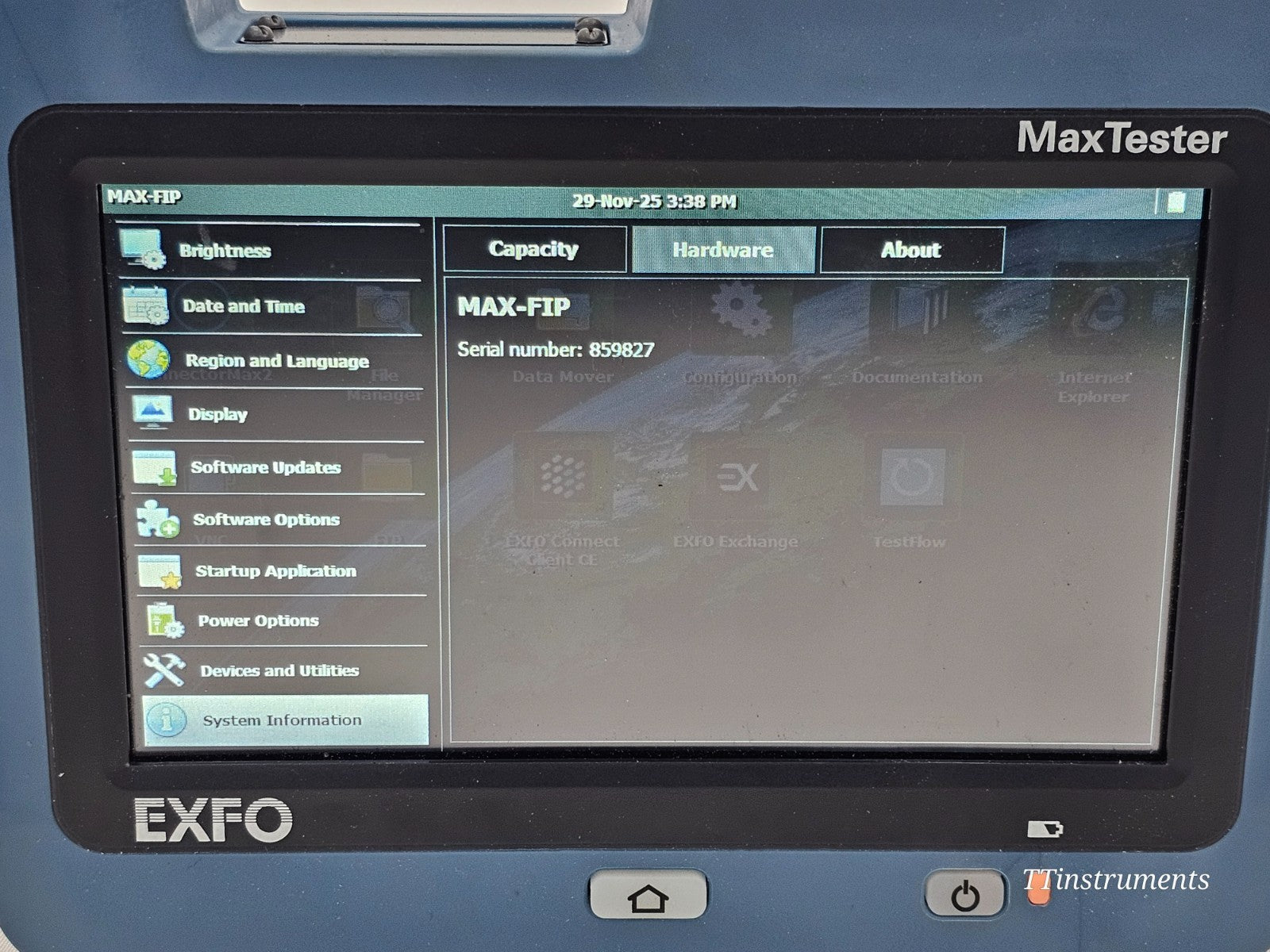

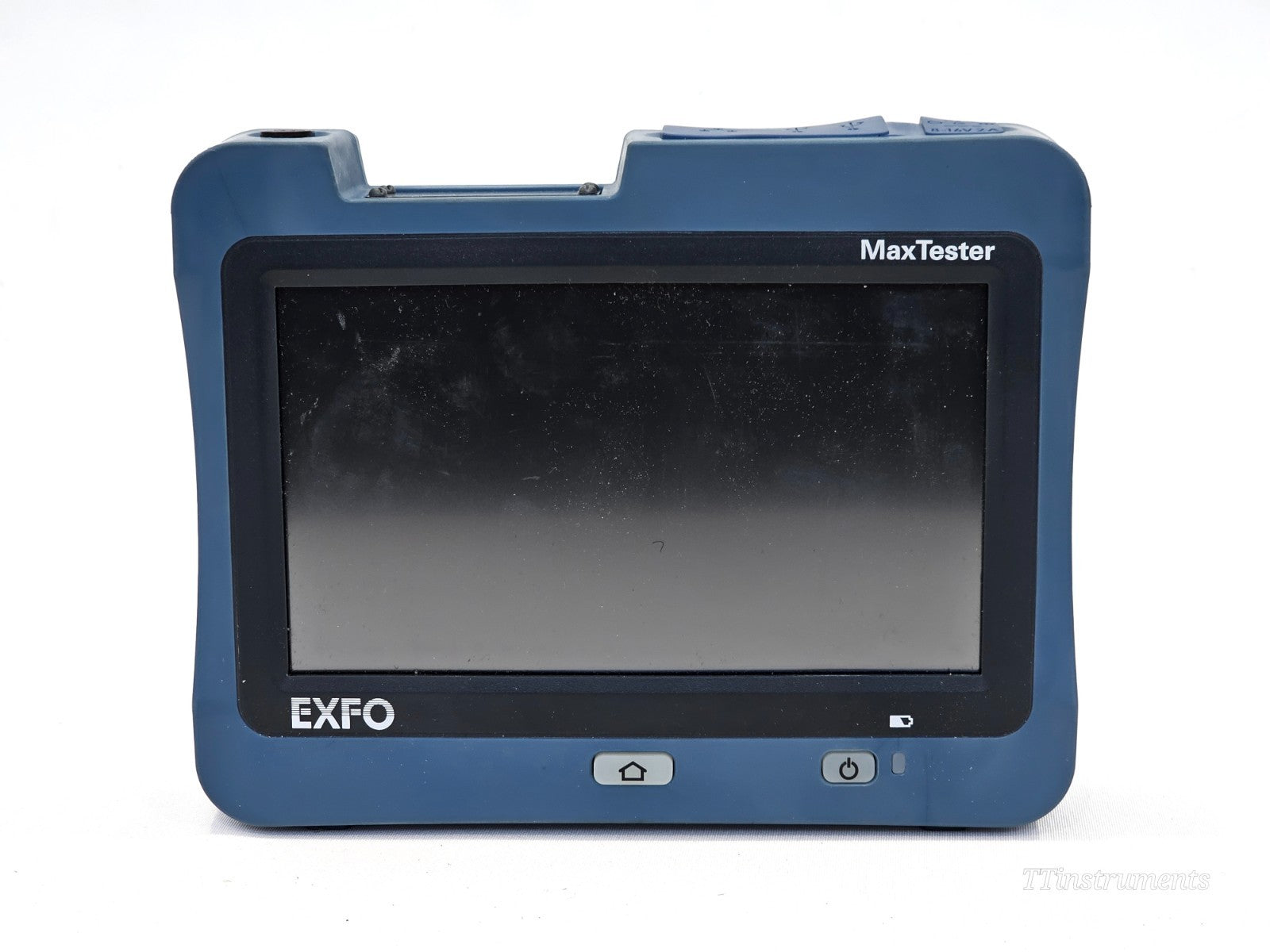

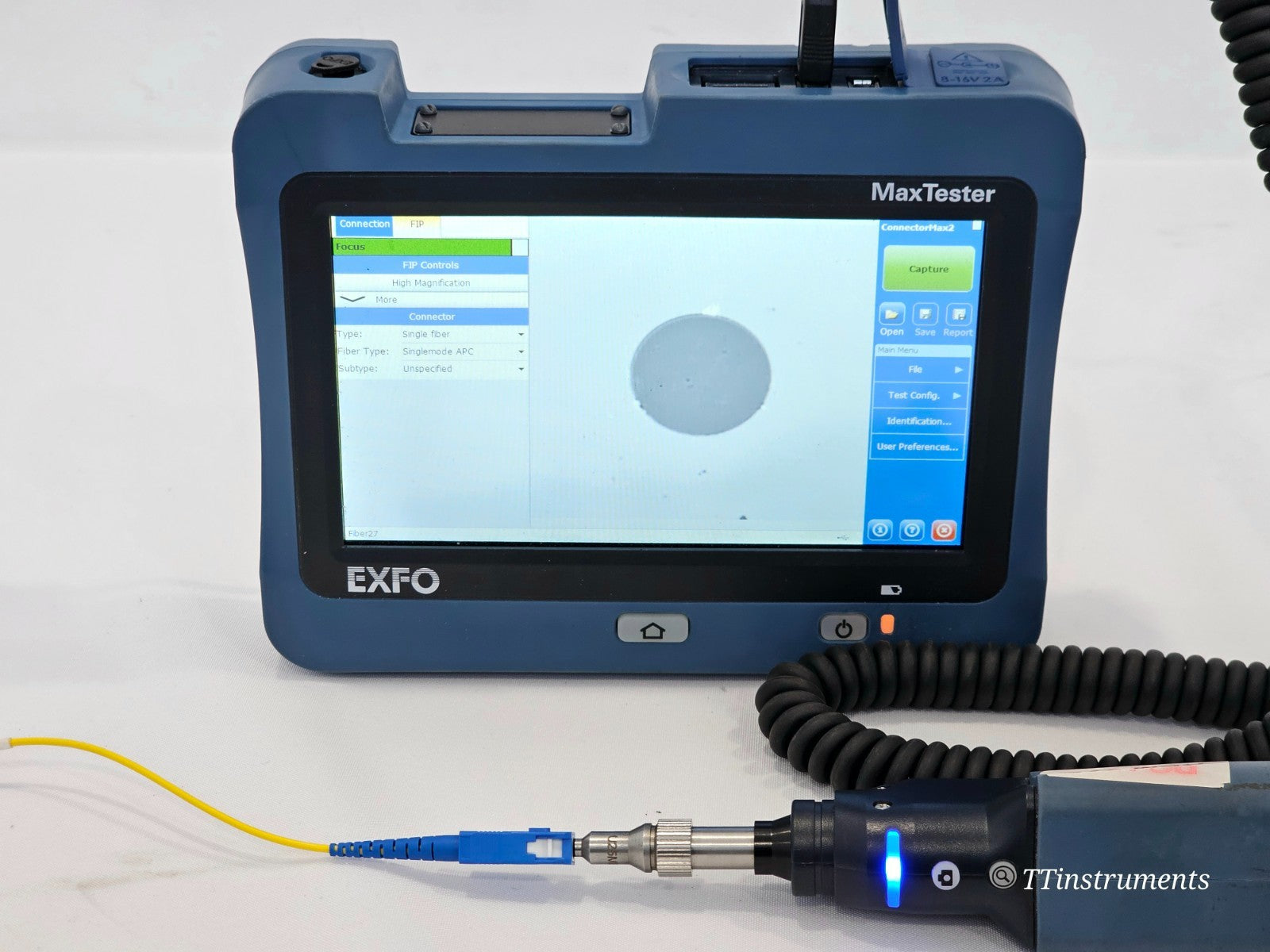

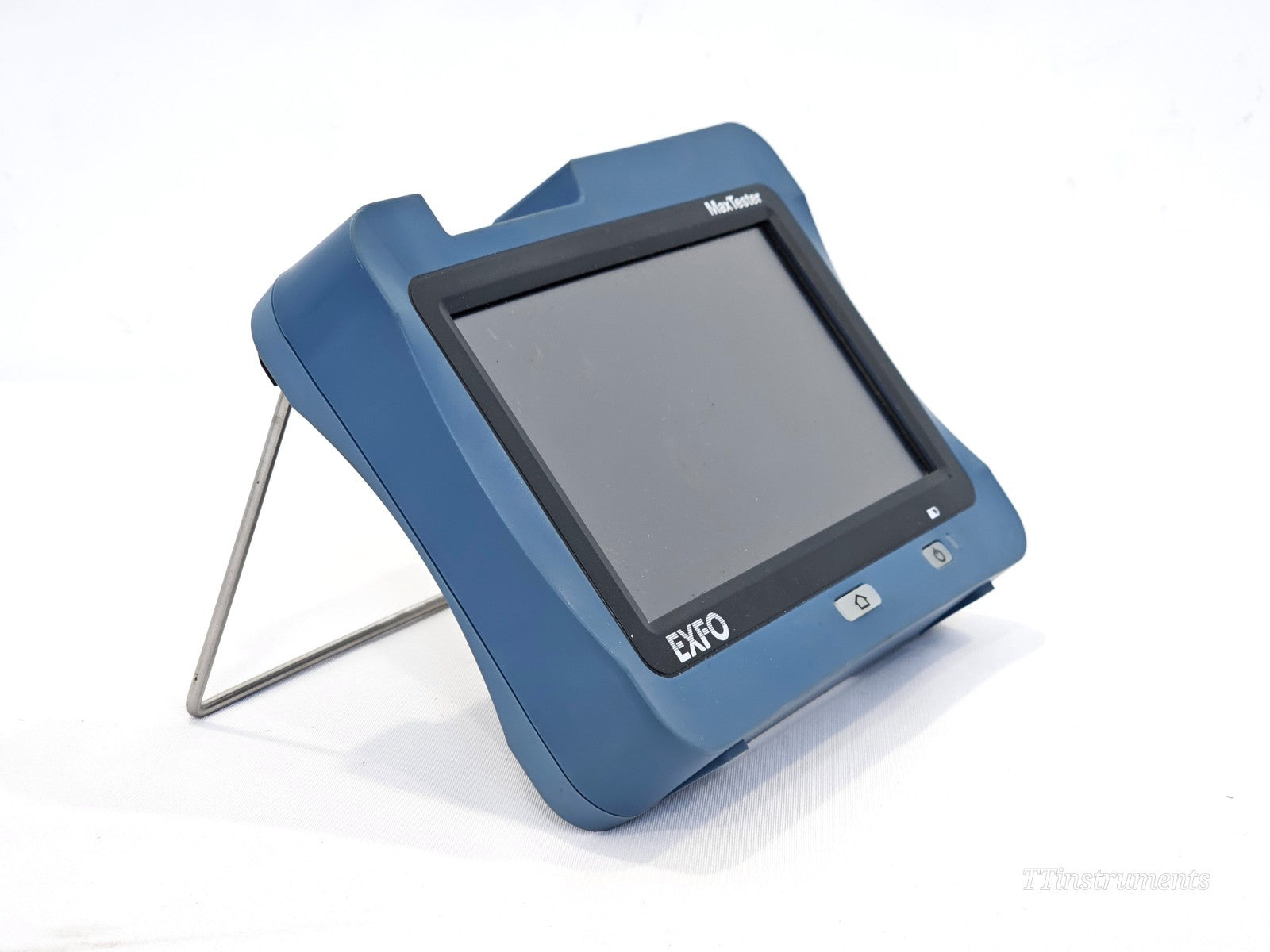

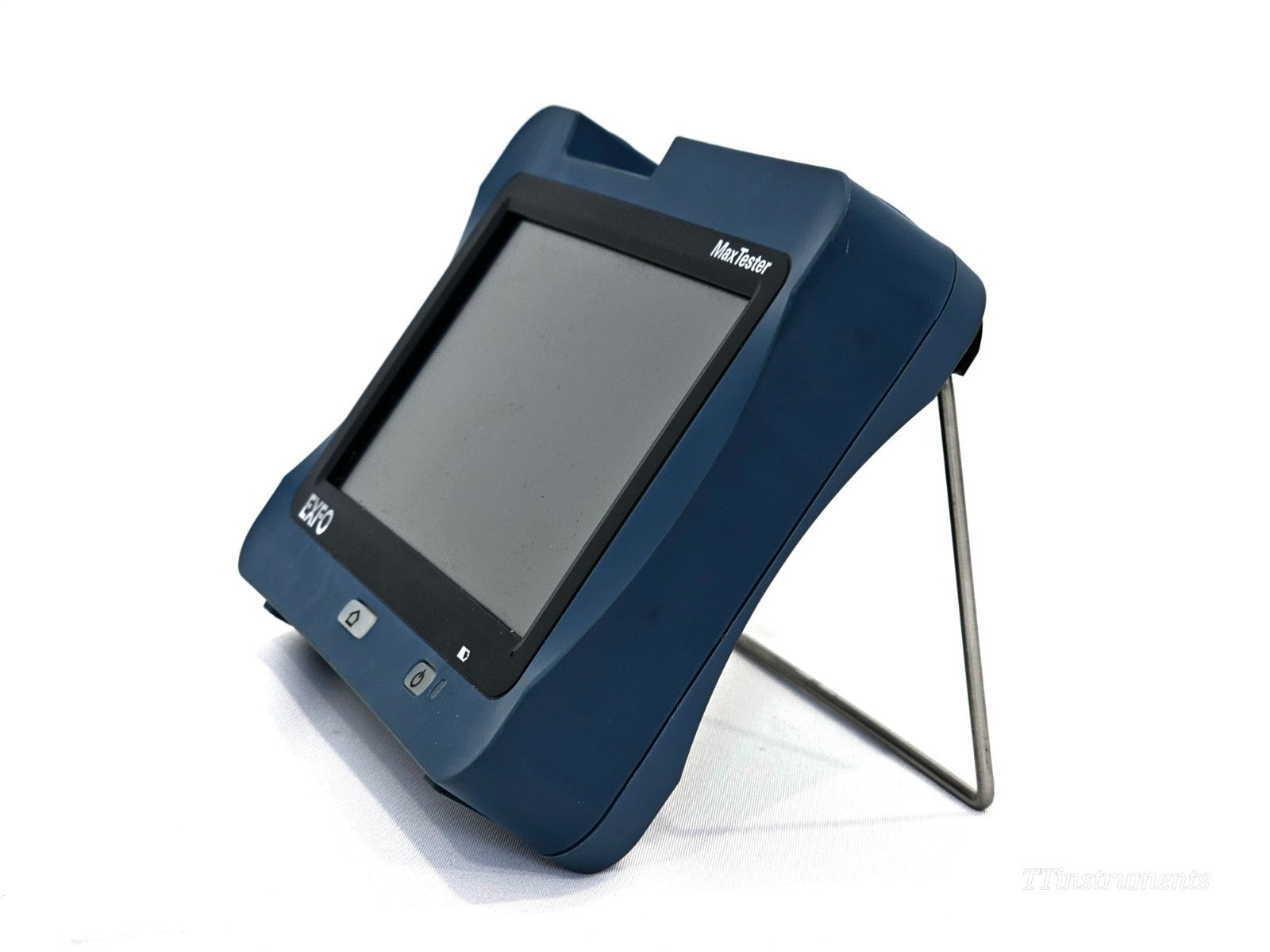

The MAX-FIP is EXFO's intelligent connector and fiber certifier display, featuring a large 7-inch colour touchscreen — the largest in the industry — designed to provide the highest magnification level for precise viewing of even the smallest defects on fiber endfaces. It runs the ConnectorMax2 application and supports optional plug-and-play power meter and visual fault locator modules.

FIP-410B Key Specifications:
Camera Sensor: 5-megapixel CMOS
Resolution: 0.55 µm
Visual Detection Capability: <1 µm
Magnification: Three digital levels
Field of View (high magnification): 304 µm x 304 µm
Field of View (mid magnification): 608 µm x 608 µm
Field of View (low magnification): 912 µm x 912 µm
Light Source: Blue LED
Lighting Technique: Coaxial
Connector: USB 2.0
Dimensions (H x W x D): 47 mm x 42 mm x 162 mm
Weight: 0.3 kg
Automation Level: Basic — manual inspection; image capture and ConnectorMax2 image viewing
Automatic Fiber Image Centering: No
Automatic Focus Adjustment: No
On-board Pass/Fail Analysis: No
Pass/Fail LED Indicator: No
Connector Compatibility: FC, SC, LC, ST (UPC and APC), FTTH/FTTA connectors via interchangeable tips

MAX-FIP Key Specifications:
Display: 7-inch colour touchscreen TFT

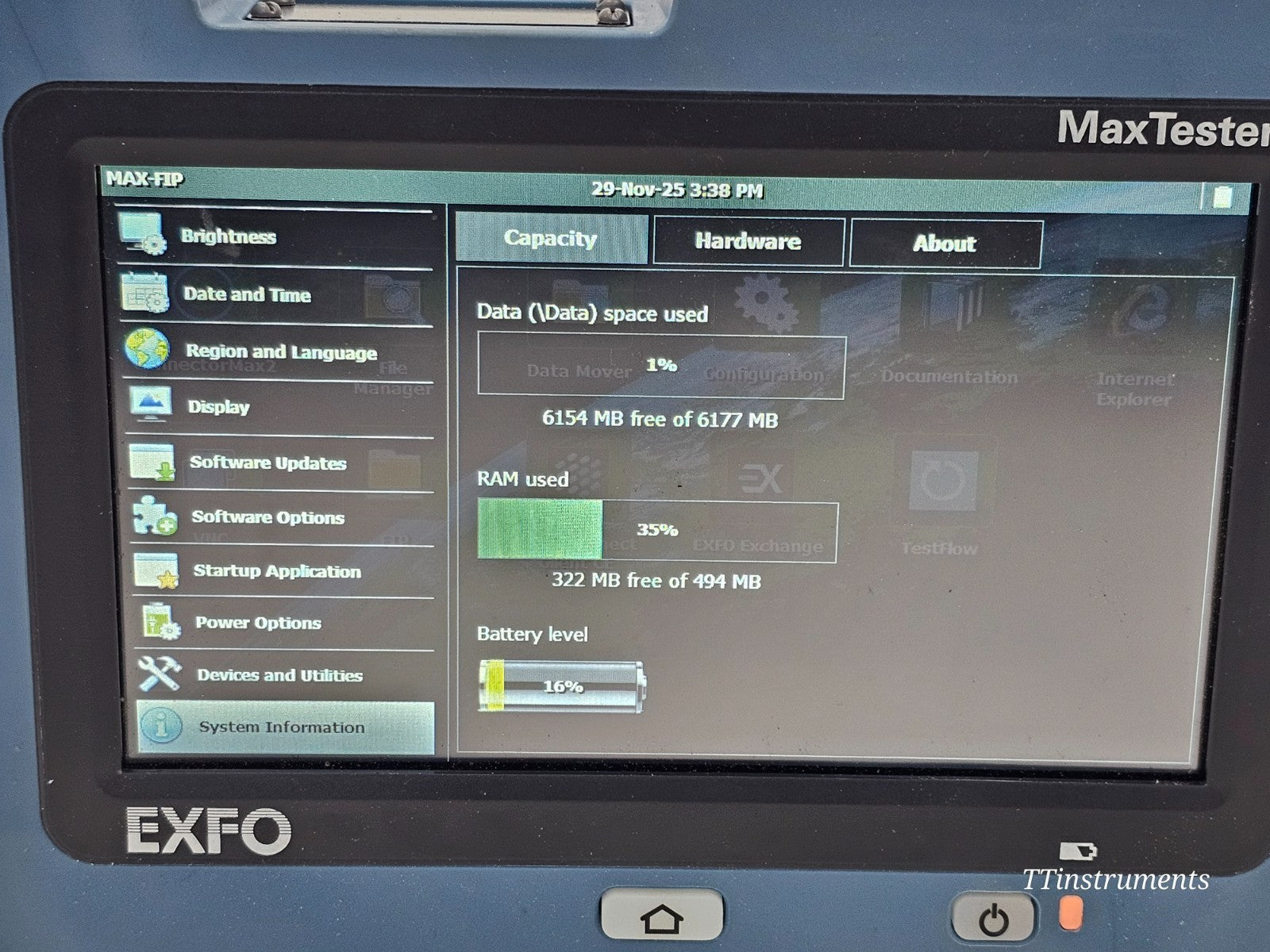

Internal Memory: 2 GB (up to 4,000 fiber certification results)
Memory Expansion: USB memory sticks

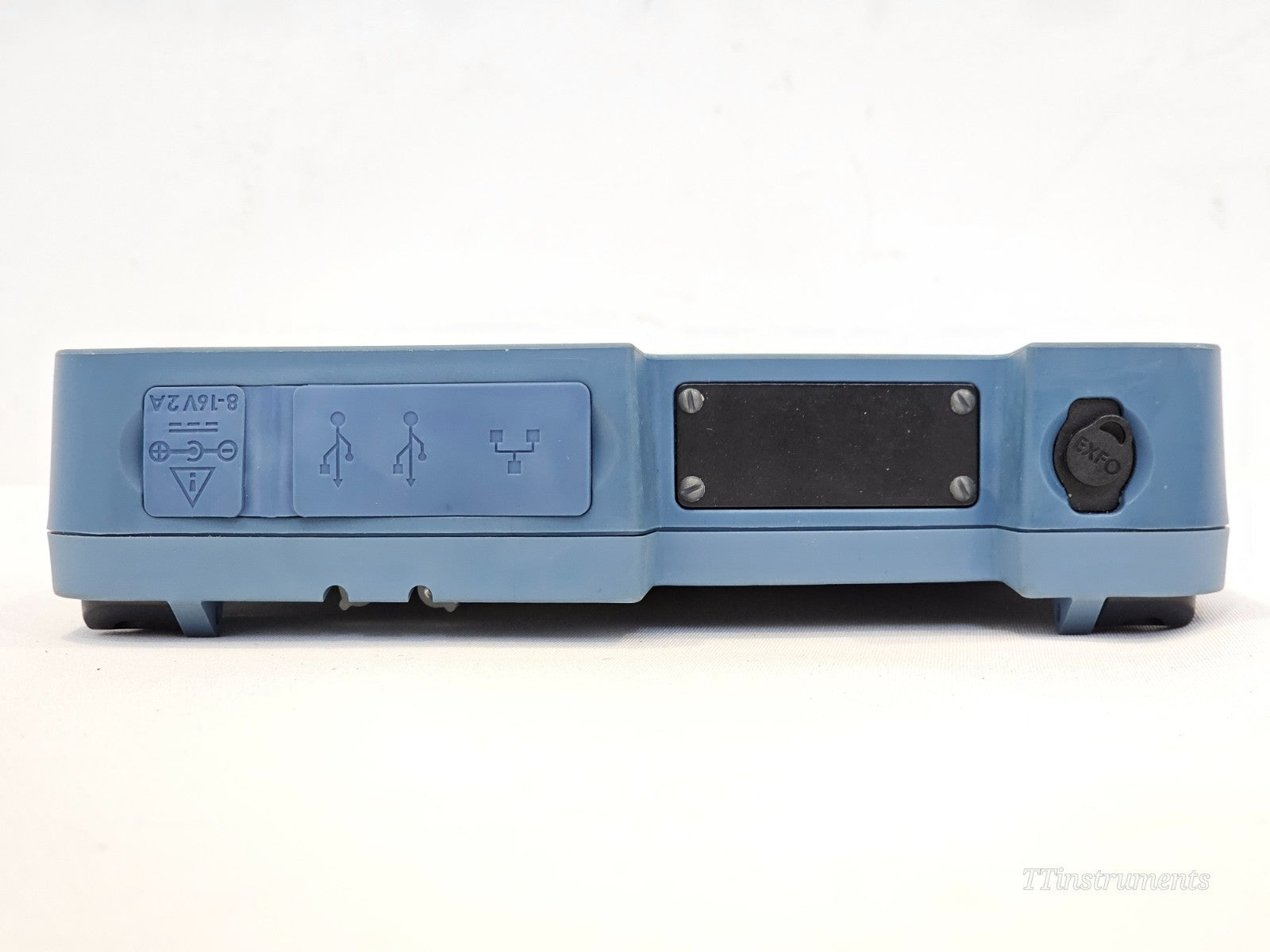

Network Interface: Up to 1 Gig RJ-45 built-in
Data Interfaces: USB 2.0
Connectivity: Optional Wi-Fi and Bluetooth
Battery Life: Up to 8 hours
Optional Modules: Power meter, visual fault locator (plug-and-play)
Software: ConnectorMax2 application
Compatibility: FIP-400B series probes only

EXFO FIP-400B Series Fiber Inspection Scope Spec Sheet (v11) — official manufacturer specification sheet covering FIP-410B, FIP-420B and FIP-430B: Download PDF

EXFO FIP-400B Series Fiber Inspection Scope Spec Sheet — mirror copy hosted by Digicomm: Download PDF

EXFO MAX-FIP Intelligent Connector and Fiber Certifier Spec Sheet — hosted by Fiber Instrument Sales: Download PDF

EXFO FIP-400B Series User Guide for Fiber Inspection Probe and ConnectorMax2 software (FIP-410B through FIP-435B): Download PDF
