Condition: Used

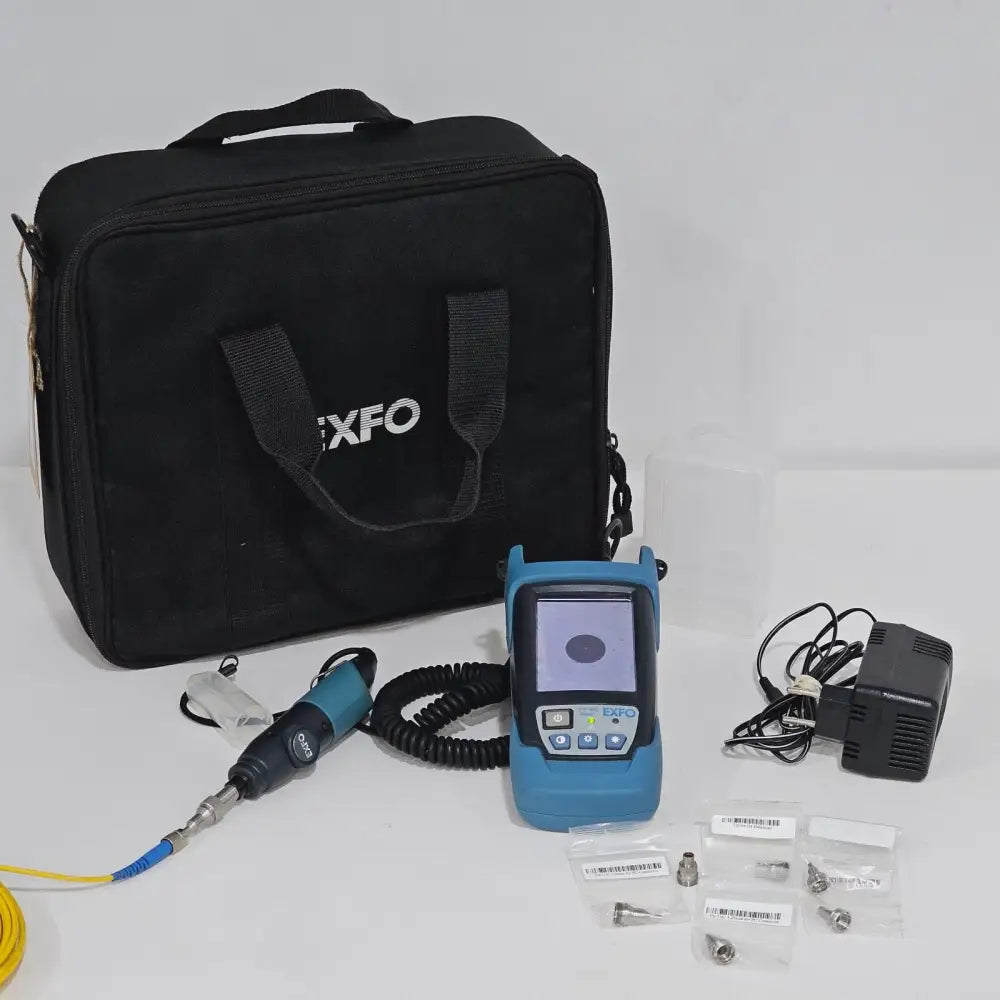

This EXFO FIP-400 fiber inspection kit is in excellent used condition, presented as a complete field-ready kit with the handheld probe, viewer display, battery, and a comprehensive set of seven PC connector tips spanning 1.25 mm, 2.0 mm, and 2.5 mm ferrule sizes, plus bulkhead adapters.

Included in the sale:

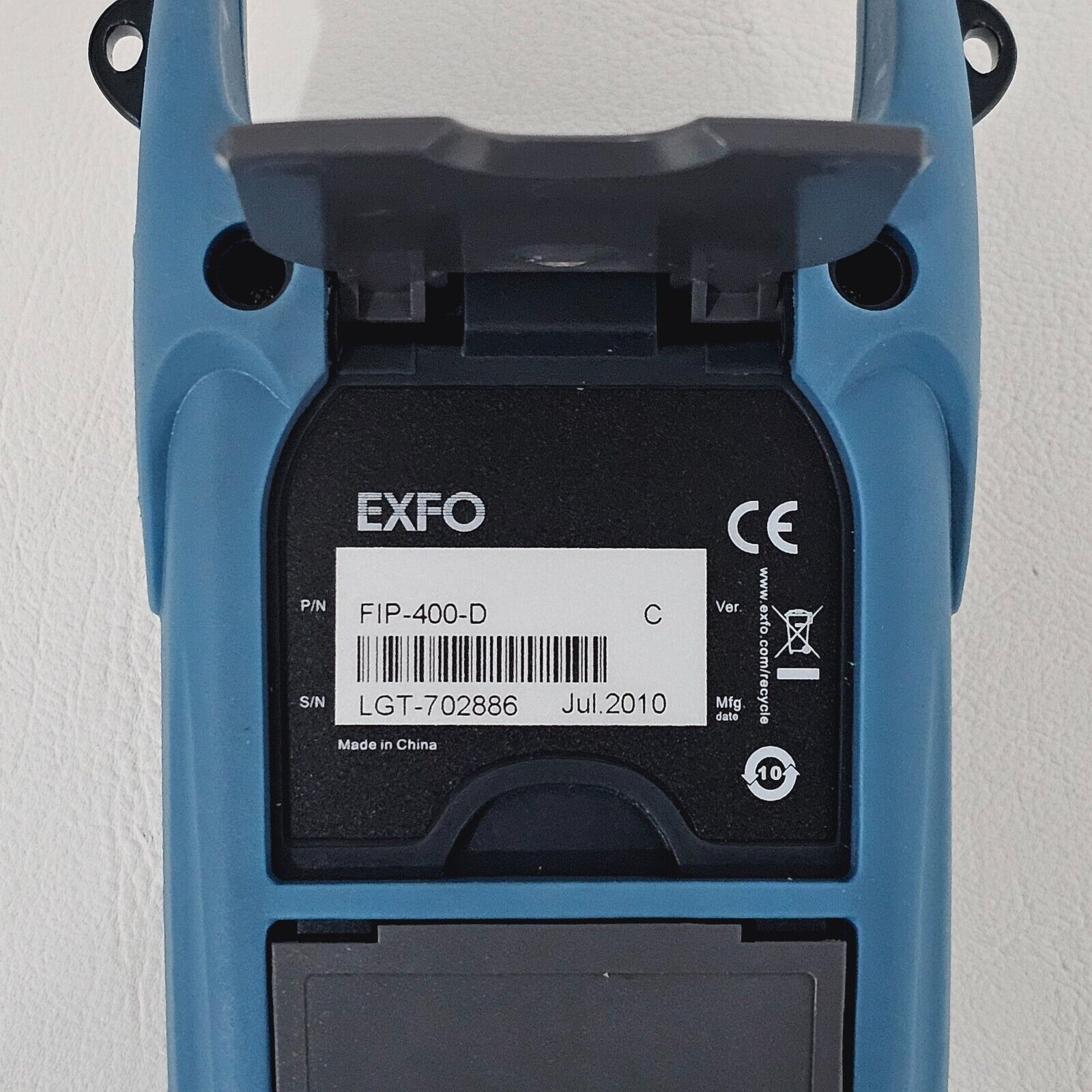

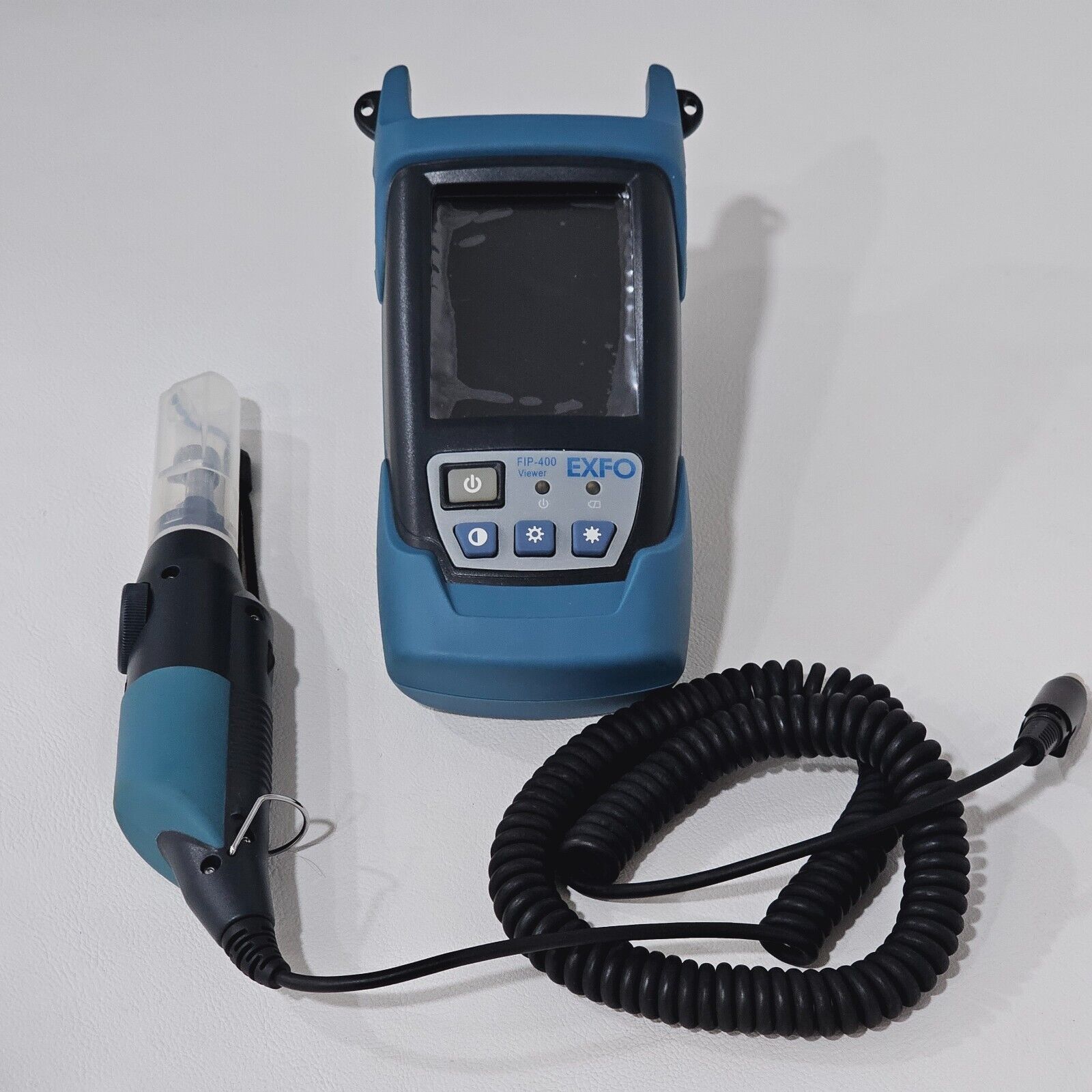

• Fiber inspection probe (FIP-400) with viewer and battery
• Power adapter

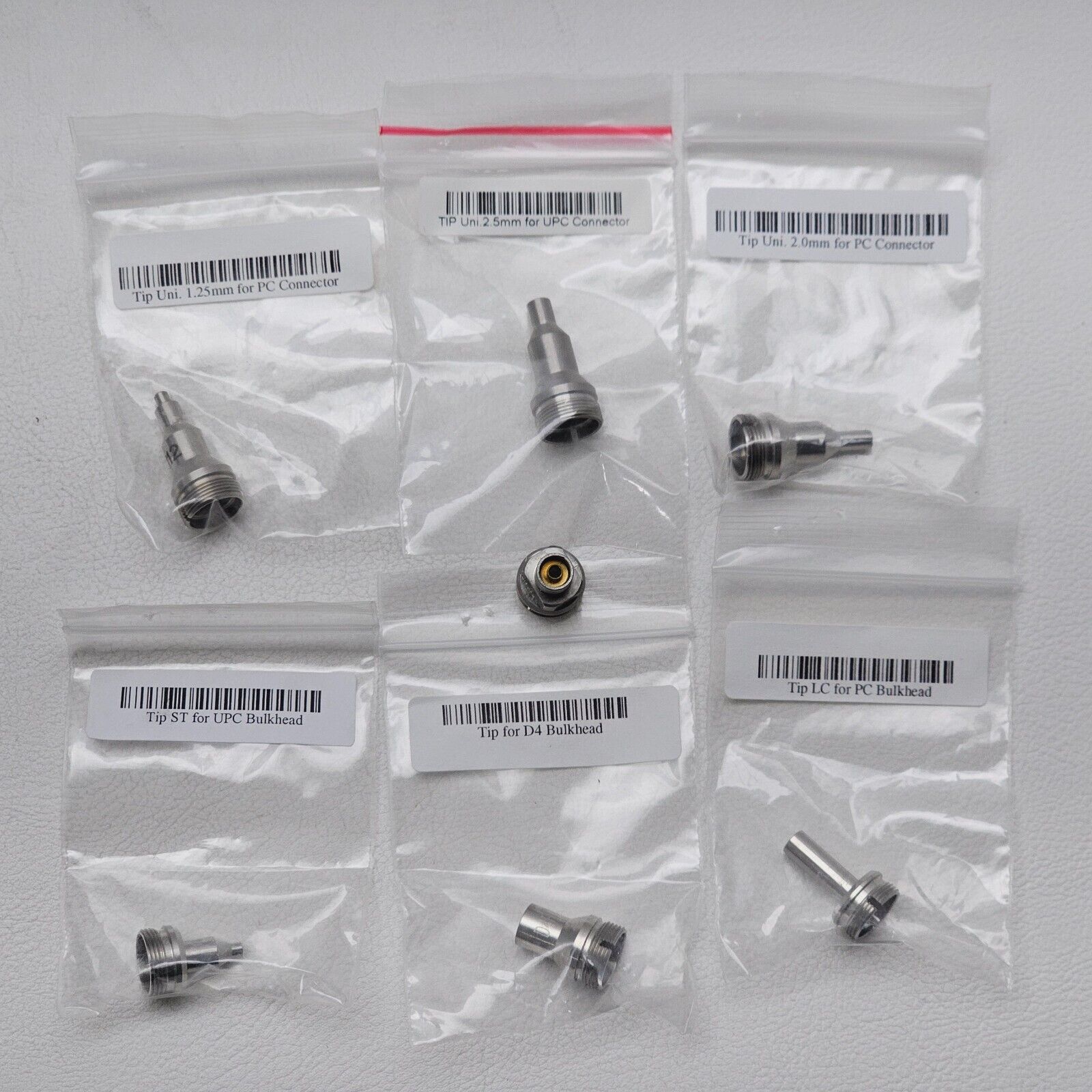

• Patchcord PC tips — 1.25 mm (LC) and 2.5 mm (SC/FC)
• 2.0 mm PC tips with bulkhead adapters — ST, D4, LC, FS (SC/FC)

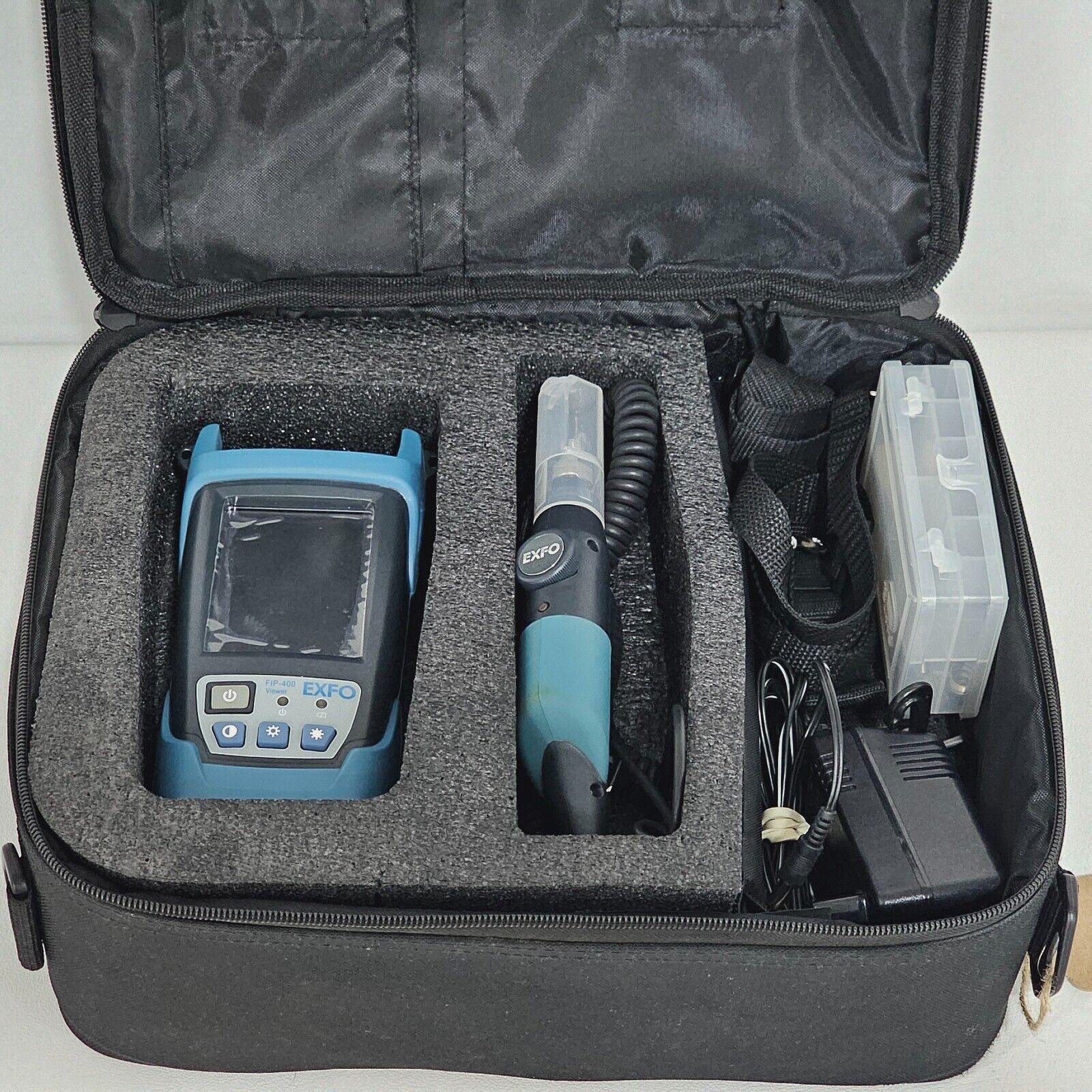

• Carry case

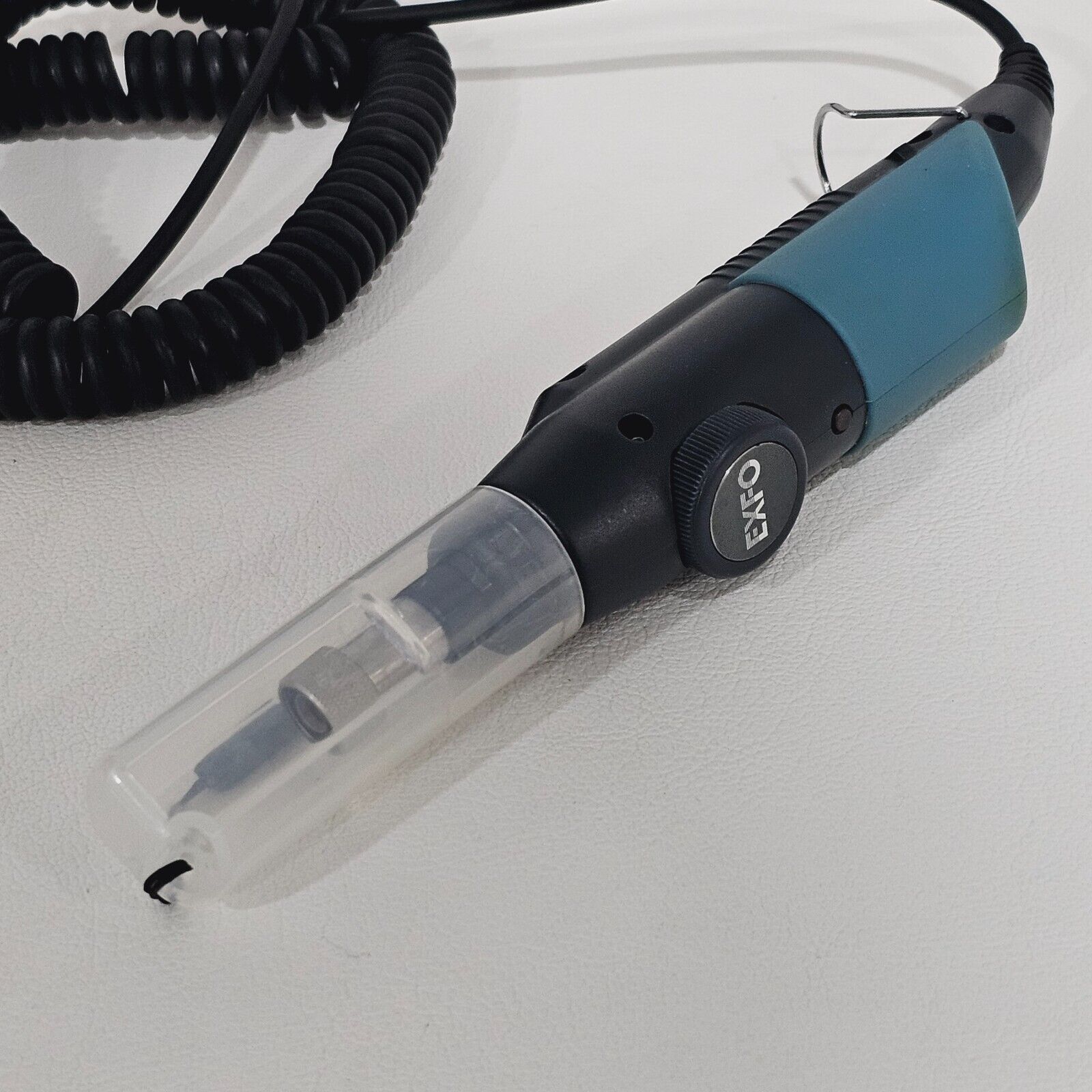

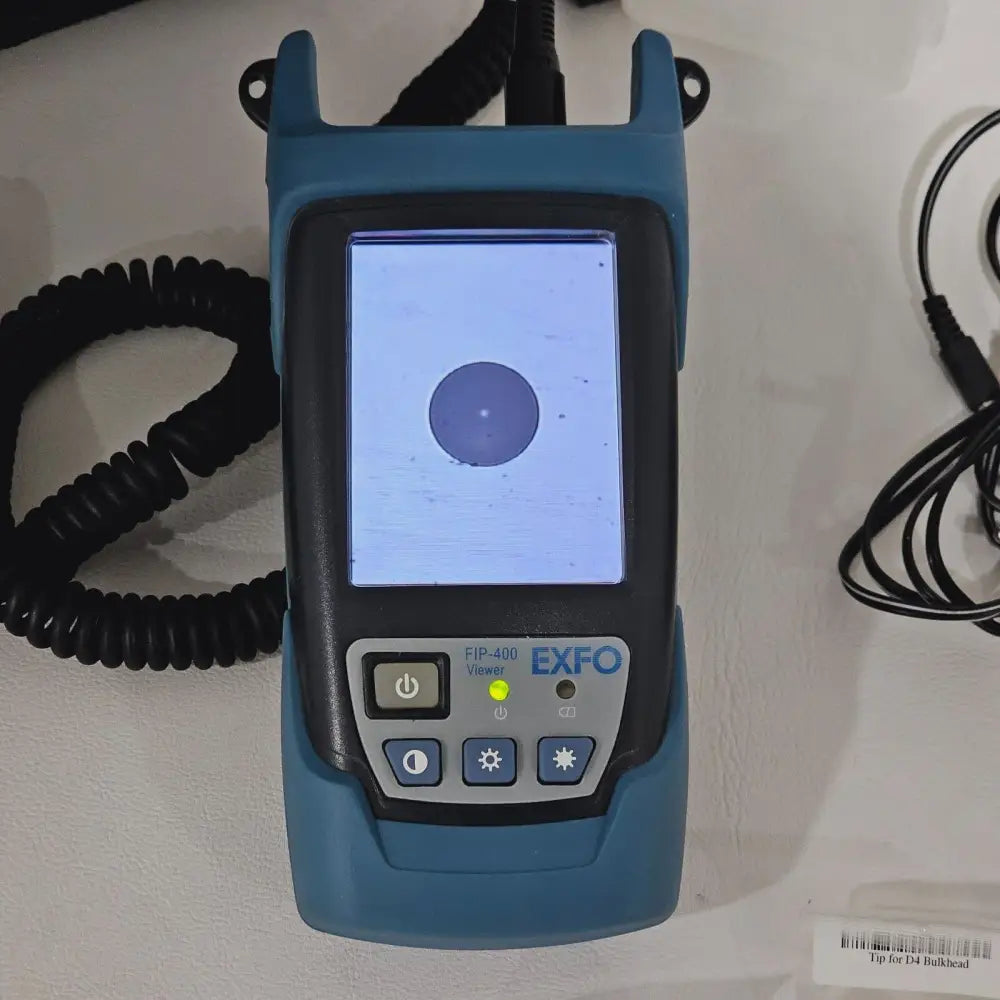

The EXFO FIP-400 Fiber Inspection Probe is a portable video microscope designed to inspect fiber optic connector end-faces for dirt, scratches, and physical damage. Unlike traditional bench microscopes, the FIP-400's slim profile allows inspection of both patchcord connectors and hard-to-reach connectors mounted on the back of patch panels and bulkhead adapters.

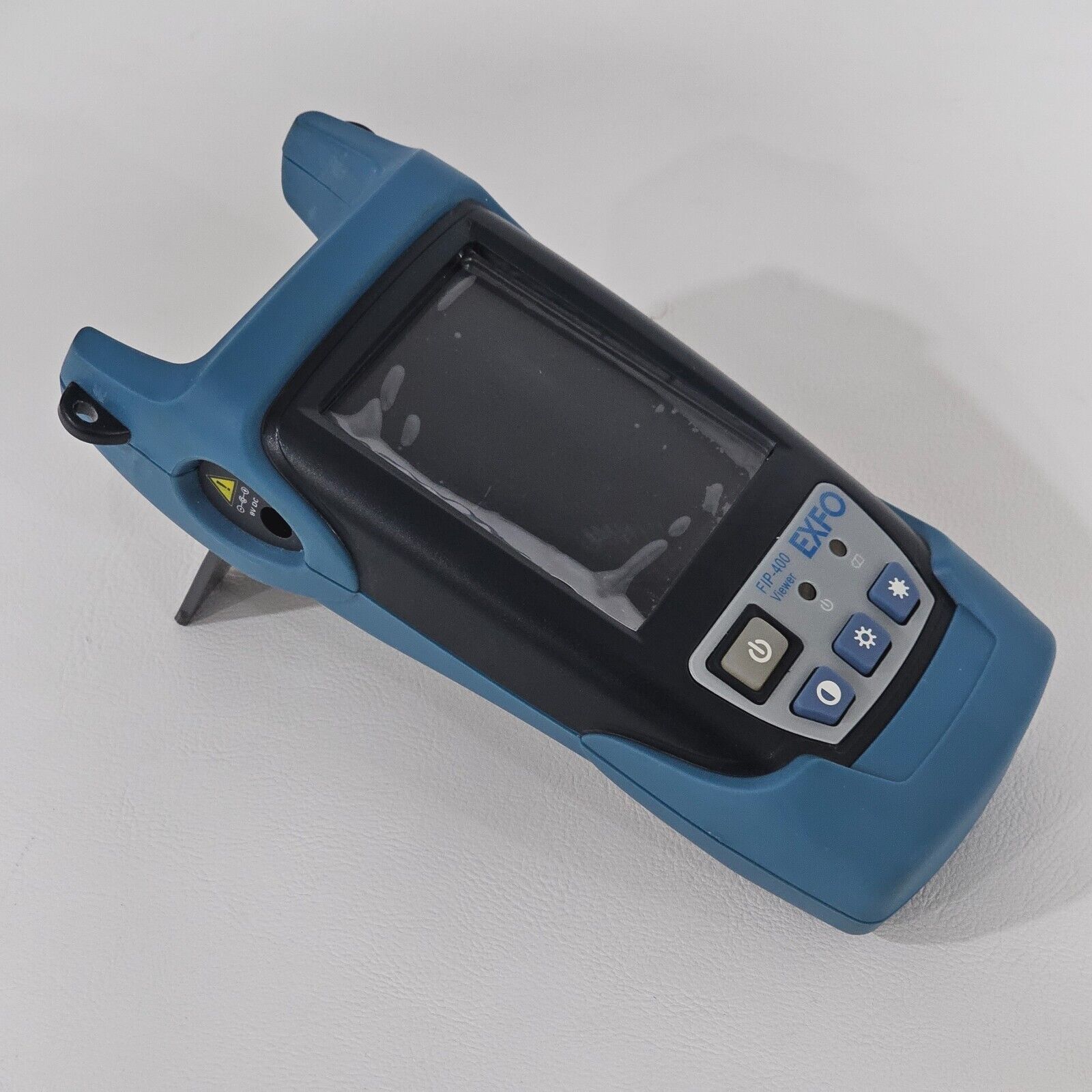

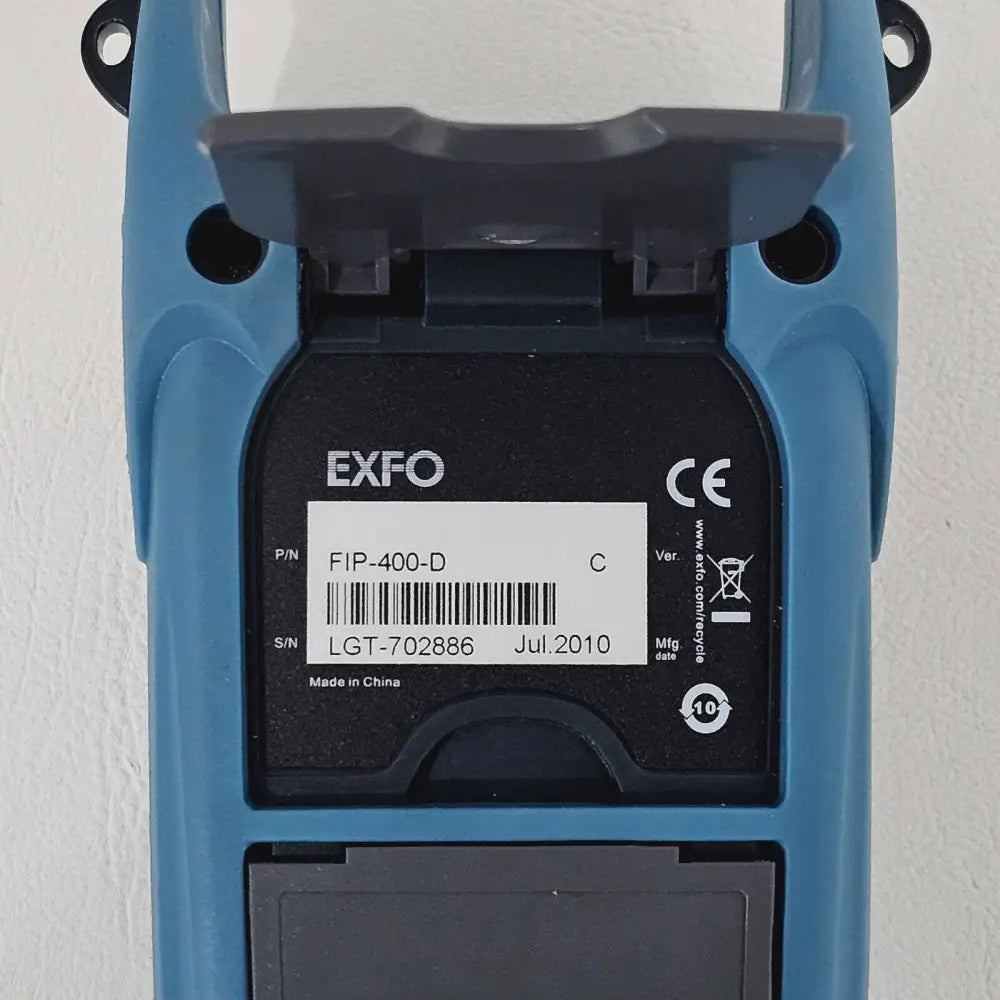

The probe integrates an internal light source, a 1/3-inch CMOS video camera, a manual focusing mechanism, and a single or dual magnification control (200X/400X depending on variant), plus an image capture button. It can be used standalone with the optional handheld FIP-400-D viewer display, connected to EXFO legacy FTB test platforms, or connected to a PC via the optional FIP-400-USB2 converter module.

The interchangeable tip system supports a wide range of connector types via dedicated patchcord tips and bulkhead adapters, and optical resolution allows detection of scratches and particles as small as 1 µm. ConnectorMax analysis software (sold separately or included on supported platforms) delivers IEC/IPC-compliant pass/fail connector endface analysis.

Key Features:
• Magnification: 200X (single) / 200X–400X (dual models)
• Image sensor: 1/3-inch CMOS video camera
• Integrated light source
• Manual focus adjustment
• Interchangeable tip system — compatible with 1.25 mm, 2.0 mm, and 2.5 mm ferrules (PC and APC)
• Connector types supported: LC, SC, FC, ST, D4, FS, SMA, MTRJ (via appropriate tips)
• Optical resolution: detects particles/scratches down to 1 µm

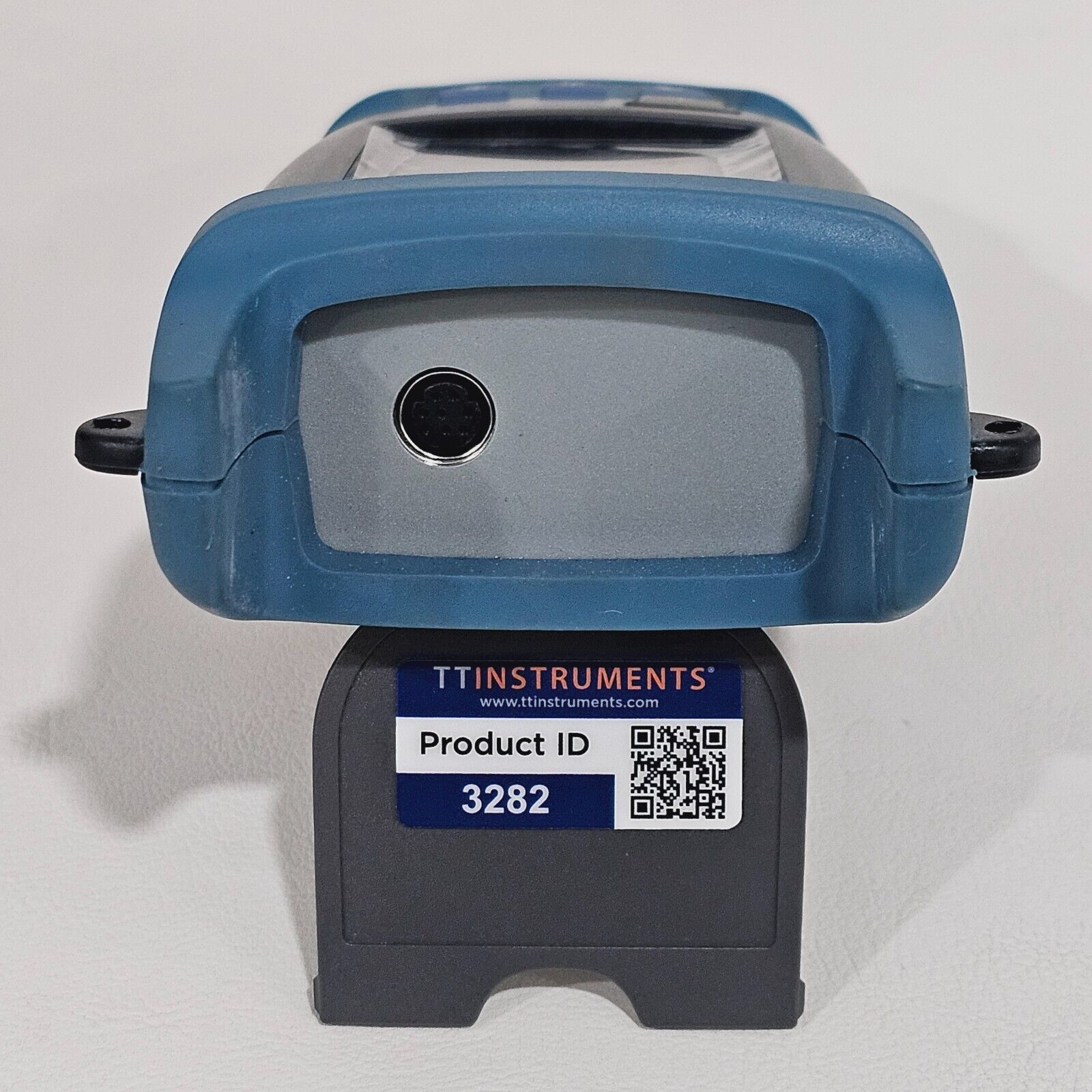

• Probe connector: 8-pin mini-DIN (analog, for EXFO legacy platforms)
• Dimensions (without tip cap): 38 mm x 32 mm x 170 mm
• Dimensions (with tip cap): 38 mm x 32 mm x 200 mm
• Power supply: 9 V, 1 A external adapter
• Compatible software: ConnectorMax (single-fiber and multifiber analysis and reporting)
• Applications: Fiber network installation and maintenance, connector endface certification, patchcord quality assurance, field and laboratory inspection

EXFO FIP-400 Official Spec Sheet (discontinued model — English): Download PDF

EXFO FIP-400 User Guide / User Manual (English, official EXFO): Download PDF

EXFO FIP-400 Connector Inspection Reference Guide (PDF): Download PDF

EXFO ConnectorMax Analysis Software Spec Sheet (compatible with FIP-400): Download PDF

EXFO FIP-400 Specifications Spec Sheet (via AAA Testers mirror): Download PDF
