EXFO Fiber Optic OTDR Light source FC Adapter

Condition: Used

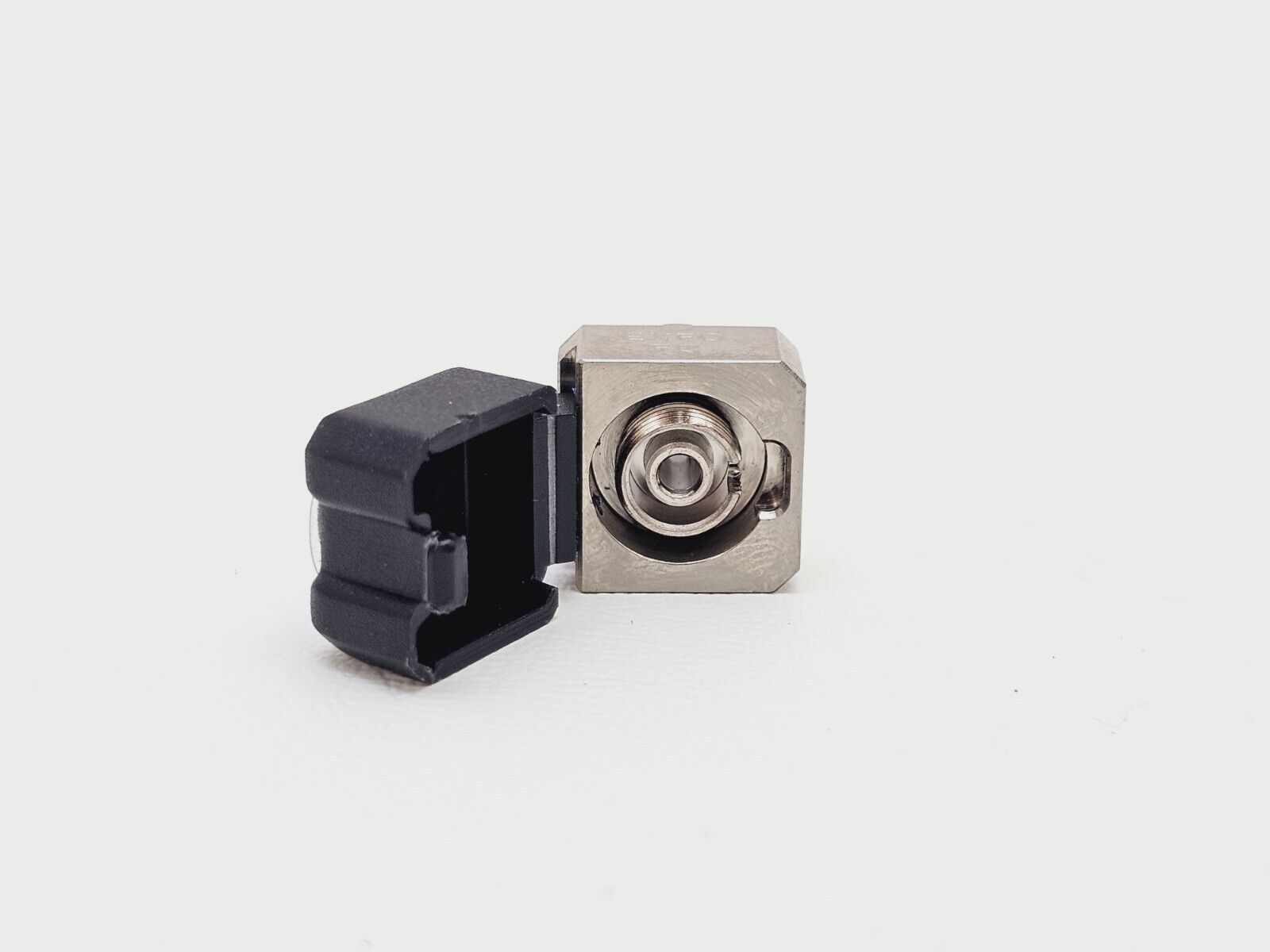

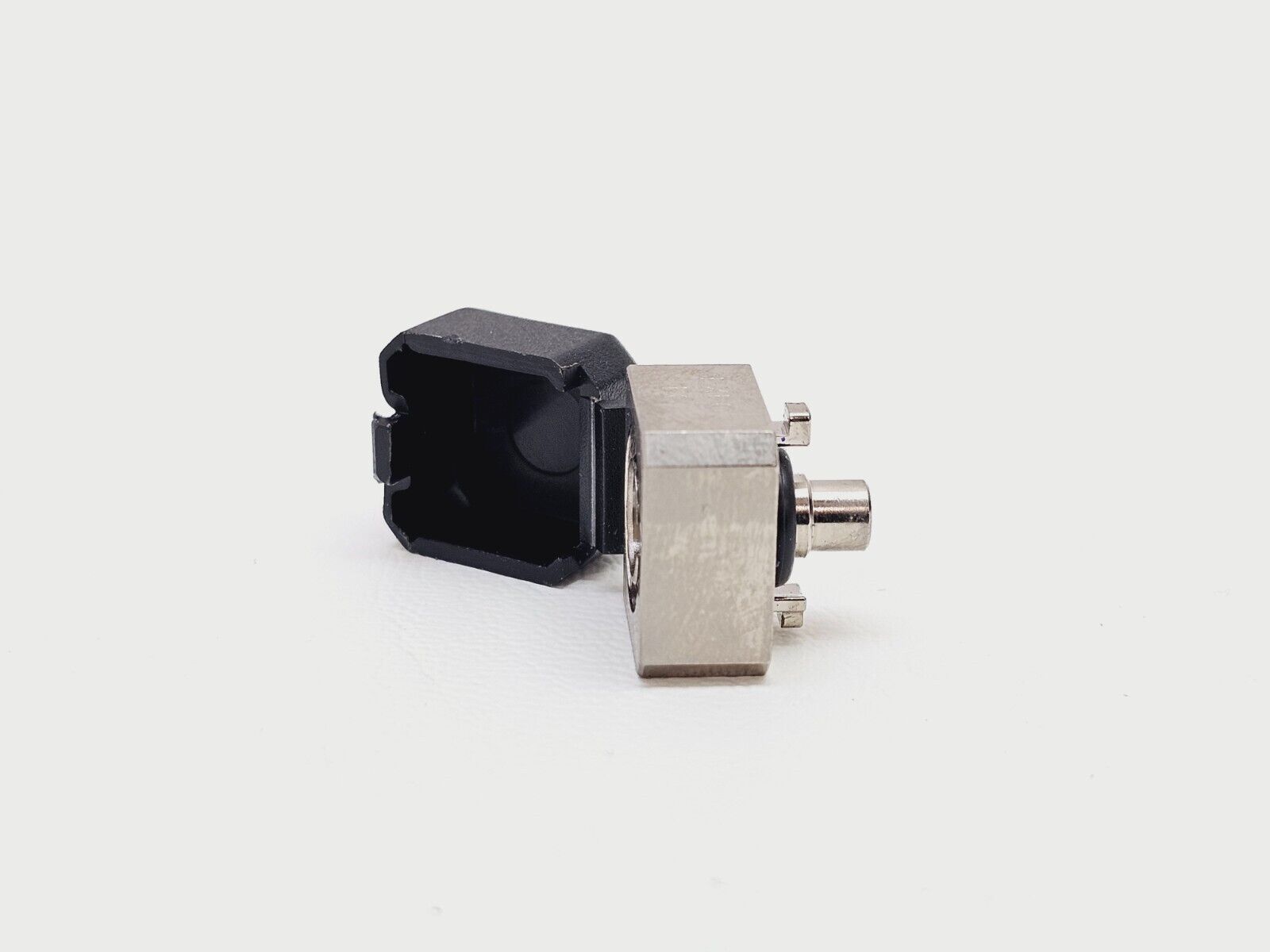

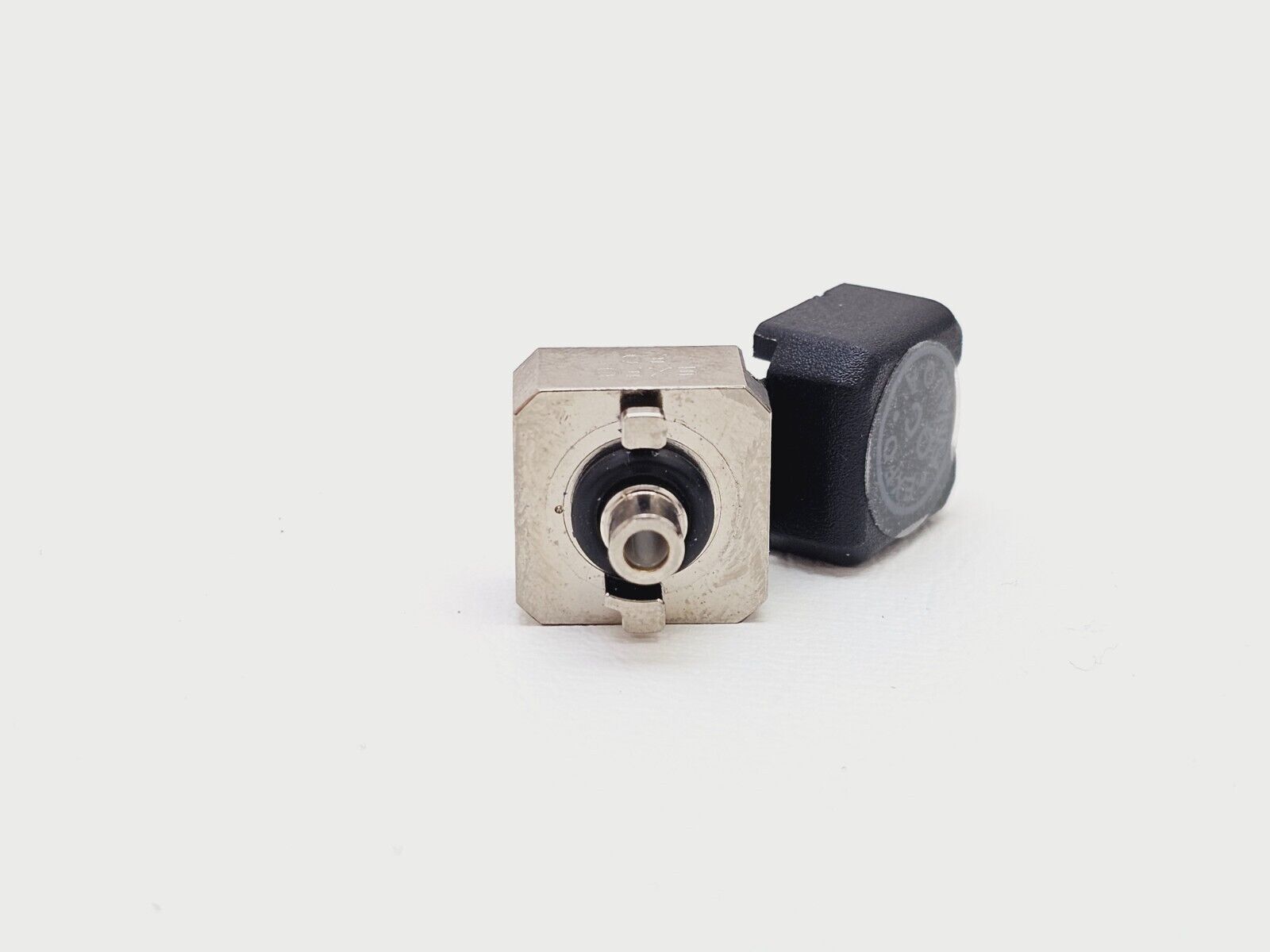

A used EXFO EUI-89 FC connector adapter cap in very good condition. Multiple units are available and cosmetic appearance may vary between units, but all are functionally sound. Designed to fit the EXFO Universal Interface (EUI) baseplate found on EXFO OTDR and light source instruments, this FC adapter allows quick connector-type changes without tools.

Typically includes:
• EXFO EUI-89 FC adapter cap
• Protective dust cap

The EXFO EUI-89 is an FC connector adapter cap designed for use with the EXFO Universal Interface (EUI) system, which is built into EXFO OTDR and fiber optic light source instruments. The EUI system was the industry's first built-in interchangeable connector interface, allowing field technicians to swap connector types quickly and easily without specialist tools.

The adapter uses a push-and-turn mechanism to attach to and detach from the fixed EUI baseplate on the instrument port. Once removed, the ferrule end face is fully accessible for cleaning, ensuring optimal optical conditions. The adapter is compatible with both angled (APC/EA) and non-angled (UPC/EI) polishing styles depending on variant.

Connector Type: FC (Narrow Key)
Interface Type: EXFO Universal Interface (EUI)
Installation Method: Twist-on (push and turn)
Polishing Style: UPC (EI) — non-angled
Compatible Instruments: All EXFO OTDR and light source models with EUI interface, including AXS-100, AXS-110, FTB-1, FTB-1v2, FTB-150, FTB-200, MaxTester 700B/C, MaxTester 800 series, and FiberBasix 100/500 series
Application: OTDR test port and light source port connector adaptation
Available Connector Types in EUI Series: FC, SC, ST, LC, E-2000, DIN47256, HMS-10/AG
Note: For best OTDR performance on singlemode links, APC connectors are recommended. UPC variants are also supported.

EXFO OTDR User Guide (English) — covers EUI connector adapter usage, cleaning, and OTDR operation: Download PDF
