Condition: Used

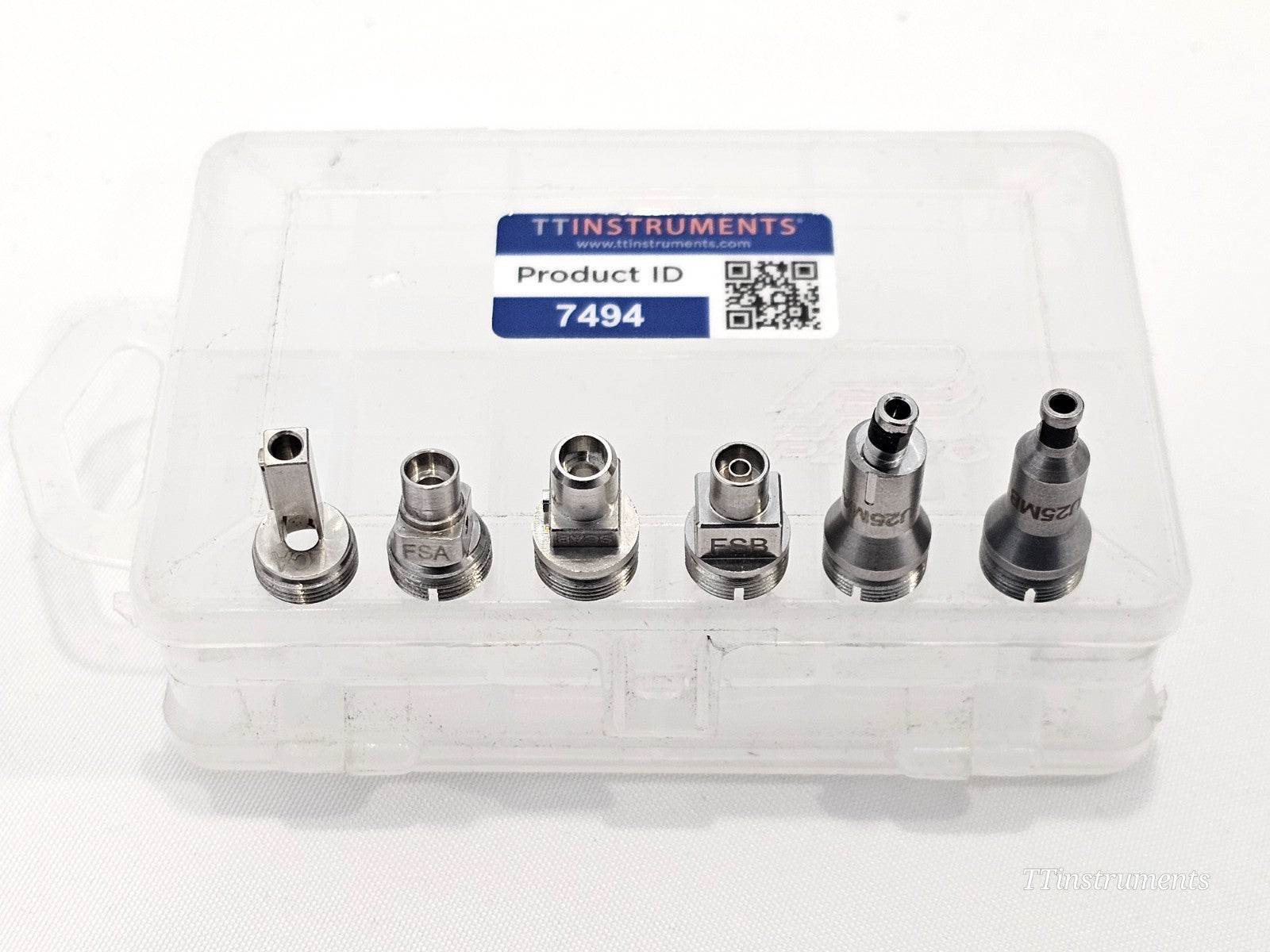

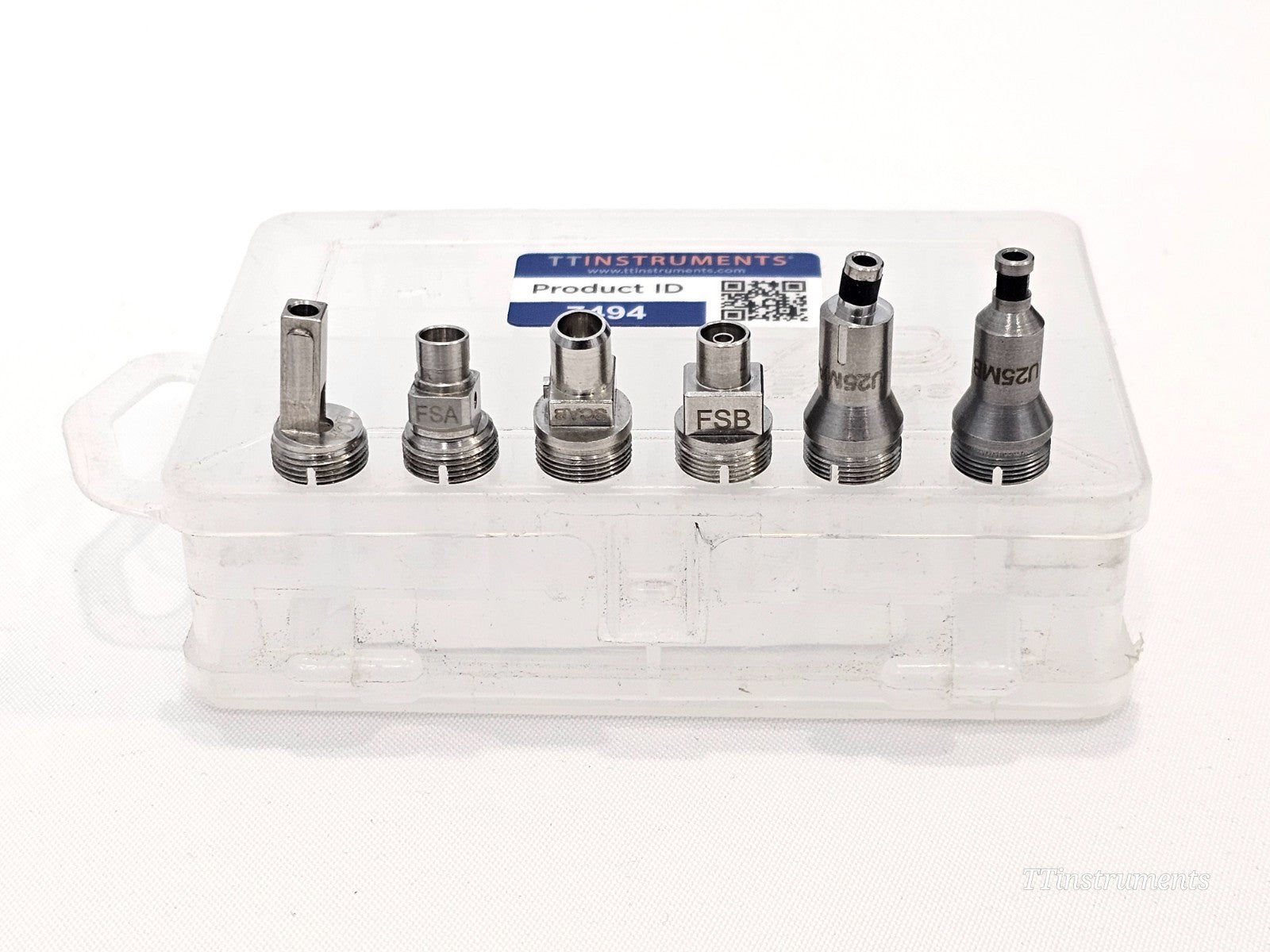

A used set of 6 EXFO FIPT-400 series fiber inspection scope tips in excellent condition. The set covers patchcord and bulkhead inspection across PC and APC connector types, including universal 2.5 mm patchcord tips and dedicated bulkhead adapters for LC APC, SC, and FC connector formats.

Included tips:
• FIPT-400-U25 — Universal patchcord tip for 2.5 mm PC ferrules
• FIPT-400-U25MA — Universal patchcord tip for 2.5 mm APC ferrules
• FIPT-400-LC-APC — LC APC tip for bulkhead adapter
• SC/FC PC bulkhead tip
• SC/FC APC bulkhead tip

EXFO FIPT-400 Series Fiber Inspection Probe Tips — Patchcord and Bulkhead Adapters

The EXFO FIPT-400 series comprises interchangeable adapter tips and bulkhead adapters designed for use with EXFO FIP-400 and FIP-400B series fiber inspection probes. These tips enable inspection of both male patchcord connectors and female bulkhead/panel-mounted connectors from a single probe platform, making them essential accessories for field technicians, installers, and laboratory engineers working with fiber optic networks.

Compatible Probe Models: FIP-410B, FIP-420B, FIP-425B, FIP-430B, FIP-435B, FIP-400 series

Connector Type Coverage: FC, SC, LC, ST for UPC and APC; FTTH/FTTA connectors; 2.5 mm and 1.25 mm ferrule formats

Patchcord Tip Models Include:
FIPT-400-U25M: Universal patchcord tip for 2.5 mm PC (UPC) ferrules
FIPT-400-U25MA: Universal patchcord tip for 2.5 mm APC ferrules (SC/APC, FC/APC)
FIPT-400-U12M: Universal patchcord tip for 1.25 mm UPC ferrules
FIPT-400-U12MA: Universal patchcord tip for 1.25 mm APC ferrules

Bulkhead Adapter Tip Models Include:
FIPT-400-FC-SC: FC and SC UPC tip for bulkhead adapter
FIPT-400-FC-APC / FIPT-400-SC-APC: FC/APC and SC/APC tip for bulkhead adapter
FIPT-400-LC-APC: LC/APC tip for bulkhead adapter
FIPT-400-LC: LC UPC tip for bulkhead adapter

Ferrule Diameter Compatibility: 1.25 mm (LC) and 2.5 mm (SC, FC, ST)
Polish Types Supported: UPC (PC) and APC
Application: Patchcord endface quality assurance, patch panel bulkhead inspection, field connector certification
Use With: EXFO ConnectorMax2 software for automated pass/fail analysis against IEC/IPC standards

These tips and adapters are built to fit a wide range of fiber connector types and designs currently used in the field, including FC, SC, LC, and ST for both UPC and APC applications. When used in conjunction with an EXFO FIP-400B series probe, they enable complete connector endface inspection — identifying scratches, contamination, and physical damage — supporting IEC 61300-3-35 cleanliness standards.

EXFO FIP-400B Fiber Inspection Scope Series — Official Spec Sheet (v11, EN): Download PDF

EXFO FIP-400 Tip Adapter Brochure — Patchcord Tips and Bulkhead Adapters Guide: Download PDF

EXFO Connector Inspection Reference Guide — FIP-400 Series: Download PDF

EXFO ConnectorMax Software & FIP-400 Tip Compatibility Spec Sheet: Download PDF
