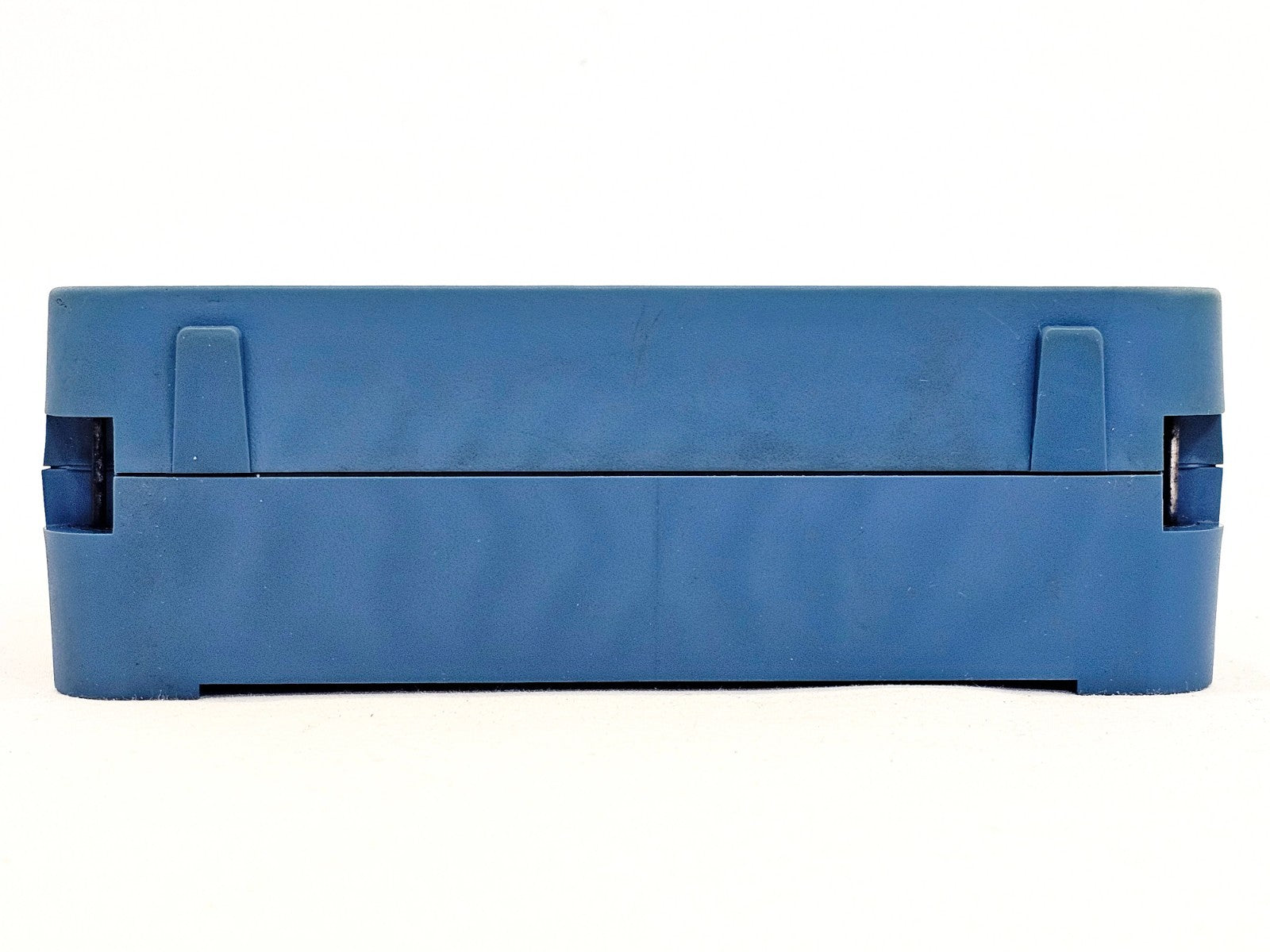

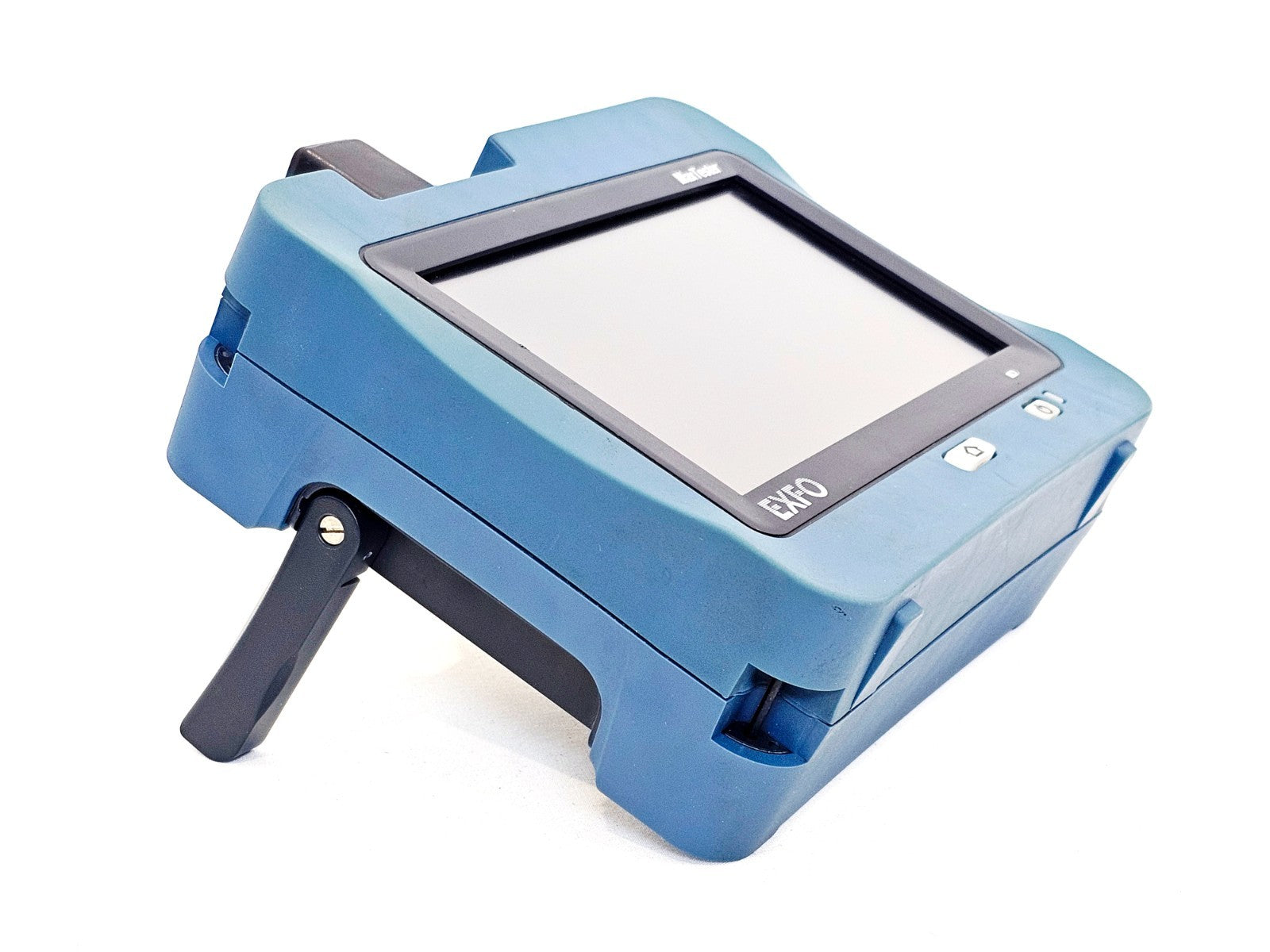

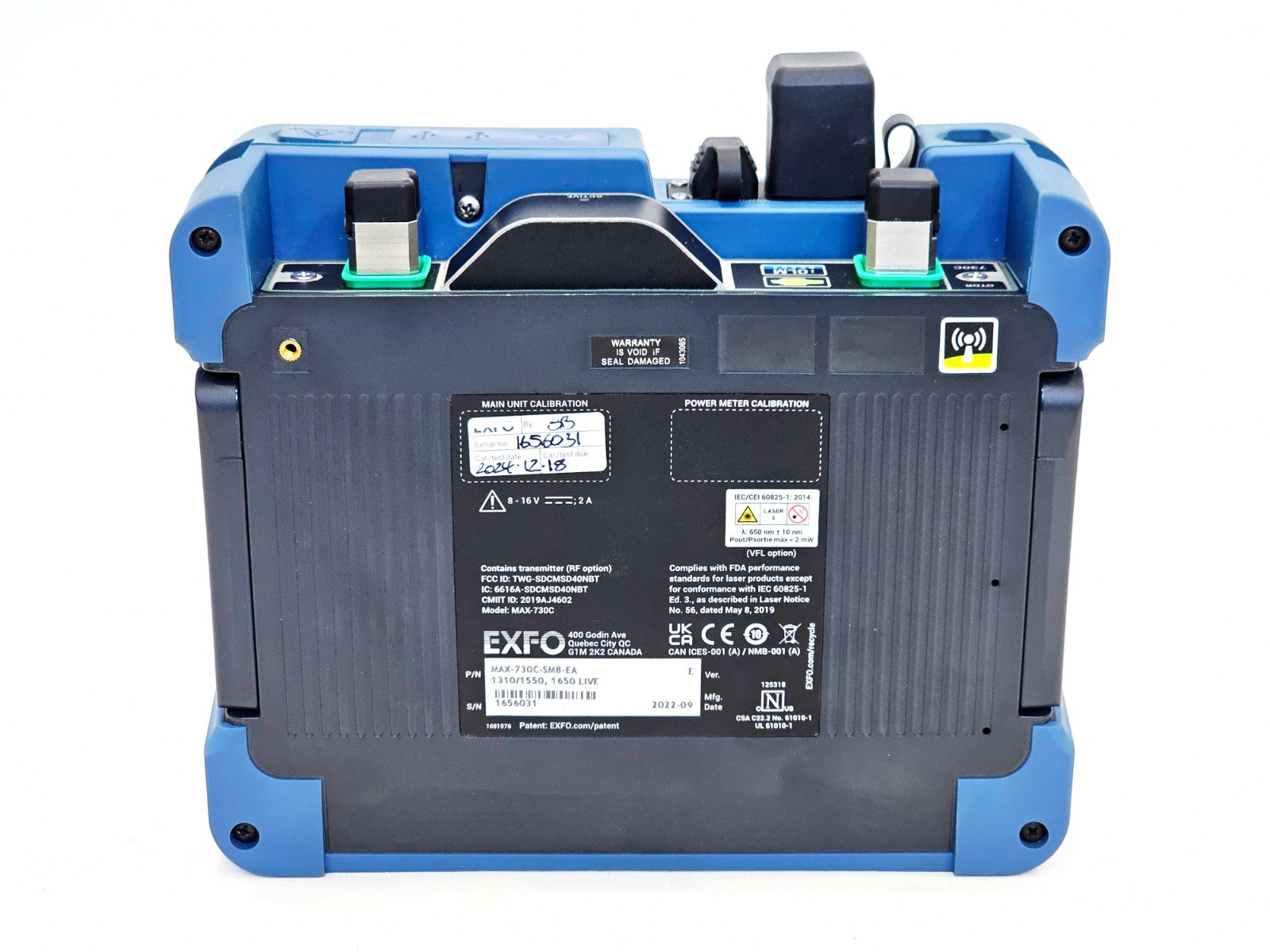

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

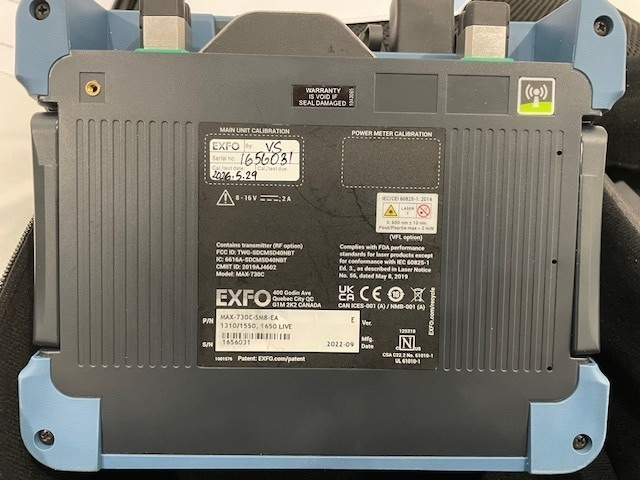

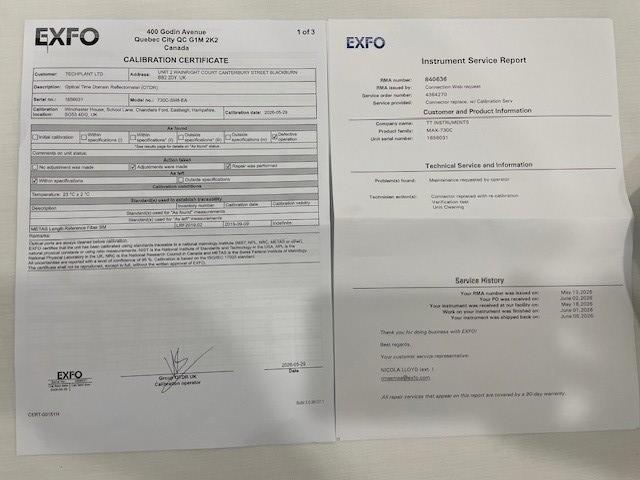

This EXFO MAX-730C-SM8-EA MaxTester OTDR is in excellent used condition with only minor signs of previous use consistent with field deployment. The unit has been fully tested and confirmed working across all three OTDR wavelengths (1310 nm, 1550 nm, and 1650 nm Live), iOLM, optical power meter and VFL functions. Manufacturing date is January 2022. Calibration has expired; fresh calibration can be arranged at additional cost upon request.

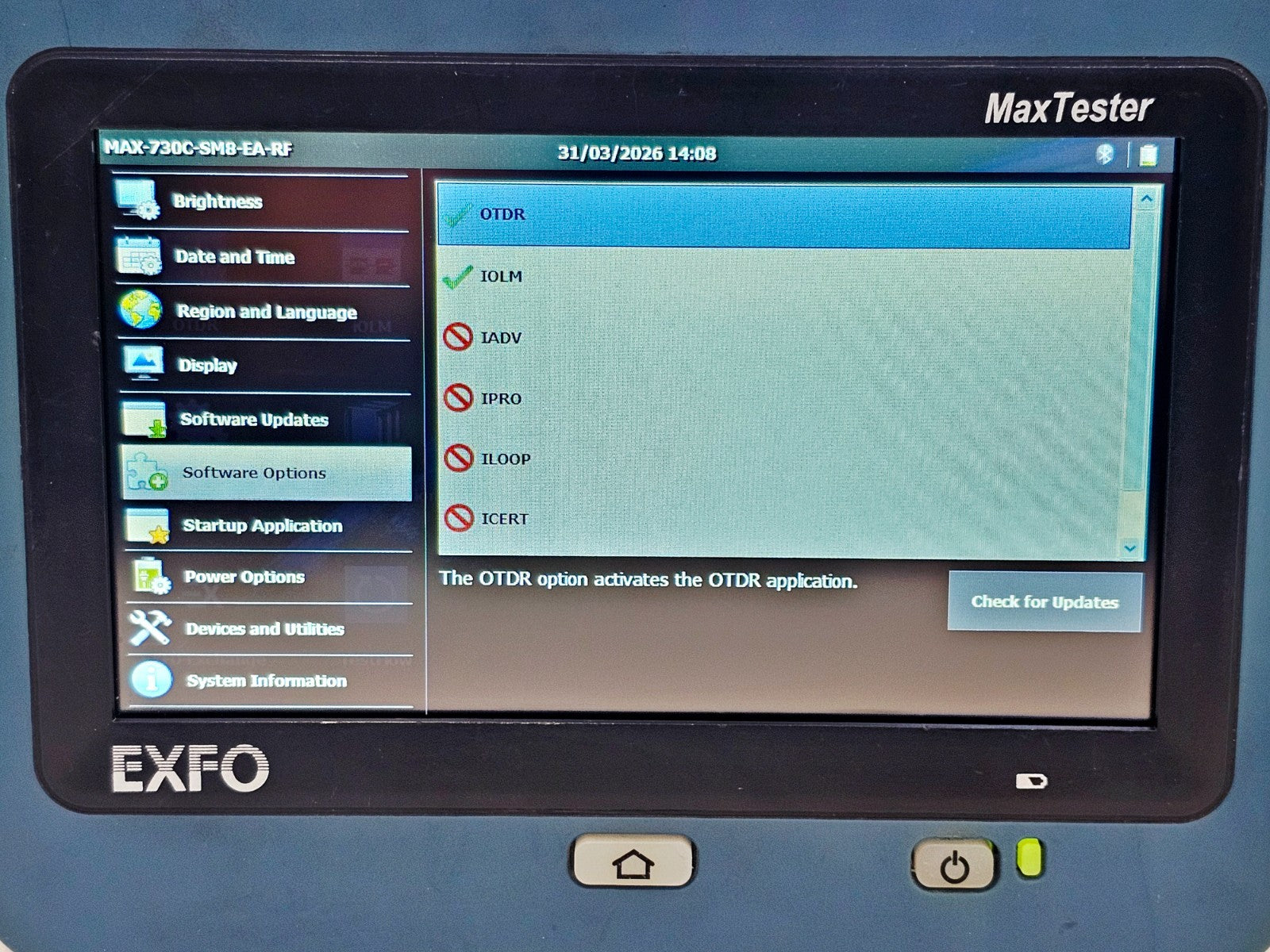

Active software options on this unit:
• OTDR — full OTDR application enabled

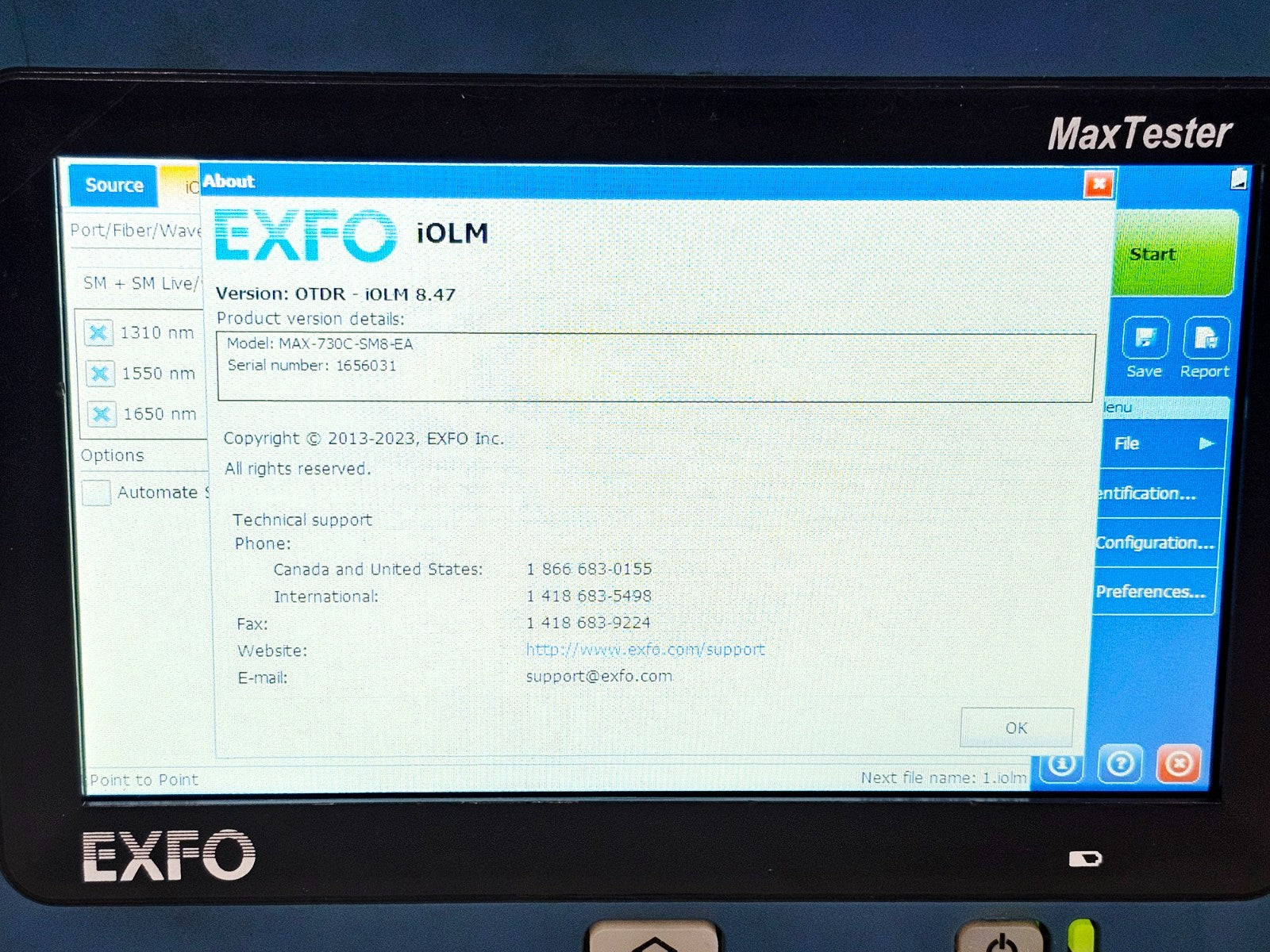

• iOLM — intelligent Optical Link Mapper enabled (one-touch automated fibre characterisation)

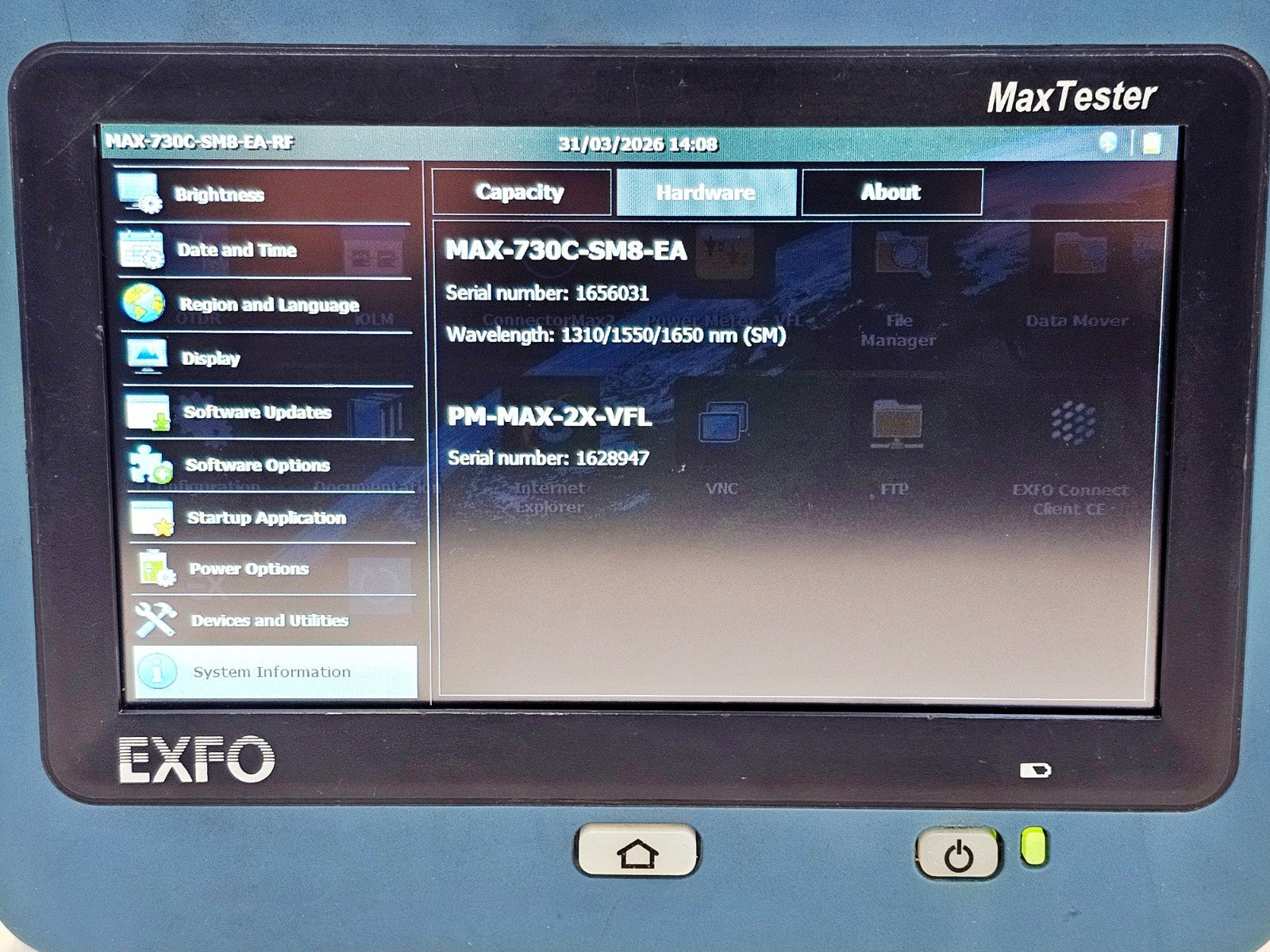

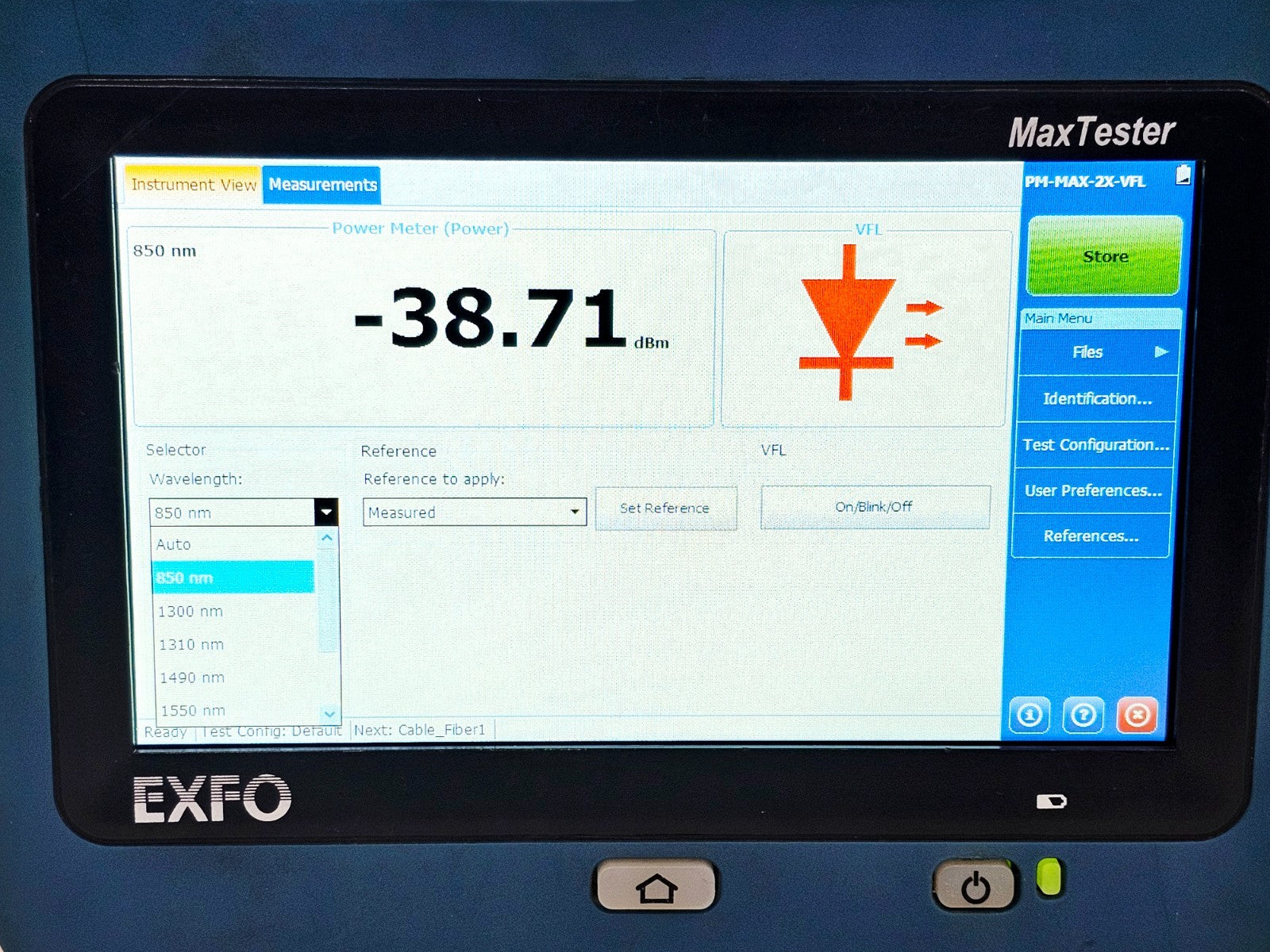

The installed PM-MAX-2X-VFL hardware module provides a multiwavelength optical power meter and a 650 nm visual fault locator via a 2.5 mm connector.

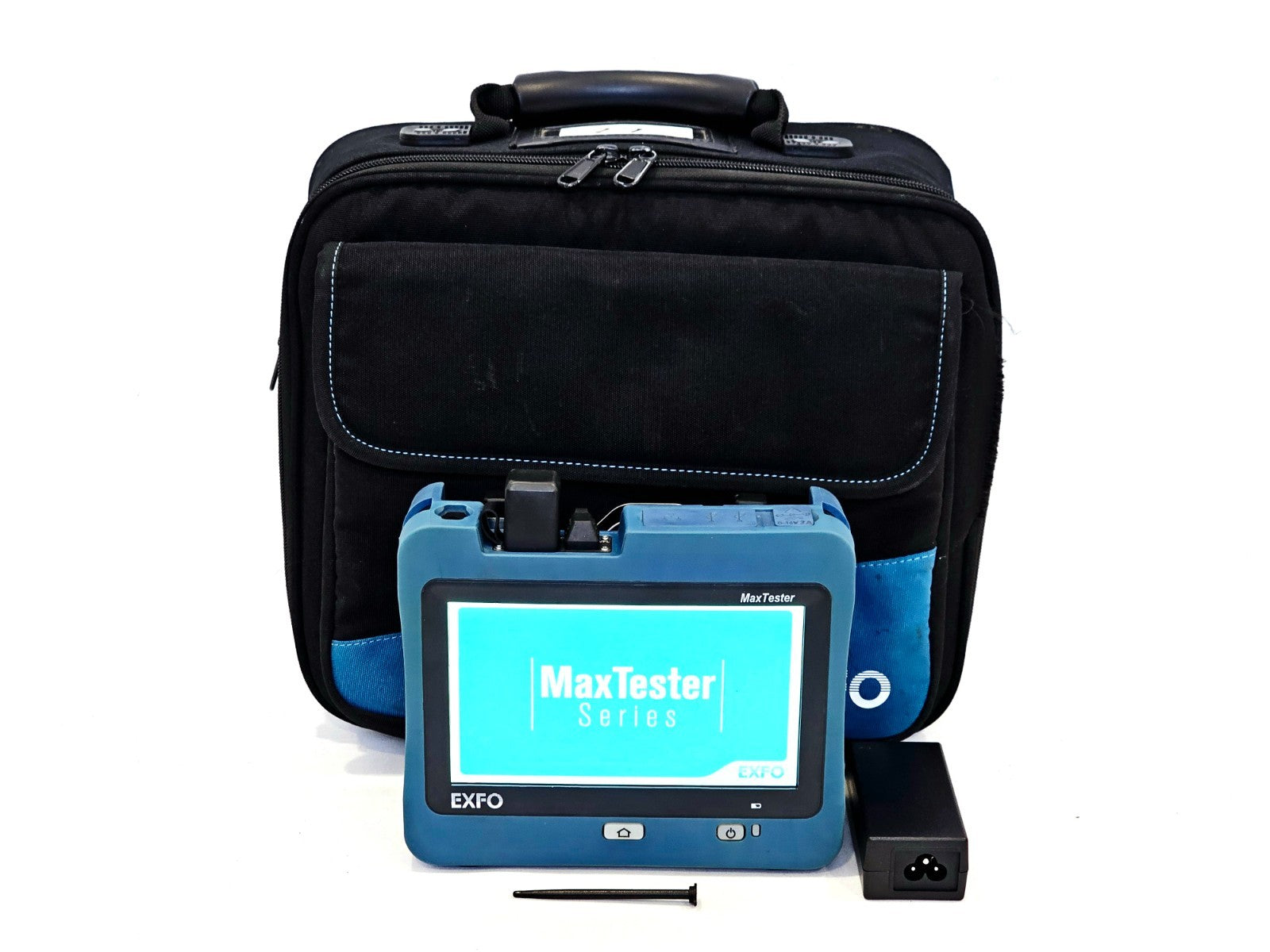

This listing includes:
• EXFO MAX-730C-SM8-EA MaxTester OTDR unit with iOLM software
• PM-MAX-2X-VFL power meter / VFL module (installed)
• Power adapter / charger
• Stylus pen
• Soft carry bag

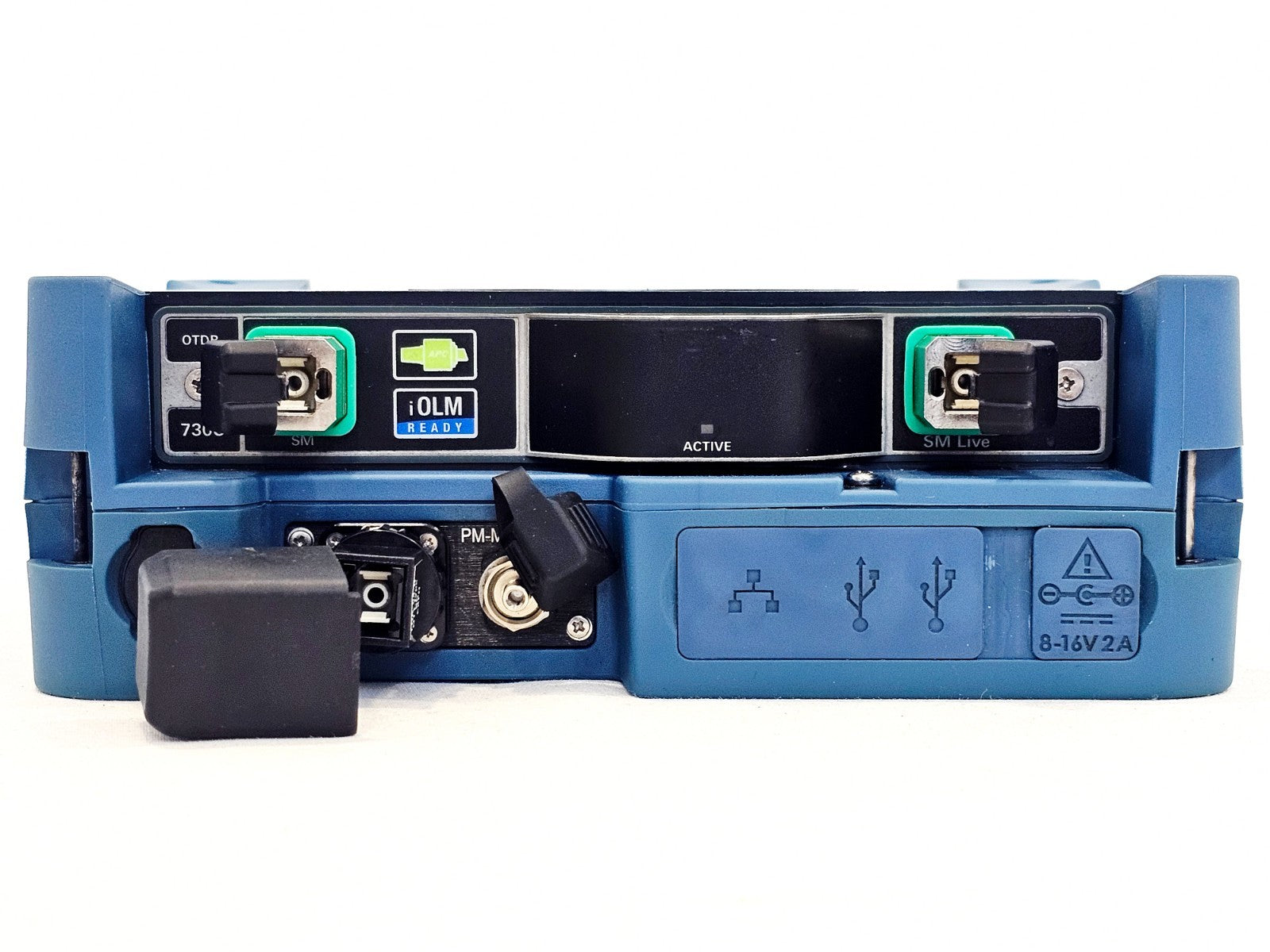

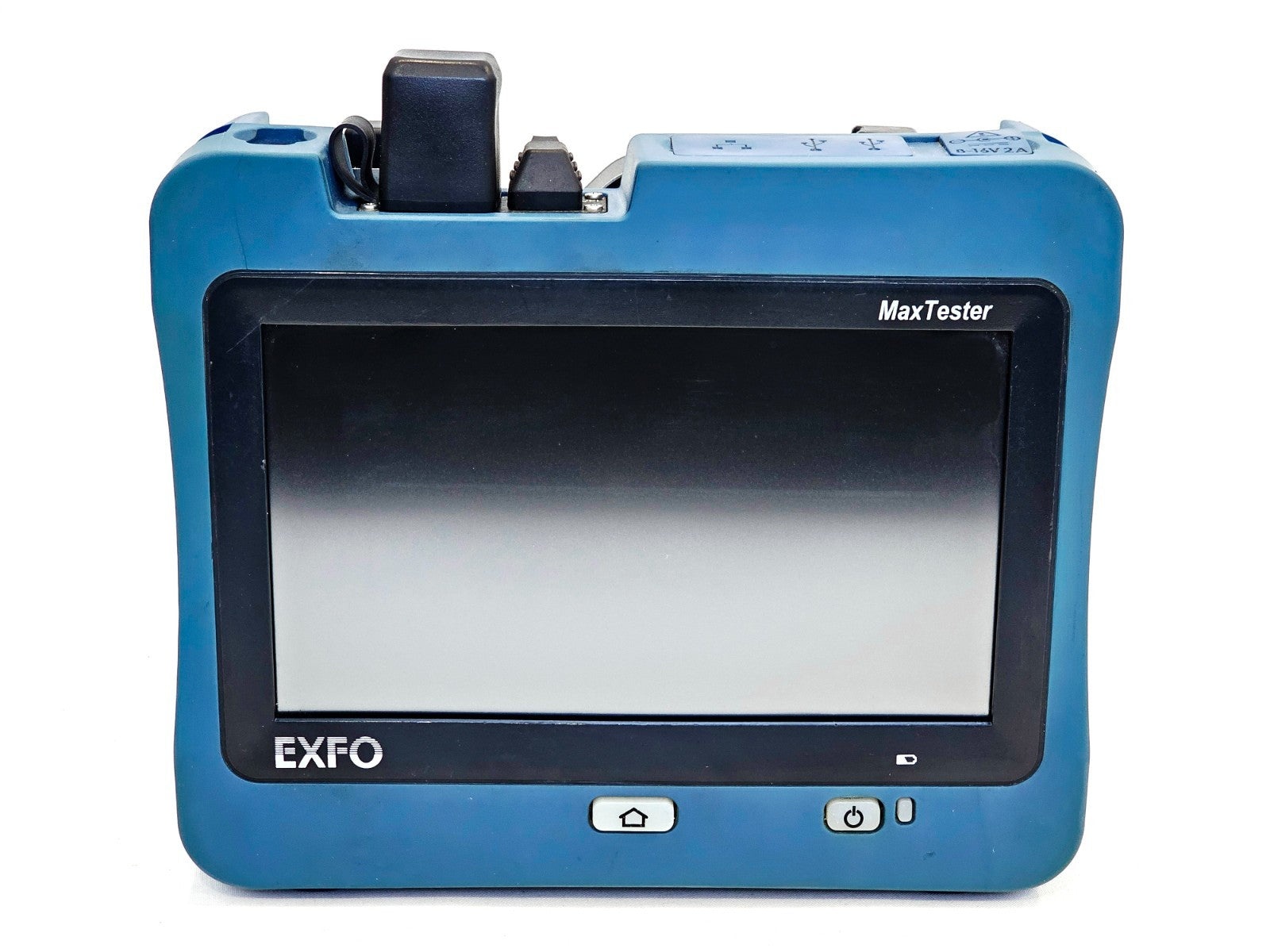

The EXFO MaxTester 730C (MAX-730C) is a fully featured, entry-level, dedicated handheld PON/metro OTDR with a tablet-inspired design, optimised to test through optical splitters for seamless end-to-end FTTH characterisation and troubleshooting. The MAX-730C-SM8-EA variant is configured with a dual-port singlemode module: Port 1 covers 1310/1550 nm for standard OTDR and FTTx/PON testing, and Port 2 provides a filtered 1650 nm live-fibre port enabling active network troubleshooting without service interruption.

Key highlights:
- 7-inch outdoor-enhanced touchscreen — the largest display in the handheld OTDR market
- 39/38/39 dB dynamic range at 1310/1550/1650 nm for metro P2P and deep PON characterisation through splitters up to 1×128
- Event dead zone of 0.6 m and attenuation dead zone of 2.5 m — shortest PON dead zones available in the handheld segment
- iOLM (intelligent Optical Link Mapper) — automated one-touch fibre link characterisation eliminating the need to manually configure OTDR parameters
- Up to 12-hour battery life for full-day outside plant operation
- Plug-and-play PM-MAX-2X-VFL module: multiwavelength power meter plus 650 nm visual fault locator

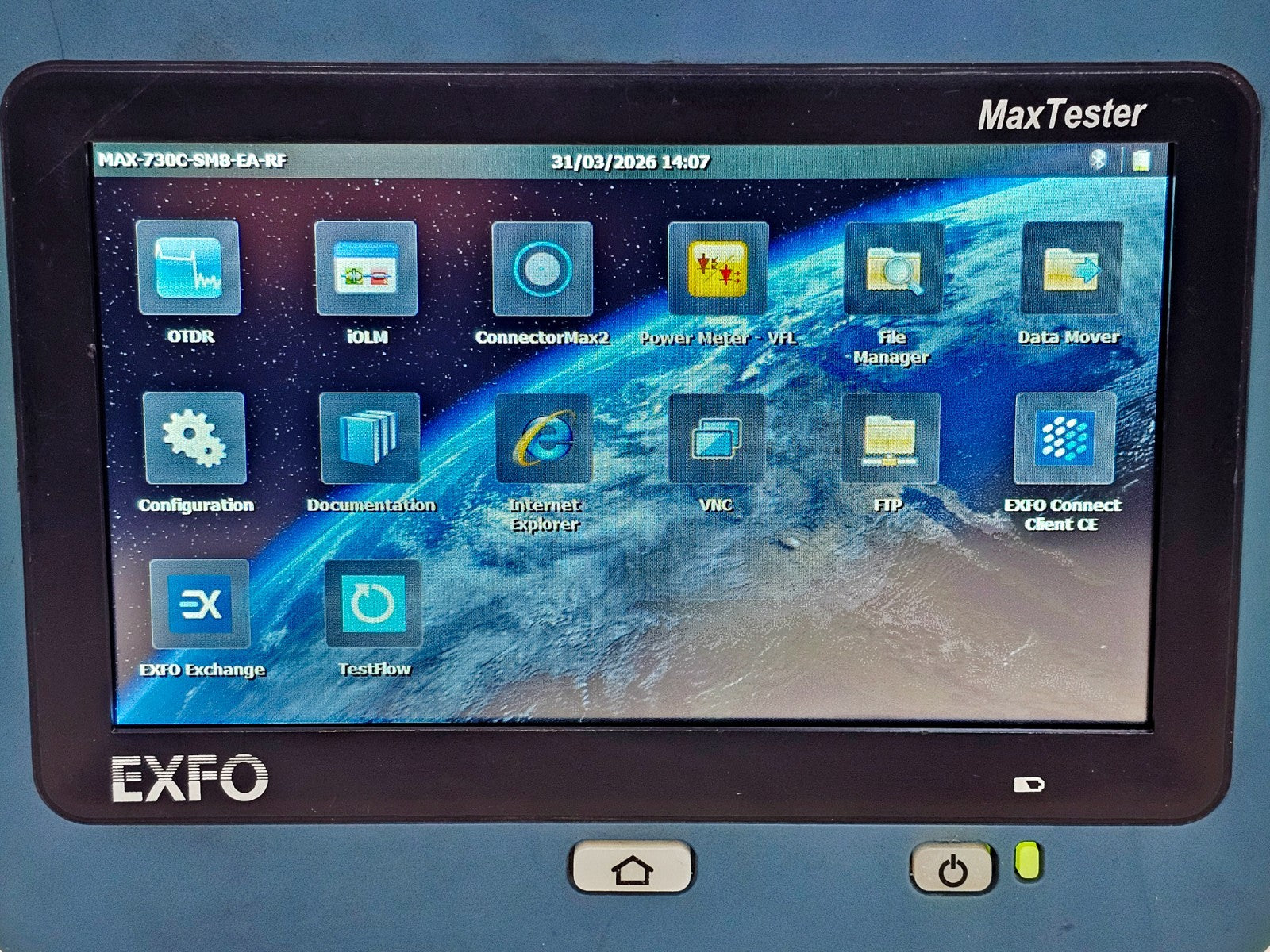

- Windows-like GUI with instant boot-up, icon-based OTDR 2 environment, automatic macrobend detection
- USB 2.0 (×2), Ethernet, VNC remote control support

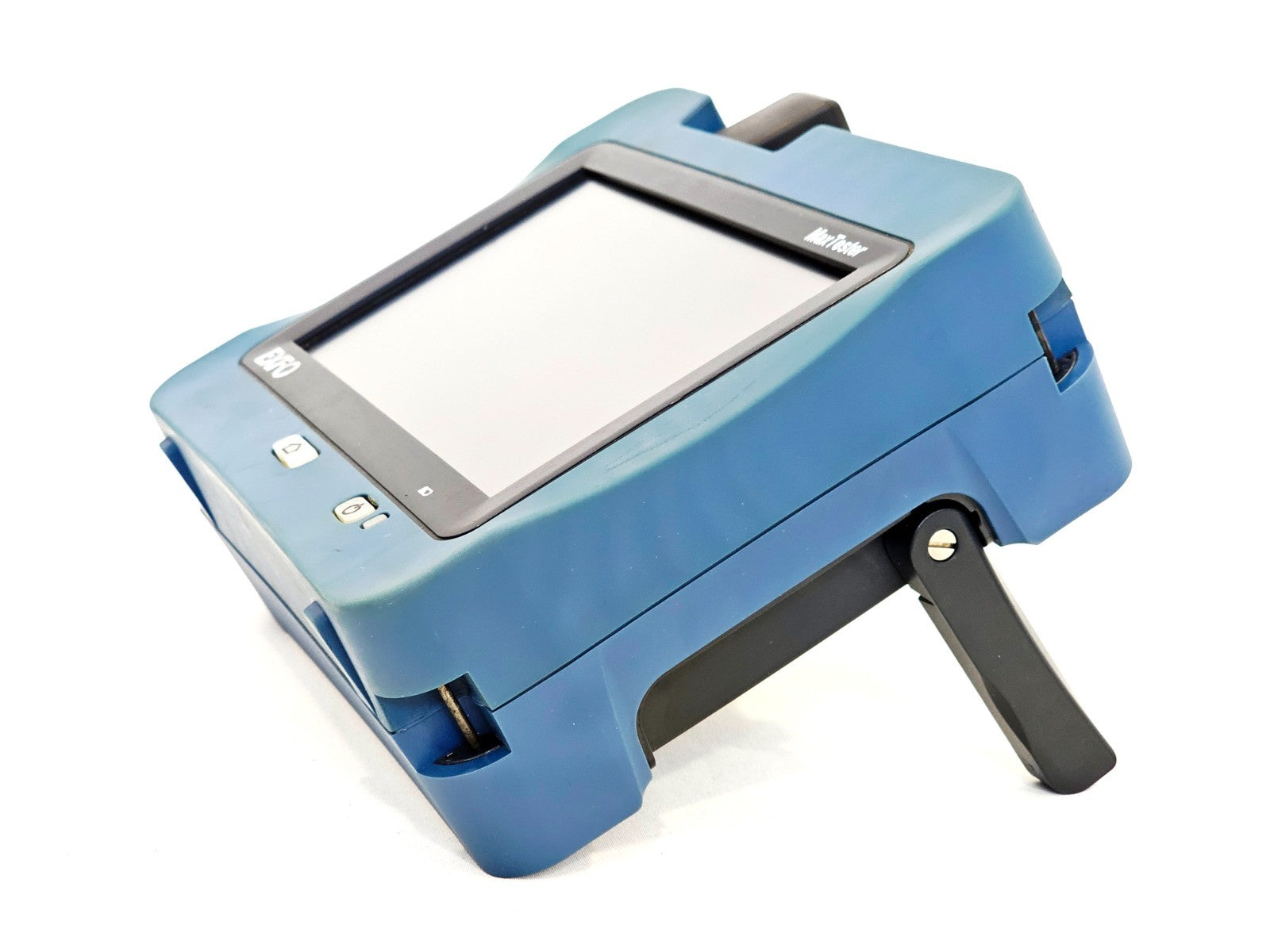

- Rugged, lightweight design at 1.5 kg for demanding outside plant environments

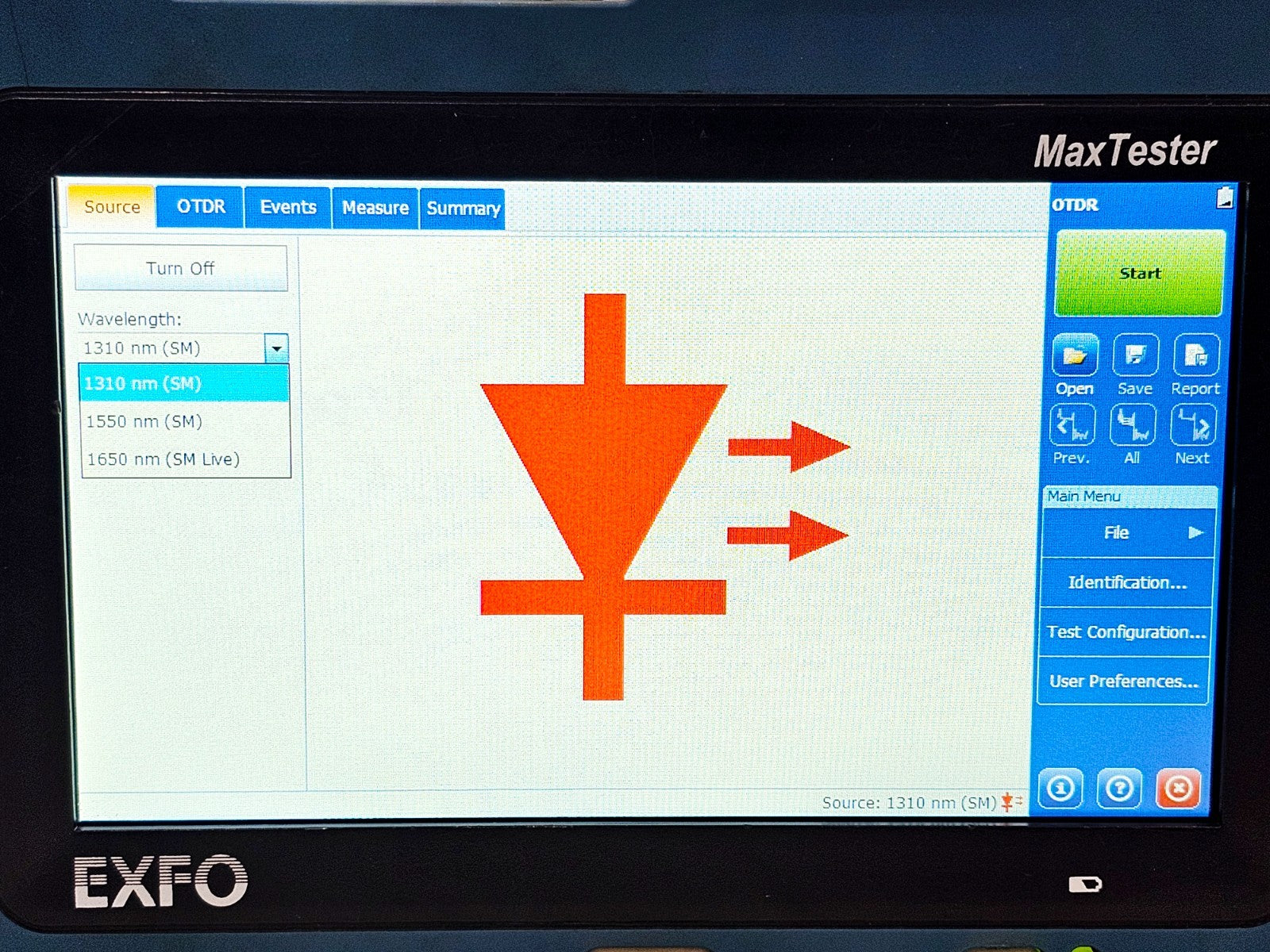

OTDR Wavelengths: 1310 nm / 1550 nm / 1650 nm (live fibre filtered)
Dynamic Range: 39 / 38 / 39 dB
Event Dead Zone: 0.6 m typical
Attenuation Dead Zone: 2.5 m typical
Pulse Width: 3 ns to 20,000 ns
Sampling Points: Up to 256,000
PON Splitter Support: Up to 1×128
Display: 7-inch touchscreen
Battery Life: Up to 12 hours
Dimensions: 166 mm × 200 mm × 68 mm
Weight (with battery): 1.5 kg
Power Input: 8–16 V DC, 2 A
