Condition: Used

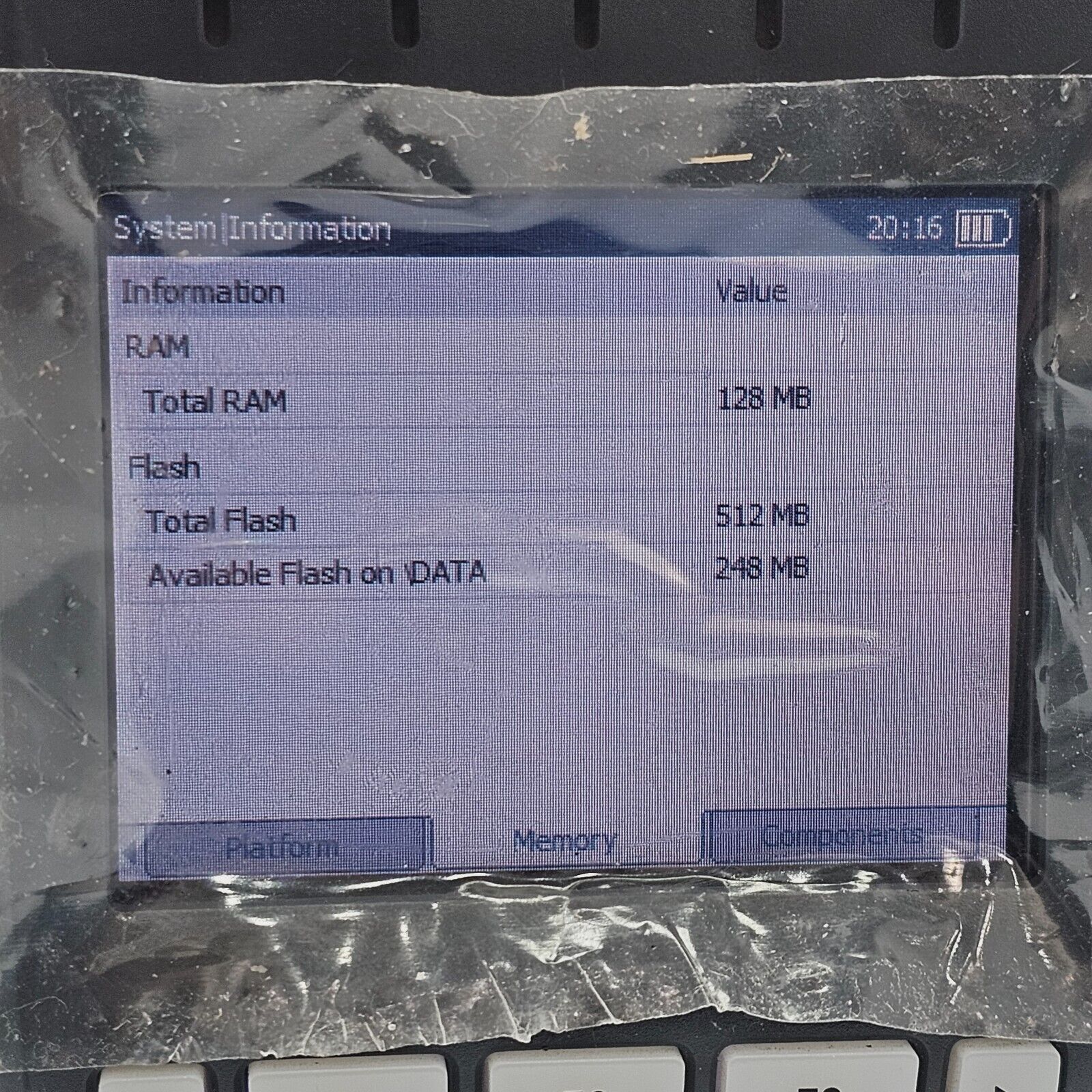

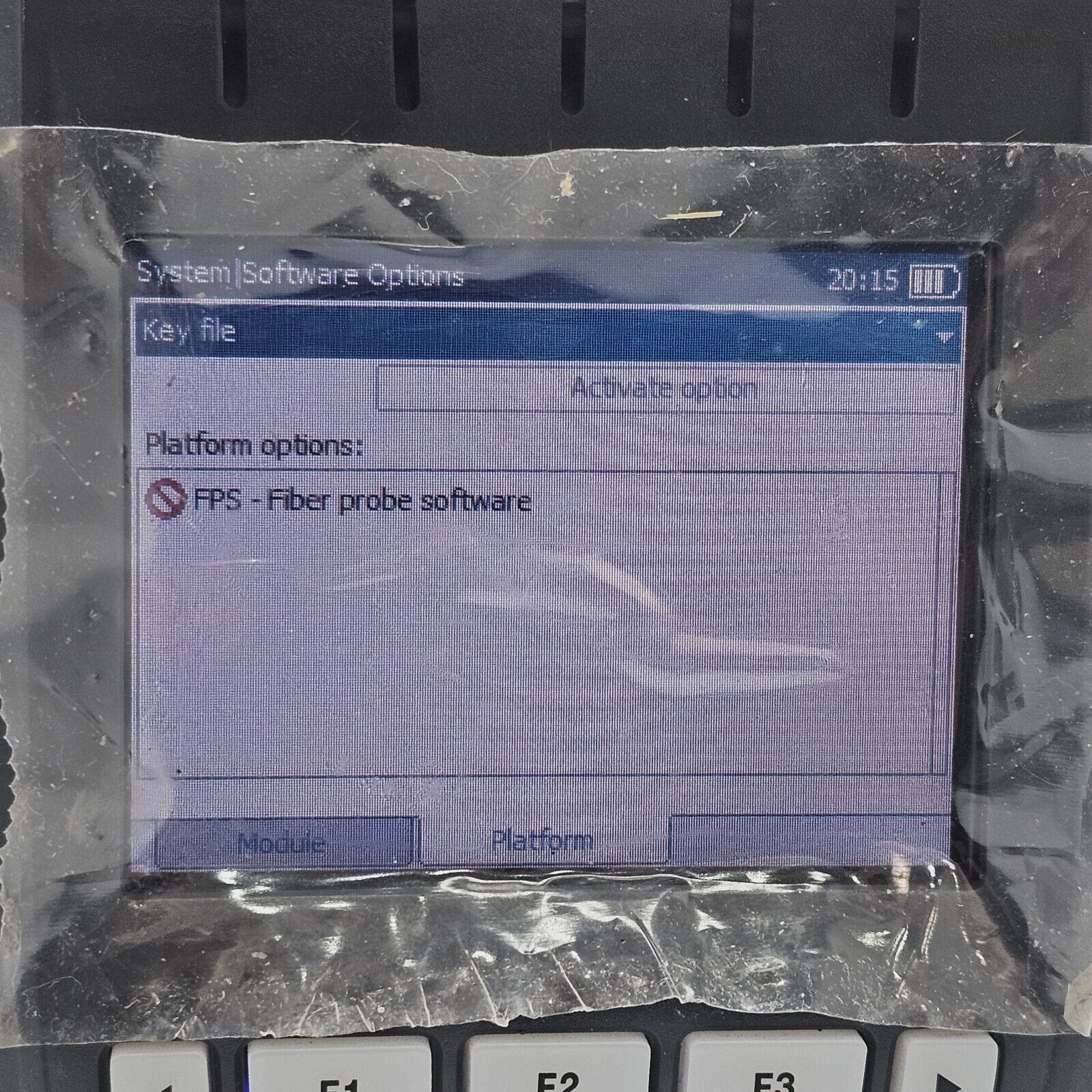

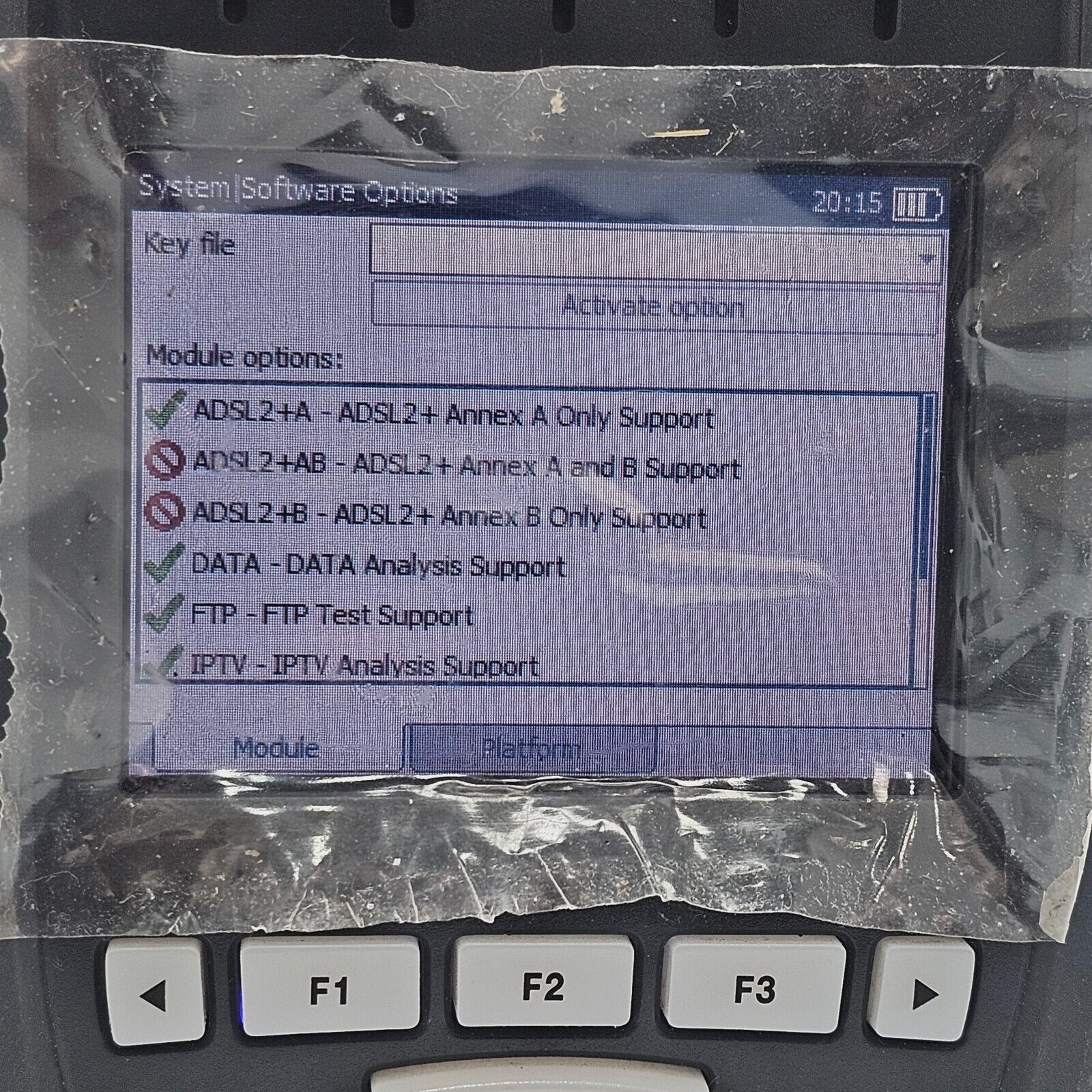

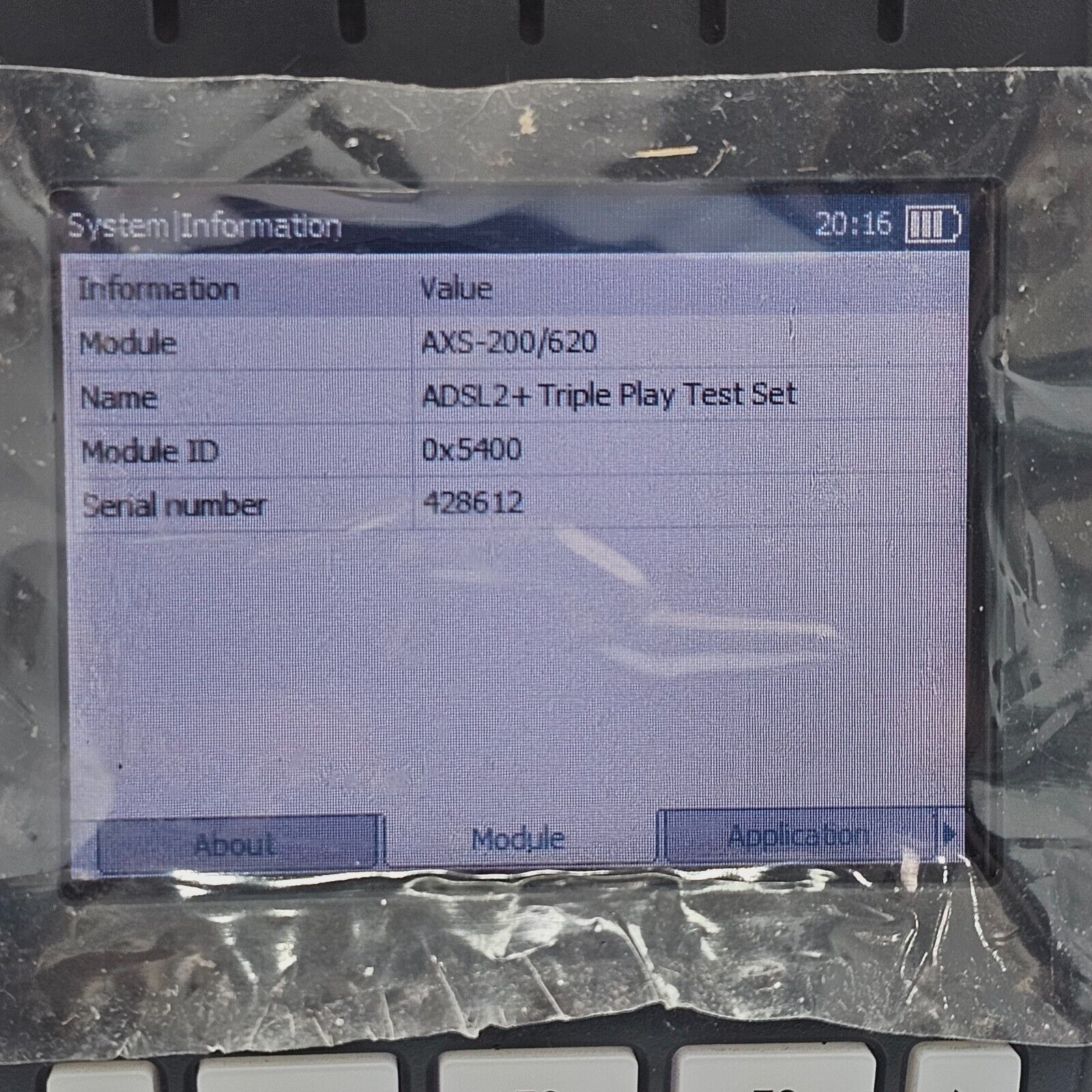

This EXFO AXS-200/620 SharpTESTER is configured as an ADSL2+ Triple-Play Set, Annex A variant, with DATA and FTP options active. Supplied with an aftermarket charger only — no other accessories are included. Refer to the product images for the full list of activated software options on this specific unit.

Included with this unit:

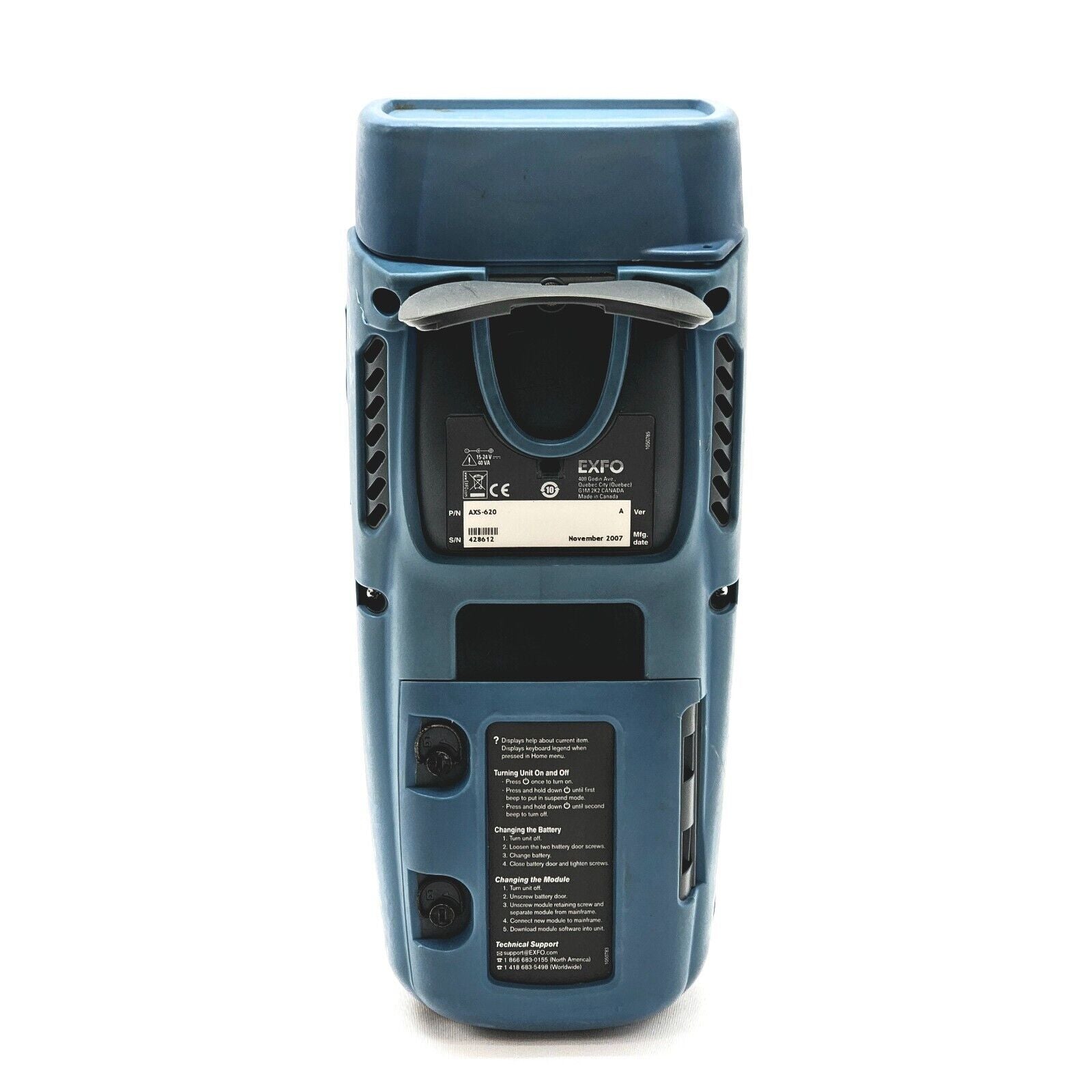

• EXFO AXS-200/620 main unit
• Aftermarket charger

The EXFO AXS-200/620 is part of the AXS-200 SharpTESTER modular handheld platform, purpose-built for DSL service verification and triple-play testing in telecommunications access networks. It is aimed at telco field technicians and contractors who need to deploy, troubleshoot, and verify ADSL1/2/2+ services, including data, VoIP, and IPTV, both outside and inside customer premises.

The AXS-200/620 emulates the ATU-R (customer ADSL modem), connecting to the ATU-C at the DSLAM to measure upstream and downstream connection rates, attenuation, and noise margin. It supports both Terminate (stand-alone) and Pass-Through operating modes, enabling flexible deployment across multiple test points in the access network.

Key Features:
- ADSL standards supported: ADSL1, ADSL2, ADSL2+ (Annex A)

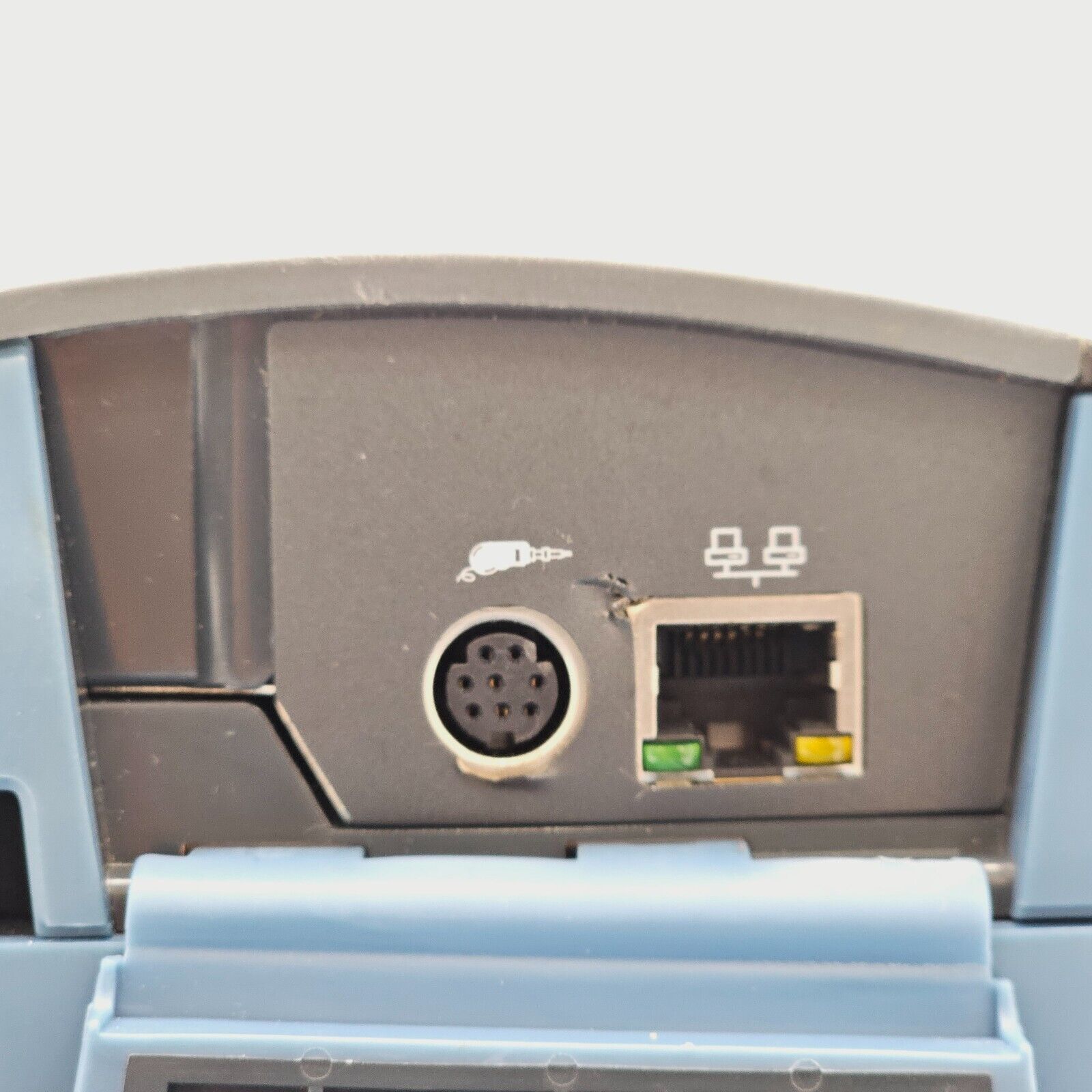

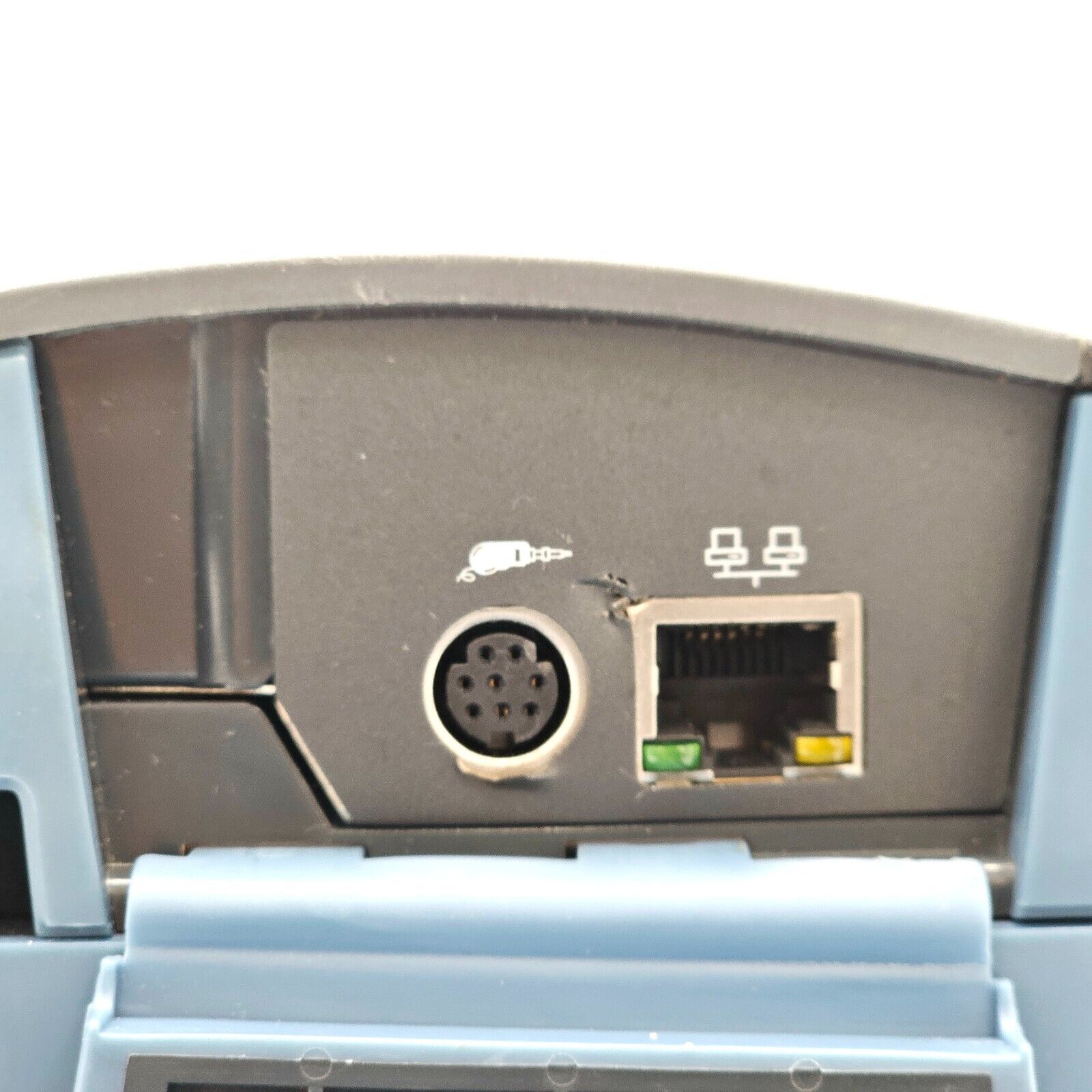

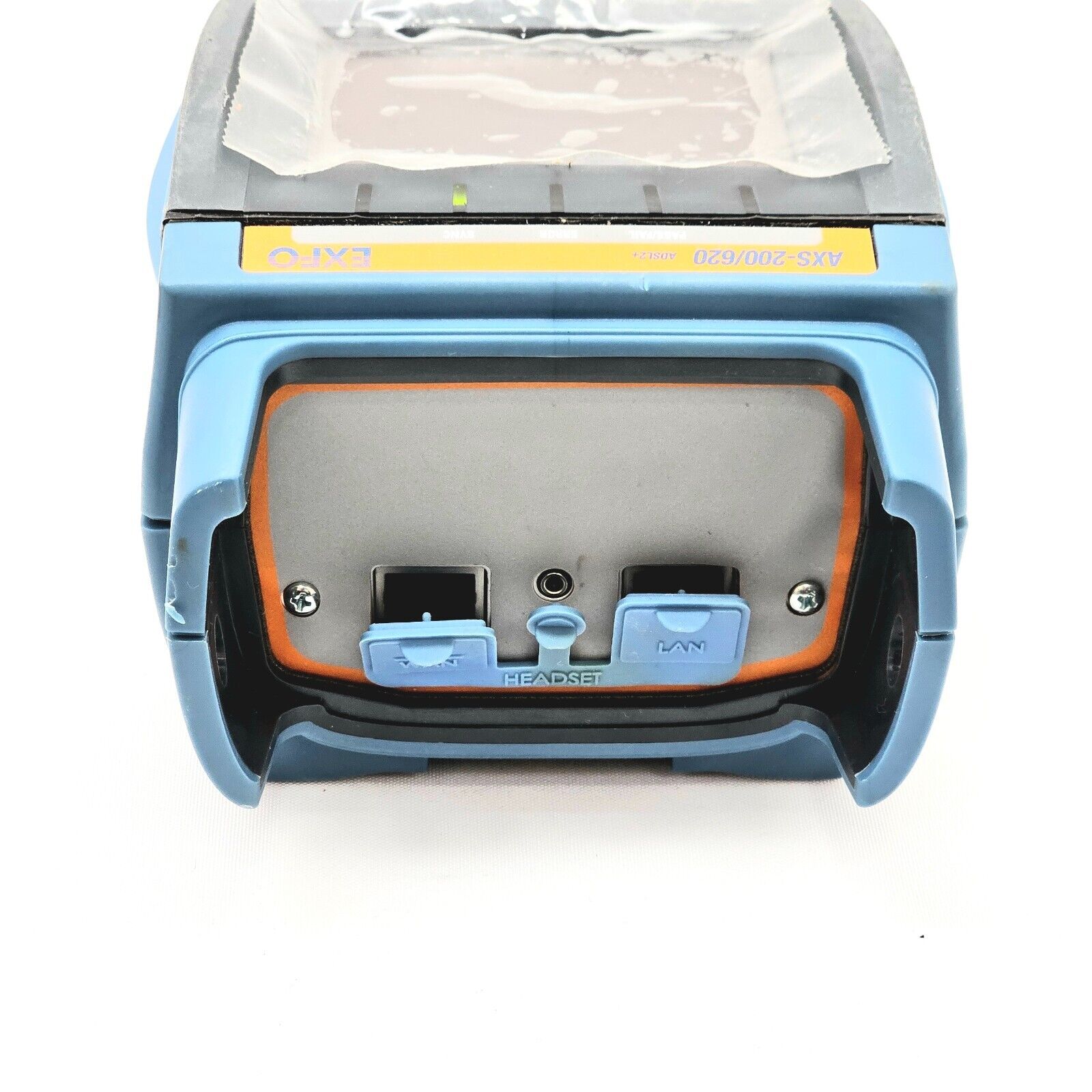

- Ethernet interface: 10/100Base-T
- Automated pass/fail testing with customer-adjustable criteria
- DSL physical-layer measurements: data rate, attenuation, noise margin
- Advanced IPTV measurements: packet jitter, packet loss, PCR jitter, MDI (RFC 4445), PID viewer, IGMP zap time
- VoIP monitoring: residential call flow and QoS statistics
- IP-layer testing: ping, traceroute, HTTP speed testing, FTP speed testing
- Operating modes: Terminate (stand-alone) and Through mode
- Fault localisation across the customer premises, local loop, DSLAM, soft switch, and video head-end
- Platform: EXFO AXS-200 SharpTESTER modular handheld, Windows CE GUI
- Certification: ISO 9001 manufactured; CE and FCC compliant; WEEE compliant

Typical Applications:
- DSL service installation and turn-up verification
- Triple-play (data, VoIP, IPTV) quality of experience assurance
- IPTV service troubleshooting and QoS measurement
- Field diagnostics for telcos and contractors at customer premises or central office
- CAPEX/OPEX reduction through rapid automated fault identification

EXFO AXS-200/620 ADSL2+ Triple-Play Test Set — Manufacturer Datasheet (PDF): Download PDF
