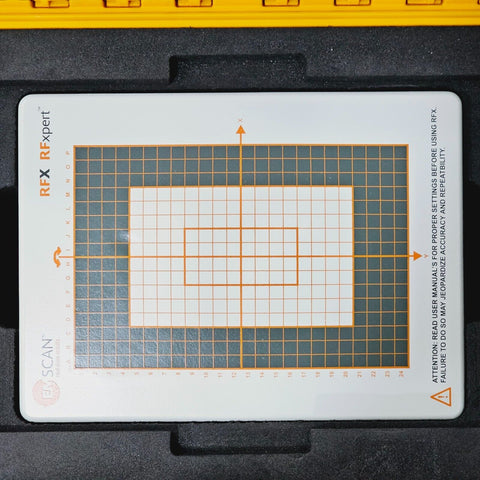

EMSCAN RFX RFxpert top surface showing Gorilla glass scanning area and H-field probe array

EMSCAN RFX RFxpert RFX-63 rear panel connectors and USB interface port detail

EMSCAN RFX RFxpert right side view showing enclosure and ventilation

EMSCAN RFX RFxpert 3000-0603 front angle view on laboratory bench

EMSCAN RFX RFxpert scanner close-up of scanning surface and probe grid layout

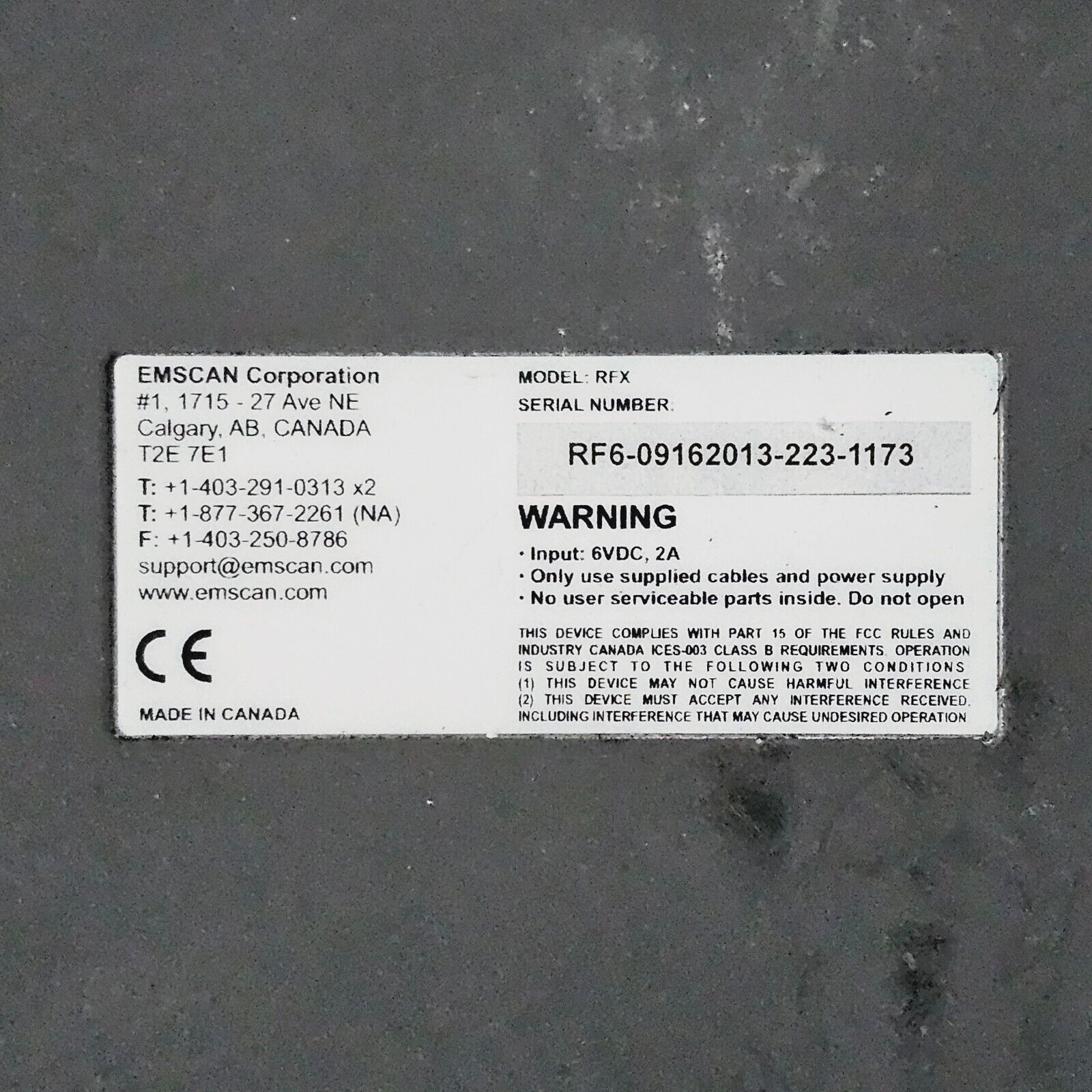

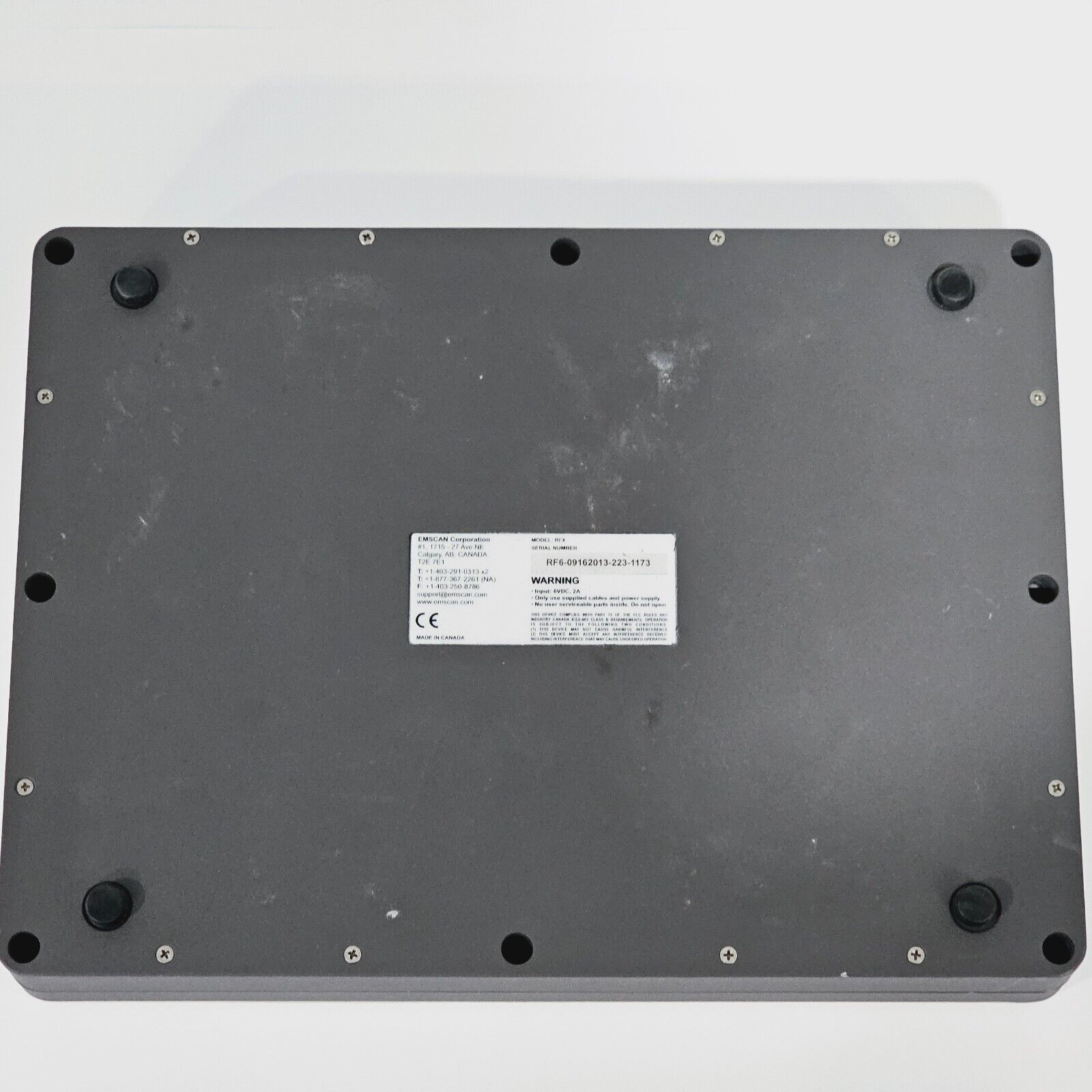

EMSCAN RFXpert RFX-63 base and underside label with serial number and model information

EMSCAN RFX RFxpert overall unit three-quarter view showing full benchtop enclosure

EMSCAN RFX RFxpert USB connection port and rear interface panel close-up

EMSCAN RFX RFxpert 3000-0603 scanner on bench with measurement setup context

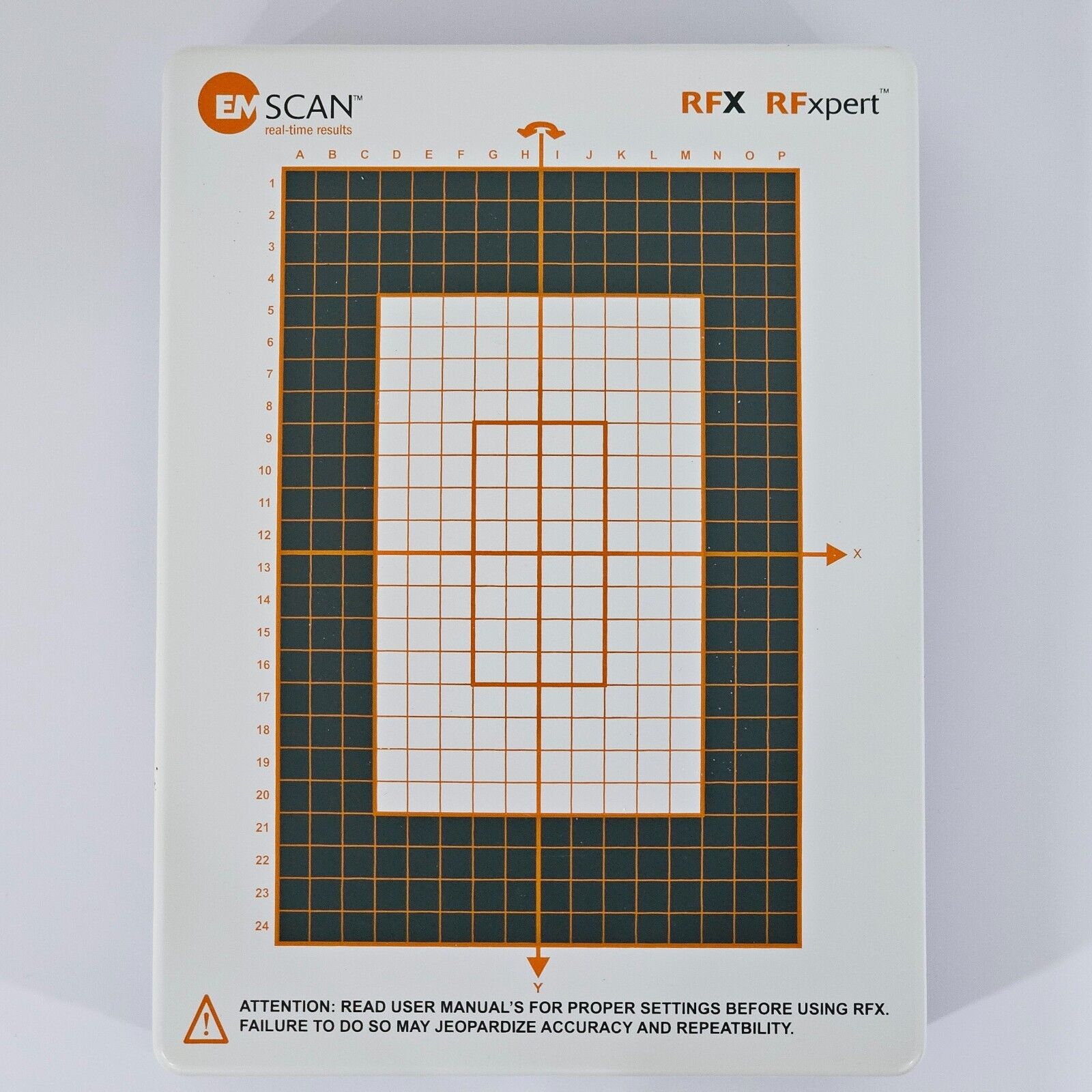

EMSCAN RFX RFxpert top-down overhead view showing full scanning area surface

EMSCAN RFX RFxpert front edge detail showing product branding and model designation

EMSCAN RFX RFxpert RFX-63 unit showing general condition of enclosure and housing

EMSCAN RFX RFxpert close-up of corner and chassis build quality

EMSCAN RFX RFxpert 3000-0603 side angle showing depth and footprint of benchtop unit

EMSCAN RFX RFxpert scanner surface detail showing glass lid and probe area condition

EMSCAN RFX RFxpert rear view showing full back panel layout and labelling

EMSCAN RFX RFxpert RFX-63 unit photographed showing overall used condition

EMSCAN RFX RFxpert 3000-0603 benchtop antenna scanner angled view showing top and front face

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

EMSCAN Model 3000-0603 RFX RFxpert RFX-63 Antenna Performance Measurement Tool

Name: EMSCAN Model 3000-0603 RFX RFxpert RFX-63 Antenna Performance Measurement Tool
Brand: Emscan
SKU: 2587 3C04 ER50
Price: 2205.75 GBP
Availability: OutOfStock

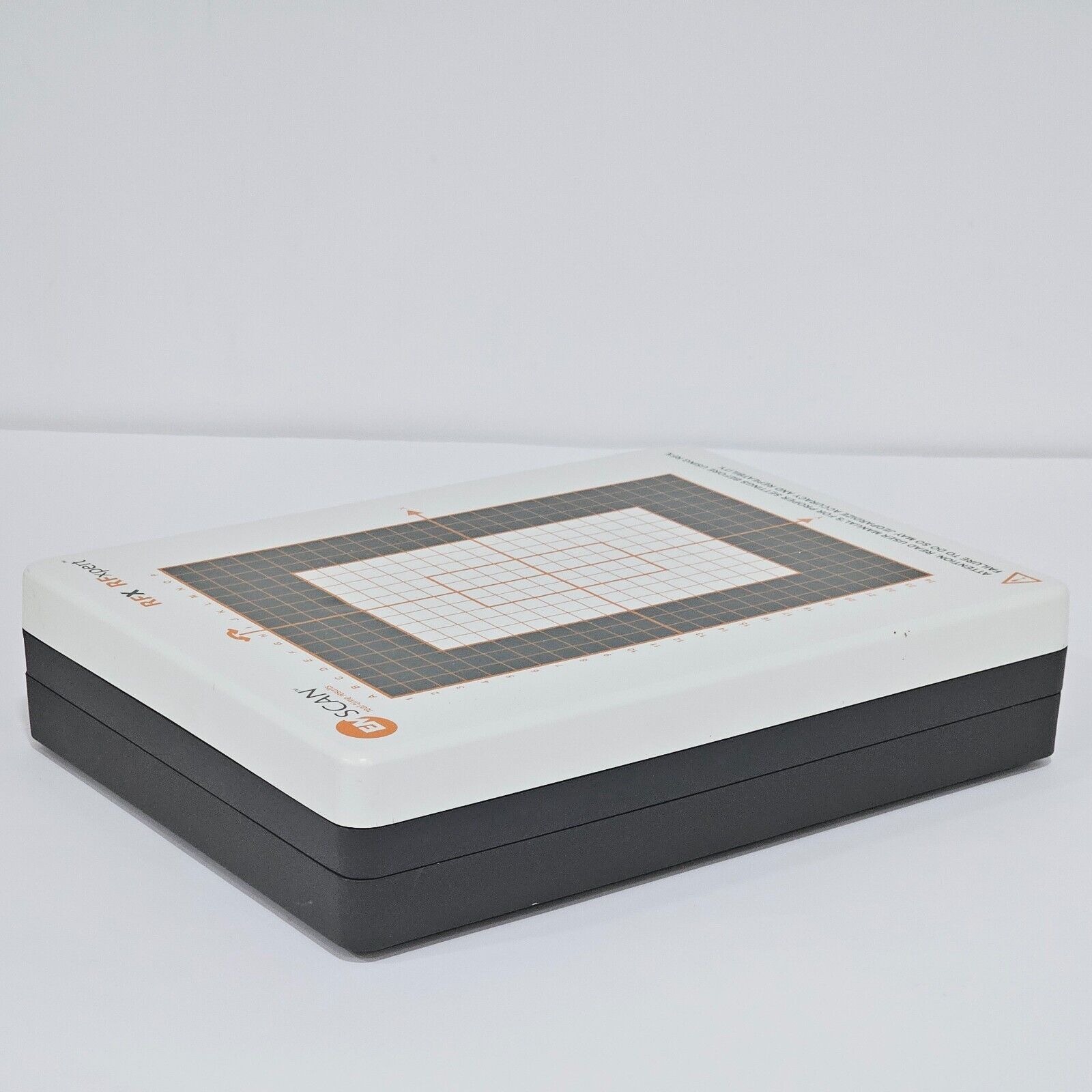

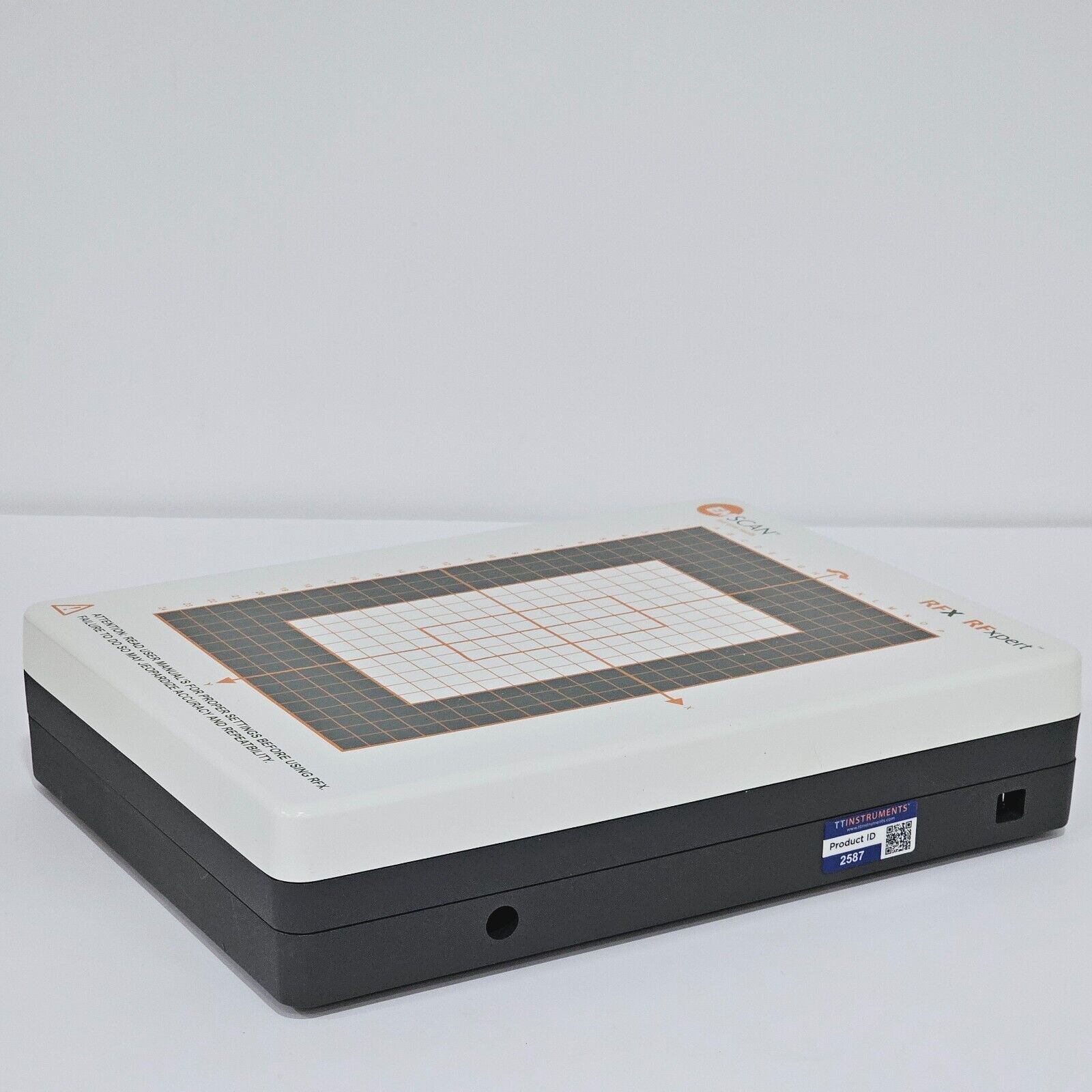

The EMSCAN RFX (Model 3000-0603 / RFX-63) is a compact benchtop near-field antenna scanner that delivers real-time far-field patterns, EIRP and TRP measurements across 300 MHz to 6 GHz without an anechoic chamber.
• 384 built-in H-field probes — antenna pattern results in under a second
• 1.8° theta / 3.6° phi far-field resolution; max radiator size 16 cm x 10 cm
• No external analyser required; DLL programmable for automated test integration

Manufacturer

Emscan

Model

3000-0603

Condition

Used

In stock

SKU

2587 3C04

£2,205.75

£2,885.75

Cable & antenna analysers
Offers Accepted
RF & Microwave

Make an Offer

Condition: Used

The EMSCAN RFX RFxpert (Model 3000-0603 / RFX-63) is a used benchtop antenna performance measurement scanner covering 300 MHz to 6 GHz, equipped with 384 built-in H-field probes and delivering far-field patterns, EIRP, TRP, and near-field amplitude, polarity and phase data in real time. Circular Polarization (CP) analysis is supported, and the system can integrate with a network analyser to measure gain, efficiency and S11.

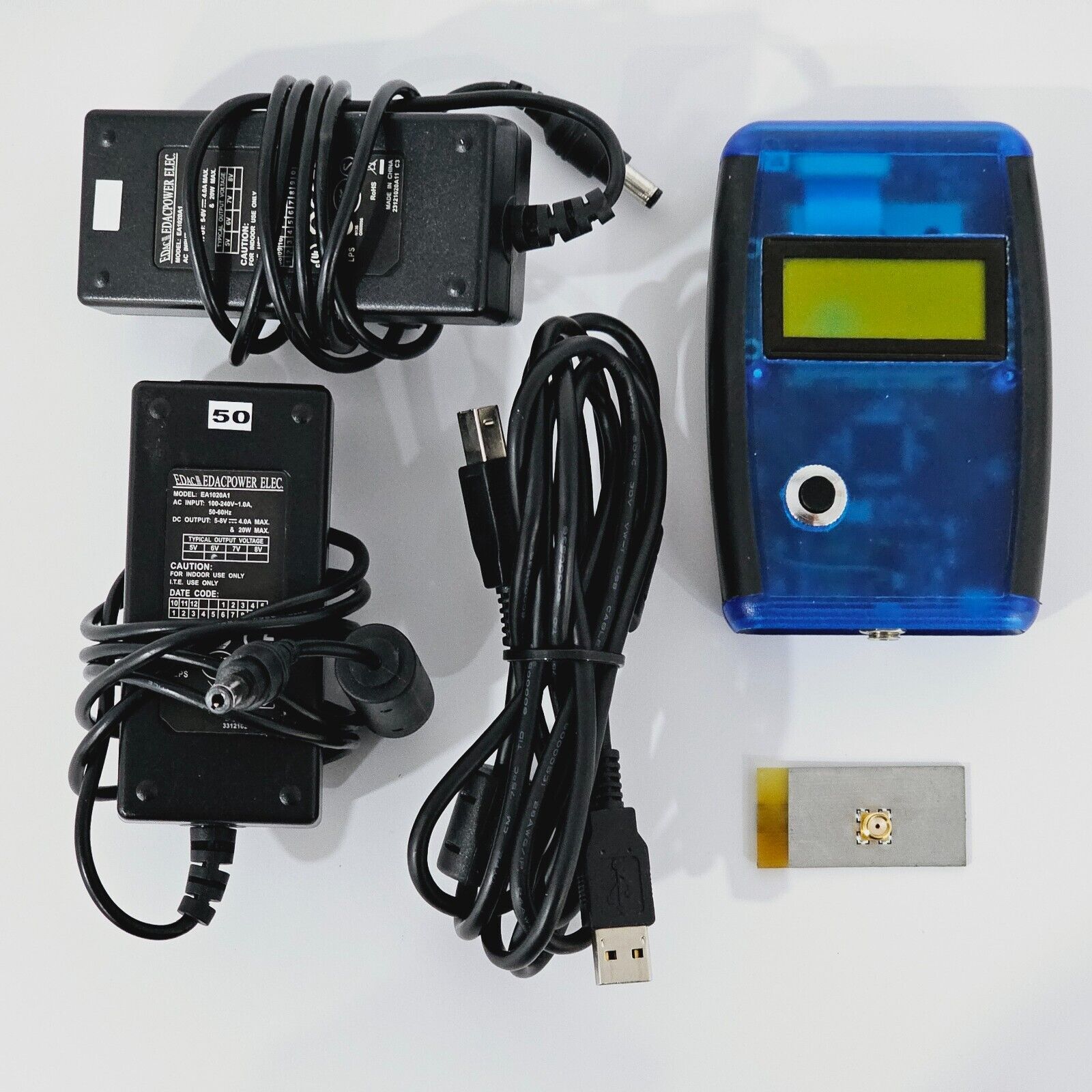

What is typically included (as described):
• EMSCAN RFX RFxpert RFX-63 scanner unit

The EMSCAN RFxpert RFX (Model 3000-0603, also known as RFX-63) is a compact, real-time benchtop antenna measurement system designed for wireless engineers and antenna designers who need rapid, reliable antenna characterisation without access to an anechoic chamber.

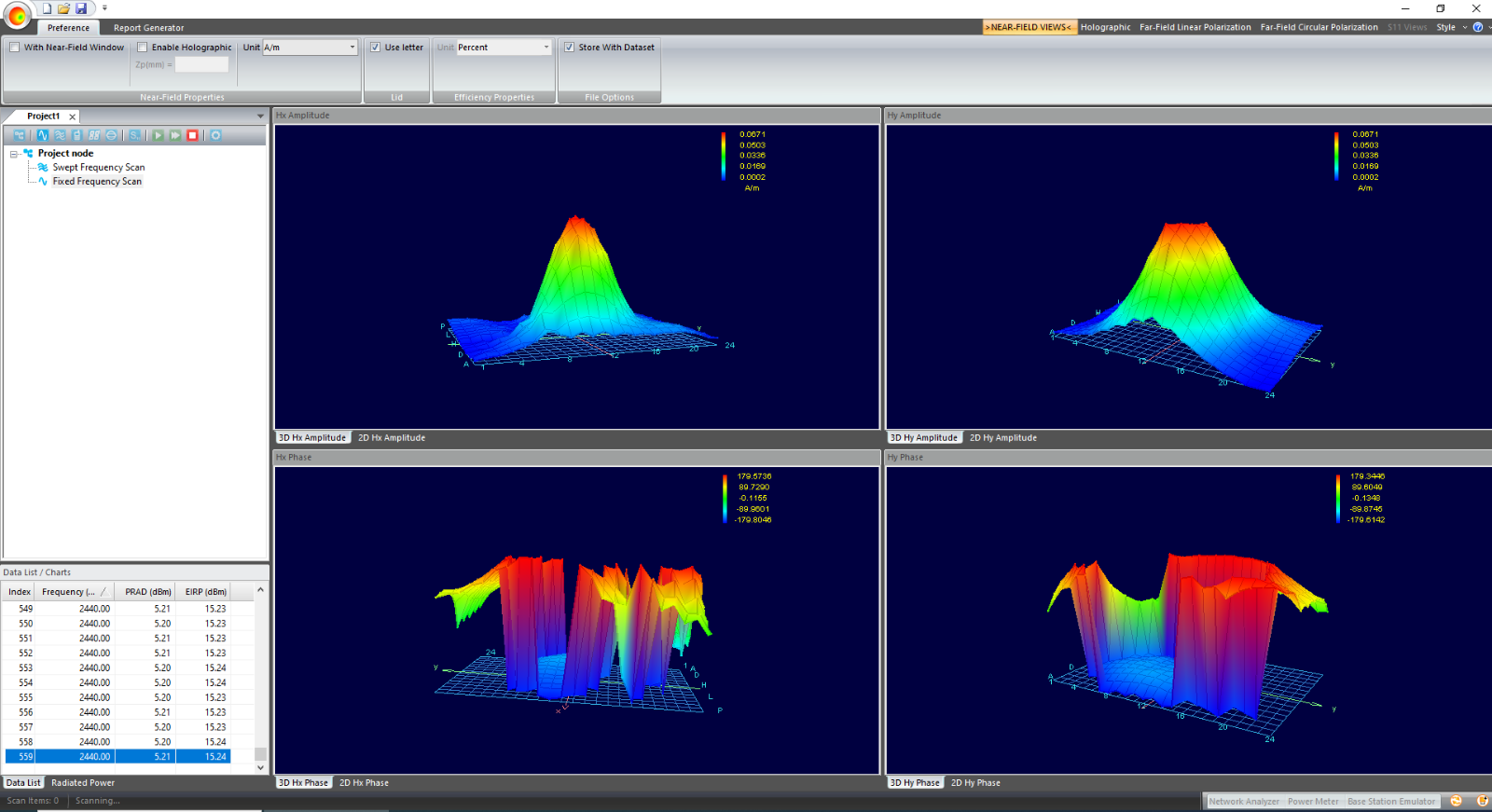

RFxpert measures the magnetic field (H-field) in two orthogonal directions using its array of automatically switched H-field probes, then projects the data to the far field using planar aperture distribution to angular spectrum (plane wave spectrum, PWS) transformation. A proprietary compensation algorithm eliminates predictable coupling effects and accounts for probe response to deliver highly accurate results.

The system is widely used by smartphone manufacturers, antenna manufacturers, military subcontractors, consumer electronics companies, and universities.

Key Specifications:
Model Number: 3000-0603 (RFX-63)
Frequency Range: 300 MHz to 6 GHz
H-field Probes: 384 built-in, automatically switched
Max Radiator Size: 16 cm x 10 cm (6.30" x 3.94")
Far-Field Resolution (Theta): 1.8°
Far-Field Resolution (Phi): 3.6°

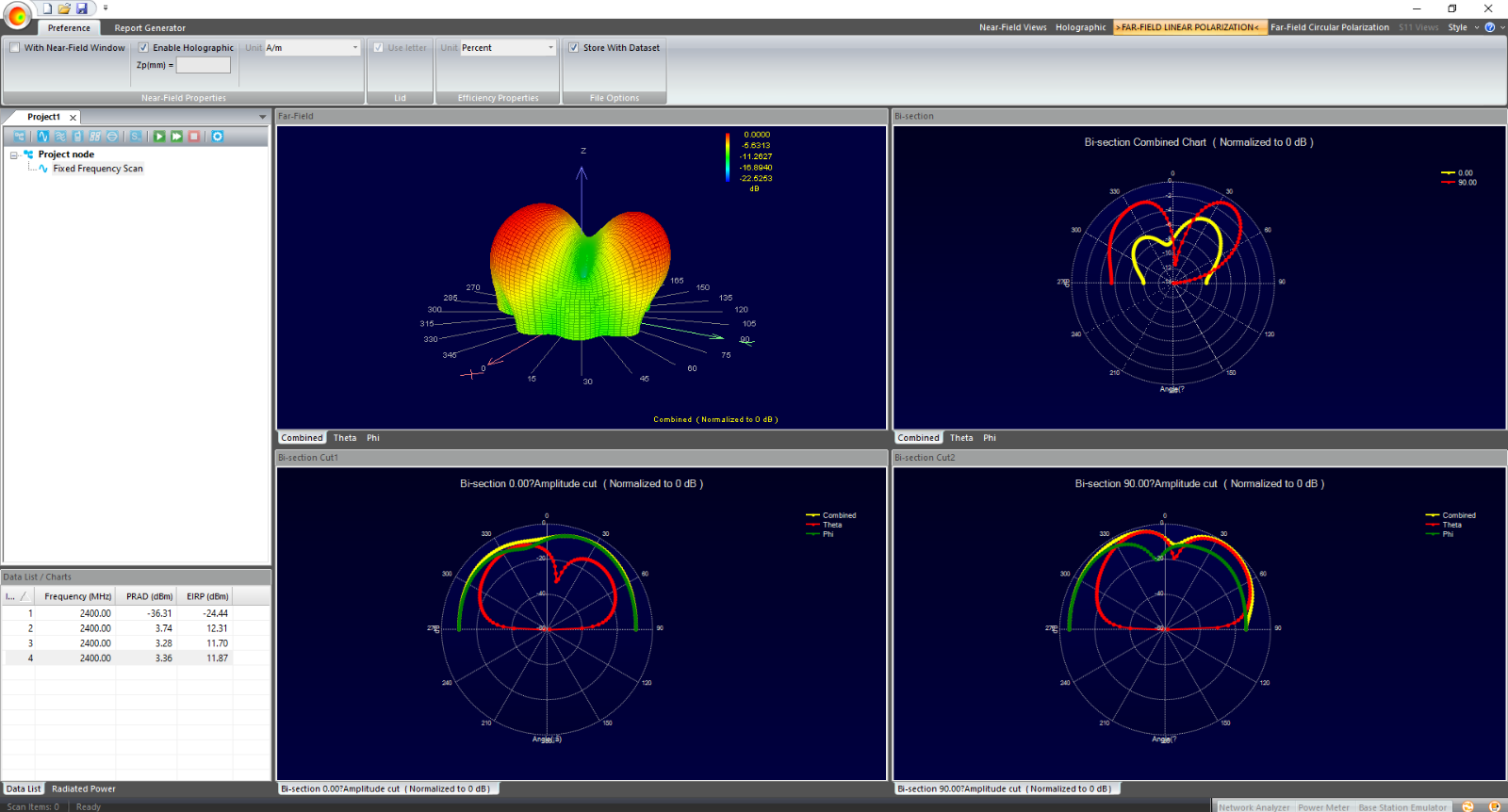

Measurements: Far-field patterns, bisections, EIRP, TRP, near-field amplitude, polarity, phase
Circular Polarization Option: Right-hand and left-hand CP patterns, axial ratio display
Network Analyser Integration: Gain, efficiency and S11 measurement (optional VNA required)
Base Station Emulator Integration: Supported for cell phone testing
Automation: DLL programmable for integration into automated test beds and production lines
Scan Speed: Far-field pattern in under one second
Scanner Surface: Gorilla® glass lid

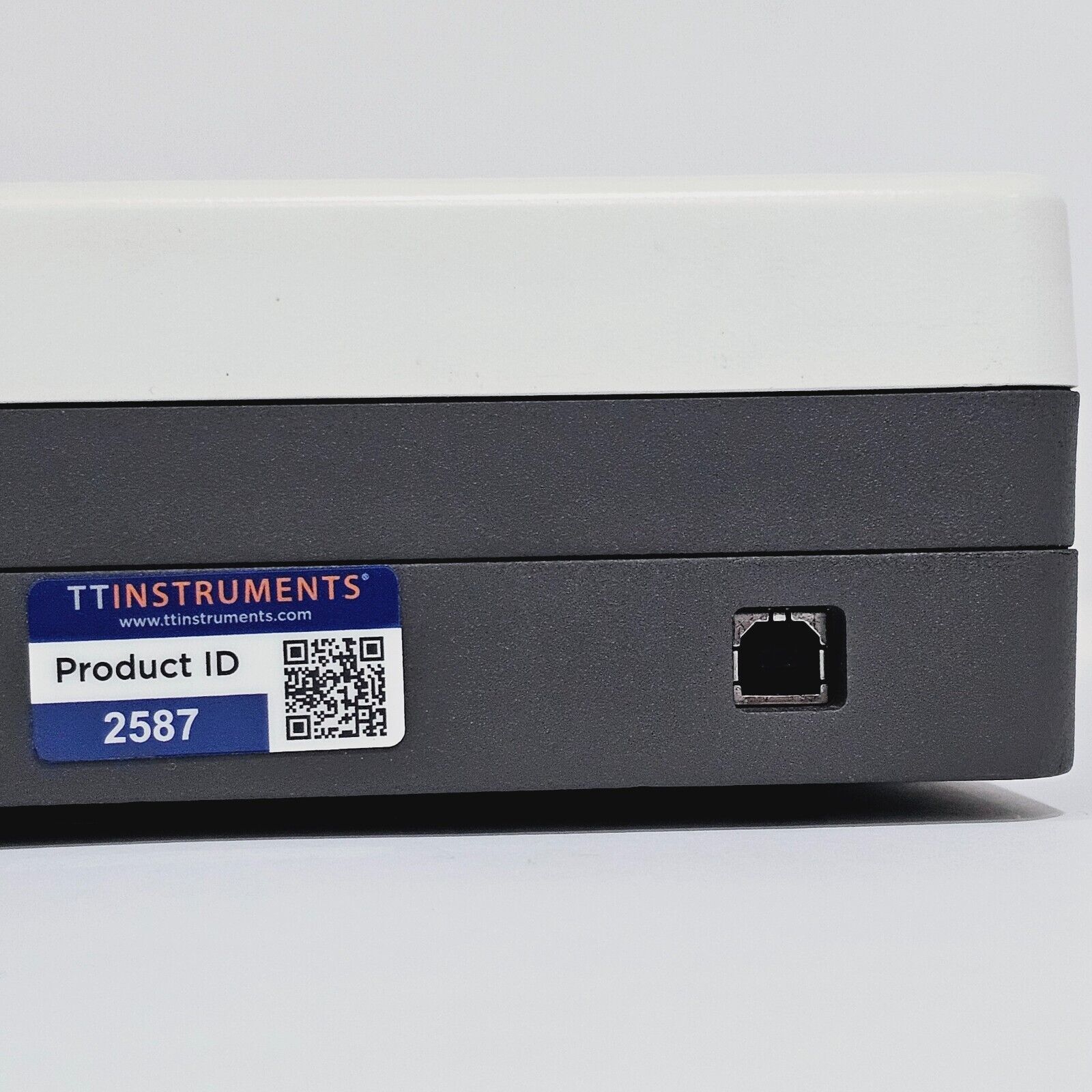

Connection: USB to PC
Software: RFxpert client software (Windows)
Applications: Cellular, GPS, WiFi, RFID, Bluetooth, LTE, MIMO, medical and custom wireless devices
Use Cases: Antenna design and optimisation, embedded antenna development, CP antenna testing, golden sample comparison, sample lot verification, manufacturing support, pre-certification validation

Product Overview

Condition: Used

What is typically included (as described):
• EMSCAN RFX RFxpert RFX-63 scanner unit

Manufacturer's Description

The system is widely used by smartphone manufacturers, antenna manufacturers, military subcontractors, consumer electronics companies, and universities.

Resources

RFxpert User Manual v4.2.3.12 — Full operating instructions for the RFxpert RFX system: Download PDF

RFxpert Training Manual — Hands-on training guide for the EMSCAN RFxpert platform: Download PDF
