Condition: Used

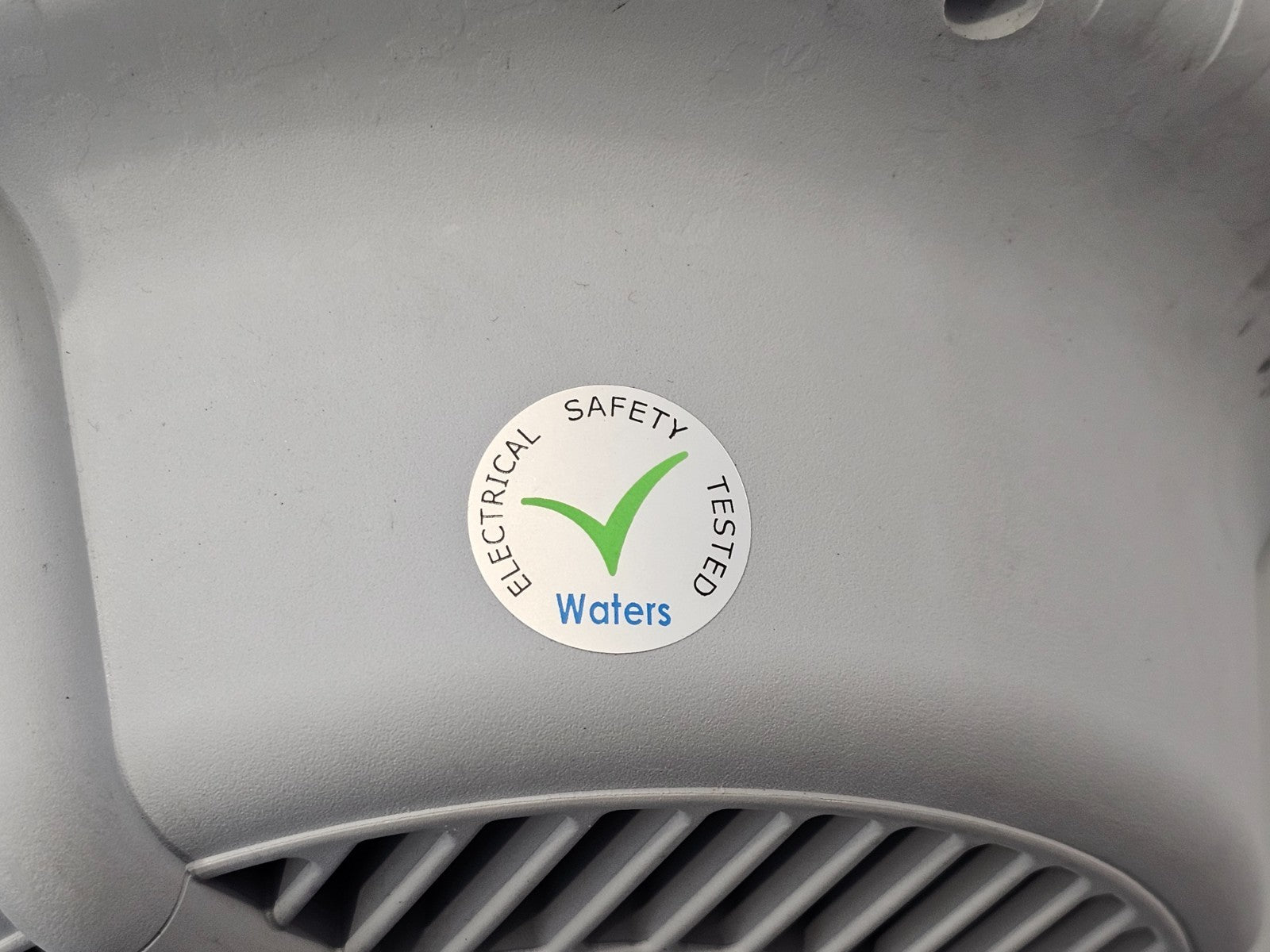

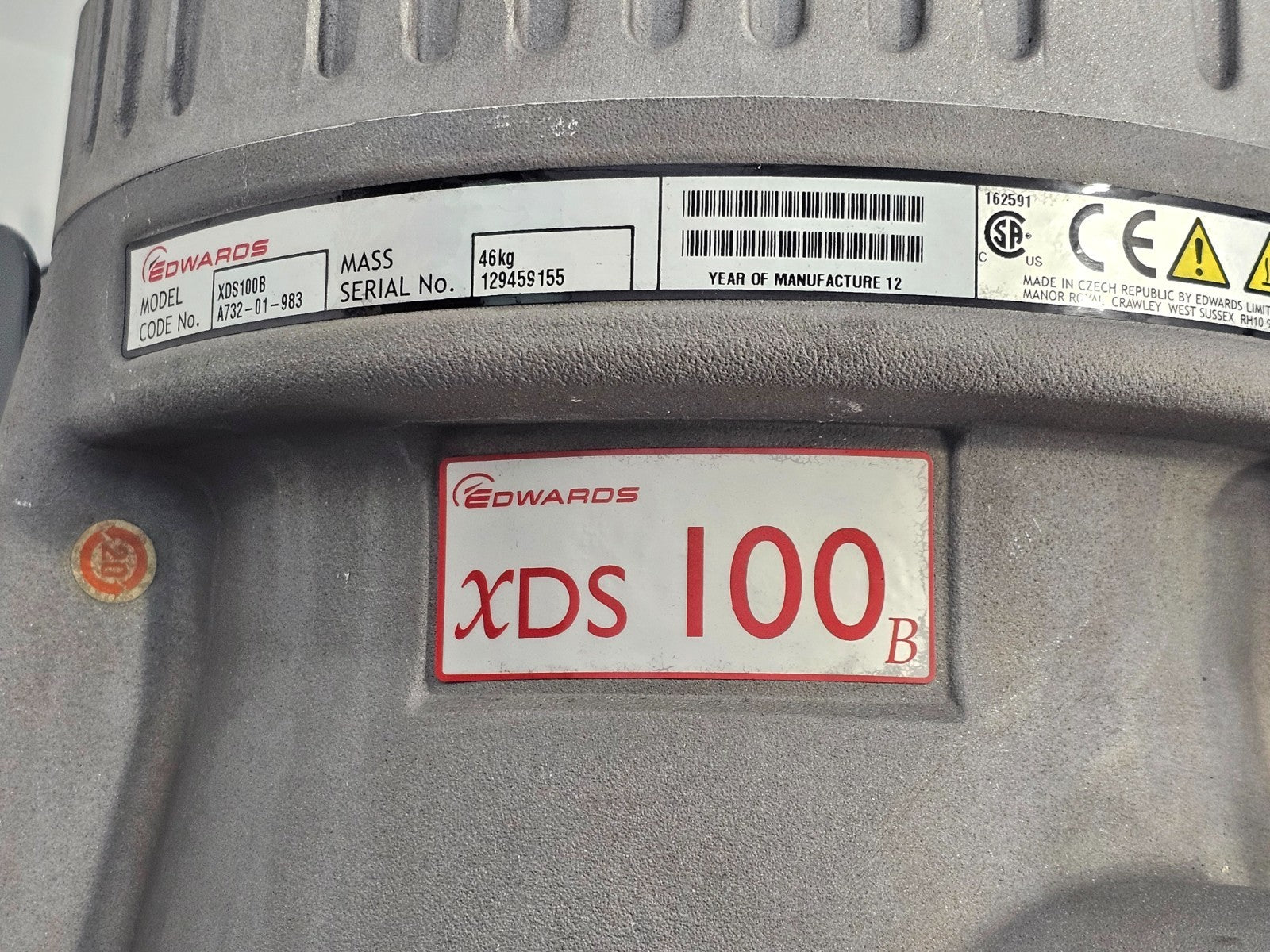

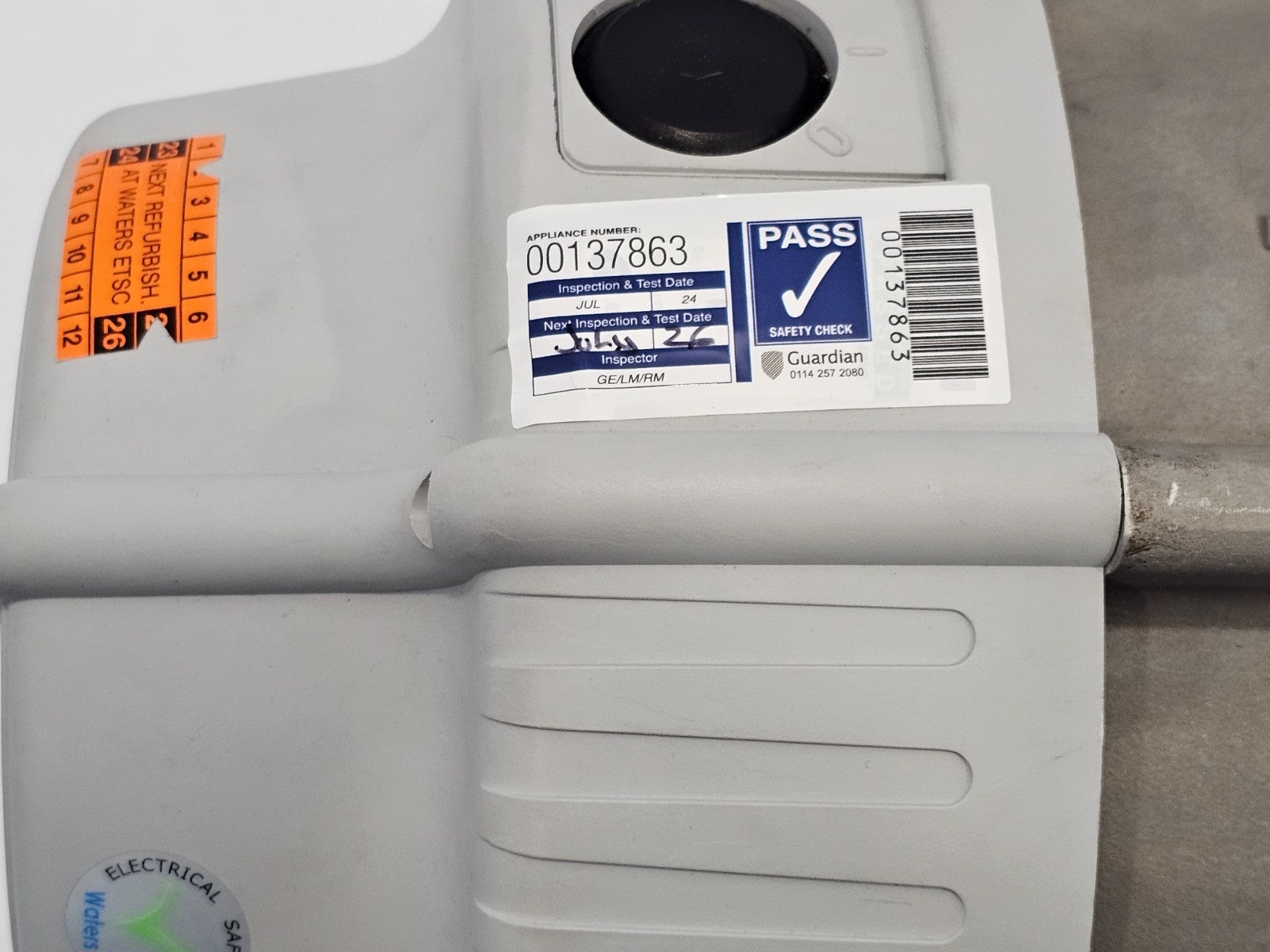

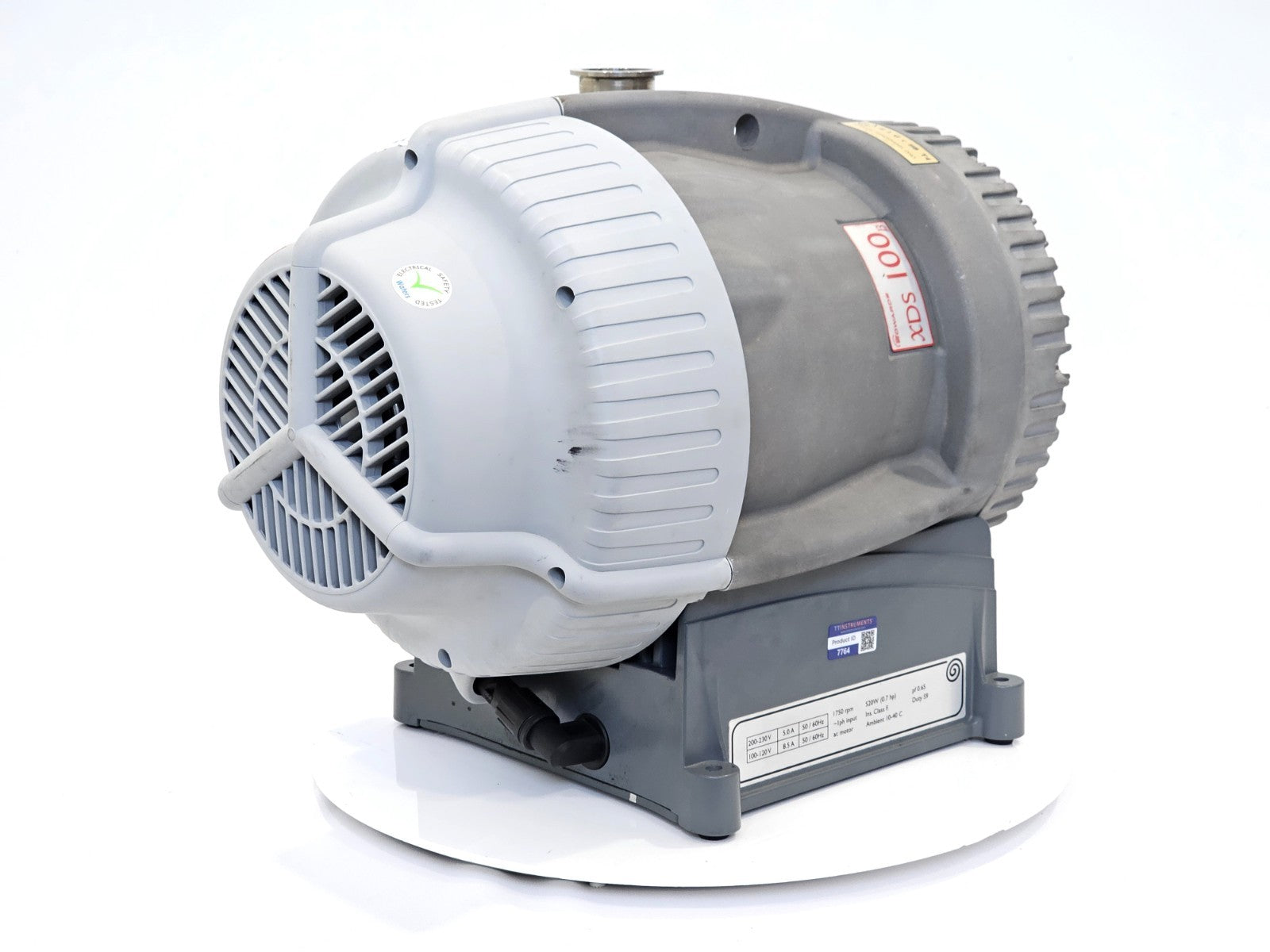

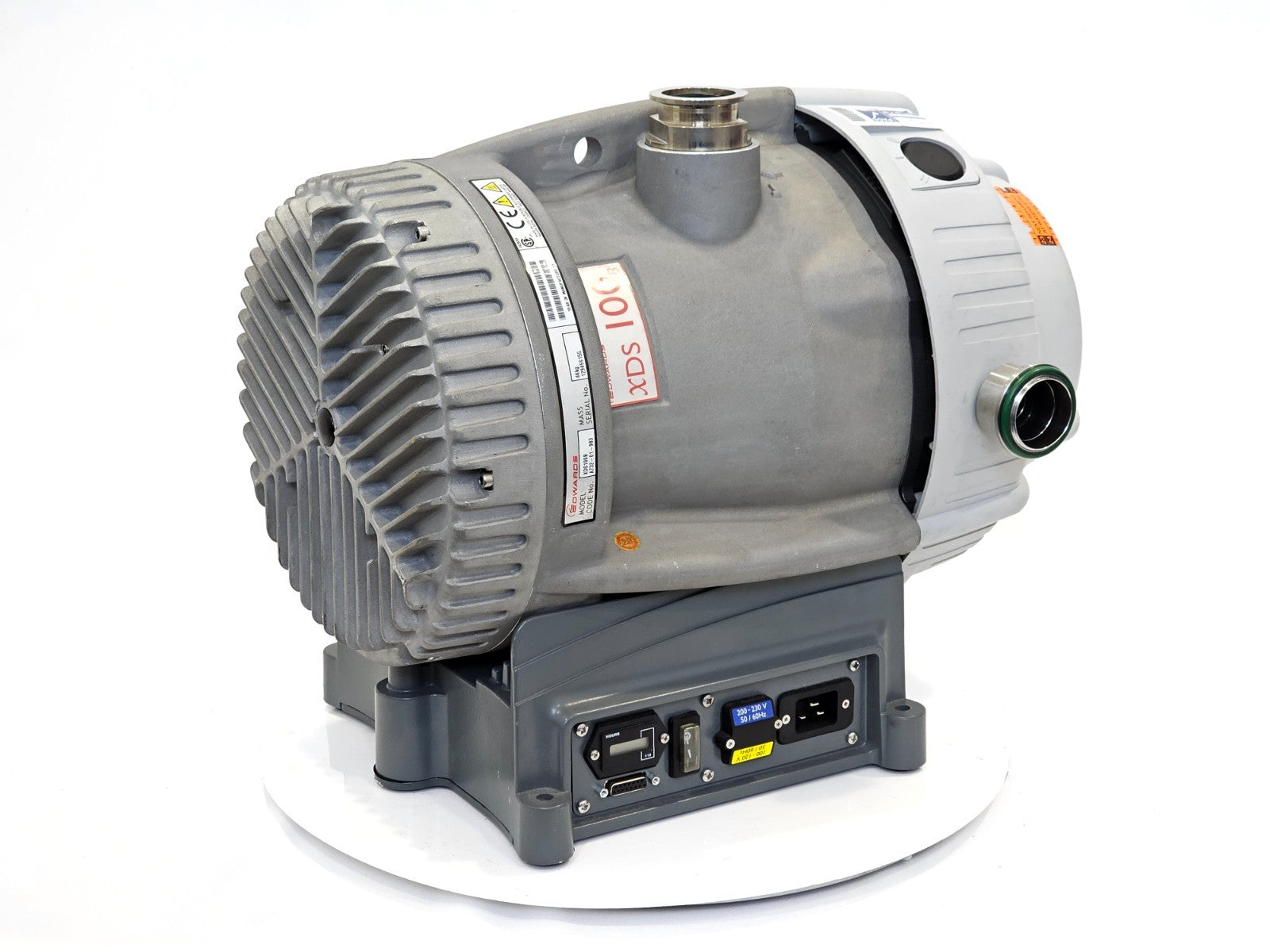

Edwards XDS100B Dry Scroll Booster Pump, manufactured in 2012, serial number 129459155, code A732-01-983. Removed from a working environment with minimal use and confirmed fully functional. Last electrical safety inspection passed July 2024; next inspection due July 2026.

Included in the sale:
• 1x Edwards XDS100B Dry Scroll Booster Pump (A732-01-983)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

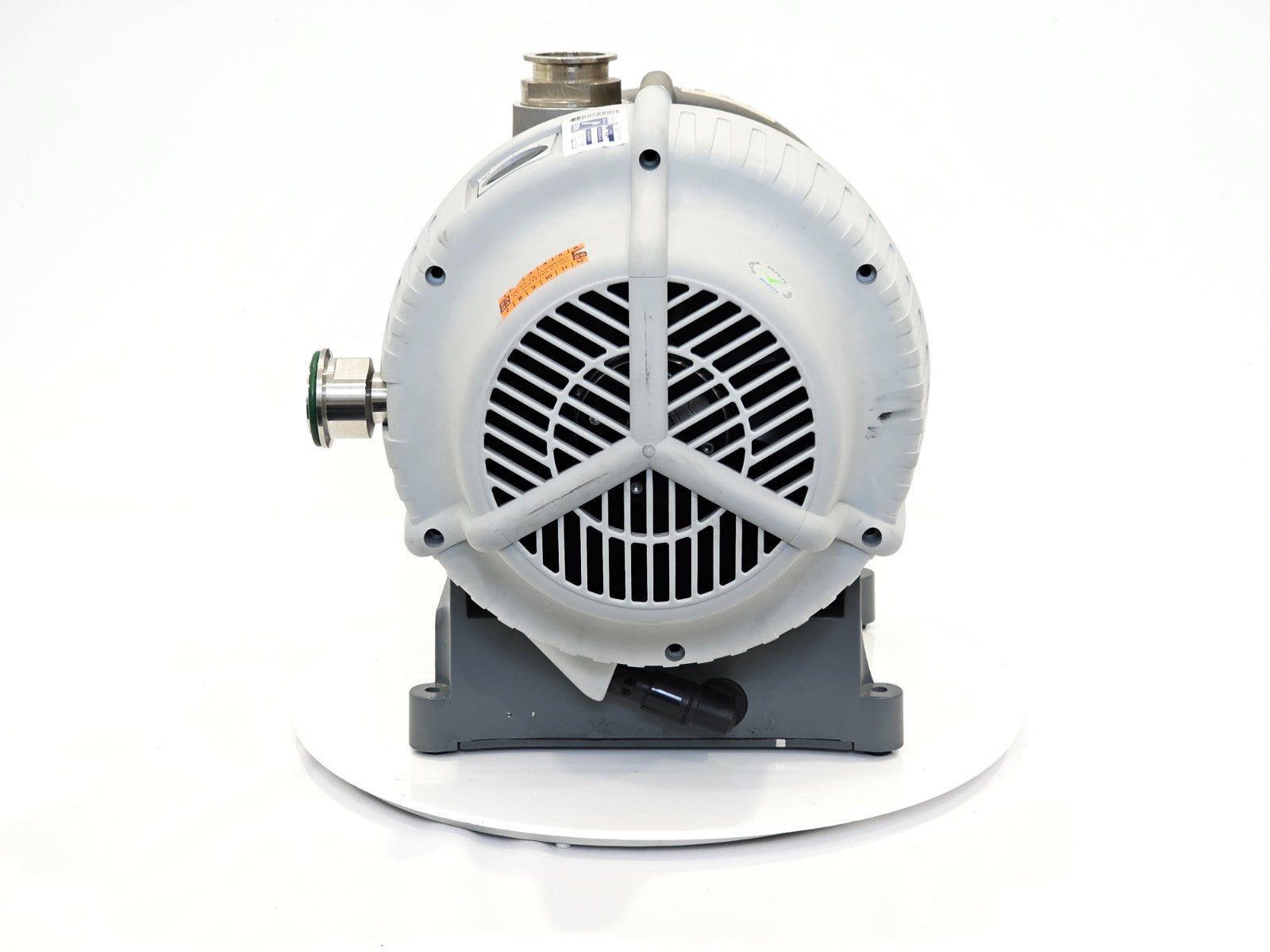

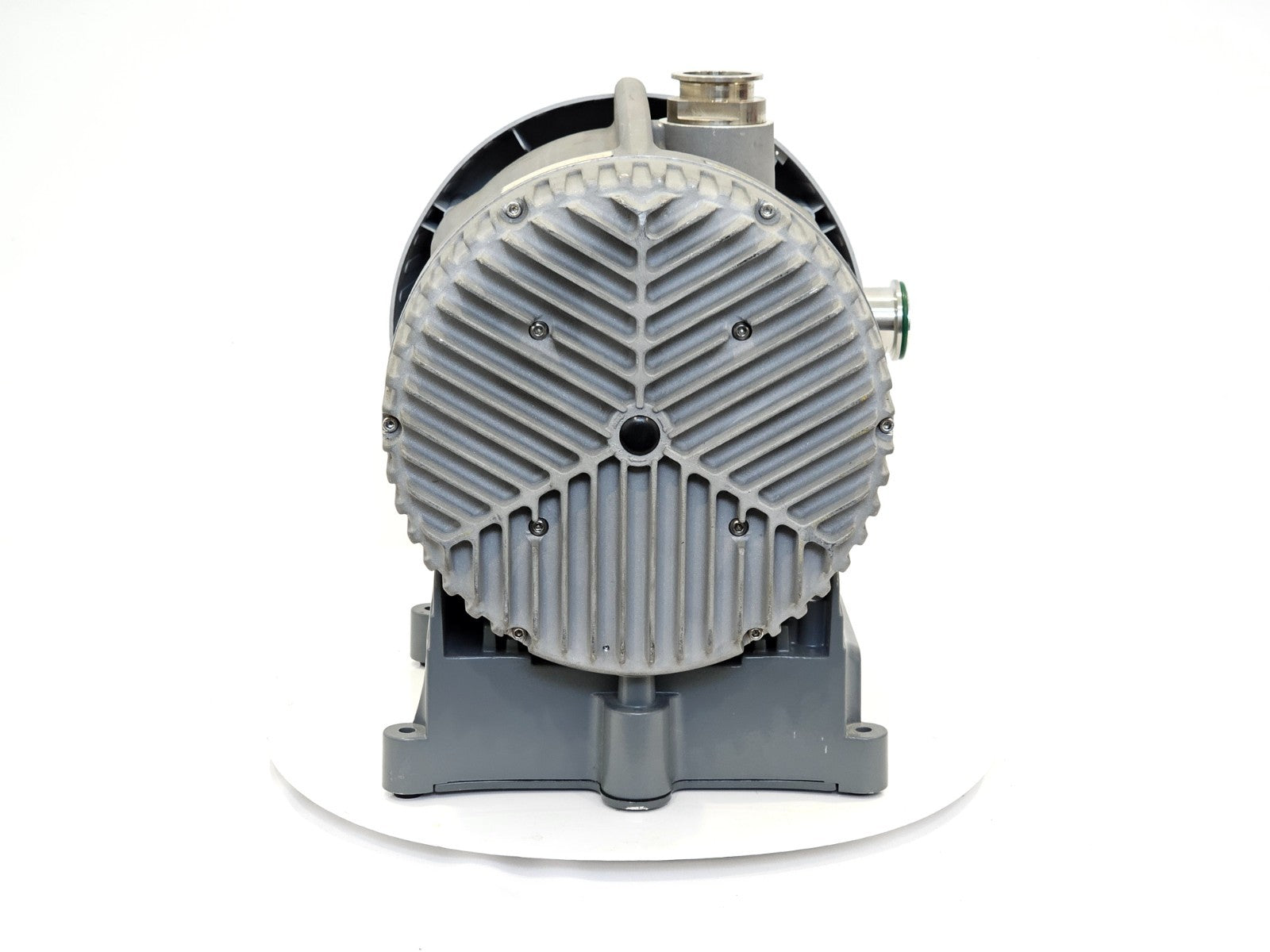

The Edwards XDS100B is a dry scroll booster pump with a pumping mechanism designed specifically for high pumping speed. It is a truly oil-free vacuum pump — all bearings with their hydrocarbon lubricant are completely isolated from the vacuum space by an innovative bearing shield, making the pump hermetically sealed and free from contamination risk. The XDS100B cannot exhaust directly to atmosphere and must be backed by a primary pump; it is intended for use in conjunction with Edwards XDS35i or XDS46i scroll pumps. It is optimised for maximum pumping speed at inlet pressures between 1 mbar and 10 mbar, resulting in virtually no tip seal wear, reduced service intervention, and maximised uptime. The motor is controlled by an inverter which manages the supply of current in accordance with operating conditions, ensuring consistent performance on both 50 and 60 Hz single-phase supplies. The pump does not have a gas ballast option as condensation is not likely to occur at its normal operating pressure. The pump body includes a fixed scroll and an orbiting scroll made from anodised aluminium. It is air-cooled by a fan mounted at the opposite end to the motor, which continues to run for one minute after the pump is switched off. An integrated hours counter records total pump run time. The pump carries ATEX Category 3 certification for internal atmospheres (II 3 G c IIB T4).

Typical Applications: Semiconductor process equipment, analytical instruments, mass spectrometry, electron microscopy, freeze drying, thin film deposition, and general research and industrial vacuum processes requiring clean, oil-free pumping.

Key Specifications:
Model: XDS100B
Code Number: A732-01-983
Pump Type: Dry scroll booster
Pumping Speed: 95 m³/h
Optimum Inlet Pressure Range: 1–10 mbar
Maximum Inlet Pressure (prolonged): 20 mbar

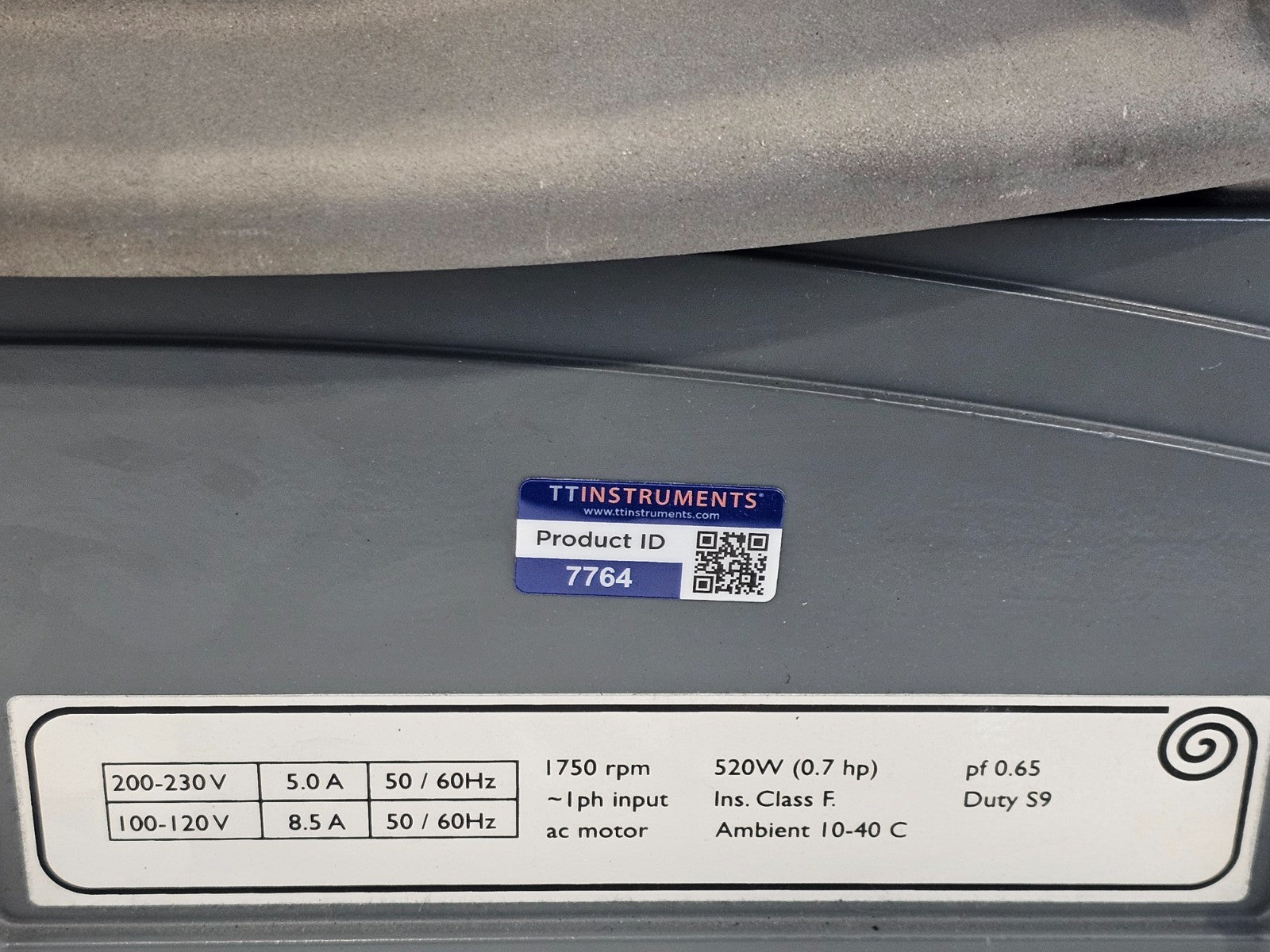

Motor Power: 520 W (0.7 hp)
Motor Speed: 1750 RPM

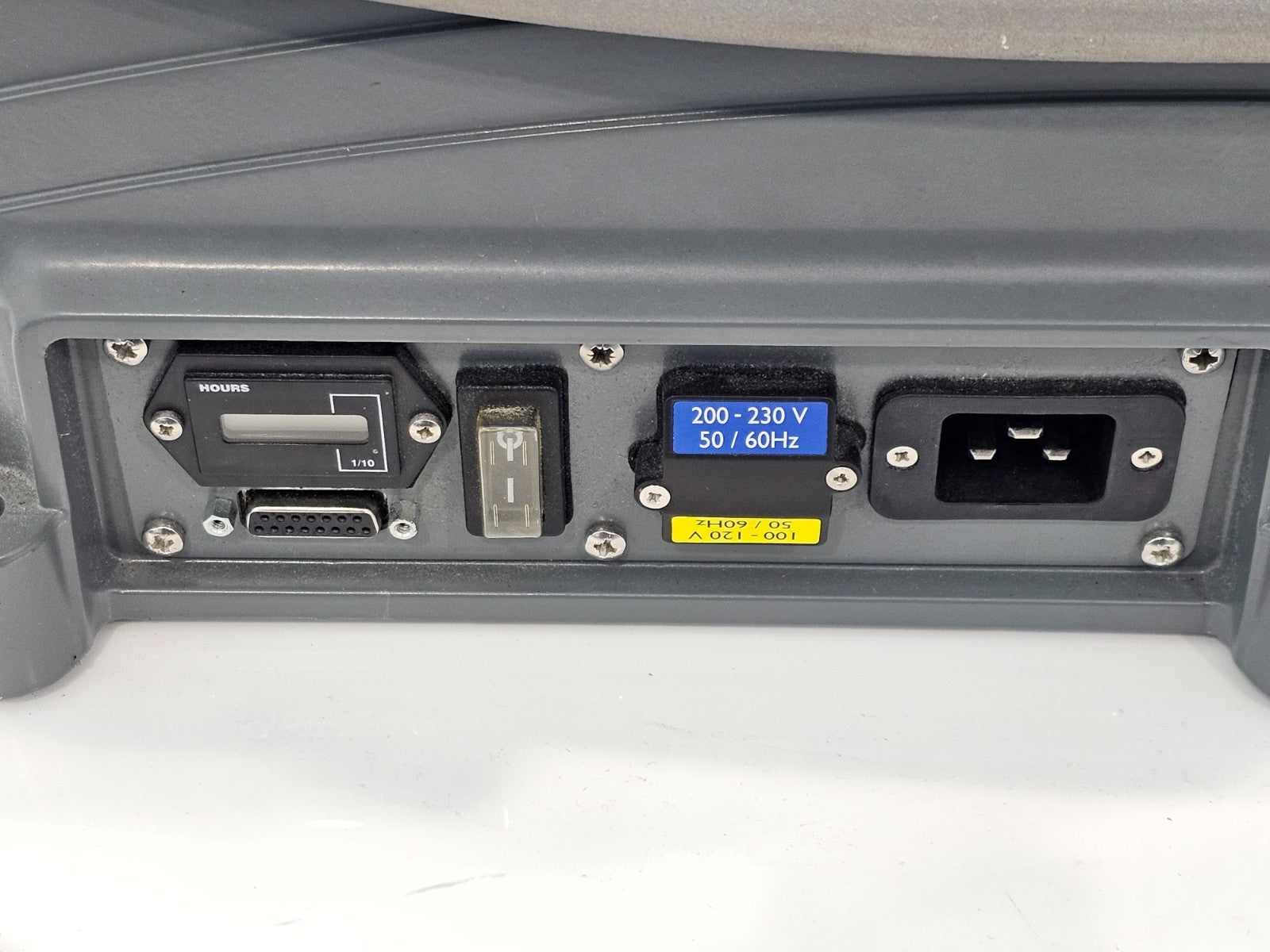

Voltage (High): 200–230 V, 5.0 A
Voltage (Low): 100–120 V, 8.5 A
Frequency: 50/60 Hz
Phase: Single-phase AC
Insulation Class: F
Power Factor: 0.65
Duty: S9 Continuous
Motor Drive: Inverter controlled
Operating Ambient Temperature: 10–40°C

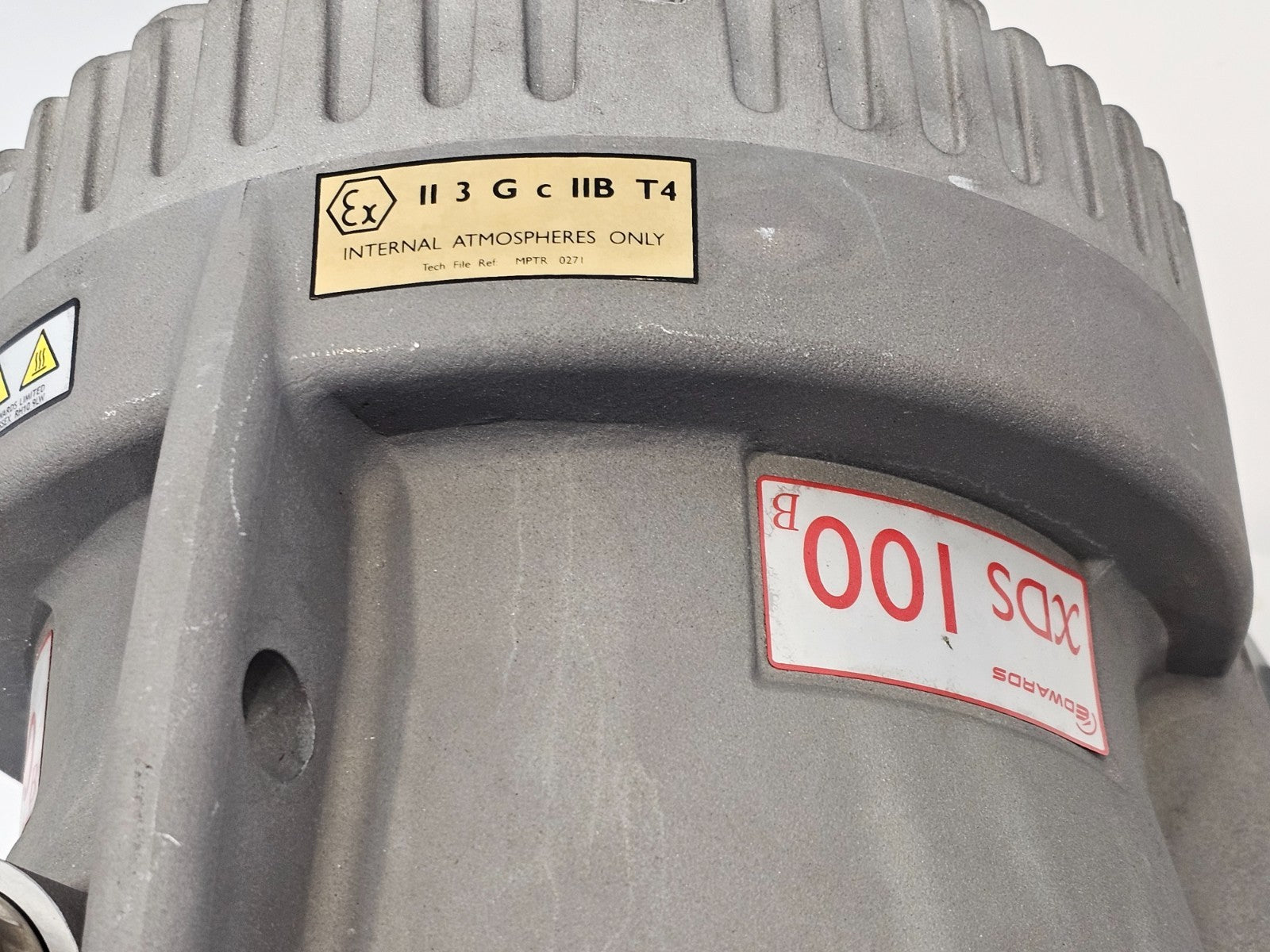

ATEX Classification: II 3 G c IIB T4 (Internal Atmospheres Only)
Scroll Material: Anodised aluminium
Tip Seal Material: PTFE composite
Mass: 46 kg
Year of Manufacture: 2012 (this unit)
Manufacturer: Edwards Limited, Crawley, West Sussex, UK
CE Compliant: Yes

Edwards XDS100B Scroll Booster Pump original instruction manual (A732-01-880 Issue A) — installation, operation and maintenance: Download PDF

Edwards XDS dry scroll pumps datasheet — technical specifications and performance data: Download PDF
