Condition: Used

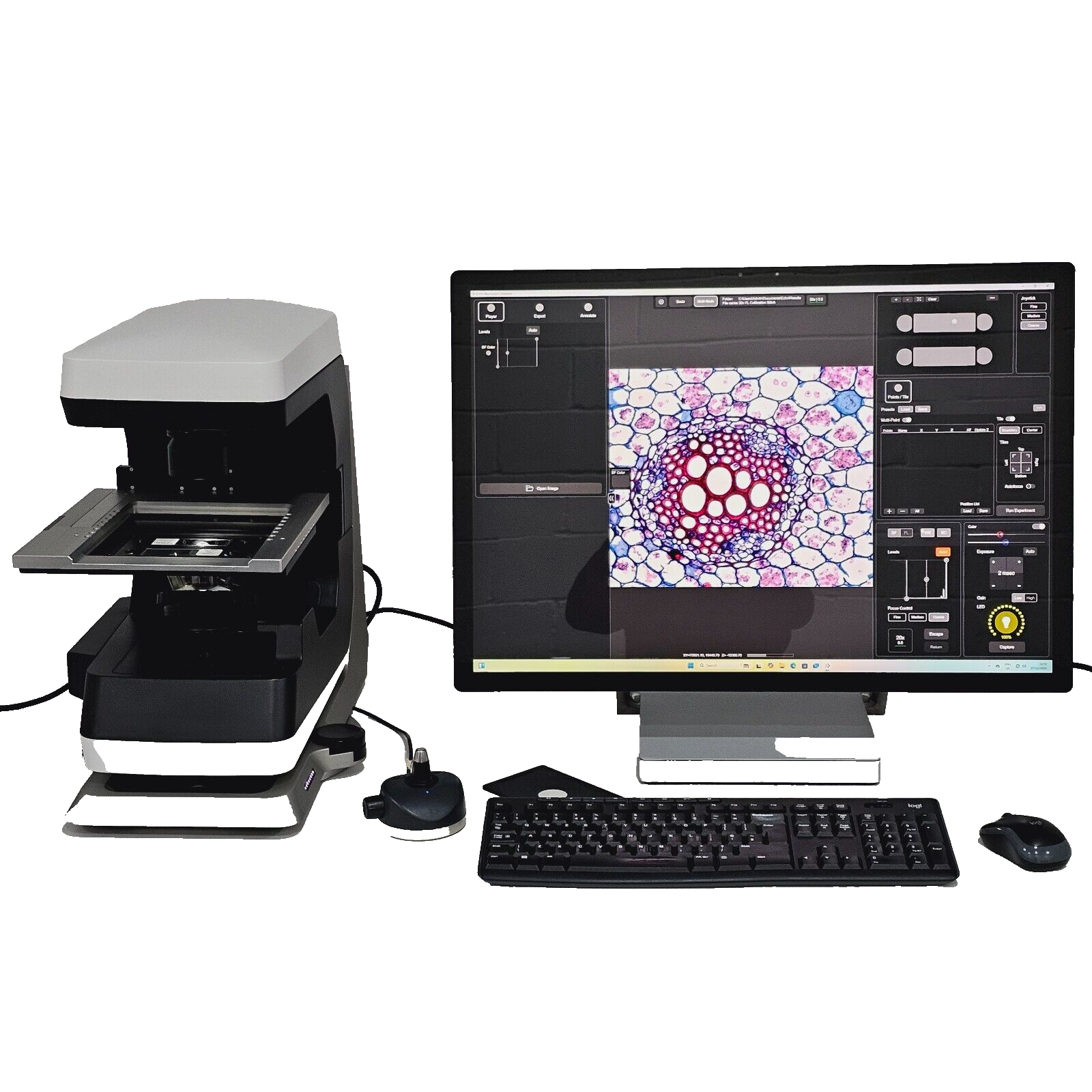

In excellent condition, fully working and verified by the manufacturer in December 2024. This Revolution RON-B system is configured with four Olympus objectives, a motorised XY stage, Z controller joystick, and a Microsoft Surface Studio running Windows 11 with a 32" 4K monitor — a comprehensive, ready-to-use automated imaging workstation.

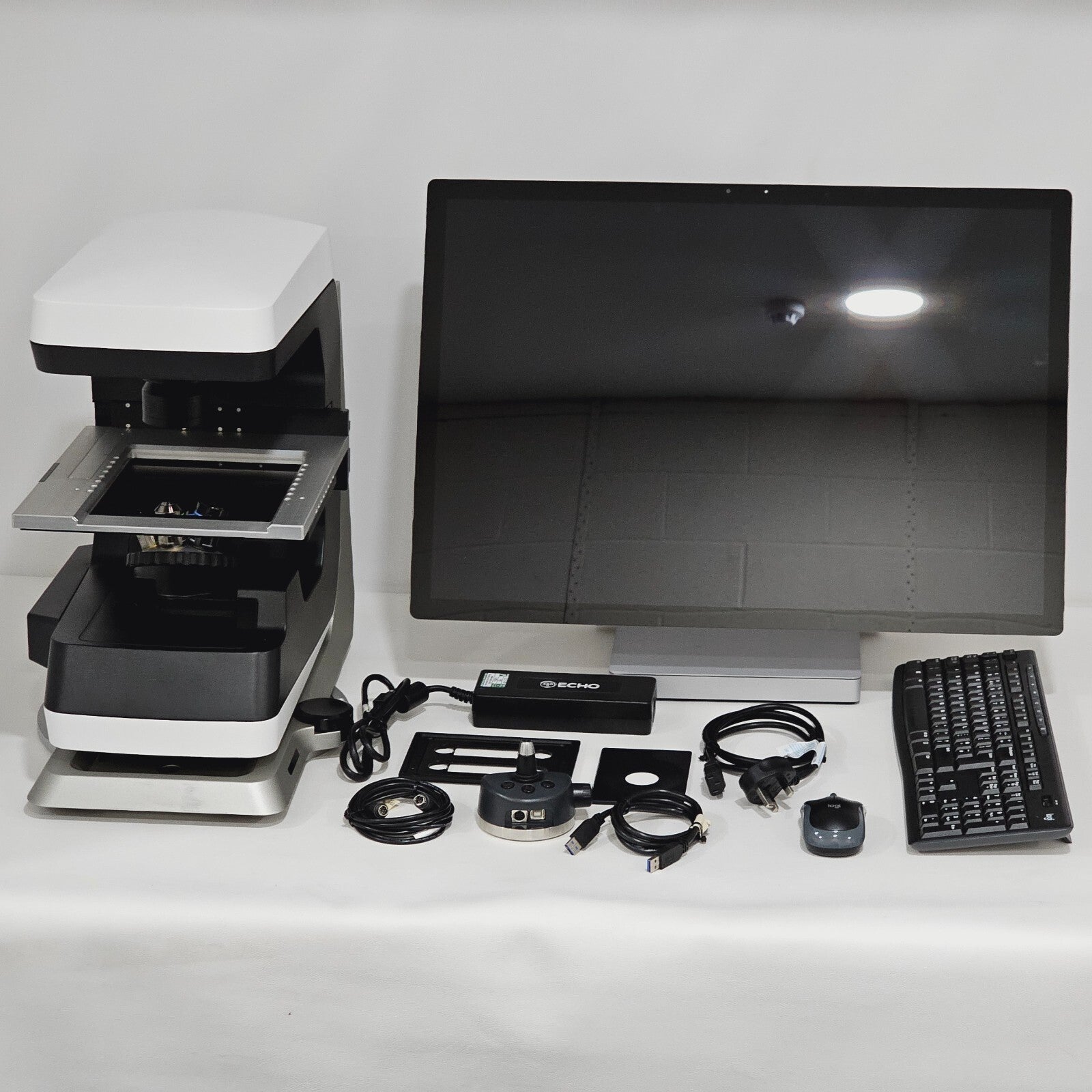

Included in the sale:

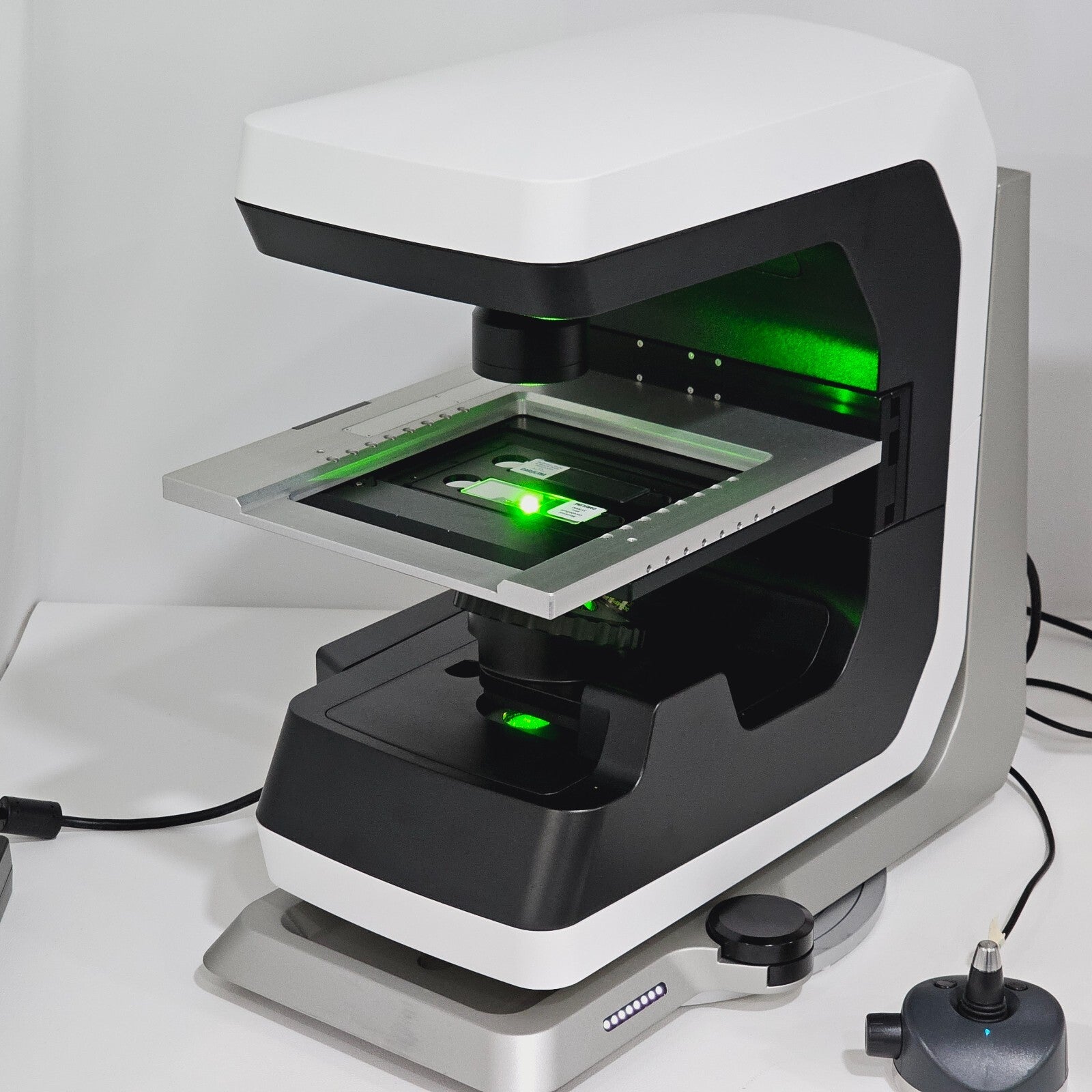

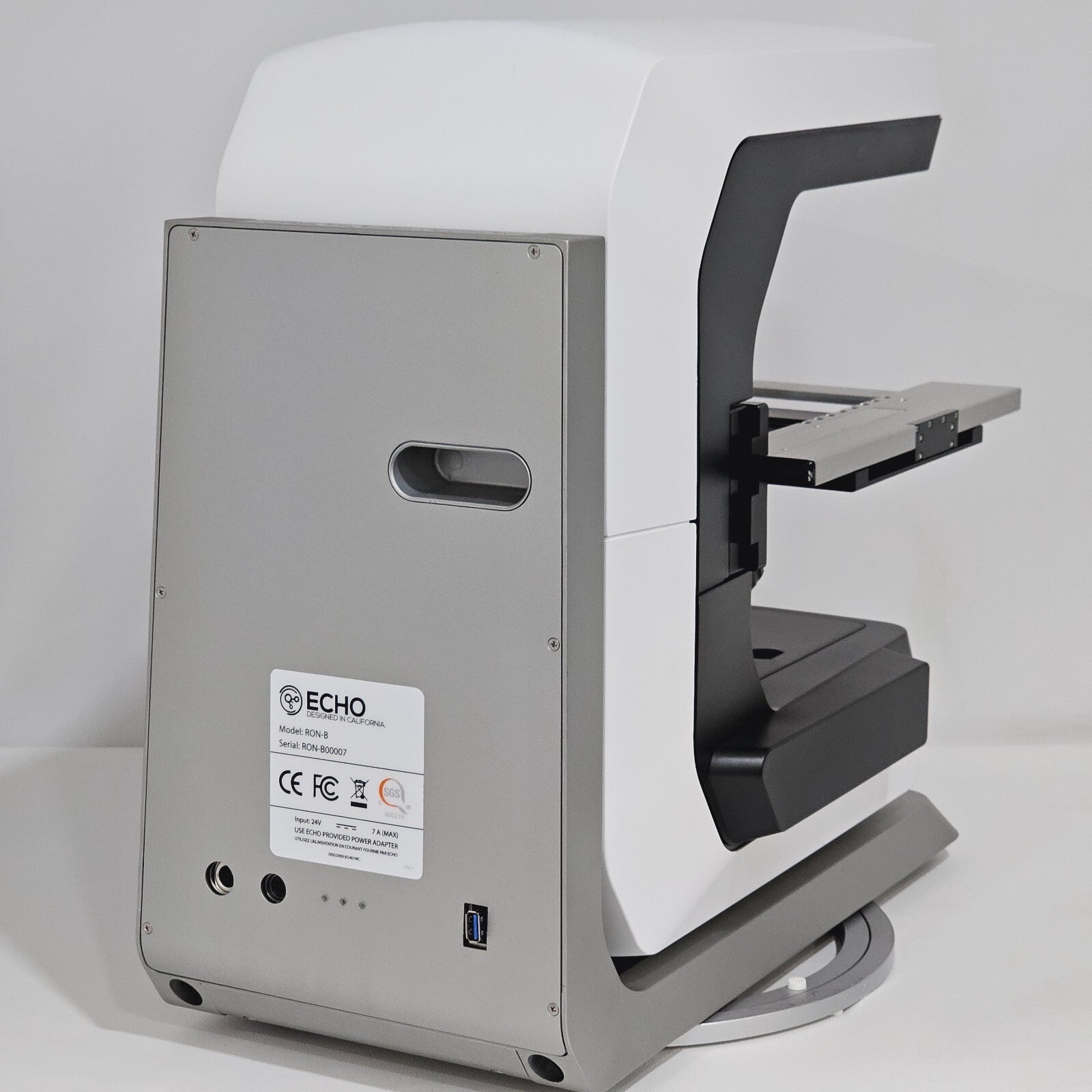

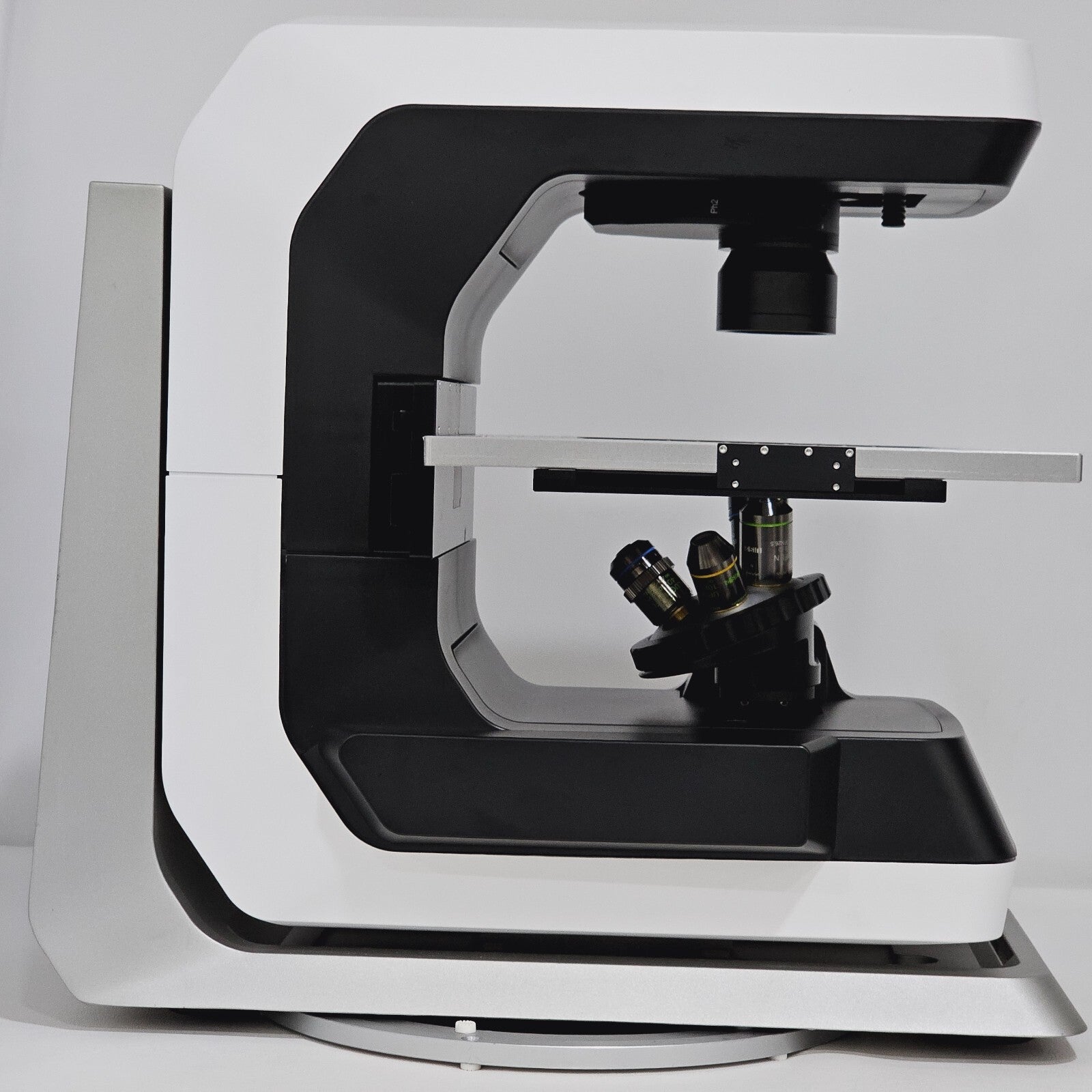

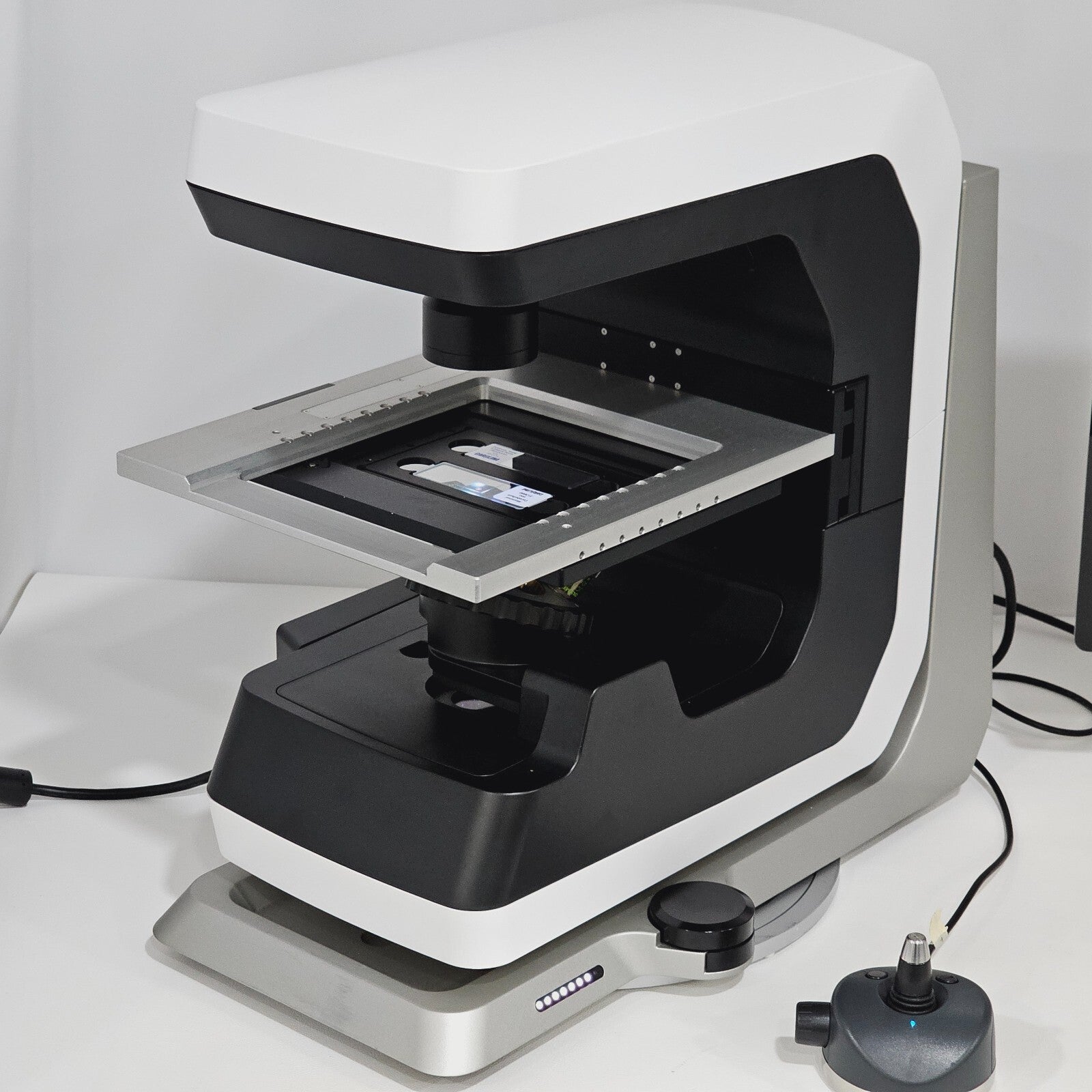

• RON-B Microscope (Upright | Inverted | Brightfield | Phase Contrast | Fluorescence)

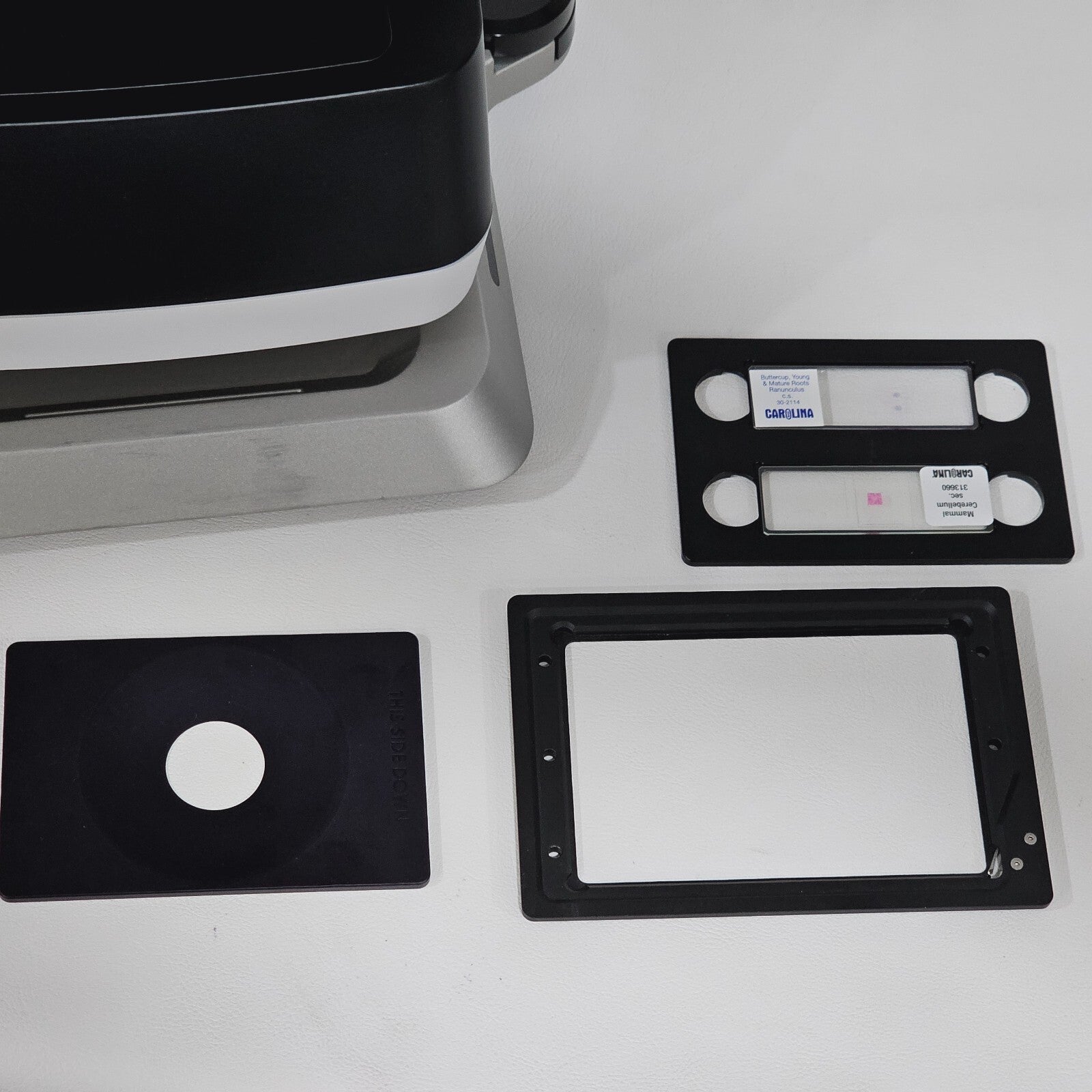

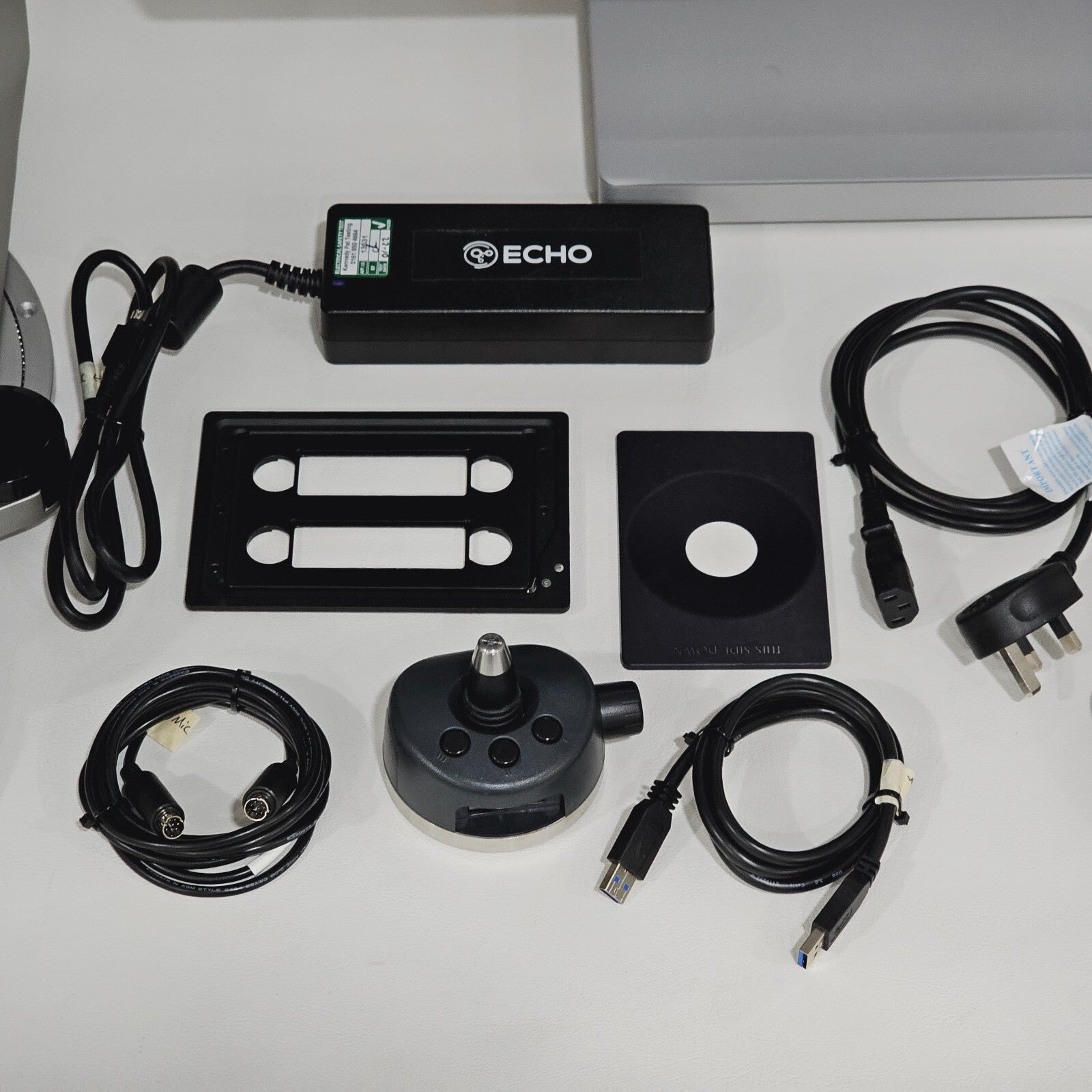

• Dual slide holder
• Dish holder

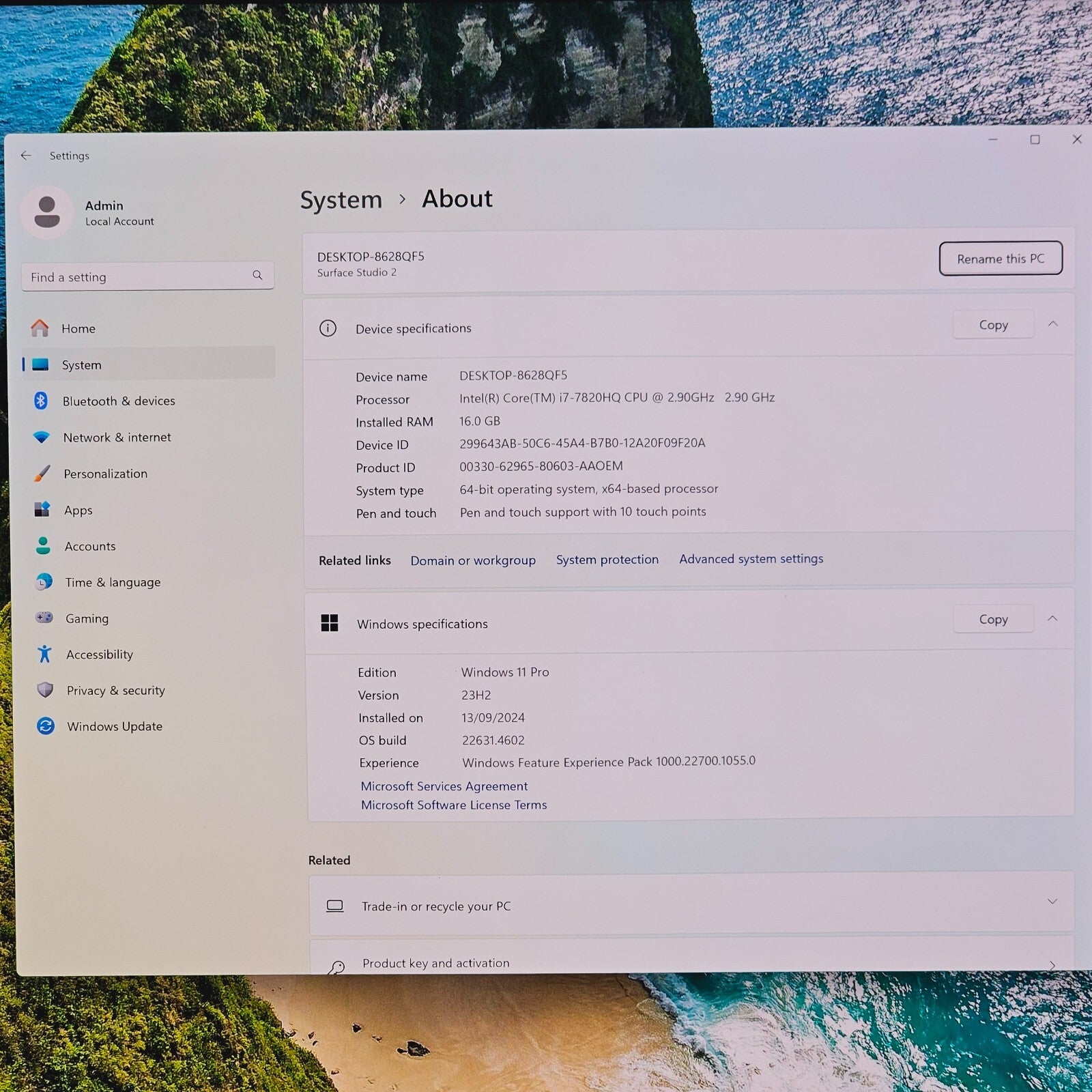

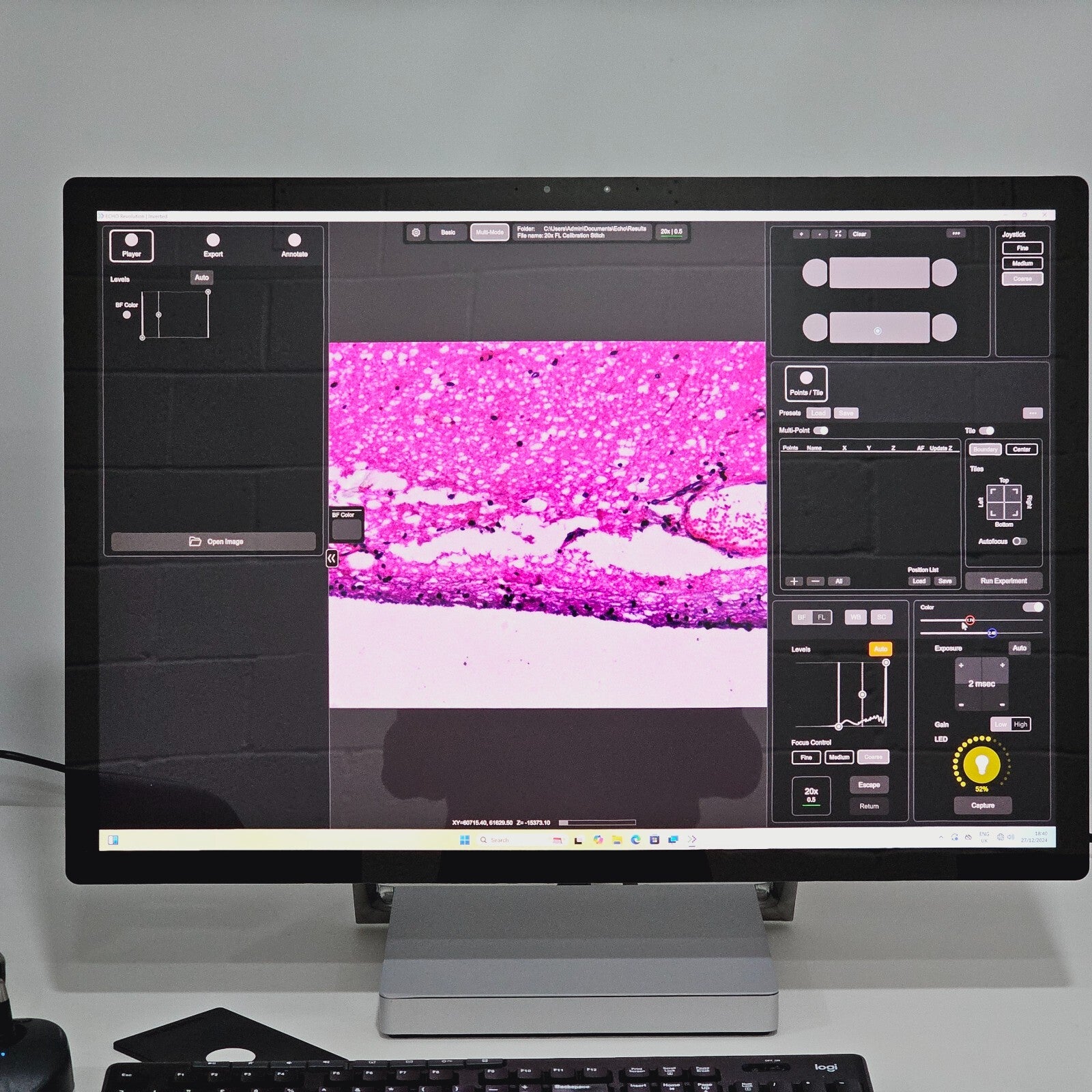

• Microsoft Surface Studio with Windows 11
• Wireless keyboard and mouse set
• 32" 4K Monitor

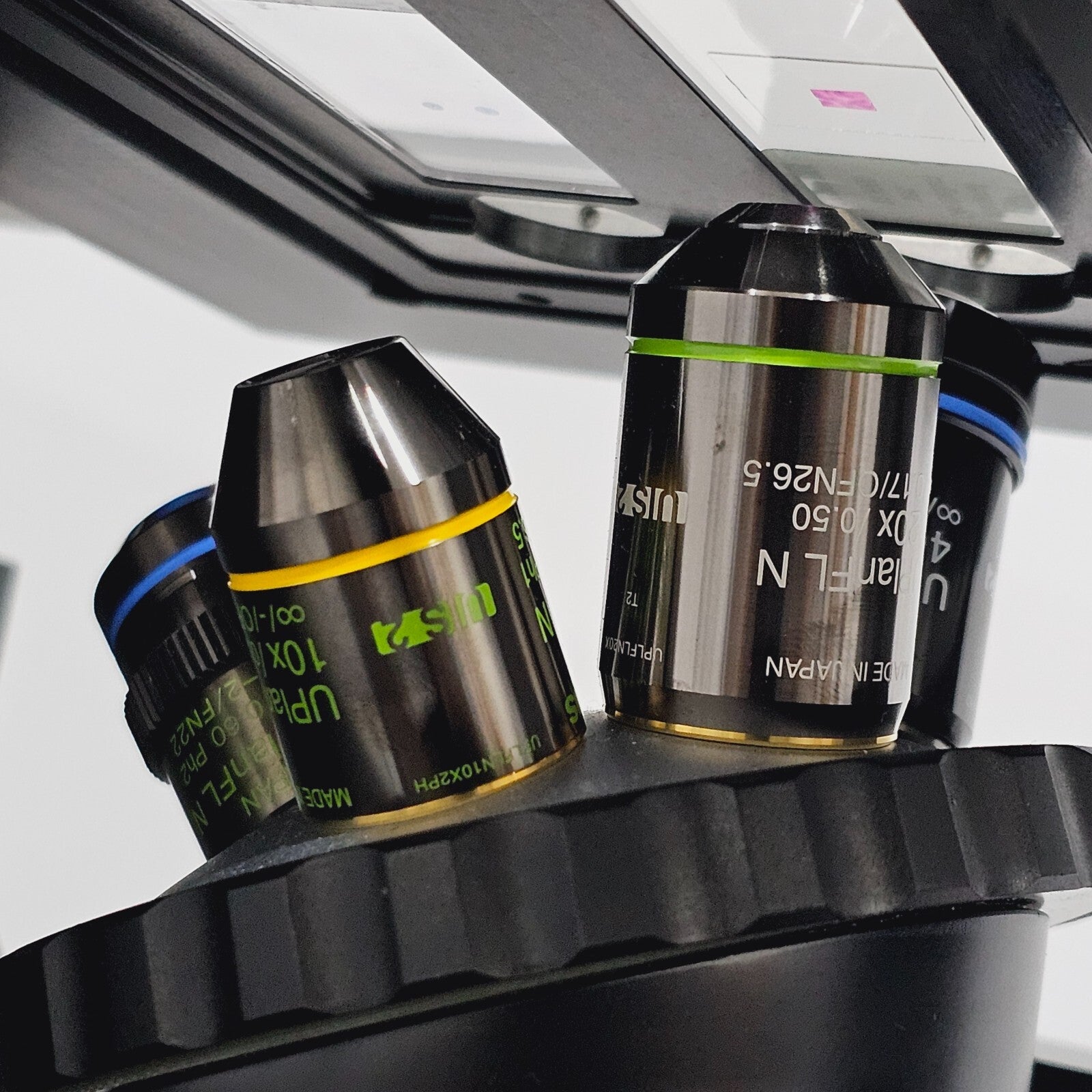

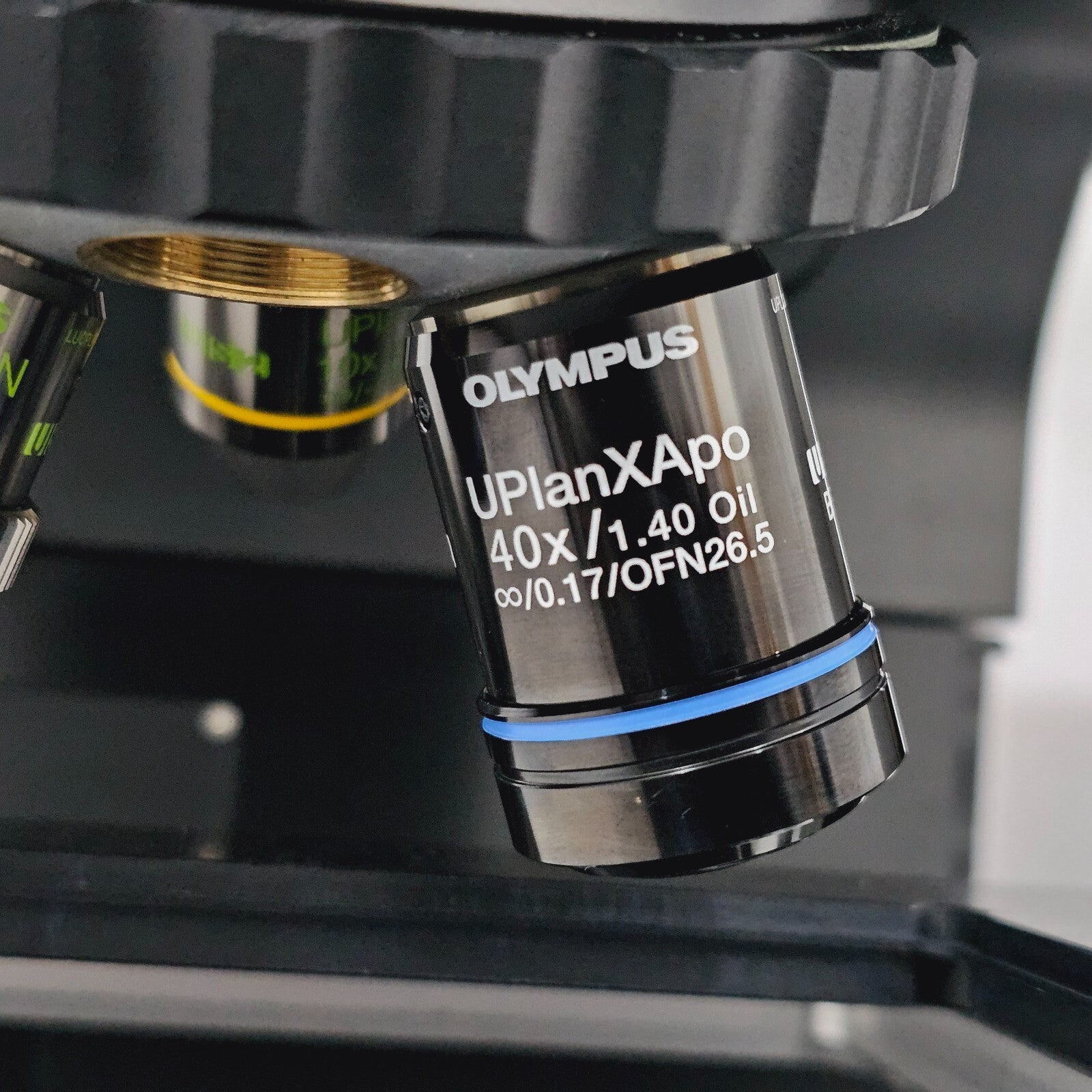

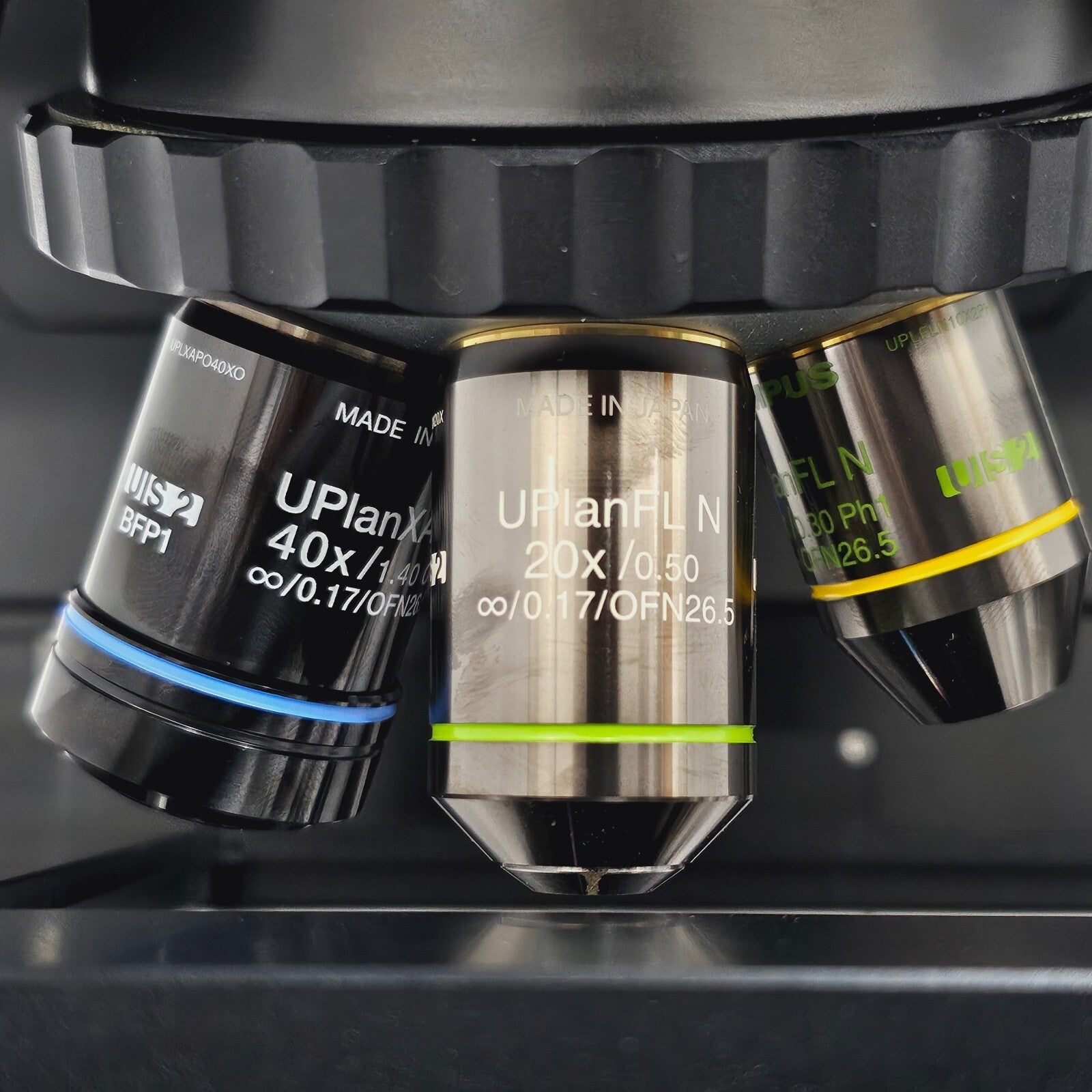

• Olympus objective — UPlanXApo 40x/1.40 Oil

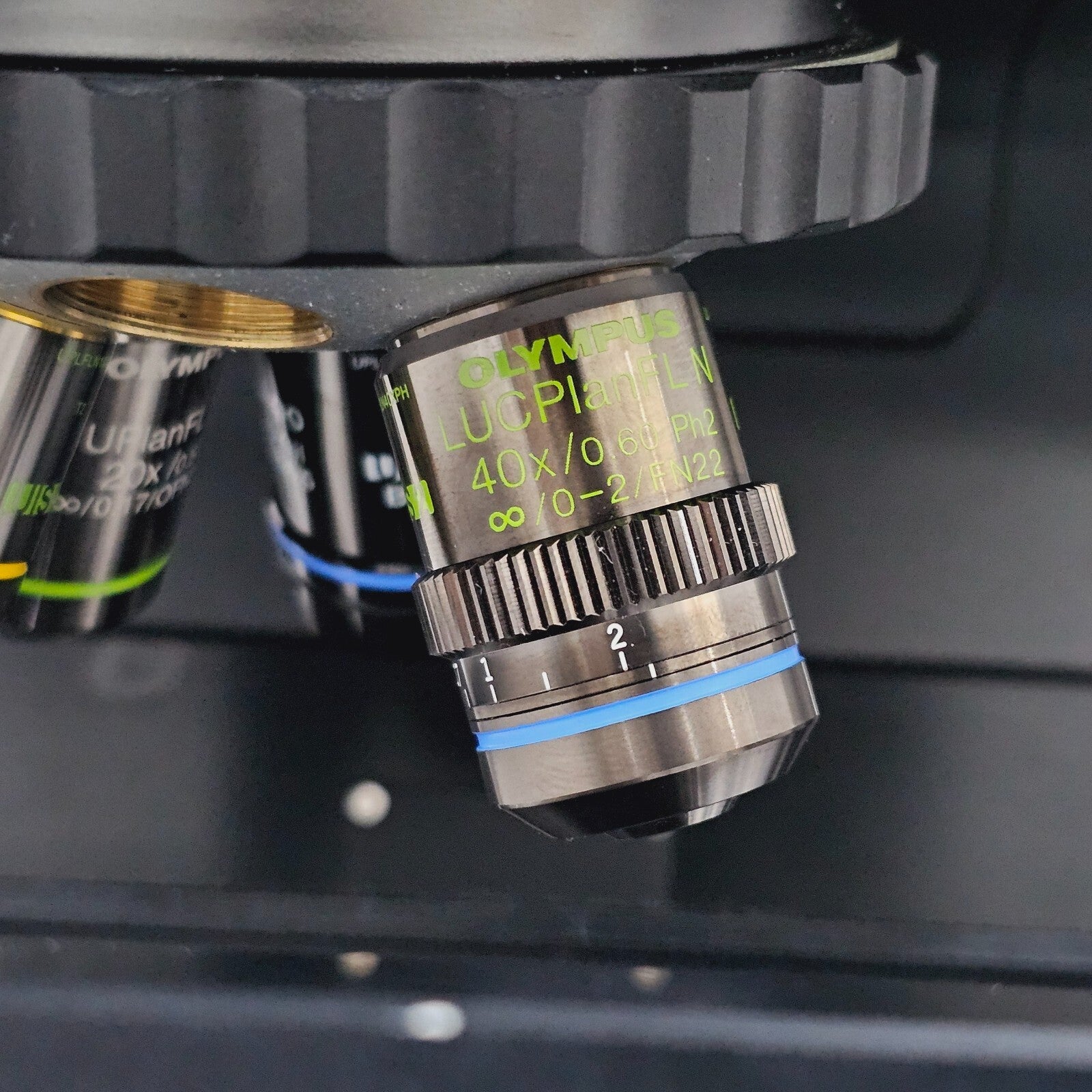

• Olympus objective — LUCPlanFLN 40x/0.60 Ph2

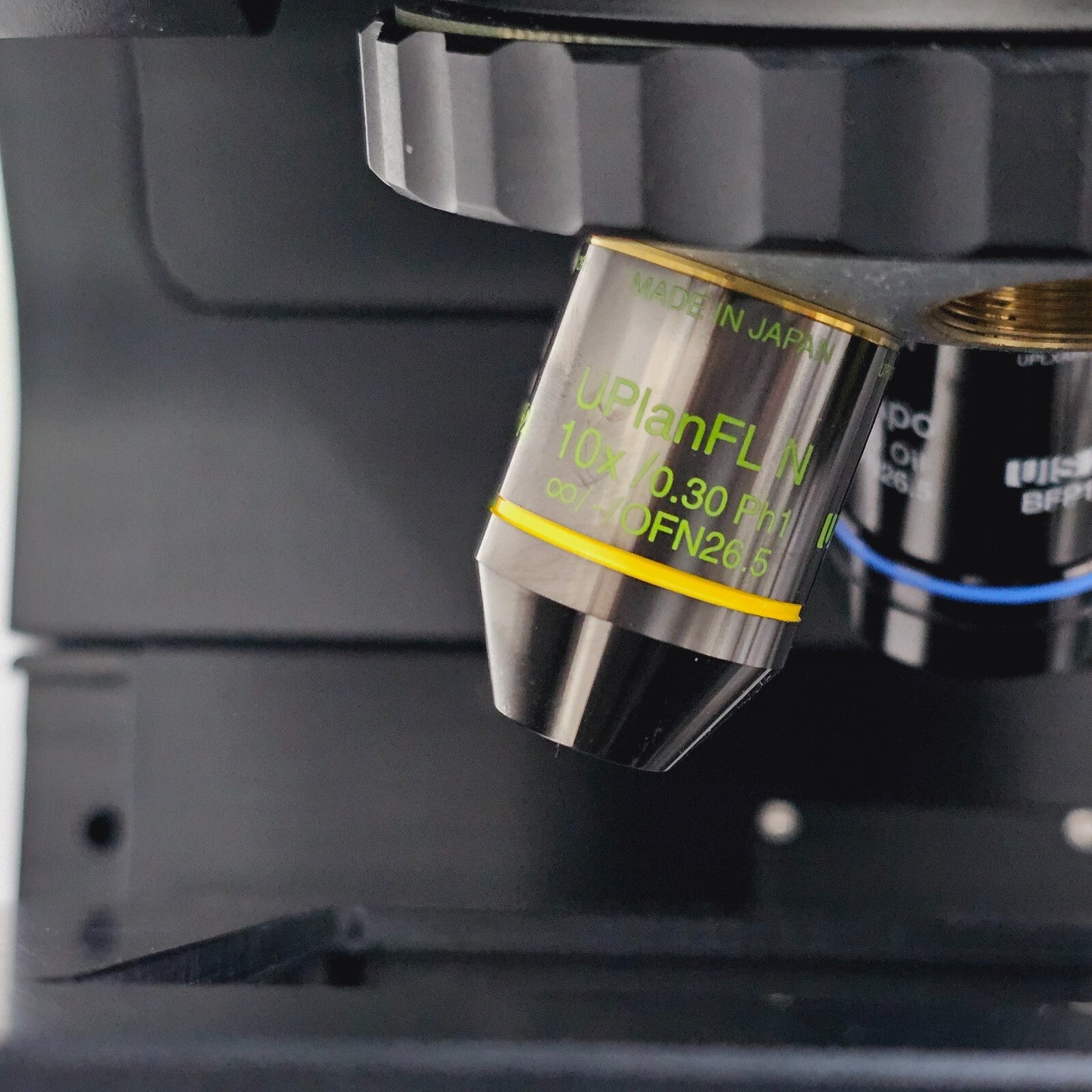

• Olympus objective — UPlanFLN 10x/0.30 Ph1
• Olympus objective — UPlanFLN 20x/0.50
• XY motorised stage

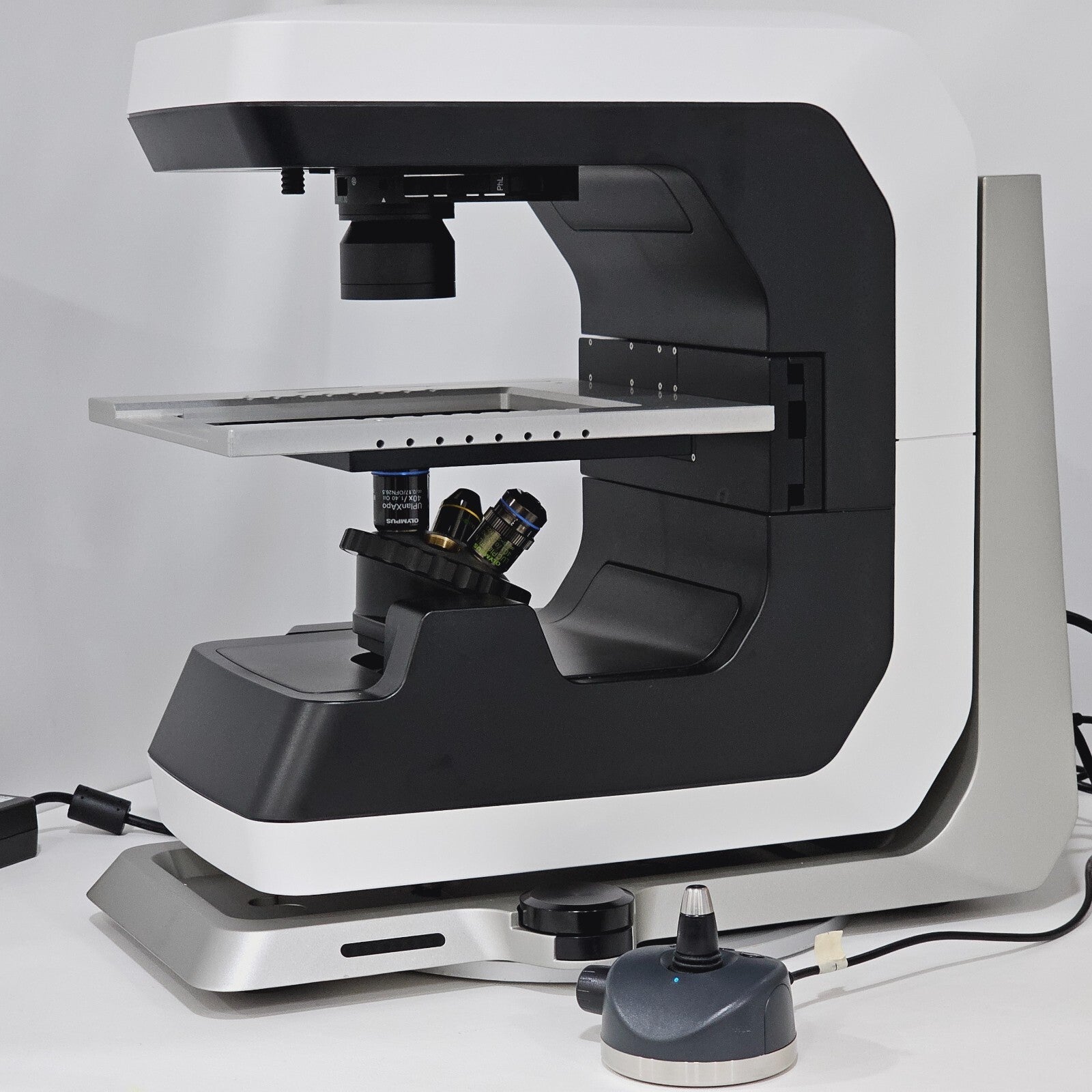

• Z controller joystick
• ECHO dust cover

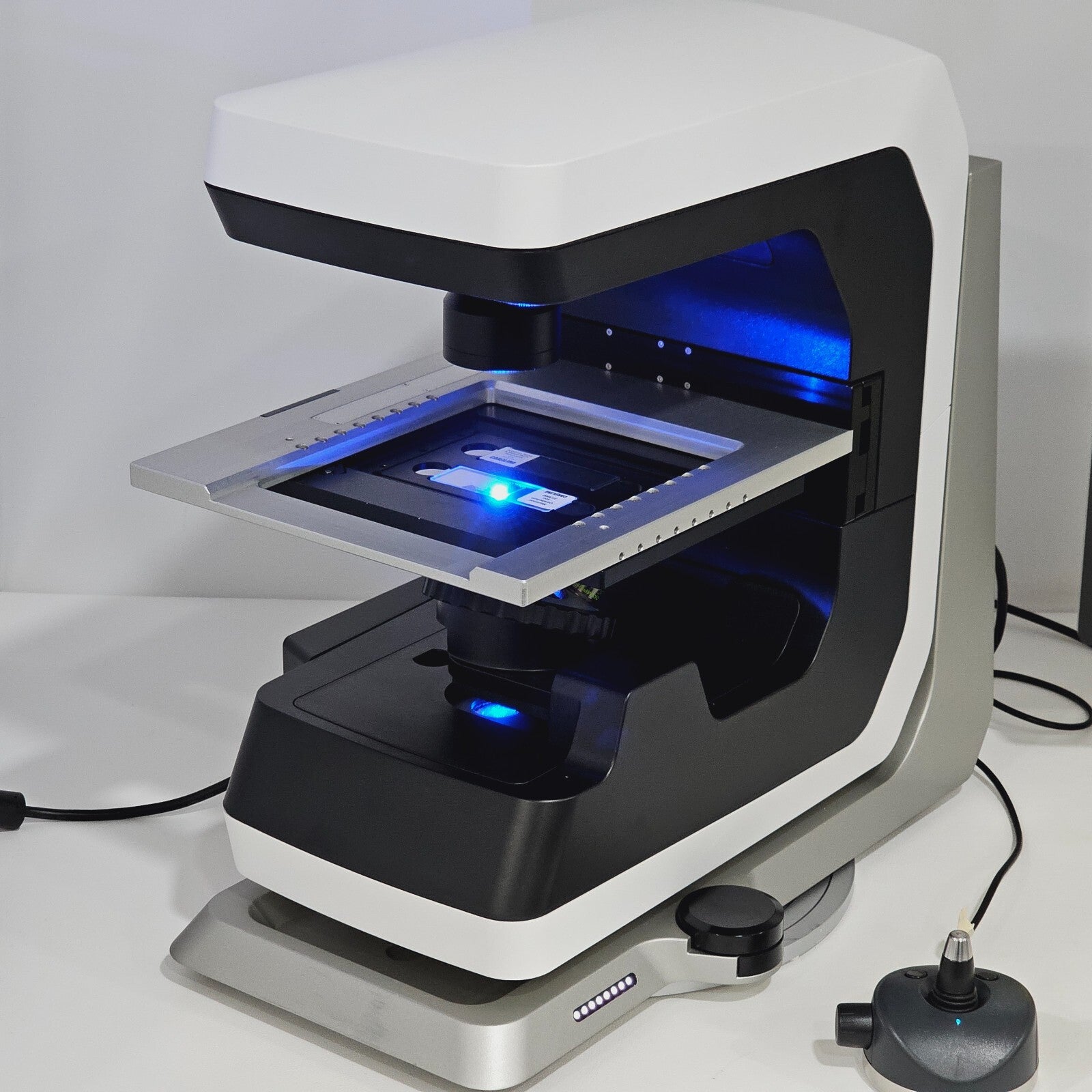

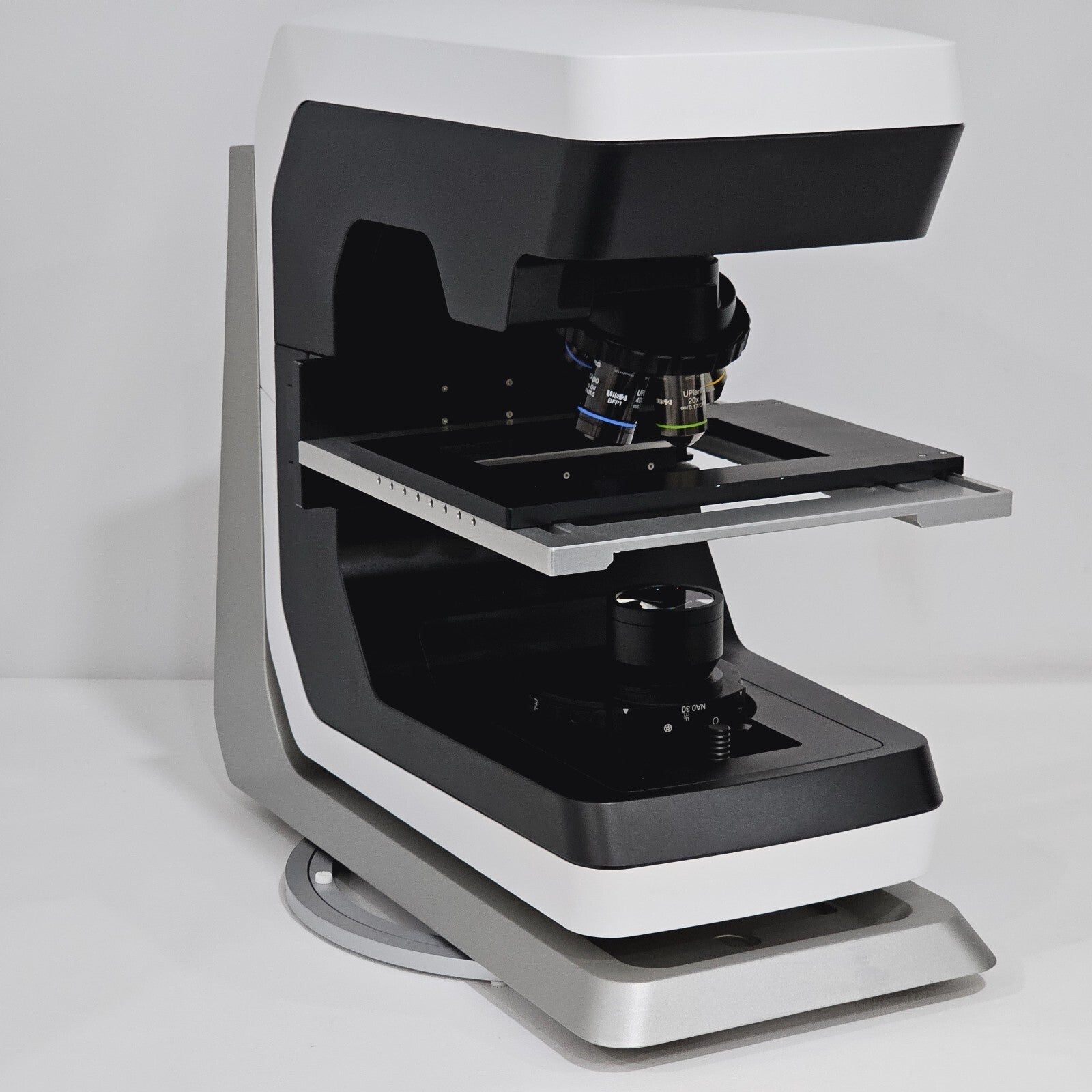

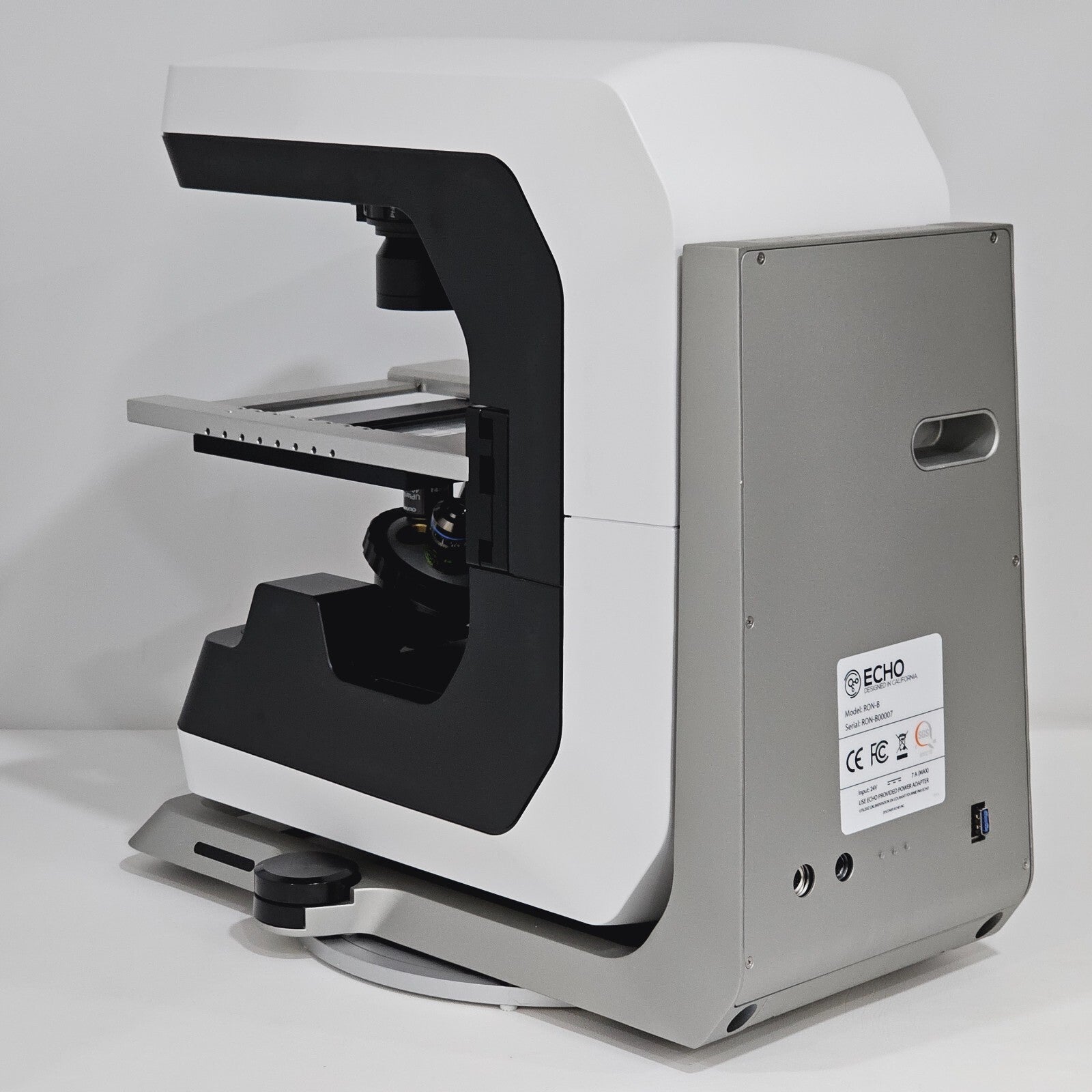

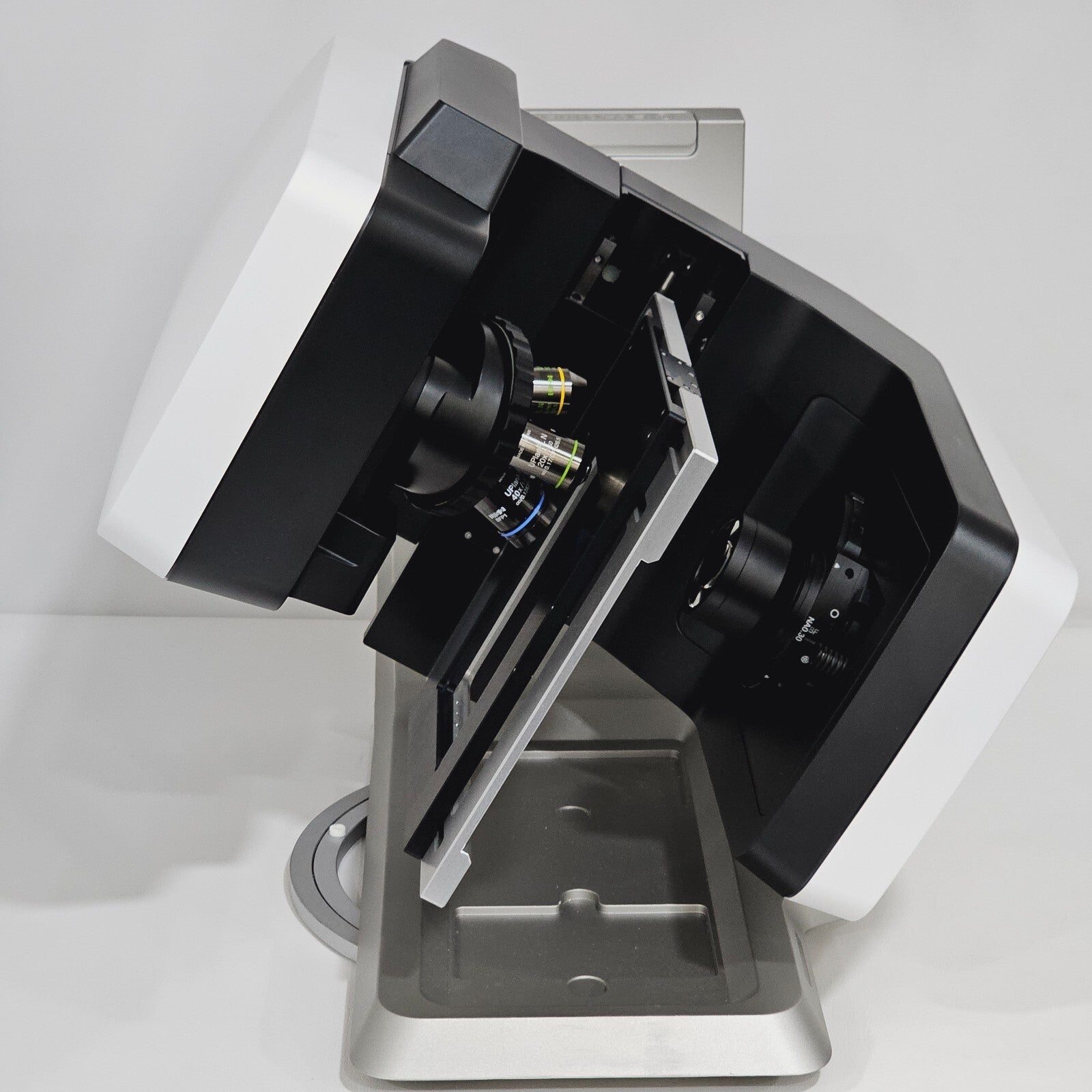

The ECHO Revolution (RON-B) is the world's first and only automated microscope that converts between both upright and inverted configurations, making it ideal for imaging well plates, dishes, and glass slides within a single instrument. Designed for developmental biology, cell biology, neuroscience, immunology, cancer research, and more, Revolution delivers live-cell imaging, timelapse, tiling/mosaic imaging, and multi-well plate screening capabilities in one benchtop system.

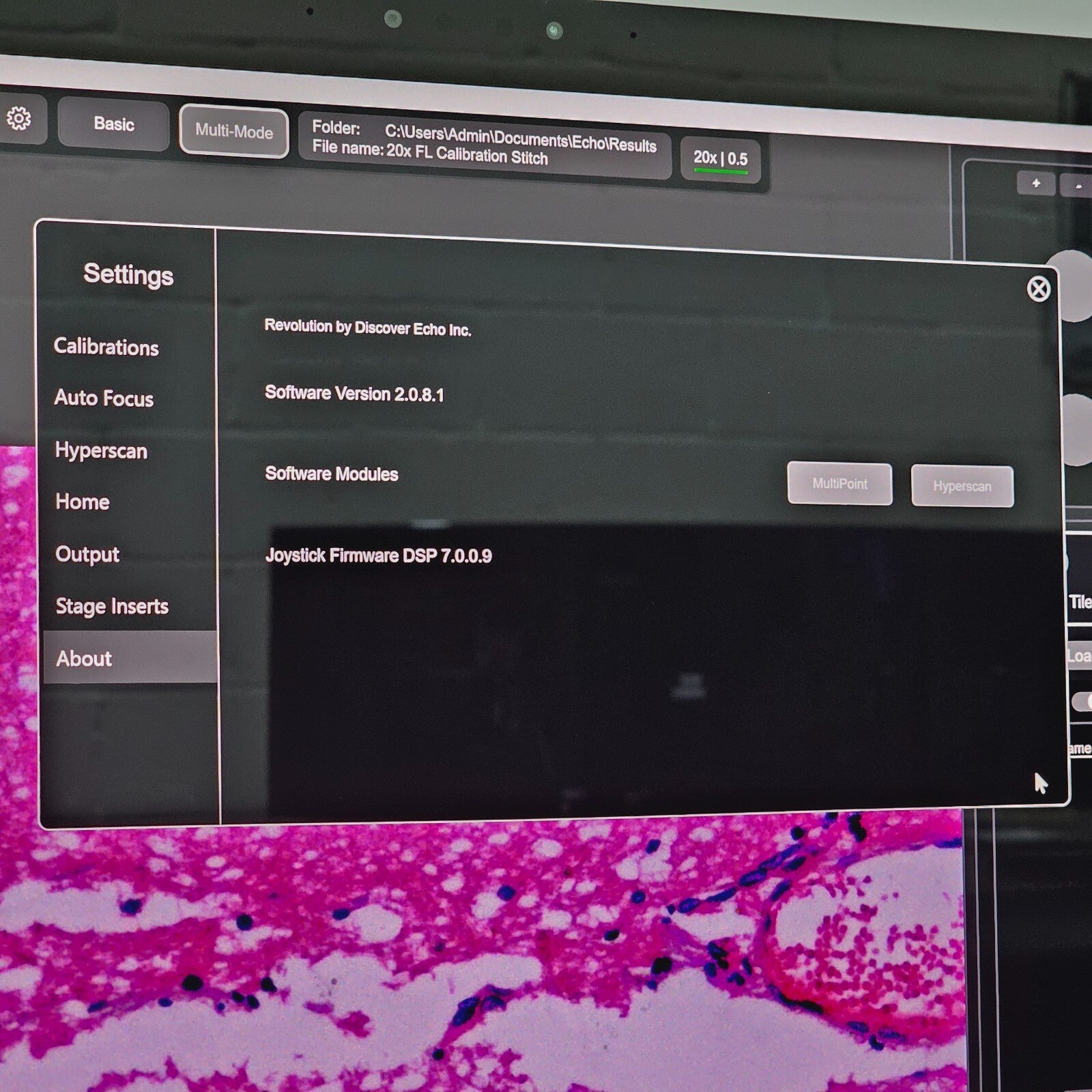

All cables, controllers, and power supplies are housed within the microscope body to eliminate clutter. The XY stage and Z-Focus are controlled via touch, mouse, or optional joystick. An intuitive software app eliminates the learning curve, enabling rapid sample acquisition without specialist training.

Key Specifications:
Configuration: Automated Upright and Inverted (convertible)
Imaging Modes: Brightfield, Phase Contrast, Epi-Fluorescence
Fluorescence Channels: 5 channels — motorised epi-fluorescence turret
Illumination: Mercury-free LED, 50,000-hour lifespan
Brightfield Camera: 5MP CMOS Colour (2448 x 2048, 3.45 µm pixels)
Fluorescence Camera: 5MP sCMOS Monochrome (2448 x 2048, 3.45 µm pixels)
Objectives Supported: Olympus 1.25x–100x Plan Achromat, Fluorite, and Apochromat
Nosepiece: Intelligent (automatic objective recognition)
XY Stage: Fast, quiet, linear shaft motorised stage with 0.1 µm encoders
Display: 32" 4K Ultra High-Resolution monitor
Multi-Dimensional Imaging: Time-lapse, Multi-Point, Mosaic, Multi-Channel, Z-Stack
Auto Focus: High-speed predictive focus tracking
Hyperscan: Ultra-fast mosaic image stitching at high-speed camera frame rates (Brightfield and Fluorescence)
Image Tiling: Fast, seamless tiling with real-time shading correction
Incubator Option: Fanless ECHO stage-top incubator (convection-based, vibration-free)
Applications: Live cell imaging, developmental biology, cell biology, neuroscience, immunology, cancer research, multi-well plate screening

ECHO Revolve Hybrid Microscope Official Brochure (Discover Echo): Download PDF

ECHO Revolve Hybrid Microscope Brochure (University of Melbourne mirror): Download PDF
