Condition: Used

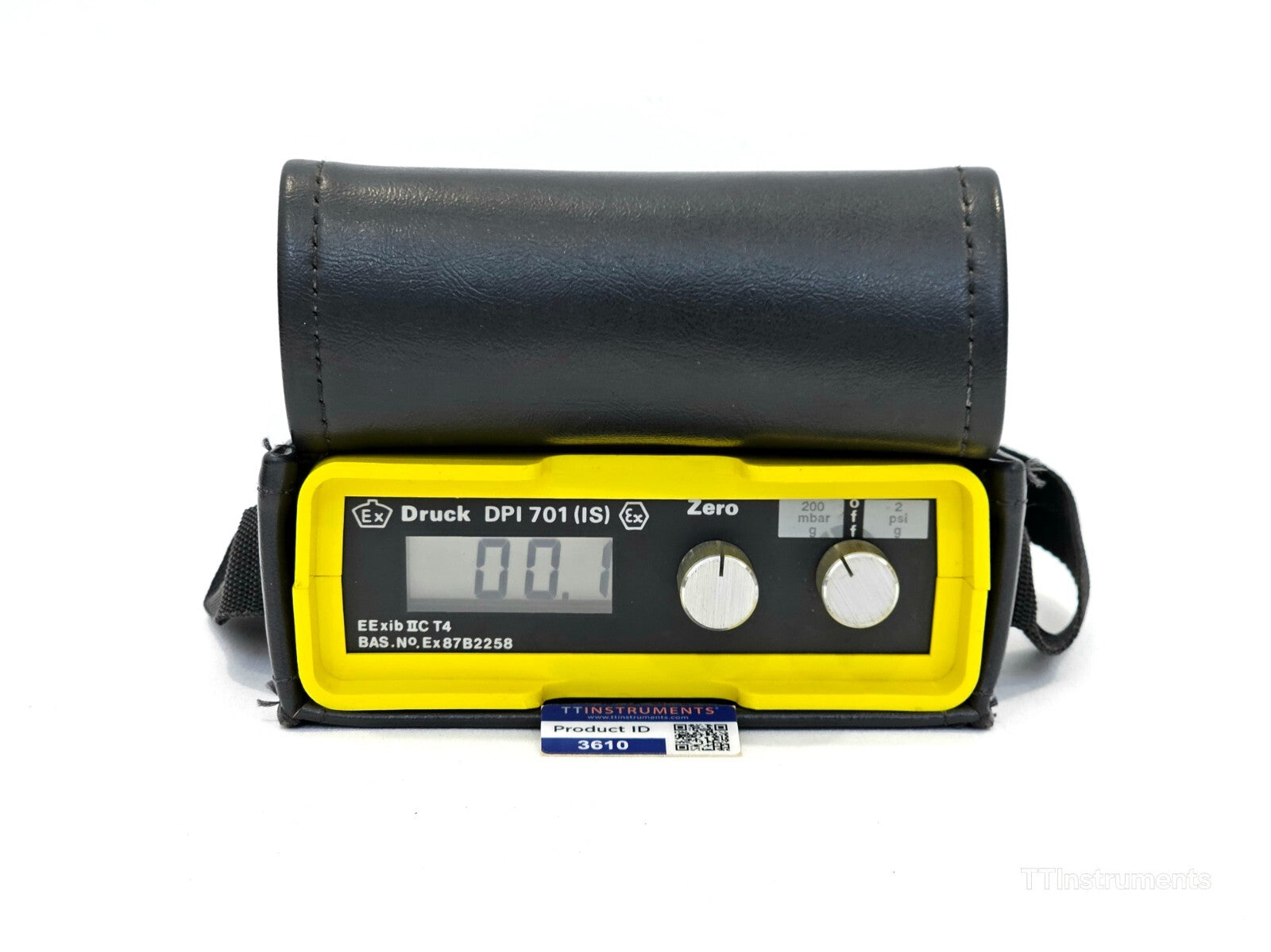

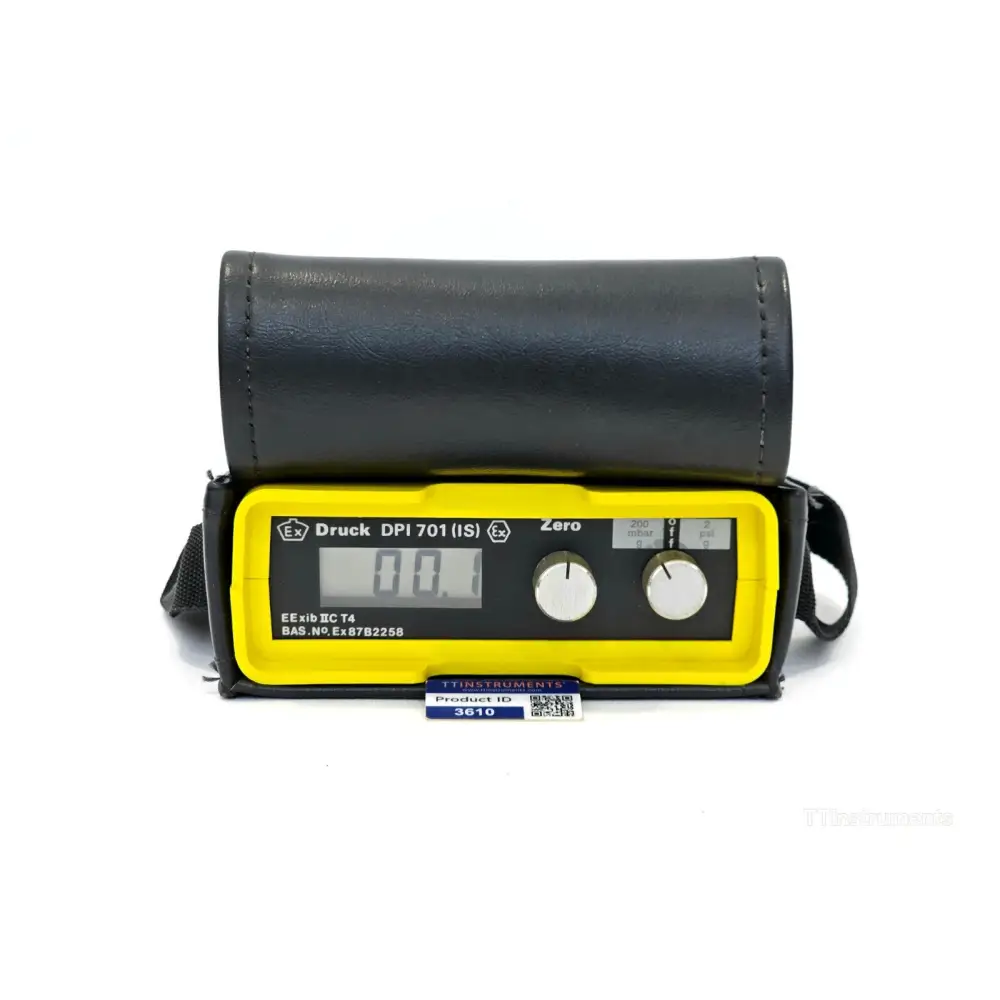

Tested and fully functional Druck DPI 701 (IS) handheld pressure indicator rated to 0.2 PSI / 200 mbar. Confirmed accurate, leak-free under vacuum and pneumatic pressure testing. Display is clear and responsive; battery compartment is intact and clean. Some cosmetic imperfections are present but do not affect performance.

Included with this instrument:
• Druck DPI 701 (IS) Pressure Indicator

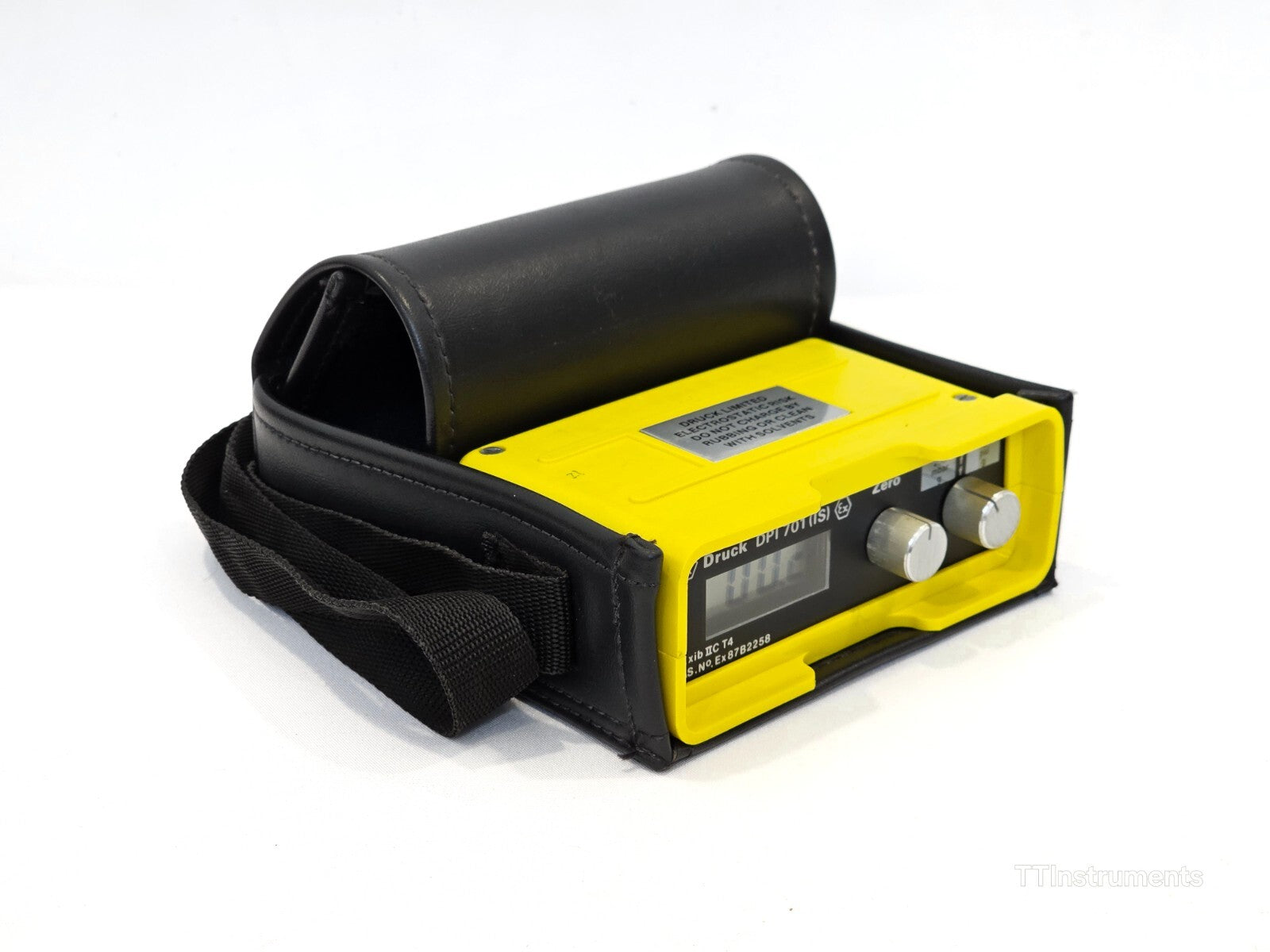

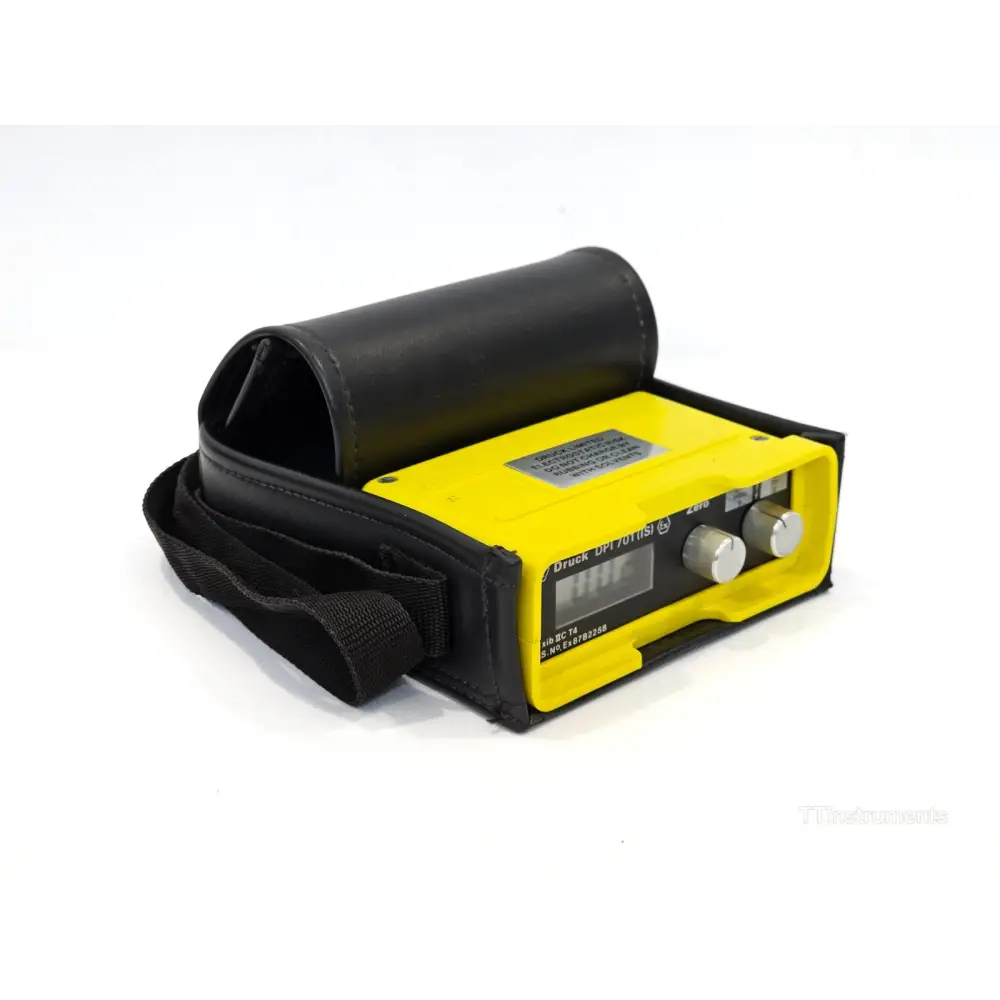

• Protective leather holster with shoulder strap
• Battery installed (9V)

The Druck DPI 701 (IS) is a rugged, handheld, intrinsically safe digital pressure indicator from Druck Ltd (Leicester, UK), designed for field and process industry applications requiring accurate low-pressure measurement in hazardous areas. The instrument uses a micro-machined silicon transducer to generate reliable pressure readings across selectable engineering units. It is certified intrinsically safe for use in explosive atmospheres including Zones 0, 1 and 2 for any gas group.

Key Features:
- Compact and robust construction suited to harsh field environments
- Simple two-button operation for zeroing and pressure unit selection
- Selectable pressure units including mbar, PSI, and additional engineering units
- Intrinsically safe certification for hazardous area use
- Low battery indicator and selectable auto-off power management
- Leak test, tare, max/min and filter functions
- Impact-resistant housing sealed to IP54
- No warm-up time required

Specifications:
Pressure Range: 0 to 0.2 PSI (0 to 200 mbar) differential
Accuracy: ±0.1% full scale (FS) — combined non-linearity, hysteresis and repeatability
Temperature Performance (Span): ±0.02% reading/°C
Operating Temperature: -10°C to +50°C (15°F to 122°F)
Storage Temperature: -20°C to +60°C (-5°F to +140°F)
Humidity: 0 to 95% RH, non-condensing
Overpressure Protection: Safe to 2 × full scale; display flashes at 110% FS
Sealing: IP54

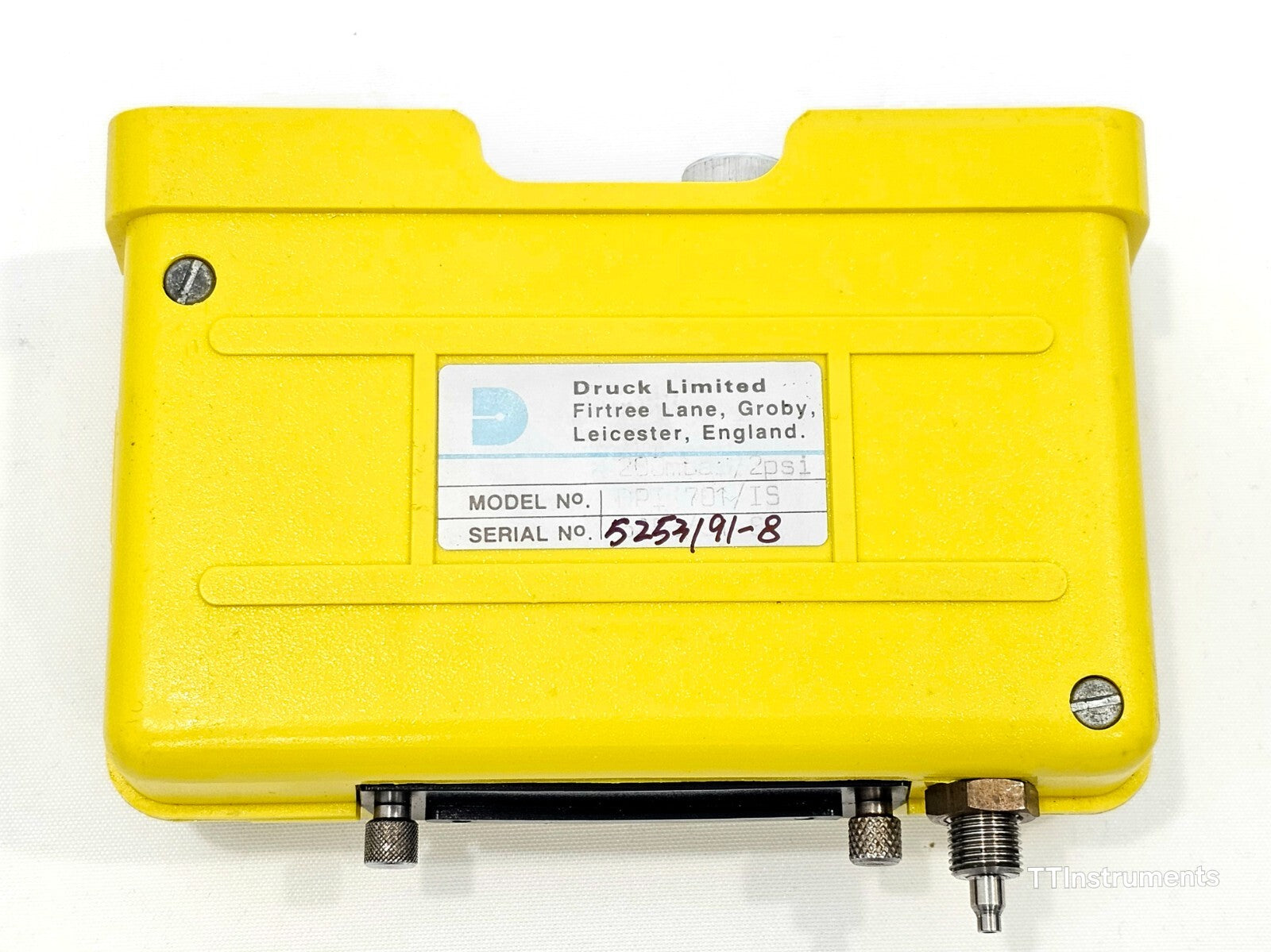

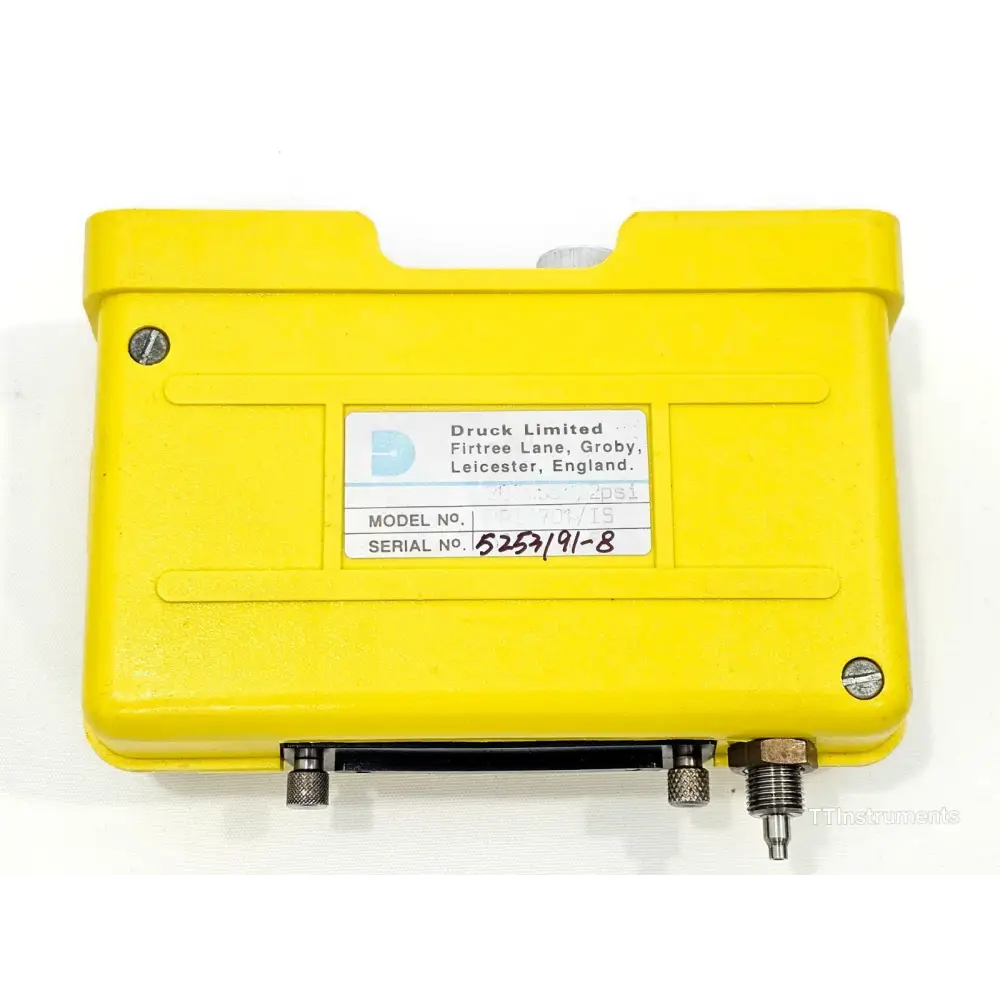

Pressure Connector: G1/8 female thread or 6 mm o/d / 4 mm i/d hose adaptor
Media Compatibility: Stainless steel wetted parts (internal sensor)
Intrinsic Safety Certification: EEx ia IIC T4 (-10°C to +50°C) per ATEX EN50020; Ex ia IIC T4 per CAN/CSA E79 (Class I, Division 1, Groups A, B, C & D)
Hazardous Area Zones: Zones 0, 1 and 2, any gas group

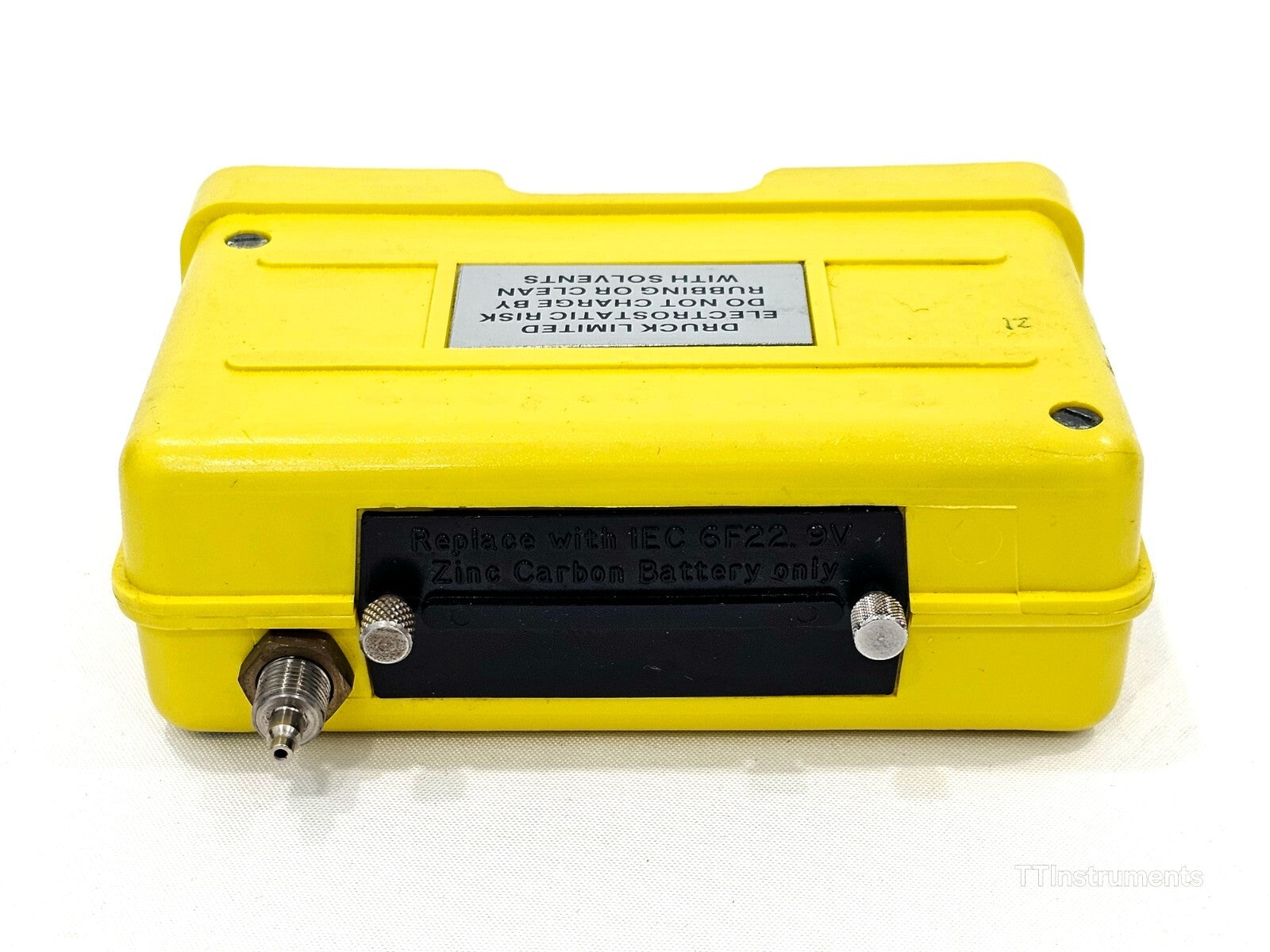

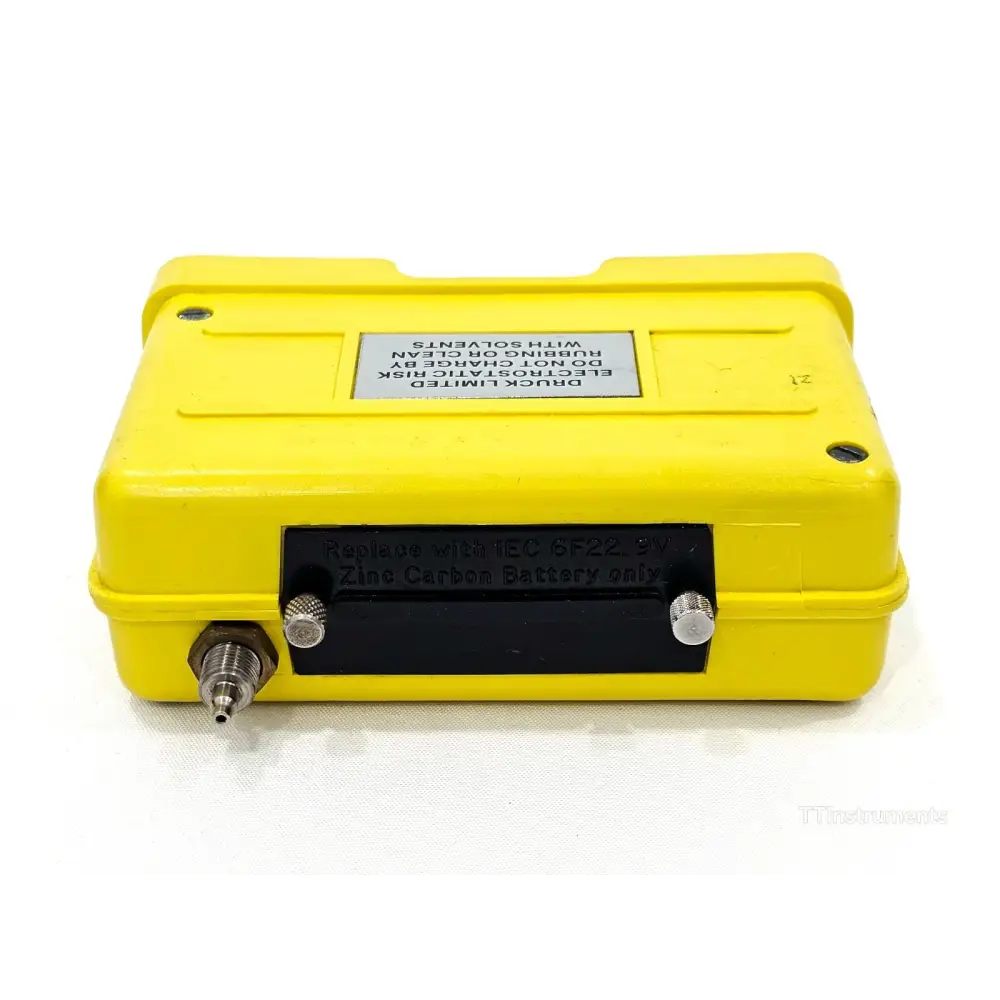

Battery: 9V (replace in safe area only)
Electrical Safety: BS EN 61010
EMC: EN50081-1 (emissions), EN50082-2 (immunity)
Manufacturer: Druck Ltd, Groby, Leicester, LE6 0FH, UK

Druck DPI 705 / DPI 705 IS Series Digital Pressure Indicator User Manual (K0214) — covers DPI 701 IS family specifications and operation: Download PDF

Druck DPI 705 IS Intrinsically Safe Digital Pressure Indicator — RS Components specification sheet (PDF): Download PDF

GE Measurement & Control DPI 705 Series Handheld Pressure Indicators Datasheet (PDF): Download PDF

Druck DPI 705 Series Handheld Pressure Indicators Datasheet — Instrumentation2000 (PDF): Download PDF

Druck DPI 705 Digital Pressure Indicator Calibration Instructions (RS Components PDF): Download PDF
