Condition: Used

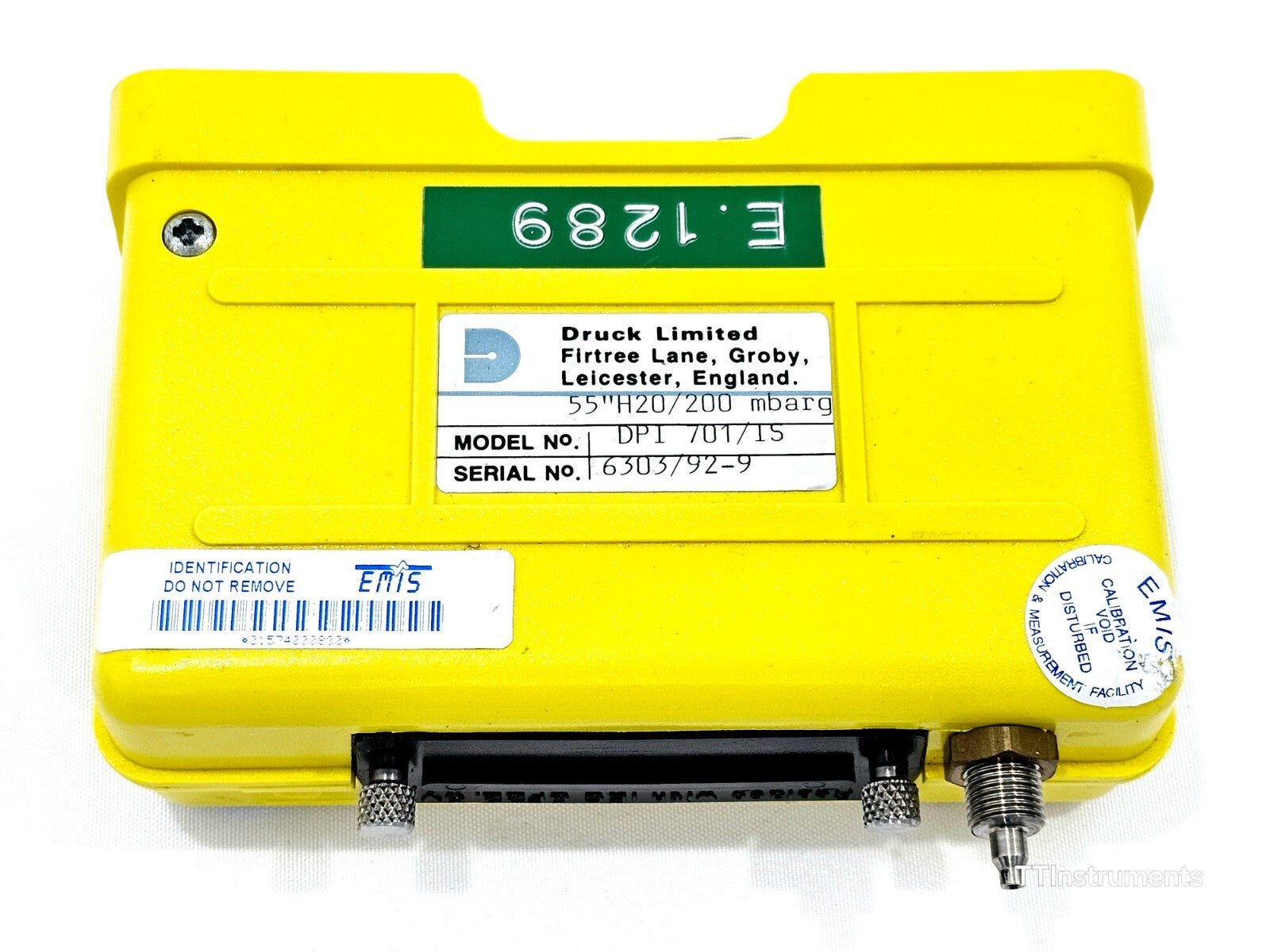

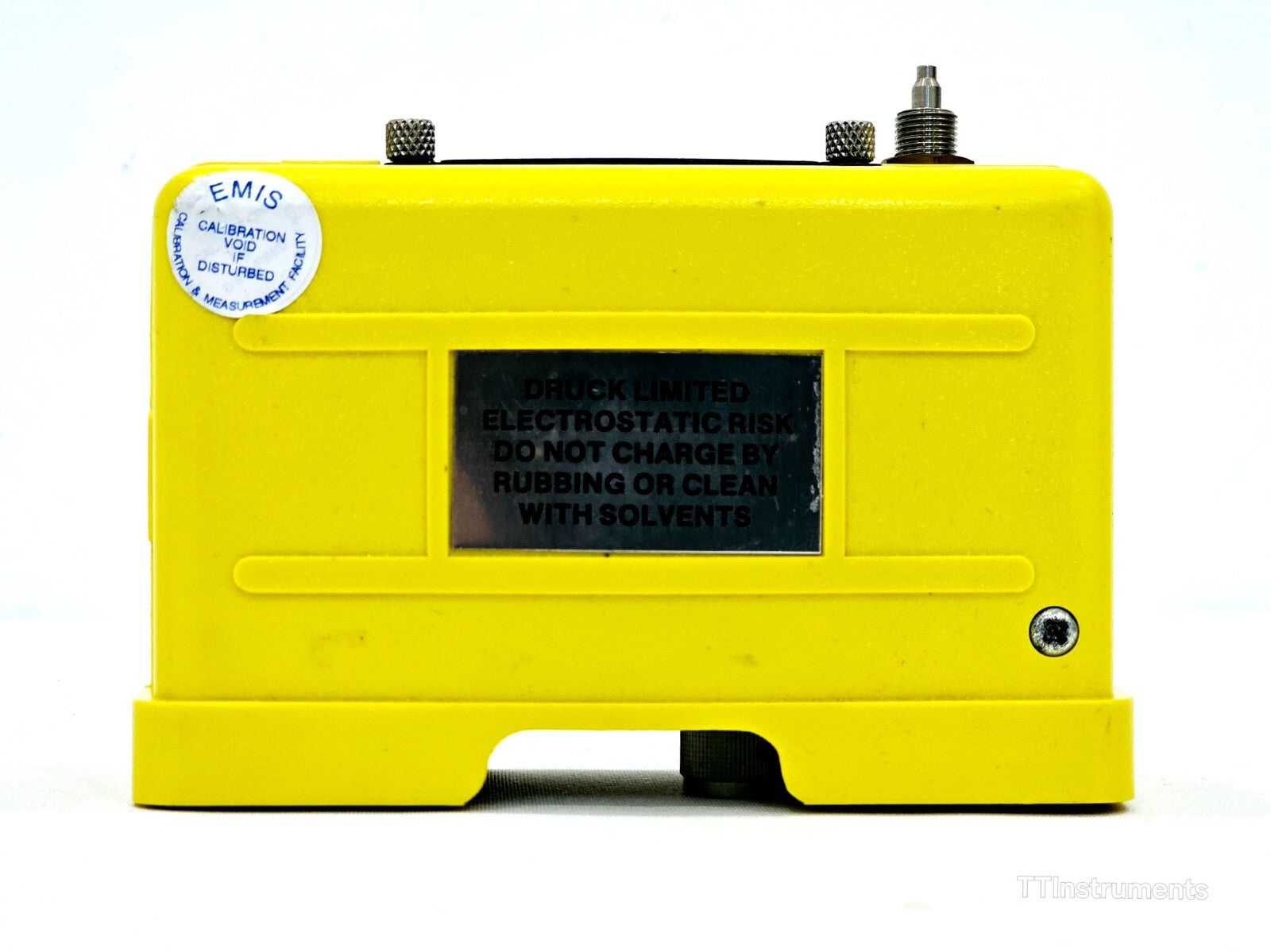

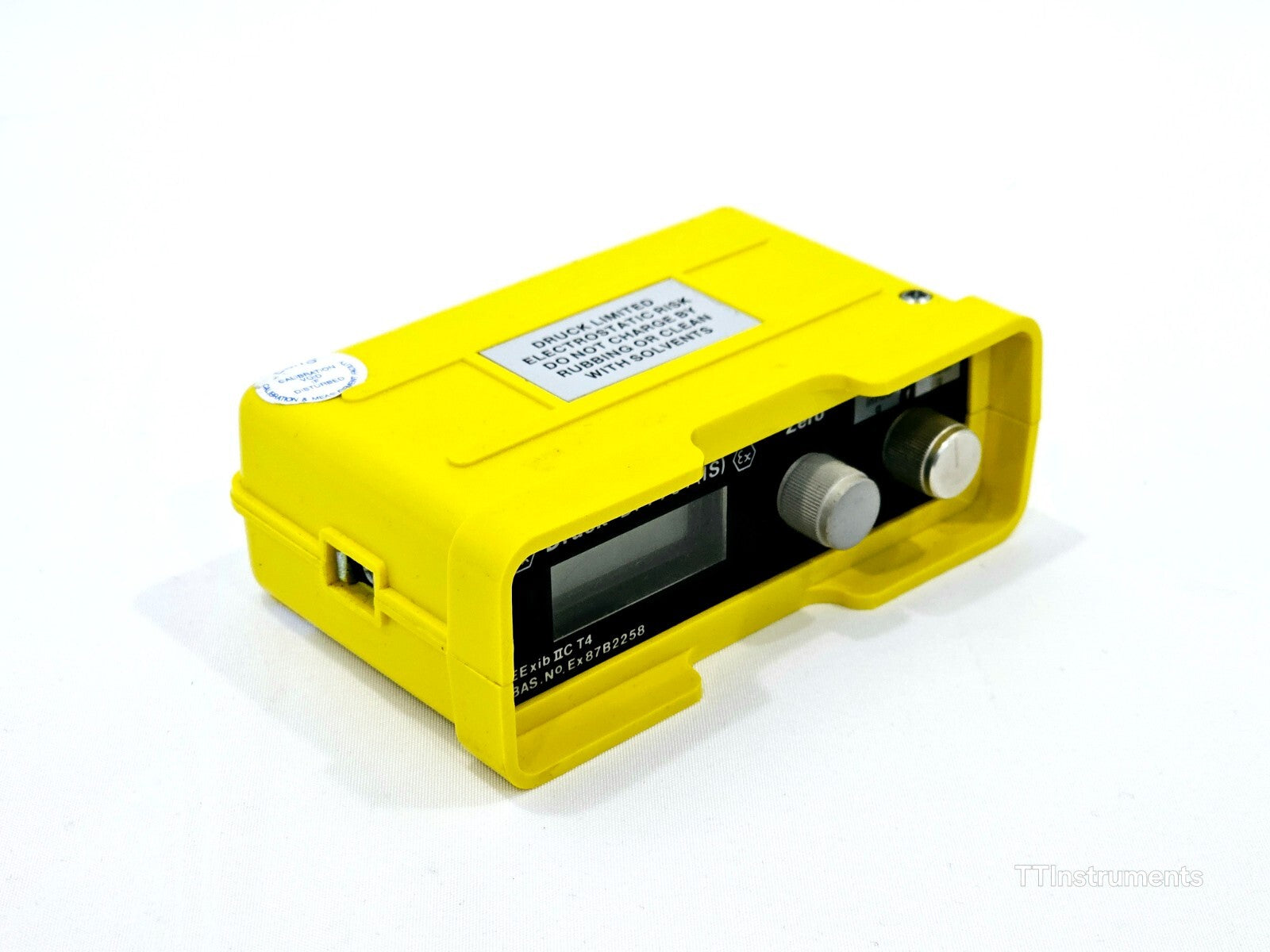

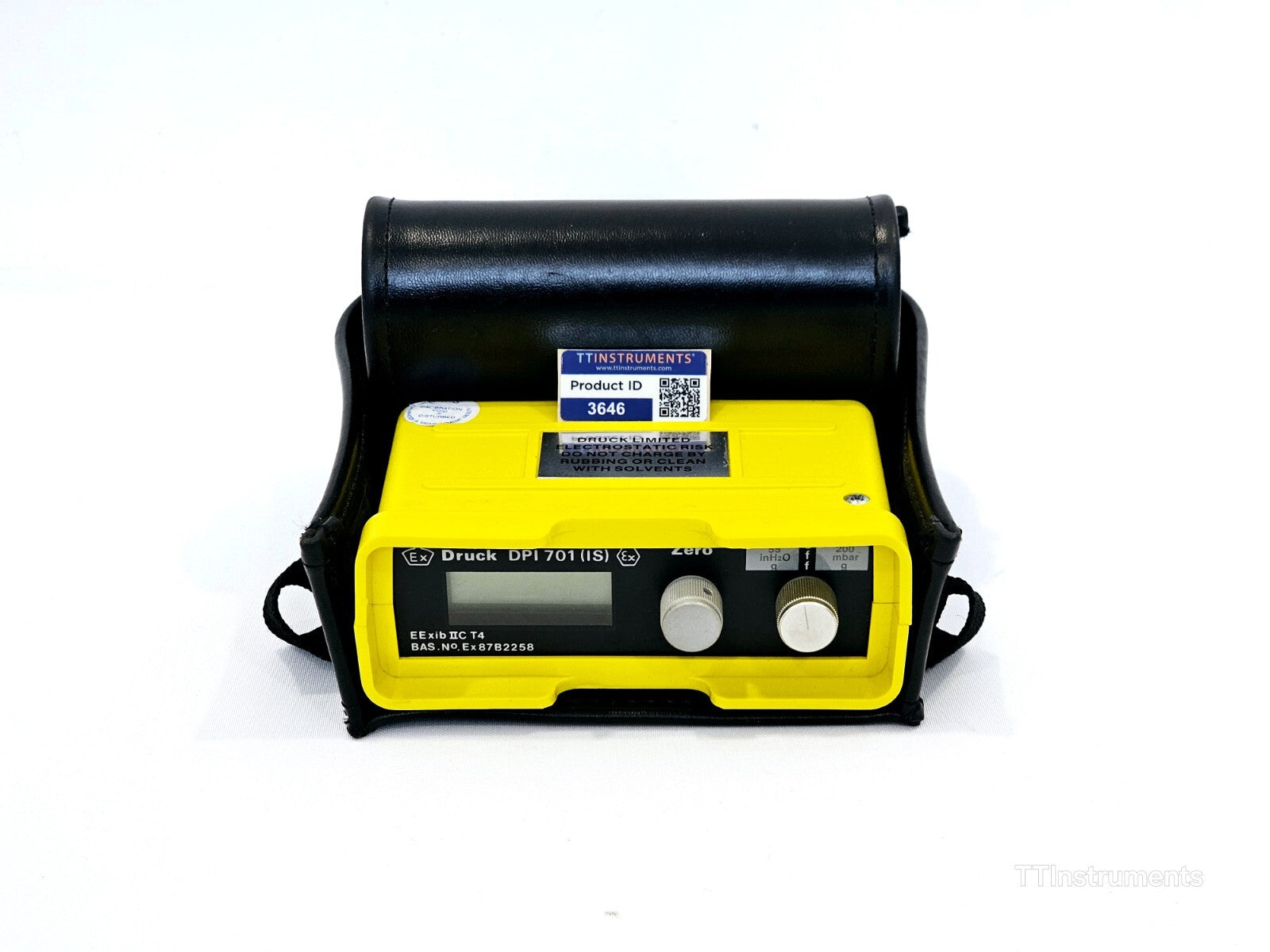

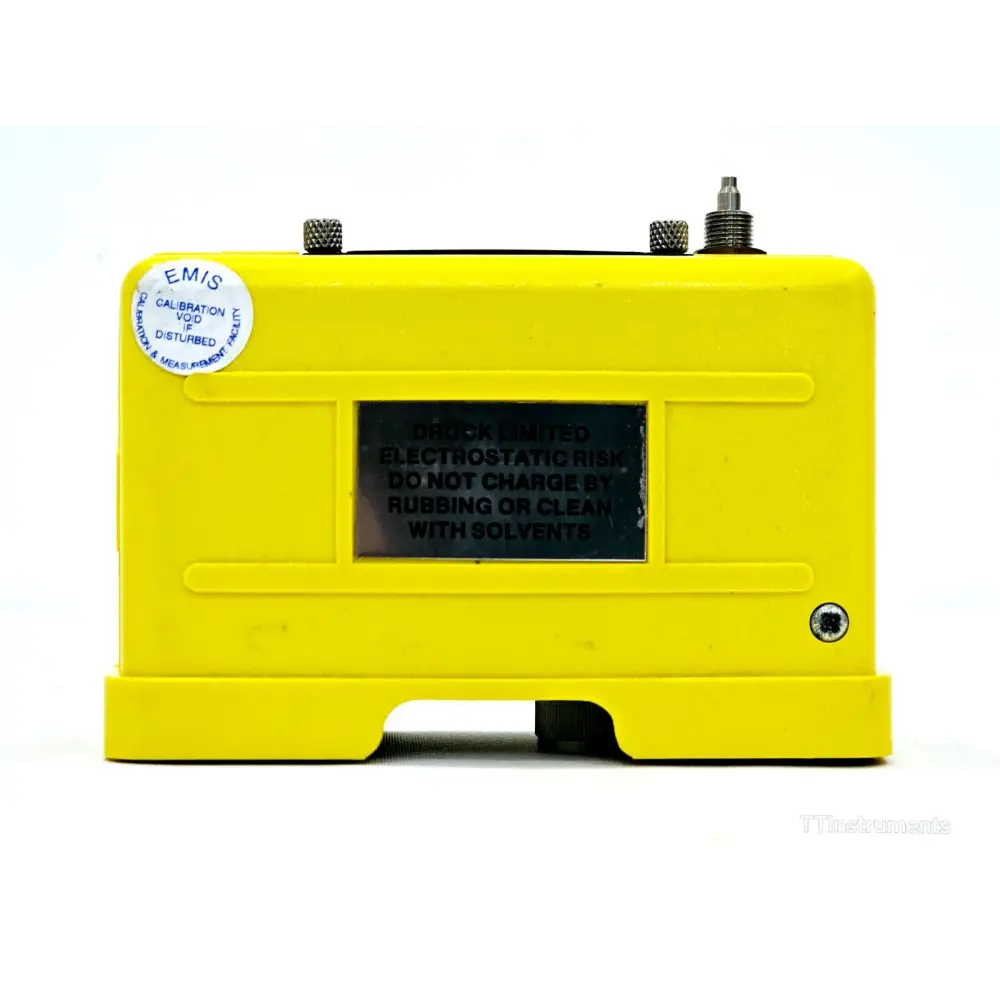

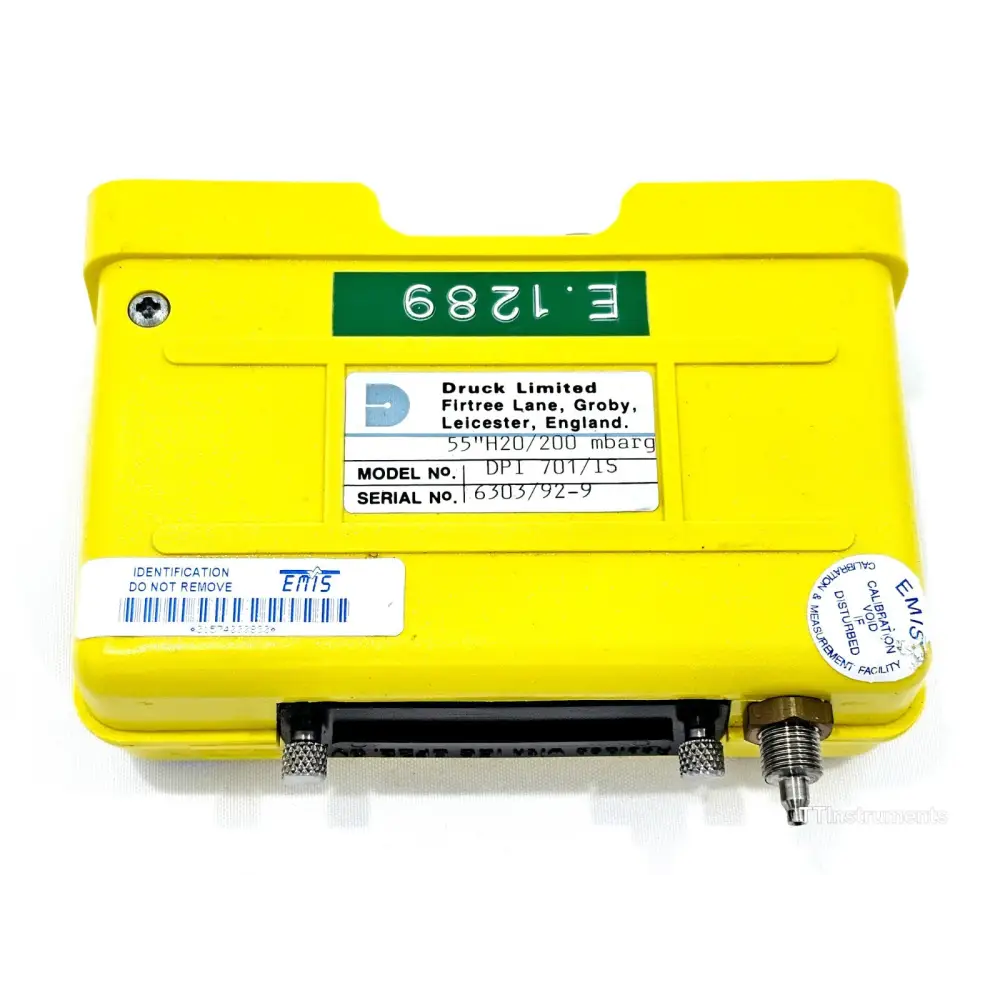

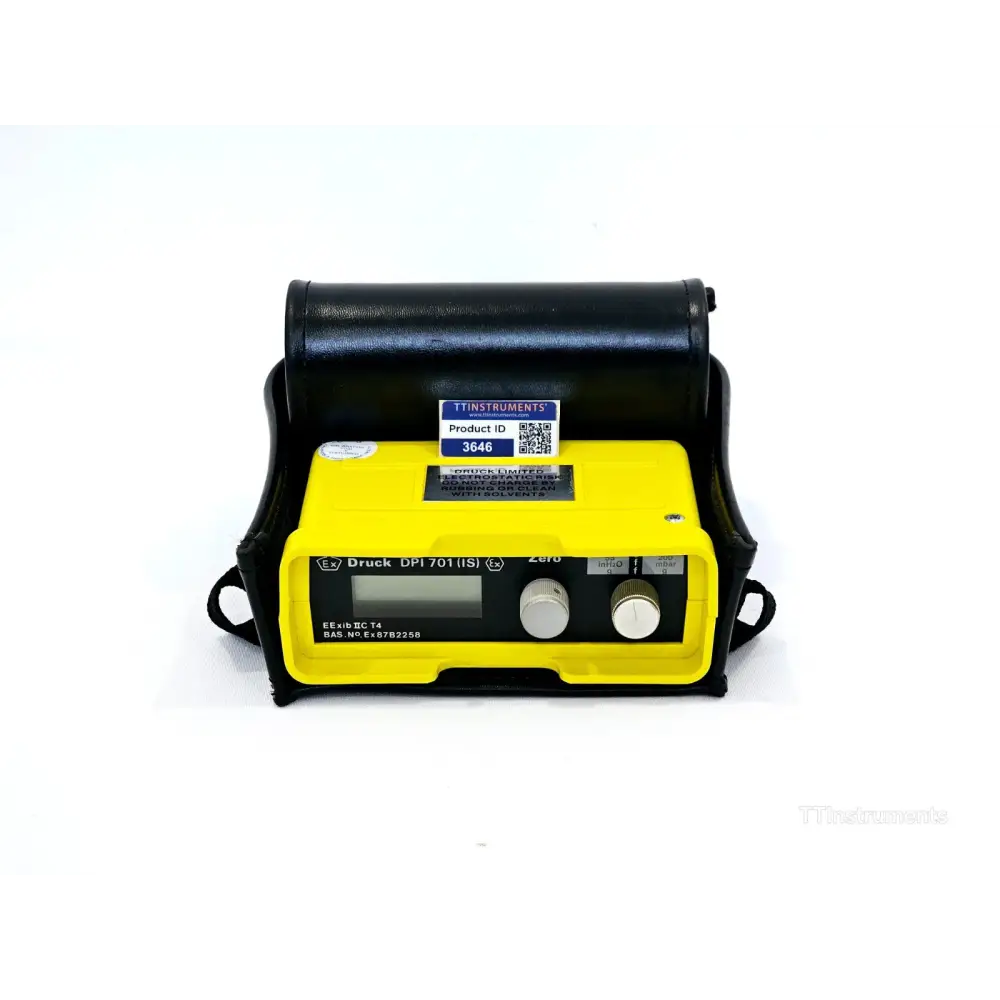

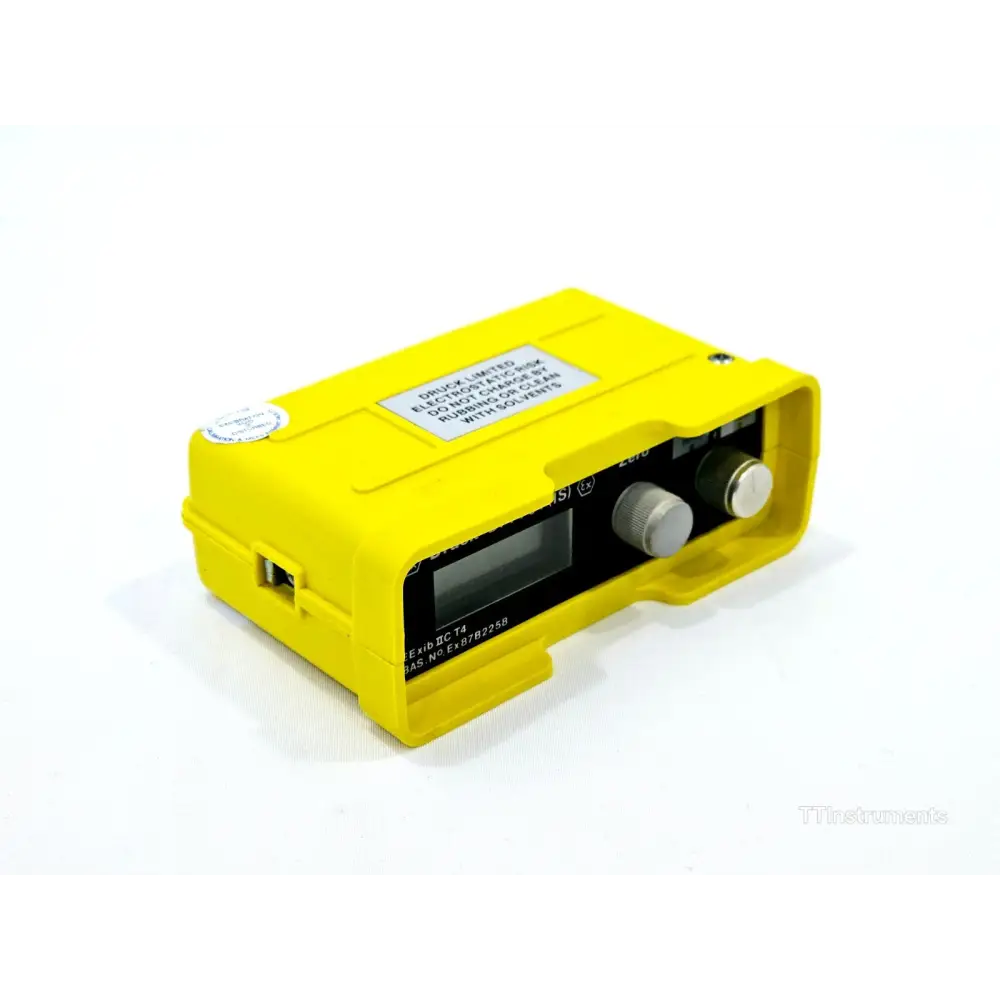

The Druck DPI 701 is a handheld digital pressure indicator from Druck's DPI 700 series. Supplied as pictured in used condition. No additional accessories, calibration records, or specific configuration details are documented for this unit.

Typically included:
• Druck DPI 701 pressure indicator unit

The Druck DPI 701 is a portable handheld digital pressure indicator belonging to Druck's DPI 700 series. It uses a micro-machined silicon transducer to produce accurate pressure readings across a selectable range of pressure measurement units. The instrument is designed for field use in industrial, process, and maintenance applications where a compact, rugged, and easy-to-operate pressure indicator is required.

The DPI 701 is available in both standard and intrinsically safe (IS) variants, with the IS version certified to ATEX and CSA standards for use in hazardous areas. The instrument features simple push-button operation for zeroing and pressure unit selection.

Key Features:
• Micro-machined silicon pressure transducer
• Simple push-button operation (zeroing and unit selection)
• Selectable pressure measurement units
• Leak test, tare, max/min and filter functions
• Low battery indicator and selectable auto-off
• Intrinsically safe version available (ATEX and CSA certified)
• Battery powered — standard 9V battery

Typical Specifications (DPI 700 Series):
Accuracy: ±0.1% full scale (FS) — combined non-linearity, hysteresis and repeatability
Temperature coefficient (Span): ±0.02% rdg/°C
Operating Temperature: -10°C to +50°C (14°F to 122°F)
Storage Temperature: -20°C to +60°C (-4°F to +140°F)
Maximum Safe Working Pressure: 2 x full-scale

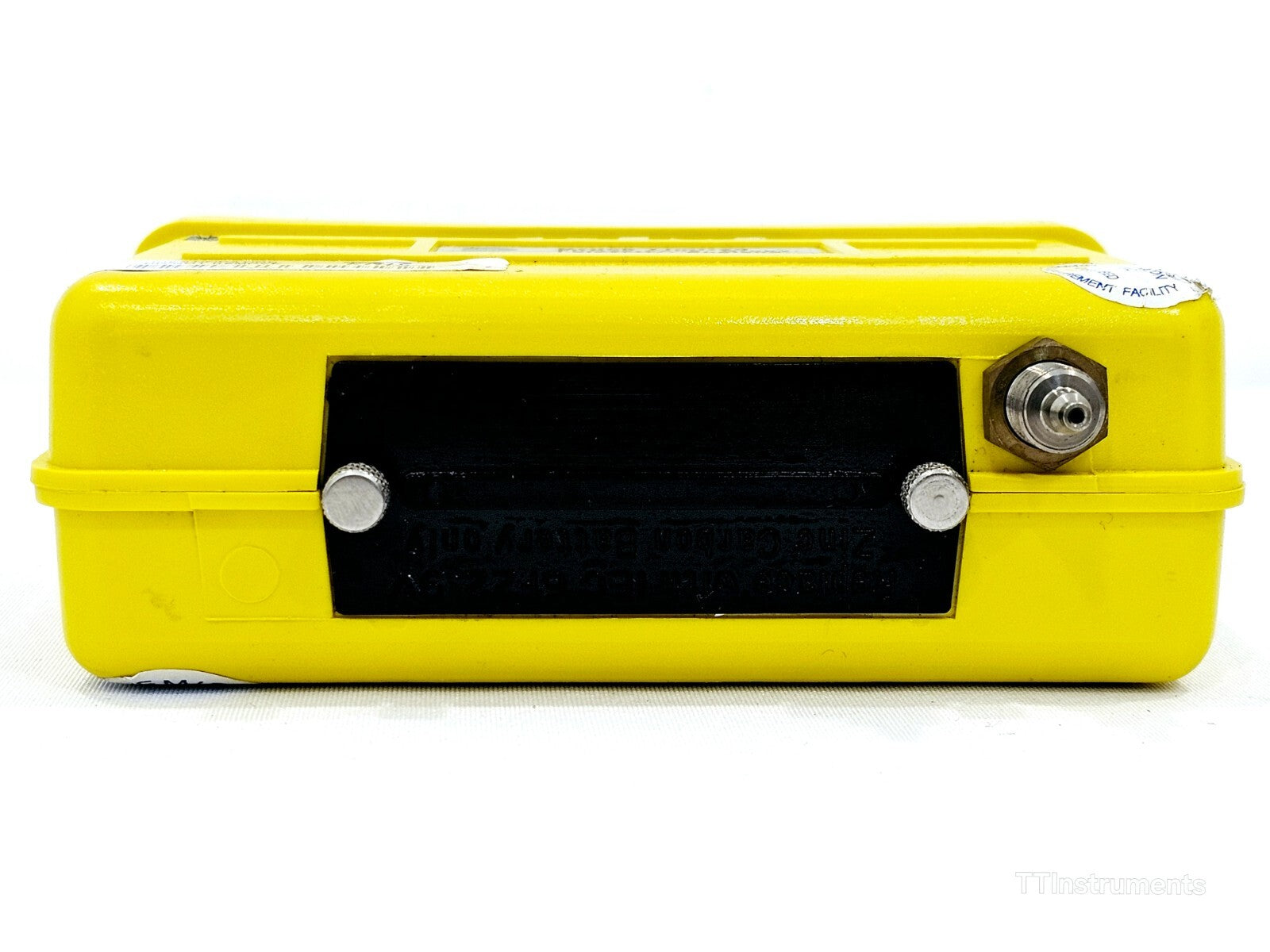

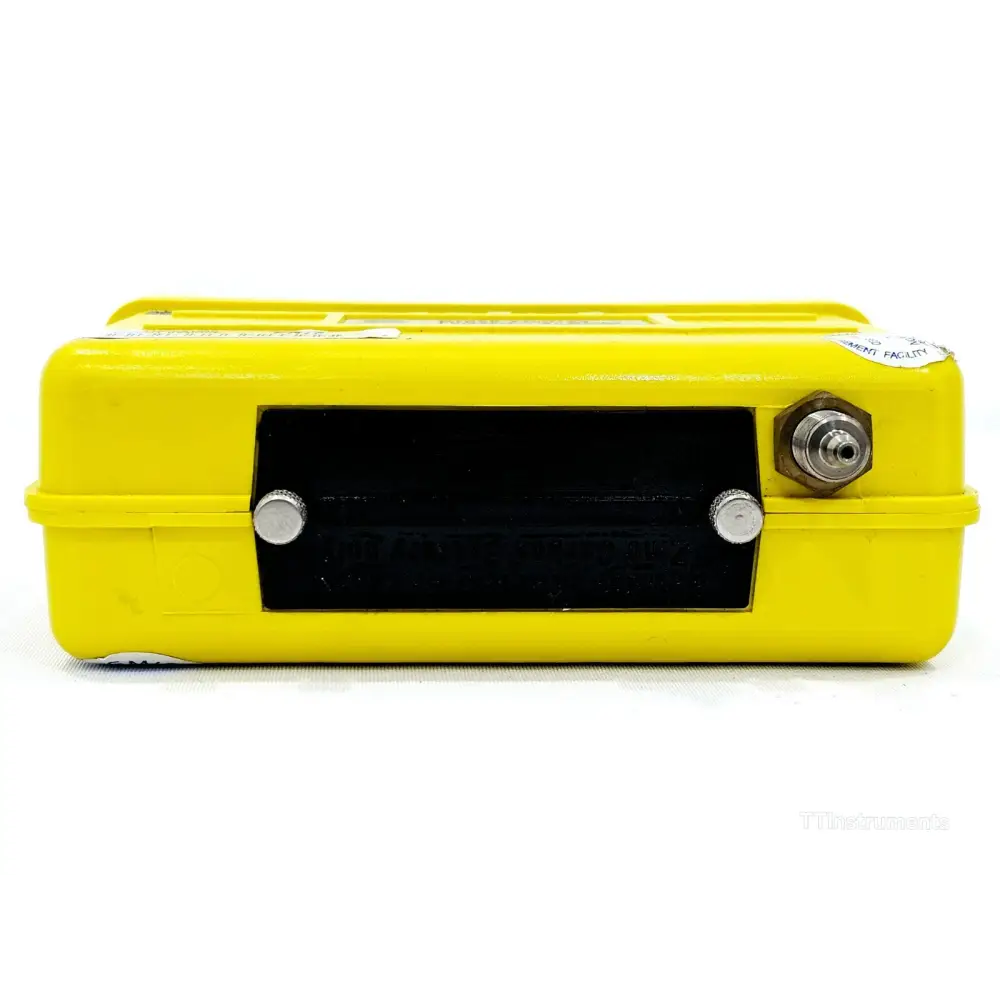

Pressure Connector: G1/8 or 1/8" NPT female thread
Pressure Ranges: Available from low mbar ranges (e.g. 70 mbar / 1 psi) up to 700 bar (10,000 psi) depending on model variant
Sealing: IP54
EMC: BS EN 61326-1
Electrical Safety: BS EN 61010-1
Hazardous Area Approval: ATEX / CSA (IS variant)
Battery: 9V (standard)

Note: The DPI 701 is a predecessor model within the DPI 700 series. The DPI 705 and DPI 705E are the current successor models. Please refer to the Druck (Baker Hughes) website for full and current specifications.

Druck DPI 705 Series Digital Pressure Indicator User Manual (K0214) — applicable to DPI 700 series instruments: Download PDF

Druck DPI 705 Series Handheld Pressure Indicators Datasheet (GE Sensing): Download PDF

Druck DPI 705 Digital Pressure Indicator Calibration Instructions: Download PDF
