Condition: Used

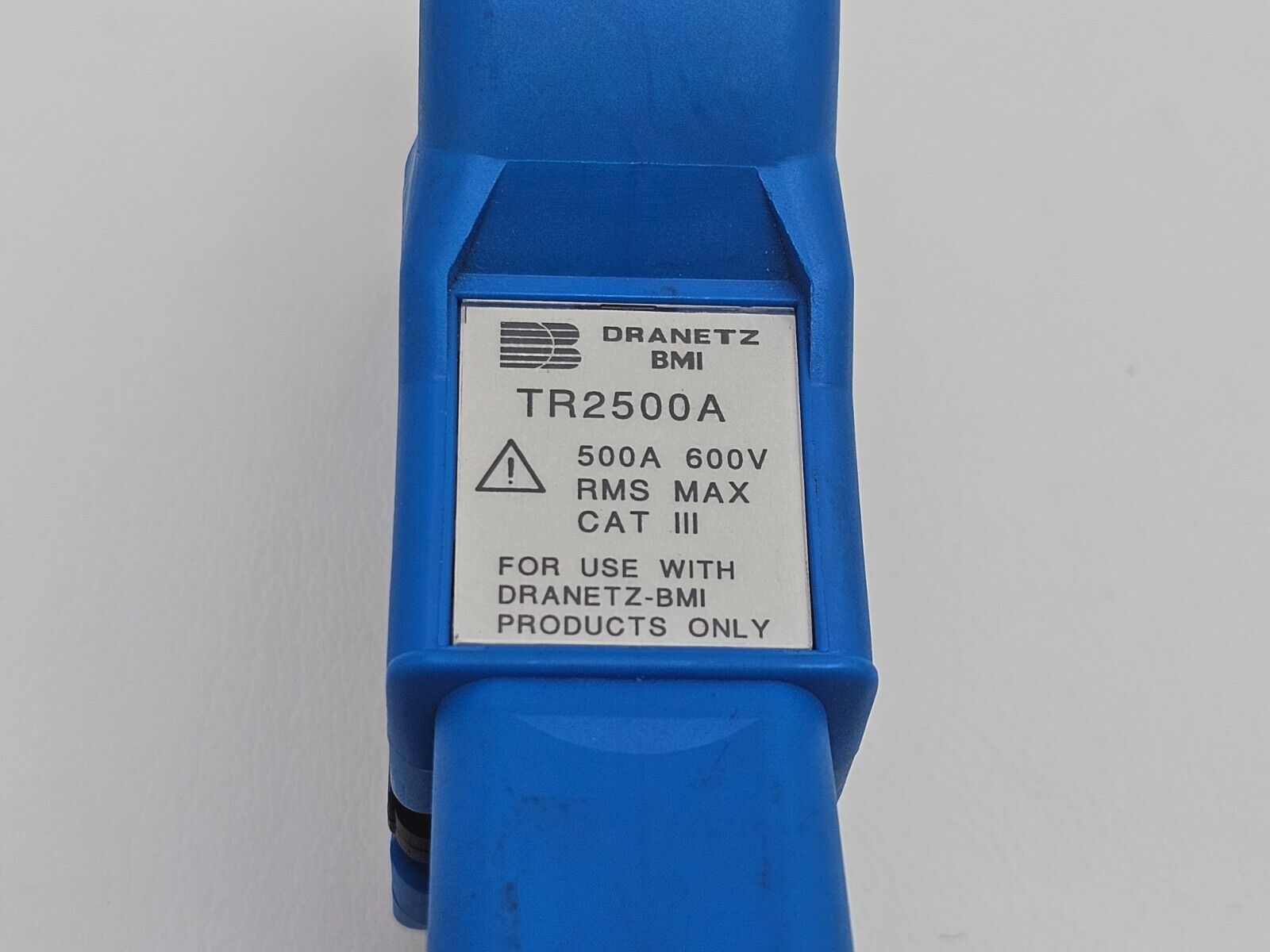

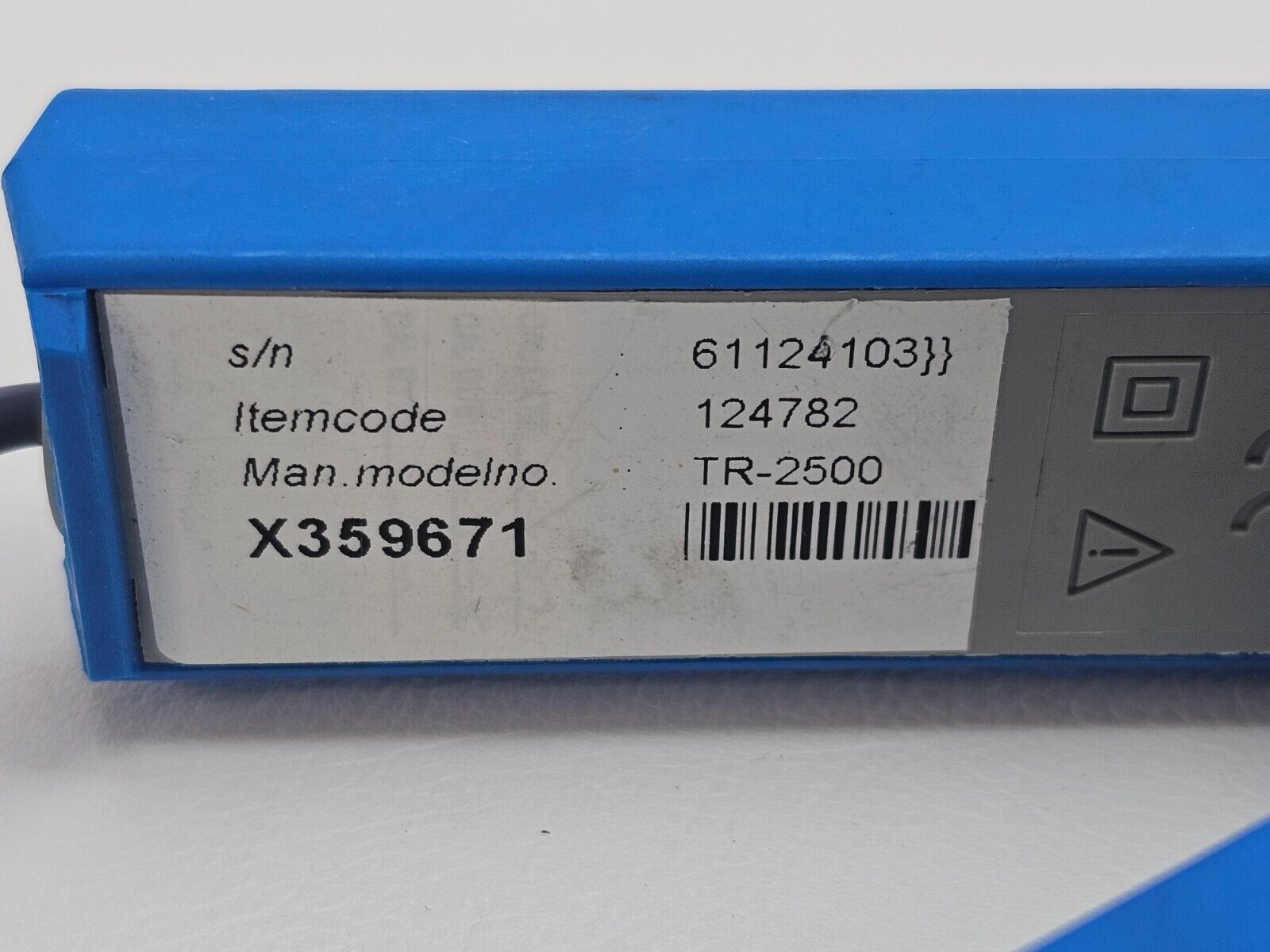

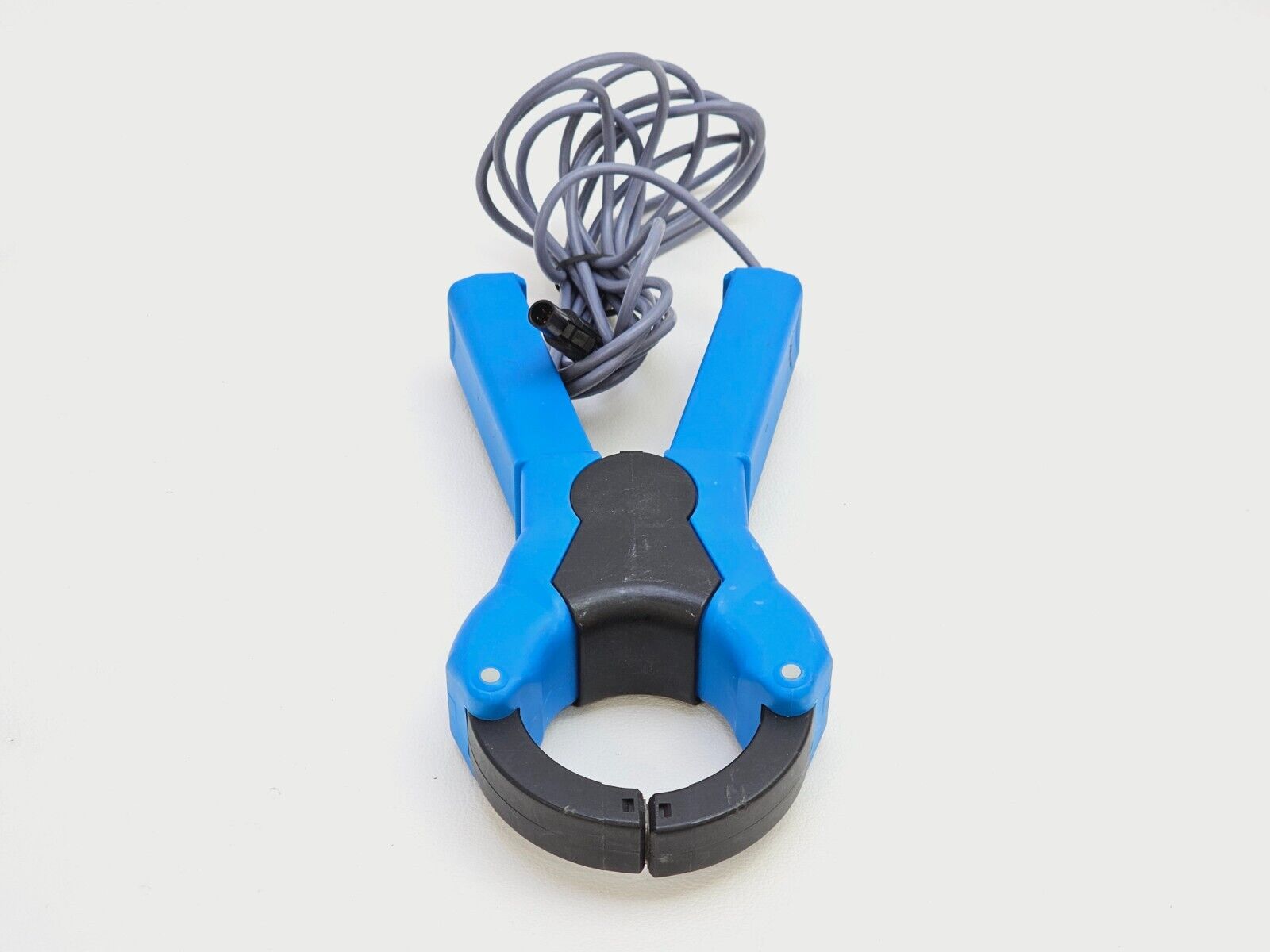

Used Dranetz BMI TR2500A clamp-on current probe. Multiple units are available and cosmetic appearance may vary between units. Note: the clips around where the clamp jaws grip are broken or missing on these probes.

Typically includes:
• TR2500A clamp-on current probe

The Dranetz BMI TR2500A is a clamp-on AC current transformer (CT) probe designed for use with the Dranetz range of portable and fixed power quality analysers. It enables non-intrusive current measurement on live conductors without the need to break the circuit, making it well suited to power quality surveys, energy monitoring, load analysis, and electrical compliance testing.

The TR2500A connects via a Dranetz Hypertronics connector and delivers a 1.5V output signal directly to compatible instruments. It is interchangeable with the TR2500 probe and is recognised as a default probe on instruments including the PX5, PowerGuide 4400, PowerVisa, and Energy Platform.

To achieve rated accuracy, the conductor must be positioned at a right angle to the probe and centred within the probe core.

Specifications:
Model: TR2500A
Current Range: 10A to 500A RMS
Amplitude Accuracy (100A–500A): ±1%
Amplitude Accuracy (10A–100A): ±2%
Phase Accuracy (100A–500A): ±1.5°
Phase Accuracy (10A–100A): ±3°
Frequency Range: 40Hz to 5kHz
Maximum Conductor Diameter: 50mm
Rated Voltage: 600V maximum
Output: 1.5V
Connector: Dranetz Hypertronics
Cable Length: 2 metres (standard)
Transient Accuracy: ±10% of reading, ±0.5% full scale, ≥10µs

Compatible Instruments: Dranetz HDPQ family, PowerXplorer PX5, PowerGuide 4400, PowerVisa, Energy Platform, Encore Series 61000 (with 61MAC module), Signature System 55XX, PP4300, and Model 658 (with CA4300 adapter).

Note: Specifications are guidelines only. Factors including temperature, humidity, frequency, and conductor position may influence stated accuracy.

Dranetz Current Probes Brochure (PX5/4400/PowerVisa/Energy Platform) — includes TR2500A specifications: Download PDF
