Condition: For parts or not working

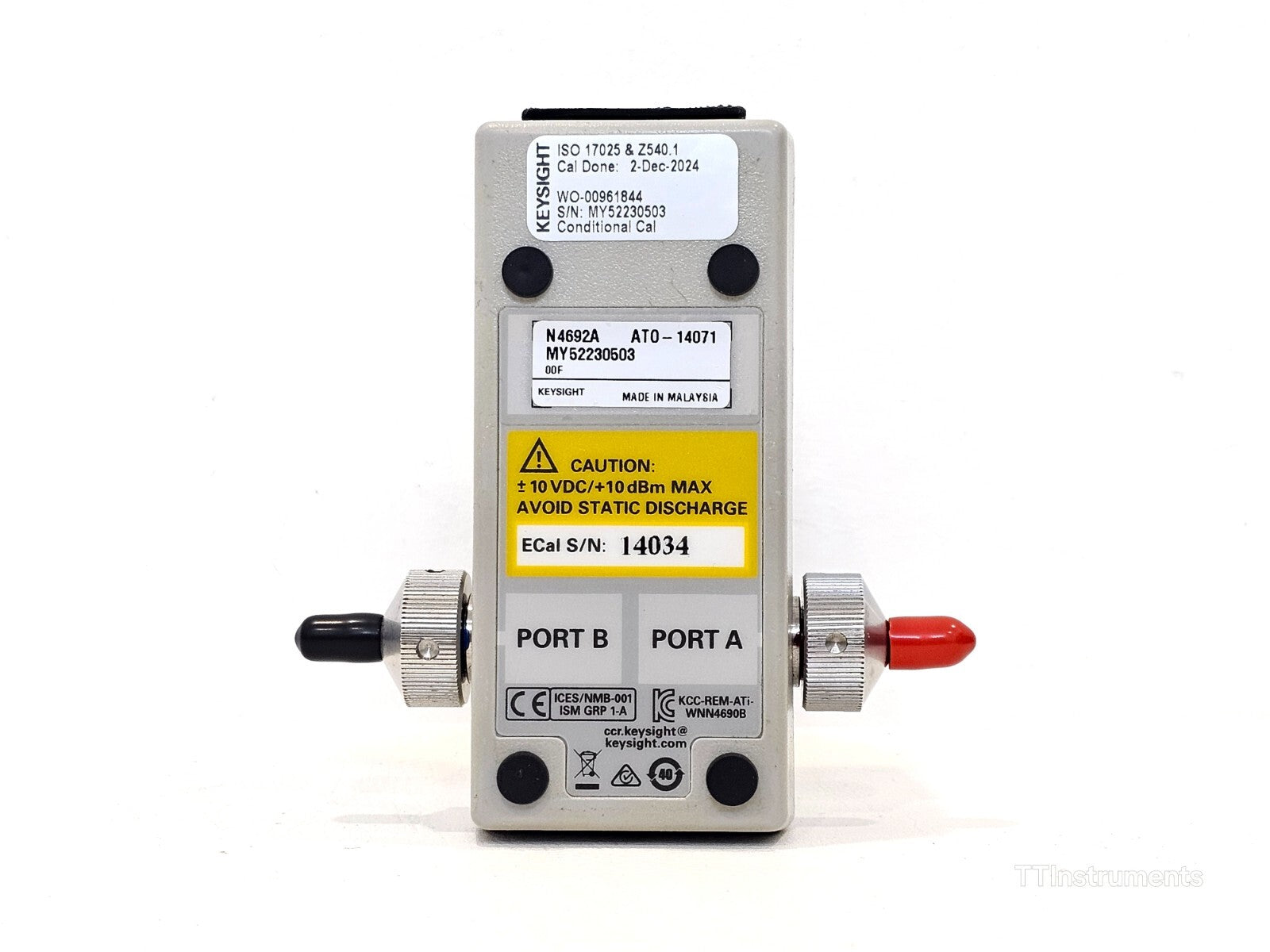

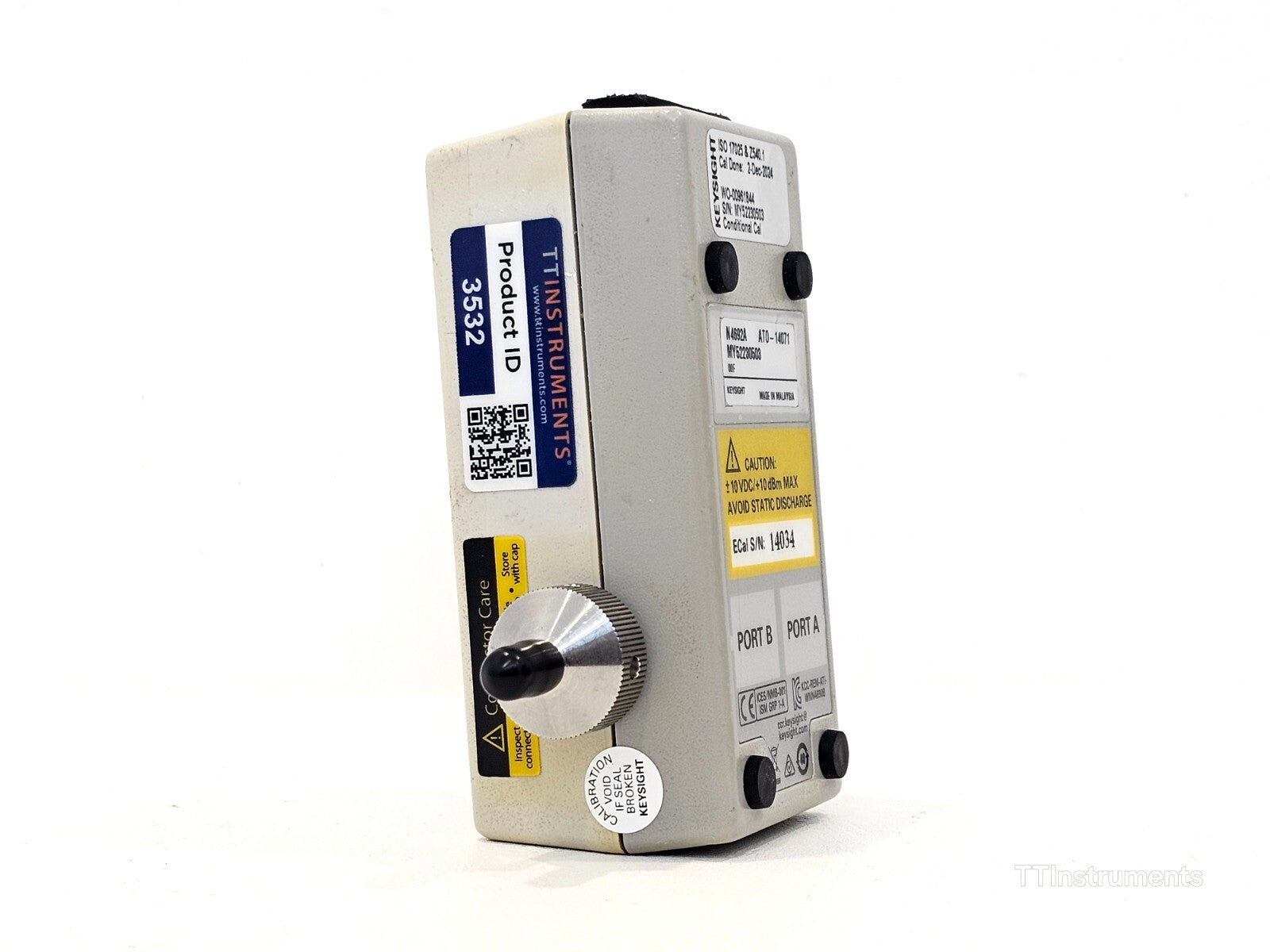

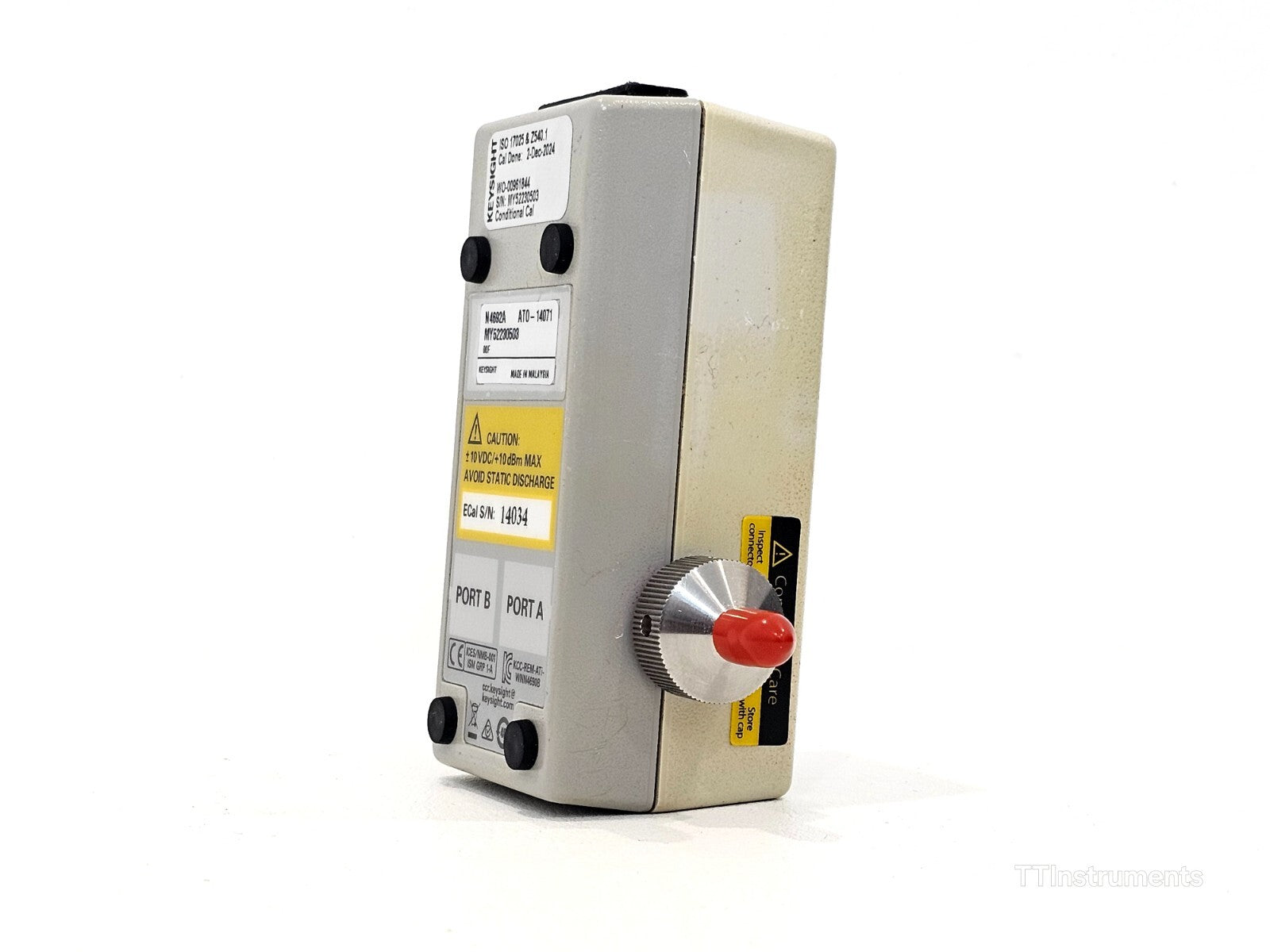

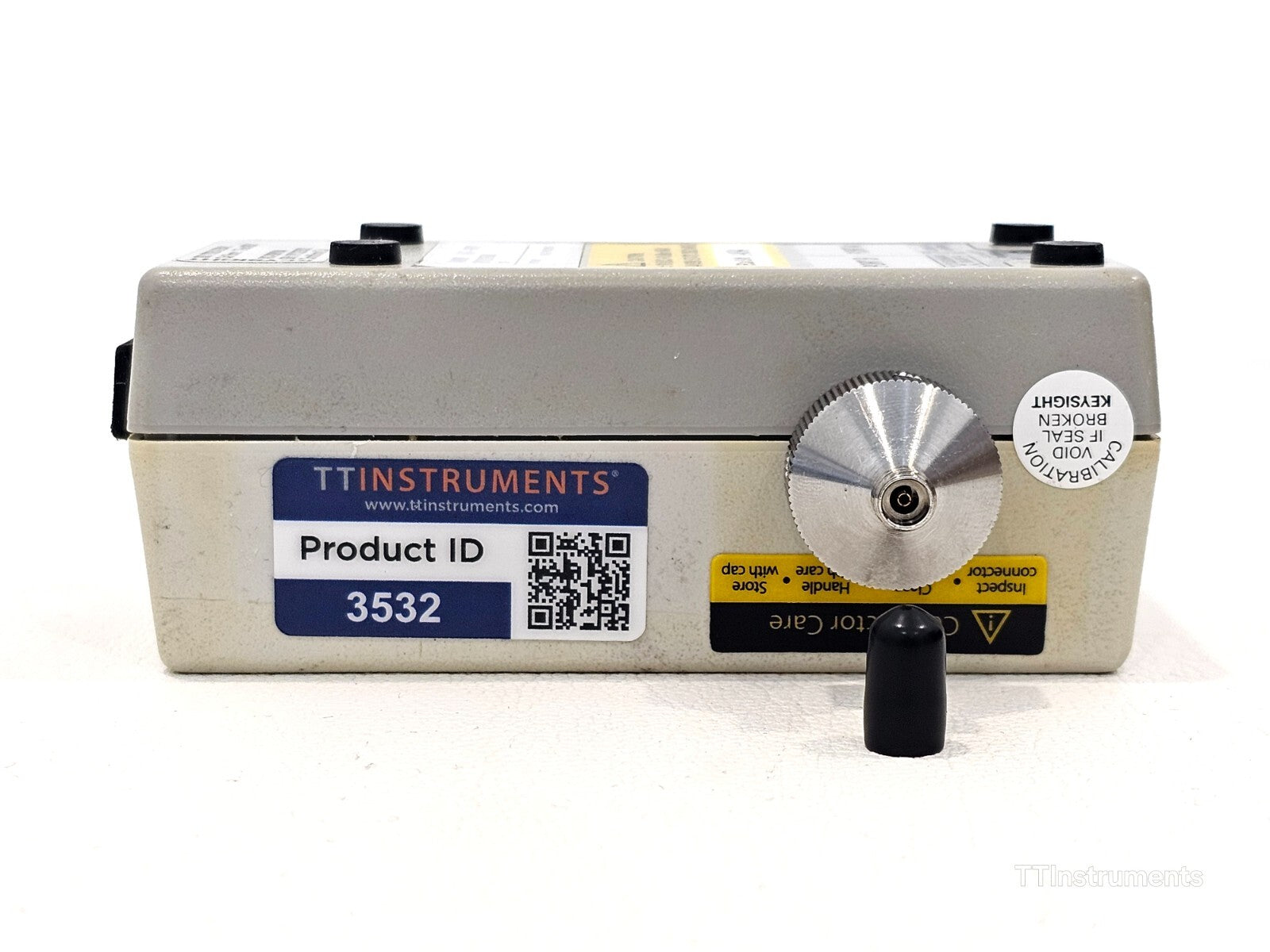

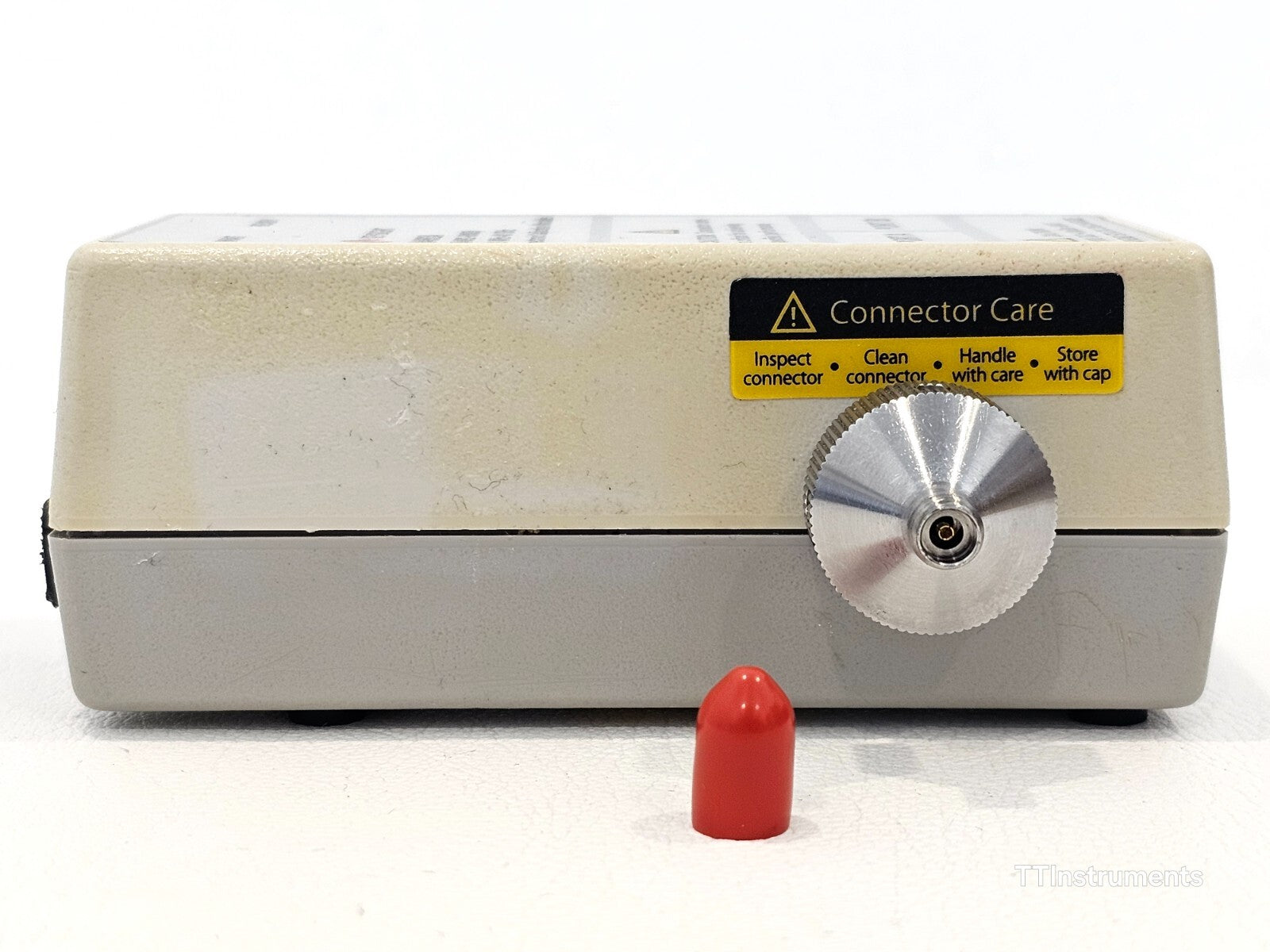

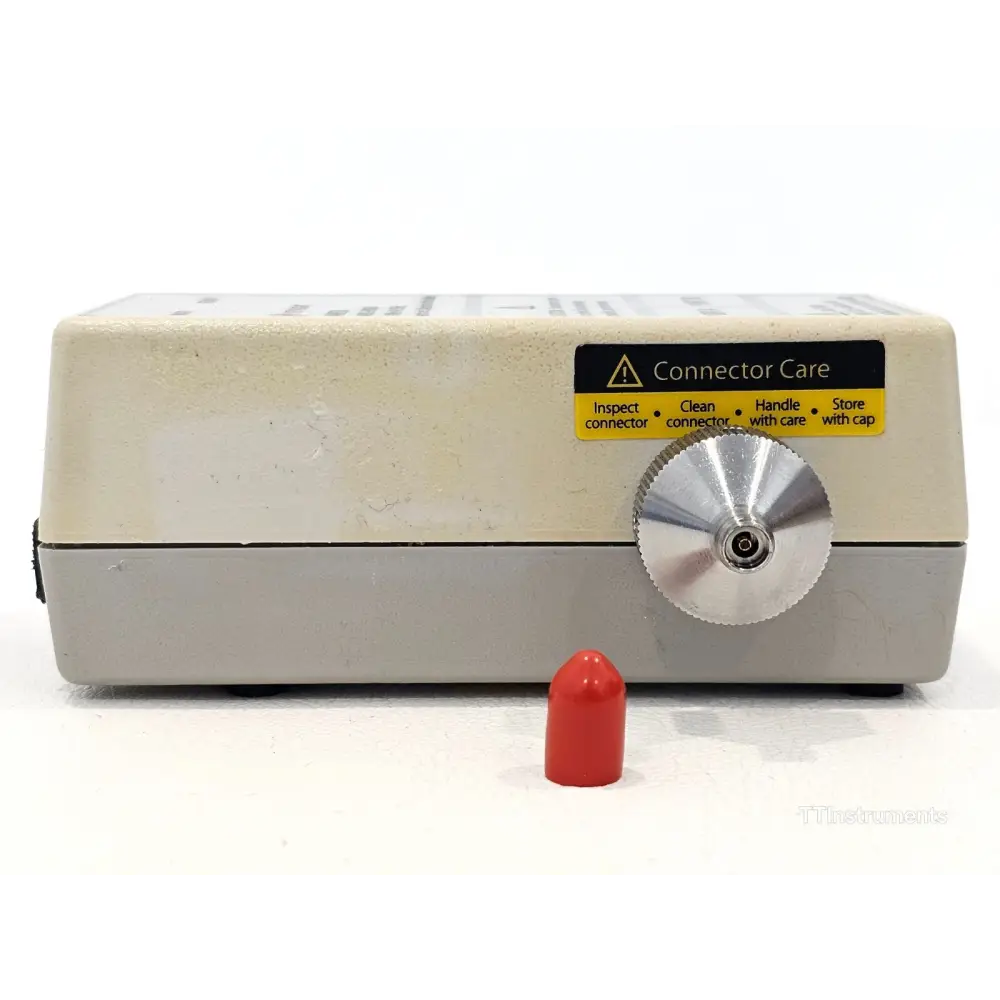

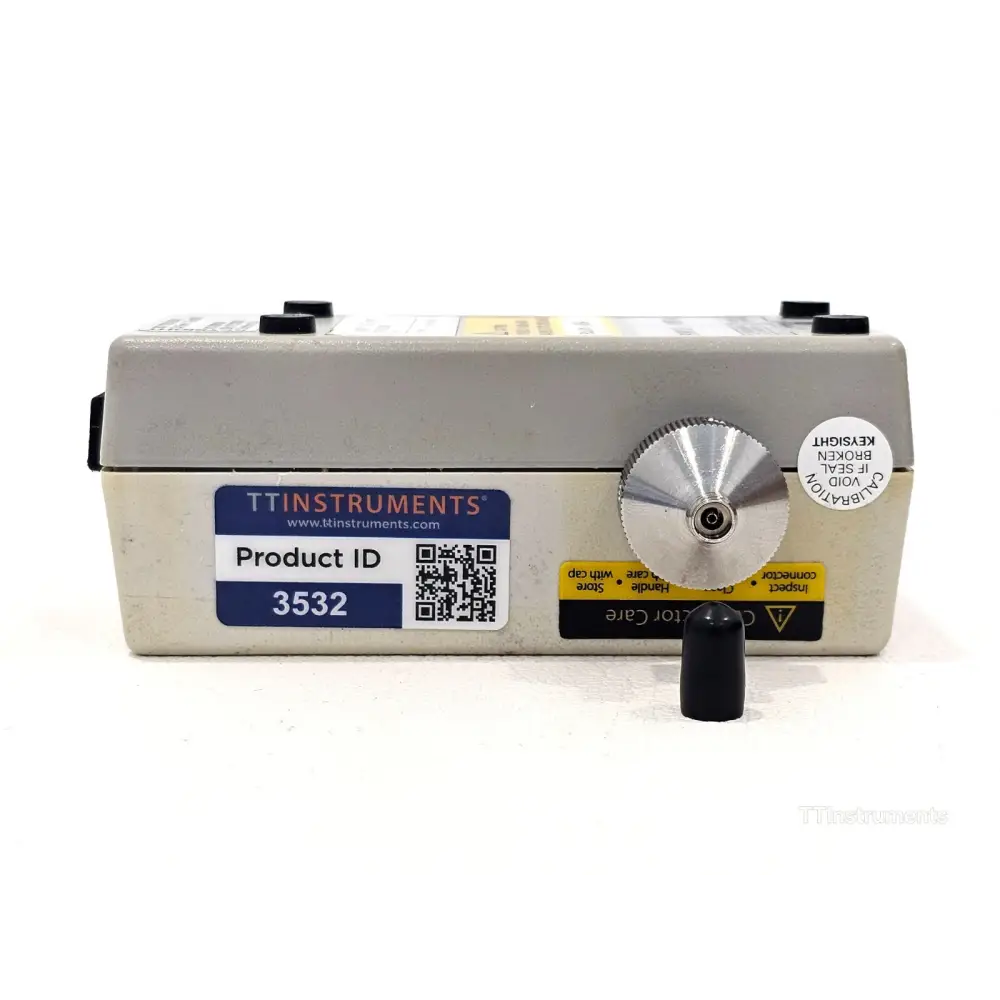

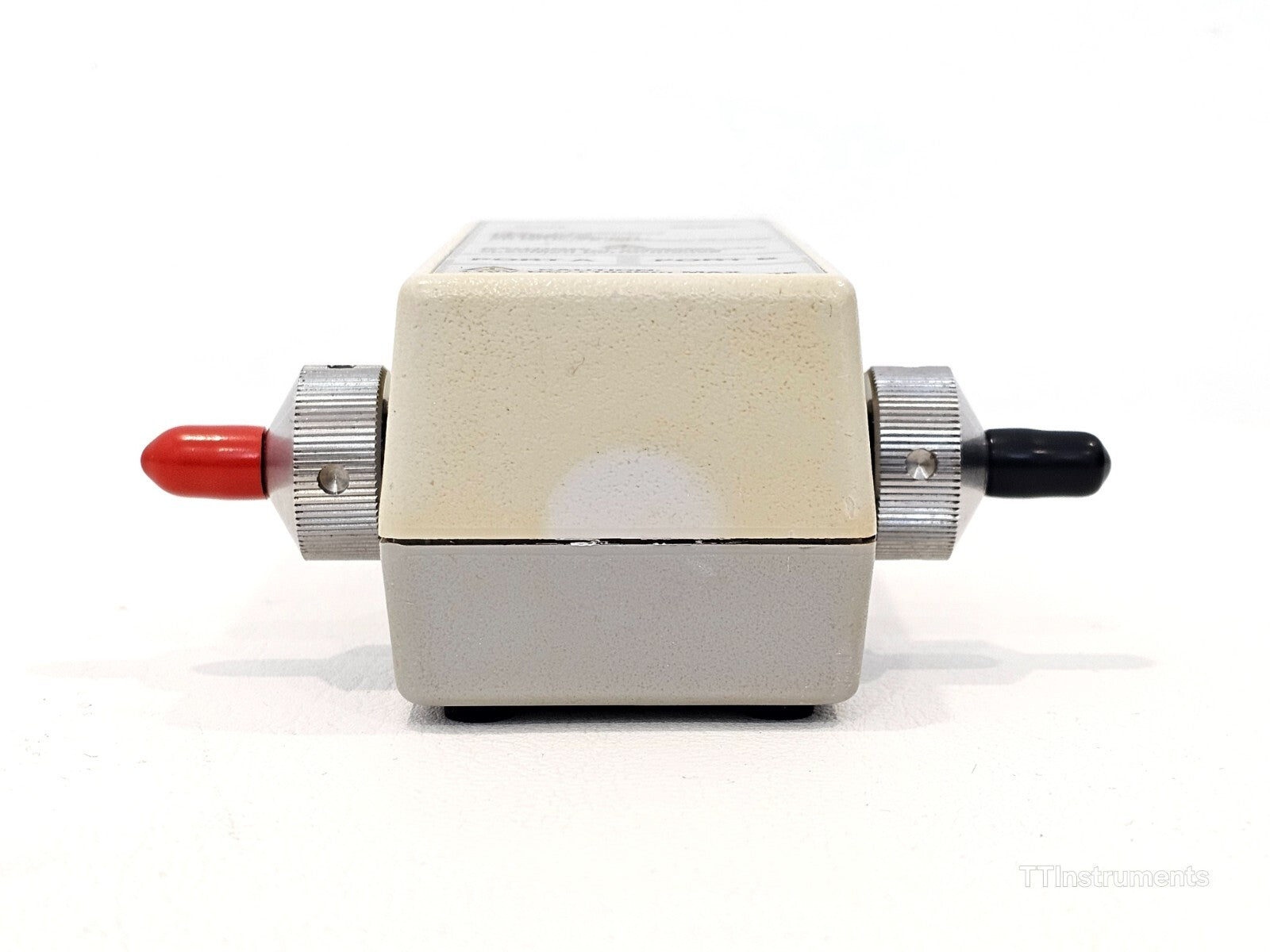

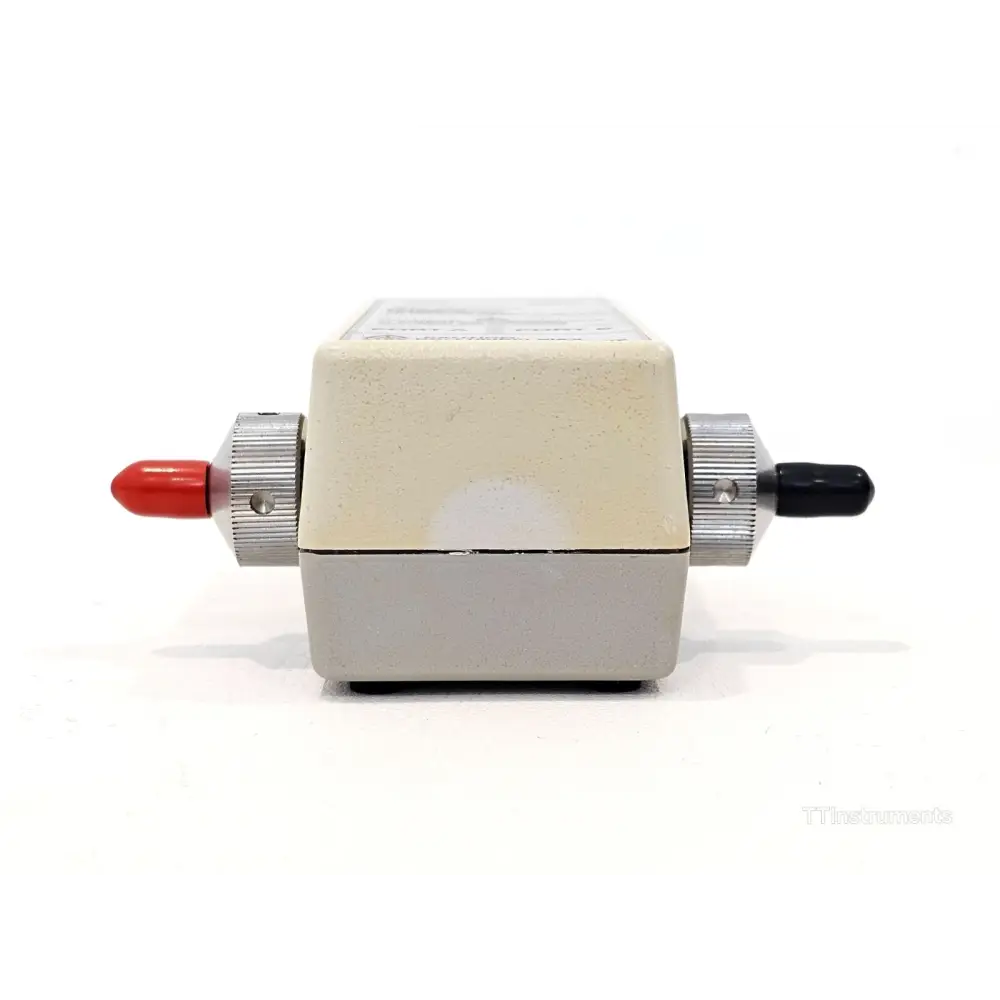

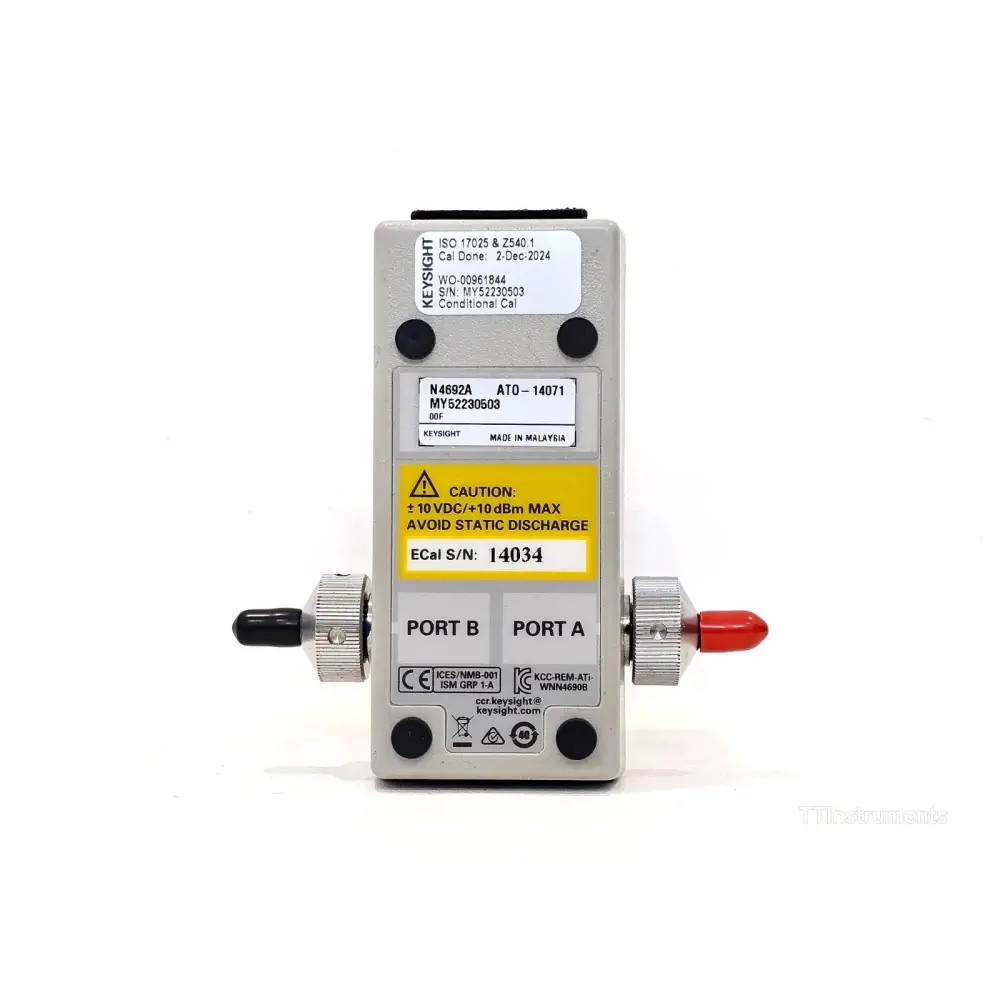

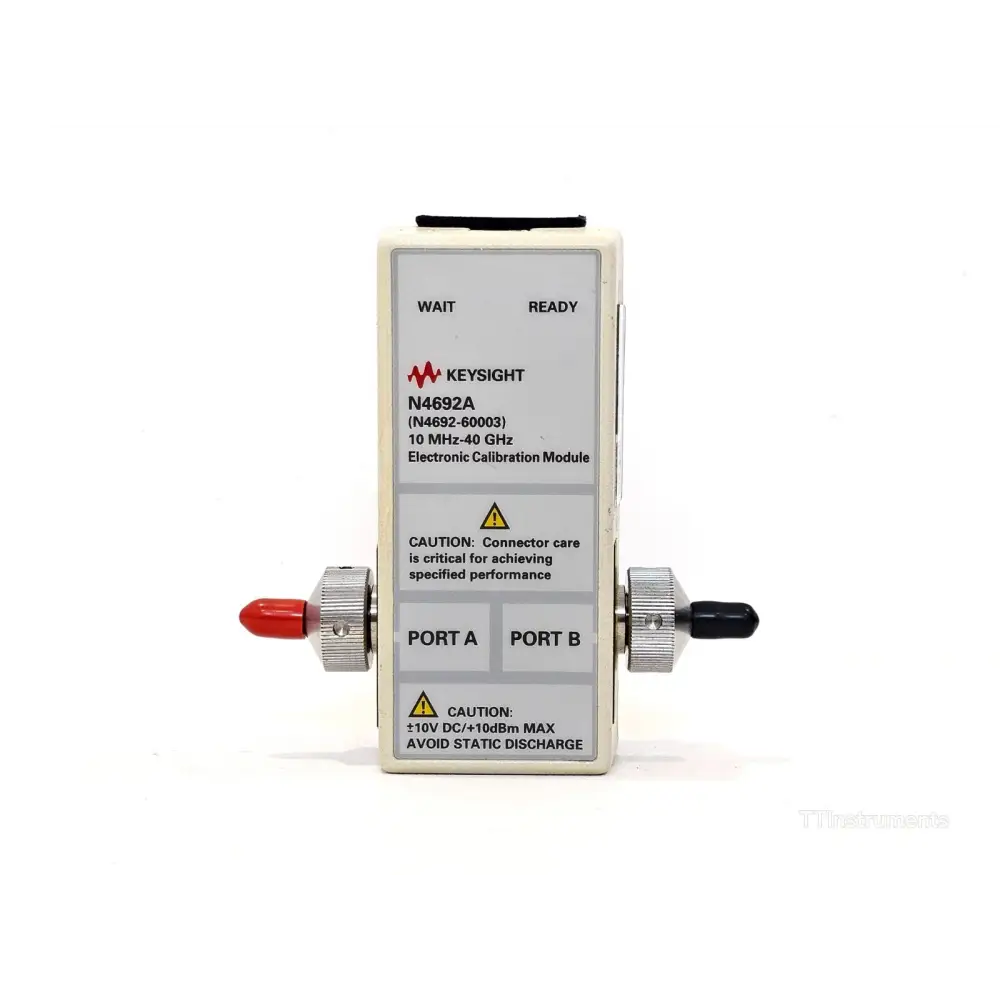

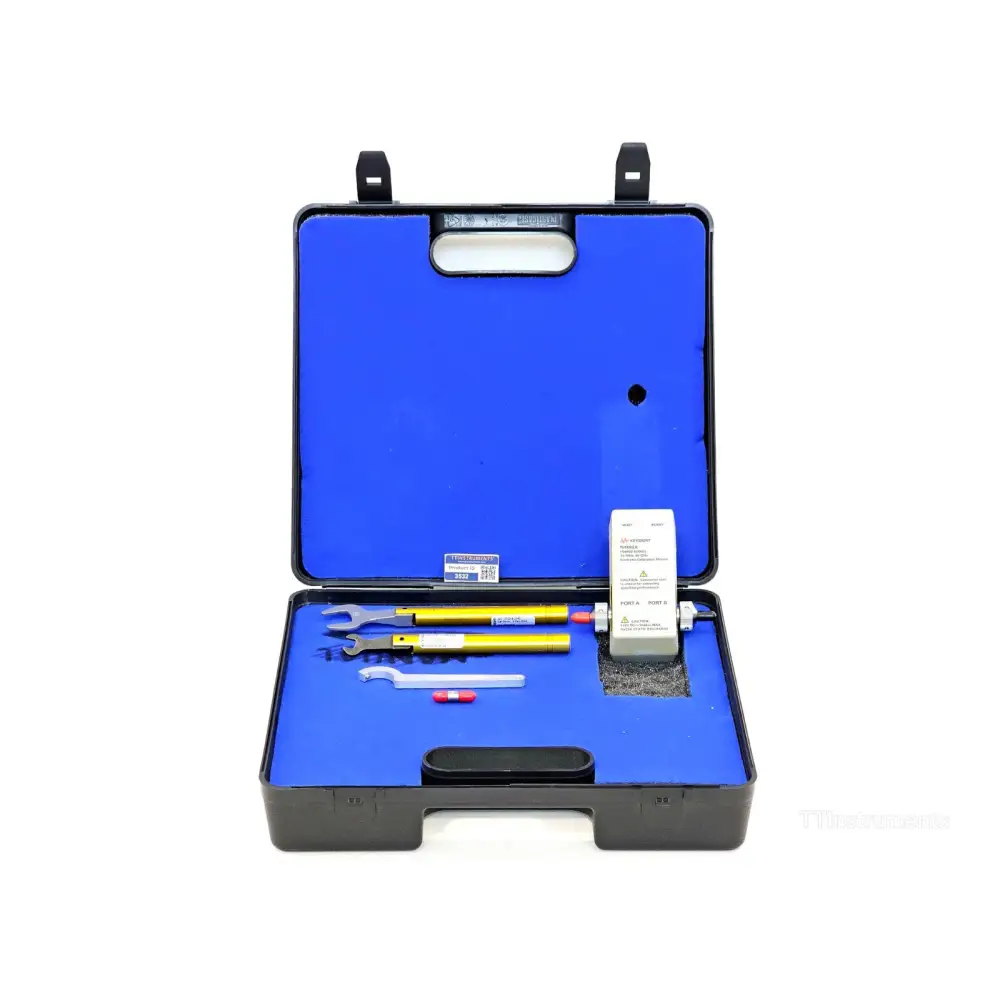

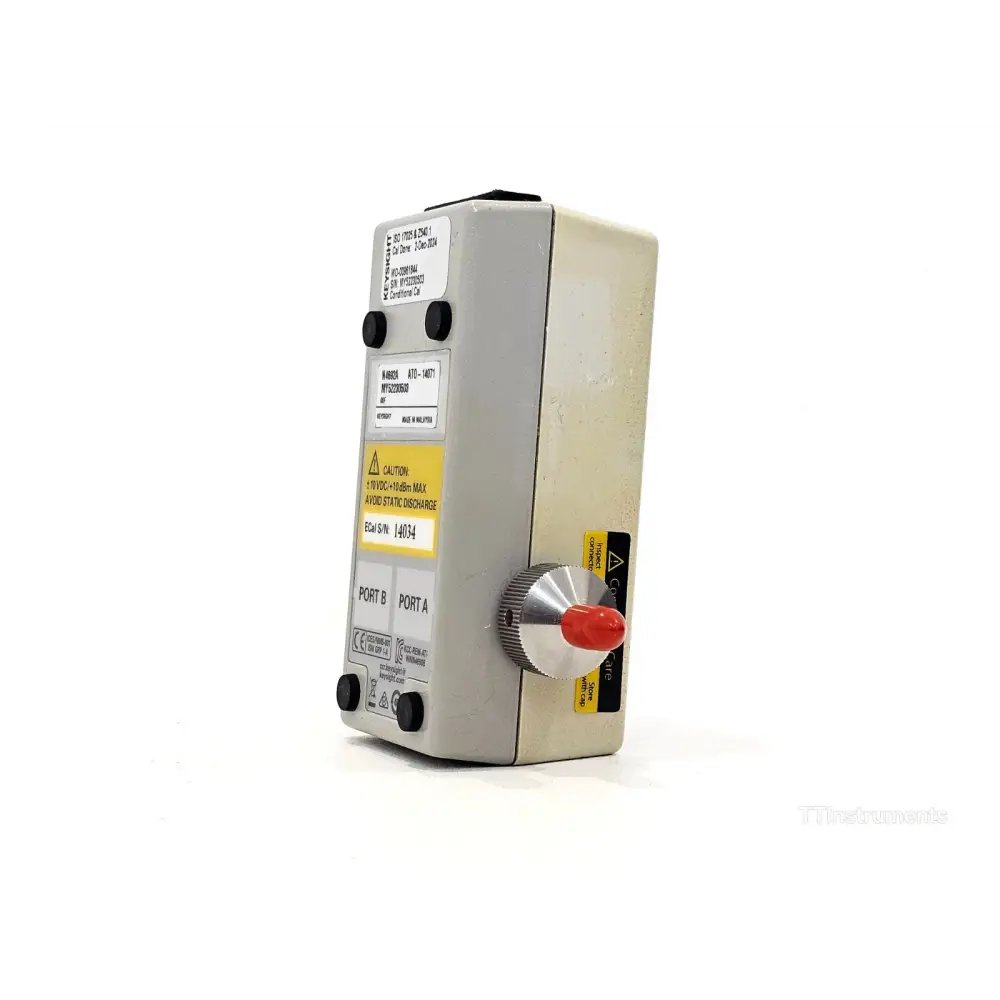

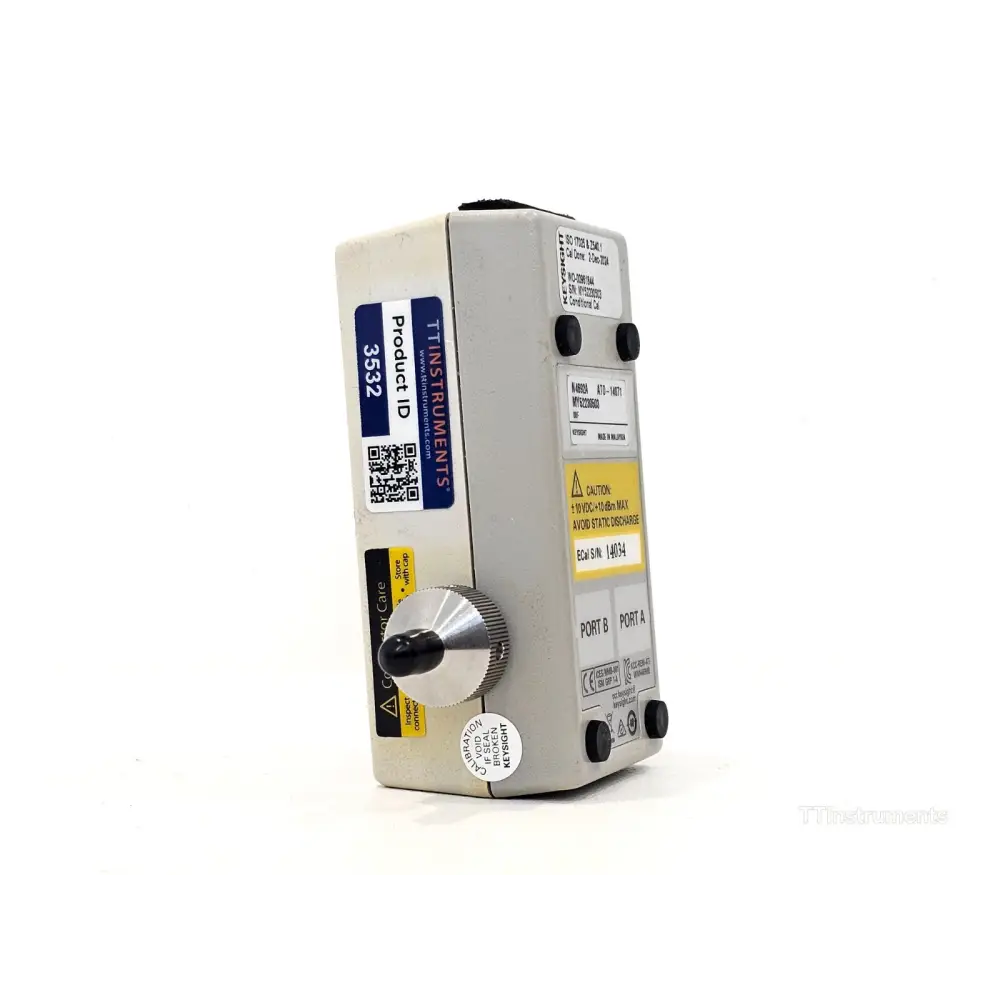

Keysight Agilent N4692A 2-port ECal module covering 10 MHz to 40 GHz with 2.92 mm connectors. Sold for parts or limited use and may require repair before returning to full calibration service. No specific accessories are mentioned in the existing description.

Included items:
• N4692A ECal module

The Keysight (formerly Agilent) N4692A is a microwave Electronic Calibration (ECal) module designed to make calibration of vector network analysers fast, easy, and accurate. It is part of the N4690 family of microwave ECal modules and uses fully traceable electronic impedance standards stored in the module's internal memory. During calibration, the module's stored S-parameter data is used to calculate error terms for the connected network analyser, delivering accuracy comparable to traditional mechanical calibration methods while dramatically reducing operator interaction and connection count.

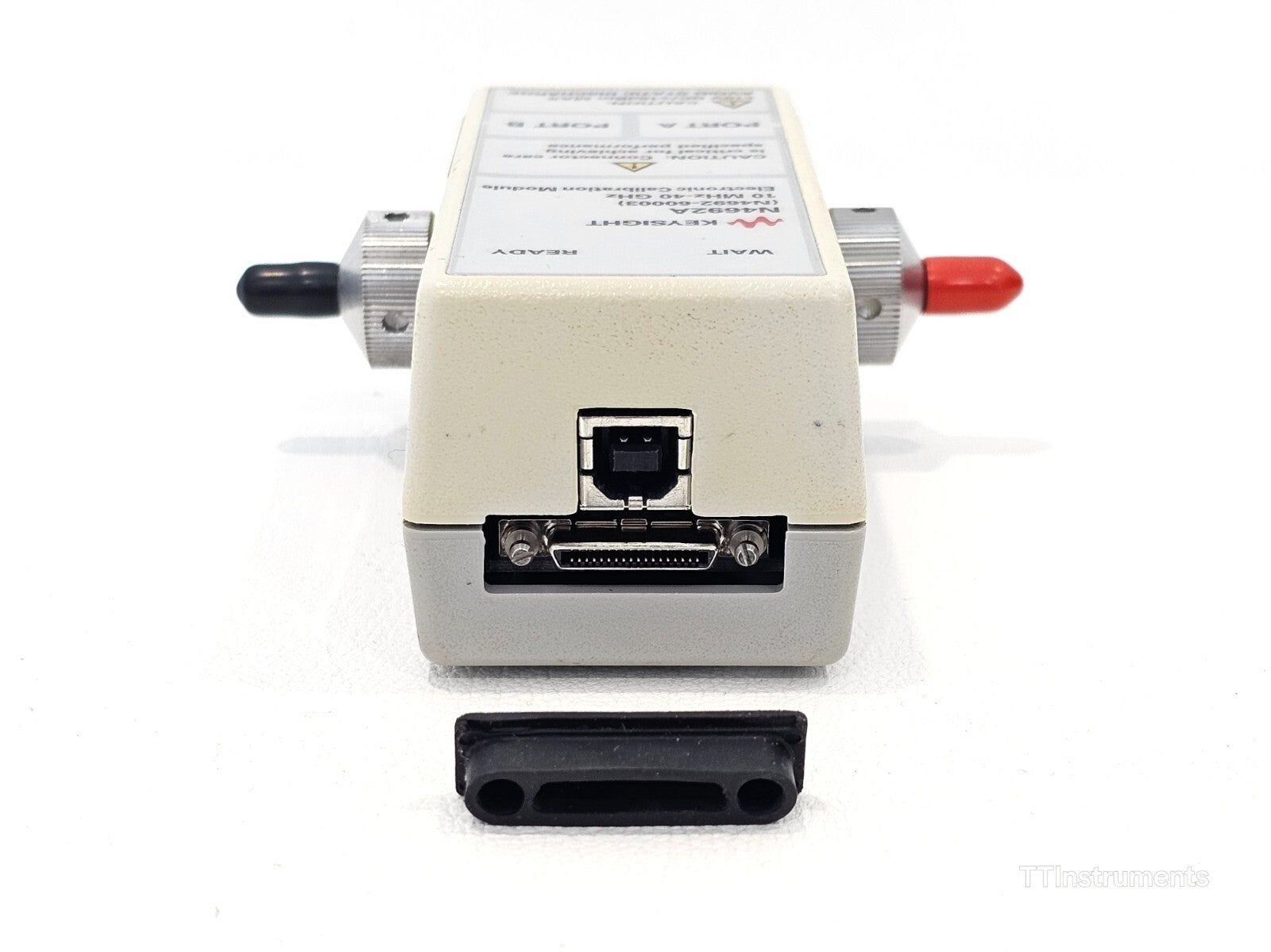

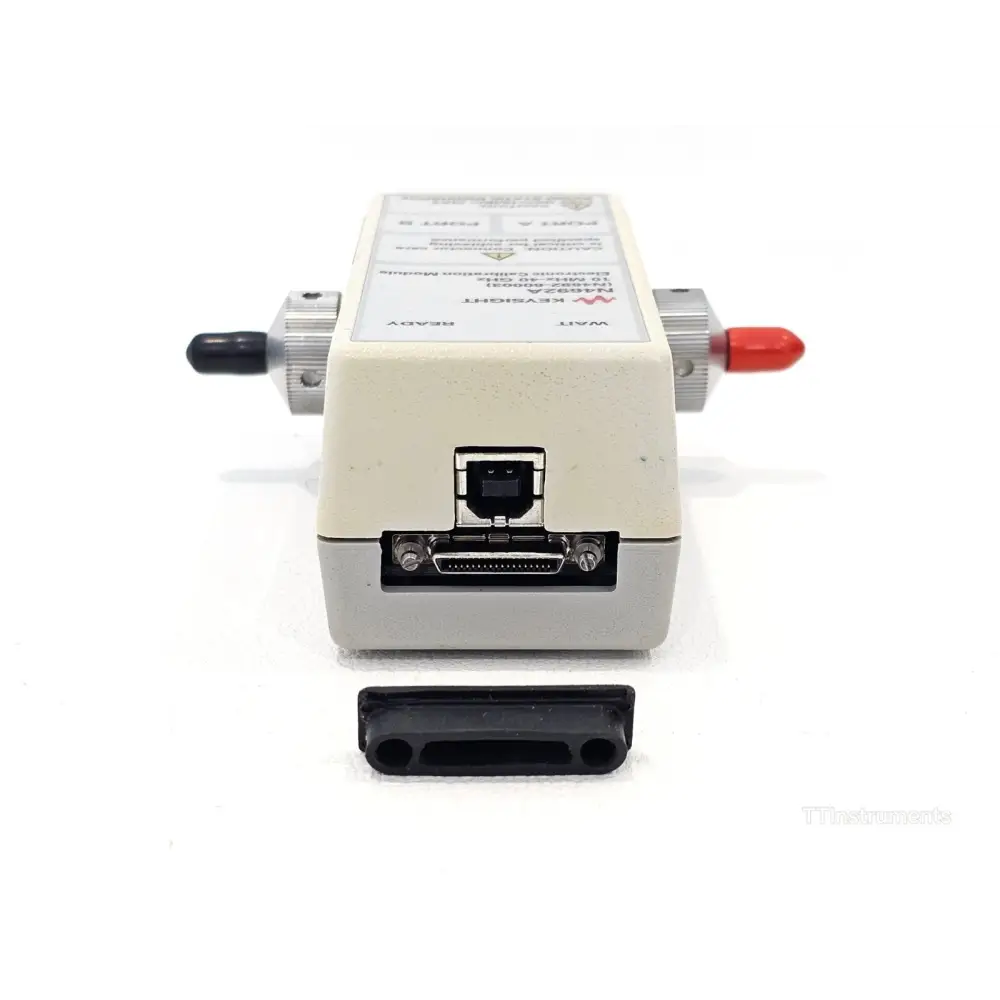

The module is controlled directly via USB when used with Keysight PNA and ENA series network analysers. It can also be controlled via an 85097B interface kit when used with legacy analysers such as the Agilent 8753E/ES/ET or 8720D/ES/ET (requires a special parallel cable and firmware Rev. 7.74). A full two-port calibration is completed with a single connection, taking less than half the time of mechanical methods.

Key Features:
• Full 2-port calibration with a single connection
• USB interface for direct control with PNA and ENA series network analysers
• Alternative 85097B interface for use with legacy analysers
• Reliable solid-state switching — reduced connector wear
• NIST-traceable accurate calibrations
• User characterisation available (with PNA and ENA series)
• Non-insertable device calibration supported
• Mixed connector options available (M0F, 00M, 00F)

Technical Specifications:
Frequency Range: 10 MHz to 40 GHz
Connector Type: 2.92 mm (K connector)
Number of Ports: 2
Impedance: 50 Ω
Interface: USB (PNA/ENA); 85097B parallel interface (legacy VNAs)
Part Numbers: N4692-60001 (M0F), N4692-60002 (00M), N4692-60003 (00F)

Characteristic Performance (N4692A, 2.92 mm):
Directivity: 35 dB (10–45 MHz), 41 dB (45–200 MHz), 45 dB (200 MHz–2 GHz), 42 dB (2–20 GHz), 39 dB (20–30 GHz), 38 dB (30–40 GHz)
Source Match: 30 dB (10–45 MHz), 36 dB (45 MHz–2 GHz), 35 dB (2–20 GHz), 30 dB (20–30 GHz), 29 dB (30–40 GHz)
Reflection Tracking: ±0.10 dB (10–45 MHz), ±0.08 dB (45 MHz–20 GHz), ±0.10 dB (20–40 GHz)
Transmission Tracking: ±0.15 dB (10–45 MHz), ±0.11 dB (45–200 MHz), ±0.09 dB (200 MHz–2 GHz), ±0.11 dB (2–20 GHz), ±0.14 dB (20–30 GHz), ±0.15 dB (30–40 GHz)
Load Match: 29 dB (10–45 MHz), 34 dB (45–200 MHz), 35 dB (200 MHz–2 GHz), 33 dB (2–20 GHz), 28 dB (20–30 GHz), 27 dB (30–40 GHz)

Note: Calibration results degrade when applied power exceeds –5 dBm. The N4692A is a discontinued/obsolete product; the current replacement is the N4692D.

Keysight ECal Modules Technical Overview (includes N4692A specifications and performance data): Download PDF

Keysight Electronic Calibration Modules Reference Guide (legacy series incl. N4692A) — Keysight official PDF: Download PDF

Keysight ECal Modules Technical Overview PDF (hosted by TestEquity): Download PDF

Keysight Electronic Calibration Modules Reference Guide (latest edition): Download PDF

Keysight N4692A/N4691B ECal Modules Reference Guide (Artisan mirror PDF): Download PDF
