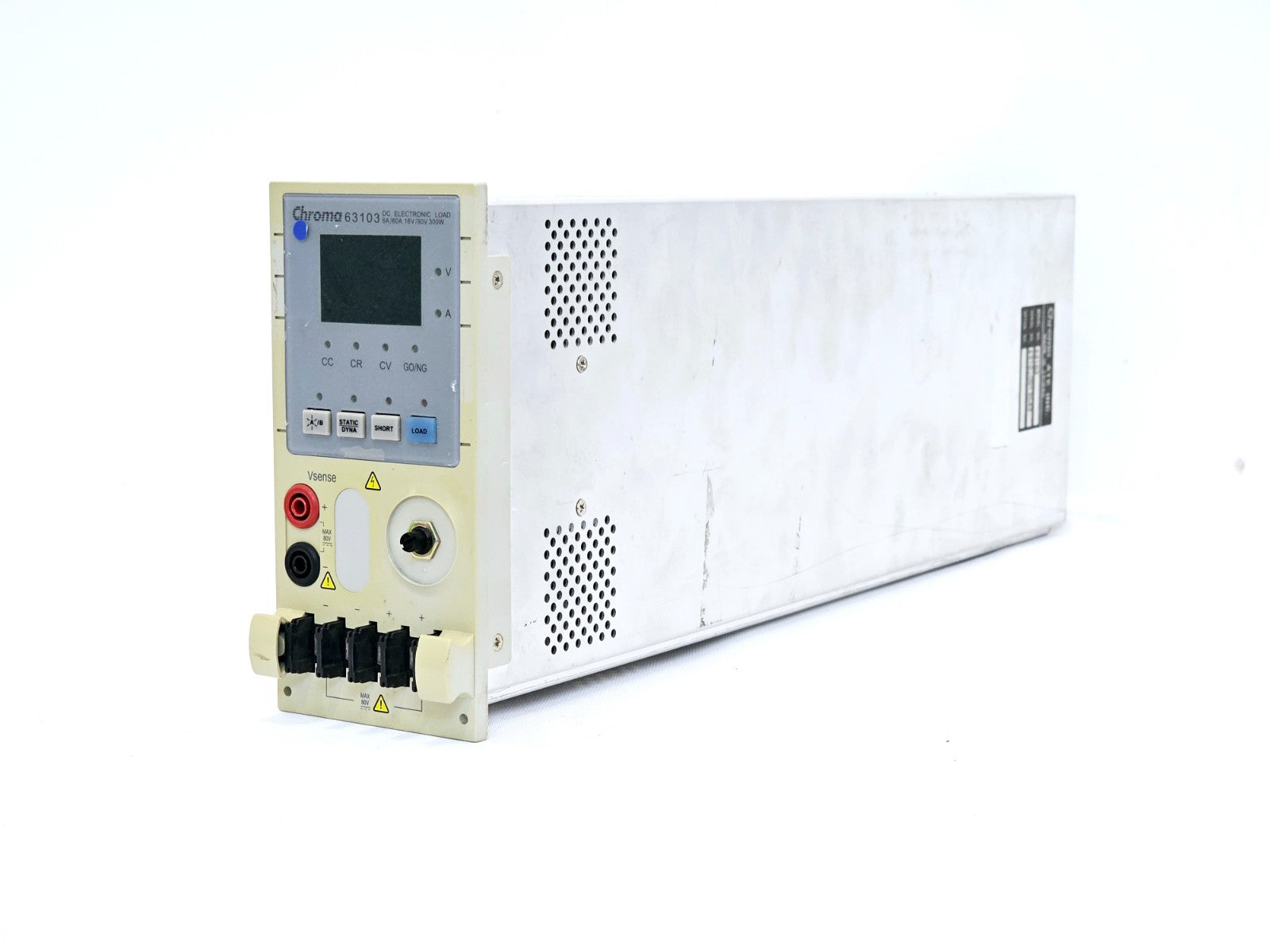

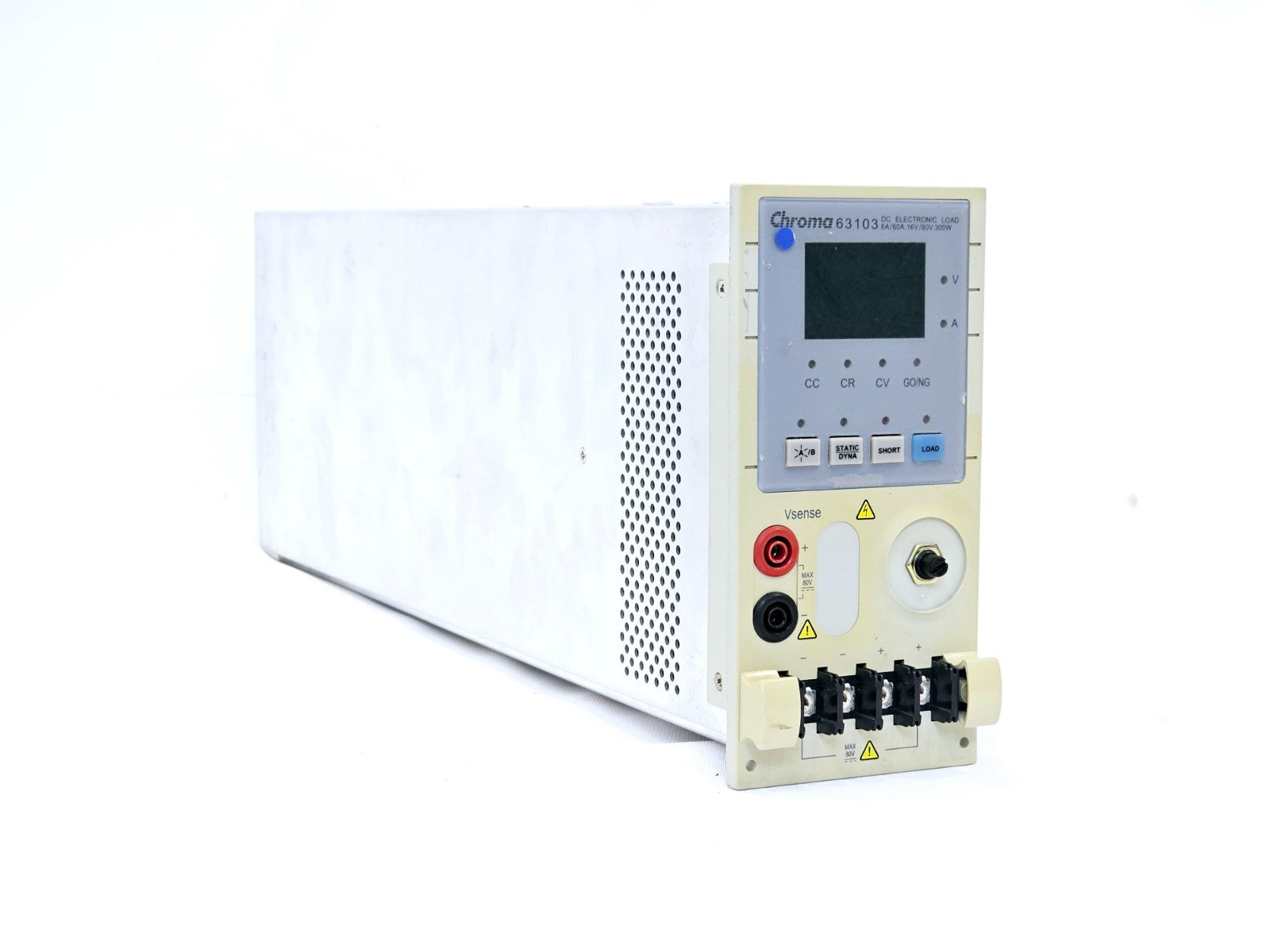

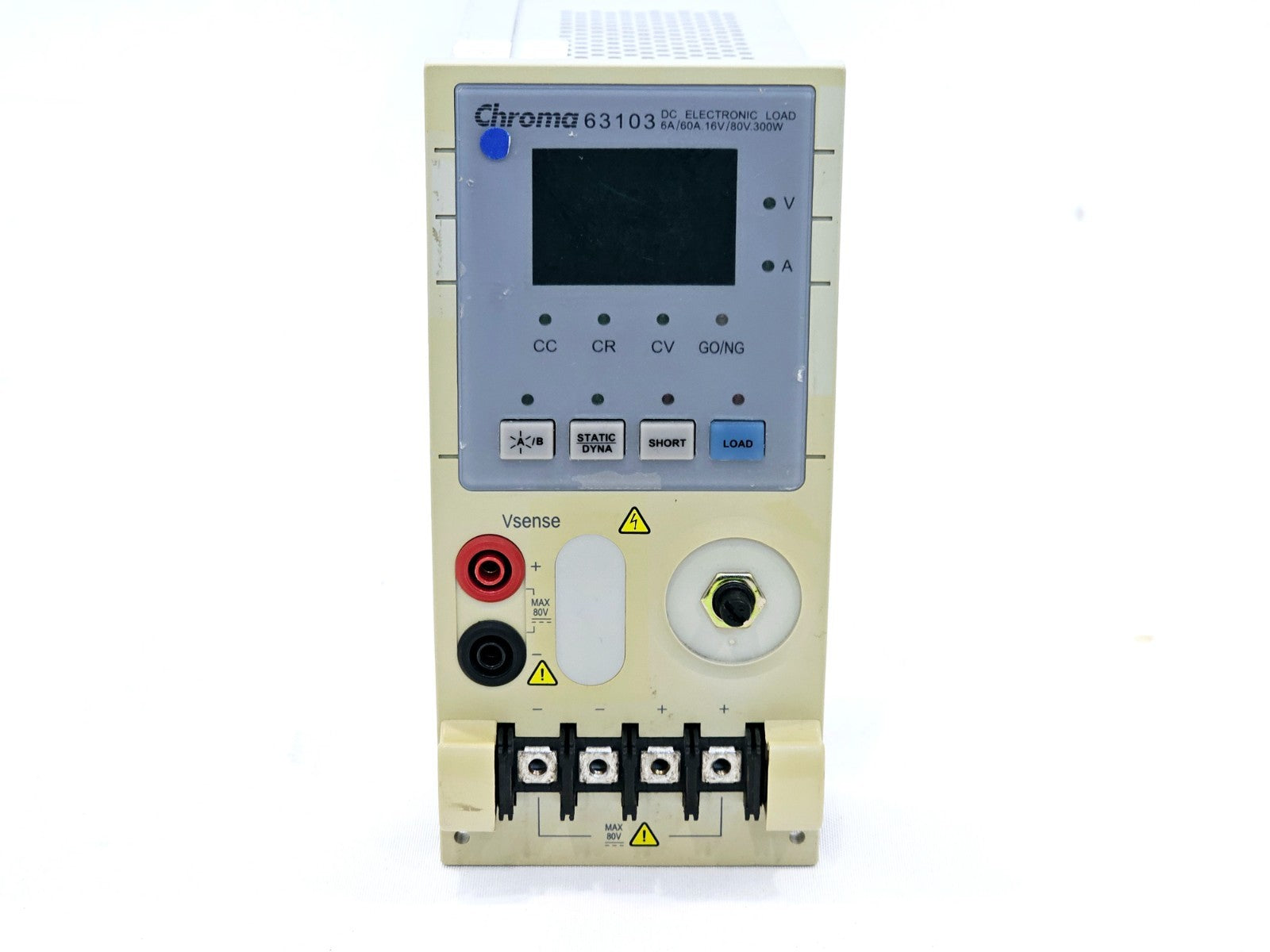

A Chroma 63103 DC Electronic Load Module offered for parts or repair. The module is missing its dial and is sold as-is with no returns. It is designed for use in the Chroma 6310/6310A series mainframe (6312/6314) for power supply and DC source test applications.

Included in the sale:
• Chroma 63103 DC Electronic Load Module

The Chroma 63103 is a programmable DC electronic load module from the 6310 series, developed and manufactured by Chroma ATE Inc. It is designed for the test and evaluation of multi-output AC/DC power supplies, DC/DC converters, battery chargers, and power electronic components, with applications spanning research and development, production testing, and incoming inspection.

The module plugs into the Chroma 6312 (2-slot) or 6314 (4-slot) mainframe. Each load module uses parallel-connected power MOSFET devices for high-accuracy load control with minimum current drift. FET technology enables the load to sink high current even at very low input voltages — the 63103 is capable of sinking 60A at 1V, making it well suited for testing low-voltage power supplies. Low voltage operation down to zero volts is possible at reduced current levels. A photocoupler provides isolation between output and control sections, ensuring a true floating load.

Operating Modes: Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV)
Maximum Power: 300W
Voltage Range: 0–80V (minimum operating voltage 1V at 60A)
Current Range (Low): 0–6A
Current Range (High): 0–60A
Channels: 1 (single channel module)
Dynamic Load Frequency: 0.1 Hz to 20 kHz
Voltage Measurement Accuracy: 0.05% + 0.05% of full scale (15-bit A/D converter)
Current Measurement Accuracy: 0.1% + 0.1% of full scale
Current Drift: Less than 0.1% + 0.1% F.S.
Slew Rate: Programmable (0.32 mA/µs to 10 A/µs)
Storable Programs: Up to 100 sets in EEPROM
Remote Interfaces: GPIB (optional), RS-232C
Parallel Capability: Multiple modules can be paralleled up to 1,200W / 240A total
OCP Testing: Built-in automated over-current protection test function
Short Circuit Simulation: Supported
Operating Temperature: 0°C to 40°C
Compatibility: Chroma 6310 and 6310A series mainframes (6312, 6312A, 6314, 6314A)
