Condition: Used

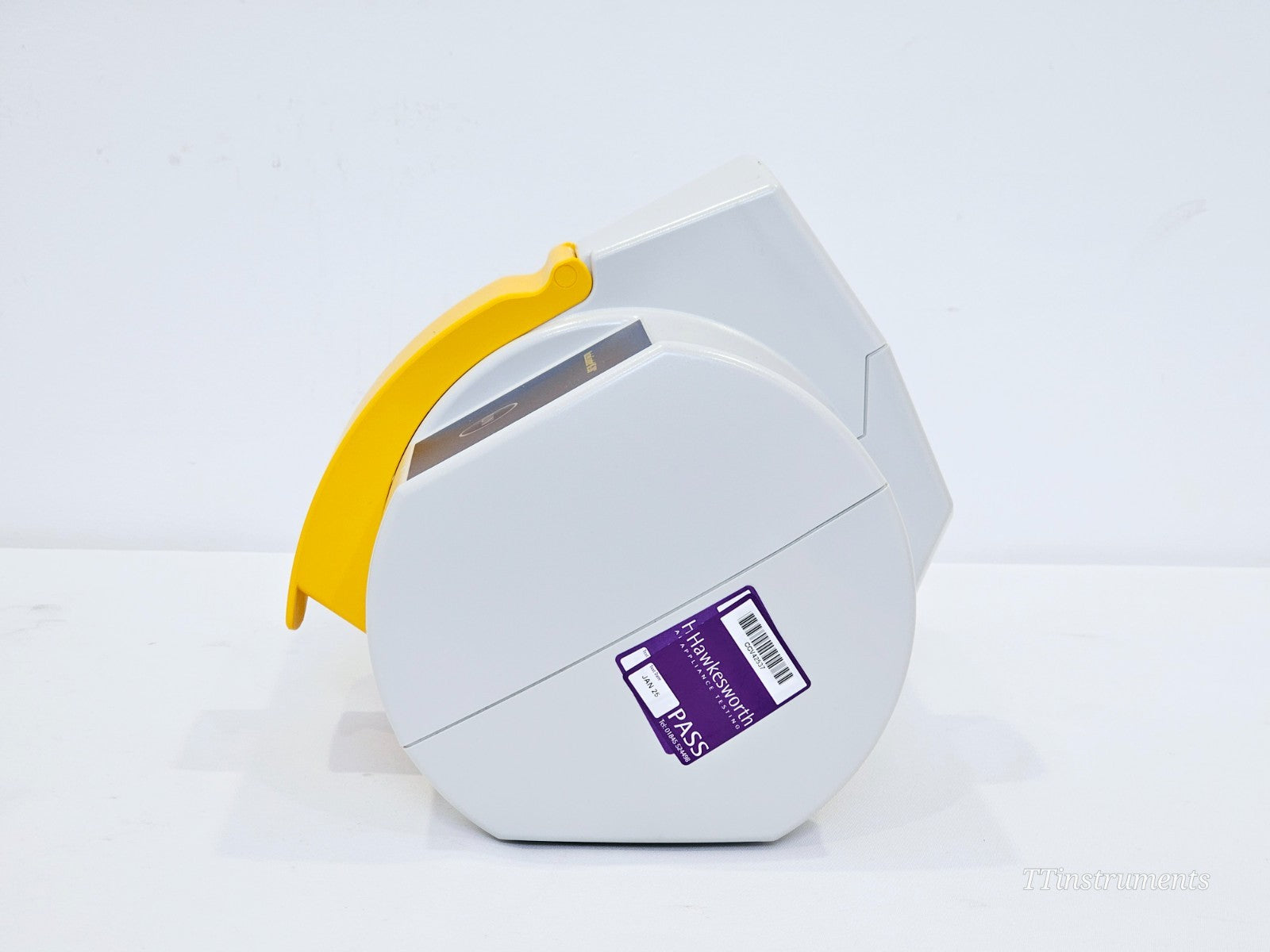

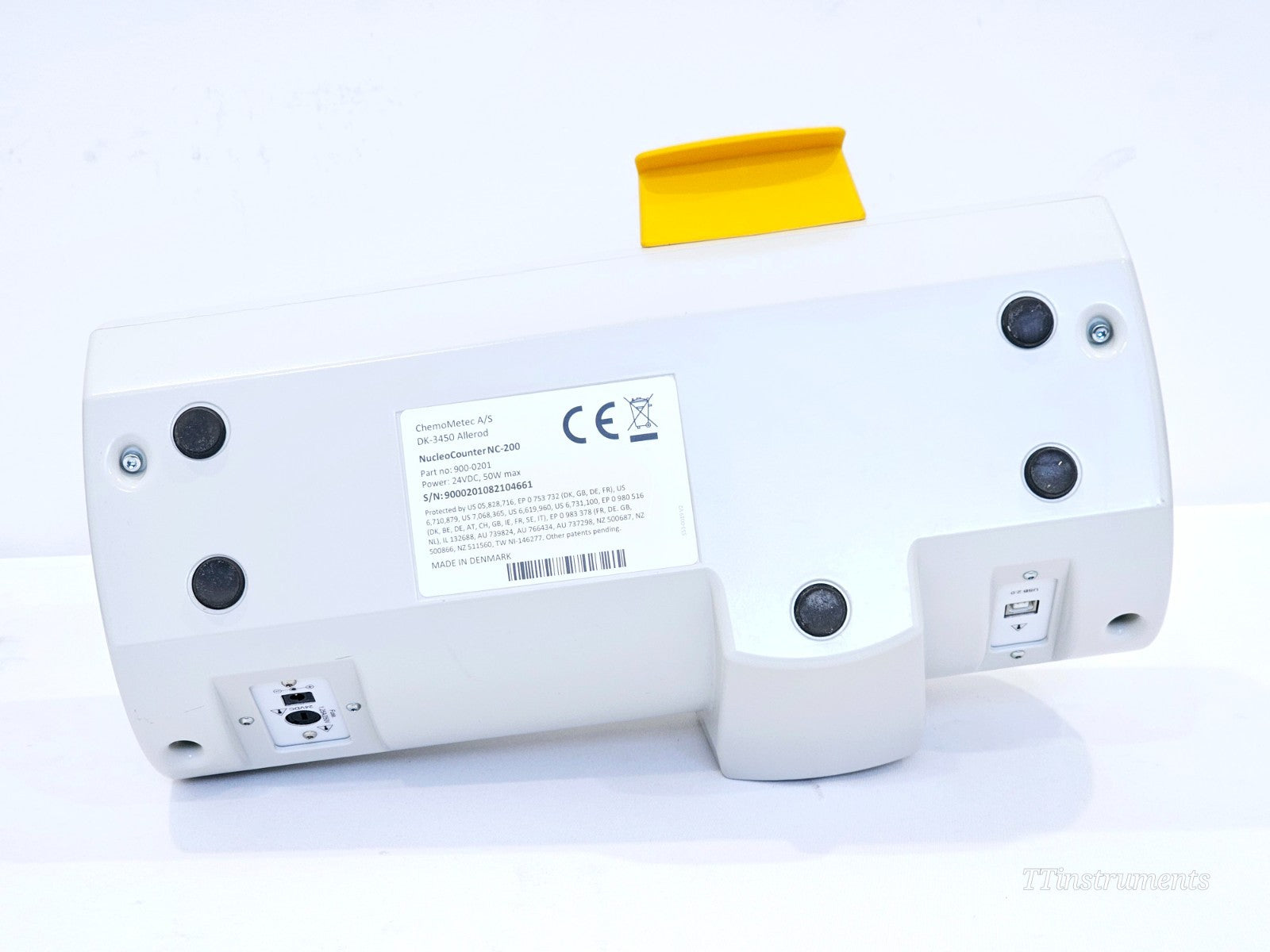

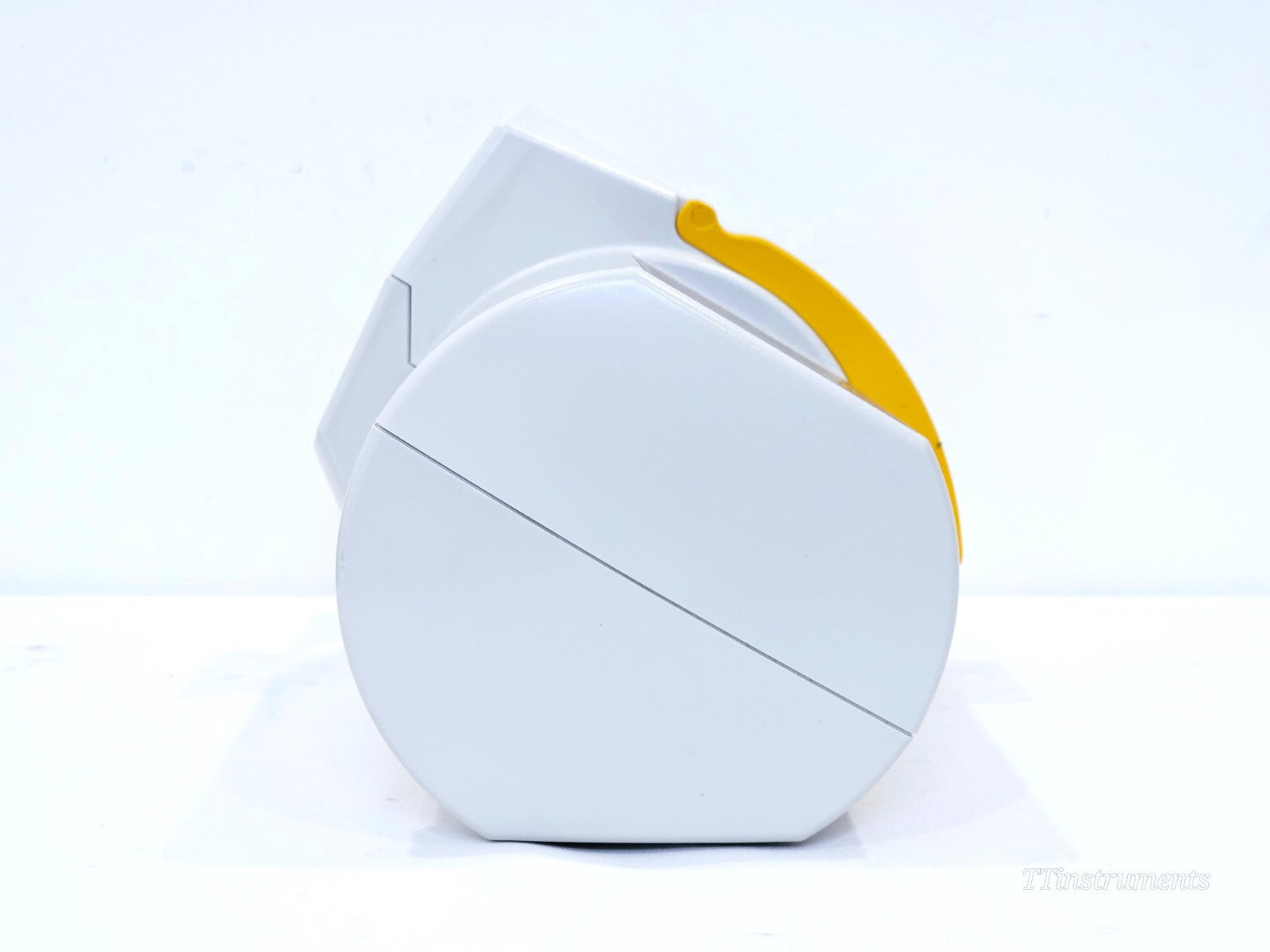

ChemoMetec NucleoCounter NC-200, P/N 900-0201, removed from a working environment. Supplied with a laptop pre-loaded with licensed NucleoView NC-200 software, providing a ready-to-use cell counting and viability analysis solution for immediate laboratory deployment.

Included in the sale:
• ChemoMetec NucleoCounter NC-200 (P/N 900-0201)

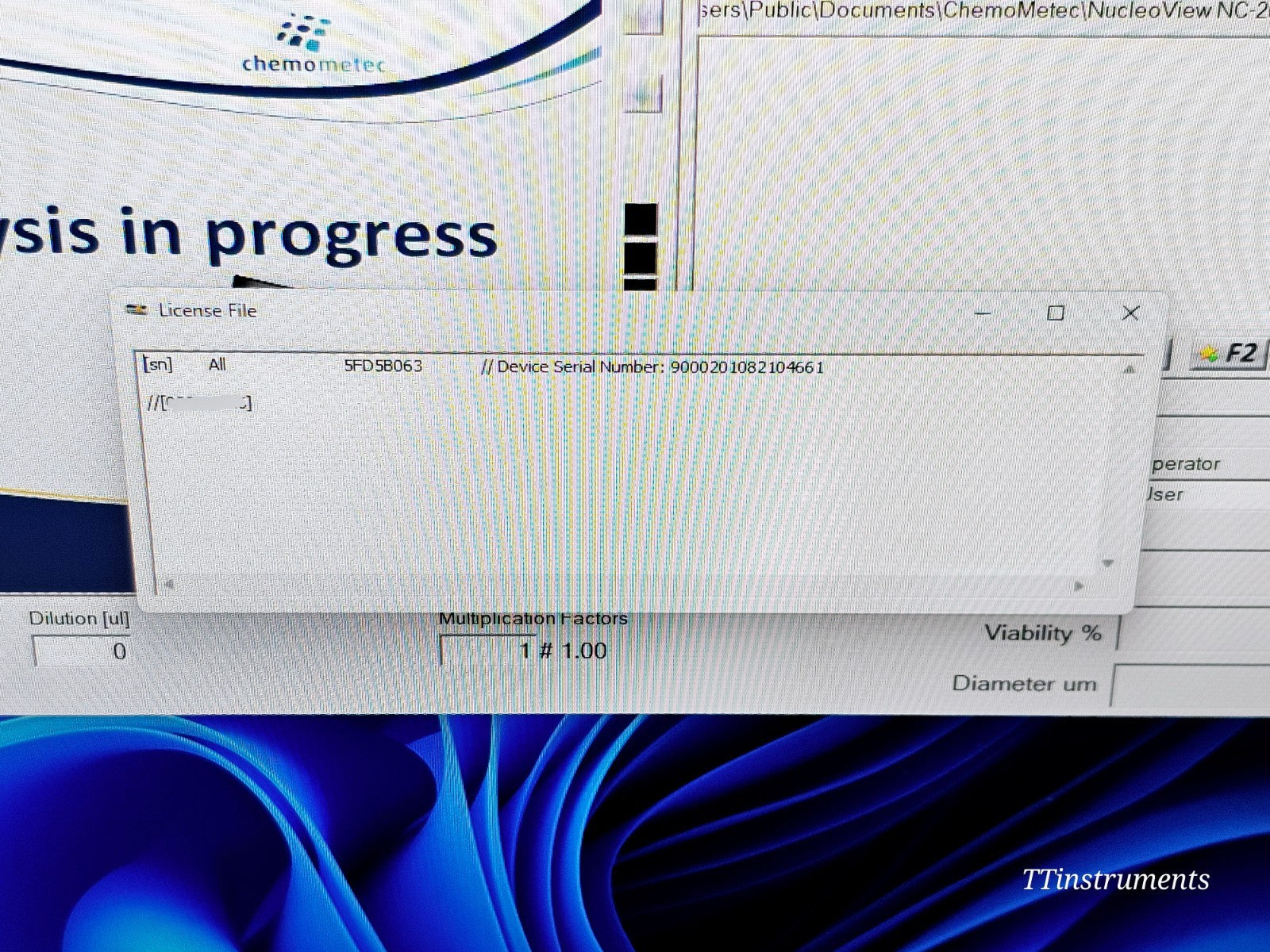

• Laptop with licensed NucleoView NC-200 software

The NucleoCounter NC-200 is a high-precision automated cell counter manufactured by ChemoMetec A/S (Gydevang 43, DK-3450 Allerød, Denmark). It is based on integrated fluorescence microscopy with dual fluorescence channels and image cytometry technology.

The instrument is designed to minimise human interference in cell counting. Using the disposable Via1-Cassette, all steps of pipetting, staining, and counting chamber loading are combined into a single operation — eliminating errors introduced during manual staining and pipetting. The Via1-Cassette contains immobilised fluorescent dyes acridine orange (AO) and DAPI that automatically stain total and dead cell populations respectively. The cassette is volume-calibrated using a dot code read by the instrument to ensure high-precision concentration calculations.

In a simple three-step workflow — load cassette, insert into instrument, press RUN — the NC-200 delivers results in less than 50 seconds. In a single step the instrument provides: total cell count, viability (%), cell diameter, and percentage of cells in aggregates.

The NC-200 is suited to research, bioprocessing, quality control, and GMP-regulated production environments. It supports counting of suspension cells, aggregated cells, CAR-T cells, stem cells (including adipose-derived and mesenchymal), and cells grown on microcarriers.

TECHNICAL SPECIFICATIONS

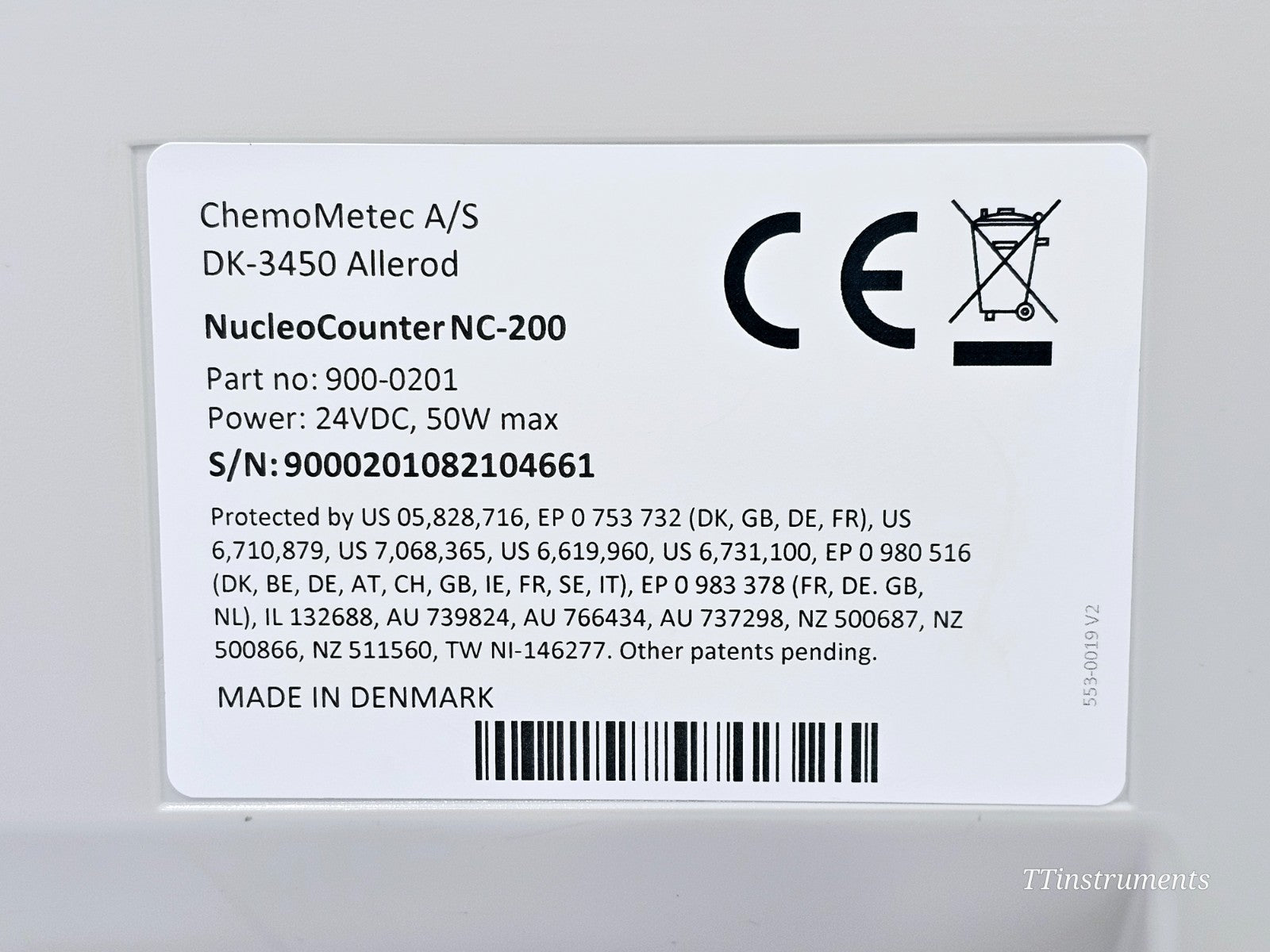

Product Number: 900-0201
Instrument Type: Automated fluorescence image cytometer
Optics: Lens with x1.3 magnification, 1/2" CMOS sensor
Excitation: 2 LED light sources with peaks at 365 nm and 505 nm, plus dark-field illumination
Emission Filter: Single dual-band emission filter: 410–460 nm and 540–650 nm
Sample Device: Via1-Cassette (disposable)
Sample Consumption: 60 µl
Counting Time: Less than 50 seconds (one-step viability and cell count assay)
Measurement Range (recommended): 5 × 10⁴ to 5 × 10⁶ cells/ml
Typical CV: ~3.4% at 1 × 10⁶ cells/ml across 8 cell lines
Output Parameters: Total cell count, live cell count, dead cell count, viability (%), cell diameter (µm), % aggregation

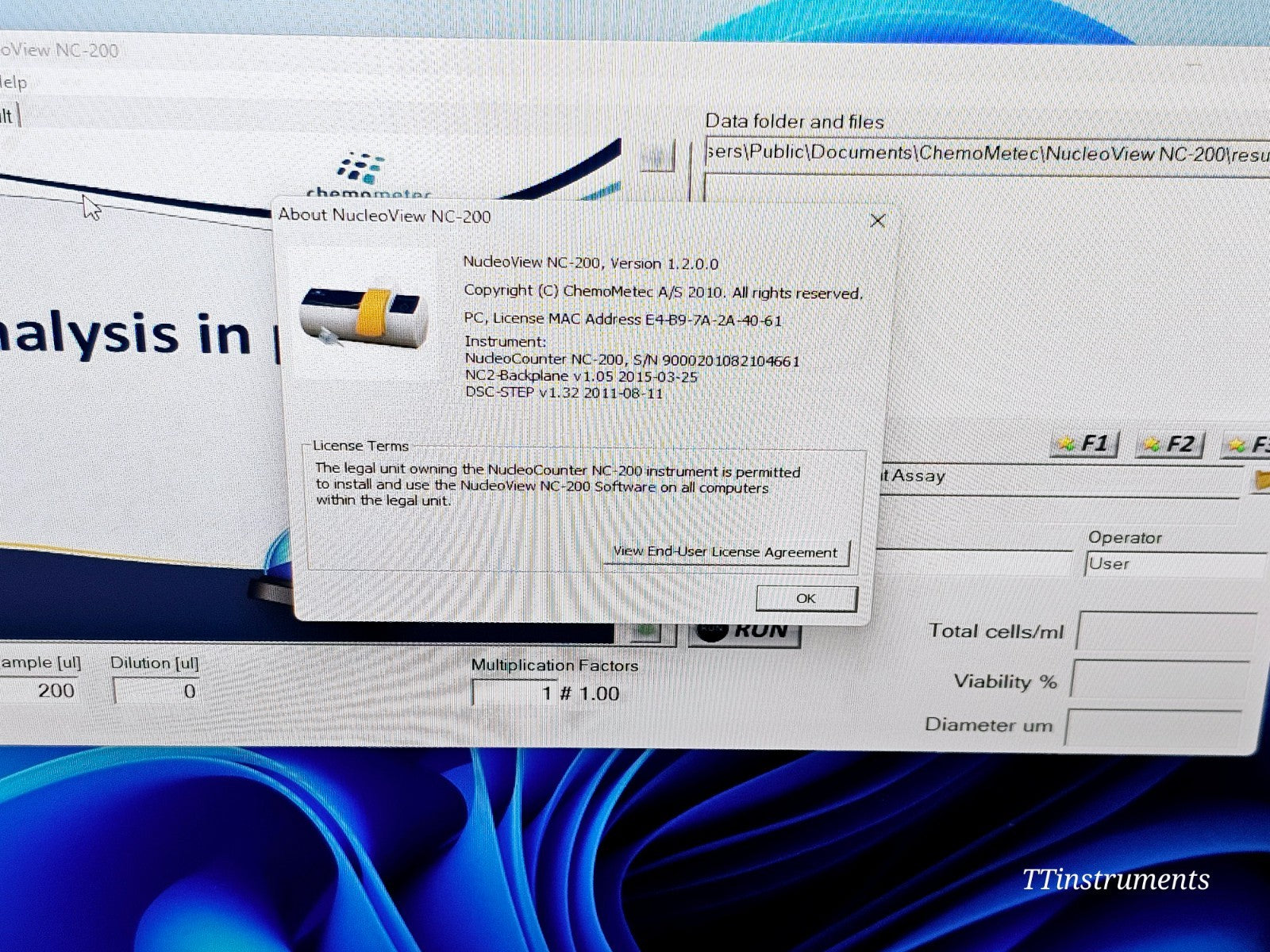

Software: NucleoView NC-200 (PC-based, user-adaptable protocols)
Software Compliance: 21 CFR Part 11 ready (optional licence)

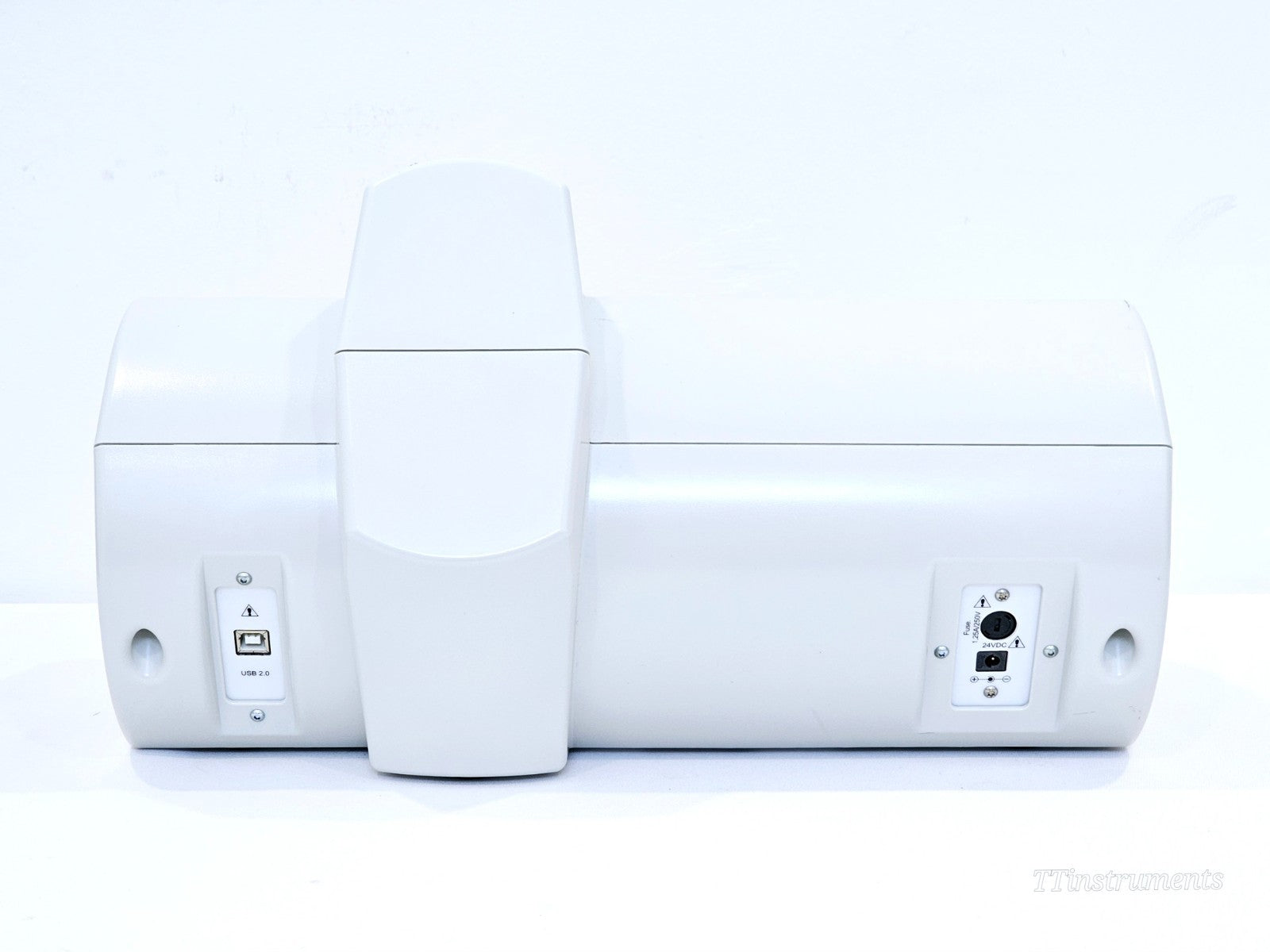

PC Interface: USB 2.0
PC Requirements: Microsoft Windows 7, 8.1, or 10 (32 or 64 bit); minimum 2 GB RAM; screen minimum 1024 × 768; minimum 10 GB free disk space
Power Supply: External 24 VDC
Regulatory Compliance: CE marked; EMC Directive 2014/30/EU; LVD Directive 2014/35/EU; RoHS Directive 2011/65/EU; Machinery Directive 2006/42/EC; FCC Part 15
For Research Use Only — not intended for diagnostic or therapeutic use.

NucleoCounter NC-200 Instrument User Guide (Doc. No. 991-0203): Download PDF

NucleoCounter NC-200 Product Brochure — Key Benefits and Application Overview: Download PDF

Technical Note 994-0218 — Performance of the NucleoCounter NC-200 (Accuracy, Precision, Measurement Range): Download PDF

Application Note 994-0201 — Viability and Cell Count Assay for Mammalian Cells on NC-200: Download PDF

NC-200 CGT Brochure — Cell and Gene Therapy Cell Counting with NucleoCounter NC-200: Download PDF

Tech Note 994-0206 — Operational Qualification (OQ) for NucleoCounter NC-200: Download PDF

Application Note 994-0215 — Count of Aggregated Cells using A100 and B Assay on NC-200: Download PDF
