Condition: Seller refurbished

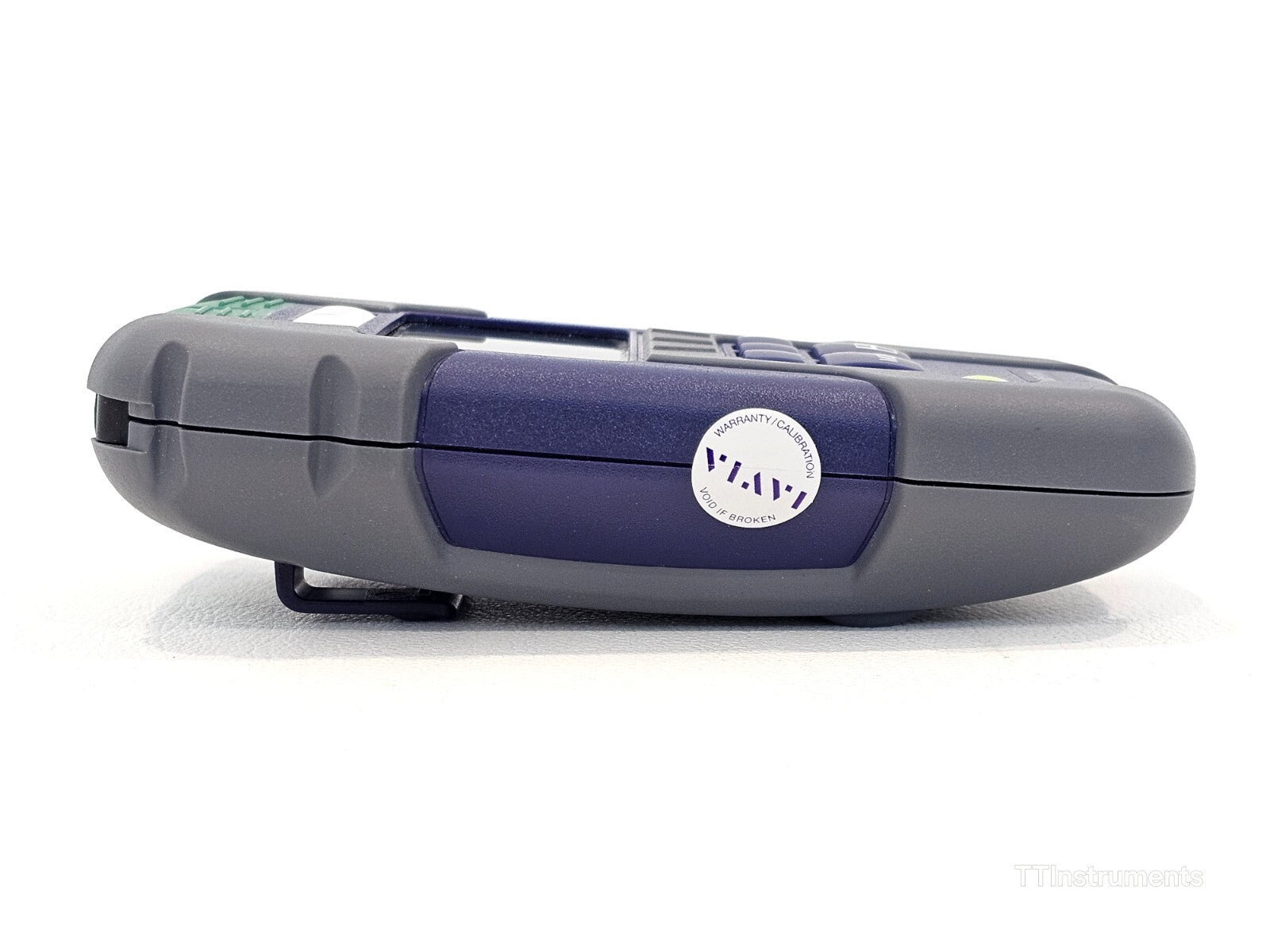

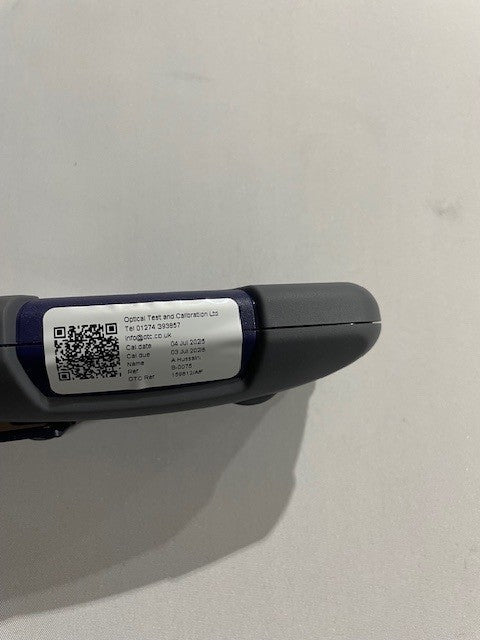

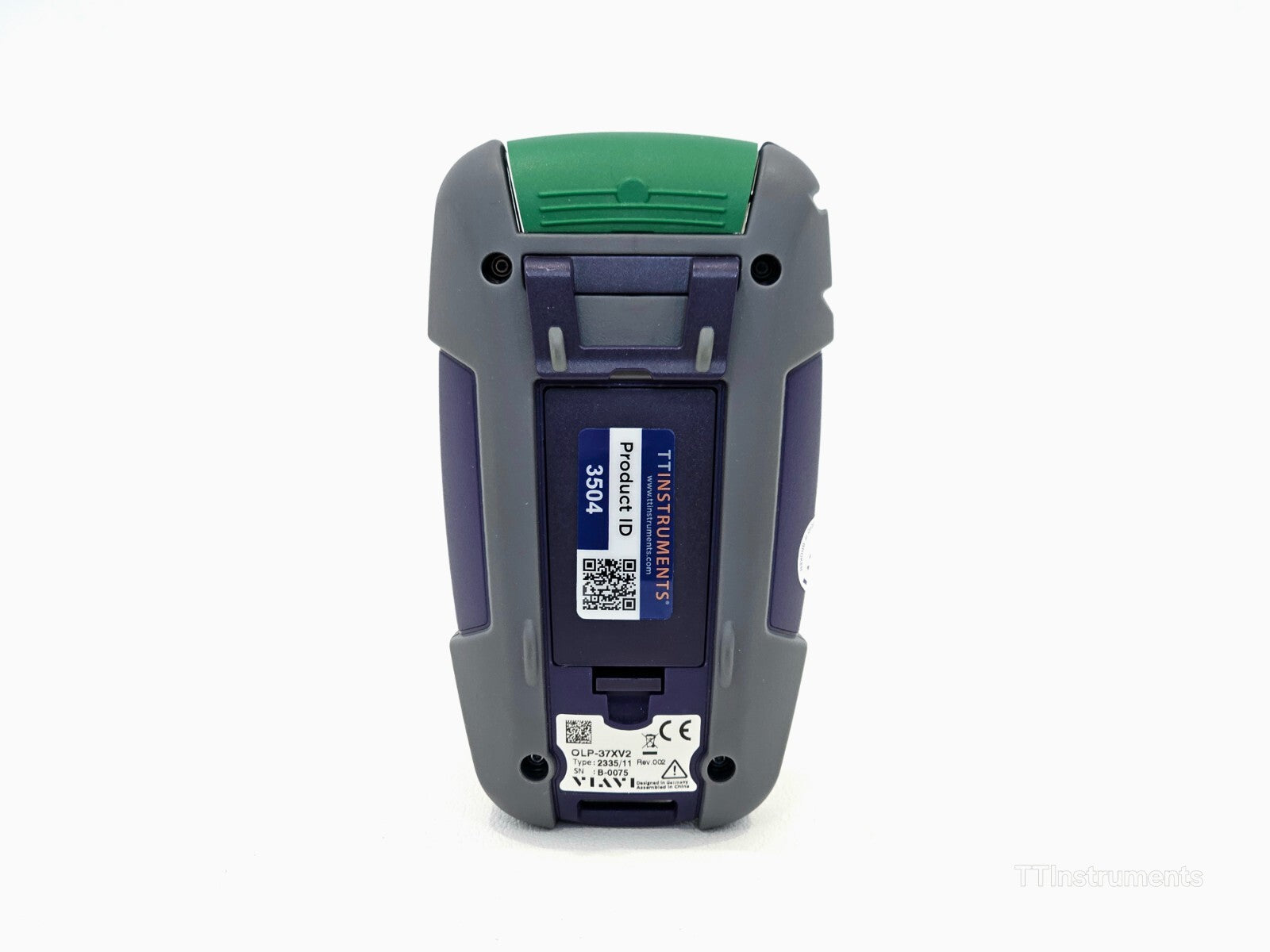

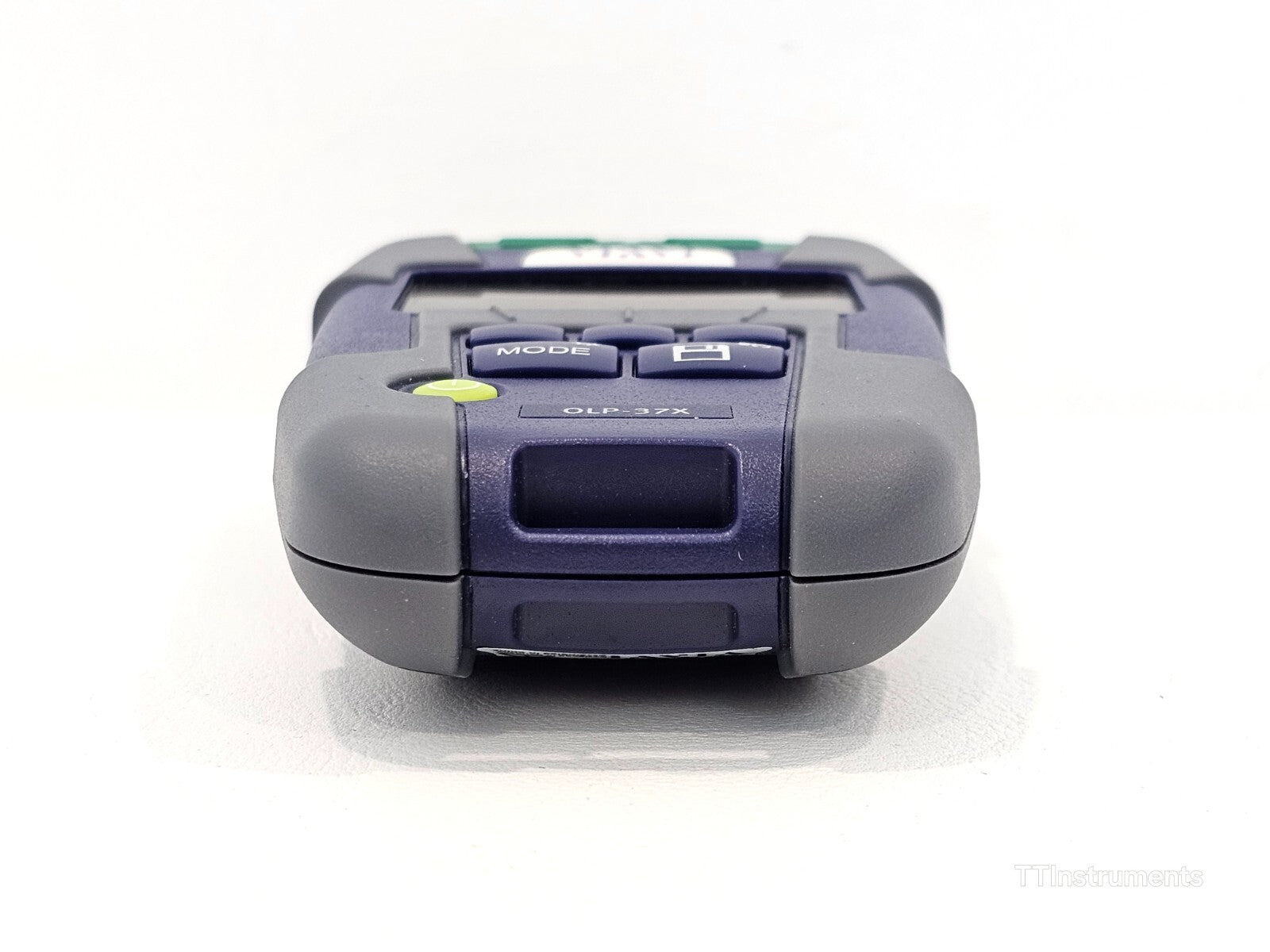

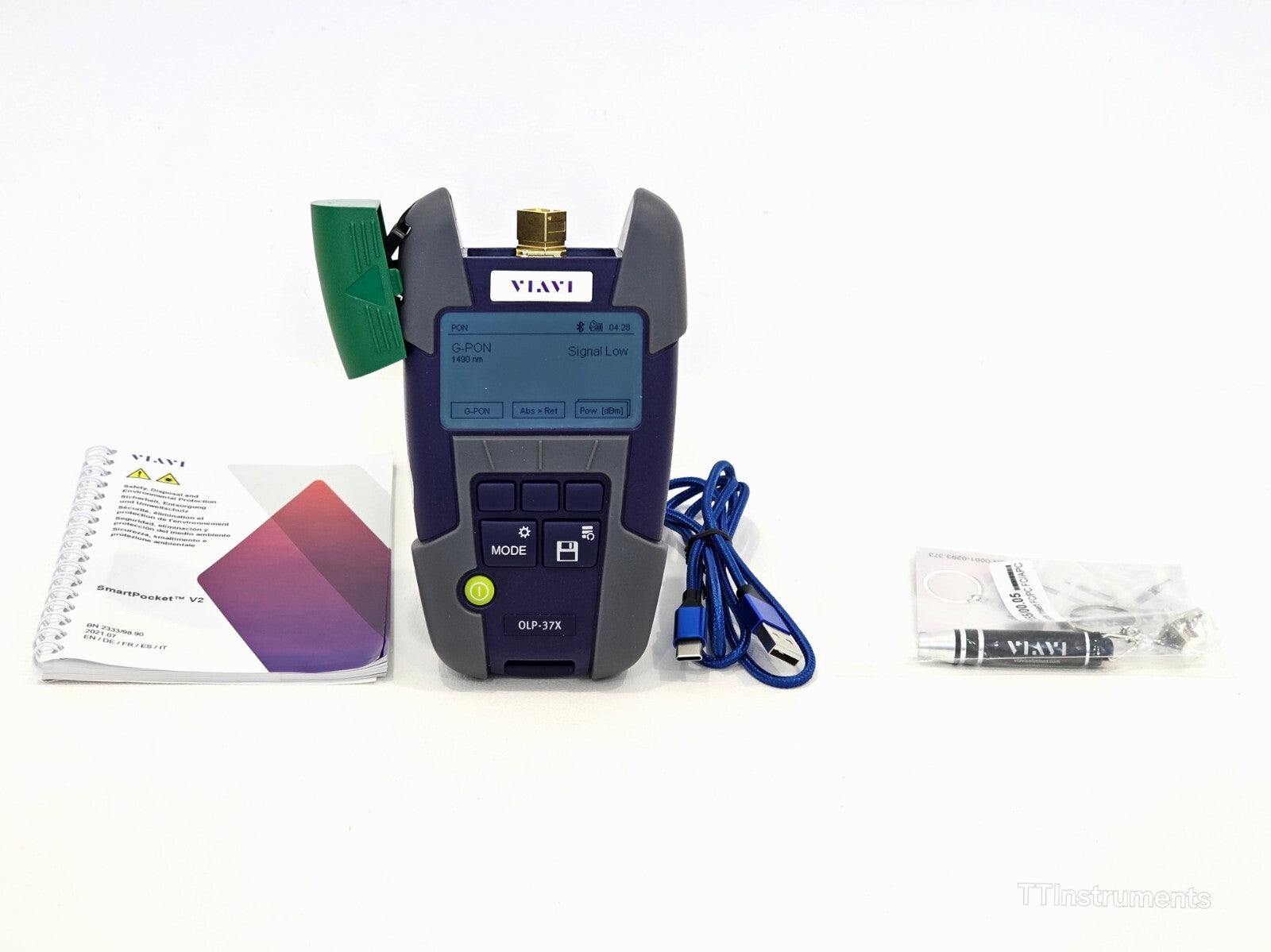

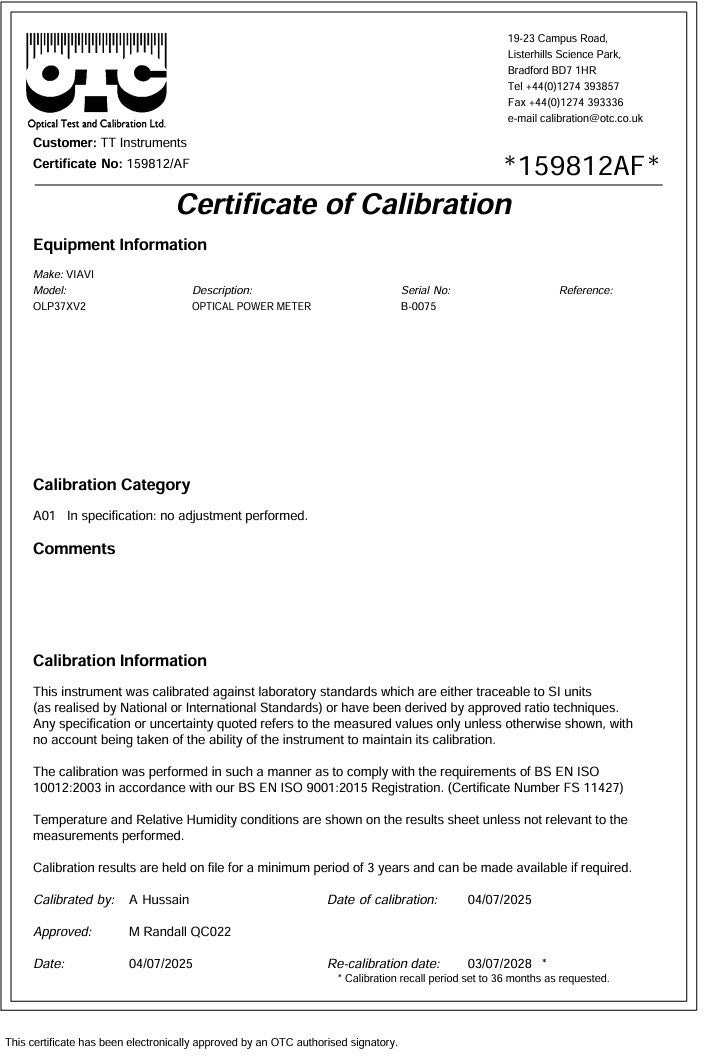

A Viavi OLP-37XV2 SmartPocket V2 Selective PON Power Meter in good condition, calibrated June 2025. Supplied as order number 2335/11, configured for simultaneous 1490 nm (G/E-PON) and 1577 nm (XGS-PON/10G-EPON) measurement with SC/APC connector.

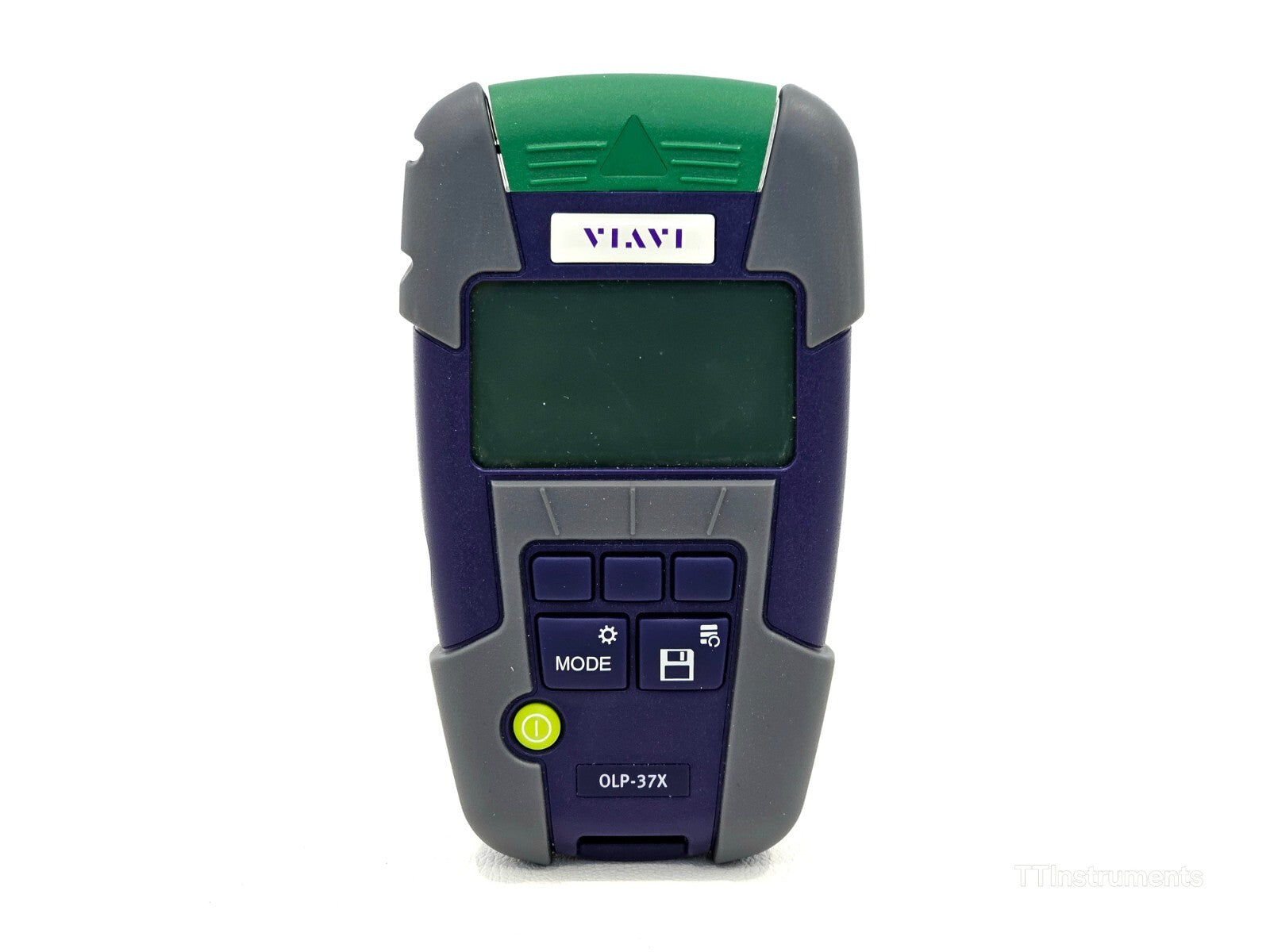

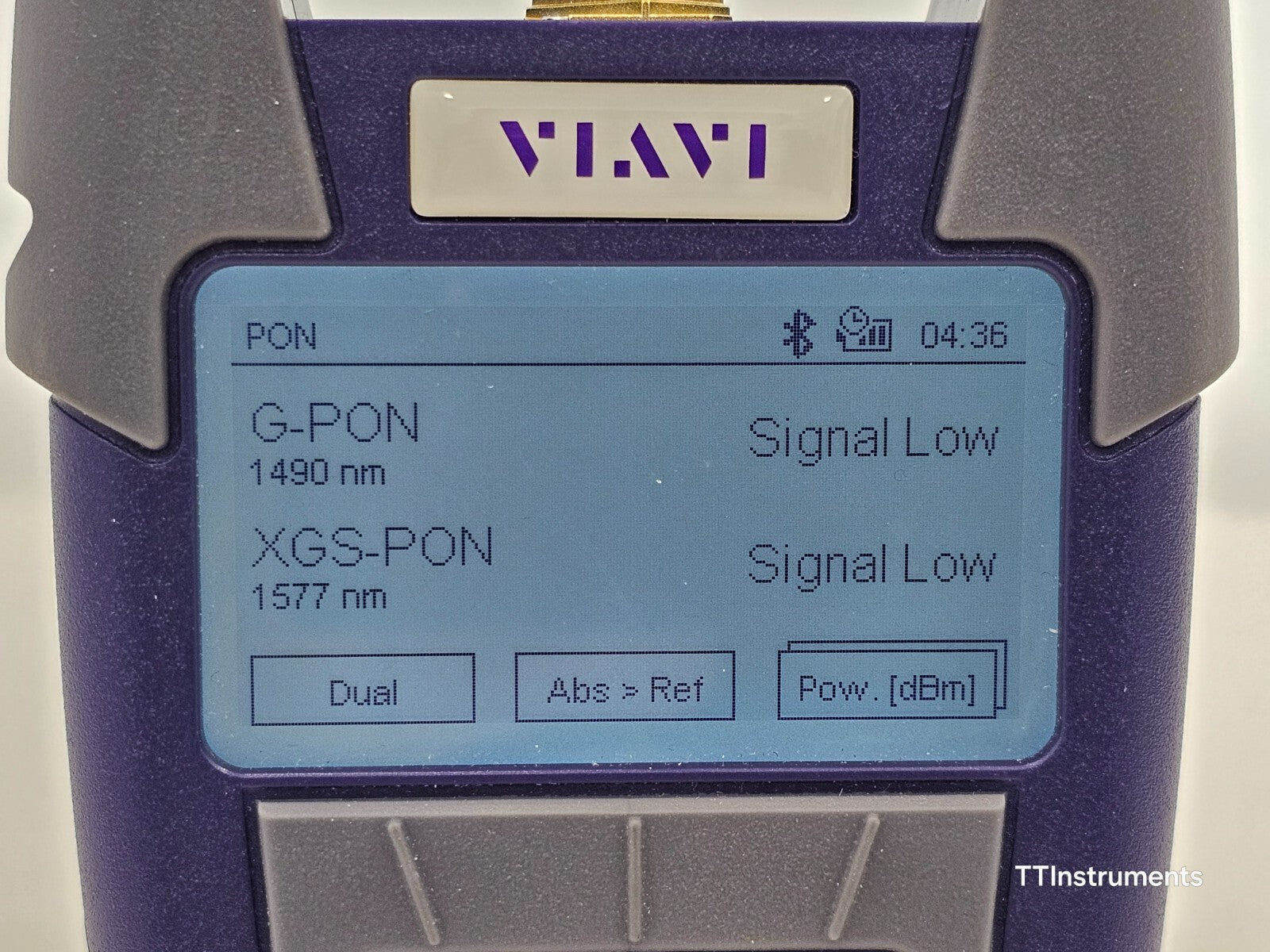

The VIAVI OLP-37XV2 SmartPocket V2 is a wavelength-selective Passive Optical Network (PON) power meter designed for fast, simultaneous measurement of both G/E-PON and XGS-PON/10G-EPON downstream power levels and loss. It is the most compact dual-band PON power meter in its class, built for outdoor field use and suitable for technicians of any skill level. The instrument features an Instant On design with no boot time, a high-visibility backlit graphical display with context-sensitive softkeys, and clear pass/fail result presentation with user-definable thresholds. Bluetooth Low Energy connectivity enables automatic upload of results via the VIAVI Mobile Tech App, and over 1,000 test results can be stored with PC download capability via SmartReporter software.

Manufacturer: VIAVI Solutions
Product Family: SmartPocket V2

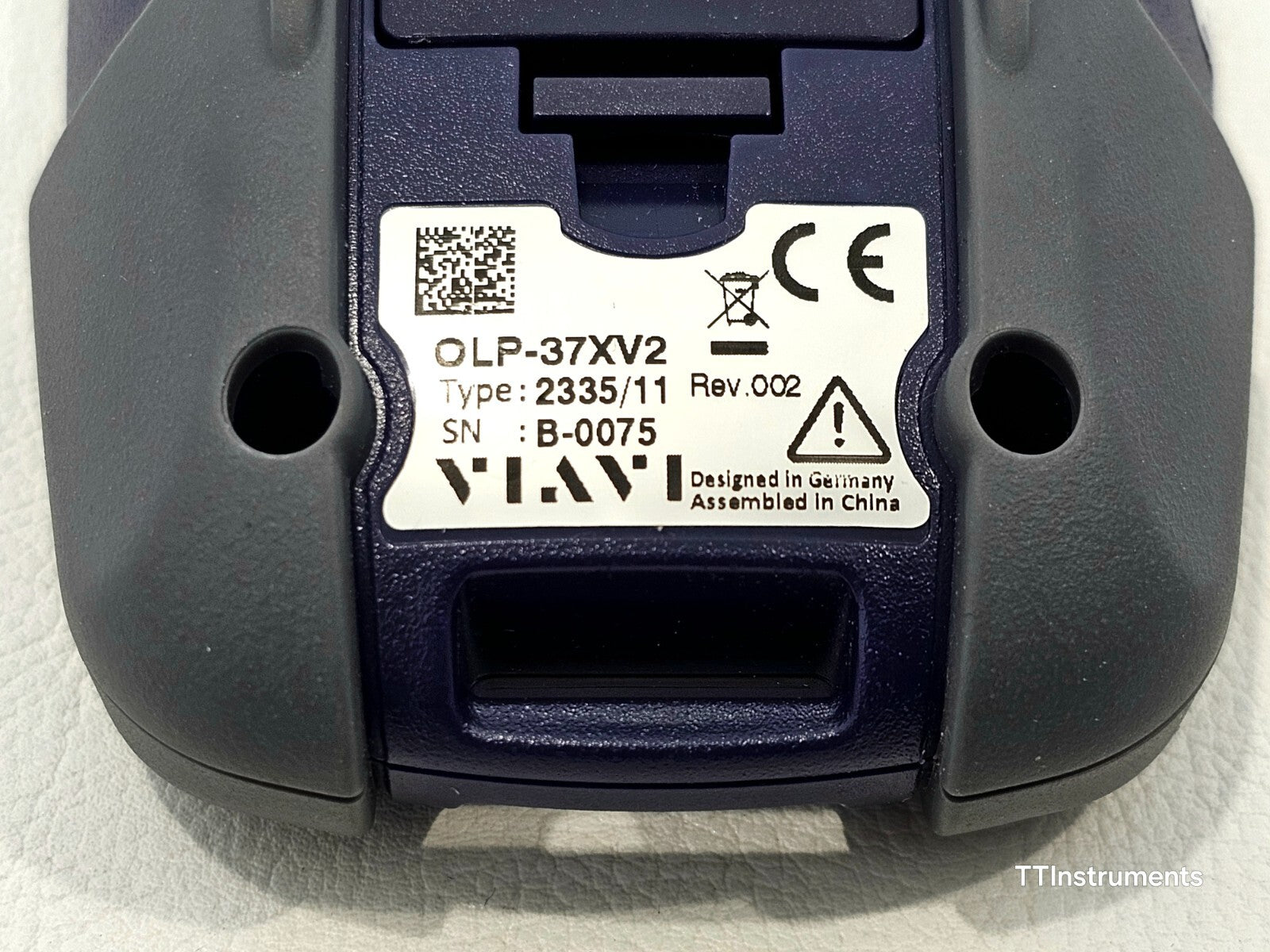

Model: OLP-37XV2
Catalogue Number: 2335/11

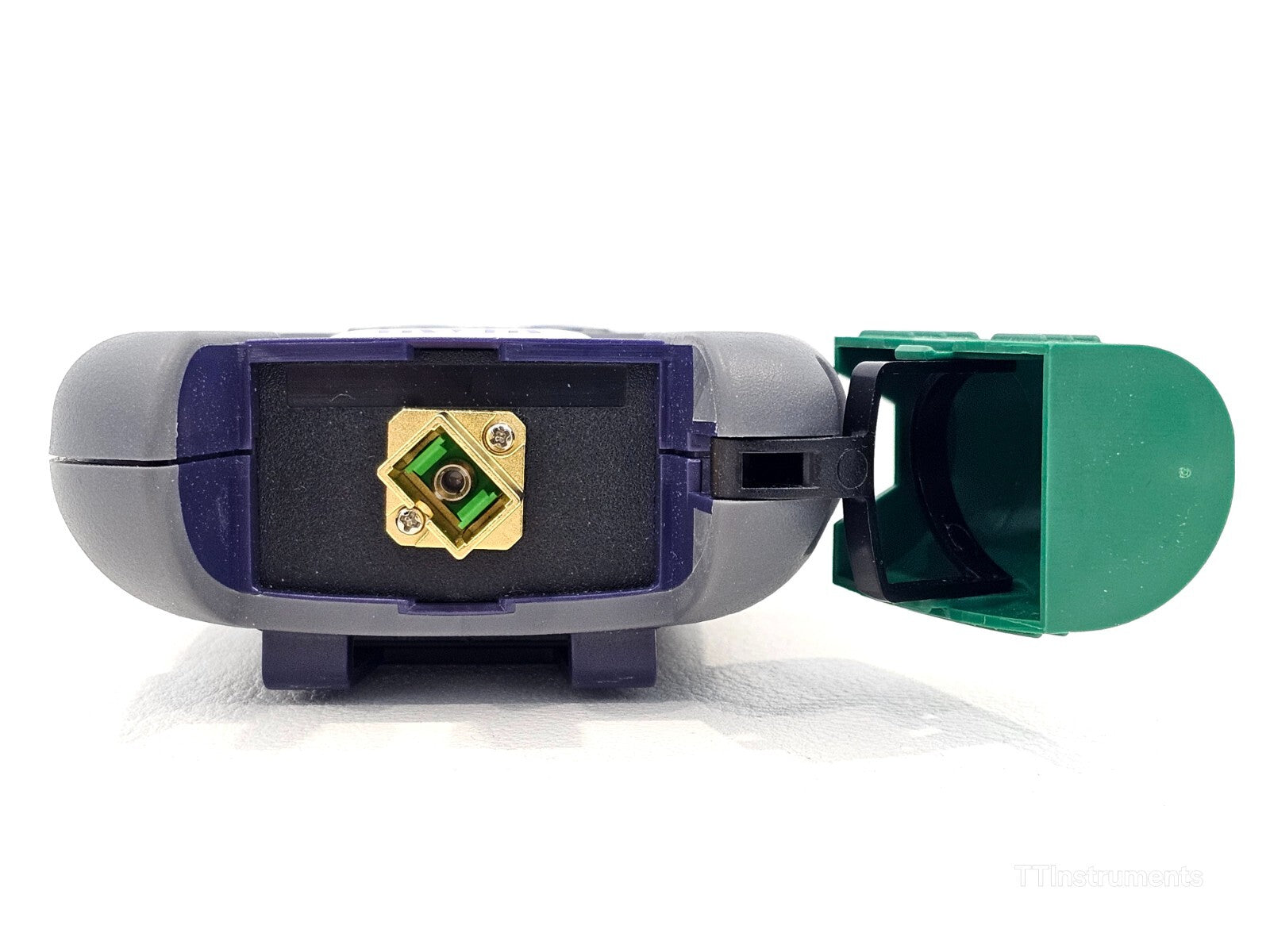

Connector: SC/APC (mounted), FC enclosed
Measurement Wavelengths: 1490 nm (G/E-PON), 1577 nm (XGS-PON/10G-EPON)
Power Measurement Range: -45 to +13 dBm
Measurement Mode: Simultaneous dual-wavelength selective
Tone Detection: 270 Hz, 330 Hz, 1 kHz, 2 kHz
Test Result Storage: >1,000 results with PC download
Connectivity: Bluetooth Low Energy (VIAVI Mobile Tech App)

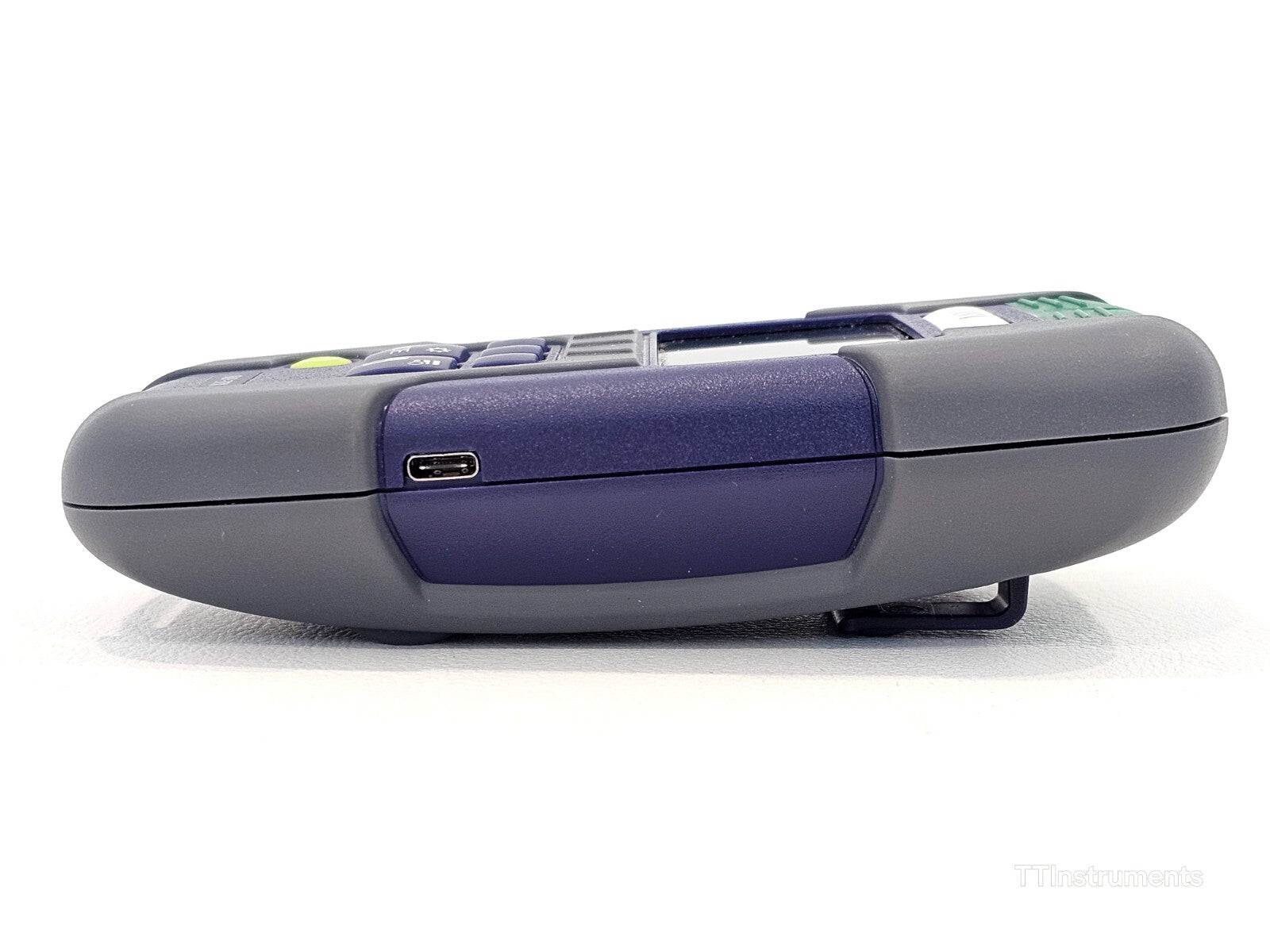

Power Supply: 4-way — 2x Alkaline AA, 2x NiMH AA rechargeable, AC power adapter, USB
Battery Life: Up to 45 hours continuous (with alkaline AA batteries)
Recommended Calibration Interval: 3 years
Operating Temperature: -10 to +55°C (14 to 131°F)
Storage Temperature: -20 to +70°C (-4 to +158°F)
Dimensions (H x W x D): 30 x 80 x 150 mm (1.2 x 3.1 x 5.9 in)
Weight: 200 g (0.45 lb)
EMC/Safety: CE compliant

Typical Applications:
- Measuring optical power levels and link loss for G/E-PON and XGS-PON/10G-EPON services
- Multi-service PON deployment, installation and troubleshooting
- Network build and maintenance for Enterprise/LAN
- FTTA (fibre to the antenna) for 5G networks
- FTTH (fibre to the home) deployment and verification

VIAVI SmartPocket V2 OLP-37XV2 Selective PON Power Meter — User Manual (PDF): Download PDF

VIAVI SmartPocket V2 Family Datasheet — Full Specifications for OLP and OLS Models (PDF): Download PDF

VIAVI SmartPocket V2 OLP-37XV2 Selective PON Power Meter — Product Brochure (PDF): Download PDF

VIAVI OLP-37XV2 Product Datasheet via Normann Engineering (PDF): Download PDF

VIAVI SmartPocket V2 Family Datasheet via Telecom SAMM (PDF): Download PDF
