Condition: Refurbished

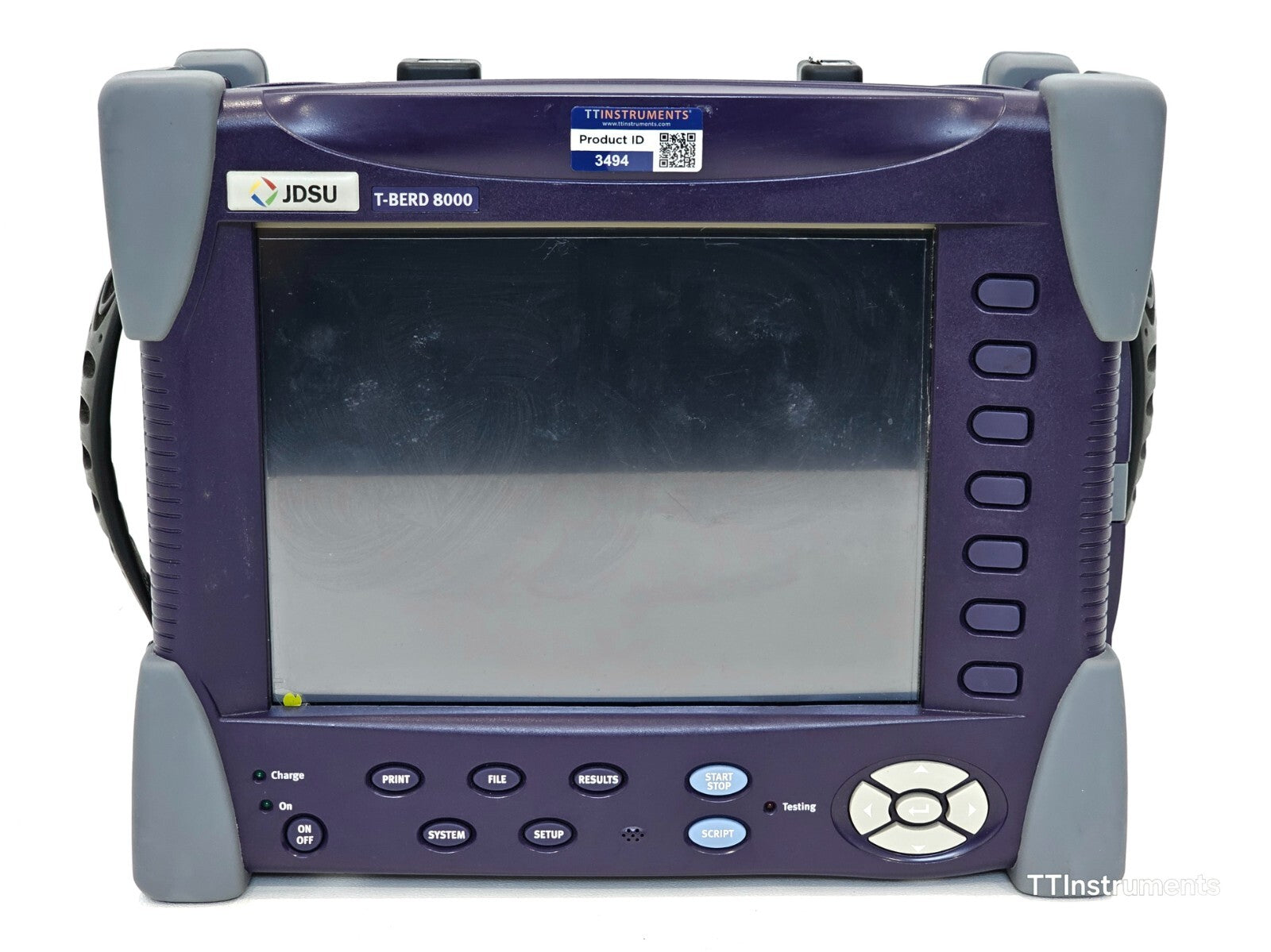

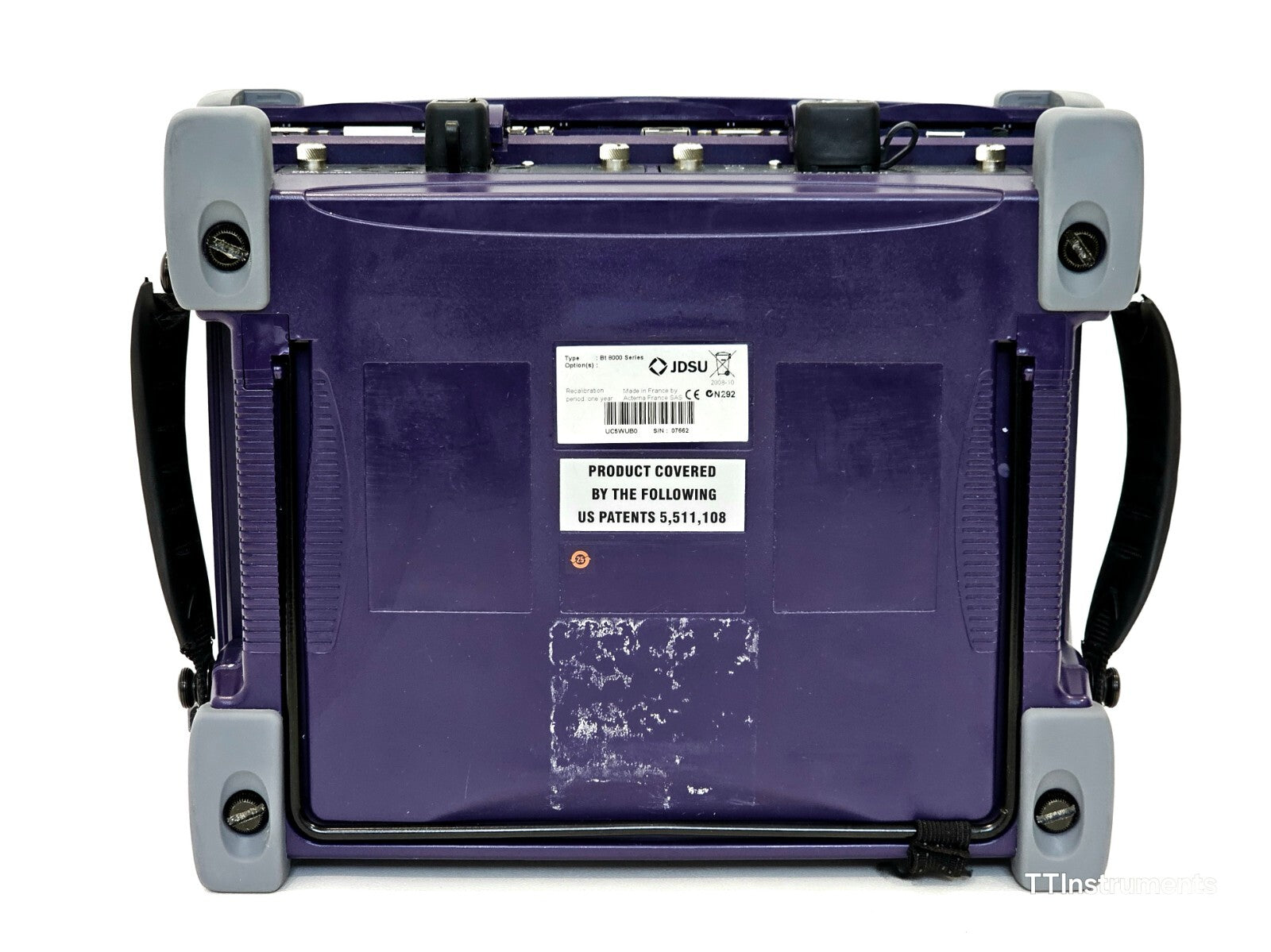

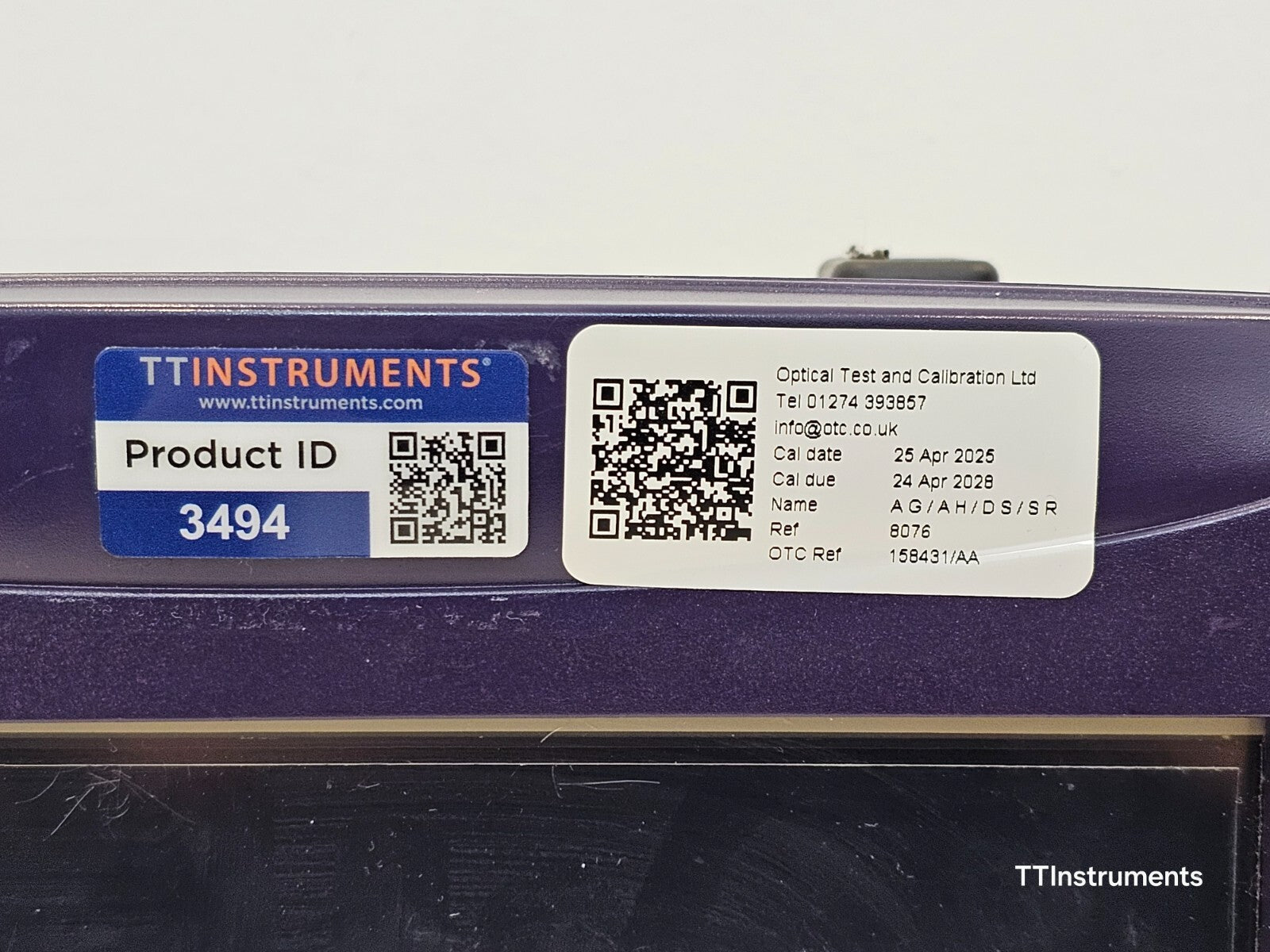

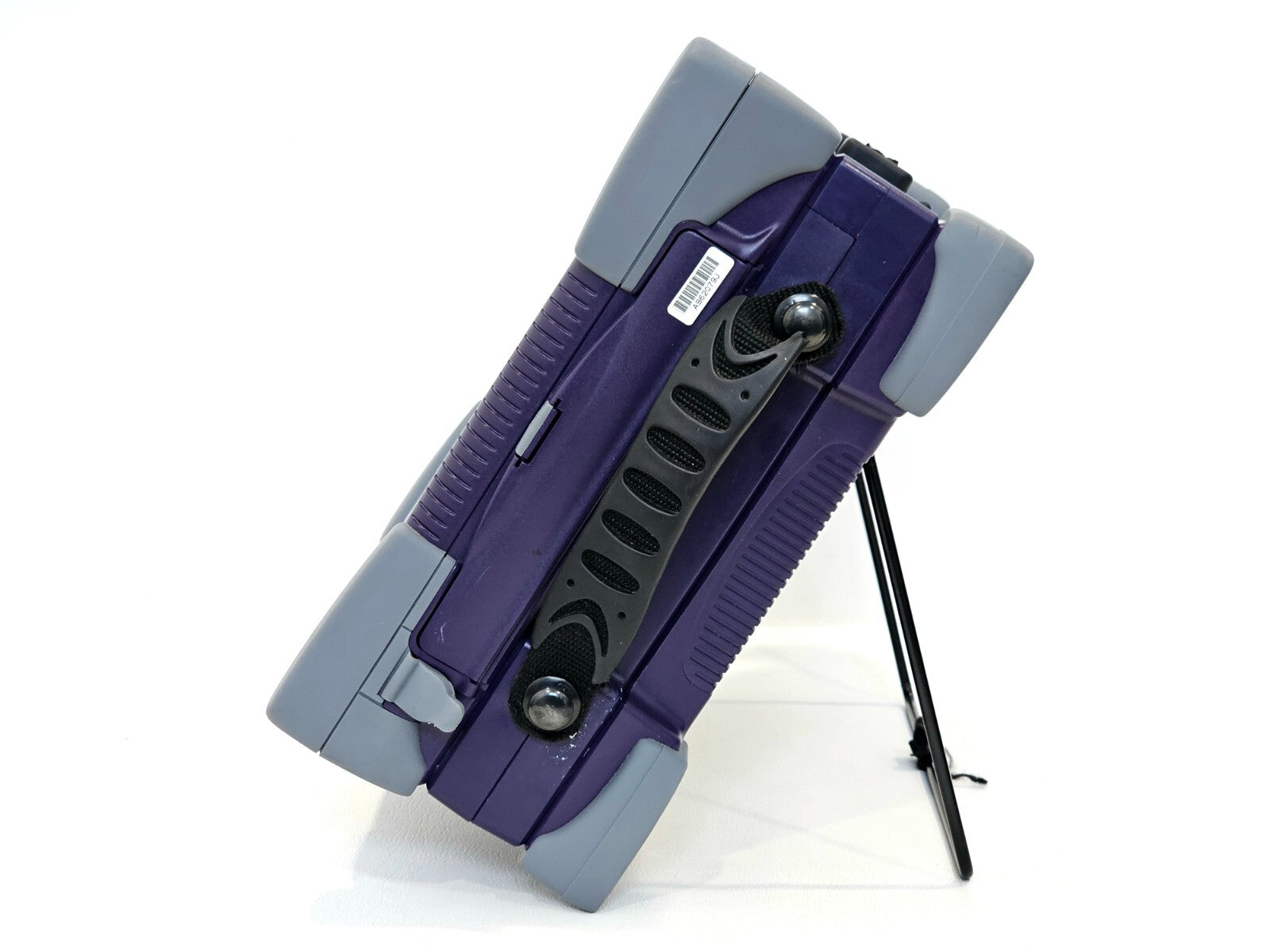

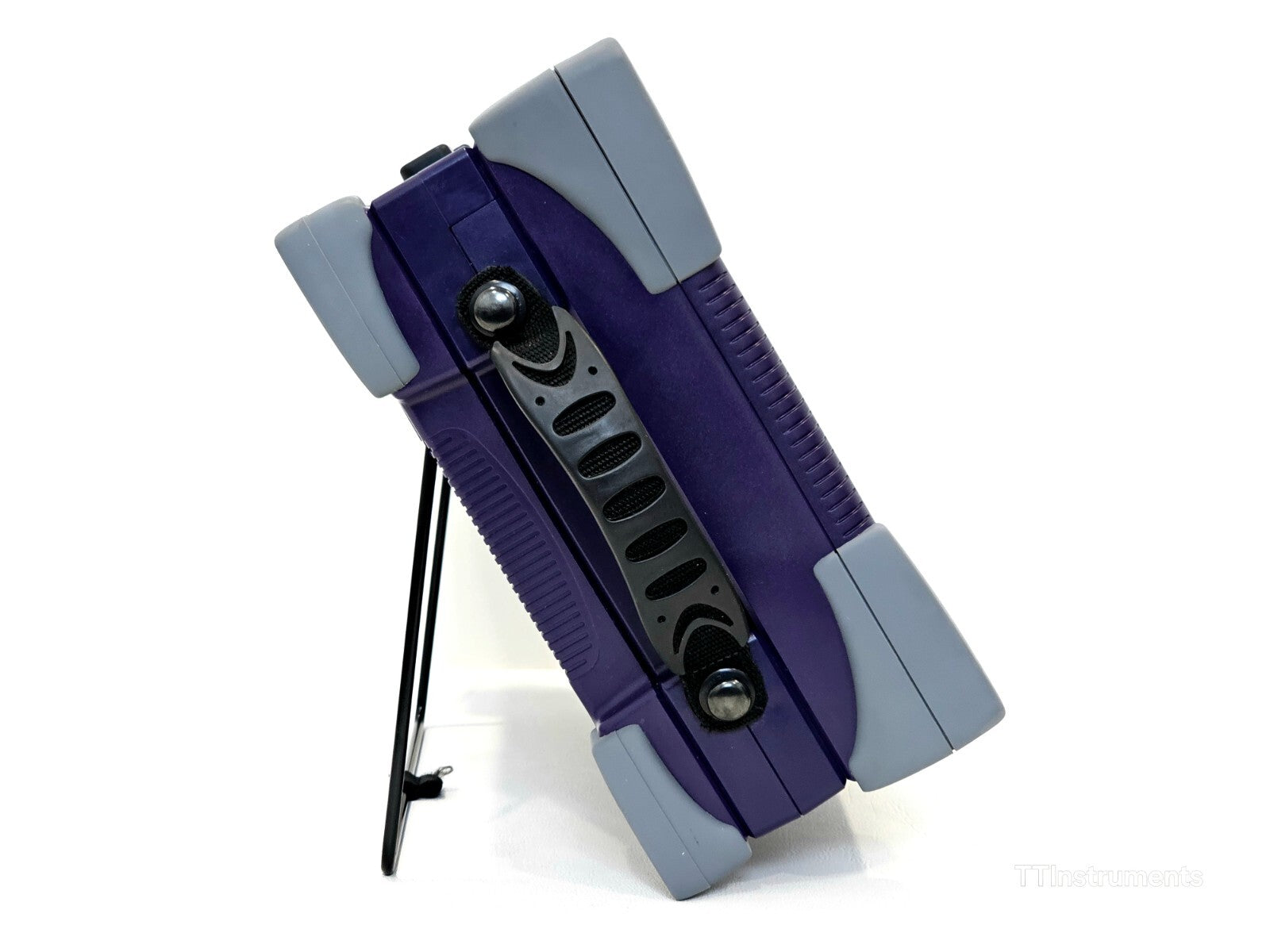

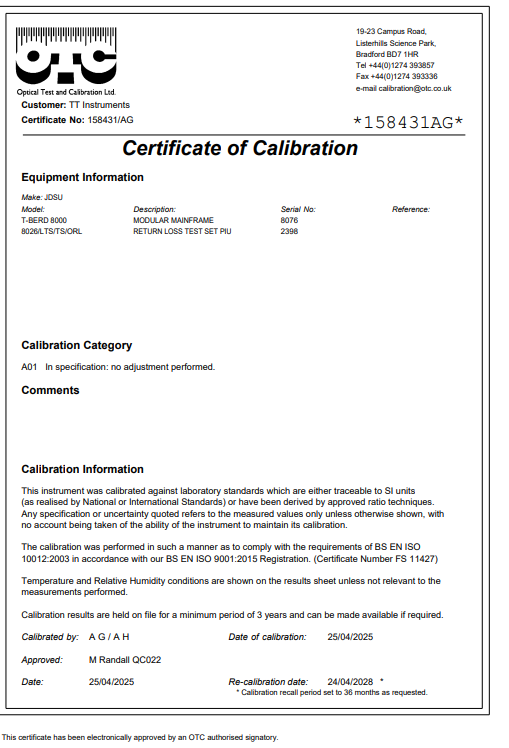

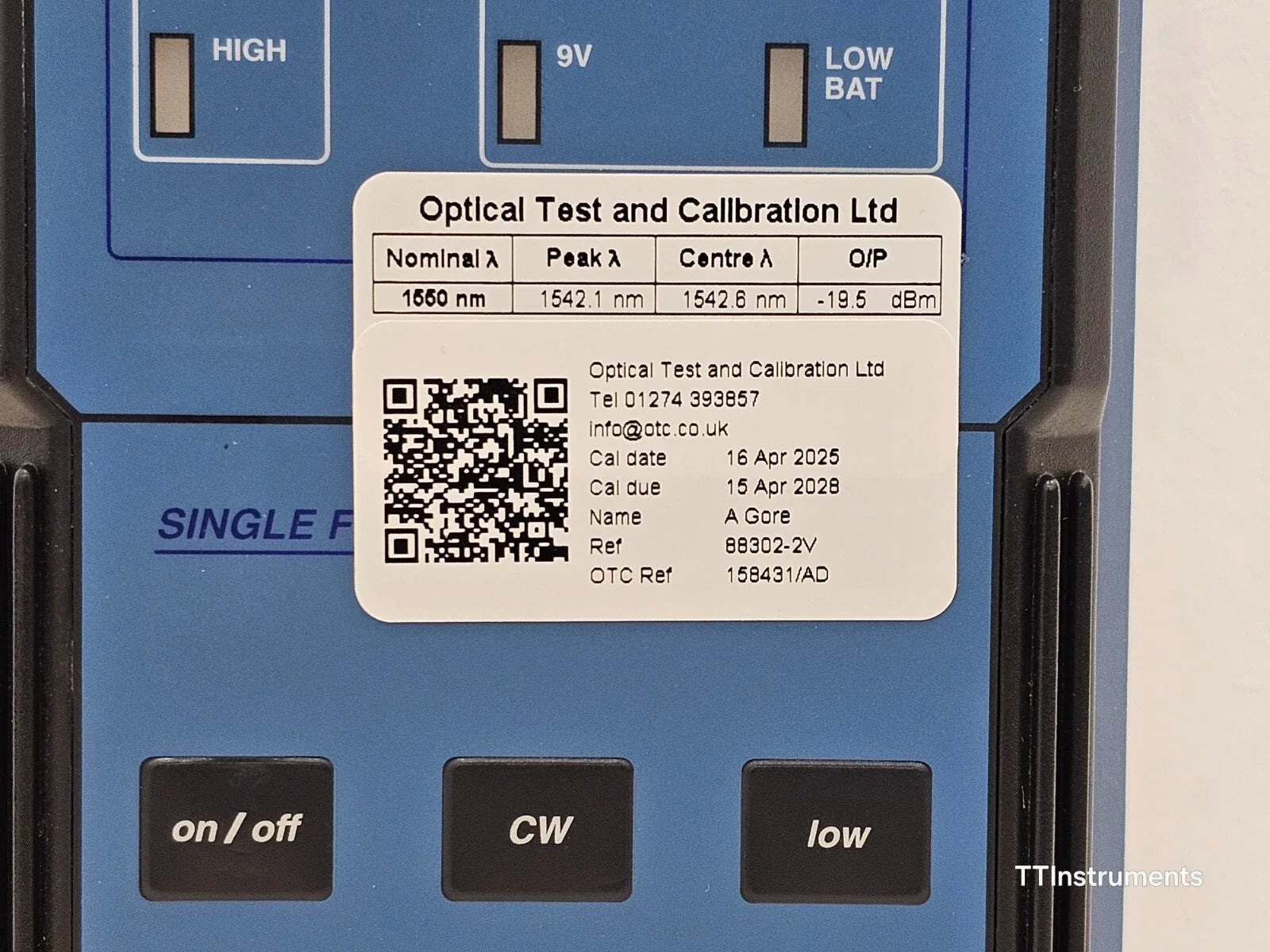

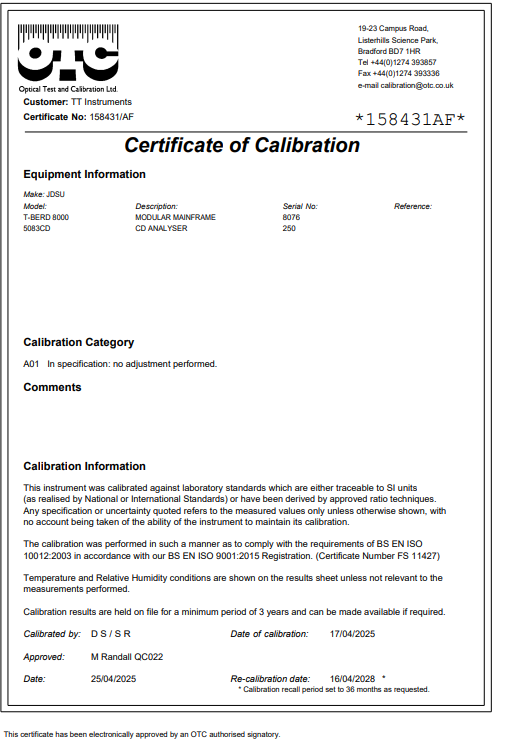

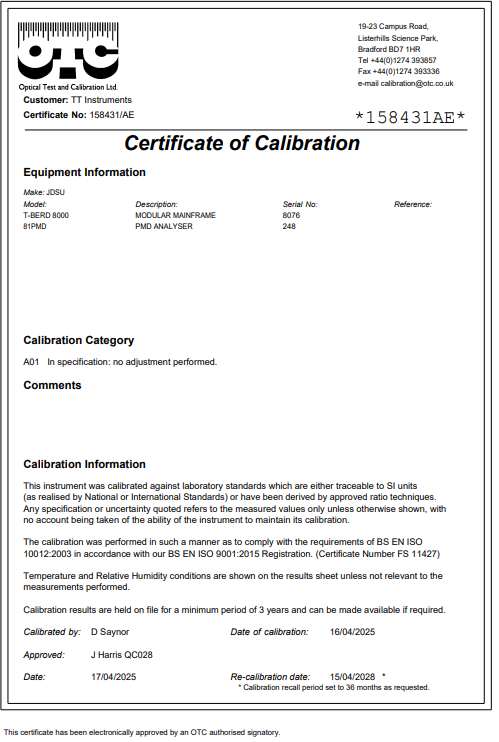

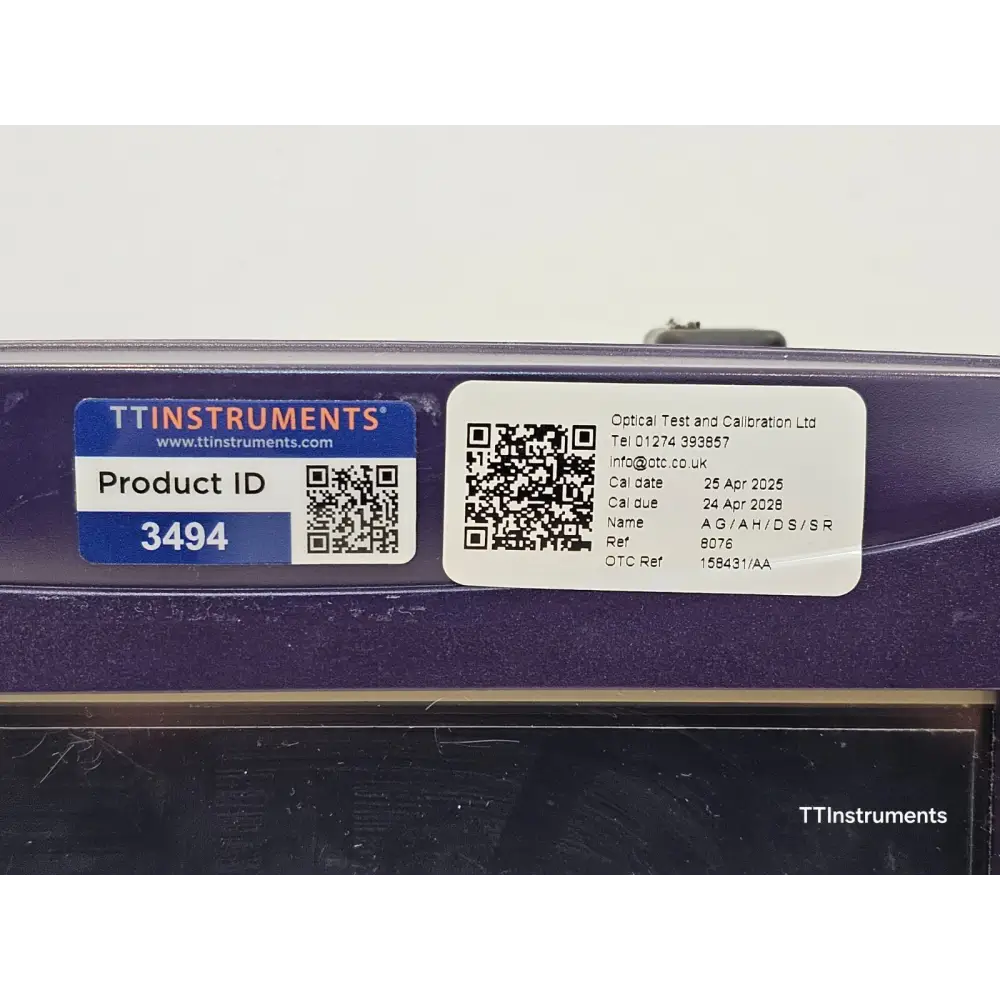

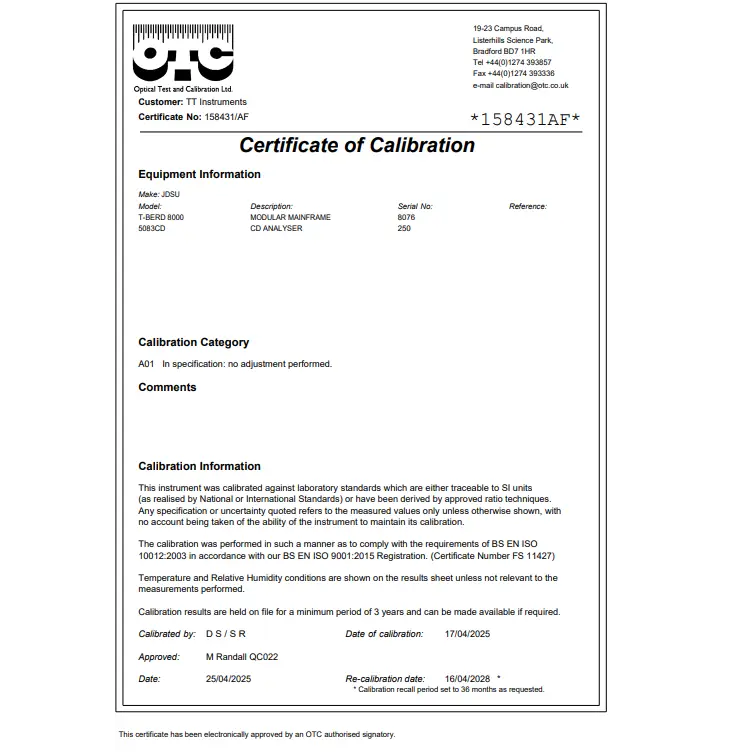

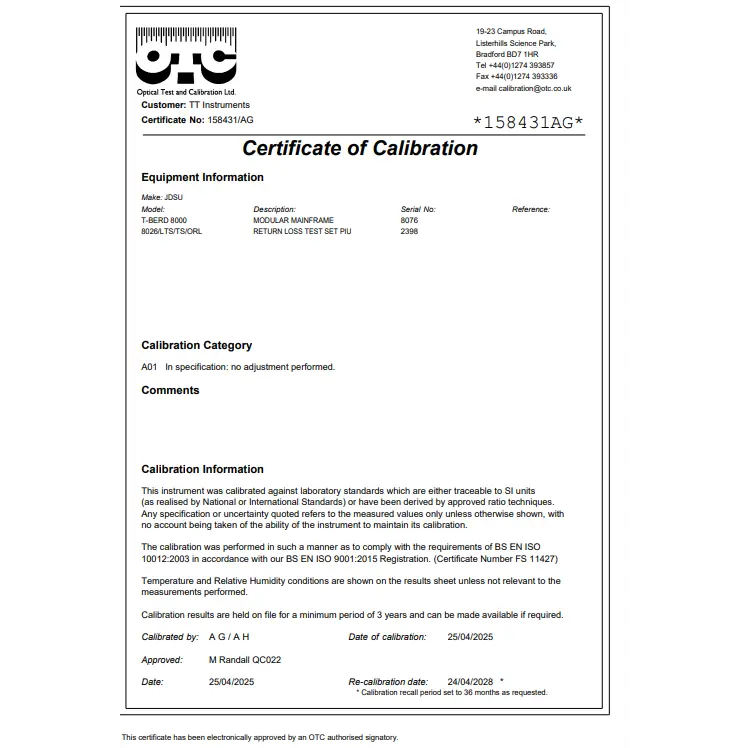

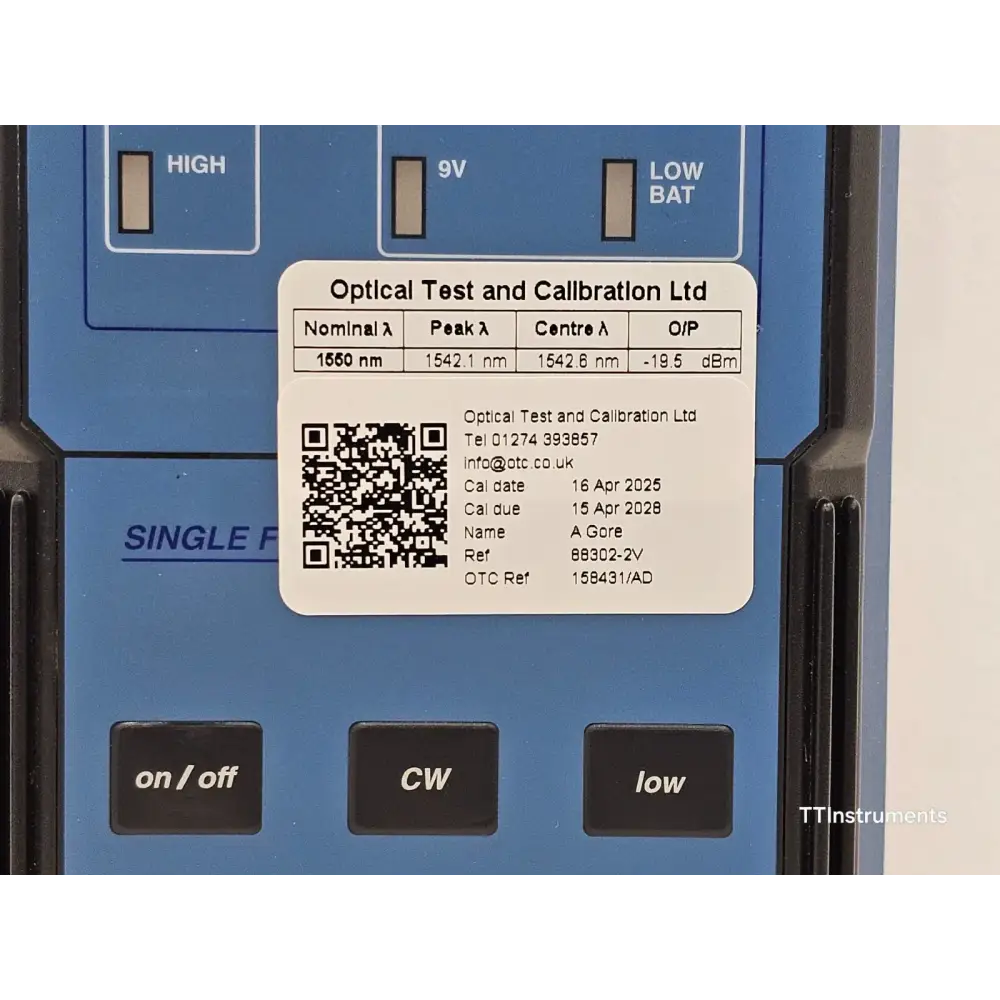

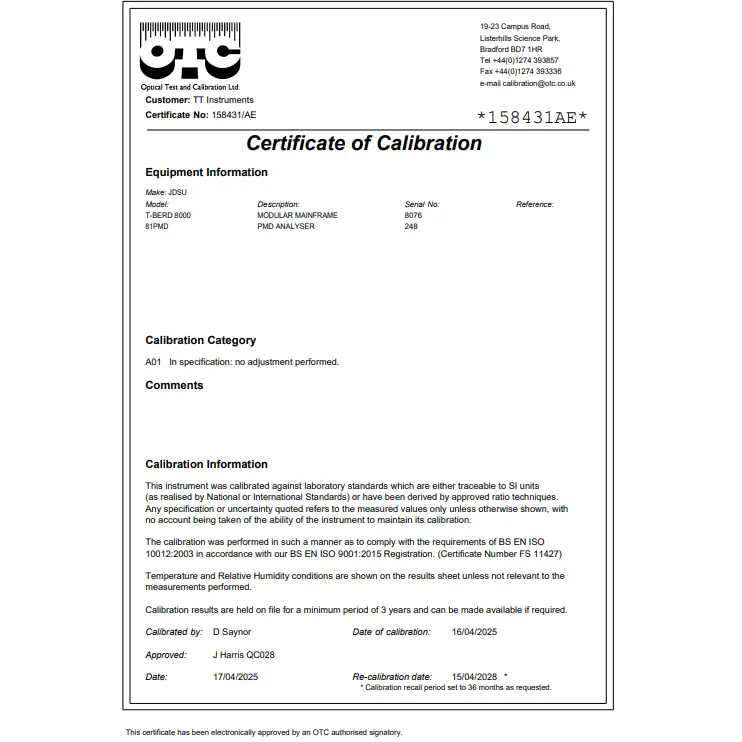

This Viavi JDSU T-BERD 8000 is a professionally refurbished and calibrated fibre characterisation system, calibrated in April 2025 at a cost of £2,000, and presented in excellent working condition. It combines OTDR, chromatic dispersion, and PMD measurement capabilities in a single modular platform, making it a comprehensive solution for metro and long-haul fibre network testing.

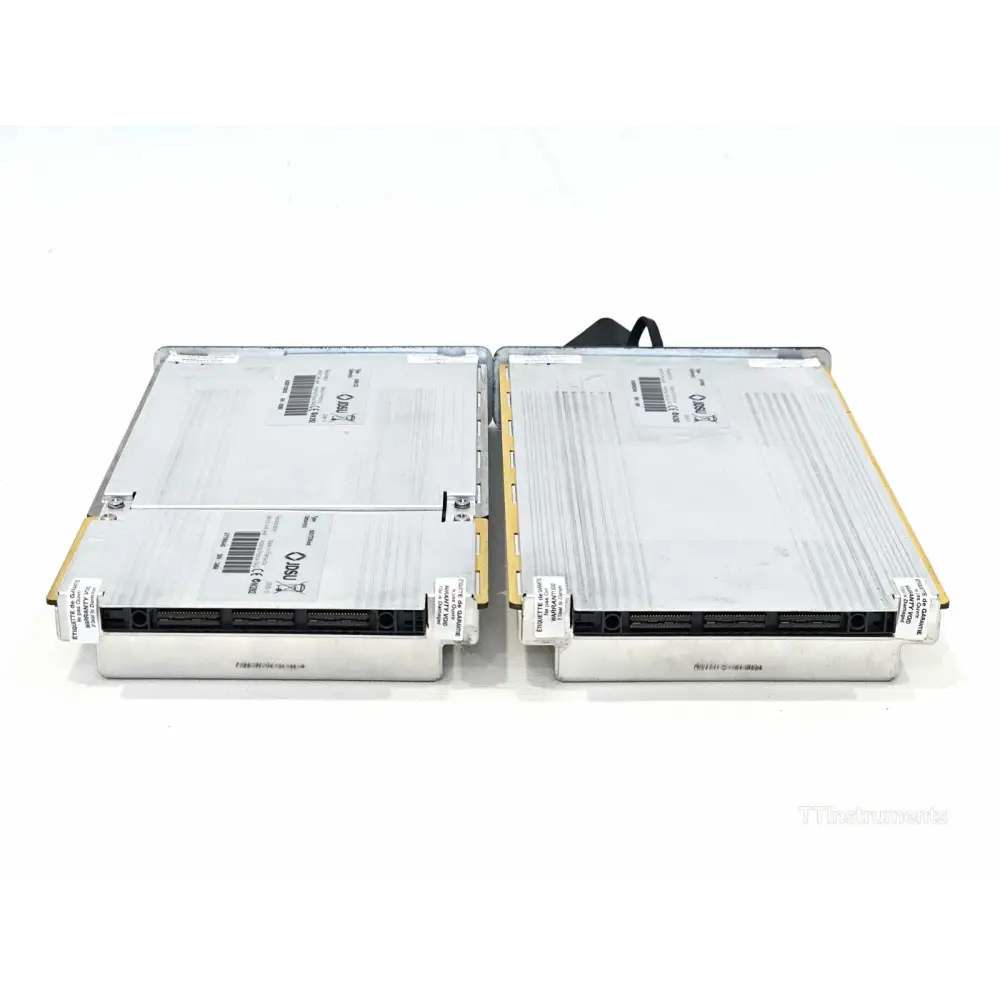

Included in the sale:

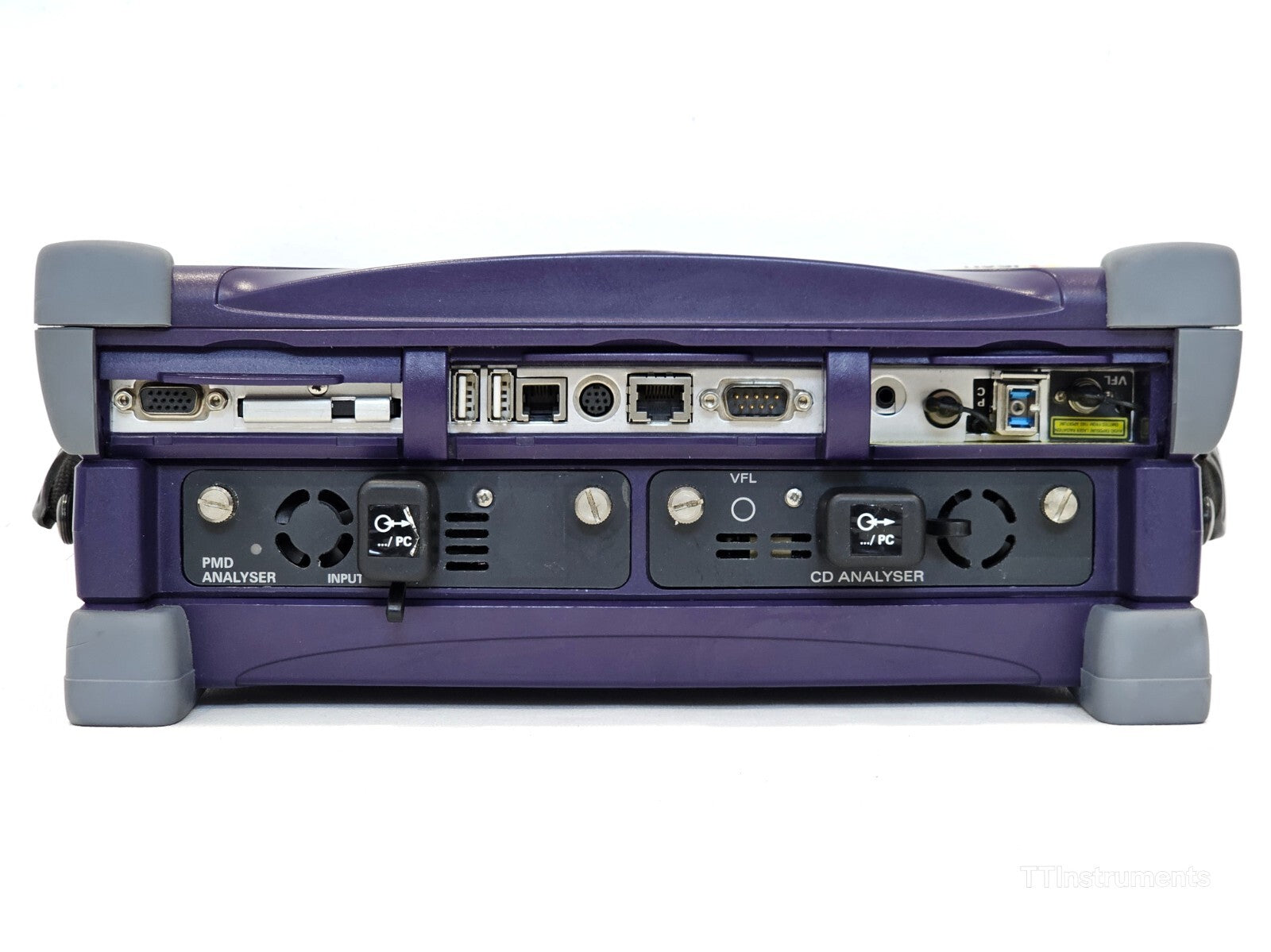

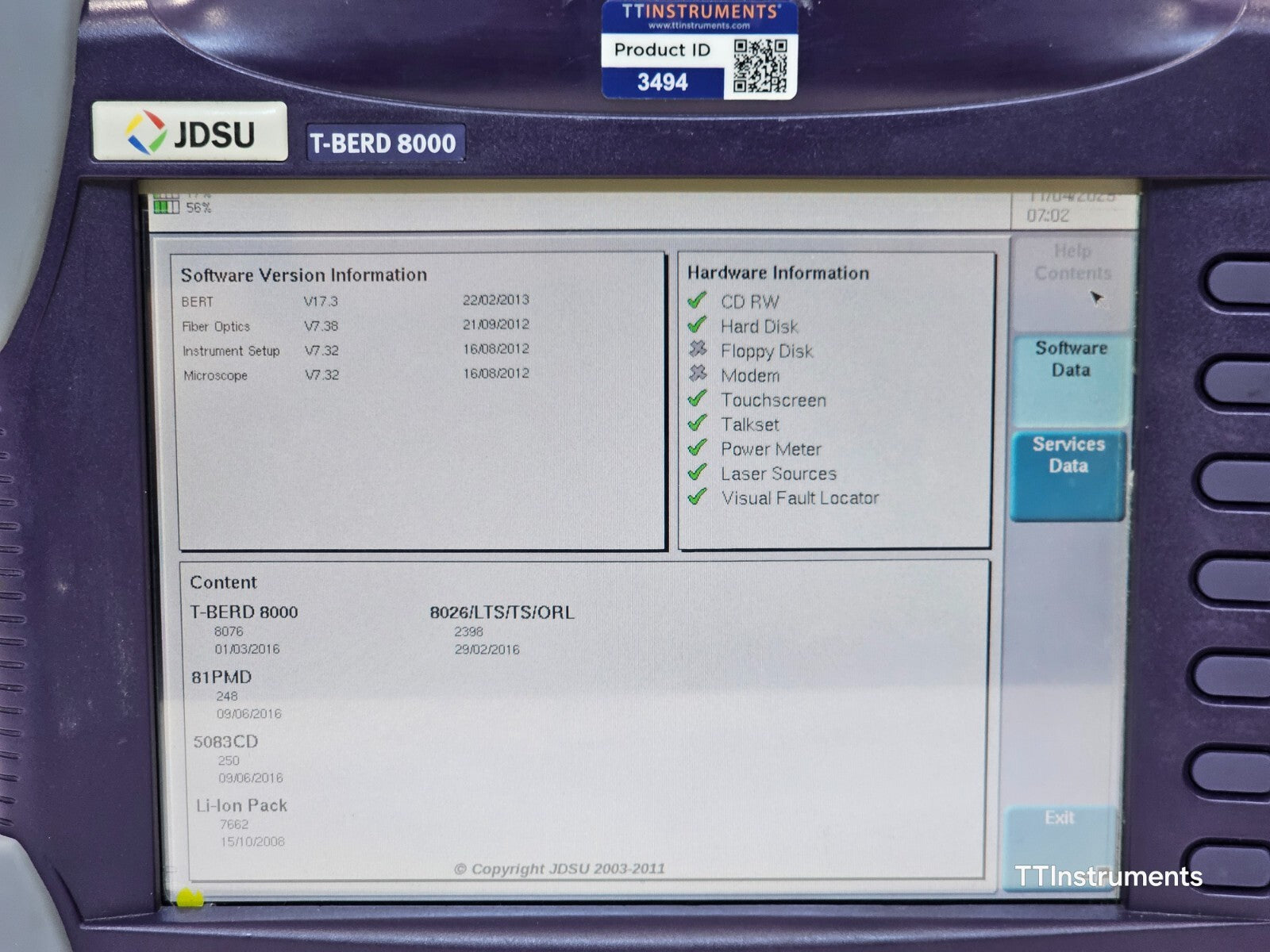

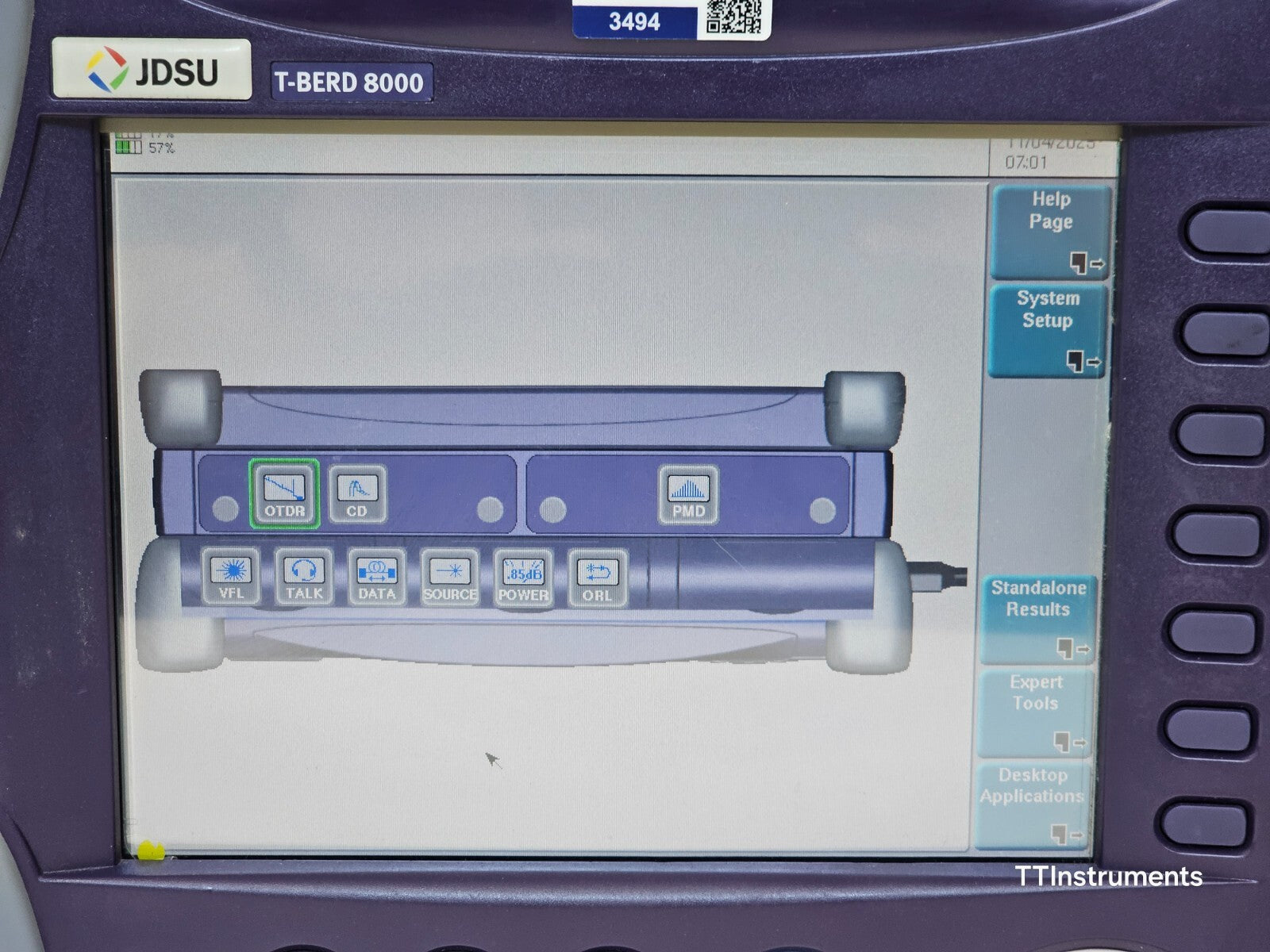

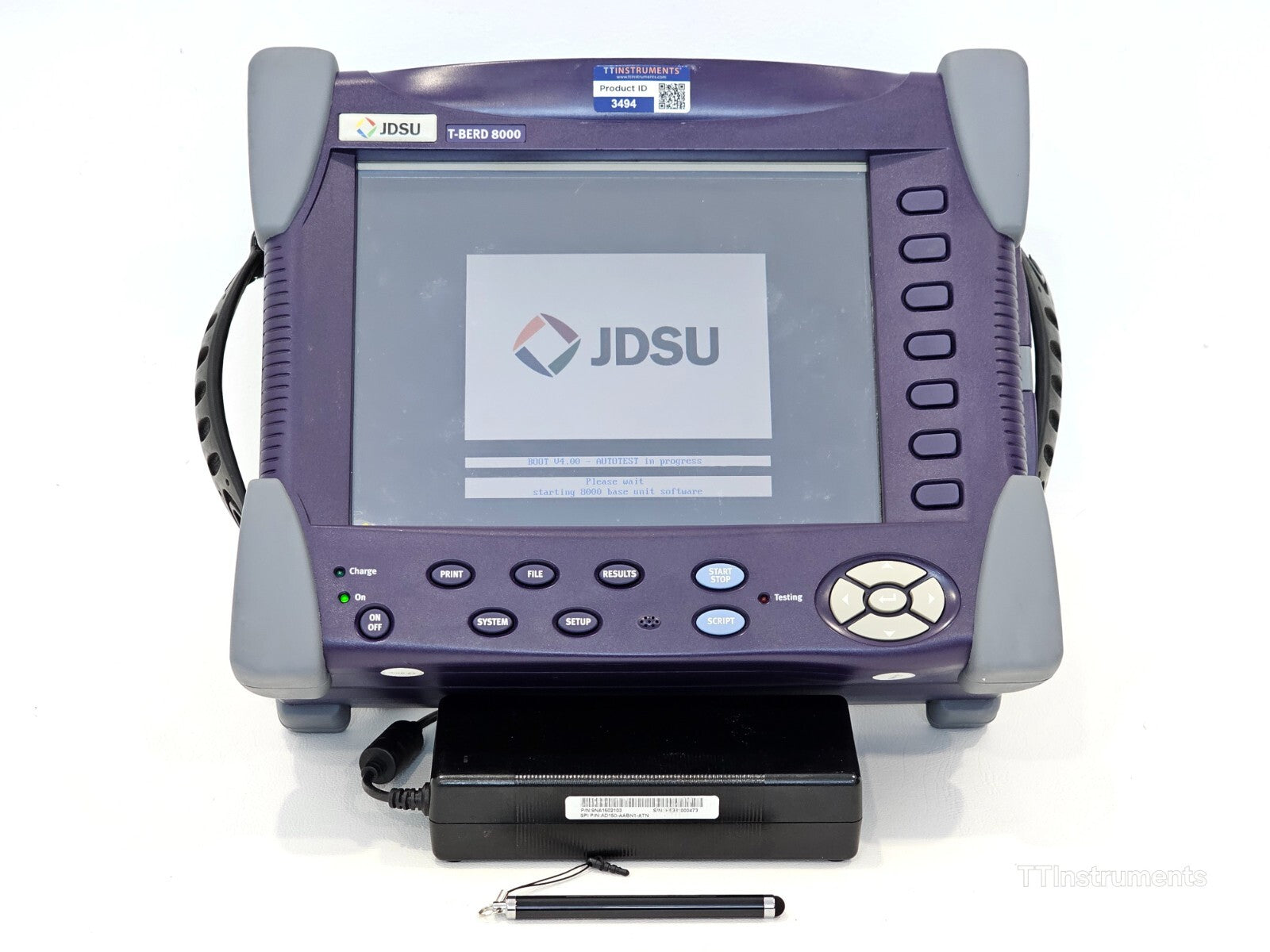

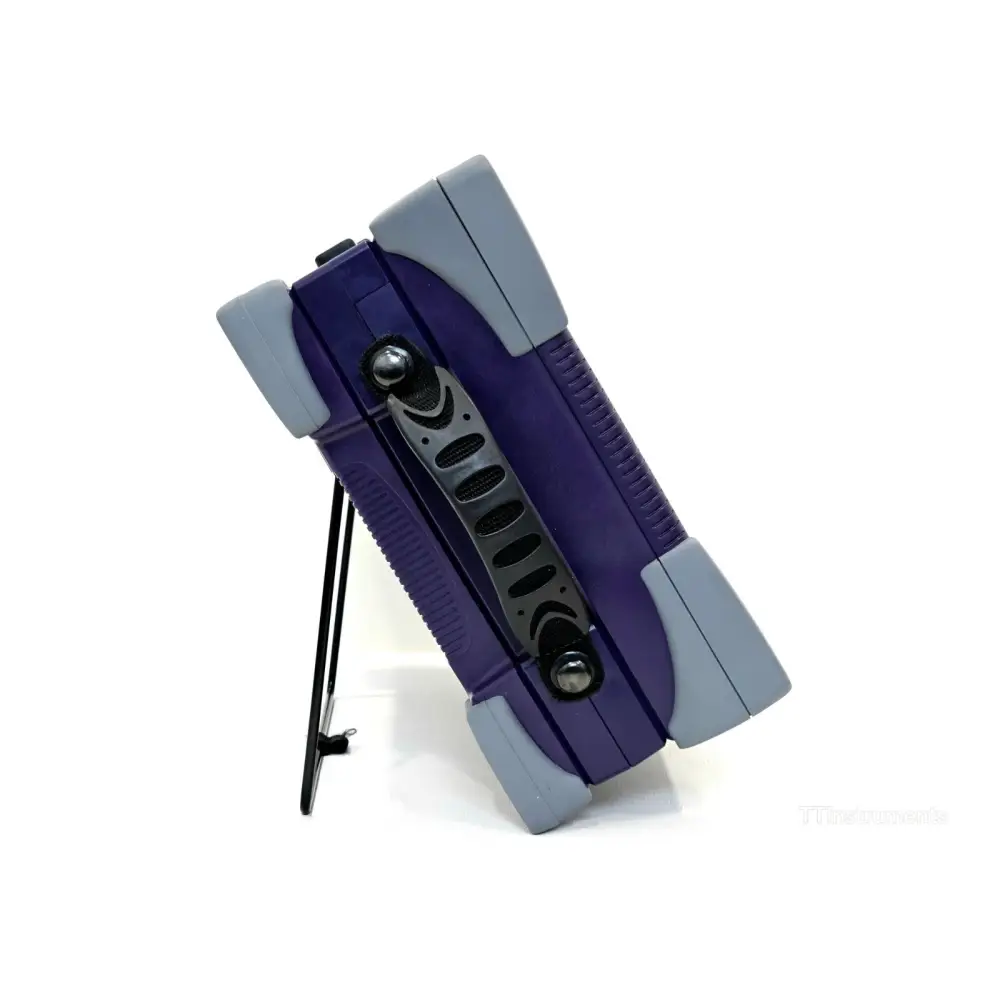

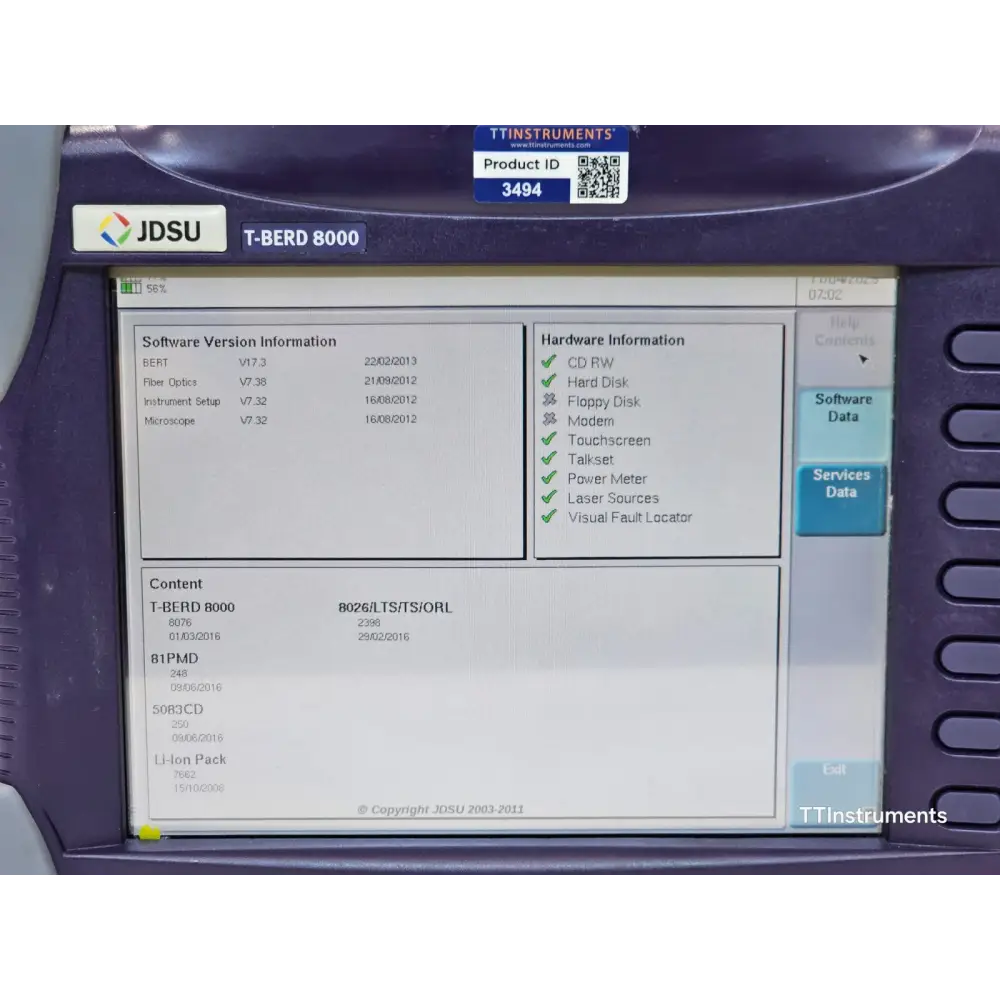

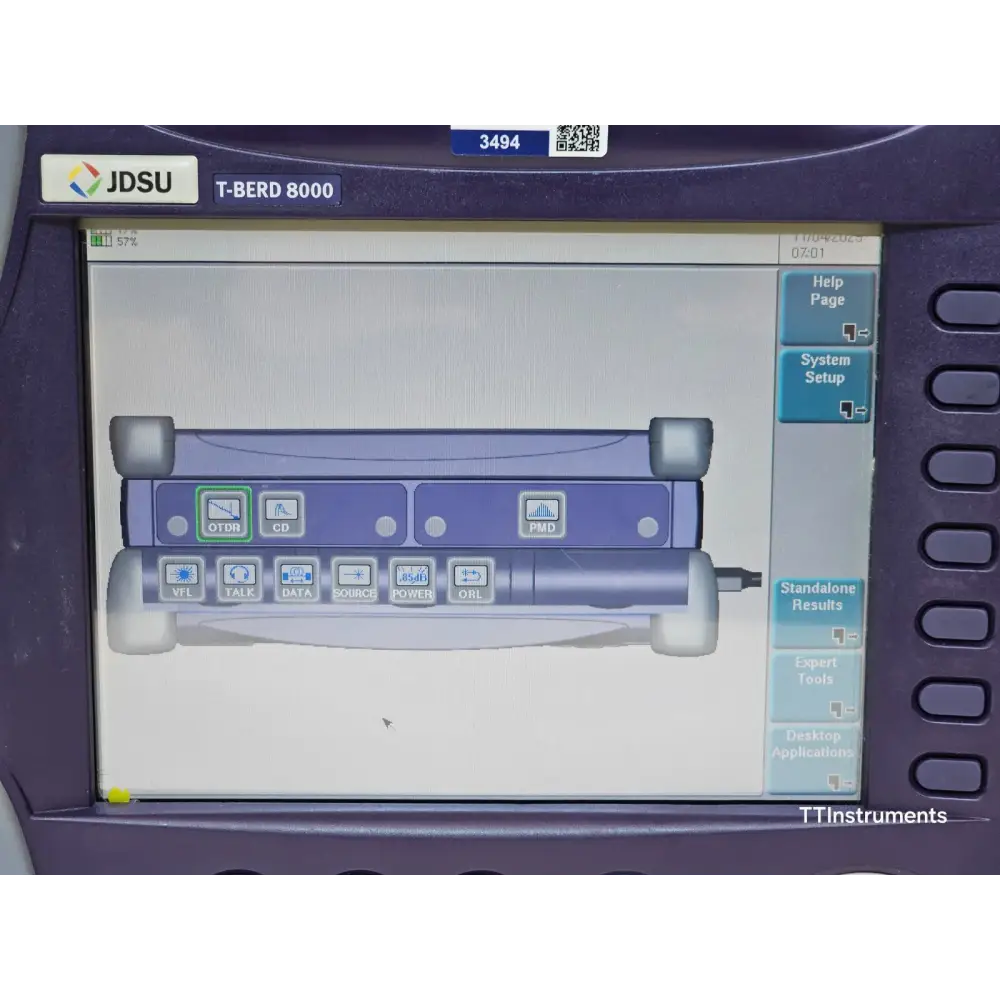

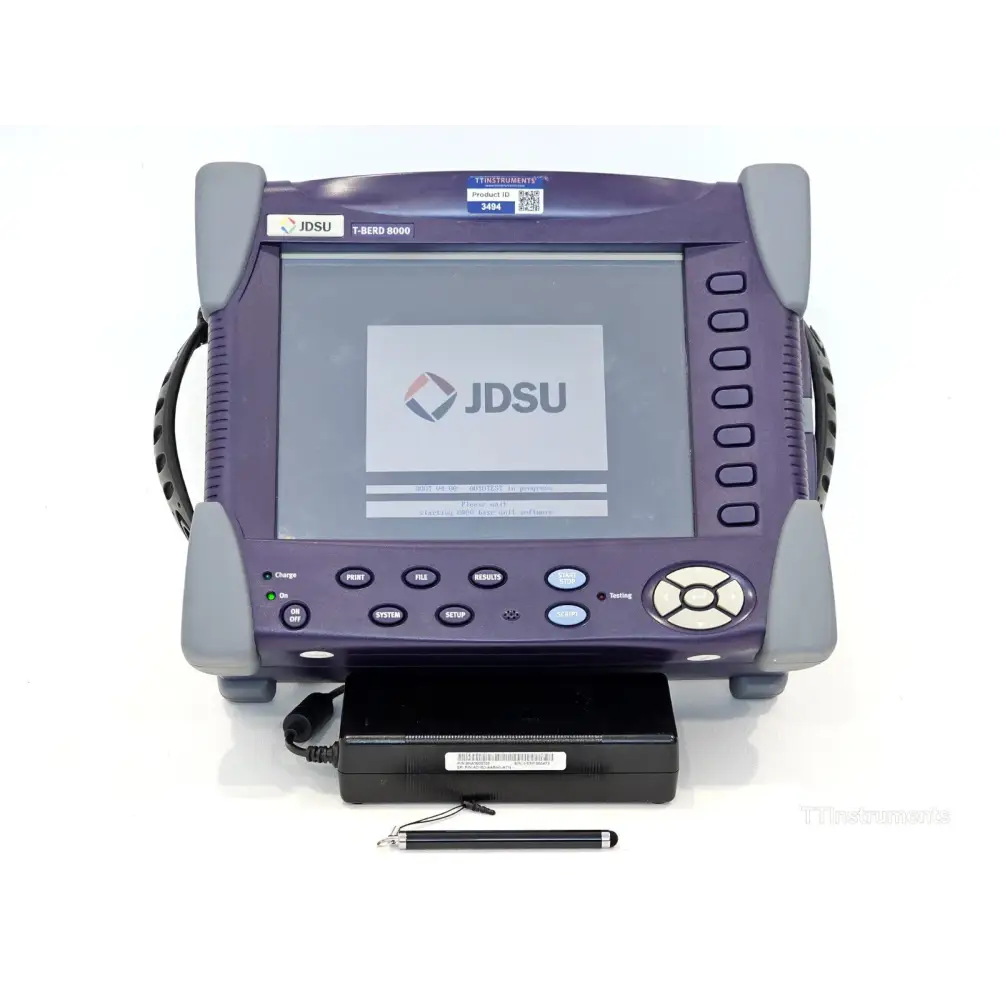

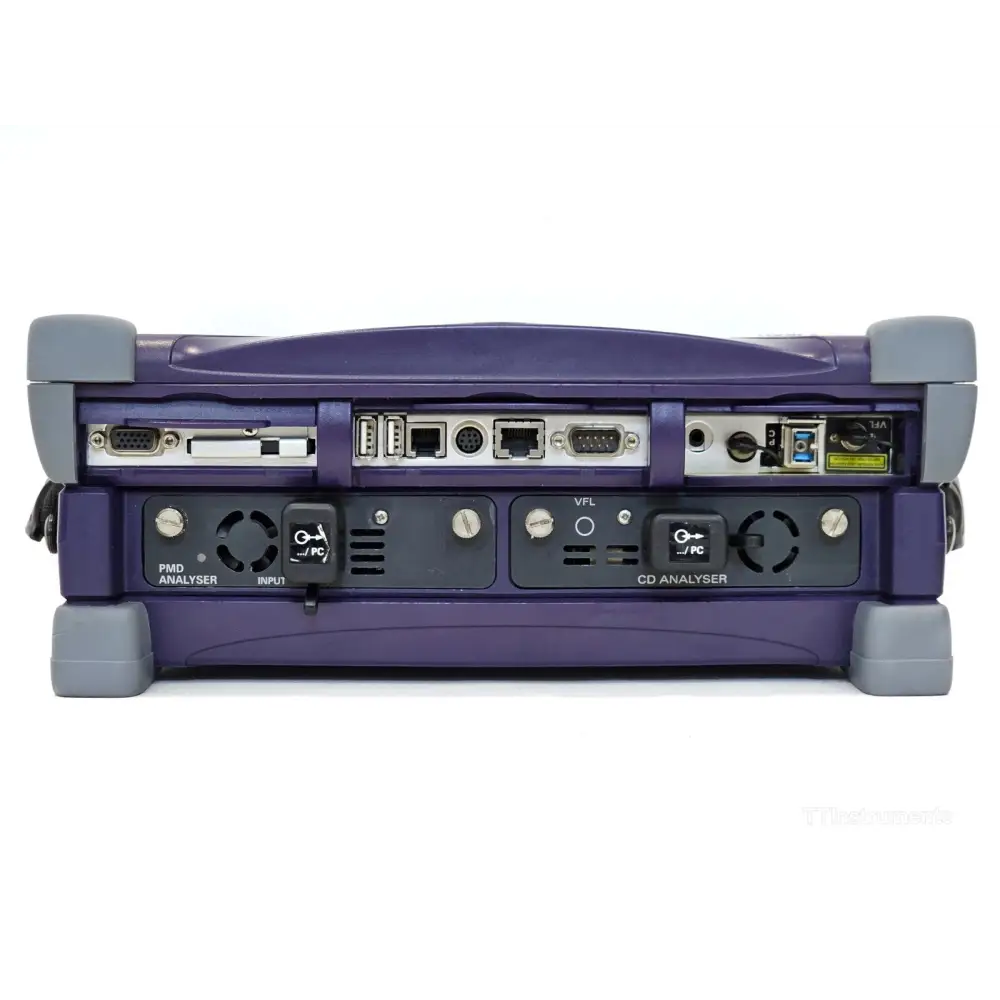

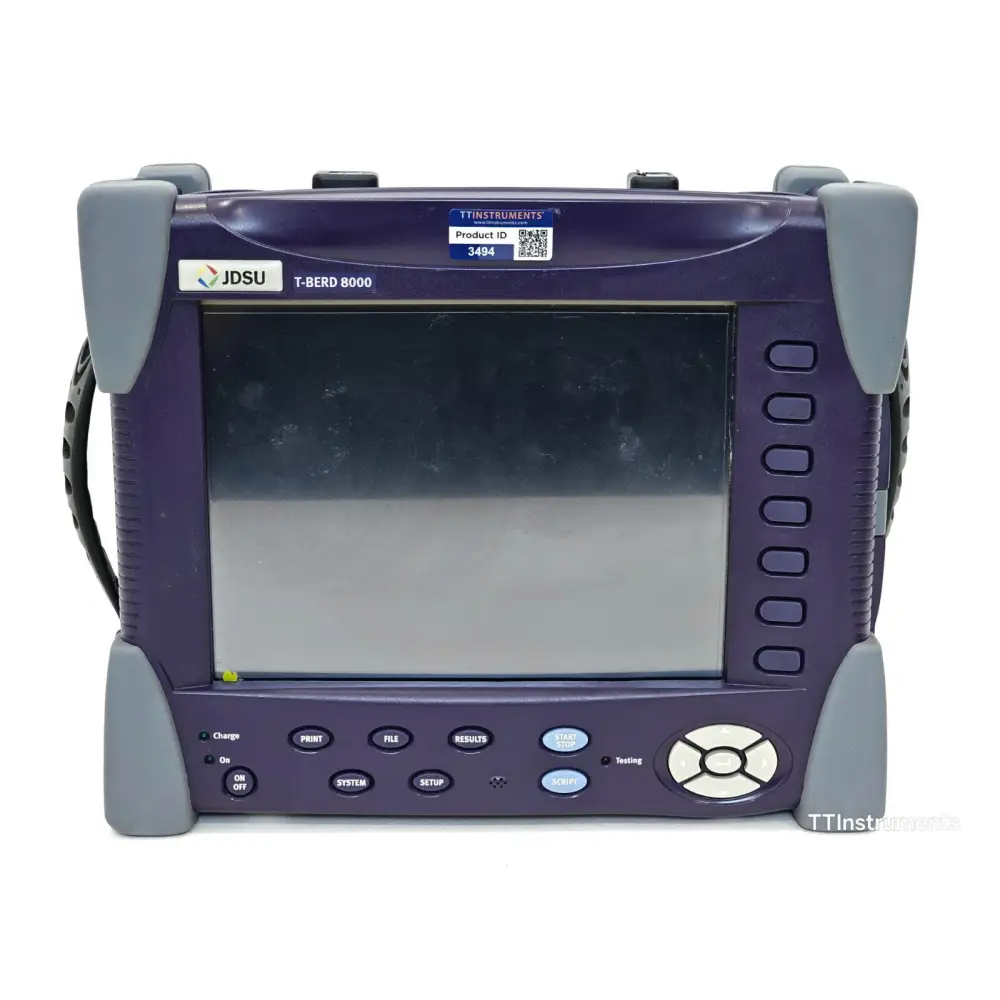

• T-BERD 8000 Mainframe with built-in talkset, VFL, data port, optical source, power meter, and ORL

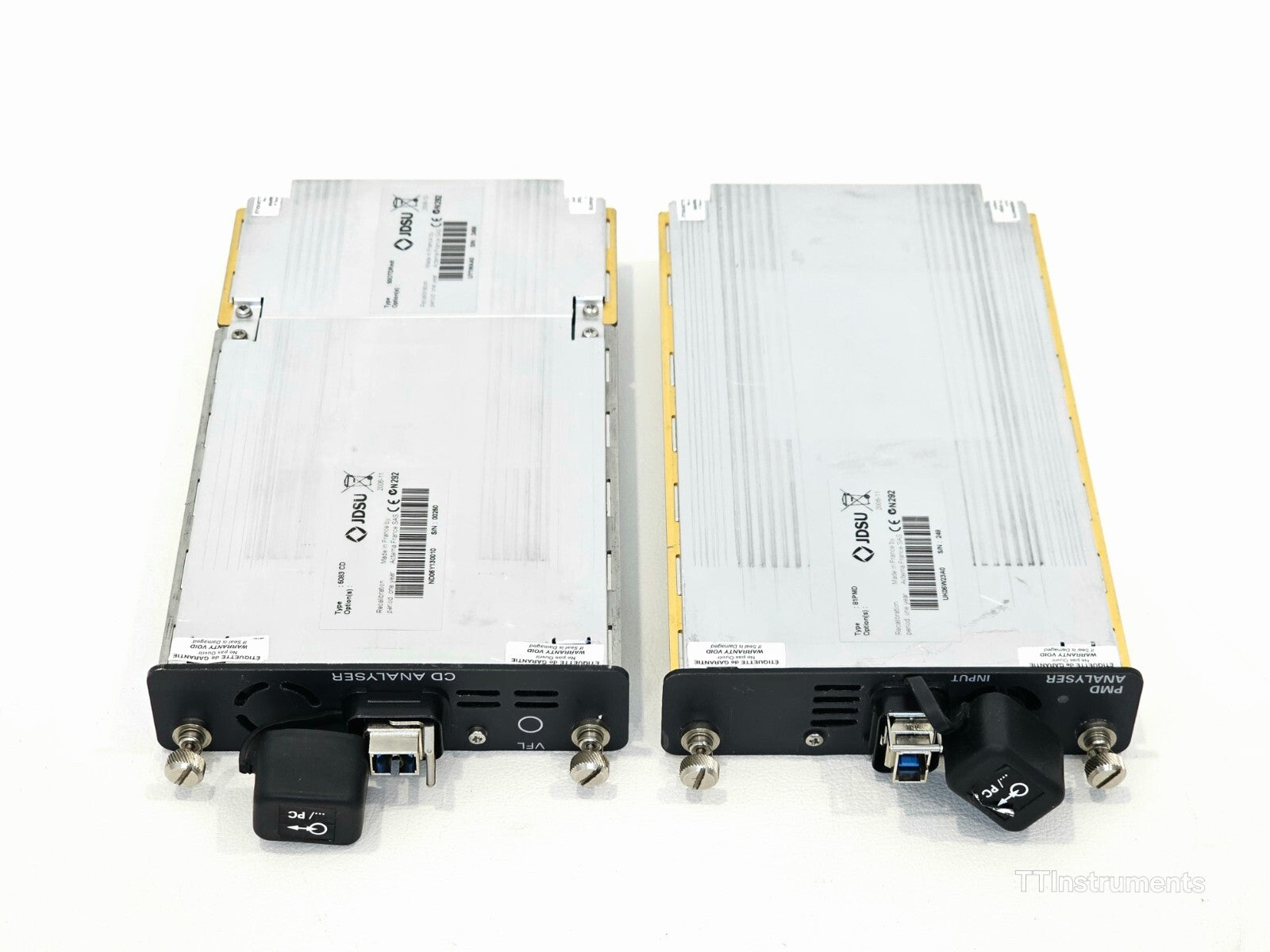

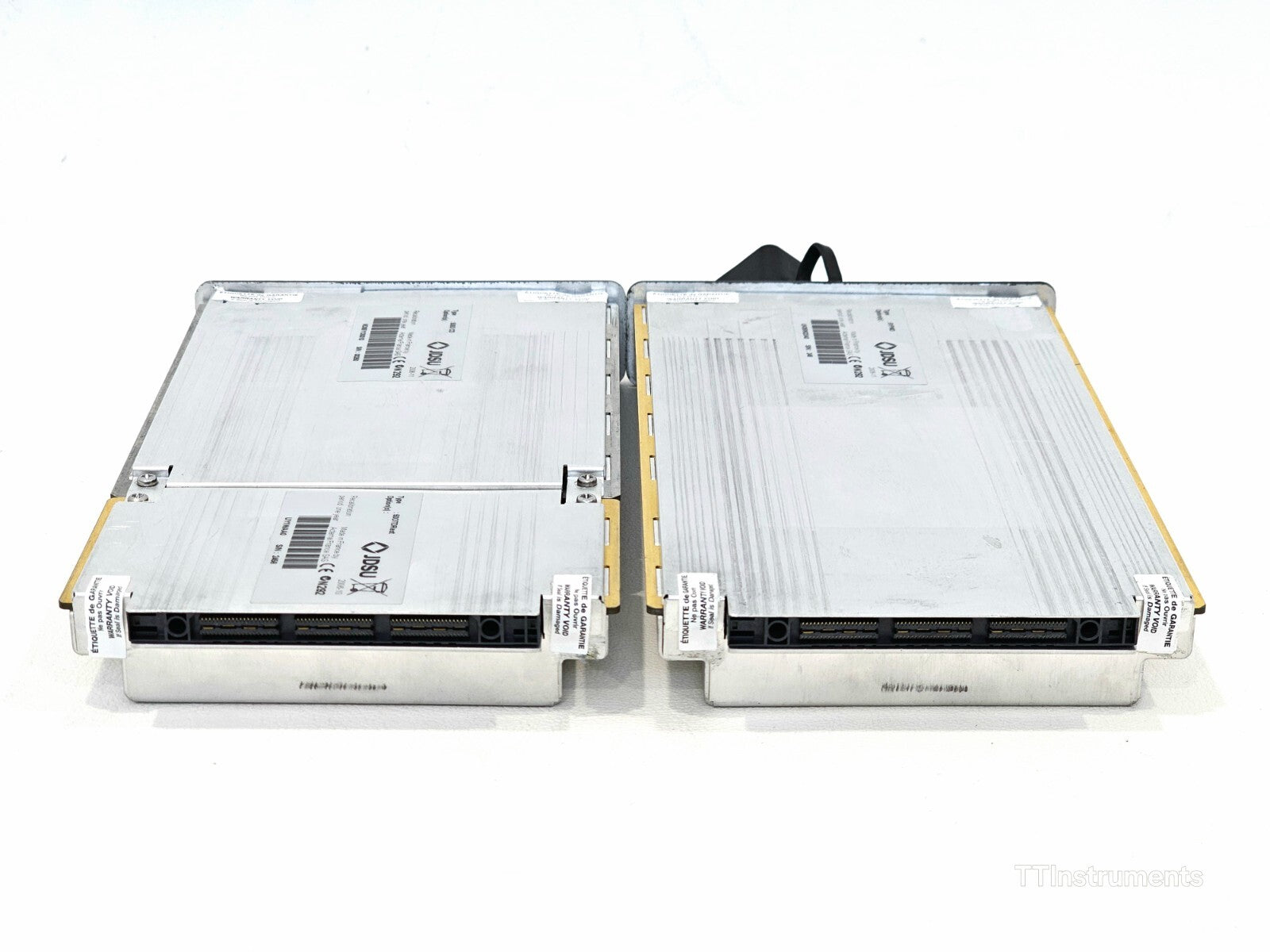

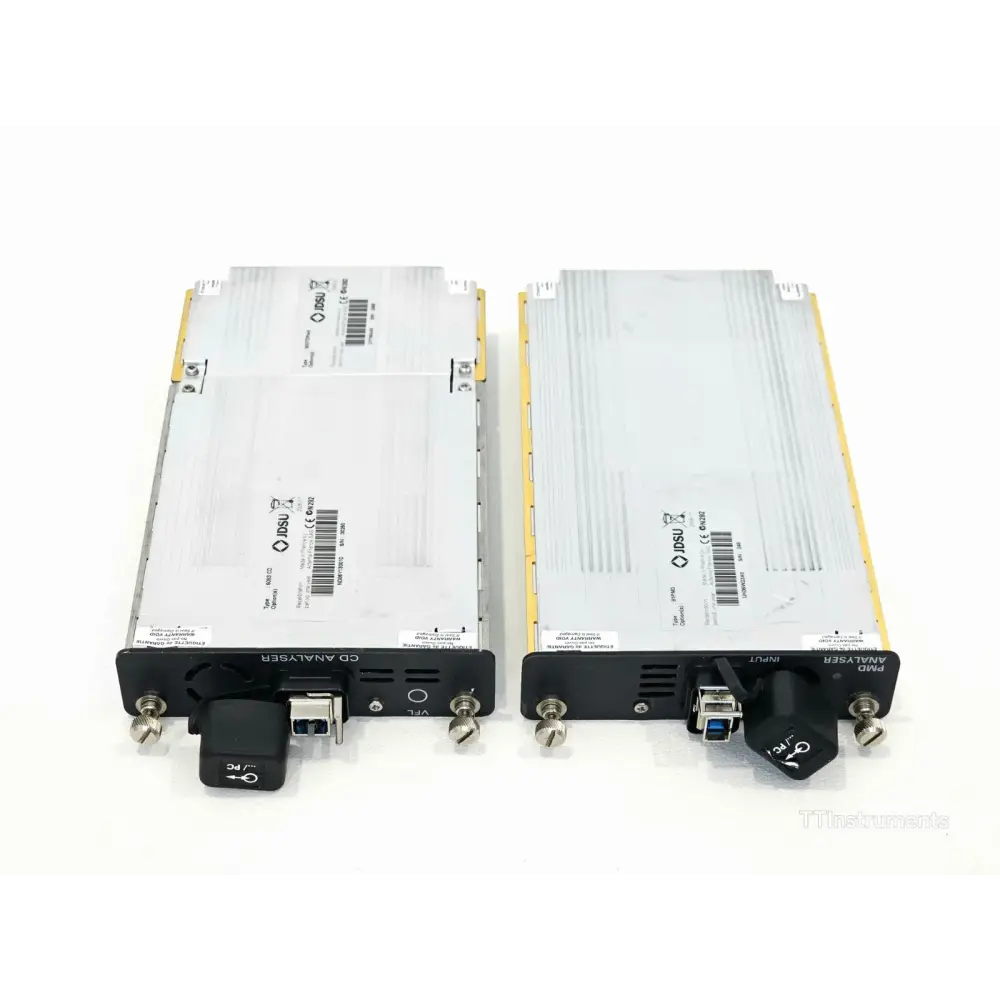

• E5083CD OTDR/CD Module — medium range, 1310/1480/1550/1625 nm

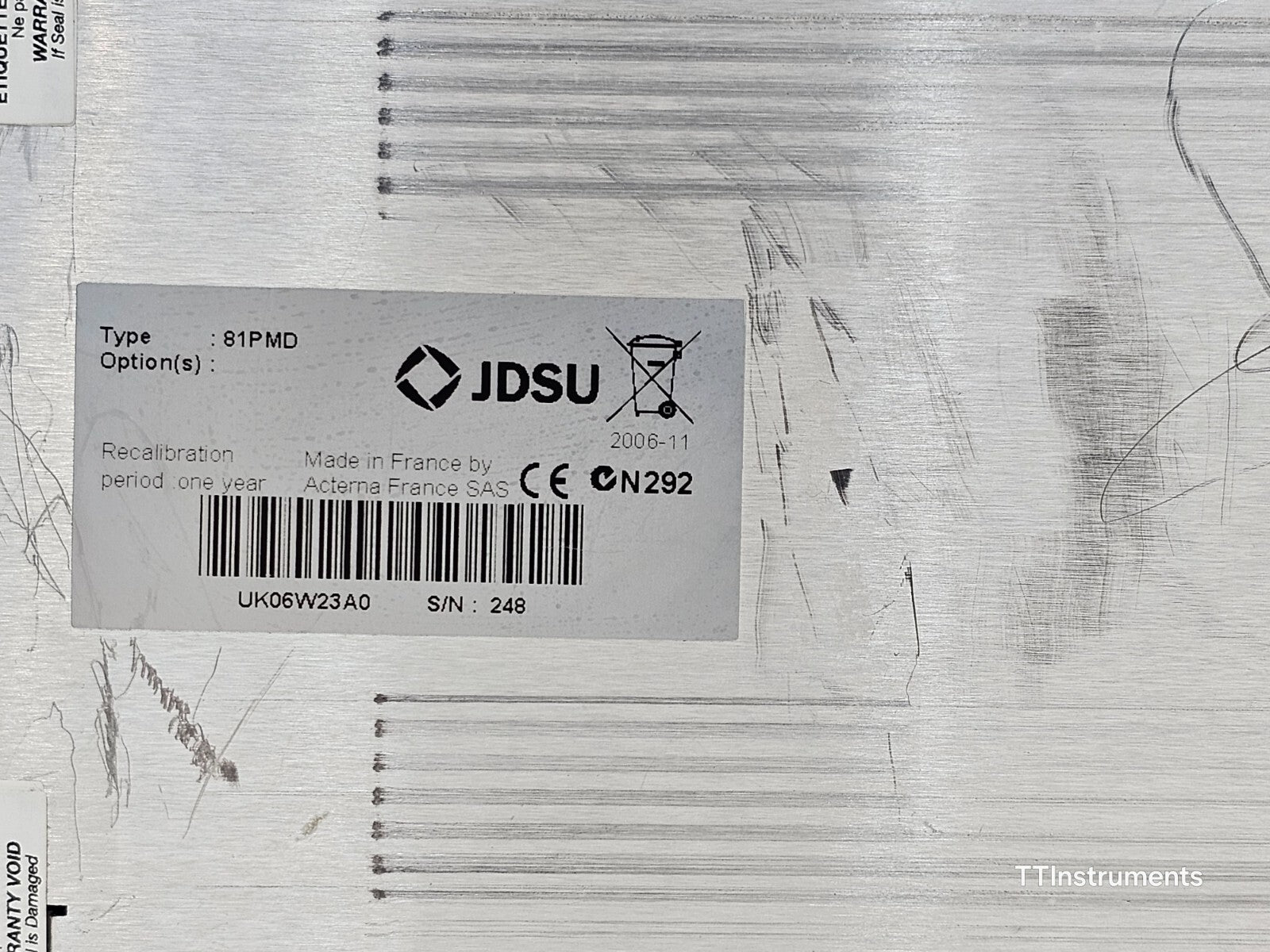

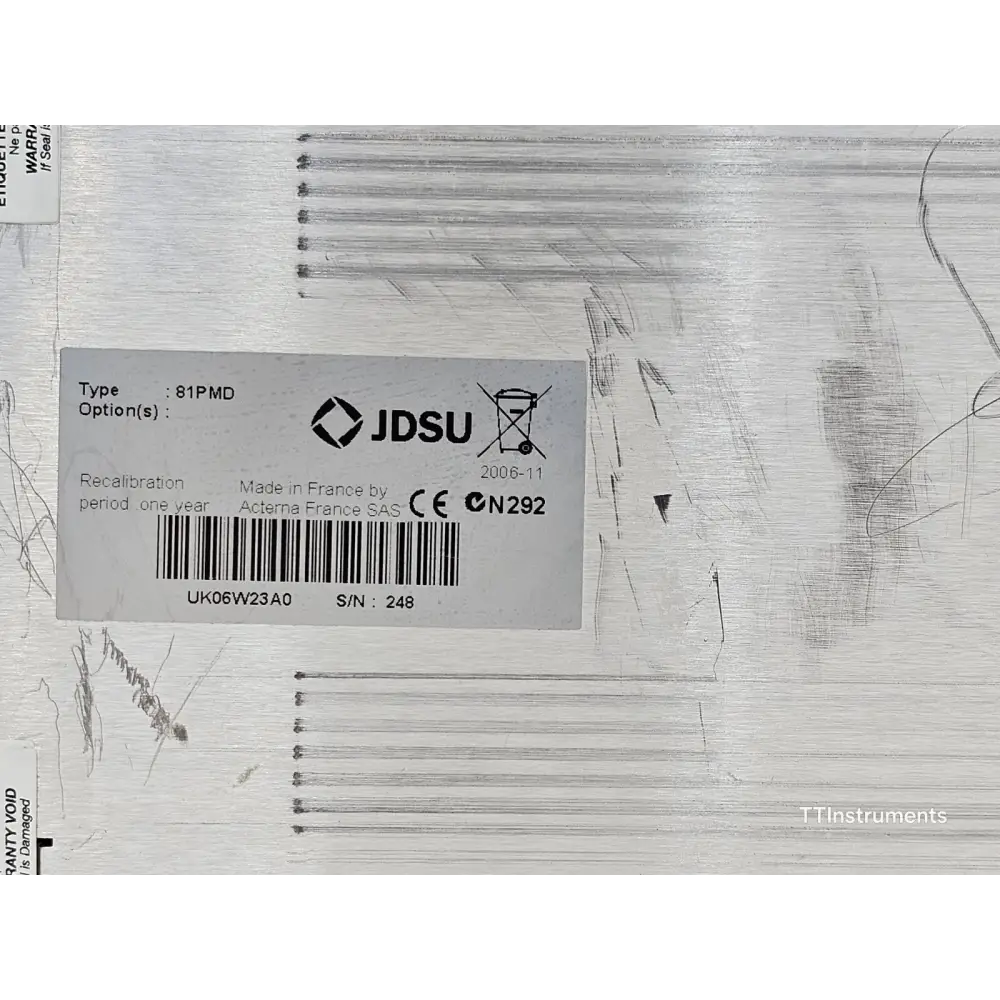

• E81PMD Module — PMD analyser, 1485–1640 nm

The Viavi (JDSU) T-BERD 8000 is a scalable multitest platform designed for the installation, maintenance, and troubleshooting of optical networks. It is a multi-application platform supporting physical, optical, Transport, and Ethernet testing. The modular architecture allows over 40 applications and hundreds of test configurations to be combined in a single field instrument. The platform supports full fibre characterisation including OTDR, chromatic dispersion (CD), polarisation mode dispersion (PMD), insertion loss (IL), optical return loss (ORL), and spectral attenuation profile testing.

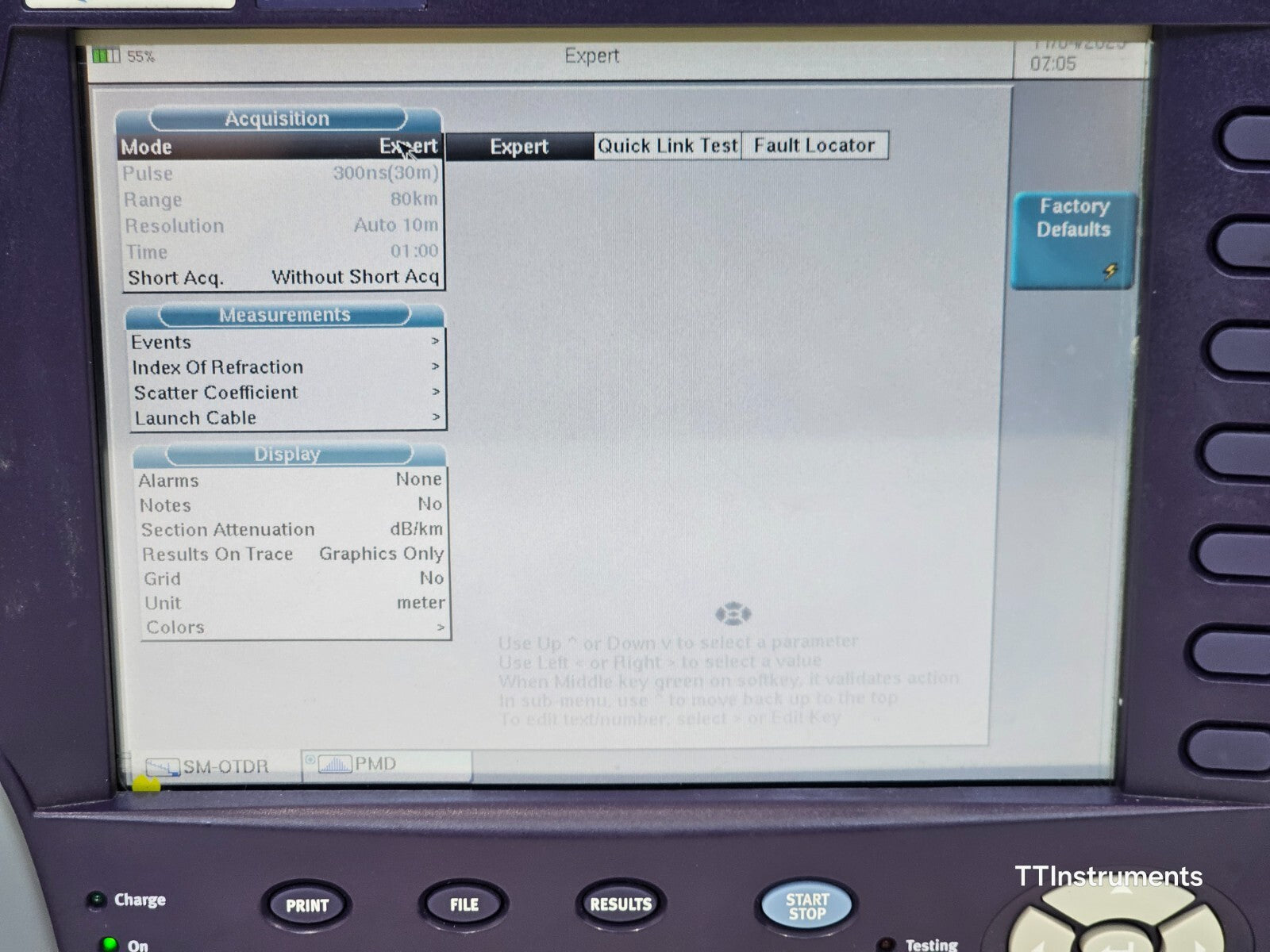

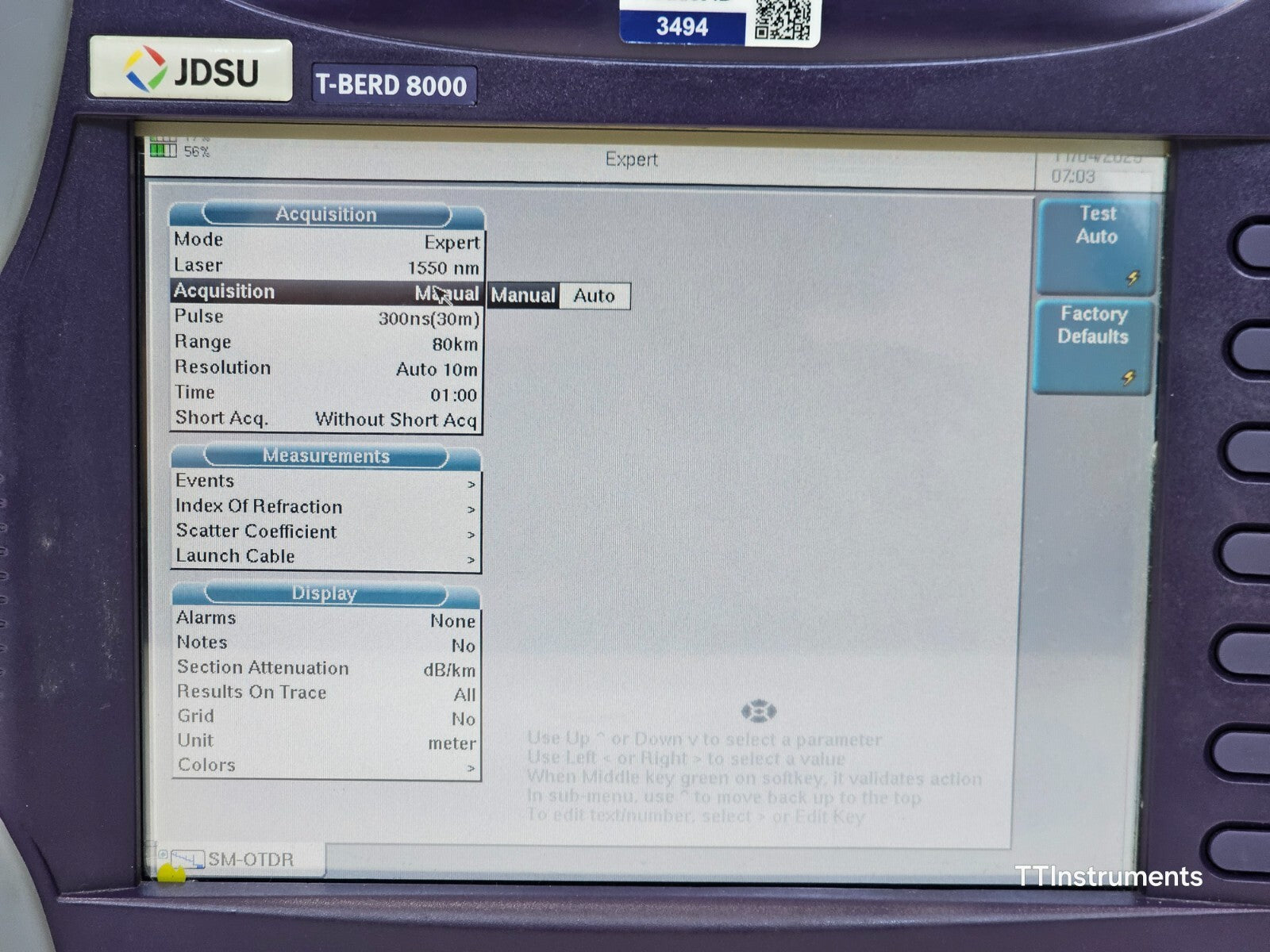

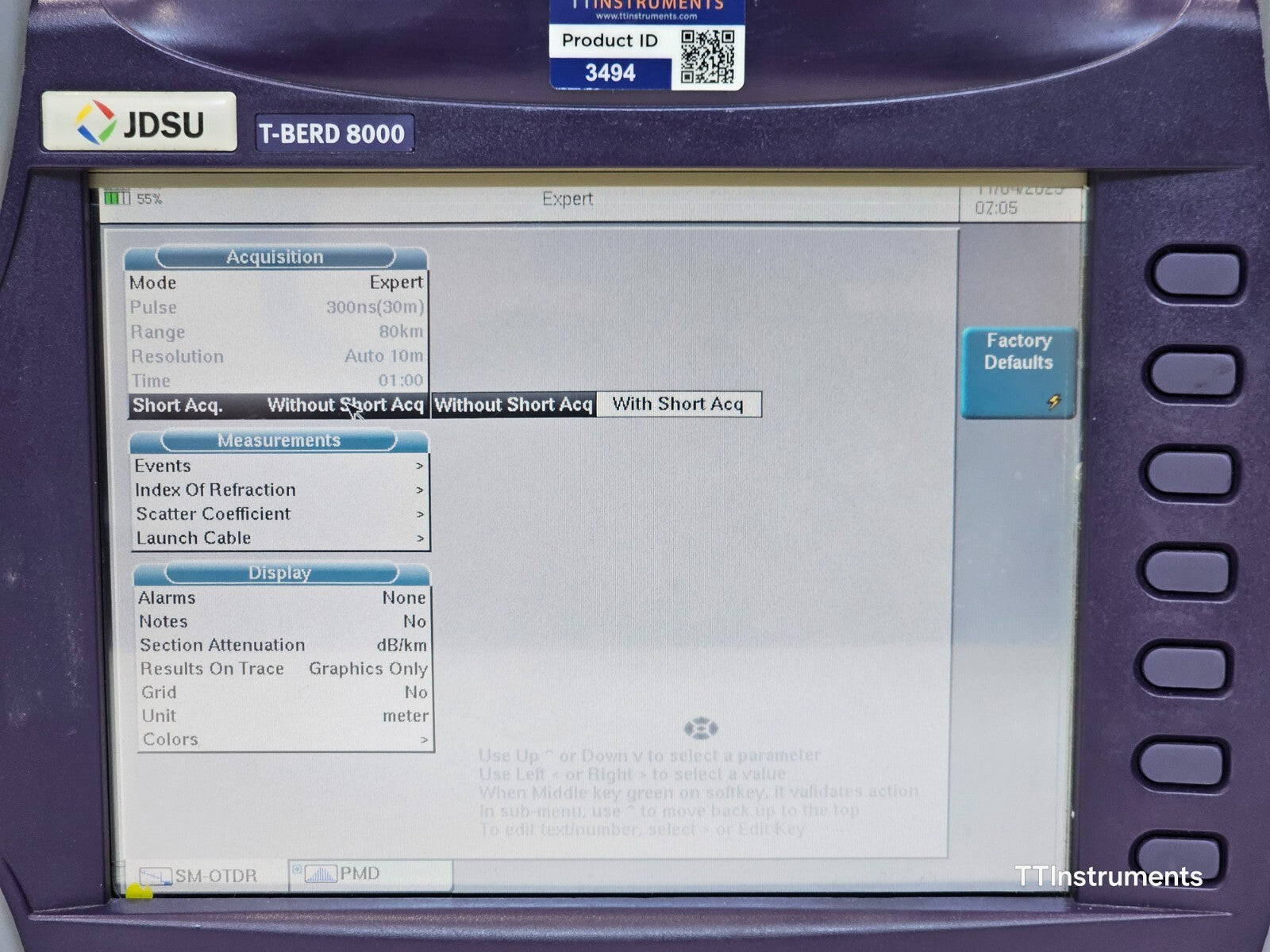

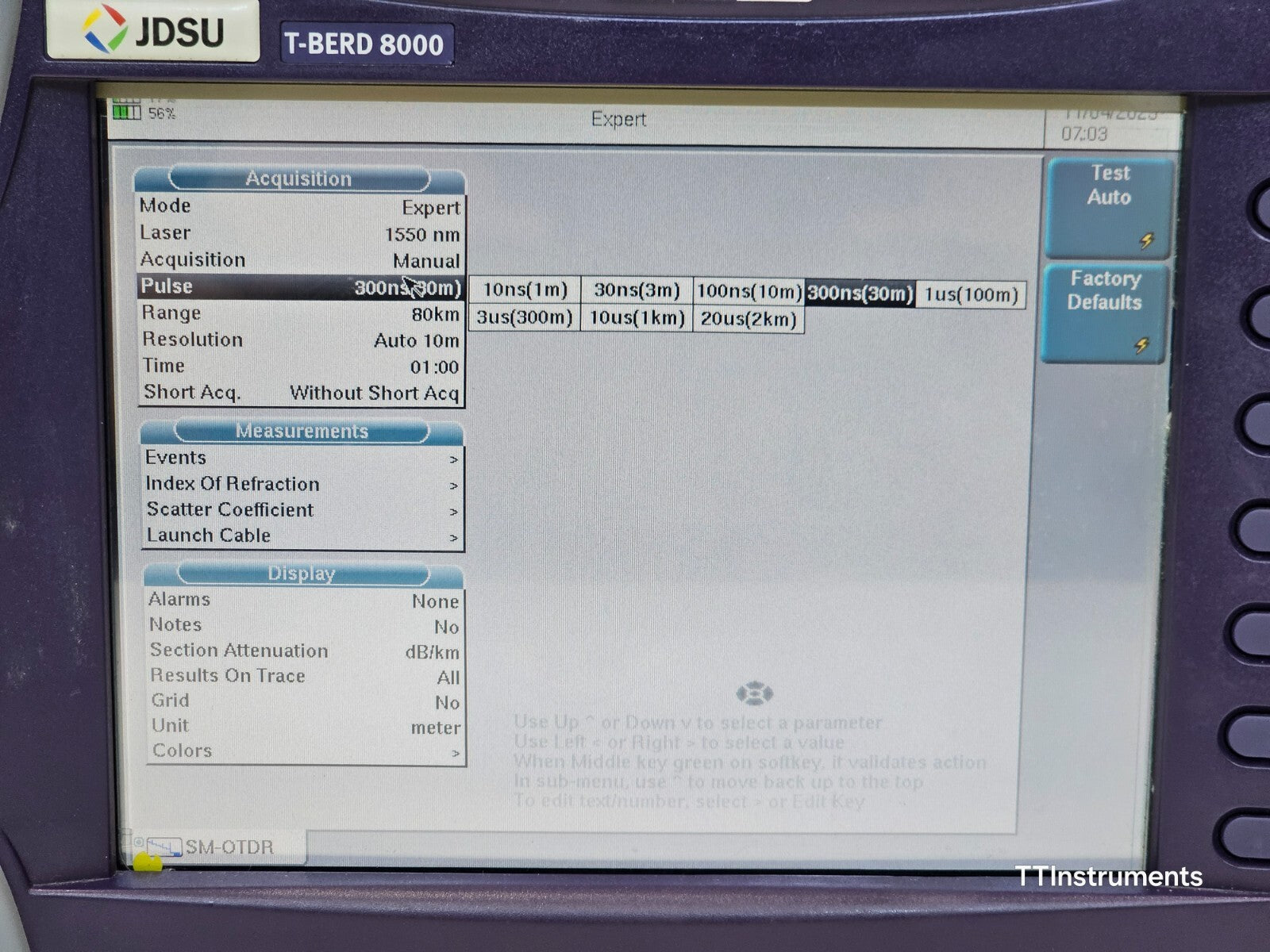

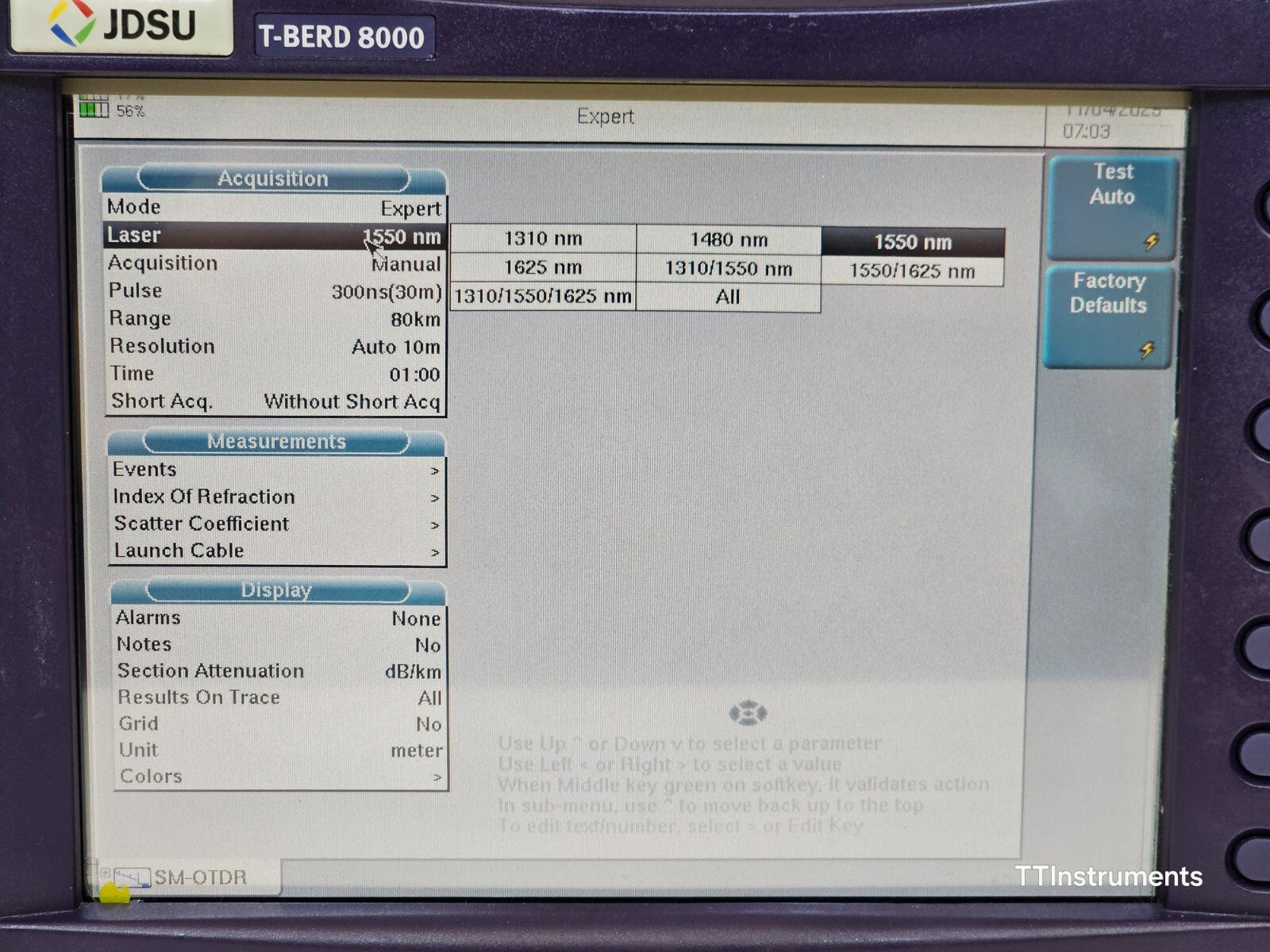

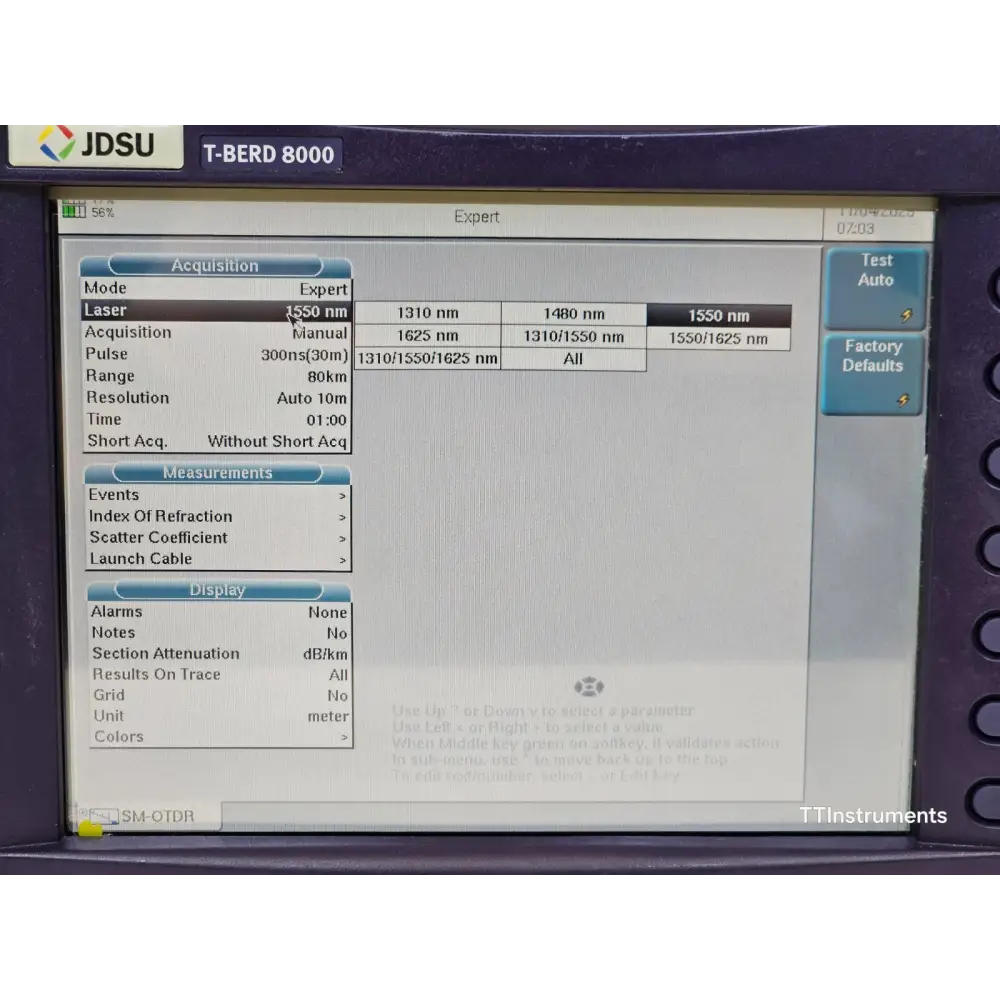

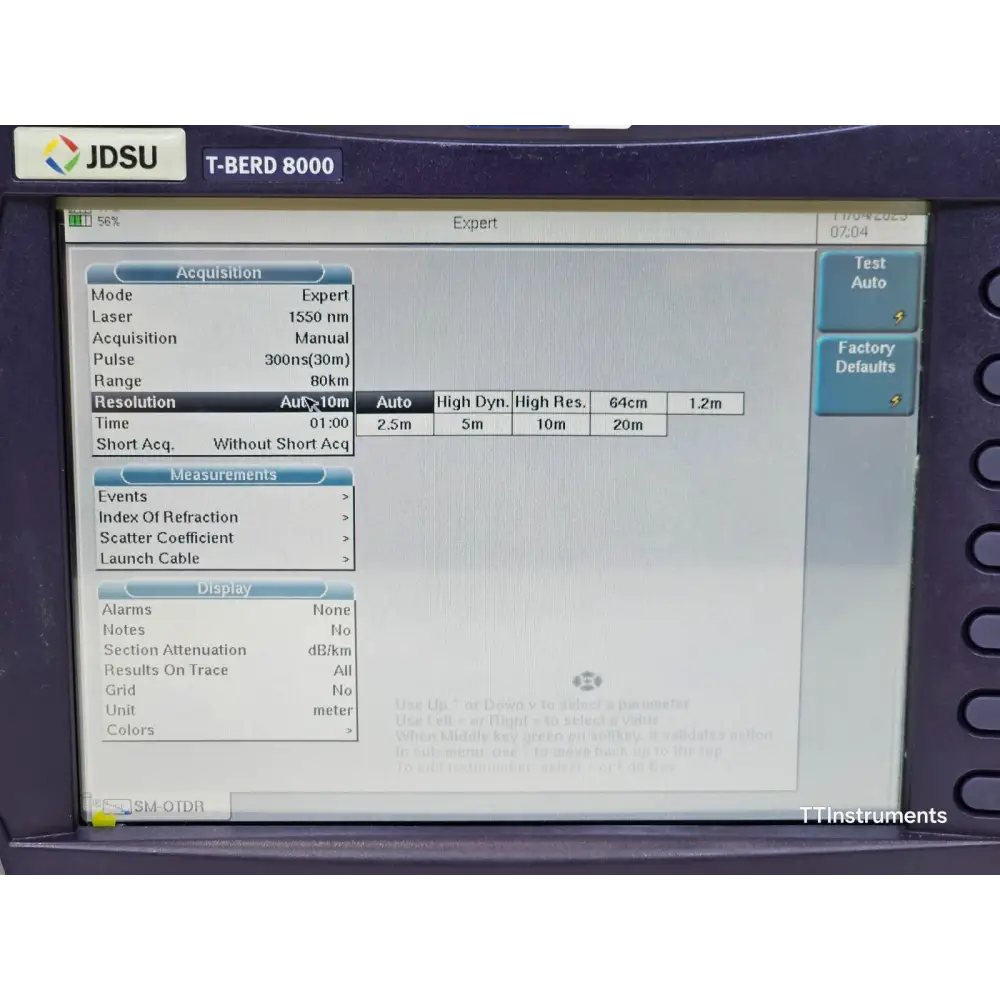

The E5083CD is the medium-range CD/OTDR module for the T-BERD/MTS-6000 and -8000 platforms. It performs a single-ended, full-band fibre characterisation from 1255 to 1650 nm at an optimised dynamic range of 35 dB. Using four CW laser wavelengths (1310, 1480, 1550, and 1625 nm), it serves simultaneously as a CD instrument, OTDR, and optical source. Applications include metro network characterisation and CWDM network qualification.

The E81PMD module provides polarisation mode dispersion (PMD) analysis for the T-BERD/MTS-6000 and -8000 platforms. It is based on the Fixed Analyser Method standardised by ITU-T G.650.2, IEC 60793-1-48, and EIA/TIA 455 FOTP-113. The module covers 1485–1640 nm and delivers fast, cost-effective PMD testing for metro DWDM deployment. It offers complete statistical analysis and long-term monitoring capabilities. The compact, rugged design with no moving parts exceeds Telcordia recommendations for durability and transport.

T-BERD 8000 Mainframe Key Specifications:
Processor: High-speed PowerPC
Display: High-visibility touch-screen LCD
Storage: 100 GB SATA hard disk

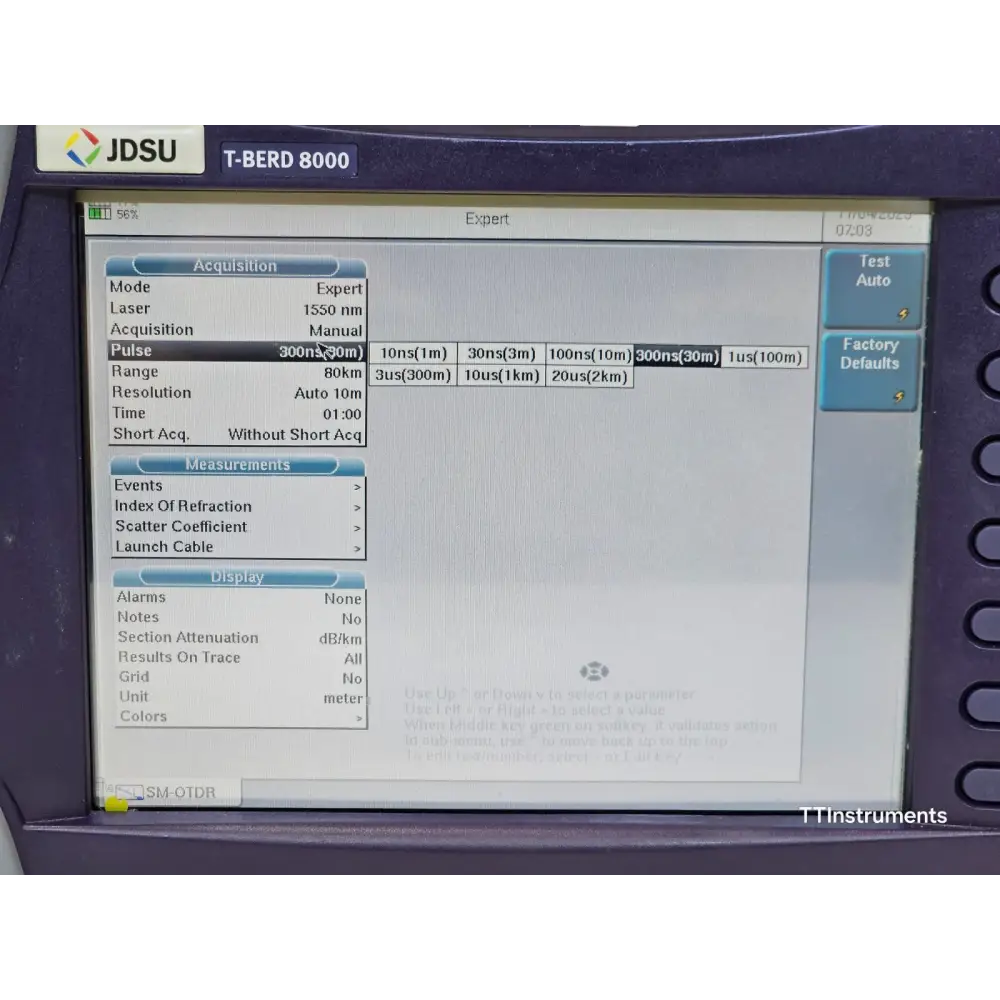

OTDR Wavelengths (singlemode): 1310 / 1550 / 1625 nm
OTDR Dynamic Range: 30 dB to 50 dB (module dependent)

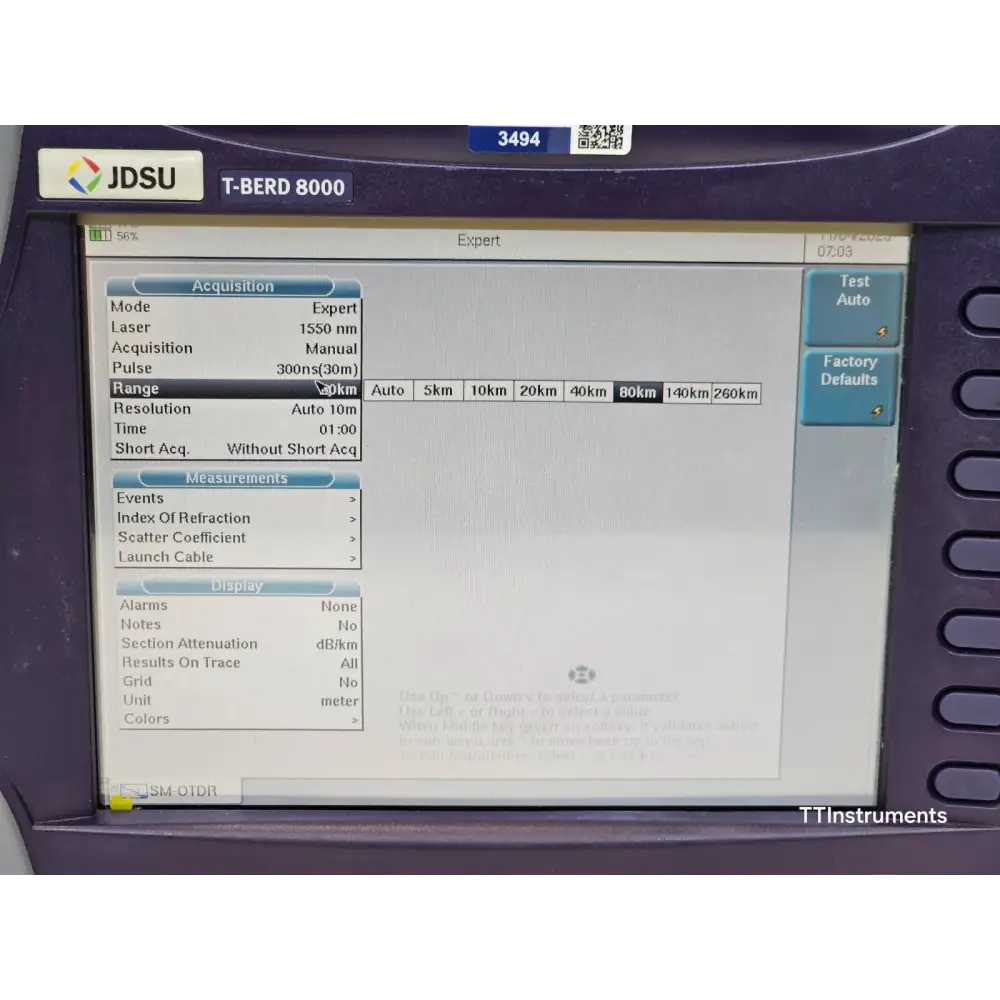

OTDR Distance Range: Up to 380 km (module dependent)
Laser Safety Class: Class 1 (21 CFR)
Operating Temperature (no options): -20 °C to +50 °C
Operating Temperature (all options): 0 °C to +40 °C
Storage Temperature: -20 °C to +60 °C
Humidity: 95% non-condensing
EMC: CE compliant

E5083CD Module Specifications:

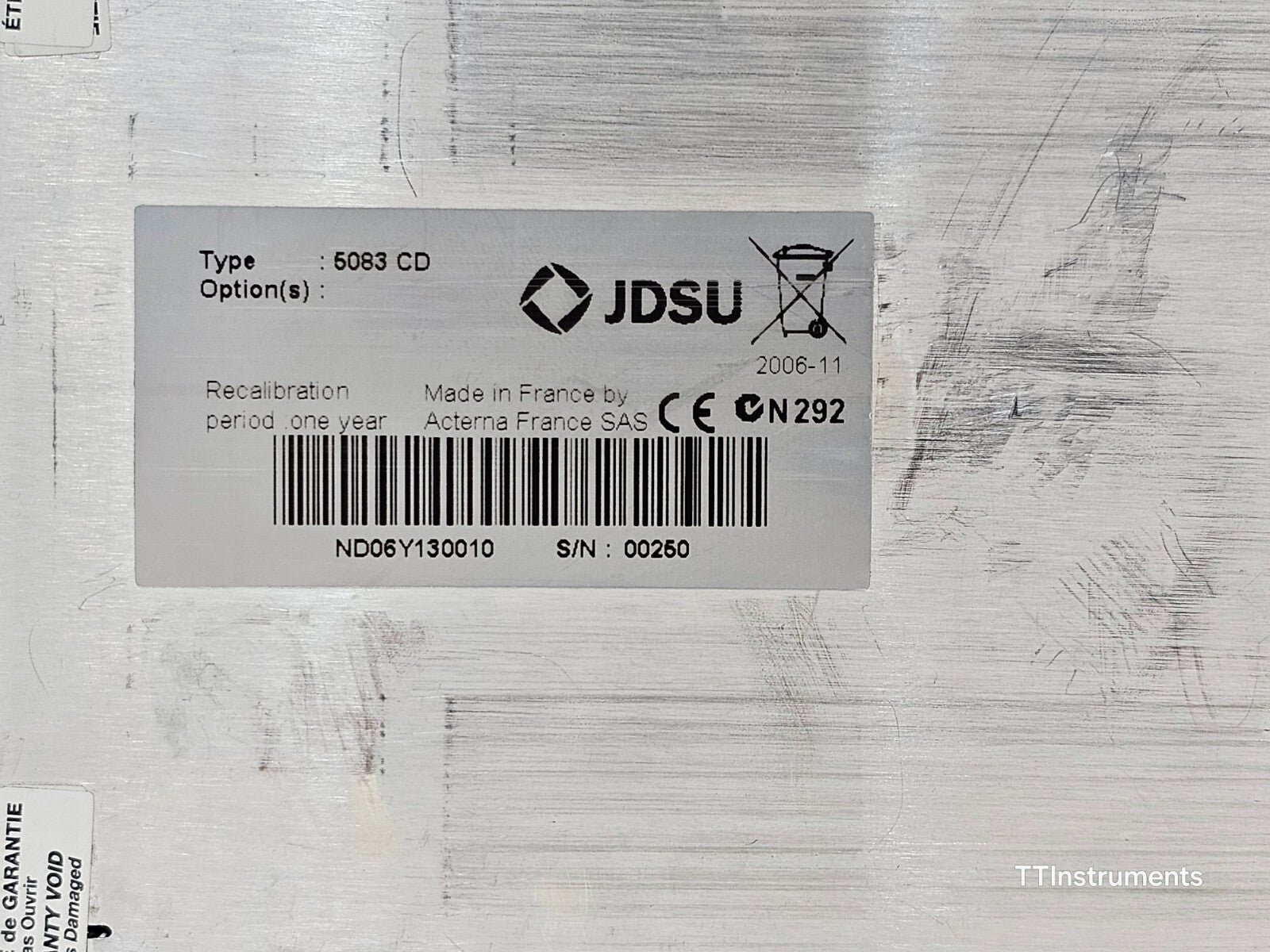

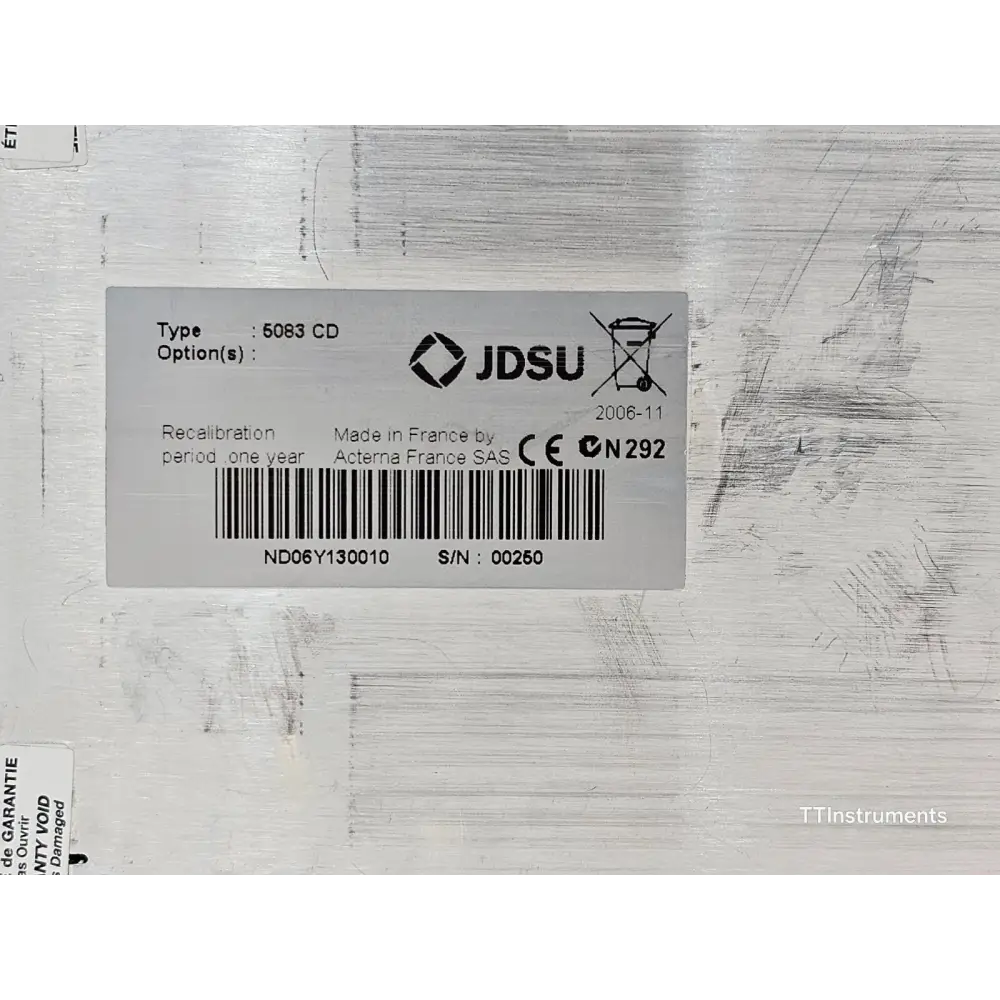

Product Code: E5083CD
Description: Medium range 1310/1480/1550/1625 nm OTDR/CD module
CD Measurement Band: 1255–1650 nm
CD Dynamic Range: 35 dB
Wavelengths: 1310, 1480, 1550, 1625 nm (CW DFB lasers)
Platform Compatibility: T-BERD/MTS-6000, -6000A, -8000

E81PMD Module Specifications:
Product Code: E81PMD
Wavelength Range: 1485–1640 nm
Measurement Method: Fixed Analyser Method
Standards Compliance: ITU-T G.650.2, IEC 60793-1-48, EIA/TIA 455 FOTP-113
Platform Compatibility: T-BERD/MTS-6000, -8000

JDSU T-BERD 8000 / MTS-8000 Tester Specifications Data Sheet (PDF): Download PDF

JDSU E5083CD Chromatic Dispersion / OTDR Module Data Sheet for T-BERD/MTS-6000 & -8000 (PDF): Download PDF

JDSU E81PMD Polarisation Mode Dispersion Module Data Sheet for T-BERD/MTS-6000 & -8000 (PDF): Download PDF

VIAVI T-BERD/MTS-8000 Scalable Multitest Platform Official Data Sheet (PDF): Download PDF

JDSU T-BERD/MTS-6000, -6000A and -8000 PMD Module Data Sheet — Kentrox / VIAVI hosted (PDF): Download PDF

Acterna / JDSU MTS-8000 Tester Specifications Sheet — Silex Fiber hosted (PDF): Download PDF
