Condition: Refurbished

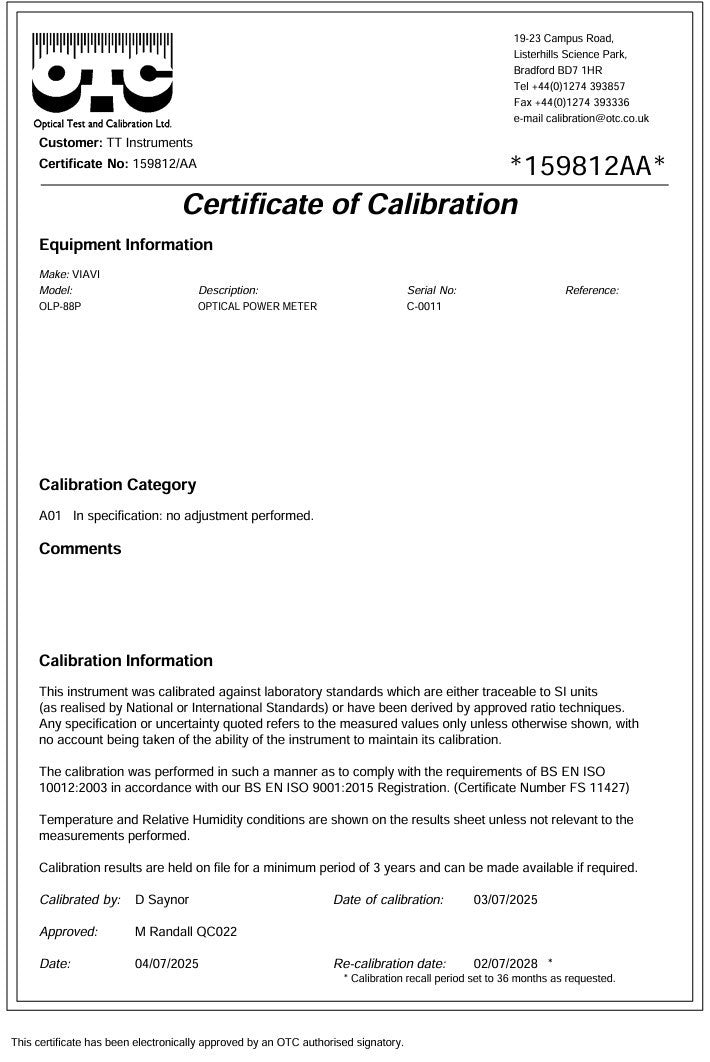

Viavi JDSU SmartClass Fiber OLP-88P TruePON tester (BN 2328/36), operating at 1310/1490/1550 nm, in good condition and professionally calibrated June 2025. Suited for GPON field activation, service complaint resolution, and ODN qualification workflows.

What's typically included:

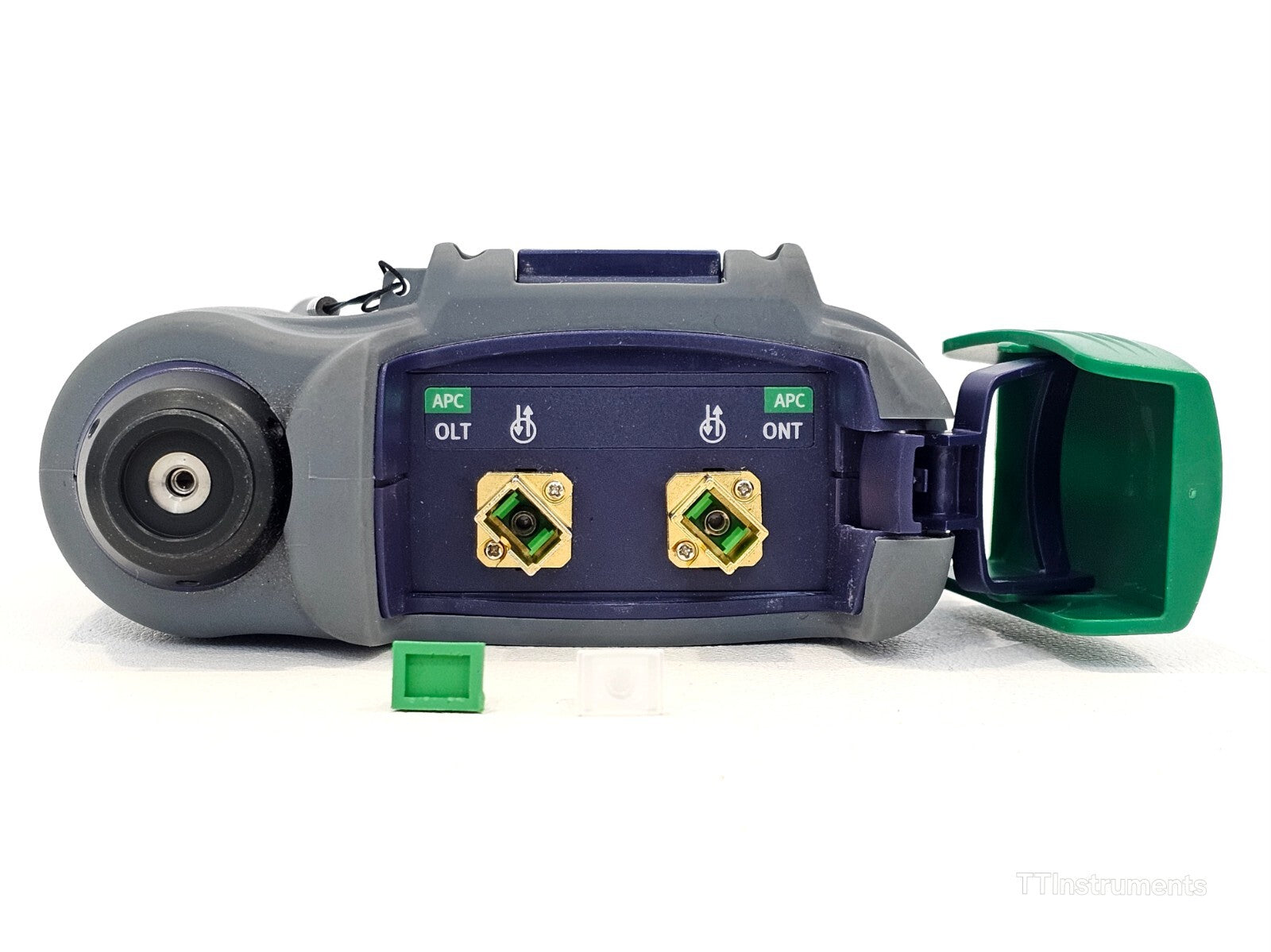

• SmartClass Fiber OLP-88P instrument with APC connector

The Viavi Solutions SmartClass Fiber OLP-88P (BN 2328/36) TruePON Tester is a compact, handheld passive optical network (PON) test instrument combining a professional GPON power meter with a built-in patch cord microscope (PCM). It is designed for field technicians performing GPON network service activation, acceptance testing, and fault resolution on live FTTH/PON networks.

Using built-in G-PON data analysis technology, the OLP-88P provides real-time, in-service measurement of fibre insertion loss, downstream and upstream power levels, and automatic ODN budget class detection. It uniquely identifies OLT and ONU/ONT devices by serial number and detects rogue and alien ONUs causing service disruptions — without interrupting live services.

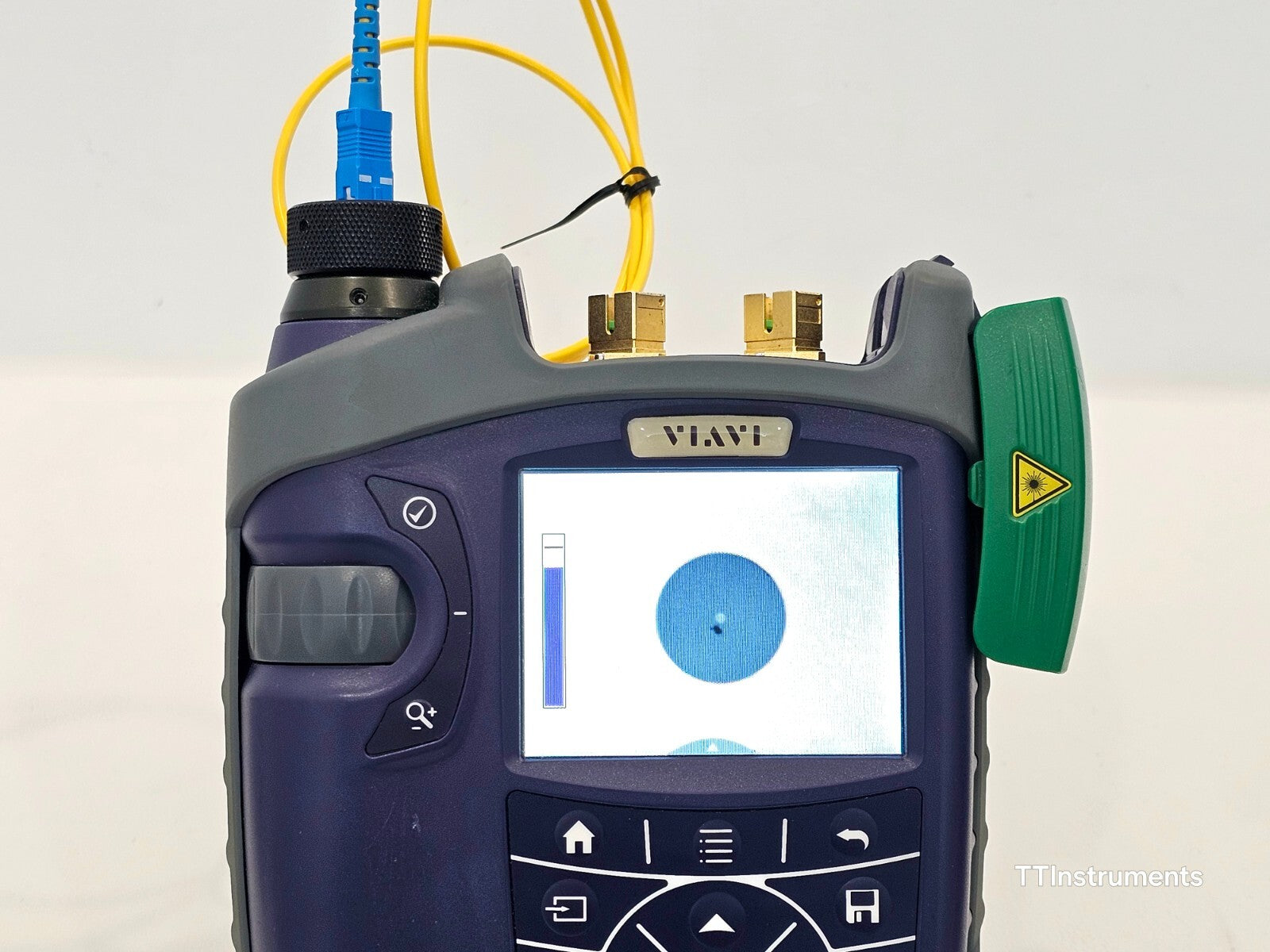

The integrated patch cord microscope supports automated pass/fail fibre end-face inspection and certification, addressing the fact that over 75% of fibre network faults are attributed to connector contamination. The instrument stores up to 10,000 test results and supports professional certification report generation, making it ideal for first-time-right GPON network acceptance.

Product Name: Viavi SmartClass Fiber OLP-88P TruePON Tester

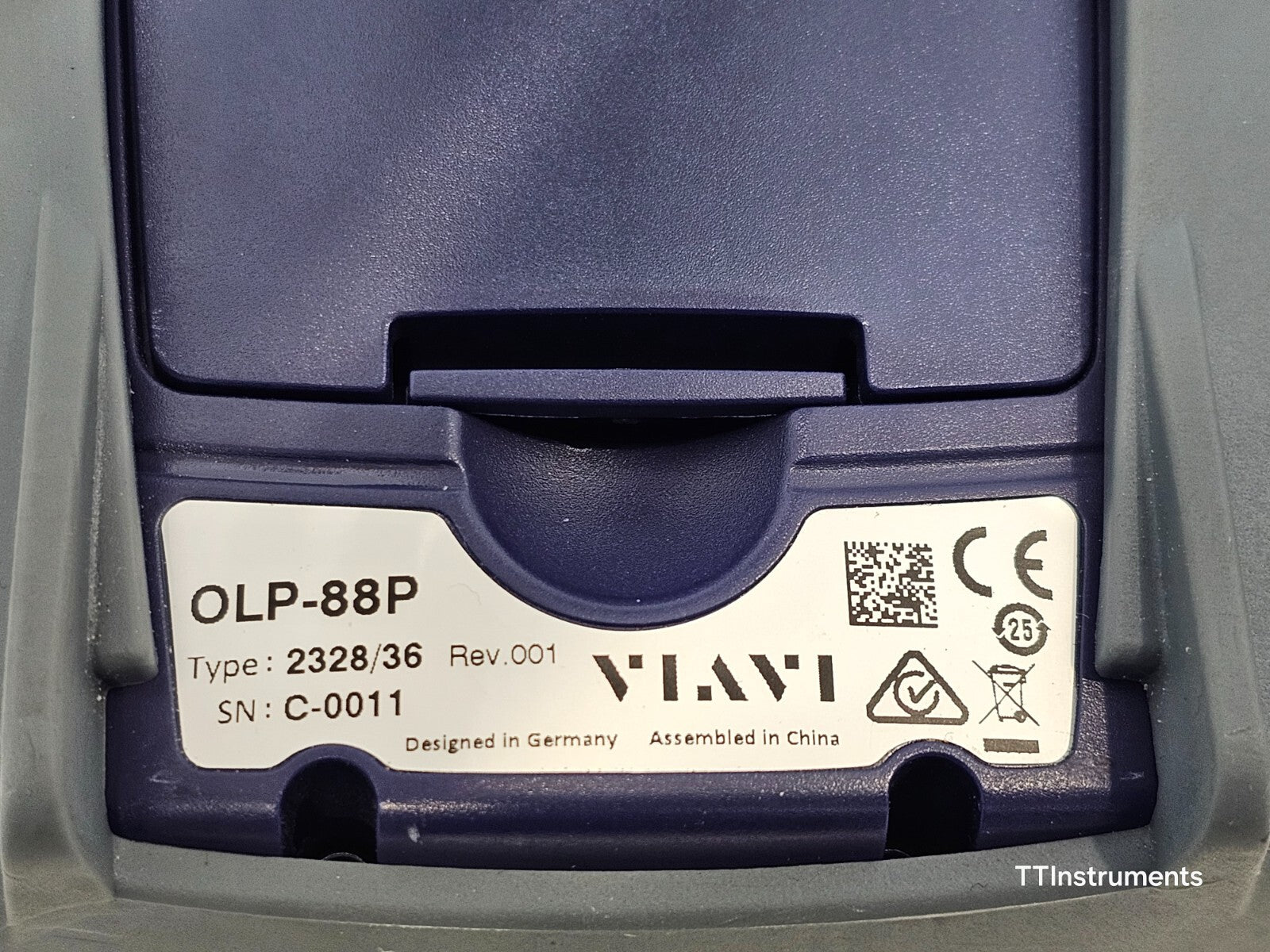

Catalogue Number: BN 2328/36
Meter Type: Wavelength-selective, through-mode power meter

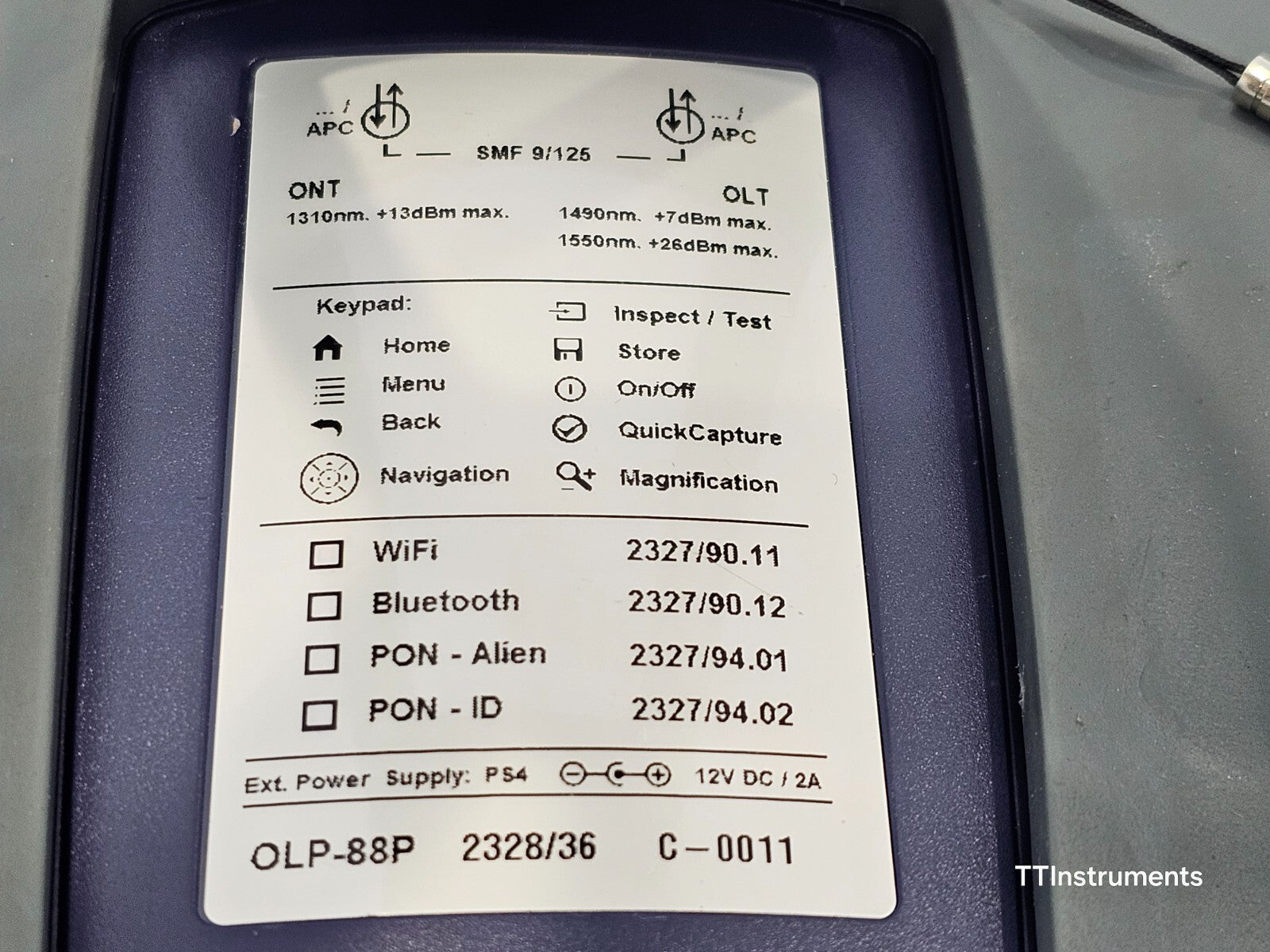

Wavelengths: 1310 nm, 1490 nm, 1550 nm
Photodetector: InGaAs
Spectral Passband: 1290–1330 nm, 1450–1495 nm, 1540–1560 nm
Measurement Resolution: 0.01 dB / 0.001 µW
Power Measurement Range (1310 nm): -40 to +13 dBm
Power Measurement Range (1490 nm): -45 to +7 dBm
Power Measurement Range (1550 nm): -45 to +26 dBm
PON-ID Measurement Range: -30 to +7 dBm (GPON)
Insertion Loss: <1.5 dB (low-insertion-loss through-mode operation)
Fibre Type: Single-mode (9/125 µm)
Display: 3.5-inch colour touchscreen
Battery Life: Up to 12 hours
Battery Type: 8 x AA alkaline or NiMH / optional RBP2 LiIon Battery Pack
External Power: 12 V DC / 2 A (PS4 Universal AC/DC Power Supply)
Nominal Input Voltage: 100–240 VAC, 47–63 Hz
Power Consumption: Max 8.5 W
Dimensions (H x W x D): 208 x 153 x 64 mm (8.2 x 6.0 x 2.5 in)
Weight: 850 g (1.85 lbs)
Operating Temperature: 0 to +40°C
Communication Interfaces: Ethernet (RJ-45), USB 2.0 Host (Type A), USB 2.0 Device (Micro-B)
Data Storage: Up to 10,000 test results
Recommended Recalibration Interval: 3 years
Key Functions: OLT identification, ONU/ONT serial number extraction, rogue/alien ONU detection, automatic ODN class detection, in-service insertion loss testing, automated fibre end-face pass/fail inspection (PCM or optional P5000i probe), professional certification report generation, StrataSync cloud data management support
Optional Software: Alien ONT detection (BN 2327/94.01), GPON-ID test (BN 2327/94.02)
Optional Hardware: WiFi adapter (BN 2327/90.11), P5000i Digital Probe with FiberChekPRO software

Viavi OLP-88/OLP-88P SmartClass Fiber TruePON Tester Operating Manual (BN 2327/98.21, 2019): Download PDF

Viavi SmartClass Fiber OLP-88/-88P TruePON Data Sheet (EN): Download PDF

Viavi SmartClass Fiber Family Technical Specifications Data Sheet (includes OLP-88P specs): Download PDF

Viavi SmartClass Fiber OLP-88/-88P TruePON Brochure (EN): Download PDF

Viavi SmartClass Fiber OLP-88 TruePON Application Note (EN): Download PDF

Viavi OLP-88P TruePON Tester Datasheet (via Test Equipment Depot): Download PDF
